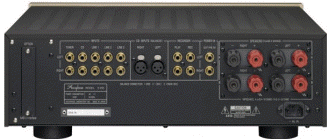

ACCUPHASE E 250 AMPLIFICATORE
INTEGRATO - 2 X 90 W 8 OHMS - 5 INGRESSI SBILANCIATI - I NGRESSO BILANCIATO (CD)
- 1 TAPE LOOP - INGRESSO DIRETTO AL FINALE - DOPPIO SET DI USCITE SPEAKER CON
SELETTORE (A, B. A+B) - CONTROLLI DI TONO E LOUDNESS ESCLUDIBILI - SELETTORE
MONO/STEREO - USCITA CUFFIA - CONTROLLO DI VOLUME AAVA II - 1 SLOT DI INGRESSO
PER SCHEDE AGGIUNTIVE (DAC-20, AD-20, LINE 10) - TELECOMANDO - DIMENSIONI MM 465
X 150 X 420 (L X A X P) - PESO 19,9 KG.
The
Accuphase E-200 series of basic integrated amplifiers enjoys an excellent
reputation both in Japan and on the international stage. The E-250 represents a
full model change of the E-213, featuring the new AAVA-II volume control and
reflecting the latest design technology advances achieved by Accuphase.
Carefully selected highquality materials and parts are used throughout, in order
to bring out even the fi nest nuances of the source. Using this integrated
amplifier affords pure musical enjoyment. In the category of integrated
amplifiers, AAVA implemented in the E-550 and AAVA-II in the E-450 and E-350
have received high praise for being a clearly superior volume control principle.The
E-250 inherits this advanced design technology. In order to fit within the more
limited space available, circuitry and component layout have been further
refined and advanced integration technology is used to increase mounting
density. This was achieved while retaining the outstanding performance that made
AAVA and previous AAVA-II implementations such impressive feats of technology.
AAVA-II in the E-250 of course also completely eliminates variable resistors
from the signal path. Amplification and volume control are integrated in a
single entity consisting only of top-quality and highly reliable semiconductor
parts. This eliminates mechanical wear and associated problems, allowing the
control to function perfectly for many years.Revolutionary AAVA-II volume
control Parallel push-pull output stage with high-power transistors delivers
plenty of quality power Instrumentation amplifier principle in power amplifier
section allows fully balanced signal transmission Current feedback topology
Logic-control relays for straight and short signal paths Robust power
supply with large transformer and high filtering capacity

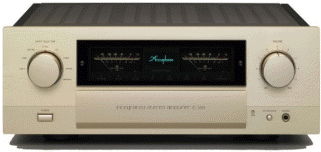

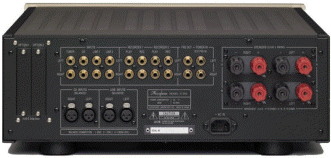

AMPLIFICATORE INTEGRATO - 2
X100 W/8 OHMS - SPECIALE VOLUME AAVA-II - 7 INGRESSI LINEA (2 BILANCIATI) + 2
SLOT PER SCHEDE OPZIONALI (AD 20, LINE 10 E DAC-20) - SEPARAZIONE PRE/FINALE -
VU METER - CONTROLLI DI TONO E BILANCIAMENTO - USCITA SPEAKERS SDOPPIATA (BIAMPLIFICAZIONE
O A/B) - TELECOMANDO The
acclaimed E-300 series has a strong following among discerning music lovers and
plays a central role in the Accuphase integrated amplifier lineup.Technological
excellence is a common theme, and know-how is inherited and further enhanced
throughout the series. The E-350 represents a full model change from the model
E-308.Featuring the revolutionary AAVA-II (Accuphase Analog Vari-gain Amplifier)
volume control, the E-350 combines latest technological sophistication with
high-grade parts and materials, resulting in an integrated amplifier capable of
bringing out the finest nuances in any music source. While AAVA in its initial
form required a considerable amount of physical space, AAVA-II delivers the same
peerless performance in a more compact form factor.The power amplifier section
is configured as an advanced instrumentation amplifier, which enables fully
balanced signal transmission throughout.In conjunction with the current feedback
principle, this makes for even better electrical characteristics.Revolutionary
AAVA-II volume control Parallel push-pulloutput stage with high-power
transistors delivers plenty of quality power Instrumentation amplifier principle
in power amplifier section allows fully balanced signal transmission Current
feedback topology Logic-control relays for straight and short signal paths
Robust power supply with large toroidal transformer and high filtering capacity
2 X 180 W/8 OHMS - SPECIALE
VOLUME AAVA-II - 6 INGRESSI LINEA (2 BILANCIATI) + 2 SLOT PER SCHEDE OPZIONALI
MM/MC AD 20/LINE 10/ DAC20 - SEPARAZIONE PRE/FINALE - VU METER -CONTROLLI DI
TONO - LOUDNESS - TELECOMANDO
Revolutionary
AAVA-II volume control Parallel push-pulloutput stage with high-power
transistors delivers plenty of quality power Instrumentation amplifier principle
enhances current feedback and MCS+ topology in power amplifier section
Logic-control relays for straight and short signal paths Robust power supply
with large toroidal transformer and high filtering capacity
2 X30 W/8 OHMS IN CLASSE A -
SPECIALE VOLUME AAVA - 6 INGRESSI LINEA (2 BILANCIATI) + 2 SLOT PER SCHEDE
OPZIONALI MM/MC AD 10/LINE 10/ DAC10 - SEPARAZIONE PRE/FINALE - VU METER
-CONTROLLI DI TONO - LOUDNESS - TELECOMANDO
The
ultimate integrated pure class A amplifier - Power MOS-FETs arranged in triple
parallel push-pull configuration. Innovative AAVA volume control. Strong power
supply with large toroidal transformer and high filtering capacity supports
linear output progression of 120 watts/ch into 2 ohms, 60 watts/ch into 4 ohms,
or 30 watts/ch into 8 ohms. Power amp section uses current feedback for optimum
high-frequency phase characteristics and MCS+ topology.Revolutionary AAVA volume
control Power MOS-FETs in triple parallel push-pull configuration driven in pure
class A Current feedback principle and MCS+ topology in power amplifier section
Logic-control relays for straight and short signal paths Tone control circuits
Strong power supply with large transformer Option board slots provide capability
for digital signal input and analog record playback
LETTORE CD CON MECCANICA ACCHUPASE OTTIMIZZATA PER LETTURA CD - CONVERTITORE
MDS++ (4 CONVERTITORI SIGMA DELTA PCM 1796 IN PARALLELO) - 2 INGRESSI E 2 USCITE
DIGITALI ELETTRICHE E OTTICHE TOSLINK - USCITE ANALOGICHE BILANCIATE E
SBILANCIATE - TELECOMANDO - DIMENSIONI 465 X 150 X 393 (LXAXP) - PESO 13,6 KG further
refi ned MDS++ type D/A converters. Fully separate transport and processor
section, with coaxial and optical transport outputs and digital inputs, allowing
easy insertion of DG-48 into signal path for sound fi eld correction in the
digital domain.High-precision CD drive, high-quality CD tray, and ultra quiet
and smooth loading mechanism MDS++ D/A converters and low-pass “Direct Balanced
Filter” with totally separate balanced and unbalanced signal paths Two sets of
transport outputs and digital inputs allow insertion of DG-48 into signal path
for sound field correction Balanced and unbalanced analog outputs

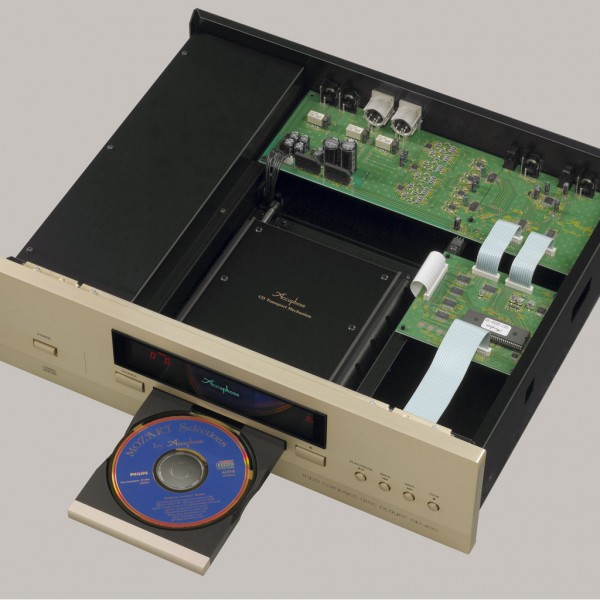

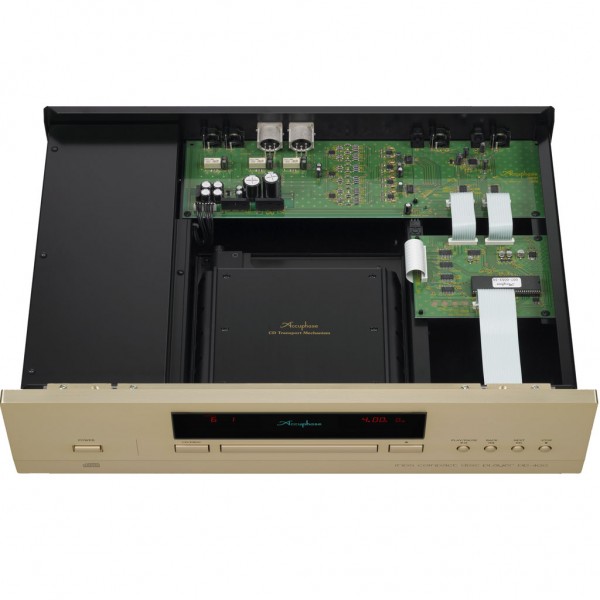

LETTORE CD CON MECCANICA
ACCHUPASE ATTIMIZZATA PER LETTURA CD - CONVERTITORE MDS++ (4 CONVERTITORI IN
PARALLELO) - 2 INGRESSI E 2 USCITE DIGITALI ELETTRICHE E OTTICHE TOSLINK -
ATTENUATORE VOLUME DIGITALE A PASSI DA 1 DB - USCITE ANALOGICHE BILANCIATE E
SBILANCIATE - TELECOMANDO - DIMENSIONI 465 X 150 X 393 (LXAXP) - PESO 16,6 KG
Dedicated
high-end CD player for ultimate musical fidelity - New high-rigidity,
high-precision drive mechanism optimized for CD reproduction. Processor section
features MDS++ type D/A converter with four parallel DACs. Independent
construction of transport section and digital processor. One set each of coaxial
and optical connectors for digital input and transport output.Newly developed
high-rigidity, high-precision CD drive MDS++type D/A converter Jitter-free
high-performance digital demodulator Direct Balanced Filter with separate analog
low-pass filtering for balanced and unbalanced signal paths Two sets of digital
inputs Two sets of transport outputs Fully digital control of CD mechanism

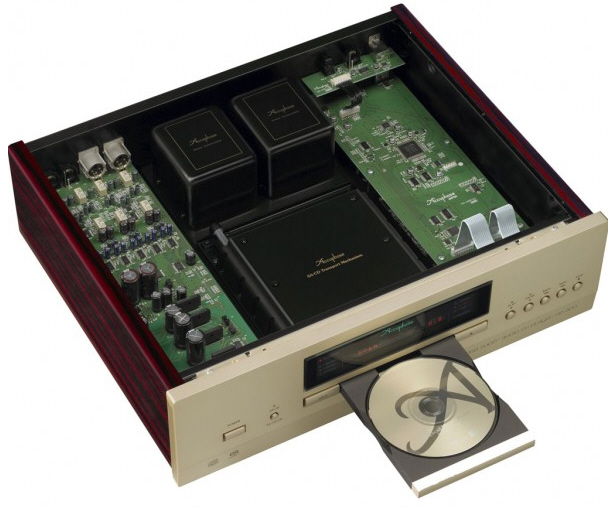

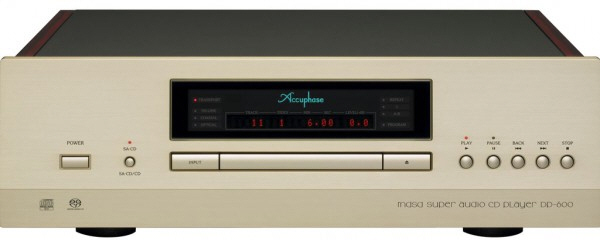

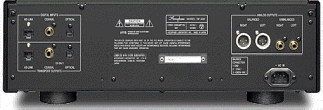

ACCUPHASE DP 600 LETTORE CD/SACD
STEREO CON MECCANICA ACCHUPASE - CONVERTITORE MDS++ (6 CONVERTITORI IN
PARALLELO) - CIRCUITO DIRECT BALANCED FILTER - STADI DI USCITA BILANCIATO E
SBILANCIATO CON CIRCUITAZIONE TOTALEMNTE SEPARATA - 3 INGRESSI E 3 USCITE
DIGITALI HS-LINK, ELETTRICHA E OTTICA TOSLINK - ATTENUATORE VOLUME DIGITALE A
PASSI DA 1 DB - TELECOMANDO - DIMENSIONI 477 X 156 X 394 (LXAXP) - PESO 18,5 KG.
The
reference-level separate-type combo DP-800/DC-801 and the integrated DP-700 with
their exclusive mechanism developed in-house by Accuphase have garnered high
praise and acclaim the world over. The new DP-600 is positioned as a companion
model to the DP-700, benefi ting from its sophisticated know-how, but it is also
a high-end integrated SA-CD player in its own right. Extensive listening tests
were conducted to ensure optimum reproduction quality. As with all Accuphase
players so far, a conscious decision was made not to support multi-channel
formats but rather focus on obtaining the ultimate in musical fi delity from
two-channel SA-CD music sources.
The high-grade SA-CD drive mechanism in the DP-600 is the ultimate tool for
extracting the information on SA-CD discs one hundred percent. It not only keeps
internal vibrations of rotating parts to a minimum, but is also highly
impervious to external vibrations. This ensures that the digital signal remains
in a highly pure and accurate state. A dedicated DSP chip controls the digital
servo, allowing the digital signal encoded on the SA-CD in DSD (Direct Stream
Digital) format to be processed with utmost accuracy. The high-speed access
mechanism with its singlelens/ twin laser diode combines optimum precision with
lightning-swift operation.High-grade SA-CD/CD drive Innovative MDSD digital
signal processing MDS++ type D/A converter using six parallel devices
"Direct Balanced Filter" with totally separate balanced and unbalanced signal
paths HS-Link digital interface Transport outputs and digital inputs
allow insertion of DG-48 into signal path for sound field correction Balanced
and unbalanced analog outputs

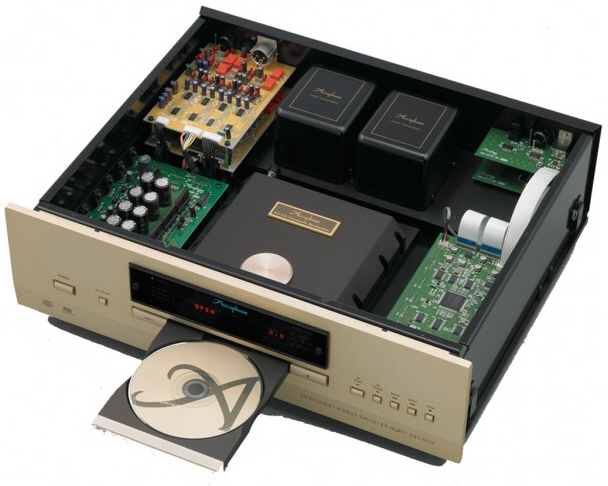

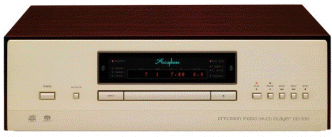

ACCUPHASE DP700€.20.500,00 Per offerta TELEFONA / E-MAIL
LETTORE CD/SACD STEREO CON
MECCANICA ACCHUPASE - CONVERTITORE MDS++ (8 CONVERTITORI IN PARALLELO) -
CIRCUITO ULTA JITTER-FREE PLUS - STADI DI USCITA BILANCIATO E SBILANCIATO CON
CIRCUITAZIONE TOTALEMNTE SEPARATA - 3 INGRESSI E 3 USCITE DIGITALI HS-LINK,
ELETTRICHA E OTTICA TOSLINK - ATTENUATORE VOLUME DIGITALE A PASSI DA 1 DB -
USCITE ANALOGICHE BILANCIATE E SBILANCIATE - TELECOMANDO - DIMENSIONI 477 X 156
X 394 (LXAXP) - PESO 27 KG
When
Accuphase introduced the ultimate separate-type SA-CD/CD player, the models
DP-800 and DC-801, a new epoch in audio history had begun.Garnering worldwide
acclaim both for their technological excellence and sound quality, the transport
and processor pair has become the new reference for SA-CD reproduction. The new
DP-700 is an integrated type SA-CD player incorporating that very same
state-of-the-art technology.In the transport section, a dedicated DSP chip
controls the digital servo to assure accurate readout of the signal recorded on
the SA-CD. Another vital aspect is the single-lens/twin laser diode pickup
mounted to a high-speed positioning mechanism, providing a significant
improvement in read access times and accuracy.The processor section features the
innovative MDSD principle forming a sophisticated moving average filter circuit,
together with the MDS++ D/A system that keeps conversion errors to an absolute
minimum and at the same time acts as high-cut filter efficiently removing noise
components in the high frequency domain.Internally, the transport and processor
sections of the DP-700 are kept entirely separate. Digital inputs allow
independent use of the processor section for external sources to enjoy music
reproduction with the same superb quality.High-rigidity, high-precision SA-CD/CD
drive Innovative digital signal processor with MDSD technology MDS++ D/A
converter with eight DACs driven in parallel "Ultra Jitter-Free Plus" PLL
circuit "Direct Balanced Filter" with totally separate balanced and unbalanced
signal paths Transport outputs and digital inputs m Accuphase HS-Link
digital interface

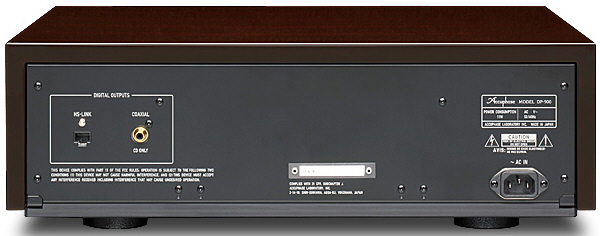

UNITA` DI LETTURA CON
MECCANICA ACCHUPASE ATTIMIZZATA PER LETTURA CD/SACD - USCITA DIGITALE HS-LINK(CONNETTORE
RJ 45 - CAVO DEDICATO) USCITA COASSIALE FORMATO EIA CP1201 - DOPPIO LASER SU
LENTE SINGOLA PER LETTURA OTTIMALE SACD/CD
For
some time now, Accuphase engineers have been engaged in an ambitious in-house
development project: to create the ultimate SA-CD drive. With the introduction
of the DP-800, this project has now come to fruition, culminating in the SA-CD
transport mechanism incorporated in this model.Compared to a CD drive, an SA-CD
drive has a higher revolution rate, and pickup positioning accuracy as well as
suppression of vibrations must be of a higher order, to allow full access to the
enormous amount of information stored on the disc. This in turn places
formidable requirements on the mechanical construction of the drive.The
transport in the DP-800 meets these challenges in impressive fashion, being
designed to extract the information on the SA-CD one-hundred percent. The
product demonstrates ultimate mechanical precision matched with ingenuity and
the famous Accuphase dedication to sonic excellence.The ultra-massive SA-CD
drive combines superior rigidity with rock-stable accuracy. Truly a monumental
event in the world of high-end audio.
In the transport, a digital servo with a dedicated DSP assures accurate readout
of the signal recorded on the SA-CD using the DSD (Direct Stream Digital)
principle. This is sustained by a single-lens/twin laser diode pickup mounted to
a high-speed access mechanism. The transport not only realizes optimal
reproduction of SA-CDs, it also is capable of extracting a super accurate signal
from conventional CDs. The output for both SA-CD and CD is provided via the
Accuphase exclusive high-performance digital interface HS-Link (RJ-45 connector),
while the CD output is also available via a coaxial connector. The HS-Link cable
supplied with the DP-800 can be used for connection to the DC-801 or to other
components.Newly developed high-rigidity, high-precision SA-CD/CD drive SA-CD
transport supplies remarkably pure digital signal Excellent signal quality also
from conventional CD media Single-lens/twin pickup high-speed access mechanism
Support for text data display Accuphase´s proprietary digital audio interface
HS-Link (carries both SA-CD and CD signal) Dedicated coaxial output for CD
signal Power-on play feature allows automatic playback Remote commander RC-100 (supplied
with DP-800)· Controls DP-800 functions such as direct play, program play,
repeat, etc.· Controls DC-801 functions such as input switching and output level
adjustment Both DP-800 and DC-801 feature massive cabinets made of persimmons
Wood
CONVERTITORE D/A MULTIFORMATO
(CD SACD) - CONVERTITORE DOTATO DI 8 UNITA` MDS++ OPERANTI IN PARALLELO -
INGRESSI DIG. HS-LINK, COAXIAL, OTTICA - USCITE DIGITALI COAX, OTTICA -
FREQUENZE DI CAMPIONAMENTO 32 - 44,1 - 48 - 88,2 - 96 176,4 - 192 KHZ - 2.8224
MHZ. - USCITE BILANCIATE E SBILANCIATE - CONTROLLO DI VOLUME DIGITALE -
INVERTITORE DI FASE
For
some time now, Accuphase engineers have been engaged in an ambitious in-house
development project: to create the ultimate SA-CD drive. With the introduction
of the DP-800, this project has now come to fruition, culminating in the SA-CD
transport mechanism incorporated in this model.Compared to a CD drive, an SA-CD
drive has a higher revolution rate, and pickup positioning accuracy as well as
suppression of vibrations must be of a higher order, to allow full access to the
enormous amount of information stored on the disc. This in turn places
formidable requirements on the mechanical construction of the drive.The
transport in the DP-800 meets these challenges in impressive fashion, being
designed to extract the information on the SA-CD one-hundred percent. The
product demonstrates ultimate mechanical precision matched with ingenuity and
the famous Accuphase dedication to sonic excellence.The ultra-massive SA-CD
drive combines superior rigidity with rock-stable accuracy. Truly a monumental
event in the world of high-end audio.
In the transport, a digital servo with a dedicated DSP assures accurate readout
of the signal recorded on the SA-CD using the DSD (Direct Stream Digital)
principle. This is sustained by a single-lens/twin laser diode pickup mounted to
a high-speed access mechanism. The transport not only realizes optimal
reproduction of SA-CDs, it also is capable of extracting a super accurate signal
from conventional CDs. The output for both SA-CD and CD is provided via the
Accuphase exclusive high-performance digital interface HS-Link (RJ-45 connector),
while the CD output is also available via a coaxial connector. The HS-Link cable
supplied with the DP-800 can be used for connection to the DC-801 or to other
components.Newly developed high-rigidity, high-precision SA-CD/CD drive SA-CD
transport supplies remarkably pure digital signal Excellent signal quality also
from conventional CD media Single-lens/twin pickup high-speed access mechanism
Support for text data display Accuphase´s proprietary digital audio interface
HS-Link (carries both SA-CD and CD signal) Dedicated coaxial output for CD
signal Power-on play feature allows automatic playback Remote commander RC-100 (supplied
with DP-800)· Controls DP-800 functions such as direct play, program play,
repeat, etc.· Controls DC-801 functions such as input switching and output level
adjustment Both DP-800 and DC-801 feature massive cabinets made of persimmons
Wood
ACCUPHASE C 27
PREAMPLIFICATORE DEDICATO AGLI INGRESSI PHONO - CIRCUITAZIONE MM E MC SEPARATA -
EQUALIZZAZIONE CON DEVIAZIONE MASSIMA DALLA CURVA RIIA DI 0,3 DB - IMPEDENZA
VARIABILE SU 3 POSIZIONI PER MM E 6 POSIZIONI PER MC - TRE INGRESSI SBILANCIATI
- USCITE SBILANCIATA E BILANCIATA - FILTRO SUBSONICO - GUADAGNO VARIABILE SU DUE
POSIZIONI (+ 10 DB) - DIMENSIONI (LXAXP) 465 X 121 X 405 MM - PESO KG.14,5

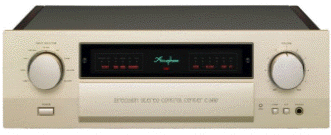

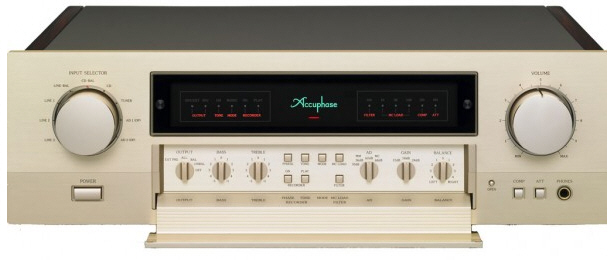

ACCUPHASE C 2410
PREAMPLIFICATORE TOP LEVEL - DERIVATO DAL C2800 - SPECIALE CONTROLLO DI VOLUME
ANALOGICO AAVA-II - 5 INGRESSI SBILANCIATI, DUE BILANCIATI PIù DOPPIA BARRA DI
REGISTRAZIONE - USCITE SDOPPIATE SIA SBILANCIATE CHE BILANCIATE - DUAL MONO -
PREDISPOSIZIONE 2 SCHEDE OPZIONALI - TELECOMANDO

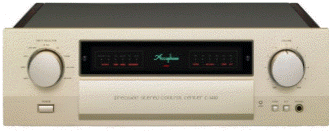

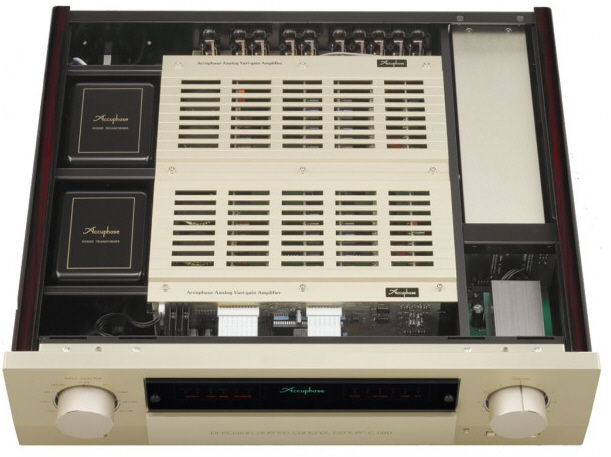

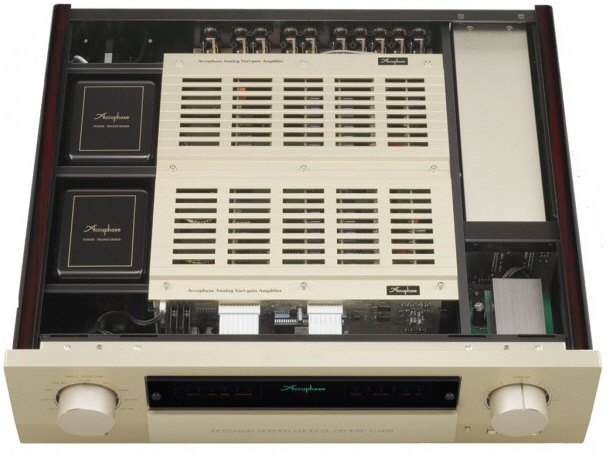

The
C-2410 inherits the superb design technology of the C-2810, including the
improved AAVA (Accuphase Analog Vari-gain Amplifier) volume control with similar
specs and configuration. AAVA is a revolutionary concept that takes a radically
different approach from conventional volume controls. The result is high
performance and sound quality far exceeding conventional designs.
Logic-controlled relays assure high sound quality and long-term reliability EXT
PRE function allows use of external preamplifier Selectable preamp gain
Independent phase selection for each input position Dedicated headphone
amplifier optimized for sound quality Aluminum-base side panels with persimmons
wood finish provide a striking visual appeal Tone controls using summing active
filters for highest sound quality

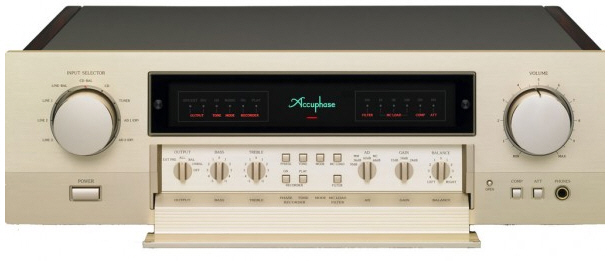

ACCUPHASE C 2410
PREAMPLIFICATORE TOP LEVEL - DERIVATO DAL C2800 - SPECIALE CONTROLLO DI VOLUME
ANALOGICO AAVA-II - 5 INGRESSI SBILANCIATI, DUE BILANCIATI PIù DOPPIA BARRA DI
REGISTRAZIONE - USCITE SDOPPIATE SIA SBILANCIATE CHE BILANCIATE - DUAL MONO -
PREDISPOSIZIONE 2 SCHEDE OPZIONALI - TELECOMANDO
Meet
the new flagship model - Preamplifier with further improved revolutionary AAVA
volume control. Complete dual mono construction with two R-toroidal power
transformers. Modular amplifiers using printed circuit boards made from Teflon.
Independent phase selection for each input position. Phono Equalizer Unit
allowing high-quality playback of analog records.Revolutionary AAVA volume
control Fully modular construction with individual left/right amplifier units
Separate R-toroidal transformers for left and right channels Selectable preamp
gain Printed circuit boards made from Teflon material Logic-controlled relays
for shortest signal paths Optional support for analog record playback. Massive
cabinet of natural persimmons wood
PREAMPLIFICATORE DIGITALE
COMPATIBILE 192KHZ/24BIT /SACD - TRATTAMENTO DEL SEGNALE COMPLETAMENTE DIGITALE
(VOLUME, CONTROLLI DI TONI E LOUDNESS COMPRESI) -SISTEMA DI CONVERSIONE MDS
(MULTIPLE DELTA SIGMA) - 2 USCITE ANALOGICHE SDOPPIATE SBILANCIATE/BILANCIATE -
1 INGRESSO ANALOGICO - 8 SLOT DI ESPANSIONE PER SCHEDE AGGIUNTIVE TRA CUI UNA
DEDICATA AL SACD E DVD ED UNA PER DSP ESTERNO (DG28) SCHEDA IN TEFLON -
TELECOMANDO
Leaving the analog/digital division far behind, this digital preamplifier
features ultra high-speed DSP and complete readiness for the new generation of
super high quality audio sources. The newly developed MDS (Multiple Delta Sigma)
converter with 24-bit ultra high precision resolution results in dramatically
enhanced performance. Witness a new dimension of audio perfection.Fully
digital preamplifier with ultra high-speed digital signal processing Ready for
new-generation formats such as SACD and DVD-Audio Newly developed MDS type
D/A converter minimizes distortion and assures outstanding S/N ratio
High-precision tone controls and loudness compensation implemented in the
digital domain Volume control with familiar analog feeling Ultra
jitter-free PLL circuit topology
ACCUPHASE CX 260
PREAMPLIFICATORE MULTICANALE/ STEREOFONICO ANALOGICO - I SEI CANALI ANALOGICI,
SE USATO IN STEREOFONIA, LAVORANO IN CONFIGURAZIONE TRIPLA PARALLELA -
COSTRUZIONE MODULARE - LIVELLO REGOLABILE INDIPENDENTEMENTE PER OGNI CANALE - 2
INGRESSI E 6 USCITE BILANCIATE - 4 INGRESSI SBILANCIATI (2 SET A SEI CANALI + 2
STEREO), DUE TAPE IN E OUT, 1 INGRESSO BYPASS STEREO - PREDISPOSIZIONE PER
SCHEDE INGRESSO LINEA O PHONO (AD 9 / AD10) E DECODER D/A (DAC 10)
Build
the high-end home theater of your dreams. 2-channel/6-channel compatible
preamplifier features 6-channel (5.1ch) analog inputs/outputs. Six entirely
separate line amplifiers and six preset level controls, high-quality 6-gang
volume control. Mixdown function. In two-channel mode, six line amplifiers are
connected in triple parallel MCS configuration.2-channel/6-channel compatible
Current feedback principle ensures superb high-range phase characteristics 6
totally separate modular line amplifiers 6 separate preset level controls
High-quality six-gang volume control Mixdown function Logic-controlled relays
for shortest signal paths Option boards allow digital input

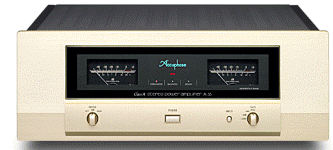

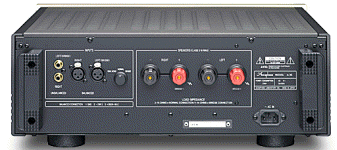

The
A-35 was developed as a successor to the A-30 while inheriting many design
aspects of the A-65. Dedication to the best sound possible is always an
Accuphase hallmark. The use of the instrumentation amplifier principle allows
fully balanced input signal paths, and further refined MCS+ topology pushes
noise and distortion down to absolutely minimal levels. In terms of its design
as well as its sound, the A-35 offers a highly attractive entry point to the
world of pure class A. In the output stage of the A-35, proven power
MOS-FET devices are used in a triple-parallel configuration for each channel.
MOS-FETs have excellent frequency characteristics, and their high input
impedance reduces the load imposed on the preceding drive stage. The power
supply of an amplifier is its ultimate source of energy. Unless it provides
ample reserves, sound quality will suffer, and even basic performance parameters
may not be met. The A-35 has a massive power transformer and two 47,000 μF
smoothing capacitors specially selected for their sonic properties. This
sustains an output power rating of 120 watts into 2 ohms, 60 watts into 4 ohms,
or 30 watts into 8 ohms per channel, and it enables the A-35 to perfectly handle
even very-low impedance speakers or speakers with wildly fluctuating impedance
characteristics. Pure Class A operation delivers quality power : 30 watts
× 2 into 8 ohms Power MOS-FET output stage features triple parallel
push-pull configuration Instrumentation amplifier principle Further
improved MCS+ circuit topology Current feedback combines operation
stability with outstanding sound Bridged mode allows upgrading to true
monophonic amplifier Strong power supply with large power transformer and
ample filtering capacity 4-step gain control

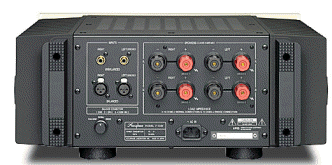

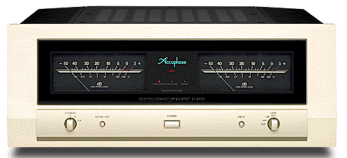

The
P-4100 is a stereo power amplifier that takes sophisticated sound to the next
level. While inheriting design technology from highly renowned Accuphase models
such as the P-7100 and M-6000, the new model features instrumentation amplifier
topology and a refined MCS+ circuit to lower the noise floor even further. Only
specially selected top-grade materials and parts are used throughout with
impressive results. The overall configuration of the P-4100 employs the latest
instrumentation amplifier principle, allowing fully balanced signal paths
throughout. In addition, the power amplifier section features refined MCS+
topology in combination with current feedback, for further enhanced electrical
performance characteristics. Output stage with 3-parallel push-pull
configuration for each channel delivers high power and handles very low
impedance loads Instrumentation amplifier principle used for signal paths
Further refined MCS+ circuit topology Current feedback circuit combines
excellent sound quality with total operation stability Bridged connection
mode allows upgrading to monophonic amplifier Massive toroidal transformer
rated for 950 VA 4-step gain control

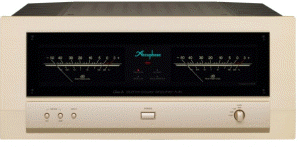

ACCUPHASE A 45 2X45 W/8 OHMS,
2X180 W/2 OHMS (360 W/4 OHMS MONO) - CLASSE A PURA - ATTENUATORI D INGRESSO -
INDICATORI DIGITALI POTENZA D USCITA - INGRESSI BILANCIATI - DIMENSIONI 465 X
211 X 464 (L XAXP) - PESO 30,9 KG - ASSORBIMENTO 430 W
Pure
Class A power amplifier uses power MOS-FET devices to deliver 45 watts per
channel (8 ohms). Fully balanced signal paths as found in high-quality
instrumentation amplifiers. Further refined MCS+ topology and current feedback
result in superb sound quality and excellent ratings for S/N ratio, THD, and
other parameters. Strong power supply and power MOS-FET devices in six-parallel
push-pull configuration sustain an amazing 360 watts per channel into ultra-low
impedance 1-ohm loads (with music signals).Pure Class A operation delivers
quality power: 45 watts × 2 into 8 ohms Power MOS-FET output stage features
6-parallel push-pull configuration Instrumentation amplifier principle Further
improved MCS+ circuit topology Current feedback combines stable operation with
outstanding sound Bridged mode allows upgrading to true monophonic amplifier
Large high-efficiency toroidal transformer rated for 600 VA 4-step gain control

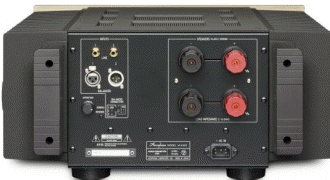

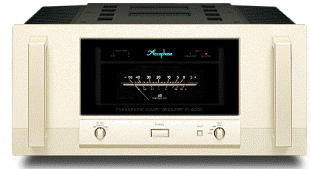

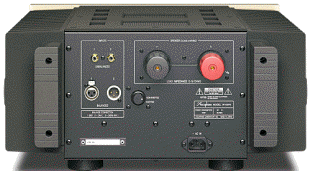

The
M-6000 was born out of a thorough re-evaluation of the power amplifier from a
new vantage point. Aiming for nothing less than the ultimate in sound quality,
this monophonic power amplifier with its massive heat sinks on both sides stands
as an impressive achievement. The decisive difference to conventional designs
lies in the fact that the M-6000 possesses two completely identical power
amplifier circuits which are driven in parallel. Kept entirely separate and
mounted on the left and right sides of the chassis, these circuits deliver
output current reserves on a previously almost unheard-of level. A damping
factor rating of more than 500 demonstrates that this amplifier is capable of
driving even the most difficult, ultra-low impedance loads with ease. Two
totally identical power amplifier circuits driven in parallel 16 parallel
push-pull arrangement of MOS-FET devices in output stage Input stage
configured as double instrumentation amplifier Double MCS+ circuit and
current feedback topology in amplification stage Support for bridged use
of two M-6000 units with even higher output power Power supply with
massive high-efficiency 900-VA toroidal transformer and large filtering
capacitors

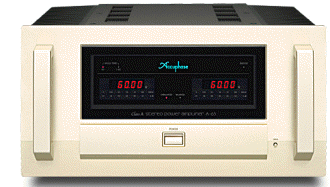

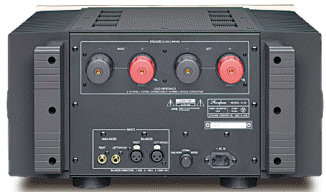

As
a model-change successor to the A-60, the new A-65 incorporates accumulated
Accuphase know-how while featuring a number of further improvements. The input
stage is configured as an instrumentation amplifier to allow fully balanced
input signal paths. The output stage of the A-65 features power MOS-FETs
renowned for their excellent sound and superior reliability. For each channel,
ten of these devices are arranged in a parallel push-pull arrangement. MOS-FETs
have excellent frequency characteristics, and their high input impedance reduces
the load imposed on the preceding drive stage. Pure Class A operation delivers
quality power: 60 watts ×2 into 8 ohms Power MOS-FET output stage features
10-parallel push-pull configuration and delivers linear high power progression
to ultra-low 1-ohm impedances Input section configured as instrumentation
amplifier Further improved MCS+ circuit in amplifier section Current
feedback topology combines stable operation with outstanding sound Bridged
mode allows upgrading to monophonic amplifier Two selectable meter types:
digital power meters showing true power values and bar graph indicators

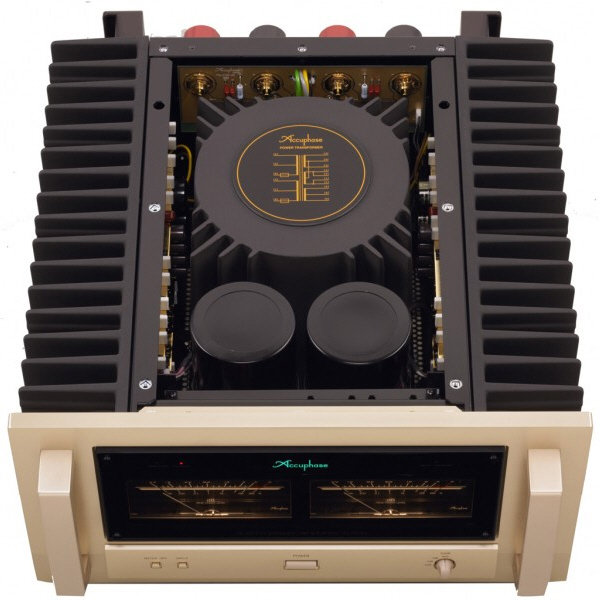

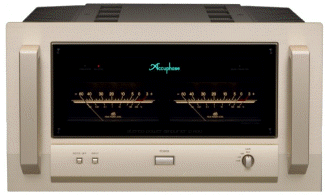

ACCUPHASE P 7100
AMPLIFICATORE DI POTENZA STEREOFONICO - 2X125W/8 OHMS 2X1000 W/1 OHMS (MONO
2000W/2 OHMS ) - ATTENUATORI D INGRESSO - INDICATORI DIGITALI WATT D USCITA
-INGRESSI - BILANCIATI E SBILANCIATI - MODALITA` DI FUNZIONAMENTO DUAL MONO,
STEREO, MONO - SCHEDA MADRE IN TEFLON - 11 COPPIE DI TRANSISTOR IN
CONFIGURAZIONE PUSH-PULL PARALLELA PER CANALE - TRASFORMATORE DI ALIMENTAZIONE
DA 1,5 KVA - DIMENSIONI 465 X 258 X 545 - ASSORBIMENTO 945 W - PESO 49 KG
Impressive
power amplifier capable of delivering 1000 watts×2 into 1 ohm. Amplification
stages feature fully balanced signal paths as found in high quality
instrumentation amplifiers. Further refined MCS+ topology and current feedback
design result in even better S/N ratio, distortion, and other performance
parameters. Massive, high-efficiency 1.5 kVA toroidal transformer and
11-parallel push-pull arrangement of high-power transistors deliver enormous
amounts of linear power into ultra-low loads down to one ohm.Powerful
11-parallel push-pull output stage in each channel delivers linear power into
loads as low as one ohm Instrumentation amplifier type design of amplification
stages Further refined MCS+ circuit topology Current feedback circuit combines
excellent sound quality with total operation stability Bridged connection mode
allows upgrading to true monophonic amplifier 4-step gain control. Massive Super
Ring toroidal transformer rated for 1.5 kVA

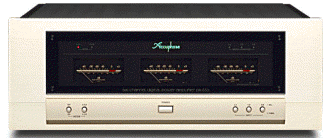

Six-channel
digital power amplifier - Six totally separate power units with identical
performance. Discrete delta-sigma type digital power units ensure extremely low
noise. Large 820 VA toroidal transformer and large filtering capacitors provide
ample muscle: 200 watts × 6 into 4 ohms or 150 watts × 6 into 8 ohms. Bridged
mode allows upgrade to 3-channel amplifier with 420 watts × 3 into 8 ohms.
Digital power amplifier with totally separate six-channel configuration
Output power 200 watts × 6 into 4 ohms, 150 watts × 6 into 8 ohms Bridged
operation further increases output to 450 watts × 3 into 6 ohms and 420 watts ×
3 into 8 ohms Instrumentation amplifier principle for fully balanced
signal paths Large 820 VA toroidal transformer Balanced inputs
Three large analog power meters Large-size speaker terminals

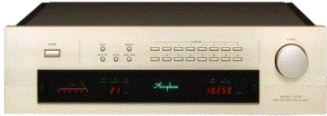

Witness
the DDS revolution - Advanced RF technology and latest digital knowhow join
forces in this ultimate FM stereo tuner. The front end easily handles even very
high signal levels. An "Advanced DGL" Detector delivers high performance and is
fully adjustment-free. DS-DC based on digital signal processing assures ideal
stereo demodulation performance. Choose between manually operated pulse tuning
and 32-station memory. Explore the many other impressive features.Revolutionary
DDS principle for local oscillator Dual-stage tuning front end easily handles
high signal levels High-performance "Advanced DGL" FM detector DS-DC achieves
ideal stereo demodulation with DSP technology FREQ.TRIM function reduces
adjacent station interference 32 station memories also store reception settings
Pulse tuning principle Digital output connector Balanced outputs Supplied remote
control

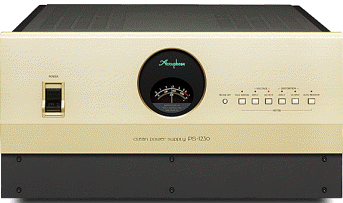

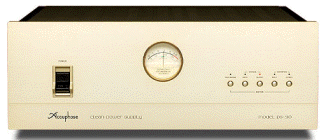

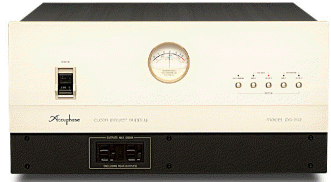

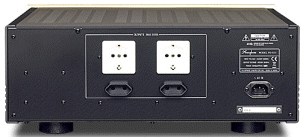

Tap

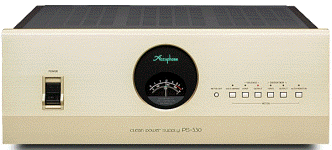

into a totally clean source of AC energy for up to 510 VA - Revolutionary
waveform shaping technology enables highly precise compensation, creating a pure
energy source of 230 V AC (or 120 V AC)±2% with max. 0.22% THD. Connect audio or
video equipment for a drastic improvement in sound and picture quality. Monitor
output power (VA), input/output voltage (V), and input/output distortion (%) on
the built-in meter. AC voltage stabilizer based on waveform shaping
technology Supplies up to 510 VA of extremely clean energy
Low-distortion reference waveform generator Highly effective waveform
compensation Outstanding current capability Built-in meter for
monitoring five vital parameters: output power, input/output voltage,
input/output distortion Elaborate protection features Large "Max
Ring" toroidal transformer

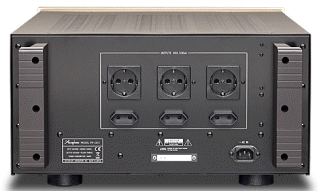

Tap
into a totally clean source of AC energy - Revolutionary waveform shaping
technology enables highly precise compensation, creating a pure energy source of
230 V AC (or 120 V AC) ±2% with max. 0.22% THD. Connect audio or video equipment
for a drastic improvement in sound and picture quality. Monitor output power
(VA), input/output voltage (V), and input/output distortion (%) on the built-in
meter.AC voltage stabilizer based on waveform shaping technology Acts as a
source of extremely clean energy Low-distortion reference waveform
generator Highly effective waveform compensation Outstanding current
capability Built-in meter for monitoring five vital parameters: output
power, input/output voltage, input/output distortion Elaborate protection
features Large "Max Ring" toroidal transformer
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per
ordinare o avere gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco nostro magazzino.
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Attenzione
.jpg){kind=small}
.jpg){kind=small}
.gif)
The
Accuphase E-200 series of basic integrated amplifiers enjoys an excellent
reputation both in Japan and on the international stage. The E-250 represents a
full model change of the E-213, featuring the new AAVA-II volume control and
reflecting the latest design technology advances achieved by Accuphase.
Carefully selected highquality materials and parts are used throughout, in order
to bring out even the fi nest nuances of the source. Using this integrated
amplifier affords pure musical enjoyment. In the category of integrated
amplifiers, AAVA implemented in the E-550 and AAVA-II in the E-450 and E-350
have received high praise for being a clearly superior volume control principle.The
E-250 inherits this advanced design technology. In order to fit within the more
limited space available, circuitry and component layout have been further
refined and advanced integration technology is used to increase mounting
density. This was achieved while retaining the outstanding performance that made
AAVA and previous AAVA-II implementations such impressive feats of technology.
AAVA-II in the E-250 of course also completely eliminates variable resistors
from the signal path. Amplification and volume control are integrated in a
single entity consisting only of top-quality and highly reliable semiconductor
parts. This eliminates mechanical wear and associated problems, allowing the
control to function perfectly for many years.Revolutionary AAVA-II volume
control Parallel push-pull output stage with high-power transistors delivers
plenty of quality power Instrumentation amplifier principle in power amplifier
section allows fully balanced signal transmission Current feedback topology
Logic-control relays for straight and short signal paths Robust power
supply with large transformer and high filtering capacity
.jpg){kind=small}
.jpg){kind=small}
.gif)
.gif)
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.gif)
.gif)
.gif)
.jpg){kind=small}
.jpg){kind=small}
.gif)
.gif)
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.gif)
.gif)
.gif)
.jpg){kind=small}
.jpg){kind=small}
.gif)
.gif)
.gif)
.gif)
.gif)
.gif)
.jpg){kind=small}
.gif)
.gif)
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
