We presented our first analog
drive in 1986, causing great excitement because of its innovative damping
mechanism. At the time the high end audio magazine “DAS OHR”, already decided to
use our turntable in the reference system at their editorial office..Since then,
we have continued to develop and fine tune our drives. We now offer three
turntables: AMAZON Referenz, AMAZON 1 and AMAZON 2.Early on we realized, that a
clean power supply is extremely important for a premium music reproduction.
Therefore, we decided for the cleanest source of all, namely the rechargeable
batteries. Accordingly, we use direct current motors for the drive. It’s in
their nature to significantly better manage noise spectrum than the AC
motors.AMAZON turntables are neither hard coupled nor use metal springs, which
would always force distortion signals onto the drive, because of its own
resonance. To reach a maximum of distortion impassivity, we equip all AMAZON
drives with LRP dampers combined with numerous well-thought out detail solutions
to guarantee a perfect music reprodution.You will find a lot of information on
the following pages, which will give you an insight in the special technical
solutions and a feeling for the unique design of our drives.Have a lot of fun
with music!

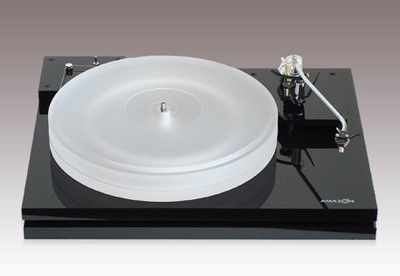

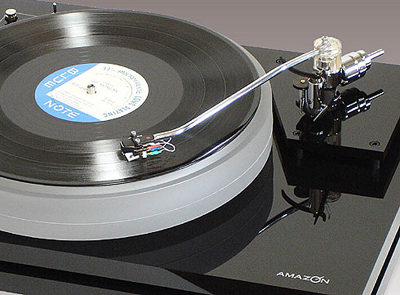

AMAZON
2
€.3.200,00
Per prezzo
scontato
TELEFONA / E-MAIL
Chassis:
Das Laufwerk-Chassis ist aus
einem speziellen, füllstoffreichen ICI Werkstoff gefertigt, der sich durch
geringe Resonanzausprägung auszeichnet. Es handelt sich hier um gegossenes
Material, das aufgrund der Zugaben eine hohe innere Dämpfung besitzt. In der
Subchassiskonstruktion werden 3 LRP-Elemente (Low Resilience Polymer) eingesetzt,
die zum einen die Betriebsebene von der Basis entkopplen und andererseits auch
Schwingungen im Material wirksam bedämpfen. Gegenüber Stahlfederkonstruktionen
gibt es weder die unliebsamen Materialresonanzen der Federn noch
Taumelerscheinungen. Die Basisebene finde über drei Edelstahlspikes Verbindung
zur Stellfläche. Das Setup ist schnell und unproblematisch durchzuführen, da
lediglich die waagerechte Aufstellung garantiert werden muß; eine zusätzliche
Abstimmung - z.B. von Federelementen etc - ist nicht notwendig.Plattenteller:
Der 5 kg schwere Plattenteller besteht aus gegossenen Metacrylat, dessen
Materialeigenschaften denen des Vinyls sehr ähnlich sind. In einem aufwendigen
temperaturoptimierten Verfahren werden die Teller auf genaues Maß gedreht und
anschließend oberflächenvergütet. Dieses Verfahren verhindert Spannungen im
Material, die nach unseren Erfahrungen die akustischen Qualitäten deutlich
beeinträchtigen. Duch das plane Tellerprofil und dem Resonanzdiffusor im
Innenradius des Tellers - dieser verhindert die bekannten Material-Resonanzen in
massiven Kunststofftellern im Bereich zwischen 9 kHz und 13 kHz - wird ein
ausgezeichnetes Matching zwischen Vinyl und Plattenteller erreicht.Lager: Der
Rotationsmittelpunkt des Plattentellers ist eine Keramikkugel im Zentrum des
invertiert aufgebauten Lagers. Sowohl die Lagerbuchse als auch die stehende
Achse sind identisch aus mehrfach gehärteten Stahl gefertigt und an den
Kontaktflächen poliert. Minimalste Tolleranzen sorgen für einen perfekten,
geräuschlosen Lauf und lange Lebensdauer. Ein Öl-Reservoir an der Lagerbasis
versorgt alle drehenden Teile mit einem sehr dünnen aber hoch schmierfähigen
Spezialöl. Durch den massiven Aufbau und die spezielle Geomoetrie des Lagers
wird die bei vielen Tellerlagern zu beobachtende Neigung zum Schwingen
wirkungsvoll unterdrückt. Pulsmessungen am Plattenteller zeigen, dass Anregungen
rasch und gleichmäßig ohne Überhöhungen abklingen. Invertierte Lager haben zudem
durch ihren hochliegenden Drehpunkt entscheidende Vorteile, da Kipp- und
Pendelmomente minimiert werden.Antrieb: Das Herzstück des Antriebs ist ein
ruckfrei laufender DC-Motor mit LSC (Linear Speed Controller) Steuerung, der
mechanisch isoliert in das Laufwerk-Chassis integriert ist.ie Stromversorgung
übernimmt ein ausgelagertes Schaltnetzteil, das so großzügig dimensioniert ist,
dass es ca. das 50-fache des eigentlich notwendigen Stromes zu Verfügung stellt.
Links: die gekapselte Motoreinheit mit integrietem LSC und
Geschwindigkeitsumschalter. Über einen selbstspannenden String aus
Duplex-Material wird die Motorkraft vom Pulley auf den Plattenteller übertragen.
Als Drehzahlbereiche stehen 33 rpm und 45 rpm zur Verfügung, der Drehzahlwechsel
erfolgt elektronisch. Darüber hinaus kann die Drehzahl für jede Geschwindigkeit
getrennt fein justiert werden. Dazu stehen zwei Trimmer mit einem
Untersetzungsgetriebe 1:25 bereit.MaßeB x H x T 470 x 370 x 130 mm Gewicht
18 kg Teller- Gewicht 5 kg Teller- Durchmesser 320 mm Lager
Invertiertes Stahl- Keramik-Lager mitOelwanne Antrieb DC-Motor mit LSC
Drehzahl 33/45 rpm elektronisch wählbar mit Feinregulie-rung
Stromversorgung Externes Schaltnetzteil Tonarme 9" bis 10,5"
Garantie 3 Jahre

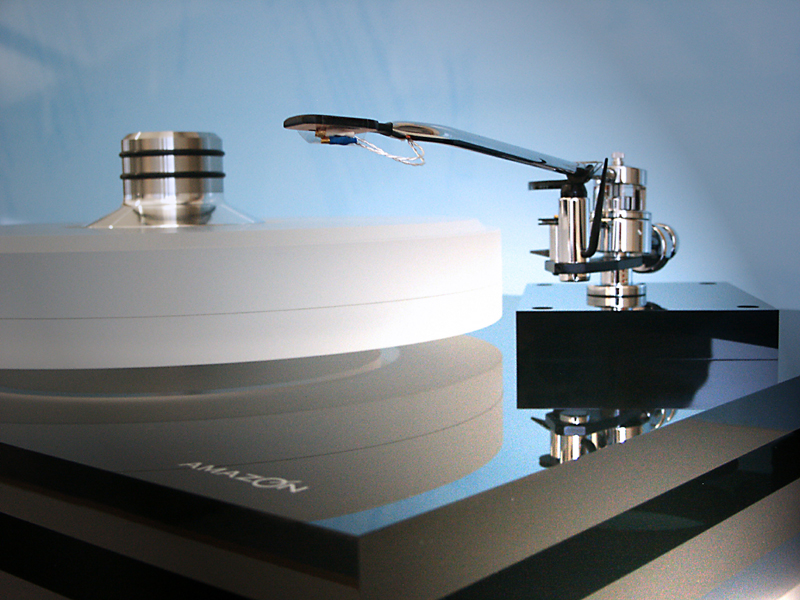

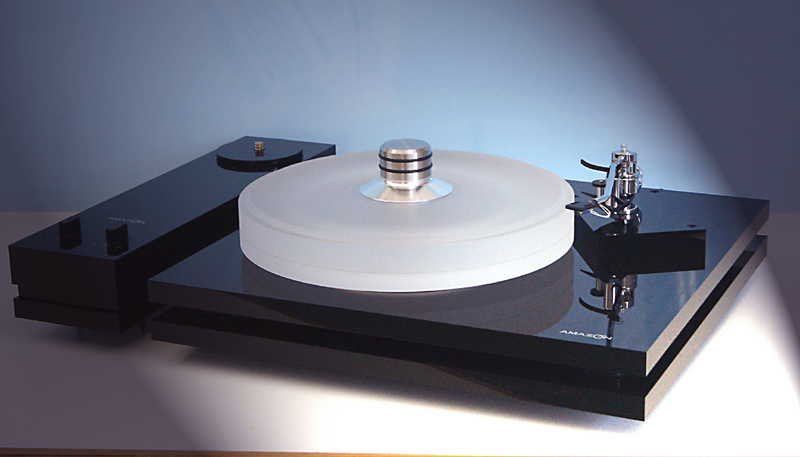

AMAZON
1 €.4.500,00
Per prezzo
scontato
TELEFONA / E-MAIL
Chassis:
The chassis of the drive is made from a special ICI material to ensure virtually
no resonance. This is about a casted material, which has extremely good internal
damping features, because of the added extras. We also use 6 LRP elements (Low
Resilience Polymer) in our sub-chassis-construction, which decouples the plant
level from the base on the one hand, and fights oscillation in the material on
the other hand. The LRP elements are arranged in the chassis corners and around
the platter bearing. When you compare these to metal spring constructions, there
are no longer obnoxious material resonances of the spring or phenomenon’s of
sway. The setting up is uncomplicated and quick, because you only have to care
about the horizontal adjustment; no additional adjustment necessary, like for
example spring elements etc.Platter:

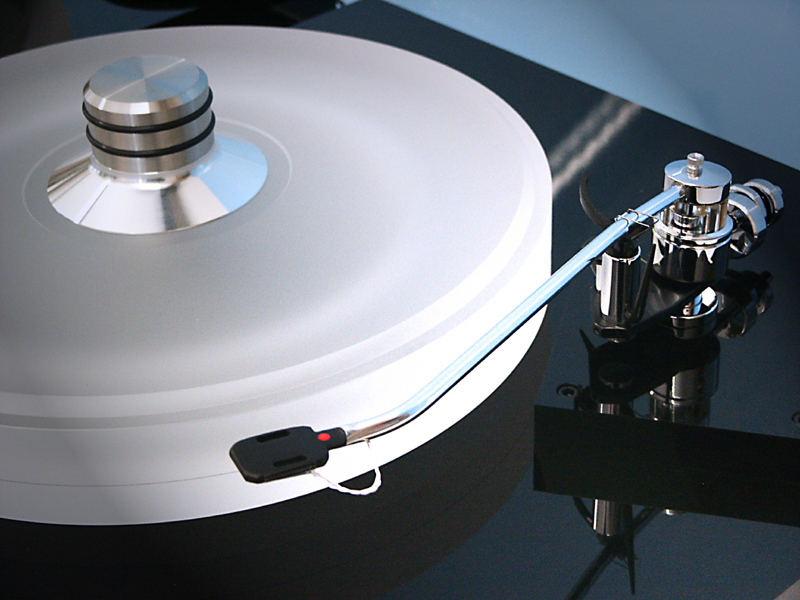

The platter weights 5kg and is made from casted metacrylat. Its characteristics
are very similar to the vinyl. During a very complex, temperature optimized
process the platter gets drilled to its exact dimensions and afterwards follows
the quenching and tempering of the surface. This process prevents stress in the
material, which would affect the acoustic qualities. By using the plane platter
profile we reach a big matching between vinyl and platter. Furthermore,
resonance diffuser in the inner area of the platter eliminates the well-known
material resonances in massive plastics platter in the area between 9 kHz and 13
kHz.Bearing:
The rotation-center of the platter is a ceramic ball in the middle of the
inversed bearing. Both, bearing bush and vertical axis are made from multiple
hardened steel. Accurate selection and very little tolerance guarantee a perfect,
noiseless operation and long lifetime. All moving parts are supplied with a very
thin but very good greasing special oil from a oil reservoir at the bearing
base. Due to the massive body and the special geometry of the bearing, our
platter bearing doesn’t tend to oscillate like most of the other. That is proven
by objective measurements we made with the pulse measuring process. Pulses at
different areas on the platter are dying out consistent and without
excessiveness. An important advantage of inverted bearings is their high fulcrum,
which minimizes tilting and commuting.Motor-Unit:

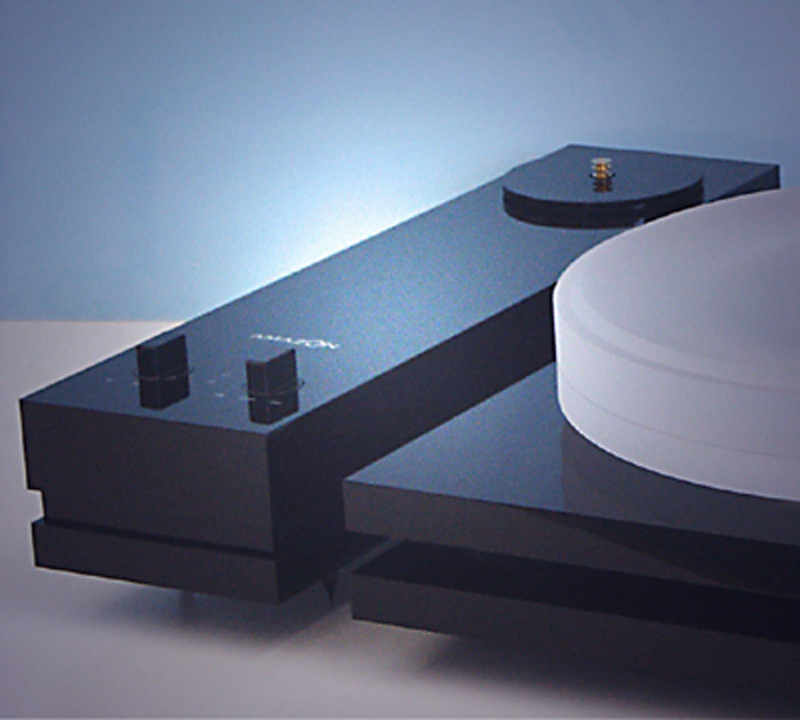

The drive unit is totally separated from the running gear. A very thin string
carries the power from the pulley to the platter. You can switch electronically
between 33 rpm and 45 rpm. A LSC-Controller (Linear Speed Controller) monitors
all the time the speed and keeps it absolute constant. These from AMAZON
developed controller are only used in Amazon turntables. In addition, you can
fine-tune each speed separately. Therefore we use padder with a gearbox 1:25.
The heart of the drive is a DC-motor, which is usually used in nautical
navigation devices. This motor is stored isolated and swimming in a massive box.
The result is a absolute constant speed with perfect running smoothness.Power
supply: The integrated rechargeable
battery power supply is unique for analogue drives. In play mode, the
rechargeable batteries as well as the motor are totally separated from the mains
supply. Thereby, all the disturbing influences from the mains supply are kept
away and a absolutely smooth running motor is guaranteed. All AMAZON motor units
have a intelligent circuit, which monitors all parameters of the NiMH-batteries
while charging and discharging. The system recharges the batteries automatically,
when it is not in use. One charging cycle is enough to listen to 180 LP’s.
Technical facts
Dimensions drive (WxDxH): 470 x 450 x 150 mm Dimensions motor unit (WxDxH):
120 x 450 x 115 mm Overall weight: 24 kg Platter weight: 5 kg
Platter diameter: 320 mm Speed: 33 rpm und 45 rpm fine adjustable
Bearing: Inverted Steel/ceramic beraring Drive: DC-Motor mit AMAZON LSC Speed
Control Power supply: NiMH Batteries with automatic charging unit
Tonarms: Compatible with all turn tonearms till 12" and Tangential tonarms

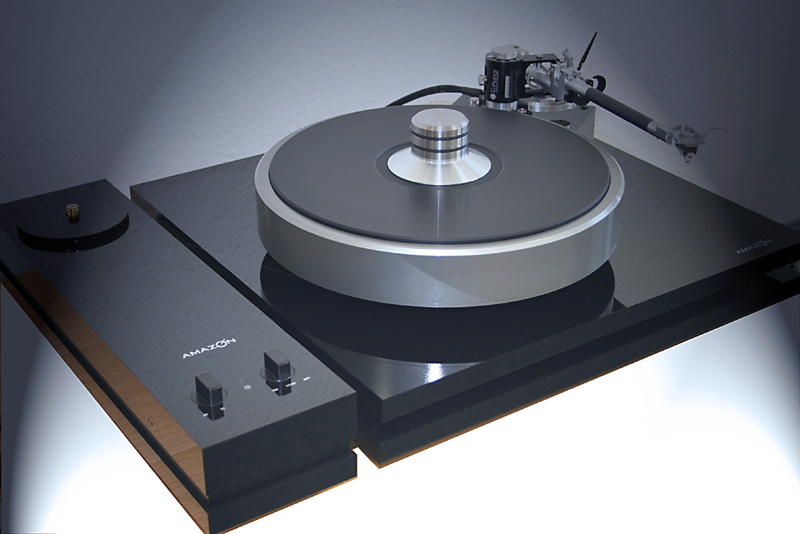

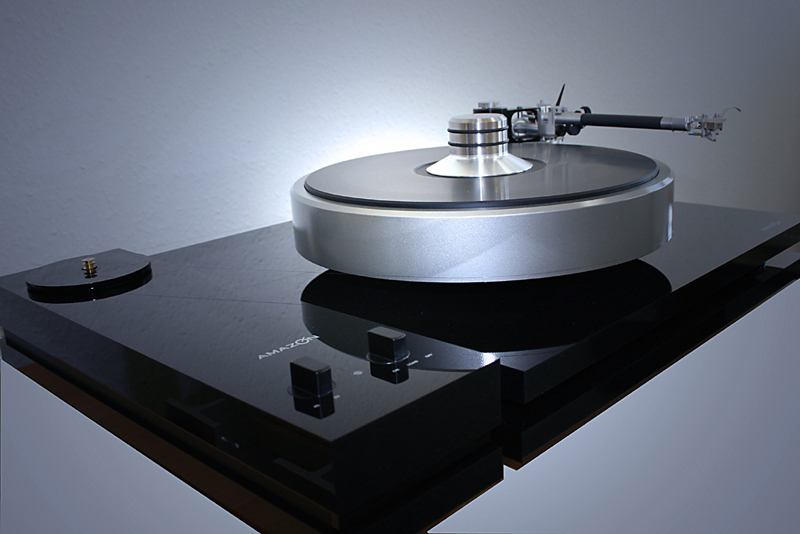

AMAZON Referenz
Chassis:
The chassis of the drive is made from a
special ICI material to ensure virtually no resonance. This is casted material,
which has extremely good internal damping features, because of the added extras.
We also use 8 LRP elements (Low Resilience Polymer) in our
sub-chassis-construction, which decouples the plant level from the base on the
one hand, and fights oscillation in the material on the other hand. The LRP
elements are arranged in the chassis corners and around the platter bearing.
When you compare these to metal spring constructions, there are no longer
obnoxious material resonances of the spring or phenomenon’s of sway. The setting
up is uncomplicated and quick, because you only have to care about the
horizontal adjustment; no additional adjustment necessary, like for example
spring elements etc. Platter:

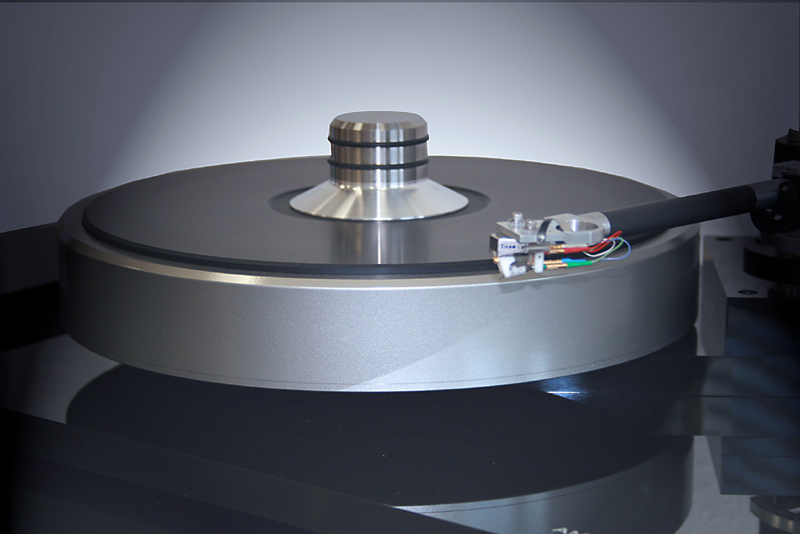

The platter is a composite construction, made from aluminum and casted acryl,
enriched with filler. The weight is 12kg and because of damping purposes there
are grooves on the downside in not harmonic distances. These grooves are filled
with vibration blocking material. To decrease reflections of oscillation which
occur during sampling, the center is made from Teflon and hollow in the middle.
The bearing bush , which is made from steel, is attached as part of the massive
turntable..Bearing:
The rotation-center of the platter is a ceramic ball in the middle of the
inverse bearing. Both, bearing bush and vertical axis are made from multiple
hardened steel. In numerous production steps, the contact areas get a intensive
polish, which requires a couple of days. Accurate selection and very little
tolerance guarantee a perfect, noiseless operation and long lifetime. All moving
parts are supplied with a very thin but very good special oil from a oil
reservoir at the bearing base. Due to the massive body and the special geometry
of the bearing, our platter bearing doesn’t tend to oscillate like most of the
other. That is proven by objective measurements we made with the pulse measuring
process. Pulses at different areas on the platter are dying out consistent and
with high edge steepness.Motor-Unit:

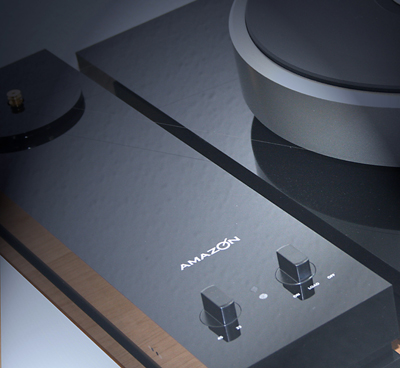

The drive unit is totally separated from the running gear. A very thin string
made from polyamide carries the power from the pulley to the platter. You can

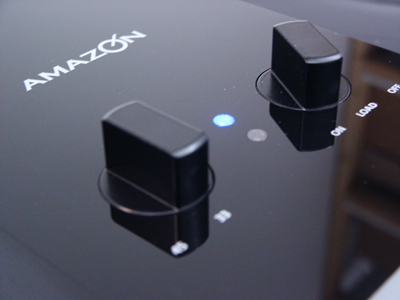

switch electronically between 33 rpm and 45 rpm. A LSC-Controller (Linear Speed
Controller) monitors all the time the speed and keeps it absolute constant.
These from AMAZON developed controller are only used in Amazon turntables. In
addition, you can fine-tune each speed separately. Therefore we use padder with
a gearbox 1:25. The heart of the drive is a DC-motor, which is usually used in
nautical navigation devices. This motor is stored isolated and swimming in a
massive box. The result is a absolute constant speed with perfect running
smoothness.Power supply:
The integrated rechargeable battery power supply is unique for analogue drives.
In play mode, the rechargeable batteries as well as the motor are totally
separated from the mains supply. Thereby, all the disturbing influences from the
mains supply are kept away and a absolutely smooth running motor is guaranteed.
All AMAZON motor units have a intelligent circuit, which monitors all parameters
of the NiMH-batteries while charging and discharging. The system recharges the
batteries automatically, when it is not in use. One charging cycle is enough to
listen to 180 LP’s.Technical facts
Dimensions drive (WxDxH): 470 x 450 x 160 mm Dimensions motor unit (WxDxH):
120 x 450 x 115 mm Overall weight: 33 kg Platter weight: 12 kg
Platter diameter: 320 mm Speed: 33 rpm und 45 rpm; electronic
adjustable Bearing: Inverted; steel/ceramic Drive: DC-motor with
AMAZON LSC ( Speed Controller ) Power supply: NiMH Batteries
microprocessor monitored charging unit Tonarms: 9" - 10,5" and Tagential
Tonarme
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco nostro magazzino.
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Attenzione
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
