DAC
.gif)

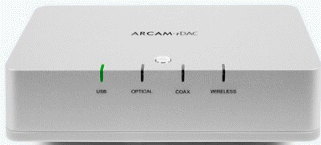

Arcam SOLO rDAC €. 450,00
Per
ordine e sconto
TELEFONARE/EMAIL
Unità di conversione Digitale
analogica – convertitori 8741 IC Wolfson Microelectronics – sistema Asynchronous
USB Technology (by DCS) per riduzione jitter da ingresso USB – un ingresso
ottico TosLink, 1 ingresso coassiale (fino a 192 mHZ), 1 ingresso USB (fino a 96
mhz), predisposizione ingresso digitale wireless – uscita analogica sbilanciata
– ideale per upgrade di lettori CD obsoleti, riproduzione con qualità
professionale di file digitali da PC, radio Internet – dimensioni 160 x 40 x 100
mm (LxaxP) peso 0,7 kg.
AMPLIFICATORI INTEGRATI

.jpg)
Arcam
FMJ A18 €. 900,00
Per
ordine e sconto
TELEFONARE/EMAIL
Amplificatore integrato “Current Feedback” - 2x50 W/8 W - 6 ingressi linea 1
phono MM - separazione pre/finale – display – mobile in metallo antirisonante -
controlli di tono sul pannello frontale - uscita cuffia – Uscita diffusori
sdoppiata - telecomando programmabile CR90 - finitura silver o nero
 The
A18 combines the latest component technologies and Arcam’s refined and careful
engineering design approach to produce an incredibly natural sound from any
music source. An ideal partner for the CD17 CD player, the A18 is designed to be
a powerful and musical amplifier and is constructed with outstanding build
quality for its price. The A18 is the perfect choice for people looking for an
amplifier offering exceptional music reproduction as part of an affordable
system. The A18 represents an ideal introduction to true Hi-fi amplification.
It’s sleek design, flexible connectivity and powerful amplifier stages deliver a
level of reproduction far beyond that of “budget” separates systems. Using the
latest in amplifier technology plus over thirty years of audio design experience
the A18 is an astounding amplifier, true to Arcam’s tradition of affordable
excellence. Using very high quality components and carefully designed
multi-layer PCBs the A18 is designed for performance from the ground up.
Connectivity is highly flexible allowing direct connection of seven line level
sources including a dedicated 3.5mm front panel jack socket for portable music
players. Operation of the A18 is simplicity itself. A rotary encoder allows
precise control over volume and other selections such as tone controls and
balance. This means delicate audio signals need not travel to and from the front
panel or through potentially noisy mechanical potentiometers or switches. The
A18s large power supply uses a toroid transformer which ensures an extremely
quiet backdrop to music and superb stability during large bass transients. The
chassis features a damped “Sound Dead Steel” construction virtually eliminating
mechanical influences on the electronics. As part of Arcam’s FMJ line of high
performance separates, the A18 is an ideal partner for the new CD17 CD player.
Pre-amplifier Logic controlled input/output switching for accurate quiet
operation Precise electronic control of volume bass and treble Processor
mode for use with AV processors/receivers Connectivity Six RCA Phono line
level rear panel inputs – plenty for even complex systems Additional front panel
line level input (3.5mm stereo jack) for portable music players High
quality Moving Magnet phono input with grounding post Two tape outputs on RCA
Phono for CD recorders / PVRs Pre-amp output for adding additional power
amplifiers or bi-amping with P38 Front panel headphones jack on 3.5mm
socket Power Amplifier 50wpc continuous power output (two channels driven,
8 ohm load) Oversize heatsink ensuring cool running Dual layer PCB
enabling optimum circuit design in all areas Power supply Toroid mains
transformer High capacity power supply with "star earthing" for minimal
ground noise Switchable mains power inlet 110-120v / 220-240v
General Supplied with CR10 system remote control All gold plated
connectors Large, clear 9 character VFD display Size – 430mm (17")
wide, 332mm (13.1") deep, 85mm (3.3") high Weight 7.2kg (15.9lbs) nett,
9.1kg (20.1lbs)
.jpg)
Arcam
FMJ A28€.1.300,00
Per
ordine e sconto
TELEFONARE/EMAIL
Amplificatore integrato “Current Feedback” - 2x75 W/8 W - 6 ingressi linea 1
phono MM - separazione pre/finale – display – mobile in metallo antirisonante -
uscita cuffia – Uscita diffusori sdoppiata - telecomando programmabile CR90 -
finitura silver o nero dimensioni (L x A x P) 430 x 85 x 270 - peso Kg 8,5
Slim
in appearance but powerfully built the A28 offers an ideal balance between power
delivery and size. Sophisticated control electronics offer complete control over
seven sources. 75 watts per channel provide enough drive and control for use
with some of the world’s best high performance loudspeakers. The A28’s
flexibility is due to its microprocessor control and intelligent software which
provides unique features without compromising amplification performance.Arcam
have a long established history of building sensational amplifiers for serious
music lovers. The company enjoys a world-wide reputation for producing very high
performance HiFi systems at real world prices using advanced technologies and
design. The new A28 75wpc integrated amplifier is Arcam’s latest offering in the
mid-priced sector, offering astounding sound quality and an exceptional
specification. Using wide-band power amplifier technology and ultra stable
thermal management from the range topping A38 amplifier, every detail and
musical nuance is produced with breathtaking accuracy. The A28’s pre-amplifier
section uses studio components that ensure extreme fidelity and ultra low noise
performance.Using all electronic control for volume and input selection mean
delicate audio signals take an extremely short physical path through the A28.
This design strategy also ensures long term reliability and access to advanced
features such as individual input trims, independent record selection and
“processor mode” for integration with AV pre-amps. Six line level inputs are
provided plus a very high quality moving magnet phono stage. Electro Magnetic
Interference is damped using Arcam’s proprietary “Mask of Silence” technologies
to ensure that even the smallest details in the recording are reproduced
faithfully. Pre-amplifier features All electronic input switching for clean
signal path and long term reliability Studio grade volume control stage
with +/- 0.05dB channel matching Six line level inputs plus high quality
MM phono input Pre-amplifier outputs for bi-amping with Arcam power
amplifiers (e.g. P38) Separate line level output for second rooms etc.
Microprocessor control of input volume, balance etc. Extra user features
such as max turn-on volume, input trims, processor mode etc. Power
amplifier features 75wpc continuous power output (8ohms, both channels driven)
130wpc continuous power output (4ohms, 1kHz, one channel driven) Fully
discrete transistor power amp stages with temperature compensation Current
feedback design ensuring wide bandwidth for high resolution audio Two
pairs of individually selectable gold plated speaker outputs All DC
coupled signal path for enhanced bass control Power supply features
Oversize toroid mains transformer User switchable between 115v and 230v
mains supplies Dual rectified power amp supplies for reduced ground noise
Separate smoothing per channel to reduce crosstalk Independently rectified
and regulated pre-amp power supply General Features Supplied with CR90
system remote control All gold plated input / output connectors
Large, clear 9 character VFD display Size – 430mm (17") wide, 275mm
(10.8") deep, 85mm (3.3") high Weight 8.5kg (18.7lbs) nett, 10.4kg
(22.9lbs) packed
.jpg)
Arcam
FMJ A38€.2.200,00
Per
ordine e sconto
TELEFONARE/EMAIL
Amplificatore integrato “Current Feedback” - 2x105 W/8 W - 6 ingressi linea 1
phono MM/MC - Tape Loop - separazione pre/finale – display – mobile in metallo
antirisonante - uscita cuffia – uscita diffusori sdoppiata - telecomando
programmabile CR90 - finitura silver o black - dimensioni (L x A x P) 433 x 100
x 370 - peso Kg 10,8
The
A38 features new output device technology which practically eliminates thermal
modulation of audio signals to ensure a truly dynamic and transparent
reproduction. The brand new preamp design using studio grade components and new
power amplifier stages deliver a result which exceeds expectations and raises
the bar for specialist integrated amplifiers in general.Read a full review at
ultraaudio.com. With over 30 years of audiophile engineering experience, Arcam
is one of the UK’s most respected audio companies. The new A38 stereo integrated
amplifier is the latest in a long family line of award winning HiFi. The A38
design team was given a simple goal; to develop the best performing stereo
amplifier Arcam had ever produced. Although a huge task, the team dug deep into
the basic structure of amplifier design and the result was a remarkable
improvement in fidelity. An in-house research project yielded a wealth of
information concerning the influences of thermal conditions on power amplifier
performance. As a result the A38 features a number of new technologies which
practically eliminate thermal modulation of audio signals and ensure truly
dynamic and enthralling reproduction. New Sanken output devices and dramatically
improved thermal coupling provide an extremely stable device temperature
resulting in much improved linearity. The massive torroid based power supply
delivers effortless power with a new low noise topology improving transient
response. A new pre-amplifier design, featuring hermetically sealed “reed”
relays from Arcam’s range topping C31 pre-amplifier; deliver a wonderfully
transparent signal to each power amplifier. Reed relays offer extremely low
contact resistance and virtually infinite life span. An all new volume control (Burr
Brown PGA2320) gives unprecedented linearity and noise performance allowing fine
details to be reproduced in startling clarity. Pre-amplifier section All new
audiophile pre-amplifier design with very low noise and distortionVery short
audio signal path for cleanest possible soundNo tone controls for lowest
distortion and noiseDC coupled using servo to remove any DC from input
signalsNew improved Burr Brown volume controlHigh quality Burr Brown op-amps in
signal pathHermetically sealed reed relay input switching with immeasurable
distortion and noise*Four-layer printed circuit boards allow control of power
supply reduction of electrical noiseProcessor mode option for seamless
integration with AV surround decodersAudiophile grade Stargate and Rubicon
capacitors for signal transparencyOptional single stage MM/MC phono preampPower
amplifier features 105wpc continuous power output (8ohms, both channels driven)200wpc
continuous power output (4ohms, 1kHz, one channel driven)Fully discrete
transistor power amp stages with temperature compensationCurrent feedback design
ensuring wide bandwidth for high resolution audioTwo pairs of individually
selectable gold plated speaker outputsAll DC coupled signal path for enhanced
bass controlAll new thermal management for exceptional sonic stabilityPower
supply features Massive toroid mains transformerUser switchable between 115v and
230v mains suppliesDual rectified power amp supplies for reduced ground
noiseSeparate smoothing per channel to reduce crosstalkIndependently rectified
and regulated pre-amp power suppliesGeneral FeaturesSupplied with CR90 system
remote controlAll gold plated input / output connectorsLarge, clear VFD dot
matrix displaySize – 430mm (17") wide, 370mm (14") deep, 110mm (4.2") highWeight
9.5kg (20.9lbs) nett, 12.5kg (27.5lbs) packed
PREAMPLIFICATORI
Arcam
FMJ C31 €.2.650,00
Per
ordine e sconto
TELEFONARE/EMAIL
Preamplificatore stereofonico
di riferimento - uscite bilanciate e sbilanciate – ingresso phono MM/MC
opzionale – possibilità di upgrade per segnali multicanale – finitura silver
AMPLIFICATORI FINALI
Arcam
FMJ P38 €.1.500,00
Per
ordine e sconto
TELEFONARE/EMAIL
Finale stereofonico – 105 W –
ingressi sbilanciati – uscita diffusori sdoppiata - telaio antirisonante –
finitura silver - dimensioni (L x A x P) 433 x 100 x 370 - peso Kg 9,5
Arcam
FMJ P1 €.2.350,00
Per
ordine e sconto
TELEFONARE/EMAIL
Finale monofonico – 185 W –
ingressi bilanciati e sbilanciati – telaio antirisonante – finitura silver
LETTORI CD
.gif)
Arcam
FMJ CD17 €.950,00
Per
ordine e sconto
TELEFONARE/EMAIL
Lettore CD - convertitori
Wolfson 24/192 - circuitazione di clock ad alta precisione - trasformatore
toroidale - uscite digitali ottica e coassiale - uscite analogiche RCA -
dimensioni (L x A x P) 430 x 85 x 290 - peso Kg 4,6
Since
the introduction of its multi-award winning “Alpha” CD player of the late 1980s,
the Arcam name has become synonymous with affordable HiFi of outstanding quality.
In the intervening years Arcam’s CD playback technology has developed to a point
where its players often compete with considerably more expensive products. The
CD17 is Arcam’s new entry level CD player and draws on a wealth of experience in
the field.The CD17 offers astonishing musical reproduction from CDs. The all
important Digital to Analogue conversion is carried out by the very latest
Wolfson 8741 DAC driven by an extremely accurate digital clock and audiophile
grade supporting components.Electromagnetic interference (EMI), which would
normally mask fine details in similar players, is dramatically reduced using
Arcam’s proprietary “Mask of Silence” technology. The use of “Stealth Mat” (unique
metal fibre matting) further diffuses EMI to help reproduce every nuance of each
recording.The CD17s power supply uses a toroid transformer together with
individually regulated supplies to digital, analogue and servo sections
providing extremely stable power with minimal noise. Case construction uses a
mix of aluminium and steel to reduce resonance and afford maximum electronic
screening for the internal components.The resulting sound quality ensures a
truly thrilling insight even with complex recordings. As part of Arcam’s FMJ
line of high performance separates, the CD17 is an ideal partner for the new A18
and A28 integrated amplifiers.Digital to Analogue System NLatest Wolfson 8741
DACs operating in differential modeOutput stage design derived from range
topping FMJ AV9 processorHigh precision clock with individually buffered clock
outputsAnti clipping processing to prevent distortion from CDs with very high
output levelConnectivity Two pairs of RCA phono outputs for multi room use or
direct recordingCoax (phono) and optical (Toslink) digital outputsPower supply
Toroid mains transformerSeparate, high capacity power supplies for analogue,
servo and digital sectionsEach supply individually regulatedSeparate ground
returns (“Star” earth) for each power supply to prevent inter-stage
noiseSwitchable mains power inlet 110-120v / 220-240vGeneral Supplied with CR10
system remote controlAll gold plated output connectorsLarge, custom VFD
displaySize – 430mm (17”) wide, 290mm (10.4”) deep, 85mm (3.3”) highWeight 5.1kg
(11.2lbs) nett, 7.0kg (15.4lbs) packed
.jpg)
Arcam
FMJ CD37 €.1.900,00
Per
ordine e sconto
TELEFONARE/EMAIL
Lettore CD-SACD - convertitori Wolfson 8741 in configurazione “Pure DSD”-
circuitazione di clock ad alta precisione - esclusivi circuiti “Mask of Silence”
e Stealth Mat EMC - doppio trasformatore toroidale - uscite digitali ottica e
coassiale - uscite analogiche sdoppiate - dimensioni (L x A x P) 430 x 85 x 280
- peso Kg 6,2
The
CD37 In detail As one of the few specialist companies in the world to have
developed their own CD and DVD players from the ground up, Arcam enjoy a world
wide reputation for music and movie playback. Having produced the world’s first
true audiophile CD player in the late 1980’s, Arcam CD and DVD players have gone
on to set the standards by which competing players are judged. The new CD37 is
the company’s highest performing music player to date.Using technology from the
companies highly revered DVD players; the CD37 plays both CDs and SACD with
astonishing musical reproduction. Digital to Analogue conversion is carried out
by the very latest Wolfson 8741 DACs using pure DSD conversion unleashing the
full resolution of SACD discs for with starling clarity.Electromagnetic
interference (EMI), which would normally mask fine details in similar players,
is dramatically reduced using Arcam’s proprietary “Mask of Silence” strategy.
The use of “Stealth Mat” (unique metal fibre matting) further diffuses EMI to
ensure the every nuance of each recording is heard in its full glory.The CD37s
power supply features two separate toroid transformers, one each for audio and
digital circuits. The chassis itself features a damped “Sound Dead Steel”
construction virtually eliminating mechanical influences on the electronics.As
part of Arcam’s FMJ line of high performance separates, the CD37 is an ideal
partner for the A38 integrated amplifier or C31 pre-amp and P38 power amp
combination.Digital to Analogue section Latest Wolfson 8741 DACs operating in
dual differential modeNative DSD digital to analogue conversion for SACD
discsUltra high performance Burr Brown OPA2134 output op-ampsAudiophile grade
WIMA Polypropylene capacitors in output stageConnectivityTwo pairs of RCA phono
outputs for multi room use or direct recordingCoax (phono) and optical (Toslink)
digital outputsInfra red control input (3.5mm jack)12v trigger input (3.5mm
jack)Power supply Dual toroid mains transformersSeparate, high capacity power
supplies for analogue, servo and digital sectionsSample rate locked switch mode
power supply for digital circuitsEach supply individually regulatedSeparate
ground returns ("Star" earth) for each power supply to prevent inter-stage
noiseSwitchable mains power inlet 110-120v / 220-240vGeneralSupplied with CR90
system remote controlAll gold plated output connectorsLarge, clear 12 character
dot matrix VFD displaySize – 430mm (17") wide, 350mm (10.4") deep, 85mm (3.3")
highWeight 6.2kg (13.7lbs) nett, 8.1kg
LETTORI BLU RAY
Arcam
FMJ BDP-100 €.1.700,00
Per
ordine e sconto
TELEFONARE/EMAIL
Lettore Blue Ray (BD) –
riproduzione audio da CD di riferimento tramite convertitori Wolfson 8741 –
compatibile Blue-Ray (compresi BD Live), DVD – Video, DVD-R, DVD-RW, CD Audio,
CD-R, CD-RW - Codec supportati: Dolby fino a TrueHD, DTS fino a Master Audio,
MP3 da 48 a 320 Khz, WMA fino a 192 kHz, JPEG fino a 4272 x 2848, AVI fino a
1920 x 1080 a 30 fps, WMV fino a 1920 x 1080 – uscite video HDMI (V.1.3°)
Component, Composito – Uscite audio: HDMI, digitale ottica e elettrica, audio
stereo (RCA), audio stereo zona 2 (RCA) – ampio display multifunzione – porta
bidirezionale RS232 - telecomando – Dimensioni 39 x 435 x 400 mm (AxLxP) – Peso
6,2 Kg.
SINTOAMPLIFICATORI
HOME THEATRE
Arcam
FMJ AVR 500 €.4.000,00
Per
ordine e sconto
TELEFONARE/EMAIL
Sintoamplificatore A/V ad
alte prestazioni - 7 per 100 W continui (tutti i canali pilotati) –
Sintonizzatore AM/FM – Slot di espansione per modulo DAB o network card per
ricezione internet radio - 5 ingressi HDMI, 2 uscite HDMI3 ingressi component
con relativa uscita, 2 ingressi s-video e 2 composito con 1 monitor out per
formato - circuito di transcoding e upscaling a 1080p - decodifiche audio DD+,
Dolby TrueHD, DTS HRA e DTS Master Audio – 8 ingressi analogici compreso phono e
8 digitali (oottici e coassiali) - uscite seconda zona audio e video solo da
ingresso analogico - circuito Audio Direct dedicato alla riproduzione di segnali
stereofonici - controllabile vie IR o con RS232 (full duplex) – microfono in
dotazione per auto calibrazione livelli - telecomando programmabile - dimensioni
435 x 415 x 185 (lxpxa) - peso 22 Kg.- finitura silver o nero–
Arcam
FMJ AVR 600 €.5.400,00
Per
ordine e sconto
TELEFONARE/EMAIL
Sintoamplificatore A/V ad
alte prestazioni – 7 per 120 W continui (tutti i canali pilotati) – ingressi ed
uscite in tutti i formati video oggi disponibili tra cui doppia HDMI 1.3a con
switching – circuito di transcoding e upscaling a 1080p – decodifiche audio DD+,
Dolby TrueHD, DTS HRA e DTS Master Audio – oltre 100 connessioni di ingresso e
uscita in formato analogico e digitale garantiscono la più completa versatilità
e compatibilità con altri prodotti presenti sul mercato - uscite su tre zone
indipendenti – circuito “Audio Direct” dedicato alla riproduzione di segnali
stereofonici – controllabile vie IR o con RS232 (full duplex) telecomando
programmabile – dimensioni 432 x 450 x 180 (lxpxa) – peso 25 Kg.- finitura
silver o nero–
PREAMPLIFICATORI HOME
THEATRE
Arcam
FMJ AV888 €.6.400,00
Per
ordine e sconto
TELEFONARE/EMAIL
Processore A/V ad alte
prestazioni – processori audio Analog Devices ADSP-21366 & ADSP-21367 –
convertitori Wolfson 8471 - compatibile con Dolby TrueHD, Dolby Digital+, Dolby
Digital EX, Dolby Pro Logic IIx, DTS HD Master Audio, DTS High Resolution Audio,
DTS-ES Discrete, DTS-ES Matrix, DTS96/24, DTS Neo:6 - ingressi ed uscite in
tutti i formati video oggi disponibili tra cui 5 HDMI 1.3A con switching -
circuito di transcoding e upscaling a 1080P su tutti gli ingressi - oltre 100
connessioni di ingresso e uscita in formato analogico e digitale garantiscono la
più completa versatilità e compatibilità con altri prodotti presenti sul mercato
- uscite su tre zone indipendenti – circuito “audio direct” dedicato alla
riproduzione di segnali stereofonici - controllabile via IR o con RS232 (full
duplex) telecomando programmabile – finitura silver o nero - dimensioni
180 x 432 x 450 (AxLxP) - peso 12 Kg.
AMPLIFICATORI MULTICANALI
Arcam
FMJ P100 €.3.700,00
Per
ordine e sconto
TELEFONARE/EMAIL
Amplificatore finale
multicanale – 7 x 135 W su 8 ohms con tutti i canali pilotati – ingressi
bilanciati e sbilanciati – finitura finitura silver o nero
.jpg)
Arcam

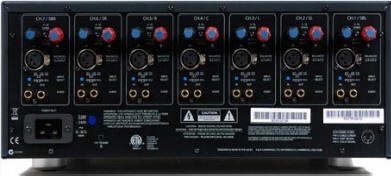

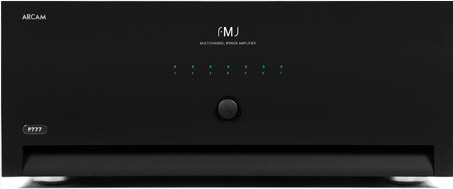

FMJ P777 €.5.300,00
Per
ordine e sconto
TELEFONARE/EMAIL
Amplificatore finale
multicanale - 7 x 150 W su 8 ohms con tutti i canali pilotati (7 x 230 su 4 oms)
– corrente di picco superiore a 30 Amperes per canale – doppio alimentatore da
1550 V/A con sistema di accensione progressiva – protezione per offset DC,
termica (ventilazione forzata) e circuito di limitazione sul singolo canale -
ingressi bilanciati e sbilanciati - finitura silver o nero–
dimensioni 185 x 435 x 460 – peso Kg. 31
The
P777 is a natural partner to the AV888 AV processor in high performance home
cinema installations. Using Sanken output devices with ultra-stable thermal
management from the company’s stereo product line, the P777 offers huge power
and control with even the most demanding loudspeakers and programme material.
The Arcam development team have left nothing to chance while designing the P777.
Literally hundreds of hours critical listening and fine tuning ensure it is
equally at home with movies or music and will delight all who experience
it.Having gained a world class reputation for amplifier design over thirty years,
Arcam introduce the P777 multi channel amplifier for home cinema and music
reproduction. Using technology honed thorough the development of dozens of award
winning amplifiers, the P777 is the company’s highest performing multi channel
amplifier yet.Subtle detail is retrieved with startling realism even though the
P777 is a true power house amplifier with huge output potential. Over 1.6kW of
continuously available power is available to drive loudspeakers with clarity and
precision and control. Substantial heat sinking and a computer controlled fan
cooling system ensure it remains cool even under extreme duress with an
predominantly aluminium construction ensuring chassis temperatures are kept low
while electro-magnetic interference is kept away from delicate audio signals.The
Two oversize toroid power transformers feed the seven power amplifier channels
with separate secondary windings for each channel. The centre channel, often the
most important as it carries dialogue information, is fed from both transformers
for maximum performance. “Soft Start” circuit is deployed to reduce inrush load
on the incoming mains supply at switch-on with the toroid standby transformer
and control circuits kept in their own aluminium enclosure for additional
screening.The P777 is one of the finest multi channel amplifiers in the world
and is specifically designed for the most ardent home cinema enthusiast or
advanced custom installer. Available in black or silver finish, the P777 is
designed and manufactured in the UK. Audio7 x 150 watts per channel (8 ohms,
20Hz-20kHz, all channels driven)7 x 230 watts per channel (4 ohms, 20Hz-20kHz,
all channels driven)Peak output current +/- 30amps per channelModular
construction with seven independent and fully isolated channelsFour Sanken heavy
duty bi-polar output transistors per channelAdvanced current feedback design
with high slew rate and very low distortion at all audio
frequenciesPredominantly aluminium chassis and casework for best sound
qualityComprehensive protection circuitry - DC offset protection- VI limiting on
each output stage- Software controlled thermostatic fan- Over temperature
protectionInputs and Outputs Balanced (XLR) input connectionsUnbalanced (RCA)
inputs with “loop through” output12v Trigger (3.5mm mono jack) input for standby
controlPower Supply Features Balanced (XLR) input connectionsTwin 1500 VA
toroidal power transformers with separate secondary’s for each power
amplifierSeparate low noise toroid transformer for standby operation140,000
micro-farads total reservoir capacitance“Soft Start” turn on system to prevent
large inrush currentsCustom Install Features 12v trigger input (3.5mm)Heavy duty
IEC power inletMiddle Atlantic rack shelf availableBalanced and unbalanced
inputsUnbalanced input “loop though” connectionLarge and quiet temperature
controlled fanGeneral Available in black or silver finishSize – 435mm (17.1in)
wide, 460mm (18.1in)deep, 185mm (7.3in) highWeight 31kg (68.3) nett, 35kg
(81.6lbs) packed
SINTONIZZATORI
.jpg)
Arcam
FMJ T32 €.950,00
Per
ordine e sconto
TELEFONARE/EMAIL
Ricevitore AM/FM –
Funzionalità RDS – 100 posizioni di preset – sezione di uscita con OpAmp OPA2134
Burr Brown – uscita sdoppiata per sistemi multiroom – interfaccia RS232 –
predisposizione rDock o rLead (iPod) – dimensioni 430 x 290 x 85 – peso 5,3 kg
The
new FMJ T32 Radio Tuner uses state-of-the art technologies to deliver the very
best sound quality from DAB, FM, AM and Sirius Satellite broadcasts. A bespoke
iPod interface is also included allowing full integration of compatible iPods
with any high performance music system using the rDock or rLead. Finally A full
duplex RS232 control input also makes the T32 a perfect radio tuner for custom
installations.Having designed and manufactured radio tuners since the late 1970s
Arcam has a wealth of experience in delivering high performance from radio
broadcasts. The new FMJ T32 builds on this foundation, using state-of-the-art
technologies to deliver the very best radio quality from DAB, FM, AM and Sirius
Satellite broadcasts (DAB and Sirius reception market dependent).To ensure the
very best sound quality the T32 uses Arcam’s audiophile methodology. For DAB,
digital to analogue conversion uses the Wolfson 8740 from Arcam’s award winning
DVD players. All circuitry is fed from a toroidal power transformer and multiple
low noise regulated dc power supplies with components mounted on double-sided
fibreglass PCBs. Station selection is via presets or the large front panel knob.
The large, clear VFD display has scrolling text and is easily read from any
angle or in any light condition.A bespoke iPod interface is also included in the
T32 allowing full integration of compatible iPods with any high performance
music system. Using the Arcam rDock or rLead full control of the iPod is
delivered from the remote handset along with pristine audio quality.In addition
to its class-leading audio performance, the T32’s connectivity, control features
and multi-platform reception are state of the art. If not connecting an iPod the
RS232 control input make the T32 a perfect radio tuner for custom installations
using Crestron or AMX style system controls. For simpler systems the unit
features an IR jack input on the rear panel plus a fully featured system remote
handset. The T32 is the perfect partner for Arcam FMJ stereo and AV systems and
is available in black or silver finish. Radio tuner compatibilityDAB (market
dependent) with band III and L-band receptionDAB+ compatible for next-generation
broadcasts (where available)Discrete AM/FM tuner with switchable Europe/North
America de-emphasis and tuning incrementsSirius-Ready for use with a
SiriusConnectTM Home Tuner for receiving Sirius satellite radio (market
dependent)Digital to Analogue section Audiophile-quality Wolfson 8740 DACUltra
high performance Burr Brown OPA2134 output op-ampsConnectivity Two pairs of RCA
phono outputs for multi room use or direct recordingInfra red control input
(3.5mm jack)RS232 control socket for rDock/rLead connection to iPod (with
accompanying RCA phono input sockets) or for RS232 remote controlPower
supplyToroidal mains transformerSeparate, high capacity power supplies for
analogue and digital sectionsSwitchable mains power inlet 110-120v /
220-240vGeneralSupplied with CR90 system remote controlAll gold plated output
connectorsLarge, clear 128x18 pixel VFD displaySize – 430mm (17") wide, 290mm
(11.5") deep, 85mm (3.3") highWeight 5.3kg (11.7lbs) nett, 6.8kg (15.0lbs)
packed
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
 Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
info@newaudio.it
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
|
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
