Having more than 10 years'
experience in producing "Hi-end vacuum tube amplifier", we have established a
strong position in the Hong Kong and Chinese audio market and gained a good
reputation. By introducing our products to the foreign markets such as Japan,
Singapore, Malaysia, Philippines, Germany, the United States, Canada, Russia,
France, Italy, Taiwan, Australia, etc., our products have been gained much
respect from the foreign audio reviewer and are welcomed by audiophiles
worldwide. Our products include Stereo Line Amplifier, Power Amplifier,
Integrated Amplifier, Speakers, Audio Accessories such as power cord, speaker
cables, interconnect RCA cables, etc. Our products are reputed for their
aesthetic design and superb sound quality but are priced very competitively. The
combination of the delicate circuit structure and the ingenious workmanship is
the key of our successful products, which have received many different awards

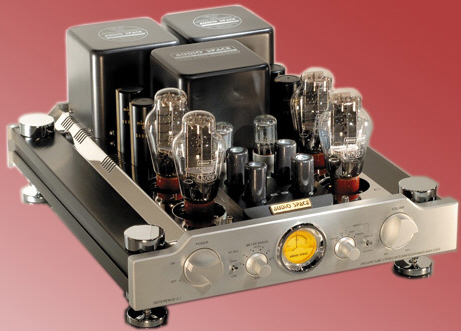

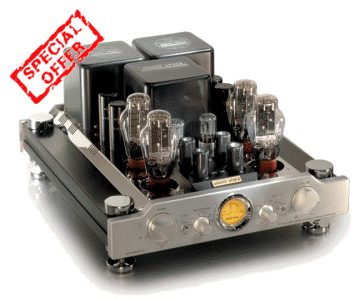

This latest true reference
grade integrated amp with built-in tubed mm phono section delivers the sweetest
music with pinpoint imaging in one complete package. The musicality and
naturalistic mids and high are second to none Class-A Triode Push-Pull . 21 W/ch
. Tube mm phonostage . 300B oupt tubes . Point-to-point wiring . Super quiet One
of the most prestigious handed out in Japan by the publisher of the Audio
Accessory, Analog, and Senka 21 audio/video magazines. A seamless combination
with Von Schweikert loudspeakers"I have a very high regard for your amplifier
design and believe it to be one of the best sounding amplifiers I have ever
heard. The best part is that your amplifier seems to be in love with my speaker
system - they sound like they were both designed together as a system. It's
almost unbelievable how good the amp and speaker work together! " Albert Von
Schweikert (in reference to Reference 3.1) Stereo Integrated Amplifier (with MM
Phono)
Model No. : Reference 3.1 (300B) Input Impedance : >56k ohm (RCA/Direct In) / 47
ohm (MM Phono In) Output Impedance : 0, 4, 8, 16 ohm Output Power : 21W x
2 (Triode-Class A Push-Pull) Damping Factor : >5 Frequency Response
: 20Hz~30kHz±1dB T.H.D. : <1% 20Hz~20kHz (Ref. Output) Input Sensitivity :
>200mV, 3~5mV (MM Phono In S/N Ratio : >80dB (Hum Noise<3mV) Vacuum Tubes : 300B
x 4, 6N8P x 2, 12AX7 x 4 Dimension : 475 x 405 x 215 mm (DxWxH)Weight : 28.7 kg
(N.W.), 34.6 kg (G.W.) 300B
Amplificatore integrato
stereo a valvole. Costruzione di alto livello meccanico e circuitale. Chassis in
acciaio. Piedini ammortizzanti e regolabili. Basi valvole in ceramica.
Componentistica superselezionata. Regolazione BIAS semplice ed intuitiva grazie
al VuMeter frontale. Possibilità di selezionare il livello di controreazione dal
frontale. Ingresso PHONO MM. Ingresso DIRECT. Uscita Linea RCA. Valvole
AudioSpace selezionate a quartetto per massima qualità ed efficienza. Grande
capacità di pilotaggio anche su diffusori a bassa efficienza. Ingressi: PHONO MM
(1) – LINE (2) – DIRECT (1) – LINEOUT (1) - Class-A Triode Push-Pull - 21 W
Triode/Ultralinear mode - MM phonostage - 300B output tubes - Protective Grid -
Solid steel chassis Input Impedance: >56K ohm (RCA/Direct In) Output Impedance:
4, 8, ohmOutput Power: 21W/ch (Class-A push-pull)T.H.D.: < 1% Input Sensitivity:
>300mV-600mVS/N Ratio: > 88dB (hum noise < 3mV) Tubes: 2 x 6N9P (6SL7 or
ECC-35), 2 x 6N8P (6SN7 or ECC-32), 4 x 300BDimension: (300 x 400 x 190)
mmWeight: 22,5 Kg
Vacuum
Tube Integrated AmplifierModel No. : AS-6i 300BDimension (DxWxH) : (300 x 400 x
190) mm Weight: Input Impedance: Output Impedance: 4, 8 ohmOutput Power: 21W x 2
Class A P-PPower Consumption: Damping Factor: Frequency Response: T.H.D.: Total
Gain: Input Sensitivity: 300mV-600mVS/N Ratio: > 88dB (Hum Noise < 3mV)Channel
Balance: Channel Separation: Tubes: 2 x 6N9P (6SL7 or ECC-35), 2 x 6N8P (6SN7 or
ECC-32), 4 x 300BDescription:AS-6i (300B) uses the same small tubes as another
model AS-300BMKII SE, which are namely 6SL7 x 2 pcs plus 6SN7 x 2 pcs whilst the
power tubes are the same as MP-1B, i.e 300B x 2pcs per channel under the
push-pull operation mode. It generates 21W output power, which can indeed be
enhanced to 28W RMS output power. The bass performance is fascinating asthe low
frequency can reach as low as 10Hz ? 1dB, which is very amazing for any design
of 300B amplifier. AS-6i (300B) is equipped with 3 RCA input selection, 1 direct
input plus 1 RCAoutput.
Amplificatore integrato
stereo a valvole. Costruzione di alto livello meccanico e circuitale. Chassis in
acciaio. Piedini ammortizzanti e regolabili. Basi valvole in ceramica.
Componentistica superselezionata. Regolazione BIAS semplice ed intuitiva grazie
al VuMeter frontale. Possibilità di selezionare la modalità di funzionamento dal
frontale e da telecomando. Ingresso PHONO MM. Ingresso DIRECT. Uscita Linea RCA.
Valvole AudioSpace selezionate a quartetto per massima qualità ed efficienza.
Grande capacità di pilotaggio anche su diffusori a bassa efficienza. Uscita
cuffia. Ingressi: PHONO MM (1) – LINE (2) – DIRECT (1) – LINEOUT (1) - Class-AB
Push-Pull - 16 W Triode/ 32 W Ultralinear - Remote control - EL34 output tubes -
Headphone output - Point-to-point wiring Operation Mode: Class-AB Push-Pull
Output Power: 16W/ch (triode) - 32W/ch (ultralinear) Output Impedance: 4, 8 ohms
Input: RCA (CD, AUX1, AUX2, Dir-In) Output: RCA (Rec Out) Tube Complement:
2x6SL7, 2x6SN7, 4xEL34 Dimension: 400(W) x 330(D) x 190(H) Weight: 22.5Kg
Class-AB
Push-Pull . Point-to-point wiring . Hand wound transformers . Headphone Jack .
Remote control . EL34 output tubes . 16W (triode), 32W (ultralinear) o
Integrated mode or Stereo-amp mode (via Direct-In RCA) o Triode or ultralinear
mode selector (hot switching) o Fixed bias adjustment with meter readout on
front panel or measuring testpoints on chassis o Remote control - mute, volume,
source selection, triode/ultralinear selectionOperation Mode: Class-A Push-Pull
Output Power: 16W/ch (triode) 32W/ch (ultralinear) Output Impedance: 4, 8 ohms
Input: RCA (CD, AUX1, AUX2, Dir-In) Output: RCA (Rec Out) Tube Complement:
2x6SL7, 2x6SN7, 4xEL34 Dimension: 15.7"(W) x 13"(D) x 7.5"(H) Weight: 50 lbs
Amplificatore integrato
stereo a valvole. Costruzione di alto livello meccanico e circuitale. Chassis in
acciaio. Piedini ammortizzanti e regolabili. Basi valvole in ceramica.
Componentistica superselezionata. Uscita Linea RCA. Possibilità di selezionare
il livello di controreazione dal frontale. Valvole AudioSpace selezionate a
quartetto per massima qualità ed efficienza. Grande capacità di pilotaggio anche
su diffusori a bassa efficienza. Uscita cuffia. Ingressi: LINE (3) –LINEOUT (1)
- Class-AB Push-Pull - 12 W Triode/ 16 W Max - Small size cabinet - EL84 output
tubes - Headphone output - Point-to-point wiring. Input Impedance: > 100Kohm
(RCA)Output Impedance: 4-8 ohmOutput Power: 12W x 2 Class AB1 P-P (Ultralinear),
16W x 2 Max.Damping Factor: > 3Frequency Response: T.H.D.: < 1% 20Hz-20KHz (Ref.
Output)Total Gain: 30dBInput Sensitivity: 300mV - 600mVS/N Ratio: > 89dB (Hum
Noise < 3mV)Channel Balance: /- < 1dB 20Hz-20KHz Channel Separation: > 60dB
(1KHz-3.3KHz)Tubes: EL-84 x 4, 12AX7 x 1, 12AU7 x 2Dimension (DxWxH) : (275 x
266 x 160) mm Weight: N.W. 8,2kg

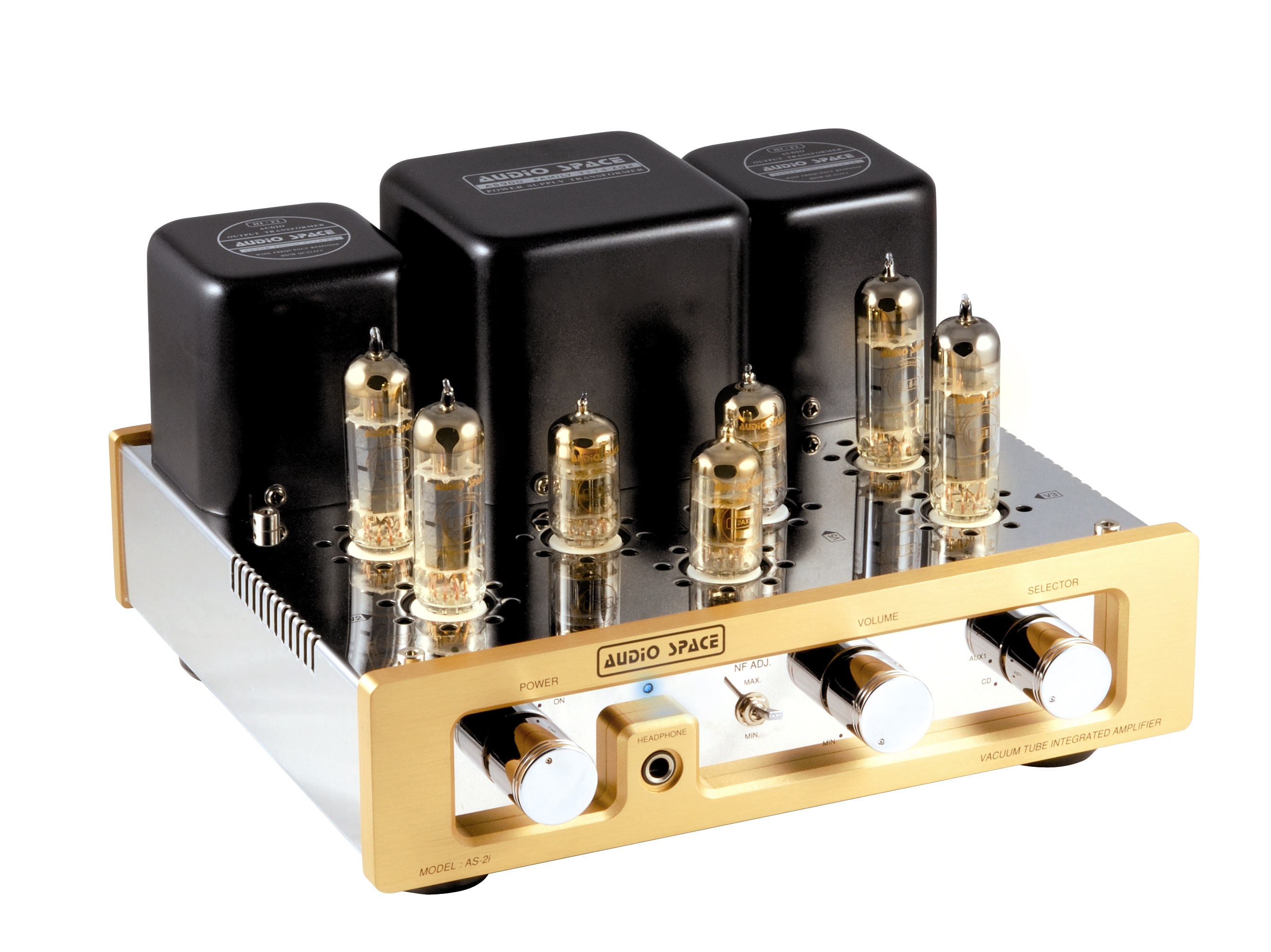

Vacuum Tube Integrated
AmplifierModel No. : AS-2iDimension (DxWxH) : (275 x 266 x 160) mm Weight: N.W.
7.8kg/ch / G.W. 8.9kg/chInput Impedance: > 100Kohm (RCA)Output Impedance: 4-16
ohmOutput Power: 12W x 2 Class AB1 P-P (Ultralinear), 16W x 2 Max.Power
Consumption: Damping Factor: > 3Frequency Response: T.H.D.: < 1% 20Hz-20KHz (Ref.
Output)Total Gain: 30dBInput Sensitivity: 300mV - 600mVS/N Ratio: > 89dB (Hum
Noise < 3mV)Channel Balance: /- < 1dB 20Hz-20KHz (Max. Volume)Channel Separation:
> 60dB (1KHz-3.3KHz)Tubes: EL-84 x 4, 12AX7 x 1, 12AU7 x 2Description:Review
Article
Il primo amplificatore
valvolare dotato di presa USB e D/A. Ingresso PC. Il più compatto ampli a
valvole. Disegno Brevettato. Costruzione di alto livello meccanico e circuitale.
Basi valvole in ceramica. Componentistica superselezionata. Possibilità di
selezionare il livello di controreazione dal frontale. Valvole AudioSpace
selezionate a quartetto per massima qualità ed efficienza. Grande capacità di
pilotaggio anche su diffusori a bassa efficienza. Uscita cuffia. Alimentatore
separato. Class-AB Push-Pull - 12 W Triode - Micro size double cabinet - EL84
output tubes - USB Input - Headphone jack Operation Mode: Class-AB Push-Pull
Output Power: 12W/ch (triode) Output Impedance: 4, 8 ohms Input: RCA / USB
(PC)Tube Complement: 2x12AX7, 4xEL84 Dimension: 166(W) x 204(D) x 187(H) Weight:
6.5Kg
Vacuum Tube Integrated Mini
AmplifierModel No. : Mini-1998 SE Dimension (DxWxH) : (162 x 155 x 115) mm
Weight: N.W. 7kg (included power adaptor)Input Impedance: 250KohmOutput
Impedance: 4, 16 ohm Output Power: 12W x 2 Class AB P-PPower Consumption:
Damping Factor: > 3Frequency Response: 20Hz - 20KHz / -2dBT.H.D.: < 1% 20Hz -
20KHz (Ref. Output)Total Gain: 30dBInput Sensitivity: 100-500mVS/N Ratio: > 93dB
(Hum Noise < 3mV)Channel Balance: < 1dB 20Hz-20KHzChannel Separation: > 65dB
(1KHz/3.3KHz)Tubes: EL-84 (6BQ5, 7189A, 6P-14) x 4, 12AX7 (ECC83) x
2Description:MINI-1998 SE --- The advanced version of Mini-1998+, with the
original gorgeous circuit design but is now equipped with two RCA input and
headphone function. Special technique has been adopted to control the operation
temperature of the amplifier in order to increase the stability while it
operates.MINI-1998 SE uses Electro Harmonix or JJ EL-84 valves with which the
harmonic and anacrusis part is enriched and the sonic effect becomes more
mellifluous.This product has obtained the national patent for design and
appearance.Patent number : ZL 01 3 47284 4
