BENZ MICRO  MC SILVER                                                                  Listino  ufficiale  €.     599,00

Fonorivelatore a bobina mobile, livello d'uscita 2mV, peso 5,7gr.

The entry models to the Benz Micro line provide the musicality we are famous for combined with affordability and a wide range of turntable/tonearm compatibility. The Gold is a low output moving coil at .4mV at 3.54cm/sec, perfectly suited for moving coil phono stages with 60dB or higher gain. The Silver high output (2.5mV at 3.54cm/sec) is ideal for m type phono stages, low-gain tube phono stages and AV systems. These models let you enjoy the Benz Micro sound and provide an upgrade path to the Swiss hand-made cartridges. Specifications: Output Voltage (3.54 Cm/sec) 5 (Gold), 2 (Silver) Stylus Shape .3 x .7 mil Internal Ohms 20 (Gold), 120 (Silver) Loading Range >200 (Gold), >1,200 (Silver) Weight 5.7 grams Compliance 15 Tracking 1.7 – 2 grams Warranty 2 years

BENZ MICRO  MC GOLD                                                                        Listino  ufficiale  €.    599,00

Fonorivelatore a bobina mobile, livello d'uscita 0,4mV, peso 5,7gr.

The entry models to the Benz Micro line provide the musicality we are famous for combined with affordability and a wide range of turntable/tonearm compatibility. The Gold is a low output moving coil at .4mV at 3.54cm/sec, perfectly suited for moving coil phono stages with 60dB or higher gain. The Silver high output (2.5mV at 3.54cm/sec) is ideal for m type phono stages, low-gain tube phono stages and AV systems. These models let you enjoy the Benz Micro sound and provide an upgrade path to the Swiss hand-made cartridges. Specifications: Output Voltage (3.54 Cm/sec) 5 (Gold), 2 (Silver) Stylus Shape .3 x .7 mil Internal Ohms 20 (Gold), 120 (Silver) Loading Range >200 (Gold), >1,200 (Silver) Weight 5.7 grams Compliance 15 Tracking 1.7 – 2 grams Warranty 2 years

BENZ MICRO  ACE S                                                                                  Listino  ufficiale  €.  1.000,00

Fonorivelatore a bobina mobile, disponibile in 3 livelli d'uscita L (Low 0,4mV), M (Medium 0,8mV), H (High 2,5mV), nuovo stilo in diamante S DESIGN, corpo in perspex, peso 8,8gr

Conceived in 1996 as the most affordable Swiss hand-made moving coil phono cartridge, it took 5 years and a new factory to deliver the Advanced Cartridge Engineering (ACE) in 2001. Now the S Class models of the ACE SL (red), SM (clear), SH (blue) ($900 MSRP) all incorporate the Benz Micro Ridge stylus for the best performance/value ratio in phono cartridges, regardless of output level. The SL is .4mV at 3.54cm/sec with a coil impedance of 12 ohms, perfectly suited for MC phono stages with 60dB or higher gain. The SM is .8mV and 24 ohms, designed for less efficient systems and tube phono stages with gain between 45 – 58dB. The ACE SH (2.5mV at 3.54cm/sec) is among the best high output moving coils ever made, ideal for moving coil type phono stages, low-gain tube phono stages and AV systems. Music lovers can take advantage of industry leading programs in upgrading previous Benz Micro models or other brand cartridges to the new ACE S Class. Specifications: Output Voltage (3.54 Cm/sec) 2.5 (ACE SH), .8 (ACE SM), .4 (ACE SL) Stylus Shape Micro Ridge Internal Ohms 90 (ACE SH), 24 (ACE SM), 12 (ACE SL) Loading Range >1,000 (ACE SH), >240 (ACE SM), >120 (ACE SL) Weight 8.8 grams Compliance 14 (ACE SH), 14 (ACE SM), 15 (ACE SL) Tracking 1.6 – 1.9 grams Warranty 2 years

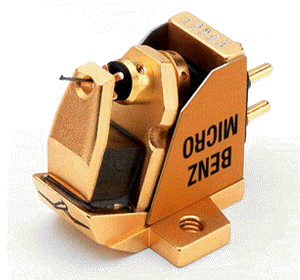

BENZ MICRO  GLIDER S                                                                        Listino  ufficiale  €.  1.200,00

Fonorivelatore a bobina mobile, disponibile in 3 livelli d'uscita L (Low 0,4mV), M (Medium 0,8mV), H (High 2,5mV), nuovo stilo in diamante S DESIGN, peso 6,8gr.

The famous Benz Micro Glider S, originally introduced in 1993, now features the Benz Micro Ridge stylus and is available in three outputs: L, M or H. Its open air design, medium compliance and 6.8-gram weight make it ideal on a very wide range of tonearms, one of the many reasons for its incredible success. The Glider SL is .4mV at 3.54cm/sec with a coil impedance of 12 ohms, perfectly suited for moving coil phono stages with 60dB or higher gain. The SM is .8mV and 24 ohms, designed for less efficient systems and tube phono stages with gains between 45 – 58dB. The SH (2.5mV at 3.54cm/sec) is among the best high output moving coils ever made, ideal for moving magnet type phono stages, low gain tube phono stages and AV systems. The lower mass coils and matched cantilevers of the new S Class retain their real world output levels and with their improved styli, offer higher performance. Specifications: Output Voltage (3.54 Cm/sec)2.5 (Glider SH), .8 (Glider SM), .4 (Glider SL) Stylus Shape Micro RidgeInternal Ohms 90 (Glider SH), 24 (Glider SM), 12 (Glider SL) Loading Range >1,000 (Glider SH), >240 (Glider SM), >120 (Glider SL) Weight 6.8 grams Compliance 14 (Glider SH), 14 (Glider SM), 15 (Glider SL) Tracking 1.6 – 1.9 grams Warranty 2 years


BENZ MICRO  WOOD S                                                                            Listino  ufficiale  €. 1.400,00

Fonorivelatore a bobina mobile, corpo testina in legno, disponibile in 3 livelli d'uscita L (Low 0,4mV), M (Medium 0,8mV), H (High 2,5mV), nuovo stilo in diamante S DESIGN, peso 9gr.

A re-introduction of a Benz Micro classic, the S Class models of the Wood Body SL (low), SM (medium) and SH (high), all incorporate the Benz Micro Ridge stylus coupled to 4th generation cross-coil-generator based cartridges, originally introduced in the early 1990s as the LO.4, MO.9 and H2O. Benz Micro’s Albert Lukaschek began researching increased performance and uniformity of his cross-coil designs while developing the Benz Ebony H, L and TR models. Experimenting with the length of the solid Boron cantilever revealed how the elasticity of this very stiff material contributed to compliance and tracking. Development of a grooved rear pole piece for countersinking the o-ring damper, first introduced on the Benz Ruby square plate cartridges, was then adapted to the cross coil designs, given their lower contact area and damping.The 3 output levels are electrically identical to the low, medium and high versions of both Benz Micro Glider and ACE models, making these re-introduced Wood models the ideal upgrade path. The Wood SL is best suited for high gain phono stages with resistive loading greater than 120 ohms. The Wood SM is ideal for tube phono stages providing up to 56dB of gain and is typically loaded ay 47k ohms although 1kohm is also acceptable. The Wood SH can be used with MM type phono stages and a 47k ohms input impedance. Specifications: Output Voltage (3.54 Cm/sec) 0.4 (Low) 0.8 (Medium) 2.5 (High) Stylus Shape Micro Ridge Internal Ohms 12Ω (Low) 24Ω (Medium) 90Ω (High) Loading Range >100 (Low) >1000 (Medium) 47kΩ (High) Weight 9 grams Compliance 15 (Low) 14 (Medium) 14 (High) Tracking 1.6 – 1.9 grams Warranty 2 years





BENZ MICRO  MICRO ZEBRA                                                                           Listino  ufficiale  €. 1.800,00

I modelli Classe S del Wood Body SL (basso), SM (medio) e SH (alto), incorporano tutti lo stilo Benz Micro Ridge accoppiato a generatori migliorati che utilizzano nuovi avvolgimenti della bobina e raffinati design delle espansioni polari/ammortizzatore. Albert Lukaschek di Benz Micro ha iniziato a ricercare prestazioni migliorate e uniformità dei suoi progetti di bobine incrociate mentre sviluppava i modelli Benz Ebony H, L e TR. La sperimentazione con la lunghezza del cantilever in boro solido ha rivelato come l'elasticità di questo materiale molto rigido abbia contribuito alla conformità e al tracciamento. Lo sviluppo di un'espansione polare posteriore scanalata per svasare l'ammortizzatore dell'o-ring, introdotta per la prima volta sulle cartucce a piastra quadra Benz Ruby, è stata quindi adattata ai design delle bobine incrociate, data la loro area di contatto inferiore e lo smorzamento. L'SL è 0,4 mV a 3,54 cm/sec con un'impedenza della bobina di 12 ohm, perfettamente adatto per stadi phono MC con guadagno di 60 dB o superiore. L'SM è 0,8 mV e 24 ohm, progettato per sistemi meno efficienti e stadi phono a valvole con guadagno compreso tra 45 e 58 dB. Il Wood SH (2,5 mV a 3,54 cm/sec) è tra le migliori bobine mobili ad alto rendimento mai realizzate, ideali per stadi fono a magnete mobile, stadi phono a valvole a basso guadagno e sistemi AV.



BENZ MICRO  REFERENCE S                                                             Listino  ufficiale  €. 2.000,00

Fonorivelatore a bobina mobile. Corpo testina in legno, basso livello d'uscita, 0,26mV, avvolgimenti della bobina in argento, stilo micro-edge, peso 9 gr.


BENZ MICRO  EBONY                                                                               Listino  ufficiale  €.  2.600,00

Fonorivelatore a bobina mobile, disponibile in 3 livelli d'uscita L (Low 0,26mV), M (Medium 0,8mV), H (High 2,5mV), stilo micro-edge, corpo in ebano, peso 9,6gr

VERSIONE  TR-Fonorivelatore a bobina mobile, basso livello d’uscita 0,1 mV, stilo micro-edge, corpo in ebano, impedenza 1ohm, peso 9,6gr.

A Benz Micro classic, the Ebony H and Ebony TR cartridges have been re-introduced for a very limited production run. The Ebony body, cross-coil models include the Ebony H and Ebony TR, both featuring Micro Ridge or MR stylus. The ultimate high-output moving coil, the Ebony H shares the same Ebody body as the Benz Micro LP S MR, and is used with MM type phono stages and a 47kohm input impedance. The Ebony TR is designed for use with a Step Up Transformer (SUT), featuring a .1mV output and a coil impedance of less than 5 ohms. Specifications: Output Voltage (3.54 Cm/sec).1 (TR) 2.5 (H)Stylus ShapeMicro RidgeInternal Ohms 1Ω (TR) 90Ω (H) Loading Range >5 (TR) >1000 (H) Weight10.7 grams Compliance 14 Tracking 1.6 – 1.9 grams Warranty 2 years

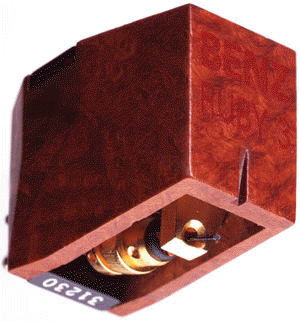

BENZ MICRO  RUBY Z                                                                             Listino  ufficiale  €.  2.600,00

Fonorivelatore a bobina mobile, corpo in legno, basso livello d’uscita,  0.34 mV, stilo micro-edge, peso 10,2gr

 Versione  Ruby sr  12,2 Gr, L=0.34 mV, H=0.7 mV

Ruby Z upgrades this famous model to full “S Class” status. It features the new Zebra wood body, second only to Ebony for its resonance characteristics, offering bass weight and pitch definition, midrange linearity and high frequency clarity with a natural musicality. The new Micro Ridge stylus is featured, providing enhanced tracking, resolution and groove integrity. The generator is based on the Ruby square plate and output is .35mV.  The Ruby Z low output is best used with phono stages offering greater than 60dB gain, loaded at 400 ohms or higher. The Ruby Zebra cartridge weighs only 10.6 grams, making it ideal for a wide range of tonearms, including today’s state-of-the-art, and vintage models lacking the energy control, bearing designs, or counter-weight range. Specifications:Output Voltage (3.54 Cm/sec).35 Stylus Shape Micro RidgeInternal Ohms38 Loading Range >400Weight 10.7 grams Compliance 15 Tracking 1.8 – 2 grams Warranty 2 years

BENZ MICRO  LP                                                                                             Listino  ufficiale  €.  3.500,00

Fonorivelatore a bobina mobile, basso livello d’uscita 0.34 mV, stilo micro-edge, corpo in ebano, peso 10,7gr

VERSIONE  LP S -Fonorivelatore a bobina mobile, basso livello d’uscita 0.34 mV, stilo micro-edge, corpo in ottone, peso 16,4gr

The latest LP S incorporates a higher mass brass frame for improved coupling to tonearms, evolved ruby square plate generator and Ebony body. Brass, an alloy of copper and tin, complements Ebony, materials used for building musical instruments. The LP S has 50% more mass than the previous model for enhanced vibrational and resonant characteristics, thus revealing greater dynamic contrasts, deeper bass and increased resolution from all records. The latest LP S Class was the first Benz Micro to use the new Micro Ridge stylus, now found on all Benz Micro Swiss-made cartridges. Specifications: Output Voltage 3.54 Cm/sec .35 Stylus Shape Micro Ridge Internal Ohms 38 Loading Range >400 Weight 16 grams Compliance 15 Tracking 1.8 – 2 grams Warranty 2 years


Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

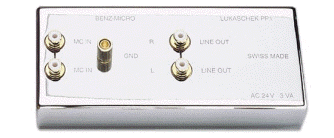

BENZ MICRO  PP1                                                                                          Listino  ufficiale  €. 1.960,00

Stadio phono MC universale, utilizzabile con qualsiasi preamplificatore linea
