HIFI  TV  VIDEO DIFFUSORI  PROIETTORI  SAT  POLTRONE   DIVANI   ARREDO SONORIZZAZIONI AMBIENTI  HIFI  TV  VIDEO DIFFUSORI  PROIETTORI  SAT  POLTRONE   DIVANI   POLTRONE UFFICIO  ARREDO SONORIZZAZIONI AMBIENTI




DALI  CONCEPT  2            €.    215,00                Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da stand, 2 Vie Reflex, Wf /Md 16,5cm - Tw 2,5cm, 40-120W - Black



DALI  CONCEPT  6            €.    340,00                Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da pavimento, 2 Vie Reflex, 2 x Wf 16,5cm - Tw 2,5cm, 30-150W - Cherry





DALI  CONCEPT  CENTER  €.    240,00                Per offerta  e promozioni  TELEFONARE/EMAIL

Canale centrale, 2 Vie Reflex, 2 x Wf 12,5cm - Tw 2,5cm, 25-120W - Cherry




SERIE LEKTOR
DALI LEKTOR is proud heir to nearly three decades of dedicated research and development by one of the world’s leading loudspeaker builders. Inheriting exclusive DALI features, technologies and materials developed for the famed EUPHONIA, HELICON, MENTOR and IKON series, DALI LEKTOR is particularly inspired by DALI IKON, applying experience and design principles acquired during the creation of that multi award winning series to bring world-renowned DALI performance to a highly attractive price point. Distinctive design The DALI LEKTOR Series introduces an extremely versatile loudspeaker line-up that lets you assemble an exceptional stereo or surround sound setup to suit your specific needs and wishes. Finished in furniture-grade light walnut or black ash, the distinctive LEKTOR exteriors are envisioned in close collaboration with leading European designers for a smart, contemporary look and feel. The LEKTOR Series consists of seven models to cover every conceivable application, from a compact stereo set-up to a seriously ambitious multi-channel installation. The compact models incorporate integral wall brackets for easy mounting, while the floorstanding models include spikes and rubber feet for effective acoustic isolation for pure, unadulterated listening pleasure.Dynamics and sound potential Skilled DALI engineering ensures that every model in the LEKTOR Series represents a unique fusion of crossover network and drive units that is an easy load for any amplifiers. While this makes LEKTOR speakers viable partners for amplifiers with even limited current capabilities, the dynamic potential and revealing nature of DALI LEKTOR also makes them worthy partners for all fine amplifiers. Sonically, DALI LEKTOR brings life to all your favourite tunes - from smooth melodies to heavy bass lines, from sweet romantic comedies to wild action blockbusters, DALI brings you all the thrills and chills that home entertainment has to offer

Telefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100  info@newaudio.it  Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@newaudio.it






DALI  LEKTOR  1            €.    220,00                 Per offerta  e promozioni  TELEFONARE/EMAIL

DALI LEKTOR 1 Diffusore da stand / parete, 2 Vie Reflex, Wf 11,5cm - Tw 2,8cm, 40-100W - Black o Light Walnut- Laccato Bianco

LEKTOR 1 Where space is at a premium, but compromises on performance are unacceptable, the diminutive LEKTOR 1 offers bountiful sound from an ultra-compact enclosure.  Featuring the unique snap-on grille attachments and handsomely styled panels found in the floorstanding models in the LEKTOR range, LEKTOR 1 makes DALI’s legendary design and performance available at a remarkably attractive price point.  Drawing on DALI’s concerted research and development efforts with access to the latest innovations in driver design, LEKTOR 1’s limitless musicality and distortion-free output will make it a welcome addition to any living space. LEKTOR 1 Specifications Product Series Lektor  Speaker Type Front Rear Surround  Frequency Range (+/-3 dB) [Hz] 51 - 27,000  Sensitivity (2,83 V/1 m) [dB] 84  Nominal Impedance [Ω] 8  Maximum SPL [dB] 104  Recommended Amplifier Power [W] 40 - 100  Crossover Frequency [Hz] 2,900 Hz  High Frequency Driver 1 x 28 mm Soft Textile Dome  Low Frequency Driver 1 x 4.5" Wood Fibre Cone Enclosure Type Bass Reflex  Bass Reflex Tuning Frequency [Hz] 56  Connection input(s) Single Wire  Magnetic Shielding No  Recommended Placement Keyhole mounting On-Wall Shelf Stand  Recommended Distance From Wall [cm] 0 - 25  Dimensions With Base (HxWxD) [mm] 260 x 146 x 211  Weight [kg] 3.1  Accessories Included Manual Rubber Bumpers Wall Bracket  Finish Black Ash Vinyl Light Walnut Vinyl White High Gloss Vinyl





DALI  LEKTOR  2            €.    225,00                  Per offerta  e promozioni  TELEFONARE/EMAIL

DALI LEKTOR 2 Diffusore da stand / parete, 2 Vie Reflex, Wf 12,5cm - Tw 2,8cm, 25-100W - Black

LEKTOR 2  With its DALI-designed 5” mid/bass driver, LEKTOR 2 achieves an ultra-compact form factor for convenient, discrete installation in virtually any location. Primarily intended for shelf or wall mounting, LEKTOR 2 can be stand-mounted. Going well beyond conventional expectations for a speaker of its size, LEKTOR 2 effortlessly sets new standards for the compact class, delivering low end extension and precision worthy of a much larger enclosure and opening up a wide, deep, three-dimensional soundstage, with sharp image focus, rich musical textures and an abundance of fine detail LEKTOR 2 Specifications Product Series Lektor Speaker Type Front Rear Surround  Frequency Range (+/-3 dB) [Hz] 49 - 27,000  Sensitivity (2,83 V/1 m) [dB] 85 Nominal Impedance [Ω] 6  Maximum SPL [dB] 106  Recommended Amplifier Power [W] 25 - 100  Crossover Frequency [Hz] 2,700 Hz  High Frequency Driver 1 x 28 mm Soft Textile Dome  Low Frequency Driver 1 x 5" Wood Fibre Cone  Enclosure Type Bass Reflex  Bass Reflex Tuning Frequency [Hz] 50.0  Connection input(s) Single Wire  Magnetic Shielding No  Recommended Placement On-Wall Shelf Stand  Recommended Distance From Wall [cm] 0 - 30  Dimensions With Base (HxWxD) [mm] 310 x 176 x 221  Weight [kg] 4.1  Accessories Included Manual Rubber Bumpers Wall Bracket  Finish Black High Gloss Lacquer Black Ash Vinyl Light Walnut Vinyl White High Gloss Lacquer

DALI  LEKTOR  6            €.   440,00                   Per offerta  e promozioni  TELEFONARE/EMAIL

DALI LEKTOR 6 Diffusore da pavimento, 3 Vie Reflex, 2 x Wf 20cm-Md 16,5cm-Tw 2,8cm, 30-150W - Black

LEKTOR 6 The DALI LEKTOR 6 front baffle features the LEKTOR series’ signature silky matt dark grey finish with stylish edge-mounted aluminum snap locks to secure the front grilles. All drivers are mounted with concealed screws, lending a timeless, minimalistic appearance.  The 28 mm (1.1”) soft dome tweeter incorporates a powerful ferite magnet system. This innovative driver provides enhanced power handling - continuously and instantaneously - as well as lower power compression, for a more open, vibrant high end.  The pair of 6.5” mid/bass units incorporates lightweight coated woodfiber cones, low-loss suspensions and semi-shielded, double-magnet motors for a highly saturated magnet system. The cone drivers utilize inverted dust caps for improved phase response and structural integrity.  Basing the crossover on a minimal number of select high quality components yields a simple, yet effective filter that preserves the purity of the original electrical signal and, therefore, delivers more musical information to your ears.  DALI LEKTOR 6 is the sum of all these parts, a unique combination of enclosure, drivers and crossover to form a seamless musical system. LEKTOR 6 Specifications Product Series Lektor  Speaker Type Front  Frequency Range (+/-3 dB) [Hz] 47 - 27,000  Sensitivity (2,83 V/1 m) [dB] 90.5  Nominal Impedance [Ω] 6  Maximum SPL [dB] 110  Recommended Amplifier Power [W] 30 - 150  Crossover Frequency [Hz] 700 / 2,900 Hz  High Frequency Driver 1 x 28 mm Soft Textile Dome  Low Frequency Driver 2 x 6.5" Wood Fibre Cone  Enclosure Type Bass Reflex Bass Reflex Tuning Frequency [Hz] 47.5  Connection input(s) Single Wire  Magnetic Shielding Semi Magnetic Shielded  Recommended Placement Floor  Recommended Distance From Wall [cm] 20 - 80  Dimensions With Base (HxWxD) [mm] 929 x 207 x 285  Weight [kg] 14.2  Accessories Included Manual Rubber Bumpers Spikes M8  Finish Black Ash Vinyl Light Walnut Vinyl


SERIE ZENSOR

Designed to Last By introducing the brand new ZENSOR series, DALI launches a genuine hi-fi loudspeaker range applied with refined in-house technology. Heritage from DALI high-end speakers is evident, while performance and appearance join forces to create a most satisfying best-in-class audio-visual experience. Consisting of four models, the entry-level ZENSOR family covers all needs from a compact stereo to an ambitious multi-channel set up.

Telefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100  info@newaudio.it  Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@newaudio.it


DALI  ZENSOR  1PICO         €.     135,00                Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da stand / parete, 2 Vie Reflex, Wf/Md 11,5cm - Tw 2,5cm, 40-125W - White, Black, Light Walnut

DALI  ZENSOR  1              €.     165,00                Per offerta  e promozioni  TELEFONARE/EMAIL

DALI ZENSOR 1 Diffusore da stand / parete, 2 Vie Reflex, Wf/Md 13cm - Tw 2,5cm, 25-100W - White, Black, Light Walnut

ZENSOR 1   Making sense! That’s what ZENSOR 1 is up to, packing as much legacy and music as possible into a slim and compact cabinet that you can carry home under your arm.   The versatile ZENSOR 1 is ideal as all-round stereo loudspeaker preferably in small to medium sized rooms. It even works excellently as front speaker in a 2.1 surround set-up or as back speaker in 5.1 systems including subwoofer, as the distinguished and discreet sound resource it is.Distinguished by it well-known DALI signatures such as the light and yet stiff wood fibre cones delivering a highly dynamic, detailed, and undisturbed sound reproduction, while ultra-low mass dome tweeter material ensures a widely extended frequency range.Discreet by its dimensions (H: 27.4 x W: 16.2 x D: 22 cm), 6-litre cabinet, and its design dressed in high-gloss lacquer finish that blends perfectly into a modern day interior. The soundproof design ideas of DALI provide the background for ZENSOR 1, created in respect and admiration of music. From the overall and basic properties to any detail such as the integrated wall bracket, rounded edges, and rear-mounted bass reflex port. ZENSOR 1 simply succeeds in converting amplifier power into pure acoustical energy without loss or limitations, and it will give pleasure to your ears and eyes over and over with focused, coherent sound and a stylish, visual identity.ZENSOR 1 Specifications  Product Series Zensor   Speaker Type Front  Rear Surround   Frequency Range (+/-3 dB) [Hz] 53 - 26,500  Sensitivity (2,83 V/1 m) [dB] 86.5   Nominal Impedance [Ω] 6   Maximum SPL [dB] 106   Recommended Amplifier Power [W] 25 - 100   Crossover Frequency [Hz] 2,900 Hz High Frequency Driver 1 x 25 mm Soft Textile Dome   Low Frequency Driver 1 x 5.25" Wood Fibre Cone   Enclosure Type Bass Reflex   Bass Reflex Tuning Frequency [Hz] 51.5   Connection input(s) Single Wire   Magnetic Shielding Semi Magnetic Shielded   Recommended Placement Keyhole mounting  On-Wall   Shelf  Stand   Dimensions With Base (HxWxD) [mm] 274 x 162 x 220   Weight [kg] 4.2   Accessories Included Manual   Rubber Bumpers   Optional Accessories White Grille   Finish Black Ash Vinyl   Light Walnut Vinyl  White Vinyl

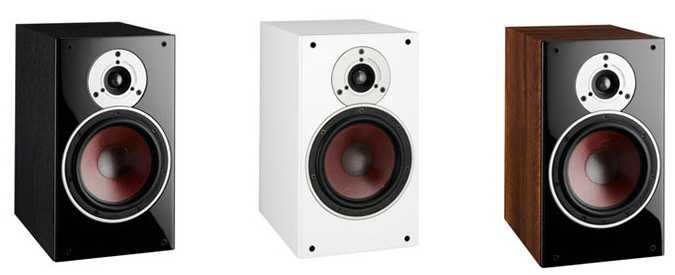

DALI  ZENSOR  3              €.     225,00                Per offerta  e promozioni  TELEFONARE/EMAIL

DALI ZENSOR 3 Diffusore da stand / parete, 2 Vie Reflex, Wf/Md 18cm - Tw 2,5cm, 25-125W - White, Black, Light Walnut

ZENSOR 3 DALI ZENSOR 3 is the newest member of the award winning ZENSOR series. This brand new speaker is developed and built to sound much larger than it actually is. Using a 7” woofer based on the technology from the ZENSOR 7 and the tweeter module from the ZENSOR 1, the ZENSOR 3 is able to recreate the high frequencies, the mid range and the low bass in the best possible way..  We have designed the cabinet so that it is large enough to deliver a sufficient, controlled and deep bass and yet is small enough to be placed on a shelf or floor stand. The woofer cones are made from a blend of fine grained paper pulp reinforced with wood fibres. This mix makes the cones stiff and light which ensures that every micro detail in the signal is reproduced unfiltered. The 7” woofer increases the surface area by 15% compared to a 6½” woofer and this helps the ZENSOR 3 to deliver the same sound pressure with much less cone excursion, leading to an effortless reproduction of the dynamics in the music. With a 4 layer voice coil magnet motor system the ZENSOR 3 produces an impressive 17% more B/L compared with speakers using the common 2 layer voice coil. A copper clad aluminum wire ensures optimal reproduction in the mid range, and the power of the magnet motor keep the bass controlled and precise. The soft dome tweeter module has over and over again proved its ability to deliver a rich and detailed sound, and the module used in the ZENSOR 3 is no exception - delivering an extended frequency response with wide dispersion and low coloration.

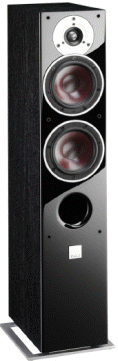

DALI  ZENSOR  5              €.     390,00                Per offerta  e promozioni  TELEFONARE/EMAIL

DALI ZENSOR 5 Diffusore da pavimento, 2 Vie Reflex, 2 x Wf/Md 13cm - Tw 2,5cm, 30-150W - White, Black, Light Walnut

  ZENSOR 5 Today, we expect that little extra care and attention, when it comes to performance, visual appearance, and details. The ZENSOR 5 comes up to these expectations.  The ZENSOR 5 front baffle features the exclusive ZENSOR high-gloss lacquered finish, while high-grade vinyl adds an inviting and smooth look to the cabinet made of medium density fibreboard, incorporating soundproof material and internal bracings.  As its big brother, the ZENSOR 5 highlights a line of prominent features such as removable front grille, steady aluminium base, front mounted bass reflex port, and a single wired connection input of premium quality. 15 cm shorter than its larger sibling and still more than 80 cm tall, floor standing ZENSOR 5 will indeed prove to be a both recognizable and modern companion blending into the home décor in good taste. Naturally, the 2 x 5 ¼” woofers are completely newly developed and benefit from comprehensive knowledge and heritage from successful DALI woofers. While the low-loss construction guarantees optimized cone and suspension for lasting enjoyment of the entire soundscape. ZENSOR 5 is where to look, if you wish to embellish your home environment with an authoritative and realistic performer that never leaves doubt of its origin in DALI high-end heritage. ZENSOR 5 Specifications Product Series Zensor  Speaker Type Front Rear Surround  Frequency Range (+/-3 dB) [Hz] 43 - 26,500  Sensitivity (2,83 V/1 m) [dB] 88.0  Nominal Impedance [Ω] 6  Maximum SPL [dB] 108  Recommended Amplifier Power [W] 30 - 150  Crossover Frequency [Hz] 2,400 Hz  High Frequency Driver 1 x 25 mm Soft Textile Dome  Low Frequency Driver 2 x 5.25" Wood Fibre Cone  Enclosure Type Bass Reflex  Bass Reflex Tuning Frequency [Hz] 44.0  Connection input(s) Single Wire  Magnetic Shielding No  Recommended Placement Floor  Recommended Distance From Wall [cm] 20 - 80  Dimensions With Base (HxWxD) [mm] 840 x 212 x 253  Weight [kg] 10.3  Accessories Included Manual Rubber Bumpers Spikes  Optional Accessories White Grille  Finish Black Ash Vinyl Light Walnut Vinyl White Vinyl

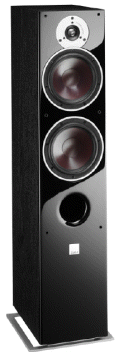

DALI  ZENSOR  7              €.     475,00                Per offerta  e promozioni  TELEFONARE/EMAIL

DALI ZENSOR 7 Diffusore da pavimento, 2 Vie Reflex, 2 x Wf/Md 18cm - Tw 2,5cm, 40-150W - White, Black, Light Walnut

ZENSOR 7 Standing 97.8 cm, the flagship model of the series is both noticeable and contemporarily becoming in its high-gloss lacquered finish. If you really need the full blown sonic experience in a mid to large sized room at an affordable level, this is where to go! Being the Magnum Opus of the series, only ZENSOR 7 is equipped with 2x7” woofers. The larger cone area on all ZENSOR’s compared to market standards ensures a highly effortless and authentic reproduction of musical dynamics. Add to this a 25 mm soft dome tweeter, which, in order to reproduce high frequencies of uppermost accuracy, is just half the weight of most soft dome tweeters on the market today.  Every detail is handled with care. A few examples: the stylish, rounded edges reduces diffractions, which minimizes distortion; solid aluminium complements the front baffle; an aluminium base elevates the speaker from the floor; and a detachable front grille is included for flexible appearances.  In other words: Our vision is not to make another traditional loudspeaker, but to have it be a unique and fully satisfying experience against the backdrop of our roots and core values. Thus ZENSOR 7 is capable of reproducing the finest details from a stereo signal and serving as the truly powerful speaker – by itself or as forceful front speaker in a surround set up.  We give you: DALI ZENSOR 7 – power and detail, when you need ZENSOR 7 SpecificationsProduct Series Zensor  Speaker Type Front Rear Surround  Frequency Range (+/-3 dB) [Hz] 40 - 26,500  Sensitivity (2,83 V/1 m) [dB] 90.0 Nominal Impedance [Ω] 6  Maximum SPL [dB] 110  Recommended Amplifier Power [W] 40 - 150  Crossover Frequency [Hz] 2,400 Hz  High Frequency Driver 1 x 25 mm Soft Textile Dome  Low Frequency Driver 2 x 7" Wood Fibre Cone  Enclosure Type Bass Reflex Bass Reflex Tuning Frequency [Hz] 40.0 Connection input(s) Single Wire  Magnetic Shielding No  Recommended Placement Floor  Recommended Distance From Wall [cm] 20 - 80  Dimensions With Base (HxWxD) [mm] 994 x 257 x 320  Weight [kg] 14.9 Accessories Included Manual Rubber Bumpers Spikes Spikes M6  Optional Accessories White Grille  Finish Black Ash Vinyl Light Walnut Vinyl White Vinyl



DALI  ZENSOR  VOKAL     €.     310,00               Per offerta  e promozioni  TELEFONARE/EMAIL


DALI ZENSOR VOKAL Canale centrale, 2 Vie Reflex, 2 x Wf/Md 13cm - Tw 2,5cm Cupola - White, Black, Light Walnut

ZENSOR VOKAL Blood is thicker than water! Naturally, ZENSOR VOKAL is created specifically to match that timbre and tonal balance of its family.  The centre loudspeaker covers an essentially important sound zone, since this is where the majority of dialogue in movie soundtracks is to be found. ZENSOR VOKAL is engineered to cover this zone, thereby establishing a truly realistic voice- and surround experience. The sonic integration of ZENSOR VOKAL, which should ideally be placed on a shelf below your TV screen, is highly convincing as is the voice matching to the other models of the range. For high-powered surround solutions, ZENSOR VOKAL including a front mounted bass reflex port is a perfect match to the DALI SUB E-12F.  At best, when watching a magnificent movie, you tend to forget time and space and find yourself absorbed by the characters, plots, and music. ZENSOR VOKAL is created to complete just that sonic illusion of being there yourself.ZENSOR VOKAL Specifications Product Series Zensor  Speaker Type Center  Frequency Range (+/-3 dB) [Hz] 47 - 26,500  Sensitivity (2,83 V/1 m) [dB] 88.5  Nominal Impedance [Ω] 6  Maximum SPL [dB] 109  Recommended Amplifier Power [W] 30 - 120  Crossover Frequency [Hz] 2,400 Hz  High Frequency Driver 1 x 25 mm Soft Textile Dome  Low Frequency Driver 2 x 5.25" Wood Fibre Cone  Enclosure Type Bass Reflex  Bass Reflex Tuning Frequency [Hz] 45.0  Connection input(s) Single Wire  Magnetic Shielding Semi Magnetic Shielded  Recommended Placement Above/Below TV Screen  Dimensions With Base (HxWxD) [mm] 161 x 441 x 288  Weight [kg] 6.8  Accessories Included Manual Rubber Bumpers  Optional Accessories White Grille  Finish Black Ash Vinyl Light Walnut Vinyl White Vinyl







DALI  ZENSOR  VOKAL PICO    €.     139,00                Per offerta  e promozioni  TELEFONARE/EMAIL

Canale centrale, 2 Vie Reflex, Wf/Md 11,5cm - Tw 2,5cm, 40-125W - White, Black, Light Walnut

DALI  ZENSOR  1AX         €.     320,00                Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore attivo da stand / parete, 2 Vie Reflex, 1 x Wf/Md 13cm - Tw 2,5cm Cupola, 2x50W - White, Black, Light Walnut

DALI  ZENSOR  5AX         €.     320,00                Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore attivo da pavimento, 2 Vie Reflex, 2 x Wf/Md 13cm - Tw 2,5cm Cupola, 2x50W - White, Black, Light Walnut


SERIE OPTICON

Telefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100  info@newaudio.it  Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@newaudio.it




DALI  OPTICON 1               €.    365,00               Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da stand / parete, 2 Vie Reflex, Wf/Md 12cm - Tw 2,6cm, 25-100W - White, Black, Light Walnut

PRODUCT DETAILS

The DALI OPTICON 1 is a compact stand mount speaker, designed to be placed close to the wall or mounted on it. It combines its almost 5 litres of air capacity with a rear-mounted bass port, a 4 ¾ inch low-loss Wood Fibre Woofer, a 26 mm ultra-light Soft Dome Tweeter and gold-plated terminals and what the DALI OPTICON 1 delivers is the perfect balance of clear, detailed midrange and an impressive tight bass that belies its size.

Legacy
The OPTICON 1 features the same low-loss Wood Fibre Woofer found in our flagship EPICON series, alongside our unique SMC (Soft Magnetic Compound) magnet motor system and a brand new Soft Dome Tweeter developed for the OPTICON series, all of which works together along with a individual bass reflex port for the woofer to produce audio exactly as the recording artist originally envisioned it.

Key Features

Proprietary DALI tweeters and woofers
Hand-assembled with in-house built cabinet construction
Unique SMC-based magnet motor system
Low-loss Wood Fibre Woofers
Ultra-light 26 mm Soft Dome Tweeter
Gold-plated Terminals
Available in White Matt Satin, Black and Walnut DALI OPTICON 1 SPECS

Product series OPTICON
Frequency Range (+/-3 dB) [Hz] 62 - 26,500
Sensitivity (2,83 V/1 m) [dB] 86.0
Nominal Impedance [ohms] 4
Maximum SPL [dB] 105
Recommended Amplifier Power [W] 25 - 100
Crossover Frequency [Hz] 2,000
Crossover Principle 2-way
Hybrid tweeter module, High frequency driver, Quantity 1 x 26 mm
Hybrid tweeter module, High frequency driver Diaphragm type Soft Textile Dome
Midrange driver, Quantity 1 x 4 3/4"
Midrange driver, Diaphragm type Wood Fibre Cone
Enclosure type Bass Reflex
Bass Reflex Tuning Frequency [Hz] 61.5
Connection Input Single Wire
Magnetic Shielding No
Recommended Placement On-Wall
Shelf or stand
Recommended Distance From Wall [cm] 2 - 80
Dimensions With Base (HxWxD) [mm] 261 x 152 x 231
Weight [kg] 4.5
Accessories Included Manual
Rubber Bumpers
Wall Bracket

DALI  OPTICON 2               €.    470,00               Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da stand / parete, 2 Vie Reflex, 1 x Wf/Md 16,5cm - Tw 2,8cm + Nastro, 30-150W - White, Black, Light Walnut



DALI  OPTICON 5               €.    735,00               Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da pavimento, 2 Vie Reflex, 1 x Wf/Md 16,5cm - Tw 2,8cm + Nastro, 30-150W - White, Black, Light Walnut



DALI  OPTICON 6               €.    890,00               Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da pavimento, 2 ½ Vie Reflex, 2 x Wf/Md 16,5cm - Tw 2,8cm + Nastro, 25-200W - White, Black, Light Walnut

PRODUCT DETAILS

OPTICON 6 has all the virtues of the OPTICON 5 with the added power of an extra 6½ inch woofer. The featured twin 6½ inch low-loss Wood Fibre Woofers complete with our unique SMC magnet motor system, assisted by our combined Soft Dome and Ribbon Tweeter module, delivers audio with wow-factor. Combined with the extended internal cabinet volume, the OPTICON 6 reaches lower into the deep bass producing an even more impressive broader soundstage.

Its high sensitivity and even impedance load together with its impressive ability to reproduce undistorted audio makes the OPTICON 6 the perfect balance between size and performance. Add in gold-plated bi-wiring terminals, and the OPTICON 6 is the sender of soul-moving music to the ears of those that demand more.

Key Features

Proprietary DALI tweeters and woofers
Hand-assembled with in-house built cabinet construction
Unique SMC-based magnet motor system
Low-loss Wood Fibre Woofers
Hybrid Tweeter consisting of our ultra-light Soft Dome and Ribbon Tweeter
Gold-plated bi-wiring and bi-amping
Available in White Matt Satin, Black and Walnu
t

DALI OPTICON 6 SPECS

Product series OPTICON
Frequency Range (+/-3 dB) [Hz] 49 - 32,000
Sensitivity (2,83 V/1 m) [dB] 89.0
Nominal Impedance [ohms] 4
Maximum SPL [dB] 110
Recommended Amplifier Power [W] 25 - 200
Crossover Frequency [Hz] 800 / 2,200 / 14,000
Crossover Principle 2½ + ½-way
Hybrid tweeter module, Super high freq. driver, Quantity 1 x 17 x 45 mm
Hybrid tweeter module, Super high freq. driver, Diaphragm type Ribbon
Hybrid tweeter module, High frequency driver, Quantity 1 x 28 mm
Hybrid tweeter module, High frequency driver Diaphragm type Soft Textile Dome
Midrange driver, Quantity 2 x 6 1/2"
Midrange driver, Diaphragm type Wood Fibre Cone
Enclosure type Bass Reflex
Bass Reflex Tuning Frequency [Hz] 42.0
Connection Input Bi-Wiring
Magnetic Shielding No
Recommended Placement Floor
Recommended Distance From Wall [cm] 20 - 100
Dimensions With Base (HxWxD) [mm] 1000 x 195 x 330
Weight [kg] 18.9
Accessories Included Assembly Tools
Manual
Rubber Bumpers
Spikes M8





DALI  OPTICON 8               €. 1.415,00               Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da pavimento, 3 ½ Vie Reflex, 2 x Wf 20cm - Md 16,5 cm - Tw 2,8cm + Nastro, 40-300W - White, Black, Light Walnut



DALI  OPTICON LCR           €.    720,00               Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da parete, 2 Vie Reflex, 1 x Wf/Md 16,5cm - Tw 2,8cm + Nastro - 30-150W - White, Black, Light Walnut





DALI  OPTICON VOKAL      €.    580,00               Per offerta  e promozioni  TELEFONARE/EMAIL

Canale centrale, 2 Vie Reflex, 1 x Wf/Md 16,5cm - Tw 2,8cm + Nastro - 30-150W - White, Black, Light Walnut




SERIE MENUET
According to the Oxford English Reference Dictionary, a mentor is “an experienced and trusted adviser.” This modern meaning originates in Homer’s epic Odyssey in which Mentor was the adviser of young Telemachus. It is our intention that a system based on your selection of loudspeakers from the DALI MENTOR range will be your trusted companion for countless hours of listening pleasure for many years to come.  Experience and dedication A large part of the secret behind the new MENTOR Series lies in our decades of experience and intimate knowledge of drivers, crossovers and real wood cabinets. Put simply, we know how to design and build these components for the finest possible sound quality, while at the same time reducing the demands they make on your amplifier.  While we make it sound easy, it requires total control over every aspect of research, development and production. And when we say every aspect, that is no exaggeration. The handsome, gold-plated dual bi-wiring/bi-amping screw terminals fitted to every MENTOR model are designed by DALI. Even the screws that attach the drivers to the thick MDF front baffles have been specially designed for this purpose.  Natrual and refined sound
This fanatical level of control is a major factor in achieving the more natural, refined and relaxed musical presentation that is the true definition of the MENTOR Series. The MENTOR Series is developed, designed, hand-built, assembled and individually tested at the DALI factory in Denmark.

Telefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100  info@newaudio.it  Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@newaudio.it




DALI  MENTOR  MENUET   €.    625,00                      Per offerta  e promozioni  TELEFONARE/EMAIL

DALI MENTOR MENUET Diffusore da stand, 2 Vie Reflex, 1 x Wf/Md 11,5cm - Tw 2,8cm Cupola - Cherry , Satin White, Satin Black

MENTOR MENUET It is with great pleasure that we introduce you to the newest and smallest loudspeaker in our MENTOR series. The DALI MENTOR MENUET - a small, yet powerful speaker that reveals great musicality that will set new standards for sound and performance from a compact speaker. Conceptually, MENTOR MENUET is a compact bass reflex loudspeaker measuring only 25 x 15 x 23 cm/9.8 x 5.9 x 9.0”. Even though it is only based on a 4.5” woofer and a 28 mm/1.1” soft dome it more than makes the grade. Listen to these brilliant tiny loudspeakers and you will hear plenty of clean, undistorted bass, open and dynamic midrange and detailed/crisp highs. The 4.5” woofer is airflow optimized to achieve the best possible coupling between the wood fiber cone and the real wood veneer cabinet. Even the woofer cut-out in the cabinet is made larger than normal to optimise openness and dynamic response. The oversized 28 mm/1.1” soft dome tweeter is able to start and stop with great speed and precision due to the very low mass of the dome assembly and a powerful motor system (the dome is approximately 30% lighter than comparable standard domes and the magnet in the motor system is made of the strongest neodymium material available). The DALI designed drivers, sturdy binding posts and high quality crossover is the key to achieving extraordinary performance from such a compact loudspeaker.  For optimum performance, MENTOR MENUET should be positioned in a bookshelf or mounted on the wall using an optional wall bracket. With two threaded inserts on the rear of the cabinet, it is prepared for easy installation of the wall bracket without any hassle. The bracket is designed to ensure optimal clearance between the wall and the bass reflex port. The neat and clean design - makes it very easy to place the tiny DALI MENTOR MENUET anywhere around the house. Alternatively, combine them with other speakers in the acclaimed MENTOR series for a high-performance stereo set-up or home cinema system. Either way, you’re in for an experience MENTOR MENUET Specifications Product Series Mentor  Speaker Type FrontRear Surround  Frequency Range (+/-3 dB) [Hz] 59 - 25,000 Sensitivity (2,83 V/1 m) [dB] 86.0 Nominal Impedance [Ω] 4  Maximum SPL [dB] 105 Recommended Amplifier Power [W] 20 - 100  Crossover Frequency [Hz] 3,000  High Frequency Driver 1 x 28 mm Soft Textile Dome  Low Frequency Driver 1 x 4½" Wood Fibre Cone  Enclosure Type Bass Reflex  Bass Reflex Tuning Frequency [Hz] 63.0  Connection input(s) Single Wire  Magnetic Shielding No  Recommended Placement On-Wall Shelf Stand  Recommended Distance From Wall [cm] > 2  Dimensions With Base (HxWxD) [mm] 250 x 150 x 230  Weight [kg] 4.1  Accessories Included Manual Rubber Bumpers  Optional Accessories Wall Bracket  Finish Black Satin Black Satin Cherry Veneer White Satin




SERIE RUBICON

Telefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100  info@newaudio.it  Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@newaudio.it




DALI  RUBICON 2               €.    995,00              Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da stand , 2 Vie Reflex, Wf/Md 16,5cm - Tw 2,9cm Cupola - Black HG, White HG, Rosso o Walnut



DALI  RUBICON 5               €. 1.525,00              Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da pavimento, 2 ½ Vie Reflex, 1 x Wf 16,5cm - Tw 2,9cm Cupola - Tw Nastro - Black HG, White HG, Rosso o Walnut

PRODUCT DETAILS Producing superior sound at a size that’s just right for the averagely proportioned living space, the RUBICON 5 is the first of the floorstanding speakers within the family. Combining that bigger internal capacity with our unique ribbon/soft dome hybrid tweeter module, the RUBICON 5 extends and widens higher frequencies to deliver a flawless soundstage of impeccably crisp detail and perfectly precise bass response to bring your music to life. RUBICON 5 is a floor standing speaker. It expands the sonic performance of the RUBICON 2 by adding a hybrid tweeter and a larger cabinet offering more of everything. Extending and widening the high frequencies for improved detail, and adding more well timed deep bass for a more demanding presence. The RUBICON 5 is perfect for stereo listening or as the front speakers in a medium sized surround setup  Product series RUBICON Frequency Range (+/-3 dB) [Hz] 45 - 34.000 Sensitivity (2,83 V/1 m) [dB] 86.0 Nominal Impedance [ohms] 4 Maximum SPL [dB] 107 Recommended Amplifier Power [W] 60 - 150 Crossover Frequency [Hz] 2,900 / 14,000 Crossover Principle 2½ + ½-way Hybrid tweeter module, Super high freq. driver, Quantity 1 x 17 x 45 mm Hybrid tweeter module, Super high freq. driver, Diaphragm type Ribbon  Hybrid tweeter module, High frequency driver, Quantity 1 x 29 mm Hybrid tweeter module, High frequency driver Diaphragm type Soft Textile Dome  Low frequency driver, Quantity 1 x 6½" Low frequency driver, Diaphragm type Wood Fibre Cone  Enclosure type Bass Reflex  Bass Reflex Tuning Frequency [Hz] 39.0 Connection Input Bi-Wiring  Magnetic Shielding No Recommended Placement Floor  Recommended Distance From Wall [cm] 20 - 150 Dimensions With Base (HxWxD) [mm] 890 x 195 x 339 Weight [kg] 15.7 Accessories Included Manual  Micro Fibre Cloth  Rubber Bumpers  Spikes M8







DALI  RUBICON 6               €. 1.995,00              Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da pavimento, 2 ½ Vie Reflex, 2 x Wf 16,5cm - Tw 2,9cm Cupola - Tw Nastro - Black HG, White HG, Rosso o Walnut

PRODUCT DETAILS RUBICON 6 is a floor standing speaker that features two 6½ inch woofers, each sporting its own bass port, gold-plated bi-wiring terminals and our innovative ribbon/soft dome hybrid tweeter module. The RUBICON 6 is able to deliver more physical bass to fill a larger room, especially thanks to the woofers. The two woofers work together to move much more air, delivering more powerful bass and pumping out audio excellence that fills the room. The driver construction of the RUBICON 6 makes it even more powerful than its smaller siblings with an enhanced and controlled performance. DALI RUBICON 6  Product series RUBICON Frequency Range (+/-3 dB) [Hz] 38 - 34.000 Sensitivity (2,83 V/1 m) [dB] 88.5 Nominal Impedance [ohms] 4 Maximum SPL [dB] 110 Recommended Amplifier Power [W] 40 - 200 Crossover Frequency [Hz] 800 / 2,600 / 14,000 Crossover Principle 2½ + ½-way Hybrid tweeter module, Super high freq. driver, Quantity 1 x 17 x 45 mm Hybrid tweeter module, Super high freq. driver, Diaphragm type Ribbon  Hybrid tweeter module, High frequency driver, Quantity 1 x 29 mm Hybrid tweeter module, High frequency driver Diaphragm type Soft Textile Dome  Low frequency driver, Quantity 2 X 6½" Low frequency driver, Diaphragm type Wood Fibre Cone  Enclosure type Bass Reflex  Bass Reflex Tuning Frequency [Hz] 33.5 Connection Input Bi-Wiring  Magnetic Shielding No Recommended Placement Floor  Recommended Distance From Wall [cm] 20 - 180 Dimensions With Base (HxWxD) [mm] 990 x 200 x 380 Weight [kg] 20.2 Accessories Included Manual  Micro Fibre Cloth  Rubber Bumpers  Spikes M8









DALI  RUBICON 8               €. 2.625,00              Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da pavimento, 3 Vie Reflex, 3 x Md 16,5cm - Tw 2,9cm Cupola - Tw Nastro - Black HG, White HG, Rosso o Walnut





DALI  RUBICON LCR           €. 1.090,00              Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore da parete, 2 Vie, 1 x Wf/Md 16,5cm - Tw Cupola/Nastro - Black HG,White HG, Rosso o Walnut



DALI  RUBICON VOKAL      €. 1.790,00              Per offerta  e promozioni  TELEFONARE/EMAIL

Canale centrale, 2 ½ Vie, 2 x Wf/Md 16,5cm - Tw Cupola/Nastro - Black HG,White HG, Rosso o Walnut


SERIE ELIPCON

Telefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100  info@newaudio.it  Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@newaudio.it




DALI  EPICON  2               €. 2.450,00                       Per offerta  e promozioni  TELEFONARE/EMAIL

DALI EPICON 2 Diffusore da stand, 2 Vie, Wf/Md 16,5cm - Tw 2,9cm - Tw Nastro, 50-250W - Black HG, White HG, Walnut o Ruby Maccasar OPTIONAL STAND 950,00  euro

EPICON 2 If you dream of fantastic sound experiences the EPICON 2 is the perfect escape. Don’t be fooled by the size of the speaker – the most diminutive in the EPICON family.  Sitting gracefully upon its custom-made stand EPICON 2 produces an astonishingly large and accurate three-dimensional sound that will impress even the most rigorous demands of true audiophiles. The Powerful Younger Sibling The two channel speaker features a 6 ½“ bass driver and a soft cone dome tweeter. In fact, the technological breakthroughs designed for the larger EPICON 6 and EPICON 8 models have been channelled into EPICON 2 to create a speaker that performs way beyond its size expectations. EPICON 2 demonstrates perfectly what this new series is all about: Minimal signal degradation… or put bluntly: Transparency and revelation taken to an - until now – unseen level! This speaker demonstrates a highly linear and coherent response, and integrates well with small to mediumsized rooms. The woofer roll-off is slow, and the speaker reaches deep into the lowest frequencies. All in all, in most setups this will sound like a much larger speaker than it really is.  Within its working range the EPICON 2 will fully match the performance quality of its larger siblings, the EPICON 6 and EPICON 8. This is the new compact speaker for the purist seeking high-performance The Cabinet Working both as an acoustic tuned ‘spring’ for the drivers, as well as getting rid of reaction force (resonant) energy, the cabinet is an important part of the entire speaker system. Each side of the EPICON 2 is constructed from 6 individual layers of MDF, all glued together. In the EPICON 2 these are anchored to the 53 mm multi-layer MDF backbone of the cabinet. CNC milling process is applied for making the recess and holes for the bass ports and terminals in the backbone. With a thickness of 33 mm the duallayer front baffle ensures that energy from the drivers is radiated as acoustic energy, and not as vibrations in the cabinet. The curved shape of the front baffle is also a contributing factor in ensuring a stable acoustic platform.EPICON 2 Specifications Product Series EPICON  Speaker Type Front Rear  Frequency Range (+/-3 dB) [Hz] 47 - 30,000  Sensitivity (2,83 V/1 m) [dB] 87  Nominal Impedance [Ω] 4  Maximum SPL [dB] 108  Recommended Amplifier Power [W] 30 - 200  Crossover Frequency [Hz] 3,100  High Frequency Drivers  1 x 29 mm Soft Textile Dome  Low Frequency Driver 1 x 6½" Wood Fibre Cone  Enclosure Type Bass Reflex  Bass Reflex Tuning Frequency [Hz] 43.0  Connection input(s) Bi-Amping  Magnetic Shielding No  Recommended Placement Stand  Recommended Distance From Wall [cm] > 25  Dimensions (HxWxD) [mm] 386 x 214 x 366  Weight [kg] 10.3  Accessories Included Manual Micro Fibre Cloth Rubber Pads Terminal Links  Finish Black High Gloss Lacquer Ruby Macassar High Gloss Lacquer Walnut High Gloss Lacquer White High Gloss Lacquer

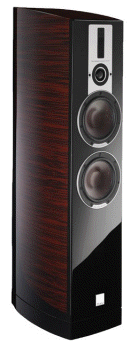

DALI  EPICON  6               €. 4.900,00                       Per offerta  e promozioni  TELEFONARE/EMAIL

DALI EPICON 6 Diffusore da pavimento, 2 ½ Vie Reflex, 2 x Wf/Md 16,5cm - Tw 2,9cm - Tw Nastro, 50-300W - Black HG, White Hg, Walnut o Ruby

EPICON 6 Crystal Clear Sound The EPICON 6 is no less that DALI's new reference loudspeaker. Standing on the shoulders of virtues from the acclaimed EUPHONIA series, EPICON takes you one step closer to "the real thing". The backbone of EPICON 6 is DALI’s new peerless driver technology. Featuring two 6 ½“ bass woofers, the unique Linear Drive Magnet as well as the breakthrough ribbon/soft dome hybrid tweeter unit the sound breaks with traditional loudspeaker conventions.  The EPICON 6 relies on a 2½-way system as – compared to the EPICON 2 – it features an additional woofer kicking in below 600Hz. However, for the highest frequencies the EPICON 6 also incorporates a ribbon tweeter as part of the hybrid tweeter, in reality turning the speaker into a ‘2½ + ½-way’ construction.  Cabinet Meticulous attention to CNC milling of the front baffle creates more space between the 7 screws, ensuring a free airflow behind the woofers. A detail supporting our low-loss design as well as our focus on timing. Each side of the EPICON 6 is constructed from 6 individual layers of MDF, all glued together, which eliminate standing waves, enhancing detail and clarity. In the EPICON 6 these are anchored to the 53 mm multi-layer MDF backbone of the cabinet.  With a thickness of 33 mm the duallayer front baffle ensures that energy from the drivers is radiated as acoustic energy, and not as vibrations in the cabinet. The curved shape of the front baffle is also a contributing factor in ensuring a stable acoustic platform. Internally the cabinet for the EPICON 6 is divided in two identical sized chambers, allowing tuning of the cabinet to be done identically yet completely independently for each of the two woofers. Thus you will find two bass ports on the back of the cabinet located as nearby the woofers as possible. Both ports are convex tapered in both ends to minimize port turbulence. At the very bottom of the cabinet, however, you will see that the hardwired crossover is mounted in its own enclosure as well - free from the dynamic variation of cabinet pressure inside the bass reflex enclosures. Sit back and enjoy impeccable high frequencies and voice reproductions so lifelike that you will feel in the middle of a live performance.EPICON 6 Specifications Product Series EPICON  Speaker Type Front  Frequency Range (+/-3 dB) [Hz] 35 - 30,000  Sensitivity (2,83 V/1 m) [dB] 88  Nominal Impedance [Ω] 5  Maximum SPL [dB] 110  Recommended Amplifier Power [W] 50 - 300  Crossover Frequency [Hz] 700 / 2,550 / 15,000  High Frequency Drivers 1 x 10 x 55 mm Ribbon 1 x 29 mm Soft Textile Dome  Low Frequency Driver 2 x 6½" Wood Fibre Cone  Enclosure Type Bass Reflex  Bass Reflex Tuning Frequency [Hz] 32.5  Connection input(s) Bi-Amping  Magnetic Shielding No  Recommended Placement Floor  Recommended Distance From Wall [cm] > 25  Dimensions With Base (HxWxD) [mm] 1062 x 320x 459  Dimensions (HxWxD) [mm] 1025 x 232 441  Weight [kg] 30.0  Accessories Included Base ManualMicro Fibre Cloth Rubber Pads Spikes M10 Terminal Links  Finish Black High Gloss Lacquer Ruby Macassar High Gloss Lacquer Walnut High Gloss Lacquer White High Gloss Lacquer

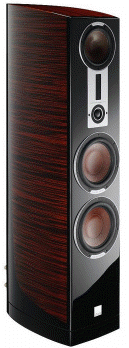

DALI  EPICON  8               €. 7.450,00                       Per offerta  e promozioni  TELEFONARE/EMAIL

DALI EPICON 8 Diffusore da pavimento, 3 Vie Reflex, 2 x Wf 20cm - Md 16,5cm - Tw 2,9cm - Tw Nastro, 50-500W - Black HG, White HG, Walnut o € R u 1b4y. 9M0a0c,0c0a sar
EPICON 8 The absolute pinnacle of the EPICON series, the EPICON 8 delivers dramatically rich and detailed sound that will blow your mind and captivate your senses. The loudspeaker is the result of a passionate, tireless quest to reach perfection.  Prepare yourself for musical indulgence like never before – and for a beautifully statuesque design your guests will envy. Drivers In the EPICON 8, two 8” woofers are complemented by a 6 ½“ mid-range driver to peel away the layers of a recording and delicately separate vocals and instruments. The groundbreaking Linear Drive Magnet System of the woofers is complemented by our hybrid ribbon/soft dome tweeter module. This all translates into the largest, most room-filling sound of the EPICON family. Effectively this is a ‘3 + ½-way’ construction. Multi-layered cabinets Each side of the EPICON 8 is constructed from 6 individual layers of MDF, all glued together. In the EPICON 8 these are anchored to a 63 mm multi-layer MDF backbone of the cabinet, which is 10 mm thicker than the backbone of the EPICON 2 and EPICON 6 to maintain control. CNC milling process is applied for making the recess and holes for the bass ports and terminals in the backbone. With a thickness of 33 mm the duallayer front baffle ensures that energy from the drivers is radiated as acoustic energy, and not as vibrations in the cabinet. The curved shape of the front baffle is also a contributing factor in ensuring a stable acoustic platform. Internally the cabinet for the EPICON 8 is divided in two identical sized chambers for the woofers and one extra chamber for the midrange. The woofer chambers are allowing tuning of the cabinet to be done identically yet completely independently for each of the two woofers. The midrange chamber allows the driver to reproduce the critical frequencies related to e.g. human voices without any interference from the rest of the system. Thus you will find two bass ports on the back of the cabinet located as nearby the woofers as possible. Both ports are convex tapered in both ends to minimize port turbulence. At the very bottom of the cabinet, however, you will see that the hardwired crossover is mounted in its own enclosure as well - free from the dynamic variation of cabinet pressure inside the bass reflex enclosures. These partitions as well as the internal bracing have been very carefully positioned within the EPICON 8. Following DALI’s philosophy of optimizing the timing in all aspects, a free airflow is crucial to the sound experience. EPICON 8 Specifications Product Series EPICON  Speaker Type Front  Frequency Range (+/-3 dB) [Hz] 35 - 30,000  Sensitivity (2,83 V/1 m) [dB] 89  Nominal Impedance [Ω] 5  Maximum SPL [dB] 112  Recommended Amplifier Power [W] 50 - 500  Crossover Frequency [Hz] 550 / 3,100 / 15,000  High Frequency Drivers 1 x 10 x 55 mm Ribbon 1 x 29 mm Soft Textile Dome Midrange Driver 1 x 6½" Wood Fibre Cone  Low Frequency Driver 2 x 8" Wood Fibre Cone  Enclosure Type Bass Reflex  From Wall [cm] > 35  Dimensions With Base (HxWxD) [mm] 1262 x 353 x 497  Dimensions (HxWxD) [mm] 1225 x 264 x 485  Weight [kg] 47.5  Accessories Included Base Manual Micro Fibre Cloth Rubber Pads Spikes M10 Terminal Links  Finish Black High Gloss Lacquer Ruby Macassar High Gloss Lacquer Walnut High Gloss Lacquer White High Gloss Lacquer



DALI  EPICON  VOKAL      €. 4.300,00                       Per offerta  e promozioni  TELEFONARE/EMAIL

DALI EPICON VOKAL Canale centrale, 2 Vie Reflex, 2 x Wf/Md 16,5cm - Tw 2,9cm - Tw Nastro, 50-350W - Black HG, White HG, Walnut o Ruby MCaacdc.as a DALI EPICON 2 STAND Stand dedicato per EPICON 2, h 58cm - Black € 950,00

EPICON VOKAL We have developed an uncompromising center speaker for all of you multi-channel fans - the DALI EPICON VOKAL. Incorporating 2 x 6½” woofers along with the hybrid tweeter module this speaker promises the same level of transparency and timbre matching with the rest of the series. EPICON VOKAL will match any of the three main speakers, and it will benefit any setup where the realism and realistic sound pressures are required. Common to all the EPICON speakers is that they work well in both 2.0, 2.1, 5.1 or other multichannel systems. 50% of the acoustic energy in a normal movie comes from the center channel. The EPICON VOKAL is up to the real challenge. Meticulous timbre matching and the same ability to render finer details exactly the way they were recorded is an EPICON trademark. Here, e.g. the effortless reproduction of human voices is what sets DALI EPICON VOKAL apart.  World Premiere: Linear Drive Magnet System The new innovative in-house developed Linear Drive Magnet System eliminates four distortion factors in the driver motor system. The individual parts of the magnet system close to the voice coil consist of advanced soft magnetic compound (SMC), which eliminates variation of flux strength in the magnet gap. The SMC material features linear magnetic properties throughout the frequency range and eliminates phase variation in the force generated within the motor system. Aluminum rings around the pole piece reduce and stabilize voice coil inductance, independent of excursion. This allows optimum conversion of voltage generated by the amplifier to current flowing through the voice coil. Hybrid tweeter The center speaker also features the EPICON hybrid tweeter module with the new dome tweeter specially developed for the EPICON series. The dome as well as the ribbon sit in a common, solid, diecast aluminium base plate, each with their own enclosure to make sure that no resonances will reach the sensitive parts. Both tweeters are therefore well protected from any interference from within the cabinet. EPICON VOKAL Specifications Product Series EPICON  Speaker Type Center  Frequency Range (+/-3 dB) [Hz] 49 - 30,000 Sensitivity (2,83 V/1 m) [dB] 89.5  Nominal Impedance [Ω] 6  Maximum SPL [dB] 111  Recommended Amplifier Power [W] 50 - 300  Crossover Frequency [Hz] 2,750 / 15,000  High Frequency Drivers 1 x 10 x 55 mm Ribbon 1 x 29 mm Soft Textile Dome  Low Frequency Driver 2 X 6½" Wood Fibre Cone  Enclosure Type Bass Reflex  Bass Reflex Tuning Frequency [Hz] 46.5  Connection input(s) Bi-Amping  Magnetic Shielding No  Recommended Placement Below TV Screen Stand  Recommended Distance From Wall [cm] > 5  Dimensions With Base (HxWxD) [mm] 247 x 816 x 349  Weight [kg] 18.4  Accessories Included Connectors Damper Feet Manual Micro Fibre Cloth  Finish Black High Gloss Lacquer Ruby Macassar High Gloss Lacquer Walnut High Gloss Lacquer White High Gloss Lacquer


SERIE MEGALINETelefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100  info@newaudio.it  Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@newaudio.it


DALI MEGALINE Diffusore da pavimento costituito da 3 moduli con 12 unità Wf/Md da 16,5 cm in configurazione Reflex € 53.000,00
e 3 Tw dipolari a nastro - Crossover attivo esterno incluso - Potenza 100-1000W - Peso 110Kg cad. - Finitura Alpi



SERIE FAZON

Telefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100  info@newaudio.it  Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@newaudio.it

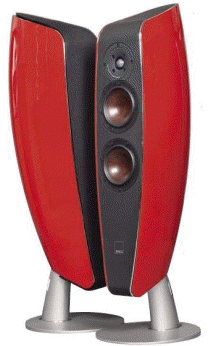

DALI  FAZON 5          €.   1.650,00                            Per offerta  e promozioni  TELEFONARE/EMAIL

Diffusore pavimento, 2 ½ Vie, 2 x Wf/Md 12,5cm - Tw 2,8cm Cupola, 40-180W - Laccato Bianco o Black-Laccato Rosso €.1.800,00

  FAZON F5  THE SHAPE OF BRILLIANCE - DALI FAZON F5 This one is something special!  FAZON F5 is nothing like the vast majority of loudspeakers on the market. It is the genuine mixture of craftsmanship, performance, and aesthetics to fulfil the dream of a new era's loudspeaker. Proud Heir & Daring New Breakthrough Technology is inherited from the MENTOR series with characteristics such as undistorted performance, open sound, and extraordinary resolution. The oversized dome tweeter (28 mm/1.1"), integrating perfectly with 2 x 5" woofers/midranges, allows dynamics and even the finest musical details to flourish. The visual appearance is stunning and speaks for itself: stylish, daring, and built on a unique aluminium body to ensure extremely rigid construction and minimized reflections. Because of the sophisticated curved shape, the FAZON F5 has no parallel sides, which prevents standing waves from arising. Sound and shape FAZON F5 is the image of future loudspeaker design and performance, matching the varying moods and needs of your day. From sleepy radio listening in the morning, reflecting music enjoyment in the aftermoon, to movies in the evening or partying on a Saturday night. To spell it out: FAZON F5 unites form and function, gets shape into sound and sound in good shape! Welcome a brand new generation of high definition quality loudspeakers conveying authentic, natural sound from an elegant and courageous designed body shape.  .  FAZON F5 Specifications Product Series Fazon  Speaker Type Front Rear Surround  Frequency Range (+/-3 dB) [Hz] 49 - 23,000  Sensitivity (2,83 V/1 m) [dB] 87.5  Nominal Impedance [Ω] 6  Maximum SPL [dB] 109  Recommended Amplifier Power [W] 40 - 180  Crossover Frequency [Hz] 800 / 3,000 Hz  High Frequency Driver 1 x 28 mm Soft Textile Dome  Low Frequency Driver 2 x 5" Wood Fibre Cone Enclosure Type Bass Reflex  Bass Reflex Tuning Frequency [Hz] 47.0  Connection input(s) Single Wire  Magnetic Shielding No  Recommended Placement Floor  Recommended Distance From Wall [cm] 25  Dimensions With Base (HxWxD) [mm] 919 x 281 x 323  Weight [kg] 13.9  Accessories Included Manual Micro Fibre Cloth  Finish Black High Gloss LacquerRed High Gloss Lacquer White High Gloss Lacquer

DALI  FAZON SAT      €.   305,00                                Per offerta  e promozioni  TELEFONARE/EMAIL

DALI FAZON SAT Diffusore parete / tavolo, 2 Vie, 1 x Wf/Md 11,5cm - Tw 2,8cm Cupola, 20-120W - Laccato Bianco o Black

FAZON SAT FAZON SAT is a two-way design including a 4½” mid/woofer with wood fibre cone and an oversized 28mm/1.1” soft dome tweeter with a powerful neodymium magnet system. The drivers share the same technology platform as the drivers developed for the acclaimed MENTOR and IKON series. Equipped with a 360º pivoting wall bracket, FAZON SAT offers a flexible and innovative “Twist ‘n‘ Tilt” function. You can angle the speaker precisely horizontally and vertically; tilt it up or down, swivel it to either side and even mount it upside down. The speakers are delivered with a handy table stand for easy placement on a TV table, bookshelf, etc. The elegant and curved cabinet body is a combination of high gloss lacquered aluminium and composite material for the baffle. The surface of the baffle is treated with a rubbery coating for a smooth, elegant touch. The grille, which conceals and protects the drivers and the baffle, is held in place with magnets - allowing quick, easy removal with no visible signs of mounting pegs on the grille. Simple and stylish.FAZON SAT Specifications Product Series Fazon  Speaker Type Center Front Rear Surround  Frequency Range (+/-3 dB) [Hz] 86 - 25,000  Sensitivity (2,83 V/1 m) [dB] 86.0 Nominal Impedance [Ω] 6 Maximum SPL [dB] 104 Recommended Amplifier Power [W] 20 - 120  Crossover Frequency [Hz] 1,800 Hz  High Frequency Driver 1 x 28 mm Soft Textile Dome  Low Frequency Driver 1 x 4.5" Wood Fibre Cone  Enclosure Type Closed Box  Connection input(s) Single Wire  Magnetic Shielding No  Recommended Placement Above/Below TV Screen On-Wall Shelf Stand  Dimensions With Base (HxWxD) [mm] 255.5 x 138 x 87 / W. Table Stand: 287 x 146 x 172  Weight [kg] 2.4  Accessories Included Assembly Tools Manual Table Stand Wall Bracket  Finish Black Lacquer White Lacquer

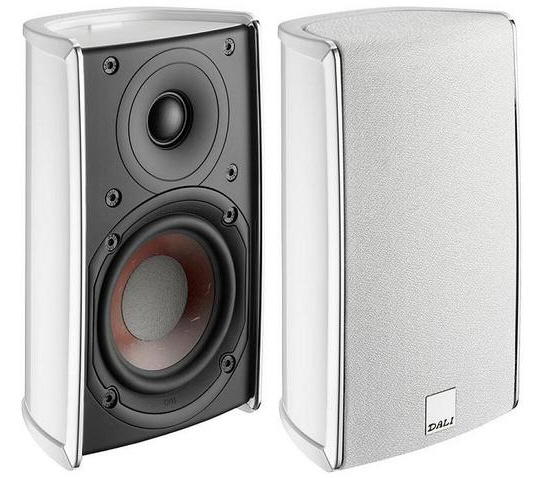

DALI  FAZON MIRKO      €.   199,00                        Per offerta  e promozioni  TELEFONARE/EMAIL

DALI FAZON MIKRO Diffusore parete / tavolo, 2 Vie, 1 x Wf/Md 11,5cm - Tw 2,8cm Cupola, 20-120W - Laccato Bianco o Black ACCESSORI : FLOOR STAND Coppia di stand da tavolo pavimento per Fazon Mikro colore Black o White € 309,00

  FAZON MIKRO  True Hi-Fi sound really can come in a small and elegant design. With its curved high-gloss lacquered aluminium cabinet, coated composite front baffle and snug fitting grille the ultra-compact FAZON MIKRO fits perfectly in any living room.  This compact loudspeaker is built around the renowned DALI trademark wood fibre cone driver and soft dome tweeter module. The 4” woofer delivers an accurate, detailed and dynamic sonic reproduction of music or movie sound, and the extremely strong cabinet design ensures that acoustic and mechanical resonances are almost non-existent. The 28 mm ultra-light soft dome tweeter enables the FAZON MICRO to deliver a richly detailed mid-range, and to extend the high frequency well beyond the audible range.  Featuring as the centrepiece in a 5.1 surround system, working in a stereo setup or acting as rear speakers with any of the other FAZON models the FAZON MIKRO will always surprise and delight whether you are listening to music or watching a movie. The FAZON MIKRO is true Hi-Fi in a very small package. Wall bracket The ingenious multi-function bracket enables simple wall mounting of both the FAZON MIKRO and FAZON VOKAL. The close placement to the wall not only looks good but also increases the lower bass performance. Push Button Terminals Easy to use push button terminals make connecting the speaker cables simple and ensure a tight and optimum connection that will not loosen over time. FAZON MIKRO 5.1 Positioning a complete surround system in a discreet and elegant way can be a daunting task. FAZON MIKRO offers a stylish and unobtrusive solution to this problem and allows you to have a full 5.1 surround system in your living room that delivers a true hi-fi audio performance. Paired with the FAZON SUB 1 you have the perfect solution for a small living room. FAZON MIKRO Specifications Product Series Fazon  Speaker Type Front Rear Surround  Frequency Range (+/-3 dB) [Hz] 95 - 25,000  Sensitivity (2,83 V/1 m) [dB] 84.0  Nominal Impedance [Ω] 6  Maximum SPL [dB] 101  Recommended Amplifier Power [W] 30 - 120  Crossover Frequency [Hz] 2,560 Hz  High Frequency Driver 1 x 20 mm Soft Textile Dome  Low Frequency Driver 1 x 4" Wood Fibre Cone  Enclosure Type Closed Box  Connection input(s) Single Wire  Magnetic Shielding No  Recommended Placement On-Wall Shelf Stand  Recommended Distance From Wall [cm] 0 - 50  Dimensions With Base (HxWxD) [mm] 196 x 113 x 96  Weight [kg] 1.5  Accessories Included Manual Rubber Pads Wall Bracket Wall Bracket Bumper  Optional Accessories Black Grille Floor Stand White Grille  Finish Black Lacquer White Lacquer

DALI  FAZON LCR          €.  499,00                         Per offerta  e promozioni  TELEFONARE/EMAIL

DALI FAZON LCR Diffusore da parete LCR, 2 Vie, 2 x Wf/Md 11,5cm - Tw 2,8cm Cupola, 15-120W - Laccato Bianco o Black ACCESSORI :DALI FAZON LCR STAND C Stand dedicato da tavolo per FAZON LCR in acciaio satinato black adatti per diffusore in modalità centrale € 95,00-DALI FAZON LCR STAND  L/R Coppia di stand da tavolo dedicati per FAZON LCR in acciaio satinato black adatti per diffusore in modalità left / right € 190,00 -DALI FAZON LCR FLOOR  STAND Coppia di stand da pavimento dedicati per FAZON LCR in acciaio satinato black adatti per diffusore in modalità left / right € 480,00


FAZON LCR By combining appealing design, genuine materials and excellence in driver- and speaker development, you get a high performance loudspeaker for on-wall mounting by choosing the MOTIF LCR. The speaker can be used both for stereo or multi channel setups - even as a center channel speaker. DALI MOTIF LCR comes with a patent pending wall bracket, which makes connectivity and correct polarity very easy, no matter how the speaker is mounted. MOTIF LCR is a versatile loudspeaker, which fits a modern lifestyle, where high performance and a compact form factor is in quest. Click'n'Connect No cables, no connectors, no hassle – just use the Click'n'Connect wall bracket that is delivered with the speaker. Mounted on the wall the distance from wall to outer speaker point is only 11,5 cm/4.6 inches. Sound & Build Quality The drivers in MOTIF LCR have a lot of similarities with the drivers used in the multiple award winning DALI IKON and MENTOR speakers. The cabinet is made of die cast aluminum, which makes it possible to create an asymmetrical shape with internal bracings, which will suppress both acoustic and mechanical resonances in the cabinet structure. The crossover is made with high quality audio grade components. The crossover is mounted on the rear side of the Click'n'Connect connector ensuring a short signal path. The Click'n'Connect wall bracket has integrated gold plated connectors for optimum electrical contact between the bracket and the speaker.  FAZON LCR Specifications Product Series Fazon  Speaker Type Center Front Rear Surround  Frequency Range (+/-3 dB) [Hz] 78 - 25,000  Sensitivity (2,83 V/1 m) [dB] 89.0  Nominal Impedance [Ω] 6  Maximum SPL [dB] 107  Recommended Amplifier Power [W] 15 - 120  Crossover Frequency [Hz] 3,000 Hz  High Frequency Driver 1 x 28 mm Soft Textile Dome  Low Frequency Driver 2 x 4.5" Wood Fibre Cone  Enclosure Type Closed Box  Connection input(s) Single Wire  Magnetic Shielding No  Recommended Placement Above/Below TV Screen On-Wall  Dimensions With Base (HxWxD) [mm] 385 x 157 x 117  Weight [kg] 3.5  Accessories Included Installation Templates Manual Mounting Brackets Wall Bracket  Finish Black Lacquer White Lacquer



DALI  FAZON VOKAL      €.   199,00                        Per offerta  e promozioni  TELEFONARE/EMAIL

VOKAL Diffusore tavolo, canale centrale, 2 Vie, 1 x Wf/Md 11,5cm - Tw 2,8cm Cupola, 20-120W - Laccato Bianco o Black

FAZON MIKRO VOKA True Hi-Fi sound really can come in a small and elegant design. With its curved high-gloss lacquered aluminium cabinet, coated composite front baffle and snug fitting grille the ultra-compact FAZON MIKRO fits perfectly in any living room.  ncluded with the FAZON MIKRO is a multi function bracket which works as a slim wall bracket or a kick stand for the FAZON MIKRO VOKAL. This compact loudspeaker is built around the renowned DALI trademark wood fibre cone driver and soft dome tweeter module. The 4” woofer delivers an accurate, detailed and dynamic sonic reproduction of music or movie sound, and the extremely strong cabinet design ensures that acoustic and mechanical resonances are almost non-existent. The 28 mm ultra-light soft dome tweeter enables the FAZON MICRO to deliver a richly detailed mid-range, and to extend the high frequency well beyond the audible range.  Featuring as the centrepiece in a 5.1 surround system, working in a stereo setup or acting as rear speakers with any of the other FAZON models the FAZON MIKRO will always surprise and delight whether you are listening to music or watching a movie. The FAZON MIKRO is true Hi-Fi in a very small package. Wall bracket The ingenious multi-function bracket enables simple wall mounting of both the FAZON MIKRO and FAZON VOKAL. The close placement to the wall not only looks good but also increases the lower bass performance. Push Button Terminals Easy to use push button terminals make connecting the speaker cables simple and ensure a tight and optimum connection that will not loosen over time.  FAZON MIKRO 5.1 Positioning a complete surround system in a discreet and elegant way can be a daunting task. FAZON MIKRO offers a stylish and unobtrusive solution to this problem and allows you to have a full 5.1 surround system in your living room that delivers a true hi-fi audio performance. Paired with the FAZON SUB 1 you have the perfect solution for a small living room.FAZON MIKRO VOKAL Specifications Product Series Fazon  Speaker Type Center  Frequency Range (+/-3 dB) [Hz] 95 - 25,000  Sensitivity (2,83 V/1 m) [dB] 84.0  Nominal Impedance [Ω] 6  Maximum SPL [dB] 101 Recommended Amplifier Power [W] 30 - 120  Crossover Frequency [Hz] 2,560 Hz  High Frequency Driver 1 x 20 mm Soft Textile Dome  Low Frequency Driver 1 x 4" Wood Fibre Cone Enclosure Type Closed Box  Connection input(s) Single Wire  Magnetic Shielding No  Recommended Placement Below TV Screen
On-Wall Shelf Stand  Recommended Distance From Wall [cm] 0 - 50  Dimensions With Base (HxWxD) [mm] 113 x 196 x 96  Weight [kg] 1.5  Accessories Included Manual Rubber Pads Wall Bracket Wall Bracket Bumper  Optional Accessories Black Grille Floor Stand White Grille  Finish Black Lacquer White Lacquer



DALI  FAZON SUB            €.  395,00                          Per offerta  e promozioni  TELEFONARE/EMAIL

DALI FAZON SUB 1 Sub-Woofer attivo, 1 x Wf 16,5cm, 150W RMS - Laccato Bianco o Black

FAZON SUB 1 NEW DALI FAZON SUB 1 Following the trend of compact, stylish products delivering remarkable performance, the FAZON SUB 1 sets out to impress music- and movie lovers. Although small in size the FAZON SUB 1 is among the highest performing ultra compact subwoofers in the market. With dimensions of only 255 x 230 x 255 mm FAZON SUB 1 is the most compact subwoofer ever built by DALI. DALI FAZON SUB 1 features:• 6½” long-stroke, down-firing woofer mounted in a closed cabinet for natural  bass reproduction and perfect acoustic coupling to the room. • The acoustics of the FAZON SUB 1 have been developed with a sonic balance  delivering great performance on music as well as movies. • Applying only subtle equalization ensures ultra low signal delay, effectively  putting this compact subwoofer in a class of its own: - Fast bass means perfect timing with the sound coming from the speakers. The  FAZON SUB 1 integrates well with any type of speakers. -Due to the superior time response of the FAZON SUB 1 the benefits of adding  this subwoofer will be immediately appreciated by the consumer.  • Soft, absorbent high-grip rubber feet eliminate transmission of residual resonance to surfaces such as wooden floors. • Controls for setting gain (volume), absolute polarity (phase), and upper cut-off  frequency. • Low power consumption. Auto power off – automatic switching to energy saving idle mode (below 1 Watt) when sound is off. • Optimized for corner positioning. Great Sonic Performance  With a careful balance between signal equalization and time response that allows a well-defined and tight bass that follows the signal, the new FAZON SUB 1 offers musical and natural bass performance. Despite it’s small appearance it will easily match the performance of a largersubwoofer.FAZON SUB 1 Specifications Product Series Fazon  Speaker Type Subwoofer  Frequency Range (+/-3 dB) [Hz] 37 - 200  Maximum SPL [dB] 103  Crossover Frequency [Hz] 50 - 150 Hz  Low Frequency Driver 1 x 6½" Paper Fibre Cone   Enclosure Type Closed Box  Max. Amplifier Power Output [RMS watt] 150  Continous IEC Power Output [RMS watt] 90 Input Impedance [Ω] 22k Connection input(s) Mono line level (LFE) RCA Stereo line level (low pass filtered) Magnetic Shielding No Recommended Placement Floor Recommended Distance From Wall [cm] 5 - 15  Functions Crossover Frequency LFE/LP Filter SwitchPhase Switch Standby (Auto Power) On/Off Switch Volume (Gain) Maximum Power Consumption [W] 195  Dimensions With Base (HxWxD) [mm] 255 x 230 x 255  Weight [kg] 7.5  Accessories Included Manual Power Cord  Finish Black High Gloss Lacquer White High Gloss Lacquer


SERIE KUBIKTelefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100  info@newaudio.it  Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@newaudio.it


DALI KUBIK FREE Diffusore attivo da tavolo, 2 ½ Vie, 1 x Wf/Md 13cm - Tw 2,5cm Cupola, 4x25W - Bianco, Black o Rosso € 890,00
DALI KUBIK EXTRA Diffusore passivo da tavolo per estensione a modalità stereo del Kubik Free - Bianco, Black o Rosso € 399,00
DALI KUBIK ONE Diffusore attivo da parete / tavolo, 2 ½ Vie, 2 x Wf/Md 13cm - 2 x Tw 2,5cm Cupola, 4x25W - Bianco, Black o Rosso € 1 . 1 9 0,00
DALI KUBIK GRILL Griglie Colorate per Kubik Free o Kubik Extra - a richiesta
Disponibili in : White, Black, Red, Purple, Orange, Mist Grey, Petrol Blue, Lime Green, Azure Blue
DALI KUBIK ONE GRILL Griglie Colorate per Kubik One - a richiesta
Disponibili in : White, Black, Red, Purple, Orange, Mist Grey, Petrol Blue, Lime Green, Azure Blue


SERIE PHAMTOMTelefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100  info@newaudio.it  Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@newaudio.it


DALI IKON PHANTOM Diffusore da incasso ad uso IN-WALL, 2 Vie, Wf/Md 16,5cm - Tw Cupola - Tw Nastro - White Cad. € 480,00
DALI PHANTOM VOKAL Canale centrale da incasso ad uso IN-WALL, 2 Vie, 2 x Wf/Md 12,5cm - Tw Cupola - Tw Nastro - White Cad. € 650,00
DALI PHANTOM E-80 Diffusore da incasso ad uso IN-CEALING, 2 Vie, Wf/Md 20 cm - Tw 2,8 cm Cupola, 30-150W - White € 550,00
DALI PHANTOM E-60 Diffusore da incasso ad uso IN-CEALING, 2 Vie, Wf/Md 16,5cm - Tw 2,8 cm Cupola, 30-120W - White € 390,00
DALI PHANTOM E-50 Diffusore da incasso ad uso IN-CEALING, 2 Vie, Wf/Md 13,2cm - Tw 2,8 cm Cupola, 40-120W - White € 295,00
DALI PHANTOM H-120 Diffusore da incasso ad uso IN-WALL, 3 Vie, Wf 30 cm - Md 13 cm - Tw 2,5 cm Cupola - White Cad. € 790,00
DALI PHANTOM H-80 Diffusore da incasso ad uso IN-WALL, 2 Vie, Wf /Md 20 cm - Tw 2,8 cm Cupola, 30-200W - White € 750,00
DALI PHANTOM H-60 Diffusore da incasso ad uso IN-WALL, 2 Vie, Wf/Md 16,5cm - Tw 2,8 cm Cupola, 30-150W - White € 540,00
DALI PHANTOM H-50 Diffusore da incasso ad uso IN-WALL, 2 Vie, Wf/Md 13,2cm - Tw 2,8 cm Cupola, 30-120W - White € 460,00


SUBWOOFERTelefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100  info@newaudio.it  Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@newaudio.it


DALI  SUB  E9F               €.   580,00               Per offerta  e promozioni  TELEFONARE/EMAIL

DALI SUB E-9 F Sub-Woofer attivo, Reflex, 170W RMS, Wf 23cm - White, Black, Light Walnut

SUB E-9 F The launch of the DALI SUB E-9 F marks a new stage of what is possible at this level of subwoofers! The new subwoofer from DALI features a 9” woofer, capable of moving lots of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil.  All in all, the heavy-duty abilities of this “motor system” ensure that the woofer always follows the signal from the amplifier! The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, wellbalanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading. The back plate of SUB E-9 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up. SUB E-9 F is elevated from the floor by cone shaped rubber feet, while a down-firing bass port allows positioning directly against the wall.  The DALI SUB E-9 F is recommended as compliment to the KUBIK FREE as well as the compact models of the ZENSOR and FAZON series. On top of this it is compatible with all DALI loudspeakers as the perfect completion of a DALI stereo or surround set up. SUB E-9 F Specifications Product Series SUBWOOFERS Speaker Type Subwoofer Frequency Range (+/-3 dB) [Hz] 37 - 200 Maximum SPL [dB] 111Crossover Frequency [Hz] 40 - 120 Low Frequency Driver 1 x 9" long stroke Aluminium Enclosure Type Bass Reflex Bass Reflex Tuning Frequency [Hz] 39.0 Max. Amplifier Power Output [RMS watt] 220 Continous IEC Power Output [RMS watt] 170Input Impedance [Ω] 25kConnection input(s) Mono (LFE) RCAStereo (low-pass filtered) Magnetic Shielding NoRecommended Placement Floor Near wall or cornerRecommended Distance From Wall [cm] 10 - 30 Functions Crossover Frequency Phase Switch Standby (Auto Power) On/Off Switch Volume (Gain) Maximum Power Consumption [W] 250 Dimensions With Base (HxWxD) [mm] 307 x 288 x 311Weight [kg] 11.0 Accessories Included Manual Finish Black Ash Vinyl Light Walnut Vinyl White Vinyl

DALI  SUB  E12F             €.   780,00               Per offerta  e promozioni  TELEFONARE/EMAIL

DALI SUB E-12 F Sub-Woofer attivo, Reflex, 170W RMS, Wf 30cm - White, Black, Light Walnut





DALI  SUB  E14F             €. 1.390,00               Per offerta  e promozioni  TELEFONARE/EMAIL

Sub-Woofer attivo, Reflex, 500W RMS, Wf 35cm - White, Black



DALI  SUB M-10D           €. 2.290,00               Per offerta  e promozioni  TELEFONARE/EMAIL

Sub-Woofer attivo, Reflex, 500W RMS, 1 X Wf 25cm - White High Gloss, Black High Gloss



DALI  SUB  P-10SS           €. 2.890,00             Per offerta  e promozioni  TELEFONARE/EMAIL

DALI SUB P-10 DSS Sub-Woofer attivo, Reflex, 170W RMS, Wf 30cm - White High Gloss, Black High Gloss


ACCESSORITelefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100  info@newaudio.it  Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@newaudio.it


DALI CONNECT E-600 Coppia di stand da pavimento utilizzabili con Dali Serie Ikon MkII, Mentor Menuet, Zensor, Lektor - Finitura Black € 199,00
DALI CONNECT E-600 Coppia di stand da pavimento utilizzabili con Dali Serie Ikon MkII, Mentor Menuet, Zensor, Lektor - Finitura White € 249,00
DALI BANANA PLUGS / W Kit di 4 connettori high-end a banana placcati in oro - Confezione Deluxe in Box di legno € 95,00
DALI BANANA PLUGS Kit di 4 connettori high-end a banana placcati in oro - € 75,00
DALI SPADE LUGS Kit di 4 connettori high-end a spade lugs placcati in oro - € 15,00
DALI CONES Kit di 4 coni in lega di ottone - Possibilità regolazione altezza - Forniti con sottopunte - Finiture cromate Gold o Black € 80,00
DALI CONNECT SC XR605C Cavo di Interconnessione per DALI KUBIK - Cavo da 10m per collegamento tra Kubik Free e Kubik Extra € 69,00
DALI UNIVERSAL
BRACKET Kit Wallbracket per coppia diffusori Dali - Finitura Black € 45,00

DALI SC F215C Cavo in rame OFC a 2 conduttori da 1,5mm² - Isolamento in Polietilene - Sezione piatta - Bobina da 200m € 3,50
DALI SC F222C Cavo in rame OFC a 2 conduttori da 2,2mm² - Isolamento in Polietilene - Sezione piatta - Bobina da 200m € 5,50
DALI SC RM230C Cavo in rame OFC a 2 conduttori da 3,0mm² - Isolamento in Polietilene - Sezione circolare - Bobina da 50m € 12,50
DALI SC RM230S Cavo placcato argento OFC a 2 conduttori da 3,0mm² - Isolamento in Polietilene - Sezione circolare - Bobina da 50m € 18,50
DALI SC RM230ST Cavo placcato argento OFC a 2 conduttori da 3,0mm² - Isolamento in Teflon - Sezione circolare - Bobina da 50m € 28,50
DALI SC RM430ST Cavo placcato argento OFC a 4 conduttori da 3,0mm² - Isolamento in Teflon - Sezione circolare - Bobina da 40m € 49,50

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it



 Legenda istruzioni

Clicca per qui per vedere :  FOTO PRODOTTO

Clicca per qui per vedere :  ISTRUZIONI PRODOTTO

Clicca per qui per vedere :  CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO


Nota  bene *

Per ordinare o avere gli ultimi prezzi aggiornati telefona al  0174 670100 o invia un E-mail a   info@newaudio.it

*I prezzi indicati  sono  di  listino  ufficiale  delle case produttrici ,nel  caso  di  diffusori  si  riferisce al prezzo  del  singolo  diffusore  per  offerte  ed  eventuali  promozioni  telefonare o  inviare e-mail.

*Il presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i prezzi indicati  possono variare senza preavviso telefonare o inviare un e-mail per ulteriori domande e conferme sui prezzi sopra riportati.

*Tutti i marchi citati nel presente listino sono di proprietà e registrati alle rispettive Case Produttrici

*Prezzi franco nostro magazzino


Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it
