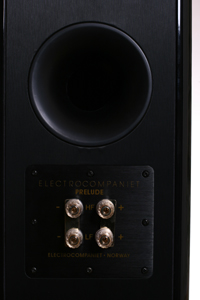

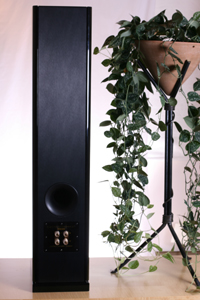

Prelude

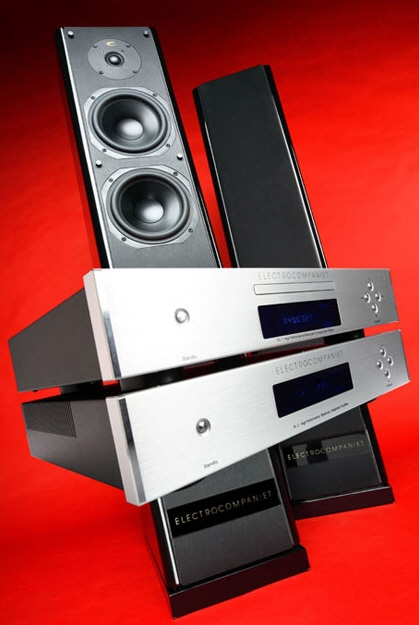

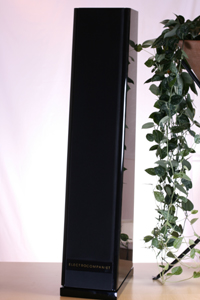

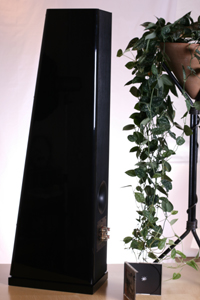

loudspeaker PSF-1 2x120 Watt The Electrocompaniet PSF 1 loudspeaker is a 2
and 1/2 way floor standing bass reflex construction, with double 6,5 inch
woofers and a 1 inch tweeter. The cabinet is made of MDF with double
sandwich side panels and four internal strutting's to ensure minimum resonances.
Total thickness of the side panels is 24 mm. Front and rear panels are made of
18 mm MDF. The woofers have a solid magnet structure with a long throw
design to ensure well-controlled and tight bass reproduction even at relatively
high SPL. Speaker cones are made of selected coated paper in order to give
maximum musicality and a smooth frequency response.As tweeter we use a 25 mm
silk dome with ventilated magnet system and damped rear chamber to ensure
minimum compression and good musical properties, not often used in loudspeakers
at this price level. All units are custom made to Electrocompaniet to meet our
high requirements regarding sound quality. In order to ensure a coherent and
wide sound stage from the speaker, the x-over is carefully phase optimized,
where the drivers have the same absolute acoustic phase at the x-over frequency
between midrange and tweeter without any inverted phase of drive units. The
x-over is made of low loss inductors and poly-carbonate capacitors.Technical
specification: Frequency response: 46-20000 Hz +/- 2.5 dB free field condition.
Impedance: 4 ohms Sensitivity: 89 dB/m at 2.83v Power handling: 120
Continuous /200Watt Music Power X.over frequency: (500) and 2300 Hz, 6dB/12dB
and 18 dB/oct. Bass tuning frequency: 40 Hz Dimensions : Width 210 mm
8.3/Depth 338 mm 13.3/Height 1065 mm 42 Weight: 20 kg 44lbs
PSB

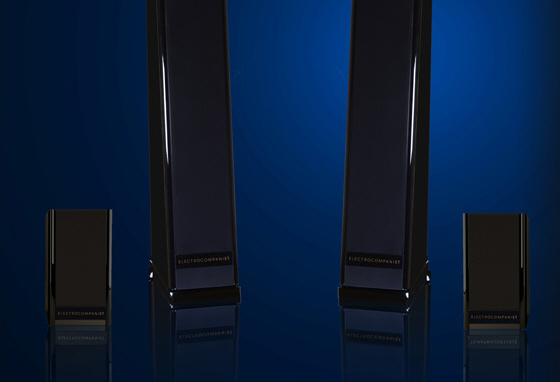

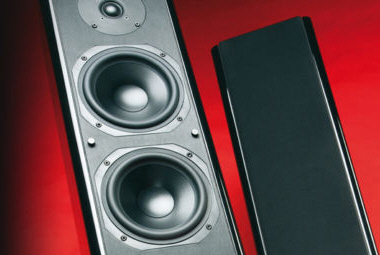

1 shelf loudspeaker The Electrocompaniet PSF 1 loudspeaker is a 2 way
shelf standing bass reflex construction, with double 6,5 inch woofers and a 1
inch tweeter.The cabinet is made of MDF with double sandwich side panels and
four internal strutting's to ensure minimum resonances. Total thickness of the
side panels is 24 mm. Front and rear panels are made of 18 mm MDF. The woofers
have a solid magnet structure with a long throw design to ensure well-controlled
and tight bass reproduction even at relatively high SPL. Speaker cones are made
of selected coated paper in order to give maximum musicality and a smooth
frequency response.As tweeter we use a 25 mm silk dome with ventilated magnet
system and damped rear chamber to ensure minimum compression and good musical
properties, not often used in loudspeakers at this price level. All units are
custom made to Electrocompaniet to meat our high requirements regarding sound
quality. In order to ensure a coherent and wide sound stage from the speaker,
the x-over is carefully phase optimized, where the drivers have the same
absolute acoustic phase at the x-over frequency between midrange and tweeter
without any inverted phase of drive units. The x-over is made of low loss
inductors and poly-carbonate capacitors.Technical specification: Frequency
response: 46-20000 Hz +/- 2.5 dB free field condition. Impedance: 4 ohms
Sensitivity: 89 dB/m at 2.83v Power handling: 120 Continuous /200Watt Music
Power X.over frequency: (500) and 2300 Hz, 6dB/12dB and 18 dB/oct. Bass
tuning frequency: 40 Hz Dimensions : Width 210 mm 8.3/Depth 338 mm 13.3/Height
1065 mm 42 Weight: 20 kg 44lbs
Amplificatore integrato , 50 W canale 8 ohms, 100 W canale 2 ohms, stabile sino
a 0,5 ohms, > 50 A picco COLORI NERO O SILVER
The
Electrocompaniet PI-1 and PI-2 are our new fully balanced entry-level stereo
integrated amplifiers. In the development of these amplifiers the focus has been
to maintain the operating principles and sound quality of the classic line
amplifiers, and at the same time reduce manufacturing costs. To achieve this we
have utilized modern surface mount technology (SMT) and optimized the amplifiers
for our modern SMT production line. The result is modern looking high
performance amplifiers with superb control and dynamics.The newly developed
protection circuitry protects the PI-1 and PI-2 against high temperature, DC
offset and short circuit at the output. This protection has no negative
influence on the sound quality what so ever. We have even removed the relay at
the output to reduce the number of contact points between the amplifier and the
loudspeakers.Both the PI-1 and PI-2 features the same digital volume control as
used in the EC4.8/EC4.9 preamplifiers. The bright and clear VFD-display is
readable from the listing position and shows the input source and volume setting.
Both amplifiers have two fully balanced (XLR) inputs and two single ended (RCA)
inputs. Volume and input sources can easily be navigated via the four navigator
buttons on the front panel, or from the remote control.The PI-1 is equipped with
a big linear power supply with a 300VA toroidal transformer and a capacitor
storage bank of 40.000 uF.Technical Data Conditions PI-1 Input impedance
Balanced input 47Kohm Output impedance 0.03 ohm Noise floor 20 - 20 kHz <
- 100 dB Frequency response - 3 dB 1 - 200 kHz Channel separation > 120 dB THD +
N 20 - 20 kHz < 0.006% Maximum peak current > 50A Damping factor 8 ohm load >250
Rated output power THD = 0.2% into 8 ohm 2 x 50 W into 4 ohm 2 x 75 W into 2 ohm
2 x 100 W Toroid transformer 300VA Capacitor storage bank 40.000uF Dimensions W
x D x H 420 x 340 x 77 mm Weight 6 kg Power consumption No load or signal 100 W
Inputs 2 x 2 Channel Balanced (XLR) 2 x 2 Channel Single Ended Control ports
None Outputs Loudspeakers
ELETROCOMPANIENT
PRELUDE PI2 .2.219,00Per prezzo
scontato
TELEFONA / UN E-MAIL Amplificatore integrato , 100 W canale 8 ohms, 220 W canale
2 ohms, stabile sino a 0,5 ohms, >50 A picco COLORI NERO O SILVER
Prelude

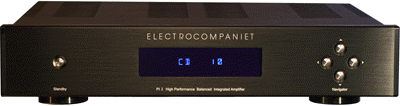

integrated ampsPI-22x100 Watt The Electrocompaniet PI-1 and PI-2 are our new
fully balanced entry-level stereo integrated amplifiers. In the development of
these amplifiers the focus has been to maintain the operating principles and
sound quality of the classic line amplifiers, and at the same time reduce
manufacturing costs. To achieve this we have utilized modern surface mount
technology (SMT) and optimized the amplifiers for our modern SMT production line.
The result is modern looking high performance amplifiers with superb control and
dynamics.The newly developed protection circuitry protects the PI-1 and PI-2
against high temperature, DC offset and short circuit at the output. This
protection has no negative influence on the sound quality what so ever. We have
even removed the relay at the output to reduce the number of contact points
between the amplifier and the loudspeakers.Both the PI-1 and PI-2 features the
same digital volume control as used in the EC4.8/EC4.9 preamplifiers. The bright
and clear VFD-display is readable from the listing position and shows the input
source and volume setting. Both amplifiers have two fully balanced (XLR) inputs
and two single ended (RCA) inputs. Volume and input sources can easily be
navigated via the four navigator buttons on the front panel, or from the remote
control. The PI-2 is equipped with a oversized linear power supply with a 400VA
toroidal transformer and a capacitor storage bank of 80.000 uF.Technical Data
Conditions PI-2 Input impedance Balanced input 47Kohm Output impedance 0.03 ohm
Noise floor 20 - 20 kHz < - 100 dB Frequency response - 3 dB 1 - 200 kHz Channel
separation > 120 dB THD + N 20 - 20 kHz < 0.006% Maximum peak current > 50A
Damping factor 8 ohm load >250 Rated output power THD = 0.2% into 8 ohm 2 x 100
W into 4 ohm 2 x 150 W into 2 ohm 2 x 220 W Toroid transformer 400VA Capacitor
storage bank 80.000uF Dimensions W x D x H 420 x 340 x 77 mm Weight 10 kg Power
consumption No load or signal 100 W Inputs 2 x 2 Channel Balanced (XLR) 2 x 2
Channel Single Ended Control ports None Outputs Loudspeakers

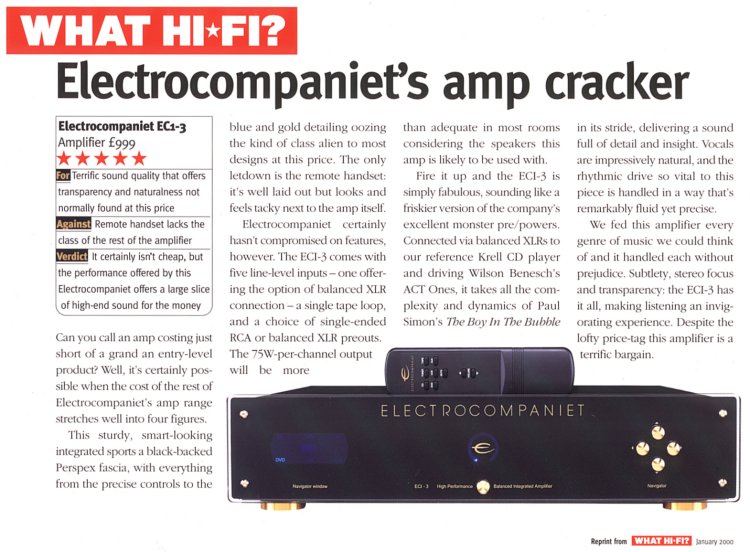

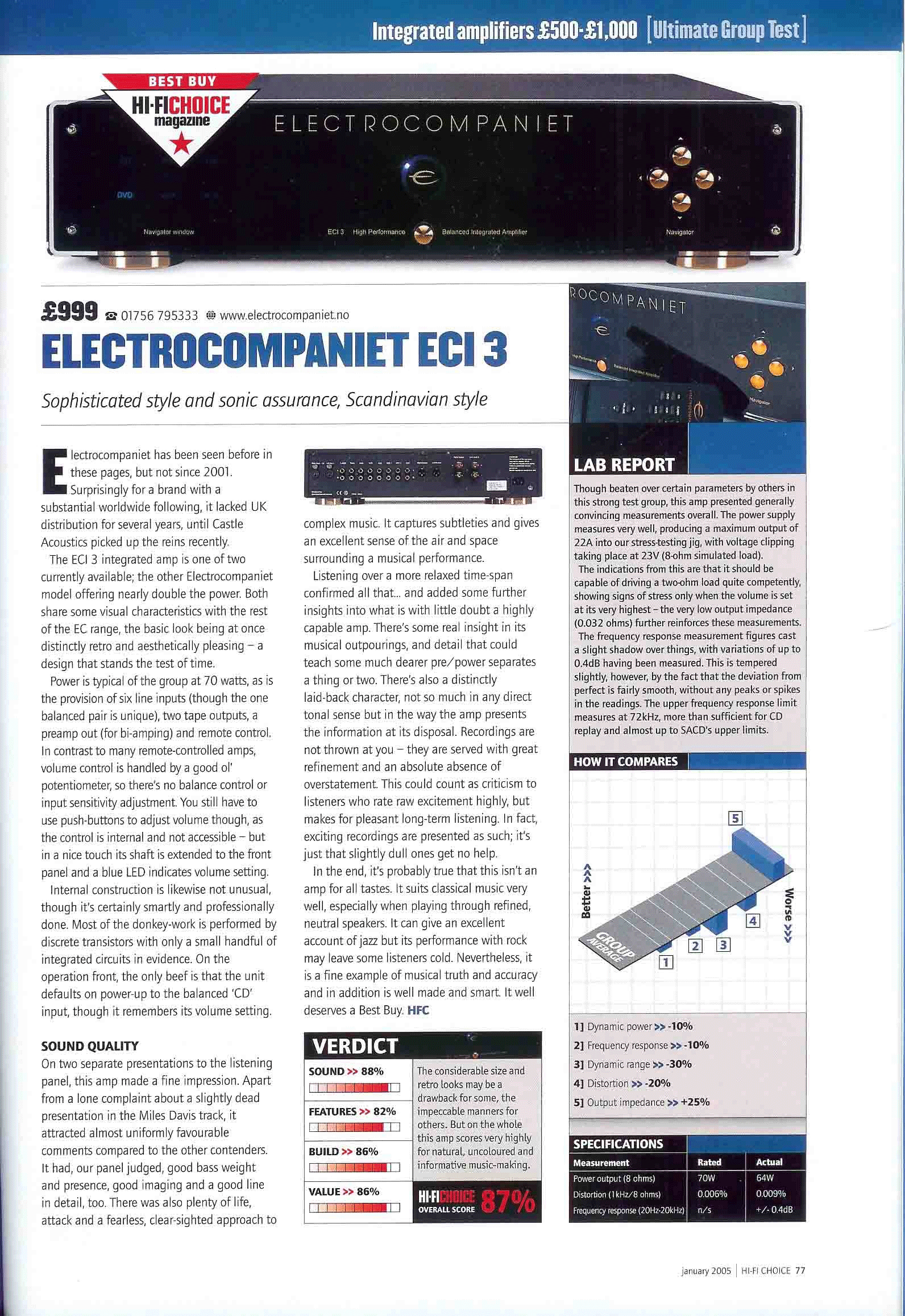

Integrato linea, 75 watts
ch., telecomando, misurati a 240 V The

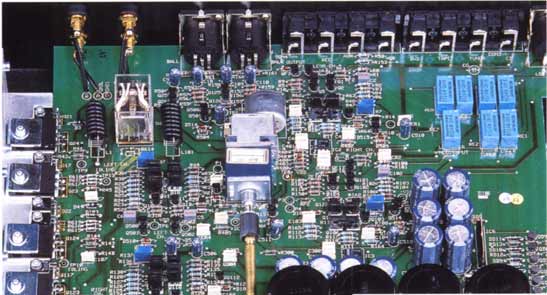

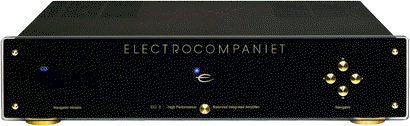

Electrocompaniet ECI 3 is a DC coupled, high performance, fully balanced, remote
controlled integrated stereo amplifier. It features one balanced XLR input, six
single-ended RCA inputs, a balanced output, and a single-ended tape output.The
ECI 3 is equipped with a balanced, motorised volume control without sonic
degradation, and all input switching is done by relays.Volume up/down and input
selection can be controlled using the four Navigator touch buttons on the front
panel, or from the remote control. The selected input source is shown in the
Navigator Window.The ECI 3 features Electrocompaniets unique Floating
Transformer Technology (FTT) power supply which is capable of delivering twice
as much current as conventional designs. The ECI 3 is built with the same
quality components as our most prestigious models. A 550 VA transformer, in FTT
configuration, and a current reservoir of 40.000uF delivers 2 x 70 W of clean
and powerful dynamics into an 8Ω load. Like all our amplifiers, the ECI 3 is
stable in all loads down to 0.5 Ω. The balanced output of the ECI 3 can feed an
additional power amplifier in a bi-amped set-up.Technical specifications All
measurements are made at 120V / 240V //50Hz / 60Hz Preamplifier section Nominal
Input impedance 330 kohm Max. input level > 10 Volt RMS Equivalent input noise <
4 ΅V Input sensitivity for rated output (single) 0.6 V Input sensitivity for
rated output (balanced) 0.3 V Amplifier section Output Impedance(20 Hz - 20 kHz)
< 0,01 ohms Max. peak current > 60 A THD(measured at 1 kHz half power,8W) <
0,005 % THD(measured at 1 kHz -1 dB 8 W) < 0,006 % Rated output power 8 ohms 2 x
70 W 4 ohms 2 x 120 W 2 ohms 2 x 160 W Power consumption(no load or signal) 70 W
Dimensions Width 483 mm / 19 inches Depth 410 mm / 16.1 inches Height 115 mm /
4.5 inches Weight 12Kg / 26.4 lbs.
Integrato
linea, 120 watts ch. telecomando, misurati a 240 V
The

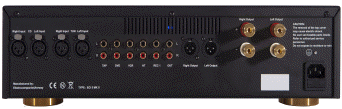

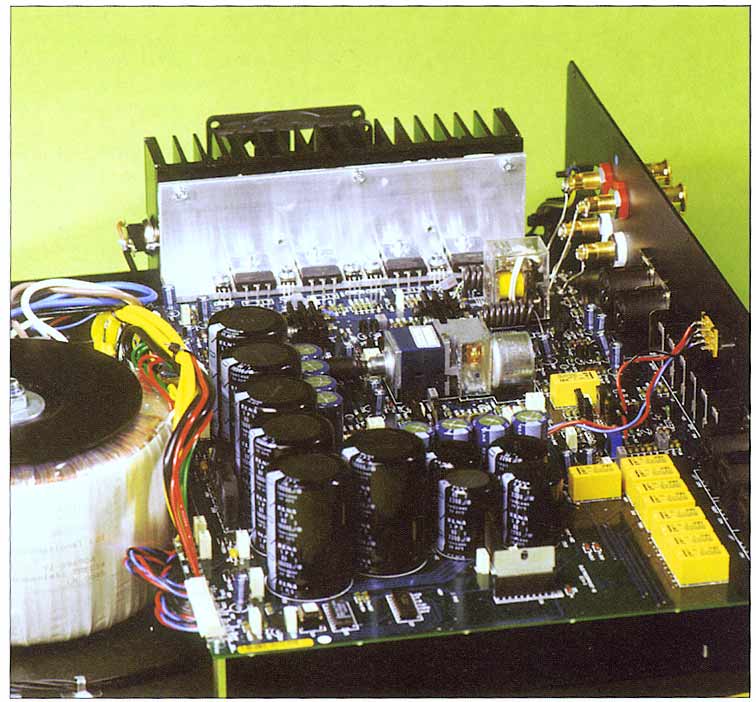

Electrocompaniet ECI 5 is a DC coupled high performing, fully balanced, remote
controlled integrated stereo amplifier with all latest upgrades included. Six
inputs: two balanced three single and one direct. Outputs: Balanced, single and
REC. Balanced motorized volume control that does not degrade the sonic qualities
of the unit.Relay input switching. Volume and input sources can easily be
navigated via four Navigator touch buttons on the front panel or from the remote
control. The select source is shown in the Navigator window.The ECI 5 Features

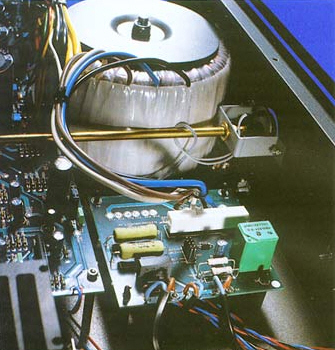

Electrocompaniet's unique FTT (Floating Transformer Technology) power supply
designs. The ECI 5 contains the same components used in our most prestigious
models. A current reservoir of 70.000uF delivers 2 x 120W of clean and powerful
dynamics into an 8 ohms load. Like the rest of our amplifiers, ECI 5 is stable
down to 0.5 ohms. The balanced output of the ECI 5 can feed an additional power
amplifier in a bi-amped set-up.Technical specifications All measurements are
made at 120V / 240V //50Hz / 60Hz Preamplifier section Nominal Input impedance
330Kohm Max. input level > 10 Volt RMS Equivalent input noise < 4 ΅V Pre-out
gain balanced output (XLR) 1,37x Pre-out gain single output (RCA) 1,25x
Amplifier section Output Impedance (20 Hz -20 kHz) < 0,01 Ohm Max. peak current
> 80 A THD(measured at 1 kHz half power, 8 W) < 0,007 % THD(measured at 1 kHz -1
dB 8 W) < 0,008 % Input sensitivity for rated output single ended 1,4V Input
sensitivity for rated output balanced 0,7V Input sensitivity for rated output HT
6,5V Rated output power 8 ohms 2 x 120 W 4 ohms 2 x 200 W 2 ohms 2 x 350 W Power
consumption (no load or signal) 160 W Dimensions Width 483 mm / 19 inches Depth
405 mm / 16 inches Height 135 mm / 5,3 inches Weight 16Kg / 35 lbs.
For
more than 30 years, the name "Electrocompaniet" has been synonymous with the
manufacture of great sounding power amplifiers. The numerous prestigious
international awards, as well as top ranking reviews, attest to the success

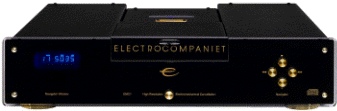

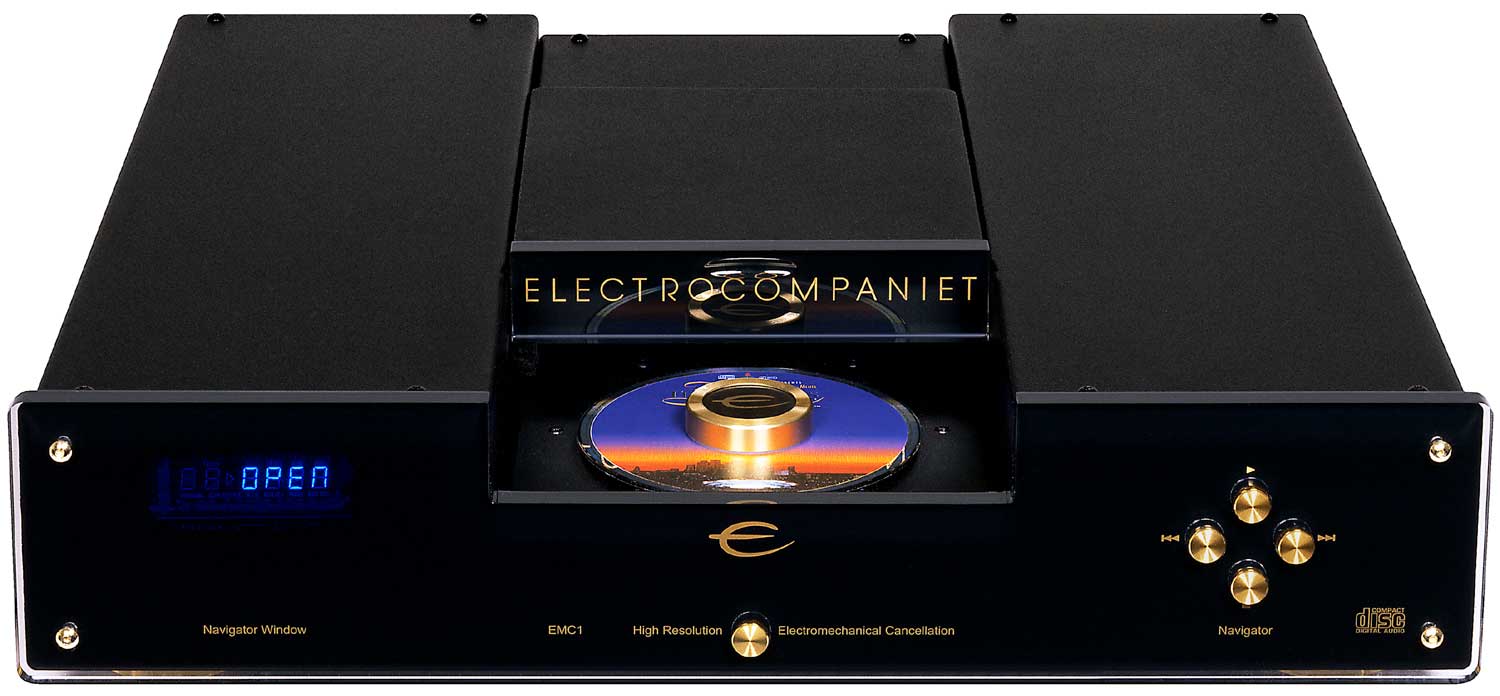

and appreciation of the amplifiers.Since 1999, we have had the same level of
world-wide recognition with our reference CD player, the Electrocompaniet

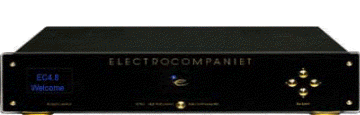

EMC 1. The obvious missing link has been a preamplifier matching the quality
of the award-winning power amplifiers and reference CD player.With the new

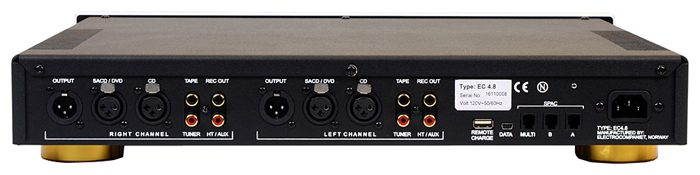

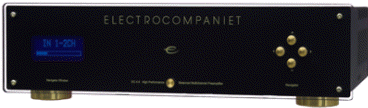

Electrocompaniet two-channel EC 4.8 preamplifier, the missing link is now
removed.With its outstanding performance, excellent resolution, superb
control and precise musical rendering, we have succeeded making a
preamplifier that is true to our slogan,Closing the gap to the
master. Our new two-channel EC 4.8 preamplifier is sure to make all good
power amplifiers sound even better !The EC4.8 preamplifier is designed to
fill our need for a advanced preamplifier in a higher price range. The
preamplifier is designed as a slimline version, with a fully balanced
electronic solution from input to output. It is designed as two separate
mono preamplifiers, each with its own power supply. This preamplifier can
be used with the included IR remote controller or as an option, together
with the RF based remote controller ECT 2. The EC4.8 has the new SPAC
network for safety control of the connected power amplifiers.Technical
specifications All measurements are made at 120V / 240V //50Hz / 60Hz Input
impedance balanced (fixed) 47 Kohm Output impedance 100 ohm Input
level (Single ended) >15 Vp-p Input level (balanced) >30 Vp-p Max output
level (Single ended) >15 Vp-p Max output level (Balanced) 30 Vp-p Gain -
111dB to +6dB Noice Floor <-130dB (@ 0dB gain) Frequency responce 0.5
- 200.000 Hz Channel Seperation > 120dB THD + N <0.002% MD TBD Power
consumption (no load or signal) 30 W Dimensions and Waight Width 483
mm / 19 inch Depth 386 mm / 16.1 inch Height 76 mm / 4.5 inch
Weight 9 kg Inputs
Balanced 2 x2 channel Single ended 3 x 2 channel Control Ports
Nettwork 3 x SPAC
Programming 1 x USB Outputs Balanced 1 x 2 channel Single ended
Record Out

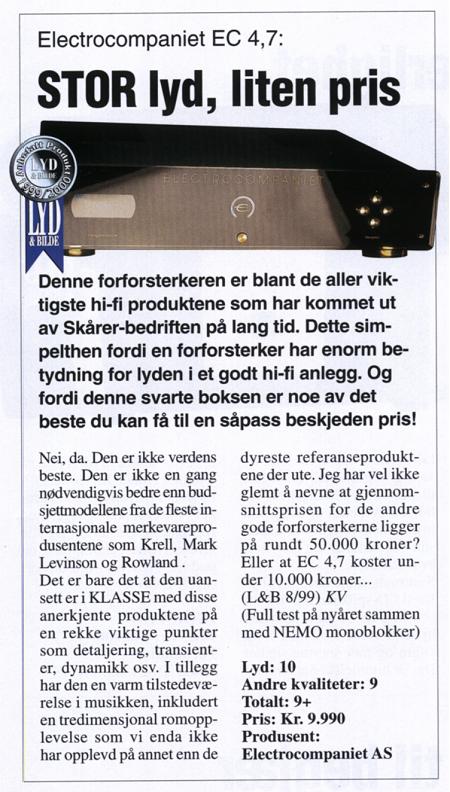

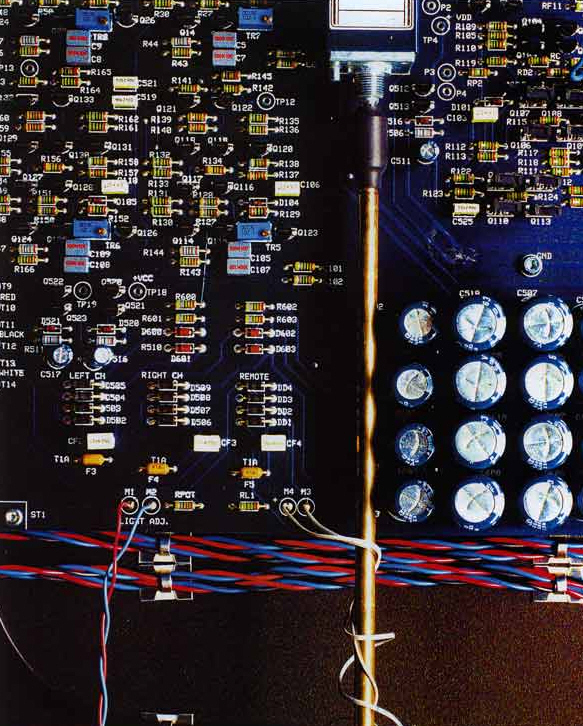

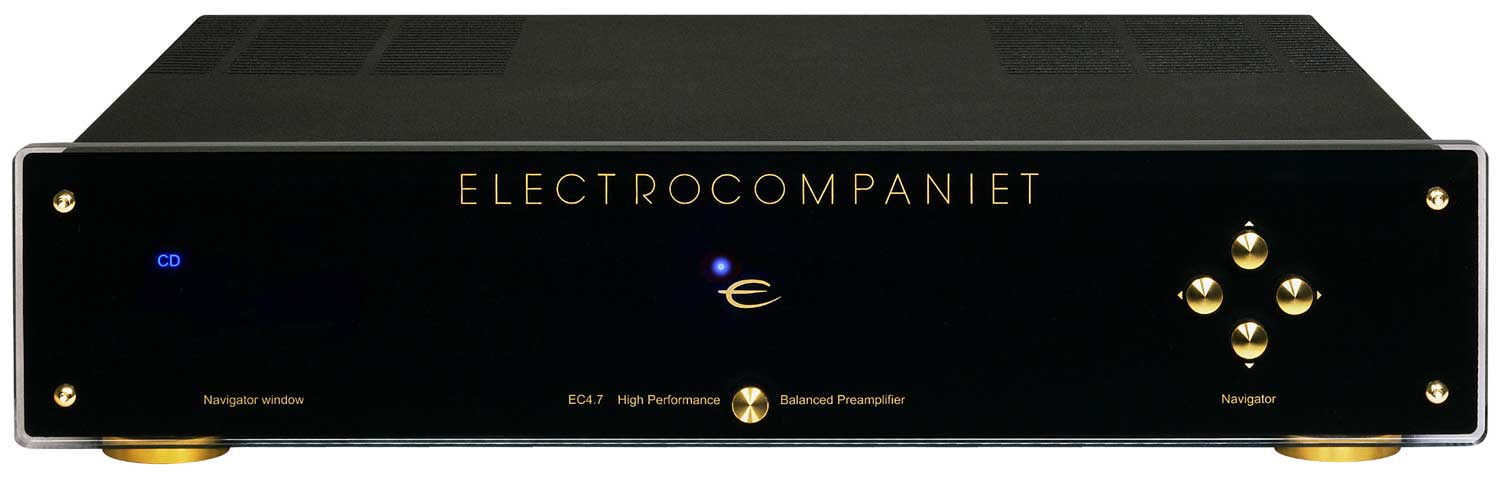

Preamplificatore 6 ingressi (di cui 1 XLR), telecomandatoThe Electrocompaniet EC
4.7 is a high resolution, high performance, DC coupled and fully balanced,
remote controlled preamplifier.
EC
4.7 has six single ended inputs, where one is fully balanced.One balanced and
one single ended line output, and one fixed single ended output to be used as
record.The remote controlled motorized volume is developed to not influence or
degrade the sonic performance of the EC 4.7.Volume control and input sources can
easily be navigated from the remote controller or via the navigators on the
front panel.The navigator's window displays the selected source, and the volume
position in analogy shown by a blue lit.The EC 4.7 features Electrocompaniets
unique FTT technology, which is capable of deliver twice the current as
conventional power supply designs.This combination with a Toroid transformer and
a reservoir of capacitance far beyond necessary will give you more than adequate
control of your system.Contains only high quality discrete components.It is a
perfect combination with our own products or other manufacturers High-end
equipment.Technical specifications All measurements are made at 120V / 240V
//50Hz / 60Hz Clipping point of the preamplifier is set to a level where total
harmonic distortion (THD) is 0.2% Preamplifier section Single ended operation (gain)
0 dB Balanced operation (gain) 6 dB Input impedance single (fixed) 330 kohm
Input impedance balanced (fixed) 165 kohm THD single ended (1 V in, 1 V out, 1
kHz) < 0.001 % Equivalent input noise < 3 ΅V THD balanced (1 V in, 1 V out, 1
kHz) < 0.0005 % Max. input single > 10 V RMS Max. input balanced > 20 V RMS
Channel separation (1 V output, 1 kHz) > 90 dB Attenuation (minimum volume) - 75
dB Output impedance single 100 W (fixed) Output impedance balanced 50 W (fixed)
Max. output Single ended 8 V RMS Max output Balanced 16 V RMS Output noise (400
Hz - 30 kHz) Single ended : 5 ΅V Balanced : 10 ΅V Signal to noise (400 Hz - 30
kHz) > 100 dB Frequency response (DC - 65 kHz) - 0.4 dB The EC 4.7 is DC coupled
from input to output. Power consumption (no load or signal) 15 W Dimensions
Width 483 mm / 19 inches Depth 410 mm / 16.1 inches Height 115 mm / 4.5 inches
Weight 8 kg. / 17.6 lbs.
The
Electrocompaniet ECP 1 RIAA/ Phono Preamplifier brings out the best from
your vinyl record collection.This self-contained phono stage can easily be
switched between moving coil and moving magnet operation. The ECP1 is a big
performer at an affordable price. You and your favourite LPs deserve the
Electrocompaniet ECP1.Technical specifications Phono section Gain
source imp.=10 W) 73 dB (4500x) Gain 1 kHz mov. magnet 38.4 dB (55x) Input
impedance moving magnet 47 kW / 22 pF THD 1 kHz (2 V output) 0.007 %
Overload 1 kHz moving coil (THD = 0.2 %) > 20 mV Overload 1 kHz moving
magnet (THD = 0.2 %) > 165 mV Channel separation (1V output at 1 kHz) > 80
dB Noise (ref. 0,5 mV) moving coil -88 dB Noise (ref. 5 mV) moving magnet
-88 dB Equivalent input noise (400 Hz - 30 kHz) 0.2 ΅V RIAA accuracy (20 Hz
- 20 kHz) ± 0,1 dB Output impedance 100 W Power consumption (no load or
signal) 8 W Dimensions Width 241 mm / 9.5 inches Depth 170 mm / 6.7 inches
Height 70 mm / 2.8 inches Weight 1 kg. / 2.2 lbs.
Preamplificatore multicanale
Audio/Video, Reference stereo/HT . Necessita di telecomando ETC2The best of two
world
Is
it possible to have the best two-channel system, and at the same time have the

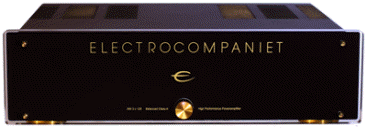

best multi-channel system?With the EC 4.9, the answer is yes. Combined with our

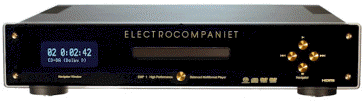

new EMP 1 Multiplayer and our new generation of poweramplifiers, the
Electrocompaniet EC 4.9 gives you the best sound from bothworlds. The EC 4.9 can

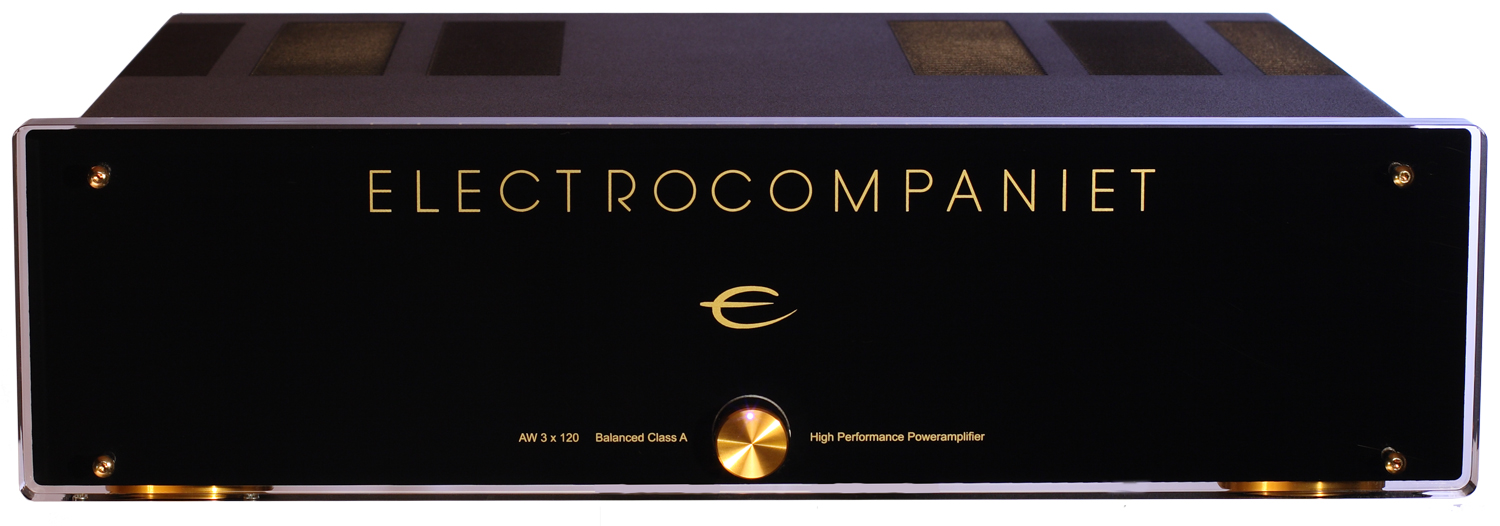

work with the AW 3x120-M power amplifier to automatically switch between
multi-channel amplification and bridged stereophonic mode, giving you the ideal
system no matter what music you are playing, all controlled by a two-way radio
remote control from the comfort of your armchair. With each of the six channels
having the same outstanding sound quality as the EC 4.8 preamplifier,
Electrocompaniet now has one of the best performing and most advanced 6 channel
preamplifiers on the market. The EC4.9 preamplifier is the first product in the
new range of multi-channel equipment from Electrocompaniet. The EC4.9 uses the
new EC serial standard SPAC, (Serial Power Amp Control) for controlling the
Power amplifier. In combination with one AW3Χ120, and one AW2x120, the new multi
channel power amplifiers, it's possible to switch from a 120W multi channel
system to 2Χ400W two-channel system. All fully controlled from the new Remote
Controller ECT2 Technical specifications All measurements are made at 120V /
240V //50Hz / 60Hz Input impedance balanced (fixed) 47 Kohm Output impedance 100
ohm Max input level 30 Vp-p (bal) Max output level 30 Vp-p (bal) Gain - 111dB to
+6dB Noice Floor <-130dB (@ 0dB gain) Frequency responce 0.5 - 200.000 Hz
Channel Seperation > 120dB THD + N <0.002% IMD TBD Power consumption (no load or
signal) 50 W Dimensions and Waight Width 483 mm / 19 inch Depth 385 mm / 15.2
inch Height 135 mm / 5.3 inch Weight 10 kg Inputs Balanced 2 x6 XLR Balanced 1 x
2 XLR Single ended 3 x 2 Phono Control Ports Nettwork 3 x SPAC Programming 1 x
USB Outputs Balanced 1 x 6 channel Single ended 1 x 2 ch. (Record Out)
Finale stereo,
2x120 W/8ohm-220w/4 ohm w, 80 A picco, misurati a 240V

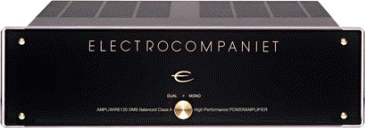

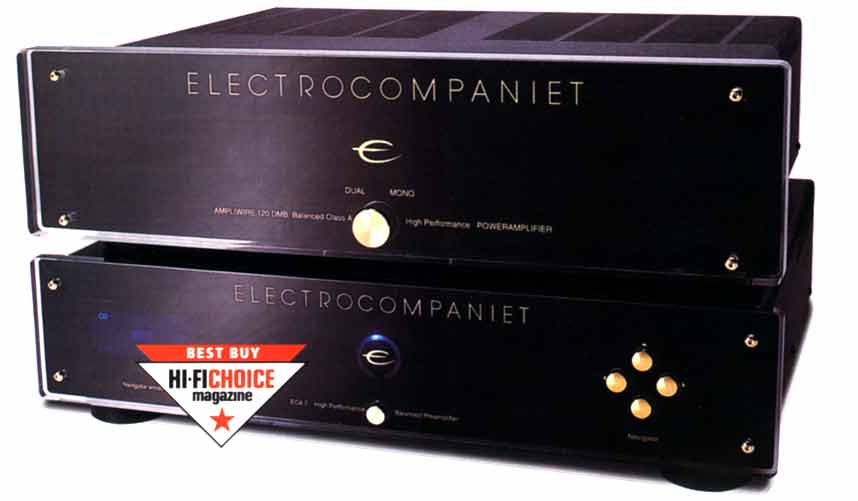

The

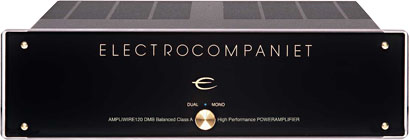

Electrocompaniet AW120DMB power amplifier is based on the design philosophy of
the highly acclaimed AW180M monaural power amplifier.The AW120DMB incorporates
such refined features as: FTT (Floating Transformer Technology) power supply,
capable of delivering twice the current of a conventional power supply. First
class overall circuit design and state-of-the-art components. Uncompromising
sonic and mechanical quality.A current reservoir of 150.000uF delivers 2 x 120 W
of clean and powerful dynamics into an 8 Ohms load. Just like the rest of our
power amplifiers, the AW120DMB is stable down to 0,5 Ohms. The Electrocompaniet
AW120DMB features a balanced link to additional amplifier(s) for bi-amping. It
can easily be used in bridged mode, delivering up to four times the
power.Technical specifications All measurements are made at 120V / 240V //50Hz /
60Hz Amplifier section Output Impedance (20 Hz - 20 kHz) < 0,01 ohm RCA (single)
input impedance 220 kohm XLR (balanced) input impedance 110 kohm Input sensivity
for rated output 1 V Max. peak current > 100 A THD (measured at 1 kHz -1 dB, 8
W) < 0,002 % Noise (measured with both inputs shorted) 400 Hz - 30 kHz : 90 ΅V
10 Hz - 30 kHz : 100 ΅V Rated output power 8 ohms 2 x 120 W 4 ohms 2 x 200 W 2
ohms 2 x 350 W Power consumption (no load or signal) 161 W Dimensions Width 483
mm / 19 inches Depth 385 mm / 15 inches Height 135 mm / 5.3 inches Weight 19 kg.
/ 41.8 lbs
Finale mono,
180w/8 ohm-350w/4 ohm, Mono Balanced, 100 A picco, misurati a 240 V

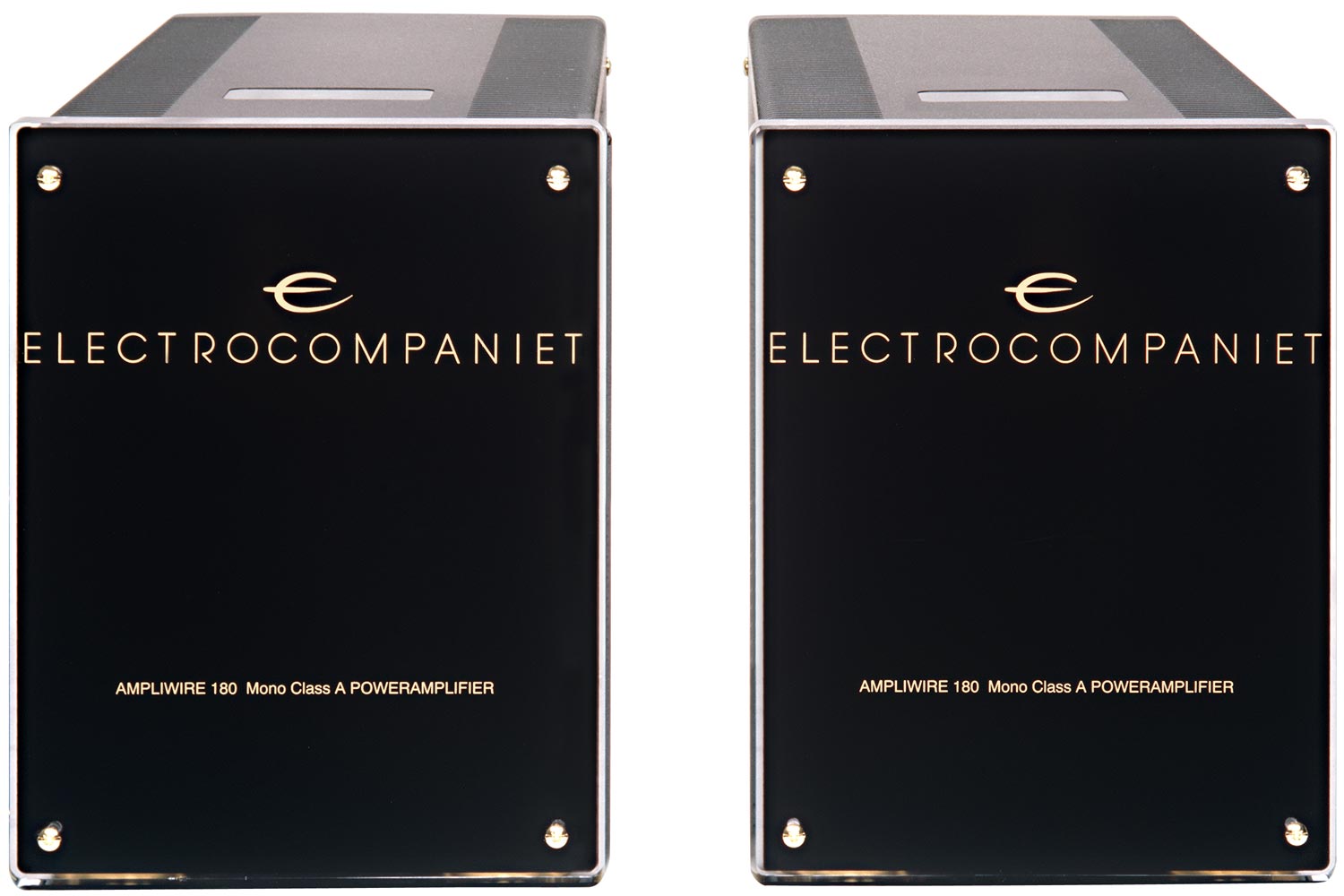

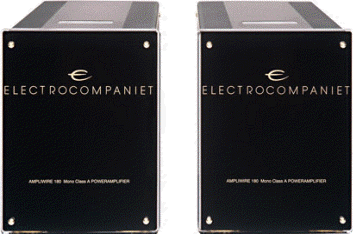

AW 180 monoblock The
Electrocompaniet AW180M monaural power amplifier represents the ultimate
fidelity in sound reproduction.Audiophiles, recording engineers, record
producers and reviewers around the world rely on the AW180Ms faithful
reproduction of the original master recording.The stunning capabilities of the
Electrocompaniet AW180M cannot be explained they have to be experienced.The
AW180M incorporates such refined features as: FTT (Floating Transformer
Technology) power supply, capable of delivering twice the current of a
conventional power supply, a first class overall circuit design and
state-of-the-art components. The Electrocompaniet AW180M features a balanced
link to additional amplifier(s) for bi-amping. It can easily beused in bridged
mode, delivering up to four times the power.Technical specificationsAll
measurements are made at 120V / 240V //50Hz / 60Hz Amplifier section Output
Impedance (20 Hz - 20 kHz) < 0,008 ohm RCA (single) input impedance 220 kohm XLR
(balanced) input impedance 110 kohm Input sensivity for rated output 1 V Max.
peak current > 100 A THD (measured at 1 kHz half power, 8 W) < 0,001 % THD (measured
at 1 kHz -1 dB, 8 W) < 0,001 % Noise (measured with both inputs shorted) 400 Hz
- 30 kHz : 90 ΅V10 Hz - 30 kHz : 100 ΅V Rated output power 8 W 180 W 4 W 350 W 2
W 650 W Power consumption (no load or signal) 115 W Dimensions Width 215 mm /
8.5 inches Depth 470 mm / 18.5 inches Height 288 mm / 11.3 inches Weight 22 kg.
/ 48.4 lbs.
Finale stereo Dual Mono,
Audio/Video, 2x120 W opp. 1 x 400 W ad 8 ohms. 100 A picco. Potenza misurata a
240 V

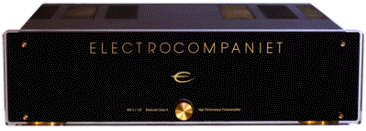

Flexible

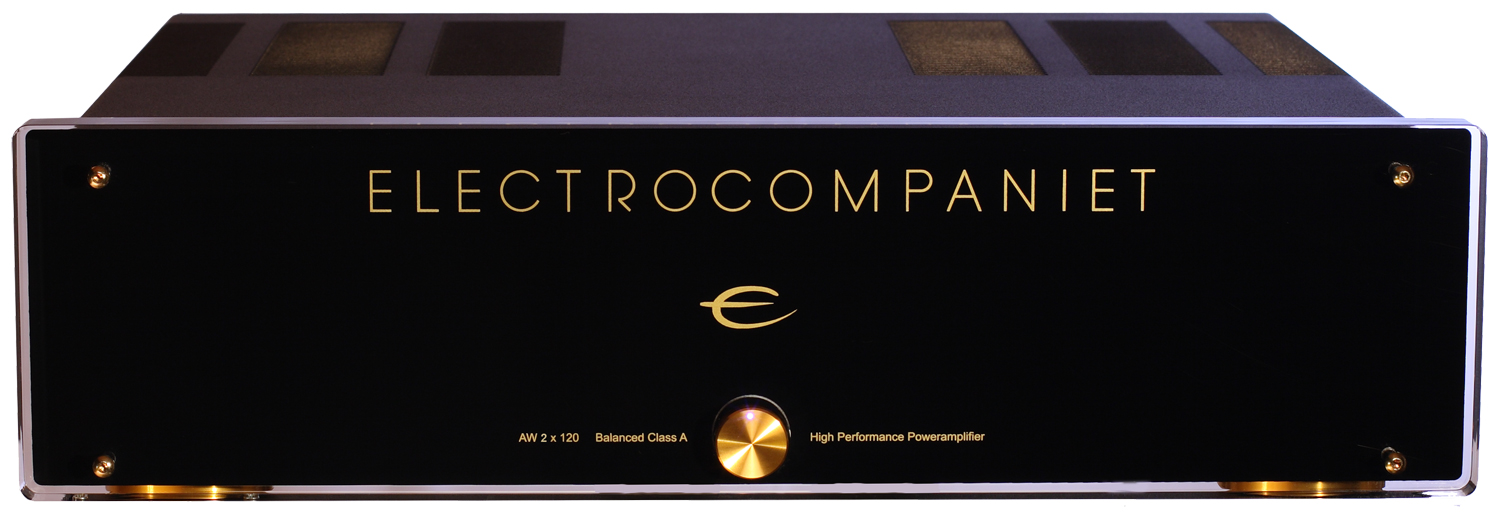

and expandableThe new Electrocompaniet AW 2x120-M is a flexible two-channel
power amplifier. It can be used as part of our new multi-channel systems, or as
a stand-alone two-channel power amplifier. When used in multi-channel
configuration, this amplifiers are an ideal choice for a home theatre. With a
touch of the remote control, they switch over to bridged 400W mono mode for
High-End stereophonic playback. The AW 2x120-M is designed and built in the
classic Electrocompaniet tradition,giving you a guarantee of lifelike sound
reproduction and lasting build quality. Technical specifications All
measurements are made at 120V / 240V //50Hz / 60Hz Amplifier section Output
Impedance (20 Hz - 20 kHz) < 0,01 ohm RCA (single) input impedance 220 kohm XLR
(balanced) input impedance 110 kohm Input sensivity for rated output 1 V Max.
peak current > 100 A THD (measured at 1 kHz -1 dB, 8 W) < 0,002 % Noise
(measured with both inputs shorted) 400 Hz - 30 kHz : 90 ΅V10 Hz - 30 kHz : 100
΅V Rated output power 8 ohms 2 x 120 W 4 ohms 2 x 200 W 2 ohms 2 x 350 W Power
consumption (no load or signal) 161 W Dimensions Width 483 mm / 19 inches
Depth 385 mm / 15 inches Height 135 mm / 5.3 inches Weight 19 kg. / 41.8 lbs.

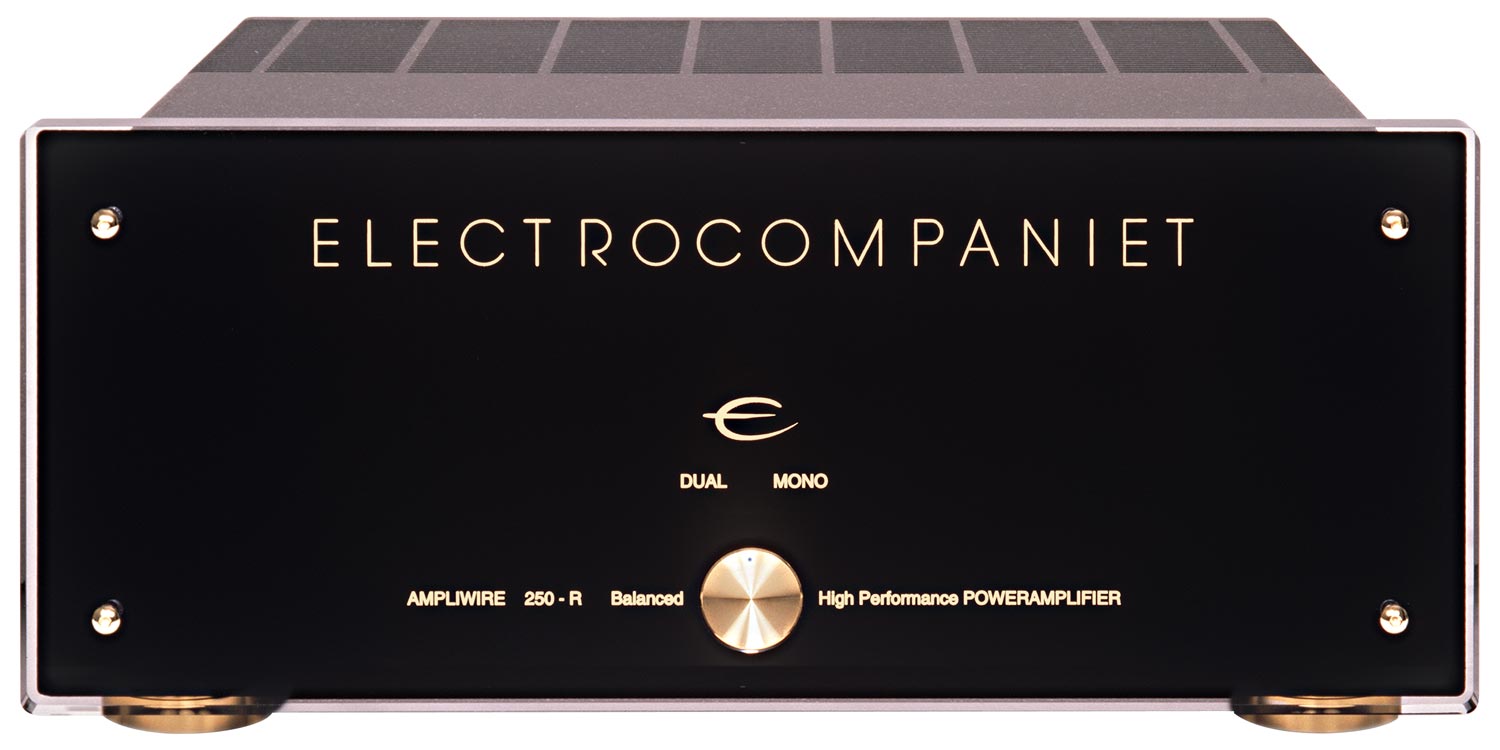

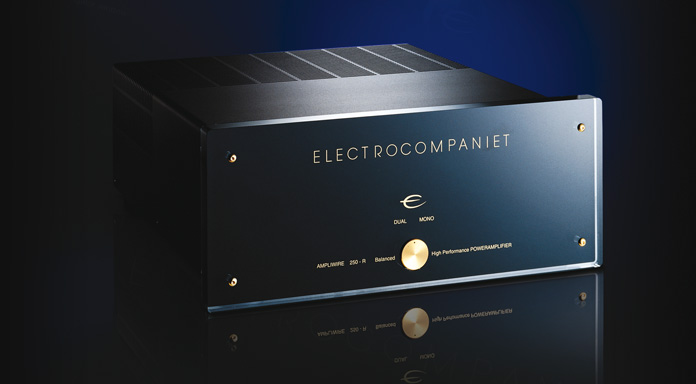

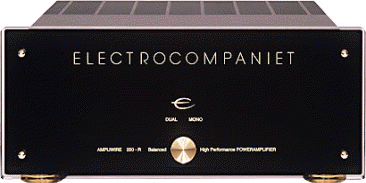

AW
250R The Electrocompaniet AW250R power amplifier is known for its
uncolored and excellent reproduction qualities. From the first note of any
familiar recording, you will be captivated by the AW250R and by the musical
enjoyment it will give you.The AW250R incorporates such refined features as: FTT
(Floating Transformer Technology) power supply, capable of delivering twice the
current of conventional power supply designs, as well as first class overall
circuit design and state-of-the-art components. The AW250R features a balanced
link to additional power amplifier(s). Compared to more expensive High-End power
amplifiers, with lesser performance, you will truly cherish the AW250R. The
Electrocompaniet AW250R features a balanced link to additional amplifier(s) for
bi-amping. It can easily be used in bridged mode, delivering up to four times
the power.Technical specifications All measurements are made at 120V / 240V
//50Hz / 60Hz Amplifier section Output Impedance (20 Hz - 20 kHz) < 0,008
ohm RCA (single) input impedance 220 kohm XLR (balanced) input
impedance 110 kohm Input sensitivity for rated output 1 V Max. peak
current > 100 A THD (measured at 1 kHz half power, 8 W) < 0,001 % THD (measured
at 1 kHz -1 dB, 8 W) < 0,001 % Noise (measured with both inputs shorted)
400 Hz - 30 kHz : 90 ΅V 10 Hz - 30 kHz : 100 ΅V Rated output power 8 ohms
2 x 250 W 4 ohms 2 x 440 W 2 ohms 2 x 625 W 1 ohms 2 x 1100 W
Power consumption (no load or signal) 230 W Dimensions Width 483 mm
/ 19 inches Depth 450 mm / 17 inches Height 210 mm / 8.2 inches
Weight 39 kg. / 85.8 lbs.
Finale Triplo
Mono , Audio/Video, 3 x120 W opp. 1 x 400 W ad 8 ohms. 100 A picco. Potenza
misurata a 240 V
The
smart challenger The new Electrocompaniet AW 3x120-M is a true powerhouse in a
compact design, and can even challenge its famous "big brothers", the
traditional Electrocompaniet power amplifiers. What is so special about the AW
3x120-M amplifier? When used in multi-channel configuration, a pair of these
three channel power amplifiers is an ideal choice for a home theatre. With a
touch of the remote control, they switch over to bridged 400W, mono mode for
High-End stereophonic playback. Other smart features of the Electrocompaniet AW
3x120-M include live feedback of the amplifier's "vital statistics" on the
graphical remote control - ideal for those who like to push their music to its
limits. The Electrocompaniet AW 3x120-M is smart, compact, flexible and packed
with features. Quite simply, it is state of the art.Technical specifications All
measurements are made at 120V / 240V //50Hz / 60Hz Amplifier section Output
Impedance (20 Hz - 20 kHz) < 0,01 ohm RCA (single) input impedance 220 kohm XLR
(balanced) input impedance 110 kohm Input sensivity for rated output 1 V Max.
peak current > 100 A THD (measured at 1 kHz -1 dB, 8 W) < 0,002 % Noise
(measured with both inputs shorted) 400 Hz - 30 kHz : 90 ΅V10 Hz - 30 kHz : 100
΅V Rated output power 8 ohms 2 x 120 W 4 ohms 2 x 200 W 2 ohms 2 x 350 W Power
consumption (no load or signal) 161 W Dimensions Width 483 mm / 19 inches Depth
385 mm / 15 inches Height 135 mm / 5.3 inches Weight 19 kg. / 41.8 lbs.
High End
CD player, con DAC 24 Bit, upsampler 192 KHz, balanced, cancellazione vibrazioni

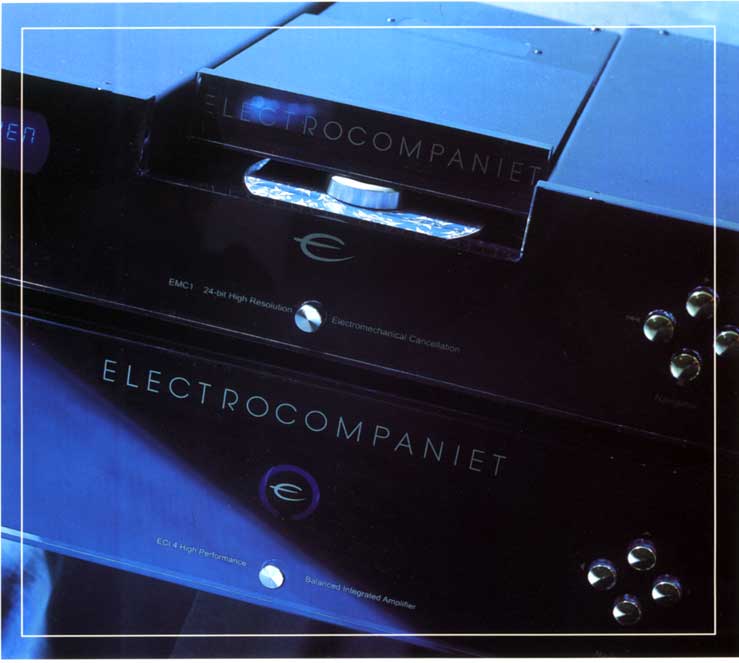

EMC Great
CD Player...Gets Even Better.24 Bit upsampler 192KHz DAC The EMC 1UP features a
unique cancellation system which cancels acoustic / mechanical vibrations,
preventing the laser pick-up from receiving unwanted and sonically degrading
signals.The EMC 1UP features our latest, fully balanced symmetrical
state-of-the-art circuit design powered by a FTT (Floating Transformer
Technology) power supply.Design concept and construction:The basic design
philosophy of the EMC 1UP CD transport is inspired by crucial knowledge ported
from the analog turntable. Principally, there is no difference between a record
player and a CD player. Both playback systems consist of: a motor, a pick-up and
a tone arm. Phenomena such as tone arm resonance found in analog turntables
are just as problematic in typical CD players.To reduce or remove these
phenomena plus other unwanted resonance, Electrocompaniet has developed a
proprietary mechanical filter. The mechanical filter has been frequency adjusted
by numerous listening tests by our listening panel. The mechanical filter
removes internal and external vibration components from entering the laser
pick-up assembly, resulting in a superior reproduction with tighter bass, bigger
sound stage, precision, high resolution and amazing details.A new concept brings
the CD media to its upmost.24 Bit upsampler 192KHz DAC improves the headroom by
reducing the noise floor approximately 10dB(3x).All analogue circuits are fully
balanced and symmetrical, similar to the design of our amplifiers. Four separate
power supplies using Floating Transformer Technology (FTT) are feeding the
digital unit, the display, the drive mechanism and the analogue unit.Technical
specifications Line section Single ended gain 1.6X (4dB) Balanced gain 3.2X
(10dB) THD (1V out, 1KHz) < 0,002% Maximum output (Balanced) > 14V RMS Channel
separation (1V out, 1KHz) > 90 dB Equivalent input noise 4΅V Digital section
Latest version of Phillips CD PRO Top loading drive unit 24 Bit upsampler 192KHz
DAC Digital out RCA/XLR Other True balanced system Mechanical filter which
cancels acoustic/mechanical vibrations preventing the laser pick-up from
receiving unwanted signals FTT Power supply Fully remote (no volume control)
Power consumption (no load or signal) 23 W Dimensions Width 483 mm / 19
inches Depth 440 mm / 17.3 inches Height 115mm / 4.5 inches Weight 20Kg /
44 lbs.

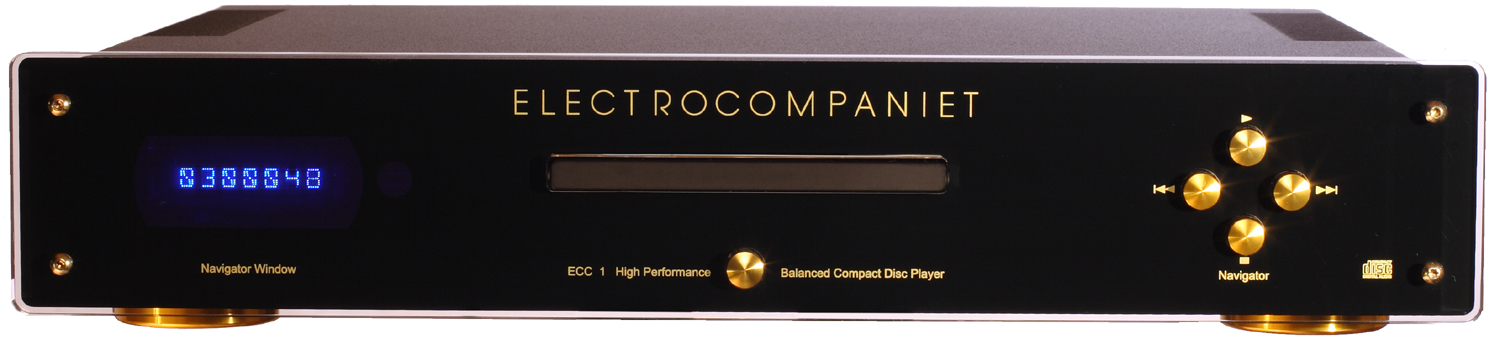

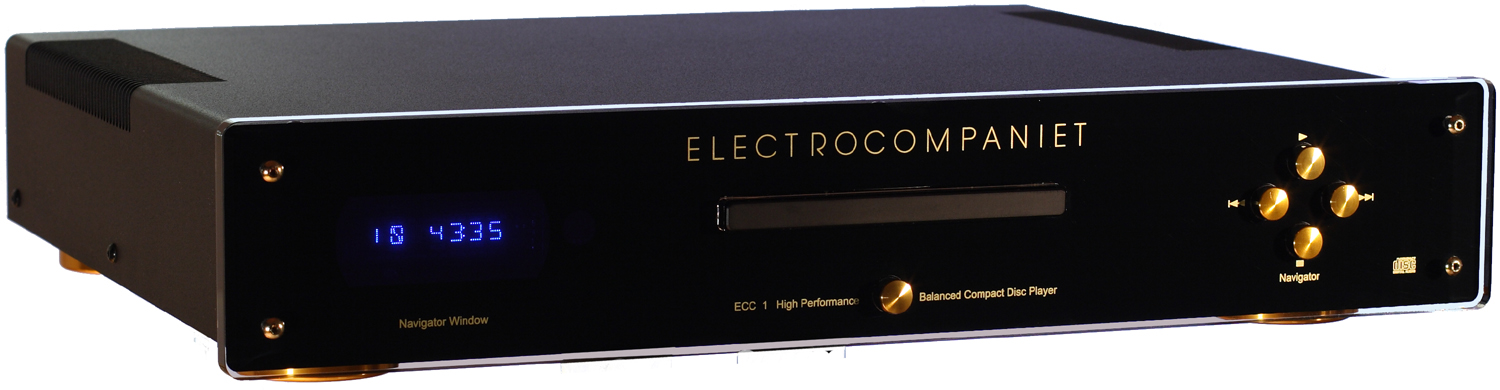

Budget high-end, con DAC 24
bit/192 kHz Cirrus Logic, piattaforma antivibrazioni per pick-up laser
Modern
production technology has been utilized to keep the manufacturing cost at a
minimum and give a performance that will rival the best. The latest 24bit/192kHz
DAC from Cirrus Logic, together with a precision fully balanced analogue output
stage operating in class A, sets the basis for a detailed, delicate and dynamic
sound. A damping platform based on the EMC1 UP anti-vibration system has been
developed to create the best possible working conditions for the laser pick-up.
The ECC 1 features both balanced and single-ended outputs, and a coaxial digital
output. The analogue output filter is optimized to reduce the phase shift at
higher frequencies, thereby leaving the high frequency music information
intact.Technical Data Conditions No. of channels 2 Video No Output
impedance 100 ohm Output level Unbalanced 2.3Vrms Output level Balanced 4.6Vrms
Noise floor 20 - 20 kHz < - 130 dB Frequency deviation 20 - 20 kHz < 0.05 dB
Channel separation > 110 dB THD + N 20 - 20 kHz < 0.002% IMD TBD Digital/Analog
Conversion 24 bit, 192 kHz Dynamic Range 120 dB Compatible formats CD-R, CD-RW,
MP3-CD, CD, MP3-DVD, WMA-CD Dimensions W x D x H 483 x 385 x 75 mm Weight 9 kg
Power consumption No load or signal 55 W Audio Outputs 1 x 2 ch balanced line
out (XLR)1 x 2 ch unbalanced phono Digital Outputs 75 ohm S/PDIF RCA

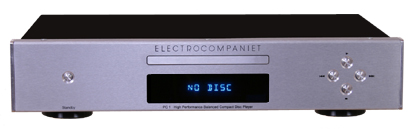

PC-1
The Prelude Cd-player The PC-1 is Electrocompaniets new entry-level CD-player.
Modern production technology has been utilized to keep the manufacturing cost at
a minimum and give a performance that will rival the best. The latest
24bit/192kHz DAC from Cirrus Logic, together with a precision fully balanced
analogue output stage operating in class A, sets the basis for a detailed,
delicate and dynamic sound.The modern optical module, mounted on a new
mechanical anti vibration system, results in a superb disc readability and quiet
operation, as well as excellent resistance to external vibrations that can
negatively affect the sound quality. The clear and bright VFD-display makes it
easy to control the PC-1 in the listening position using the remote control. The
PC-1 has both balanced (XLR) and single ended (RCA) outputs. Products highlights
Exceptional Playability High Disc Acceptance Slim Line disc loader
Advanced DAC Anti Vibration System Exelent Sound Quality Audio Playback Disc
playback media : CD-R, CD-RW, MP3-CD, CD, MP3-DVD, WMA-CD Technical Data
Conditions No. of channels 2 Video No Output impedance 100 ohm Output level
Balanced, 0dBFs 4.5Vrms Noise floor 20 - 20 kHz < - 120 dB Frequency deviation
20 - 20 kHz < 0.1 dB Channel separation > 90 dB THD + N 20 - 20 kHz < 0.002% IMD
TBD Digital/Analog Conversion 24 bit, 192 kHz Dynamic Range 96 dB Compatible
formats CD-R, CD-RW, MP3-CD, CD, MP3-DVD, WMA-CD Video scaler & de-interlacer
Dimensions W x D x H 420 x 270 x 77 mm Weight 4 kg Power consumption No load or
signal 22 W Audio Outputs 1 x 2channel balanced line out (XLR) Digital Outputs
75 ohm S/PDIF RCA
EMP-1/M Multiplayer
with state of the art sound The original EMC 1 received a lot of critical
acclaim when it was introduced in 1999. The new EMC 1 UP, launched in 2001,
improves on this already excellent design by introducing 24-bit/192kHz
upsampling technology. Vital to the EMC 1 UPs performance is a unique
cancellation system which effectively cancels acoustic / mechanical vibrations,
enabling exceptionally accurate and robust laser pick-up from the spinning disc
The EMP-1 is exceptional providing state of the art video, multichannel and
stereo playback. Products highlights High Playability Reliable Disc Acceptance
Slim & discrete mechanism Progressive Scan (PAL&NTSC)Faroudja DCDi de-interlacer
Upscaling to 720p and 1080iHDMI technology HDCP encryption Multi-channel audio
Dolby Digital & DTS decoding Digital video output Intuitive OSD (On Screen
Display) setup Quick Disc Access Time Audio Playback Disc playback media :
CD-R, CD-RW, MP3-CD, CD, MP3-DVD, WMA-CD Video Playback Compression
formats : MPEG1,MPEG2, MPEG4 Disc playback media SACD,CD,CD-R, CD-RW,DVD,
DVD+RW,DVD+R, DVD-RW, DVD-R, DVD-VIDEO,MP3-CD, Piture CD, JPEG, SVCD,
Video CD Technical Data Conditions No. of channels 6 Video Yes Output
impedance 100 ohm Output level Balanced, 0dBFs 4.5Vrms Noise floor 20 - 20
kHz < - 130 dB Frequency deviation 20 - 20 kHz < 0.05 dB Channel
separation > 110 dB THD + N 20 - 20 kHz < 0.002% IMD TBD Digital/Analog
Conversion 24 bit, 192 kHz Dynamic Range 120 dB Compatible formats CD, HDCD,
SACD, MP3 Video scaler & de-interlacer No Dimensions W x D x H 480 x 420 x 95 mm
Weight 8 kg Power consumption No load or signal 45 W Audio Outputs 2channel
balanced line out (XLR) HDMI Yes Composite Yes Digital Audio
Outputs 75 ohm S/PDIF RCA
High End, player multiformato
/ multicanale, 6 uscite bilanciate, CD, SACD, DVD Audio, DVD VideoMultiplayer
with state of the art sound
The
performance of the EMP-1 is outstanding, its new design achieves high
playability & disc acceptance. The mechanism is very smooth with improved disc
access times. The OSD menu has also been enhanced. The Fardoudja DCDi technology
produces an outstanding progressive-scan video picture, including a scaler and
de-interlacer : you can select 480p, 576p, 720p and 1080i through the HDMI
output The EMP-1 is exceptionals - providing video, multichannel and
stereo playback that defines the current state of the art. Technical
specifications Products highlights High Playability Reliable Disc
Acceptance Slim & discrete mechanism Progressive Scan (PAL&NTSC) Faroudja DCDi
de-interlacer Upscaling to 720p and 1080i HDMI technology HDCP encryption
Multi-channel audio Dolby Digital & DTS decoding Digital video output Intuitive
OSD (On Screen Display) setup Quick Disc Access Time Audio Playback Disc
playback media : CD-R, CD-RW, MP3-CD, CD, MP3-DVD, WMA-CD Video
PlaybackCompression formats : MPEG1,MPEG2, MPEG4 Disc playback media :SACD,CD,CD-R,
CD-RW,DVD,DVD+RW,DVD+R, DVD-RW,DVD-R, DVD-VIDEO,MP3-CD, Piture CD, JPEG, SVCD,
Video CDTechnical Data Conditions No. of channels 6 Video Yes
Output impedance 100 ohm Output level Balanced, 0dBFs 4.5Vrms Noise floor
20 - 20 kHz < - 130 dB Frequency deviation 20 - 20 kHz < 0.05 dB Channel
separation > 110 dB THD + N 20 - 20 kHz < 0.002% IMD TBD Digital/Analog
Conversion 24 bit, 192 kHz Dynamic Range 120 dB Compatible formats CD, HDCD,
SACD, MP3 Video scaler & de-interlacer No Dimensions W x D x H 480 x 420 x 95 mm
Weight 8 kg Power consumption No load or signal 45 W Audio Outputs 2channel
balanced line out (XLR) HDMI Yes Composite Yes Digital Audio Outputs 75
ohm S/PDIF RCA

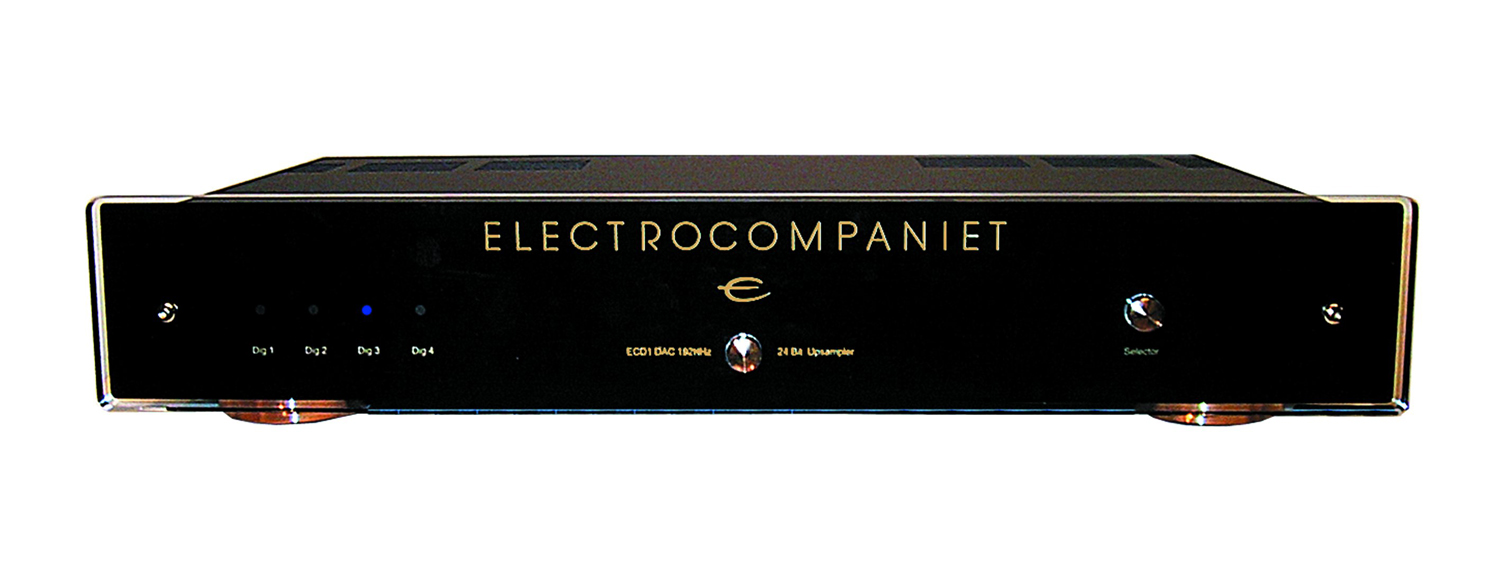

DAC
esterno, bilanciato, 24Bit, 92kHz, utilizzabile con CD e DVD dotati di uscita
digitale ottica, RCA, bilanciata XLR The
ECD1 is a 24Bit 192KHz upsampler DAC accepting 16 - 24Bit input and upsample it
to 24Bit resolution.The ECD1 is a 24Bit 192KHz upsampler DAC accepting 16 -
24Bit input and upsample it to 24Bit resolution.This will give app. 10dB more
headroom by lowering the noise floor, with more details reproduced.The D/A
converter is a sophisticated balanced 192KHz unit. Due to the higher sampling
frequency and the cancellation of digital noise in the balanced system, the
bandwidth is moved 2 octave up in frequency, compared to standard CD system
using 44.1KHz sampling frequency, and therefore a 6dB rolloff can be used.All
analogue circuitry is fully balanced and symmetrical.-With four input's and
connection for AES/EBU ( balanced ), RCA and TOSLINK, all standard formats are
covered.Two digital output for connection to multichannel receiver's etc.
TOSLINK (Optical) and RCA.Analogue output's - Balanced and single ended.The
digital and analogue circuitry used in the ECD1 is the same as our EMC1 UP CD
player.The ECD1 will improve the sound from any CD player, bringing it to a
High-End source.Technical specifications All measurements are made at 120V /
240V //50Hz / 60Hz Analog stage Output level(unbalanced) 1,6 V Output level(balanced)
3,2 V Gain(unbalanced) 1,6x(4dB) Gain(balanced) 3,2x(10dB) Maximum
output(balanced) >14 V RMS THD(1 V out, 1 Khz) <0,002 % Channel separation(1 V
out, 1 kHz) >90 dB Equivalent input noise 4 uV Analog filter(-3 dB) 75 kHz
Output impedance 100 Ohm Digital stage Dig. inputs XLR-AES/EBU, RCA,OPTICAL
TOSLINK Dig. outputs RCA,OPTICAL TOSLINK Signal to noise 100 dB Dynamic range
100 dB THD -100 dB Frequency response 20Hz - 20 kHz Input / Output impedance(fixed)
75 Ohm Sampling frequency in 32 - 96 kHz Power consumption (no load or signal)
15 W Dimensions Width 483 mm / 19 inches Depth 255 mm / 10 inches Height 83 mm /
3.2 inches Weight 5 kg. / 11 lbs.
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.1.139,00
Prezzo Offerta
TELEFONA
/ UN E-MAIL
.jpg)
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Prelude
loudspeaker PSF-1 2x120 Watt The Electrocompaniet PSF 1 loudspeaker is a 2
and 1/2 way floor standing bass reflex construction, with double 6,5 inch
woofers and a 1 inch tweeter. The cabinet is made of MDF with double
sandwich side panels and four internal strutting's to ensure minimum resonances.
Total thickness of the side panels is 24 mm. Front and rear panels are made of
18 mm MDF. The woofers have a solid magnet structure with a long throw
design to ensure well-controlled and tight bass reproduction even at relatively
high SPL. Speaker cones are made of selected coated paper in order to give
maximum musicality and a smooth frequency response.As tweeter we use a 25 mm
silk dome with ventilated magnet system and damped rear chamber to ensure
minimum compression and good musical properties, not often used in loudspeakers
at this price level. All units are custom made to Electrocompaniet to meet our
high requirements regarding sound quality. In order to ensure a coherent and
wide sound stage from the speaker, the x-over is carefully phase optimized,
where the drivers have the same absolute acoustic phase at the x-over frequency
between midrange and tweeter without any inverted phase of drive units. The
x-over is made of low loss inductors and poly-carbonate capacitors.Technical
specification: Frequency response: 46-20000 Hz +/- 2.5 dB free field condition.
Impedance: 4 ohms Sensitivity: 89 dB/m at 2.83v Power handling: 120
Continuous /200Watt Music Power X.over frequency: (500) and 2300 Hz, 6dB/12dB
and 18 dB/oct. Bass tuning frequency: 40 Hz Dimensions : Width 210 mm
8.3/Depth 338 mm 13.3/Height 1065 mm 42 Weight: 20 kg 44lbs
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
