 Technological Fusion: Simply
stated: the result of fusing the best in design, technology, engineering,
materials and manufacturing. As an early innovator in magnetic tape recording
and data storage, the TEAC Corporation was founded in Japan in 1953. As a 21
year subsidiary of the TEAC Corporation, ESOTERIC design, engineering and
manufacturing has been committed to excellence. In the pursuit of excellence it
is necessary to set aside perceived limitations and obstacles, apply all
available resources and eliminate compromise at any cost. This is the design
goal for all ESOTERIC products. To simply build the best electronics and OEM
transports we know how to build; products that respond with absolute precision
and sonic realism. All ESOTERIC products are conceived, designed, and engineered
in Japan. Manufacturing takes place in Japan for electronics and in the UK for
loudspeakers, providing our customers the ultimate solution for reference
quality, audio and video reproduction.
NOVITA'

ESOTERIC
RZ-1  €.4.500,00
Per
prezzo
scontato
TELEFONA / E-MAIL
Questo nuovo prodotto
potrebbe essere inserito in una nuova categoria: Sistema Integrato Musicale, in
quanto in una singola ed elegante unità sono presenti 3 apparecchi:
amplificatore integrato, lettore di CD/SACD e convertitore A/D utilizzabile
anche con apparecchi esterni.La meccanica del RZ-1 è in grado di riprodurre sia
i CD che i SACD con una risoluzione di conversione a 32bit. Il convertitore D/A
interno può essere utilizzato anche da apparecchi (vedi l’ultima moda di PC o
MAC collegati all’impianto per riprodurre file musicali in alta risoluzioe) o
meccaniche di lettura esterne. Sono presenti allo scopo 3 ingressi digitali:
coassiale, ottico e il più aggiornato USB.Il convertitore D/A utilizza l’ultimo
chip a 32bit “AK4392” prodotto da Asahi Kasei Microdevices Corp. E’ compatibile
sia con i segnali DSD che PCM. L’ingresso digitale USB è isolato completamente
dall’alimentazione del segnale, questo fa in modo che il segnale in ingresso
proveniente dal PC sia gestito completamente dal RZ-1 prima di essere convertito
fino ad una risoluzione massima di 24bit/96KHz.La conversione invece dei segnali
ottico o coassiale può arrivare ad un massimo di 24bit/192KHz. L’amplificazione
da 100+100W è stata studiata per le massime prestazioni musicali con percorsi
dei segnali più corti possibile ed utilizzando i migliori componenti elettronici
in commercio. E’ presente anche un ingresso phono MM e un ulteriore ingresso
analogico. L’alimentazione è stata particolarmente curata, utilizzando un
trasformatore toroidale e vari condensatori di livellamento di grande capacità e
molto veloci.
Tutto può essere facilmente comandato a distanza tramite un ergonomico
telecomando in alluminio.Specifiche* Sezione di Amplificazione * Potenza di
uscita 100 W + 100 W (1 kHz, 6 ?) * Impedenza minima: 4 ? * Risposta in
frequenza: 15 Hz - 65 kHz (+1 dB, -3 dB, 6 ?) * Rapporto segnale/rumore: 102 dB
* Sensibilità di ingresso: linea 46 mV rms; phono (MM) 1.0 mV rms * Ingressi
audio analogico: 2 x 2 RCA * Impedenza di ingresso: linea 100 k?, phono 48 k? *
Deviazione RIAA: 20 Hz a 15 kHz, ±0.5 dB * Ingressi digitali: 1 coassiale RCA, 1
ottico, 1 USB * Frequenze di campionamento per ingresso: coax/ott. 32 kHz/192
kHz USB, 32 kHz a 96 kHz * CD/Super Audio CD Player * Compatibilità formati:
Super Audio CD, CD, CD-R, CD-RW * Convertitore D/A: 32 bit 8-times oversampling
* Dimensioni (L x H x P): 400 x 77 x 368 mm * Peso: 9 kg
Section
Output Power 100 W + 100 W (1 kHz, 6 Ω, JEITA) Minimum rated power output 80 W +
80 W (1 kHz, 0.1 %, 6 Ω, LPF 20 kHz) (JEITA) Minimum impedance 4 Ω Frequency
response 15 Hz - 65 kHz (+1 dB, -3 dB, 6 Ω) (JEITA) Total harmonic distortion
0.003 % (1 kHz, output 45 W, 6 Ω, LPF 20 kHz) (JEITA) Signal-to-Noise Ratio
(S/N) 102 dB Input Sensitivity LINE : 46 mVrms (JEITA) (input level for rated
output at maximum volume) PHONO (MM) : 1.0 mVrms (JEITA) Audio input Analog
input Jacks RCA jacks (2 channels) x 2 Input impedance LINE: 100 kΩ (JEITA)
PHONO: 48 kΩ (JEITA) RIAA deviation PHONO (MM) 20 Hz to 15 kHz, ±0.5 dB Digital
input COAXIAL jack RCA jack x 1 (0.5 Vp-p/75 Ω) OPTICAL jack Optical
digital jack x 1 (-24.0 to -14.5 dBm peak) USB port USB type B x 1 (USB
1.1 or higher) Input sampling frequency COAXIAL/OPTICAL : 32 kHz to 192 kHz USB
: 32 kHz to 96 kHz CD/Super Audio CD Player Compatible format Super Audio CD,
CD-DA Compatible disc type Super Audio CD, CD, CD-R, CD-RW Playback mode DSD
native D/A Converter Digital filter 32 bit 8-times
oversampling General Power supply Europe model : AC 230 V, 50 Hz U.S.A./Canada
model : AC 120 V, 60 Hz Korea model : AC 220 V, 60 Hz Power consumption 105 W
(standby mode: 0.5 W) External dimensions (W x H x D) 400 x 77 x 368 mm (15-3/4"
x 3" x 14-1/2") (including protrusions) Weight 9 kg (19-7/8 lb) Operating
temperature +5 ˚C to +35 ˚C Operating humidity 5 % to 85 % (no condensation)
Storage temperature -20 ˚C to +55 ˚C Accessories Power cord x 1 Remote control
unit (RC-1251) x 1 Batteries (AA, R6 or SUM-3) x 2 +Felt pads x 4 Owner's manual
x 1 Warranty card x 1
.gif)
ESOTERIC

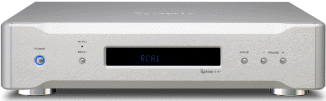

D-07 €.3.750,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Convertitore D/A stereo. Scheda di conversione
D/A 32bit dual mono AK4392. Ingresso SACD su AES/EBU, Ingressi XLR, USB, ottico
e coassiale. Ingresso e uscita BNC per clock esterno. 2 Circuiti PLL per la
riduzione del jitter. Up conversion del segnale PCM a 2x e 4x. Cabinet in
estruso di alluminio satinato antivibrazione.Riassumendo1. Uscite audio
analogico bilanciate XLR2. Connessioni USB, XLR, COAX and3. OPTICAL e 5 ingressi
digitali. 4. L’ingresso USB rende possibile riprodurre i files da – compressi e
non - PC alla risoluzione di 24 bit/96 kHz.5. Presa USB isolata tra segnale e
alimentazione, prevenendo l’introduzione di rumore estraneo e/ interferenze da
altri dispositivi.6. Up-Conversion da segnali PCM in alta risoluzione: 2x
(64/88.2/96 kHz), 4x7. (128/176.4/192 kHz).8. Due filtri digitali, liberamente
selezionabili: FIR (Finite Impulse Response), conosciuto per la sua ottima
qualità sonora; ed il nuovoShort Delay, utile a rimuovere l’effetto pre-eco nei
transienti, rendendoli più naturali all’ascolto.9. Circuito di sincronizzazione
Word Sync10. Oscillatori al quarzo VCXO per il funzionamento reclocking,
indispensabile per riduzione del jitter.11. Attenuatore digitale del livello di
uscita a 32 bit.12. Telaio antirisonanza con pannelli in alluminio, con finitura
antigraffio. Costruzione interna con isolamento di tutti i punti potenzialmente
fonte di interferenze e risonanze.Specifiche* Uscite analogiche: XLR (2ch) x1
RCA (2ch) x1 * Impedenza di uscita: XLR: 100? RCA: 100? * Max tensione di
uscita: 2.2Vrms (1 kHz, full scale, 10k?) * Risposta in frequenza: 5 Hz - 40 kHz
* Rapporto Segnale/Rumore: 130 dB * Ingressi Digitali Bilanciati XLR x1
24bit/192kHz * Coaxial digital input RCA x2 24bit/192kHz * Optical digital input
Optical x1 24bit/192kHz * Ingresso USB: USB Type B x 1 24bit/96kHz * Terminale
WordSync: BNC x 1 * Frequenze in uscita: 44.1, 88.2, 176.4, 48, 96, 192 kHz *
Impedenza d’ingresso: 75 ? * Dimensioni (LxHxP): 442 mm x 103.5 mm x 346 mm *
Peso: 9.5 kg * Prezzo: 3.750 euro
32bit
dual mono DAC that supports the playback of SACD and high-resolution music
filesUSB input enables high-quality playback from your PC The USB input makes it
possible to playback music stored on your PC with high-end quality. All
24bit/96kHz PCM high-resolution music files can be transmitted to the D-07, and
played back in compressed or uncompressed formats *Playable formats differ,
depending on your PC’s music player. USB isolator The built-in USB isolator
isolates the power/signal line from the unit, and prevents external noise
interference from other devices such as a PC. This enables clear playback
without losing the benefits of high-resolution music files. Extensive
up-conversion functions for a variety sources PCM digital audio signals can be
converted in a number of ways, including PCM up-conversion at 2x (64/88.2/96
kHz), 4x (128/176.4/192 kHz), and even to the DSD high-res. conversion format.
Two types of digital filters For processing PCM format signals, the D-07 offers
two types of digital filters that you can freely select: the finite impulse
response (FIR), digital filter, which has an established reputation for superb
sound quality; and a newly developed, short delay digital filter, which removes
the pre-echo effect in the impulse waveform, helping to reproduce the leading
edge of the sound more naturally. WORD SYNC enables synchronized playback with
external devices WORD SYNC effectively reduces jitter that occurs while
transferring audio signals, delivering high-speed and high-quality sound that is
delicate yet full of presence. This function also offers the word output
mode, which enables WORD SYNC-capable source devices to connect with the word
output generated by the D-07.Likewise, there is also a word input mode, which
inputs a high-density word clock from an external master clock generator (such
as an ESOTERIC G-03X). This incremental (and optional) hardware mode enables you
to upgrade to a more sophisticated system at a later time. 2nd PLL mode helps to
reduce jitter The D-07’s 2nd PLL mode uses the built-in VCXO (Voltage Controlled
Crystal Oscillator) to act as a high clarity master clock for the DAC device.
The two types of PLL circuits, each with different characteristics, effectively
remove transmission jitter. If a signal is input from a device without WORD SYNC,
the jitter component that affects the sound quality is diminished, thus
achieving more precise playback with rich musical expression. 32bit high density
digital attenuator High-precision volume adjustment is made possible by our
32bit digital processing and the 32bit D/A device. Compared to a 24bit device,
this attenuator has an additional 8bit of “headroom,” allowance, delivering
volume control without a loss of sound quality caused by dropouts. It also
enables you to directly connect the D-07 to power amplifiers and use it as a
multi-source digital preamplifier. Solid enclosure that perfectly guards sound
quality and provides anti-resonance barriers; an exquisite construction The
D-07's slim enclosure that stands only 103.5 mm tall (4 inches), incorporates a
short-scratch finished, thick aluminum front panel and sandblasted 5 mm aluminum
top and side panels. Internal construction isolates all points of potential
signal interference and resonance. The sculptured art generated by the screwless
top panel and the rounded corners creates a sense of sophisticated integration
.
Lettori CD/SACD
.gif)
ESOTERIC SA-10
€.3.900,00
Per
prezzo
scontato
TELEFONA / E-MAIL
Lettore SACD/CD. Meccanica e
platorello in alluminio/acciao (VOSP). Pickup laser precisissimo e
servoassistito. Scheda di conversione D/A a 24bit/192KHz con 2 chip in modalità
differenziale per canale. Uscite analogiche stereo dedicate sia RCA che XLR.
Uscita digitale coassiale e ottica. Ingresso BNC per clock esterno. Costruzione
dello chassis in alluminio da 5mm con piedini d'appoggio anti-vibrazioni.
Telecomando slim retroilluminato.
The
SA-10, newly designed, engineered and manufactured by Esoteric, offers high
grade audiophile performance to a wider audience at affordable price points. The
SA-10 features our proprietary disc transport system which was developed as a
vertically aligned optical stability platform ("VOSP"). The VOSP mechanism was
first used in our UZ-1, SZ-1, DV-60 and SA-60. The benefit of this transport is
that it reduces vibrations and resonance associated with signal noise and
eliminates the need for off axis error correction. Unlike conventional disc
players where the optics are supported by a wire platform, no off axis tracking
is allowed by the VOSP system. This greatly improves data retrieval and
dramatically reduces the need for data interpolation." The SA-10 includes 2
channel dedicated analog audio outputs (RCA x1 / XLR x1), a dual mono
24-bit/192kHz digital to analog converter (Cirrus Logic CS4398 x 2) and a dual
mono analog audio circuit for superior channel separation. Word sync input is
included for use with Esoteric's family of integrated amplifiers and stand alone
master clocks. High speed power is provided by a large toroidal power
transformer. The SA-10 includes a highly rigid chassis construction with cut
aluminum top and side panels for additional anti-resonance and anti-vibration
properties. The remote controlled SA-10 is available through Esoteric's
authorized dealer network.
 .gif)
ESOTERIC SA-50
€.5.500,00
Per
prezzo
scontato
TELEFONA / E-MAIL
Lettore SACD/CD. Meccanica e
platorello in alluminio/acciao (VOSP). Pickup laser precisissimo e
servoassistito. Scheda di conversione D/A a 32bit/192KHz con chip AK4392 in
modalità dual mono per canale. Up conversion con algoritmo e filtri FIR
proprietari, selezionabile dall'utente. Conversione da PCM a DSD selezionabile
dall'utente. 3 ingressi digitali: coassiale, ottico e USB, per essere utilizzato
come up-sampler e convertitore D/A a 32bit. Uscite analogiche stereo dedicate
sia RCA che XLR. Uscita digitale coassiale e ottica. Ingresso BNC per clock
esterno. Chassis completamente in acciaio. Telecomando in alluminio
VOSP

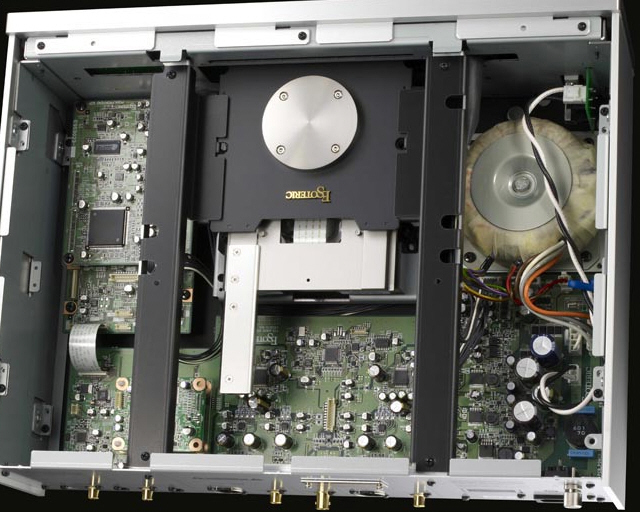

Mechanism VOSP (Vertically-aligned Optical Stability Platform), features a
specially designed shaft-mounted laser pickup assembly. This pickup system
evolved from ESOTERIC's P-01 and P-03 transports. This pickup design ensures
that the laser optical axis is always at the center of the data track for
optimal reading capability. With VOSP implementation, no off axis error
correction is needed because no off axis data tracking is allowed. High mass /
resonance-free mechanism stabilizer The VOSP mechanism is rigidly clamped by a
steel plate and alarge diameter stabilizer made of 8 mm-thick steel to
reduceunwanted resonance caused by high speed disc rotation. Theentire mechanism
assembly is directly mounted to the bottom chassis and two interior steel
brackets rigidly hold the mechanism for superior anti-resonance properties. Full
32 bit processing D/A converter deviceThe SA-50 features the latest 32 bit
processing "AK4392" advanced multi-bit DAC device produced by Asahi Kasei EMD.
The AK4392 has a highly precise D/A conversion capability with extended 32 bit
processing throughout all output stages. The 32 bit processor also has enough
room for 24 bit or lower data flow, and greatly contributes to a
“three-dimensional” audio imaging experience. The SA-50 uses 1 chip per channel,
in a dual mono configuration gaining maximum performance out of the 32 bit
AK4392. With this implementation, high purity digital signals are converted to
well defined, high-density analog signals.Highly advanced digital conversion
capability; DSD to 32 bit PCM conversion for SA-CD PCM to DSD conversion for
Redbook CD The SA-50 features user selectable digital signal conversion
capability. The highly advanced digital conversion functions of the SA-50
include 32 bit PCM processing to provide a wide range of options to match to
your audio system, or, your general listening preferences based on your choice
of software. (1) The SA-50 can directly process native DSD signals into analog
signals, and, can also convert the DSD signal into a 32 bit PCM signal.
Oversampling frequency is selectable from x2 (88.2 kHz) or x4 (176.4 kHz). (2)
PCM to DSD conversion capability for Redbook CD sources and for PCM signals
input from external digital devices. The new “SA-50,” an integrated player
featuring VOSP mechanism and 32-bit dual mono DACs! (3) PCM signals are
processed with a high quality 32 bit digital filter to enhance natural
reproduction capability. Oversampling frequency is selectable from x2 (88.2 kHz)
or x4 (176.4 kHz). (4) 2 modes are selectable for PCM digital filter. (FIR mode
/ Short delay mode). Digital inputs / Digital volume attenuator The SA-50 has 3
digital inputs (COAX, OPTICAL, USB) and a digital volume attenuator. This
implementation enables the SA-50 to be used as a standalone up-sampler, D/A
converter or digital preamp with 32 bit signal processing capability! High
quality 2 channel dedicated analog audio output Precise imaging and deeper sound
stage The analog audio output circuits are also in a dual mono configuration
producing exceptionally good channel separation. RCA (single-ended), output or
XLR (fully-balanced), output is selectable. During playback of the selected
output mode, the analog signal path that is not used is completely de-activated.
This 2 channel dedicated circuit design further enhances precise imaging,
transparency, separation and a deeper sound stage.

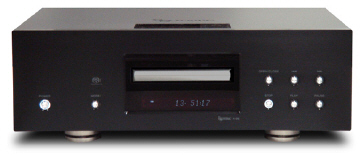

ESOTERIC X-05 €.5.900,00 Per prezzo
scontato
TELEFONA / E-MAIL

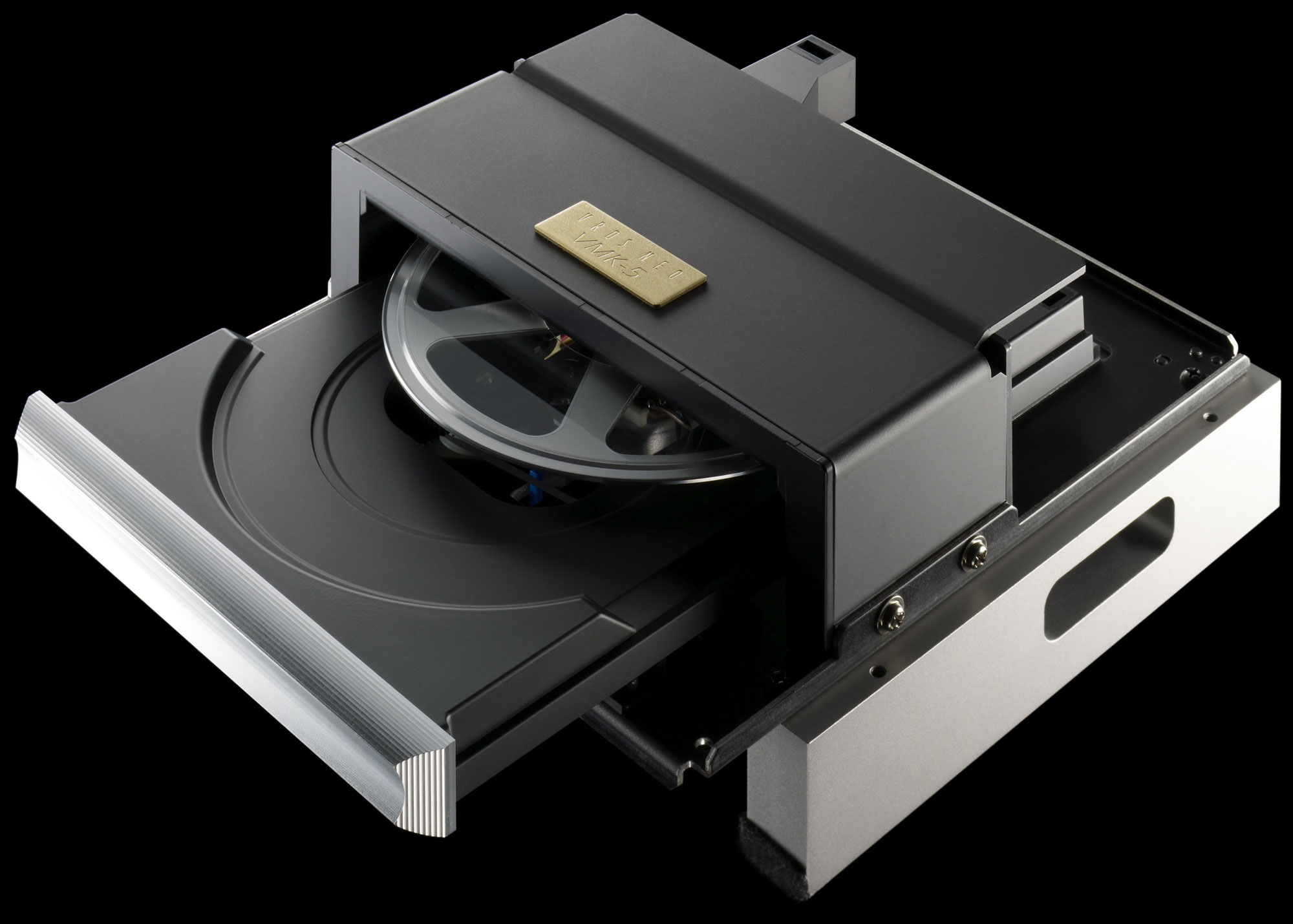

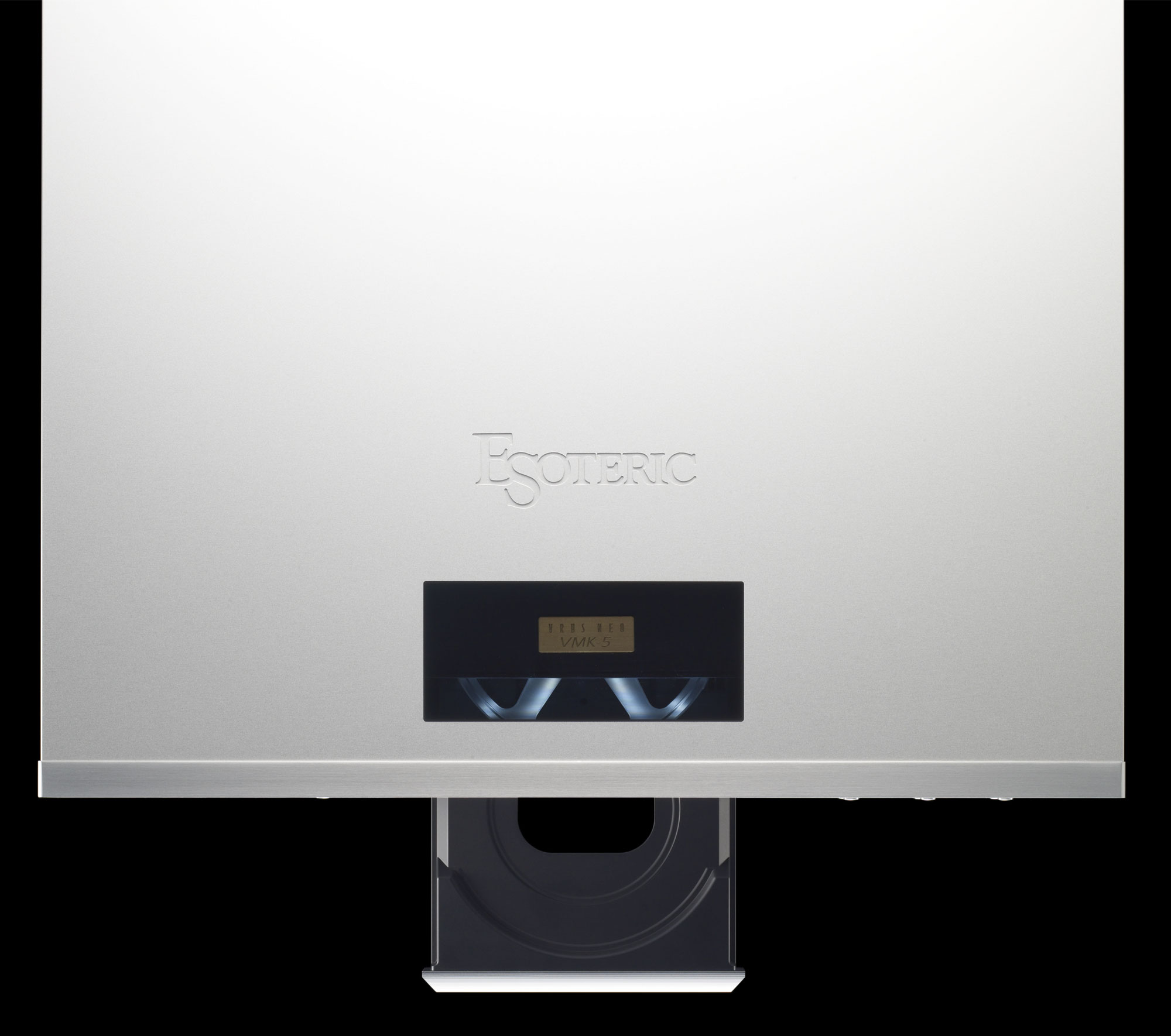

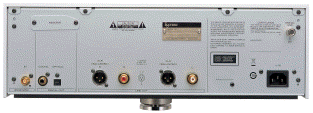

Lettore SACD/CD. Meccanica e platorello in alluminio/composito/acciao (VRDS-NEO
VMK-5). Pickup laser precisissimo e servoassistito. Scheda di conversione D/A a
24bit/192KHz Cirrus Logic CS4398 in configurazione dual mono. Uscite analogiche
stereo dedicate sia RCA che XLR. Uscita digitale coassiale e ottica. Ingresso
BNC per clock esterno. Alimentazione con trasformatore toroidale. Chassis
completamente in acciaio. Telecomando in alluminio.Disponibile nei colori Nero e
Silver
 .gif)
ESOTERIC X-03 se
€.8.900,00 Per prezzo
scontato
TELEFONA / E-MAIL
Lettore SACD/CD. Meccanica
VRDS-NEO in alluminio/acciao e platorello spingidisco in duralluminio. Pickup
laser precisissimo e servoassistito. Scheda di conversione D/A con 2 chip Burr
Brown 24bit PCM1704 per canale e impiego di condensatori e resistenze ad
altissima precisione. Uscite analogiche stereo sia RCA che XLR. Cablaggio
interno in rame 6N. Impiego di connettori WBT XGen per le uscite RCA e Digitale
coassiale. Uscita ottica. Uscita iLink IEEE1394. Ingresso BNC per clock esterno.
Chassis rivisitato con panneli laterali e top superiore di elevato spessore in
acciaio. Targhetta dorata Special Edition. Telecomando in alluminio.

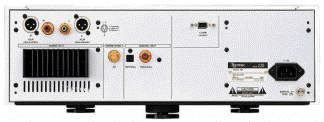

As
a step up from the X-05, the X-03SE provides high quality 2ch audio output for
SACD/CD reproduction. The X-03SE is the first ESOTERIC "X" series player that
uses a die-cast aluminum and steel VRDS assembly. Specifically designed for the
2 channel audiophile, the X-03SE represents an evolutionary path from the X-01
family. The X-03SE includes an iLINK audio output connector for multi-channel
SACD in the digital domain!To further improve the quality of analog audio
reconstruction on the DAC circuit board, the X-03SE employs a specially designed
DAC transformer to remove all noise generated from the transport mechanism and
digital circuitry. This structure enables a completely pure audio signal.
Burr-Brown 1704 24-bit DACs are used as the audio decoders on all channels. To
further improve the purity of the sound, a two-chip-per-channel differential
configuration is used on the front L/R channels for improved linearity and
common noise rejection. The X-03SE employs a crystal oscillator accurate to +/-
3 ppm. It is placed directly on the audio DAC board to suppress jitter, helping
to ensure highly precise D/A conversion.
ESOTERIC X-01 LTD
€.14.900,00 Per prezzo
scontato
TELEFONA / UN E-MAIL

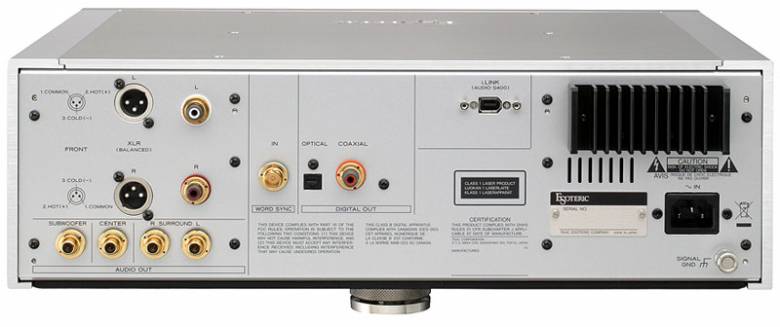

Lettore SACD/CD. Meccanica VRDS-NEO completamente in alluminio e platorello
spingidisco in magnesio. Pickup laserprecisissimo e servoassistito Schede di
conversione D/A separate con 4 chip Burr Brown 24bit PCM1704 per canale. Stadio
di uscita migliorato come su P-01. Uscite analogiche stereo sia RCA che XLR.
Tutti i connettori sono WBT NextGen. Uscita analogica 5.1. Uscita digitale
coassiale e ottica. Ingresso BNC per clock esterno. Porta per futuro upgrade
iLink IEEE1394. Chassis completamente in acciaio. Telecomando in alluminio.
Main
internal wiring has been upgraded to “6N copper class,” providing a highly
accurate signal path for enhanced audio reproduction!By upgrading to high purity
6N copper class wire, the X-01’s audio resolution characteristics and “acoustic
texture” improves. This wiring was jointly developed with Mitsubishi Cable
Industries, Ltd. and Acro Japan Ltd. Other improvements include internal
connection and higher grade power cables, adopted from the Esoteric P-01/D-01
“flagship” system components.Upgraded audio output circuits influence and
improve performance of the D to A signal converter. Through the use of upgraded
capacitors and resistors, like those used in the P-01/D-01 system, Esoteric has
enhanced the DAC and analog output stage for audio performance. This provides
superior ambience and “presence,” creating more of an “open air” listening
experience. These improvements allow a more “natural impact” and audible depth
of field perception is also improved. This architecture evolved from the
P-01/D-01 “Flagship.” system. Audio output terminals (L/R) and digital audio
output terminals are upgraded to RCA "NextGen" terminal connectors, as provided
by Germany’s WBT Company.These terminal upgrades to model “WBT-0210Cu,” RCA’s
next generation connectors, provide higher performance for audio output
applications. Typically, lower grade connector plates touch a “cold side.”
Electrically this is assumed to be an open structure by contact at that single
point. The RCA “NextGen WBT” connectors eliminate adverse effects generated by
an open structure, and noise such as eddy current is greatly reduced or even
eliminated. Additionally, digital transmission, in combination with a new
high-level, digital cable, one that guarantees 75Ω impedance is now utilized.
This allows better control of signal attenuation due impedance fluctuation. This
adds additional sonic improvements noticeable within a listening environment.
ESOTERIC X-01D2
€.17.500,00 Per prezzo
scontato
TELEFONA / UN E-MAIL

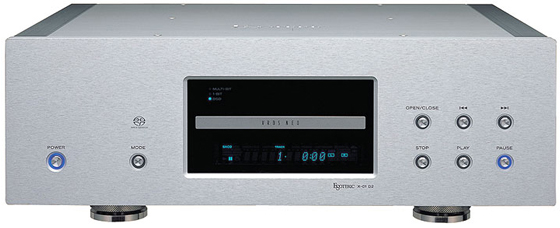

Super CD/CD player X-01D2 con sistema di caricamento
VRDS NEO. Gestione dei canali completamente indipendente che consente
l’eliminazione di qualsiasi forma di diafonia.
The
X-01D2 is the top end of the highly acclaimed “X” series which includes the

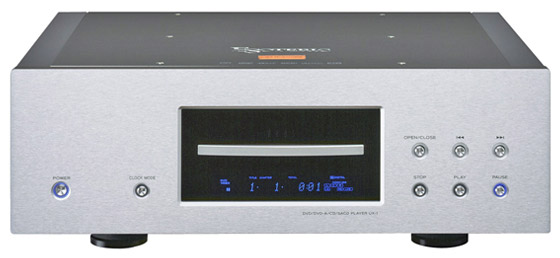

“X-01 and X-01 Limited” audio players and the “UX-1 Limited” audio/video player.
The newly designed X-01D2 was developed for the audiophile whose passion
includes SACD and DSD playback modes. The D2 includes a refined version of the
VRDS-NEO (Vibration free rigid disc clamping system), and the disc tracking sled
assembly from Esoteric’s P-03 disc transport. The multi-bit D/A converter
includes a dual differential implementation for complete left and right channel
separation. As in the X-01 and X-01 Limited, four DACs per channel are used (Burr-Brown
1704 x 8), and each set of four is configured on separate left and right circuit
boards. In addition to multi-bit D/A technology, the D2 version includes native
direct stream digital (DSD) decoding using 1 bit signal processing converter
chips (Analog Devices AD1955), and allows optional PCM to DSD signal conversion
capability. This technology evolves from Esoteric’s separate components used in
the P-03/D-03 playback system. A new disc tray shutter mechanism has been
included for reduction of external noise and airborne contaminants. Other
features include WORD clock input, i.LINK terminal with flow rate control,
digital and analog multi-channel audio outputs, “nextgen™” RCA terminals,
dedicated unbalanced and balanced audio outputs for 2 channel playback, a
coreless spindle motor and Esoteric’s neodymium magnet system. Unlike most CD/SACD
players, the use of VRDS-NEO, combined with Esoteric’s proprietary disc tracking
assembly, eliminates off axis error-correction because no off axis data
retrieval is allowed.
AMPLIFICATORI
INTEGRATI& FINALI
ESOTERIC
AI-10
€.3.900,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Amplificatore integrato a
tecnologia digitale. Potenza 2 x 150W su 8 ohm, 2 x 200W su 4 ohm. Convertitori
A/D 192KHz/176.4KHz. Ingressi digitali: 1 coax, 1 ottico. Ingressi analogici: 3
RCA, 1 XLR. Ingresso Phono MM. Uscita clock su BNC. Terminali per diffusori WBT.
Costruzione dello chassis in alluminio da 5mm con piedini d'appoggio
anti-vibrazioni. Telecomando slim retroilluminato.
DIGITAL
INTEGRATED AMPLIFIER AI-10 A digital integrated amplifier, analog to digital
converter and master clock signal generator combined into a single component.As
an audiophile device, Esoteric's AI-10 combines high power 2 channel output with
an analog to digital converter plus a master clock sync generator. This model is
truly unique to the high end audio business. The AI-10 provides high speed, high
efficiency power output (Minimum 110W+110W at 8 ohms), through the use of a
large toroidal power transformer. The analog to digital converter allows high
sampling rate conversion at 192 kHz/176.4kHz for analog input signals. The unit
also includes 3 line level audio inputs, including magnetic phono, and an output
for master clock sync to any of Esoteric's audio video disc players. Master
clock sync allows the re-timing of a DAC to a transport device, enhancing
digital signal accuracy, staging, transparency and imaging. The Esoteric master
clock is accurate to +/- 1 ppm (As measured in parts per million). Digital input
terminals include coaxial and optical (TosLink®) connections. 2 channel balanced
audio inputs are also included.
PREAMPLIFICATORI
.gif)
ESOTERIC
C-03
€.8.900,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Preamplificatore stereo.
Costruzione Dual Mono a partire dai trasformatori di alimentazione. 2
Trasformatori toroidali da 200VA. Controllo del volume motorizzato gestito da 2
circuiti Burr Brown. Componenti selezionati e collegamenti interni con rame 8N.
5 ingressi (3 RCA e 2 XLR). 2 uscite (RCA e XLR). Chassis in acciaio con
spessore di 5mm. Telecomando in allumin
.gif)
ESOTERIC
E-03
€.4.950,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Preamplificatore Phono MM/MC.
Costruzione Dual Mono. Trasformatore toroidale. Componenti selezionati e
collegamenti interni con rame 8N. 2 ingressi indipendenti (1 MC e 1 MM/MC) con
impedenza selezionabile. Chassis in acciaio con spessore di 5mm.
AMPLIFICATORI FINALI
.gif)
ESOTERIC
A-80
€.8.900,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Finale di potenza mono a transistor in push-pull.
Potenza 200W su 8 ohm. Trasformatore toroidale da 1KVA su specifiche Esoteric.
Condensatori da 33000uF. Configurazione degli stadi di uscita Darlington.
Ingressi sia RCA che XLR WBT NextGen. Robusto chassis in acciaio da 9mm isolato
da 3 piedini Pinpoint. Peso 31Kg. Cad.
ESOTERIC
A-03
€.11.500,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Finale di potenza stereo in
classe A a transistor in push-pull. Potenza 2 x 50W su 8 ohm, 2 x 100W su 4 ohm
o 200W su 8 ohm a ponte in mono. 3 trasformatori toroidali su specifiche
Esoteric. Ingressi sia RCA che XLR. Costruzione Dual Mono. Robusto chassis
isolato da 4 piedini Pinpoint. Peso 38Kg.

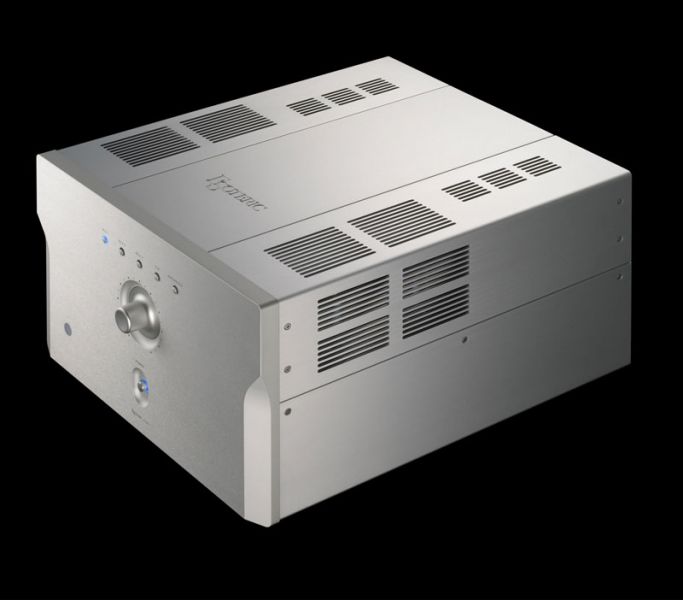

ESOTERIC

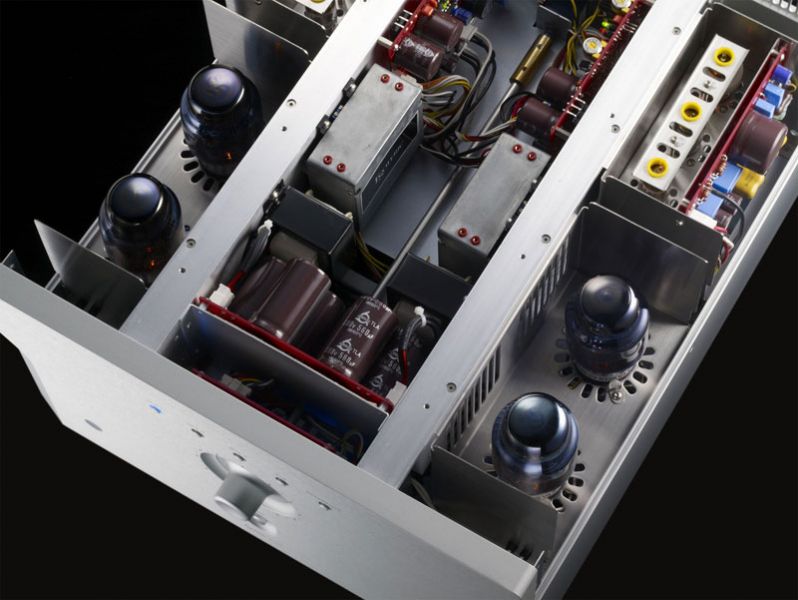

A-100
€.15.900,00 Per prezzo
scontato
TELEFONA / UN E-MAIL

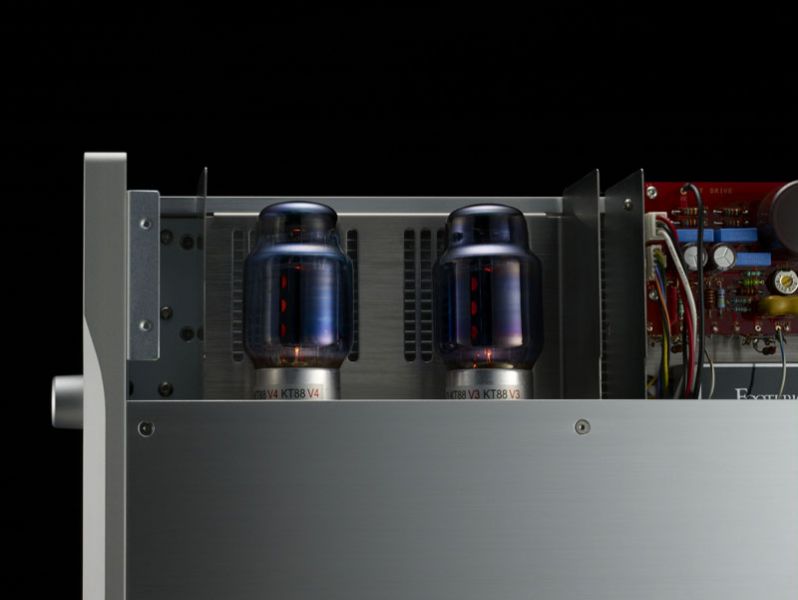

Finale di potenza stereo a valvole in push-pull.
Potenza 2 x 50W su 8 ohm. Valvole finali 4 x KT88. Circuito VBS, bias
autoregolante per la massima linearità. Circuito ZVS, sistema di controllo
tensione zero, per la massima stabilità di tensione. Trasformatori di output su
specifica Esoteric. Pre passivo per 3 ingressi gestibili da telecomando in
dotazione.
Esoteric
has introduced a triode tube amplifier that can be used as a stereo power
amplifier or as an integrated amplifier. This new hybrid technology incorporates
proprietary circuitry and "cutting edge" tube technology.The A-100 provides a
minimum of 45 w/ch power output from KT-88's in UL-push/pull operation driven
with a direct coupled cathode follower. The cathode follower and voltage
amplification stage is directly coupled to form a triple stage combining a
variable self-biasing system ("VBS"), and a zero voltage control system ("ZVS").
VBS is an advanced active biasing circuit. VBS compensates for fluctuations in
bias voltage as supplied to the output stage by detecting cathode current and
output level demand. VBS improves linearity and performance of the output stage
by maintaining optimum voltage control. The innovative ZVS circuit (Patent
pending), stabilizes the cathode follower DC output level to improve operation
of directly-coupled circuit components. This occurs in an end to end process
from the driver stage to the output stage. Both of these circuits combine to
improve the stability and the clarity of the amplifier's output.The A-100
features a newly designed custom output transformer designed to achieve highly
delicate and precise musicality. The amplifier uses specially treated copper
foil as the 2nd order coil. This design maintains very tight coupling properties
between the 1st order coil. All stages except the KT-88 are powered by fully
stabilized power supplies. With this innovative power supply design, the AT-100
reproduces an exceptionally deep and finely detailed soundstage. All tubes
except the KT-88 are DC heated. Hum noise is reduced by this heater design.

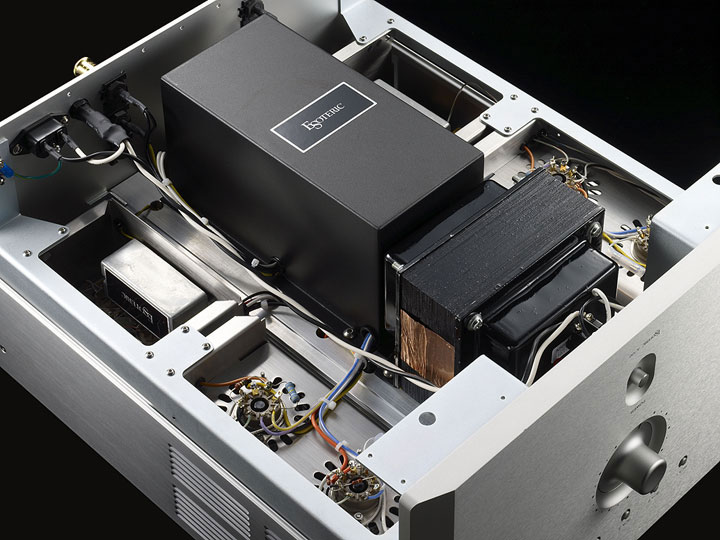

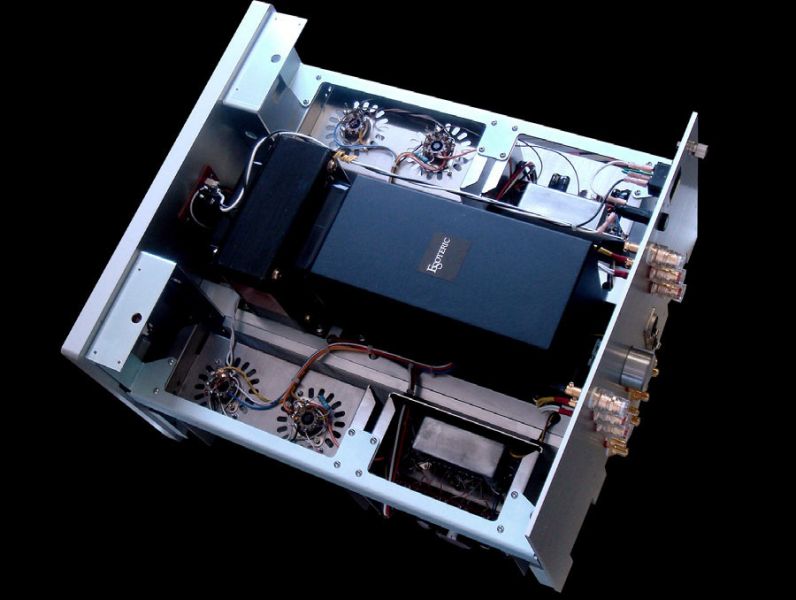

Power supply and output transformers are held by an extremely rigid 'H'
structure and circuit components reside in a block configuration surrounding
this mainframe design. The massive chassis construction isolates unwanted
vibrations and resonance between circuit components and power supplies.The A-100
is designed for pure power amplification but it also works as an integrated
amplifier by selection from an operating switch on the rear panel designating
DIRECT or LINE IN. LINE IN mode activates an input selector (RCA x3 / XLR x1),
and also a high quality volume attenuator. For integrated amplifier operations
an illuminated remote control is included
CONVERTITORI
D/A
ESOTERIC
D-07 €.3.750,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Convertitore D/A stereo. Scheda di conversione
D/A 32bit dual mono AK4392. Ingresso SACD su AES/EBU, Ingressi XLR, USB, ottico
e coassiale. Ingresso e uscita BNC per clock esterno. 2 Circuiti PLL per la
riduzione del jitter. Up conversion del segnale PCM a 2x e 4x. Cabinet in
estruso di alluminio satinato antivibrazione.
32bit
dual mono DAC that supports the playback of SACD and high-resolution music
filesUSB input enables high-quality playback from your PC The USB input makes it
possible to playback music stored on your PC with high-end quality. All
24bit/96kHz PCM high-resolution music files can be transmitted to the D-07, and
played back in compressed or uncompressed formats *Playable formats differ,
depending on your PC’s music player. USB isolator The built-in USB isolator
isolates the power/signal line from the unit, and prevents external noise
interference from other devices such as a PC. This enables clear playback
without losing the benefits of high-resolution music files. Extensive
up-conversion functions for a variety sources PCM digital audio signals can be
converted in a number of ways, including PCM up-conversion at 2x (64/88.2/96
kHz), 4x (128/176.4/192 kHz), and even to the DSD high-res. conversion format.
Two types of digital filters For processing PCM format signals, the D-07 offers
two types of digital filters that you can freely select: the finite impulse
response (FIR), digital filter, which has an established reputation for superb
sound quality; and a newly developed, short delay digital filter, which removes
the pre-echo effect in the impulse waveform, helping to reproduce the leading
edge of the sound more naturally. WORD SYNC enables synchronized playback with
external devices WORD SYNC effectively reduces jitter that occurs while
transferring audio signals, delivering high-speed and high-quality sound that is
delicate yet full of presence. This function also offers the word output
mode, which enables WORD SYNC-capable source devices to connect with the word
output generated by the D-07.Likewise, there is also a word input mode, which
inputs a high-density word clock from an external master clock generator (such
as an ESOTERIC G-03X). This incremental (and optional) hardware mode enables you
to upgrade to a more sophisticated system at a later time. 2nd PLL mode helps to
reduce jitter The D-07’s 2nd PLL mode uses the built-in VCXO (Voltage Controlled
Crystal Oscillator) to act as a high clarity master clock for the DAC device.
The two types of PLL circuits, each with different characteristics, effectively
remove transmission jitter. If a signal is input from a device without WORD SYNC,
the jitter component that affects the sound quality is diminished, thus
achieving more precise playback with rich musical expression. 32bit high density
digital attenuator High-precision volume adjustment is made possible by our
32bit digital processing and the 32bit D/A device. Compared to a 24bit device,
this attenuator has an additional 8bit of “headroom,” allowance, delivering
volume control without a loss of sound quality caused by dropouts. It also
enables you to directly connect the D-07 to power amplifiers and use it as a
multi-source digital preamplifier. Solid enclosure that perfectly guards sound
quality and provides anti-resonance barriers; an exquisite construction The
D-07's slim enclosure that stands only 103.5 mm tall (4 inches), incorporates a
short-scratch finished, thick aluminum front panel and sandblasted 5 mm aluminum
top and side panels. Internal construction isolates all points of potential
signal interference and resonance. The sculptured art generated by the screwless
top panel and the rounded corners creates a sense of sophisticated integration
.

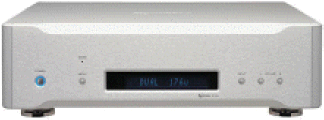

ESOTERIC
D-05
€.6.900,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Convertitore D/A stereo.
Scheda di conversione D/A 32bit dual mono. Ingresso SACD su ES-Link XLR o
IEEE1394. Funzione RAM-Link per il passaggio diretto del DSD. Ingresso e uscita
BNC per clock esterno. 3 trasformatori "R core" (1 x digitale, 2 x analogico).
.gif)
.gif)
ESOTERIC

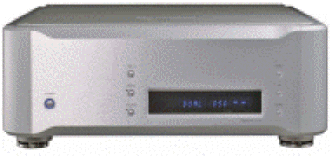

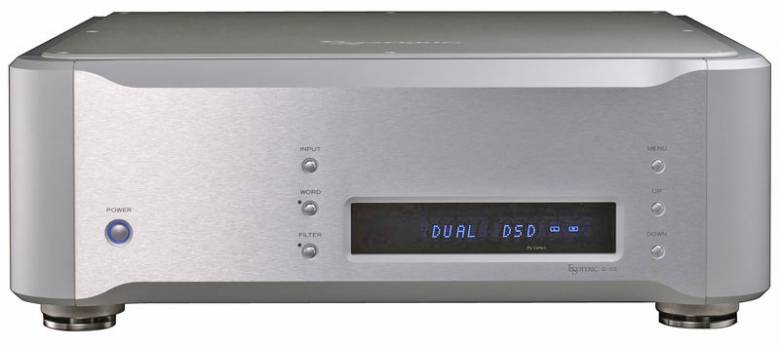

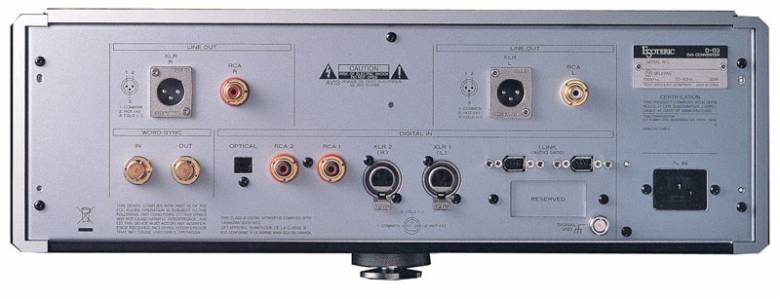

D-03
€.13.500,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Convertitore D/A stereo. Scheda di conversione D/A 1
bit DSD ( AD1955). Ingresso SACD su ES-Link XLR o IEEE1394. Funzione RAM-Link
per il passaggio diretto del DSD. Ingresso e uscita BNC per clock esterno. 3
trasformatori "R core" (1 x digitale, 2 x analogico).
.gif)

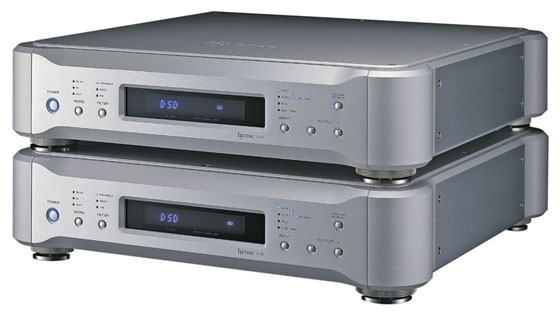

ESOTERIC

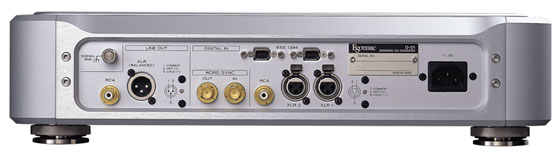

D-01
€.12.500,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Convertitore D/A mono. Scheda
di conversione D/A con 8 chip Burr Brown 24bit PCM1704. 3 filtri digitali: FIR/RDOT/FIR+RDOT.
Ingresso SACD su ES-Link XLR o IEEE1394. Ingresso e uscita BNC per clock
esterno. Controllo del volume per il collegamento diretto ad un finale di
potenza.
Lettori
universali DVD/SACD
.gif)

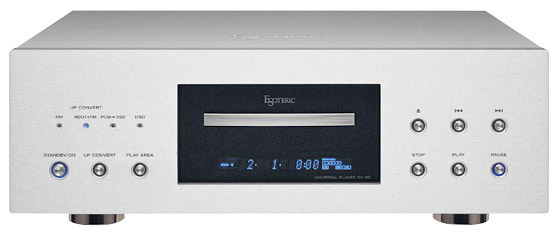

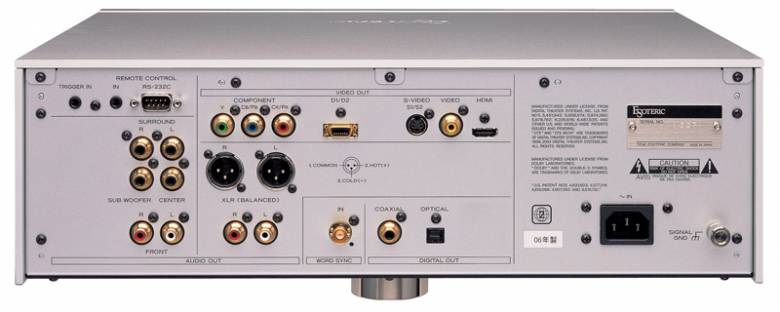

ESOTERIC DV-60
€.5.900,00 Per prezzo
scontato
TELEFONA / E-MAIL
Lettore Universale SACD/CD,
DVD-A e DVD-Video. Meccanica e platorello in alluminio/acciao. Pickup laser
precisissimo eservoassistito. Scheda di conversione D/A a 24bit/192KHz con 2
chip in modalità differenziale per canale. Schedadiconversione Video con DAC
14bit/216 MHz Analog Devices ADV7324 con NSV. Uscita HDMI fino a 1080p tramite
circuito ABT1018 di Anchor Bay Technologies. Scheda I/P per Progressive Scan
Faroudja DCDi. Uscite analogiche stereo sia RCA che XLR. Uscita analogica 5.1.
Uscita digitale coassiale e ottica. Uscite Video Component, S-Video, composito.
Uscita HDMI. RS-232. Chassis completamente in acciaio. Telecomando in alluminio.
Providing
high definition ("HD") video resolution at 1080p from your existing DVD
collection. The Esoteric® DV-60 universal SACD/CD/DVD player is a high
performance addition to the Esoteric® audio / video product line. The DV-60
shares the basic functionality of the Esoteric DV-50S, i.e. high quality 2
channel dedicated analog audio outputs (balanced and unbalanced), a
high-precision 24-bit digital to analog converter, unique up-conversion
technology and multi-channel analog audio outputs (to support surround sound DVD
video, multi-channel SACD and DVD-A). High Definition resolution playback at
1080p is now possible from your existing DVD collection. Combined with these
well-established features, the DV-60 adds the following technologies suitable
for audiophile and videophile applications, in addition to those required for
custom home theater.Esoteric® proprietary transport and drive mechanism (with a
highly rigid metal isolation platform for superior anti-vibration and
anti-resonance properties). Updated 24 bit D/A converter (with “FIR and RDOT +
FIR” digital filter algorithms for audio signal up-conversion), native DSD
signal mode and user selectable PCM to DSD signal conversion. (Cirrus Logic
4398). 14 bit video processing using Analog Devices ADV7324 with NSV (Noise
shaping video), plus Faroudja’s I/P conversion processor chip with DCDi
technology. HDMI output terminal with video up-conversion to 1080p (Progressive
scan high definition resolution), using the latest LSI chipset model ABT1018
from Anchor Bay Technologies. Word synch. function (Word clock BNC terminal x
1). Highly evolved home installation solutions for external control functions:
RS232C connector with standby option, 12V DC remote trigger and rear panel
remote control input terminal. Highly rigid chassis construction with cut
aluminum top and side panels Slim remote control with illuminated keys for
easier operation in low light or no light environments such as home theater.
.gif)
.gif)

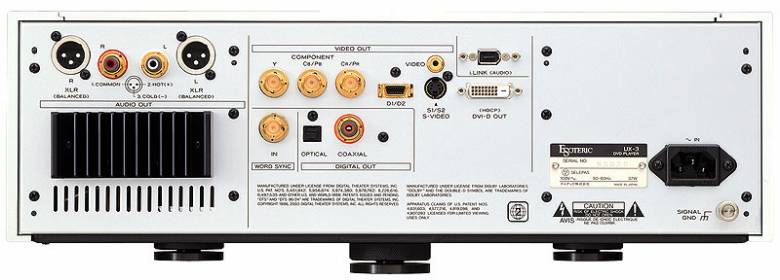

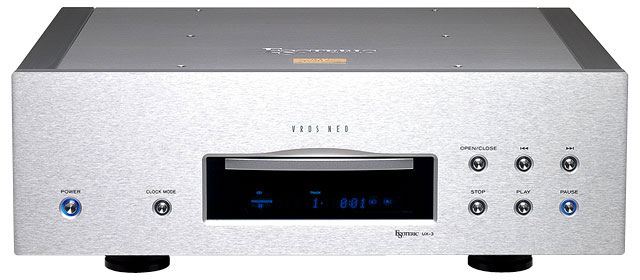

ESOTERIC UX-3 se
€. 8.500,00
Per prezzo
scontato
TELEFONA/ E-MAIL
Lettore Universale SACD/CD, DVD-A e DVD-Video.
Meccanica VRDS-NEO in alluminio/acciao e platorello spingidisco in duralluminio.
Pickup laser precisissimo e servoassistito. Scheda di conversione D/A con 2 chip
Burr Brown 24bit PCM1704 per canale e impiego di condensatori e resistenze ad
altissima precisione. Scheda di conversione Video con DAC 14bit/216 MHz Analog
Devices ADV7314. Scheda I/P per Progressive Scan Faroudja DCDi. Cablaggio
interno in rame 6N. Impiego di connettori WBT XGen per le uscite RCA e Digitale
coassiale. Uscite analogiche stereo sia RCA che XLR. Uscita digitale ottica.
Uscita iLink IEEE1394. Uscite Video Component, S-Video, composito. Uscita DVI.
Ingresso BNC per clock esterno. Chassis rivisitato con panneli laterali e top
superiore di elevato spessore in acciaio. Targhetta dorata Special Edition.
Telecomando in alluminio.
The
UX-3SE's advanced 14 bit video processing and custom video output stage enables
DVD up-conversion to high definition "HD" output levels at 480p, 720p and 1080i.
This is achieved from your existing DVD collection, without having to buy new
software! Compatible software includes DVD-video, DVD-audio, SACD, CD, DVD-R/RW,
CD-R/RW and Video-CD. Digital video signals are passed to a compatible display
through the UX-3SE's DVI output connector. High quality 24 bit Burr Brown DACs
(2 chips per channel), are used in a differential configuration for front L+R
channels with a specially designed DAC transformer. This helps to insure superb
audio output signals. High cabinet rigidity, isolation platform designs and the
VRDS transport mechanism used have all evolved from designs of the Esoteric X-01
and UX-1 series. The new UX-3SE provides VRDS-Neo technology for the first time
in an Esoteric audio/video player priced below $10,000. Digital audio outputs
for 2 channel and multi-channel include coax digital, optical and iLink (IEEE
1394). High quality balanced audio outputs (L+R) are also included. Construction
& Design A three-part chassis design is used to support the heavy VRDS-NEO
mechanism and to prevent electrical interference between each circuit. The
mechanism is centered within the chassis for stability. The chassis is supported
by three pinpoint feet (patent pending), made of quenched steel, allowing the
unit to be mechanically isolated from its environment. Thick aluminum is used on
the front panel, and 1.6mm-thick steel is used for the covers to block
vibrations. The front panel is designed to be simple yet elegant, with a brushed
finish. Ultra high quality components are used throughout. For more information
please see the UX-3SE brochure available below.

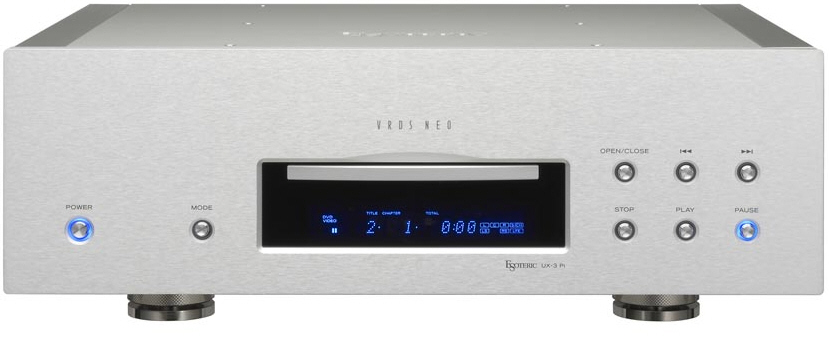

ESOTERIC UX-3Pi
€.9.900,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Lettore Universale SACD/CD,
DVD-A e DVD-Video. Meccanica VRDS-NEO in alluminio/acciao e platorello
spingidisco in duralluminio. Pickup laser precisissimo e servoassistito. Scheda
di conversione D/A con 2 chip Burr Brown 24bit PCM1704 per canale e impiego di
condensatori e resistenze ad altissima precisione. Scheda di conversione Video
con DAC 14bit/216 MHz Analog Devices ADV7324. Scaling digitale con chip di ABT
1018. Scheda I/P per Progressive Scan Genesis FLI2310. Cablaggio interno in rame
6N. Impiego di connettori WBT XGen per le uscite RCA e Digitale coassiale.
Uscite analogiche stereo sia RCA che XLR. Uscita digitale ottica. Uscita iLink
IEEE1394. Uscite Video Component, S-Video, composito. Uscita HDMI 1.3. HDMI
output 480i/480p/720p/1080i/1080p. Ingresso BNC per clock esterno. Chassis
rivisitato con panneli laterali e top superiore di elevato spessore in acciaio.
Targhetta dorata Special Edition. Telecomando in alluminio
The
UX-3Pi includes incremental and optional updates to the UX-3SE. Audio playback
circuitry in the Pi is identical to that of the SE. As in the UX-3SE, the
UX-3Pi's advanced 14 bit video processing and custom video output stage enables
DVD up-conversion to high definition "HD" output at 480p, 720p and 1080i. This
is achieved from your existing DVD collection, without having to buy new
software! The UX-3SE VRDS mechanism and Burr Brown 24 bit D/A converters are
included. The UX-3Pi adds these incremental updates to the base feature set of
the UX-3SE:HDMI connector (V1.3 compliant). ABT1018 LSI scaler from Anchor Bay
Technologies for high definition "HD," signal up-conversion to all ATSC formats
including 1080p Home theater control functions through RS232c (6v trigger).
Remote control with commonly used keys backlit for operation in low light or no
light environments The incremental 1080p video update will become optional for
UX-3SE owners in the fall of 2007. Current owners of the UX-3SE will have the
ability to upgrade their video board, for a cost to be determined. Althoughthis
video upgrade will not change the remote control, the upgraded video board will
produce 1080p output using the Anchor Bay chip set and add the HDMI connector to
the rear panel. When available, information willbe posted on the Esoteric web
site under the section "Audio Video Upgrades." In addition to the UX-3SE, the
UX-3Pi is available now through authorized Esoterc dealers.
ESOTERIC UX-1
€.14.500,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Lettore Universale SACD/CD,
DVD-A e DVD-Video. Meccanica VRDS-NEO completamente in alluminio e platorello
spingidisco in magnesio. Pickup laser precisissimo e servoassistito Scheda di
conversione D/A con 2 chip Burr Brown 24bit PCM1704 per canale. Scheda di
conversione Video con DAC 14bit/216 MHz Analog Devices ADV7314. Scheda I/P per
Progressive Scan Faroudja DCDi. Uscite analogiche stereo sia RCA che XLR. Uscita
analogica 5.1. Uscita digitale coassiale e ottica. Uscite Video Component,
S-Video, composito. Uscita DVI. RS-232.
Ingresso BNC per clock esterno. Porta per futuro upgrade iLink IEEE1394. Chassis
completamente in acciaio. Telecomando in alluminio.
ESOTERIC UX-1 LTD €. 14.900,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
ESOTERIC UX-1 pi €. 17.500,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Lettore Universale SACD/CD, DVD-A e DVD-Video. Meccanica VRDS-NEO completamente
in alluminio e platorello spingidisco in magnesio. Pickup laser precisissimo e
servoassistito Scheda di conversione D/A con 2 chip Burr Brown 24bit PCM1704 per
canale. Scheda di conversione Video con DAC 14bit/216 MHz Analog Devices
ADV7314. Scheda I/P per Progressive Scan Faroudja DCDi. Uscite analogiche stereo
sia RCA che XLR.
Uscita analogica 5.1. Tutti i connettori sono WBT NextGen. Uscita digitale
coassiale e ottica. Uscite Video Component, SVideo,composito. Uscita DVI.
RS-232.Ingresso BNC per clock esterno. Porta per futuro upgrade iLink
IEEE1394.Chassis completamente in acciaio. Telecomando in alluminio
MECCANICHE
GARANZIA 3 ANNI
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
 Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO

Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco nostro magazzino.
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici

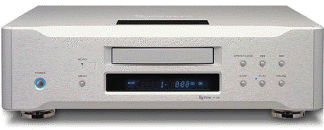

ESOTERIC P-05
€.7.500,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Meccanica di lettura SACD/CD.
Nuova meccanica VRDS-NEO completamente in alluminio e platorello spingidisco in
magnesio. Pickup laser precisissimo e servoassistito. Possibilità di convertire
il segnale PCM in DSD. Uscita digitale coassiale. Uscite digitali 5.1 su i-Link.
Canali principali su XLR e RCA. Chassis completamente in acciaio per
l'isolamento dalle vibrazioni sia interne che esterne. Telecomando in alluminio.
.gif)

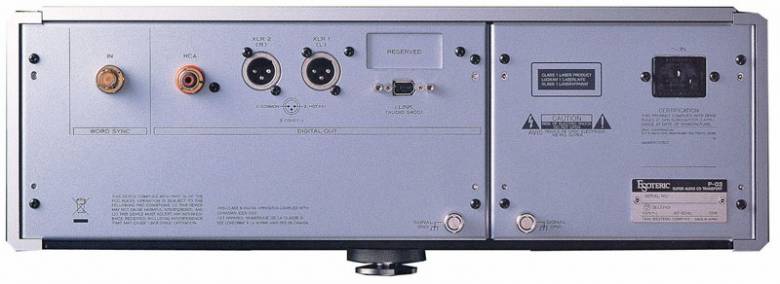

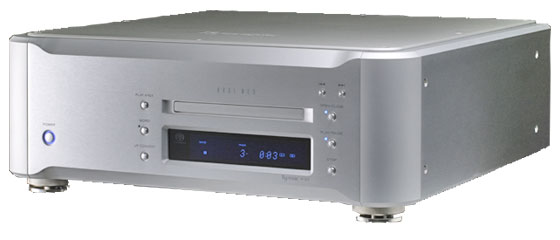

ESOTERIC P-03
€.14.900,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Meccanica di lettura SACD/CD.
Meccanica VRDS-NEO completamente in alluminio e platorello spingidisco in
magnesio. Nuovo sistema di caricamento a scomparsa. Pickup laser precisissimo e
servoassistito. Possibilità di convertire il segnale PCM in DSD. Uscita digitale
coassiale. Uscite digitali 5.1 su i-Link. Canali principali su XLR. Ingresso BNC
per clock esterno. Chassis completamente in acciaio per l'isolamento dalle
vibrazioni sia interne che esterne. Telecomando in alluminio.
ESOTERIC P-03UNI€.19.900,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Meccanica di lettura SACD/CD, DVD-A e DVD-Video. Meccanica VRDS-NEO in
alluminio/acciao e platorello spingidisco in duralluminio. Pickup laser
precisissimo e servoassistito. Scheda di conversione D/A con 2 chip Burr Brown
24bit PCM1704 per canale e impiego di condensatori e resistenze ad altissima
precisione. Scheda di conversione Video con DAC 14bit/216 MHz Analog Devices
ADV7324. Scaler ABT 1018 e I/P Genesis LFI2310. Cablaggio interno in rame 6N.
Impiego di connettori WBT XGen per le uscite RCA e Digitale coassiale. Uscite
analogiche stereo sia RCA che XLR. RS232C. Uscite Video Component su BNC,
composito. Uscita HDMI. Ingresso BNC per clock esterno. Chassis rivisitato con
panneli laterali e top superiore di elevato spessore in acciaio. Telecomando in
alluminio.

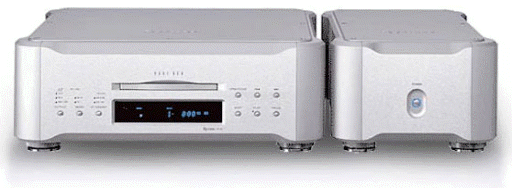

ESOTERIC P-01
€.25.000,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Meccanica di lettura SACD/CD.
Meccanica VRDS-NEO completamente in alluminio e platorello
spingidisco in magnesio. Pickup laser precisissimo e servoassistito.
Up-conversion fino a 192KHz dei segnali provenienti dal CD. Uscita digitale
coassiale. Uscite digitali 5.1 su XLR. IEEE1394 e ES-Link su XLR. Ingresso BNC
per clock esterno. Chassis completamente in acciaio per l'isolamento dalle
vibrazioni sia interne che esterne. Stadio di alimentazione in uno chassis
separato.Telecomando in alluminio.
GENERATORI DI CLOCK

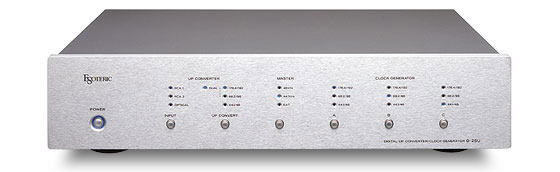

ESOTERIC G-25U
€.2.750,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Generatore di Master Clock e
Up Converter. Oscillatore al Quarzo. Precisione 1.0 parti per milione. 3 Uscite
(A,B,C) di generazione clock che possono moltiplicare la frequenza 1x, 2x e 4x.
Frequenze supportate: 44.1KHz/88.2KHz/176.4KHz, 48KHz/96KHz/176KHz. Ingresso per
clock esterno (upgrade dell'oscillatore). Connettori dorati BNC. Sezione di
up-converter con 3 ingressi digitali (2 coassiali e 1 ottico) e 4 uscite (1
coassiale, 1 ottico, 2 XLR). Funzione di rigenerazione interna del clock con
conversione del segnale digitale in ingresso fino a 192KHz. Chassis
completamente in acciaio.
ESOTERIC G-03X €.3.500,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Generatore di Master Clock.
Oscillatore al Quarzo. Precisione 0.1 parti per milione. 3 Uscite (A,B,C) di
generazione clock che possono moltiplicare la frequenza 1x, 2x e 4x. Frequenze
supportate: 44.1KHz/88.2KHz/176.4KHz, 48KHz/96KHz/176KHz. Ingresso per clock
esterno (upgrade dell'oscillatore). Connettori dorati BNC. Chassis completamente
in acciaio
.gif)

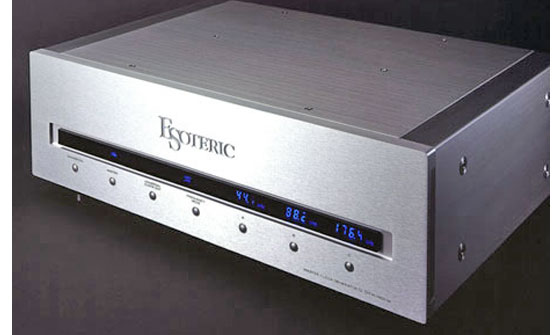

ESOTERIC G-0S
€.12.500,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Generatore di Master Clock
con oscillatore al Rubidio. Precisione 0.05 parti per milione. 3 Unità
indipendenti di generazione clock che possono moltiplicare la frequenza 1x, 2x e
4x. Frequenze supportate: 44.1KHz/88.2KHz/176.4KHz, 48KHz/96KHz/176KHz. Ogni
Unità ha a sua volta 2 uscite indipendenti in modo da collegare in totale fino a
6 dispositivi. Ingresso per clock esterno (upgrade dell'oscillatore). Uscita
proprietaria per clock universale, utile nelle applicazioni A/V. Connettori
dorati BNC. Chassis completamente in acciaio da 8mm di spessore, disaccoppiato
su 3 piedini in acciaio proprietari
ESOTERIC G-0RB €.15.500,00 Per prezzo
scontato
TELEFONA / UN E-MAIL
Generatore di Master Clock con oscillatore al Rubidio. Precisione 0.05 parti per
milione. 3 Unità indipendenti di generazione clock che possono moltiplicare la
frequenza 1x, 2x e 4x. Frequenze supportate: 44.1KHz/88.2KHz/176.4KHz,
48KHz/96KHz/176KHz. Ogni Unità ha a sua volta 2 uscite indipendenti in modo da
collegare in totale fino a 6 dispositivi. Ingresso per clock esterno (upgrade
dell'oscillatore). Uscita proprietaria per clock universale, utile nelle
applicazioni A/V. Connettori dorati BNC. Chassis completamente in acciaio da 9mm
di spessore, disaccoppiato su 3 piedini in acciaio proprietari.
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
info@newaudio.it
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
|
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
