FIDATA

The ultimate in audio quality, from a brand that lives up to the meaning of its name: "reliability"

Today's high-resolution audio files deliver quality that approaches that of master recordings by incorporating an enormous amount of data. With the debut of network audio, consumers quickly have become familiar with the immersive experience made possible by that level of quality. Introducing fidata, a family of network audio components that lives up to the meaning of its name: "reliability."

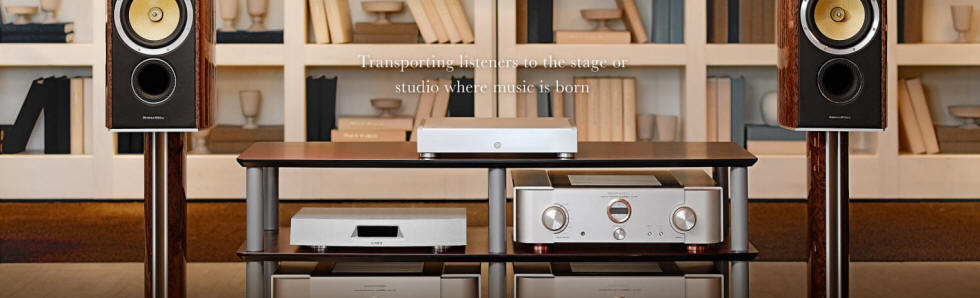

Welcome to the world of ultimate sound

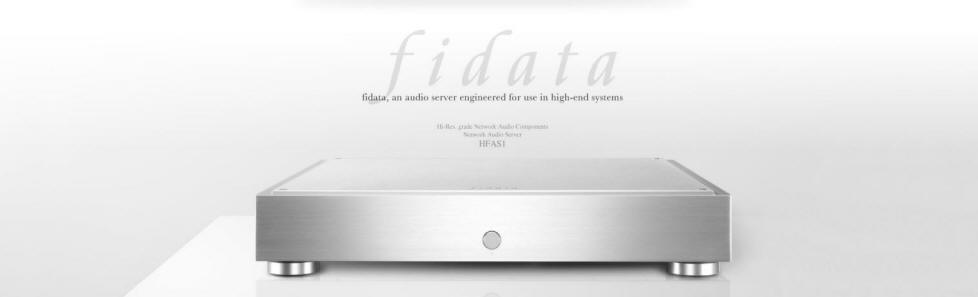

An audio server engineered for use in high-end systems

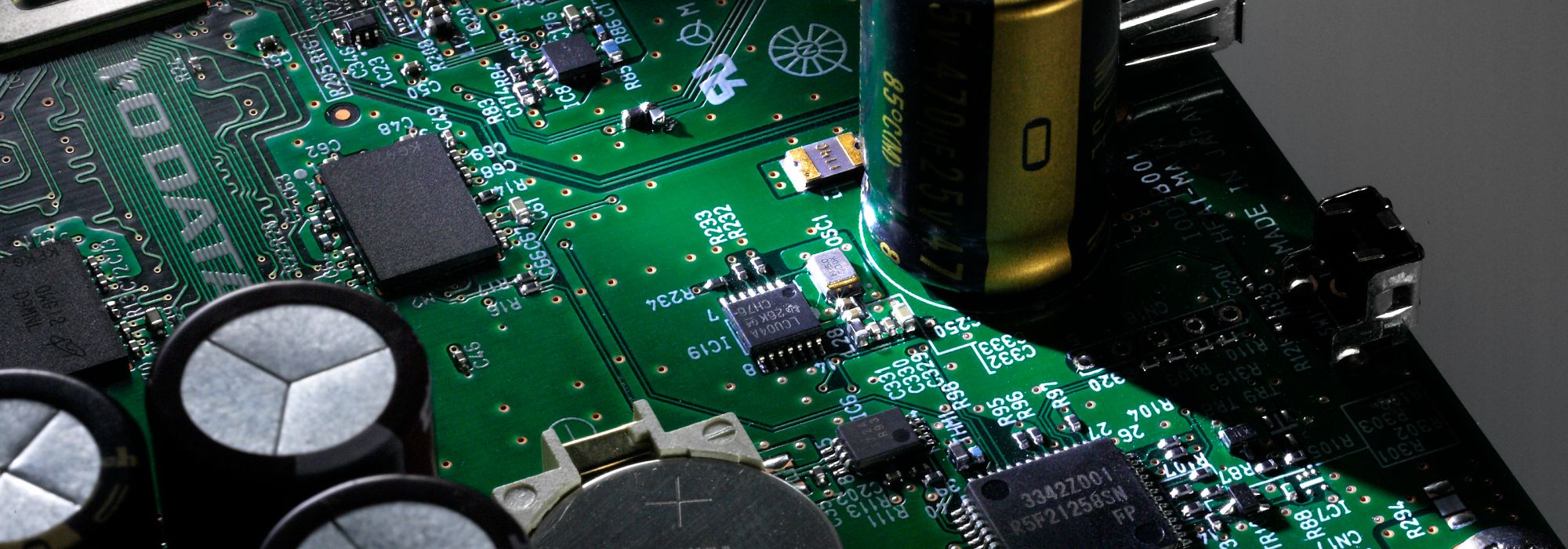

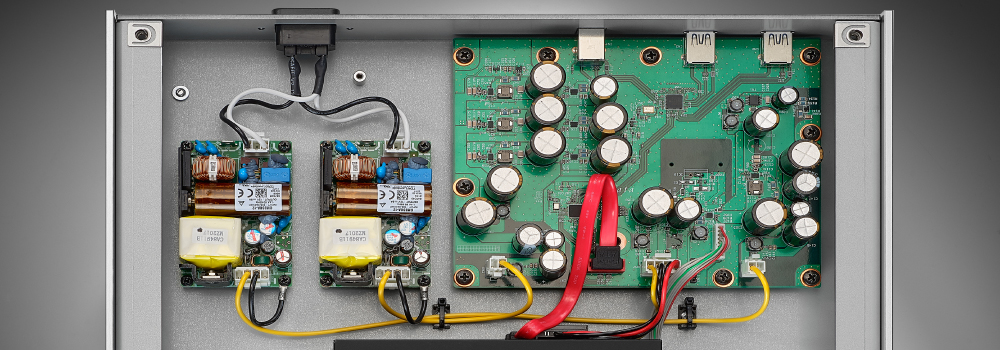

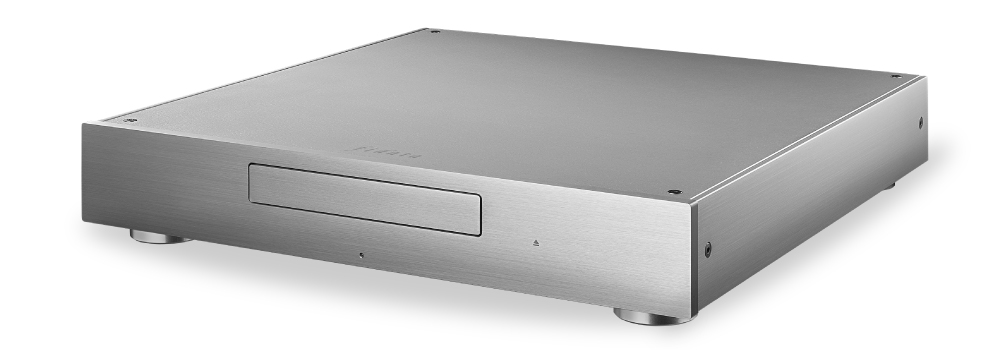

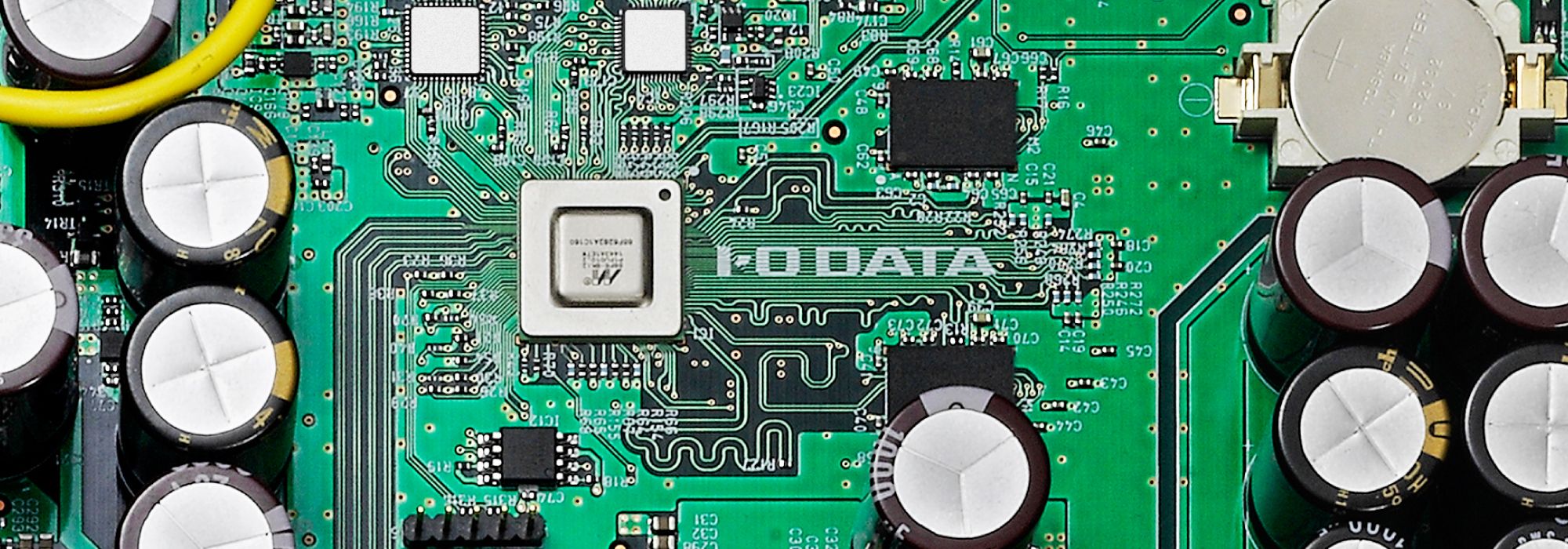

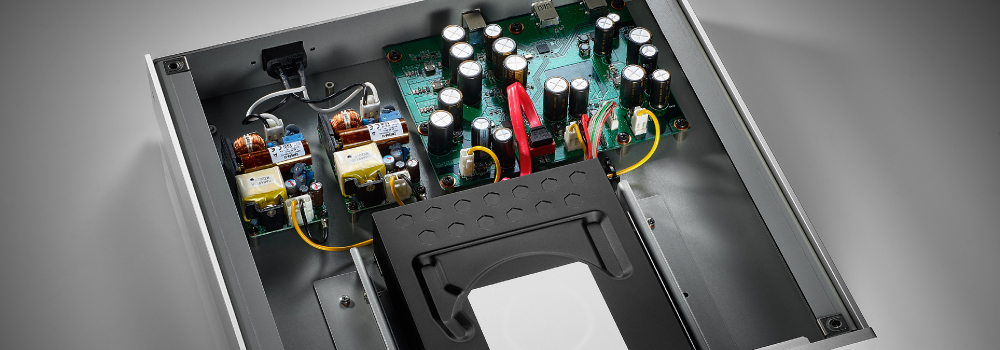

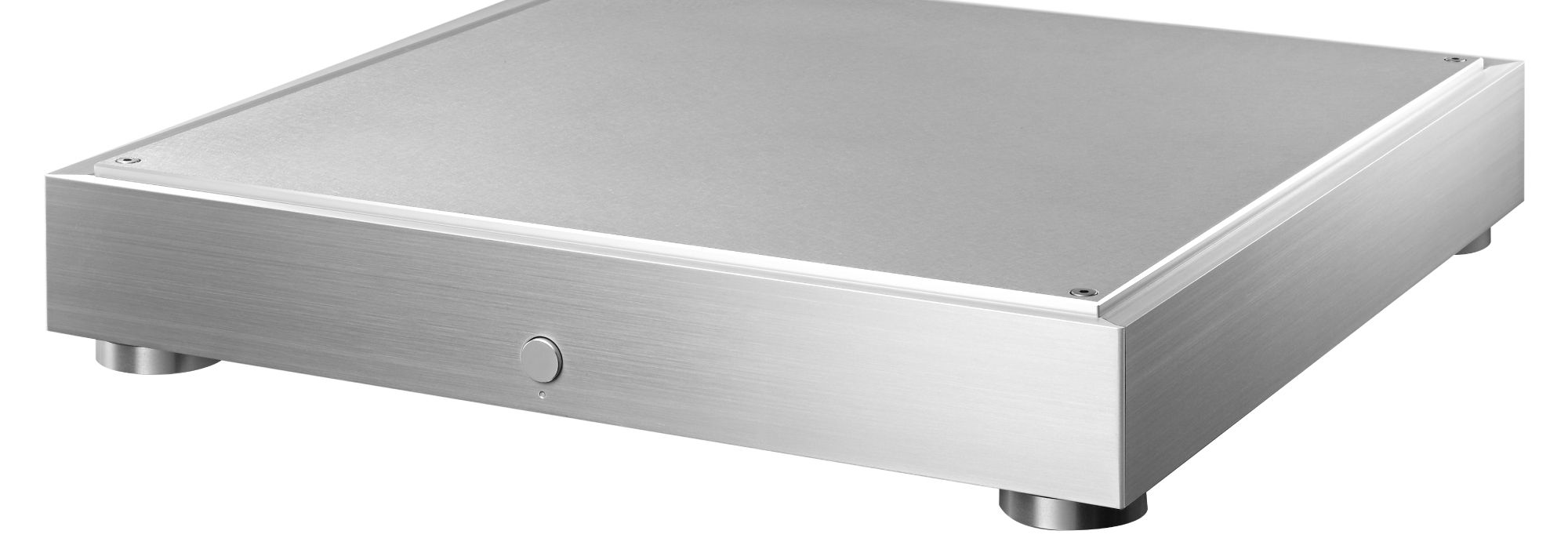

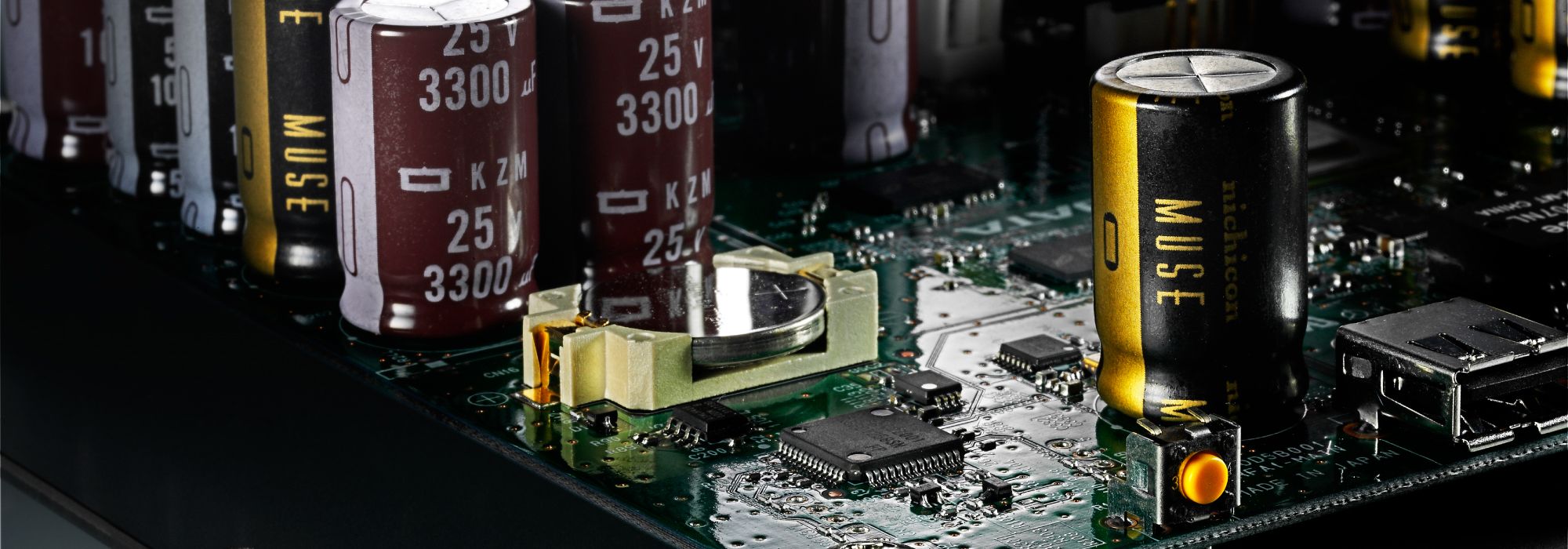

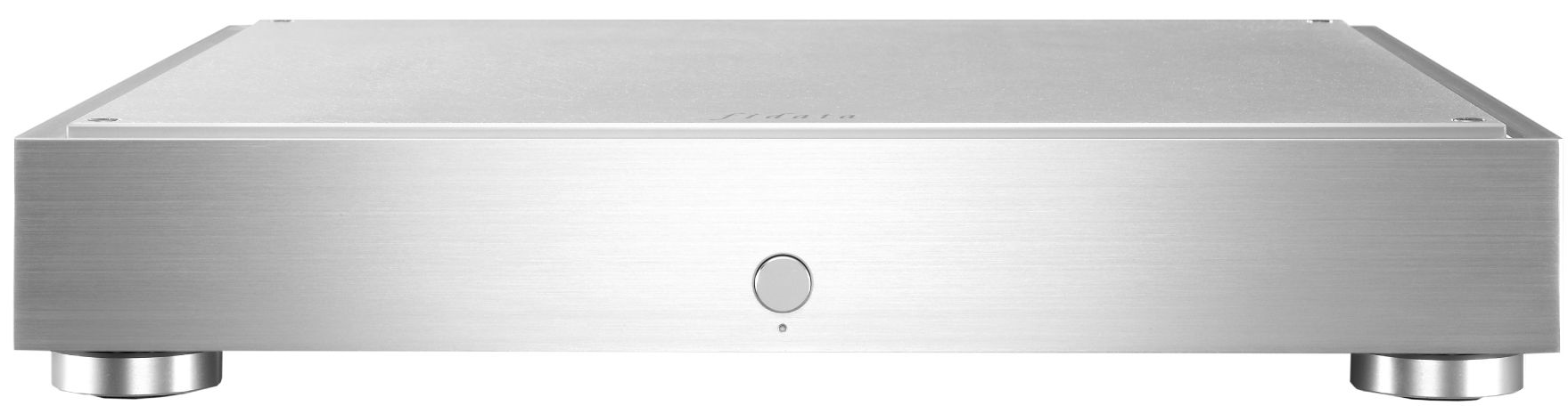

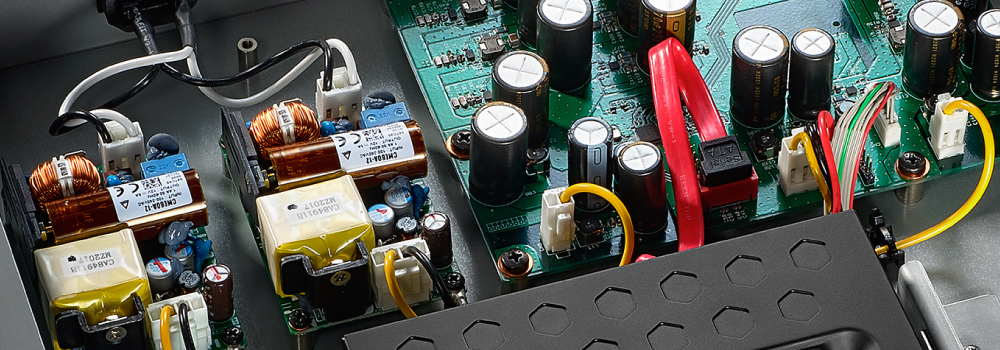

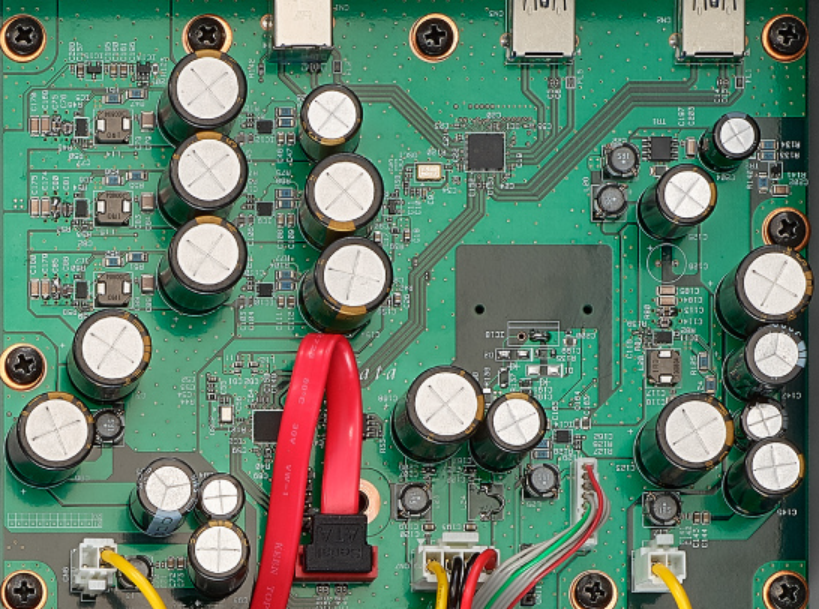

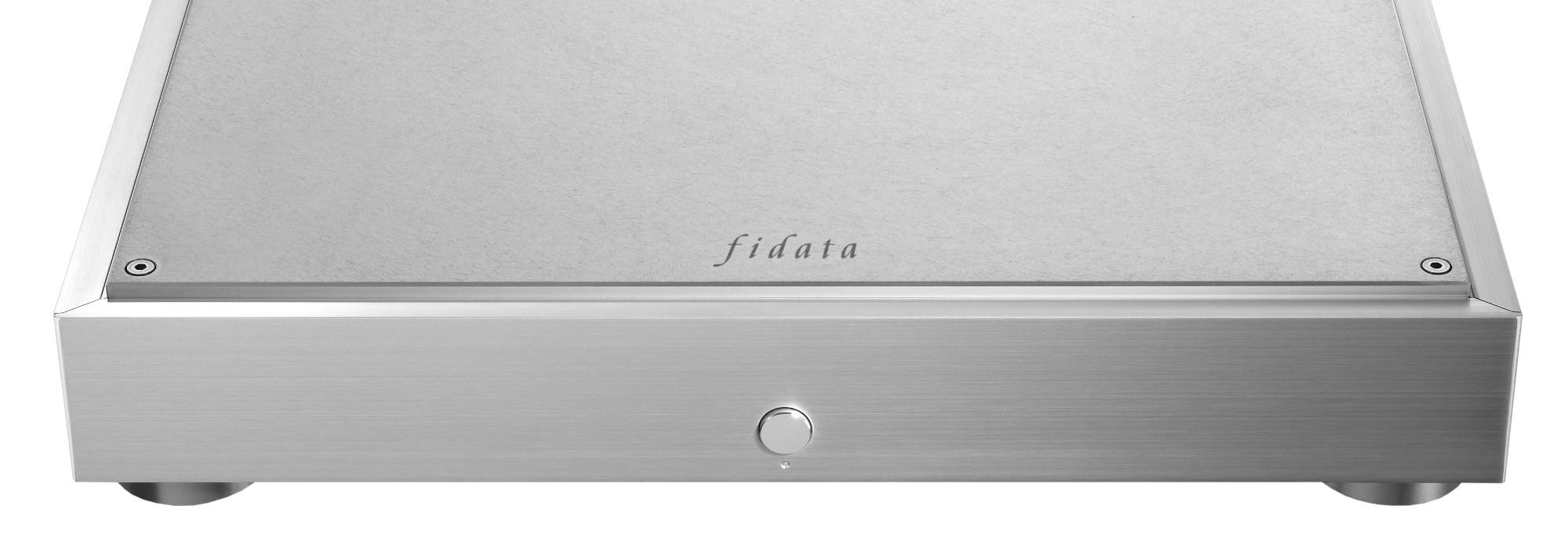

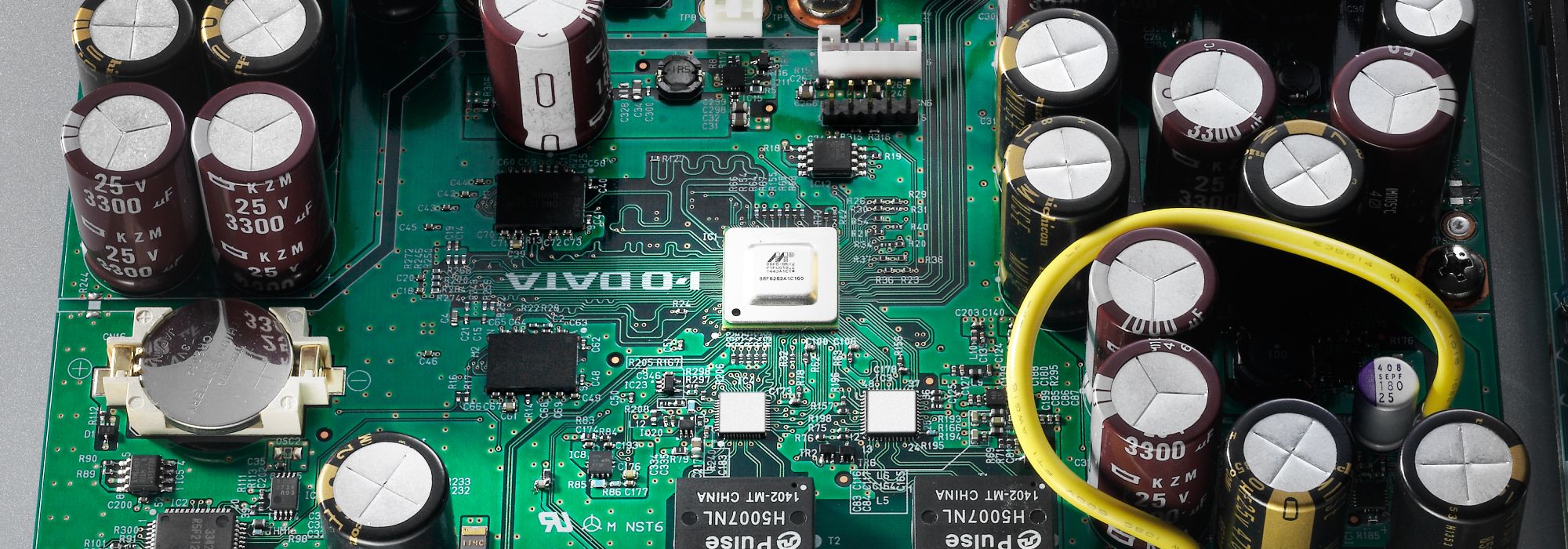

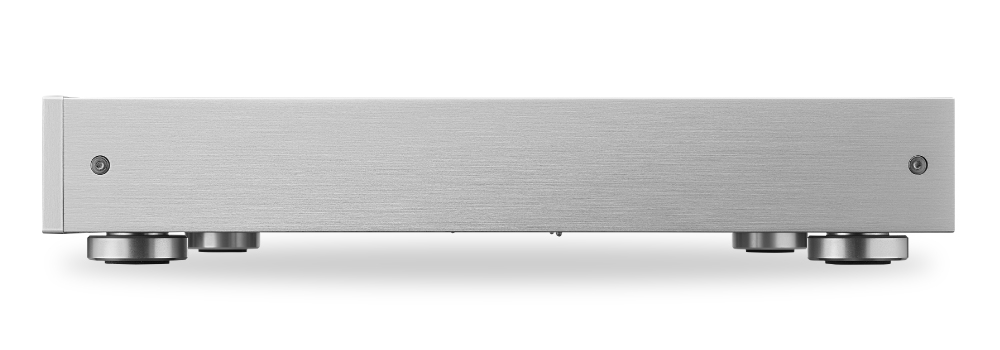

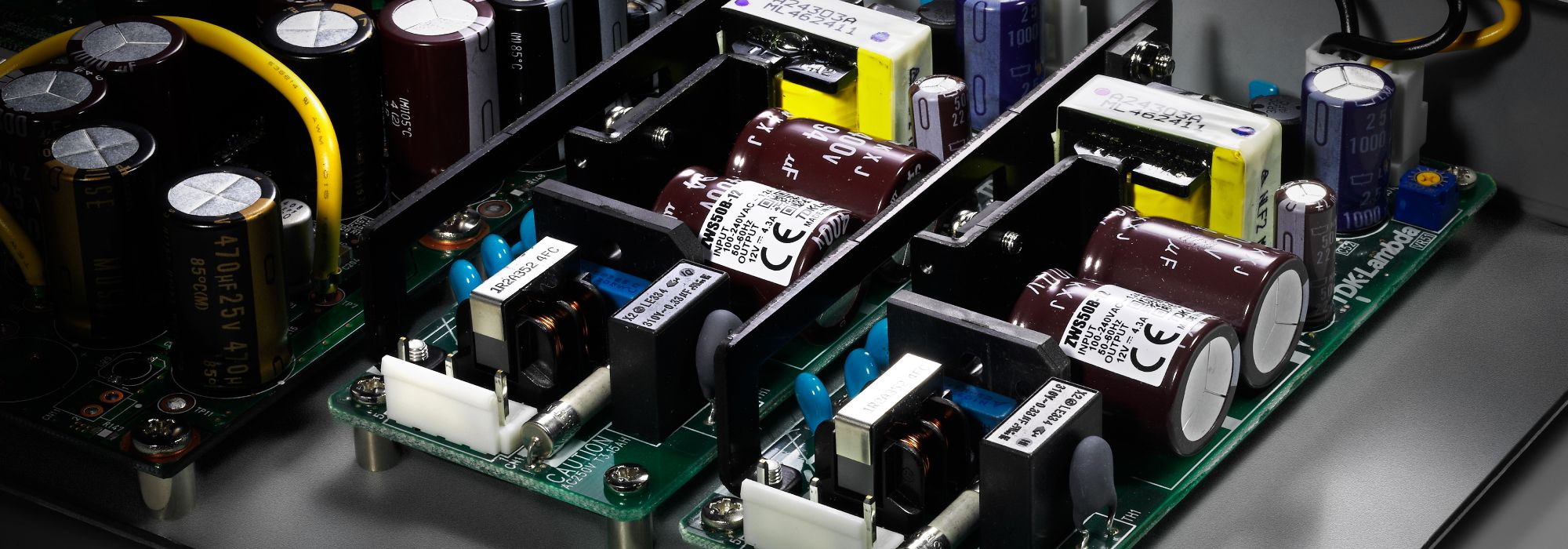

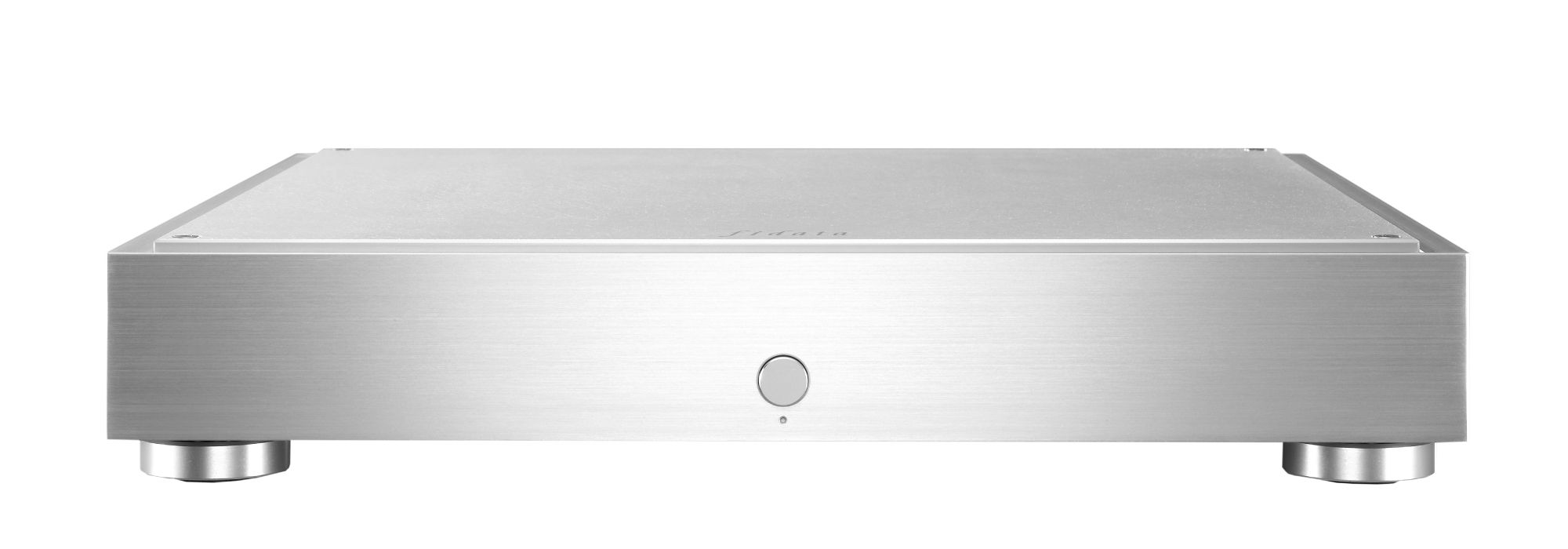

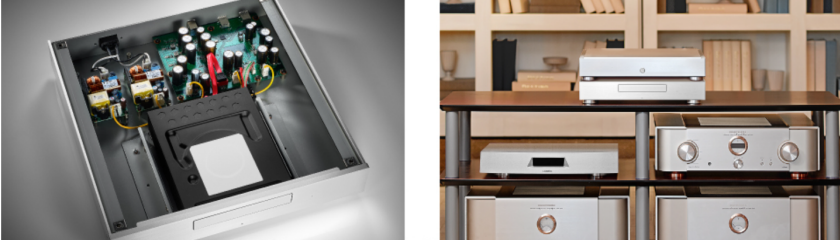

The fidata HFAS1 is a network audio server that was engineered so that you can enjoy high-end audio. You can see evidence of our meticulous, iterative approach from the materials chosen for the chassis to the design of the unit's circuit board and its individual components. This product is the cumulative result of numerous prototypes and countless trial listening sessions. The result is an exceptional level of audio quality that befits the unit's high-end name, packaged in an impressive chassis from which every hint of waste has been pared.

the cumulative result of numerous prototypes and countless trial listening sessions. The result is an exceptional level of audio quality that befits the unit's high-end name, packaged in an impressive chassis from which every hint of waste has been pared. HFAS1-S10U Take the chassis, for example. The austere exterior, from which all traces of ornamentation—even a display—have been excised, represents an inevitable form that has reached the limits that come from a single-minded drive to recreate ideal sound. In each capacitor, in the circuit board layout: everywhere you look, you'll find thoughtful dedication to details.This is a network audio server that's not afraid to call itself high-end. Operating environment(for configuration of Twonky Server operation and HFAS1 settings, etc.) Computers Supported operating systems Windows 10 (32- / 64-bit) Windows 8.1 (32- / 64-bit) Windows 8 (32- / 64-bit) Windows 7 (32- / 64-bit) OS X 10.7 to 10.11 Supported browsers Internet Explorer 9 / 10 / 11 Microsoft Edge 25 Safari 6 / 7 / 8 / 9 Smartphones Supported operating systems iOS 7.0.4 ~ 9.3.1 Android 4.1 ~ 6.0.1 Supported file formats (extensions) wav, mp3 , wma , m4a , m4b , ogg , flac , aac , mp2 , ac3 , mpa , aif , aiff , dff , dsf Hardware specifications LAN interface Transmission standards Connectors 1000BASE-T / 100BASE-TX / 10BASE-T RJ-45 ☓ 2 (Auto MDI / MDI-X compatible) USB ports Connectors USB2.0 ☓ 1 Networking Standard compliance UPnP AV, DLNA 1.5 Supply voltage AC100V-240V 50 / 60Hz Power connector 3-pin inlet Power consumption Rated for 25 W External dimensions (excluding protruding parts) Approx. 350 (W) ☓ 350 (D) ☓ 64 (H) mm Weight Approx. 6 kg Operating temperature range 5℃ to 35℃ Operating humidity range 20% to 85% (non-condensing) Accessories Power cords (3 types), user manual Product warranty 2 years from date of purchase

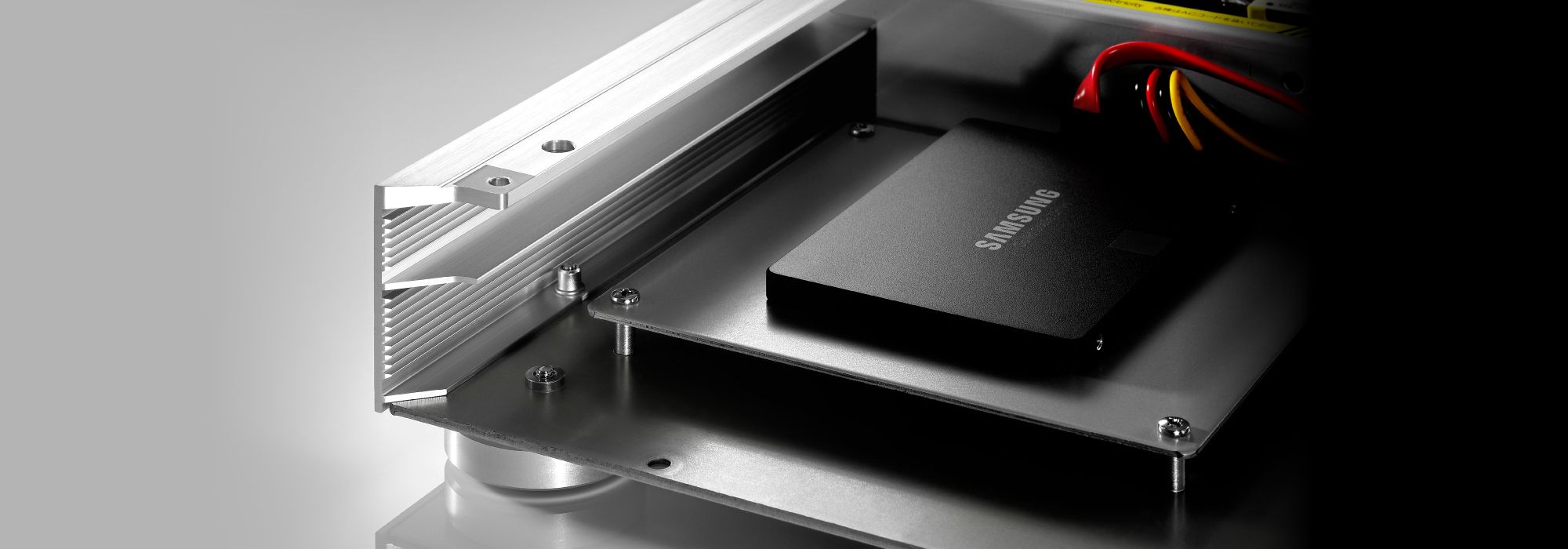

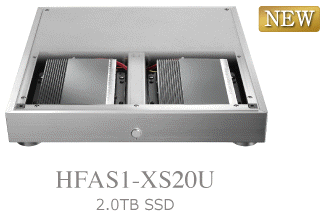

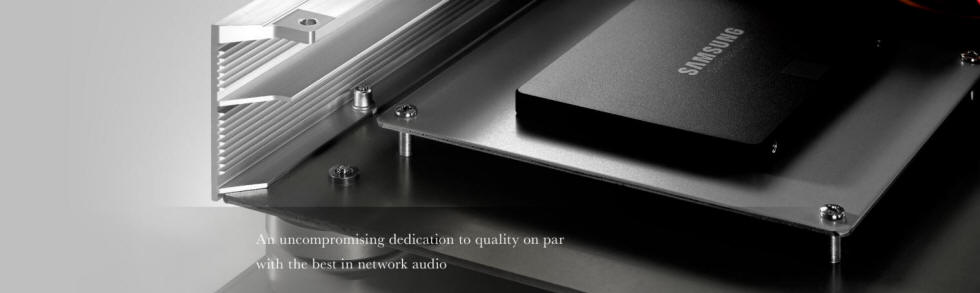

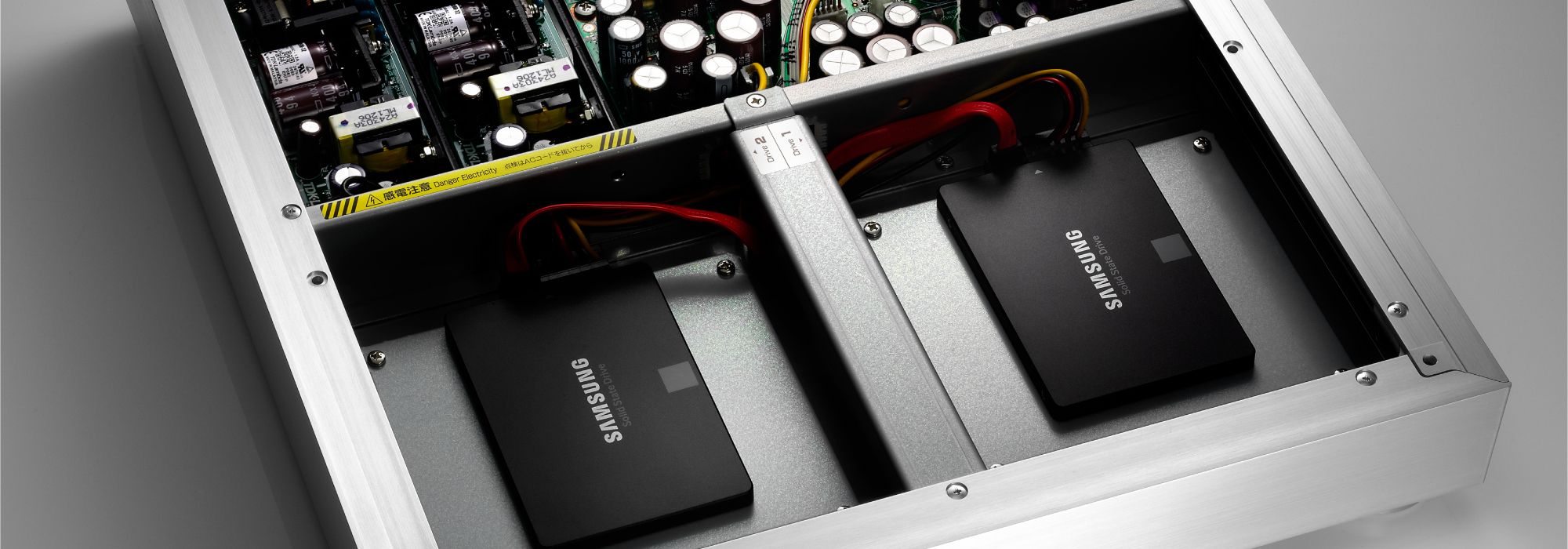

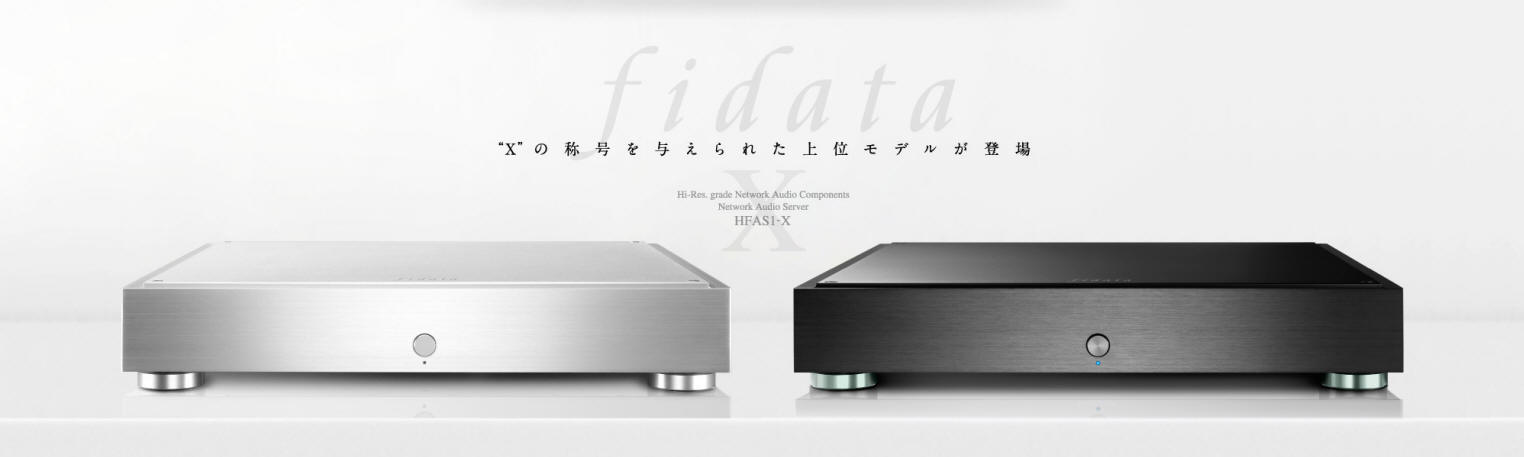

The HFAS1-XS20U builds on the basic design of the popular HFAS1-S10U by adding an X-Cluster SSD unit designed specifically to deliver high 2 TB storage capacity and the high level of quality required by audio applications. This high-end fidata network audio server also utilizes a steel chassis that’s 3.2 mm thick for significantly higher rigidity so that it can deliver an even higher level of performance. *Apart from the X-Cluster SSD, the HFAS1-XS20U shares its circuit design and software with the HFAS1-S10U. X-Cluster SSD unit designed specifically for audio applications Instead of simply utilizing a single, large SSD, fidata incorporates a new technology known as X-Cluster Storage Technology to deliver high storage capacity along with the high quality required of audio components. Dedicated X-Cluster SSD unit for audio The X-Cluster SSD was developed specifically for the HFAS1-XS20U. This cluster stripes data uniformly across two SSDs. The resulting ability to access data uniformly across all SSDs in the cluster smooths the load on the power supply load by limitingdeviations in power consumption. In addition, the HFAS1-XS20U features a pair of dedicated linear power conditioners that provide clean power. X-Cluster Storage Technology Designers of audio devices must exercise maximum care with regard to power supplies. Featured in the HFAS1-XS20U, X-Cluster Storage Technology is a new, proprietary fidata technology developed from an audio storage perspective to deliver high SSD storage capacity, a more stable power supply, and reduced noise.The HFAS1-XS20U uses a steel plate that is 3.2 mm thick to increase its chassis rigidity. We revisited both the material and the surface finish of the base steel plate, which is 1.4 times thicker than the previous design. The new model’s hot-rolled steel features a black chromate finish, preserving the fidata’s well-received appearance while maximizing its chassis rigidity. HFAS1-XS20U Hardware specifications LAN interface Transmission standards Connectors 1000BASE-T / 100BASE-TX / 10BASE-T RJ-45 × 2 (Auto MDI / MDI-X compatible) USB ports Connectors USB2.0 × 1 Networking Standard compliance UPnP AV, DLNA 1.5 Supply voltage AC100V-240V 50 / 60Hz Power connector 3-pin inlet Power consumption Rated for 32 W External dimensions (excluding protruding parts) Approx. 350 (W) × 350 (D) × 65 (H) mm Weight Approx. 7.3 kg Operating temperature range 5℃ to 35℃ Operating humidity range 20% to 85% (non-condensing) Accessories Power cords (3 types), user manual Product warranty 2 years from date of purchase

"Soundgenic" è un server audio di rete con funzionalità di server multimediale e lettore USB-DAC. Soundgenic è generosamente dotato di tecnologia software coltivata sotto il marchio audio “fidata”, chiamato per affidabilità. Realizza il tuo ambiente musicale ideale, da CD e importazione ad alta risoluzione a playbac.Con il supporto exFAT e il supporto di dispositivi di archiviazione multipla (massimo 3 dispositivi), i dati possono essere trasferiti alla memoria incorporata di un lettore audio portatile (DAP) con specifica multi-storage e schede SD (comprese le schede SDXC). Impeccabile nella realizzazione specificatamente pe il mondo HIFI. L'interno dello chassis utilizza lamiere spesse 1,2 mm che sono 1,5 volte quello dello spessore convenzionale di 0,8 mm. Ha un telaio ad alta resistenza, sopprime le vibrazioni e distribuisce in modo efficiente il calore in tutto il telaio senza una ventola. Il risultato è una relizzazione hi-end. Piedini in gomma che sopprimono le vibrazioni Il fondo essendo dotato di piedini in gomma semisferic riduce la quantità di contatto diretto con la superficie del piano , riducendo la quantità di vibrazioni esterne trasmesse all'interno. LED con soppressione della luminosità Oltre a un'area di illuminazione ridotta, il LED che è visibile durante la riproduzione di musica è stato progettato con luminosità soppressa Presenta una finitura sottile che crea un profilo che non richiede troppa attenzione quando viene posizionato in un luogo in cui verrà visto, ad esempio su un rack audio. Sistemi operativi supportati Browser supportati Browser supportati Sistemi operativi supportati (fidata Music App) Sistemi operativi supportati Windows 10 / Windows 8.1 / Windows 8 / Windows 7 macOS X 10.7 ~ 10.11, macOS 10.12 ~ 10.15 Internet Explorer 9/10/11 Microsoft Edge 40 Safari 6/7/8/9/10/11 iOS 8.0.2 ~ 13 Android 4.1 ~ 10.0 Browser costruito per ogni sistema operativo iOS 10 ~ 13 Android 6.0 ~ 10.0 wav, mp3, wma, m4a, m4b, ogg, flac, aac, mp2, ac3, mpa, aif, aiff, dff, dsf Formato PCM (44,1 kHz, 48 kHz, 88,2 kHz, 96 kHz, 176,4 kHz, 192 kHz, 352,8 kHz, 384 kHz, 705,6 kHz, 768 kHz) Formato MDSD (DoP) (2,8 MHz, 5,6 MHz, 11,2 MHz) Formato MDSD (DirectDSD) (2,8 MHz, 5,6 MHz, 11,2 MHz, 22,5 MHz) Formato MPCM (16 bit, 24 bit, 32 bit) Formato MDSD (DoP, DirectDSD) (1 bit) Specifica: interfaccia LAN Porta MUSB Rete Tensione di alimentazione Dimensioni esterne Peso Intervallo temperatura di funzionamento Intervallo umidità di funzionamento MAccessori 1000BASE-T / 100BASE-TX / 10BASE-T RJ-45 x 1 (Auto MDI / MDI-X compatibile) MUSB 3.1 Gen 1 (USB 3.0) x 1, USB 2.0 x 1 MU PnP AV, DLNA 1.5 MAC 100 V ~ 240 V 50/60 Hz M168 (L) x 134 (P) x 43 (A) mm MHDL-RA4TB: ca. 1,3 kg, HDL-RAS2T: circa. 650 g da M5 ℃ a 35 ℃ M dal 20% all'85% (senza condensa) Adattatore MAC, cavo CA di tipo 3, cavo LAN, manuale utente

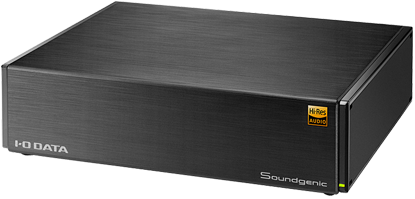

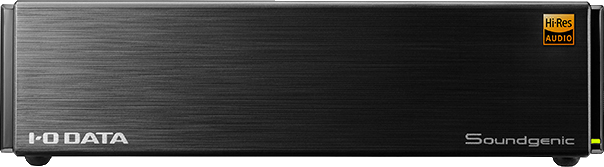

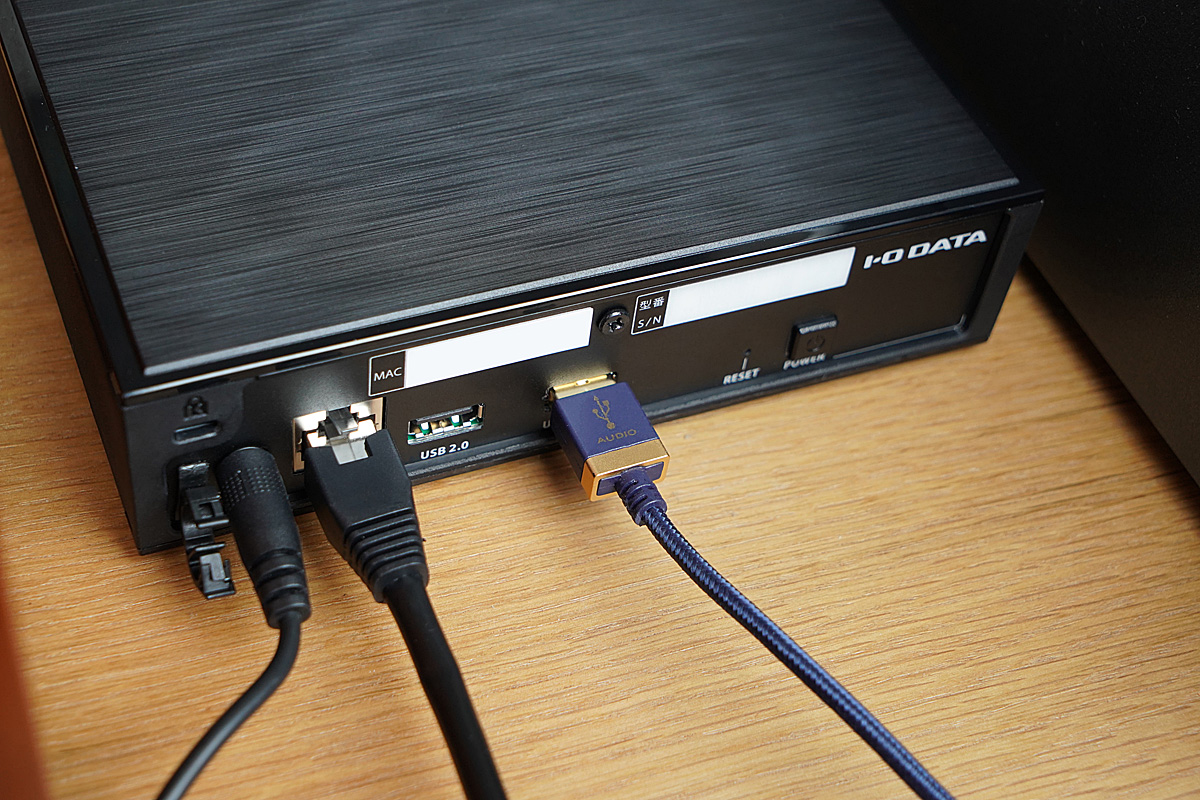

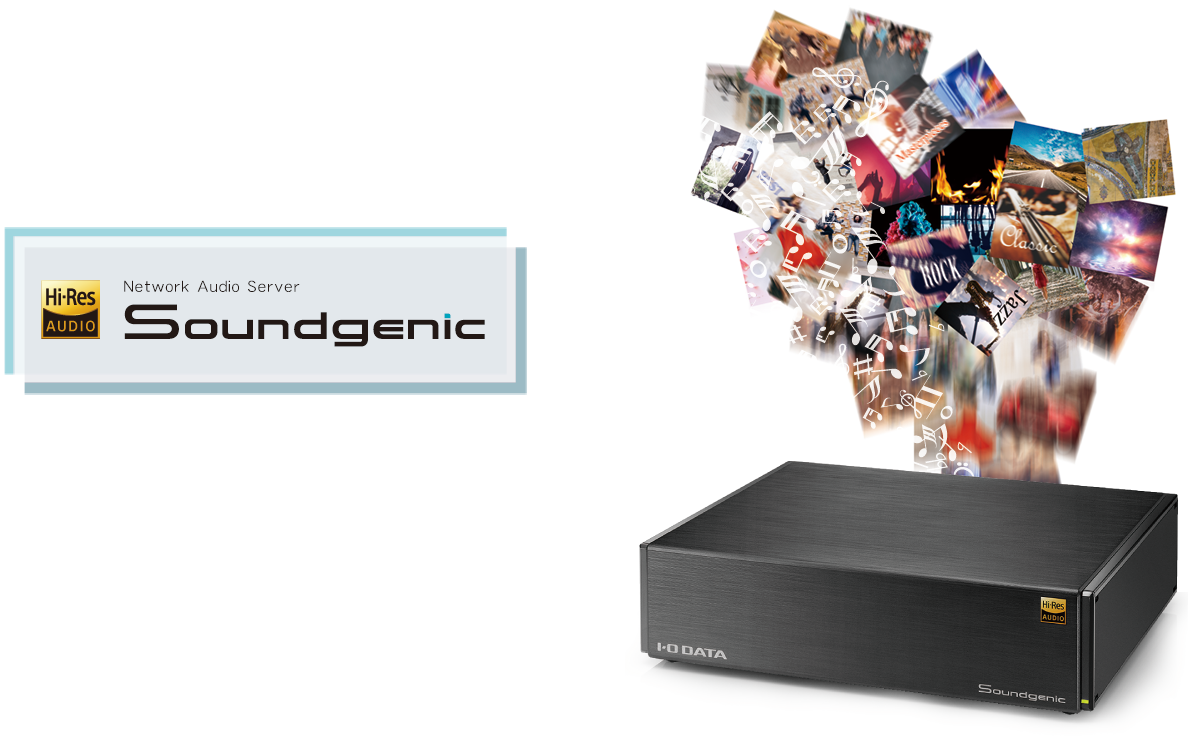

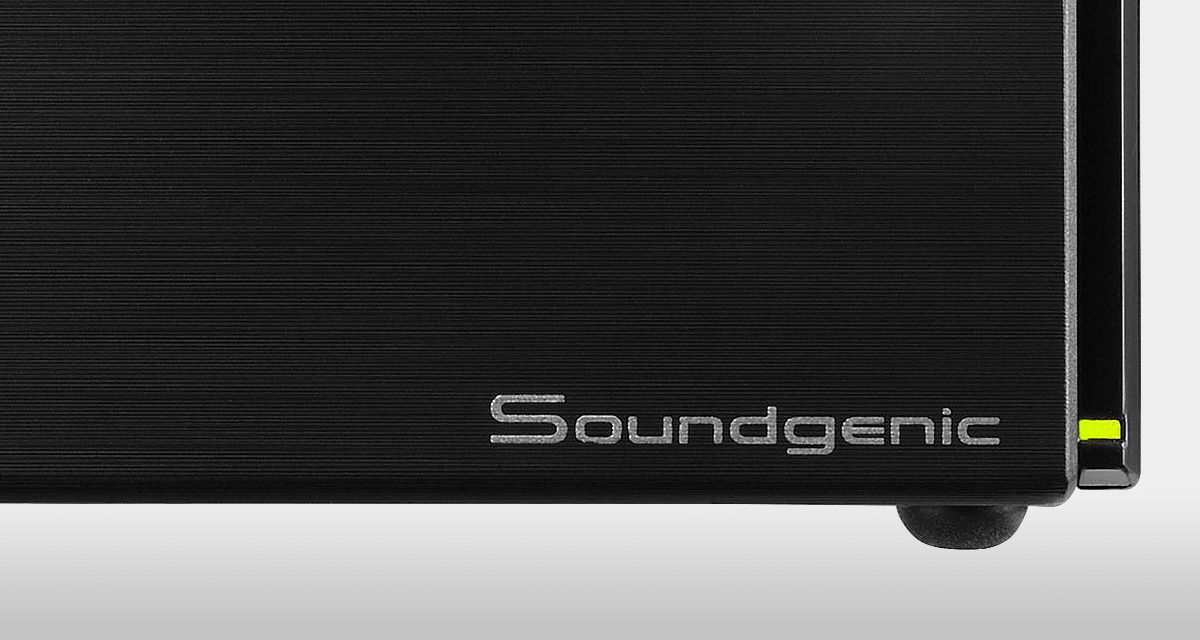

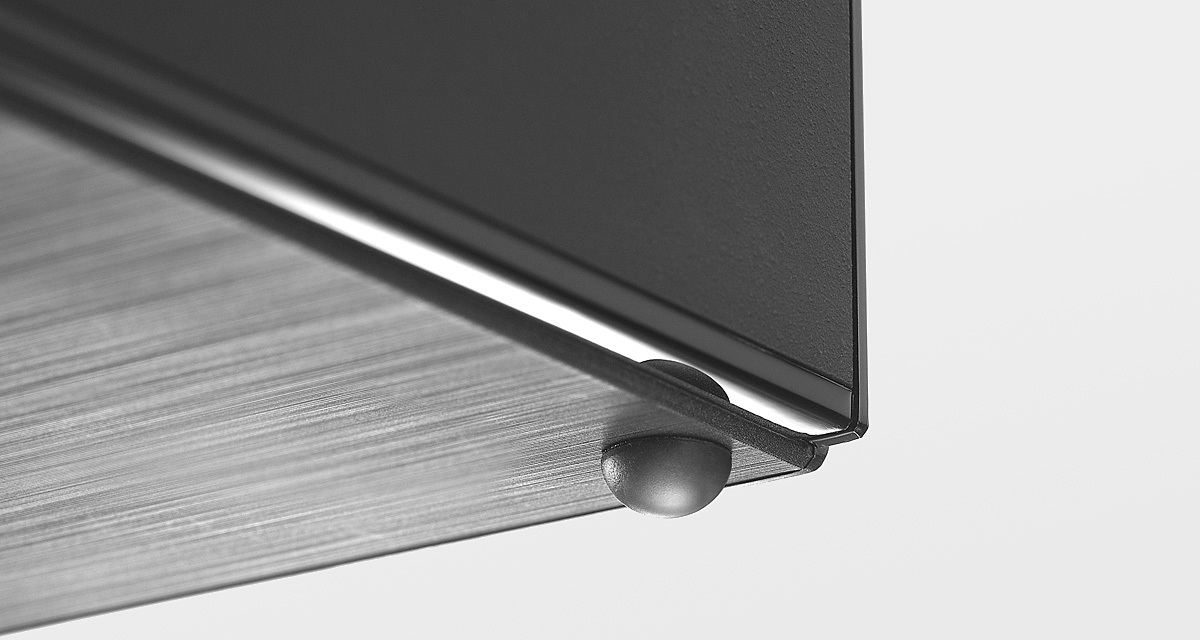

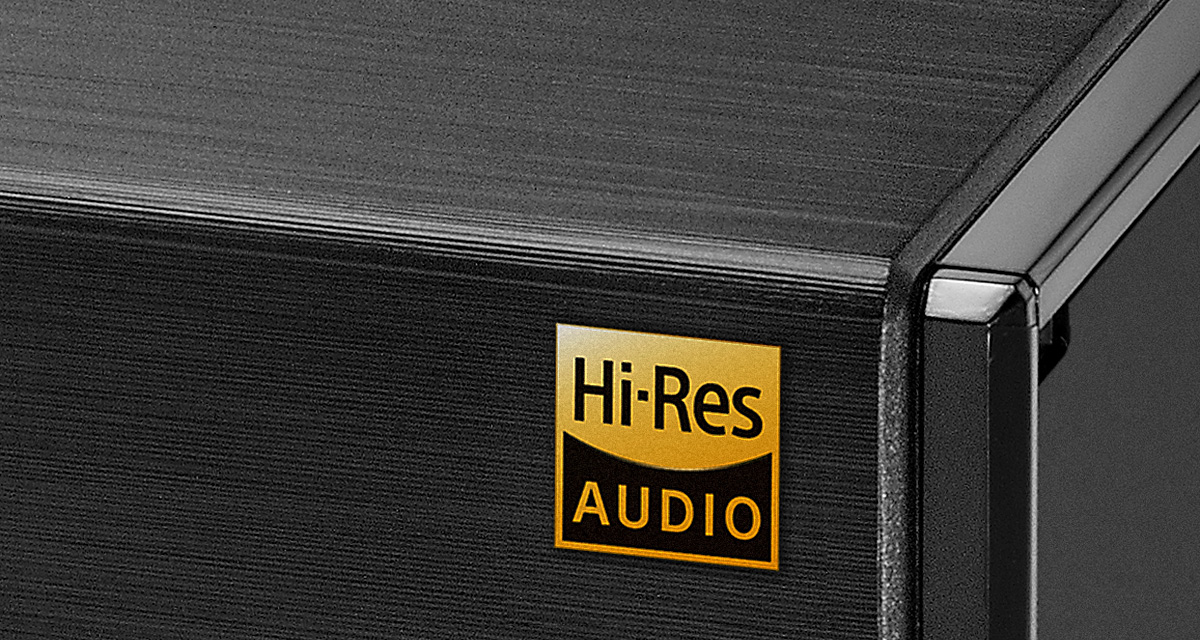

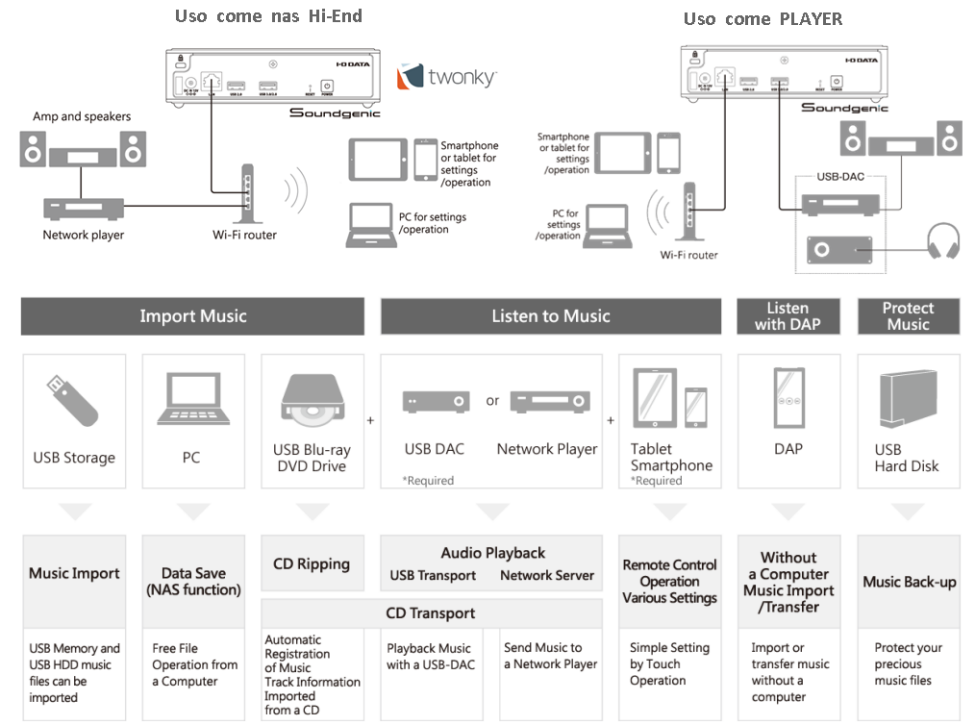

"Soundgenic" is a network audio server with media server and USB-DAC player functionality. Soundgenic is generously equipped with software technology cultivated under the “fidata” audio brand, named for reliability. Realize your ideal music environment, from CD and high resolution importing to playbac.With exFAT support and multi-storage device support (maximum of 3 devices), data can be transferred to the built-in memory of a portable audio player (DAP) with multi-storage specification, and SD cards (including SDXC cards).Fanless Realize a peaceful audio environment The chassis interior utilizes 1.2 mm thick sheet metal that is 1.5 times that of the conventional thickness of 0.8 mm. It has a high-strength chassis, suppresses vibrations, and efficiently distributes heat throughout the entire chassis without a fan. The result is a peaceful audio environment.Vibration suppressing rubber feet The bottom is fitted with hemispherical rubber feet. By reducing the amount of direct contact with the ground surface, they reduce the amount of outside vibration transmitted to the interior.Brightness suppressed LED As well has having a reduced illumination area, the LED that is visible while playing music has been designed with suppressed brightness.Features a hairline finish that creates a profile that won’t demand too much attention when placed in a location where it will be seen, such as on an audio rack. Supported operating systems Supported browsers Supported browsers Supported operating systems (fidata Music App) Supported operating systems Windows 10/Windows 8.1/Windows 8/Windows 7 macOS X 10.7~10.11, macOS 10.12~10.15 Internet Explorer 9/10/11 Microsoft Edge 40 Safari 6/7/8/9/10/11 iOS 8.0.2~13 Android 4.1~10.0 Built browser of each OS iOS 10~13 Android 6.0~10.0 wav, mp3 , wma , m4a , m4b , ogg , flac , aac , mp2 , ac3 , mpa , aif , aiff , dff , dsf PCM format (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz) MDSD format (DoP) (2.8MHz, 5.6MHz, 11.2MHz) MDSD format (DirectDSD) (2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz) MPCM format (16bit, 24bit, 32bit) MDSD format (DoP, DirectDSD) (1bit) Specification: LAN interface MUSB port Networking Supply voltage External dimensions Weight Operating temperature range Operating humidity range MAccessories 1000BASE-T/100BASE-TX/10BASE-T RJ-45 x 1 (Auto MDI/MDI-X compatible) MUSB 3.1 Gen 1 (USB 3.0) x 1, USB 2.0 x 1 MUPnP AV, DLNA 1.5 MAC100V~240V 50/60Hz M168 (W) x 134 (D) x 43 (H) mm MHDL-RA4TB: Approx. 1.3 kg, HDL-RAS2T: Approx. 650 g M5℃ to 35℃ M20% to 85% (Non condensing) MAC adapter, 3 type AC cord, LAN cable, Users manual

Telefona o invia un e-mail per avere l'ultima offerta 0174 670100 Telefona o invia un e-mail per avere l'ultima offerta 0174 670100 info@newaudio.it

Questi cavi LAN Cat 6A, progettati appositamente per l'uso in applicazioni audio, sono dotati di un MFP8 schermato RJ45, spina placcata in oro di Telegärtner Japan Limited. I cavi a sezione concentrica con un diametro di 7 mm con n. 26 conduttori AWG di grado realizzati in rame argentato privo di ossigeno (OFC) fanno parte di una serie di peer intrecciati e un design reversibile assicura che i cavi siano facili da installare. Sottoposti a un rigoroso controllo al 100% in un impianto certificato in Giappone per garantire che soddisfino il nostro standard di qualità, questi cavi offrono una qualità di trasmissione eccezionale.

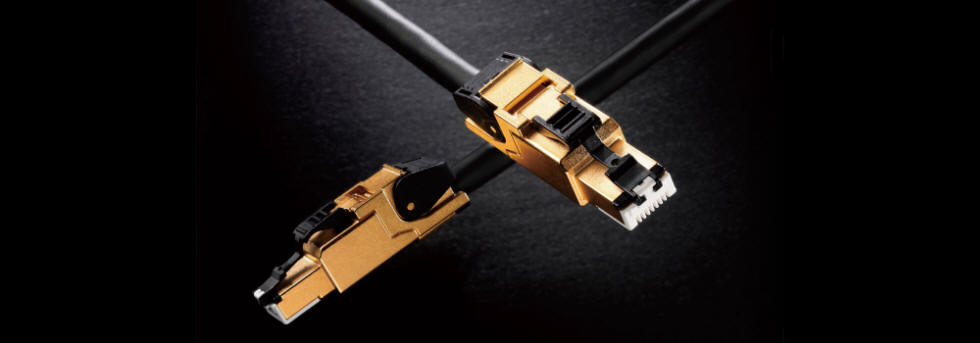

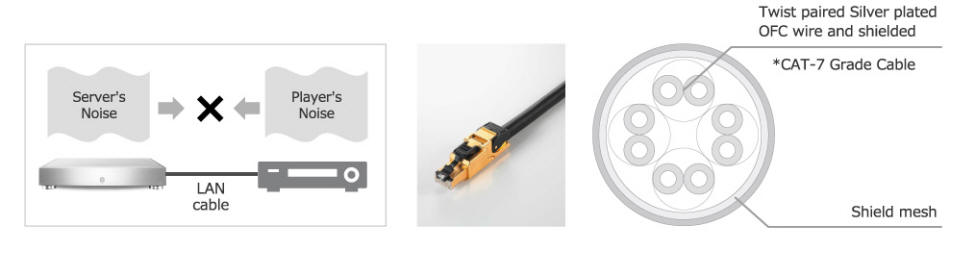

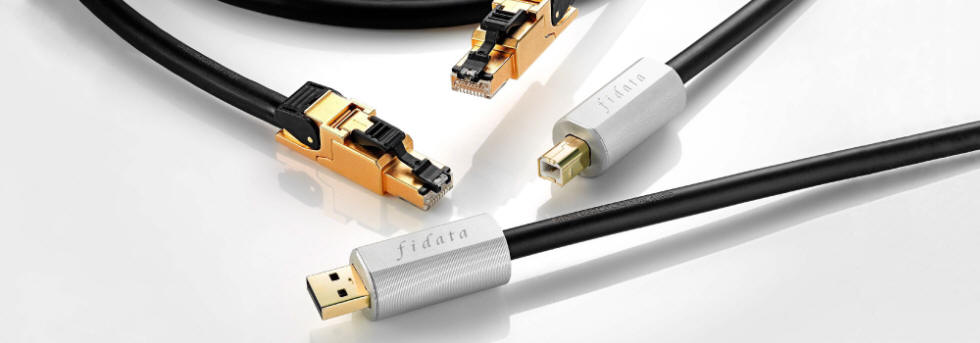

These Cat 6A LAN cables, which are designed speciﬁcally for use in audio applications, feature an MFP8 RJ45 shielded, gold-plated plug by Telegärtner Japan Limited. Concentric-cross-section cabling with a diameter of 7 mm holding No. 26 AWG grade conductors made of Silver-plated oxygen-free copper (OFC) are separated into a series oftwisted pairs, and a reversible design ensures the cables are easy toinstall. Subjected to a rigorous, 100% inspection at a certiﬁed plant in Japan to ensure that they meet our quality standard, these cables deliver exceptional transmission quality.

Telefona o invia un e-mail per avere l'ultima offerta 0174 670100 Telefona o invia un e-mail per avere l'ultima offerta 0174 670100 info@newaudio.it

Questi cavi USB 2.0 per applicazioni audio dispongono di connettori USB placcati in oro e implementano la specifica USB 2.0 ad alta velocità. Ogni connettore USB presenta un involucro in alluminio lavorato che fornisce peso per limitare le minuscole vibrazioni che potrebbero influire sulla connessione. Cavi indipendenti a sezione concentrica con un diametro di 7 mm che tengono conduttori dedicati di grado 24 AWG realizzati in rame argentato privo di ossigeno (OFC) sono utilizzati per linee di alimentazione e di segnale e un design reversibile assicura che i cavi siano facili installare. Sottoposti a un'ispezione rigorosa al 100% in un impianto certificato in Giappone per garantire che soddisfino il nostro standard di qualità, questi cavi offrono una qualità di trasmissione eccezionale

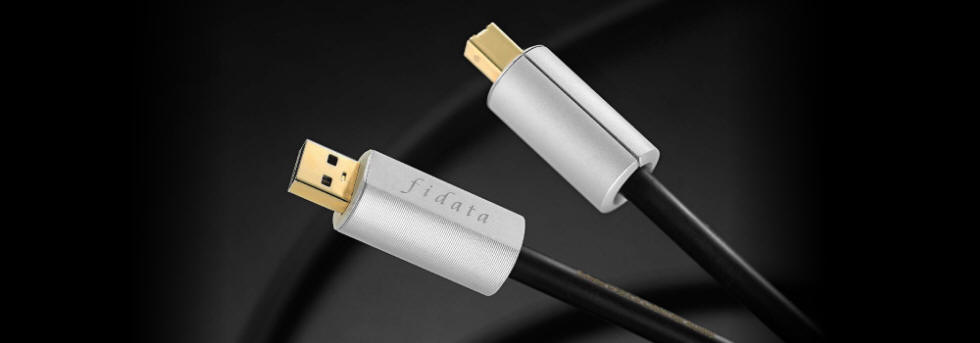

These USB 2.0 cables for audio applications feature gold-plated USB connectors and implement the USB 2.0 High Speed speciﬁcation. Each USB connector features a machined aluminum enclosure that provides weight to limit minuscule vibrations that could affect the connection. Independent concentric-cross-section cables with a diameter of 7 mm holding dedicated No. 24 AWG grade conductors made of Silver-plated oxygen-free copper (OFC) are used for power and signal lines, and a reversible design ensures the cables are easy to install. Subjected to a rigorous, 100% inspection at a certiﬁed plant in Japan to ensure that they meet our quality standard, these cables deliver exceptional transmission quality.

Telefona o invia un e-mail per avere l'ultima offerta 0174 670100 Telefona o invia un e-mail per avere l'ultima offerta 0174 670100 info@newaudio.it

The HFAS1 is a one-stop digital audio solution that delivers an audio-quality media server, USB DAC compatibility (network transport), CD ripping, and CD transport functionality in addition to capabilities ranging from music import and playback to data protection. By giving you the freedom to combine components as desired, HFAS1 makes it possible to create an audio system that reflects your own individuality.

In the world of high-resolution audio, components must realistically recreate every detail, right down to the performer’s breaths, and the atmosphere of the studio or concert hall. Today, a revolution in audio is making it possible to enjoy the overwhelming presence of original recordings in the comfort of your own home for a reasonable price.

Closing in on the ultimate in sound quality with high-resolution audio

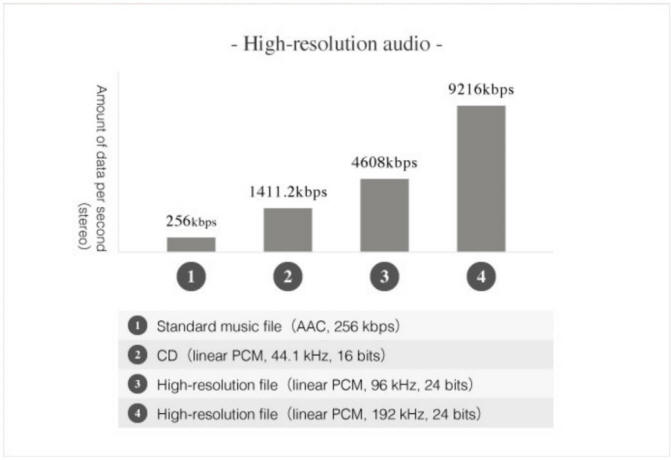

The debut of high-resolution audio files that contain more than four times the data of CDs sparked great excitement and joy among all those who love music. The sound quality made possible by that immense amount of data goes far beyond the limits of CD media to deliver a difference that is clear and surprising by every measure, including sound image localization, transparency, and resolution

Anyone can now download high-resolution audio files with the ultimate level of quality from the Internet. With the debut of such files, we have moved into an era of “media-less” playback in which it is possible to download high-data rate music that has been freed from the recording capacity constraints of physical media such as CDs, store it on computer hard disks, and listen to it using dedicated players

The shortcoming of this playback method is its interposition of a computer into the audio system.
Computers pose a variety of issues for audio purists, ranging from difficult connections and settings to complex operation and intractable noise issues.

These problems were resolved with the advent of network audio components that play audio directly from hard disks that are connected to networks (network-attached storage, or NAS).
Under this paradigm, audio files are stored in a library on an NAS device, and mobile handsets such as smartphones are used as controllers to intuitively download, manage, and play the files.
In this way, network audio has exceeded the CD in terms of ease of use.

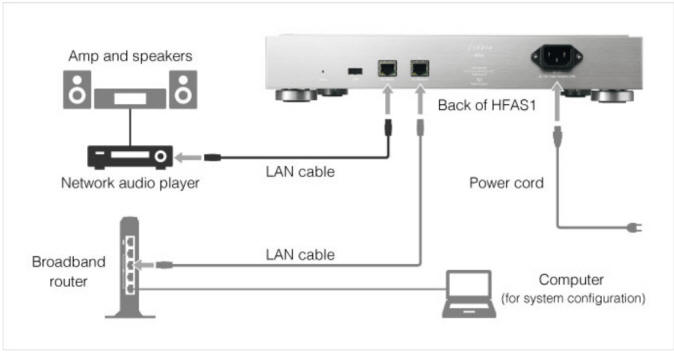

The fidata HFAS1 is a network-attached storage (NAS) appliance designed specifically for network audio. This type of device, which is an essential part of any network audio setup, is known as a network audio server.

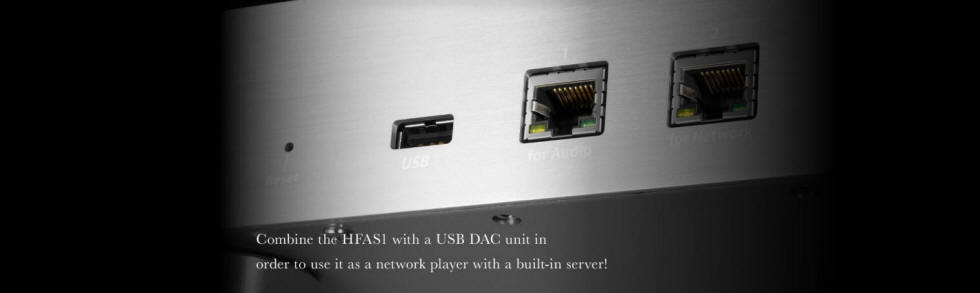

Combine the HFAS1 with a USB DAC unit in order to use it as a network player with a built-in server

You can use the HFAS1 as a PCM/DSD-compatible network audio player with a built-in server by connecting it to an audio device with a USB DAC (for example, a standalone unit, CD player amp, or headphone amp).
In this configuration, you can choose tracks and control playback from a DLNA- or OpenHome Media-compliant controller app on a smartphone or tablet.
Build the system that's right for you by picking a DAC to handle the sound and a controller to handle the user interface... now there are even more possibilities for enjoying your music.

The HFAS1 can be combined with any of a number of USB Audio Class 2.0-compliant USB DACs whose compatibility has been confirmed.
Since you can choose a DAC that has the sound characteristics you like, you can build a unique network audio system that suits your own usage environment.

By adding the HFAS1 to their setups, listeners who have been wavering over whether to buy a high-grade network audio player can enjoy network audio while using the USB DAC they already have.
With robust server and playback functionality at a reasonable price, the HFAS1 is the ideal choice for listeners who are looking into the world of high-resolution audio for the first time.

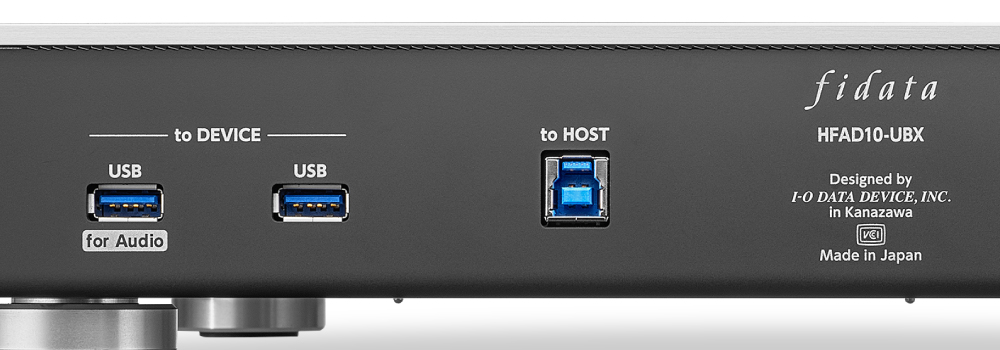

High-quality audio data output, even over a USB connection
USB DACs are typically used with ordinary computers, which aren't generally designed from an audio perspective, so listeners may not be able to enjoy the full benefit of the DAC's capabilities.
Since it's designed as an audio device, the HFAS1 delivers high-quality data output, including from its USB port.
The unit taps the latent capability of USB DACs, without difficult settings.

USB Audio Class 2.0 support
Simply connect a standard USB Audio Class 2.0-compliant USB DAC to the HFAS1's USB port. The unit will automatically recognize the DAC, allowing the HFAS1 to function as a network audio player.
List of devices and apps whose USB DAC compatibility has been confirmed
Network renderer function
The HFAS1 provides two playback modes (OpenHome and DMR) from which the user can select on the setup screen.
OpenHome mode
This mode allows use of OpenHome Media-compliant controller apps.
DMR mode
This mode allows use of DLNA-compatible digital media controller (DMC) apps.
PCM output
The HFAS1 can output 16-bit/24-bit and 32-bit float/integer PCM data at a maximum sampling rate of 384 kHz, enabling it to output WAV, AIFF, FLAC, and M4A (Apple Lossless) audio data without degradation.
*Playback performance depends on the USB DAC used.
DSD output
The HFAS1 supports native DSD output using DoP (DSD Audio over PCM Frames), allowing it to generate 2.8 MHz, 5.6 MHz, and 11.2 MHz DSD output.
This capability allows the unit to output DSD audio data (in both DSF and DFF formats) without degradation.
*Playback performance depends on the USB DAC used.
On-device playlists
In OpenHome mode, on-device playlist support allows playlists to be saved on the HFAS1.
Even if the controller app is exited during playback, the HFAS1 will continue playback based on the playlist.
Gapless playback
When used with a compatible application, the HFAS1 supports gapless playback, allowing natural playback of live recordings and other audio recorded without gaps between tracks.
*Supported file formats: WAV, AIFF, M4A (ALAC), FLAC, DSF, and DFF.
*Gapless playback is limited to tracks of the same file format, bit depth, and sampling rate.
*Gapless playback is not supported for 11.2 MHz DSD files (as of March 2016).
Supported file formats (extensions)

Support for DSD files as well as WAV and FLAC
Twonky Server 7 adds support for DSD (DFF and DSF) files at bitrates of up to 11.2 MHz to existing support for PCM (WAV) and FLAC files at bitrates of up to 384 kHz (32-bit resolution).

DLNA certified
The Digital Living Network Alliance (DLNA) has formulated a series of guidelines to simplify audio and video playback using audiovisual components as well as computers, smartphones, tablets, and other network-connected devices from various manufacturers.

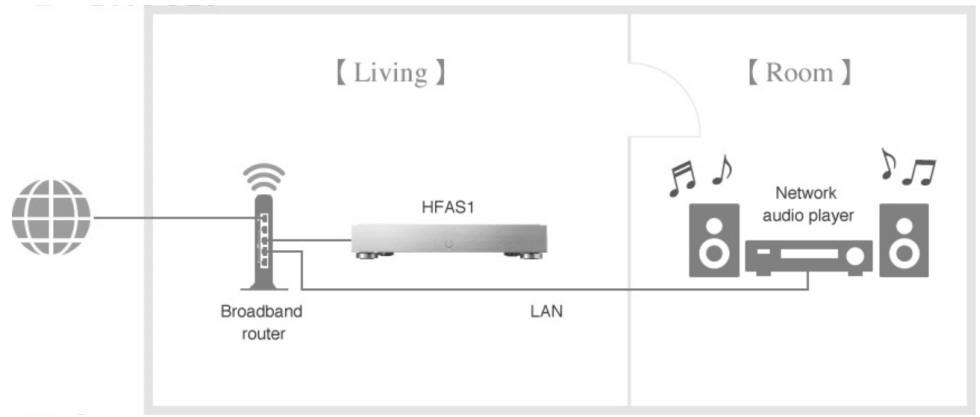

Music files stored on the HFAS1 can be played back on multiple DLNA-compliant devices connected to users' wireless and wired networks.
For example, a user could enjoy music stored on an HFAS1 in the living room on a network audio player in another room.
dlna

Customized Twonky Server 7 for enhanced ease of use
The HFAS1 uses Twonky Server 7, the de facto standard for music management, transmission, and distribution.
The software is highly compatible with various manufacturers' network players and known for its ease of use.
Twonky Server 7's extensive functionality includes a navigation tree function that facilitates fine-grained sorting of large numbers of music files as well as the ability to display high-resolution album art. The HFAS1's version of the server has been customized to properly display song and artist names and to display songs and album tracks in the proper order. The software delivers a level of ease of use and scalability that were unthinkable during the age of disc media such as CDs.

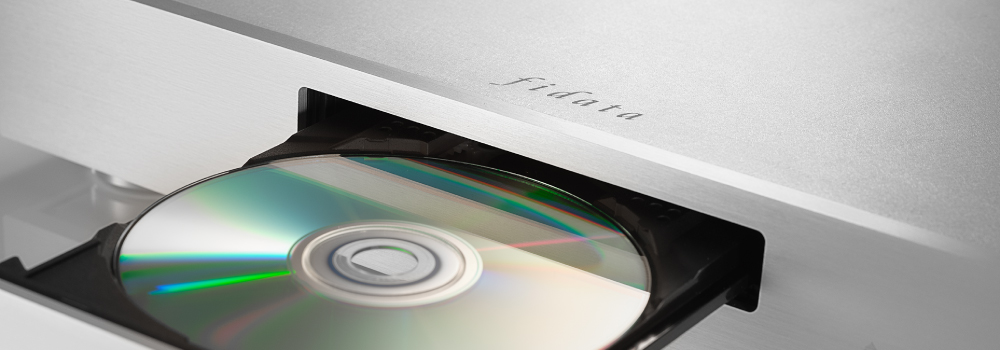

The kind of high-precision CD ripping you expect from a high-end system and CD transport function as only network audio can provide

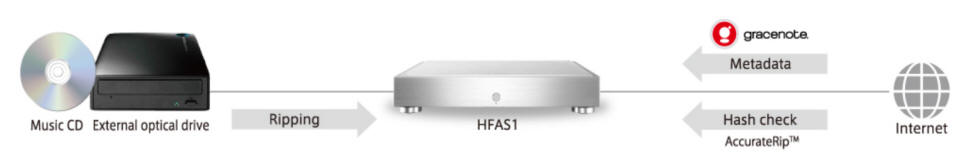

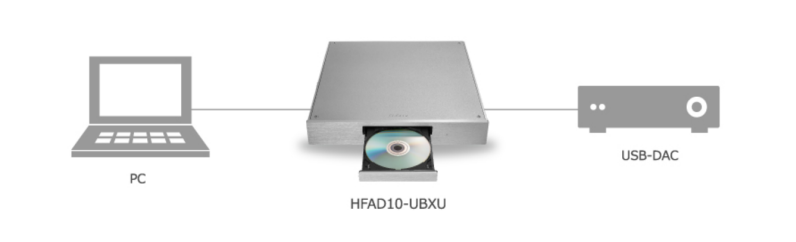

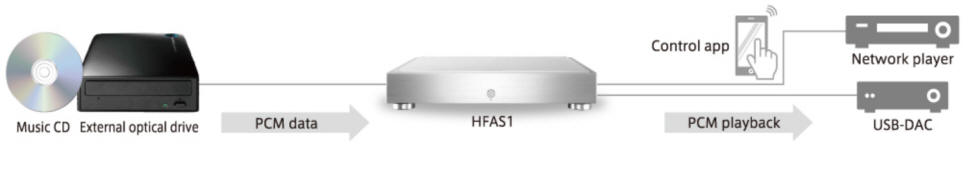

The fidata’s CD ripping function allows you to rip music CDs to the HFAS1 without a computer. Simply connect an external USB DVD/Blu-ray drive to the fidata. The fidata’s meticulously designed CD ripping function combines the convenience of being able to automatically acquire track information and album art with the press of a single button with bit-perfect ripping performance. •Start ripping quickly and easily by simply pressing the button on the fidata (automatic configuration of the ripping process is also supported). •Save data as either WAV or FLAC files in the PCM format (44.1 kHz/16 bits). •When using the FLAC format, choose from three compression levels, including an uncompressed option. •Track information and album art are automatically acquired from the Gracenote® Music ID® service. •The fidata works with the AccurateRip™ track data comparison database to ensure every copy is bit-perfect. •If verification fails, the fidata will try again automatically after changing the ripping settings. •Once ripping completes, the disc is automatically ejected from the DVD/Blu-ray drive. *An Internet connection is required in order to use Gracenote® Music ID® and AccurateRip™. *The AccurateRip™ service utilized by this product accesses CD ripping data provided by the UK company Illustrate Limited. This service is subject to termination in the future without notice. In the event the service is terminated, all aspects of the CD ripping function other than access to AccurateRip™ will continue to function as before

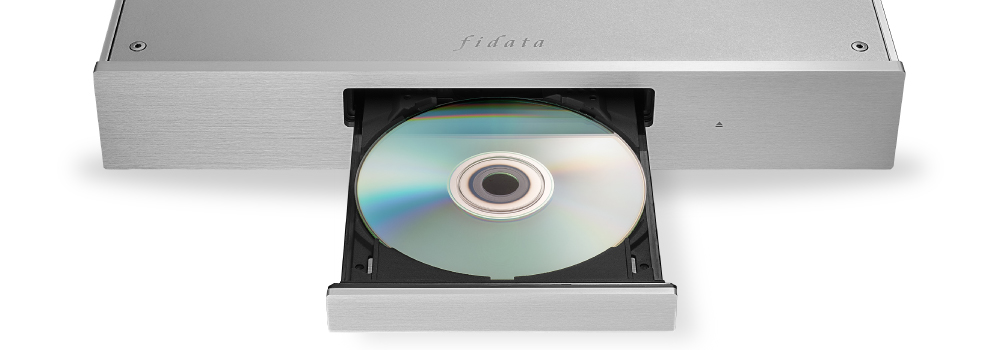

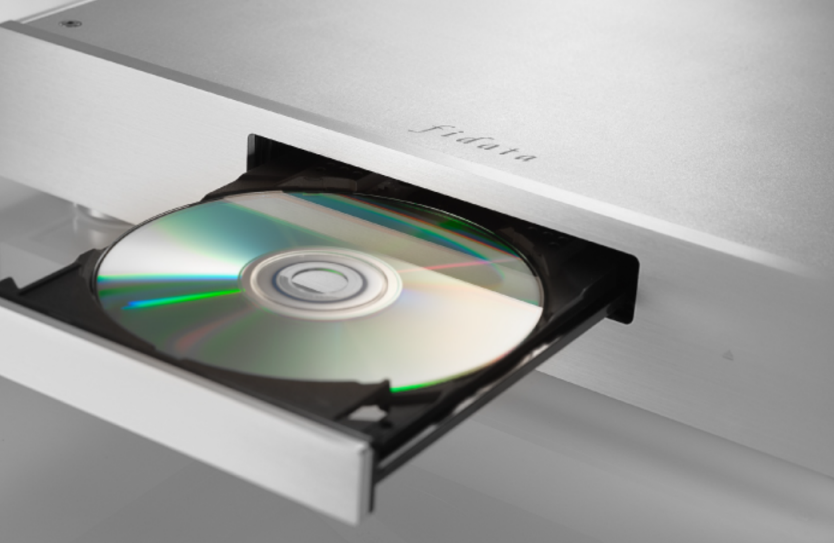

The fidata CD transport function lets you share music CDs over the network so that they can be played directly by other connected devices. By combining track information and album art acquired from the Gracenote® Music ID® service with a music CD that has been loaded into a USB-connected DVD/Blu-ray drive and sending the data over the network, the fidata lets you enjoy listening to the CD on a supported USB DAC or network audio player. •The CD will show up as “#CD: Album title” under “Folders” in the media tree. Music CDs can be played via either a USB DAC connection*1 or a network player connection. *A USB hub is required in order to play a music CD via a USB DAC connection. •You can choose tracks on the music CD by name rather than number. •You can control music CD playback using the control app or other means, just as with network audio. *1 An Internet connection is required in order to use Gracenote® Music ID® and AccurateRip™. *An Internet connection is required in order to display track titles (via the Gracenote® Music ID® service).

The HFAS1's implementation of Twonky Server is designed for use in audio applications and comes configured to distribute high-resolution album art in its standard configuration. Users can enjoy beautiful album art on supported devices whose compatibility has been confirmed without needing to make any difficult settings.
