Chi conosce il suono conosce KEF.È un nome che impone
rispetto perché non siamo mai stati un costruttore del tipo "anch'io". Sin dagli
albori dell'hi-fi, il nostro approccio è stato guidato da una fiducia
appassionata nel potere dei nuovi materiali, delle nuove tecnologie e
dell'inventiva progettuale ai fini del miglioramento della riproduzione di audio
registrato.Ciò è vero ancora oggi così come lo era nel '61, quando KEF fu fondata; ecco
perché i diffusori KEF da allora si sono sempre distinti tra i migliori al
mondo.A quell'epoca KEF fu il pioniere di molte innovazioni fondamentali. Nuovi
materiali per le membrane. Smorzamento con neoprene. Uso della modellazione al
computer nella ricerca e nel controllo qualità. Collaudi digitali con tolleranze
senza precedenti. Metodi globali di progettazione dei sistemi. Tecniche di rete
a carico coniugato. E forse la più importante innovazione di tutte: il driver
UNI-Q®, basato su tecnologia sviluppata originariamente per il programma
spaziale della NASA e protetta da brevetti internazionali. Nessun altro
costruttore ha fatto di più per far progredire i principi di progettazione dei
diffusori, e nessun altro si trova in una posizione migliore della nostra per
sfruttare al meglio il potenziale degli ultimi formati digitali. La separazione
tra i driver delle medie frequenzte e i driver delle alte frequenze, ottenuta
mediante casse separate, costituisce da lungo tempo una caratteristica KEF,
risalente al 1977 con il primo diffusore al mondoeseguito in questo modo, il
modello 105.Questa tecnologia prosegue ancora oggi con il prodotto di punta
modello207.

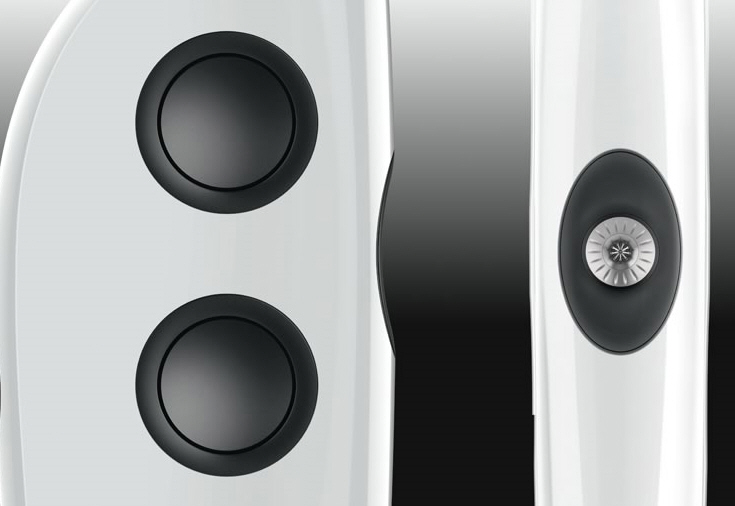

The cutting edge
of loudspeaker design When we gave our engineers free rein to create a
fitting showcase for our technology leadership, they developed a revolutionary
prototype that looked and performed like no other: Concept Blade, the world's
first single apparent source loudspeaker. Its phenomenal sonic capabilities met
with such praise that we decided to produce an edition that serious audiophiles
could actually own. After two years of painstaking refinement - and in time to
mark 50 years of KEF innovation - Blade is the result. Introduction Single
apparent source Uni-Q Bass Design & Designers Conceived from the outset to
extend the boundaries of high end audio, it’s a unique synthesis of innovative
engineering and groundbreaking design based on a new architecture that achieves
the ideal point source to which all speakers aspire. This is because the four
sophisticated new bass drivers are configured so that their combined acoustic
centre occupies exactly the same point in space as that of the Uni-Q HF/MF array,
so the sound appears to emanate from a single, flawlessly coherent
source.Sculptural and acoustically inert, the slender parabolic enclosures are
engineered never to interfere with the purity of the output. The advanced new
hybrid cones are so light and rigid that their natural break-up point is never
reached within the required frequency range. Inside, you find ingenious new
venting, bracing and wave management technologies. Meticulously specified,
super-premium components - every one operating so comfortably within its
performance envelope that you experience noticeably more precise imaging than is
possible with conventional speakers. What you hear sounds as if it’s live -
emotionally engaging, richly musical and effortlessly natural. A revelation,
pure and simple.Model Blade
Design Three-way bass reflex, Single Apparent Source driver configuration Drive
Units Uni-Q driver array: MF: 125mm (5in.) Li-Mg-Al /LCP hybrid cone HF: 25mm
(1in.) Al dome Bass units: LF: 4 x 225mm (9in.) with force cancelling Frequency
Response 40Hz - 35kHz +/- 3dB 28Hz - 45kHZ +/- 6dB Harmonic Distortion 2nd and
3rd harmonics (90dB/1m): <0.5% 40Hz - 100kHz <0.2% 200Hz - 10kHz Crossover
Frequencies 350Hz, 3kHz Amplifier Requirements 50-400W Sensitivity (2.83V/1m)
90dB Maximum output (SPL) 117dB Nominal impedance 4 Ohms (3.2 Ohms min.) Weight
57.2 kg (126 lbs) Dimensions (H x W x D) 1590 x 363 x 540 mm 62.5 x 14.3 x 21.2
in. Standard finishes Gloss black or gloss white Custom colours Garnet, Sapphire,
Grigio, Racing red, Racing blue, Pale gold, Orange sorbet, Graphite, Stardust,
Lemon sorbet, Lime sorbet or Snow white
The new KEF C Series has been
engineered to uphold the company’s long-held tradition of making speakers that
provide the most accurate response possible at the price point. This aim gives
the listener the satisfaction of hearing a recording with almost studio or
concert-hall clarity and precision. In the case of the KEF C Series, this
performance is normally associated with speakers of a much higher price.
C1
Compact, versatile and potent. The C1 pairs the superbly accurate 19mm (0.75in)
tweeter and ‘tangerine’ waveguide from the latest Q Series with a slot-ported
100mm (4in) midrange/bass driver and dense two-layer front baffle system deliver
a complex, profoundly realistic and spatially accurate soundscape. With
excellent power handling and a carefully tuned crossover, the C1 delivers a
generously full performance that belies its discreet appearance and modest size.
The front firing port makes it easy to position and the integrated wall bracket
makes wall mounting a simple operation.Model C1
Design Two-Way Bass ReflexDrive Units 19mm (0.75in.) aluminium HF, 100mm (4in.)
LF Crossover Frequencies 2.5Hz Sensitivity (2.83V/1m) 87dB Maximum Output 106dB
Input Impedance 8 Ohms Amplifier Requirements 10 - 100WMagnetic Shielding Yes
Frequency range 65Hz - 40kHzWeight 3.2kg (7lb) Dimensions (H x W x D) 260 x 150
x 221 mm (10.25 x 5.9 x 8.7 in.) Finishes Classic Black Ash, European Walnut
KEF C3€. 122,00
Per prezzo
scontato
TELEFONA / E-MAIL C3
Clear, confident and natural sounding, the C3 boasts KEF’s 130mm (5.25in) bass
driver for impressively extended low frequency response to complement the
seductive realism of the sophisticated 19mm (0.75in) tweeter and ‘tangerine’
waveguide. The resulting sonic performance is warm, rich in detail and
compellingly three-dimensional, whether you’re enjoying a favourite track or
watching a movie. All of the C Series enclosures are ultra-rigid to ensure the
sound you hear is untainted by any internal resonance and all are magnetically
shielded to give freedom when positioning
C5
Elegant, articulate and authoritative the C5 is a competent and compact
floorstander. It combines the latest 19mm (0.75in) tweeter and ‘tangerine’
waveguide with two 130mm (5.25in) bass drivers in a slim, internally braced
cabinet. Meticulously tuned crossovers ensure seamless transitions and dual
binding posts allow bi-wiring or bi-amplification for the best possible response
right across the frequency range. Whatever the genre, whatever the medium, the
resulting sonic picture is open, fluent and involving.Model C5 Design Two-Way
Bass ReflexDrive Units 19mm (0.75in.) aluminium HF, 2 x 130mm (5.25in.)
LFCrossover Frequencies 2.5kHzSensitivity (2.83V/1m) 90dBMaximum Output
111dBInput Impedance 8 OhmsAmplifier Requirements 15 - 150WMagnetic Shielding
YesFrequency range 41Hz - 40kHzPlinth Dimensions (H x W) 248 x 322 mm (9.7 x
12.7 in.)Weight 11.5kg (25.3lb)Dimensions (H x W x D) 915 x 177 x 60 mm (36 x 7
x 10.25 in.)Finishes Classic Black Ash, European Walnut
KEF C7€. 310,00
Per prezzo
scontato
TELEFONA / E-MAIL C7
If you’re serious about sound, you’ll find the C7 an endlessly gratifying
companion. With KEF’s phenomenal 19mm (0.75in) tweeter and ‘tangerine’ waveguide
complemented by a pair of large 165mm (6in) bass drivers, an intricate and
disarmingly naturalistic three dimensional sound image floods the room. As with
all of the new C Series models, the highly rigid cabinet is vented by a
carefully contoured front port to provide a wide and extended bass. Dual binding
posts allow bi-wiring or bi-amplification for optimal acoustic resolution and a
discrete plinth is included for greater stability.Model C7Design Two-Way Bass
Reflex Drive Units 19mm (0.75in.) aluminium HF, 2 x 165mm (6.5in.) LFCrossover
Frequencies 2.5kHz Sensitivity (2.83V/1m) 91dB Maximum Output 113dB Input
Impedance 8 OhmsAmplifier Requirements 15 - 200WMagnetic Shielding YesFrequency
range 36Hz - 40kHz Plinth Dimensions (H x W) 273 x 372 mm (10.75 x 14.65
in.) Weight 13.4kg (29.5lb) Dimensions (H x W x D) 965 x 203 x 286 mm (38 x 8 x
11.25 in.) Finishes Classic Black Ash, European Walnut
The
vital centre channel is at the heart of any 5.1 surround sound set-up - except
that the remarkable C6LCR can also be used as front and rear satellites. The
latest 19mm (0.75in) aluminium tweeter with ‘tangerine’ waveguide is flanked by
two 130mm (5.25in) LF drivers to produce both a centre speaker with precise and
captivating vocals or a powerful satellite adding depth and dynamics to any 5.1
system. As with all the C Series gold-plated terminals ensure perfect audio
transmission every time and magnetic shielding allows for safe positioning next
to any electronic equipment.Model C6LCR Design Two-Way Acoustic Suspension Drive
Units 19mm (0.75in.) aluminuim HF, 2 x 130mm (5.25in.) LF Crossover Frequencies
2.5kHz Sensitivity (2.83V/1m) 90dB Maximum Output 111dB Input Impedance 8 Ohms
Amplifier Requirements 10 - 150WMagnetic Shielding YesFrequency range 65Hz -
40kHz Weight 6.2kg (13.7lb)Dimensions (H x W x D) 177 x 430 x 211 mm (7 x 16.9 x
8.7 in.)
Subwoofer amplificato 200 W
in classe D Design Powered bass reflex Drive Units 1 x 200mm (8in.) LF
Frequency Response (+/-3dB) 29Hz - 140Hz Maximum Output 108dB
Magnetic Shielding Yes Amplifier 200W built-in Class-D Weight 12.2kg
(27lbs) Dimensions (H x W x D) 345 x 320 x 377 mm (13.6 x 12.6 x 14.9 in.) C4
Unobtrusively handsome yet powerful, the new C4 subwoofer provides an incredible
bass output with immaculate control. With a 200W on-board amplifier driving a
200mm (8in) front-firing bass cone, the C4 is engineered to minimise distortion
as meticulously as the rest of the range and adds effortless depth and weight to
any performance.Design Powered bass reflex Drive Units 1 x 200mm (8in.) LF
Frequency Response (+/-3dB) 29Hz - 140Hz Maximum Output 108dB
Magnetic Shielding Yes Amplifier 200W built-in Class-D Weight 12.2kg
(27lbs) Dimensions (H x W x D) 345 x 320 x 377 mm (13.6 x 12.6 x 14.9 in.)
Finishes Classic Black Ash

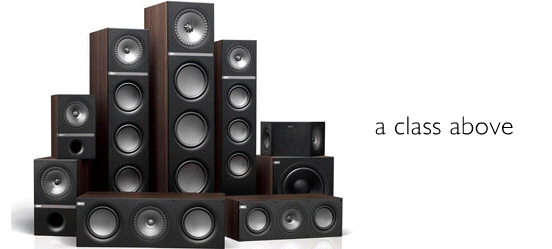

SERIE Q
A class aboveThe multiple
award-winning Q Series has always exemplified KEF’s conviction that new
materials and technologies can, when applied with intelligence and imagination,
reproduce recordings so perfectly that they sound indistinguishable from the
live event. This is more true now than ever before. As the latest expression of
this design philosophy, the new range immerses you in three-dimensional imagery
of a richness and clarity that until now has been the exclusive preserve of
speakers costing many times more

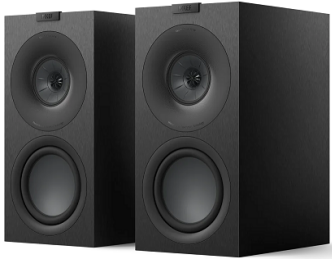

KEF Q100€.299,00
Per ordine e sconto
TELEFONA / E-MAIL Kef
Q100 Bookshelf Speakers Design Two-way bass reflex Two-way bass reflex Drive
units 165mm (6.5in.) aluminium Uni-Q 25mm (1in.) vented aluminium dome HF 130mm
(5.25in.) aluminium Uni-Q 25mm (1in.) vented aluminium dome HF Frequency
response ±3dB 42Hz - 40kHz 49Hz - 40kHz Crossover frequency 2.5kHz 2.5kHz
Amplifier requirements 15 - 120W 10 - 100W Sensitivity (2.83V/1m) 87dB 86dB
Maximum output (SPL) 110dB 107dB Impedance 8Ω 8Ω Weight 7.7kg (17.0lbs) 5.9kg
(13.0lbs) Dimensions (H x W x D) 355 x 210 x 302 mm (14.0 x 8.3 x 11.9 in.) 300
x 180 x 272 mm (11.8 x 7.1 x 10.7 in.) European Walnut Black Oak English Cherry
Exotic Wood Veneer Finish
Kef

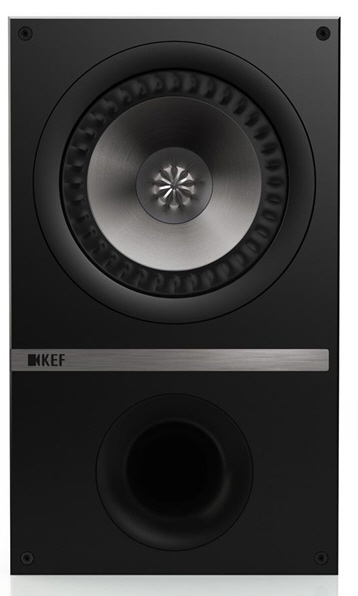

Q300 Speakers (pair) The Q300 is part of a brand new range of Q Series Speakers
from Kef and the next desirable model up form the Kef Q100. This all-new Kef
Q300 Bookshelf is larger than the Q100 bookshelf sibling and has a wider sound
stage with more depth. The Q300 uses technologies developed in the £140,000 Kef
Muons, ground breaking Kef’s Concept Blade Speakers and what is widely regarded
as industry standard speaker the Kef Reference Speaker. Therefore, you can tell
the new Kef Q300 bookshelf has a real pedigree. With a complete blank canvass,

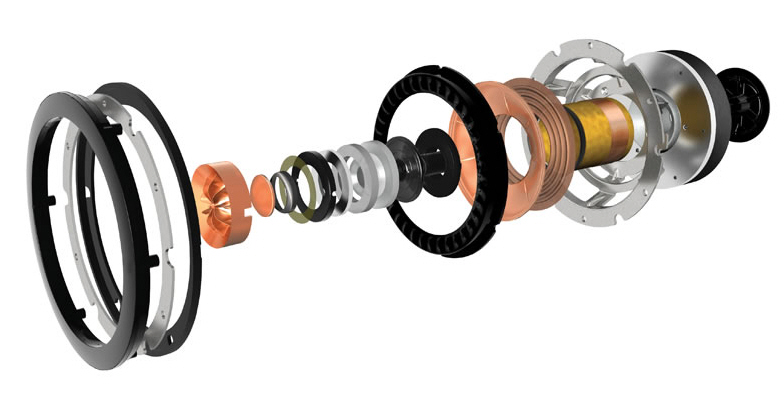

Kef has redesigned the whole Uni-Q concept. They have created a completely new
Kef Uni-Q Driver. This sonically and musically pushes the Uni-Q concept to
another level of audio excellence. It also shows what Kef has learned from their
leading flagship and concept speakers. Dividing the Uni-Q driver into to key
areas, the all-new 25mm vented aluminium dome HF tweeter is located at the heart
of the Uni-Q driver. This 25mm tweeter has a much larger dome capacity, enabling
the Kef Q300 Speaker to produce a smooth, musical, waves guide, which is in
perfectly harmony to the main Uni-Q Driver. This is something that Kef has
stated they have never been able to achieve with the iQ series. The Kef Q300
Bookshelf Speakers is beautifully crafted bookshelf speaker, using a bespoke,
modern design, quite new from Kef and really, refreshing to see. Another reason
for the bespoke look is the technological advances with the Kef Q300 as there is
now 30% more volume, thus more musical ability for you to enjoy! The Kef Q100
Bookshelf speakers are something to hear. With 30% extra volume and the all-new
Uni-Q driver. It shows that the hard work that Kef has put into developing the
Kef Q Series Speakers really shines through. Kef has always excelled with the
vocals. It is a testimony to their Uni-Q technology. The new Q Series is
something else though. Not only are the sweet vocal, clean and controlled, they
is no distortions and more importantly no flats within the vocal range, the
sound blends seamlessly and delivers a sound that is only found on more
prestigious speakers. Now the Kef Q300 is the largest bookshelf speaker fromthe
new range of Kef Q Series speakers. Kef’s Q300 is a perfectly formed, small
standmount speaker which punches far above it’s physical dimensions. Musically
speakers this small should not deliver this amount of Sonics and rhythmic bite
as they do. It also shows the amount of hard work kef has carried out in
redefining the Q300’s Uni-Q drivers with advanced engineering models and sound
auditioning.
Kef
Q500 Floorstanding Speakers There are three full-size new Q floorstanders to
choose from, each sharing the same audiophile-grade technology in the same basic
configuration: a new generation Uni-Q MF/HF array paired with a long-throw bass
driver of equal size, and two matching ABRs. The difference is the size of the
drivers: 130mm (5.25in.) diameter in the Q500, 165mm (6.5in.) in the
intermediate Q700 and a class-beating 200mm (8in.) in the flagship of the range,

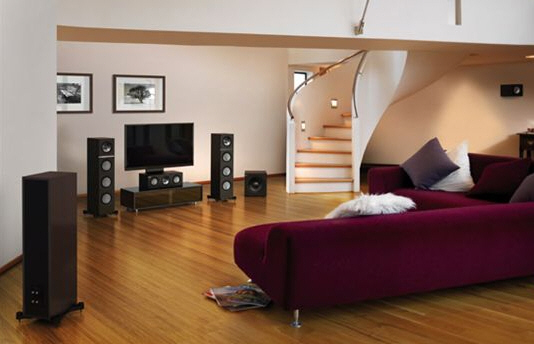

the magisterial Q900. As front speakers in a home theatre system, these
effortlessly assertive performers are capable of flooding the room with an
intricate and intensely physical soundstage. As a viewer, you notice the
striking clarity of the vocals and fluidly articulate midrange response.With
massive bass extension heightening the drama and flawless 3-D imaging that
faithfully tracks the action on screen, the illusion of being there is
phenomenal. All you have to do is decide which model is best for you, bearing in
mind the size of the space and your personal listening preferences.
Kef
Q700 Floorstanding Speakers These speakers are now available for demonstration
as a Stereo Pair and also as a 5.1 Surround sound system Kef Q700 Floorstanding
Speakers The outstanding new Q700 from Kef takes a large number of new and
innovative technology from the Kef Concept Blade Speakers but at a fraction of
the cost. It is through Kef's dynamic strength as a global powerhouse in audio
and components that they are able to deliver these speakers with outstanding
base extension at such an affordable price. Thanks to the latest computer
modelling techniques, years of painstaking development and a dash of design
genius, the new iteration of the Uni-Q concept packs a formidable complement of
design innovations. Based on the state-of-the-art HF driver developed for
Concept Blade, the new Q boasts a much larger (25mm/1 in. dome) tweeter for
increased sensitivity and distortion-free power handling. It plays as loud as it
plays true. The vented tweeter design allows upper registers to be reproduced
with startling clarity and smoothes the transition to midrange frequencies. The
dome assembly is cleverly braced, pushing the first breakup beyond the audible
range so that the sound you hear is flawlessly accurate. And to make sure
everyone in the room enjoys the benefit, KEF’s distinctive ‘tangerine’ waveguide
over the dome maximises Uni-Q’s exceptionally wide dispersion characteristics.
At lower frequencies, the superlight new aluminium cone of the LF/MF drive unit
delivers noticeably faster, cleaner response. This is enhanced by KEF’s unique
Z-flex surround, which allows the extreme excursions needed to deliver a truly
visceral thump while also maintaining a seamlessly smooth surface to disperse
the high frequencies from the tweeter. The ensemble is a masterpiece of modern
acoustic engineering. Vocals suddenly seem much more immediate – more open and
natural. Surrounded by sound of such clarity, you start hearing things you never
did before. Nuances in the way an instrument’s played. The sound of a distant
cricket in an outside scene. A breath, even. And best of all, you don’t have to
be in a little ‘sweet spot’ to experience it. With KEF Uni-Q, you can sit where
you want and not miss a thing. All you hear is what the artist intended.
Specification • Drive units 165mm (6.5in.) aluminium Uni-Q 25mm (1in.) vented
aluminium dome HF 165mm (6.5in.) aluminium LF 2 x 165mm (6.5in.) aluminium ABR •
Design Two and a half-way reflex • Frequency response 36Hz - 40kHz • Crossover
frequency 2.5kHz • Amplifier requirements 15 - 150W • Sensitivity 89dB • Maximum
output112dB • Impedance 8Ω • Weight 17.2kg (37.9lbs) • Dimensions (H x W x D)
920 x 210 x 302 mm (36.2 x 8.3 x 11.9 in.)
Kef

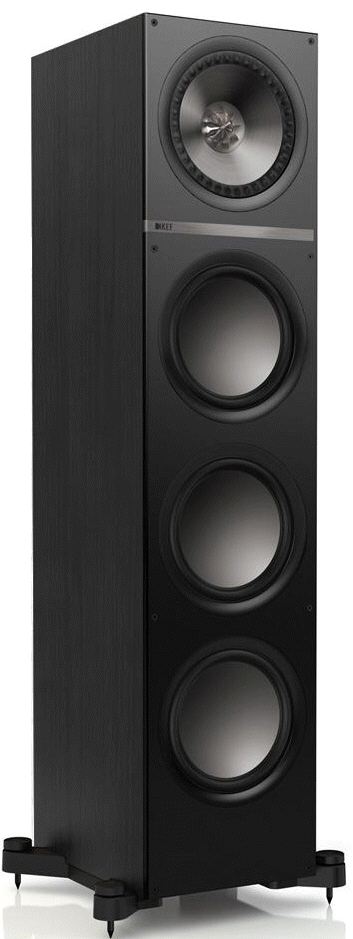

Q900 Floorstanding Speakers The outstanding new Q900 from Kef takes a large
number of new and innovative technology from the Kef Concept Blade Speakers but
at a fraction of the cost. It is through Kef's dynamic strength as a global
powerhouse in audio and components that they are able to deliver these speakers
with outstanding base extension at such an affordable price. Thanks to the
latest computer modelling techniques, years of painstaking development and a
dash of design genius, the new iteration of the Uni-Q concept packs a formidable
complement of design innovations. Based on the state-of-the-art HF driver
developed for Concept Blade, the new Q boasts a much larger (25mm/1 in. dome)
tweeter for increased sensitivity and distortion-free power handling. It plays
as loud as it plays true. The vented tweeter design allows upper registers to be
reproduced with startling clarity and smoothes the transition to midrange
frequencies. The dome assembly is cleverly braced, pushing the first breakup
beyond the audible range so that the sound you hear is flawlessly accurate. And
to make sure everyone in the room enjoys the benefit, KEF’s distinctive
‘tangerine’ waveguide over the dome maximises Uni-Q’s exceptionally wide
dispersion characteristics. At lower frequencies, the superlight new aluminium
cone of the LF/MF drive unit delivers noticeably faster, cleaner response. This
is enhanced by KEF’s unique Z-flex surround, which allows the extreme excursions
needed to deliver a truly visceral thump while also maintaining a seamlessly
smooth surface to disperse the high frequencies from the tweeter. The ensemble
is a masterpiece of modern acoustic engineering. Vocals suddenly seem much more
immediate – more open and natural. Surrounded by sound of such clarity, you
start hearing things you never did before. Nuances in the way an instrument’s
played. The sound of a distant cricket in an outside scene. A breath, even. And
best of all, you don’t have to be in a little ‘sweet spot’ to experience it.
With KEF Uni-Q, you can sit where you want and not miss a thing. All you hear is
what the artist intended. Specifications: • Drive units 200mm (8in.) aluminium
Uni-Q 38mm (1.5in.) vented aluminium dome HF 200mm (8in.) aluminium LF 2 x 200mm
(8in.) aluminium ABR • Design Two and a half-way reflex • Frequency response
(±3dB) 32Hz - 40kHz • Crossover frequency 1.8kHz • Amplifier requirements 15 -
200W • Sensitivity (2.83V/1m) 91dB • Maximum output (SPL) 114dB • Impedance 8Ω •
Weight 22.1kg (48.7lbs) • Dimensions (H x W x D) 1060 x 244 x 322 mm (41.7 x 9.6
x 12.7 in.)
Product

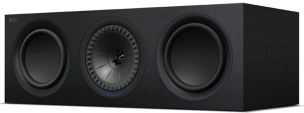

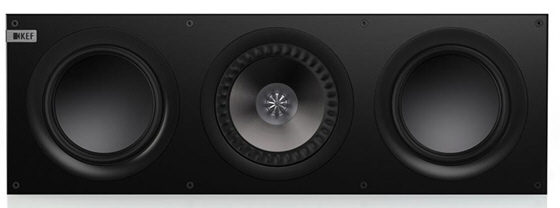

Description KEF Q200c Center Channel - Free Ground ShippingReproducing most of
the soundtrack narrative, the centre speaker is by far the most important in any
home theatre surround sound system, and the Q200c and Q600c are engineered
accordingly.With a new generation 130mm (5.25in.) and 165mm (6.5in.) Uni-Q
driver array respectively, flanked by a low distortion bass unit and an ABR of
the same size, they combine raw power with the subtlety to convey moments of
great delicacy.What you notice is how convincingly the larger new metal dome
tweeter captures the emotional range of the human voice – mood and character
shine through with real clarity.Each Q Series model features the following
engineering elements learned from the Concept Blade Project:- A newly engineered
Uni-Q driver (size dependent on model)- Brand new bass drivers featuring rigid
new aluminium cone technology- 30% more cabinet space for increased bass
performance- Newly engineered, gold plated bi-wire terminals- Paper wood veneer
available in three finish options• Three-way bass reflex center channel
loudspeaker• 5.25" aluminum Uni-Q driver• 1" vented aluminum dome HF• 5.25"
aluminum LF and ABR• Frequency response: 50Hz - 40kHz• Amp requirements:
15-130w• Measurements: 7.1" x 20.7" x 10.2"• Finishes Available: Black Oak,
European Walnut & English Cherry
Reproducing
most of the soundtrack narrative, the centre speaker is by far the most
important in any home theatre surround sound system, and the Q200c and Q600c are
engineered accordingly.With a new generation 130mm (5.25in.) and 165mm (6.5in.)
Uni-Q driver array respectively, flanked by a low distortion bass unit and an
ABR of the same size, they combine raw power with the subtlety to convey moments
of great delicacy.What you notice is how convincingly the larger new metal dome
tweeter captures the emotional range of the human voice – mood and character
shine through with real clarity.Each Q Series model features the following
engineering elements learned from the Concept Blade Project:- A newly engineered
Uni-Q driver (size dependent on model)- Brand new bass drivers featuring rigid
new aluminium cone technology- 30% more cabinet space for increased bass
performance- Newly engineered, gold plated bi-wire terminals- Paper wood veneer
available in three finish options• Three-way bass reflex center channel
loudspeaker• 6.5" aluminum Uni-Q driver• 1" vented aluminum dome HF• 6.5"
aluminum LF and ABR• Frequency response: 48Hz - 40kHz• Amp requirements:
15-130w• Measurements: 8.3" x 24.8" x 11.9"• Finishes Available: Black Oak,
European Walnut & English Cherry
KEF Q800 ds €.549,00Per ordine
e sconto
TELEFONA / E-MAIL Q800ds

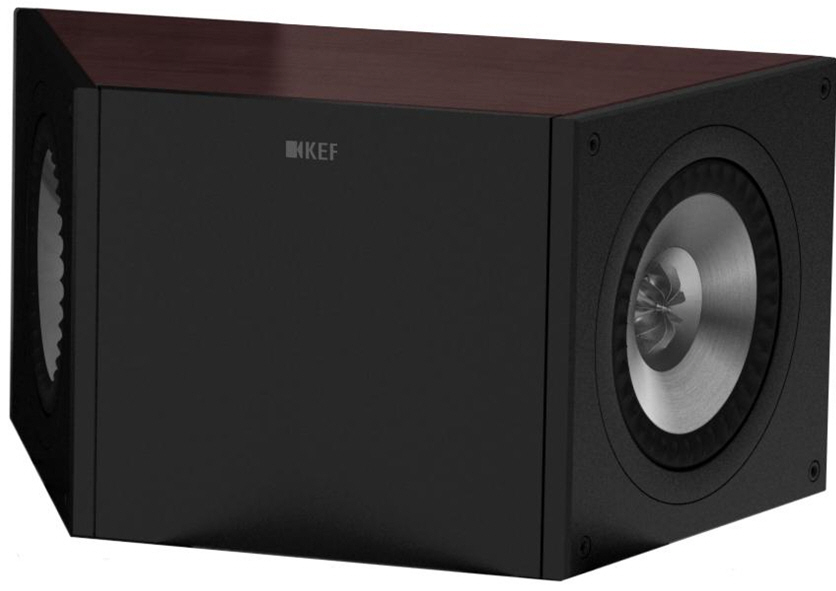

Your involvement in the action is noticeably enhanced by the addition of the
Q800ds dipole to convey the left and right rear channels. With the two 130mm
(5.25in.) Uni-Q arrays on each speaker playing out of phase, ambient 3D effects
are completely diffused throughout the listening area to create an uncanny
illusion of actually being there, whether that’s deep in the rainforest, in a
concert arena or driving along a gritty urban back street.Each Q Series model
features the following engineering elements learned from the Concept Blade
Project:- A newly engineered Uni-Q driver (size dependent on model)- Brand new
bass drivers featuring rigid new aluminium cone technology- 30% more cabinet
space for increased bass performance- Newly engineered, gold plated bi-wire
terminals- Q800ds features wall mount keyhole on rear- Paper wood veneer
available in three finish options• Three-way dipole• Two 5.25" aluminum Uni-Q
drivers• 1" vented aluminum dome HF• 5.25" aluminum LF and ABR• Frequency
response: 100Hz - 40kHz• Amp requirements: 10-100w• Measurements: 7.1" x 13.7" x
7.1"• Finishes Available: Black Oak, European Walnut & English Cherry

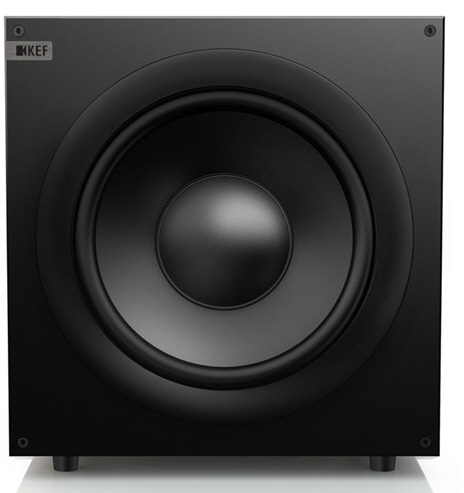

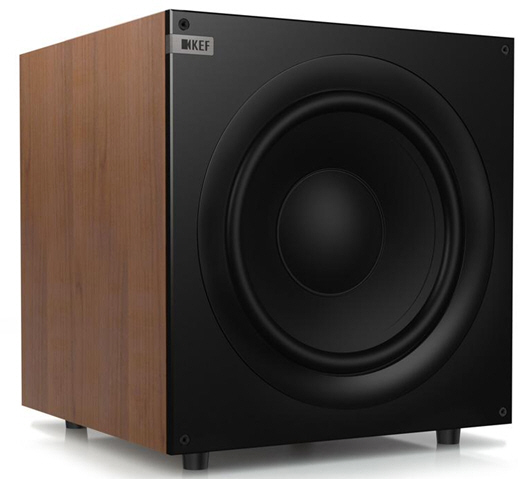

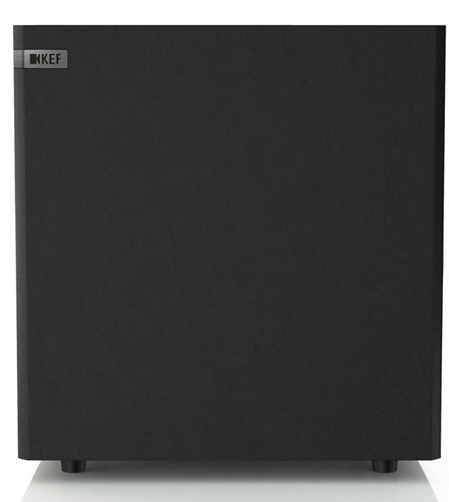

The final ingredient of your
new Q system is of course the seductive Q400b subwoofer. A closed box design
housing a 250mm (10in.) woofer driven by a 200W on-board Class-D amplifier, this
discreet cube creates spectacular bass imagery – eloquent, musical and
addictively physical. Anchoring the whole sound performance in an all-embracing
sensation of immediacy, it completes the acoustic picture.Q400b Design
Closed-box subwoofer Drive units 1 x 250mm (10in.) Frequency response ±3dB 28Hz
- 140Hz Amplifier 200W built-in Class-D Maximum output (SPL) 110dB Low pass
filter variable 40Hz - 140Hz, 4th-order Low level signal inputs RCA phono
sockets Internal volume 23.2 litres Power requirements 100 - 240V ac ~ 50/60Hz
Power consumption 200VA Weight 13.6kg (29.9lbs) Dimensions (H x W x D) 335
x 330 x 330 mm (13.2 x 13.0 x 13.0 in.)
iQ10 2 vie reflex - UNI-Q
woofer130mm/tweeter 19mm - 100 W / 8 " - 50Hz÷40kHz - da scaffale - sens. 88 dB
- mm 301x175x261 - peso 4,5 kg - schermatura magnetica - nero iQ10
For smaller rooms or where space is at a premium, the new iQ10 proves that size
isn’t everything. With the sensational new 130mm (5.25in) Uni-Q coincident
driver array in a reflex-ported cabinet, the calibre of its acoustic performance
is out of all proportion to its modest dimensions. Transitions between the
natural-sounding high frequencies, refreshingly open midrange and hefty extended
bass are impeccably fluent.As satellite speakers in a 5.1 system, they’re
beguilingly descriptive and realistic, creating an engrossingly intricate
three-dimensional soundscape that adds real depth to the viewing experience.
Musical, efficient and transparent, iQ10 is a minor miracle of audio engineering
that gives you the listening pleasures of KEF’s latest technology at a
gratifyingly modest price.Design Two-way bass reflex Drive Units 130mm (5.25in.)
Uni-Q, 19mm (0.75in.) aluminium dome HF Crossover Frequencies 2.5kHz Sensitivity
(2.83V/1m) 88dB Maximum Output 108dB Input Impedance 8 Ohms Amplifier
Requirements 10-100W Magnetic Shielding Yes Frequency range 50Hz - 40KHz Weight
4.5kg (9.9lbs) Dimensions (H x W x D) 301 x 175 x 261 mm (11.8 x 6.9 x 10.3 in.)
Finishes Black Ash, Dark Apple, American Walnut, Light Oak veneer, Walnut veneer
iQ70 2,5 vie reflex - UNI-Q
woofer165mm/tweeter 19mm + woofer 165mm - 150 W / 8 " - 36Hz÷40kHz - da
pavimento - sens. 90 dB - mm 865x220x327 - peso 14 kg - schermatura magnetica -
melo scuro, nero iQ70
With all the benefits of the iQ90 in a slimmer enclosure, iQ70 is an assertive
full bandwidth two and a half-way bass reflex floorstander that reproduces music
and movie soundtracks with equal clarity and flair. With the 165mm (6.5in) new
Uni-Q point source array and 19mm (0.75in) tweeter partnered by a high
performance low frequency driver of the same size, it radiates a faultlessly
detailed 3D acoustic image evenly throughout the room.With twin-shrouded
terminals for bi-wiring or bi-amplification the iQ70 has impressive power
handling, faultless integration, breathtaking vocals and, thanks to the new
‘labrynth’ internal damping system, heavyweight bass. It has the looks,
engineering integrity and acoustic performance to deliver uncompromised
listening pleasure with whatever media you choose and is complete with a
discrete plinth is provided for greater stability. Design Two and a half-way
bass reflex Drive Units 165mm (6.5in.) LF, 165mm (6.5in.) Uni-Q. 19mm (0.75in.)
aluminium dome HF Crossover Frequencies 2.5kHz Sensitivity (2.83V/1m) 90dB
Maximum Output 111dB Input Impedance 8 Ohms (min 3.2 Ohms) Amplifier
Requirements 15-150W Magnetic Shielding Yes Impedance 8 Ohms Frequency range
36Hz - 40kHz Plinth Dimensions (H x W) 28 x 288 x 348 mm (1.1 x 11.3 x 13.7 in.)
Weight 14.5kg (32lbs) Dimensions (H x W x D) 865 x 220 x 327 (34 x 8.7 x 12.9
in.) Finishes Black Ash, Dark Apple, American Walnut, Light Oak veneer, Walnut
veneer
Dipolo 2 vie - 2xUNI-Q -
100W/8Ω - sens. 83 dB - mm 180x360x175 - peso 5,2 kg - melo scuro
High
tech Fibre Reinforced Pulp (FRP) diaphragms - light, stiff and consistentUltra
Low Distortion Motor Systems with T-Poles plus twin, balanced Faraday loops
above and below the coil to ensure (1) perfect symmetry of the flux profile, (2)
constant coil inductance with position, (3) greatly reduced flux modulation The
top Faraday loop also assists in heat dissipation from the motor systemOpen
chassis design and vented cones minimize trapped air noise
Diffusori
serie XQ Una articolata serie
di diffusori hi-end con dimensioni e caratteristiche per ogni audiofilo.La nuova
serie XQ è derivata dalla serie Reference/2 ed ha la nuova finitura al titanio
dei coni degli altoparlanti e la più recente tecnologia Uni-Q ulteriormente
perfezionato con l'aggiunta di una semplice ma ingegnosa “guida d'onda a
spicchio”. Questa migliora la dispersione delle alte frequenze e funge da
protezione della delicata cupola del tweeter.L'aumentata estensione del nuovo
driver Uni-Q alle alte frequenze, elimina la necessità dell'hyper tweeter,
consentendo la perfezione della sorgente puntiforme nella gamma dei medio/alti
Taste
in music and movies is a very personal thing. Same with speakers. For some people, the
usual plain box will do; a speaker's a speaker. Others want to
experience something more special. More cutting edge. More rewarding.
And that's who our new XQ Series has been created for.By
combining patented technologies from two of our most acclaimed ranges -
the radical new Q Series and the legendary Reference Series - the XQ
concept gives you the best of both worlds: new KEF Uni-Q® 'point source'
arrays for unrivalled off-axis performance, and Reference Series 'super
audio' HypertweetersTM for the full bandwidth response required to enjoy
digital formats like SACD and DVD-A. Together with ultra-low distortion
bass and audiophile grade internal components, it's a combination you
simply can't find anywhere else at the price.Admittedly, the finish is a
bit of an extravagance. You can specify your XQ system in either a cool,
pale maple veneer or one of four high gloss lacquer finishes: Silver and
Graphite metallic (to complement AV equipment) or Maranello Red. The
aluminium front baffles are anodised in Silver. But hey - when the
technology inside creates such beautiful sound, they deserve to look
special.
2 vie reflex - UNI-Q midwoof.130mm/tw.19mm
- 100 W / 8 ohm - 63Hz÷55kHz±3dB - da scaffale - scher. magn. - sens. 86 dB -
SPL max 107 dB - mm 330x190x247 - peso 6,4 kg - nero, mogano, acero Space
being at a premium needn’t mean compromising on sound quality; many serious
audiophiles regard the compact XQ10 bookshelf speaker as the rightful heir to
the revered LS3/5a professional studio monitor. Packed with technology derived
from the Reference Series, it features KEF’s new generation Uni-Q® array and
‘tangerine’ waveguide: a stunningly natural-sounding elliptical dome 19mm
(0.75in.) tweeter perfectly time-aligned with the surrounding midrange/bass cone
to disperse the sound far more evenly across the listening area than is possible
with conventional speakers. A speaker that’s big in everything but sizeTwo-way
bookshelf speaker with excellent power handling and dispersion characteristics
Advanced 130mm (5.25in.) Uni-Q ‘point source’ array with new ‘tangerine’
waveguide Audiophile quality elliptical dome 19mm (0.75in.) tweeter Outstanding
build quality and detailing Magnetically shielded, with a choice of three superb
high gloss finishes Design: Two-way bass reflex Drive Units: 130mm (5.25in.)
Uni-Q with 19mm (0.75in.) aluminium dome HF Frequency Range at ± 3dB*: 63Hz -
55kHz Crossover Frequency: 2.0kHz Amplifier Requirements: 15 - 100W Sensitivity
(2.83V/1m): 86dB * Typical in room Maximum Output: 107dB Impedance: 8Ω (min 3.2)
Magnetic Shielding: Yes Weight: 6.4kg (14.1lbs) Dimensions (H x W x D): 330 x
190 x 247mm 13.0 x 7.48 x 9.72in. Finishes: Birdseye Maple, Khaya Mahogany or
Piano Black
2 vie reflex - UNI-Q midwoof.165mm/tw.19mm - 120 W / 8 ohm - 52Hz÷55kHz±3dB - da
scaffale - scher. magn. - sens. 88 dB - SPL max 109 dB - mm 385x231x302 - peso
9,2 kg - nero, mogano, acero
The
XQ20 boasts the same large Uni-Q driver as the flagship XQ40 in a stand mount
format, so its mid and treble performance envelope is similarly impressive.
With KEF’s sophisticated elliptical dome tweeter mounted in the acoustic centre
of the bass/midrange cone, the latest Uni-Q® array with ‘tangerine’ waveguide
disperses an uncannily accurate sound image throughout the room with startling
clarity, so you have far greater freedom of positioning. Bass extension is as
generous as it is well defined, thanks to an ultra-low-distortion bass/midrange
driver in a massively braced reflex-ported enclosureFull bandwidth two-way stand
mount/bookshelf speaker KEF's latest 165mm (6.5in) Uni-Q midrange/HF 'point
source' array with new 'tangerine' waveguide Natural-sounding high performance
elliptical dome 19mm (0.75in) tweeter Low distortion 165mm (6.5in) driver
Magnetically shielded, with a choice of three superb high gloss finishes and
optional stand Design: Two-way bass reflex Drive Units: 165mm (6.5in.) Uni-Q
with 19mm (0.75in.) aluminium dome HF Frequency Range at ± 3dB*: 52Hz - 55kHz
Crossover Frequency: 2.4kHz Amplifier Requirements: 15 - 120W Sensitivity
(2.83V/1m): 88dB * Typical in room Maximum Output: 109dB Impedance: 8Ω (min 3.2)
Magnetic Shielding: Yes Weight: 9.2kg (20.2lbs) Dimensions (H x W x D): 385 x
231 x 302mm 15.15 x 9.09 x 11.88in. Finishes: Birdseye Maple, Khaya Mahogany or
Piano Black
3 vie reflex - UNI-Q midwoof.130mm/tw.19mm +
woof.130mm - 150 W / 8 ohm - 48Hz÷55kHz±3dB - da pavim. - scher. magn. - sens.
87 dB - SPL max 109 dB - mm 60x190x247 - peso 14,8 kg - nero, mogano, acero
Tall,
slender and undeniably elegant, the XQ30 is the perfect synergy between
performance and size.The pairing of an ultra-low distortion bass driver with the
latest incarnation of KEF’s signature Uni-Q® ‘point source’ array for the middle
and upper frequencies,disperses a compellingly rich three-dimensional sound
field evenly throughout the listening area. Crossover technology developed from
the Reference Series assures excellent power handling, along with exceptionally
fluid transitions A elegant three-way floorstander of uncompromised acoustic
integrityWide dispersion 130mm (5.25in.) Uni-Q midrange/HF array incorporating
high performance elliptical dome tweeter and new ‘tangerine’ waveguide130mm
(5.25in.) bass driver with KEF’s ultra-low distortion motor system Reference
Series inspired audiophile grade tiered crossover to eliminate coupling effects
Magnetically shielded, with a choice of three superb high gloss finishes Design:
Three-way bass reflex Drive Units: 130mm (5.25in.) LF,130mm (5.25in.) Uni-Q with
19mm (0.75in.) aluminium dome HF Frequency Range at ± 3dB*: 48Hz - 55kHz
Crossover Frequency: 450Hz - 2.5kHz Amplifier Requirements: 15 - 150W
Sensitivity (2.83V/1m): 87dB * Typical in room Maximum Output: 109dB Impedance:
8Ω (min 3.2) Magnetic Shielding: Yes Weight: 14.8kg (32.6lbs) Dimensions (H x W
x D): 860 x 190 x 247mm 33.85 x 7.48 x 9.72in. Finishes: Birdseye Maple, Khaya
Mahogany or Piano Black
KEF
XQ40 €.1.895,00Per
prezzo
scontato
TELEFONA INVIA UN E-MAIL
3 vie reflex - UNI-Q midwoof.165mm/tw.19mm + 2xwoof.165mm - 200 W / 8 ohm
-45Hz÷55kHz±3dB - da pavim. - scher. magn. - sens. 90 dB - SPL max 112 dB - mm
1020x231x302 - peso 24,3 kg - nero, mogano, acero
Respect
is what the XQ40 commands. Not just because it sounds as assertive as it looks,
but because of the uncanny illusion of presence it creates. Flanked by a pair of
165mm (6.5in.) ultra-low distortion LF drivers for exceptionally fluid bass
response, the individually pair-matched UniQ® midrange/HF array floods even the
largest space with an intricately detailed sound image, irrespective of where
you happen to besitting. Full bandwidth three-way floorstander Unrivalled
off-axis performance from KEF’s latest 165mm (6.5in.) Uni-Q® midrange/HF array
with new ‘tangerine’ waveguide Two 165mm (6.5in.) ultra-low distortion bass
drivers in dedicated enclosures Reference Series inspired audiophile grade
tiered crossover to eliminate coupling effects Magnetically shielded, with a
choice of three superb high gloss finishesDesign: Three-way bass reflex Drive
Units: 2 x 165mm 6.5in.) LF,165mm (6.5in.) Uni-Q with 19mm (0.75in.) aluminium
dome HF Frequency Range at ± 3dB*: 45Hz - 55kHz Crossover Frequency: 400Hz,
2.5kHz Amplifier Requirements: 15 - 200W Sensitivity (2.83V/1m): 90dB * Typical
in room Maximum Output: 112dB Impedance: 8Ω (min 3.2) Magnetic Shielding: Yes
Weight: 24.3kg (53.5lbs) Dimensions (H x W x D); 1020 x 231 x 302mm 40.15 x 9.09
x 11.88in. Finishes: Birdseye Maple, Khaya Mahogany or Piano Black
KEF
XQ50€.1.495,00Per
prezzo
scontato
TELEFONA INVIA UN E-MAIL
3 vie - UNI-Q midwoof.130mm/tw.19mm +2xwoof.130mm - 150 W / 8 ohm -
65Hz÷55kHz±3dB - can. centrale - scher. magn. - sens. 86 dB - SPL max 109 dB -
mm 205x475x247 - peso 10,3 kg - nero, mogano, acero
The
centre channel is the most important speaker in any surround sound home
entertainment system, which is why the three-way XQ50c is so lavishly specified.
Like the XQ30 floorstander, the 130mm (5.25in.) central Uni-Q® midrange/HF array
incorporates the sophisticated elliptical metal dome tweeter and new ‘tangerine’
waveguide that reproduces any vocals with such unerring accuracy. On either
side, a pair of KEF’s renowned 130mm (5.25in.) bass drivers in their own
dedicated enclosures deliver the hefty frontal slam that brings on-screen action
right out into the room. Slim, full bandwidth three-way centre channel home
theatre speaker 130mm (5.25in.) Uni-Q ‘point source’ array with exceptionally
wide, even dispersion Audiophile quality elliptical dome 19mm (0.75in.) tweeter
with new ‘tangerine’ waveguide for natural-sounding vocals and wide dispersion
Two independently loaded 130mm (5.25in.) bass drivers with ultra-low distortion
motors Magnetically shielded, with a choice of three superb high gloss finishes.
Design: Three-way closed box Drive Units: 2 x 130mm (5.25in.) LF,130mm (5.25in.)
Uni-Q with 19mm (0.75in.) aluminium dome HF Frequency Range at ± 3dB*: 65Hz -
55kHz Crossover Frequency: 475Hz, 2.4kHz Amplifier Requirements: 15 - 150W
Sensitivity (2.83V/1m): 86dB * Typical in room Maximum Output: 108dB Impedance:
8Ω (min 3.2) Magnetic Shielding: Yes Weight: 10.3kg (22.7lbs) Dimensions (H x W
x D): 205 x 475 x 247mm 8.07 x 18.7 x 9.72in. Finishes: Birdseye Maple, Khaya
Mahogany or Piano Black
L'evoluzione continua della leggendaria serie Reference
KEF si basa da sempre sul concetto di precisione di riferimento. Ogni volta che
viene sviluppata una nuova generazione di modelli per adottare tecnologie più
sofisticate, costruiamo prototipi il più possibile prossimi alla perfezione.
Questi sono il "riferimento" al quale dovrà conformarsi ogni singola versione
prodotta, con ogni coppia di diffusori assemblata da artigiani specializzati in
grado di far sì che i diffusori rispettino tolleranze di appena 0,5dB. Come
ultima incarnazione di questa filosofia, la serie Reference rappresenta un
enorme balzo in avanti nell'audio di qualità audiofila. In realtà le sue
prestazioni si estendono ben oltre la portata dell'udito umano.Ciò non è futile
come potrebbe sembrare di primo acchito; mentre i CD convenzionali non
contengono informazioni audio al di sopra dei 20kHz, i formati con larghezza di
banda estesa come SACD e DVD Audio contengono segnali fino a 40kHz e oltre.
Facendo un paragone con il mondo dell'automobile, si può dire che anche
senessuno guida a 300km/h, le auto progettate per farlo offrono prestazioni
intrinsecamente migliori anche a velocità più basse.direttamente dalla propria
cassa interna separata per evitare quegli effetti di distorsione delle onde
stazionarie verticali di cui soffrono normalmente i cabinet alti, si potranno
ascoltare bassi notevolmente più chiari e aperti.Come ci si aspetta da un
prodotto KEF costruito a mano, la qualità di costruzione è straordinaria,
esattamente come lo sono le specifiche di ogni singolo componente. Accuratamente
controllati e saldati a mano, i cavi in rame privo di ossigeno KEF assicurano
una perfetta trasmissione del segnale, con terminali in ottone pieno lavorati a
macchina e placcati oro. I filtri di crossover di ordine elevato con sofisticate
induttanze con avvolgimento in aria e condensatori in polipropilene garantiscono
un'integrazione perfetta. Per ottenere le migliori prestazioni una volta
installati, tutti i modelli prevedono il tri-wiring e sono provvisti di un
dispositivo di controllo dei confini per regolare la risposta dei bassi in
funzione del posizionamento dei diffusori e dell'acustica dell'area d'ascolto. I
modelli sono inoltre dotati di schermatura magnetica.Costruiti in MDF denso con
l'impiego del sistema KEF di rinforzi interni, i nuovi cabinet a sezione curva
hanno un profilo elegante concepito per minimizzare la colorazione e sono
disponibili in una gamma di finiture in legno duro impiallacciato lavorato a
mano .Gli altoparlanti UNI-Q® completamente nuovi, la massima raffinatezza della
tecnologia del marchio KEF, mettono a disposizione un'immacolata sorgente da un
unico punto, il Santo Graal della progettazione dei diffusori. Con coni e
surround dei medi integrati in un unica cassa Uni-Form, non ci sono
discontinuità che distorcano l'energia HF dal tweeter in titanio a cupola
ellittica da 25mm. Con soltanto le medie frequenze da gestire, il movimento del
cono UNI-Q è così modesto che non si ha praticamente alcuna distorsione causata
da intermodulazione con il tweeter. Come per gli altoparlanti dei bassi, il
telaio di tipo aperto e completamente disaccoppiato riduce ai minimi termini la
riflessione acustica dietro il cono.Il risultato è un ambiente sonoro ancora più
spazioso e meglio definito su un'area molto ampia, con un'eccezionale risposta
fuori asse e nessuna delle limitazioni di "sweet spot" dei diffusori
convenzionali. L'estensione dei bassi è ugualmente sorprendente, grazie a
sistemi di motori a bobina corta/gap lungo a bassissima distorsione e a membrane
high-tech rinforzate. E con ogni altoparlante per basse frequenze che irradia
Ecco perché tutti i modelli della nuova serie Reference sono dotati di
sofisticati HypertweeterTM con cupola in titanio da 19mm che migliorano
notevolmente le prestazioni alle alte frequenze. Montati in alloggiamenti in
alluminio fuso a bassa diffrazione e allineati temporalmente con il driver
principale, ssi offrono una risposta piatta fino a 55kHz ed energia utile fino a
80kHz. Ciò che senti è un suono più dolce e più naturale.
The
continuing evolution of KEF's legendary Reference Series has always been
based on the concept of benchmark precision. Every time a new generation
of models is developed to incorporate more sophisticated technologies,
we build prototypes that are as close to perfection as possible. These
then become the ‘Reference’ to which every single production version
must conform, each set assembled by a skilled craftsman who matches
their performance to a tolerance of just 0.5dB. As the latest
incarnation of this approach, the Reference Series is a quantum leap
forward in audiophile quality sound. In fact, its performance envelope
extends well beyond the range of human hearing.This is not as futile as
it may at first sound - whereas conventional CD's carry no audio
information beyond 20kHz, extended bandwidth formats such as SACD and
DVD Audio contains signals up to 40kHz and more. Consider the analogy
that even though no-one drives at 200 mph, cars that are engineered to
do so are inherently better performers at lower speeds That's why all
new Reference Series models come with a state-of-the-art 19mm titanium
dome Hypertweeter™ for massively extended HF performance. Mounted in low
diffraction, chrome-plated steel enclosures time aligned with the main
array, they deliver flat response to 50kHz and useful energy up to
70kHz. What you hear is a sweeter, more natural sound
With only frequencies above 400Hz
to handle, movement of the UNI-Q ® cone is so modest that
virtually no distortion is caused by intermodulation with the
tweeter. Like the bass drivers, an open chassis design - fully
decoupled - minimises acoustic reflection behind the cone. The
result is an even more spacious, better defined sound stage over
a very large area, with exceptional off-axis response and none
of the ‘sweet spot’ limitations of conventional speakers. Bass
extention is equally stunning, thanks to ultra-low distortion
motor systems and high tech reinforced diaphragms. And with each
bass driver radiating from its own dedicated enclosure to avoid
the distorting effects of vertical standing waves that tall
cabinets usually suffer from, you experience noticeably clearer,
more open bass. As you would expect from a handmade KEF product,
build quality is as outstanding as the specification of each
individual component. Carefully graded and soldered by hand,
KEF's own oxygen-free copper cable ensures the best possible
signal transmission, with terminals machined from solid brass
and plated in gold. High order crossovers with advanced
air-cored inductors and polypropylene capacitors ensure
faultlessly smooth integration. For optimum performance in real
rooms, all models accommodate tri-wiring and are fitted with a
boundary control device to adjust bass response
according to speaker positioning and the acoustics of the
listening area. Magnetic shielding ensures trouble-free
positioning in home theatre applications. Engineered from
laminated birch ply using KEF's own internal bracing system, the
new curved section cabinets are elegantly profiled to minimise
colouration and finished in a choice of hand-matched hardwood
veneers. More than ever before, these are very special speakers
indeed
Si
tratta di un diffusore a tre vie progettato principalmente per la riproduzione
di qualità elevata quale diffusore principale in ambienti piccoli o come
diffusore satellite di qualità elevata in impianti AV quando lo spazio è un
optional molto costoso. Il modello 201/2 dispone di tre altoparlanti, due dei
quali sono incorporati nel driver Uni-Q da 165 mm(6,5 pollici), con una unità
dei bassi a cono di polpa di cellulosa rinforzato in fibra da 165 mm (6,5
pollici) montata in un cabinet reflex. Finitura High Gloss +€.300,00
MODEL
201/2 Arguably the ultimate full range bookshelf loudspeaker, Model 201/2 has
all the benefits of the latest Reference technology. The same sensational new
Uni-Q® array. The same ultra-low distortion LF driver for solid, crystal clear
bass extension. The same decoupled high order crossovers. The result is a fluent,
full-bodied and intensely musical sound that belies its modest size. And with
magnetic shielding and Uni-Q’s wide dispersion, freedom of positioning is
virtually unrestricted. MODEL 201/2 The new Uni-Q® array is so perfectly attuned
to reproducing the human voice that vocals acquire previously unheard-of
definition. The improved balance between direct sound, early room reflections
and the reverberant field delivers an extraordinarily realistic performance
without losing any of the Uni-Q benefits of precise imaging, spaciousness and
unconstrained vertical response.CrossoverComputer optimised audiophile grade
crossovers ensure that transitions are imperceptible between the radical new
Uni-Q® array and the two 165mm (6.5in.) LF drivers.And with the latest
‘overhung’ long coil/short gap motor systems and lightweight reinforced
diaphragms, bass response is unusually open, with negligible distortion even
when played loud.- SPECIFICATIONS Naturally, performance can be
fine-tuned for your room acoustics. The KEF Uni Balance feature allows you to
adjust bass output to compensate for the proximity of the loudspeakers to the
walls; at the high frequency end, a four-position adjustment gives ample
‘brightness’ control to compensate for the room's sound absorption
characteristics.Specification Model
Model 201/2 Design 3 way bass reflex Drive Units LF: 1 x 165 mm (6.5in.) MF: 1 x
165 mm (6.5in.) HF: 1 x 25 mm (1in.) Frequency response at 15˚ horizontally off
axis ±3 dB 55 Hz - 60 kHz Bass Extension -6 dB 44 Hz Crossover frequencies 450
Hz, 2.5 kHz Amplifier requirements 50 - 150 W Sensitivity (2.83V/1m) 86 dB
Maximum output 110 dB Impedance 8 Ω (4.2 Ω min) Magnetic shielding Yes Weight
12.3 Kg (27.1 lbs) Dimensions (H x W x D) 417 x 248 x 405 mm16.4 x 9.8 x 15.9
in. Finishes Piano Black, High Gloss Cherry, High Gloss American Walnut, Satin
Sycamore
A
three-way bass reflex design, Model 203/2 shares the technology that makes the
floorstanders great, but in a more compact package: the same new generation KEF
engineering, the same high quality components and the same bulletproof build
quality. Stereo imaging is immaculate, wherever you sit. Whether for music or
home theatre, it strikes the perfect balance between size and performance.Uni-Q
driver array The new Uni-Q® array is so perfectly attuned to reproducing the
human voice that vocals acquire previously unheard-of definition. The improved
balance between direct sound, early room reflections and the reverberant field
delivers an extraordinarily realistic performance without losing any of the
Uni-Q benefits of precise imaging, spaciousness and unconstrained vertical
response.CrossoverComputer optimised audiophile grade crossovers ensure that
transitions are imperceptible between the radical new Uni-Q® array and the two
165mm (6.5in.) LF drivers.And with the latest ‘overhung’ long coil/short gap
motor systems and lightweight reinforced diaphragms, bass response is unusually
open, with negligible distortion even when played loud.MODEL 203/2 -Naturally,
performance can be fine-tuned for your room acoustics. The KEF Uni Balance
feature allows you to adjust bass output to compensate for the proximity of the
loudspeakers to the walls; at the high frequency end, a four-position adjustment
gives ample ‘brightness’ control to compensate for the room’s sound absorption
characteristics. Specification Model Model 203/2 Design 3 way bass reflex Drive
Units LF: 2 x 165 mm (6.5in.) MF: 1 x 165 mm (6.5in.)HF: 1 x 25 mm (1in.)
Frequency response at 15˚ horizontally off axis ±3 dB 55 Hz - 60 kHz Bass
Extension -6 dB 40 Hz Crossover frequencies 300 Hz, 2.3 kHz Amplifier
requirements 50 - 200 W Sensitivity (2.83V/1m) 89 dB Maximum output 113 dB
Impedance 8 Ω (3.2 Ω min) Magnetic shielding Yes Weight 26.5 Kg (58.3 lbs)
Dimensions (H x W x D) 1020 x 248 x 405 mm40.2 x 9.8 x 15.9 in. Finishes Piano
Black, High Gloss Cherry, High Gloss American Walnut, Satin Sycamore
Il modello 205/2 utilizza quattro altoparlanti in configurazione a tre vie, il
driver Uni-Q unico permid-range superiore ed alte frequenze con estensione
ultrasonica ed una coppia di woofer da200 mm (8 pollici) in configurazione IDL
per le basse frequenze. Questo sistema funziona in modo ottimale in ambienti di
dimensioni medio-grandi in cui i bassi controllati ed estesi costituiscono una
robusta base per una resa superiore delle frequenze emesse dal driver Uni-Q.Finitura High Gloss +€.800,00
KEF
REFERENCE
207/2HG€.10.850,00Per
prezzo
scontato
TELEFONA INVIA UN E-MAIL L’ammiraglia della nuova serie Reference KEF,il modello 207/2, è stato
progettato per riprodurre fedelmente l’ampiezza di banda completa e le dinamiche
dei segnali musicali. Si tratta di una progettazione esente da compromessi, in
cui le prestazioni acustiche costituiscono l’obiettivo principale. Nel modello
207/2 viene utilizzato un complesso filtro di quart’ordine, di qualità elevata
saldato a mano e cinque altoparlanti. Il filtro, con punti di taglio a 120 e 400
Hz e2,3 kHz, invia uniformemente le frequenze appropriate ai rispettivi
altoparlanti. Il nuovo trasduttore Uni-Q della serie Reference da165 mm (6,5
pollici) viene utilizzato in questo modello per le frequenze medio-alte, alte ed
altissime. Completano la dotazione del diffusore un’unità medio-bassi da 250
mm(10 pollici) dotata di un apposito compartimento e due unità dei bassi con
cupola in polpa di cellulosa rinforzata in fibra da 250 mm (10 pollici) montate
in configurazione IDL (Indipendent DriverLoading).Finitura High Gloss +€.900,00
Everything about KEF’s
flagship loudspeaker is designed to make what you hear sound totally real. As
the finest expression of all the latest KEF design breakthroughs, the sound
quality, bandwidth and dynamics of these formidably accomplished floorstanders
are second to none. Their technological sophistication makes the loudspeakers
themselves seem to disappear: all you experience is the pure sensation of
hearing the original sound source. Bass Drivers Bass extension is phenomenal,
thanks to a pair of 250mm (10”) ultra low distortion drivers independently
housed in 70-litre reflex enclosuresLower Midrange Driver & Uni-Q Driver A
dedicated lower midrange driver of the same size adds the control and finesse
required in this crucial register while assuring perfect integration between the
bass drivers and the stunning new Uni-Q® array, whichreproduces midrange and
high frequencies with equal precision. Its linearity allows the subtleties and
dynamics of the recording to be tracked with startling accuracy, while its wide,
even dispersion to create a soundfield of truly exhilarating realism.Crossover
Computer optimised audiophile grade crossovers ensure that transitions are
imperceptible between the radical new Uni-Q® array and the two 165mm (6.5in) LF
driversMODEL 207/2 Naturally, performance can
befine-tuned for your room acoustics. The KEF Uni Balance feature allows you to
adjust bass output to compensate for the proximity of the loudspeakers to the
walls; at the high frequency end, a four-position adjustment gives ample
‘brightness’ control to compensate for the room’s sound absorption
characteristics. Specification Model Model 207/2 Design 4 way bass reflex
Drive Units LF: 2 x 250 mm (10in.) LMF: 1 x 250 mm (10in.) MF: 1 x 165 mm
(6.5in.)HF: 1 x 25 mm (1in.) Frequency response at 15˚ horizontally off axis ±3
dB 40 Hz - 60 kHz Bass Extension -6 dB 26 Hz Crossover frequencies 120 Hz, 350
Hz, 2.3 kHz Amplifier requirements 50 - 400 W Sensitivity (2.83V/1m) 91 dB
Maximum output 117 dB Impedance 8 Ω (3.0 Ω min) Magnetic shielding Yes Weight 66
Kg (145 lbs) Dimensions (H x W x D) 1226 x 400 x 685 mm 48.3 x 15.7 x 27
in. Finishes Piano Black, High Gloss Cherry, High Gloss American Walnut, Satin
Sycamore
Il modello
202/2c è un diffusore per canale centrale progettato principalmente per
adattarsi ai diffusori principali modello 201/2 e 203/2 ed ai piccoli schermi.
Utilizza la stessa dotazione di altoparlanti del modello 203/2 e, come il
modello più grande204/2c, è adattato dal punto di vista timbrico agli altri
diffusori serie Reference, consentendo in tal modo di realizzare un palcoscenico
sonoro tridimensionale senza soluzione di continuità nelle sale d’ascolto. Le
dimensioni sono state scelte per consentirne una più comoda installazione
sottoschermi delledimensioni tipiche di un TV a schermo grande da 32” o uno
schermo a treppiede.I modelli da 202/2c e 204/2c dispongono di reti di crossover
e altoparlanti con schermatura magnetica che riducono al minimo l’interferenza
con i TV CRT.Finitura High Gloss +€.500,00
The
same enhanced point source effect. The same broad, even dispersion. The same
essential truthfulness. The three-way bass reflex Model 202/2c has all the
acoustic virtuosity of the Model 204/2c, but with a single 165mm (6.5in.) bass
driver on each side of the new generation Uni-Q® array. For the listener, it
adds up to a genuinely uplifting listening and viewing experience. Superbly
detailed. Honest. And deeply satisfying.The three-way bass reflex Model 202/2c
has all the acoustic virtuosity of the Model 204/2c, but with a single 165mm
(6.5in.) bass driver on each side of the mechanically decoupled new generation
Uni-Q® array. And as with the rest of the range, the HF magnet assembly is
vented to reduce acoustic pressure behind the braced compound dome and the voice
coil is ferrofluid-cooled to increase damping in its lower register. The result
is smooth, dynamic response that faithfully follows every nuance of the recorded
signal. Naturally, performance can be fine-tuned for your room acoustics. The
KEF Uni Balance feature allows you to adjust bass output to compensate for the
proximity of the loudspeakers to the TV screen; at the high frequency end, a
two-position adjustment allows compensation for the sound attenuation when the
loudspeaker is positioned behind a typical acoustically transparent projection
screen Specification Model Model 202/2 Design 3 way bass reflex Drive Units LF:
2 x 165 mm (6.5in.) MF: 1 x 165 mm (6.5in.) HF: 1 x 25 mm (1in.) Frequency
response at 15˚ horizontally off axis ±3 dB 65 Hz - 60 kHz Bass Extension -6 dB
50 Hz Crossover frequencies 400 Hz, 2.3 kHz Amplifier requirements 50 - 200 W
Sensitivity (2.83V/1m) 89 dB Maximum output 113 dB Impedance 8 Ω (3.2 Ω min)
Magnetic shielding Yes Weight 15.6 Kg (34.3 lbs) Dimensions (H x W x D) 200 x
630 x 315 mm7.9 x 24.8 x 12.4 in. Finishes Piano Black, High Gloss Cherry, High
Gloss American Walnut, Satin Sycamore
KEF
REFERENCE
204c/2HG€.4.990,00 Per
prezzo
scontato
TELEFONA INVIA UN E-MAIL Autentico diffusore per canale centrale, il
modello204/2c sfrutta appieno le dinamiche e l’ampiezza di banda delle moderne
colonne sonore AV. Con circa il 70% del segnale audio proveniente dal canale
centrale è logico considerare questo modello un diffusore veramente importante.
Quattro unità LF da165 mm (6,5 pollici) sono abbinate al driver Uni-Q da165 mm
(6,5 pollici) in un sistema reflex a tre vie che,come il modello 202/2c, non
solo è dotato di regolazione del livello dei bassi per installazione vicino a
parete, ma dispone anche di un funzione di incremento delle alte frequenze per
installazione dietro ad uno schermo acusticamente trasparente. I quattro piedini
o paracolpi in gomma speciale fissati saldamente alla base direttamente in fase
di produzione agevolano il posizionamento del diffusore. Sono inoltre
disponibili per i diffusori centrali modello 202/2c e 204/2c appositi supporti
che ne consentono l’installazione sicura in campo aperto a garanzia di
prestazioni ottimali.Finitura High Gloss +€.600,00
Movie
stars don’t come more charismatic than this: eloquent, engrossing and
disarmingly natural. Together with breathtaking sonic accuracy and spatial
precision, these are the qualities a great centre channel speaker aspires to -
and Model 204/2c has them all.Dialogue and vocals acquire spine-tingling
immediacy and on-screen action becomes astonishingly real. Tosca or Tarantino,
it’s an addictive experience.With a quartet of ultra-low distortion 165mm (6.5
in.) bass drivers flanking a new generation Uni-Q array, it combines real muscle
with the sensitivity to articulate all the subtleties in the soundtrack.
Transitions are seamless, thanks partly to the bass array being progressively
filtered so that the two outer woofers roll off before the inner pair.Naturally,
performance can be fine-tuned for your room acoustics. The KEF Uni Balance
feature allows you to adjust bass output to compensate for the proximity of the
loudspeakers to the TV screen; at the high frequency end, a two-position
adjustment allows compensation for the sound attenuation when the loudspeaker is
positioned behind a typical acoustically transparent projection screen
Specification Model Model 204/2c Design 3 way bass reflex Drive Units LF: 4 x
165 mm (6.5in.) MF: 1 x 165 mm (6.5in.) HF: 1 x 25 mm (1in.) Frequency response
at 15˚ horizontally off axis ±3 dB 53 Hz - 60 kHz Bass Extension -6 dB 40 Hz
Crossover frequencies 400 Hz, 2.3 kHz Amplifier requirements 50 - 300 W
Sensitivity (2.83V/1m) 90 dB Maximum output 115 dB Impedance 8 Ω (3.2 Ω min)
Magnetic shielding Yes Weight 34.6 Kg (76 lbs) Dimensions (H x W x D) 200 x 1100
x 425 mm7.9 x 43.3 x 16.7 in. Finishes Piano Black, High Gloss Cherry, High
Gloss American Walnut, Satin Sycamore
With
the new 165mm (6.5 in.) Uni-Q® arrays alongside KEF’s ultra-low distortion 200mm
bass driver, the Model 206/2ds dipole rear effects loudspeaker floods the room
with an intricate 3D soundfield that anchors on-screen action in a real sense of
place. With the two Uni-Qs playing out of phase, it’s virtually impossible to
tell where the sound originates- everyone in the room experiences the same
accurate, all-enveloping sound image.Uni-Q driver arrayThe new Uni-Q® array is
so perfectly attuned to reproducing the human voice that vocals acquire
previously unheard-of definition. The improved balance between direct sound,
early room reflections and the reverberant field delivers an extraordinarily
realistic performance without losing any of the Uni-Q benefits of precise
imaging, spaciousness and unconstrained vertical response.Naturally, performance
can be fine-tuned for your room acoustics. The KEF Uni Balance feature allows
you to adjust bass output to compensate for the proximity of the loudspeakers to
the walls; at the high frequency end, afourposition adjustment gives ample
‘brightness’ control to compensate for the room’s sound absorption
characteristics. Specification
Model Model 206/2 Design 3 way closed box Drive Units LF: 1 x 200 mm (8in.) MF:
2 x 165 mm (6.5in.) HF: 2 x 25 mm (1in.) Frequency response at 15˚ horizontally
off axis ±3 dB 65 Hz - 60 kHz Bass Extension -6 dB 55 Hz Crossover frequencies
250 Hz, 2.3 kHz Amplifier requirements 50 - 200 W Sensitivity (2.83V/1m) 88 dB
Maximum output 110 dB Impedance 8 Ω (3.2 Ω min) Magnetic shielding Yes Weight
11.6 Kg (25.5 lbs) Dimensions (H x W x D) 324 x 400 x 200 mm12.7 x 15.7 x 7.9
in.Finishes Piano Black, High Gloss Cherry, High Gloss American Walnut, Satin
Sycamore
With
no less than 500W of high efficiency Class D amplifier powering a 300mm (12in.)
long throw ultra-low distortion driver, Model 208 floods the listening area with
exuberantly extended, immaculately controlled bass. Output, phase and the low
pass filter frequency can be adjusted to your preferences. With its acoustically
inert hand-finished cabinet, Model 208 reproduces low frequency effects with
precision as well as power. Bass Driver With no less than 500W of high
efficiency Class D amplifier powering a 300mm(12in.) long throw ultra-low
distortion driver in a bass reflex enclosure, Model 208 floods the listening
area with gloriously extended, immaculately controlled bass. Specification Model
Model 208 Design Bass reflex Drive Units LF: 300 mm (12in.) Long-throw Frequency
response at 15˚ horizontally off axis ±3 dB 25 Hz - 200 Hz Bass Extension -6 dB
22 Hz Amplifier 500 W built in Sensitivity (2.83V/1m) Active System Maximum
output 117 dB Impedance Active System Magnetic shielding Yes Weight 38 Kg (83.6
lbs) Dimensions (H x W x D) 465 x 576 x 579 mm18.3 x 22.7 x 22.8 in. Internal
Volume 82 litre Electronic processing Polarity: +/- bass boost/cut adjustable
low-pass Finishes Piano Black, High Gloss Cherry, High Gloss American Walnut,
Satin Sycamore
If you want a home entertainment subwoofer that delivers apocalyptic bass
extension with zero distortion, consider Model 209. Powered by a 1000W amp with
DSP-based equalisation and volume, phase, polarity and crossover parameters
adjustable by remote control, the 450mm (18in.) cone has a double radial magnet,
a unique dual suspension system, and the effective cabinet volume is virtually
doubled by KEF’s Acoustic Compliance Enhancement technology.Bass DriverThe
enormous 450mm (18in.) cone of the new Model 209 drive unit has a linear
excursion of no less than 60mm. This is only possible by combining KEF’s
ingenious double suspension system and critically designed large roll surround
with a new double radial array of neodymium magnets powerful enough to create a
constant 120mm long magnetic field. ACEKEF’s innovative ACE (Acoustic Compliance
Enhancement) technology allows the massive resulting bass extension (-3dB at
15Hz) to be realised without a disproportionately large enclosure. By filling
the cabinet with activated carbon, ACE almost doubles effective cabinet
volume.DSPDigital Signal Processing equalisation facilities incorporating six
frequency response presets for both line and LFE inputs, together with a unique
system for self-adjusting its own output to suit the acoustics of the room using
automated measurements of the listening area via the microphone supplied. All
DSPfacilities together with volume, phase, polarity and crossover parameters are
adjustable by remote control. MODEL 209 - SPECIFICATIONS Model Model 209 Design
Closed box Drive Units LF: 450 mm (18in.) Long-throw Frequency response at 15˚
horizontally off axis ±3 dB 15 Hz - 250 Hz Bass Extension -6 dB 12 Hz Amplifier
1000 W built in Sensitivity (2.83V/1m) Active System Maximum output 120 dB
Impedance Active System Magnetic shielding Yes Weight 51.9kg (114.4 lbs)
Dimensions (H x W x D) 530 x 629 x 629 mm20.9 x 24.8 x 24.8 in. Internal Volume
90 litre Electronic Processing Room Correction - user selectable EQLevel
adjustment: 99 steps each step = 0.5dBPhase adjustment: 0-180 deg in 5 deg steps
Variable LP filter, 40-140Hz, Polarity: +/-.Finishes Piano Black, High Gloss
Cherry, High Gloss American Walnut, Satin Sycamore
SUBWOOFER
Il Powered Subwoofer (PSW) gioca un ruolo
fondamentale ai fini dello sfruttamento dell'intero potenziale del DVD e di
altri formati digitali. La gamma KEF offre una scala logica di potenza degli
amplificatori, tutti con uno styling adeguato. In ogni caso le frequenze e i
livelli di uscita possono essere regolati con facilità per accordarli ai
diffusori principali e all'acustica della stanza.
Questo amplificatore on-board da 100 Watt che pilota un
basso da 200mmaggiunge una potente dimensione supplementare all'immagine sonora
3D. Il disegno reflex con bordi accuratamente profilati termina con la porta "racetrack"
per eliminare ogni rumorosità, i robusti rinforzi interni minimizzano la
colorazione, e il distintivo styling morbido del cabinet offre una scelta di
finiture in legno impiallacciato nero cenere o ciliegia. Il subwoofer entry
level ideale. Dati tecnici :Subwoofer attivo 100 W RMS - HI FI e Home Theatre -
1 woofer 20 cm - Spl 106 dB - risp. freq. 40 Hz÷180 Hz ± 2,5dB - peso 15 kg -
nero-ciliegio
A
100W on-board amplifier driving a 200mm (8”) bass driver adds a powerful extra
dimension to the 3D sound image. A reflex design with carefully contoured ends
to the ‘racetrack’ port to eliminate noise and sturdy internal bracing to
minimise box colouration, the cabinet’s distinctive soft edged styling is set
off by a choice of Black Ash, Maple or Dark Apple finishes. The ideal entry
level sub.PSW 1000.2 specifications Design Bass reflex, downward firing Drive
unit 200 mm (8") Frequency response at 15° horizontally off axis ±3 dB 38 Hz -
180 Hz Crossover frequency variable Amplifiers 100 W built in Maximum output 106
dB Magnetic shielding Yes Weight 13.5 kg (29.7 lbs) Dimensions (H x W x D) 360 x
320 x 320 mm14.2 x 12.6 x 12.6 in. Finishes Black Ash, Maple or Dark Apple
So
gorgeous: HTB2 is the first subwoofer at this price level that you will
want to show off!Ultra-reliable high efficiency 250W class D amplifier.
Plays very loud and clean all day long, if necessary. 250mm (10in.)
driver with matching passive bass radiator. This configuration ensures
that the surprisingly small enclosure reaches down to give astonishing
deep bass, and can deliver both awesome movie effects and subtle
musicality, as needed. Flexible positioning. Depending on your space
requirement or your visual preference, vertical or horizontal
orientation is possible. Acoustically inert enclosure shaped to
eliminate internal standing waves. In a nutshell, no nasty buzzes or
rattles when driven hard. SmartBass™ 'connect and go' feature for
simplicity of set up. Our engineers have carefully designed HTB2 to be
as simple and practical as possible; just connect it to the mains and
your AVreceiver to be assured of optimum performance without the hassle
of "tweaking". HTB2 specifications Design Powered SubwooferPassive
radiator Drive unit array 1 x 250mm (10in.) 1 x 250mm (10in.) ABR
Frequency range 30Hz - 250Hz Amplifier Requirements 250 W built in
Sensitivity (2.83V/1m) 100mV for full Output Maximum output 110dB SPL @
1m Internal volume 15 litres Weight 11.3kg (24.9lbs) Dimensions (H x W x
D) vertical:390 x 440 x 195 mm15.4 x 17.3 x 7.7 in.horizontal:227 x 440
x 385 mm8.9 x 17.3 x 7.7 in. Finishes High Gloss Black or High Gloss
Silver
Subwoofer attivo di
grande versatilità, realizzato con cassa curva massicciamente rinforzata per
eliminare la 'colorazione' sonora provocata dalle vibrazioni del mobile. Con un
altoparlante a lunga escursione da 250mm (10") ed un amplificatore incorporato
da 250W, questo subwoofer a cassa chiusa è in grado di produrre bassi tanto
profondi e potenti da far tremare il pavimento, che si tratti di musica o di
effetti cinema. Il PSW2500 incorpora inoltre molte nuove soluzioni, come la
possibilità di variare l'altezza dal pavimento e di selezionare le modalità
musica e cinema, che lo rendono adatto a completare qualsiasi sistema musicale o
multicanale. Dati tecnici Subwoofer attivo 250 W RMS - 1 woofer 25 cm - Spl 108
dB - risp. freq. 35 ÷150Hz - scher. Magn. - peso 14 kg - mmm 360x495x325 - nero,
acero, melo scuro
PSW
2500 The latest addition to the "Q Series" range, the multi-purpose PSW2500
active subwoofer has an attractive curved cabinet which is heavily braced to
eliminate any unwanted 'box coloration'. Using a 250mm long-throw bass driver
and a 250W built in amplifier; this closed box design will deliver
ground-shaking effects and depth, whether it is a movie or music. The PSW2500
also incorporates many new features such as ground lift ability and switchable
movie/music modes.The subwoofer will complement any music or multi-channel
system, and is available in the same attractive finishes as the rest of the "Q"
series range.PSW 2500 specifications Design Closed Box Drive unit 250mm (10")
ultra long throw bass driver Frequency response at 15° horizontally off axis ±3
dB 33 Hz - 150 Hz Amplifiers 250 W built in Sensitivity (2.83V/1m) 100mV for
full Output Maximum output 108 dB Magnetic shielding Yes Weight 14.5 kg (31.9
lbs) Dimensions (H x W x D) 360 x 495 x 325 mm14.2 x 19.5 x 12.8 in. Finishes
Maple, Dark Apple or Black
Il PSW 3500 alza
ulteriormente il tiro, con un amplificatore onboard da 300 Watt, un cono a lunga
portata da 300mm e componenti interni di qualità audiofila combinati insieme per
garantire una presenza dei bassi di sorprendente profondità e chiarezza per
rafforzare la scena sonora. Completamente regolabile tramite telecomando RF, il
suo aspetto è di classe pari a quella del suo suono, cioè straordinario. Dati
tecnici Subwoofer attivo 300 W RMS - 1 woofer 30 cm - Spl 110 dB - risp. freq.
30 ÷250Hz - schermatura magnetica - peso 22,5 kg - dim. mm 450x600x395 -
telecomando per regolazione fase, livello e frequenza - nero, acero, melo scuro,
argento
With
a 300W power amp driving a 300mm (12”) down-firing long-throw bass unit, PSW3500
is capable of generating a heftily extended bass image over a very large area -
and with level, phase, and frequency fully adjustable via infrared remote
control, it’s easy to fine tune to your personal preferences and room acoustics.
The components and circuitry in the distinctive elliptical cabinet are all of
audiophile standard, and a separate infrared sensor allows the unit to be placed
completely out of sight. Available in Black Ash, Maple, Dark Apple or Silver.
PSW 3500 specifications Design Closed box, downward firing Drive unit 300 mm
(12") Frequency response at 15° horizontally off axis ±3 dB 30 Hz - 250 Hz
Crossover frequency variable/LFE Amplifiers 300 W built in Maximum output 110 dB
Magnetic shielding Yes Weight 22.5 kg (49.6 lbs) Dimensions (H x W x D) 450 x
600 x 395 mm17.7 x 23.6 x 15.6 in Finishes Black Ash, Maple, Dark Apple or S
Diffusore T101- 2 vie woofer 115 mm, tweeter 25 mm, 100W BLACK GLOSS - coppia
T101
speakers Mounted vertically as satellites (whether wall-mounted, on the desk
stands supplied or the optional floor stands) or horizontally as a centre
channel above or below the TV, the standard T Series speaker features KEF’s new
115mm (4.5in.) ultra-low profile bass and midrange driver paired with the high
performance new 25mm (1in.) vented tweeter.
Diffusore T101- 2 vie woofer 115 mm, tweeter 25 mm, 100W BLACK GLOSS - coppia
T101c
speakers Mounted vertically as satellites (whether wall-mounted, on the desk
stands supplied or the optional floor stands) or horizontally as a centre
channel above or below the TV, the standard T Series speaker features KEF’s new
115mm (4.5in.) ultra-low profile bass and midrange driver paired with the high
performance new 25mm (1in.) vented tweeter.
Diffusore T103- 2 vie woofer 2x115 mm, tweeter 25 mm, 150W BLACK GLOSS - coppia
T301
speakersIn the larger models, the same high performance 25mm (1in.) vented
tweeter is paired with two 115mm (4.5in.) ultra-low profile bass and midrange
drivers for an even bigger sound
Diffusore T103C- 2 vie woofer 2x115 mm, tweeter 25 mm, 150W BLACK GLOSS - coppia
T301c
speakersIn the larger models, the same high performance 25mm (1in.) vented
tweeter is paired with two 115mm (4.5in.) ultra-low profile bass and midrange
drivers for an even bigger sound
Subwoofer attivo Classe D cassa chiusa - woofer 250mm, potenza 250W
T-2
A slimline closed box design, the assertive T-2 subwoofer completes the 3D sound
image by adding definition and weight to the LF response. Easy to conceal
and operating in the same phase as the speakers for perfect integration, it
delivers fast, uniformly dispersed and devastatingly accurate bass. T-2
Design Closed box powered subwoofer Drive units 1 x 250mm (10in.)
Frequency response 30Hz - 250Hz Amplifier 250 Watts built-in Class-D
Maximum output (SPL) 110dB Low pass filter variable Fixed 250Hz, 2nd-order
Low level signal inputs RCA phono socket Internal volume 12.7 Litres
Power requirements 100 - 240 V ac ~ 50/60Hz Power consumption 250VA
Weight 13kg (28.6lbs) Dimensions (H x W x D) 380 x 370 x 177 mm(15.0 x
14.6 x 7.0 in.) Finish Black
Sistema Home Theater 5.1 composto da 4 diffusori T301 - 2 vie woofer 2x115 mm,
tweeter 25 mm ed un Subwoofer
attivo T2 woofer 250mm, 250W - BLACK GLOSS
Typical wireless
systems use just one frequency or channel to transmit the radio signal.
Unfortunately this frequency is very similar to many household appliances such
as microwaves, mobile phones and wireless Internet routers, which can interfere
with the transmitted sound signal causing unwanted dropout of sound and
distortion. KEF’s wireless system is different. With its revolutionary new
transmission technologies constantly monitoring and adjusting for interference,
high-quality wireless sound is ensured, all the time. KEF have developed
innovative new technologies to deliver high-quality wireless audio, while at the
same time avoiding signal interference. A narrow signal band is used that is
sufficient enough for high-quality audio transmission yet perfect for finding a
path through the congested environment of a home filled with potentially
conflicting devices. This narrow band is a feature of HFADPCM (High Fidelity
Adaptive Differential Pulse Code Modulation), and along with advanced error
correction technology ensures an exceptionally robust delivery of CD-quality
audio between the transmitter and receivers The system detects other
transmitters in the 2.4GHz frequency band - such as cordless phones, Wi-Fi
routers and microwave ovens - then 'hops' out of the way of potentially
conflicting signals. With this technology know as AFHSS (Advanced Frequency
Hopping Spread Spectrum), a processor constantly monitors several channels at a
time and continually switches to the strongest available to ensure a pure signal.
It's all done in milliseconds so you don't notice it's happening: so nothing
gets in the way of your enjoyment.
Il KEF KHT 1005, fratello minore del pluripremiato KHT
2005, nasce per offrire la più sofisticata tecnologia KEF ad un prezzo
imbattibile. Composto da quattro satelliti ed un canale centrale tutti con
tecnologia UNI-Q, questi minidiffusori sono racchiusi in un guscio di alluminio.
Con la loro ampia dispersione, i satelliti ed il canale centrale offrono
un’ampia zona d’ascolto ed un perfetto equilibrio timbrico. Un poderoso
subwoofer attivo da 100 Watt dotato di taglio variabile e regolazione di fase e
di livello garantisce un impatto sonoro adeguato a tutti gli ambienti di
ascolto. KHT 1005, Home Theatre di qualità “audiophile” ad un prezzo abbordabile
Il nuovo KHT 2005.3 evoluzione dell’eccellente KHT
2005, si presenta sul mercato per mantenere un posizione leader nella gamma dei
sistemi home theatre di dimensioni compatte ma di livello elevato.
Il più piccolo driver UNI-Q (da 4") racchiuso in un guscio di alluminio
totalmente privo di risonanze e vibrazioni in configurazione reflex per una
gamma estesa da 80 a 20.000 Hz. Questo è "THE EGG" (l'uovo), un diffusore
inimitabile perché contiene tecnologie esclusive KEF coperte da brevetto
mondiale come l'UNI-Q che ricrea la sorgente coincidente di suono e garantisce
una amplissima diffusione delle alte frequenze. L'abbinamento dei diffusori HTS
2001.2(the egg), con il subwoofer PSW 2010, da 150W, rende il KHT 2005.2,
formato da cinque EGG ed un subwoofer, un sistema imbattibile per un uso HI-FI e
Home Theatre.La versatilità del diffusore HTS 2001(the egg), collocabile a scaffale, a muro o
soffitto, o sulla base dedicata, e la compattezza del subwoofer PSW 2010,
rendono questi sistemi inseribili in qualunque ambiente. Basi opzionali
consentono una collocazione a pavimento.
Dopo il grande successo del sistema KHT2005, KEF presenta una nuova generazione
di sistemi home theatre 5.1. Evoluzione stilistica della forma "a uovo", il
sistema 3000 è stato completamente ridisegnato, e il suo look è ulteriormente
migliorato, così come migliorato è il suono, che è più dolce e più robusto di
qualsiasi concorrente nel segmento.Le caratteristiche chiave del sistema
KHT3005- Quattro satelliti in fusione di alluminio, la cui forma è stata
studiata per la migliore resa acustica, che utilizzano nuovi drivers Uni-Q; una
risposta più morbida e più chiara.- Il satellite per il canale centrale,
equipaggiato con un driver Uni-Q e due woofers da 75 mm, fornisce grande
intelligibilità e grande pressione acustica.- Un subwoofer ad alta efficienza
con altoparlante da 250 mm, pilotato da un amplificatore in classe D da 250 W e
assistito da unradiatore passsivo. Il tutto montato in un cabinet acusticamente
inerte.L'innovazione più importante, nella serie 3000, è rappresentata dal nuovo
driver Uni-Q, brevettato, per realizzare il quale si è fatto ricorso alle più
recenti tecnologie aerospaziali. Il tweeter, sistemato nel centro del cono del
woofer/midrange, permette di realizzare la sorgente sonora puntiforme. Un'altra
innovazione, presente in tutti e cinque i satelliti, è la 'sospensione
sigillata' (SST - Sealed Suspension Technology, brevettata), che nel driver
Uni-Q sigilla effettivamente lo spazio tra il cono del woofer/midrange e il
tweeter: ciò evita che le differenti pressioni generate dal movimento del cono
creino flussi d'aria indesiderati, disturbando il suono. I rinforzi radiali,
visibili nel cono del midrange, aumentando la rigidità del sistema assicurano
assenza di break-up e, quindi, maggiore purezza nella zona di transizione col
tweeter.E' risaputo anche che agli altoparlanti del canale centrale giunge circa
il 60% di tutta l'energia acustica di un sistema home cinema. Oltre a questo
compito, in sé già gravoso, essi devono fornire la massima chiarezza nel
dialogo, vitale per apprezzare acusticamente la riproduzione di un film. KEF ha
dedicato particolare attenzione a questi aspetti. Il diffusore per il canale
centrale è equipaggiato con un drive Uni-Q da 115 mm di ultima generazione, come
gli altri satelliti, e in più dispone di due woofers da 75 mm per essere pronto
a rispondere ad aumenti repentini di potenza. Nella maggior parte dei sistemi
concorrenti, il diffusore centrale altro non è che uno dei satelliti disposto
orizzontalmente anziché verticalmente.Anche il subwoofer è un pezzo innovativo.
Utilizza un amplificatore da 250 W ad alta efficienza per pilotare un
altoparlante da 250 mm, il quale, accoppiato ad un radiatore passivo, produce
frequenze basse di grande impatto che si integrano con continuità col suono dei
satelliti. Grazie all'intelligente funzionalità 'connect and go', collegarlo al
sistema e mettere a punto tutto l'insieme è quanto mai semplice, e, poiché può
essere sistemato sia orizzontalmente sia verticalmente, anche il suo
posizionamento in ambiente risulta facilitato.Un'altra particolarità di questa
realizzazione KEF è l'utilizzo di magneti ad anello chiuso (quindi senza
dispersione di campo magnetico) per l'ancoraggio delle griglie frontali:
un'attenzione al dettaglio che gratifica l'utilizzatore anche al semplice tatto.
Diffusori e canale centrale tecnologia Kef ACE - silver
Quando si osserva un bell'oggetto, si è portati a pensare che anche le sue
prestazioni siano molto buone. Proprio come nel caso del KHT6000 ACE. Progettato
per essere l'ideale complemento di TV a schermo piatto di ultima generazione, in
esso troviamo la tecnologìa high-end di KEF racchiusa in forme eleganti. Il
canale centrale si avvale di un drive Uni-Q®, realizzato con un tweeter a cupola
in alluminio e un midrange a cono da 75 mm (3”):per questo le voci sono chiare,
calde, perfettamente bilanciate anche se si è seduti in posizione asimmetrica.
KHT6000 ACE è una sorgente lineare, con almeno quattro altoparlanti da 75 mm
(3”) a lunga escursione e bassissima distorsione, che produce un'immagine tanto
realistica che pare di poterla toccare. La cassa per il drive Uni-Q, separata,
utilizza latecnologìa ACE per spostare la risonanza al disotto della frequenza
di lavoro e assorbire le vibrazioni provocate dalle alte frequenze. E'
difficile, ovviamente, rendersi conto di tanta raffinatezza dopo pochi minuti;
ci si accorgerà, però, che l'ascolto di musica si protrarrà piacevolmente per
tempi più lunghi. Ciò che non ci si aspetta è la facilità con la quale ogni
elemento può essere sistemato nella stanza e vicino al televisore. Nella parte
posteriore del diffusore trova posto, integrato nelle guide di sostegno per il
fissaggio a muro, l'ingegnoso sistema Selecta-mountTM; l'esclusivo sistema di
cablaggio, versatile e pulito, si adatta facilmente ai diversi posizionamenti
(su scaffale o su piccolo stand), e, per la sistemazione a pavimento, l'opzione
‘BassExtenderTM’ permette di potenziare la risposta alle basse frequenze
mediante una porta reflex che sfrutta la base di appoggio come camera
aggiuntivi.
Top di gamma della famiglia KHT Diffusori a 3 vie,
UNI-Q da 16 cm + 2 woofer da 16cm.
Tecnologia esclusiva Kef ACE, per bassi più profondi.Nave ammiraglia della
famiglia KHT, il sistema KHT 9000 ACE combina le più innovative prestazioni KEF
e dati tecnici precisi per creare un’immagine sonora di qualità audiofila 3D
:incredibilmente spaziosa, dettagliata e assolutamente affascinante.L’unità
Uni-Q da 165 mm (6 1/2") riesce a dare risalto alla profondità emotiva e alla
trama del canto, sia esso cantato, parlato o sussurrato – facile dacredere, dato
che si tratta della stessa unitàdella serie Q e XQ di elevata qualità. Ai lati
una coppia di unità a lunga portata con motori a bassissima distorsione per la
risposta in bassa frequenza accuratamente controllata.Grazie all'incremento
della rispondenza acustica ACE di KEF ciò che si sente è il livello di
estensione dei bassi che, generalmente,si ottiene solo con diffusori molto più
grandi.Per realizzare un design perfettamente integrato,che fa da complemento
con gli interni moderni, è possibile utilizzare le staffe a parete o i supporti
a pavimento e per scrivania regolabilicon terminali montati su di essi e
collegati alle unità tramite un ingegnoso sistema a scorrimento. A seconda del
sistema di montaggio prescelto, a pavimento o a parete, i collegamenti
selezionano in automatico la risposta a spazio libero o a parete. Il filtro a
parete presenta una forma singolare che corregge la riflessione al di sottodei
200 Hz e la seconda modalità a 70 Hz garantendo una precisione tonale senza
precedenti per i diffusori montati a parete. Disponibili separatamente e con
un’ampia scelta di subwoofer compatibili, è possibile individuare la
configurazione che meglio soddisfa i vostri gusti. Se prendete sul serio il
vostro divertimento, allora è sicuramente un ottimo investimento in puro
piacere.
Ci130.2FSKEF‘s
full range Ci130.2FS and Ci130.2FR are serious speakers at an affordable price.
The Ci130.2 is well suited for high quality music and speech reinforcement
applications where good hi-fi performance is required. Sharing KEF‘s versatility
of flush mounting square speakers in walls or round speakers in ceilings with
ease of installation, the speaker is at home either installed indoors, even in
bathrooms, or outside (under eaves). There is virtually no limit to the design
possibilities that these budget speakers can offer. If you want custom
installation benefits without breaking the bank look to the Ci130.2FS and
Ci130.2FR. Features and Benefits The Ci130.2FS and Ci130.2FR combine 50W
power handling and 87dB sensitivity. A 130mm (5.25in.) full range driver
provides excellent power handling and smooth response. The Ci130.2FR is supplied
with an acoustic steel back can. The bezel and grille can be painted or covered
by fabric to match the interior décor. Applications The Ci Series Ci130.2FS and
Ci130.2FR are best suited where high quality music and speech reinforcement
applications require hi-fi performance such as: Multi Room systems.
Lounges, Bars, Boutiques. Boardrooms & Offices. Airports, Convention Centres,
Hotels. Live Theatre/Concert Hall fill-in. Houses of Worship.Model
Ci130.2FS Nominal Impedance 8Ω Sensitivity (2.83V @ 1m) 87dB Frequency Response
+/-6dB 2pi/open-backed 50 - 20kHz Frequency Response +/-6dB With back can/rear
enclosure - Crossover Frequency - Drive Units (LF / MF / HF) 130mm / - / -
Recommended Amplifier Power 10-50W Product External Dimensions (Height / Width /
Depth) 180mm (7.09in.) / 180mm (7.09in.) / 80mm (3.15in.) Cut-out
Dimension (Height / Width) 158mm (6.22in.) / 158mm (6.22in.) Mounting
Depth from Surface (Product only / With back can) 77mm
Ci130.2QSIntended
to be as unobtrusive as possible, the Ci Series Ci130.2QS and Ci130.2QR are
high-fidelity flush-mount loudspeakers utilising KEF’s Uni-Q® driver array
technology. This gives the round and square bezel speakers the inherent smooth
dispersion characteristics to fill any normal room with an expansive, generous
and rich sound stage. Equally at home - the square speaker in the wall or round
speaker in the ceiling - the driver array is mounted into a moulded ABS baffle
and can be easily and quickly installed with the moisture-resistant bracket and
fixings allowing placement in the harshest environments, such as bathrooms or
even outside (under eaves). Features and Benefits The Ci130.2QS and
Ci130.2QR combine 50W power handling and 86dB sensitivity. A 130mm (5.25in.)
bass/mid driver giving good bass extension along with a 19mm (0.75in.) aluminium
dome tweeter provide excellent power handling and smooth response. The Ci130.2QR
is supplied with an acoustic steel back can. The bezel and grille can be painted
or covered by fabric to match the interior décor. Applications The Ci
Series Ci130.2QS and Ci130.2QR is best suited where high quality music and
speech reinforcement applications require hi-fi performance such as: Multi
Room systems. Home Theatre systems. Lounges, Bars, Boutiques. Boardrooms &
Offices. Airports, Convention Centres, HotelsModel Ci130.2QS Nominal
Impedance 8Ω Sensitivity (2.83V @ 1m) 86dB Frequency Response +/-6dB
2pi/open-backed 50 - 40kHz Frequency Response +/-6dB With back can/rear
enclosure - Crossover Frequency 2.8kHz Drive Units (LF / MF / HF)
130mm / - / 19mm Recommended Amplifier Power 10-50W Features Uni-Q
Array Product External Dimensions (Height / Width / Depth) 180mm (7.09in.)
/ 180mm (7.09in.) / 96mm (3.78in.) Cut-out Dimension (Height / Width)
158mm (6.22in.) / 158mm (6.22in.) Mounting Depth from Surface (Product
only / With back can) 90mm
Ci130DSWhen
partnering with others in the range try the Ci130DS as the perfect companion for
creating a high performance built-in home theatre.A two-way, 3 driver,
flush-mount dipole loudspeaker, it can be mounted in the walls or ceiling
allowing far greater flexibility in positioning than any of the competition.
Housed in the enclosure to ensure optimum performance regardless of the volume
of cavity placement, the pair of mid/HF units are angled 80° apart - to obtain a
dipolar radiation pattern - with the bass unit firing on-axis to the listening
position. The driver configuration is set into a moulded baffle with smooth
contours to improve dispersion. With its unique properties such as switchable
bipole/dipole radiation pattern the Ci130DS makes a versatile partner with
others in the range such as the Ci200.2QT.Ci130DS combines 60W power handling
and 88dB sensitivity for a maximum output of 106dB. The 3-driver configuration
has a mounting depth of just 88mm (3.5in.). Best suited to high quality Music
Surround and Home Theatre applications, for all the usual surround sound (including
digital) formats. The stainless steel bezel and grille can be painted or covered
by fabric to match the interior décor.Description The Ci Series Ci 130.2DS is a
2-way, 3 driver, flush-mount dipole loudspeaker, utilising two 80mm (3.25in.)
midrange/HF drivers partnered by a 130 mm (5.25in.) bass driver. The driver
configuration is mounted into a moulded baffle with smooth contours to improve
dispersion, the pair of mid/HF units are angled 80° apart - to obtain a dipolar
radiation pattern - with the bass unit firing on-axis to the listening
position.The mid/HF drivers are housed in a moulded enclosure to ensure optimum
performance regardless of the volume of cavity placement.The stainless steel
bezel and grille can be painted to specification or covered by fabric to suit
the style of room.The two-way, 3 driver Ci130DS combines 60W power handling and
88dB sensitivity with a frequency response(±3dB) of 70Hz - 8kHz and a maximum
output of 106dB. Features and Benefits Dipole driver configuration:Creates a
diffuse sound field ideal for Home Theatre systems True flush-mount dipolar
loudspeaker:The 3-driver configuration has a mounting depth of just 98mm
(3.8in.) Wall or ceiling mounting:Allows far greater flexibility in positioning
than any of the competition. Stainless steel bezel and grille:The bezel and
grille can be painted to specification or covered by fabric to suit the style of
the room. Applications The Ci Series Ci130.2DS is a specialised flush-mount
dipole surround speaker, and is best suited to high quality Music Surround and
HomeTheatre applications. For use with all surround sound (including digital)ormats.Model
Ci130DS Nominal Impedance 4Ω Sensitivity (2.83V @ 1m) 88dB Frequency Response
+/-6dB 2pi/open-backed 70 - 10kHz Frequency Response +/-6dB With back can/rear
enclosure - Crossover Frequency 750Hz Drive Units (LF / MF / HF) 130mm / - / -
Recommended Amplifier Power 10-60W Features Two-way DiPole Product
External Dimensions (Height / Width / Depth) 277mm (10.91in.) / 367mm (14.45in.)
/ 103mm (4.06in.) Cut-out Dimension (Height / Width) 255mm (10.04in.) /
345mm (13.58in.) Mounting Depth from Surface (Product only / With back
can) 98mm (3
Ci160.2FSThe
full range Ci160.2FS and Ci160.2FR share with the smaller Ci130FS/FR KEF’s ideal
to produce serious custom installation speakers at an affordable yet competitive
price.They are perfectly suited for high quality music and speech reinforcement
applications where good hi-fi performance is required.Add to that the
versatility of flush mounting the square speaker in walls or the round speaker
in the ceiling.Easy and quick installation is provided by KEF’s simple and
ingenious screw down clamping system.Designed with moisture-resistant fixings
allowing placement in the harshest environments such as bathrooms or even
outside (under eaves). There is virtually no limit to the design possibilities
that these custom installation speakers can offer. The full range Ci160.2FS and
Ci160.2FR are economic on price, never on performance. Features and Benefits
Ci160.2FS and Ci160.2FR combines 100W power handling and 89dB sensitivity, for a
maximum output of 108dB. A 160mm (6.5in.) full range driver provides smooth high
frequency output. The bezel and grille can be painted or covered by fabric to
match the interior décor. Applications The Ci Series Ci160.2FS and Ci160.2FR
comprise a 160mm full range speaker. Performance should meet or exceed the
following criteria: frequency response 1 metre on-axis with swept sinewave shall
be 60Hz to 16kHz, system sensitivity shall be at least 89dB for 2.83V@1m. The
driver impedance and maximum power handling shall be 100W at 4 Ohms. The Ci
Series Ci160.2FS and Ci160.2FR is best suited where high quality music and
speech reinforcement applications require hi-fi performance such as: Multi Room
systems. Lounges, Bars, Boutiques. Boardrooms & Offices. Airports, Convention
Centres, Hotels. Live Theatre/Concert Hall fill-in. Houses of Worship. Model
Ci160.2FS Nominal Impedance 4Ω Sensitivity (2.83V @ 1m) 89dB
Frequency Response +/-6dB 2pi/open-backed 60 - 20kHz Frequency Response
+/-6dB With back can/rear enclosure - Crossover Frequency - Drive
Units (LF / MF / HF) 160mm / - /- Recommended Amplifier Power 10-100W
Product External Dimensions (Height / Width / Depth) 220mm (8.66in.) / 220mm
(8.66in.) / 89mm (3.50in.) Cut-out Dimension (Height / Width) 196mm
(7.72in.) / 196mm (7.72in.) Mounting Depth from Surface (Product only /
With back can) 82mm (3
Ci160.2QSThe
Ci Series Ci160.2QS is high-fidelity flush-mount loudspeaker utilising a fourth
generation Uni-Q® driver array. The driver array is mounted into a moulded ABS
baffle and along with KEF's simple and ingenious screw down clamping system -
with moisture-resistant fixings - allows placement even in the harshest
environments such as bathrooms or even under eaves. The bezel and
stainless steel grille can be painted to specification or covered by fabric to
suit the style of the room. The two-way Ci160.2QS combines 80W power
handling and 87dB sensitivity, with a frequency response (±3dB) of 60Hz - 20kHz
and a maximum output of 108dB. Features and Benefits Fourth generation Uni-Q
driver array: Superb off-axis dispersion characteristics from the coincident
source driver arrangement with greater flexibility of positioning that comes
from such a wide sound stage. 160mm (6.5in.) bass/mid driver: Good bass
extension from a flush-mount loudspeaker.25mm (1in.) soft dome ferrofluid cooled
tweeter: Excellent power handling and smooth response. Stainless steel bezel and
grille: Can be painted to specification or covered by fabric to suit the style
of the room. Applications The Ci Series Ci160.2QS is best suited for high
quality music and speech reinforcement applications requiring hi-fi performance
such as:Multi Room systems Home Theatre systems Lounges, Bars, Boutiques
Boardrooms & Offices Airports, Convention Centres,
Hotels Live Theatre/Concert Hall fill-in Houses of Worship
Sports Arenas. Model Ci160.2QS Nominal Impedance 8Ω Sensitivity
(2.83V @ 1m) 89dB Frequency Response +/-6dB 2pi/open-backed 60 - 24kHz
Frequency Response +/-6dB With back can/rear enclosure - Crossover Frequency
2.8kHz Drive Units (LF / MF / HF) 160mm / - / 19mm Recommended Amplifier
Power 10-100W Features Uni-Q Array Product External Dimensions (Height
/ Width / Depth) 220mm (8.66in.) / 220mm (8.66in.) / 93mm (3.66in.)
Cut-out Dimension (Height / Width) 196mm (7.72in.) / 196mm (7.72in.)
Mounting Depth from Surface (Product only / With back can)
Ci200.3QSThis
the Ci200.3QS flagship in-wall speaker offering outstanding performance.
Audiophile quality sound is derived from KEF’s Uni-Q® driver array technology,
providing your room with an expansive soundscape, excellent bass extension and
so creating the perfect sound stage. Thanks to KEF’s simple and ingenious screw
down clamping system you’ll find it easy and quick to install. Designed with
moisture-resistant fixings allowing placement in the harshest environments such
as bathrooms or kitchens. The Ci200.3QS offers excellent quality with no
sacrifice. Features and Benefits The new slender bezel and
contemporary grille design of the new Ci200.3 models combine to make the
finished installation less intrusive than it’s predecessors. The Uni-Q array
features a new 25mm (1in.) aluminum dome high frequency unit mounted
coincidently into a new 200mm (8in.) polypropylene bass/mid range unit providing
improved dynamic capability. A new crossover design provides the new Ci200.3
models with superb off-axis dispersion characteristics. Like all KEF Ci in-wall
products, the bezel and grille can be painted to match the interior décor.Model
Ci200.3QS Nominal Impedance 6Ω Sensitivity (2.83V @ 1m) 89dB
Frequency Response +/-6dB 2pi/open-backed 43 - 24kHz Frequency Response
+/-6dB With back can/rear enclosure - Crossover Frequency 1.8kHz
Drive Units (LF / MF / HF) 200mm / - / 25mm Recommended Amplifier Power
10-100W Features Uni-Q Array Product External Dimensions (Height /
Width / Depth) 275mm (10.83in.) / 275mm (10.83in.) / 108mm (4.25in.)
Cut-out Dimension (Height / Width) 240mm (9.45in.) / 240mm (9.45in.)
Mounting Depth from Surface (Product only / With back can)
Ci9000ACEThe
in-wall Ci Series 9000ACE from KEF is a innovative new advance into custom
installed loudspeakers. The 165mm (6.5in.) Uni-Q® driver array brings out the
full emotional depth and texture of vocals, whether sung, shouted, spoken or
whispered - hardly surprising, since it’s exactly the same unit as you’ll find
on the XQ series. On either side, a matching pair of long throw bass drivers
with ultra-low distortion motors for low frequency response that’s as lucid as
it is gutsy - and thanks to KEF’s Acoustic Compliance Enhancement technology,
(ACE) what you actually hear is a level of bass extension that’s normally only
obtainable with much larger speakers.Ci Series 9000ACE comes with two grille
options: The pictured black cloth covered grille and a white overhanging grille.
A grille for painting or covering is also available. The new Ci Series
9000ACE. More range, more depth. More alive. Features and Benefits Purpose built
for flush mounting into walls, the 3-way, Ci9000ACE combines 150W power handling
and 88dB sensitivity. A 165mm (6.5in.) polypropylene cone midrange unit with a
coincident mounted, twin neodymium magnet, 19mm (0.75in.) aluminium dome,
high-frequency unit and two 165mm (6.5in.) bass drivers in a sealed back-box. HF
output can be increased through alternative terminal connection to compensate
for grille coverings.Features Flagship Ci product featuring ACE technology
Sealed enclosure 3 grille options to suit cosmetic application 19mm (0.75in.)
aluminium dome tweeter with Neodymium magnet (Uni-Q) 165mm (6.49in.)
polypropylene MF Unit (Uni-Q) 2 X 165mm (6.49in.) polypropylene LF Units
ACE technology providing extended frequency response from LF unit Nominal
impedance 8 ohm (Min 3.2Ω) Recommended amplifier 30-150W Machined
aluminium front baffle Steel mounting bracket Applications The
Ci9000ACE is best suited for high quality music and home theatre applications
here hi-fi performance is required, such as: Multi Room systems. Home Theatre
systems. Lounges, Bars, Boutiques. Boardrooms & Offices.Model Ci9000ACE
Nominal Impedance 8Ω Sensitivity (2.83V @ 1m) 88dB Frequency Response +/-6dB
2pi/open-backed - Frequency Response +/-6dB With back can/rear enclosure
60 - 27kHz Crossover Frequency 350Hz, 3kHz Drive Units (LF / MF / HF) 2 x 130mm
/ 130mm / 19mm Recommended Amplifier Power 30-150W Features Three-way Uni-Q
Array / Aluminum Baffle & Integrated Back Box Product External Dimensions
(Height / Width / Depth) 700mm (27.56in.) / 252mm (9.92in.) / 105mm (4.13in.)
Cut-out Dimension (Height / Width) 660mm (25.98in.) / 209mm (8.23in.)
Mounting Depth from Surface (Product only / With back can) - / 95mm
CiFDT
A motorised dipole surround sound speaker, the CiFDT combines genuinely
unobtrusive installation with the ability to create stunningly realistic
background effects. Lying flush with the wall when not in use, a sophisticated
flat panel driver moves into position when switched on, radiating higher
frequencies equally front and back to diffuse the sound evenly throughout the
room, while low frequency effects are being faithfully reproduced by the
integral 130mm (5in.) bass driver. Acoustically, the two technologies complement
each other perfectly to generate a richly detailed ambient soundfield;
aesthetically, the appearance couldn’t be more discreet. As an architectural
audio solution, it’s imaginative, impeccably engineered and incredibly
satisfying. CiFDT Features and Benefits Purpose built for flush
mounting into walls, the CiFDT combines 100W power handling and 86dB sensitivity.
A 110mm x 180mm (4.5in. x 7in.) Flat panel with a 130mm (5in.) bass driver. Will
require an additional 12 volt supply. The bezel and grille can be painted
or covered by fabric to match the interior décor. Applications The CiFDT
is best suited for high quality music and home theatre applications where hi-fi
performance is required, such as: Multi Room systems. Home Theatre systems.
Model CiFDT Nominal Impedance 8Ω Sensitivity (2.83V @ 1m) 86dB Frequency
Response +/-6dB With back can/rear enclosure 80 - 20k Crossover Frequency 180Hz
Drive Units (LF / MF / HF) 130mm / 180 x 110 mm / - Recommended Amplifier Power
20-100W Features Motirized in-wall Dipole Product External Dimensions (Height
/ Width / Depth) 248mm (9.76in.) / 248mm (9.76in.) / 104mm (4.09in)
Cut-out Dimension (Height / Width) 233mm (9.17in.) / 220mm (8.66in.)
Mounting Depth from Surface (Product only / With back can)
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : FILMATO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg)
.gif)
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Taste
in music and movies is a very personal thing. Same with speakers. For some people, the
usual plain box will do; a speaker's a speaker. Others want to
experience something more special. More cutting edge. More rewarding.
And that's who our new XQ Series has been created for.By
combining patented technologies from two of our most acclaimed ranges -
the radical new Q Series and the legendary Reference Series - the XQ
concept gives you the best of both worlds: new KEF Uni-Q® 'point source'
arrays for unrivalled off-axis performance, and Reference Series 'super
audio' HypertweetersTM for the full bandwidth response required to enjoy
digital formats like SACD and DVD-A. Together with ultra-low distortion
bass and audiophile grade internal components, it's a combination you
simply can't find anywhere else at the price.Admittedly, the finish is a
bit of an extravagance. You can specify your XQ system in either a cool,
pale maple veneer or one of four high gloss lacquer finishes: Silver and
Graphite metallic (to complement AV equipment) or Maranello Red. The
aluminium front baffles are anodised in Silver. But hey - when the
technology inside creates such beautiful sound, they deserve to look
special.
.jpg){kind=small}
.jpg){kind=small}
.jpg)
.jpg)
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.gif)
.gif)
.gif)
.gif)
.gif)
.gif)
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Clicca
per qui per vedere : FOTO PRODOTTO
