COMPACT DISCTelefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100   Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@sinergy.us

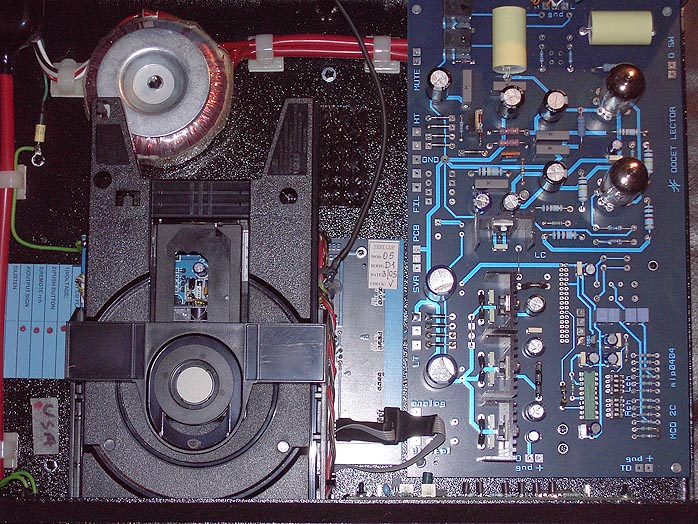

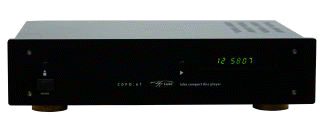

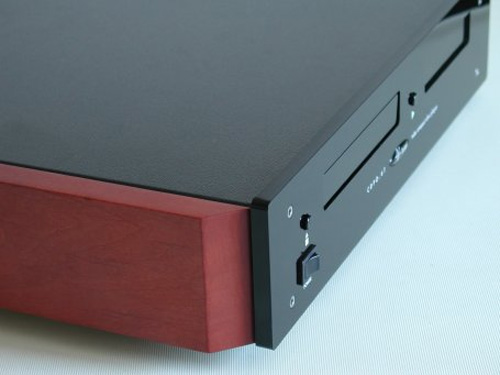

LECTOR CDP0.6t€.1.499,00 Per  Prezzo scontato TELEFONA INVIA UN E-MAIL

Prestazioni musicali d’eccezione. La sezione analogica del filtro di uscita utilizza una coppia di doppi triodi in Classe A pura.Cinque sezioni di alimentazione indipendenti. DAC 24 bit selezionato da Lector.Inversione della polarità del segnale elettrico in uscita mediante dip-switch. Prestazioni allo stato dell’arte... In dotazione:  Telecomando Cavo di alimentazione  Fiancatine disponibili in massello o plexiglass Libretto d’uso e manutenzione Garanzia 2 anniType of Unit Front Loading Integrated CD Player Harmonic Distortion THD < 0.1 % DAC Type and Filter 4 bit / DSP Sampling Rate Convertion developed by Lector S/N Ratio 100 dB ( A-weighted ) Tube for Amp Stage ECC81/12AT7 selected & matched by Lector Frequency Response 20 - 22 kHz +/- 1.5 dB Digital Inputs/Outputs Optional output: S/PDIF & AES-EBUOptical Toslink or ST-II Analogue Line Outputs RCA ( 2.3V / 250W ) Switchable Main Voltages 100/110/230/240 VAC - 50/60 Hz -50 VA Dimensions ( W x D x H ) 400 mm x 308 mm x 85 mm Weight ( Net - Gross ) 7 kg - 8 kg

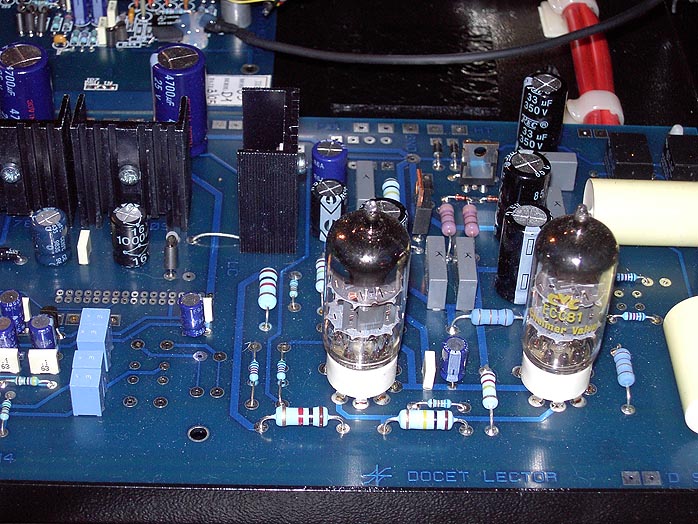

Lector proudly introduces the all new CDP-0.6 cd-player with tube analog output featuring original cdm servo with proprietary software control,proprietary DAC chipset and D.S.P. resampling solution. Audio analog output is based on pure direct dac connection as two double triode on class A configuration circuit (ECC-81, 12AT7)From digital chipset DAC pin to output pin the signal analog domain don't have any transistor or IC on signal path: only true genuine premium tube circuit. Only premium grade polipropylene capacitors are used on signal path.This feature it's realy important, so the fragile analog signal don't suffering of typical solid state integrated circuit sound. The analog output section uses selected 2 double triodes in pure class A ( 2 tubes ECC-81 or 12AT7) . Tubes are selected for lowest noise and tuning trimmered for precision tracking voltage output. Accurate digital clock circuit generator supply right and stable frequency at very low jitter to digital demodulator ic circuit, so the serial three wire signal drive easy the digital to analog converter chip.The chip DAC is a special custom made components manufacture for Lector only as also the 70 watt power toroidal transformer.Sonic performance delivers pure enjoyment: thanks to original design and custom made components as servo drive pcb, original firmware,extensive mod's around laser pick up. What you listen is just the sound of your favourite tubes operating with exceptional linearity in a class A gain stage. We can spend many words trying to describe its purity, its great dynamics, its airy soundstage, its accurate imaging, its ability to resolve the subtle details and many other outstanding qualities of this cd-player. But we prefer to simply invite you to listen to it and to trust more what your hear. E L E C T R I C A L P E R F O R M A N C E Unit description: Stereo tube line level preamplifier with 5 inputs,2 main outputs, passive volume out, tape out, htd output Tube active circuit: 6H30II, by SATC circuit: 6922/12AT7/12AU7/6CG7/12BH7Frequency response: 20-50.000 Hz +/- 1 db THD distorsion: Less of 0.1 % Input sensibility and gain: 200 mV / 20 db gain / 50 kohm input Output voltage and impedance: 20 Volt @ 250 ohm Optional: Remote control handset,cherry wood veenerede side panels Power supply main: 100V/120V/230V ac 70 V/A Dimension, weight (net): 400 (L) x 110 (H) x 300 (D) Kg.10 E L E C T R I C A L P E R F O R M A N C E Unit description: Stereo tube line level preamplifier with 5 inputs,2 main outputs, passive volume out, tape out, htd output Tube active circuit: 6H30II, by SATC circuit: 6922/12AT7/12AU7/6CG7/12BH7 Frequency response: 20-50.000 Hz +/- 1 db THD distorsion: Less of 0.1 % Input sensibility and gain: 200 mV / 20 db gain / 50 kohm input Output voltage and impedance: 20 Volt @ 250 ohm Optional: Remote control handset,cherry wood veenerede side panels Power supply main: 100V/120V/230V ac 70 V/A Dimension, weight (net): 400 (L) x 110 (H) x 300 (D) Kg.10 Type off unit: Integrated CD Player with tube out filter and dsp sample rate converter for 96 khz Harmonic distorsion THD:Better than 0.1 %DAC type and filter:24 bit with DSP sample rate converter by Lector proprietary software Signal to noise ratio:100 db (A)Tube for preamplification stage:2 x ECC-81 – 12 AT 7 selected by Lector during testing Frequency response:20 - 22 K h z +/- 1.5 db Digital outputs:Optional: SPDIF/OPTO Toslink or ST-II/AES-EBU balanced by XLRAnalog line outputs: 1 one pair RCA at 2.3 mV 250 ohm  External power supply:100/110/230/240 Vac 50/60 Hz 70 V/a External dimension:400 x 308 x 85 ( L x P x H) mm Weight:7 Kg net 8 Kg gross Accessories supply: Power cable mains / manual instruction/ Remote control handset

TELEFONA PER ULTIMO PREZZO  PRODOTTO IN  OFFERTA

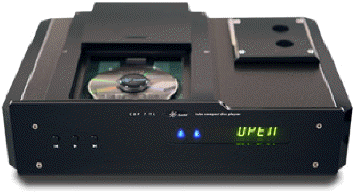

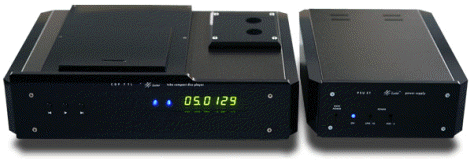

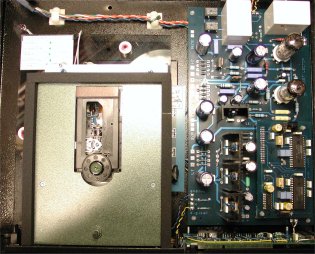

LECTOR CDP 7T mk3  €.2.999,00Per  Prezzo scontato TELEFONA INVIA UN E-MAIL

hen the perfect mechanical solution join original electronic design born a superior cd player class A product.several original mechanical solution are adopted as proprietary (internal Lector factory made) read out laser mechanism and special made brass pillar suspension separate power supply with indipendent section mains AC power switch ON/OFF (digital/analog) three power toroidal hi-flux transformers exclusive CD disc clamp with two axis stabilization effect by special neodinium magnet sophisticated selection off DAC type dual mono PCM-1704 BB 24 bit with indipendent board pcb for real jitter reduction NO any type of feedback total or local circuity can control the analog stage, a original circuit design drive and control the gain of the first tube stage ( chatode direct drive coupling ) passive dithering circuit increase real bit resolution near to the barrier of 24 bit ( Lector invented this original circuit design) custom made CD mechanism with three isolated plate stages and vibration system discharge control spindle original proprietary servo digital board with new technology solution design ( we don't use the kit electronic board ) The circuity of power supply employ 14 regulation stages , only one capacitor on signal path as film & foil custom made, special material chassis by aerospace alluminium die-cast. The output tube triode circuity is in class A with only one passive first order filter so do not have indesiderate rotative signal phase.The CD mechanism have two different solution of mechanical damping:the first by special damping rubber in neoprene the second by lattice-rubber as similar solution adopted in analog turntable. A original magnetic clamp system give more stability to the rotation the CD disc so to have the double stabilization on two axis: orizzontal and vertical. C O N V E N I E N C E A N D P E R F O R M A N C ESeparate power supply box with two indipendent switch for analog section and digital section model PSU-3T Original Remote Control Handset with most important function Hi stability disc rotation insensible to external shock Two axis stabilization neodinium magnetic clamp Cherry natural wood veneering brackets for reduce cover resonance (on series) Black solid plexiglassbrackets (optional alternative to cherry wood) RED satin wood brackets (optional alternative to cherry wood)  S P E C I F I C A T I O N Type Top Loading CD player tube analog Digital section 24 bit PCM-1704 dual mono oversampling by DSP  and NO data L/R shift phase S/N ratio 105 db Distorsion 0.1% THD or better Frequency response 20-20khz (with gently slope filter) Output impedance 150 ohm 3.0 volts rms (2.5 Volt min) The output voltage is measured at 0 db test cd disk The music cd disk have output rathed at 200-500 mV so the CDP-7 can interface ANY preamplifier or amplifier without NO input saturation Power supply 220-240-120-100 vac (separate box model PSU 3)  Dimension CDP 7T 400x115x300 (lxhxp)  Dimension PSU 3T 225x85x300 (lxhxp)  Weight net CDP7T= 12 kg PSU3T= 3 kg READ THIS IMPORTANT DESIGN ORIGINAL SOLUTION Chassis Machined alluminium die cast chassis CD-TRANSPORT Laser assembly Lector design proprietary mechanism made from alluminium one shot construction, brass pillar and solid plexiglass as mechanical isolated filter from chassis ground Magnetic Clamp Made by special delrin with isolated viton rubber control resonance and neodinium magentic puck Jitter control By own design servo board ( no economical pre-assembly kit's) by selecting XTAL oscillator work as "suspended mode" data digital signal leaves as full integrity and channel switch is on latch digital signal, own proprietary software control firmware Power supply Separate box include 3 power transformer so reduce magnet flux, passive AC mains filter included , CDP-7 main unit uses 14 local voltage regulators Digital filter section By D.S.P. (digital signal processor) as low taps, phase correct, 18 bit interface real data transfer resolution to DAC interface Analog filter section Minimize phase distorsion and phase rotation design only simple first order passive filter, D.S.P. make the 99% reduce jitter noise  DAC power supply By two double voltage regulator and separate plug-in board as isolated ground loop for reducing ground jitter  I- TO- V circuit Based on zero feedback control by mixing of tubes and passive components Reclock data DAC circuit Based on D.S.P. (digital signal processor) controlled by Xtal drive by PLL as low noise circuit

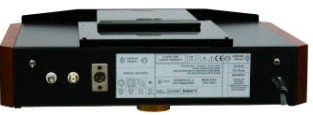

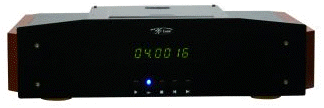

LECTOR Digidrive €.2.499,00 Per  Prezzo scontato TELEFONA INVIA UN E-MAIL

La meccanica di precisione è divenuta una rarità in questa era di pura elettronica.Il Digidrive TL mk2con caricamento CD dall’alto è la sintesi della nostra lunga esperienza in elettronica e fisica delle vibrazioni.Materiali speciali come alluminio, trasformatori digitali e servo controlli sono in perfetto equilibrio per garantire eccellenti prestazioni In dotazione: Alimentatore separato PSU-DTL Telecomando Cavo di alimentazione  Stabilizzatore magnetico cinematico CD Fiancatine disponibili in massello o plexiglass Libretto d’uso e manutenzione Garanzia 2 anniType of Unit Top Loading Integrated CD PlayerTube for Amp Stage Frequency Response  Digital Inputs/Outputs  S/PDIF on RCA & BNC high-speed AES-EBU RS-422 Analogue Line Outputs Switchable Main Voltages 100/110/230/240 VAC - 50/60 Hz - 60 VA Dimensions ( W x D x H ) 440 mm x 308 mm x 85 mm Weight ( Net - Gross ) 9 kg - 10.5 kg External Power Supply PSU-DTL Dimensions 200 mm x 308 mm x 85 mm Weight ( Net - Gross )5 kg - 6 kg

It's realy difficult to understand the limitation of C.D.player!We hope to have design and built a C.D.player transport with important improvements : with our perfect mania to make critical parts as cabinet (alluminium aereospace type) a special digital output transformer (Olla hi energy flux type) our mods.and tips on C.D.M. mechanism (renforcements by alluminium plate and mods.on laser pick-up) the solution of real-genuine top loading cd-player without any mechanical stabilizer incorporate in the cover, three types of digital output coaxial as: two SPDIF (RCA+BNC) and by AES/EBU (professional XLR).For reduce interference magnetic of power transformer we have make a separate power supply unit .All this solution make a great and special CD TRANSPORT that we call DIGIDRIVE top loading and it's perfect partner is our DAC TUBE DIGICODE.Of course you can use the DIGIDRIVE with good results with other DAC so it can improve the DAC performance.The DIGIDRIVE come delivery standard with only coaxial output connectors ( SPDIF by RCA and BNC hi speed transmitter chip and AES-EBU RS 422 ) is possible also to install optional optical outputmodule: the first is a hi-quality opto HAFO ST -II type at hi-speed for optical fiber the second is the tipical Toslink opto adaptor For better interconnect we supply also the glass fiber optics cable, the AES-EBU cable and unbalanced cable at 75 ohms.

LECTOR Digicode€.2.999,00Per  Prezzo scontato TELEFONA INVIA UN E-MAIL

Il convertitore utilizza quattro DAC mono a 24 bit, con uscita analogica a valvole termoioniche realmente bilanciata.Tramite un sofisticato filtro digitale è possibile scegliere le caratteristiche soniche in funzione delle preferenze di ascolto.Ogni valvola è selezionata per garantire la minima rumorosità, unitamente all’impiego di un alimentatore separato. dotazione: Alimentatore separato PSU-3T/DC Cavo di alimentazione  Fiancatine disponibili in massello o plexiglass Libretto d’uso e manutenzione Garanzia 2 anni Type of Unit with RealDA Converter - Full Balanced Tube Output / Special Digital Input Set-Up Function Harmonic Distortion THD< 0.1 % DAC Type and Filter 24 bit / 4 Mono DAC PCM 1704 S/N Ratio 100 dB ( A-weighted ) Tube for Amp Stage 4 x ECC81/12AT7 selected & matched by Lector Frequency Response 20 - 22 kHz +/- 1.5 dB Digital Inputs/Outputs  Inputs: S/PDIF ( two ) & AES-EBUOptional: Optical Toslink or ST-II Analogue Line Outputs RCA / XLR ( 3V / 250W ) Switchable Main Voltages 100/110/230/240 VAC - 50/60 Hz - 70 VA Dimensions( W x D x H ) 420 mm x 300 mm x 110 mm Weight( Net - Gross ) 7 kg - 8 kg ExternalPower Supply PSU-3T/DC  Dimensions  200 mm x 300 mm x 85 mm Weight( Net - Gross ) 8 kg - 9 kg

Lector proudly introduces the all new Digicode 2.24 digital to analog convertor with tube analog output featuring full balanced circuity from digital input (Aes-Ebu XLR) to analog output (XLR audio analog). Audio analog output is based on four double triode on class A configuration circuit.Digital to Analog convertor adopt the multibit DAC PCM-1704 from BB (no the economical sigma delta dac) four dac and four tubes: they are electrical connected without any coupling capacitors (DC connect) the dac works as differential mode so the balanced signal is generated from the digital source.We have set-up by trimmer the critical single MSB on DAC for obtain highest real resolution . With special digital filter is possible to choice the right number of coefficients and slope for better listening choice as sound preference. The analog output section uses selected 4 double triodes in pure class A ( 4 tubes ECC-81 or 12AT7) . Tubes are selected for lowest noise and tuning trimmered for precision voltage output. The conscruction of Digicode is modular: with three removable cards is easily replaceable in case of future upgrading for new technologies the individual form. A separate power supplu unit reduce the noise floor and magnetic influence to the circuit.A digital circuit with recovey double PLL oscillator supply stable and precision LOCK-ON with perfect matching with our Digidrive CD-Transport Sonic performance delivers pure enjoyment: thanks to the low noise printed circuit board design as real star ground. What you listen is just the sound of your favourite tubes operating with exceptional linearity in a class A gain stage.  We can spend many words trying to describe its purity, its great dynamics, its airy soundstage, its accurate imaging, its ability to resolve the subtle details and many other outstanding qualities of this exceptional D to A convertor. But we prefer to simply invite you to listen to it and to trust more what your hear.

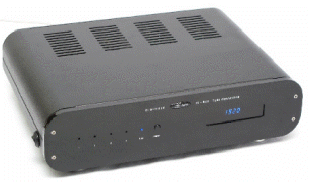

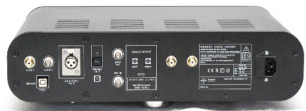

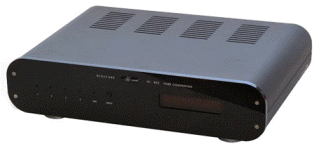

LECTOR Digitube€.1.249,00Per  Prezzo scontato TELEFONA INVIA UN E-MAIL

Telefona o invia un  e-mail per avere l'ultimo prezzo   0174 670100   Telefona o invia un  e-mail per avere l'ultimo prezzo 0174 670100  info@sinergy.us

LECTOR ZOE€.1.599,00Per  Prezzo scontato TELEFONA INVIA UN E-MAIL

Preamplificatore di linea stereo a valvole con alimentazione proprietaria Parallel Shunt per eliminare ogni influenza sui dispositivi attivi.Cinque ingressi di linea, doppia uscita principale ed opzione HTD per una perfetta integrazione con sistemi multicanale.Estetica curata ed ergonomica per apprezzare il suono inalterato delle valvole. Con il preamplificatore ZOE ( zero ohm energy) introduciamo un nuovo concetto di circuitazione sull’alimentatore ad alta tensione per le valvole: il circuito parallelo-shunt.L’adozione di questa tecnologia permette di ottenere valori di impedenza dell’alimentatore molto bassi ( 0,2 ohm) così da risultare praticamente ininfluente sulle prestazioni soniche delle valvole. Ma la ricerca di nuove soluzioni originali non sì è fermata solo al circuito parallelo-shunt,sono state introdotti altre innovazioni: i filamenti hanno alimentazione con tensioni negative così da ridurre il rumore, le masse sono separate per il segnale audio e per le alimentazioni, i ritorni di massa sono a configurazione del tipo stella. Inoltre il preamplificatore, è completo nella facilità di collegamenti: cinque ingressi di linea, doppia uscita principale, uscita “HTD” home theater direct per collegarlo ad un processore esterno (funzione di bypass) uscita passiva su potenziometro del volume per collegare il subwoofer oppure un amplificatore per cuffia. L’estetica è stata particolarmente curata ed è estremamente ergonomica: facilità nella sostituzione delle valvole grazie al coperchio di plexiglass facilmente rimovibile, finestra anteriore per il controllo di funzionamento dei tubi termoionici , fianchetti in legno di ciliegio per irrigidire la struttura metallica.In dotazione: Telecomando opzionaleCavo di alimentazione HTD opzionale ( modulo Home Theater Direct )Fiancatine disponibili in massello o plexiglass opzionaliLibretto d'uso e manutenzione Garanzia 2 anni

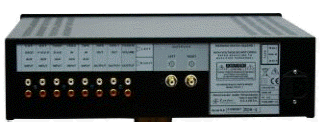

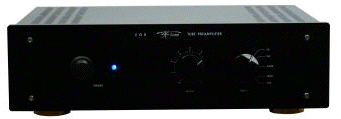

LECTOR ZOR       €.889,00 Per  Prezzo scontato TELEFONA INVIA UN E-MAIL

Preamplificatore di linea stereo a valvole senza componenti a stato solido sul percorso del segnale con alimentazione a bassissimo rumore.Cinque ingressi di linea, doppia uscita principale ed opzione HTD per una perfetta integrazione con sistemi multicanale.Il componente ideale per la stereo-fonia ad alta definizione senza compromessi. In dotazione: Telecomando opzionaleCavo di alimentazione HTD opzionale ( modulo Home Theater Direct )Fiancatine disponibili in massello o plexiglass opzionaliLibretto d'uso e manutenzioneGaranzia 2 anniType of Unit Tube Stereo PreampHarmonic Distortion THD < 0.1 % Input Sensitivity Min 220 mV for 98db snr / Max 5V S/N Ratio -98 dB ( A-weighted ) IEC268 -80 dB < 220 mV Tube for Amp Stage 6922/ECC88Frequency Response 15 - 100 kHz +/- 1.5 dB Output Inpedance & Voltage 250 ohm / 15 VrmsLine Input Chanels 5 StereoRecording Output 2 Rec Out + 1 Passive Volume OutputLine Main Outuput1Switchable Main Voltage 100/110/230/240 VAC - 50/60 Hz - 50 VADimensions (W x D x H) 400 mm x 300 mm x 105 mmWeight ( Net - Gross ) 5 Kg - 6 Kg

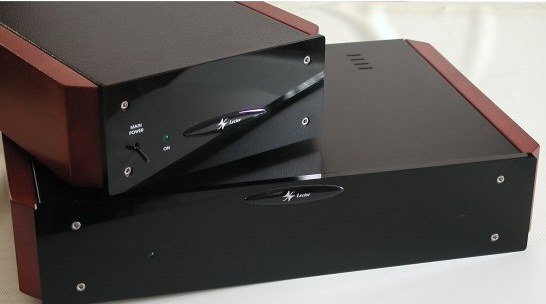

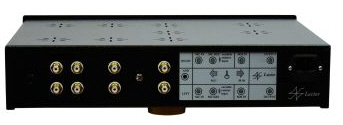

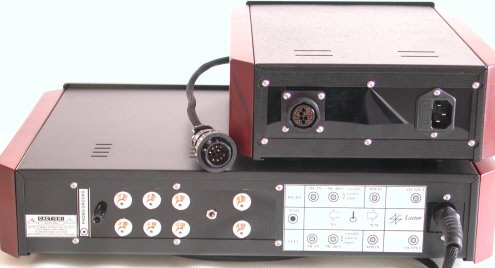

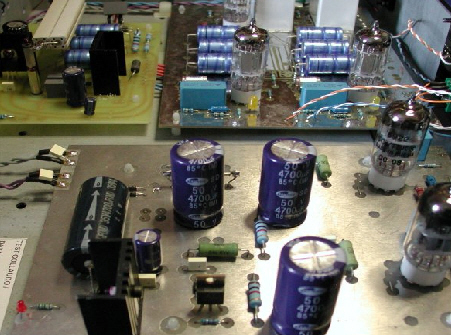

LECTOR PHONO AMPSYSTEM€.1.599,00 Per  Prezzo scontato TELEFONA INVIA UN E-MAIL

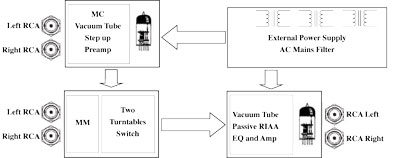

In un unico telaio due stadi per amplificare ed equalizzare testine MM e MC, con ingressi separati.

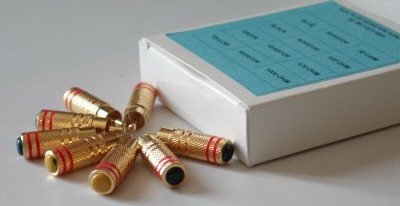

L'alimentatore é esterno per ottimizzare il rapporto segnale/rumore.Vengono fornite terminazioni resistive RCA.Ideale per chi possiede due giradischi. La commutazione tra i due ingressi avviene tramite semplice pressione del tasto MC-MM.  In dotazione: Alimentatore Separato PSU-FD Cavo di alimentazione  Fiancatine disponibili in massello o plexiglass opzionali Libretto d'uso e manutenzione Garanzia 2 anni

Type of Unit  Tube Phono RIAA Preampfor MM/MC Harmonic Distortion THD < 0.1 % Input Sensitivity MM 1.5 mV / 47 kW / 100 pFMC 0.4 mV / 47 kW / 1,500 pF S/N Ratio MM 70 dB ( A-weighted ) MC 65 dB ( A-weighted ) Tube for Amp Stage 3 x ECC81/12AT72 x 6922/ECC88 Frequency Response 20 - 20 kHz +/- 0.5 dB Output Inpedance & Voltage 290 W / 10 Vrms Line Input Chanels MM/MCwith two turntables Recording Output Line Main Outuput1 Switchable Main Voltage 100/110/230/240 VAC - 50/60 Hz - 60 VA Dimensions (W x D x H) 400 mm x 300 mm x 85 mm Weight ( Net - Gross ) 9 kg - 10 kg External Power Supply PSU-FD Dimension (W x D x H) 200 mm x 300 mm x 85 mm Weight (Net - Gross) 5 kg - 6 kg The Phono Amp-System is a complete phono riaa with all tubes preamplifier that operate on class A without any local or total feedback circuity. This preamplifier provide the right amplification and equalization to the riaa standard at the phono moving magnet and moving coil cartridge signal. The circuity use five tubes as ECC 88/6922 for moving coil and two ECC-81/12AT7 for moving magnet (as passive riaa equalization) and one ECC-81/12AT7 for output as cathode follower adaptor, all tubes are accurate selected at very low noise operation. A innovative circuity designed from engineer of Lector make the control of the bias by optical devices and a special circuity control the cathode operation at very low noise the moving coil inputs device. It's possible to change the input resistance of MC cartridge by external RCA- resistor plug for to have better interface between cartridge and input tube.We supply four pair off plug-resistor set as per value off: 30 ohm (Blue plug) 100 ohm (Black plug) 470 ohm (Green plug) and 1000 ohm (Yellow plug). With this PLUG-RESISTOR you can optimize the right resistance value of your MC cartridge.The exceptional signal to noise ratio togheter a hi-gain operation allow to overtaking the limitation of transformer step-up (distorsion and frequency response limits).C O N V E N I E N C E and O P T I O N A L Cherry wood veenerede for lateral side panels (optional) Separate power supply unit for ultra low noise operation (series) Low noise selected tubes as 6922 ( 2 unit series) and 12AT7 (3 unit series) Hi-shielded metal frame chassis Three power supply toroidal transformer Cathode controlled circuit for reducing the noise ground (special circuit patended by Lector) Cathode opto circuit for 12AT7 riaa moving magnet Two separate inputs: first for moving magnet and second for moving coil Black ash plexiglass front panel as 8 mm tickness  passive riaa equalization by only precision and selected components

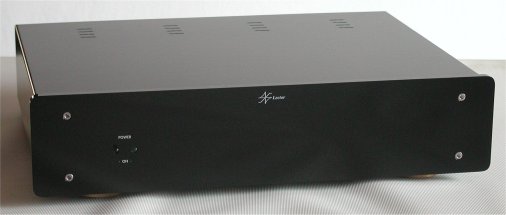

LECTOR  PHONO AMP MM €.949,00 Per  Prezzo scontato TELEFONA INVIA UN E-MAIL

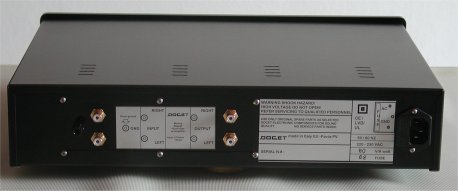

Stadio phono MM RIAA passiva che utilizza tre doppi triodi con guadagno totale 45 dB.Alimentatore interno, zero controreazione, bias ottico.Componentistica di alta qualitá, ingresso phono senza condensatori di accopiamento, uscita a bassa impedenza.  In dotazione: Cavo di alimentazione  Fiancatine disponibili in massello o plexiglass opzionali Libretto d'uso e manutenzione Garanzia 2 anni

Type of Unit  Tube Phono RIAA Preampfor MM Harmonic Distortion  THD < 0.1 %  Input Sensitivity  1.5 mV / 47 kW / 100 pF S/N Ratio  70 dB ( A-weighted )  Tube for Amp Stage  3 x ECC81/12AT7  Frequency Response  20 - 20 kHz +/- 0.5 dB  Output Inpedance & Voltage  290 W / 10 Vrms  Line Input Chanels  MM  Recording Output  Line Main Outuput 1 Switchable Main Voltage 100/110/230/240 VAC - 50/60 Hz - 50 VA Dimensions (W x D x H) 400 mm x 300 mm x 85 mm Weight ( Net - Gross ) 9 kg - 10 kg The Phono M M P is a complete phono riaa all tubes preamplifier that operate on class A without any local or total feedback circuity. This preamplifier provide the right amplification and equalization to standard riaa at the phono moving magnet cartridge signal. The circuity use three tubes, two ECC-81/12AT7 for moving magnet input (as passive riaa equalization) and one ECC-81/12AT7 for output as cathode follower adaptor, all tubes are accurate selected at very low noise operation . A innovative circuity designed from enginner of Lector make the control of the bias by optical devices for clear sound and phase control. A solid shielded cabinet as hi-tickness off 1,5 mm reduce interference from emc field for a better signal to noise ratio.For to built this riaa phono preamplifier we have design the circuit with minimun capacitors on signal path (only 2 as polypropilene grade) hi-reserved energy power supply with capacitors filter located near to active device.

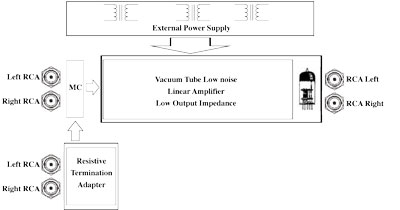

LECTOR  VPP02 €.789,00 Per  Prezzo scontato TELEFONA INVIA UN E-MAIL

Stadio phono a valvole in Classe A con due doppio triodi e guadagno di 22 dB.Consigliato per testine MC con tensione di uscita 0.4-0.6 mV.Vengono fornite terminazioni resistive RCA per il perfetto matching.L'uscita deve essere collegata ad un ingresso phono MM.Consigliato abbinamento con il Phono Amp MM. In dotazione: Alimentatore Separato PSU-FDCavo di alimentazione Fiancatine disponibili in massello o plexiglass opzionaliLibretto d'uso e manutenzione Garanzia 2 anni

Type of Unit Tube Phono RIAA Preampfor MC  Harmonic Distortion THD < 0.1 % Input Sensitivity 0.4 mV / 47 kW / 1,500 pF  S/N Ratio 65 dB ( A-weighted ) Tube for Amp Stage 2 x 6922/ECC88 Frequency Response  20 - 20 kHz +/- 0.5 dB Output Inpedance & Voltage 290 W / 10 Vrms Line Input Chanels MC Recording Output Line Main Outuput 1 Switchable Main Voltage 100/110/230/240 VAC - 50/60 Hz - 50 VA Dimensions (W x D x H) 200 mm x 300 mm x 85 mm Weight ( Net - Gross ) 5 kg - 6 kg External Power Supply PSU-FD Dimension (W x D x H) 200 mm x 300 mm x 85 mm Weight (Net - Gross) 5 kg - 6 kg The MC-AMP is a step up units with tube amplifier that operate on class A. This preamplifier make as adaptor amplifier ( +22db) for MC cartridge so you can use your moving coil directly to moving magnet input. The circuity use only two tubes as ECC 88/6922 selecting at very low noise operation . It's possible to change the input resistance of MC cartridge by external RCA- resistor plug for to have better interface between cartridge and input tube. We supply four pair off plug-resistor set as per value off: 30 ohm (Blu plug) 100 ohm (Black plug) 470 ohm (Green plug) and 1000 ohm (Yellow plug). With this PLUG-RESISTOR you can optimize the resistance value of your MC cartridge.The exceptional signal to noise ratio togheter a hi-gain operation allow to overtaking the limitation of transformer step-up (distorsion and frequency response limits).

LECTOR  FONIX €.589,00 Per  Prezzo scontato TELEFONA INVIA UN E-MAIL

Costituito da due circuiti distinti e completamente separati per testine MM e MC.E' possibile utilizzare due giradischi contemporaneamente.L'ingresso MM-MC dispone di terminazioni resistive RCA per adattare l'impedenza.Tutti i componenti sono di alta qualitá: condensatori film and foil a basso rumore ad alta precisione, alimentazione a bassa resistenza tipo Shunt, connessioni dorate ed isolatori in teflon. In dotazione: Cavo di alimentazione Fiancatine disponibili in massello o plexiglass opzionali Libretto d'uso e manutenzione Garanzia 2 anni

Type of Unit  Solid State Phono RIAA Preampfor MM/MC Harmonic Distortion THD < 0.01 % Input Sensitivity MM 1.5 mV / 47 kW / 100 pFMC 0.4 mV / 47 kW / 1,500 pF S/N Ratio MM 70 dB ( A-weighted ) MC 65 dB ( A-weighted ) Frequency Response 20 - 20 kHz +/- 0.5 dB Output Inpedance & Voltage 100 W / 10 Vrms Line Input Chanels MM / MCwith two turntables Recording Output Line Main Outuput1 Switchable Main Voltage 100/110/230/240 VAC - 50/60 Hz - 50 VA Dimensions (W x D x H) 400 mm x 300 mm x 85 mm Weight ( Net - Gross ) 7 kg - 8 kg



LECTOR  ZUM €.849,00 Per  Prezzo scontato TELEFONA INVIA UN E-MAIL

continua.....in allestimento
