Serie QUANTUM 1000

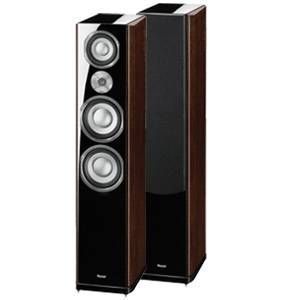

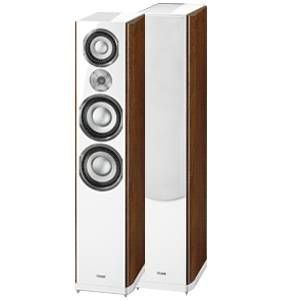

Magnat
QUANTUM
1009
€.1.820,00 Per
prezzo scontato
TELEFONARE/EMAIL
 Highlights
O Woofer and midrange Well-ventilated die-cast basket to prevent turbulence and
compression effects Magnetic circuits with double induction rings for optimized
stray-field and distortion properties Controlled Flexing Cone: New cone
geometry for controlled projection of wave fronts in the mid range, and with it
the capability to reproduce a greater bandwidth 16 and 20 cm woofers with
particularly flat cone profile and an adapted dust cap for enhanced all round
dispersion and better synchronization with the mid-tweeter range O Tweeter f-max
Signature tweeter dome with a particularly wide surround for optimized
dispersion characteristics at frequencies above 20kHz. Solid aluminium front
panel with short horn for optimum joining to the case and to reduce resonance
problems Domes made from a precision fabric, hand-coated with ceramic particles
Copper cap in the magnet system for low distortion Magnet system having
extensive ventilation and low self-resonance Double front ventilation to prevent
voice-coil symmetry from being negatively impacted at high levels O Crossover
Built to 24dB LKR topology standards with transformer core coils and audiophile
polypropylene capacitors. XO on 2 separate circuit boards in order to optimize
the speakers when they are used in bi-wiring mode. XO mechanically insulated
from the cabinet O Cabinet Double-sectioned side reinforcements with varying
material thickness to reduce vibration in the cabinet. Cabinet top in
double-sectioned sandwich construction Extensive bracing to support the
chassis unit Separate tweeter housing High-quality high gloss varnish Solid MDF
cabinet with low-resonance baffle and real wood veneer O Highlights
Sophisticated voice-coil ventilation for high efficiency High-quality interior
cabling by OEHLBACH Airflex ports with generously dimensioned opening for
optimum bass loading Detachable cloth grille with optimized acoustic

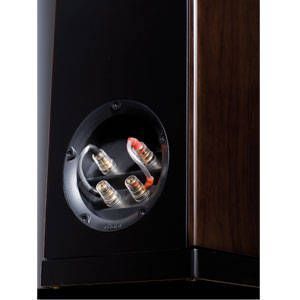

transmissivity Large aluminium die-cast terminal panel with solid screw
terminals Bi-wiring/bi-amping option Gold-plated and acrylic-encased
speakerconnectors Low-resonance spikes made from solid aluminiumTechnische
Daten/Features Prinzip 3
Wege, Doppelbass, Bassreflex Principle 3 way, double bass, bass reflex
Bestückung 2x 200 mm Tieftöner 1x 170 mm Mitteltöner 25 mm Hochtonkalotte
Equipment 2x 8“ woofer 1x 6.5” midrange 1” dome-tweeter Belastbarkeit (RMS/Max.)
320 / 600 Watt(s) Power Handling (RMS/Max) 320 / 600 Watt(s) Impedanz 4-8 Ohm(s)
Impedance 4-8 Ohm(s) Frequenzbereich 18 – 75.000 HzFrequency Response 18 –
75.000 HzÜbergangsfrequenz 380 Hz, 2.600 HzCrossover Frequencies 380 Hz, 2.600
Hz Empfohlene Verstärkerleistung ab 35 Watt(s) Recommended Amplifier Output from
35 Watt(s) Wirkungsgrad (2.8V/1m) 93 dB Sensitivity 93 dB Ausführung
Hochglanzlack Schwarz/ Seitenteile schwarz gebeiztes nussbaum hochglanzlackiert,ìHochglanzlack
Weiß/ Seitenteile nussbaum natur hochglanzlackiert Cabinet surface High glossy
black/side reinforcement black-staind walnut with high gloss finish, high glossy
white/side reinforcement natural walnut with high gloss finish Maße (BxHxT) 275
x 1250 x 390 mm Dimensions (WxHxD) 275 x 1250 x 390 mm Gewicht 49 kg Weight 49
kg

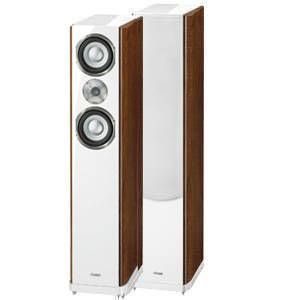

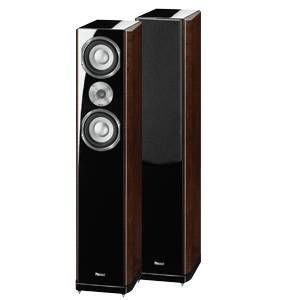

Magnat
QUANTUM
1005
€.1.290,00 Per
prezzo scontato
TELEFONARE/EMAIL
H
ighlights O Woofer and midrange Well-ventilated die-cast basket to prevent
turbulence and compression effects Magnetic circuits with double induction rings
for optimized stray-field and distortion properties Controlled Flexing
Cone: New cone geometry for controlled projection of wave fronts in the mid
range, and with it the capability to reproduce a greater bandwidth 16 and 20 cm
woofers with particularly flat cone profile and an adapted dust cap for enhanced
all round dispersion and better synchronization with the mid-tweeter range O
Tweeter f-max Signature tweeter dome with a particularly wide surround for
optimized dispersion characteristics at frequencies above 20kHz. Solid aluminium
front panel with short horn for optimum joining to the case and to reduce
resonance problems Domes made from a precision fabric, hand-coated with ceramic
particles Copper cap in the magnet system for low distortion Magnet system
having extensive ventilation and low self-resonance Double front ventilation to
prevent voice-coil symmetry from being negatively impacted at high levels O
Crossover Built to 24dB LKR topology standards with transformer core coils and
audiophile polypropylene capacitors. XO on 2 separate circuit boards in order to
optimize the speakers when they are used in bi-wiring mode. XO mechanically
insulated from the cabinet O Cabinet Double-sectioned side reinforcements with
varying material thickness to reduce vibration in the cabinet. Cabinet top in
double-sectioned sandwich construction Extensive bracing to support the
chassis unit Separate tweeter housing High-quality high gloss varnish Solid MDF
cabinet with low-resonance baffle and real wood veneer O Highlights
Sophisticated voice-coil ventilation for high efficiency High-quality interior
cabling by OEHLBACH Airflex ports with generously dimensioned opening for
optimum bass loading Detachable cloth grille with optimized acoustic
transmissivity Large aluminium die-cast terminal panel with solid screw
terminals Bi-wiring/bi-amping option Gold-plated and acrylic-encased speaker
connectors Low-resonance spikes made from solid aluminium
features Principle 2 way,
double bass, bass reflex Equipment 2x 6.5” woofer-midrange 1” dome-tweeter Power
Handling (RMS/Max) 200 / 500 Watt(s) Impedance 4-8 Ohm(s) Frequency Response 21
– 75.000 Hz Crossover Frequencies 2.600 Hz Recommended Amplifier Output from 35
Watt(s)Sensitivity 92 dB Cabinet surface High glossy black/side reinforcement
black-staind walnut with high gloss finish, high glossy white/side reinforcement
natural walnut with high gloss finish Dimensions (WxHxD) 240 x 1100 x 330 mm
Weight 35 kg
Serie QUANTUM 700
Magnat
QUANTUM
709
 €.1.100,00 Per
prezzo scontato
TELEFONARE/EMAIL
3 vie, 4 altoparlanti, da pavimento. Woof 2 X 200 mm, Midrange 1x170 mm, Tweeter
25 mm Quantum 709
Progettata con l'ausilio del sistema Klippel. Tecnologia E.R.A., Woof e mid F.E.
Dynamics,
APOC crossover. Finitura color ciliegio , silver ,nero laccato+100
EURO
25 mm dome tweeter made of
Polyester Epoxy Compound with slight mass for SACD sound reproductioi E.R.A.
technology (Early Reflection Absorption) prevents sonic reflections from the
tweeter at the cabinet Tweeter with pole core ventilation via coupled and
microfibre damped volume Magnetically shielded F.E. Dynamics woofer and midrange
? with FEM ? technology ( Finite Elemente Methode ) developed - works extra
linear and symmetricAirflow optimized, non-magnetic basket made of aluminium die
cast Light ceramic ? aluminium cone with extreme stability and high internal
damping 35mm voice coil for high capacity ** Black anodized voice coil
former for optimized heat conduction APOC crossover with high quality parts,
built as a 4th order filter , (24dB/octave edge stepness)Internal wiring made of
specially developed hard wire cable Bass reflex construction specially airflow
optimized rounded Airflex-Ports Bass reflex adjustment with Klippel ?
laser measuring system developed High-glossy silver varnish, High glossy piano
finish black, Real wood veneer cherry Stable MDF cabinet with non-parallel
endwalls and additional reinforced wood shelves in lattice work High quality
connection terminal with stable, golden screw terminals and Bi-wiring /
Bi-amping option Heigth adjustable Spikes * and hard rubber spikes included
Magnat
QUANTUM
705
€.750,00 Per
prezzo scontato
TELEFONARE/EMAIL
2,5 vie, 3 altoparlanti, da pavimento. Woof 2 X 170 mm, Tweeter 25 mm Quantum
Progettata con l'ausilio del sistema Klippel. Tecnologia E.R.A., Woof e mid F.E.
Dynamics,
APOC crossover. Finitura color ciliegio , silver ,nero laccato+100
EURO
25
mm dome tweeter made of Polyester Epoxy Compound with slight mass for SACD sound
reproductioin E.R.A. ? technology (Early Reflection Absorption) ? prevents sonic
reflections from the tweeter at the cabinet Tweeter with pole core ventilation
via coupled and microfibre damped volume Magnetically shielded F.E. Dynamics
woofer and midrange ? with FEM ? technology ( Finite Elemente Methode )
developed - works extra linear and symmetric Airflow optimized, non-magnetic
basket made of aluminium die cast Light ceramic ? aluminium cone with extreme
stability and high internal damping 35mm voice coil for high capacity ** Black
anodized voice coil former for optimized heat conduction APOC crossover
with high quality parts, built as a 4th order filter , (24dB/octave edge
stepness) Internal wiring made of specially developed hard wire cable Bass
reflex construction specially airflow optimized rounded Airflex-Ports Bass
reflex adjustment with Klippel ? laser measuring system developed High-glossy
silver varnish, High glossy piano finish black, Real wood veneer cherry Stable
MDF cabinet with non-parallel endwalls and additional reinforced wood shelves in
lattice work
Magnat
QUANTUM
703
€.315,00 Per
prezzo scontato
TELEFONARE/EMAIL
200 watts 2 vie, 2 altoparlanti, da pavimento. Woof 170 mm, Tweeter
25 mm Quantum 703
Progettata con l'ausilio del sistema Klippel. Tecnologia E.R.A., Woof e mid F.E.
Dynamics,
APOC crossover. Finitura color ciliegio ,silver,,nero laccato+100
EURO
Quantum
703 mm dome tweeter made of Polyester Epoxy Compound with slight mass for
SACD sound reproductioin E.R.A. ? technology (Early Reflection Absorption) ?
prevents sonic reflections from the tweeter at the cabinetTweeter with pole core
ventilation via coupled and microfibre damped volume Magnetically shielded F.E.
Dynamics woofer and midrange ? with FEM ? technology ( Finite Elemente Methode )
developed - works extra linear and symmetric Airflow optimized, non-magnetic
basket made of aluminium die cast Light ceramic ? aluminium cone with extreme
stability and high internal damping 35mm voice coil for high capacity **
Black anodized voice coil former for optimized heat conduction APOC
crossover with high quality parts, built as a 4th order filter , (24dB/octave
edge stepness) Internal wiring made of specially developed hard wire cable
Bass reflex construction specially airflow optimized rounded Airflex-Ports Bass
reflex adjustment with Klippel ? laser measuring system developed High-glossy
silver varnish, High glossy piano finish black, Real wood veneer cherry Stable
MDF cabinet with non-parallel endwalls and additional reinforced wood shelves in
lattice work
Magnat
QUANTUM 716
€.490,00 Per
prezzo scontato
TELEFONARE/EMAIL

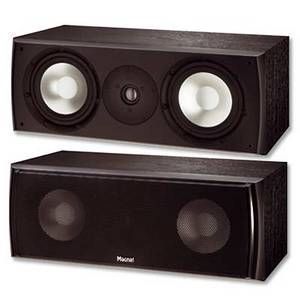

200 watts 2 vie, doppio woofer, canale centrale. Woof 2x170 mm, Tweeter
25 mm Quantum Center 716
Progettata con l'ausilio del sistema Klippel. Tecnologia E.R.A., Woof e mid F.E.
Dynamics,
APOC crossover. Finitura color ciliegio ,silver,nero laccato,bianco
laccato+100 EURO
25
mm dome tweeter made of Polyester Epoxy Compound with slight mass for SACD sound
reproductioin E.R.A. ? technology (Early Reflection Absorption) ? prevents sonic
reflections from the tweeter at the cabinet Tweeter with pole core ventilation
via coupled and microfibre damped volume Magnetically shielded F.E. Dynamics
woofer and midrange ? with FEM ? technology ( Finite Elemente Methode )
developed - works extra linear and symmetric Airflow optimized,
non-magnetic basket made of aluminium die cast Light ceramic ? aluminium
cone with extreme stability and high internal damping High-glossy silver varnish,
High glossy piano finish black, Real wood veneer cherry
Magnat
QUANTUM 730A
€.1.200,00 Per
prezzo scontato
TELEFONARE/EMAIL

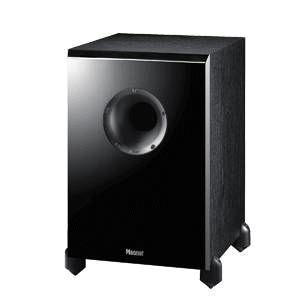

Sub. attivo, woofers 300 mm,
amplificatore Classe D 400/800 Watts RMS/max, Finitura color ciliegio,nero
laccato
Principle
/ DIN Ø Powered bassreflex subwoofer, Frontfire Driver 1 x 12" driver
Ausgangsleistung (RMS/max.) 400 / 800 Watt Power output (RMS/max.) 400 /
800 watts Frequency response 18 - 200 Hz Crossover frequencies 40 -
200 Hz adjustable Phase 0 ? 180° adjustable Dimensions (W x L x D)
410 x 510 x 580 mm Zubehoer EN Volume, crossover frequencies and
phase adjustable. Two earth free low level inputs Mono/Stereo input with Link
possibility Variable 4th order low-pass filter LFE/Sub switchable Q-filter
Airflexports to minimize air noise Standby Circuit Switchable voltage 115/230V
Serie QUANTUM 600
Magnat
QUANTUM

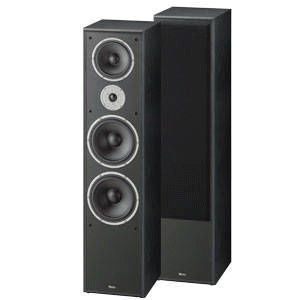

607
€.435,00 Per
prezzo scontato
TELEFONARE/EMAIL
3 vie da pavimento. 4
altoparlanti. Potenza 200/350 W RMS/max. 20-55.000 Hz. FTw. Fmax da 25 mm per
SACD. Cabinet MDF rinforzato. Baffle laccato. W & Mid FE-Dynamics Xover con
cablaggio Oehlbach. Griglia con attacchi magnetici senza fori sul frontale.
Spikes.Finitura, ciliegio nero, faggio noce.
Solid
and substantially braced MDF cabinet with 22 mm low-resonance baffle Baffle witH
high-quality lacquering fmax tweeter with 25 mm cloth dome, special damping and
E.R.A. technology FE-Dynamics woofer-midrange, ceramic aluminium cones, 30 mm
voice coil and flow-optimised basket made from carbon-reinforced ABS
Airflex ports with extremely wide openings for optimised bass connection
Removable protection cover with optimum sound transmissibility and hidden
magnetic fixing Big bi-wiring connecting terminal with solid screw
connectors and high-quality cable bridge High-grade internal wiring from the
cable specialist Oehlbach Height-adjustable metal spikes and rubber pucks
included Solid base plate Magnetically shielded
Magnat
QUANTUM 605€.370,00 Per
prezzo scontato
TELEFONARE/EMAIL
2.5 vie da pavimento. 3
altoparlanti. Potenza 180/300 W RMS/max. 22-55.000 Hz. Tw. Fmax da 25 mm
per SACD. Cabinet MDF rinforzato. Baffle laccato. W & Mid FE-DynamicsXover con
cablaggio Oehlbach. Griglia con attacchi magnetici senza fori sul frontale.
Spikes.Finitura, ciliegio nero, faggio,noce.
Beech/front:
silver high glossy Ash black/ front: black high glossy Cherry/ Front: black high
glossy Solid and substantially braced MDF cabinet with 22 mm low-resonance
baffle Baffle witH high-quality lacquering fmax tweeter with 25 mm cloth dome,
special damping and E.R.A. technology FE-Dynamics woofer-midrange, ceramic
aluminium cones, 30 mm voice coil and flow-optimised basket made from
carbon-reinforced ABS Airflex ports with extremely wide openings for optimised
bass connection Removable protection cover with optimum sound transmissibility
and hidden magnetic fixing Big bi-wiring connecting terminal with solid screw
connectors and high-quality cable bridge High-grade internal wiring from the
cable specialist Oehlbach Height-adjustable metal spikes and rubber pucks
included Solid base plate Magnetically shielded

Magnat

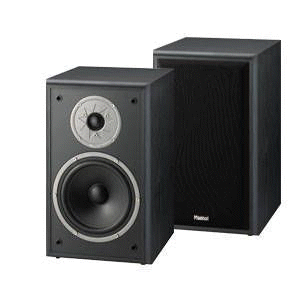

QUANTUM 603 €.185,00 Per
prezzo scontato
TELEFONARE/EMAIL
2 vie da libreria. Potenza
100/180 W RMS/max. 30-55.000 Hz. Tw. Fmax da 25 mm per SACD. Cabinet MDF.
Bafflelaccato. W. FE-Dynamics Xover con cablaggio Oehlbach. Griglia con attacchi
magnetici senza fori sul frontale.Finitura,ciliegio nero, faggio noce.
Configuration
2 way bass reflex Impedance 4-8 Ohms Power handling RMS / max. 100 /
180 Watts Dimensions (W x L x D) 195 x 365 x 300 mm TT Fullrange
Anzahl 1 TT FullRange DIN Durchmesser 170 HT Anzahl 1 HT DIN Durchmesser1
25 Breite 195 mm Hoehe 365 mm Tiefe 300 mm Highlights Beech/front: silver
high glossy Ash black/ front: black high glossy Cherry/ Front: black high glossy
Solid and substantially braced MDF cabinet with 22 mm low-resonance baffle
Baffle witH high-quality lacquering fmax tweeter with 25 mm cloth
dome, special damping and E.R.A. technology FE-Dynamics woofer-midrange, ceramic
aluminium cones, 30 mm voice coil and flow-optimised basket made
fromcarbon-reinforced ABS Airflex ports with extremely wide openings for
optimised bass connection Removable protection cover with optimum sound
transmissibility and hidden magnetic fixing Big bi-wiring connecting terminal
with solid screw connectors and high-quality cable bridge High-grade internal
wiring from the cable specialist Oehlbach Height-adjustable metal spikes and
rubber pucks included Solid base plate Magnetically shielded
Magnat
QUANTUM

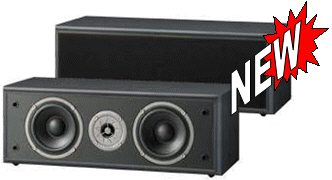

613
€.218,00 Per
prezzo scontato
TELEFONARE/EMAIL
2 vie canale centrale.
Potenza 100/180 W RMS/max. 30-55.000 Hz. Tw. Fmax da 25 mm per SACD. Cabinet MDF.
Baffle laccato. W. FE-Dynamics Xover con cablaggio Oehlbach. Griglia con
attacchi magnetici senza fori sul frontale. 91 dB.Finitura, ciliegio nero,
faggio
Impedanz
4-8 TT Fullrange Anzahl 2 TT FullRange DIN Durchmesser
130 HT Anzahl 1 HT DIN Durchmesser1 25 Breite 490 mm
Hoehe 175 mm Tiefe 285 mm Highlights Beech/front: silver high
glossy Ash black/ front: black high glossy Cherry/ Front: black high glossy
Solid and substantially braced MDF cabinet with 22 mm low-resonance baffle
Baffle witH high-quality lacquering fmax tweeter with 25 mm cloth dome, special
damping and E.R.A. technology FE-Dynamics woofer-midrange, ceramic aluminium
cones, 30 mm voice coil and flow-optimised basket made from carbon-reinforced
ABS Airflex ports with extremely wide openings for optimised bass connection
Removable protection cover with optimum sound transmissibility and hidden
magnetic fixing Big bi-wiring connecting terminal with solid screw connectors
and high-quality cable bridge High-grade internal wiring from the cable
specialist Oehlbach Solid base plate Magnetically shielded
Magnat
QUANTUM 630A
€.445,00 Per
prezzo scontato
TELEFONARE/EMAIL
Principle
/ DIN Ø Powered bass reflex subwoofer, "Downfire" Driver 1 x 12" driver ,Ausgangsleistung
(RMS/max.) 160 / 320 Watt Power output (RMS/max.) 160 / 320 Watts
Frequency response 19-200 Hz Crossover frequencies 5-200 Hz adjustable
Phase 0-180° adjustable Dimensions (W x L x D) 335 x 480 x 400 mm
Zubehoer EN Level and crossover-frequency adjustable Phase switchable
0°-180° High-level input Low-level input Automatic standby circuit Power switch
Switchable mains voltage 115/230 V Highlights Solid MDF cabinet with
decorative high gloss front Down-fire construction Airflex-port with low
air-flow resistance in front-fire alignment High-power long-throw woofer with
linearized double magnet-system Real-time limiter Active frequency range
equalisation up to 200 Hz (LPC feature) Resonance-damping rubber feet
MONITOR SUPPREME
Magnat

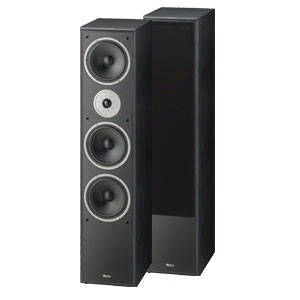

MS 2000
€.245,00 Per
prezzo scontato
TELEFONARE/EMAIL
Configuration
3 way bass reflex Impedance 4-8 Ohms Equipment 2x 8" woofer 1x 6.5"
midrange 1" dome-tweeter Power handling RMS / max. 220 / 450 Watts
Dimensions (W x L x D) 267 x 1080 x 335 mm Highlights Low resonant,
stable MDF cabinet High-quality wood decors, highlighted with a black baffle
Removable cloth grille Tweeter with 25 mm silk dome and ERA front plate for a
balanced reproduction and constant radiation Woofer and woofer-midrange with
low-distortion, coated cellulose cones high quality crossover with phase
correction Gold-plated screw terminal Metal- and rubber spikes
included
Magnat

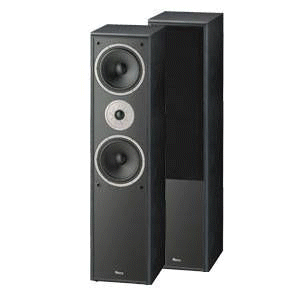

MS 1000
€.198,00 Per
prezzo scontato
TELEFONARE/EMAIL
Configuration
3 way bass reflex Impedance 4-8 Ohms Equipment 2x 6.5" woofer1x 6.5"
midrange1" dome-tweeter Power handling RMS / max. 180 / 360 Watts
Dimensions (W x L x D) 210 x 950 x 320 mm Highlights Low resonant,
stable MDF cabinet High-quality wood decors, highlighted with a black baffle
Removable cloth grille Tweeter with 25 mm silk dome and ERA front plate for a
balanced reproduction and constant radiation Woofer and woofer-midrange with
low-distortion, coated cellulose cones high quality crossover with phase
correction Metal- and rubber spikes included
Magnat
MS 800
€.150,00 Per
prezzo scontato
TELEFONARE/EMAIL
Configuration
2 1/2 way bass reflex Impedance 4-8 Ohms Equipment 1x 6.5" woofer1x 6.5"
woofer-midrange 1" dome-tweeter Power handling RMS / max. 160 / 320 Watts
Dimensions (W x L x D) 210 x 850 x 280 mm Highlights Low resonant,
stable MDF cabinet High-quality wood decors, highlighted with a black baffle
Removable cloth grille Tweeter with 25 mm silk dome and ERA front plate for a
balanced reproduction and constant radiation Woofer and woofer-midrange with
low-distortion, coated cellulose cones Very low, precise bass reproduction per
bassreflex construction high quality crossover with phase correctionO
Gold-plated screw terminal Metal- and rubber spikes included
Magnat

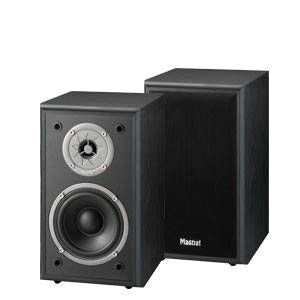

MS 200
€.
84,00 Per
prezzo scontato
TELEFONARE/EMAIL
Configuration
2 way bass reflex Impedance 4-8 Ohms Equipment 1x 6.5" woofer-midrange1"
dome-tweeter Power handling RMS / max. 90 / 180 Watts Dimensions (W x L x D) 210
x 355 x 280 mm Highlights Low resonant, stable MDF cabinet High-quality
wood decors, highlighted with a black baffle Removable cloth grille Tweeter with
25 mm silk dome and ERA front plate for a balanced reproduction and constant
radiation Woofer and woofer-midrange with low-distortion, coated cellulose cones
Very low, precise bass reproduction per bassreflex construction high quality
crossover with phase correction Gold-plated screw terminal
Magnat
MS 100
€.
46,00 Per
prezzo scontato
TELEFONARE/EMAIL
Configuration
2 way Impedance 4-8 Ohms Equipment 1x 4.5? woofer-midrange1/2?
dome-tweeter Power handling RMS / max. 42-34.000 Hz Dimensions (W x L x D) 145 x
235 x 195 mm Highlights Low resonant, stable MDF cabinet High-quality wood
decors, highlighted with a black baffle Removable cloth grille Tweeter with 25
mm silk dome and ERA front plate for a balanced reproduction and constant
radiation Tweeter with ultra-light mylar dome and ERA front plate Woofer and
woofer-midrange with low-distortion, coated cellulose coneshigh quality
crossover with phase correction Manual Download Data sheet Download
Magnat
MS 250
€.
80,00 Per
prezzo scontato
TELEFONARE/EMAIL
Configuration
2 way Impedance 4-8 Ohms Equipment 1 x 4.5? woofer-midrange 1/2?
dome-tweeter Power handling RMS / max. 42-34.000 Hz Dimensions (W x
L x D) 420 x 145 x 195 mm Highlights Low resonant, stable MDF
cabinet High-quality wood decors, highlighted with a black baffle Removable
cloth grille Tweeter with 25 mm silk dome and ERA front plate for a balanced
reproduction and constant radiation Tweeter with ultra-light mylar dome and ERA
front plate Woofer and woofer-midrange with low-distortion, coated cellulose
cones high quality crossover with phase correction
Magnat
MS 301A
€.270,00 Per
prezzo scontato
TELEFONARE/EMAIL
Configuration
Powered bass reflex subwoofer, Frontfire Impedance 1 x 300 mm Tieftöner
Bestückung 1 x 12" woofer Dimensions (W x L x D) 335 x 440 x 395 mm Highlights
Level and crossover-frequency adjustable High-level input High-level output
Low-level input Standby circuit Switchable mains voltage 115/230 V Solid
low-resonance MDF-cabinet High-quality wood decor, black baffle Removable cloth
front cover Front-fire construction High-power long-throw woofer Airflow
optimized reflex-port Anti-resonant rubber feet
Magnat
MS 201A
€.199,00 Per
prezzo scontato
TELEFONARE/EMAIL
onfiguration
Powered bass reflex subwoofer, Frontfire Equipment 1 x 8" woofer
Dimensions (W x L x D) 265 x 365 x 345 mm Highlights Level and
crossover-frequency adjustable High-level input High-level output Low-level
input Standby circuit Switchable mains voltage 115/230 V Solid low-resonance
MDF-cabinet High-quality wood decor, black baffle Removable cloth front cover
Front-fire construction High-power long-throw woofer Airflow optimized
reflex-port Anti-resonant rubber feet
Serie PRO PA

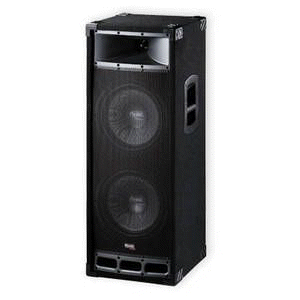

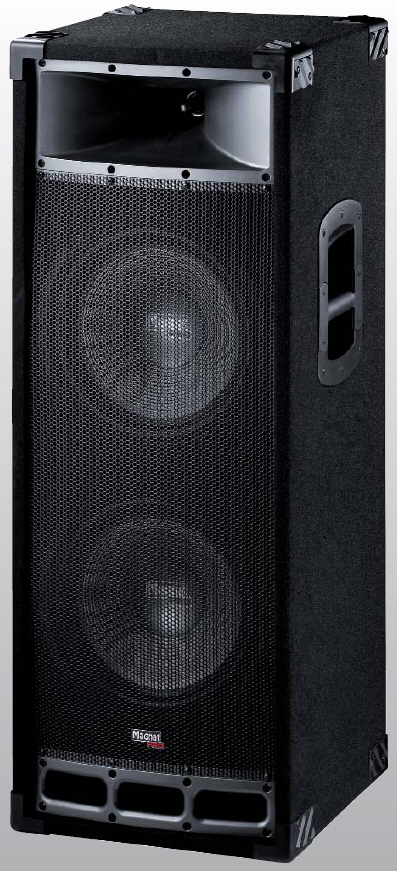

Magnat
PRO PA212
€.380,00 Per
offerta
TELEFONARE/EMAIL
Configuration
2 way, bass reflex Impedance 4-8Ohms Bestückung 2x 12" (30 cm)

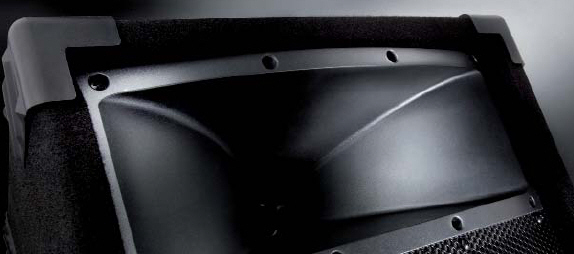

Tief-Mitteltöner, 1.5" Druckkammer Hochtonhorn Power handling RMS / max.
400 / 1000 Watt(s) Dimensions (W x L x D) 385 x 1005 x 390 mm
Frequency response 26-22.000 Hz Crossover frequency 2.800 Hz
Highlights Cabinet surface black carpetProfessionell PA speaker Stable
19mm MDF cabinet, rugged protection edges and resonance-free metal grill 1.5?
(38mm) compression horntweeter Longthrow woofer-midrange with reinforced
papercone and high power magnetsystem Highly efficent crossover Extra stable and
low resonant carry handles Speaker terminal with screwterminal and 6.3mm plug
Airflow optimized bassreflex ports
Magnat
PRO PA112
€.230,00 Per
offerta
TELEFONARE/EMAIL
Configuration
2 way bass reflex Impedance 4-8 Ohms Bestückung 1x 12" (30 cm)
Tief-Mitteltöner, 1.5" Druckkammer Hochtonhorn Power handling RMS / max.
250 / 600 Watt(s) Dimensions (W x L x D) 385 x 635 x 325 mm
Frequency response 30-22.000 Hz Crossover frequency 2.800 Hz
Highlights Cabinet surface black carpetProfessionell PA speaker Stable
19mm MDF cabinet, rugged protection edges and resonance-free metal grill 1.5?
(38mm) compression horntweeter Longthrow woofer-midrange with reinforced
papercone and high power magnetsystem Highly efficent crossover Extra stable and
low resonant carry handles Speaker terminal with screwterminal and 6.3mm plug
Airflow optimized bassreflex ports
Serie QUANTUM 500
Magnat
QUANTUM 508
€.445,00 Per
prezzo scontato
TELEFONARE/EMAIL
3 vie da pavimento. 6
altoparlanti. Potenza 200/340 W RMS/max. 23-55.000 Hz. Finitura color ciliegio.
Tw. Fmax da 25 mm per SACD. Cabinet MDF rinforzato. W & Mid Deep-Space
technology. 93 dB Base massiccia. Schermata.
Configuration
3-way floorspeaker, bass reflex Impedance 4-8 ohms Equipment 5x11,
1x2.5 cm Power handling RMS / max. 200/340 Watts Dimensions (W x L x
D) 150x1120x250 mm (185x255 mm Highlights Fmax tweeter with 25 mm
cloth dome and special-damping for an advanced dynamic and frequency range, SACD
and DVD Audio Stable MDF cabinet with complex strutting and low resonant 22 mm
baffle Woofer/midrange with `deep-space`-technology, stif fe and light alu cone
Voice coil ventilation for high capacity New developed eliptic formed ?Air flex?
por ts for optimized bass Removable metal cover Large terminal with golden
connectors Bi-wiring, Bi-amping Option Massive baseplate
Magnetically shielded
Magnat
QUANTUM
507
€.399,00 Per
prezzo scontato
TELEFONARE/EMAIL
3 vie da pavimento. 4
altoparlanti. Potenza 200/340 W RMS/max. 20-55.000 Hz. Finitura color
ciliegio,faggio , nero.Tw. Fmax da 25 mm per SACD. Cabinet MDF rinforzato. W &
Mid Deep-Space technology. 93 dB.Base massiccia. Schermata.
Configuration
3-way floorspeaker. bass reflex Impedance 4-8 Ohms Equipment 3x17, 1x2.5
cm Power handling RMS / max. 180/320 Watts Dimensions (W x L x D)
200x1070x310 mm (220x310 mm) Highlights Fmax tweeter with 25 mm cloth dome
and special-damping for an advanced dynamic and frequency range, SACD and DVD
Audio Stable MDF cabinet with complex strutting and low resonant 22 mm baffle
Woofer/midrange with `deep-space`-technology, stif fe and light alu cone Voice
coil ventilation for high capacity New developed eliptic formed ?Air flex? por
ts for optimized bass Removable metal cover Large terminal with golden
connectors Bi-wiring, Bi-amping Option Massive baseplate
Magnetically shielded
Magnat
QUANTUM
505
€.300,00 Per
prezzo scontato
TELEFONARE/EMAIL
3 vie da pavimento. Potenza
160/300 W RMS/max. 22-55.000 Hz. Finitura color ciliegio, nero. Tw. Fmax da 25
mm per SACD. Cabinet MDF rinforzato. W & Mid Deep-Space technology. 92 dB. Base
massiccia. Schermata.
Configuration
3-way floorspeaker. bass reflex Impedance 4-8 ohms Equipment 2x17,
1x2.5 cm Power handling RMS / max. 160/300 Watts Dimensions (W x L x
D) 200x970x310 mm ( 220x310) Highlights Fmax tweeter with 25 mm cloth dome
and special-damping for an advanced dynamic and frequency range, SACD and DVD
Audio Stable MDF cabinet with complex strutting and low resonant 22 mm baffle
Woofer/midrange with `deep-space`-technology, stif fe and light alu cone Voice
coil ventilation for high capacity New developed eliptic formed ?Air flex? por
ts for optimized bass Removable metal cover Large terminal with golden
connectors Bi-wiring, Bi-amping Option Massive baseplate
Magnetically shielded
Magnat
QUANTUM 503
€.159,00 Per
prezzo scontato
TELEFONARE/EMAIL
2 vie da libreria. Potenza
90/150 W RMS/max. 30-55.000 Hz. Finitura color ciliegio, nero. Tw. Fmax da 25 mm
per SACD. Cabinet MDF. W Deep-Space technology. 90 dB. Schermata.
Configuration
3-way floorspeaker. bass reflex Impedance 4-8 Ohms Equipment 2x17, 1x2.5 cm
Power handling RMS / max. 160/300 Watt Dimensions (W x L x D) 200x970x310
mm ( 220x310) Highlights Fmax tweeter with 25 mm cloth dome and
special-damping for an advanced dynamic and frequency range, SACD and DVD
AudioStable MDF cabinet with complex strutting and low resonant 22 mm baffle
Woofer/midrange with `deep-space`-technology, stif fe and light alu cone Voice
coil ventilation for high capacity New developed eliptic formed ?Air flex? por
ts for optimized bass Removable metal cover Large terminal with golden
connectors Bi-wiring, Bi-amping Option Resonance damping rubber spikes included
Magnetically shielded
Magnat
QUANTUM
513
€.192,00 Per
prezzo scontato
TELEFONARE/EMAIL
2 vie canale centrale.
Potenza 90/150 W RMS/max. 34-55.000 Hz.Tw. Fmax da 25 mm per SACD. Cabinet MDF.
W Deep-Space technology. 91 dB. Schermata. Finitura color ciliegio nero
Impedanz 4-8 TT2 Anzahl
1 TT2 DIN Durchmesser 130 MT Anzahl 1 MT DIN Durchmesser 130
HT Anzahl 1 HT DIN Durchmesser1 25 Breite 470 Hoehe 175 Tiefe 235
Wandmontage 4 Besonderheiten Fmax Hochtöner mit 25 mm Gewebemembran
und Spezialbedämpfung bietet einen erweitertem Frequenzbereich- und
Dynamikbereich für SACD und DVD-Audio Stabiles MDF Gehäuse mit aufwändigen
Verstrebungen und resonanzarmer 22 mm-Schallwand Tief-Mitteltöner mit `deep-space`-Technologie,
Steife und leichte Aluminium-Membranen, Ausgeklügelte Schwingspulenbelüftung für
hohe Belastbarkeit Neu entwickelte Air flex-Ports mit extrem großer
Öffnungsfläche garantieren bestmögliche Bassankopplung Abnehmbares
Metall-Schutzgitter mit optimaler Schalldurchlässigkeit Großes Anschlußfeld mit
massiven Schraubklemmen Resonanzdämpfende Gummifüße im Lieferumfang enthalten
Magnetisch geschirmt
Magnat
QUANTUM 511
€.159,00 Per
prezzo scontato
TELEFONARE/EMAIL
2 vie canale centrale.
Potenza 80/140 W RMS/max. 38-55.000 Hz. Finitura color ciliegio,nero.Tw. Fmax da
25 mm per SACD. Cabinet MDF. W Deep-Space technology. 90 dB.Schermata.
Impedanz 4-8 TT2 Anzahl 1 TT2
DIN Durchmesser 110 MT Anzahl 1 MT DIN Durchmesser 110 HT Anzahl 1 HT DIN
Durchmesser1 25 Breite 450 Hoehe 150 Tiefe 190 Wandmontage 4
Besonderheiten Fmax Hochtöner mit 25 mm Gewebemembran und Spezialbedämpfung
bietet einen erweitertem >Frequenzbereich- und Dynamikbereich für SACD und
DVD-Audio Stabiles MDF Gehäuse mit aufwändigen Verstrebungen und resonanzarmer
22 mm-Schallwand Tief-Mitteltöner mit `deep-space`-Technologie, Steife und
leichte Aluminium-Membranen, Ausgeklügelte Schwingspulenbelüftung für hohe
Belastbarkeit Neu entwickelte Air flex-Ports mit extrem großer Öffnungsfläche
garantieren bestmögliche Bassankopplung Abnehmbares Metall-Schutzgitter mit
optimaler Schalldurchlässigkeit Großes Anschlußfeld mit massiven Schraubklemmen
Resonanzdämpfende Gummifüße im Lieferumfang enthalten
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
 Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
 Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffussore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco nostro magazzino.
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici |
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
