Morel: Riconosciuta a livello
mondiale per i suoi driver audio e altoparlanti in grado di trasmettere una
fedeltà del suono tra le migliori riscontrabili.La ricerca del miglioramento
Meir Mordechai fondò la società Morel nel 1975, ispirato dal suo amore per la
musica e per la realizzazione di un sogno: quello di creare l’altoparlante
perfetto. La sua ricerca di una vita è risultata in un susseguirsi di
generazioni di casse e driver audio che hanno costantemente fissato nuovi
standard di superba qualità sonora. Il marchio Morel, che deriva dalle prime
lettere di Mordechai e quelle di Electro-Acustic, è diventato un punto di
riferimento e uno dei più importanti marchi premiati con premi della categoria
“Best of …” per la riproduzione sonora da casa e mobile.Il suono che cattura la
magia della musica Gli altoparlanti possono essere paragonati a strumenti
musicali. Mentre ci sono moti produttori di strumenti musicali di tutti i tipi,
solo un produttore di casse audio ha pienamente avuto successo nel costruire il
suono che muove e ipnotizza la persona che lo ascolta, quel suono che cattura la
magia della musica. Questa è la magia di Morel.Rinnovati per la tecnologia
innovativa e per il design Nel corso degli anni, Morel ha sviluppato una
reputazione invidiabile per la sua innovazione tecnologica e per l’eccellente
design. I driver Morel, includendo tweeters, casse medie e woofers sono
utilizzati in alcuni dei più esigenti prodotti in tutto il mondo. I prodotti
Morel, compresi i sistemi audio, sono venduti per i mercati dell’ Home HI-FI,
dell’Home Theater e dell’audio mobile in ben più di 55 paesi sparsi per il
mondo. La filiale di Morel, Morel America, è stata fondata nel 2004.Oltre la
tecnologia: il tocco umano La produzione di altoparlanti che trasmettano una
sensazione magica richiede molto di più che semplice tecnologia per quanto
avanzata essa sia. Per raggiungere l’apice dell’esperienza uditiva, il tocco
umano è assolutamente necessario.OGNI SINGOLO PRODOTTO MOREL È ASSEMBLATO A MANO
e sottoposto a test a largo spettro, passando per una serie di differenti test
di qualità e fedeltà audio, per assicurare al consumatore che esso rispetti gli
standard più elevati. La conoscenza personale e le capacità tecniche, acquisite
con la dedizione dal team Morel nell’arco di tre decenni di sperimentazione
audio, traspaiono dietro ogni singolo prodotto.L’investimento di Morel si
traduce in un valore aggiunto per il consumatore La produzione del prodotto, che
va dal design, all’ R&D, alla costruzione del prodotto vero e proprio, in un
unico luogo rende Morel in grado di proporre un prodotto con qualità senza
precedenti ad un prezzo concorrenziale. Non fermandosi davanti ai vincoli del
design e stimolata da anni di esperienza nella costruzione dei propri driver,
Morel può offrire le ultime tecnologie in fatto di suono in modo che
garantiscano per tutta la vita un costante piacere estetico ma soprattutto
acustico ai consumatori.Ridefinendo l’esperienza dell’audio a casa propria La
vasta gamma di sistemi audio per la casa di Morel combina alla perfezione
performance sonore e l’eccellenza del design. Ogni prodotto Morel è
contraddistinto dal bollino di qualità Morel: una combinazione distintiva di
innovazione tecnologica, design audace e qualità sonora superba. I sistemi Morel
sono una dichiarazione esplicita riguardo alle scelte di vita: alcuni pezzi di
design sono così unici da essere considerati capolavori per quanto concesso,
mentre altri riescono pienamente a coniugarsi con l’ambiente, affidandosi
prevalentemente alla loro qualità sonora per far notare la loro presenza.La
scelta degli entusiasti dell’audio per automobili La varietà dei sistemi e dei
componenti Morel garantisce una risposta a ogni domanda anche in fatto di audio
per automobili. Morel è riconosciuta per i suoi prodotti altamente performanti
OEM per auto: dai sistemi a due o tre vie, agli altoparlanti coassiali a tutti i
componenti visti in generale. Morel ha dedicato anni alla ricerca e allo
sviluppo di tecnologie uniche per superare quei limiti offerti dall’audio per
auto, e proporre performance eccezionali. La caratteristica che contraddistingue
un buon altoparlante è quella di riuscire a trasformare una semplice
registrazione in un’esperienza “live”. Gli impianti Morel raggiungono questo
traguardo ogni volta.Morel: oltre 30 anni di innovazione del suono Morel
continua a rompere nuove barriere nella riproduzione fedele del suono. Le più
importanti associazioni di stampa e dei media hanno riconosciuto alla tecnologia
leader di Morel e la sua innovazione nel campo del design, premiando la società
con numerosi premi per i sistemi audio da casa e da auto.

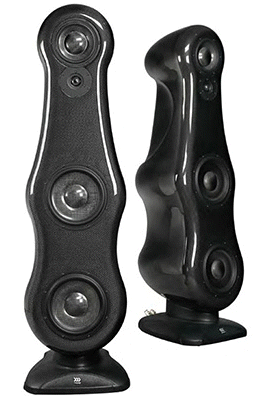

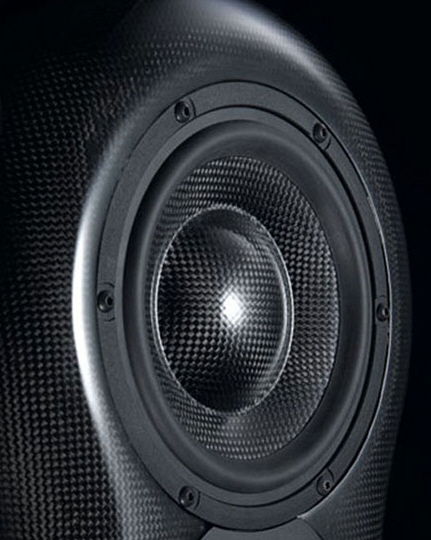

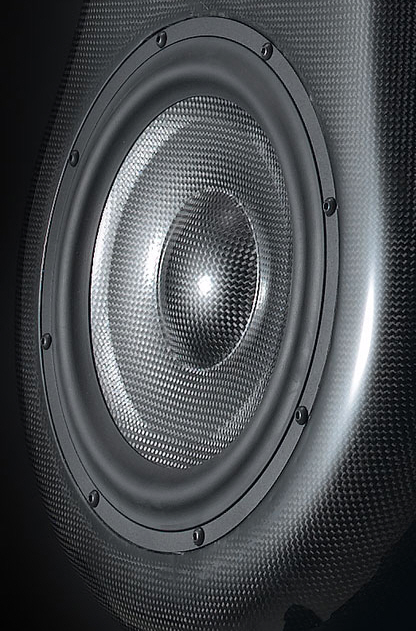

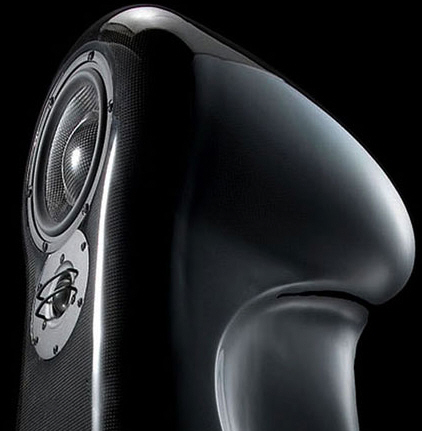

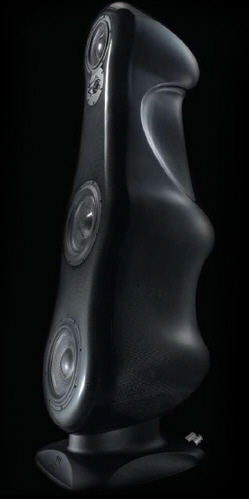

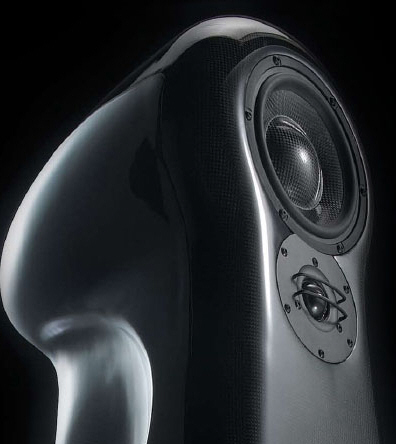

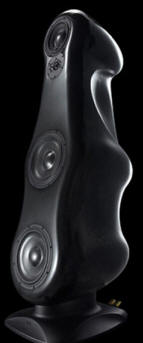

the fat lady specificationsType
3-way 4 drive units system Construction Composite of carbon fiber and fiber
glass resin enclosure Acoustical Loading Ported (Bass reflex) Drive Units Woofer:
2 x 9" (222 mm) Carbon fiber - Rohacell sandwich cone type with integrated one
piece dome, Hybrid™ double magnet motor, 3" (75 mm) EVC (External Voice Coil)
long-throw Hexatech™ aluminum voice coil technology. Midrange: 6" (152 mm)
Carbon fiber - Rohacell sandwich cone type with integrated one-piece dome,
double Neodymium magnet motor, Supreme™ underhung 3" (75mm) EVC™ ((External
Voice Coil) Hexatech™ aluminum voice coil with linear impedance copper sleeve
technology.Tweeter: Supreme™ tweeter technology, 1.1" (28mm) Acuflex™ hand
coated soft dome, pancake Neodymium magnet motor, underhung Hexatech™ aluminum
voice coil. Frequency Response 20-22,000 Hz (40-18,000 Hz ±1.5 dB) Crossover
200Hz/ 2.2KHz Nominal Impedance 4 ohm Nominal Power Handling 300 W Peak Power
Handling 1000 W Dispersion Within 1.5 dB -18,000 Hz Horizontal: over 60º /
Vertical: over 20º Sensitivity 2.83V / 1M 88 dB Dimension (WxHxD) 34 x 127 x 44
cm / 13 3/8" x 50" x 17 3/8" Finish High gloss carbon fibre composite Net Weight
44 kg. / 97 lbs. The Fat Lady was designed in collaboration with Alain Fouraux
and David Zuman. Through audio, video, painting, sculpture, animations and
product design, Alain Fouraux channelled his interest in the field of
architecture and urban planning, leading him to be senior in Office For
Metropolitan Architecture (O.M.A.), where he participated in milestone designs
of the past decade. David Zuman experienced Integrated Design for over two
decades between Industrial & Consumer, Video & Multimedia Broadcast production,
Branding and Advertisement, Interior & Architecture design. Throughout his
carrier he collaborated with numerous multinational companies while building an
academic experience as Professor in top Universities in Milan, Seoul and Hong
Kong. Currently both are running the Urban Advertising Company "NERVECORP"

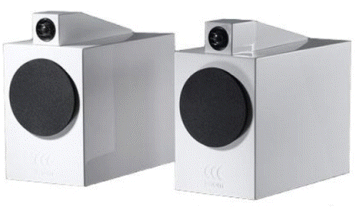

Octave Signature BOOKSHELF
Sistema 2 vie Audiophile
OCTAVE SIGNATURE BOOKSHELF- The original Octave was introduced some ten years
ago. Since that time it has evolved but retains the original shape and character,
which can best be described as the ultimate “small speaker with a big sound”.
The Octave Signature can be used in various applications and room settings at an
affordable price. The heart of the Octave Signature Bookshelf is the 5¼” bass
midrange driver, equipped with an enormous 3” voice coil inside of which is
placed the magnet system. This unusually large voice coil configuration is three
times larger than on conventional drive units of this size. Bass output from
this drive unit is surprisingly deep and powerful yet very articulate. Designed
in a modular form the Octave Signature Subwoofer can be added to the Octave
Signature Bookshelf to create a true 3-way loudspeaker system for stereo
applications. Alternatively combined with the Signature AMP 250 the Octave
Signature Subwoofer becomes the Lf channel in a 5.1 home Cinema system. The
Octave Signature Series faithfully reproduces the natural sound of a live
musical or cinema performance, to create an emotionally powerful listening
experience where one can pinpoint every instrument and every voice, as well as
benefit from a wide vertical and horizontal soundstage augmented by depth.
SPECIFICATIONS OCTAVE Signature BOOKSHELF Type 2-way freestanding loudspeaker
Construction MDF polymer, coated cabinet with separate chamber for each drive
unit. Acoustical Loading Double port bass reflex Drive Units Woofer:
5¼"(130mm) rear-vented system. Double ferrite magnet motor. One piece integrated
dome and surround cone, made of damped polymer composite. 3" (75mm ) aluminum
Hexatech™ voice coil and Morel's external voice coil (EVC) technology. Tweeter:
Mid/high frequency unit, low resonance soft dome, Acuflex™ coated, vented double
magnet neodymium motor. 1⅛" (28mm) Aluminum Hexatech™ voice coil and Morel's EVC
technology. All units are shielded with low magnetic stray field Frequency
Response 20-22,000Hz (40-18,000Hz ± 1.5 dB) Nominal Impedance 4 ohm Nominal
Power Handling 120W RMS Peak Power Handling 1,000W 10m/sec Sensitivity 1 W/1 M
86 dB Crossover 2200 Hz / 12 dB octave Dispersion Within 1.5 dB - 18,000
Hz Horizontal: over 60° Vertical: over 20° Dimension (WxHxD) 7" x 12½" x 12¾"
(175mm x 315mm x 325 mm) Weight 15.4 lbs (7 kgs) each Octave unit Finish Black,
white and red piano finish

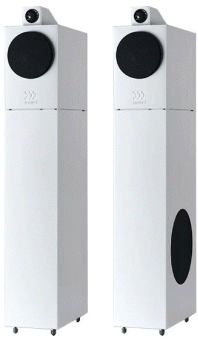

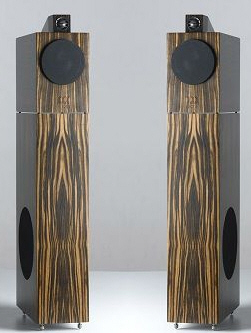

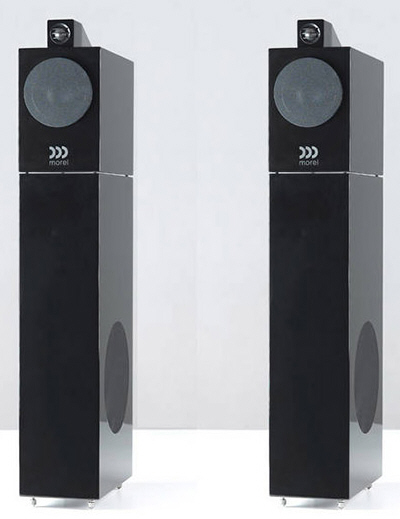

Octave Signature
FLOORSTANDING Sistema composto da Octave Signature Bookshelf & Octave Signature
Subwoofers
OCTAVE Signature FLOORSTANDING-Profiled to allow the Octave Signature Bookshelf
to sit on top to create a single visual structure, the Octave Signature
Subwoofer takes up no more floor space than a pair of speaker stands. Technical
highlights include Isobaric loading which reduces the cabinet size by half for
the same bass extension. A built in passive crossover designed to create a
seamless transition from the Octave Signature Subwoofer to the Octave Signature
Bookshelf. The all-new audio drivers deliver enhanced and controlled, accurate
bass frequencies with the quality, dynamic impact of the original recording,
placing you right at the heart of the action. The Octave Signature
Floor-standing speakers include a pair of Octave Signature Bookshelf speakers
and a pair of Octave Signature Subwoofers. An external amplifier, the Morel
Signature AMP 250, is also available making the subwoofer adjustment much
easier.Signature AMP 250 Specifications SPECIFICATIONS OCTAVE Signature
BOOKSHELF Type 2-way freestanding loudspeaker Construction MDF polymer, coated
cabinet with separate chamber for each drive unit. Acoustical Loading Double
port bass reflex Drive Units Woofer: 5¼"(130mm) rear-vented system. Double
ferrite magnet motor. One piece integrated dome and surround cone, made of
damped polymer composite. 3" (75mm ) aluminum Hexatech™ voice coil and Morel's
external voice coil (EVC) technology. Tweeter: Mid/high frequency unit, low
resonance soft dome, Acuflex™ coated, vented double magnet neodymium motor. 1⅛"
(28mm) Aluminum Hexatech™ voice coil and Morel's EVC technology. All units are
shielded with low magnetic stray field Frequency Response 20-22,000Hz
(40-18,000Hz ± 1.5 dB) Nominal Impedance 4 ohm Nominal Power Handling 120W RMS
Peak Power Handling 1,000W 10m/sec Sensitivity 1 W/1 M 86 dB Crossover 2200 Hz /
12 dB octave Dispersion Within 1.5 dB - 18,000 HzHorizontal: over 60° Vertical:
over 20° Dimension (WxHxD) 7" x 12½" x 12¾" (175mm x 315mm x 325 mm) Weight 15.4
lbs (7 kgs) each Octave unit Finish Black, white and red piano finish

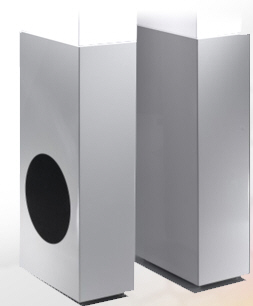

SPECIFICATIONS OCTAVE Signature SUBWOOFER Construction Isobaric and port-loading
reflex cabinet Drive Units Two 9" (222mm) flat-profile woofers with 3" (75 mm)
Hexatech™ aluminum coil and rear-vented Hybrid (neodymium andferrite) double
magnet motor Nominal Impedance for a full floor-standing system 4 ohm Nominal
Impedance for bi-amp configuration system 2 ohm Nominal Impedance 4 ohm Power
Handling 250 W RMS Peak Power Handling 1000W 10m/sec Frequency Response 20-100Hz
Crossover 200 Hz / 18 dB octave Dimensions (W x H x D) 7" x 27" x 12¾" (17.5 x
70 x 32.5 cm) Weight 37.4 lbs (17 Kg) Finish Black White and Red piano finishes
SPECIFICATIONS Signature AMP 250 Output Power 250 WRMS @ 4 ohms Output Impedance
4 -8 ohms Amplification Modes Full range / Filtered subwoofer Variable Controls
Level / Phase / Crossover Crossover 40 - 160Hz variable Bass Control At 27Hz
-3dB ~ +6dB (3dB steps) Output Terminal 5-way binding post outputs Operation
Control Auto on/off, constant mode or 12V trigger input Voltage 115-230 VAC
50/60 Hz Dimensions (W x H x D) 17" x 1⅞" x 11½" (436mm x 47mm x 290mm) Or19” x
1⅞" x 11½" (482mm x 47mm x 290mm) w / rack mount adapters Mounting Options Free
standing / U1 rack Weight 8.4 lbs / 3.8 Kg Finish Black
OCTAVE
Signature CENTRE -The Octave Signature full-range Centre speaker consists
of three 5-¼” (130mm) woofer units and a wide range, Morel’s trademark
hand-coated Acuflex™ silk-dome tweeter, producing dynamic reach and power
handling for the most demanding music and sound effects, while capturing the
details of even the softest whisper. By placing the tweeter on top of the only
drive unit reproducing the midrange, the Octave Signature Centre creates a more
stable soundstage, particularly when listening off-axis. The Octave Signature
Centre has been upgraded with technological innovations that optimize accuracy
and control and deliver tremendous dispersion over a wide listening area. The
Octave Centre integrates perfectly with the Octave Signature series drive units,
possessing the same sound characteristics as the Signature Bookshelf speakers,
with a more powerful bass impact and higher power handling capability.
SPECIFICATIONS OCTAVE Signature CENTRE Type 3 Way 4 units, full range centre
speaker with low magnetic stray field Construction MDF ™ polymer, coated cabinet
with 3 separate acoustic chambers. Separate chamber for each drive unit.
Acoustical Loading Double port bass reflex for bass chamber/sealed for bass
midrange & tweeter Drive Units Woofers: 2 x 5¼" (130mm) rear vented. Double
magnet motor.Midrange: 1 x 5¼" (130mm) rear vented hybrid motor. Both feature
one piece integrated dome and surround cone, made of damped polymer composite.
3" (75 mm) aluminum Hexatech™ voice coil using Morel's external voice coil
technology (EVC).Tweeter: Mid/High frequency unit, low resonance soft dome,
Acuflex™ coated, vented double magnet Neodymium motor. 1⅛" (28mm) Aluminum
Hexatech™ voice coil and Morel's EVC technology. All units are shielded with low
magnetic stray field Frequency Response 20 - 22,000 Hz (40-18,000Hz ± 1.5 dB)
Nominal Impedance 4 ohm Nominal Power Handling 300W RMS Peak Power Handling
1500W 10m/sec Sensitivity 1 W/1 M 88 dB Crossover 200 Hz, 2000Hz Dispersion
Within 1.5 dB - 18,000 Hz Horizontal: over 60° Vertical: over 20° Dimension (WxHxD)
21¾" x 9¾" x 12¾" (550mm x 247mm x 325 mm) Weight 36 lbs (16 Kg) Finish Black,
white and red piano finish
Octave Signature SUBWOOFER
Doppio subwoofer Isobarico passivo da 9"
OCTAVE
SUBWOOFEROur desire to bring you straight to the heart of the action is done by
a subwoofer that effortlessly delivers bass frequencies with the quality,
dynamic impact and fidelity of the original recording. The octave sub is an
isobaric subwoofer (dual woofer configuration). The subwoofer's rear-vented
double magnet system and aluminum Hexatech™ voice coil allow for effortless deep
bass power. The octave subwoofer is designed to integrate with the octave and
enhance the lower frequency coverage. Whether connecting to the same stereo
amplifier (lowering nominal impedance to 4 ohms) or connecting directly to the
matching harmony Amp200 your music never sounded so good. The subwoofer matches
to the design of the Octave speakers complementing them both for stereo and home
theater sets making your music look good as well. SPECIFICATIONS OCTAVE
SUBWOOFER Construction Isobaric and port-loading reflex cabinet Dimensions (W x
H x D) 7" x 27" x 12¾" (175mm x 700mm x 325 mm) Drive Units Two 9" (222mm)
flat-profile woofers with 3" (75 mm) Hexatech aluminum coil and rear-vented
double magnet motor Frequency Response 20-120Hz internal passive crossover.
20-2000Hz via direct input. Inputs Hi level via internal passive crossover, hi
level direct through external amplifier with active crossover. Weight 38 lbs (18
Kgs) Finish Black White and Red piano Finish. Ebony wooden finish.
SOUNDSPOT
Music Theatre Series 5+1
MORELMT-1 €.
940,00

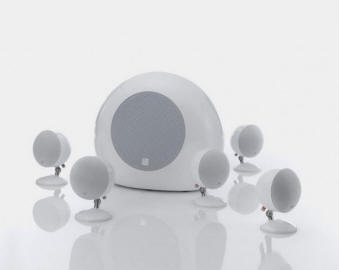

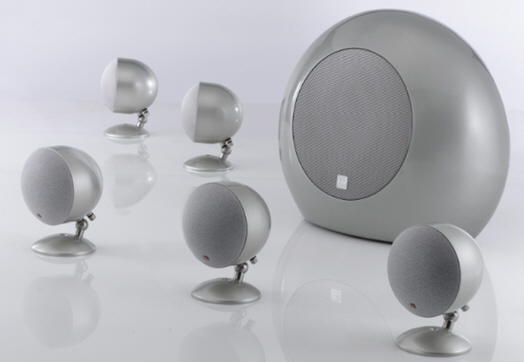

Per ordine e sconto TELEFONA / E-MAIL Sistema 5.1 Home theatre
composto da 5 satelliti SP1 + Sub PSW8 SoundSpot'" Music Theatre MT-z
SoundSpot'" Music Theatre MT-1 5 satelliti coax con cabinet in alluminio L mm da
70 watt RMS; 1 Subwoofer reflex attivo con cabinet in vetroresina da 100 watt
RMS con regolazione del volume, fase, e frequenza; Sistema di fissaggio a 90"
orizzontale e verticale; Colori disponibili: Laccato nero, bianco;
The MT-1 / MT-1 UItra
are a multi speaker system for both home theatre and Hi-Fi. Designed as a modern
minimalist package it delivers the renowned Morel sound and exceptional value.SoundSpot™
Music
Theatre
1 home theatre speaker system features Morel's SoundSpot™ SP-1 for front, rear,
and center channel speakers. The SP-1 half-sphere steel enclosure houses a

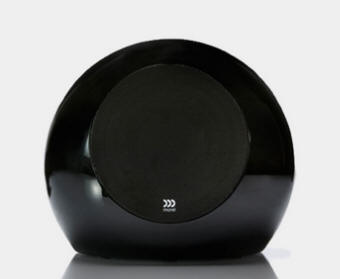

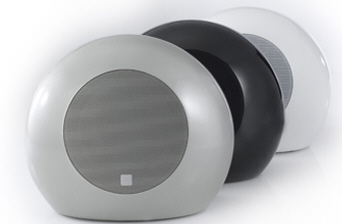

two-way coaxial speaker. The SoundSub™ PSW8 is fitted with an 8" bass unit
driven by a 100W high power amplifier supplying seamless acoustic integration
for the SoundSpot™ series. The SoundSpot™ Music Theatre 1 Ultra features the
SoundSpot™ SP-1 satellite speakers with the SoundSub™ PSW10. The PSW10 was
designed with larger rooms in mind. The enclosure is only 20% larger then the
PSW8, incorporating a 10” high power woofer with a 200W amplifier. Both SoundSub™
PSW8 and PSW10 deliver a rich deep bass sound. Morel’s MT-1 / MT-1 Ultra
provides the ideal speaker solution for today’s modern computers equipped with
high-quality sound cards. It exploits its full potential by delivering exciting
sound with a discrete appearance. Available in Piano White, Piano Black and
Champagne finishes, the SoundSpot™ Music Theatre 1/ 1 Ultra deliver excellent
performance at a lower cost, representing great value.

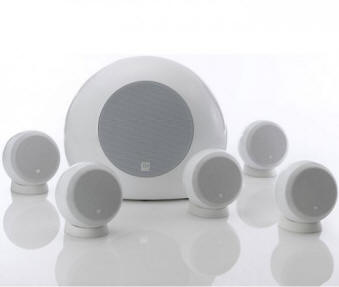

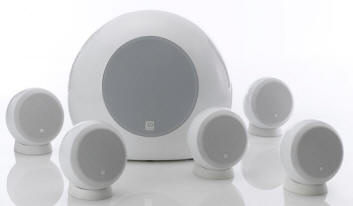

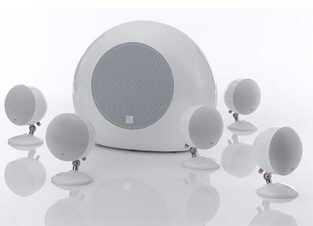

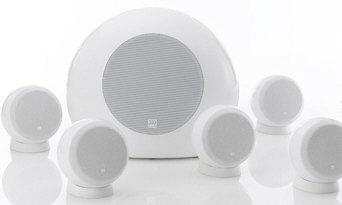

Sistema 5.1 Home theatre
composto da 5 satelliti SP2 + Sub PSW8 SoundSpot'" Music Theatre MT-z 5
satelliti coax con cabinet in alluminio 1 mm da 80 watt RMS" Subwoofer reflex
attivo con cabinet in vetroresina da 100 watt RMS con regolazione del volume,
fase, e frequenza; Sistema di fissaggio a 27O" orizzontale e 90" verticale con
sistema cavetteria nascosta; Colori disponibili: Laccato nero, bianco;
The
SoundSpot™ Music Theatre 2 / 2 Ultra borrows technology from Morel’s 2009
Innovation award winner, the Fat Lady to bring a dramatic sonic improvement over
previous models. The MT 2 / 2 Ultra is a two-way, true point source system which
deliver a more stable and consistent off-axis sound, further raising the bar for
sound quality in a minimalist design. It represents exciting new options for
home theatre music systems. SoundSpot™ Music Theatre 2 home theatre satellite
speaker system features Morel's SoundSpot™ SP-2 for front, rear, and center

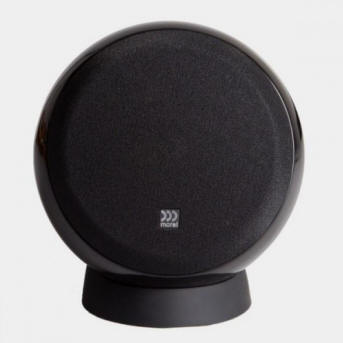

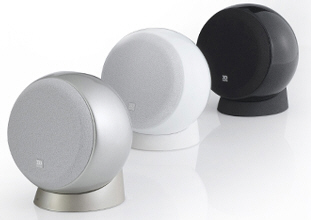

channel speakers. The SP-2 steel sphere enclosure houses a two-way coaxial
speaker. The SoundSub™ PSW8 is fitted with an 8" bass unit driven by a high
power amplifier, supplying seamless acoustic integration for the SoundSpot™

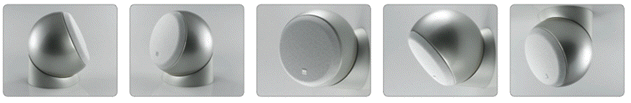

series, delivering a rich deep bass sound. An innovative adjustment system had
been designed for the MT-2 / MT-2 Ultra in that the spherical speaker - SP-2 -
is able to rotate 270 degrees horizontally and 90 degrees vertically. A single,
hidden screw is all that is needed to lock the satellite into position, thus
assuring easy and total control of the sound field. The SP-2 base fits
on-ceiling, on-wall and on-shelf installations and includes cable management.
The SoundSpot™ Music Theatre 2 Ultra features the SoundSpot™ SP-2 satellite
speakers with the SoundSub™ PSW10. The PSW10 was designed with larger rooms in
mind. The enclosure is only 20% larger then the PSW8, incorporating a 10” high
power woofer with a 200W amplifier. Both SoundSub™ PSW8 and PSW10 deliver a rich
deep bass sound. Morel’s MT-2 / MT-2 Ultra provides the ideal speaker solution
for today’s modern computers equipped with high-quality sound cards. It exploits
its full potential by delivering exciting sound with a discrete appearance.
Available in Piano White, Piano Black and Champagne finishes, The SoundSpot™
Music Theatre 2 / MT- 2 Ultra are made to deliver high quality, excellent sound
reproduction with a discrete, easy to install design.
Sistema 2.1 Music stereo
composto da 2 satelliti SP-1 + Sub PSW8
UItra are a multi speaker system for both home theatre and Hi-Fi. Designed as a
modern minimalist package it delivers the renowned Morel sound and exceptional
value.SoundSpot™ Music Theatre 1 home theatre speaker
system features Morel's SoundSpot™ SP-1 for front, rear, and center channel
speakers. The SP-1 half-sphere steel enclosure houses a two-way coaxial speaker.
The SoundSub™ PSW8 is fitted with an 8" bass unit driven by a 100W high power
amplifier supplying seamless acoustic integration for the SoundSpot™ series. The
SoundSpot™ Music Theatre 1 Ultra features the SoundSpot™ SP-1 satellite speakers
with the SoundSub™ PSW10. The PSW10 was designed with larger rooms in mind. The
enclosure is only 20% larger then the PSW8, incorporating a 10” high power
woofer with a 200W amplifier. Both SoundSub™ PSW8 and PSW10 deliver a rich deep
bass sound. Morel’s MT-1 / MT-1 Ultra provides the ideal speaker solution for
today’s modern computers equipped with high-quality sound cards. It exploits its
full potential by delivering exciting sound with a discrete appearance.
Available in Piano White, Piano Black and Champagne finishes, the SoundSpot™
Music Theatre 1/ 1 Ultra deliver excellent performance at a lower cost,
representing great value.
Sistema 2.1 Music stereo
composto da 2 satelliti SP-2 + Sub PSW8
The
SoundSpot™ Music Theatre 2 / 2 Ultra borrows technology from Morel’s 2009
Innovation award winner, the Fat Lady to bring a dramatic sonic improvement over
previous models. The MT 2 / 2 Ultra is a two-way, true point source system which
deliver a more stable and consistent off-axis sound, further raising the bar for
sound quality in a minimalist design. It represents exciting new options for
home theatre music systems. SoundSpot™ Music Theatre 2 home theatre satellite
speaker system features Morel's SoundSpot™ SP-2 for front, rear, and center
channel speakers. The SP-2 steel sphere enclosure houses a two-way coaxial
speaker. The SoundSub™ PSW8 is fitted with an 8" bass unit driven by a high
power amplifier, supplying seamless acoustic integration for the SoundSpot™
series, delivering a rich deep bass sound. An innovative adjustment system had
been designed for the MT-2 / MT-2 Ultra in that the spherical speaker - SP-2 -
is able to rotate 270 degrees horizontally and 90 degrees vertically. A single,
hidden screw is all that is needed to lock the satellite into position, thus
assuring easy and total control of the sound field. The SP-2 base fits
on-ceiling, on-wall and on-shelf installations and includes cable management.
The SoundSpot™ Music Theatre 2 Ultra features the SoundSpot™ SP-2 satellite
speakers with the SoundSub™ PSW10. The PSW10 was designed with larger rooms in
mind. The enclosure is only 20% larger then the PSW8, incorporating a 10” high
power woofer with a 200W amplifier. Both SoundSub™ PSW8 and PSW10 deliver a rich
deep bass sound. Morel’s MT-2 / MT-2 Ultra provides the ideal speaker solution
for today’s modern computers equipped with high-quality sound cards. It exploits
its full potential by delivering exciting sound with a discrete appearance.
Available in Piano White, Piano Black and Champagne finishes, The SoundSpot™
Music Theatre 2 / MT- 2 Ultra are made to deliver high quality, excellent sound
reproduction with a discrete, easy to install design.
SET DA 5 PZ

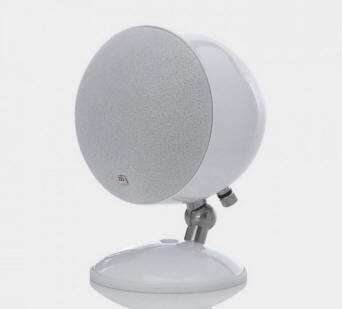

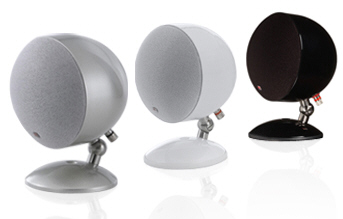

Satellite SoundSpot™ coassiale da 3,5" per unità da 60 w rms The
SoundSpot™ SP-1 is a discreetly designed miniature half-sphere two way point
source satellite speaker. The SoundSpot™ SP-1 is a half-sphere 1mm thick
enclosure that houses a 3½" (85mm) coaxial driver with ¾" (20mm) high
temperature voice coil for the mid/woofer unit, and a ferrite magnet system. The
tweeter is a semi soft, polymer, ½” (12mm) liquid-cooled voice coil, neodymium
magnet motor. The SoundSpot™ SP-1 is designed to deliver Morel quality sound in
the smallest package. As part of a 5.1home cinema system the SP-1 delivers a

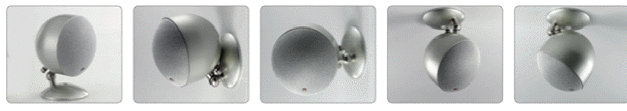

surprisingly "big" powerful sound.The clever satellite pivoting base turns 180
degrees and enables on-wall, on-ceiling and on-shelf placement offering
installation flexibility. Can also be used with high performance computers where
its lively articulate sound takes full advantage of modern computer sound
cards.SPECIFICATIONSSPECIFICATIONS SP-1 Construction Steel half-sphere enclosure
Enclosure Diameter 4.3" (110 mm) Drive units Woofer: 3½" (85mm) woofer with ¾"
(20 mm) high temperature voice coil, ferrite magnet motor.Tweeter: semi-soft
polymer ½" (12mm) liquid-cooled voice coil, neodymium magnet motor Nominal
impedance 6 ohm Power handling 60W (100W Transients) Operating power 15-100W
Crossover 6dB per octave, 8,000Hz Frequency response 180-22,000Hz (-5dB)
Sensitivity 2.83V/1M 87dB Net weight 2.3 lbs (1 Kg) Finish Piano white,
Piano black, Champagne
COPPIA Satellite
SoundSpot™ sistema integra ™ da 4" per unità da 80 w rms
To
be a satellite means very small and discrete, on the other hand the need to
reproduce as much of the audio spectrum as possible requires a relatively large
enclosure. The Morel solution is to fashion a sphere using advanced metal
processing that is strong yet light and only 1mm thick, preserving significant

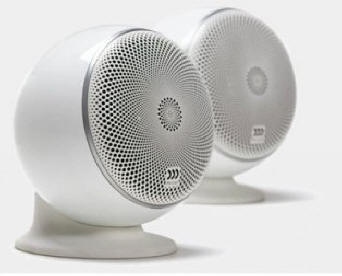

and valuable internal volume. The SoundSpot™ SP-2 steel sphere houses a 4"
(100mm) coaxial driver with 1.2” (32mm) high temperature voice coil for the mid/woofer
unit, and a ferrite magnet system. The tweeter is a soft dome, ¾” (19mm)
liquid-cooled voice coil, neodymium magnet motor.The SoundSpot™ SP-2 spherical
design whilst ideal from an acoustical standpoint also lends itself to a novel
method of adjustment when attached to walls and ceilings. The spheres are able
to rotate 270 degrees horizontally and 90 degrees vertically whilst using a
single screw to lock the spheres when positioned. Total control of the sound
field is assured in any living space and so easy to achieve.The clever satellite
base enables on-wall, on-ceiling and on-shelf placement without adding any
additional accessories, offering great installation flexibility. SPECIFICATIONS
SP-2 Construction Steel sphere enclosure Enclosure Diameter 5.5" (140 mm) Drive
units Woofer: 4" (100 mm) woofer with 1.2" (32 mm) high temperature voice coil,
ferrite magnet motor.Tweeter: Soft dome ¾" (19 mm) liquid-cooled voice coil,
neodymium magnet motor Nominal impedance 6 ohm Power handling 80W (150W
Transients) Operating power 15-100W Crossover 2,200Hz 12dB / Octave Frequency
response 120-22,000Hz (-5dB) Sensitivity 2.83V/1M 86dB Net weight 3.3 lbs (1.5
Kg) Finish Piano white, Piano black, Champagne
Subwoofer attivo da 8" con
cabinet in vetroresina (100 w rms)
The

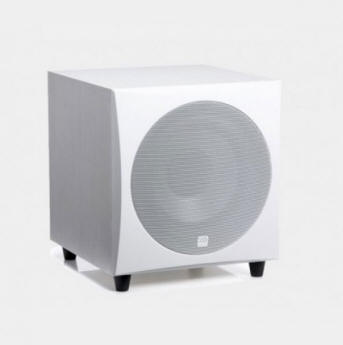

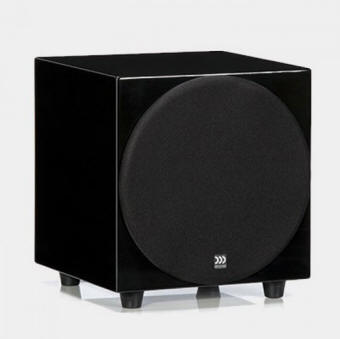

SoundSub™ PSW8 / PSW10 have a discrete design and the same high quality "piano
finish" as the SP-1 and SP-2 satellites. The enclosure is a fibre-glass
composition which follows the Morel design philosophy of light yet strong
cabinets with no internal damping. This allows for less stored energy delivering
fast and agile bass response.The PSW8 is fitted with an 8” bass unit driven by a
100 W high power amplifier. The PSW10 was designed with larger rooms in mind.
The enclosure is only 20% larger then the PSW8, incorporating a 10” high power
woofer with a 200W amplifier. Both the PSW8 and PSW10 offer seamless acoustic
integration for the new MT-1 and MT-2 SoundSpot™ systems. SPECIFICATIONS
SOUNDSUB™ PSW8 SOUNDSUB™ PSW10 Construction Fiberglass composite resin
Fiberglass composite resin Dimensions (Ø) 16" x 13" x 9" (41cm x 35cm x 23cm)
17.4" x 14.4 " x 10" (443mm x 370mm x 254mm) Drive units 8" (203mm) Flat-profile
woofer with 2" (50mm) voice coil and rear-vented magnet. One 10"(254mm)
Flat-profile woofer with 2" (50mm) voice coil and rear-vented magnet motor
Frequency response 30-160 Hz 25-160Hz Amplifier 100W continuous power. All
formats compatible with automatic on/off switch, level , crossover and phase
controls 200W, continues power, all formats compatible with automatic on/off
switch, level, crossover and phase control Input Line-level RCA phono jack
Line-level RCA phono jack Voltage 85-265VAC 50/60Hz with main supply automatic
voltage selector 100-240VAC 50/60Hz with main supply automatic voltage selector
Net weight 23 lbs (10 Kg) 33 lbs (15 kgs) Finish Piano white, Piano black,
Champagne Piano white, Piano black, Champagne
Subwoofer attivo da 10" con
cabinet in vetroresina (200 w rms)

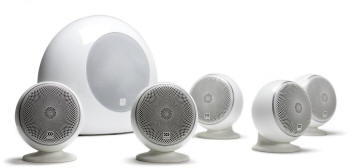

The

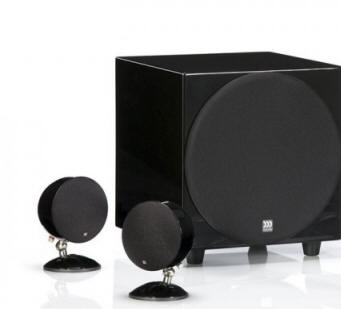

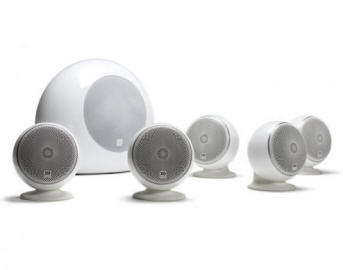

SoundSpot™ Music Theatre 2 / 2 Ultra borrows technology from Morel’s 2009
Innovation award winner, the Fat Lady to bring a dramatic sonic improvement over
previous models. The MT 2 / 2 Ultra is a two-way, true point source system which
deliver a more stable and consistent off-axis sound, further raising the bar for
sound quality in a minimalist design. It represents exciting new options for
home theatre music systems. SoundSpot™ Music Theatre 2 home theatre satellite
speaker system features Morel's SoundSpot™ SP-2 for front, rear, and center
channel speakers. The SP-2 steel sphere enclosure houses a two-way coaxial
speaker. The SoundSub™ PSW8 is fitted with an 8" bass unit driven by a high
power amplifier, supplying seamless acoustic integration for the SoundSpot™
series, delivering a rich deep bass sound. An innovative adjustment system had
been designed for the MT-2 / MT-2 Ultra in that the spherical speaker - SP-2 -
is able to rotate 270 degrees horizontally and 90 degrees vertically. A single,
hidden screw is all that is needed to lock the satellite into position, thus
assuring easy and total control of the sound field. The SP-2 base fits
on-ceiling, on-wall and on-shelf installations and includes cable management.
The SoundSpot™ Music Theatre 2 Ultra features the SoundSpot™ SP-2 satellite
speakers with the SoundSub™ PSW10. The PSW10 was designed with larger rooms in
mind. The enclosure is only 20% larger then the PSW8, incorporating a 10” high
power woofer with a 200W amplifier. Both SoundSub™ PSW8 and PSW10 deliver a rich
deep bass sound. Morel’s MT-2 / MT-2 Ultra provides the ideal speaker solution
for today’s modern computers equipped with high-quality sound cards. It exploits
its full potential by delivering exciting sound with a discrete appearance.
Available in Piano White, Piano Black and Champagne finishes, The SoundSpot™
Music Theatre 2 / MT- 2 Ultra are made to deliver high quality, excellent sound
reproduction with a discrete, easy to install design.
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}

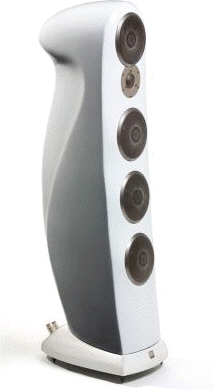

the fat lady specificationsType
3-way 4 drive units system Construction Composite of carbon fiber and fiber
glass resin enclosure Acoustical Loading Ported (Bass reflex) Drive Units Woofer:
2 x 9" (222 mm) Carbon fiber - Rohacell sandwich cone type with integrated one
piece dome, Hybrid™ double magnet motor, 3" (75 mm) EVC (External Voice Coil)
long-throw Hexatech™ aluminum voice coil technology. Midrange: 6" (152 mm)
Carbon fiber - Rohacell sandwich cone type with integrated one-piece dome,
double Neodymium magnet motor, Supreme™ underhung 3" (75mm) EVC™ ((External
Voice Coil) Hexatech™ aluminum voice coil with linear impedance copper sleeve
technology.Tweeter: Supreme™ tweeter technology, 1.1" (28mm) Acuflex™ hand
coated soft dome, pancake Neodymium magnet motor, underhung Hexatech™ aluminum
voice coil. Frequency Response 20-22,000 Hz (40-18,000 Hz ±1.5 dB) Crossover
200Hz/ 2.2KHz Nominal Impedance 4 ohm Nominal Power Handling 300 W Peak Power
Handling 1000 W Dispersion Within 1.5 dB -18,000 Hz Horizontal: over 60º /
Vertical: over 20º Sensitivity 2.83V / 1M 88 dB Dimension (WxHxD) 34 x 127 x 44
cm / 13 3/8" x 50" x 17 3/8" Finish High gloss carbon fibre composite Net Weight
44 kg. / 97 lbs. The Fat Lady was designed in collaboration with Alain Fouraux
and David Zuman. Through audio, video, painting, sculpture, animations and
product design, Alain Fouraux channelled his interest in the field of
architecture and urban planning, leading him to be senior in Office For
Metropolitan Architecture (O.M.A.), where he participated in milestone designs
of the past decade. David Zuman experienced Integrated Design for over two
decades between Industrial & Consumer, Video & Multimedia Broadcast production,
Branding and Advertisement, Interior & Architecture design. Throughout his
carrier he collaborated with numerous multinational companies while building an
academic experience as Professor in top Universities in Milan, Seoul and Hong
Kong. Currently both are running the Urban Advertising Company "NERVECORP"
.jpg)
.jpg)
.jpg)
.jpg){kind=small}
.jpg)
.jpg)
.jpg)
.gif)
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg)
.jpg)
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
