Naim nasce nel 1969 con un
approccio costruttivo e commerciale instintivamente refrattario ai compromessi e
alle concessioni modaiole, rimanendo nel tempo fedele alle proprie convinzioni
originali. Il fondatore Julian Vereker, ingegnere a tutto tondo (prima di
dedicarsi al mondo audio, si era occupato di automobilismo, nautica,
apparecchiature professionali per il cinema e banchi di regia per studi di
registrazione). Pochi anni dopo conosce Paul Stephenson, attuale presidente di
Naim ed erede naturale e rigoroso della sua opera.La filosofia Naim è spesso
contro le tendenze del mercato; laddove molti costruttori cercano di risparmiare
sui loro prodotti,; Naim si muove nella direzione opposta. Infatti la
costruzione di tutte le parti e la selezioni dei componenti è impeccabile, quasi
maniacale; tutto viene costruito e assemblato all’interno dell’azienda a

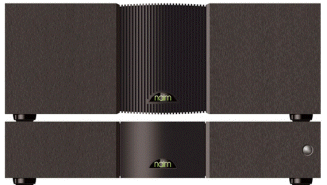

Salisbury, in Inghilterra.L’esempio forse più significativo è uno degli ultimi
nati in casa Naim, il finale di potenza NAP 500, il finale di riferimento della
produzione, che con il suo telaio apribile ricorda l’apertura dei cofani di
alcune fuoriserie d’epoca, per nascondere non un V12, ma una realizzazione allo
stato dell’arte per quanto riguarda la produzione di elettroniche hi-end.Questo
prodotto come tutti i prodotti realizzati nei laboratori Naim diventa un
riferimento nella sua categoria, lanciando una sfida a tutti i prodotti presenti
e futuri, americani od europei.
NAIT 5i amplificatore
integrato 50W, 4 ingressi, 1 ingresso per IPOD, telecomandato 1.099 NAIT
5i integrated amplifier The new NAIT 5i is the latest iteration of Naim's fabled
entry-level amplifier bringing enhanced performance and usability over its
highly regarded predecessor. The most noticeable change is perhaps the addition
of a convenient iPod/MP3 player input on its front panel.Within its incredibly
sturdy chassis numerous design upgrades elevate its musical performance to even
greater heights. These include improved ceramic heat sinking, restructured
cabling, and circuit changes to lower distortion and improve RF rejection. All
these add up to provide a substantial improvement in this amazing amplifier's
already class-leading performance.The NAIT 5i naturally forms a wholly
synergistic partner for the CD5i CD player. Together they provide the perfect
and most cost-effective introduction to Naim system ownership.There’s a long
Naim tradition of the NAIT Integrated Amplifier punching above its weight. It
began with the original NAIT in 1983 and continues now with the NAIT 5i.
Although the recent introduction of the SUPERNAIT represents the current
state-of the-art for integrated designs, the NAIT 5i remains a superb and
cost-effective introduction to the Naim sound for those who don't require the
SUPERNAIT's advanced features and capabilities. Features: 50W continuous output
into 8-Ohm loads, 500W peak into 1-Ohm. Zinc and aluminium anti-resonance
casework. DIN and RCA phono inputs. Can be used with a wide range of
interconnect and loudspeaker cables. Programmable unity-gain audio-visual input.
NarCom remote control handset. The NAIT 5i delivers fifty Watts into real
loudspeaker loads, each Watt with the legendary Naim rhythmic drive and musical
integrity. Entry level it may be, but the music it makes is detailed, engaging
and recognisably Naim. It borrows many of the latest Naim amplifier innovations
to become the finest sounding integrated ever to carry the logo. Versatility is
vital for an entry level amplifier. The Nait 5i makes integration with existing
systems easy by incorporating phono socket inputs alongside the traditional DIN
sockets, and offers the possibility of use with a wide range of speaker cable
types. Integration with audio visual systems is handled through a programmable
“unity gain” input. The 5i is intuitive in use too. A true plug and play product.
The 5i’s construction and aesthetic borrow directly from the acclaimed 5 Series.
It features zinc die-casting, combined with aluminium extrusions and covers,
which together result in a rigid case that offers great immunity to the effects
of external vibration.The NAIT 5i establishes a new entry-level reference point
of natural musical reproduction, flexibility and reliability.Specifications
Analogue inputs 4 Input sensitivities 225mV, 20kOhm Output level, tape 225mV,
100 Ohm Power output (into 8 Ohms) 50W per channel Overload margin, all inputs,
all audio frequencies 35dB Mains supply 115V, 230V Dimensions (H x W x D)70 x
432 x 301mm Finish Black
NAIT XS amplificatore
integrato 60W, 6 ingressi, 1 ingresso per IPOD, telecomandato UPGRADE con
FLATCAP 2X/XS e HICAP 2 1.990 The
NAIT XS takes the DNA of our best ever integrated amplifier, the SUPERNAIT, and,
like a sports car stripped back to essentials for the track, delivers musical
performance that truly inspires. The 60 watts per channel power amplifier
section is a dynamic, fast acting musical muscle with an uncanny talent for
bringing speakers to life. And the preamplifier section provides all the musical
clarity and detail you could wish for. The NAIT XS is versatile thanks to six
analogue line inputs on a mix of DIN and phono sockets, a phono preamplifier
power supply output, and a front panel mounted auto-switching mini-jack. Like
the rest of the XS Series, the NAIT XS is genuine high-end hi-fi brought within
reach. Specifications Audio Outputs speakers, preamp, and variable sub
Power Output 60Wpc into 8Ω, 90Wpc into 4Ω Analogue inputs 6 DIN and
RCA on rear plus 3.5mm jack on front Input overload 34 dB Input
sensitivity 130mV at 47KΩ Remote input 3.5mm rear panel jack (modulated/demodulated
RC5 system) RS232 Optional Naim RS232 board .IR remote (handheld)
NARCOM 4 Supply Voltage 100V to 120V or 220V to 240V, 50/60 Hz Power
Consumption Quiescent 20VA Max 290VA Dimensions (H x W x D) 70 x 432 x 301mm
Physical Dimensions (mm): 432 x 301 x 70 (W x D x H)Weight: 8.6kg Shipping
Weight: 11.4kgShipping Dimensions (mm): 580 x 500 x 200 (W x D x H) Colour Black
Finish Anodised fascia, painted cover
SUPERNAIT reference integrated amplifier SUPERNAIT is not just a superbly
musical amplifier; it's an analogue and digital audio control and connection hub
that just happens to have some of the world's best audio amplification attached.
SUPERNAIT's preamplifier section is directly descended from Naim's superlative
reference series preamplifiers, and its power amplifier incorporates all the
techniques and know-how that give voice to the traditional Naim qualities of
rhythmic musicality.WHAT DO YOU WANT TO LISTEN TO? Along with sound quality,
connection is SUPERNAIT's forte. The 21st Century has seen an explosion of music
carriers, formats and delivery systems. With analogue inputs via both DIN and
phono sockets, digital inputs via both coaxial and optical sockets, a combined
digital optical/analogue front panel input and on-board re-clocked digital to
analogue conversion, there's very little that SUPERNAIT can't handle.SUPERNAIT
is just as versatile with its outputs. In addition to the power amplifier
speaker outputs, it carries separate record, preamplifier, bi-amp/ subwoofer
outputs, and a front panel mounted headphone output driven from a separate power
amplifier. Independent record and listen selections add to the versatility, and
flexible input assignment means any input socket - analogue or digital - can be
assigned to any source selection button. SUPERNAIT versatility knows no bounds.
JUST ADD SPEAKERS Once everything is connected, just add speakers, turn up the
volume and listen. The versatility of SUPERNAIT doesn't disguise the fact that
it is a world-class amplifier. The preamplifier section is transparent, detailed
and fast - just like Naim's other preamplifiers - and the SUPERNAIT power
amplifier delivers generous, muscular and musical power into almost any speaker
load. STILL NEED MORE? An upgrade path has always been a part of the Naim
offering. While SUPERNAIT caters for your connectivity needs, we've also covered
your future upgrade requirements. SUPERNAIT is probably the only amplifier you'll
ever need; however in true Naim style, we've still anticipated you aspiring to
greater things in the future. And if you do, a power supply, power amplifier or
even a phono stage is only an upgrade away. A LANDMARK AMPLIFIER A new
integrated amplifier from Naim doesn't come along very often. With its analogue
and digital versatility, SUPERNAIT offers the connectivity that 21st century
music lovers demand both today and tomorrow, along with the world-class musical
performance they deserve.
When
a separate preamplifier/power amplifier approach is preferred, the NAC 152 XS
provides the perfect option. It was conceived around a completely new
motherboard design that incorporates advances of both analogue electronics and
mechanical decoupling, and its performance is detailed, refined and utterly
musical. Versitility is a NAC 152 XS forté too. Its six analogue inputs all
offer DIN or phono connection options and it incorporates a front-mounted,
auto-switching input socket for convenient MP3 player use. Power output for a
Naim phono preamplifier is also included and a two-stage power supply upgrade
regime brings true high-end preamplifier performance easily within reach.
Specifications Audio Outputs Preamp, line level and variable level sub
Maximum Load Impedance infinite Minimum Load Impedance 10KΩ Frequency Response
4Hz-40kHz THD 0.042% THD+N @1kHz, 2Vin, 0.775VoutSignal to Noise Ratio 67dB
@0.775V Phase Response Absolute phase correct Preamp Output 0.775V, <50Ω
Line Output 130mV, 600Ω Sub Output 0.775V, <150Ω Control Remote Input: 3.5mm
rear panel jack (modulated/demodulated RC5 system) RS232: Optional Naim RS232
board IR Remote (handheld): NARCOM 4 Power Supply Voltage: +24V Physical
Dimensions (mm): 432 x 301 x 70 (W x D x H) Weight: 3.8kg Shipping Weight: 6.4kg
Shipping Dimensions (mm): 580 x 500 x 200 (W x D x H) Colour Black Finish
Anodised fascia, painted co
NAIM
NAC 202 €.4.990,00Per offerta
TELEFONA / E-MAIL The
Naim NAC 202 combines first-class sound quality with flexibility, style and
excellent value.Significant improvements in technology led to an entirely new
range using new high quality star-earthed circuit boards, combining the classic
Naim values of musicality and power with flexibility and value. The Naim NAC 202
may either be powered by a NAP 150 or NAP 200 amplifier or significantly
upgraded by adding Naim power supplies to independently feed the analogue audio
and digital control circuits. Low-resonance circuit boards and anti-vibration,
resonance controlling feet minimize the effect of microphonic vibration on the
highly sensitive electronic components. Carefully matched precision rotary
potentiometers with precious metal wipers are used to ensure long-term stability
and preserve musical integrity. The intelligent balance control combines a high
quality motorised potentiometer for the best performance with intelligent
circuitry to indicate the centre position. The NAC 202 features a silent
microprocessor that sleeps during listening and controls all aspects of the
amplifier including: optical protection circuits that continuously monitor the
power supplies ensuring safe shut down in the event of a power cut;
user-configurable 'Smart IR' remote control for simple easy and control of the
naim system The six inputs on the Naim NAC 202 can be selected directly from
either the front panel or the NARCOM system remote. In addition to the usual DIN
plug inputs, preferred for their superior earthing and impedance matching, two
of the inputs can be configured for use with the more common RCA phono
connectors, allowing a wide range of non-Naim cables and components to be used.
A dedicated unity-gain input is also provided for use with the Naim AV2
processor or similar. Six line-level inputs including two user-configurable
versatile (DIN / phono) inputs. User configurable unity-gain AV input.
Powered input for use with Stageline or Prefix phono stage. Full infrared
remote control. RC5 input for wired remote control in complex
installations. Optional RS232 input / output for use in full home
automation systems. Upgradeable with both analogue (Hi-Cap, Super-Cap) and
digital (NAPSC) power supplies. The years of research Naim spent developing the
new NAC 552 flagship preamplifier introduced a new level of technical and
musical performance. Many of the developments, along with the elegant new
styling have been applied to the NAC 202.Specifications Analogue inputs 6
(2 configurable) Tape outputs 3 Input sensitivities 75mV, 47kOhm Output levels,
tape 75mV, 600 Ohm Main output 0.775V, <50 Ohm Overload margin, all inputs, all
audio frequencies 40dB Dimensions (H x W x D) 87 x 432 x 314mm Finish Black
NAC
282 preamplifier The years of research spent developing the flagship NAC 552
preamplifier introduced a new level of technical and musical performance. Many
of these developments, along with its elegant styling have been applied to NAC
282. Hundreds of hours were spent listening to new designs and topologies,
ensuring that the harmony between music and technology was always maintained.
The included NAPSC power supply independently powers the digital and control
circuits while the audio circuits are fed either from a NAP 150 or NAP 200 power
amplifier or from a stand-alone power supply such as the Hi-Cap or Super-Cap.Low
resonance circuit boards and anti-vibration, resonance control feet maximise
isolation, hence minimizing the effect of microphonic vibration on the highly
sensitive electronic components.Carefully matched, precision rotary
potentiometers with precious metal wipers are used to ensure long-term stability
and preserve music integrity.The NAC 282 features a silent microprocessor that
sleeps during listening and controls all aspects of the amplifier. Optical
protection circuits continuously monitor the power supplies ensuring safe
shut-down in the event of a power cut. A user configurable 'Smart IR' system
remote control is supplied. Two of the six inputs on the naim NAC 282 can be
configured either as the usual DIN plug inputs, preferred for their superior
earthing and impedance matching, or for use with the more common RCA phono
connectors, allowing a wide range of non-Naim cables and components to be used.
A dedicated unity-gain input is provided for use with the Naim AV2 processor or
similar. Each of the six inputs feature separate listen and record facilities.
In addition to the usual record mute, the NAC 282 mutes not only the output but
powers down all associated circuitry, eliminating any possibility of degrading
the main output. Six line-level inputs including two user-configurable versatile
(DIN / phono) inputs. User configurable unity-gain AV input. Powered input
for use with Stageline or Prefix phono stage. Full infrared remote control.
RC5 input for wired remote control in complex installations. Optional RS232
input/output for use in full home automation systems. Upgradeable with both
analogue (Hi-Cap, Super-Cap) and digital (NAPSC) power supplies. The NAC 282
combines truly awesome sound quality, with user selectable features and
flexibility that ensure it will function as the heart of a high quality hi-fi
system for many years.Specifications ,Analogue inputs 6 (2,configurable)
Tape outputs ,3 ,Input sensitivities 75mV, 47kOhm ,Output levels, tape 75mV, 600
Ohm Input overload margin, all audio frequencies 40dB Dimensions (H x W x D) 87
x 432 x 314mm Finish ,Black
NAC
252 preamplifier The NAC 252 descends from the NAC 52 - still one of the finest
preamplfiers ever manufactured. It brings both control and connectivity advances
over the NAC 52, and a significantly enhanced construction, aesthetic and finish.
Its performance, too, is enhanced with the benefit of a decade of R&D bringing
yet more speed, detail, transparency and music. Many designs were explored and a
complete review of the circuit topology and components took place in accordance
with the developments pioneered in the NAC 552. Hundreds of hours were spent
listening to various designs, ensuring that the harmony between music and
technology was always maintained. Improved earthing arrangements have resulted
in an entirely new circuit topology, built upon a single very high quality,
anti-resonance main audio circuit board. Anti-vibration, resonance-controlling
feet compliment the ingeniously slotted and suspended main circuit board to
protect the sensitive internal components from resonance and microphonic
vibration. Carefully matched precision rotary potentiometers with precious metal
wipers are used to ensure long-term stability and preserve music integrity.Ten
independently regulated power supplies are fed from the matching Super-Cap power
supply. Totally separate regulated supplies for the digital control and
switching ensure no noise is generated in the audio circuits.The NAC 252
features a silent microprocessor that sleeps during listening and controls all
aspects of the amplifier including optical protection circuits that continuously
monitor the power supplies ensuring safe shut down in the event of a power cut,
and the user configurable 'Smart IR' system remote control.In addition to the
preferred DIN plug inputs the NAC 252 owner can configure two of the inputs for
use with the more common RCA phono connectors, allowing a wide range of non-Naim
cables and components to be used. A user-configurable unity-gain input is
provided for use with the AV2 processor or similar. Each of the six inputs
feature separate listen and record facilities. In addition to the usual record
mute, the NAC 252 mutes not only the output but also powers down all associated
record circuitry, eliminating any possibility of degrading the main output.
Six line-level inputs including two user-configurable versatile (DIN / phono)
inputs. User configurable unity-gain AV input. Powered input for use with
Stageline or Prefix phono stage. Full infrared remote control. RC5
input for wired remote control in complex installations. Optional RS232 input /
output for use in full home automation systems. The Naim Super-Cap power supply
provides each of the ten audio circuits with an independent regulated power
supply. Separately regulated power supply for the digital control and
switching circuitry. The Naim NAC 252 combines stunningly musical and accurate
hi-fi reproduction with extensive flexibility to ensure it will remain at the
heart of top quality systems for many years to come.Specifications
Analogue inputs 6 (configurable) Tape outputs 3 Input sensitivities 75mV, 47kOhm
Output levels, tape 75mV, 600 Ohm Main output 0.775V, <50 Ohm Overload margin,
all inputs, all audio frequencies 40dB Dimensions (H x W x D) 87 x 432 x 314mm
Finish Black, brushed aluminium
NAC 552 preamplifier
The NAC 552 is by some distance the most advanced Naim preamplifier ever and has
some claim, therefore, to being the best preamplifier, period. The introduction
of the NAP 500 in 2000 brought with it a new level of technical and musical
performance. A Naim design project group began reviewing the existing
preamplifier designs exploring possibilities for major design improvement over
the existing reference preamplifier, the Naim NAC 52. Many designs were explored
and a complete evaluation of the current component and raw material situation
took place. The circuit topology was totally reviewed and components upgraded in
accordance with the advancements made over the last decade. Extensive listening
to various designs and topologies ensured that the harmony between music and
technology was maintained. Power supply design has always been at the heart of
Naim research and this project was no exception. For the NAC 552 a radical new
split rail power supply configuration has been employed that almost eliminates
power supply noise in the signal earth. Housed in a separate, full-width brushed
aluminium case; the power supply features a massive 800 VA toroidal transformer,
three enormous smoothing capacitors and fourteen hand selected power regulators
to independently supply the different stages of the preamplifier. As pioneered
in the Naim CDS compact disc player fully suspended sub-chassis mounted circuit
boards are used in the Naim NAC 552. This method of suspension maximises
isolation, hence minimizing the effect of vibration on the highly sensitive
electronic components. Carefully matched precision rotary potentiometers with
precious metal wipers are used to ensure long-term stability and preserve music
integrity. The six inputs on the NAC 552 can be selected directly from either
the front panel or the remote control. In addition to the usual din plug inputs,
preferred for their superior earthing and impedance matching, the NAC 552 owner
can configure two of the inputs for use with the more common RCA phono type
connectors, enabling the use of alternative components with pre-owned
interconnects. Each of the six inputs has separate listen and record facilities.
A dedicated unity gain input is provided for use with the Naim AV2 processor or
similar. A 552 product plan to enable future requirements for multi-channel use
has also been incorporated within this project. The Naim NAC 552 redefines the
state of the art ensuring the utmost musical enjoyment for many years to
come.Specifications Analogue inputs 6 (configurable) Tape outputs 3Input
sensitivities 75mV, 47kOhm Output levels, tape 75mV, 600 Ohm Main output 0.775V,
<50 Ohm Overload margin, all inputs, all audio frequencies 40dBDimensions (H x W
x D) 87 x 432 x 314mm Finish Black, brushed aluminium
The
NAP 155 XS is the perfect companion to the NAC 152 XS preamplifier in an XS
system. It features a very large mains transformer – both physically and in
terms of its power rating – and at the heart of its power supply uses the same
reservoir capacitors as the award-winning SUPERNAIT integrated amplifier. The
NAP 155 XS employs similar construction techniques to the NAIT XS integrated
amplifier with a castellated heatsink and reduced earth reference routing to
deliver enhanced performance and more music. The NAP 155 XS is a power amplifier
straight out of the classic Naim mould: fast, detailed, dynamic and
single-mindedly musical.Specifications Audio outputs Speakers Power output
60W per channel into 8Ω, 90W per channel into 4Ω Voltage gain + 29 dB Minimum
Load impedance 2Ω Frequency response 4Hz - 75kHz THD 0.013% Signal to Noise
Ratio 100dB Phase Response Absolute phase correct Power Supply Voltage:
100-120V, 220-240V, 50 to 60Hz Power Consumption: Max 330VA Quiescent Power
Consumption: 16VA Physical Dimensions (mm): 432 x 301 x 70 (W x D x H) Weight:
7.9kg Shipping Weight: 10.5kg Shipping Dimensions (mm): 580 x 500 x 200 (W x D x
H) Colour Black Finish Anodised fascia, painted cover
During
the years of research that went into the NAP 500 amplifier, many technical
developments were made that could be successfully applied to the existing
products. Many of these developments, along with the elegant new styling have
been incorporated, resulting in the 'Classic' line-up. Like the flagship NAP
500, the NAP 200 uses a new circuit design with improved earthing arrangements
built on a very high quality, anti-resonance main audio circuit board.
Anti-vibration, resonance-controlling feet serve to protect the sensitive
internal components from resonance and microphonic vibration. A new, top-quality
430VA toroidal transformer provides more than 300VA of transient power. Separate
windings provide dedicated left and right channel rectified supplies with two
smoothing capacitors per channel. The NAP 200 also has a separate winding
providing a preamplifier power supply. This enables the NAP 200 to be used in a
two-box amplifier configuration with a Naim preamplifier such as the NAC 202.
The naim NAP 200 is stable into any load and able to drive a 2-ohm load for long
periods of time.Specifications Power output continuous [8 Ohm] 70 Watts
Transient capability 300 VA Voltage gain + 29 dB Input impedance 18 kOhm
Frequency response -3dB @ 2Hz & 65kHz Mains supply 100V, 115V, 230V (50 or 60Hz)
Dimensions (H x W x D) 87 x 432 x 314mm Finish Black
The
newest Naim NAP 250 delivers speed, power and agility providing exceptional
detail and musicality in a package built to swing for another 25 years. For 27
years the NAP 250 has been at the heart of thousands of high-quality audio
systems around the world. During the years of research that went into the NAP
500, many technical developments came about that could be successfully applied
to the NAP 250. Many of these developments, along with the elegant new styling
have been incorporated, resulting in a new Classic line-up. Like the flagship
NAP 500, and the NAP 300, the NAP 250 uses a new circuit design with improved
earthing arrangements, built on a very high quality, anti-resonance main audio
circuit board. The NAP 250 uses the same 007 transistors that were
custom-designed for the NAP 500. These outstanding components each provide up to
80 amps and 350 Watts, negating the need to use parallel pairs of transistors (which
always have a negative effect on sound). Additional 007 transistors are used in
the fully regulated power supply, ensuring the very best performance.
Anti-vibration, resonance-controlling feet serve to protect the sensitive
internal components from resonance and microphonic vibration. A new top-quality
transformer is used providing the ability to deliver more than 15 Amps and swing
a massive 400VA on transients. The NAP 250 is stable into any load and able to
drive a 2-Ohm load for long periods of time.Specifications Power output
continuous [8 Ohm] 80 Watts Transient capability 400 VA Voltage gain + 29 dB
Input impedance 18 kOhm Frequency response -3dB @ 2Hz & 65kHz Mains supply 100V,
115V, 230V (50 or 60Hz) Dimensions (H x W x D) 87 x 432 x 314mm Finish Black
NAIM

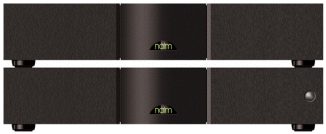

NAP 300 €.8.650,00Per offerta
TELEFONA / E-MAIL NAP
300 power amplifier After seventeen successful years at the top of Naim's
amplifier range, the NAP 135 has been eclipsed by the flagship NAP 500. Many
years of research went into the NAP 500, as fundamentally new components and
technologies had to be perfected before Naim could raise the performance level.
Many of these technical developments, along with the elegant new styling have
been applied to the mighty NAP 300. Like the flagship Naim NAP 500, the NAP 300
is a stereo two-chassis amplifier, one box containing the audio amplifier and
the second housing the individually regulated power supply. Improved earthing
arrangements have resulted in an entirely new circuit topology built on a very
high quality, anti-resonance main audio circuit board. The NAP 300 uses the same
007 transistors that were custom-designed for the NAP 500. These outstanding
components each provide up to 80 Amps and 350 Watts, negating the need to use
parallel pairs of transistors (which always have a negative effect on sound).
Additional 007 transistors are used in the fully regulated power supply,
ensuring the very best performance. Anti-vibration, resonance-controlling feet
serve to protect the sensitive internal components from resonance and
microphonic vibration.A variable speed, virtually noiseless cooling fan is
mounted on a large internal heat sink providing long-term stability and the
ability to swing a massive 500 VA on transients. The NAP 300 is stable into any
load and able to drive a 2-Ohm load for long periods of timeThe Naim NAP 300
delivers awesome power without sacrificing any speed or agility to provide
awe-inspiring levels of detail, ambient information and
musicality.Specifications Power output continuous [8 Ohm] 90 Watts
Transient capability 500 VA Voltage gain + 29 dB Input impedance 18 kOhm
Frequency response -3dB @ 2Hz & 70kHz Mains supply 100V, 115V, 230V (50 or 60Hz)
NAP300 dimensions (H x W x D) 87 x 432 x 314mm Power supply dimensions (H x W x
D) 87 x 432 x 314mm Finish Black
NAP
500 power amplifier Our design brief for the NAP 500 required an amplifier
that could drive any load down to 2 Ohms for prolonged periods, deliver over
100W into 8 Ohms and sound - at the very least - as good as our reference at the
time, the NAP135. To avoid the compromises implied by the use of multiple sets
of output devices, either in totem-pole or parallel configurations, the search
was on for a very special output transistor. A bipolar transistor with a
specification combination of very high current, power rating and bandwidth was
needed, far in excess of anything available to Naim before. A suitable output
device was eventually developed after six years' collaboration with a
semiconductor manufacturer. From an early stage of conception it was decided to
use bridged amplifiers for each channel of the NAP 500. This allowed the design
to have maximised open and closed loop speed, less intrusive protection
circuitry and reduced interaction between input and output signals as the very
high drive currents to the loudspeaker do not flow through the system earth.
Naim has always understood the importance of reducing supply-induced
intermodulation distortions and mains harmonic electrical noise from an
amplifier, and has always used regulated supplies in its premier amplifiers. It
was considered likely that improvements in these areas would yield further large
gains in performance. Each channel of the NAP 500 includes ten stages of local
regulation. To reduce interference from the mains supply further, the
transformer and first stages of the power supply are in a separate enclosure
(the same size as a Supercap), which provides twelve raw d.c. supplies for the
power amplifier. Hence, the NAP 500 system consists of two boxes, a stereo
amplifier and a separate power supply. All new circuit topology has been
developed to maximise bandwidth and reduce distortions and power supply
dependency. Also, special attention has been paid to reducing thermally-induced
noise, an especially important consideration in power amplifiers. A variable
speed intelligent fan system provides discreet extra cooling if needed. The
performance of the finished amplifier exceeds the design brief in all areas.
Power output per channel is over 140W into 8 ohms and compared with the NAP 135,
which in itself already provided exemplary measurements, the NAP 500 has five
times the internal bandwidth, a quarter of the distortion and a one hundred
times reduced operating noise floor. Needless to say, every aspect of the NAP
500's sound quality is truly exceptional.Specifications Power output
continuous [8 Ohm] 140 Watts Voltage gain + 29 dB Input impedance 18 kOhm
Frequency response -3dB @ 1.5Hz & 100kHz Mains supply 100V, 115V, 230V (50 or
60Hz)NAP 500 dimensions (H x W x D) 160 x 432 x 374mm Power supply dimensions (H
x W x D)87x 432 x 314mm Finish Black
All
home entertainment systems need the best possible amplification if they are to
reproduce accurately the original soundtrack with all the dynamics and emotion
the composer or director originally recorded. Dynamics and emotion are
trademarks of the Naim sound: the NAPV 175 three-channel amplifier is the
perfect partner for our AV2 processor. The power amplifier topology and layout
of the NAPV 175 are derived from Naim’s flagship amplifier, the NAP 500. The
best possible performance is achieved by using extremely fast, high power output
transistors. All other components have been selected for ultimate sound quality.
Each of the three power amplifiers has its own supply consisting of a dedicated
transformer winding and selected rectifiers and capacitors. The component board
is joined to the low-resonance, die-cast chassis using vibration-reducing
mounting systems. Low-energy-transfer feet further diminish the effect of
microphonic disturbances to the signal. The circuits and power supplies in the
NAPV 175 exactly match those in the NAP 150 allowing the flexibility to specify
matching channels of power amplification for any home entertainment
system.Specifications Power output continuous [8 Ohm] 50 Watts per channel
Voltage gain + 29 dB Input impedance 18 kOhm Frequency response -3dB @ 5Hz &
40kHz Mains supply 100V, 115V, 230V (50 or 60Hz) Dimensions (H x W x D) 70 x 432
x 301mm Finish Black
NAPV
145 mono power amplifier During the years of research that went into the
flagship NAP 500, many technical developments came about that have been
successfully applied to the NAPV 145. Based around the circuit topology of the
latest NAP 250, the NAPV 145 provides even greater dynamic capabilities and
enhanced audio performance, resulting in the perfect solution for high quality
multi-channel or active audio systems Like the NAP 500, the NAPV 145 uses a new
circuit design with improved earthing arrangements, built on a high quality,
anti-resonance main audio circuit board. It uses the same 007 transistors that
were custom-designed for the NAP 500. These outstanding components each provide
up to 80 Amps and 350 Watts, negating the need to use parallel pairs of
transistors (which always have a negative effect on sound). Additional 007
transistors are used in the fully regulated power supply, ensuring the best
performance.Anti-vibration, resonance-controlling feet serve to protect the
sensitive internal components from resonance and microphonic vibration. A new
top-quality transformer is used providing the ability to swing a massive 400 VA
on transients. Furthermore, the NAPV 145 is stable into any load and can drive a
2-Ohm load for long periods of time. click image to enlarge click image to
enlarge Specifications Power output continuous [8 Ohm] 80 Watts Transient
capability 400 VA Voltage gain + 29 dB Input impedance 18 kOhm Frequency
response -3dB @ 2Hz & 65kHz Mains supply100V, 115V, 230V (50 or 60Hz) Dimensions
(H x W x D) 87 x 432 x 314mm Finish Black

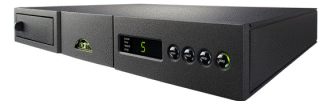

The
CD5i CD player, especially when partnered by the complementary NAIT 5i
integrated amplifier, sets a thrilling new standard for the musical performance
of entry-level hi-fi.
Designed by the same team that produced the world's finest CD player, the
fabulous Naim CD555, the CD5i benefits both from shared technology and the
shared passion to extract every last grain of music from the disc that it's
playing.This outstanding new machine, which replaces the previous CD5i in our
line-up, brings worthwhile performance benefits for users but retains the
functionality and straightforward usability of the classic player. This enhanced
performance has been derived from a new DAC and power supply arrangement,
optimisation of the output filter and star grounding pattern, and upgraded
components in key areas of the circuitry.These combined with the unchanged
elements such as the low-jitter clock, discrete digital and analogue power
supplies, and the unique swing-out disc transport mechanism, deliver a
spell-binding performance that is truly in a league of its own.As with Naim's
flagship player, integrity and stability of the RF signals read by the laser
have been prime design considerations. A suspended transport and low mass
magnetic clamping system ensures that the disc spins accurately and silently,
unhindered by mechanical resonance. Paths between critical components are as
short as possible to preserve delicate signals and each stage of the circuitry
is powered by separate regulated supplies. Correct earthing is used throughout
and there are no digital or headphone outputs. The CD5i features a unique power
supply incorporating separate digital and analogue transformer windings and
additional screening to reduce the intrusion of RF interference from the mains
supply. Microphonic degradation of sound quality is greatly reduced by the use
of low-energy-transfer feet and unique decoupling pillars for circuit board
mounting combined with a stiff, low-vibration enclosure. The CD5i offers
convenient front loading using a custom-made, glass reinforced drawer mechanism,
the mass of which has been carefully calculated to optimise rigidity and
isolation. This machine is designed to be the best in its class,
incorporating genuine technological advances to provide a thoroughly enjoyable
musical experience.Specifications Line outputs 1 x DIN, 1 x RCA phono
Frequency response 10Hz – 20kHz + 0.1dB – 0.5 dB Output level 2.0V rms at 1kHz
Output impedance 10 Ohms maximum Phase response Linear phase, absolute phase
correct De-emphasis 0.25dB referred to main response Laser type Semiconductor
AIGaAsWavelength 780nm ± 20nm Light output (cw) Maximum 0.5 mW De-emphasis ± 0.1
dB referred to main response Distortion and noise <0.1% 10 Hz - 18 kHz at full
level Disc Compatibility Red book CD and CD-R Control I-Com remote
included Mains supply 115V, 230V (50 or 60Hz) Dimensions (H x W x D) 70 x 432 x
301mm Finish Black
The
CD5 XS uses every possible development from earlier and more costly Naim CD
players to help establish it as the reference entry-level CD player. The drawer
and transport suspension is borrowed from the CDX2; a low inertia,
resonance-controlling device that ensures rigid coupling and mild damping
without adding to the task of the drive servo mechanism by increasing rotational
inertia. The die-cast zinc and extruded aluminium casework is a development of
that used in the existing 5 series and results in an inert case with great
resistance to pollution from external vibration. The CD5 XS continues the trend
of the latest Naim reference products by including RCA phono sockets alongside
the traditionally used DIN sockets. RCA phonos allow easy connection to non-Naim
amplifiers with a variety of interconnect cables allowing fine-tuning of the
sound which is potentially beneficial when used in a budget non-Naim system. The
CD5 XS CD player has probably seen the most changes on the journey from its CD5x
predecessor. Almost every element, with the exception of the mains transformer
and the disc mechanism, is new or significantly revised. Fundamental elements
including the critical analogue circuitry have been updated to extract yet more
music from every CD. Also new in the CD5 XS is the inclusion, for the first time
on a Naim CD player, of a transformer coupled digital output that provides the
choice of digital or analogue signal output.Improving on the award-winning CD5x
was a tough ask, but through scrutiny and refinement of every last engineering
detail, the class-leading Naim CD5 XS delivers newly dramatic and vibrant
music.Specifications Audio Outputs Analogue via DIN & RCA. S/PDIF Digital
via 75Ω BNC Line Output Fixed 2.1V rms at 1kHz Maximum Load impedance Infinite
Minimum Load impedance 10 kOhms maximum Frequency Response 10Hz – 20kHz + 0.1dB
– 0.5 dB Digital Outputs S/PDIF via 75Ω BNC THD <0.1% 10Hz - 18KHz at full level
Signal to Noise Ratio >80dB Phase response Absolute phase correct Control Remote
Input: 3.5mm rear panel jack (modulated/demodulated RC5 system) RS232: Optional
Naim RS232 board IR Remote (handheld): NARCOM 4 Formats CD Formats: Red
Book Disc Compatibility: CD, CD-R Power Supply Voltage: 100-120V, 220-240V, 50
to 60Hz Power Consumption: 30VA Physical Dimensions (mm): 432 x 301 x 70 (W x D
x H) Weight: 6kg Shipping Weight: 8.4kg Shipping Dimensions (mm): 580 x 500 x
200 (W x D x H) Colour Black Finish Anodised fascia, painted cover
CDX2
CD player Extensive research carried out over the last few years has been
fully employed in producing the integrated CDX2 CD player. More recently the
CDX2 has undergone some performance-enhancing modifications to offer additional
flexibility and continue in its offering as few compromises as possible to
ensure complete musical satisfaction, rivalling that of the finest analogue
turntables. Notably the new version features a switchable S/PDIF for use with
external digital to analogue converters and a BNC connector for correct
impedance matching, as well as performance-enhancing modifications to the
internal boards.Integrity and stability of the RF signals read by the laser have
been prime design considerations. A suspended transport and low mass magnetic
clamping system ensures that the disc spins accurately and silently, unhindered
by mechanical resonance. The mass of the custom-made glass reinforced
front-loading drawer mechanism has been carefully calculated to optimise
rigidity and isolation. The addition of anti-vibration, resonance-controlling
feet compliment the elegant new cast and extruded anti-magnetic chassis to
protect the sensitive internal components from resonance and microphonic
vibration. Additionally, the internal shielding has been improved bringing about
further upgraded performance and lower noise. Paths between critical components
are as short as possible to preserve delicate signals and each stage of the
circuitry is powered by a separate regulated supply. Correct earthing is used
throughout and there is no headphone output. Both the transport and chipset have
been upgraded for the CDX2. The HDCD decoder/digital filter is only activated
when playing encoded discs. Eight-times over sampled data is then sent to two (one
per channel) Burr Brown PCM mono D/A converters. A separate, fully optimised
master clock controls all main digital functions, and the clock configuration
and layout are engineered to minimise jitter. A seven-pole analogue filter
follows the DAC to remove spurious noise. The CDX2 has a fully double-regulated
power supply with 20 low-noise, regulated power supplies on the main circuit
board, plus a separate supply on the servo control board and another on the
display board. It is a stand-alone, mains powered machine, which may also be
used with the XPS ultra low noise power supply, providing a substantial
improvement in sound quality. Naim research has proved that divorcing the main
power supply from a CD player is wholly beneficial and the Naim XPS power supply
is extremely sophisticated with six separately regulated, ultra low noise
outputs, featuring a toroidal transformer and six power regulators. This ensures
complete stability of the ultra-sensitive circuitry in the CDX2. The same
external supply is used with the Naim CDS3 CD player, thus providing a further
possible upgrade path from one player to the other. All main control functions
are handled by a microprocessor running Naim-written software. Every aspect of
the SAA 7376 servo controller/decoder functionality is under software control:
Naim-written codes allow maximised performance in all areas. For example, the
transport parameters are optimised for each disc as it is loaded. In addition,
special care has been taken to ensure that the player/user interface is as
logical as possible with extra features such as "display off" (for improved
sound quality) and program cancel, where tracks the listener does not want to
hear can be quickly selected. Worthwhile user features have been added: in
addition to a clearer layout of the back panel, RC5 and optional RS232 ports
have been fitted, allowing seamless integration into even the most complex of
home installations. In common with the flagship NAC 552 preamplifier, the
CDX2 has user-configurable outputs, allowing a choice between the preferred DIN
output and RCA phono connections, allowing the CDX2 to be used with a wide range
of other manufacturers' cables and components. This machine is designed to be
the best in its class, incorporating genuine technologicaladvances to provide a
thoroughly enjoyable musical experience. Ultra-high quality CD player. Twenty
power regulators make up a fully double-regulated power supply with
exceptionaldynamic stability. User-configurable versatile (DIN/phono) outputs.
Full infrared remote control. RC5 input for wired remote control in complex
installations. Optional RS232 input/output for use in full home automation
systems. The optional Naim XPS power supply provides six regulated power
supplies; this significantly reduces supply noise for all circuitry. New for
2009Redesigned 4-layer (rather than 2) motherboard giving better tracking and a
greatercopper area New tray board Switchable S/PDIF - either have analogue or
digital, but only one at a time for no compromise. S/PDIF is disabled when using
analogue output stage Extra low-noise clock regulation Infrared - takes
modulated and demodulated inputs
The Naim CDX2 plays music from CD in a wholly natural, believable way, providing
the same involvement and enjoyment as a high-end analogue source but with
tremendous consistency and reliability. Specifications Audio outputs
Analogue via DIN & RCA. S/PDIF Digital via 75O BNC Frequency response 10Hz 20kHz
+ 0.1dB 0.5 dB Output level 2.1V rms at 1kHz Output impedance 10 Ohms maximum
Phase response Linear phase, absolute phase correct Laser type Semiconductor
AIGaAs Wavelength 780nm ± 20nm Light output (cw) Maximum 0.5 mW De-emphasis ±
0.1 dB referred to main response Distortion and noise <0.1% 10 Hz - 18 kHz at
full level Mains supply 100V, 115V, 230V (50 or 60Hz) Dimensions (H x W x D) 87
x 432 x 314mm Finish Black

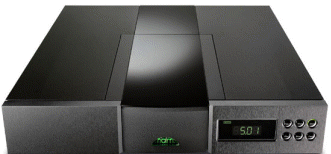

CDS3
CD player Twelve years after Naim revolutionised the design of Compact Disc
players, the new CDS3 sets an impressive standard for high quality Compact Disc
replay. All the trademark features of a Naim player are brought together in the
CDS3 along with a host of new and innovative engineering solutions pioneered
during the development of the flagship NAC552 and NAP500 amplifiers. Together
with the elegant styling, the result is a truly stunning, thoroughly satisfying
musical performance. The CDS3 features the latest generation Philips CD10
transport using a high quality hall motor disc drive VAM 1202 mechanism. The
crucially important suspension system for the transport consists of three
precisely tuned leaf springs to optimise servo operation. Two further
independent suspension arrangements isolate both the digital and analogue
circuit boards from the environment, using optimally damped spring decoupling.
The Naim-designed e.f.m signal "eye pattern" processing filter precedes a
Philips CD10, SAA 7324 servo controller chip which is responsible for
transforming wave patterns into digital data, error correction and all transport
drive functions. Following this, the digital data is routed to a 24-bit - 8
times oversampling digital filter with HDCD decoding. The data is then sent to
two (one per channel) Burr-Brown PCM 1704-K, 24-bit mono D to A converters. HDCD
decoding is only activated when playing encoded discs.A separate, fully
optimised master clock controls digital to analogue conversion and the clock
circuit configuration and layout are engineered to minimise jitter that is
further reduced by special Naim designed data re-clocking circuitry. A
seven-pole analogue filter follows the DAC to remove spurious noise. The current
to voltage conversion stage and all analogue filter stages use discrete
transistor amplifiers to optimise performance.The CDS3 has 26 low-noise,
regulated power supplies on the main circuit board, fourteen on the analogue
output board and four on the servo board. Power for the whole machine is
provided by the XPS power supply, which has six separately regulated, very
low-noise outputs. Thus all critical circuitry is triple regulated.Naim research
proved that divorcing the main power supply in this way is wholly beneficial,
whereas the more common arrangement of housing the converter circuitry in a
separate box causes many problems.To minimise coupling of external vibrations
from the housing to the drive, as happens in the vast majority of players that
use a drawer loading mechanism, the CDS3 has a simple and straightforward top
loading system. Discs are held securely to the drive spindle by means of a
low-inertia, resonance-controlling magnetically attached disc clamp, a technique
that ensures rigid coupling (and mild damping) without adding to the task of the
drive servo mechanism by increasing rotational inertia.Worthwhile user features
have been incorporated in the CDS3: in addition to a clearer layout of the back
panel, an RC5 port has been fitted (with the further option of an RS232 port),
allowing seamless integration into even the most complex of home installations.
In common with the flagship NAC 552 preamplifier, the CDS3 has user-configurable
outputs, offering a choice between the preferred DIN or RCA phono outputs,
allowing the CDS3 to be used with a wide range of other manufacturers' cables
and components.All the main control functions of the CDS3 are handled by a
microprocessor running software written by Naim.Every aspect of the SAA7324
servo controller/decoder functionality is under software control with the
Naim-written code allowing all areas of performance to be maximised. For example,
the machine optimises the transport parameters for each disc as it is loaded. In
addition, care has been taken to ensure that the player/user interface is as
logical and intuitive as possible, with extra features such as Display Off (providing
improved sound quality) and Program Cancel, whereby the listener can quickly
select tracks not wanted to be played.The CDS3 is close to the top of Naim's CD
hierarchy, which allows someone to purchase a CDX2, to upgrade by adding an XPS
and then trade up to a CDS3 with the XPS. The highly sophisticated power supply
features a toroidal transformer and 6 power regulators, ensuring complete
stability of the ultra-sensitive circuitry.The Naim CDS3 delivers truly
rewarding musical reproduction, providing the involvement of the very best
analogue sources combined with tremendous consistency and
reliability.Specifications Frequency response 10Hz 20kHz + 0.1dB 0.5 dBOutput
level2.0V rms at 1kHz Output impedance10 Ohms maximum Phase response Linear
phase, absolute phase correctLaser type Semiconductor AIGaAs Wavelength
780nm ± 20nm Light output (cw)Maximum 0.5 mW De-emphasis ± 0.1 dB referred to
main response Distortion and noise<0.1% 10 Hz - 18 kHz at full level Mains
supply 100V, 115V, 230V (50 or 60Hz) Dimensions (H x W x D)
87 x 432 x 314mm Finis Black
CD555
CD player First shown and demonstrated at The Hi-fi and Home Entertainment Show,
Heathrow 23rd-25th September 2005, Naim's current reference CD player, the CD555
with 555PS delivers the ultimate musical performance from a CD. The CD555 makes
no attempt to play DVDs, DVD-As or SACDs. It doesn't have a digital output. Nor
does it have a variable output. The CD555 simply plays CDs and at that it excels.
We are confident that is the best CD player ever.Key features of this fabulous
player include a separate power supply from a transformer secondary winding,
which is triple regulated, right through to the critical master clock and
dejittering circuitry. Special attention has also been paid to reducing
capacitive coupling of high frequency noises from other supplies into this super
quiet clock supply through interconnect cables and wiring looms. Two Burndy
interconnects between the power supply and head unit disretely carry the digital
and analogue supplies extend the principle of reducing capacitive coupling
between power supplies as far as possible.The power supply incorporates
significant upgrades over existing designs. More regulators have been used to
isolate the supplies to various parts of the circuit, minimising their
interaction.The CD555 Digital-to-Analogue Converters are mounted in a "quiet
room". Apart from ensuring that all critical signals reaching the DAC have
immeasurably low jitter the chips are inside a shielded enclosure to keep their
environment free of the varying electric and magnetic fields that inevitably
occur in a CD player, so enabling the converters to do their work isolated from
all external influences. Other noteworthy features of the CD555 include:a
machined, heavy, solid transport tray to reduce resonance and vibration
amplitude. high mass design to improve suspension characteristics, providing
isolation from the chassis and other components. low infra red reflective
coatings around the CD to reduce eye pattern interference and noise. an
extremely low inertia and low resonance CD clamp. a Philips Pro CD mechanism
with a die-cast chassis. a very heavy brass sub-chassis - separate for digital
and analogue electronics. analogue stages, I-to-V conversion, filtering and
output driver are built from discrete components. seven-pole output filters. a
separate low jitter clock circuit with its own multi-stage regulated power
supply. post-digital filter de-jitter circuitry to eliminate jitter. DACs are
isolated from electric and magnetic fields. a motorised top loading door.
Features of the 555PS include:seven regulated power supplies including separate
one for the clock circuitry. five secondary windings on the transformer. a
transformer that is 40 per cent larger than that in the XPS2 separate dedicated
analogue and digital output sockets (Burndy) to minimise high frequency noise
modulation of analogue supplies. backward compatibility with the CDS3 and
CDX2. Can be used to enhance the performance of the Naim HDX hard disk
player a low resonance case with isolating feet. Specifications
Frequency response 10Hz 20kHz + 0.1dB 0.5 dB Output level 2.0V rms at 1kHz
Output impedance 50 Ohms maximum Phase response Linear phase, absolute phase
correct Laser typeSemiconductor AIGaAs Wavelength 780nm ± 20nm Light output (cwMaximum
0.5 mW De-emphasis ± 0.1 dB referred to main response Distortion and noise <0.1%
10 Hz - 18 kHz at full level Mains supply 100V, 115V, 230V (50 or 60Hz)
Dimensions (H x W x D) 114 x 432 x 314mm Finish Black
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffussore.Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco nostro magazzino.
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Attenzione
.gif)
NAIT
5i integrated amplifier The new NAIT 5i is the latest iteration of Naim's fabled
entry-level amplifier bringing enhanced performance and usability over its
highly regarded predecessor. The most noticeable change is perhaps the addition
of a convenient iPod/MP3 player input on its front panel.Within its incredibly
sturdy chassis numerous design upgrades elevate its musical performance to even
greater heights. These include improved ceramic heat sinking, restructured
cabling, and circuit changes to lower distortion and improve RF rejection. All
these add up to provide a substantial improvement in this amazing amplifier's
already class-leading performance.The NAIT 5i naturally forms a wholly
synergistic partner for the CD5i CD player. Together they provide the perfect
and most cost-effective introduction to Naim system ownership.There’s a long
Naim tradition of the NAIT Integrated Amplifier punching above its weight. It
began with the original NAIT in 1983 and continues now with the NAIT 5i.
Although the recent introduction of the SUPERNAIT represents the current
state-of the-art for integrated designs, the NAIT 5i remains a superb and
cost-effective introduction to the Naim sound for those who don't require the
SUPERNAIT's advanced features and capabilities. Features: 50W continuous output
into 8-Ohm loads, 500W peak into 1-Ohm. Zinc and aluminium anti-resonance
casework. DIN and RCA phono inputs. Can be used with a wide range of
interconnect and loudspeaker cables. Programmable unity-gain audio-visual input.
NarCom remote control handset. The NAIT 5i delivers fifty Watts into real
loudspeaker loads, each Watt with the legendary Naim rhythmic drive and musical
integrity. Entry level it may be, but the music it makes is detailed, engaging
and recognisably Naim. It borrows many of the latest Naim amplifier innovations
to become the finest sounding integrated ever to carry the logo. Versatility is
vital for an entry level amplifier. The Nait 5i makes integration with existing
systems easy by incorporating phono socket inputs alongside the traditional DIN
sockets, and offers the possibility of use with a wide range of speaker cable
types. Integration with audio visual systems is handled through a programmable
“unity gain” input. The 5i is intuitive in use too. A true plug and play product.
The 5i’s construction and aesthetic borrow directly from the acclaimed 5 Series.
It features zinc die-casting, combined with aluminium extrusions and covers,
which together result in a rigid case that offers great immunity to the effects
of external vibration.The NAIT 5i establishes a new entry-level reference point
of natural musical reproduction, flexibility and reliability.Specifications
Analogue inputs 4 Input sensitivities 225mV, 20kOhm Output level, tape 225mV,
100 Ohm Power output (into 8 Ohms) 50W per channel Overload margin, all inputs,
all audio frequencies 35dB Mains supply 115V, 230V Dimensions (H x W x D)70 x
432 x 301mm Finish Black
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.gif)
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
