Rotel rinnova completamente la parte entry-level del catalogo, proponendo la
nuova serie 06 SE in sostituzione della 06, considerata una tra le migliori in
commercio in quanto a rapporto qualità/prezzo. Il look-feeling è lo stesso della
precedente serie, se non per l’aggiunta della scritta “special edition”. Le vere
novità sono contenute all’interno di tutti i nuovi apparecchi, completamente
riprogettati traendo spunto dalla neonata serie 15 e in grado di garantire una
qualità audio elevatissima in rapporto al prezzo. Tutti ovviamente adottano la
oramai affermata “Rotel Balanced Concept Design” filosofia tesa al
raggiungimento delle massime prestazioni sonore. Cavallo di battaglia della
nuova serie è l’integrato l’RA-06 SE, un 70WX2 canali su 8 ohm molto curato dal
punto di vista progettuale e che utilizza componenti altamente selezionati. Un
ingresso Phono MM performante in dotazione, sdoppiamento pre-finale per
collegare un amplificatore di potenza esterno, e un lay-out circuitale curato al
fine di evitare possibili degradi del segnale sono solo parte delle alchimie
messe in campo dal grande costruttore. L’RA-06 è poi dotato di telecomando per
tutte le funzioni in grado di pilotare anche altri apparati Rotel, e di uscite
trigger-out per il pilotaggio di dispositivi esterni. A completare la gamma di
integrati low-cost ad alte prestazioni scendono in pista l’RA-05 SE e l’RA-04
SE, che tra di loro condividono uguali caratteristiche elettriche ad eccezione
del telecomando, presente solo nel modello RA-05. 2X40W su 8 ohm la potenza di
targa dichiarata con sezione di preamplificazione uguale a quella del “cugino
ricco” RA-06; sarà pertanto possibile, per esempio, grazie allo sdoppiamento
pre-finale, applicare in un secondo momento un amplificatore di potenza esterno.
Non potevano poi mancare delle sorgenti di qualità adeguata. Si chiama RCD-06 SE
il nuovo lettore di CD della serie ’06, dotato di meccanica di elevato livello e
di un convertitore Wolfson di nuova concezione a 24 bit/96 kHz con
sovracampionamento ottuplo. Le sezioni di alimentazione sono separate per la
parte analogica e digitale, e sono in numero di 4 completamente indipendenti,
vengono poi utilizzati tutti componenti passivi selezionati e di alto livello.
Annunciato, ma non ancora disponibile, il sintonizzatore, che si chiamerà RT-09
SE e che avrà numerose funzioni accessorie legate alla connettività di rete. Non
“confermati”, invece, nel nuovo corso “SE”, i preamplificatore RC-06 e il finale
RB-06 che escono definitivamente fuori dalla scena
Continuous
Power Output (20 – 20kHz, <0.03%, 8 ohms): 40 watts/ch Total Harmonic
Distortion (20Hz-20kHz) <0.03% at rated power, 1/2 power or 1 watt
Frequency Response Phono Input: 20Hz – 15kHz: ±0.3dB Line Level Inputs:
10Hz – 40kHz: ±1dB Damping Factor (20-20,000 Hz, 8 Ohms) 180 Input
Sensitivity / Impedance Phono Input: 2.8mV / 47kOhms Line Level Inputs:
170mV / 24kOhms In put Overload-o Phono Input: 180mV Line Level
Inputs: 5V Pre-amp Output / Impedancee 1V / 470 Ohms Tone Controls –
Bass / Treble ±6dB at 100Hz / 10kHz Dimensions (W x H x D) 435 x 72 x
342mm Signal to Noise Ratio (IHF “A” Weighted) Phono Input: 80 dB
Line Level Inputs: 100 dB Power Consumption 220 Watts Panel Height
60 mm Weight (net) 5.9kg
Rotel RA-1520
Amplificatore integrato da 60 + 60 W RMS su 8 ohm, trasformatore toroidale,
circuitazione dual-mono, stadio finale ad alta corrente, phono MM, 4 ingressi, 1
ingresso mini-jack frontale per lettori MP3 o iPod. Uscita Pre. Uscita cuffia.
12V trigger.
Disponibile in finitura Black o Silver
Classic
Stereo Integrated Amplifier • 60 watts x 2 @ 8 ohms• CD, tuner, aux, tape
1 and tape 2• Media input front panel • Phono input for moving magnet cartridge•
T network capacitors made in Britain • Headphone jack • Trigger for 12 volt
control The RA-1520 is a music lover’s amplifier and is most at home as part of
a stand-alone stereo system. Its muscular 2 x 60 watt (into 8 ohms) design is
based upon nearly 50 years of our expertise in analog audio engineering and it
delivers all of the musical performance the artist intended. Subtle nuances and
large dynamics are both rendered faithfully from uncompressed digital or analog
sources. The RA-1520 includes a moving magnet phono input to accommodate your
vinyl collection. To complete its functionality, as well as its superb
performance capabilities, there are additional inputs for tuner, tape, CD and
Aux.Model RA-1520 Power Configurations 2 x 60 watts (20Hz-20kHz, <0.03%, 8
Ohms) THD (20-20,000Hz) 8 Ohms, all channels driven < 0.03% Phono
Input 20Hz-15kHz, +/- 0.2dB Line Level Input 10Hz-100kHz, +1, -3dB
Damping Factor (8 Ohms) 150 Line Input Sensitivity 160mV / 24kOhms
Bass +3, +4dB at 100Hz Treble + 3dB at 10kHz Line Input Overload 5V
Phono (MM) 2.4mV / 47kOhms Phono Overload (MM) 170mV Preamp Output
Levels / Output Impedance 1V / 470 Ohms S/N Ratio (IHF A) >95dB
Power Requirements USA 115 Volts, 60Hz Power Requirements CE 230 Volts,
50Hz Power Consumption 300 watts Dimensions (W x H x D) mm 432 x 92
x 364 mm Dimensions (W x H x D) in 17 1/8 x 3 5/8 x 13 5/16 in Front
Panel Height 80 mm / 3 3/16 in Weight (net) 7.8 kg, 17.2 lbs
Amplificatore integrato da 60 + 60 W RMS su 8 ohm, trasformatore toroidale,
condensatori slit-foil e “T-Network Capacitors”, stadio finale ad alta corrente,
2 uscite pre-out, 12V trigger, telecomando.Disponibile in finitura Black o
Silver.
Preamplificatore stereo
con circuitazione di ingresso simmetrica Balanced Design. Sezione di
alimentazione con trasformatore toroidale, resistenze a film selezionate con
tolleranze bassissime. 4 ingressi linea ad alto livello, 1 ingresso phono MM, 1
ingresso media player sul frontale, presa cuffia, comando di trigger a 12V,
Telecomando in dotazione. Disponibile in finitura Black o Silver.
Preamplificatore stereo,
ingresso fono MM, 5 ingressi audio, circuitazione Balanced Design, telecomando
con potenziometro del volume motorizzato, uscita trigger 12V. Disponibile in
finitura Black o Silver.
Optimized
for the real-world audiophile who demands flexibility and sound quality at an
affordable price, the RC-1070 preamplifier delivers an extraordinary level of
satisfaction. Featuring traditional Rotel engineering prowess, this unit
features a power supply based on a custom-made toroidal transformer.The RC-1070
features six line-level inputs in addition to a phono input for moving magnet
cartridges. A convenient contour control allows easy and repeatable timbre
adjustments. With two sets of main outputs, a 12 volt "trigger" jack, and a
Rotel-system remote control for both the pre-amplifier and a companion Rotel CD,
tuner, or DVD player, the RC-1070 brings the flexibility and sound quality of
Rotel separates within easy reach.Model RC-1070 Total Harmonic Distortion(20 Hz
- 20 kHz) -0.006% Intermodulation Distortion <0.006% at 1V output (60 Hz:7 kHz,
4:1) Input Sensitivity/Impedance Line level inputs Phono (MM)150 mV / 24 k
ohms1.2mV/68 k ohms Output Level/Impedance 1V/100 Ohms Usable Headphone
Impedance 8 - 2,000 Ohms Frequency ResponseLine level inpu Phono input
-4Hz-100kHz, +0, -3 dB 20-20kHz (+/-0.5dB) Signal to Noise Ratio (IHF A)Phono (MM)
Line level inputs -70 dB 95 dB Phono Overload: 70mV Power Requirements:USA:CE:
-115 Volts, 60 Hz230 Volt, 50 Hz Power Consumption: 10 Watts Dimensions (W x H x
D): 430 x 92 x 344 mm17 x 3 5/8" x 13 5/8" Weight (net): 5.4 kg, 11.
Preamplificatore stereo.
Circuitazione minimalista per la massima qualità musicale. Componenti
selezionati. Condensatori BHC. Trasformatore toroidale. Pass-trough per
processore A/V che esclude il volume. Ingresso media per lettori MP3 o iPod.
Stadio Phono MM/MC a discreti. 12V Trigger. Telecomando in dotazione.Disponibile
in finitura Black o Silver
THD
(20-20,000Hz) 8 Ohms,all channels driven 0.006% IM Distortion 0.006% @ 1V out
Input Sensitivity & Impedance - Phono (MC) - Phono (MM) 1.2mV / 68kOhms Line
Level Inputs 150mV / 24kOhms Phono Overload (MC/MM) 70mV Output
Sensitivity / Impedance 1V / 100 Ohms Frequency Response - Phono
Input 20-20kHz (+/-0.05dB) Line Level Input 4-100kHz (+0, -3dB) Tone
/ Contour Controls - Bass +3, +4dB at 100Hz Treble +3dB at 10kHz in
Signal to Noise Ratio (IHF “A”) - Phono (MC/MM) 70dB Line Level 95dB
Power Consumption 10 watts Dimensions (W x H x D) mm 431 x 99 x 337 mm
Dimensions (W x H x D) in 17 x 4 x 13.5 in Front Panel Height 2U (3.5”)
Shipping Weigh 15.8 lbs.
Preamplificatore stereo.
Circuitazione minimalista per la massima qualità musicale. Componenti
selezionati. Condensatori BHC. Trasformatore toroidale. Pass-trough per
processore A/V che esclude il volume. Ingresso media per lettori MP3 o iPod.
Stadio Phono MM/MC a discreti. 12V Trigger. Controlli IR posteriori e RS-232.
Telecomando in dotazione.Disponibile in finitura Black o Silver.Model
THD
(20-20,000Hz) 8 Ohms,all channels driven 0.004% IM Distortion 0.004% @ 1V out
Input Sensitivity & Impedance - Phono (MC) 250mV / 100 Ohms Phono (MM) 2.5mV /
47kOhms Line Level Inputs 150mV / 220kOhms Phono Overload (MC/MM) 16mV / 160mV
Output Sensitivity / Impedance 1V / 100 Ohms Frequency Response/MM) - Phono
Inputon 20-20kHz (+/-0.02dB) Line Level Input 4-100kHz (+/-0.05dB) Tone /
Contour Controls - Bass +/- 6 cb @ 100 Hz Treble +/- 6dB @ 10kHzn
Signal to Noise Ratio (IHF “A”) - Phono (MC/MM) 70dB / 75dB Line
Level 100dB Power Consumption 15 watts Dimensions (W x H x D) mm 431
x 99 x 337 mm Dimensions (W x H x D) in 17 x 4 x 13.5 in Front Panel
Height 2U (3.5”) Shipping Weight 21.5 lbs./MM)
Finale di potenza stereo
da 70+70W RMS su 8 ohm, 180W RMS su 8 ohm a ponte in mono, stadio d’uscita ad
alta corrente, trasformatore toroidale, condensatori di filtro Slit-Foil,
accensione automatica dal pre RC-03 attraverso il comando di trigger a 12V.
Disponibile in finitura Black o Silver.
In
tandem with an RC-06 pre-amplifier, the RB-06 provides a sound comparable in
quality to that of expensive audiophile equipment – but for a fraction of the
price. Conceived and engineered with the sole aim of providing high quality
power in abundance, the RB-06 drives even the most demanding loudspeakers
effortlessly. Team a pair of them with an RC-06 pre-amp for maximum
amplification. A purist power amplifier. Also includes: Symmetrical circuit
board layout, Short signal path routing, UK-designed metal film resistors,
US--made super low-noise resistors, Rotel toroidal transformer and power supply
, Slit--foil reservoir capacitors, 12v trigger power control.Model RB-06
Continuous Power Output(20-20 kHz, < 0.03%, 8 ohms) 70 watts/ch Bridged Mono
Power Output 180 watts (20-20 kHz, < 0.1%, 4 ohms) (200 watts at 1kHz) Total
Harmonic Distortion (20Hz-20kHz, 8 ohms) < 0.03% Intermodulation Distortion (60
Hz : 7 kHz, 4:1) < 0.03% Frequency Response ( ± 1dB) 10Hz-100kHz Damping Factor
(20-20,000 Hz, 8 ohms) 500 Speaker Impedance (Normal mode) 4 ohms minimum Signal
to Noise Ratio (IHF A network) 116 dB 116 dB Input Impedance/Sensitivity 33 k
Ohms/1.0 volt 33 k Ohms/1.0 volt European Version 230 Volts, 50 Hz Power
Consumption 250 Watts Dimensions (W, H, D) 437 x 92 x 342 mm Panel
Height 80 mm Weight (net) 7.5 kg Available Finishes Silver / Black
12 volt Trigger Yes Remote Control No
Finale
di potenza stereo da 65+65 W RMS su 8 ohm, 120+120 W su 4ohm. Design circuitale
ad alta efficienza in classe D. Stadio d’uscita ad alta corrente. Attenuatori di
ingresso frontali. Ingresso trigger 12V con autoaccensione in presenza del
segnale. Doppi ingressi per collegamento in cascata. Uscite linea con buffer.
Terminali a vite per CI. Cabinet 1U.
Disponibile in finitura Black o Silver.

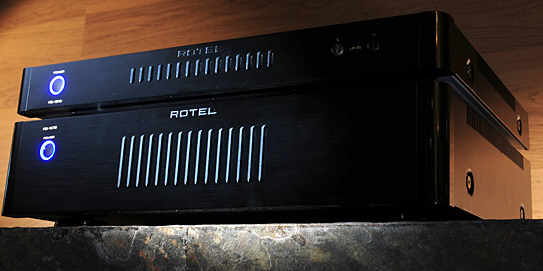

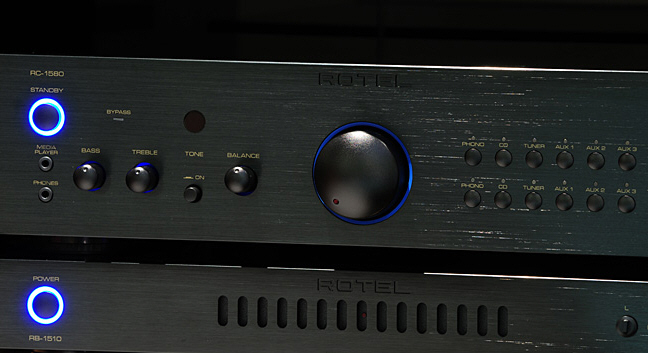

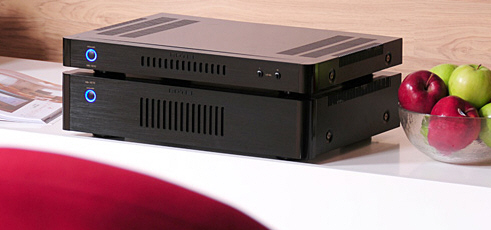

Although
only 1 U height in size, this compact power amplifier will deliver 2 x 65 watts
per channel into 8 ohms and 2 x 130 watts into 4 ohms, all channels driven. It
is no less formidable in sound quality either with its Rotel heritage of over 47
years of amplifier design.Model RB-1510
Power Ouput All channels driven 65 watts x 2ch (20-20 kHz, 0.03% THD, 8 ohms)
130 watts x 2/ch (20-20 kHz, 0.03% THD, 4 ohms) THD (20-20,000Hz) 8 ohms,
all channels driven 0.03%, maximum IM Distortion 0.03%, maximum
Damping Factor (8 ohms) 200 Gain 27.3dB Input Sens. / Impedance 1.0V
/ 33 kohms Frequency Response (+/-1 dB) 15-50 kHz (+/-1dB) S/N Ratio (IHF
A) 108dB Power Consumption 120 watts Dimensions (W x H x D) mm 431 x 55 x
336 mm Dimensions (W x H x D) in. 17 x 2 1/8 x 13 2/8 in Front Panel
Height 2U / 88.1mm / 3 4/8 in Weight (net) 4.3kg / lbs.
Finale di potenza da 70+70
W RMS su 8 ohm, stadio d’uscita ad alta corrente, trasformatore toroidale,
ingressi e uscita trigger 12V. Ideale anche in custom istallation. Disponibile
in finitura Black o Silver
Ideal
for demanding custom installations, the ultra-stable RB-1050 combines audiophile
sound quality and bullet-proof circuitry. A multi-mode amplifier, the RB-1050
develops 70 watts per channel for stereo reproduction. Individual sensitivity
adjustments and auto on signal sensing circuitry allow use with a variety of
distribution devices or processors. Buffered line level outputs allow multiple
amplifiers to daisy chain from a single source. The toroid-based power supply
and high damping factor ensure precise control of virtually all speakers. 12
volt trigger jacks and a detachable AC cord make this amplifier ideal for remote
operated distributed audio systems. A front panel LED array shows clipping and
protection modes for quick system analysis.Continuous Power Output -
Power ConfigurationsWatts/Channel - all channels driven, unbridged, 8 ohm load,
20 to 20k Hz, 0.06% THD 70w x 2 Total Harmonic Distortion(20 Hz - 20 kHz) - cont.
rated power one-half rated power one watt per channel 0.03%, maximum 0.03%,
maximum0.03%, maximum Intermodulation Distortion(at rated power, 60Hz:7kHz = 4:1
) 0.03%, maximum Damping Factor (8 ohms)Input Impedance/Sensitivity 500 Input
Overload Level Frequency Response 1.0V / 33 kOhms Signal to Noise Ratio (IHF A)
116 dB Power Consumption: 250 watts Power Requirements: 115 volts, 60 Hz (U.S.
version)230 Volts, 50 Hz (European version) Dimensions (W x H x D): 430 x 92 x
350 mm 17 x 3 5/8 x 13 13/16"Weight (net): 8.1kg / 17.86 lbs.
Finale
di potenza da 130+130 W RMS su 8 ohm, utilizzabile in mono con potenza 360 W su
8 ohm, stadio d’uscita ad alta corrente, trasformatore toroidale, ingressi e
uscita trigger 12V. Disponibile in finitura Black o Silver.
Finale di potenza stereo digitale. 100W x 2 su 8 ohm. Stadio d’uscita digitale a
tecnologia ICEpower. Stadio di alimentazione a modulazione d'impulsi PWM.
Circuiti di modulazione COM e di controllo MECC proprietari. Altissima
efficienza. 12V trigger. Design slimline. Disponibile in finitura black o
silver.
Rotel’s
new RB-1072, a 100 watt per channel stereo power amplifier is based upon the
much-heralded Class D switching platforms of the RMB-1077, RB-1092 and RB-1091
amplifiers. Thanks to its innovative design, it can be placed in
space-restricted installations without fear of performance degradation. The
RB-1072 needs little ventilation and runs relatively cool even under demanding
operating conditions, compared to conventional amplifier designs. Although
compact in size at only 2-3/8” high, there is nothing small about this amplifier.
It is powerful, refined and characterized with a sense of speed, depth and
transparency that set it apart from the competition. Rotel engineers have
methodically applied our Balanced Design Concept (BDC) to render a very
impressive design. The RB-1072 features innovative engineering that has
transformed the sound of early Class D amplifiers from less-than-stellar
products to real audiophile components. Two of these design accomplishments are
*MECC (Multivariable Enhanced Cascade Control) and *COM (Controlled Oscillation
Modulation) which substantially reduce pulse amplitude and pulse timing errors.
Together, these technological solutions, along with Rotel’s BDC, have helped
changed the future of power amplification and allowed Class D switching
amplifiers to realize their full potential of high power, low heat, reduced
chassis size, and first class sound. Model Power Configurations 2 x 100 watts
Watts/Channel 100 watts, both channels driven, with 20KHz filter, 8 ohm load,
20-20 kHz, 0.02% THD Total Harmonic Distortion (20 Hz - 20 kHz, 8 ohms)
Continuous Rated Power One-half Rated Power One Watt Per Channel <
0.2%< 0.2% < 0.2% Power Output (4 ohms, 0.09% THD) 190 watts Output
Peak Current 11A Intermodulation Distortion 60 Hz: 7 kHz, 4:1 < 0.2%
Damping Factor (8 ohms) 200 Amp Gain 27.2 dB Input Sensitivity /
Impedance 1.25 V / 9.9 k ohms Frequency Response 10 - 40 kHz (+ / - 3db)
Signal to Noise Ratio (IHF A) 109 dB Power Requirements USA Europe
120 volts, 60 Hz 230 volts, 50 Hz Power Consumption 130 watts 21 watts -
idling 3 watts - standby Dimensions (W x H x D) 432 x 72 x 350 mm 17 1/8 x 2 7/8
x 13 3/4 in Panel Height(for rack mounting) 60 mm, 2 3/8 in Weight (net) 4.6 kg,
2.1 lb.
Finale di potenza da
200+200 W RMS su 8 ohm, trasformatore toroidale, condensatori Slit Foil BHC,
stadio d’uscita ad alta corrente, ingressi e uscita trigger 12V, ingressi RCA e
XLR, certificazione THX.Disponibile in finitura Black o Silver.
Finale di potenza stereo,
380+380 W RMS su 8 ohm, stabile su 2ohm, stadio d’uscita ad alta corrente,
trasformatore toroidale maggiore di 1.25 kVA, ingressi RCA e XLR. Peso 50 kg.
Certificazione THX.
Disponibile in finitura Black o Silver.
Finale di potenza mono
digitale. 500W su 8 ohm. Stadio d'uscita digitale a tecnologia ICEpower. Stadio
di alimentazione a modulazione d'impulsi PWM. Circuiti di modulazione COM e di
controllo MECC proprietari. Altissima efficienza. 12V trigger. Doppie uscite per
diffusori sia a morsetti che con Speakon. Design slimline.Disponibile in
finitura Silver.
Finale di potenza stereo da 120+120 W RMS su 8 ohm. Design circuitale Balanced
Design con funzionamento in classe A/B. Trasformatore toroidale. Componenti
selezionati. Stadio d’uscita ad alta corrente. 12V Trigger. Disponibile in
finitura Black o Silver.
Model
Power Configurations 2 x 120 watts (20Hz-20kHz, <0.03%, 8 Ohms) Watts/Channel
120 watts, all channels driven, 8 ohm load, 20-20kHz THD (20-20,000Hz) 8
Ohms, all channels driven < 0.03% IM Distortion < 0.03% Damping
Factor (8 Ohms) 500 Input Sensitivity / Impedance 1.0V / 33kOhms
Frequency Response (+/-1dB) 4 - 100kHz (+0.5dB, -3dB) S/N Ratio (IHF A)
120dB Power Consumption 400 watts Dimensions (W x H x D) mm 431 x
144 x 340 mm Dimensions (W x H x D) in 17 x 5.25 x 13.4 in Front
Panel Height 3 U (5.25”) Shipping Weight 31.6 lbs.
Finale di potenza stereo da
100+100 W RMS su 8 ohm, 200 + 200 W su 4ohm. Design circuitale ad alta
efficienza in classe D. Stadio d’uscita ad alta corrente. Ingresso trigger 12V.
Cabinet 2U.Disponibile in finitura Black o Silver. Rotel

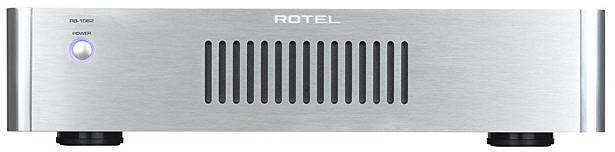

provides multiple amplifier solutions for all of your theater systems. The

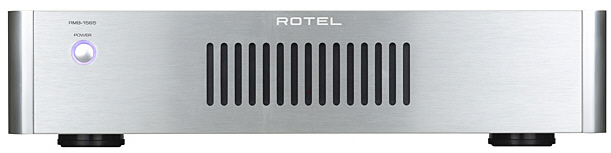

RB-1562 is a 2 x 100 watt per channel (8 ohms, all channels driven) power

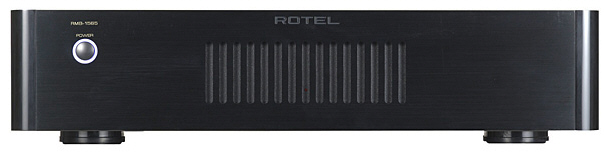

amplifier that can be combined with the RMB-1565 amplifier for a total 7 x 100
watts per channel home theater amplification. It is also a great two-channel hi
fi amplifier and can drive a wide range of small to large speakers with ease.
Its smart Class D design never gets hot and allows it to be put into small
cabinet spaces without over-heating itself or other accompanying components.
Model RB-1562
Power Output All channels driven 100 watts x 2/ch (20-20 kHz, 0.03% THD, 8 ohms)
200 watts x 2/ch (20-20 kHz, 0.03% THD, 4 ohms) THD (20-20,000Hz) 8 ohms,
all channels driven < 0.03% IM Distortion < 0.03% Damping Factor (8 ohms) 200
Gain 27.2 dB Input Sens. / Impedance 1.25V / 8.3 k ohms Frequency Response
(+/-1 dB) 10 - 40 KHz (+3dB) S/N Ratio (IHF A) 109 dB Power Consumption 130
Watts Dimensions (W x H x D) mm 431 x 99 x 339 mm Dimensions (W x H x D)
in. 17 x 4 x 13 3/8 in Front Panel Height 2U / 88.1mm / 3 4/8 in Weight
(net)5.6kg / 12.35 lbs
Finale di potenza stereo da
250+250 W RMS su 8 ohm, 500 + 500 W su 4ohm. Design circuitale ad alta
efficienza in classe D. Stadio d’uscita ad alta corrente. Ingresso trigger 12V.
Cabinet 2U.Disponibile in finitura Black o Silver.

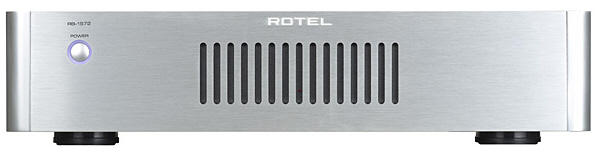

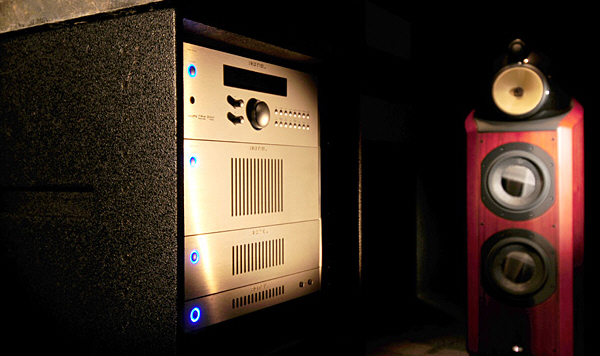

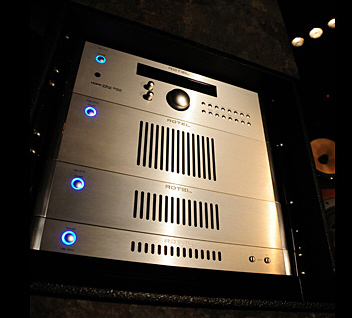

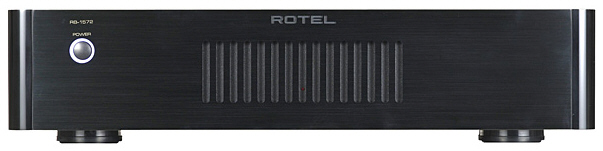

This
high power two-channel amplifier can be used with the RMB-1575 to expand your
theater system into a 7.1 system, or it can stand alone as a reference amplifier
for a two-channel hi fi system. Either way, it has the same performance
characteristics, sound quality, and custom installation options as the
five-channel RMB-1575. Model RB-1572 Power Output All channels driven 250
watts x 2/ch (20-20 kHz, 0.03% THD, 8 ohms)500 watts x 2/ch (20-20 kHz, 0.03%
THD, 4 ohms) THD (20-20,000Hz) 8 ohms, all channels driven < 0.03%
IM Distortion < 0.03% Damping Factor (8 ohms) 400 Gain 27.1dB
Input Sens. / Impedance 1.5 V / 8.3 k ohms Frequency Response (+/-1 dB) 10
- 80 kHz (+3dB) S/N Ratio (IHF A) 109 dB Power Consumption 280 Watts
Dimensions (W x H x D) mm 431 x 99 x 339 mm Dimensions (W x H x D) in. 17
x 4 x 13 3/8 in Front Panel Height 2U / 88.1mm / 3 4/8 in Weight
(net) 7.8 kg, lb.

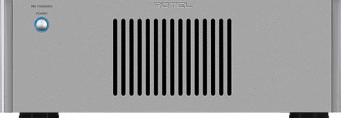

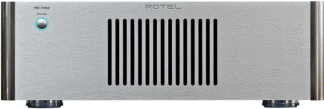

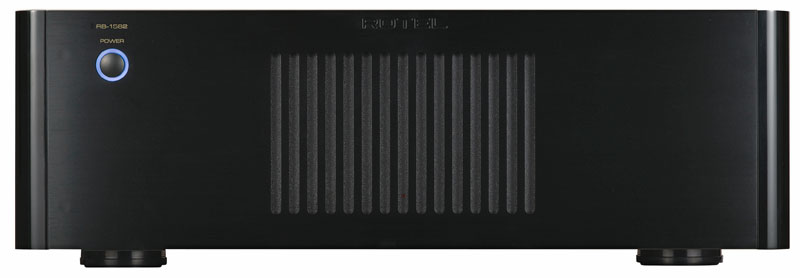

Rotel RB-1582 €.1.100,00 Per prezzo
scontato
TELEFONA / E-MAIL Finale
di potenza stereo da 200+200 W RMS su 8 ohm. Design circuitale Balanced Design
con funzionamento in classe A/B. Trasformatore toroidale. Componenti
selezionati. Stadio d’uscita ad alta corrente. 12V Trigger. Disponibile in
finitura Black o Silver.
Model
Power Configurations 2 x 200 watts(20Hz-20kHz, <0.03%, 8 Ohms) Watts/Channel 200
watts, all channels driven,8 ohm load, 20-20kHz THD (20-20,000Hz) 8 Ohms,all
channels driven < 0.03% IM Distortion < 0.03% Damping Factor (8 Ohms)
1000 Input Sensitivity / Impedance 1.5V / 32kOhms Frequency Response
(+/-1dB) 15-100kHz (+/-1dB) S/N Ratio (IHF A) Ohms) 116dB Power
Consumption Ohms) 550 watts Dimensions (W x H x D) mm 431 x 140 x 406 mm
Dimensions (W x H x D) in 17 x 5 1/2 x 16 in Front Panel Height 3U (5.25”)
Shipping Weight 40.7 lbs.
Finale di potenza stereo digitale. 500W x 2 su 8 ohm. Stadio d’uscita digitale a
tecnologia ICEpower. Stadio di alimentazione a modulazione d'impulsi PWM.
Circuiti di modulazione COM e di controllo MECC proprietari. Altissima
efficienza. 12V trigger. Doppie uscite per diffusori sia a morsetti che con
Speakon. Design slimline. Disponibile in finitura Silver.
Preamplificatore/Processore multicanale 7.1 per applicazioni A/V. Dolby True HD
e DTS HD Mster. Decodifica Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic
IIx, Dolby Digital/AC-3, Dolby Digital EX, DTS, DTS ES discreto 6.1, DTS96/24,
NEO:6. 4 Ingressi HDMI 1.3a Deep Color e xvYCC. Processore video Faroudja.
Compatibile 1080/24p. Interfaccia bidirezionale RS-232. Multi-room e multi
source per 4 zone. 12V Trigger assegnabile. Controlli IR posteriori. Telecomando
programmabile in dotazione. Cabinet 3U.
Disponibile in finitura Black o Silver

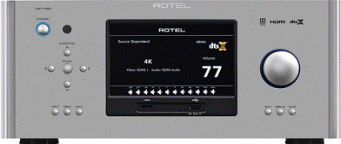

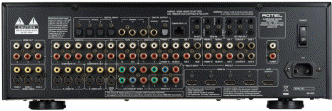

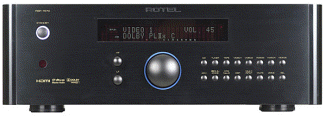

For
those who desire the ultimate performance and maximum flexibility from their
home theater, the RSP-1570 is the surround preamp/processor to own. All of
Rotel’s renowned audio experience has been poured into this design to provide
you with the very best in audio and video reproduction. The RSP-1570 features
HDMI 1.3 connections with 1080p / 24 Hertz compliance, a dual 32 bit DSP
processor and 24 bit/192kHz digital-to-analog convertors. It supports the new
“Deep Color” and xvYCC video options. This superbly designed component is easy
to set up and use and is a custom installer’s friend with rear panel
bi-directional RS-232 ports, assignable 12-volt triggers and multiple IR
connections. The RSP-1570 can also be used as a “whole house” audio system with
its additional multiroom audio outputs.Model RSP-1570 THD (20-20,000Hz) 8
ohms, all channels driven <0.05% IM Distortion <0.05% Frequency
Response (+/-1 dB) 10Hz-120kHz, +/- 3 dB (line level) 10Hz-95kHz +/- 0.3
dB (digital level) S/N Ratio (IHF A) 95 dB (Stereo) Analog 92 dB (Dolby
Digital, dts) OdBFs Input Sens. / Impedance Line Level, 200mV / 100 kohms Tone
Controls (Bass/Treble) +/- 6 dB at 50 Hz / 15kHz Preamp Output Levels 1.0V / 250
ohms Frequency Response 3 Hz - 100MHz, +/- 3 dB S/N Ratio 45 dB
Input Impedance 75 ohms Output Level 1 volt Power Consumption 60 watt Power
Consumption (Standby) 5.5 watt Power Requirements 120 volts, 60Hz (USA
version) 230 volts, 50Hz (CE version) Weight (net) 9.6 kg / 22 lbs.
Dimensions 431mm x 144mm x 335mm Dimensions inches 17 x 5 5/8 x 13 2/8 in Front
Panel Height 3U / 132.6mm / 5 2/8 in

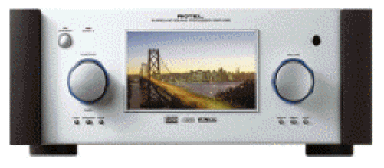

Preamplificatore/Processore
stereo A/V con display TFT frontale. Decoder Dolby Pro Locic II, Dolby Digital/AC-3,
Dolby Digital EX, DTS ES, DTS96/24 e DTS. Decoder HDCD e MP3. Modalità Rotel XS
(Extended Surround) per la riproduzione di una qualsiasi sorgente in ingresso
tramite 5, 6 o 7 canali. Regolazione del taglio del crossover per il subwoofer.
Ingressi/uscite video composito, S-Video e component. Conversione Video. Multi
Room. On screen display. Presa RJ45 per aggiornamenti software. 3 Trasformatori
toroidali. Telecomando programmabile multifunzione RR-1050 in dotazione.
Disponibile in finitura Black o Silver.
number-crunching
ability to process Rotel's own 7.1-channel Extra Surround mode for enhanced
enjoyment of virtually any source. And, of course, HDCDc and MP3 capability, tooModel
RSP-1098 Audio - Total Harmonic Distortion <0.05% Intermodulation Distortion (60
Hz:7 kHz)<0.05% Frequency Response 10 Hz - 95 kHz, ±1 dB (line level)10 Hz - 20
kHz, ±0.3 dB (digital level) Signal to Noise Ratio (IHF A-weighted) 95 dB
(Stereo) Analog92 dB (Dolby Digital, dts) 0dBFs Input Sensitivity/Impedance -
Line Level: 200 mV/47 kohms Contour (LF / HF ) ±6 dB at 100 Hz/10 kHz Preamp
Output Level 1.2 V (200 mV Input) Digital Input decodable signals: Dolby Digital
EX, DTS 96/24, 192K LPCM, HDCD Video - Frequency Response 3 Hz – 10 MHz, ± 3 dB
(Composite, S-Video) NOTE: TFT Screen of Front Panel accept only Composite Video
only3 Hz – 100 MHz, ± 3 dB (Component Video) Signal to Noise Ratio 45 dB Input
Impedance 75 ohms Output Impedance 75 ohms Output Level 1 volt General - Power
Consumption 40 watts Power Requirements (AC) 115 volts, 60Hz (USA version)230
volts, 50Hz (CE version) Weight 7.6 Kg/16.7 lb. Dimensions (W x H x D): 432 x
162 Model RSP-1098 Audio - Total Harmonic Distortion <0.05% Intermodulation
Distortion (60 Hz:7 kHz)<0.05% Frequency Response 10 Hz - 95 kHz, ±1 dB (line
level)10 Hz - 20 kHz, ±0.3 dB (digital level) Signal to Noise Ratio (IHF
A-weighted) 95 dB (Stereo) Analog92 dB (Dolby Digital, dts) 0dBFs Input
Sensitivity/Impedance - Line Level: 200 mV/47 kohms Contour (LF / HF ) ±6 dB at
100 Hz/10 kHz Preamp Output Level 1.2 V (200 mV Input) Digital Input decodable
signals: Dolby Digital EX, DTS 96/24, 192K LPCM, HDCD Video - Frequency Response
3 Hz – 10 MHz, ± 3 dB (Composite, S-Video) NOTE: TFT Screen of Front Panel
accept only Composite Video only3 Hz – 100 MHz, ± 3 dB (Component Video) Signal
to Noise Ratio 45 dB Input Impedance 75 ohms Output Impedance 75 ohms Output
Level 1 volt General - Power Consumption 40 watts Power Requirements (AC) 115
volts, 60Hz (USA version)230 volts, 50Hz (CE version) Weight 7.6 Kg/16.7 lb.
Dimensions (W x H x D): 432 x 162 x 341 mm Front Panel Height (feet removed/for
rack mount) 150 mm
Finale di potenza
multicanale. 60 W x 6 su 8 ohm. Design circuitale in classe A/B. Stadio d’uscita
ad alta corrente. Attenuatori di ingresso frontali. Ingresso trigger 12V con
autoaccensione in presenza del segnale. Doppi ingressi per collegamento in
cascata. Uscite linea con buffer. Cabinet 3U.
Disponibile in finitura Black o Silver.

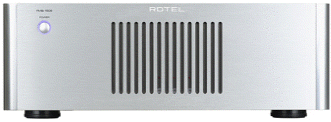

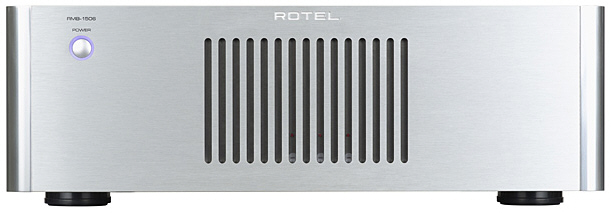

This
amplifier is perfect for less elaborate multizone audio systems and can be mated
with any of our surround receivers or our preamp/processor to add music
throughout three additional living areas or “zones” of your home. You can also
add another RMB-1506 for larger multizone applications that don’t need the power
output of the RMB-1512. As with all Rotel multichannel amplifiers it includes
all of the most wanted custom installation features. Model RMB-1506 Power Ouput
All channels driven 50 watts x 6/ch (20-20 kHz, 0.03% THD, 8 ohms) 100 watts x
6/ch (20-20 kHz, 0.03% THD, 4 ohms) THD (20-20,000Hz) 8 ohms, all channels
driven < 0.03% IM Distortion < 0.03% Damping Factor (8 ohms) >200 Input
Sens. / Impedance 1.0 V / 20 k Ohms Frequency Response (+/-1 dB) 10Hz-100kHz S/N
Ratio (IHF A) 115 dB Power Consumption 450 Watts Dimensions (W x H x D) mm 431 x
144 x 424 mm Dimensions (W x H x D) in. 17 x 5 5/8 x 16 5/8 in
Finale di potenza
multicanale. 100 W x 5 su 8ohm, 200 W x 5 su 4ohm. Design circuitale ad alta
efficienza in classe D. Stadio d’uscita ad alta corrente. Ingresso trigger 12V.
Cabinet 2U.Disponibile in finitura Black o Silver. The
RMB-1565 is designed around the same superb Class D design as the RMB-1575 but
with a slightly smaller output of 5 x 100 watts per channel into 8 ohms. It is
the perfect choice for medium to large home theater rooms. Plus, just like its
bigger brother, it will double its output with more difficult lower impedance
loads, thereby providing 5 x 200 watts into 4 ohms. It also includes all of the
custom installation features such as 12 volt triggers, and “U height” dimensions
that are demanded of today’s modern power amplifiersModel RMB-1565 Power
Output All channels driven 100 watts x 5/ch (20-20 kHz, 0.03% THD, 8 ohms) 200
watts x 5/ch (20-20 kHz, 0.03% THD, 4 ohms) THD (20-20,000Hz) 8 ohms, all
channels driven < 0.03% IM Distortion < 0.03% Damping Factor (8 ohms) 400
Gain 27.2 dB Input Sens. / Impedance 1.2 V / 8.3 k ohms Frequency
Response (+/-1 dB) 10 - 80 kHz (+3dB) S/N Ratio (IHF A) 109 dB Power
Consumption 280 Watts Dimensions (W x H x D) mm 431 x 99 x 339 mm
Dimensions (W x H x D) in. 17 x 4 x 13 3/8 in Front Panel Height 2U /
88.1mm / 3 4/8 in Weight (net) 6.0kg / 13.23 lbs
Finale di potenza
multicanale. 250 W x 5 su 8ohm, 500 W x 5 su 4ohm. Design circuitale ad alta
efficienza in classe D. Stadio d’uscita ad alta corrente. Ingresso trigger 12V.
Cabinet 3U.Disponibile in finitura Black o Silver.
Finale di potenza multicanale.
100 W x 12 su 8 ohm. 200W x 12 su 4 ohm. Design circuitale ad alta efficienza in
classe D. Stadio d’uscita ad alta corrente. Attenuatori di ingresso frontali.
Ingresso trigger 12V con autoaccensione in presenza del segnale. Funzione Sum to
Mono. Doppi ingressi per collegamento in cascata. Uscite linea con buffer.
Cabinet 3U.
Disponibile in finitura Black o Silver.
Finale di potenza
multicanale per applicazioni A/V. 60 W x 6 canali con possibilità di 180 W x 3
in mono. Stadio d’uscita ad alta corrente, trasformatore toroidale, sensibilità
regolabile, 12V trigger. Disponibile in finitura Black o Silver.
Finale di potenza multicanale per applicazioni Custom Installation. 40W x 8 su
8ohm. Trasformatore toroidale. 12V trigger. Colore Black o Silver.
Rotel’s
RMB-1048 is the perfect solution for a wide range of audio applications. It is
able to deliver in excess of 8 x 40 watts per channel into 8 ohms (65 watts into
4 ohms). Use one amplifier to provide music to four stereo pairs, or eight
single channels of speakers with individual level controls per pair. You can
also add another amplifier for additional sub-zones to enjoy music in every room
of the house. Alternatively, the RMB-1048 makes a great home theater amplifier
for today’s latest formats such as 6.1. Buffered line level outputs allow
multiple amplifiers to “daisy chain” from a single source. The RMB-1048 is a
rugged, smooth performer with a high current power supply. Additional features
include front panel level controls, an internal input link, daisy chain outputs
and 12 volt trigger.Model RMB-1048 Continuous Power Output - all channels driven(20-20
kHz, <0.05% THD) 8 x 40 watts/ch into 8 ohms Watts/Channelall channels driven,
unbridged,8 ohm load, 20 - 20 kHz, 0.06% THD 40 wattsTotal Harmonic Distortion(20Hz-20kHz,
8 ohms) <0.05% maximum Intermodulation Distortion(60 Hz: 7 kHz, 4:1) <0.03%
maximum Frequency Response 15 Hz - 100 kHz (±1dB) Damping Factor (8 Ohms) 150
Input Sensitivity / Impedance 1.0V / 22kOhms Signal to Noise Ratio (IHF A) 110dB
Power Consumption 400 watts Dimensions (W x H x D) mm 432 x 121 x 432 mm
Dimensions (W x H x D) in 17 1/8 x 4 3/4 x 17 1/8 in Front Panel Height 109 mm,
4 5/16 in Weight 15.1 kg / 33.3 lbs
Rotel RMB-1075 €.1.650,00 Per
Prezzo
scontato
TELEFONA INVIA UN E-MAIL Finale di potenza multicanale per applicazioni A/V.
120 W x 5 canali. Stadio d’uscita ad alta corrente con 20 transistor finali,
trasformatore toroidale da 1,5KVA, 8 condensatori slit foil BHC da 10.000uF, 12V
trigger. Sensibilità regolabile. Ingresso DB-25. Certificazione THX. Disponibile
in finitura Black o Silver.
Finale di potenza multicanale digitale per applicazioni A/V. 100W x 7 canali.
Stadio d’uscita digitale a tecnologia ICEpower. Stadio di alimentazione a
modulazione d'impulsi PWM. Circuiti di modulazione COM e di controllo MECC
proprietari. Altissima efficienza. 12V trigger. Design slimline. Disponibile in
finitura Silver.
Finale di potenza
multicanale per applicazioni A/V. 200 W x 5 canali. Capace di erogare
globalmente 1 Kilowatt con uno stadio di alimentazione che impiega 2 toroidali
da 1.2 kVA, 8 condensatori di altissima qualità BHC slit-foil. Ingressi RCA e
XLR. Certificazione THX ULTRA.
Disponibile in finitura Black o Silver.
Sintoamplificatore multicanale 7.1 per applicazioni A/V. 100W x 5 canali su 8Ω
con funzione Assign per poter aggiungere un finale stereo per i canali
principali sx e dx o surround. Design circuitale in classe A/B. Stadio d’uscita
ad alta corrente. Dolby True HD e DTS HD Mster. Decodifica Dolby Digital Plus,
Dolby Pro Logic, Dolby Pro Logic IIx, Dolby Digital/AC-3, Dolby Digital EX, DTS,
DTS ES discreto 6.1, DTS96/24, NEO:6. 4 Ingressi HDMI 1.3a Deep Color e xvYCC.
Processore video Faroudja. Compatibile 1080/24p. Interfaccia bidirezionale
RS-232. Multi-room e multi source per 4 zone. 12V Trigger assegnabile. Controlli
IR posteriori. Sintonizzatore AM/FM stereo con sistema RDS. Telecomando
programmabile in dotazione. Disponibile in finitura Black o Silver.

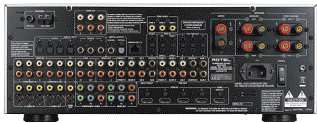

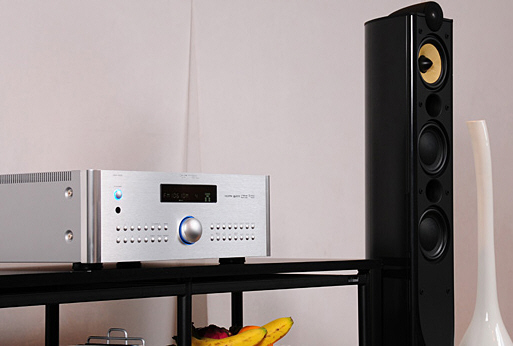

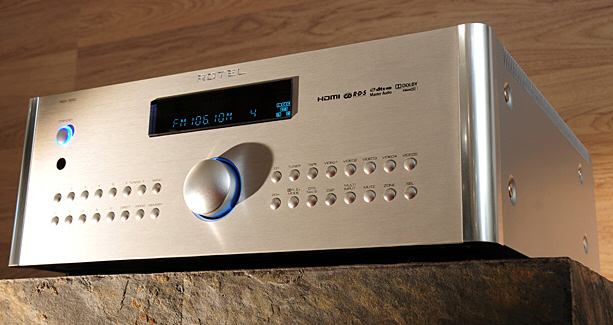

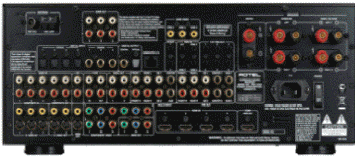

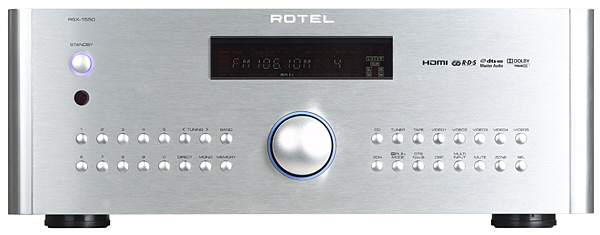

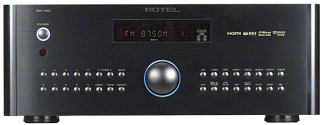

The
RSX-1550 provides virtually all of the same features found on the RSX-1560 but
with a 5 x 100 watt per channel output design. If your needs grow, its on-board
seven channel processing enables you to add an RB-1562 (2 x 100 watt per channel)
power amplifier for full 7.1 operation. No obsolescent designs here! The
RSX-1550 is a Class AB design built on over 40 years manufacturing experience.
It includes HDMI 1.3 connections and the same ability to handle the new audio
codecs by Dolby and dts as the RSX-1560 and also includes the same multizone
audio and custom installation features. If you are considering a five-channel
theater now but may want to grow into a larger system later on, this is the
surround receiver for you. Model RSX-1550
Power Output per channel (L/R, C, Sr/Sl) 100 watts (1kHz < 1.0% THD, 8 ohms,
DIN) Power Output all channels driven 75 watts x 5/ch (20-20kHz, <0.05%
THD, 8 ohms) THD (20-20,000Hz) 8 ohms, all channels driven <0.9% IM
Distortion <0.5% Analog Bypass 95 dB Digital Input 92 dB Input
Sens./Impedance Line Level : 200 mV/100k ohms Contour (LF/HF) +/- 6 dB at
50 Hz / 15 kHz Preamp Output Levels 1.0V / 1K ohm Decodable Digital
Input Signal Dolby Digital, Dolby Digital EX, Dolby Pro Logic IIX, DTS, DTS_ES,
DTS96/24, LPCM (up to 192k), Dolby TrueHD and DTS HD Master Audio Video -
Frequency Response 3 Hz - 10 MHz, +/-3 dB (Composite, S-Video)3 Hz - 100 MHz,
+/-3 dB (Component Video) S/N Ratio 45 dB Input Impedance 75 ohms
Output Impedance 75 ohms Output Level 1.0 Volt FM Tuner - Usable
Sensitivity 14.2 dBf Signal/Noise Ratio (at 65dBf) 70dBf Harmonic Distortion (at
65dBf) 0.03% Stereo Separation (1 Hz) 45 dB Output Level 1 V Antenna
Input 75 ohms unbalanced AM Tuner - Sensitivity 500 uV/m Signal to
Noise Ratio 40dB Output Level 500 mV Antenna Input Loop Antenna Power
Consumption 450 watts 100 watts, Idling 4.7 watts, standby Power
Requirements USA 115 volts, 60 Hz Power Requirements CE 230 volts, 50 Hz
Dimensions (W x H x D) mm 431 x 163 x 435 mm Dimensions (W x H x D) in. 17 1/8 x
6 1/2 x 16 5/8 in. Weight (net) 17 kg / 38 lbs. Front Panel Height 150 mm / 5.9
in.
Sintoamplificatore
multicanale 7.1 per applicazioni A/V. 100W x 7 canali su 8Ω, 200W x 7 su 4ohm,
con funzione Assign per poter aggiungere un finale stereo per i canali
principali sx e dx o surround. Design circuitale ad alta efficienza in classe D.
Stadio d’uscita ad alta corrente. Dolby True HD e DTS HD Mster. Decodifica Dolby
Digital Plus, Dolby Pro Logic, Dolby Pro Logic IIx, Dolby Digital/AC-3, Dolby
Digital EX, DTS, DTS ES discreto 6.1, DTS96/24, NEO:6. 4 Ingressi HDMI 1.3a Deep
Color e xvYCC. Processore video Faroudja. Compatibile 1080/24p. Interfaccia
bidirezionale RS-232. Multi-room e multi source per 4 zone. 12V Trigger
assegnabile. Controlli IR posteriori. Sintonizzatore AM/FM stereo con sistema
RDS. Telecomando programmabile in dotazione. Cabinet 4U.Disponibile in finitura
Black o Silver.

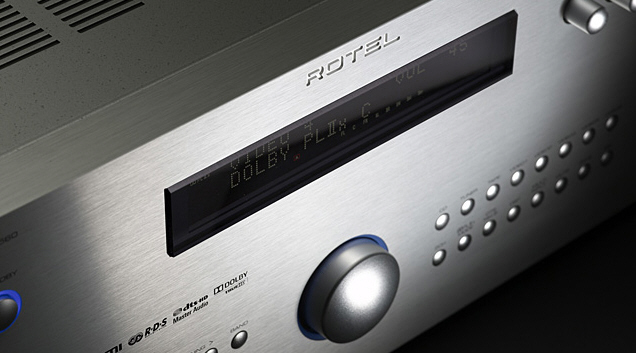

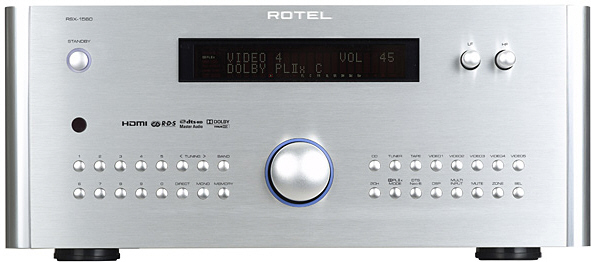

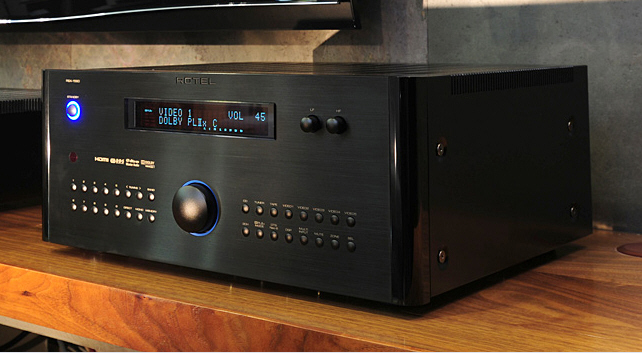

Rotel’s

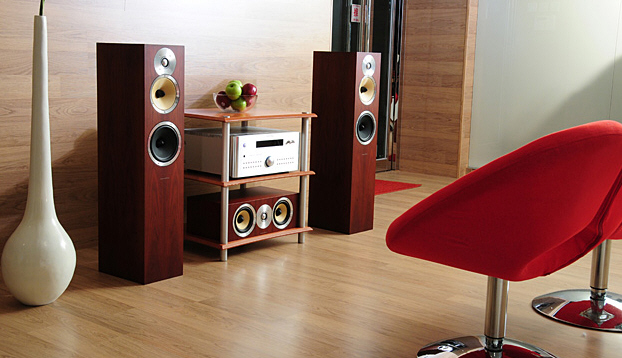

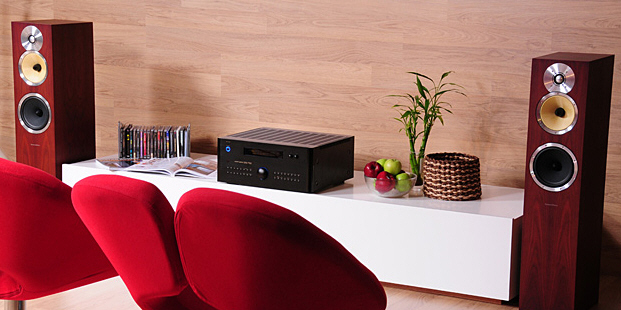

RSX-1560 receiver delivers top-of-the-line performance and all of the features
you have come to expect from our premium brand. At 7 x 100 watts into 8 ohms, or
7 x 200 watts into 4 ohms, this advanced surround receiver can fill your family
or media room with dynamic, pulse-pounding, cinematic sound effects. Yet, it is
just as adept at revealing all of the nuances in your favorite music recordings.
The RSX-1560 surround receiver features an audiophile quality Class D amplifier
design, along with HDMI 1.3 connections and the ability to decode Dolby TrueHD,
Dolby Digital Plus, dts-HD Master Audio and dts HD Hi-Resolution audio codecs.
The RSX-1060 is a true theater command center and can also provide a multiroom
audio solution with up to three additional audio zones throughout the home. All
15 series components are available in brushed silver or black finishes. Model
RSX-1560
Power Output All channels driven 7 x 100 watts (20-20kHz < 0.05% THD, 8 ohms) 7
x 200 watts (20-20kHz < 0.05% THD, 4 ohms) THD (20-20,000Hz) 8 ohms, all
channels driven <0.9% IM Distortion <0.5% Analog Bypass 95 dB
Digital Input 92 dB Input Sens./Impedance Line Level : 200 mV/100k
ohms Contour (LF/HF) +/- 6 dB at 50 Hz / 15 kHz Preamp Output Levels
1.0V / 1K ohm Decodable Digital Input Signal Dolby Digital, Dolby Digital
EX, Dolby Pro Logic IIX, DTS, DTS_ES, DTS96/24, LPCM (up to 192k), Dolby TrueHD
and DTS HD Master Audio Video - Frequency Response 3 Hz - 10 MHz, +/-3 dB
(Composite, S-Video) 3 Hz - 100 MHz, +/-3 dB (Component Video) S/N Ratio
45 dB Input Impedance 75 ohms Output Impedance 75 ohms Output
Level 1.0 Volt FM Tuner - Usable Sensitivity 14.2 dBf Signal/Noise
Ratio (at 65dBf) 70dBf Harmonic Distortion (at 65dBf) 0.03% Stereo
Separation (1 Hz) 45 dB Output Level 1 V Antenna Input 75 ohms
unbalanced AM Tuner - Sensitivity 500 uV/m Signal to Noise
Ratio 40dB Output Level 500 mV Antenna Input Loop Antenna
Power Consumption 500 watts 79 watts, Idling 3 watts, standby Power
Requirements USA 120 volts, 60 Hz Power Requirements CE 230 volts, 50 Hz
Dimensions (W x H x D) mm 431 x 188 x 422 mm Dimensions (W x H x D) in. 17
1/8 x 7 3/8 x 16 5/8 in. Weight (net) 15.5 kg / 38 lbs. Front Panel Height
177 mm / 7 in.

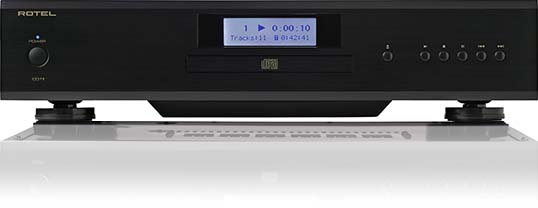

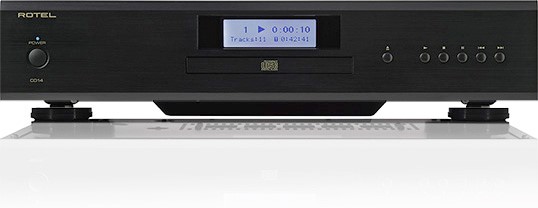

Lettore CD con sofisticata
meccanica di alta precisione, sistema di conversione DAC Burr Brown 24bit/96KHz
a sovracampionamento ottuplo, 4 sezioni di alimentazione indipendenti estremamente curate con condensatori veloci, uscita digitale coassiale ed uscita
analogica, programmabile, comando 12V trigger, Telecomando in dotazione.
Disponibile in finitura Black o Silver.

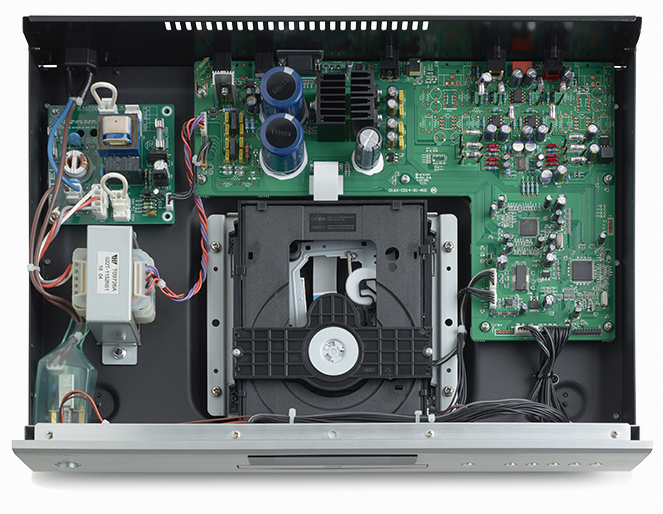

Lettore CD, sistema di
conversione con DAC Delta Sigma a 18bit a sovracampionamento 8x, dotato di
filtri decodifica HDCD. Trasformatore toroidale, uscita digitale, programmabile,
telecomando. Disponibile in finitura Black o Silver.
Lettore CD, sistema di conversione con
DAC Wolfson e filtri di uscita Burr-Brown. Trasformatore toroidale, condensatori
BHC. Riproduzione MP3. HDCD. Uscita digitale, programmabile, telecomando.
Disponibile in finitura Black o Silver.
Model
Disc Capacity 1 Frequency Response 20-20kHz (+/- 0.5dB) Channel
Balance +/- 0.5dB Phase Linearity +/- 0.5 degree S/N Ratio (IHF A) >
100dB Dynamic Range > 96dB Digital to Analog Converters Wolfson High
Performance Channel Separation (1kHz) > 98dB THD (20-20,000Hz) 8
Ohms, all channels driven 0.0045% IM Distortionce 0.0045% Max Audio
Line Output 2VRMS Output Impedance 100 Ohms Digital Output Level (Coax)
0.5 Volt, Peak to Peak Digital Output Impedance 75 Ohms Power
Requirements USA 115 Volts, 60Hz Power Requirements CE 230 Volts, 50Hz
Power Consumptions 20 watts Dimensions (W x H x D) mm 431 x 99 x 320 mm
Dimensions (W x H x D) in 17 x 4 x 12.6 in Front Panel Height 2U (3.5”)
Shipping Weight 18.7 lbs.
Lettore digitale per DVD, DVD Audio (downmix su 2 canali), DVD-R/RW, CD,
CD-R/RW, MP3, WMA e foto JPEG. Uscita HDMI fino a 720p/1080i con scaler interno.
Convertitore D/A audio a 24bit/96KHz. Uscita audio digitale ottica, uscita
analogica stereo. 1 uscita video composito, 1 S-Video, 1 component. 1 uscita
HDMI. On screen display. Trigger 12V e presa Computer I/O. Telecomando
multifunzione in dotazione. Disponibile in finitura Black o Silver.
Lettore digitale per DVD, DVD Audio, DVD-R/RW, CD, CD-R/RW, MP3, WMA e foto
JPEG. Uscita HDMI 1080p (Progressive Scan sia PAL che NTSC) con scaler interno.
Convertitori D/A audio Cirrus Logic CS4398 a 24bit/192KHz. Decoder AC-3 e DTS
integrati. Uscite audio digitali ottica e coassiale, uscita analogica stereo e
5.1. 1 uscita video composito, 1 S-Video, 1 component. 1 HDMI. On screen
display. Nuova meccanica più veloce e silenziosa. Sezione di alimentazione
switching con condensatori di altissima qualità superselezionati. Trigger 12V e
presa Computer I/O. Telecomando multifunzione in dotazione. Disponibile in
finitura Black o Silver

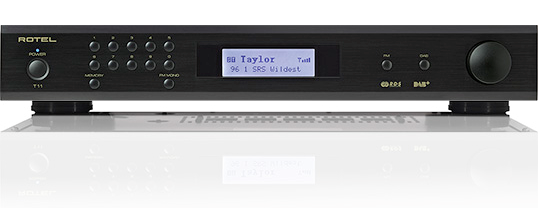

Sintonizzatore DAB/AM/FM
stereo con RDS, 30 stazioni radio preselezionabili, stadi d'uscita separati per
analogico e digitale, sezioni di alimentazione con componentistica selezionata e
separate per lo stadio analogico e digitale, comando 12V trigger, Telecomando in
dotazione. Disponibile in finitura Black o Silver.
une
into the new and exciting world of digital radio. The RT-06 offers all the
benefits of Digital Audio Broadcasting with the detailed, musical sound quality
of analogue FM, bringing in clear signals even under demanding conditions.
Thirty presets allow rapid recall of your favourite broadcasts, accessible via
either the unit ’s own remote control or the 06 Series System Remote. Also
includes: Separate analogue output stages for DAB and RDS FM/AM, Independent
internal analogue and digital power supplies, Short signal path routing, 30
pre--set memory, 12v trigger power control
Model RT-06 DAB tuning section -
Frequency Range 174.928(5A)~239.200(13F)MHz Sensitivity -99dBm Signal to Noise
Ratio 85dB Harmonic Distortion 0.08 % (1kHz) Frequency Response 10Hz~20kHz,
±1.5dB Adjacent Channel Selectivity 35dB Digital Output Sampling Frequency 48kHz
Analog Output Level 2.0 Vrms Antenna Input 75 ohms F female FM tuner - Usable
Sensitivity 14.2 dBf 50dB Quieting Sensitivity 20.2dBf (mono) / 45.3dBf (stereo)
Signal to Noise Ratio (at 65dBf) 73dBf (mono) / 70dBf (stereo) Harmonic
Distortion (at 65 dBf) 0.2% (mono) / 0.3% (stereo) Frequency Response 10 Hz-15
kHz, ±3 dB Capture Ratio 2.0 dB Alternate Channel Selectivity 47 dB (±400 kHz)
Spurious Response Ratio 90 dB mage Rejection Ratio 80 dB IF Rejection Ratio 80
dB AM Suppression Ratio 55 dB Stereo Separation (100Hz/1 kHz/10 kHz) 40 dB/45 dB/35
dB Output level 1V Antenna Input75 ohms unbalanced AM tuning section - Usable
Selectivity 500 µV/m Selectivity 25dB Harmonic Distortion 0.5% Image Rejection
Ratio 45 dB Signal to Noise Ratio 40dB Output level 250 mV Antenna InputLoop
Antenna Power Requirements - European Version 230 volts, 50 Hz Power Consumption
10 watts Dimensions (W x H x D) mm 437 x 72 x 342mm Panel Height 60 mm / 23/8"
60 mm Weight 3.9 Kg Available Finishes Silver / Black 12 Volt Trigger Yes Remote
Control Yes

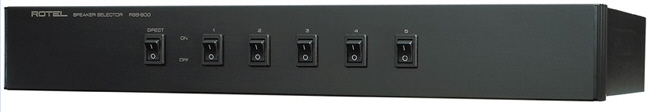

Rotel's
RSS-900 answers the dilemma faced by many audiophiles seeking a combination of
multi-speaker convenience in addition to accurate and transparent signal
transfer from an amplifier to a single pair of high resolution speakers. Five
pair of speaker outputs benefit from Rotel's unique Impedance and
Anti-capacitance Compensation to preserve sound quality while protecting your
power amplifier from the potentially difficult conditions that can otherwise
arise when driving multiple pairs of loudspeakers. The sixth output pair ("Direct"),
designed for the main system speakers, has minimal effect on the critical
amplifier-loudspeaker interface. The RSS-900 provides yet another example that
Rotel's Balanced Design concept brings you convenience without sonic
penalty.Model RSS-900 Maximum Amplifier Power up to 200 watts per channel
Speaker Switching 6 pairs direct 1 pair impedance compensated 5 pairs Dimensions
(W x H x D): 440 x 75 x 180 mm 17 3/8 x 2 7/8 x 7" Weight (net): 2.7kg / 6 lbs.
Processore/Scaler video
particolarmente indicato ai preamplificatori/processori e sintoamplificatori
multicanale Rotel, che beneficiano del collegamento RS-232, per visualizzare in
un unico on screen display le funzioni di entrambi. Scaling fino a 1080i/720p
automatico. Scaler Faroudja. 2 ingressi e 1 uscita HDMI. 3 ingressi e 1 uscita
component. 4 ingressi e 1 uscita sia composito che S-VHS. RS-232 bidirezionale.
Trigger 12V.
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per
ordinare o avere gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco nostro magazzino.
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Attenzione
Continuous
Power Output (20 – 20kHz, <0.03%, 8 ohms): 40 watts/ch Total Harmonic
Distortion (20Hz-20kHz) <0.03% at rated power, 1/2 power or 1 watt
Frequency Response Phono Input: 20Hz – 15kHz: ±0.3dB Line Level Inputs:
10Hz – 40kHz: ±1dB Damping Factor (20-20,000 Hz, 8 Ohms) 180 Input
Sensitivity / Impedance Phono Input: 2.8mV / 47kOhms Line Level Inputs:
170mV / 24kOhms In put Overload-o Phono Input: 180mV Line Level
Inputs: 5V Pre-amp Output / Impedancee 1V / 470 Ohms Tone Controls –
Bass / Treble ±6dB at 100Hz / 10kHz Dimensions (W x H x D) 435 x 72 x
342mm Signal to Noise Ratio (IHF “A” Weighted) Phono Input: 80 dB
Line Level Inputs: 100 dB Power Consumption 220 Watts Panel Height
60 mm Weight (net) 5.9kg
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg)
.jpg)
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
