guscio diritto (1 guscio curvo di corredo) staccabile
per iserire il cavo in canaline da 20mmq HDMI->HDMI
Bent

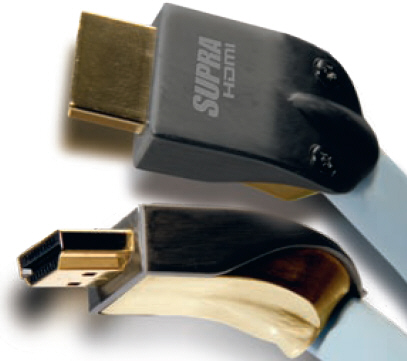

HDMI This new version of SUPRA HDMI connector is made in metal, and is very easy
to attach/detach. There is a plastic moulding over the soldered part that fits
exactly in the metal housing. (See pictures to the left.) Two versions are
provided with all of these HDMI interconnects. One is bent, one is straight: use
the one that fits your setup best.� This HDMI interconnect series will be
available from early 2009.SUPRA HF100SUPRA HF100 is designed for longer cable
runs and higher resolution for hardware with HDMI v1.3 and DVI interface. The
cores in SUPRA HF100 are insulated with Gas Blown Polypropylene, which offers
low capacitance and high velocity factor. The digital pair is impedance stable
over the entire frequency range, up to 600 MHz, (Compare HDMI v1.3, 340MHz).
SUPRA HF100 is double screened.
HDMI
stands for High Definition Multimedia Interface. SUPRA HDMI-HDMI is a high
performance, single link HDMI cable, especially designed for digital video and
audio over long lengths. The cable is terminated with overmoulded quality HDMI
connectors at both ends or else as an HDMI to DVI-D. The cable is a single link.
The gold plating of the pins is as thick as 0.8 micrometres for longevity and
reliability of first rate connection. DVI and HDMI are compatible for video
signals. But DVI is video alone whereas HDMI conveys both Video and Audio. HF100
HDMI / DVI cable SUPRA HF100 is specially designed for use over long runs and
high resolutions with HDMI and DVI hardware.HF100 Design The cores of
SUPRA HF100 are insulated with PE for low capacitance and high velocity factor.
The digital pairs are impedance stable over the entire frequency range up to
600MHz. The pairs are twisted with different pitch in order to minimize
crosstalk. SUPRA HF100 cable is double shielded. The most important cores are
separately screened and in addition there is a common shielding of all cores.
The shieldings provide efficient protection from electro-magnetic radiation.
We do not recommend cable runs over 20m for DVI-DVI. Tips and Tricks: With SUPRA
rewireable DVI connectors you can install DVI cables in conduitsHDMI v1.3
specifications:
We have recently received some questions concerning HDMI v1.3a and whether Supra
HF100 HDMI cables match these specifications.As of Spring 2007, all HF100 HDMI
cables up to 8m in length are v1.3 compliant.Previously, before spring 2007,
only HF100 HDMI cables up to 6m were v1.3 compliant. This is because, when our
8m HF100 HDMI cables were tested, it was found that it only just failed to meet
the v1.3 compliance test. As such, it was decided to change the inner parts of
the HDMI connector, because it allowed Supra 8m HF100 HDMI cables to conform to
"v1.3" standard. This for us was important because, after the 1m and 2m length
cables, the 8m is our most "requested" length.
These new low resistance connectors have been fitted to all Supra HF100 HDMI
cables since approx Spring 2007.This should not cause any concern for customers
who have bought HF100 cables before Spring 2007, because all lengths up to 6m,
passed the v1.3 test even before the connector was changed....and of course,
subsequenetly, since Spring 2007, all cables up to 6m in length are still
compliant....!Similarly, it has only been within the last 6 months or so, that
"v1.3 compliance" has become "important", due to the huge number of inferior
cables that were being marketed at very low cost and which, when used at 1080p,
were offering very poor performance....this was because for most people, "HDMI"
is just a generic term for "high definition" and yet, many of these cables were
most definitely, "low definition".As such, only since May 2008, has the HF100
HDMI packaging been updated to show which of our cables are v1.3 compliant. So,
if you find a store has sold you a HF100 HDMI cable in any length less than (or
equal to) 6m, then even if it doesn't say it on the packaging, it is still v1.3
compliant, (as long as it says it is a Supra HF100 cable on the cable itself).

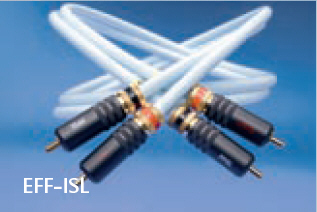

EFF-ISL
One of our best analogue interconnect. Multi test winner and our most sold
interconnect. EFF–ISL is an interconnect pair with Supra PPSL plugs, made for
analogue applications.EFF-IEFF–I is a 75 ohm Interconnect cable for RCA
interfaced analogue audio signals. The Supra EFF Concept The dynamic influence
of the skin effect has a great influence on the performance, as the signal is
nothing but variations. By means of the Equalized Frequency Flow technique (EFF),
Supra takes skin effect into account. The EFF cable consists of two tube shaped
conductors with a wall thickness of 0.20 mm. This makes signals at all
frequencies operate under the same conditions. The silver plating of the
conductors will also enhance the high frequency properties of the cable. Semi–balanced
connection configuration makes the EFF cable immune to electro–magnetic
interference, i.e. makes it noise free. It means that the screens are connected
to earth at only one end of the cable, so there is no signal through the screens,
but they serve only as screens. The earth connection is at the end where the
marking text starts. Connect the earthed end to the signal source. PPSL
RCA plug in 24K gold plating with squeeze clamping of both front part and cable
aperture. Shielding housing, front mounted. Teflon insulation. Lathe turned in
one piece. Max cable dia 7.7 mm.

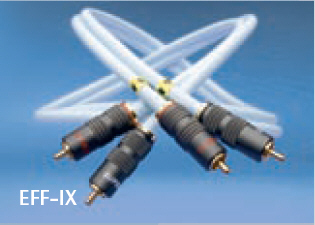

EFF-IX
One of our best analogue interconnect. Multi test winner and our most sold
interconnect. EFF–IX is an interconnect pair with Supra PPX plugs, made for
analogue applications. 24K gold-plated RCA (Phono) plug with Teflon insulation
and metal housing. Fits 3 mm cable diameter, e.g. the Supra AV-6 core. Provided
with different Colour ringsEFF-I EFF–I is a 75 ohm Interconnect cable for RCA
interfaced analogue audio signals. The Supra EFF Concept The dynamic influence
of the skin effect has a great influence on the performance, as the signal is
nothing but variations. By means of the Equalized Frequency Flow technique (EFF),
Supra takes skin effect into account. The EFF cable consists of two tube shaped
conductors with a wall thickness of 0.20 mm. This makes signals at all
frequencies operate under the same conditions. The silver plating of the
conductors will also enhance the high frequency properties of the cable. Semi–balanced
connection configuration makes the EFF cable immune to electro–magnetic
interference, i.e. makes it noise free. It means that the screens are connected
to earth at only one end of the cable, so there is no signal through the screens,
but they serve only as screens. The earth connection is at the end where the
marking text starts. Connect the earthed end to the signal source. PPX RCA plug
in 24K gold plating, no squeeze clampings. Shielding housing, front mounted.
Teflon insulation. Lathe turned in one piece. Max cable dia 8.5 mm.
Supra
Dual is an Interconnect pair-cable for analogue line applications, such as
signal source to preamplifier connection. The Supra Dual Design Supra Dual is
designed for noise immunity and for best musical performance. The Semi-balanced
connection configuration enhances the immunity to electro-magnetic interference.
It means that the screens are connected to earth at only one end of the cable,
so there is no signal through the screens, but they serve only as screens. The
earth connection is at the end where the marking text starts. Connect the
earthed end to the sorce device. Besides the good shielding properties of the
Aluminum foil, the cores are symmetrically twisted to avoid the magnetic pickup.
The Dual cable is a fast interconnect of low capacitance. Supra Dual is
insulated with PE (Polyethylene) which makes only 52 pF/m and makes the

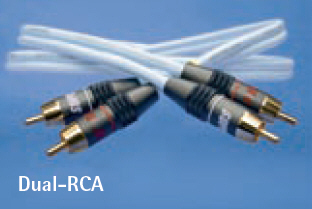

propagation velocity to 66% of light speedDual–RCA is an interconnect pair with
Supra RCA-6 connectors, made for analogue applications. Semi-balanced
EFF-IX
One of our best analogue interconnect. Multi test winner and our most sold
interconnect. EFF–IX is an interconnect pair with Supra PPX plugs, made for
analogue applications. 24K gold-plated RCA (Phono) plug with Teflon insulation
and metal housing. Fits 3 mm cable diameter, e.g. the Supra AV-6 core. Provided
with different Colour ringsEFF-I EFF–I is a 75 ohm Interconnect cable for RCA
interfaced analogue audio signals. The Supra EFF Concept The dynamic influence
of the skin effect has a great influence on the performance, as the signal is
nothing but variations. By means of the Equalized Frequency Flow technique (EFF),
Supra takes skin effect into account. The EFF cable consists of two tube shaped
conductors with a wall thickness of 0.20 mm. This makes signals at all
frequencies operate under the same conditions. The silver plating of the
conductors will also enhance the high frequency properties of the cable. Semi–balanced
connection configuration makes the EFF cable immune to electro–magnetic
interference, i.e. makes it noise free. It means that the screens are connected
to earth at only one end of the cable, so there is no signal through the screens,
but they serve only as screens. The earth connection is at the end where the
marking text starts. Connect the earthed end to the signal source. PPX RCA plug
in 24K gold plating, no squeeze clampings. Shielding housing, front mounted.
Teflon insulation. Lathe turned in one piece. Max cable dia 8.5 mm.

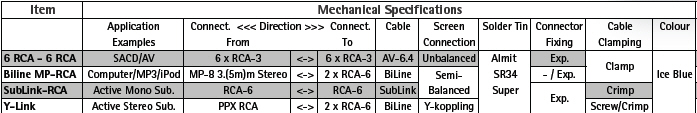

SubLink-RCA
is a semi-balanced interconnect from one RCA connector to one RCA connector.
Application example: From the mono output of the AVR amp to an active mono
subwoofer.Supra Dual is an Interconnect pair-cable for analogue line
applications, such as signal source to preamplifier connection. The Supra Dual
Design Supra Dual is designed for noise immunity and for best musical
performance. The Semi-balanced connection configuration enhances the immunity to
electro-magnetic interference. It means that the screens are connected to earth
at only one end of the cable, so there is no signal through the screens, but
they serve only as screens. The earth connection is at the end where the marking
text starts. Connect the earthed end to the sorce device. Besides the good
shielding properties of the Aluminum foil, the cores are symmetrically twisted
to avoid the magnetic pickup. The Dual cable is a fast interconnect of low
capacitance. Supra Dual is insulated with PE (Polyethylene) which makes only 52
pF/m and makes the propagation velocity to 66% of light speed
Cavo interconnessione
terminato ad Y con PPX RCA ed RCA 6,
Supra
Dual is an Interconnect pair-cable for analogue line applications, such as
signal source to preamplifier connection. The Supra Dual Design Supra Dual is
designed for noise immunity and for best musical performance. The Semi-balanced
connection configuration enhances the immunity to electro-magnetic interference.
It means that the screens are connected to earth at only one end of the cable,
so there is no signal through the screens, but they serve only as screens. The
earth connection is at the end where the marking text starts. Connect the
earthed end to the sorce device. Besides the good shielding properties of the
Aluminum foil, the cores are symmetrically twisted to avoid the magnetic pickup.
The Dual cable is a fast interconnect of low capacitance. Supra Dual is
insulated with PE (Polyethylene) which makes only 52 pF/m and makes the
propagation velocity to 66% of light speedY-Link is a Y-connected semi-balanced
interconnect from one PPX RCA connector to two RCA-6 connectors.
Application example: From the mono output of the AVR amp to an active stereo
subwoofer.

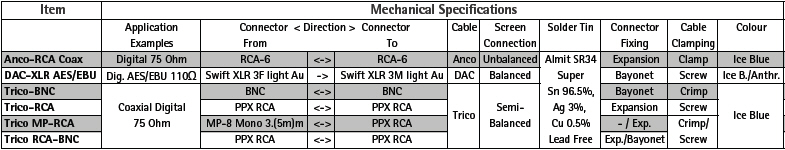

Supra
Trico awarded "Product of the Year 2003-2004" award, when used as a co-axial
digital audio cable, by UK Hi-Fi Choice magazine. This follows on from the "BEST
BUY" rating achieved earlier in the year from Hi-Fi Choice. The basic
specification is as follows: Very low capacitance, only 58pF/metre, and
insulated with PE foam, leading to a propagation velocity of 0.78 light speed.
Double shielded, with an inner braid of silver plated OFC and an outer braid of
bare OFC. The two shields together provide efficient noise protection from
external sources. The silver plated signal carrying inner conductor enhances the
high frequency properties of the cable, leading to an extremely low level of
attenuation : 0.6 dB per 100 metres at 1.0 MHz and just 7.1 dB per 100 metres at
100 MHz! True 75 ohm characteristic impedance (+/- 1.5 Ohm upto 100 MHz)
Cavo interconnessione
Digitale & Analogico, bilanciato con PPX RCA, 1m
disponibile grigio o blu

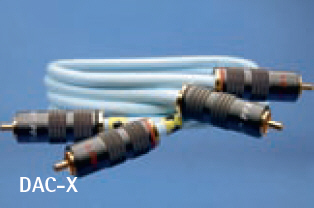

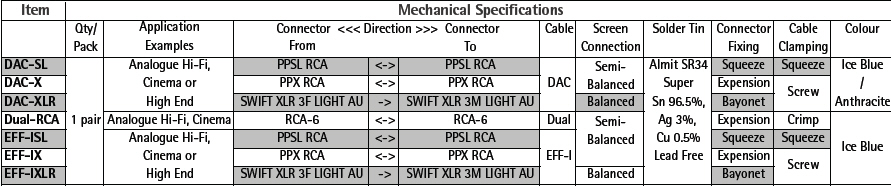

DAC-X
DAC–X is an interconnect pair with Supra PPX RCA connectors, made for analogue
applications. Semi-balanced.DAC is a interconnect cable for RCA/XLR interfaced
analogue audio signals.DAC Interconnection Cable A fast interconnect of
extremely low capacitance. In accor–dance with our design concept the inductance
is to be low for a loudspaker cable whereas for an interconnect the capacitance
is to be low. Supra DAC is insulated with PE foam skin which makes only 45 pF/m.
It is screened with our very efficient and strong semiconductive nylon ribbon.
The high frequency properties of Supra DAC are out–standingly good, owing to its
high velocity factor. More clean transients and thus improved space dimension
comes with the high velocity. The velocity factor of Supra DAC is as high as 78%
of the speed of light
Cavo interconnessione
Digitale & Analogico, Sbilanciato con PPSL,

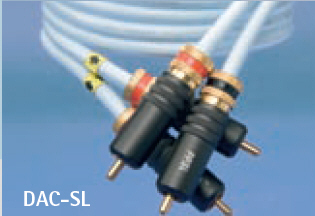

DAC-SL
DAC–SL is an interconnect pair with Supra PPSL RCA connectors, made for analogue
applications. Semi-balanced DAC is a interconnect cable for RCA/XLR interfaced
analogue audio signals.DAC Interconnection Cable A fast interconnect of
extremely low capacitance. In accor–dance with our design concept the inductance
is to be low for a loudspaker cable whereas for an interconnect the capacitance
is to be low. Supra DAC is insulated with PE foam skin which makes only 45 pF/m.
It is screened with our very efficient and strong semiconductive nylon ribbon.
The high frequency properties of Supra DAC are out–standingly good, owing to its
high velocity factor. More clean transients and thus improved space dimension
comes with the high velocity. The velocity factor of Supra DAC is as high as 78%
of the speed of light
Cavo interconnessione
Digitale & Analogico, Sbilanciato con XLR
DAC-SL
DAC–SL is an interconnect pair with Supra PPSL RCA connectors, made for analogue
applications. Semi-balanced DAC is a interconnect cable for RCA/XLR interfaced
analogue audio signals.DAC Interconnection Cable A fast interconnect of
extremely low capacitance. In accor–dance with our design concept the inductance
is to be low for a loudspaker cable whereas for an interconnect the capacitance
is to be low. Supra DAC is insulated with PE foam skin which makes only 45 pF/m.
It is screened with our very efficient and strong semiconductive nylon ribbon.
The high frequency properties of Supra DAC are out–standingly good, owing to its
high velocity factor. More clean transients and thus improved space dimension
comes with the high velocity. The velocity factor of Supra DAC is as high as 78%
of the speed of light
There
are a number hi-fi (2 channel audio) cables available to suit all budgets: The
BiLine cables for iPods, PC's and MP3 players The new entry level DUAL cable for
budget hi-fi systems The mid-priced DAC range for mid-priced hi-fi systems The
silver-plated EFF-I cable range for top end hi-fi systems The high-end Sword
cable for top-notch no-compromise systems

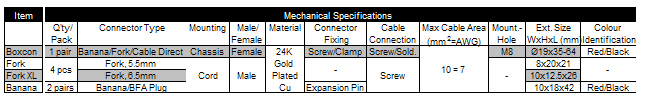

Banana Connettori tipo BANANA,
placcati oro, 2.5/10 mmq, 4 pezzi Banana
24K gold plated. 4 mm Banana plug for up to 10 mm2 cables. The banana pin fits
also BFA plugs or connectors. Can be connected either on axis or at a 90° angle.
Red and Black housings.
CombiCon
Banana 24K gold plated loudspeaker connector for cables up to 6mm2. The
banana pin fits also BFA plugs or connectors. The cable can be attached straight
on axis or at a 90 degree angle. A spade can be attached to the connector body
for via connections
This combination connector comprises two parts: a termination part to be screwed
onto a connector body. The connector part is of two types; Spade and Banana pin,
which in turn also fit BFA plugs. The Connector Body The connector body can be
attached to the cable either on axis or in a 90 degree angle. See the R.H.
picture. Also a spade terminated cable can be attached to the connector body.
Printing in red and black, respectively, for polarity identification.
The Termination Parts The Banana pin also fits BFA connectors. The Spade is
angled for easier mounting in tight spaces. It has a two- step, width opening.
CombiCon
Spade 24K gold plated loudspeaker connector for cables up to 6 mm2. The cable
can be attached straight on axis or at a 90 degree angle. Another spade can be
attached to the connector body for via connectionsThis combination connector
comprises two parts: a termination part to be screwed onto a connector body. The
connector part is of two types; Spade and Banana pin, which in turn also fit BFA
plugs. The Connector Body The connector body can be attached to the cable either
on axis or in a 90 degree angle. See the R.H. picture. Also a spade terminated
cable can be attached to the connector body. Printing in red and black,
respectively, for polarity identification. The Termination Parts The Banana pin
also fits BFA connectors. The Spade is angled for easier mounting in tight
spaces. It has a two- step, width opening.
Connett. tipo FORCHETTA,
placcati oro, 2.5/10 mmq, 4 pezzi
Fork
24K gold plated spade. The width of the fork grip is 5.5 mm. The cable can be
connected either on axis or on a 90° angle. Fits up to 10 mm2 cables. Adapter
screw for 4 mmBanana plug is included. Fork is the most copied Supra connector
worldwide
Fork
XLA larger variation of the Fork. The size of the fork width is 6.5 mm. The
adapter screws for Banana plugs are not included in this product.CombiCon Series
CAVI DIFFUSORI AL
METRO

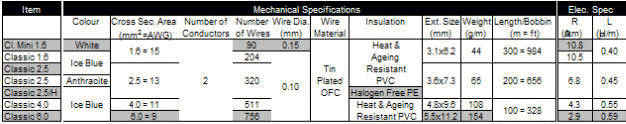

Supra

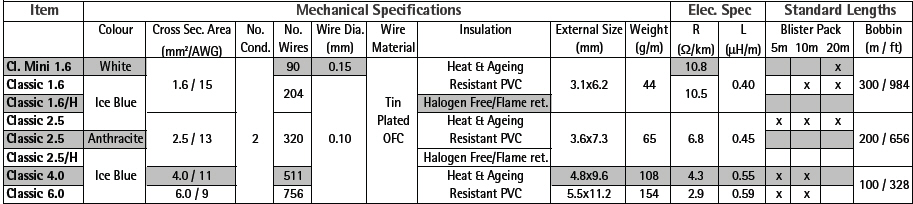

Classic 1,6mm
€. 3,75
Per ordine e sconto
Telefonare/e-mail
Cavo di potenza stereo,
1,5mmq, uso suggerito sino a 5 m, COLOR BIANCO
Mini
1.6 2x1.6 mm²An economy version of Classic 1.6 of fewer wires. Application
examples: Low power such as rear speakers of home theatres. Available in white
only. The SUPRA Classic series comprises highly flexible cables containing tin
plated multi-stranded OFC copper of purity degree 5N, which means >99.999% pure,
i.e. purer than five nines. The insulation is a special ion stable PVC which
minimises corrosion of the sonically benign tin surface. The tin contributes to
a better sound quality by minimising the skin-effect and making less current
jumps between the wire surfaces. This series covers all Hi-Fi applications from
low power speakers, such as rear speakers of home theatre systems, to high power
systems with long cable lengths.
Supra
Classic 1,6mm
€. 4,39
Per ordine e sconto
Telefonare/e-mail
Cavo di potenza stereo,
1,6mmq, uso suggerito sino a 5 m
Classic
1.6 2x1.6 mm²Application examples: Tweeters in bi-wiring, low power
systems or shorter lengths of medium power systems. The SUPRA Classic series
comprises highly flexible cables containing tin plated multi-stranded OFC copper
of purity degree 5N, which means >99.999% pure, i.e. purer than five nines. The
insulation is a special ion stable PVC which minimises corrosion of the
sonically benign tin surface. The tin contributes to a better sound quality by
minimising the skin-effect and making less current jumps between the wire
surfaces. This series covers all Hi-Fi applications from low power speakers,
such as rear speakers of home theatre systems, to high power systems with long
cable lengths.
Supra
Classic 2.5mm €.
4,92
Per ordine e sconto
Telefonare/e-mail
Cavo di
potenza stereo, 2.5mmq, uso suggerito sino a 8 m Colore Antracite
Classic
2.5 2x2.5 mm² Application examples: Medium power systems, or shorter lengths in
high power systems. Available in both Ice Blue and Anthracite Grey. The SUPRA
Classic series comprises highly flexible cables containing tin plated
multi-stranded OFC copper of purity degree 5N, which means >99.999% pure, i.e.
purer than five nines. The insulation is a special ion stable PVC which
minimises corrosion of the sonically benign tin surface. The tin contributes to
a better sound quality by minimising the skin-effect and making less current
jumps between the wire surfaces. This series covers all Hi-Fi applications from
low power speakers, such as rear speakers of home theatre systems, to high power
systems with long cable lengths.
Supra
Classic 4mm
€. 8,16
Per ordine e sconto
Telefonare/e-mail
Cavo di potenza stereo, 4 mmq,
uso suggerito sino a 12 m
Classic
4.02x4.0 mm² Application examples: High power systems, or longer lengths in
low/medium power systems.The SUPRA Classic series comprises highly flexible
cables containing tin plated multi-stranded OFC copper of purity degree 5N,
which means >99.999% pure, i.e. purer than five nines. The insulation is a
special ion stable PVC which minimises corrosion of the sonically benign tin
surface. The tin contributes to a better sound quality by minimising the
skin-effect and making less current jumps between the wire surfaces. This series
covers all Hi-Fi applications from low power speakers, such as rear speakers of
home theatre systems, to high power systems with long cable lengths.
Supra
Classic 6mm
€. 12,00
Per ordine e sconto
Telefonare/e-mail
Cavo di potenza stereo, 6 mmq,
uso suggerito sino a 12 m
Classic
6.0 2x6.0 mm²Application example: High power systems, even longer lengths. The
SUPRA Classic series comprises highly flexible cables containing tin plated
multi-stranded OFC copper of purity degree 5N, which means >99.999% pure, i.e.
purer than five nines. The insulation is a special ion stable PVC which
minimises corrosion of the sonically benign tin surface. The tin contributes to
a better sound quality by minimising the skin-effect and making less current
jumps between the wire surfaces. This series covers all Hi-Fi applications from
low power speakers, such as rear speakers of home theatre systems, to high power
systems with long cable lengths.
Supra
Rondo 4x2,5 €.
13,80
Per ordine e sconto
Telefonare/e-mail
Cavo di potenza per bi-wiring/amping
colore antracite

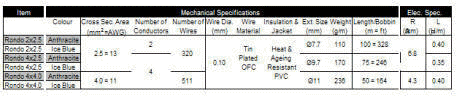

Rondo
4x2.5 4x2.5 mm². Tin plated Application examples: Bi-wiring, pair channel cable
for medium power systems or single channel connected for high power systems.For
Hi-Fi or stage use.SUPRA Concentric Cables are highly flexible and of short
pitch twisting for low inductance and low radiation as well as a high tolerance
to frequent bendings and vibrations before bending fatique. This short pitch
twisting takes special machines and is a slower and more expensive production
which you do not often find in other than the Supra portfolio
Supra
Rondo 4x4
€. 18,36
Per ordine e sconto
Telefonare/e-mail
Cavo di potenza per bi-wiring/amping
colore antracite
Rondo
4x2.5 4x2.5 mm². Tin plated Application examples: Bi-wiring, pair channel cable
for medium power systems or single channel connected for high power systems.For
Hi-Fi or stage use.SUPRA Concentric Cables are highly flexible and of short
pitch twisting for low inductance and low radiation as well as a high tolerance
to frequent bendings and vibrations before bending fatique. This short pitch
twisting takes special machines and is a slower and more expensive production
which you do not often find in other than the Supra portfolio

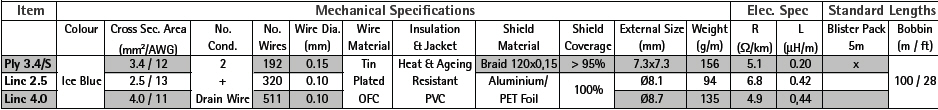

Supra
PLY 2
€. 13,20
Per ordine e sconto
Telefonare/e-mail
Cavo stereo di specialissimo
progetto 2 mmq, Schermato, ICE BLUE 5 METRI in blisterSUPRA Ply - ’A Logical and
Progressive Design’
Audio
cables’ performance is initially determined by their loop resistance (R) &
inductance (L) & shunt capacitance (C). For most speakers R & L must be low, but
capacitance value, C doesn’t matter [1,2] as speakers already act as large cap
loads. But simply using larger wire makes R low, at the expense of an increasing
ratio to L with musically unacceptable effects. Ways to make inductance L low
also with low resistance, include tapes, either stacked or arranged in ribbons.
But these types are impractical to fit to nearly every speaker connector without
discontinuities, & are stressed & often unsightly when bends are required in
real installs & also aren’t suited to mobile uses. Litzing with multiple,
insulated conductors is more practical, but quality Litzes are expensive and
termination not easy. Other types are gross, like industrial pipes, unsuited to
many domestic spaces. Simplistic fat conductors’ rising impedance (due to L) of
+6dB/octave is further raised by internal eddy currents causing ’Skin effect’,
like ’the square root of inductance’, adding. +3dB/oct, to the L-reactance slope.
For typical cable runs, nett inductivity is such that performance in heavy plain
conductors is measurably affected with steady signals just above 1kHz. Cables
with copper or silver stranded conductors suffer from complex oxidation. The
semiconductive ’diodes’ between the strands aren’t seen by steady tests, but
look like a high capacitance to music signals. This causes energy storage/release
cycles, that regular tests miss, yet which is audible with music. This problem
is also describable as the electron flow being ’trapped’ inside strands &
twisting away from the direct route. Supra Ply is a largesection, low resistance
cable, overcoming skin effect & transient distortion, using pure tin plating.
Tin melds to copper with-out any diodic barrier, & also protects the copper from
common corrosions - ideal for outdoors & 12 volt. Most audiograde cables’
conductors are damaged by contamination, by plastic out-gassing, from the impure
atmosphere, & liquid spills. Some are protected but only by a thin coating that’ll
one day crack with use and age. Neatly, oxidation forming on Ply is sonically
benign.Other Advantages When installing, Ply’s rectangular conductor is readily
circularised for insertion into receptacles of most regular connectors. Square
outer profiling suits most housings too - unlike ribbons, tapes & litzes. Ply is
readily coiled, more like thinner, basic cables - making it friendly in
temporary setups. Demostrating the Difference Unlike some audio products,
benefits of Supra Ply are readily shown by repeatable measurements. Ply’s
low-loss behaviour for hf audio (incl. bass transients), is evident. Figs. 1, 2
are time domain scope pics, showing typical dynamic/damping differences with a
square wave. After transients, Supra’s Ply restrains the peaking & accelerates
the signal’s return to 0 volts at the speaker end. Peaking in wide spaced cable
shows limp damping & hf loss, because it has high L & low C, the opposite of
what’s required to drive most speakers.
Supra
PLY 3.4
€. 15,60
Per ordine e sconto
Telefonare/e-mail
Cavo stereo di specialissimo
progetto 3.4 mmq, Schermato, ICE BLUE 5 METRI in blister
Audio
cables’ performance is initially determined by their loop resistance (R) &
inductance (L) & shunt capacitance (C). For most speakers R & L must be low, but
capacitance value, C doesn’t matter [1,2] as speakers already act as large cap
loads. But simply using larger wire makes R low, at the expense of an increasing
ratio to L with musically unacceptable effects. Ways to make inductance L low
also with low resistance, include tapes, either stacked or arranged in ribbons.
But these types are impractical to fit to nearly every speaker connector without
discontinuities, & are stressed & often unsightly when bends are required in
real installs & also aren’t suited to mobile uses. Litzing with multiple,
insulated conductors is more practical, but quality Litzes are expensive and
termination not easy. Other types are gross, like industrial pipes, unsuited to
many domestic spaces. Simplistic fat conductors’ rising impedance (due to L) of
+6dB/octave is further raised by internal eddy currents causing ’Skin effect’,
like ’the square root of inductance’, adding. +3dB/oct, to the L-reactance slope.
For typical cable runs, nett inductivity is such that performance in heavy plain
conductors is measurably affected with steady signals just above 1kHz. Cables
with copper or silver stranded conductors suffer from complex oxidation. The
semiconductive ’diodes’ between the strands aren’t seen by steady tests, but
look like a high capacitance to music signals. This causes energy storage/release
cycles, that regular tests miss, yet which is audible with music. This problem
is also describable as the electron flow being ’trapped’ inside strands &
twisting away from the direct route. Supra Ply is a largesection, low resistance
cable, overcoming skin effect & transient distortion, using pure tin plating.
Tin melds to copper with-out any diodic barrier, & also protects the copper from
common corrosions - ideal for outdoors & 12 volt. Most audiograde cables’
conductors are damaged by contamination, by plastic out-gassing, from the impure
atmosphere, & liquid spills. Some are protected but only by a thin coating that’ll
one day crack with use and age. Neatly, oxidation forming on Ply is sonically
benign.Other Advantages When installing, Ply’s rectangular conductor is readily
circularised for insertion into receptacles of most regular connectors. Square
outer profiling suits most housings too - unlike ribbons, tapes & litzes. Ply is
readily coiled, more like thinner, basic cables - making it friendly in
temporary setups. Demostrating the Difference Unlike some audio products,
benefits of Supra Ply are readily shown by repeatable measurements. Ply’s
low-loss behaviour for hf audio (incl. bass transients), is evident. Figs. 1, 2
are time domain scope pics, showing typical dynamic/damping differences with a
square wave. After transients, Supra’s Ply restrains the peaking & accelerates
the signal’s return to 0 volts at the speaker end. Peaking in wide spaced cable
shows limp damping & hf loss, because it has high L & low C, the opposite of
what’s required to drive most speakers.
Supra
PLY 3.4S
Per ordine e sconto
Telefonare/e-mail
Cavo stereo di specialissimo
progetto 3.4 mmq, Schermato, ICE BLUE 5 METRI in blister
Audio
cables’ performance is initially determined by their loop resistance (R) &
inductance (L) & shunt capacitance (C). For most speakers R & L must be low, but
capacitance value, C doesn’t matter [1,2] as speakers already act as large cap
loads. But simply using larger wire makes R low, at the expense of an increasing
ratio to L with musically unacceptable effects. Ways to make inductance L low
also with low resistance, include tapes, either stacked or arranged in ribbons.
But these types are impractical to fit to nearly every speaker connector without
discontinuities, & are stressed & often unsightly when bends are required in
real installs & also aren’t suited to mobile uses. Litzing with multiple,
insulated conductors is more practical, but quality Litzes are expensive and
termination not easy. Other types are gross, like industrial pipes, unsuited to
many domestic spaces. Simplistic fat conductors’ rising impedance (due to L) of
+6dB/octave is further raised by internal eddy currents causing ’Skin effect’,
like ’the square root of inductance’, adding. +3dB/oct, to the L-reactance slope.
For typical cable runs, nett inductivity is such that performance in heavy plain
conductors is measurably affected with steady signals just above 1kHz. Cables
with copper or silver stranded conductors suffer from complex oxidation. The
semiconductive ’diodes’ between the strands aren’t seen by steady tests, but
look like a high capacitance to music signals. This causes energy storage/release
cycles, that regular tests miss, yet which is audible with music. This problem
is also describable as the electron flow being ’trapped’ inside strands &
twisting away from the direct route. Supra Ply is a largesection, low resistance
cable, overcoming skin effect & transient distortion, using pure tin plating.
Tin melds to copper with-out any diodic barrier, & also protects the copper from
common corrosions - ideal for outdoors & 12 volt. Most audiograde cables’
conductors are damaged by contamination, by plastic out-gassing, from the impure
atmosphere, & liquid spills. Some are protected but only by a thin coating that’ll
one day crack with use and age. Neatly, oxidation forming on Ply is sonically
benign.Other Advantages When installing, Ply’s rectangular conductor is readily
circularised for insertion into receptacles of most regular connectors. Square
outer profiling suits most housings too - unlike ribbons, tapes & litzes. Ply is
readily coiled, more like thinner, basic cables - making it friendly in
temporary setups. Demostrating the Difference Unlike some audio products,
benefits of Supra Ply are readily shown by repeatable measurements. Ply’s
low-loss behaviour for hf audio (incl. bass transients), is evident. Figs. 1, 2
are time domain scope pics, showing typical dynamic/damping differences with a
square wave. After transients, Supra’s Ply restrains the peaking & accelerates
the signal’s return to 0 volts at the speaker end. Peaking in wide spaced cable
shows limp damping & hf loss, because it has high L & low C, the opposite of
what’s required to drive most speakers.
Cavo di potenza stereo,
1,5mmq, uso suggerito sino a 5 m, COLOR BIANCO
Mini
1.6 2x1.6 mm²An economy version of Classic 1.6 of fewer wires. Application
examples: Low power such as rear speakers of home theatres. Available in white
only. The SUPRA Classic series comprises highly flexible cables containing tin
plated multi-stranded OFC copper of purity degree 5N, which means >99.999% pure,
i.e. purer than five nines. The insulation is a special ion stable PVC which
minimises corrosion of the sonically benign tin surface. The tin contributes to
a better sound quality by minimising the skin-effect and making less current
jumps between the wire surfaces. This series covers all Hi-Fi applications from
low power speakers, such as rear speakers of home theatre systems, to high power
systems with long cable lengths.
Cavo di potenza stereo,
1,6mmq, uso suggerito sino a 5 m
Classic
1.6 2x1.6 mm²Application examples: Tweeters in bi-wiring, low power
systems or shorter lengths of medium power systems. The SUPRA Classic series
comprises highly flexible cables containing tin plated multi-stranded OFC copper
of purity degree 5N, which means >99.999% pure, i.e. purer than five nines. The
insulation is a special ion stable PVC which minimises corrosion of the
sonically benign tin surface. The tin contributes to a better sound quality by
minimising the skin-effect and making less current jumps between the wire
surfaces. This series covers all Hi-Fi applications from low power speakers,
such as rear speakers of home theatre systems, to high power systems with long
cable lengths.
Cavo di
potenza stereo, 2.5mmq, uso suggerito sino a 8 m Colore Antracite
Classic
2.5 2x2.5 mm² Application examples: Medium power systems, or shorter lengths in
high power systems. Available in both Ice Blue and Anthracite Grey. The SUPRA
Classic series comprises highly flexible cables containing tin plated
multi-stranded OFC copper of purity degree 5N, which means >99.999% pure, i.e.
purer than five nines. The insulation is a special ion stable PVC which
minimises corrosion of the sonically benign tin surface. The tin contributes to
a better sound quality by minimising the skin-effect and making less current
jumps between the wire surfaces. This series covers all Hi-Fi applications from
low power speakers, such as rear speakers of home theatre systems, to high power
systems with long cable lengths.
Cavo di potenza stereo, 4 mmq,
uso suggerito sino a 12 m
Classic
4.02x4.0 mm² Application examples: High power systems, or longer lengths in
low/medium power systems.The SUPRA Classic series comprises highly flexible
cables containing tin plated multi-stranded OFC copper of purity degree 5N,
which means >99.999% pure, i.e. purer than five nines. The insulation is a
special ion stable PVC which minimises corrosion of the sonically benign tin
surface. The tin contributes to a better sound quality by minimising the
skin-effect and making less current jumps between the wire surfaces. This series
covers all Hi-Fi applications from low power speakers, such as rear speakers of
home theatre systems, to high power systems with long cable lengths.
Cavo di potenza stereo, 6 mmq,
uso suggerito sino a 12 m
Classic
6.0 2x6.0 mm²Application example: High power systems, even longer lengths. The
SUPRA Classic series comprises highly flexible cables containing tin plated
multi-stranded OFC copper of purity degree 5N, which means >99.999% pure, i.e.
purer than five nines. The insulation is a special ion stable PVC which
minimises corrosion of the sonically benign tin surface. The tin contributes to
a better sound quality by minimising the skin-effect and making less current
jumps between the wire surfaces. This series covers all Hi-Fi applications from
low power speakers, such as rear speakers of home theatre systems, to high power
systems with long cable lengths.

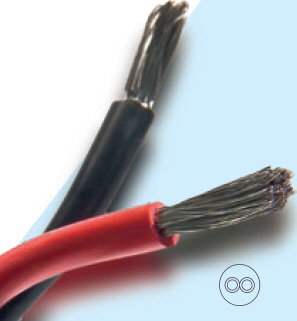

2x2.5
mm². Tin plated Application examples: Hi-Fi or stage use in medium or
shorter lengths in high power systems. SUPRA Concentric Cables are highly
flexible and of short pitch twisting for low inductance and low radiation as
well as a high tolerance to frequent bendings and vibrations before bending
fatique. This short pitch twisting takes special machines and is a slower and
more expensive production which you do not often find in other than the Supra
portfolio
Cavo di potenza per bi-wiring/amping
colore antracite
Rondo
4x2.5 4x2.5 mm². Tin plated Application examples: Bi-wiring, pair channel cable
for medium power systems or single channel connected for high power systems.For
Hi-Fi or stage use.SUPRA Concentric Cables are highly flexible and of short
pitch twisting for low inductance and low radiation as well as a high tolerance
to frequent bendings and vibrations before bending fatique. This short pitch
twisting takes special machines and is a slower and more expensive production
which you do not often find in other than the Supra portfolio
Cavo stereo di specialissimo
progetto 2 mmq, Schermato, ICE BLUE 5 METRI in blisterSUPRA Ply - ’A Logical and
Progressive Design’
Audio
cables’ performance is initially determined by their loop resistance (R) &
inductance (L) & shunt capacitance (C). For most speakers R & L must be low, but
capacitance value, C doesn’t matter [1,2] as speakers already act as large cap
loads. But simply using larger wire makes R low, at the expense of an increasing
ratio to L with musically unacceptable effects. Ways to make inductance L low
also with low resistance, include tapes, either stacked or arranged in ribbons.
But these types are impractical to fit to nearly every speaker connector without
discontinuities, & are stressed & often unsightly when bends are required in
real installs & also aren’t suited to mobile uses. Litzing with multiple,
insulated conductors is more practical, but quality Litzes are expensive and
termination not easy. Other types are gross, like industrial pipes, unsuited to
many domestic spaces. Simplistic fat conductors’ rising impedance (due to L) of
+6dB/octave is further raised by internal eddy currents causing ’Skin effect’,
like ’the square root of inductance’, adding. +3dB/oct, to the L-reactance slope.
For typical cable runs, nett inductivity is such that performance in heavy plain
conductors is measurably affected with steady signals just above 1kHz. Cables
with copper or silver stranded conductors suffer from complex oxidation. The
semiconductive ’diodes’ between the strands aren’t seen by steady tests, but
look like a high capacitance to music signals. This causes energy storage/release
cycles, that regular tests miss, yet which is audible with music. This problem
is also describable as the electron flow being ’trapped’ inside strands &
twisting away from the direct route. Supra Ply is a largesection, low resistance
cable, overcoming skin effect & transient distortion, using pure tin plating.
Tin melds to copper with-out any diodic barrier, & also protects the copper from
common corrosions - ideal for outdoors & 12 volt. Most audiograde cables’
conductors are damaged by contamination, by plastic out-gassing, from the impure
atmosphere, & liquid spills. Some are protected but only by a thin coating that’ll
one day crack with use and age. Neatly, oxidation forming on Ply is sonically
benign.Other Advantages When installing, Ply’s rectangular conductor is readily
circularised for insertion into receptacles of most regular connectors. Square
outer profiling suits most housings too - unlike ribbons, tapes & litzes. Ply is
readily coiled, more like thinner, basic cables - making it friendly in
temporary setups. Demostrating the Difference Unlike some audio products,
benefits of Supra Ply are readily shown by repeatable measurements. Ply’s
low-loss behaviour for hf audio (incl. bass transients), is evident. Figs. 1, 2
are time domain scope pics, showing typical dynamic/damping differences with a
square wave. After transients, Supra’s Ply restrains the peaking & accelerates
the signal’s return to 0 volts at the speaker end. Peaking in wide spaced cable
shows limp damping & hf loss, because it has high L & low C, the opposite of
what’s required to drive most speakers.
Cavo stereo di specialissimo
progetto 3.4 mmq, Schermato, ICE BLUE 5 METRI in blister
Audio
cables’ performance is initially determined by their loop resistance (R) &
inductance (L) & shunt capacitance (C). For most speakers R & L must be low, but
capacitance value, C doesn’t matter [1,2] as speakers already act as large cap
loads. But simply using larger wire makes R low, at the expense of an increasing
ratio to L with musically unacceptable effects. Ways to make inductance L low
also with low resistance, include tapes, either stacked or arranged in ribbons.
But these types are impractical to fit to nearly every speaker connector without
discontinuities, & are stressed & often unsightly when bends are required in
real installs & also aren’t suited to mobile uses. Litzing with multiple,
insulated conductors is more practical, but quality Litzes are expensive and
termination not easy. Other types are gross, like industrial pipes, unsuited to
many domestic spaces. Simplistic fat conductors’ rising impedance (due to L) of
+6dB/octave is further raised by internal eddy currents causing ’Skin effect’,
like ’the square root of inductance’, adding. +3dB/oct, to the L-reactance slope.
For typical cable runs, nett inductivity is such that performance in heavy plain
conductors is measurably affected with steady signals just above 1kHz. Cables
with copper or silver stranded conductors suffer from complex oxidation. The
semiconductive ’diodes’ between the strands aren’t seen by steady tests, but
look like a high capacitance to music signals. This causes energy storage/release
cycles, that regular tests miss, yet which is audible with music. This problem
is also describable as the electron flow being ’trapped’ inside strands &
twisting away from the direct route. Supra Ply is a largesection, low resistance
cable, overcoming skin effect & transient distortion, using pure tin plating.
Tin melds to copper with-out any diodic barrier, & also protects the copper from
common corrosions - ideal for outdoors & 12 volt. Most audiograde cables’
conductors are damaged by contamination, by plastic out-gassing, from the impure
atmosphere, & liquid spills. Some are protected but only by a thin coating that’ll
one day crack with use and age. Neatly, oxidation forming on Ply is sonically
benign.Other Advantages When installing, Ply’s rectangular conductor is readily
circularised for insertion into receptacles of most regular connectors. Square
outer profiling suits most housings too - unlike ribbons, tapes & litzes. Ply is
readily coiled, more like thinner, basic cables - making it friendly in
temporary setups. Demostrating the Difference Unlike some audio products,
benefits of Supra Ply are readily shown by repeatable measurements. Ply’s
low-loss behaviour for hf audio (incl. bass transients), is evident. Figs. 1, 2
are time domain scope pics, showing typical dynamic/damping differences with a
square wave. After transients, Supra’s Ply restrains the peaking & accelerates
the signal’s return to 0 volts at the speaker end. Peaking in wide spaced cable
shows limp damping & hf loss, because it has high L & low C, the opposite of
what’s required to drive most speakers.
Cavo stereo di specialissimo
progetto 3.4S mmq, Schermato, ICE BLUE 5 METRI in blister
Audio
cables’ performance is initially determined by their loop resistance (R) &
inductance (L) & shunt capacitance (C). For most speakers R & L must be low, but
capacitance value, C doesn’t matter [1,2] as speakers already act as large cap
loads. But simply using larger wire makes R low, at the expense of an increasing
ratio to L with musically unacceptable effects. Ways to make inductance L low
also with low resistance, include tapes, either stacked or arranged in ribbons.
But these types are impractical to fit to nearly every speaker connector without
discontinuities, & are stressed & often unsightly when bends are required in
real installs & also aren’t suited to mobile uses. Litzing with multiple,
insulated conductors is more practical, but quality Litzes are expensive and
termination not easy. Other types are gross, like industrial pipes, unsuited to
many domestic spaces. Simplistic fat conductors’ rising impedance (due to L) of
+6dB/octave is further raised by internal eddy currents causing ’Skin effect’,
like ’the square root of inductance’, adding. +3dB/oct, to the L-reactance slope.
For typical cable runs, nett inductivity is such that performance in heavy plain
conductors is measurably affected with steady signals just above 1kHz. Cables
with copper or silver stranded conductors suffer from complex oxidation. The
semiconductive ’diodes’ between the strands aren’t seen by steady tests, but
look like a high capacitance to music signals. This causes energy storage/release
cycles, that regular tests miss, yet which is audible with music. This problem
is also describable as the electron flow being ’trapped’ inside strands &
twisting away from the direct route. Supra Ply is a largesection, low resistance
cable, overcoming skin effect & transient distortion, using pure tin plating.
Tin melds to copper with-out any diodic barrier, & also protects the copper from
common corrosions - ideal for outdoors & 12 volt. Most audiograde cables’
conductors are damaged by contamination, by plastic out-gassing, from the impure
atmosphere, & liquid spills. Some are protected but only by a thin coating that’ll
one day crack with use and age. Neatly, oxidation forming on Ply is sonically
benign.Other Advantages When installing, Ply’s rectangular conductor is readily
circularised for insertion into receptacles of most regular connectors. Square
outer profiling suits most housings too - unlike ribbons, tapes & litzes. Ply is
readily coiled, more like thinner, basic cables - making it friendly in
temporary setups. Demostrating the Difference Unlike some audio products,
benefits of Supra Ply are readily shown by repeatable measurements. Ply’s
low-loss behaviour for hf audio (incl. bass transients), is evident. Figs. 1, 2
are time domain scope pics, showing typical dynamic/damping differences with a
square wave. After transients, Supra’s Ply restrains the peaking & accelerates
the signal’s return to 0 volts at the speaker end. Peaking in wide spaced cable
shows limp damping & hf loss, because it has high L & low C, the opposite of
what’s required to drive most speakers.
Cavo di collegamento
ampli/diffusori, confezione in legno, terminato, venduto in coppia di 3 metri ,

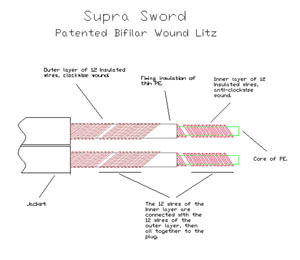

Sword Bifilar Wound
LitzSword Loudspeaker Cable SUPRA’s flagship. Sword is a patented cable. The
secret is the bifilar wound litz conductors, each comprising 24 individually
insulated wires. The bifilar winding is built with 12 of these wires helically
wound in one direction and 12 in the opposite direction. This divides the
magnetic field into opposing directions resulting in self-cancellation. Because
Sword’s conductors comprise a number of insulated wires, dynamic skin effect is
cancelled. Therefore Sword behaves as a non-inductive and phase stable cable.
The difference in phase shift from 500Hz to 100kHz is only 0.002 deg. This
allows for perfect timing. Patent holder: Johnny Svärd. What does it sound
like?Supra Sword passes the most complex music transients without any
deformations. Signal delay is the same at all musical frequencies. Therefore it
vanishes, giving a clear 3-dimensional presence, a sure sign of the highest
fidelity.Sword 2x3m Sword is available only as a terminated set Owing to the
special construction with two opposite wound wire groups which cancel each
other’s fields, the termination quality is very critical. The termination is
done with strong, gas tight crimping, so the joined metals are fused into one
unit. This is more pure and secure than any soldering. Sword is available in
standard length of 2m, 3m and 4m pair, delivered in a Mahogany wood case.
Termination: Spade/Banana/BFA combination connector. Customised lengths
available on order. The Sword Combi Connector Sword comes with crimp-fastened
screw-adaptors, and a set of connectors that can be screwed onto these. The
pictures show Spades and banana/BFA connectors, as well as the Spade replaced
with Banana/BFA directly screwed onto the adaptor. All connectors are included
in a Sword kit
Supra
PLY 3,4
2M
€.
234,00
Prezzo Offerta €. 195,00
Cavo
specialissimo progetto in particolare per problemi con r.f. 3,4 mmq schermato,
terminato con connettori COMBICON banana
Audio
cables’ performance is initially determined by their loop resistance (R) &
inductance (L) & shunt capacitance (C). For most speakers R & L must be low, but
capacitance value, C doesn’t matter [1,2] as speakers already act as large cap
loads. But simply using larger wire makes R low, at the expense of an increasing
ratio to L with musically unacceptable effects. Ways to make inductance L low
also with low resistance, include tapes, either stacked or arranged in ribbons.
But these types are impractical to fit to nearly every speaker connector without
discontinuities, & are stressed & often unsightly when bends are required in
real installs & also aren’t suited to mobile uses. Litzing with multiple,
insulated conductors is more practical, but quality Litzes are expensive and
termination not easy. Other types are gross, like industrial pipes, unsuited to
many domestic spaces. Simplistic fat conductors’ rising impedance (due to L) of
+6dB/octave is further raised by internal eddy currents causing ’Skin effect’,
like ’the square root of inductance’, adding. +3dB/oct, to the L-reactance slope.
For typical cable runs, nett inductivity is such that performance in heavy plain
conductors is measurably affected with steady signals just above 1kHz. Cables
with copper or silver stranded conductors suffer from complex oxidation. The
semiconductive ’diodes’ between the strands aren’t seen by steady tests, but
look like a high capacitance to music signals. This causes energy storage/release
cycles, that regular tests miss, yet which is audible with music. This problem
is also describable as the electron flow being ’trapped’ inside strands &
twisting away from the direct route. Supra Ply is a largesection, low resistance
cable, overcoming skin effect & transient distortion, using pure tin plating.
Tin melds to copper with-out any diodic barrier, & also protects the copper from
common corrosions - ideal for outdoors & 12 volt. Most audiograde cables’
conductors are damaged by contamination, by plastic out-gassing, from the impure
atmosphere, & liquid spills. Some are protected but only by a thin coating that’ll
one day crack with use and age. Neatly, oxidation forming on Ply is sonically
benign.Other Advantages When installing, Ply’s rectangular conductor is readily
circularised for insertion into receptacles of most regular connectors. Square
outer profiling suits most housings too - unlike ribbons, tapes & litzes. Ply is
readily coiled, more like thinner, basic cables - making it friendly in
temporary setups. Demostrating the Difference Unlike some audio products,
benefits of Supra Ply are readily shown by repeatable measurements. Ply’s
low-loss behaviour for hf audio (incl. bass transients), is evident. Figs. 1, 2
are time domain scope pics, showing typical dynamic/damping differences with a
square wave. After transients, Supra’s Ply restrains the peaking & accelerates
the signal’s return to 0 volts at the speaker end. Peaking in wide spaced cable
shows limp damping & hf loss, because it has high L & low C, the opposite of
what’s required to drive most speakers.
Supra
PLY 3,4
3M
€.
276,00
Prezzo Offerta €. 230,00
Cavo
specialissimo progetto in particolare per problemi con r.f. 3,4 mmq schermato,
terminato con connettori COMBICON banana
Audio
cables’ performance is initially determined by their loop resistance (R) &
inductance (L) & shunt capacitance (C). For most speakers R & L must be low, but
capacitance value, C doesn’t matter [1,2] as speakers already act as large cap
loads. But simply using larger wire makes R low, at the expense of an increasing
ratio to L with musically unacceptable effects. Ways to make inductance L low
also with low resistance, include tapes, either stacked or arranged in ribbons.
But these types are impractical to fit to nearly every speaker connector without
discontinuities, & are stressed & often unsightly when bends are required in
real installs & also aren’t suited to mobile uses. Litzing with multiple,
insulated conductors is more practical, but quality Litzes are expensive and
termination not easy. Other types are gross, like industrial pipes, unsuited to
many domestic spaces. Simplistic fat conductors’ rising impedance (due to L) of
+6dB/octave is further raised by internal eddy currents causing ’Skin effect’,
like ’the square root of inductance’, adding. +3dB/oct, to the L-reactance slope.
For typical cable runs, nett inductivity is such that performance in heavy plain
conductors is measurably affected with steady signals just above 1kHz. Cables
with copper or silver stranded conductors suffer from complex oxidation. The
semiconductive ’diodes’ between the strands aren’t seen by steady tests, but
look like a high capacitance to music signals. This causes energy storage/release
cycles, that regular tests miss, yet which is audible with music. This problem
is also describable as the electron flow being ’trapped’ inside strands &
twisting away from the direct route. Supra Ply is a largesection, low resistance
cable, overcoming skin effect & transient distortion, using pure tin plating.
Tin melds to copper with-out any diodic barrier, & also protects the copper from
common corrosions - ideal for outdoors & 12 volt. Most audiograde cables’
conductors are damaged by contamination, by plastic out-gassing, from the impure
atmosphere, & liquid spills. Some are protected but only by a thin coating that’ll
one day crack with use and age. Neatly, oxidation forming on Ply is sonically
benign.Other Advantages When installing, Ply’s rectangular conductor is readily
circularised for insertion into receptacles of most regular connectors. Square
outer profiling suits most housings too - unlike ribbons, tapes & litzes. Ply is
readily coiled, more like thinner, basic cables - making it friendly in
temporary setups. Demostrating the Difference Unlike some audio products,
benefits of Supra Ply are readily shown by repeatable measurements. Ply’s
low-loss behaviour for hf audio (incl. bass transients), is evident. Figs. 1, 2
are time domain scope pics, showing typical dynamic/damping differences with a
square wave. After transients, Supra’s Ply restrains the peaking & accelerates
the signal’s return to 0 volts at the speaker end. Peaking in wide spaced cable
shows limp damping & hf loss, because it has high L & low C, the opposite of
what’s required to drive most speakers.
Supra
PLY 3,4
4M
€.
300,00
Prezzo Offerta €. 300,00
Cavo
specialissimo progetto in particolare per problemi con r.f. 3,4 mmq schermato,
terminato con connettori COMBICON banana
Audio
cables’ performance is initially determined by their loop resistance (R) &
inductance (L) & shunt capacitance (C). For most speakers R & L must be low, but
capacitance value, C doesn’t matter [1,2] as speakers already act as large cap
loads. But simply using larger wire makes R low, at the expense of an increasing
ratio to L with musically unacceptable effects. Ways to make inductance L low
also with low resistance, include tapes, either stacked or arranged in ribbons.
But these types are impractical to fit to nearly every speaker connector without
discontinuities, & are stressed & often unsightly when bends are required in
real installs & also aren’t suited to mobile uses. Litzing with multiple,
insulated conductors is more practical, but quality Litzes are expensive and
termination not easy. Other types are gross, like industrial pipes, unsuited to
many domestic spaces. Simplistic fat conductors’ rising impedance (due to L) of
+6dB/octave is further raised by internal eddy currents causing ’Skin effect’,
like ’the square root of inductance’, adding. +3dB/oct, to the L-reactance slope.
For typical cable runs, nett inductivity is such that performance in heavy plain
conductors is measurably affected with steady signals just above 1kHz. Cables
with copper or silver stranded conductors suffer from complex oxidation. The
semiconductive ’diodes’ between the strands aren’t seen by steady tests, but
look like a high capacitance to music signals. This causes energy storage/release
cycles, that regular tests miss, yet which is audible with music. This problem
is also describable as the electron flow being ’trapped’ inside strands &
twisting away from the direct route. Supra Ply is a largesection, low resistance
cable, overcoming skin effect & transient distortion, using pure tin plating.
Tin melds to copper with-out any diodic barrier, & also protects the copper from
common corrosions - ideal for outdoors & 12 volt. Most audiograde cables’
conductors are damaged by contamination, by plastic out-gassing, from the impure
atmosphere, & liquid spills. Some are protected but only by a thin coating that’ll
one day crack with use and age. Neatly, oxidation forming on Ply is sonically
benign.Other Advantages When installing, Ply’s rectangular conductor is readily
circularised for insertion into receptacles of most regular connectors. Square
outer profiling suits most housings too - unlike ribbons, tapes & litzes. Ply is
readily coiled, more like thinner, basic cables - making it friendly in
temporary setups. Demostrating the Difference Unlike some audio products,
benefits of Supra Ply are readily shown by repeatable measurements. Ply’s
low-loss behaviour for hf audio (incl. bass transients), is evident. Figs. 1, 2
are time domain scope pics, showing typical dynamic/damping differences with a
square wave. After transients, Supra’s Ply restrains the peaking & accelerates
the signal’s return to 0 volts at the speaker end. Peaking in wide spaced cable
shows limp damping & hf loss, because it has high L & low C, the opposite of
what’s required to drive most speakers.
Cavo di alimentazione rete,
estremamente flessibile, nuovo concetto dischermatura brevettato in tutto il
mondo dalla tommy jenving, capace di basse radiazioni elettriche e
magnetiche,protegge gli apparecchi a cui è abbinato da rumore irradiato dalla
rete e da interferenze RFmarcato CE ed omologato secondo le norme HD 21.5 S3Cavi
di alimentazione brevettati LoRad La sigla "LoRad" è l’acronimo di "Low
Radiation", e sottolinea le basse dispersioni di campi elettromagnetici
alternati. I cavi di alimentazione schermati LoRad proteggono le vostre
apparecchiature dai rumori irradiati di rete e dalla captazione in
radiofrequenza. La schermatura protegge dai campi elettrici e l’avvolgimento ad
elica a passo piccolo elimina i campi magnetici.Ne risultano un suono piu’
pulito, una maggiore precisione nella riproduzione dei transienti (che aumenta
l’impatto in gamma bassa), un migliore effetto tridimensionale e una definizione
del fronte stereofonico piu’ vicina alla realtà.Oltre a tutto ciò, non si deve
trascurare l’aspetto della salute: è stato infatti provato scientificamente che
i campi magnetici alternati influenzano la crescita delle cellule umane. Il
Supra LoRad è l’unico cavo di alimentazione per applicazioni in campo audio che
può vantare la piena approvazione da parte degli Enti di certificazione di
sicurezza europei.Il concetto di schermatura dei cavi Supra è brevettato
LoRad 1.5 CS-EU
Shielded cord set with LoRad
3G1.5 cable terminated with SWF-10 connector (IEC-320) and SW-EU plug.LoRad is a
mains flex with patented screening for connection of audio equipment to 230V
mains. The screening minimizes the interference from electric alternating fields,
protecting from both radiation and pick-up. For cancelling of magnetic
alternating fields the LoRad is cabled with a short pitch twisting. LoRad, the
only approved screened mains flex. Owing to the patented design the drain wire
is eliminated and instead the screen is automatically connected to earth via a
green semi-conductive plastic on the earth conductor. This enables the cable to
pass the flex test of 2x30,000 bending strokes without damage, for safety
approval, whereas a drain wire would cut through the insulations during the
test. The LoRad is very flexible owing to the multiwire conductors. Each
conductor is made of 320 tin plated copper wires. LoRad stands for Low Radiation
of electric and magnetic alternating fields The screen protects your equipment
from radiated mains noise and from RF oick-up. Short pitch twisting of the cores
cancels the magnetic alternating fields. This will result in a cleaner sound and
more accurate transients. The screen is ground connected via a semi-conductive
PE on the earth conductor. No drain wire needed. The green part of the
yellow/green earth conductor is of two different green nuances. Please be aware
that the darker green plastic is the semi-conductive part.It must not touch any
live part of the cord set.
Cavo di alimentazione rete,
estremamente flessibile, nuovo concetto dischermatura brevettato in tutto il
mondo dalla tommy jenving, capace di basse radiazioni elettriche e
magnetiche,protegge gli apparecchi a cui è abbinato da rumore irradiato dalla
rete e da interferenze RFmarcato CE ed omologato secondo le norme HD 21.5 S3Cavi
di alimentazione brevettati LoRad La sigla "LoRad" è l’acronimo di "Low
Radiation", e sottolinea le basse dispersioni di campi elettromagnetici
alternati. I cavi di alimentazione schermati LoRad proteggono le vostre
apparecchiature dai rumori irradiati di rete e dalla captazione in
radiofrequenza. La schermatura protegge dai campi elettrici e l’avvolgimento ad
elica a passo piccolo elimina i campi magnetici.Ne risultano un suono piu’
pulito, una maggiore precisione nella riproduzione dei transienti (che aumenta
l’impatto in gamma bassa), un migliore effetto tridimensionale e una definizione
del fronte stereofonico piu’ vicina alla realtà.Oltre a tutto ciò, non si deve
trascurare l’aspetto della salute: è stato infatti provato scientificamente che
i campi magnetici alternati influenzano la crescita delle cellule umane. Il
Supra LoRad è l’unico cavo di alimentazione per applicazioni in campo audio che
può vantare la piena approvazione da parte degli Enti di certificazione di
sicurezza europei.Il concetto di schermatura dei cavi Supra è brevettato
LoRad 1.5 CS-EU
Shielded cord set with LoRad
3G1.5 cable terminated with SWF-10 connector (IEC-320) and SW-EU plug.LoRad is a
mains flex with patented screening for connection of audio equipment to 230V
mains. The screening minimizes the interference from electric alternating fields,
protecting from both radiation and pick-up. For cancelling of magnetic
alternating fields the LoRad is cabled with a short pitch twisting. LoRad, the
only approved screened mains flex. Owing to the patented design the drain wire
is eliminated and instead the screen is automatically connected to earth via a
green semi-conductive plastic on the earth conductor. This enables the cable to
pass the flex test of 2x30,000 bending strokes without damage, for safety
approval, whereas a drain wire would cut through the insulations during the
test. The LoRad is very flexible owing to the multiwire conductors. Each
conductor is made of 320 tin plated copper wires. LoRad stands for Low Radiation
of electric and magnetic alternating fields The screen protects your equipment
from radiated mains noise and from RF oick-up. Short pitch twisting of the cores
cancels the magnetic alternating fields. This will result in a cleaner sound and
more accurate transients. The screen is ground connected via a semi-conductive
PE on the earth conductor. No drain wire needed. The green part of the
yellow/green earth conductor is of two different green nuances. Please be aware
that the darker green plastic is the semi-conductive part.It must not touch any
live part of the cord set.
Connettore Schuko (maschio)
con PIN dorati IEC 320
SW-EU
Mains Plug MaleGold plated pins. Takes cable diameter up to 11mm. Available for
different standards: SW-EU for Schuko, for most Mainland European outlets. Also
applicable for Belgian and French standard
MD 06EU MKII Distribuotre di
rete costituito da una ciabatta in alluminio, schermata e con filtro RF del tipo
NIS (Non-Intrusive Filtering) e con 6 prese Schuko
con tripla protezione
sovratensioni transitorie -Senza cavo
MD 06EU MKII Distribuotre di
rete costituito da una ciabatta in alluminio, schermata e con filtro RF del tipo
NIS (Non-Intrusive Filtering) e con 6 prese Schuko-Senza cavo
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg)
Bent
HDMI This new version of SUPRA HDMI connector is made in metal, and is very easy
to attach/detach. There is a plastic moulding over the soldered part that fits
exactly in the metal housing. (See pictures to the left.) Two versions are
provided with all of these HDMI interconnects. One is bent, one is straight: use
the one that fits your setup best.� This HDMI interconnect series will be
available from early 2009.SUPRA HF100SUPRA HF100 is designed for longer cable
runs and higher resolution for hardware with HDMI v1.3 and DVI interface. The
cores in SUPRA HF100 are insulated with Gas Blown Polypropylene, which offers
low capacitance and high velocity factor. The digital pair is impedance stable
over the entire frequency range, up to 600 MHz, (Compare HDMI v1.3, 340MHz).
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
