CHANNEL SPEAKERS Tannoy Prestige loudspeakers have certainly
always been out of the ordinary; wonderfully individual and
totally unlike any other speakers. Distinctive,
distinguished and proud, they transcend mere fashion and
have captured the imagination of music connoisseurs all over
the world
Risposta in frequenza
(-6dB) 68Hz - 54KHz -Potenza raccomandata amplificatori da 20 a 100 Watts per canale
-Potenza sostenuta 50 Watts RMS (200 Watts di picco) -Massima pressione acustica 105 dB a 1 metro per 50 Watts, 111 dB a 1 metro per
200 Watts di picco-Distorsionearmonica totale < di 2 % a 50 Watts RMS (100 Hz - 20 KHz)
-Sensibilit 88 dB 2,83 volts a 1 metro -Impedenza nominale 8 ohm, minima 5,5 ohm
-Crossover 2,3 KHz-Altoparlanti 100 mm (4") doppio concentrico, HF 19 mm (3/4") cupola in titanio,
magnete in neodimio, dispersione 90-Peso 4.0 Kg -Dimensioni 345 x 210 x 130 mm, volume 3,5 litri

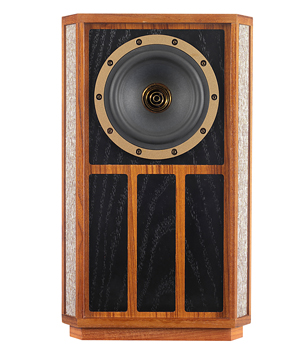

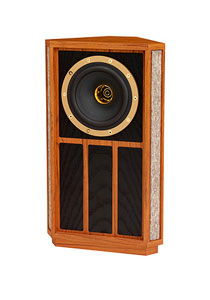

DIFFUSORE DA SUPPORTO - MICRO RIPRODUZIONE DELLA AUTOGRAPH
- 1 UNITA` DUAL CONCENTRIC DA 10 CM CON TWEETER DA 1,9 MM IN TITANIO, GUIDA D
ONDA E CESTELLO PRESSOFUSO - REFLEX - EFFICIENZA 88, DB - IMPEDENZA 5,5 OHMS
(MINIMA) - EMISSIONE MASSIMA DI PICCO 111 DB/M CON 200 W - DIMENSIONI 347 X 210
X 130 MM - PESO 4 KG - FINITURA TEAK The
Autograph mini is a hugely scaled-down but authentic version of a loudspeaker
that was famous throughout the audio world fifty years ago. Reduced to a
fraction of the size of the immense and revered original Tannoy Autograph this
exquisite replica is the ultimate modern retro audio product. Its diminutive
size and accurately detailed finish produce a modern day classic that will
embellish the most contemporary surroundings.Remaining true to the cabinet build and finish quality of that yesteryear model,

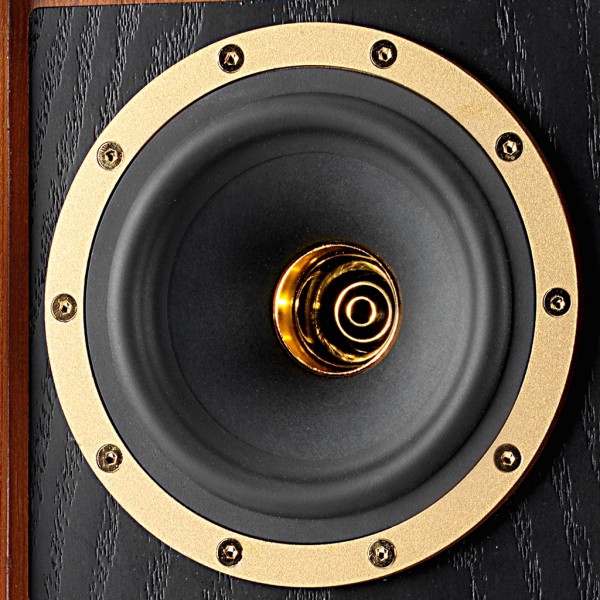

the Autograph Mini naturally incorporates a 4.00” Dual Concentric™ driver - the
unique engineering statement that makes this speaker a ‘real’ Tannoy. Combining
wide bandwidth technology to ensure breathtakingly natural midrange and a heavy
cast alloy frame and multi fibre paper pulp cone for well defined bass
performance, this miniature Dual performs with subtlety, stunning detail and
expansive imaging.A key component of the Autograph Mini is the titanium
diaphragm high frequency unit positioned on the same axis as the bass section.
Fitted with a neodymium magnet system to deliver a smooth response up to an
incredible 54kHz, this key component in the Autograph Mini enhances the
loudspeaker’s strikingly true to life performance. Ensuring complete signal path
integrity, 99.99% high purity silver cable is used to connect the tweeter to the
system’s minimalist crossover network - a thoroughbred audiophile component in
itself that includes low loss inductors and specially damped audio grade
capacitors.High density birch ply with hardwood veneers and solid hardwood
mouldings are utilised in the unique and chic design of the hand finished

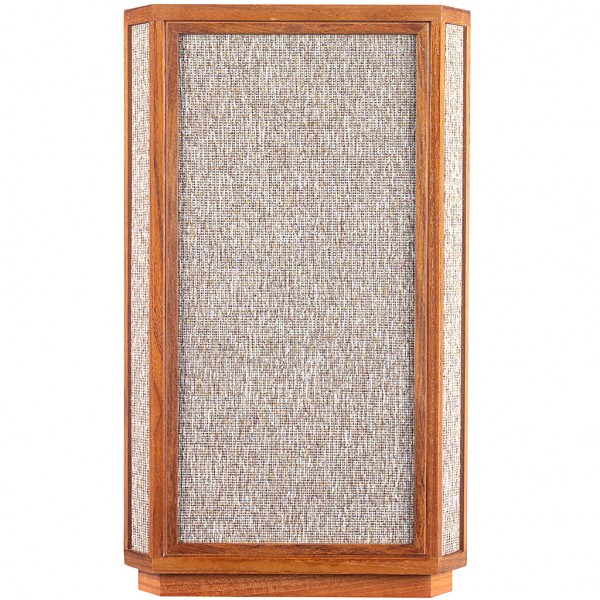

cabinet. As with its erstwhile and larger predecessor, authentic oatmeal
coloured grille cloth is used to conceal the driver and is also inlayed within
the angled sides towards the front of the miniature hexagonal cabinet.A high
performance loudspeaker designed for the discerning fashion conscious.The unique
advantage of the Tannoy Dual Concentric™ principle is that the low and high
frequency sound radiation is generated on the same axis. In effect, the Dual is
a single chassis comprising two separate drive units properly merged into one,
with the high frequency unit mounted in the centre of the pole piece of the low
frequency unit. High frequency sound radiates from the centre of the low
frequency unit through a carefully designed high frequency exponential horn,
either the PepperPot WaveGuide™ or the Tulip WaveGuide™ dependant on the model.
It is the fact that the low and high frequencies are therefore fully integrated
at source that gives the Tannoy Dual Concentric™ driver such unique sound
reproduction qualities.The location of the high frequency unit does not
physically obstruct the low frequency unit in any way; a unique feature when
compared with industry standard coaxial systems. Polar dispersion of sound is
symmetrical in both the horizontal and vertical planes. By careful crossover
network design the virtual acoustic sources of the high and low frequency units
can be made to occupy the same point on the axis. Therefore the whole sound
appears to emanate from a single point source located slightly behind the drive
unit. This means that the loudspeakers, when fed from a high quality stereo
source, can recreate a full and accurate stereo image.The low frequency section
of the Dual Concentric™ drive units has exceptional power handling and dynamic
range. The low frequency cone piston is produced from selected multi-fibre paper
pulp. This is specially treated to absorb internal resonance modes. A treated
fabric surround, or rubber surround in the case of Autograph Mini, is designed
to correctly terminate the moving cone and provide optimum compliance and
linearity at large excursions. The cone piston is driven by a high power motor
system, which in selected models uses an Alnico magnet. Alnico is an unusual
iron/nickel alloy doped during the melt process with cobalt and aluminium to
produce a magnetic material with very special properties. Having a high remanant
magnetism and energy product, Alnico magnetises to a high level and retains an
unusual degree of magnetisation. Alnico is also an electrical conductor. These
properties give the Alnico magnet equipped Dual Concentric™ drivers an
exceptionally clean transient response and increased sensitivity. The coil is
wound with a special high temperature adhesive system and individually cured to
ensure reliable operation at high peak power inputs. The shape of the low
frequency cone is arranged to provide optimum dispersion of audio frequencies at
both the high and low ends of the spectrum. The cone flare continues the high
frequency horn profile to ensure a smooth transition at the crossover point.The
high frequency driver consists of a wide dynamic range compression unit giving
superb transient performance with a smooth uncoloured response. The compression
unit feeds acoustic power through a low compression phase compensating device,
either the Tannoy Tulip Waveguide™ or the PepperPot WaveGuide™, to the throat of
the acoustic horn formed by the low frequency cone. The low frequency cone
profile provides a second waveguide with acoustic impedance transformation to
match the high frequency radiation into the listening environment. Either a
titanium or aluminium alloy diaphragm, formed by a specially developed process,
produces a piston with a very high stiffness to mass ratio. Optimum molecular
grain structure gives long-term durability. A low mass precision coil provides
the driving force for the diaphragm, energized by a powerful magnet system. A
damped acoustic cavity to one side of the diaphragm controls the compression
driver response and ensures perfect integration at the crossover point

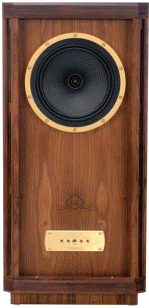

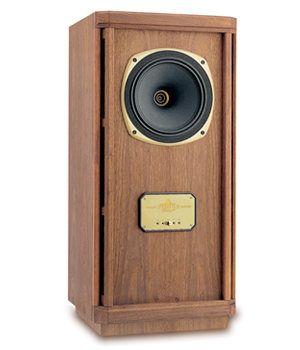

DIFFUSORE A 2 VIE DA
PAVIMENTO DELLA LINEA PRESTIGE - 1 UNITA` DUAL CONCENTRIC DA 25 CM CON TWEETER
DA 25 MM E GUIDA D ONDA - BIAMPLIFICABILE - CROSSOVER REGOLABILE CON
CONDENSATORI CLARITY CAPS - EFFICIENZA 91 DB - IMPEDENZA 8 OHMS - SPL MASSIMO
111 DB/95W/1M - DIMENSIONI 940 X 475 X 445 - PESO KG.27 - FINITURA NOCE
A
compact floor-standing speaker that uses a 10.00” Tannoy Dual Concentric™ in a
cabinet design optimised to produce bass performance with superb control and
extension, allied to spacious, fluid mid-range and high frequencies of great
purity and detail. The cohesion of the stereo sound staging reproduced by the
Stirling SE, a characteristic common to all the Dual Concentric™ equipped
Prestige models, is involving and believable, delivering remarkable spaciousness
and presentational stability in equal measure.All components and cabinets are
still hand assembled in the time-honoured fashion to ensure that attention to
detail and unique styling go hand in hand in maintaining the exclusive appeal of
this highly respected and sought after loudspeaker.The design comfortably
complements any decor from ancient castle through to the cool, casual and
contemporary. The only rules we absolutely adhere to when designing and crafting
Prestige loudspeakers is to utilise the most up to date, no compromise, acoustic
technologies and time-proven cabinet making skills ensuring these are probably
the very best sounding loudspeakers you will find …anywhere.Features Having
re-evaluated the performance of models throughout the Prestige range, Tannoy
engineers selected the latest cutting edge components and materials at their
disposal to introduce several performance enhancing amendments to the crossover
topologies within the ‘SE’ models. To optimise acoustic performance only
components of the highest possible standard have been used.Hard-wired crossovers
are used throughout the Stirling SE and the routing of each cable has been
painstakingly considered to ensure there is no degradation in sound quality.
Similarly, the components have been carefully arranged to avoid any coupling
effects. In particular, incredible transparency in the mid band has been
achieved providing an enhanced true-to-life vocal clarity. Completely redesigned
crossovers, incorporating the most up-to-date high quality components, have
taken these models to a new level of acoustic excellence. ICW Clarity Caps have
been included for high frequency (HF) section of the crossovers, while high
quality metalised film capacitors are used in LF sections. The LF crossover also
makes use of very low loss laminated iron core inductors. Internal connections
from input terminals to crossover, internal crossover wiring and crossover to
Dual Concentric™ drive unit are made with the exceptional VDH MC CS18 halogen
free silver-plated cable.A 5-point terminal panel (bi-wire and ground point)
gold plated terminals has been incorporated on the Stirling SE. With the driver
chassis grounded via the 5th terminal, and by using appropriate speaker cable,
this proven technology, developed on earlier Prestige models, minimises the
effects of RF interference resulting in a more transparent midrange.Drive UniThe
unique advantage of the Tannoy Dual Concentric™ principle is that the low and
high frequency sound radiation is generated on the same axis. In effect, the
Dual is a single chassis comprising two separate drive units properly merged
into one, with the high frequency unit mounted in the centre of the pole piece
of the low frequency unit. High frequency sound radiates from the centre of the
low frequency unit through a carefully designed high frequency exponential horn,
either the PepperPot WaveGuide™ or the Tulip WaveGuide™ dependant on the model.
It is the fact that the low and high frequencies are therefore fully integrated
at source that gives the Tannoy Dual Concentric™ driver such unique sound
reproduction qualities.The location of the high frequency unit does not
physically obstruct the low frequency unit in any way; a unique feature when
compared with industry standard coaxial systems. Polar dispersion of sound is
symmetrical in both the horizontal and vertical planes. By careful crossover
network design the virtual acoustic sources of the high and low frequency units
can be made to occupy the same point on the axis. Therefore the whole sound
appears to emanate from a single point source located slightly behind the drive
unit. This means that the loudspeakers, when fed from a high quality stereo
source, can recreate a full and accurate stereo image.The low frequency section
of the Dual Concentric™ drive units has exceptional power handling and dynamic
range. The low frequency cone piston is produced from selected multi-fibre paper
pulp. This is specially treated to absorb internal resonance modes. A treated
fabric surround, or rubber surround in the case of Autograph Mini, is designed
to correctly terminate the moving cone and provide optimum compliance and
linearity at large excursions. The cone piston is driven by a high power motor
system, which in selected models uses an Alnico magnet. Alnico is an unusual
iron/nickel alloy doped during the melt process with cobalt and aluminium to
produce a magnetic material with very special properties. Having a high remanant
magnetism and energy product, Alnico magnetises to a high level and retains an
unusual degree of magnetisation. Alnico is also an electrical conductor. These
properties give the Alnico magnet equipped Dual Concentric™ drivers an
exceptionally clean transient response and increased sensitivity. The coil is
wound with a special high temperature adhesive system and individually cured to
ensure reliable operation at high peak power inputs. The shape of the low
frequency cone is arranged to provide optimum dispersion of audio frequencies at
both the high and low ends of the spectrum. The cone flare continues the high
frequency horn profile to ensure a smooth transition at the crossover point.The
high frequency driver consists of a wide dynamic range compression unit giving
superb transient performance with a smooth uncoloured response. The compression
unit feeds acoustic power through a low compression phase compensating device,
either the Tannoy Tulip Waveguide™ or the PepperPot WaveGuide™, to the throat of
the acoustic horn formed by the low frequency cone. The low frequency cone
profile provides a second waveguide with acoustic impedance transformation to
match the high frequency radiation into the listening environment.
Either a titanium or aluminium alloy diaphragm, formed by a specially developed
process, produces a piston with a very high stiffness to mass ratio. Optimum
molecular grain structure gives long-term durability. A low mass precision coil
provides the driving force for the diaphragm, energized by a powerful magnet
system. A damped acoustic cavity to one side of the diaphragm controls the
compression driver response and ensures perfect integration at the crossover
point.
DIFFUSORE 2 VIE DA PAVIMENTO - 1 UNITA` DUAL CONCENTRIC
DA 25 CM CON TWEETER DA 33 MM E GUIDA D ONDA - TWIN REFLEX - BIAMPLIFICABILE -
CROSSOVER CON HOVLAND MUSICAP - FINITURA BETULLA - CARATTERISTICHE PRELIMINARI

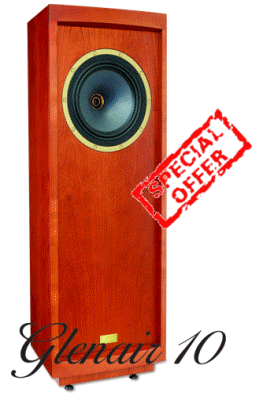

Utilising
the the same design principles and proven acoustic benefits of a trapezoidal
cabinet design of the Glenair, the Glenair 10 is a more compact speaker equipped
with a 250mm (10.00") Dual concentric™ drive unit. Plywood manufactured from
birch grown in slow-growing cold regions of the world and selected for its
denser quality is used for the main structure of the speaker cabinet. The
combination of heavily damped material, comprehensive internal bracing and non–parallel
side panels alleviate the problems associated with standing waves, ensuring that
the loudspeaker is free from unwanted resonance. Externally the cabinet is
finely crafted with American Cherry veneer and solid wood mouldings hand
finished and polished to an unsurpassed standard. No unsightly retaining lugs
spoil the clean lines of the speaker’s front panel when the curved, acoustically
transparent grille is removed; this thanks to the cleverly designed magnetised
fixing method within the baffle structure.Features:The Glenair 10 benefits from
the many advantages of the world-renowned Tannoy Dual Concentric™ drive unit
with its unique and superior sound reproduction qualities. The carefully
engineered components of the 10.00” unit fitted to the Glenair 10 presents an
astonishingly true to life performance with an open, coherent and utterly
involving soundstage. Effortless bass dynamics, open midrange and meticulously
detailed high frequency with a delicacy of treble nuances are assured. Ensuring
perfect integration of the driver elements, the carefully designed crossover
network exhibits true audiophile qualities. All components are high precision,
low-loss and thermally stable. For the high frequency feed a single Hovland
MusiCap® capacitor is used providing class-leading sonic consistency;
exceptional dynamics, speed, focus, correct timbre and depth of field. Two large
laminated iron core inductors are used to avoid saturation effects. Careful
consideration has been given to the precise layout of the crossover in order to
minimise inter component coupling and it is positioned well away from the driver
to avoid any detrimental magnetic field effects. Top quality silver-plated
copper wiring is used for the low frequency section, and Acrolink 6N ultra high
purity (99.9999%) copper wire is used for the high frequency wiring for complete
signal path integrity.The bire wire terminal on the twin ported rear panel also
features an ‘earth’ or grounding point. With the driver chassis grounded, this
proven technology, developed on earlier Prestige models, minimises the effects
of RF interference resulting in a more transparent midrange.Each component part
of the Glenair 10 model complements one another to deliver an audiophile
loudspeaker that runs true to the highly respected pedigree of the Prestige
range and as such maintains Tannoy’s leading position as an innovator of premium
audio solutions.Drive Unit The unique advantage of the Tannoy Dual Concentric™
principle is that the low and high frequency sound radiation is generated on the
same axis. In effect, the Dual is a single chassis comprising two separate drive
units properly merged into one, with the high frequency unit mounted in the
centre of the pole piece of the low frequency unit. High frequency sound
radiates from the centre of the low frequency unit through a carefully designed
high frequency exponential horn, either the PepperPot WaveGuide™ or the Tulip
WaveGuide™ dependant on the model. It is the fact that the low and high
frequencies are therefore fully integrated at source that gives the Tannoy Dual
Concentric™ driver such unique sound reproduction qualities.The location of the high frequency unit does not physically obstruct the low
frequency unit in any way; a unique feature when compared with industry standard
coaxial systems. Polar dispersion of sound is symmetrical in both the horizontal
and vertical planes. By careful crossover network design the virtual acoustic
sources of the high and low frequency units can be made to occupy the same point
on the axis. Therefore the whole sound appears to emanate from a single point
source located slightly behind the drive unit. This means that the loudspeakers,
when fed from a high quality stereo source, can recreate a full and accurate
stereo image.The low frequency section of the Dual Concentric™ drive units has
exceptional power handling and dynamic range. The low frequency cone piston is
produced from selected multi-fibre paper pulp. This is specially treated to
absorb internal resonance modes. A treated fabric surround, or rubber surround
in the case of Autograph Mini, is designed to correctly terminate the moving
cone and provide optimum compliance and linearity at large excursions. The cone
piston is driven by a high power motor system, which in selected models uses an
Alnico magnet. Alnico is an unusual iron/nickel alloy doped during the melt
process with cobalt and aluminium to produce a magnetic material with very
special properties. Having a high remanant magnetism and energy product, Alnico
magnetises to a high level and retains an unusual degree of magnetisation.
Alnico is also an electrical conductor. These properties give the Alnico magnet
equipped Dual Concentric™ drivers an exceptionally clean transient response and
increased sensitivity. The coil is wound with a special high temperature
adhesive system and individually cured to ensure reliable operation at high peak
power inputs. The shape of the low frequency cone is arranged to provide optimum
dispersion of audio frequencies at both the high and low ends of the spectrum.
The cone flare continues the high frequency horn profile to ensure a smooth
transition at the crossover point.The high frequency driver consists of a wide
dynamic range compression unit giving superb transient performance with a smooth
uncoloured response. The compression unit feeds acoustic power through a low
compression phase compensating device, either the Tannoy Tulip Waveguide™ or the
PepperPot WaveGuide™, to the throat of the acoustic horn formed by the low
frequency cone. The low frequency cone profile provides a second waveguide with
acoustic impedance transformation to match the high frequency radiation into the
listening environment. Either a titanium or aluminium alloy diaphragm, formed by
a specially developed process, produces a piston with a very high stiffness to
mass ratio. Optimum molecular grain structure gives long-term durability. A low
mass precision coil provides the driving force for the diaphragm, energized by a
powerful magnet system. A damped acoustic cavity to one side of the diaphragm
controls the compression driver response and ensures perfect integration at the
crossover point.

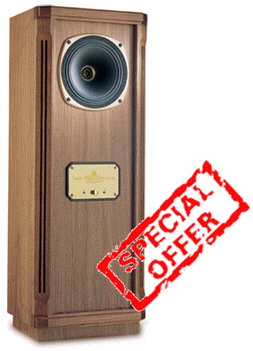

Tannoy Sandrigham
Se€.2.900,00 Per prezzo
scontato
TELEFONA / E-MAIL
DIFFUSORE 2 VIE DA PAVIMENTO - 1 UNITA` DUAL CONCENTRIC DA 20 CM CON
TWEETER DA 25 MM E GUIDA D ONDA - REFLEX A PORTA DISTRIBUITA - BIAMPLIFICABILE -
CROSSOVER REGOLABILE - EFFICIENZA 90 DB - IMPEDENZA 8 OHMS - DIMENSIONI 890 X
332 X 260 - PESO KG.19 - FINITURA NOCE
Although
it is the most compact floor-standing loudspeaker in the Tannoy Prestige range,
the Sandringham SE compromises nothing compared to its siblings in terms of the
standard of craftsmanship and acoustic engineering. The hand made cabinet,
constructed from hand-selected walnut, is finished to an exceptionally high
standard. An 8.00” Tannoy Dual Concentric™ driver and premium quality crossover
combine with this rigid enclosure to ensure optimum performance.All components
and cabinets are still hand assembled in the time-honoured fashion to ensure
that attention to detail and unique styling go hand in hand in maintaining the
exclusive appeal of this highly respected and sought after loudspeaker.The
design comfortably complements any decor from ancient castle through to the cool,
casual and contemporary. The only rules we absolutely adhere to when designing
and crafting Prestige loudspeakers is to utilise the most up to date, no
compromise, acoustic technologies and time-proven cabinet making skills ensuring
these are probably the very best sounding loudspeakers you will find …anywhere.Features
Having re-evaluated the performance of models throughout the Prestige range,
Tannoy engineers selected the latest cutting edge components and materials at
their disposal to introduce several performance enhancing amendments to the
crossover topologies within the ‘SE’ models. To optimise acoustic performance
only components of the highest possible standard have been used.Hard-wired
crossovers are used throughout the Sandringham SE and the routing of each cable
has been painstakingly considered to ensure there is no degradation in sound
quality. Similarly, the components have been carefully arranged to avoid any
coupling effects. In particular, incredible transparency in the mid band has
been achieved providing an enhanced true-to-life vocal clarity. Completely
redesigned crossovers, incorporating the most up-to-date high quality components,
have taken these models to a new level of acoustic excellence. ICW Clarity Caps
have been included for high frequency (HF) section of the crossovers, while high
quality metalised film capacitors are used in LF sections. The LF crossover also
makes use of very low loss laminated iron core inductors. Internal connections
from input terminals to crossover, internal crossover wiring and crossover to
Dual Concentric™ drive unit are made with the exceptional VDH MC CS18 halogen
free silver-plated cable.A 5-point terminal panel (bi-wire and ground point)
gold plated terminals has been incorporated on the Sandringham SE. With the
driver chassis grounded via the 5th terminal, and by using appropriate speaker
cable, this proven technology, developed on earlier Prestige models, minimises
the effects of RF interference resulting in a more transparent midrange.Drive
UnitThe unique advantage of the Tannoy Dual Concentric™ principle is that the
low and high frequency sound radiation is generated on the same axis. In effect,
the Dual is a single chassis comprising two separate drive units properly merged
into one, with the high frequency unit mounted in the centre of the pole piece
of the low frequency unit. High frequency sound radiates from the centre of the
low frequency unit through a carefully designed high frequency exponential horn,
either the PepperPot WaveGuide™ or the Tulip WaveGuide™ dependant on the model.
It is the fact that the low and high frequencies are therefore fully integrated
at source that gives the Tannoy Dual Concentric™ driver such unique sound
reproduction qualities.The location of the high frequency unit does not
physically obstruct the low frequency unit in any way; a unique feature when
compared with industry standard coaxial systems. Polar dispersion of sound is
symmetrical in both the horizontal and vertical planes. By careful crossover
network design the virtual acoustic sources of the high and low frequency units
can be made to occupy the same point on the axis. Therefore the whole sound
appears to emanate from a single point source located slightly behind the drive
unit. This means that the loudspeakers, when fed from a high quality stereo
source, can recreate a full and accurate stereo image.The low frequency section
of the Dual Concentric™ drive units has exceptional power handling and dynamic
range. The low frequency cone piston is produced from selected multi-fibre paper
pulp. This is specially treated to absorb internal resonance modes. A treated
fabric surround, or rubber surround in the case of Autograph Mini, is designed
to correctly terminate the moving cone and provide optimum compliance and
linearity at large excursions. The cone piston is driven by a high power motor
system, which in selected models uses an Alnico magnet. Alnico is an unusual
iron/nickel alloy doped during the melt process with cobalt and aluminium to
produce a magnetic material with very special properties. Having a high remanant
magnetism and energy product, Alnico magnetises to a high level and retains an
unusual degree of magnetisation. Alnico is also an electrical conductor. These
properties give the Alnico magnet equipped Dual Concentric™ drivers an
exceptionally clean transient response and increased sensitivity. The coil is
wound with a special high temperature adhesive system and individually cured to
ensure reliable operation at high peak power inputs. The shape of the low
frequency cone is arranged to provide optimum dispersion of audio frequencies at
both the high and low ends of the spectrum. The cone flare continues the high
frequency horn profile to ensure a smooth transition at the crossover point.the
high frequency driver consists of a wide dynamic range compression unit giving
superb transient performance with a smooth uncoloured response. The compression
unit feeds acoustic power through a low compression phase compensating device,
either the Tannoy Tulip Waveguide™ or the PepperPot WaveGuide™, to the throat of
the acoustic horn formed by the low frequency cone. The low frequency cone
profile provides a second waveguide with acoustic impedance transformation to
match the high frequency radiation into the listening environment.
Either a titanium or aluminium alloy diaphragm, formed by a specially developed
process, produces a piston with a very high stiffness to mass ratio. Optimum
molecular grain structure gives long-term durability. A low mass precision coil
provides the driving force for the diaphragm, energized by a powerful magnet
system. A damped acoustic cavity to one side of the diaphragm controls the
compression driver response and ensures perfect integration at the crossover
point.
DIFFUSORE 2 VIE DA PAVIMENTO - 1 UNITA` DUAL CONCENTRIC
DA 25 CM CON TWEETER DA 33 MM E GUIDA D ONDA - BIAMPLIFICABILE - CROSSOVER
REGOLABILE - EFFICIENZA 93 DB - SPL MASSIMO 113,5 DB/110W/1M - IMPEDENZA 8 OHMS
- DIMENSIONI 1040 X 540 X 420 - PESO KG. 36 - FINITURA NOCE

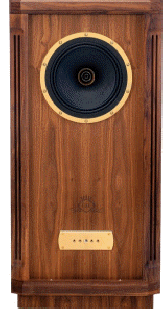

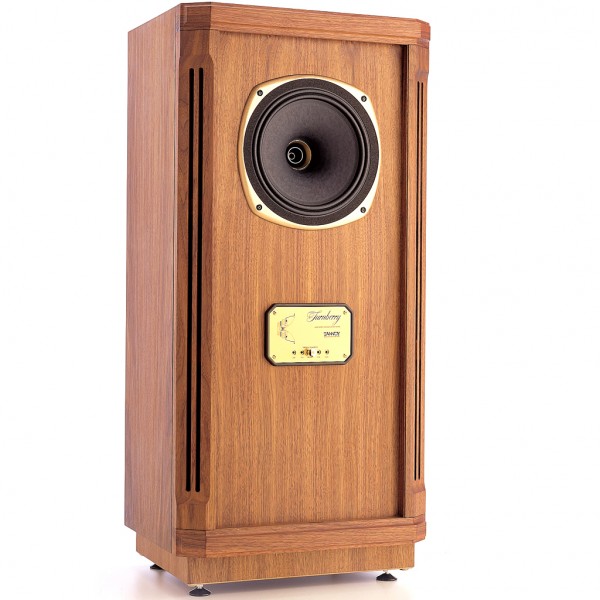

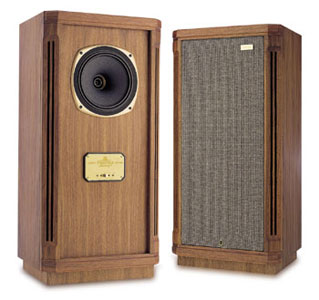

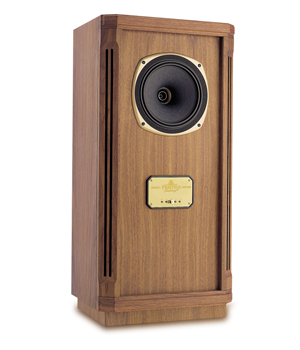

The
Turnberry SE is beautiful design is undoubtedly a timeless Tannoy classic; one
which uses cutting edge technology in its 10.00” Dual Concentric™ drive unit and
the finest crossover components to create a thrillingly dynamic and realistic
performance; all delivered with consummate ease.
All components and cabinets are still hand assembled in the time-honoured
fashion to ensure that attention to detail and unique styling go hand in hand in
maintaining the exclusive appeal of this highly respected and sought after
loudspeaker.The design comfortably complements any decor from ancient castle
through to the cool, casual and contemporary. The only rules we absolutely
adhere to when designing and crafting Prestige loudspeakers is to utilise the
most up to date, no compromise, acoustic technologies and time-proven cabinet
making skills ensuring these are probably the very best sounding loudspeakers
you will find …anywhereHaving re-evaluated the performance of models throughout
the Prestige range, Tannoy engineers selected the latest cutting edge components
and materials at their disposal to introduce several performance enhancing
amendments to the crossover topologies within the ‘SE’ models. To optimise
acoustic performance only components of the highest possible standard have been
used.Hard-wired crossovers are used throughout the Turnberry SE and the routing
of each cable has been painstakingly considered to ensure there is no
degradation in sound quality. Similarly, the components have been carefully
arranged to avoid any coupling effects. In particular, incredible transparency
in the mid band has been achieved providing an enhanced true-to-life vocal
clarity. Completely redesigned crossovers, incorporating the most up-to-date
high quality components, have taken these models to a new level of acoustic
excellence. ICW Clarity Caps have been included for high frequency (HF) section
of the crossovers, while high quality metalised film capacitors are used in LF
sections. The LF crossover also makes use of very low loss laminated iron core
inductors. Internal connections from input terminals to crossover, internal
crossover wiring and crossover to Dual Concentric™ drive unit are made with the
exceptional VDH MC CS18 halogen free silver-plated cable.A 5-point terminal
panel (bi-wire and ground point) gold plated terminals has been incorporated on
the Turnberry SE. With the driver chassis grounded via the 5th terminal, and by
using appropriate speaker cable, this proven technology, developed on earlier
Prestige models, minimises the effects of RF interference resulting in a more
transparent midrangeThe unique advantage of the Tannoy Dual Concentric™
principle is that the low and high frequency sound radiation is generated on the
same axis. In effect, the Dual is a single chassis comprising two separate drive
units properly merged into one, with the high frequency unit mounted in the
centre of the pole piece of the low frequency unit. High frequency sound
radiates from the centre of the low frequency unit through a carefully designed
high frequency exponential horn, either the PepperPot WaveGuide™ or the Tulip
WaveGuide™ dependant on the model. It is the fact that the low and high
frequencies are therefore fully integrated at source that gives the Tannoy Dual
Concentric™ driver such unique sound reproduction qualities.The location of the
high frequency unit does not physically obstruct the low frequency unit in any
way; a unique feature when compared with industry standard coaxial systems.
Polar dispersion of sound is symmetrical in both the horizontal and vertical
planes. By careful crossover network design the virtual acoustic sources of the
high and low frequency units can be made to occupy the same point on the axis.
Therefore the whole sound appears to emanate from a single point source located
slightly behind the drive unit. This means that the loudspeakers, when fed from
a high quality stereo source, can recreate a full and accurate stereo image.The
low frequency section of the Dual Concentric™ drive units has exceptional power
handling and dynamic range. The low frequency cone piston is produced from
selected multi-fibre paper pulp. This is specially treated to absorb internal
resonance modes. A treated fabric surround, or rubber surround in the case of
Autograph Mini, is designed to correctly terminate the moving cone and provide
optimum compliance and linearity at large excursions. The cone piston is driven
by a high power motor system, which in selected models uses an Alnico magnet.
Alnico is an unusual iron/nickel alloy doped during the melt process with cobalt
and aluminium to produce a magnetic material with very special properties.
Having a high remanant magnetism and energy product, Alnico magnetises to a high
level and retains an unusual degree of magnetisation. Alnico is also an
electrical conductor. These properties give the Alnico magnet equipped Dual
Concentric™ drivers an exceptionally clean transient response and increased
sensitivity. The coil is wound with a special high temperature adhesive system
and individually cured to ensure reliable operation at high peak power inputs.
The shape of the low frequency cone is arranged to provide optimum dispersion of
audio frequencies at both the high and low ends of the spectrum. The cone flare
continues the high frequency horn profile to ensure a smooth transition at the
crossover point.The high frequency driver consists of a wide dynamic range
compression unit giving superb transient performance with a smooth uncoloured
response. The compression unit feeds acoustic power through a low compression
phase compensating device, either the Tannoy Tulip Waveguide™ or the PepperPot
WaveGuide™, to the throat of the acoustic horn formed by the low frequency cone.
The low frequency cone profile provides a second waveguide with acoustic
impedance transformation to match the high frequency radiation into the
listening environment. Either a titanium or aluminium alloy diaphragm, formed by
a specially developed process, produces a piston with a very high stiffness to
mass ratio. Optimum molecular grain structure gives long-term durability. A low
mass precision coil provides the driving force for the diaphragm, energized by a
powerful magnet system. A damped acoustic cavity to one side of the diaphragm
controls the compression driver response and ensures perfect integration at the
crossover point
DIFFUSORE 2 VIE DA PAVIMENTO - 1 UNITA` DUAL CONCENTRIC
DA 38 CM CON TWEETER DA 33 MM E GUIDA D ONDA - TWIN REFLEX - BIAMPLIFICABILE -
CROSSOVER CON HOVLAND MUSICAP - EFFICIENZA 95 DB - IMPEDENZA 5,5 OHMS (MINIMA) -
EMISSIONE MASSIMA DI PICCO 116,5 DB/135 W/1 M - DIMENSIONI 1050 X 460 X 448 MM -
PESO 45 KG - FINITURA BETULLA
While
embodying the long established company philosophy of no compromise acoustic
performance, the Glenair brings a fresh and modern styling approach to the
Tannoy Prestige range. Utilising the proven acoustic benefits of a trapezoidal
cabinet design, Glenair bears all the hallmarks of bespoke loudspeaker
craftsmanship but with a more contemporary feel. Plywood manufactured from birch
grown in slow-growing cold regions of the world and selected for its denser
quality is used for the main structure of the speaker cabinet. The combination
of heavily damped material, comprehensive internal bracing and non–parallel side
panels alleviate the problems associated with standing waves, ensuring that the
loudspeaker is free from unwanted resonance. Externally the cabinet is finely
crafted with American Cherry veneer and solid wood mouldings hand finished and
polished to an unsurpassed standard. No unsightly retaining lugs spoil the clean
lines of the speaker’s front panel when the curved, acoustically transparent
grille is removed; this thanks to the cleverly designed magnetised fixing method
within the baffle structure.Main Features As with all other Prestige models, the
two Glenair benefits from the many advantages of the world-renowned Tannoy Dual
Concentric™ drive unit with its unique and superior sound reproduction qualities.
The carefully engineered components of the 15.00” unit fitted to the Glenair
presents an astonishingly true to life performance with an open, coherent and
utterly involving soundstage. Effortless bass dynamics, open midrange and
meticulously detailed high frequency with a delicacy of treble nuances are
assured. Ensuring perfect integration of the driver elements, the carefully
designed crossover network exhibits true audiophile qualities. All components
are high precision, low-loss and thermally stable. For the high frequency feed a
single Hovland MusiCap® capacitor is used providing class-leading sonic
consistency; exceptional dynamics, speed, focus, correct timbre and depth of
field. Two large laminated iron core inductors are used to avoid saturation
effects. Careful consideration has been given to the precise layout of the
crossover in order to minimise inter component coupling and it is positioned
well away from the driver to avoid any detrimental magnetic field effects. Top
quality silver-plated copper wiring is used for the low frequency section, and
Acrolink 6N ultra high purity (99.9999%) copper wire is used for the high
frequency wiring for complete signal path integrity.The bire wire terminal on
the twin ported rear panel also features an ‘earth’ or grounding point. With the
driver chassis grounded, this proven technology, developed on earlier Prestige
models, minimises the effects of RF interference resulting in a more transparent
midrange.Each component part of the Glenair complements one another to deliver
an audiophile loudspeaker that runs true to the highly respected pedigree of the
Prestige range and as such maintains Tannoy’s leading position as an innovator
of premium audio solutions.Drive Unit The unique advantage of the Tannoy Dual
Concentric™ principle is that the low and high frequency sound radiation is
generated on the same axis. In effect, the Dual is a single chassis comprising
two separate drive units properly merged into one, with the high frequency unit
mounted in the centre of the pole piece of the low frequency unit. High
frequency sound radiates from the centre of the low frequency unit through a
carefully designed high frequency exponential horn, either the PepperPot
WaveGuide™ or the Tulip WaveGuide™ dependant on the model. It is the fact that
the low and high frequencies are therefore fully integrated at source that gives
the Tannoy Dual Concentric™ driver such unique sound reproduction qualities.The
location of the high frequency unit does not physically obstruct the low
frequency unit in any way; a unique feature when compared with industry standard
coaxial systems. Polar dispersion of sound is symmetrical in both the horizontal
and vertical planes. By careful crossover network design the virtual acoustic
sources of the high and low frequency units can be made to occupy the same point
on the axis. Therefore the whole sound appears to emanate from a single point
source located slightly behind the drive unit. This means that the loudspeakers,
when fed from a high quality stereo source, can recreate a full and accurate
stereo image.The low frequency section of the Dual Concentric™ drive units has
exceptional power handling and dynamic range. The low frequency cone piston is
produced from selected multi-fibre paper pulp. This is specially treated to
absorb internal resonance modes. A treated fabric surround, or rubber surround
in the case of Autograph Mini, is designed to correctly terminate the moving
cone and provide optimum compliance and linearity at large excursions. The cone
piston is driven by a high power motor system, which in selected models uses an
Alnico magnet. Alnico is an unusual iron/nickel alloy doped during the melt
process with cobalt and aluminium to produce a magnetic material with very
special properties. Having a high remanant magnetism and energy product, Alnico
magnetises to a high level and retains an unusual degree of magnetisation.
Alnico is also an electrical conductor. These properties give the Alnico magnet
equipped Dual Concentric™ drivers an exceptionally clean transient response and
increased sensitivity. The coil is wound with a special high temperature
adhesive system and individually cured to ensure reliable operation at high peak
power inputs. The shape of the low frequency cone is arranged to provide optimum
dispersion of audio frequencies at both the high and low ends of the spectrum.
The cone flare continues the high frequency horn profile to ensure a smooth
transition at the crossover point.The high frequency driver consists of a wide
dynamic range compression unit giving superb transient performance with a smooth
uncoloured response. The compression unit feeds acoustic power through a low
compression phase compensating device, either the Tannoy Tulip Waveguide™ or the
PepperPot WaveGuide™, to the throat of the acoustic horn formed by the low
frequency cone. The low frequency cone profile provides a second waveguide with
acoustic impedance transformation to match the high frequency radiation into the
listening environment. Either a titanium or aluminium alloy diaphragm, formed by
a specially developed process, produces a piston with a very high stiffness to
mass ratio. Optimum molecular grain structure gives long-term durability. A low
mass precision coil provides the driving force for the diaphragm, energized by a
powerful magnet system. A damped acoustic cavity to one side of the diaphragm
controls the compression driver response and ensures perfect integration at the
crossover point.
DIFFUSORE 2 VIE DA PAVIMENTO - 1 UNITA` DUAL CONCENTRIC
DA 25 CM CON TWEETER DA 51 MM E GUIDA D ONDA - REFLEX A PORTA DISTRIBUITA -
BIAMPLIFICABILE - CROSSOVER REGOLABILE - EFFICIENZA 93 DB - IMPEDENZA 8 OHMS -
ALTOPARLANTE IN ALNICO 3 - DIMENSIONI 1100 X 406 X 338 - PESO KG.27 - FINITURA
MOGANO CON INSERTI NOCE

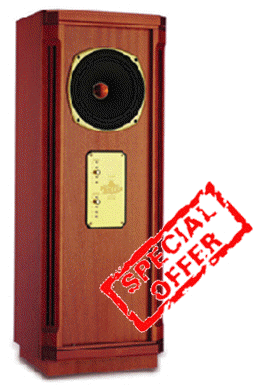

In
combining the best of bespoke cabinet making with the latest production and
acoustic design skills, Tannoy presents a loudspeaker that blends time-honoured
values with cutting edge audio performance. Traditional aesthetic meets modern
technology to create a loudspeaker that is as easy to live with as it is
exhilarating to listen to. In the Kensington SE a 10.00” Dual Concentric, with
Alnico magnet system and the Tannoy PepperPot WaveGuide™, is mounted in a
comprehensively braced and solidly constructed mahogany cabinet. This
combination delivers superb dynamics with fluid mid-range, focused imaging,
spacious sound staging and deep, controlled bass performance.All components and
cabinets are still hand assembled in the time-honoured fashion to ensure that
attention to detail and unique styling go hand in hand in maintaining the
exclusive appeal of this highly respected and sought after loudspeaker.The
design comfortably complements any decor from ancient castle through to the
cool, casual and contemporary. The only rules we absolutely adhere to when
designing and crafting Prestige loudspeakers is to utilise the most up to date,
no compromise, acoustic technologies and time-proven cabinet making skills
ensuring these are probably the very best sounding loudspeakers you will find
…anywhere.Having re-evaluated the performance of models throughout the Prestige
range, Tannoy engineers selected the latest cutting edge components and
materials at their disposal to introduce several performance enhancing
amendments to the crossover topologies within the ‘SE’ models. To optimise
acoustic performance only components of the highest possible standard have been
used.The Kensington SE benefits from Acrolink® cable right through from terminal
panel to crossover, crossover to drivers and the LF board wiring itself; not
forgetting the bi-wire links. Cables produced by Acrolink® use self-stipulated
6N copper, constructed using the same process as is used with wires for
semiconductor devices, which require a guarantee of high quality. More
precisely, the purity of the copper needs to be over 99.9999% and the total of
any impurity metals must be less than 1 part per million. The quality of this
cable ensures that a powerful yet delicate and natural, fast response is
accomplished throughout the signal path.Very low loss laminated iron core
inductors on the LF ensure that there is less resistance between the amplifier
and driver, resulting in superior bass control. High purity silver (99.99%) link
wires maintain signal path integrity on the separate HF crossover board and for
the HF feed capacitor Hovland Musicaps® are used with a special Tannoy DMT™
(Differential Material Technology) isolation sleeve. Hovland Musicaps® are
renowned for their exceptional dynamics, speed, focus, correct timbre and depth
of field, and true inter-transient silence. Separate layers of polypropylene
film and conductive foil deliver superior clarity of reproduction that metalised
capacitors cannot match. High quality ICW Musicaps are used in other areas.
Vishay thick film non-inductive resistors are used in critical areas, with
extensive heat sinking where necessary. The stable component temperature
provided by the heat-sinking feature ensures maximum reliability and an even and
consistent sound quality.The terminal panel, with it's 5-point (bi-wire and
ground point) gold plated terminals has the driver chassis grounded via the 5th
terminal. By using appropriate speaker cable, this proven technology, developed
on earlier Prestige models, minimises the effects of RF interference resulting
in a more transparent midrange. Additionally the Kensington SE uses high quality
WBT™ connectors to ensure easier connection of substantial loudspeaker cable
whilst maintaining complete signal path integrity.Drive UnitThe unique advantage
of the Tannoy Dual Concentric™ principle is that the low and high frequency
sound radiation is generated on the same axis. In effect, the Dual is a single
chassis comprising two separate drive units properly merged into one, with the
high frequency unit mounted in the centre of the pole piece of the low frequency
unit. High frequency sound radiates from the centre of the low frequency unit
through a carefully designed high frequency exponential horn, either the
PepperPot WaveGuide™ or the Tulip WaveGuide™ dependant on the model. It is the
fact that the low and high frequencies are therefore fully integrated at source
that gives the Tannoy Dual Concentric™ driver such unique sound reproduction
qualities.The location of the high frequency unit does not physically obstruct
the low frequency unit in any way; a unique feature when compared with industry
standard coaxial systems. Polar dispersion of sound is symmetrical in both the
horizontal and vertical planes. By careful crossover network design the virtual
acoustic sources of the high and low frequency units can be made to occupy the
same point on the axis. Therefore the whole sound appears to emanate from a
single point source located slightly behind the drive unit. This means that the
loudspeakers, when fed from a high quality stereo source, can recreate a full
and accurate stereo image.The low frequency section of the Dual Concentric™
drive units has exceptional power handling and dynamic range. The low frequency
cone piston is produced from selected multi-fibre paper pulp. This is specially
treated to absorb internal resonance modes. A treated fabric surround, or rubber
surround in the case of Autograph Mini, is designed to correctly terminate the
moving cone and provide optimum compliance and linearity at large excursions.
The cone piston is driven by a high power motor system, which in selected models
uses an Alnico magnet. Alnico is an unusual iron/nickel alloy doped during the
melt process with cobalt and aluminium to produce a magnetic material with very
special properties. Having a high remanant magnetism and energy product, Alnico
magnetises to a high level and retains an unusual degree of magnetisation.
Alnico is also an electrical conductor. These properties give the Alnico magnet
equipped Dual Concentric™ drivers an exceptionally clean transient response and
increased sensitivity. The coil is wound with a special high temperature
adhesive system and individually cured to ensure reliable operation at high peak
power inputs. The shape of the low frequency cone is arranged to provide optimum
dispersion of audio frequencies at both the high and low ends of the spectrum.
The cone flare continues the high frequency horn profile to ensure a smooth
transition at the crossover point.The high frequency driver consists of a wide
dynamic range compression unit giving superb transient performance with a smooth
uncoloured response. The compression unit feeds acoustic power through a low
compression phase compensating device, either the Tannoy Tulip Waveguide™ or the
PepperPot WaveGuide™, to the throat of the acoustic horn formed by the low
frequency cone. The low frequency cone profile provides a second waveguide with
acoustic impedance transformation to match the high frequency radiation into the
listening environment. Either a titanium or aluminium alloy diaphragm, formed by
a specially developed process, produces a piston with a very high stiffness to
mass ratio. Optimum molecular grain structure gives long-term durability. A low
mass precision coil provides the driving force for the diaphragm, energized by a
powerful magnet system. A damped acoustic cavity to one side of the diaphragm
controls the compression driver response and ensures perfect integration at the
DIFFUSORE 2 VIE DA PAVIMENTO - 1 UNITA` DUAL CONCENTRIC DA
30 CM CON TWEETER DA 33 MM E GUIDA D ONDA - DOPPIO REFLEX POSTERIORE -
BIAMPLIFICABILE - CROSSOVER REGOLABILE - EFFICIENZA 93 DB - IMPEDENZA 8 OHMS -
ALTOPARLANTE IN ALNICO 5 - DIMENSIONI 1080 X 620 X 447 - PESO KG.61,5 - FINITURA
TEAK Embodying
all that is essential in a classic Tannoy loudspeaker, the Yorkminster SE is a
blend of proven acoustic design, exceptional traditional craftsmanship and
cutting edge audio technology. This truly remarkable loudspeaker reproduces
music with a performance that ranges effortlessly from captivating delicacy to
breathtaking scale and impact. The Alnico magnet system endows the 12.00"
version of the renowned Tannoy Dual Concentric™ driver in the Yorkminster SE
with an exceptional transient response and greatly increased sensitivity over
standard motor system materials. The classic aesthetic design of the hand built
cabinet is finished in premium hardwood veneers with beautiful solid wood
mouldings.All components and cabinets are still hand assembled in the
time-honoured fashion to ensure that attention to detail and unique styling go
hand in hand in maintaining the exclusive appeal of this highly respected and
sought after loudspeaker.The design comfortably complements any decor from
ancient castle through to the cool, casual and contemporary. The only rules we
absolutely adhere to when designing and crafting Prestige loudspeakers is to
utilise the most up to date, no compromise, acoustic technologies and
time-proven cabinet making skills ensuring these are probably the very best
sounding loudspeakers you will find …anywhere.Features Having re-evaluated the
performance of models throughout the Prestige range, Tannoy engineers selected
the latest cutting edge components and materials at their disposal to introduce
several performance enhancing amendments to the crossover topologies within the
‘SE’ models. To optimise acoustic performance only components of the highest
possible standard have been used.The Yorkminster SE benefits from Acrolink®
cable right through from terminal panel to crossover, crossover to drivers and
the LF board wiring itself; not forgetting the bi-wire links. Cables produced by
Acrolink® use self-stipulated 6N copper, constructed using the same process as
is used with wires for semiconductor devices, which require a guarantee of high
quality. More precisely, the purity of the copper needs to be over 99.9999% and
the total of any impurity metals must be less than 1 part per million. The
quality of this cable ensures that a powerful yet delicate and natural, fast
response is accomplished throughout the signal path.Very low loss laminated iron
core inductors on the LF ensure that there is less resistance between the
amplifier and driver, resulting in superior bass control. High purity silver
(99.99%) link wires maintain signal path integrity on the separate HF crossover
board and for the HF feed capacitor Hovland Musicaps® are used with a special
Tannoy DMT™ (Differential Material Technology) isolation sleeve. Hovland
Musicaps® are renowned for their exceptional dynamics, speed, focus, correct
timbre and depth of field, and true inter-transient silence. Separate layers of
polypropylene film and conductive foil deliver superior clarity of reproduction
that metalised capacitors cannot match. High quality ICW Musicaps are used in
other areas. Vishay thick film non-inductive resistors are used in critical
areas, with extensive heat sinking where necessary. The stable component
temperature provided by the heat-sinking feature ensures maximum reliability and
an even and consistent sound quality.The terminal panel, with it's 5-point (bi-wire
and ground point) gold plated terminals has the driver chassis grounded via the
5th terminal. By using appropriate speaker cable, this proven technology,
developed on earlier Prestige models, minimises the effects of RF interference
resulting in a more transparent midrange. Additionally the Yorkminster SE uses
high quality WBT™ connectors to ensure easier connection of substantial
loudspeaker cable whilst maintaining complete signal path integrity.Drive
UnitThe unique advantage of the Tannoy Dual Concentric™ principle is that the
low and high frequency sound radiation is generated on the same axis. In effect,
the Dual is a single chassis comprising two separate drive units properly merged
into one, with the high frequency unit mounted in the centre of the pole piece
of the low frequency unit. High frequency sound radiates from the centre of the
low frequency unit through a carefully designed high frequency exponential horn,
either the PepperPot WaveGuide™ or the Tulip WaveGuide™ dependant on the model.
It is the fact that the low and high frequencies are therefore fully integrated
at source that gives the Tannoy Dual Concentric™ driver such unique sound
reproduction qualities.The location of the high frequency unit does not
physically obstruct the low frequency unit in any way; a unique feature when
compared with industry standard coaxial systems. Polar dispersion of sound is
symmetrical in both the horizontal and vertical planes. By careful crossover
network design the virtual acoustic sources of the high and low frequency units
can be made to occupy the same point on the axis. Therefore the whole sound
appears to emanate from a single point source located slightly behind the drive
unit. This means that the loudspeakers, when fed from a high quality stereo
source, can recreate a full and accurate stereo image.The low frequency section
of the Dual Concentric™ drive units has exceptional power handling and dynamic
range. The low frequency cone piston is produced from selected multi-fibre paper
pulp. This is specially treated to absorb internal resonance modes. A treated
fabric surround, or rubber surround in the case of Autograph Mini, is designed
to correctly terminate the moving cone and provide optimum compliance and
linearity at large excursions. The cone piston is driven by a high power motor
system, which in selected models uses an Alnico magnet. Alnico is an unusual
iron/nickel alloy doped during the melt process with cobalt and aluminium to
produce a magnetic material with very special properties. Having a high remanant
magnetism and energy product, Alnico magnetises to a high level and retains an
unusual degree of magnetisation. Alnico is also an electrical conductor. These
properties give the Alnico magnet equipped Dual Concentric™ drivers an
exceptionally clean transient response and increased sensitivity. The coil is
wound with a special high temperature adhesive system and individually cured to
ensure reliable operation at high peak power inputs. The shape of the low
frequency cone is arranged to provide optimum dispersion of audio frequencies at
both the high and low ends of the spectrum. The cone flare continues the high
frequency horn profile to ensure a smooth transition at the crossover point.The
high frequency driver consists of a wide dynamic range compression unit giving
superb transient performance with a smooth uncoloured response. The compression
unit feeds acoustic power through a low compression phase compensating device,
either the Tannoy Tulip Waveguide™ or the PepperPot WaveGuide™, to the throat of
the acoustic horn formed by the low frequency cone. The low frequency cone
profile provides a second waveguide with acoustic impedance transformation to
match the high frequency radiation into the listening environment. Either a
titanium or aluminium alloy diaphragm, formed by a specially developed process,
produces a piston with a very high stiffness to mass ratio. Optimum molecular
grain structure gives long-term durability. A low mass precision coil provides
the driving force for the diaphragm, energized by a powerful magnet system. A
damped acoustic cavity to one side of the diaphragm controls the compression
driver response and ensures perfect integration at the crossover point.
DIFFUSORE 2 VIE DA
PAVIMENTO - 1 UNITA` DUAL CONCENTRIC DA 38 CM CON TWEETER DA 51 MM E GUIDA D
ONDA - BIAMPLIFICABILE - CROSSOVER REGOLABILE - EFFICIENZA 96 DB - SPL MASSIMO
117,5/140 W/ 1 M - IMPEDENZA 8 OHMS - ALTOPARLANTE IN ALNICO 5 - DIMENSIONI 1100
X 680 X 480 - PESO KG. 63 - FINITURA NOCE The
15.00” version of the Tannoy Dual Concentric™ drive unit in the Canterbury SE is
equipped with an Alcomax 3 magnet system and the Tannoy PepperPot WaveGuide™ to
further enhance the point source symmetrical dispersion properties of the
driver. Acoustically this speaker delivers a superbly dynamic overall
presentation with fast, accurate bass, fluid and open midrange and clean,
spacious high frequencies – an exceptionally involving performance. With such
impressive performance available the useful addition of a Variable Distributed
Port System allows low frequency output to be tuned to suit any room dimension.
Careful consideration has been given to the precise layout of all the Prestige
crossovers in order to minimise inter-component coupling and they are positioned
well away from the driver to avoid any detrimental magnetic field effects.Birch
ply panels and a complex internal bracing structure create an exceptionally
substantial enclosure. The timeless beauty of the oiled walnut veneer exterior
finish, with its hand selected burr walnut inlays and solid walnut mouldings,
ensures that these audiophile loudspeakers are undoubtedly destined to become
true family heirlooms.Features Having re-evaluated the performance of models
throughout the Prestige range, Tannoy engineers selected the latest cutting edge
components andmaterials at their disposal to introduce several performance
enhancing amendments to the crossover topologies within the ‘SE’ models. To
optimise acoustic performance only components of the highest possible standard
have been used.The Canterbury SE benefits from Acrolink® cable right through
from terminal panel to crossover, crossover to drivers and the LF board wiring
itself; not forgetting the bi-wire links. Cables produced by Acrolink® use
self-stipulated 6N copper, constructed using the same process as is used with
wires for semiconductor devices, which require a guarantee of high quality. More
precisely, the purity of the copper needs to be over 99.9999% and the total of
any impurity metals must be less than 1 part per million. The quality of this
cable ensures that a powerful yet delicate and natural, fast response is
accomplished throughout the signal path.Very low loss laminated iron core
inductors on the LF ensure that there is less resistance between the amplifier
and driver, resulting in superior bass control. High purity silver (99.99%) link
wires maintain signal path integrity on the separate HF crossover board and for
the HF feed capacitor Hovland Musicaps® are used with a special Tannoy DMT™ (Differential
Material Technology) isolation sleeve. Hovland Musicaps® are renowned for their
exceptional dynamics, speed, focus, correct timbre and depth of field, and true
inter-transient silence. Separate layers of polypropylene film and conductive
foil deliver superior clarity of reproduction that metalised capacitors cannot
match. High quality ICW Musicaps are used in other areas. Vishay thick film
non-inductive resistors are used in critical areas, with extensive heat sinking
where necessary. The stable component temperature provided by the heat-sinking
feature ensures maximum reliability and an even and consistent sound quality.The
terminal panel, with it's 5-point (bi-wire and ground point) gold plated
terminals has the driver chassis grounded via the 5th terminal. By using
appropriate speaker cable, this proven technology, developed on earlier Prestige
models, minimises the effects of RF interference resulting in a more transparent
midrange. Additionally the Canterbury SE uses high quality WBT™ connectors to
ensure easier connection of substantial loudspeaker cable whilst maintaining
complete signal path integrity.Drive UnitThe unique advantage of the Tannoy Dual
Concentric™ principle is that the low and high frequency sound radiation is
generated on the same axis. In effect, the Dual is a single chassis comprising
two separate drive units properly merged into one, with the high frequency unit
mounted in the centre of the pole piece of the low frequency unit. High
frequency sound radiates from the centre of the low frequency unit through a
carefully designed high frequency exponential horn, either the PepperPot
WaveGuide™ or the Tulip WaveGuide™ dependant on the model. It is the fact that
the low and high frequencies are therefore fully integrated at source that gives
the Tannoy Dual Concentric™ driver such unique sound reproduction qualities.The
location of the high frequency unit does not physically obstruct the low
frequency unit in any way; a unique feature when compared with industry standard
coaxial systems. Polar dispersion of sound is symmetrical in both the horizontal
and vertical planes. By careful crossover network design the virtual acoustic
sources of the high and low frequency units can be made to occupy the same point
on the axis. Therefore the whole sound appears to emanate from a single point
source located slightly behind the drive unit. This means that the loudspeakers,
when fed from a high quality stereo source, can recreate a full and accurate
stereo image.The low frequency section of the Dual Concentric™ drive units has
exceptional power handling and dynamic range. The low frequency cone piston is
produced from selected multi-fibre paper pulp. This is specially treated to
absorb internal resonance modes. A treated fabric surround, or rubber surround
in the case of Autograph Mini, is designed to correctly terminate the moving
cone and provide optimum compliance and linearity at large excursions. The cone
piston is driven by a high power motor system, which in selected models uses an
Alnico magnet. Alnico is an unusual iron/nickel alloy doped during the melt
process with cobalt and aluminium to produce a magnetic material with very
special properties. Having a high remanant magnetism and energy product, Alnico
magnetises to a high level and retains an unusual degree of magnetisation.
Alnico is also an electrical conductor. These properties give the Alnico magnet
equipped Dual Concentric™ drivers an exceptionally clean transient response and
increased sensitivity. The coil is wound with a special high temperature
adhesive system and individually cured to ensure reliable operation at high peak
power inputs. The shape of the low frequency cone is arranged to provide optimum
dispersion of audio frequencies at both the high and low ends of the spectrum.
The cone flare continues the high frequency horn profile to ensure a smooth
transition at the crossover point.The high frequency driver consists of a wide
dynamic range compression unit giving superb transient performance with a smooth
uncoloured response. The compression unit feeds acoustic power through a low
compression phase compensating device, either the Tannoy Tulip Waveguide™ or the
PepperPot WaveGuide™, to the throat of the acoustic horn formed by the low
frequency cone. The low frequency cone profile provides a second waveguide with
acoustic impedance transformation to match the high frequency radiation into the
listening environment.
Either a titanium or aluminium alloy diaphragm, formed by a specially developed
process, produces a piston with a very high stiffness to mass ratio. Optimum
molecular grain structure gives long-term durability. A low mass precision coil
provides the driving force for the diaphragm, energized by a powerful magnet
system. A damped acoustic cavity to one side of the diaphragm controls the
compression driver response and ensures perfect integration at the crossover
point.
DIFFUSORE 2 VIE DA PAVIMENTO CON TROMBA ANTERIORE E
POSTERIORE - 1 UNITA` DUAL CONCENTRIC DA 38 CM CON TWEETER DA 51 MM E GUIDA D
ONDA - MAGNETI IN ALNICO - BIAMPLIFICABILE - CROSSOVER REGOLABILE CON COMPONENTI
HOVLAND, VISHAY, ICW - EFFICIENZA 99 DB - SPL MASSIMO 120,5 DB/135 W/1 M -
IMPEDENZA 8 OHMS - DOMENSIONI 1395 X 980 X 560 - PESO KG. 154 - FINITURA NOCE
The
Westminster Royal SE, the crowning achievement of the Prestige range, combines
hand built traditional compound horn loaded enclosure with the latest
technological innovation in acoustical engineering.The 15” Dual Concentric™
drive unit incorporates an Alnico magnet system with an integral computer
designed and manufactured reverse throat high frequency PepperPot WaveGuide™ for
exceptional transient response and increased sensitivity. A ‘hard edge’ cone
surround and unique chassis earthing system deliver tight, fast and controlled
bass with fluid and transparent midrange and high frequency performance of great
purity.The magnificent 530 litre cabinet with its complex horn loading system delivers
greatly increased efficiency with a wave front area approaching that from real
instruments. Effortlessly capable of resolving truly low frequencies and the
reproduction of the dramatic dynamic range of musical instruments with stunning
realism, this is a true Tannoy classic.Features:Having re-evaluated the
performance of models throughout the Prestige range, Tannoy engineers selected
the latest cutting edge components and materials at their disposal to introduce
several performance enhancing amendments to the crossover topologies within the
‘SE’ models. To optimise acoustic performance only components of the highest
possible standard have been used.Westminster Royal SE benefits from Acrolink®
cable right through from terminal panel to crossover, crossover to drivers and
the LF board wiring itself; not forgetting the bi-wire links. Cables produced by
Acrolink® use self-stipulated 6N copper, constructed using the same process as
is used with wires for semiconductor devices, which require a guarantee of high
quality. More precisely, the purity of the copper needs to be over 99.9999% and
the total of any impurity metals must be less than 1 part per million. The
quality of this cable ensures that a powerful yet delicate and natural, fast
response is accomplished throughout the signal path.Very low loss laminated iron
core inductors on the LF ensure that there is less resistance between the
amplifier and driver, resulting in superior bass control. High purity silver
(99.99%) link wires maintain signal path integrity on the separate HF crossover
board and for the HF feed capacitor Hovland Musicaps® are used with a special
Tannoy DMT™ (Differential Material Technology) isolation sleeve. Hovland
Musicaps® are renowned for their exceptional dynamics, speed, focus, correct
timbre and depth of field, and true inter-transient silence. Separate layers of
polypropylene film and conductive foil deliver superior clarity of reproduction
that metalised capacitors cannot match. High quality ICW Musicaps are used in
other areas. Vishay thick film non-inductive resistors are used in critical
areas, with extensive heat sinking where necessary. The stable component
temperature provided by the heat-sinking feature ensures maximum reliability and
an even and consistent sound quality.The 5-point (bi-wire and ground point)
terminal panel uses gold plated terminals, with the driver chassis grounded via
the 5th terminal. By using appropriate speaker cable, this proven technology,
developed on earlier Prestige models, minimises the effects of RF interference
resulting in a more transparent midrange. Additionally the Westminster Royal SE
uses high quality WBT™ connectors to ensure easier connection of substantial
loudspeaker cable whilst maintaining complete signal path integrity.Drive
Unit:The unique advantage of the Tannoy Dual Concentric™ principle is that
the low and high frequency sound radiation is generated on the same axis. In
effect, the Dual is a single chassis comprising two separate drive units
properly merged into one, with the high frequency unit mounted in the centre of
the pole piece of the low frequency unit. High frequency sound radiates from the
centre of the low frequency unit through a carefully designed high frequency
exponential horn, either the PepperPot WaveGuide™ or the Tulip WaveGuide™
dependant on the model. It is the fact that the low and high frequencies are
therefore fully integrated at source that gives the Tannoy Dual Concentric™
driver such unique sound reproduction qualities.The location of the high
frequency unit does not physically obstruct the low frequency unit in any way; a
unique feature when compared with industry standard coaxial systems. Polar
dispersion of sound is symmetrical in both the horizontal and vertical planes.
By careful crossover network design the virtual acoustic sources of the high and
low frequency units can be made to occupy the same point on the axis. Therefore
the whole sound appears to emanate from a single point source located slightly
behind the drive unit. This means that the loudspeakers, when fed from a high
quality stereo source, can recreate a full and accurate stereo image.The low
frequency section of the Dual Concentric™ drive units has exceptional power
handling and dynamic range. The low frequency cone piston is produced from
selected multi-fibre paper pulp. This is specially treated to absorb internal
resonance modes. A treated fabric surround, or rubber surround in the case of
Autograph Mini, is designed to correctly terminate the moving cone and provide
optimum compliance and linearity at large excursions. The cone piston is driven
by a high power motor system, which in selected models uses an Alnico magnet.
Alnico is an unusual iron/nickel alloy doped during the melt process with cobalt
and aluminium to produce a magnetic material with very special properties.
Having a high remanant magnetism and energy product, Alnico magnetises to a high
level and retains an unusual degree of magnetisation. Alnico is also an
electrical conductor. These properties give the Alnico magnet equipped Dual
Concentric™ drivers an exceptionally clean transient response and increased
sensitivity. The coil is wound with a special high temperature adhesive system
and individually cured to ensure reliable operation at high peak power inputs.
The shape of the low frequency cone is arranged to provide optimum dispersion of
audio frequencies at both the high and low ends of the spectrum. The cone flare
continues the high frequency horn profile to ensure a smooth transition at the
crossover point.The high frequency driver consists of a wide dynamic range
compression unit giving superb transient performance with a smooth uncoloured
response. The compression unit feeds acoustic power through a low compression
phase compensating device, either the Tannoy Tulip Waveguide™ or the PepperPot
WaveGuide™, to the throat of the acoustic horn formed by the low frequency cone.
The low frequency cone profile provides a second waveguide with acoustic
impedance transformation to match the high frequency radiation into the
listening environment. Either a titanium or aluminium alloy diaphragm, formed by
a specially developed process, produces a piston with a very high stiffness to
mass ratio. Optimum molecular grain structure gives long-term durability. A low
mass precision coil provides the driving force for the diaphragm, energized by a
powerful magnet system. A damped acoustic cavity to one side of the diaphragm
controls the compression driver response and ensures perfect integration at the
crossover point.
SuperTweeter™ WIDE
BANDWITH ACCESSORIES A SuperTweeter™ is a small high frequency drive unit,
mounted in a special casing, designed to sit on top of, and drawing its input
signal from, existing speakers. Tannoy SuperTweeter™ will transform any sound
system, creating the effect of a quantum leap upgrade in the sound quality of
speakers, electronic components and cables.
SUPERTWEETER ESTERNO CON
CROSSOVER REGOLABILE DEDICATO ALLA LINEA PRESTIGE - FINITURA WALNUT Always
an innovator where quality sound reproduction is concerned, Tannoy has continued
this tradition by being at the forefront of the development of WideBand™
technology. All Prestige models except Autograph Mini are compatible with
Tannoy’s SuperTweeter™ designs, providing the opportunity to extend
high-frequency response to above 50 kHz, thereby providing all of the bandwidth
required for today’s wide bandwidth digital recording formats.In fact the
SuperTweeter™ only starts working at a point that is close to what is generally
considered the limit of the audible frequency band for most adults. The Dual
Concentric™ in the main loudspeaker, still working to its full frequency
specifications, continues to provide the heart of the musical information as a
coherent point source. However, the extreme high frequencies are then resolved
by the SuperTweeter™ to provide incredible, wide bandwidth detail and enlivening
the performance by increasing the tonal accuracy of individual instruments for
more natural and true to life music reproduction.By extending the high frequency
capability of the complete loudspeaker system out to beyond 50kHz, this in turn
corrects the time and phase response at the upper end of audibility. This
delivers enhanced accuracy and spaciousness, improved clarity within the
essential mid band area and even an enhancement of the definition and impact of
low frequencies. Benefits are heard clearly with any source material, regardless
of bandwidth, therefore ensuring that a Tannoy SuperTweeter™ is an essential
accessory.Features The oiled American Walnut casing of the ST200 is specifically
designed to partner the Prestige range of Dual Concentric™ loudspeaker designs.
From Stirling SE right through to the iconic Westminster Royal SE, this
SuperTweeter has adjustment optimisation, appearance, style, construction and
performance to greatly improve the overall listening experience.A high stiffness
titanium dome minimises the effects of dome break-up and extend frequency
response, while a copper clad aluminium voice coil on aluminium former ensures
high power handling. A neodymium magnet system also extends frequency response
by minimising eddy current losses in voice coil and a driver magnet system
earthing avoids interference and information masking caused by radio
interference.old plated terminals, adjustment screws and circuit board are used
for high signal transparency. Radio Frequency quality inductors in crossover for
excellent high frequency characteristics and non-inductive planar thick film
resistors on ceramic substrates, avoid losses associated with wire wound types.
High quality polycarbonate film capacitors have been selected for high frequency
use.the unique Tannoy Performance Platform™, gives stable support and accurate
variable adjustment. Not only are they designed to visually blend in with all
types of speakers, but they also provide an instant acoustic upgrade that is
unavailable in any other way.
SUPERTWEETER ESTERNO
UNIVERSALE - VERSIONE SEMPLIFICATA DELL STD 100 - FINITURA BLACK O BROWN
ST50A
SuperTweeter™ is a small high frequency drive unit, mounted in a special casing,
designed to sit on top of, and drawing its input signal from, existing speakers.
Tannoy SuperTweeter™ will transform any sound system, creating the effect of a
quantum leap upgrade in the sound quality of speakers, electronic components and
cables.All models are stand-alone units with vertical axis adjustment to ensure
optimum combined acoustic output with the main speaker. Each has two sets of
controls allowing both operating frequency and output level to be optimised for
any type of speaker.ST50 SuperTweeter™ is constructed from a solid aluminium
die-casting coated with a soft feel, non-reflecting finish. Not only are they
designed to visually blend in with all types of speakers, but it also provides
an instant acoustic upgrade that is unavailable in any other way.
TANNOY REVOLUTION DC4 CAPPUCCINO
MINI DIFFUSORE 2 VIE BASS REFLEX - 1 DUAL CONCENTRIC DA Ø 11 CM - 1 TWEETER A IN
TITANIO/NEODIMIO DA 19MM CON TULIP WAWEGUIDE - ACCORDO REFLEX ANTERIORE -
EFFICIENZA 87 DB - IMPEDENZA 8 OHMS - POTENZA CONSIGLIATA 20/100 W - FINITURA
CAPPUCCINO (SCURO)/oak
DC4
Revolutionary A dynamic blend of design and performance set to transform music
and movie entertainment in today’s homes. Latest technologies, engineering
principles and cabinet construction combine for a compact, sumptuous loudspeaker
with the accuracy, scale and drama of much larger traditional designs. All three
models and the dedicated subwoofer are hand finished in a choice of Light Oak or
the darker Espresso veneer and equipped with comprehensive system connectivity
for easy partnering with your home theatre electronics. Play music In two
channel systems Revolution excels at pin-point imaging and revealing the finest
of musical details. The WideBand™ Dual Concentric™ driver delivers genuine
three-dimension imaging underpinned by low frequency extension that combines
sheer visceral attack with the expressive tonal detailing required for woodwind
and bass string instruments. Play movies With multi-channel music and film
soundtracks, Revolution delivers a huge soundstage backed by stunning transient
impact and deep bass effects. The voice-matched dialogue speaker uses an
identical driver configuration to preserve seamless surround integration and
crisp, timbre-perfect voices irrespective of genre or volume.A real solution
Whether you love music or movies, Beatles or Bach, drama or all-action adventure,
Revolution delivers with passion and elegance in equal measure; opulent looks,
powerful performance and ideally suited to the widest range of source formats
from vinyl LP to DTS HD Master Audio.REVOLUTION... In sound and style
TANNOY REVOLUTION DC4-T DIFFUSORE DA PAVIMENTO 2 VIE BASS REFLEX - 1 W Ø
11 CM A LUNGA ESCURSIONE - 1 DUAL CONCENTRIC DA Ø 11 CM - 1 TWEETER A IN
TITANIO/NEODIMIO DA 19MM CON TULIP WAWEGUIDE - EFFICIENZA 87 DB - IMPEDENZA 8
OHMS - POTENZA CONSIGLIATA 20/125 W - FINITURA CAPPUCINO/OAK DC4
T Revolutionary A dynamic blend of design and performance set to transform music
and movie entertainment in today’s homes. Latest technologies, engineering
principles and cabinet construction combine for a compact, sumptuous loudspeaker
with the accuracy, scale and drama of much larger traditional designs. All three
models and the dedicated subwoofer are hand finished in a choice of Light Oak or
the darker Espresso veneer and equipped with comprehensive system connectivity
for easy partnering with your home theatre electronics. Play music In two
channel systems Revolution excels at pin-point imaging and revealing the finest
of musical details. The WideBand™ Dual Concentric™ driver delivers genuine
three-dimension imaging underpinned by low frequency extension that combines
sheer visceral attack with the expressive tonal detailing required for woodwind
and bass string instruments.Play movies With multi-channel music and film
soundtracks, Revolution delivers a huge soundstage backed by stunning transient
impact and deep bass effects.The voice-matched dialogue speaker uses an
identical driver configuration to preserve seamless surround integration and
crisp, timbre-perfect voices irrespective of genre or volume.A real
solutionWhether you love music or movies, Beatles or Bach, drama or all-action
adventure, Revolution delivers with passion and elegance in equal measure;
opulent looks, powerful performance and ideally suited to the widest range of
source formats from vinyl LP to DTS HD Master Audio
TANNOY REVOLUTION DC4 LCR DIFFUSORE PER CANALE CENTRALE O FRONTALI - 2 VIE
BASS REFLEX - 1 DUAL CONCENTRIC DA Ø 11 CM CON RADIATORE PASSIVO - 1 TWEETER A
IN TITANIO/NEODIMIO DA 19MM CON TECNOLOGIA TULIP WAVEGUIDE - EFFICIENZA 87 DB -
IMPEDENZA 8 OHMS - POTENZA CONSOGLIATA 20/125 W - FINITURA OAK /CAPUCCINO
Revolutionary
A dynamic blend of design and performance set to transform music and movie
entertainment in today’s homes. Latest technologies, engineering principles and
cabinet construction combine for a compact, sumptuous loudspeaker with the
accuracy, scale and drama of much larger traditional designs. All three models
and the dedicated subwoofer are hand finished in a choice of Light Oak or the
darker Espresso veneer and equipped with comprehensive system connectivity for
easy partnering with your home theatre electronics. Play music In two channel
systems Revolution excels at pin-point imaging and revealing the finest of
musical details. The WideBand™ Dual Concentric™ driver delivers genuine
three-dimension imaging underpinned by low frequency extension that combines
sheer visceral attack with the expressive tonal detailing required for woodwind
and bass string instruments. Play movies With multi-channel music and film
soundtracks, Revolution delivers a huge soundstage backed by stunning transient
impact and deep bass effects. The voice-matched dialogue speaker uses an
identical driver configuration to preserve seamless surround integration and
crisp, timbre-perfect voices irrespective of genre or volume. A real solution
Whether you love music or movies, Beatles or Bach, drama or all-action adventure,
Revolution delivers with passion and elegance in equal measure; opulent looks,
powerful performance and ideally suited to the widest range of source formats
from vinyl LP to DTS HD Master Audio
MINI DIFFUSORE 2 VIE BASS
REFLEX - 1 DUAL CONCENTRIC DA Ø 11 CM - 1 TWEETER A IN TITANIO/NEODIMIO DA 19MM
CON TULIP WAWEGUIDE - ACCORDO REFLEX ANTERIORE - EFFICIENZA 87 DB - IMPEDENZA 8
OHMS - POTENZA CONSIGLIATA 20/100 W - PREDISPOSIZIONE BIWIRING + MASSA
AGGIUNTIVA WOOFER - DIMENSIONI 270 X 169 X 175 - PESO 4.1 KG.
Although
developed in parallel with the emerging technologies of extended bandwidth SACD
and DVDA players, our engineers have long since recognised the improvement that
a WideBand™ Tannoy SuperTweeter™ can make to a system, even when using bandwidth
limited conventional analogue or digital recorded software.The undisputed
benefits of extended high frequency performance have long been recognised by
audio enthusiasts and recording professionals worldwide. The key element to
understand first of all is that WideBand™ performance drive units are not there
simply to increase the amount of high frequency information you perceive, the
acoustic benefit is much more subtle than that. It is the enhancement of the
frequencies within the accepted audible band that makes this technology so
special.The WideBand™ equipped Dual Concentric™ driver, present in all
Revolution Signature models, has a 25-micron titanium dome SuperTweeter™ that
extends frequency response to 54kHz for breathtaking dynamics, detail and sound
staging. Not only does this allow supremely accurate fine detail resolution of
high frequencies but such wide bandwidth capability also effectively enhances
the listening experience throughout the entire frequency range. WideBand™
technology reduces phase error and significantly improves transient performance
below 20kHz. This leads to increased tonal accuracy throughout the whole
frequency range, even bass information is faster and tighter, effectively
enhancing the total listening experience. Music, speech and soundtrack effects
have an increased immediacy, airiness and impact, providing a performance that
sounds more natural and true to life.'Why bother with frequencies only your dog
can hear?'This question, often asked, takes us to the very heart of what Tannoy
WideBand™ technology is all about. Musical instruments produce considerable
energy above 20kHz and, with effects of harmonics and overtones, achieve
frequencies well beyond what might generally be considered as the limit of human
hearing. For instance, the over 20kHz energy of a trumpet, fitted with a
particular type of mute, does not drop into the noise floor until 100kHz. Violin
and oboe exhibit energy above 40kHz, while sibilants in speech can also be shown
to have energy above 40kHz.Research has shown, through the measurement brain
wave activity, which humans do perceive ultrasonic components within music,
concluding therefore, that the mechanism of ultrasound transmission is through
bone conduction. This is probably via an organ in the inner ear, called the
saccule, to the cochlea, the organ responsible for hearing. In addition,
WideBand™ technology reduces phase error and significantly improves transient
performance below 20kHz.
DIFFUSORE DA PAVIMENTO 2 VIE
BASS REFLEX - 1 W Ø 11 CM A LUNGA ESCURSIONE - 1 DUAL CONCENTRIC DA Ø 11 CM - 1
TWEETER A IN TITANIO/NEODIMIO DA 19MM CON TULIP WAWEGUIDE - EFFICIENZA 87 DB -
IMPEDENZA 8 OHMS - POTENZA CONSIGLIATA 20/125 W - BIWIRING + MASSA AGGIUNTIVA -
DIMENSIONI 966 X 210 X 293 - FINITURA CAPPUCCINO (SCURO)
DC4
T Passion, performance and precision 80 years in the making - and more
affordable than you might think.Isn’t it time you escaped with a Revolution
Signature?Bristling with cutting edge acoustic technology, the floor standing
Revolution Signature DC4 T is a high performance two channel or compact home
theatre loudspeaker. The 100mm (4.00") point source, constant directivity Dual
Concentric™ drive unit, additional 100mm (4.00") bass driver and WideBand™
extended frequency response, combine with premium crossover components, driver
earthing and a rigidly constructed, sensuously styled curved trapezoidal
cabinet; all ensuring natural midrange, high intelligibility, airiness and
expansive sound staging.
TANNOY REVOLUTION SIG. DC4-C
OAK DIFFUSORE PER CANALE CENTRALE - 2 VIE BASS REFLEX - 1 DUAL CONCENTRIC
DA Ø 11 CM CON RADIATORE PASSIVO - 1 TWEETER A IN TITANIO/NEODIMIO DA 19MM CON
TECNOLOGIA TULIP WAVEGUIDE - EFFICIENZA 87 DB - IMPEDENZA 8 OHMS - POTENZA
CONSOGLIATA 20/125 W - PREDISPOSIZIONE BIWIRING + MASSA AGGIUNTIVA WOOFER -
DIMENSIONI 169 X 448 X 175 - FINITURA OAK
Passion,
performance and precision 80 years in the making - and more affordable than you
might think. Isn’t it time you escaped with a Revolution Signature?Bristling
with cutting edge acoustic technology, the Revolution Signature DC4 LCR is a
high performance and versatile left, centre or right channel home theatre
loudspeaker. The 100mm (4.00") point source, constant directivity Dual
Concentric™ drive unit is augmented by a additional 100mm (4.00") bass driver
and 100mm (4.00") passive radiator. WideBand™ extended frequency response
combines with premium crossover components, driver earthing and a rigidly
constructed, sensuously styled curved trapezoidal cabinet to ensure natural
midrange, high intelligibility, airiness and expansive sound staging
TANNOY REVOLUTION SIG. DC6
CAPPUCCINO DIFFUSORE DA SUPPORTO - 2 VIE BASS REFLEX - 1 DUAL CONCENTRIC
DA Ø 15 CM - 1 TWEETER A IN TITANIO/NEODIMIO DA 25MM CON TULIP WAWEGUIDE -
ACCORDO REFLEX ANTERIORE - EFFICIENZA 88 DB - IMPEDENZA 8 OHMS - POTENZA
CONSIGLIATA 20/150W - PREDISPOSIZIONE BIWIRING + MASSA AGGIUNTIVA WOOFER -
DIMENSIONI 365 X 226 X 225 - PESO 7,2 KG. - FINITURA CAPPUCCINO (SCURO)/OAK
DC6
Passion, performance and precision 80 years in the making - and more affordable
than you might think.Isn’t it time you escaped with a Revolution
Signature?Bristling with cutting edge acoustic technology, the Revolution
Signature DC6 is a high performance stand or bookshelf mount loudspeaker. The
high power handling 150mm (6.00") point source, constant directivity Dual
Concentric™ drive unit combines with WideBand™ extended frequency response,
premium crossover components, driver earthing and a rigidly constructed,
sensuously styled curved trapezoidal cabinet to ensure natural midrange, high
intelligibility, airiness and expansive sound stag ing.
TANNOY REVOLUTION SIG. DC6-T CAPPUCCINO DIFFUSORE DA PAVIMENTO 3 VIE BASS
REFLEX - 1 DUAL CONCENTRIC DA Ø 15 CM - 1WOOFER DA Ø 15 CM - 1 TWEETER A IN
TITANIO/NEODIMIO DA 25MM CON TULIP WAWEGUIDE - ACCORDO REFLEX ANTERIORE -
EFFICIENZA 89 DB - IMPEDENZA 8 OHMS - POTENZA CONSIGLIATA 20/175 W -
PREDISPOSIZIONE BIWIRING + MASSA AGGIUNTIVA WOOFER - DIMENSIONI 950 X 226 X 225
- PESO 16,4 KG. - FINITURA CAPPUCCINO (SCURO) DC6
T Passion, performance and precision 80 years in the making - and more
affordable than you might think.Isn’t it time you escaped with a Revolution
Signature?Bristling with cutting edge acoustic technology, the Revolution
Signature DC6 T is a high performance floor standing loudspeaker suited to
audiophile quality two channel or high impact home theatre use. The 150mm
(6.00") point source, constant directivity Dual Concentric™ drive unit,
augmented by an additional 150mm (6.00") bass driver, combines with WideBand™
extended frequency response, premium crossover components, driver earthing and a
rigidly constructed, sensuously styled curved trapezoidal cabinet to ensure
natural midrange, high intelligibility, airiness and expansive sound staging.
Diffusore da
pavimento - 3 vie con bass reflex posteriore – 1 Dual Concentric da Ø 20 cm –
tweeter a in titanio da 25mm con tecnologia WaveGuide – 1 woofer da 20 cm -
efficienza 89 dB – risposta in frequenza 33Hz-35kHz - potenza massima
applicabile 100W continua 400 picco - impedenza 8 Ohms – biwiring con
connessione di massa per il cestello del woofer – dimensioni 1025 x 271 x 260 –
peso Kg. 21 - finitura laccata nera,cherry
Diffusore da
pavimento - 3 vie con bass reflex posteriore – 1 Dual Concentric da Ø 25 cm –
tweeter a in titanio da 25mm con tecnologia WaveGuide – 1 woofer da 25 cm -
efficienza 92 dB – risposta in frequenza 30Hz-35kHz - potenza massima
applicabile 125W continua 500 picco - impedenza 8 Ohms – biwiring con
connessione di massa per il cestello del woofer – dimensioni 1125 x 339 x 320 –
peso Kg. 34,5 - finitura cherry
TANNOY REVOLUTION SIG. DC6-LCR DIFFUSORE PER CANALE CENTRALE - 2 VIE CON
RADIATORE PASSIVO - 1 DUAL CONCENTRIC DA Ø 15 CM - 1 RADIATORE DA Ø 15 CM - 1
TWEETER A IN TITANIO/NEODIMIO DA 25MM CON TECNOLOGIA TULIP WAVEGUIDE -
EFFICIENZA 87 DB - IMPEDENZA 8 OHMS - POTENZA CONSIGLIATA 20/175 W -
PREDISPOSIZIONE BIWIRING + MASSA AGGIUNTIVA WOOFER - DIMENSIONI 226 X 600 X 225
- FINITURA CAPPUCCINO (SCURO)/OAK
DC6
LCR Passion, performance and precision 80 years in the making - and more
affordable than you might think.Isn’t it time you escaped with a Revolution
Signature?Bristling with cutting edge acoustic technology, the Revolution
Signature DC6 LCR is a high performance and versatile left, centre or right
channel home theatre loudspeaker. The 150mm (6.00") point source, constant
directivity Dual Concentric™ drive unit is augmented by a additional 150mm
(6.00") bass driver and 150mm (6.00") passive radiator. WideBand™ extended
frequency response combines with premium crossover components, driver earthing
and a rigidly constructed, sensuously styled curved trapezoidal cabinet to
ensure natural midrange, high intelligibility, airiness and expansive sound
staging
Mini
monitor due vie con reflex frontale – 1 W Ø 13 cm con membranain carta – 1
tweeter a cupola morbida da 25mm – potenza applicabile(continua/ massima) 50/100
W – efficienza 87 dB -impedenza 8 ohms– peso Kg 4 – schermata - finitura
apple-DAK OAK-F1
The
Mercury F1 Custom is a perfectly proportioned, easy to drive, bookshelf or stand
mount loudspeaker with which even entry level A/V receivers and hi-fi amplifiers
will deliver a big sound. Its exemplary acoustic qualities have been
comprehensively upgraded with new custom components to make it equally at home
as part of either a budget or a high-end hi-fi. Deep, tuneful bass and crisp
treble detail deliver great dynamics while high power handling is assured due to
the bass driver's substantial magnet assembly. Where space is at a premium, the
Mercury F1 Custom is the ideal solution for home cinema front and surround,
providing full acoustic synergy across the whole 5.1 system, or as an
exceptionally refined compact two channel stereo system. The Tannoy Mercury F
Custom range offers a choice of loudspeakers for home cinema or hi-fi
applications of truly outstanding performance and value. To cater for both
modern and more traditional décor, all the models are offered in either an apple
wood or dark oak vinyl veneerF1 CustomThe Mercury F Custom series loudspeakers
utilise materials and components carefully selected to optimise the system
performance. Dense wood material used for the cabinet construction, including a
substantial MDF front baffle, provides the essential cabinet rigidity required
of a good loudspeaker design. The bass and treble units are solidly built
providing exceptional acoustic performance and long-term reliability. The
Mercury F Custom Series upgrade boasts some excellent sonic enhancements:Crossover - the crossover components have been upgraded, including a high
quality polypropylene capacitor used in the tweeter feed, and the circuit
topology revised to deliver greater high frequency detail, better imaging and
more control at the bottom end.Tannoy DMT™ (Differential Material Technology) -
the interface between drive unit and the cabinet structure is crucial and this
area is given special attention in the F1 and F4 Custom models. Bracing
materials of different acoustic properties are used to dampen the driver to the
internal bracing and then to the enclosure body itself; resulting in an
exceptionally well damped structure that minimises the effect of unwanted
resonances.Wiring - the internal wiring has been replaced with high purity Van
den Hul silver plated cable for lower energy loss and greater
transparency.Termination panel - the termination panel has been upgraded with
high quality gold plated brass terminals to optimise the signal transfer with
minimum information loss.The bass performance is rich and powerful while the mid
and high frequency presentation is accurate, clear and dynamic. This natural
sounding acoustic balance allows Mercury to reveal all the scale and impact of
original soundtracks, this as well as delivering the subtle nuances of complex
audio recordings. One listen and you'll know precisely what we're talking about.
Diffusore da pavimento due vie con reflex
frontale – 2 W Ø 16,5 cmcon membrana carta – 1 tweeter a cupola morbida da 25mm
– potenza applicabile (continua/ massima) 100/200 W – efficienza 91 dB
-impedenza 8 ohms - schermata - finitura apple-DAK
OAK- The
Mercury F1 Custom is a perfectly proportioned, easy to drive, bookshelf or stand
mount loudspeaker with which even entry level A/V receivers and hi-fi amplifiers
will deliver a big sound. Its exemplary acoustic qualities have been
comprehensively upgraded with new custom components to make it equally at home
as part of either a budget or a high-end hi-fi. Deep, tuneful bass and crisp
treble detail deliver great dynamics while high power handling is assured due to
the bass driver's substantial magnet assembly. Where space is at a premium, the
Mercury F1 Custom is the ideal solution for home cinema front and surround,
providing full acoustic synergy across the whole 5.1 system, or as an
exceptionally refined compact two channel stereo system. The Tannoy Mercury F
Custom range offers a choice of loudspeakers for home cinema or hi-fi
applications of truly outstanding performance and value. To cater for both
modern and more traditional décor, all the models are offered in either an apple
wood or dark oak vinyl veneer
Diffusore centrale - 2 W Ø 10 cm con membrana
ceramica – 1 tweeter a cupola morbida da 25mm – potenza applicabile (continua/
massima) 70/140 W – efficienza 90 dB - impedenza 8 ohms - schermata - finitura
apple
-DAK OAK- The
Mercury F1 Custom is a perfectly proportioned, easy to drive, bookshelf or stand
mount loudspeaker with which even entry level A/V receivers and hi-fi amplifiers
will deliver a big sound. Its exemplary acoustic qualities have been
comprehensively upgraded with new custom components to make it equally at home
as part of either a budget or a high-end hi-fi. Deep, tuneful bass and crisp
treble detail deliver great dynamics while high power handling is assured due to
the bass driver's substantial magnet assembly. Where space is at a premium, the
Mercury F1 Custom is the ideal solution for home cinema front and surround,
providing full acoustic synergy across the whole 5.1 system, or as an
exceptionally refined compact two channel stereo system. The Tannoy Mercury F
Custom range offers a choice of loudspeakers for home cinema or hi-fi
applications of truly outstanding performance and value. To cater for both
modern and more traditional décor, all the models are offered in either an apple
wood or dark oak vinyl veneer
Diffusore surround - 1 W Ø 10 cm – 1 tweeter a
cupola morbida da 25mm - potenza applicabile (continua/ massima) 40/80 W –
efficienza 86 dB - impedenza 8 ohms - schermata - finitura apple- dark oak The
Mercury F1 Custom is a perfectly proportioned, easy to drive, bookshelf or stand
mount loudspeaker with which even entry level A/V receivers and hi-fi amplifiers
will deliver a big sound. Its exemplary acoustic qualities have been
comprehensively upgraded with new custom components to make it equally at home
as part of either a budget or a high-end hi-fi. Deep, tuneful bass and crisp
treble detail deliver great dynamics while high power handling is assured due to
the bass driver's substantial magnet assembly. Where space is at a premium, the
Mercury F1 Custom is the ideal solution for home cinema front and surround,
providing full acoustic synergy across the whole 5.1 system, or as an
exceptionally refined compact two channel stereo system. The Tannoy Mercury F
Custom range offers a choice of loudspeakers for home cinema or hi-fi
applications of truly outstanding performance and value. To cater for both
modern and more traditional décor, all the models are offered in either an apple
wood or dark oak vinyl veneer
LINEA ARENA
...............IN ALLESTIMENTO...TELEFONARE
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Clicca
per qui per vedere : FOTO PRODOTTO
