TRICHORD RESEARCH  DINO MK3                                                    Listino  ufficiale  €.    755,00

TRICHORD RESEARCH  DINO MK3 /DINO+                                   Listino  ufficiale  €. 1.175,00

TRICHORD RESEARCH  DINO MK3 /DINO+/HP                                Listino  ufficiale   €. 1.395,00

TRICHORD RESEARCH  DINO MK3 /DINO+G2NC                              Listino  ufficiale   €. 1.515,00

TRICHORD RESEARCH  DINO MK3 /DINO+G2NC /HP                         Listino  ufficiale   €. 1.725,00

Preamplificatore fono per testine MM/MC. Disponibile anche con alimentatore maggiorato Dino+ o con alimentazione Dino+ G2NC "Never Connected 2". Cavo speciale HP per l'interconnessione all'alimentatore opzionale

Improved looks – Improved soundFully compatible with all Trichord Phono Stage power suppliesNoise levels reduced by 4.5dB High quality PTFE gold plated phono connectors on rear panelRe-designed circuit board with improved ground layout New analogue output stage using Low Noise, precision JFET op amps to greatly improve sound quality Compatible with MM and MC cartridges Gain and cartridge loading adjustable by easily accessible DIP switchesThe Dino Mk3 is a high performance phono amplifier which at an affordable price gives you tremendous value. Designed for transparency and realism, this superb sounding amplifier is based on the fore-running Dino Mk1 and Dino Mk2 phono stages which have won many awards and accolades along the way. Whether you have an ultra-low output Moving Coil cartridge or a high output Moving Magnet the Dino Mk3 will cope easily. A set of user friendly switches on the base of the unit allows you to simply adjust load and gain settings. These settings are vital to match the amplifier to the cartridge and obtain the best sonic result. If your current phono stage only has a couple of options for this function, eg a MM/MC switch, then you are missing out on the ability to tune your system to it’s optimum. An entire upgrade path exists for this product which allows you to improve performance each step of the way. Two main items are required for operation – the Dino Mk3 phono stage itself and an accompanying power supply. Start with the basic AC Toroidal Power Supply and work your way up in performance by upgrading to the Dino+ DC power supply, or ultimately to the ‘Never Connected’ DC power supply. An upgrade from the Dino+ to the ‘Never Connected’ is also possible by returning your unit to us to upgrade the electronics. To further enhance the sonic performance of these DC power units an upgraded High Performance Power Lead is available to replace the supplied DC power lead.

TRICHORD RESEARCH  DIABLO                                                   Listino  ufficiale  €.  1.360,00

TRICHORD RESEARCH  DIABLO /DIABLO/G2NC                         Listino  ufficiale   €. 2.165,00

TRICHORD RESEARCH  DIABLO /DIABLO/G2NC/HP                  Listino  ufficiale   €. 2.390,00

Preamplificatore fono per testine MM/MC, componentistica speciale. Disponibile anche con alimentazione Diablo G2NC "Never Connected 2". Cavo speciale HP per

The Diablo is a high performance, audiophile grade phono amplifier, designed for ultimate transparency and realism. It will maximise the performance of a wide range of phono cartridges from ultra-low output Moving Coils to high output Moving Magnets. As with the Dino, the Diablo will accept a wide variety of MM and MC cartridges with adjustments for amplifier gain and cartridge loading on the underside of the unit. Four high speed low noise voltage regulators effectively turn this into a dual mono design in one box. The prime power supply for this unit is the ‘Never Connected’ PSU. It is however available with an in-line toroidal supply as a starting option. The Diablo is user adjustable with a set of four DIP switches on the underside of the unit. These switches allow for adjustment of cartridge loading and gain setting. The circuit is signal non-inverting and constructed using high performance, audio grade bipolar and JFET operational amplifiers from Analog Devices and Linear Technology. Metal oxide resistors and ultra low impedance capacitors throughout for lowest possible noise. The RIAA equalisation network is part passive and part active. The capacitors and resistors used in this stage are very close tolerance audiophile types. Four ‘state of the art’ ultra low impedance, low noise wide-band voltage regulator circuits are employed to power both channels and are largely responsible for the high sonic performance of the Diablo. The non-ferrous cabinetry is made of aluminium, a design that reduces eddy current propagation that can affect sound reproduction in subtle but deleterious ways. Two versions of power supply are available for the Diablo, the basic toroidal transformer power supply and the fully blown ‘Never Connected’ PSU.


Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it


TRICHORD RESEARCH  DINO+                                                         Listino  ufficiale  €.   505,00

TRICHORD RESEARCH  DINO+/HP                                              Listino  ufficiale  €.   715,00

TRICHORD RESEARCH  DINO+ G2NC                                       Listino  ufficiale   €.   835,00

TRICHORD RESEARCH  DINO+ G2NC/HP                                Listino  ufficiale  €. 1.045,00

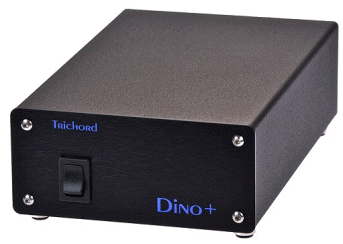

alimentatore maggiorato Dino+

The Dino+ Power Supply Unit is made up of two completely independent and electrically isolated DC supply circuits, one for the positive voltage rail and one for the negative.The specially made low noise audio 80VA toroidal transformer is followed by two independent bridge rectifiers. These are built with discrete ultra fast soft recovery diodes for low RF generation. The bridges are then followed by RC/RC filtering using four high performance, low ESR 1800uF Panasonic capacitors. Two voltage regulators provide solid and stable supply voltages. This level of filtering and regulation provides you with a substantial increase in performance over the Toroidal supply. Solid imaging and depth to the music are the main benefits. Power is delivered from the Dino+ to the phono stage via a 4 way PTFE insulated, silver plated copper lead. This lead is upgrade-able to our ‘High Performance Interconnect Lead’.

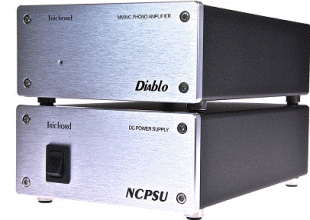

TRICHORD RESEARCH  DIABLO/G2NC                                                       Listino  ufficiale   €.    885,00

TRICHORD RESEARCH  DIABLO/G2NC/HP                                            Listino  ufficiale   €. 1.090,00

alimentazione Diablo G2NC "Never Connected 2".

There are two options available to power the Diablo – the Toroidal AC supply and the ‘Never Connected PSU’ DC supply. As you go up from the AC supply to the ‘Never Connected’ you benefit from a major increase in audio performance. Both power supplies are in separate boxes to keep noise and hum levels as far away as possible from the sensitive audio circuits and are available in the following options:  230V operation with UK or European mains plug115V operation with USA style mains plug.The NCPSU (Never Connected Power Supply Unit) has completely different electronics to any conventional dc power supply. Instead of an over sized toroidal transformer, there is a PCB mounting variety followed by the revolutionary noise reduction circuitry that is called ‘Never Connected’.Although the regulation circuit is physically connected to the incoming mains, it is disconnected electronically. A monitoring circuit detects the portion of the sine wave that is charging the first of a pair of electrolytic capacitors. Once this first capacitor is fully charged, the diodebridge rectifier turns off and a MOSFET switching circuit transfers the charge from the first cap to the second. This cycle is repeated continuously. At no point in time is the regulation circuitry electrically connected to the incoming rectified mains – hence the term ‘Never Connected’. The overall result is a large and measurable reduction in mains-borne noise. This dramatic reduction of mains borne noise enables the Diablo phono circuit to give off its very best.


Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it


TRICHORD RESEARCH  In-Line AC TPSU                                       Listino  ufficiale  €. 105,00

Alimentatore toroidale in-line

Toroidal AC Power Supply Small Toroidal PSU for Dino Toroidal Power Supply This is the basic power supply and is provided as a low cost introduction. Performance level will be more than adequate for many users, but you can upgrade at any time to the Dino+ power supply, or for ultimate sonic performance – the ‘Never Connected Dino+‘ PSU. The ABS molded housing of the Toroidal power supply contains an in-line low noise 40VA transformer. AC current is fed to the Dino where it is rectified to DC and regulated with two high performance, wide bandwidth Super Regulators.

TRICHORD RESEARCH HP DC PI                                                         Listino  ufficiale  €. 220,00

Cavo speciale di interconnessione all'alimentatore

The High Performance Power Lead connects the Dino Mk3 or Diablo Phono Stage to the power supply. It is designed to significantly improve sound quality over the standard DC power interconnect lead. Just as signal interconnect leads make a sonic difference to the performance of a system, then so do mains leads and any other lead connecting two pieces of equipment. Here is an excerpt from a Hi-Fi Choice Review: “Next came the new High Performance Interconnect, and the difference was staggering. All of a sudden I was involved in the music not just listening to it! Bass instruments had a larger, truer character while midrange became even more believable, with just the right amount of treble definition. This lead transforms the Dino Mk3 into something even more special, and with the Dino+ PSU it assumes true greatness. Everything becomes more emotional and profound, with tremendous transparency given the price.

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it



 Legenda istruzioni

Clicca per qui per vedere :  FOTO PRODOTTO

Clicca per qui per vedere :  ISTRUZIONI PRODOTTO

Clicca per qui per vedere :  CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO


Nota  bene *

Per ordinare o avere gli ultimi prezzi aggiornati telefona al  0174 670100 o invia un E-mail a   info@newaudio.it

*I prezzi indicati  sono  di  listino  ufficiale  delle case produttrici ,nel  caso  di  diffusori  si  riferisce al prezzo  del  singolo  diffusore  per  offerte  ed  eventuali  promozioni  telefonare o  inviare e-mail.

*Il presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i prezzi indicati  possono variare senza preavviso telefonare o inviare un e-mail per ulteriori domande e conferme sui prezzi sopra riportati.

*Tutti i marchi citati nel presente listino sono di proprietà e registrati alle rispettive Case Produttrici

*Prezzi franco nostro magazzino
