Giradischi Trazione a cinghia
Serie Scout.Scout completo di braccio JMW 9 premontato.Braccio dritto con shell
integrato, sistema unipivot, regolazione altezza e VTA, canna intercambiabile.
Rather,
this is a flat-out, unconditional, "Holy Mother of Crap, I can't believe how
good this thing is" recommendation. It's hard to imagine another way of spending
$****.** that will add this much to your system." - Art Dudley - Sterophile The
SCOUT, in its two-year existence, has become the worlds best-reviewed turntable!
The lowest priced turntable in STEREOPHILE'S Class "B" has attained high
performance records worldwide. For improved stability and damping, the Scout's
chassis is made from 1 1/8" thick MDF bonded to a 12 gauge steel plate. The
massive platter is composed of 1 3/8" acrylic and is mounted to an inverted
bearing of Teflon and brass on a 60 case hardened shaft. The AC synchronous
motor is contained in a separate steel housing and drives the platter for smooth,

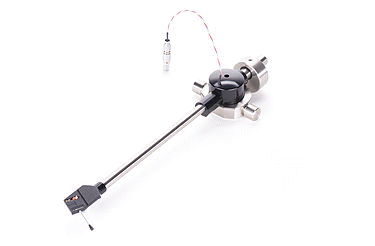

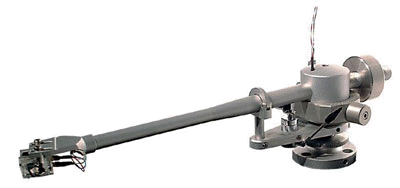

quiet operation. The JMW-9 tonearm is the perfect complement to the Scout,
offering all the advantages of a unipivot tonearm at a bargain price. The arm
has a low friction bearing mounted onto a solid stainless steel rod with a
knurled ring to set VTA (Vertical Tracking Angle). As with the more expensive
JMW-10.5i” and JMW-12.7” arms, the tonearm wand assembly of the JMW-9 can be
removed and replaced in seconds. This allows instant cartridge changes with
multiple armwands. An RCA junction box allows any RCA-terminated interconnects
to be used. The JMW-9 uses the same geometry and mounting as the Rega RB300
tonearm and can be dropped right into the Rega armhole with no modifications.We
feel the JMW-9 is the best sounding tonearm under $1400.00 and very close to
being one of the best arms you can buy, period. When mated with a cartridge of 7
to 13 grams and compliance higher than 10 you will be rewarded with a
spectacularly vivid presentation with the music ebbing and flowing as it does in
real life. Made from the finest material available, the JMW-9 uses precision CNC
machining on all its parts to exacting tolerances. All parameters of cartridge
setup are adjustable including:VTA/SRA – Set with a large knurled ring Azimuth –
Set with counterweight Overhang – Supplied gauge VTF – Set with counterweight
Horizontal tracking angle – Supplied gaugeFor those that love to play with
cartridges or to use a mono cartridge for perfect playback of those classic mono
recordings the JMW-9 lets you purchase additional armtubes. The cartridge is
mounted to the armtube and completely set up. The armtube can be exchanged in 30
seconds and there is no work to be done, just listening.The JMW-9 is virtually
friction free due to its precision unipivot design. You no longer have to worry
about bearing friction, bearing accuracy, bearing wobble, etc, it simply doesn’t
existYou can also purchase the JMW-9 Anti-Skate Assembly as an accessory to the
JMW-9 The quotes below show reviewers love it as much as we do and the
Scout/JMW-9 is one of the best reviewed tables in the world.“It’s a sound that
runs through the range of JMW tonearms: A sound that gives you the shape and
flow of the musicaldynamic. It’s a sound that I once described (in reviewing the
original TNT) as meaty, beaty, big and bouncy, and I find it remarkable that a
‘table that uses such different technology and materials can still display such
a heavy print of the company DNA. What I also find fascinating is the
sophistication of the musical presentation. Using the JMW 12.5 on the Recovery
tells me where that internal intricacy comes from. The impressive thing is the
extent to which that capability is embodied in the cheaper arm and released by
the simpler deck.”“If you obey the instructions for the JMW-9, you can get arm
set up that is accurate to the practical limits that the geometry of the stylus
assembly in your cartridge makes relevant.”“I do know that I haven’t enjoyed
playing and listening to my records this much in many, many years. I can’t put a
price on that, and considering what else I have to spend my money on (things
that offer me no enjoyment — car insurance for one) then the Scout/JMW-9 has to
be viewed as a bargain. Think of it as a long-term investment and a way to give

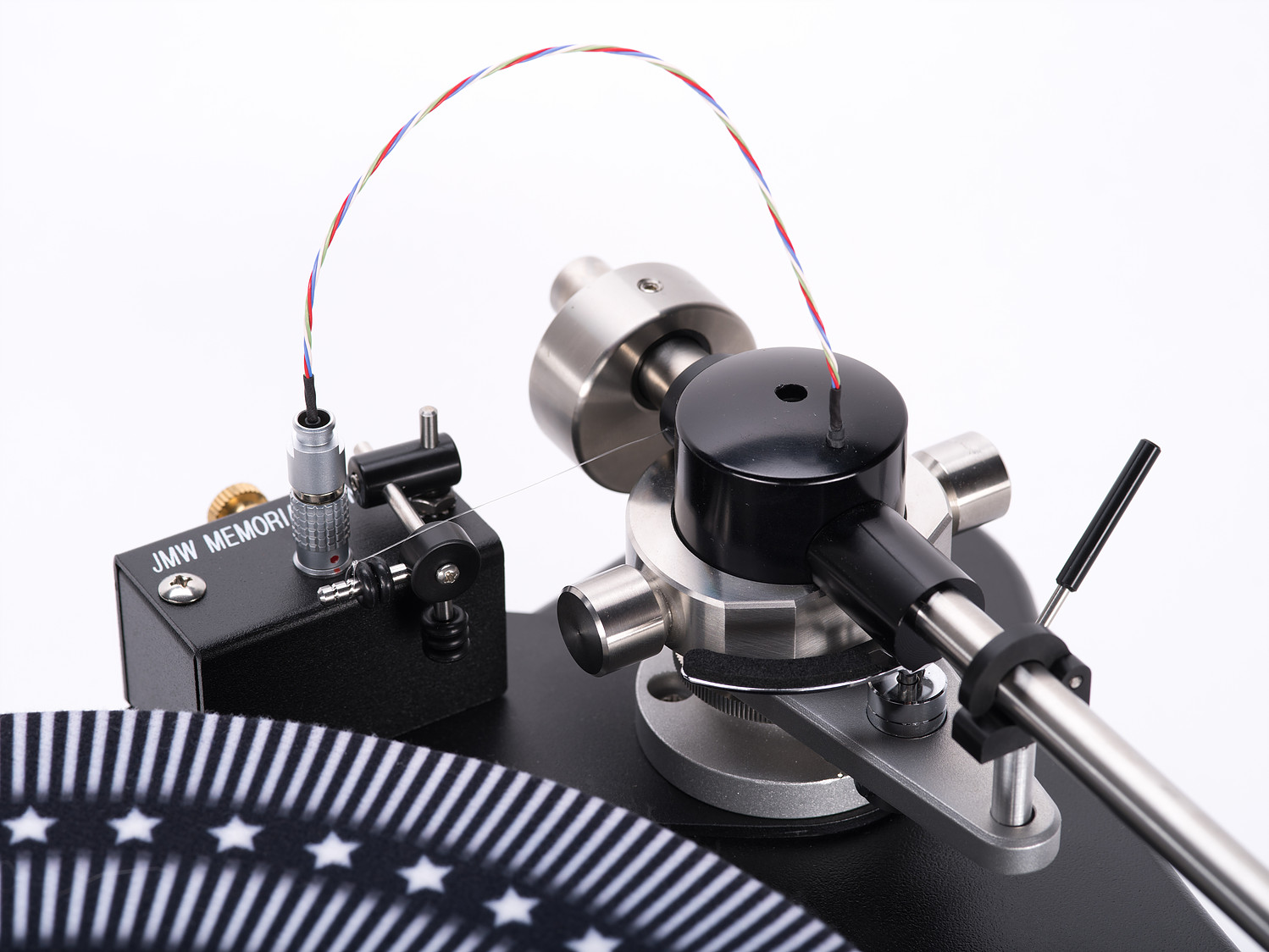

your vinyl collection new life.” “The JMW-9 unipivot tonearm features a machined
cup on one end that rests upon a super-sharp tungsten-carbide point — sort of
like balancing on the head of a pin. It works great and makes it a breeze to
exchange arms if you like experimenting. An RCA junction box, which accepts any
interconnects with RCA terminations, sits to the left of the tonearm. The
tonearm also comes with a wire and connector (Lemo) that line up a red dot on a
receptacle on the junction box. Align the Lemo connector, connect it and the
cables to a pre-amp or receiver and you’re in business.”
Giradischi Trazione a cinghia
Serie Scout .Scout completo di braccio JMW 9 Signature premontato.Braccio dritto
con shell integrato, sistema unipivot, regolazione altezza e VTA, canna
intercambiabile.
Rather,
this is a flat-out, unconditional, "Holy Mother of Crap, I can't believe how
good this thing is" recommendation. It's hard to imagine another way of spending
$****.** that will add this much to your system." - Art Dudley - Sterophile The
SCOUT, in its two-year existence, has become the worlds best-reviewed turntable!
The lowest priced turntable in STEREOPHILE'S Class "B" has attained high
performance records worldwide. For improved stability and damping, the Scout's
chassis is made from 1 1/8" thick MDF bonded to a 12 gauge steel plate. The
massive platter is composed of 1 3/8" acrylic and is mounted to an inverted
bearing of Teflon and brass on a 60 case hardened shaft. The AC synchronous
motor is contained in a separate steel housing and drives the platter for smooth,
quiet operation. The JMW-9 tonearm is the perfect complement to the Scout,
offering all the advantages of a unipivot tonearm at a bargain price. The arm
has a low friction bearing mounted onto a solid stainless steel rod with a
knurled ring to set VTA (Vertical Tracking Angle). As with the more expensive
JMW-10.5i” and JMW-12.7” arms, the tonearm wand assembly of the JMW-9 can be
removed and replaced in seconds. This allows instant cartridge changes with
multiple armwands. An RCA junction box allows any RCA-terminated interconnects
to be used. The JMW-9 uses the same geometry and mounting as the Rega RB300
tonearm and can be dropped right into the Rega armhole with no modifications.The

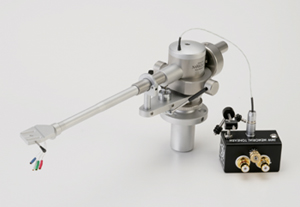

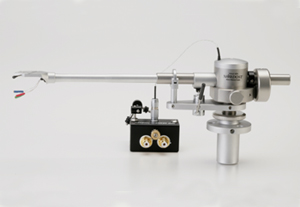

JMW-9 Signature tonearm builds on all the advantages of standard JMW-9 unipivot
tonearm. The JMW-9 Signature tonearm is completely wired with Nordost Valhalla
internal wiring! It also uses an improved bearing assembly with viscous damping,
has added mass for better resonance control, and adds fine adjustment of
tracking force on the rear stem of the arm. It even has VPI's newest addition:
mechanical anti-skate control!The arm has an ultra low friction bearing mounted
on a solid stainless steel rod with tungsten carbide tip, user adjustable VTA
(Vertical Tracking Angle). As with the more expensive JMW-10.5i and JMW-12.7
arms, the tonearm wand of the JMW-9 Signature can be removed and replaced in
seconds, allowing instant cartridge changes with multiple arm wands. The
standard RCA junction box allows any RCA-terminated interconnects to be used
while XLR termination is also available for balanced setups.“Like other VPI
unipivot arms, the JMW has a quick-connect plug in its signal line for easy
removal and thus easy cartridge swapping—although I know of no one else using
either so fine a plug and socket (Swiss-made Lemos) or so handy and
straightforward an output-jack box, the latter mounted close to the arm mount on
the Scout's back edge.”
VPI Scoutmaster+ JMW9 €.3.250,00 Per
Prezzo
scontato TELEFONA INVIA UN E-MAIL
Come Scout ma con lo stesso
Piatto dell'Aries. Doppio Chassis. Nuova unità motore da 300rpm. Completo di
braccio JMW 9 premontato.
Finitura nera.

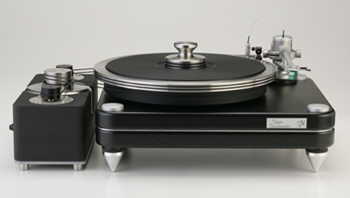

The
Scoutmaster combines key features from several of VPIs' most successful
turntables. It uses the Aries 3 platter and inverted bearing, a larger version
of the steel Scout motor assembly with fused IEC socket and 300-RPM 24 pole
motor, and a dual Scout chassis with a steel center. The Scoutmaster also comes
with the JMW-9 series tonearm installed. The table stands 19" by 14" and weighs
48 pounds. VPI has never made a more musical and involved turntable at such a
bargain price. The Scoutmaster is a Scout with a shot of testosterone for a
complete musical experience.
We feel the JMW-9 is the best
sounding tonearm under $1400.00 and very close to being one of the best arms you
can buy, period. When mated with a cartridge of 7 to 13 grams and compliance
higher than 10 you will be rewarded with a spectacularly vivid presentation with
the music ebbing and flowing as it does in real life. Made from the finest
material available, the JMW-9 uses precision CNC machining on all its parts to
exacting tolerances. All parameters of cartridge setup are adjustable including:VTA/SRA
– Set with a large knurled ring Azimuth – Set with counterweight Overhang –
Supplied gauge VTF – Set with counterweight Horizontal tracking angle – Supplied
gaugeFor those that love to play with cartridges or to use a mono cartridge for
perfect playback of those classic mono recordings the JMW-9 lets you purchase
additional armtubes. The cartridge is mounted to the armtube and completely set
up. The armtube can be exchanged in 30 seconds and there is no work to be done,
just listening.The JMW-9 is virtually friction free due to its precision
unipivot design. You no longer have to worry about bearing friction, bearing
accuracy, bearing wobble, etc, it simply doesn’t existYou can also purchase the
JMW-9 Anti-Skate Assembly as an accessory to the JMW-9 The quotes below show
reviewers love it as much as we do and the Scout/JMW-9 is one of the best
reviewed tables in the world.“It’s a sound that runs through the range of JMW
tonearms: A sound that gives you the shape and flow of the musicaldynamic. It’s
a sound that I once described (in reviewing the original TNT) as meaty, beaty,
big and bouncy, and I find it remarkable that a ‘table that uses such different
technology and materials can still display such a heavy print of the company
DNA. What I also find fascinating is the sophistication of the musical
presentation. Using the JMW 12.5 on the Recovery tells me where that internal
intricacy comes from. The impressive thing is the extent to which that
capability is embodied in the cheaper arm and released by the simpler deck.”“If
you obey the instructions for the JMW-9, you can get arm set up that is accurate
to the practical limits that the geometry of the stylus assembly in your
cartridge makes relevant.”“I do know that I haven’t enjoyed playing and
listening to my records this much in many, many years. I can’t put a price on
that, and considering what else I have to spend my money on (things that offer
me no enjoyment — car insurance for one) then the Scout/JMW-9 has to be viewed
as a bargain. Think of it as a long-term investment and a way to give your vinyl
collection new life.” “The JMW-9 unipivot tonearm features a machined cup on one
end that rests upon a super-sharp tungsten-carbide point — sort of like
balancing on the head of a pin. It works great and makes it a breeze to exchange
arms if you like experimenting. An RCA junction box, which accepts any
interconnects with RCA terminations, sits to the left of the tonearm. The
tonearm also comes with a wire and connector (Lemo) that line up a red dot on a
receptacle on the junction box. Align the Lemo connector, connect it and the
cables to a pre-amp or receiver and you’re in business.”
Come Scout ma con lo stesso
Piatto dell'Aries. Doppio Chassis. Nuova unità motore da 300rpm. Completo di
braccio JMW 9 Signature premontato.
Finitura nera.
The
Scoutmaster combines key features from several of VPIs' most successful
turntables. It uses the Aries 3 platter and inverted bearing, a larger version
of the steel Scout motor assembly with fused IEC socket and 300-RPM 24 pole
motor, and a dual Scout chassis with a steel center. The Scoutmaster also comes
with the JMW-9 series tonearm installed. The table stands 19" by 14" and weighs
48 pounds. VPI has never made a more musical and involved turntable at such a
bargain price. The Scoutmaster is a Scout with a shot of testosterone for a
complete musical experience. The JMW-9 Signature tonearm builds on all the
advantages of standard JMW-9 unipivot tonearm. The JMW-9 Signature tonearm is
completely wired with Nordost Valhalla internal wiring! It also uses an improved
bearing assembly with viscous damping, has added mass for better resonance
control, and adds fine adjustment of tracking force on the rear stem of the arm.
It even has VPI's newest addition: mechanical anti-skate control!The arm has an
ultra low friction bearing mounted on a solid stainless steel rod with tungsten
carbide tip, user adjustable VTA (Vertical Tracking Angle). As with the more
expensive JMW-10.5i and JMW-12.7 arms, the tonearm wand of the JMW-9 Signature
can be removed and replaced in seconds, allowing instant cartridge changes with
multiple arm wands. The standard RCA junction box allows any RCA-terminated
interconnects to be used while XLR termination is also available for balanced
setups.“Like other VPI unipivot arms, the JMW has a quick-connect plug in its
signal line for easy removal and thus easy cartridge swapping—although I know of
no one else using either so fine a plug and socket (Swiss-made Lemos) or so
handy and straightforward an output-jack box, the latter mounted close to the
arm mount on the Scout's back edge.”
Come Scoutmaster ma con
Flywheel con doppio motore a 24 poli e alimentatore esterno "SDS" del HR-X.
Completo di braccio JMW 9 Signature premontato.Finitura nera.
After
27 years in the turntable business and the release of the HR-X we thought we had
seen and done everything. Suddenly one day we were listening to the Scoutmaster
and the thought hit us "This sounds so good what could we do to make it better"
the end result was to cross the Scoutmaster and the HR-X producing the
SuperScoutmaster or SSM as we call it. The SSM uses the most accurate motor
drive in the business, the HR-X system. The massive flywheel and dual motor
drive controlled by the revolutionary SDS power supply gives the smoothest
rotation in the business. You can almost say that if your expensive table doesn't
have a flywheel driving it, why is it so expensive?The finishing touches are the
specially designed, totally non resonant laminated chassis and the periphery
ring clamp. The ring clamp lowers warp induced speed variations to near zero
making the combination of HR-X flywheel drive and perfectly level record sound
like a master tape.
Before you purchase any expensive table you must compare the facts. Does it have
a flywheel drive? Does it have a warp flattening system? Does it have an
inverted bearing running on a silent Teflon surface? Does the speed control come
from a state of the art power supply? The SSM has all of this and more.See Harry
Pearson’s rave review in the Dec/Jan 2005 issue of The Absolute Sound.“Now here
is a surprise. This, the third generation of Harry Weisfeld’s “Scout” series,
borders on greatness! In its first form, it was certainly the best buy among
American LP playback devices. And if you consider what you will get for extra
money in this hot-rod version, the “Super” makes a fine long term investment!” —
Absolute Sound Editor’s Choice Award Winner, Issue 150 The SSM comes with
everything you need to play your records at the state of the art. The only
option is the Mini-TNT feet, everything else is standardThe JMW-9 Signature
tonearm builds on all the advantages of standard JMW-9 unipivot tonearm. The
JMW-9 Signature tonearm is completely wired with Nordost Valhalla internal
wiring! It also uses an improved bearing assembly with viscous damping, has
added mass for better resonance control, and adds fine adjustment of tracking
force on the rear stem of the arm. It even has VPI's newest addition: mechanical
anti-skate control!The arm has an ultra low friction bearing mounted on a solid
stainless steel rod with tungsten carbide tip, user adjustable VTA (Vertical
Tracking Angle). As with the more expensive JMW-10.5i and JMW-12.7 arms, the
tonearm wand of the JMW-9 Signature can be removed and replaced in seconds,
allowing instant cartridge changes with multiple arm wands. The standard RCA
junction box allows any RCA-terminated interconnects to be used while XLR
termination is also available for balanced setups.“Like other VPI unipivot arms,
the JMW has a quick-connect plug in its signal line for easy removal and thus
easy cartridge swapping—although I know of no one else using either so fine a
plug and socket (Swiss-made Lemos) or so handy and straightforward an
output-jack box, the latter mounted close to the arm mount on the Scout's back
edge.”
Come Superscoutmaster + JMW9
Signature ma con Super Platter e i piedini di appoggio del HR-X.
After
27 years in the turntable business and the release of the HR-X we thought we had
seen and done everything. Suddenly one day we were listening to the Scoutmaster
and the thought hit us "This sounds so good what could we do to make it better"
the end result was to cross the Scoutmaster and the HR-X producing the
SuperScoutmaster or SSM as we call it. The SSM uses the most accurate motor
drive in the business, the HR-X system. The massive flywheel and dual motor
drive controlled by the revolutionary SDS power supply gives the smoothest
rotation in the business. You can almost say that if your expensive table doesn't
have a flywheel driving it, why is it so expensive?The finishing touches are the
specially designed, totally non resonant laminated chassis and the periphery
ring clamp. The ring clamp lowers warp induced speed variations to near zero
making the combination of HR-X flywheel drive and perfectly level record sound
like a master tape.
Before you purchase any expensive table you must compare the facts. Does it have
a flywheel drive? Does it have a warp flattening system? Does it have an
inverted bearing running on a silent Teflon surface? Does the speed control come
from a state of the art power supply? The SSM has all of this and more.See Harry
Pearson’s rave review in the Dec/Jan 2005 issue of The Absolute Sound.“Now here
is a surprise. This, the third generation of Harry Weisfeld’s “Scout” series,
borders on greatness! In its first form, it was certainly the best buy among
American LP playback devices. And if you consider what you will get for extra
money in this hot-rod version, the “Super” makes a fine long term investment!” —
Absolute Sound Editor’s Choice Award Winner, Issue 150 The SSM comes with
everything you need to play your records at the state of the art. The only
option is the Mini-TNT feet, everything else is standardThe JMW-9 Signature
tonearm builds on all the advantages of standard JMW-9 unipivot tonearm. The
JMW-9 Signature tonearm is completely wired with Nordost Valhalla internal
wiring! It also uses an improved bearing assembly with viscous damping, has
added mass for better resonance control, and adds fine adjustment of tracking
force on the rear stem of the arm. It even has VPI's newest addition: mechanical
anti-skate control!The arm has an ultra low friction bearing mounted on a solid
stainless steel rod with tungsten carbide tip, user adjustable VTA (Vertical
Tracking Angle). As with the more expensive JMW-10.5i and JMW-12.7 arms, the
tonearm wand of the JMW-9 Signature can be removed and replaced in seconds,
allowing instant cartridge changes with multiple arm wands. The standard RCA
junction box allows any RCA-terminated interconnects to be used while XLR
termination is also available for balanced setups.“Like other VPI unipivot arms,
the JMW has a quick-connect plug in its signal line for easy removal and thus
easy cartridge swapping—although I know of no one else using either so fine a
plug and socket (Swiss-made Lemos) or so handy and straightforward an
output-jack box, the latter mounted close to the arm mount on the Scout's back
edge.”
Come Superscoutmaster Special ma
con braccio JMW 10.5i premontato
After
27 years in the turntable business and the release of the HR-X we thought we had
seen and done everything. Suddenly one day we were listening to the Scoutmaster
and the thought hit us "This sounds so good what could we do to make it better"
the end result was to cross the Scoutmaster and the HR-X producing the
SuperScoutmaster or SSM as we call it. The SSM uses the most accurate motor
drive in the business, the HR-X system. The massive flywheel and dual motor
drive controlled by the revolutionary SDS power supply gives the smoothest
rotation in the business. You can almost say that if your expensive table doesn't
have a flywheel driving it, why is it so expensive?The finishing touches are the
specially designed, totally non resonant laminated chassis and the periphery
ring clamp. The ring clamp lowers warp induced speed variations to near zero
making the combination of HR-X flywheel drive and perfectly level record sound

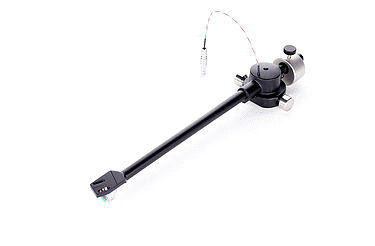

like a master tape.Due to the world wide reviewer acclaim of the JMW-9 and 9
Signature something needed to be done to keep the 10" arms sonically in the lead.

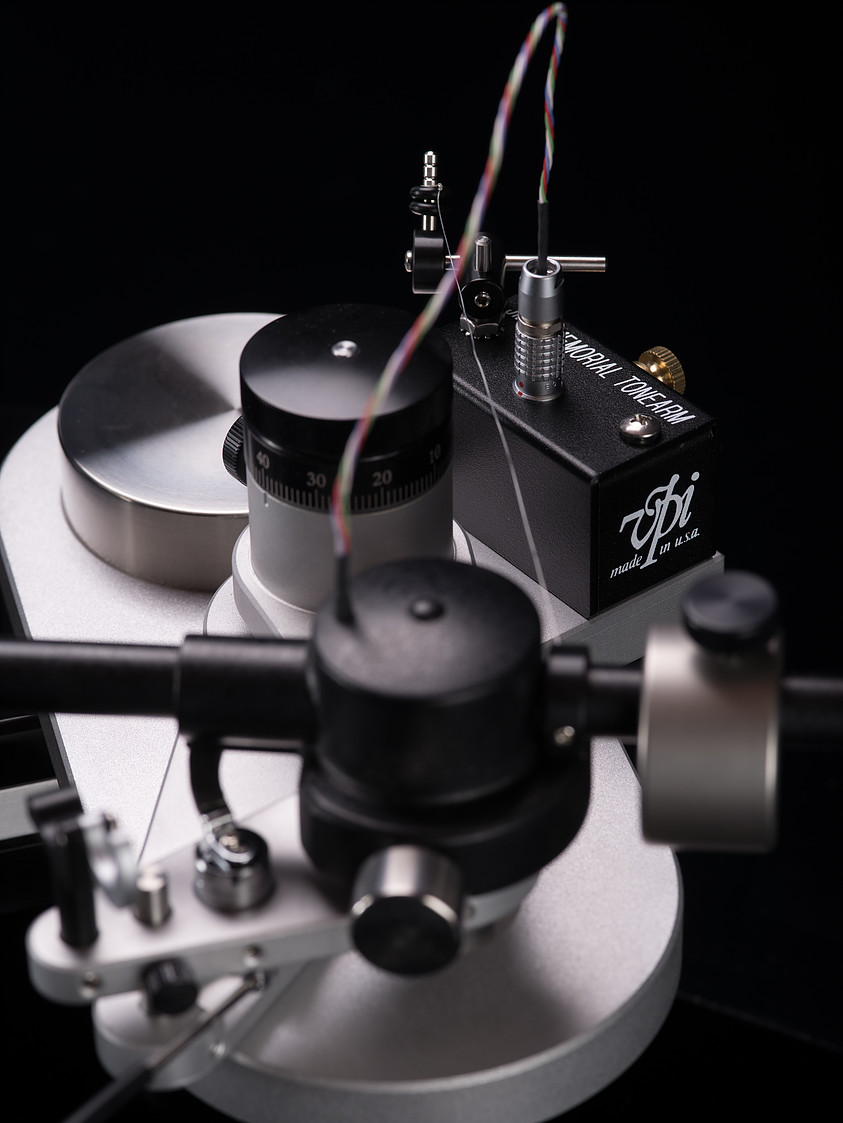

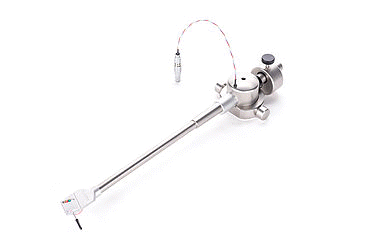

The new JMW 10.5i Memorial Tonearm begins where the JMW 10 and 10.5 leave off.
By going to a dual mounting design we have made a tonearm that is clean, fast,
and powerful, but also very easy to adjust for the best results from any
cartridge. Although they share much of their predecessors' design, including the
precision unipivot, damped stainless steel/aluminum arm tube, the 10.5i
incorporates several significant improvements: The larger dropped counterweight
puts more mass below the arm's pivot point for improved stability. Nordost
Valhalla wire standard. A secondary mounting with under-base has been placed
between the arm rest and the arm lift to greatly improve the arm's rigidity
literally making these the only arms that can do VTA adjustments while listening
and then be locked as rigid as a solid mounted arm. Do not discount this
function, it counts for the speed and low bass detail in the 10.5i. A large
knurled VTA tower with a smooth precise feel makes it easy to set VTA during
play. This is of major importance with the new set of high definition cartridges
now available The azimuth ring on the 10.5i has the larger side weights of the
12.7 for improved stability. Fluid damping is available for cartridges that
require it (such as Grado, Clearaudio) All possible parameters are adjustable on
these tonearms. Optional balanced XLR output connections. The 10.5i tonearm wand
does not fit the 10.5 or 10 tonearm base. The 10.5i is 12 mm longer and will not
work on older JMW 10" arm bases. The upgrade from the JMW-10 is $1200.00 plus
your old arm, the upgrade from the 10.5 is $800.00. Both upgrades are factory
direct only and may include a tonearm board in certain instances. What this
leads up to is a tonearm with the speed and impact of the JMW-9 Signature but
also having the finesse and adjustability of the state of the art JMW-12.7New
Supercoutmaster/Reference =UPGRADES-FACTORY DIRECT ONLY(A) Scoutmaster/JMW 9
upgraded to 10.5i is $1500 plus your tonearm.(B) Scoutmaster/JMW 9-Signature
upgraded to a 10.5i id $1000 plus arm.(C) SSM/JMW9-Signature upgraded to a 10.5i
is $1000 plus tonearm.(D) SSM/JMW 9 upgraded to JMW 10.5i is $1500 plus
tonearm.Credit for tonearms less than one year old will be at full retail value.
The 10.5i modification kit is user friendly and is installed with four wooden
screws and a metal plate which is mounted onto the topplate of the turntable.
After receiving your modification kit, please return your tonearm in VPI's
packaging/box.
Giradischi senza braccio,
trazione a cinghia, unità motore separata, chassis a tripla laminatura:
acrilico/alluminio/acrilico, sistema di sospensione rigida su 4 coni in acciaio
regolabili, piatto in acrilico, velocità 33/45 giri, arm mount intercambiabile,
finitura laccata in acrilico nero.

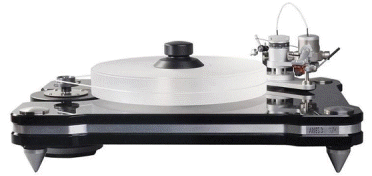

The
1.75"-thick platter is comprised of non-resonant acrylic and incorporates an
inverted bearing similar to that used in the HR-X. The bearing shaft is 60
Rockwell hardness, ground and polished, and the platter rotates on a Teflon/Delrin
composit thrust plate for ultra low noise.The solid black aluminum motor
assembly is almost 10 pounds and contains a low noise 300-RPM synchronous motor
with Delrin motor pulley. This is a very low noise system as the fundamental
resonance of the motor is at 5 Hertz. Well below the ability of a cartridge to
pick it up.For improved stability and damping, the Aries' 3 chassis is made from
a sandwich of 2 layers of 5/8” polished black acrylic top and bottom with a 5/8”
thick aluminum center section, exactly like the HR-X chassis design. This makes
for a very inert, very quiet, and extremely stable platform for the platter and
tonearm to sit on. The plinth is supported by four aluminum cones, the bottoms
of which are composed of hardened steel balls. The cone suspension when applied
to the laminated HR-X type chassis provides outstanding rigidity and a wealth of
information from the record grooves. They are adjustable for leveling.The Aries
3 circular armboard is 4” in diameter, 1" thick black acrylic and mates well
sonically with the new laminated chassis
Giradischi con braccio,
trazione a cinghia, unità motore separata, chassis a tripla laminatura:
acrilico/alluminio/acrilico, sistema di sospensione rigida su 4 coni in acciaio
regolabili, piatto in acrilico, velocità 33/45 giri, arm mount intercambiabile,
finitura laccata in acrilico nero.
The
1.75"-thick platter is comprised of non-resonant acrylic and incorporates an
inverted bearing similar to that used in the HR-X. The bearing shaft is 60
Rockwell hardness, ground and polished, and the platter rotates on a Teflon/Delrin
composit thrust plate for ultra low noise.The solid black aluminum motor
assembly is almost 10 pounds and contains a low noise 300-RPM synchronous motor
with Delrin motor pulley. This is a very low noise system as the fundamental
resonance of the motor is at 5 Hertz. Well below the ability of a cartridge to
pick it up.For improved stability and damping, the Aries' 3 chassis is made from
a sandwich of 2 layers of 5/8” polished black acrylic top and bottom with a 5/8”
thick aluminum center section, exactly like the HR-X chassis design. This makes
for a very inert, very quiet, and extremely stable platform for the platter and
tonearm to sit on. The plinth is supported by four aluminum cones, the bottoms
of which are composed of hardened steel balls. The cone suspension when applied
to the laminated HR-X type chassis provides outstanding rigidity and a wealth of
information from the record grooves. They are adjustable for leveling.The Aries
3 circular armboard is 4” in diameter, 1" thick black acrylic and mates well
sonically with the new laminated chassis.
Giradischi con braccio,
trazione a cinghia, unità motore separata, chassis a tripla laminatura:
acrilico/alluminio/acrilico, sistema di sospensione rigida su 4 coni in acciaio
regolabili, piatto in acrilico, velocità 33/45 giri, arm mount intercambiabile,
finitura laccata in acrilico nero.
The
1.75"-thick platter is comprised of non-resonant acrylic and incorporates an
inverted bearing similar to that used in the HR-X. The bearing shaft is 60
Rockwell hardness, ground and polished, and the platter rotates on a Teflon/Delrin
composit thrust plate for ultra low noise.The solid black aluminum motor
assembly is almost 10 pounds and contains a low noise 300-RPM synchronous motor
with Delrin motor pulley. This is a very low noise system as the fundamental
resonance of the motor is at 5 Hertz. Well below the ability of a cartridge to
pick it up.For improved stability and damping, the Aries' 3 chassis is made from
a sandwich of 2 layers of 5/8” polished black acrylic top and bottom with a 5/8”
thick aluminum center section, exactly like the HR-X chassis design. This makes
for a very inert, very quiet, and extremely stable platform for the platter and
tonearm to sit on. The plinth is supported by four aluminum cones, the bottoms
of which are composed of hardened steel balls. The cone suspension when applied
to the laminated HR-X type chassis provides outstanding rigidity and a wealth of
information from the record grooves. They are adjustable for leveling.The Aries
3 circular armboard is 4” in diameter, 1" thick black acrylic and mates well
sonically with the new laminated chassis.
Giradischi con trazione a
cinghia, unità motore separata, chassis a tripla laminatura:
acrilico/alluminio/acrilico, sistema di sospensione rigida su 4 coni in acciaio
regolabili, piatto in acrilico, velocità 33/45 giri, arm mount intercambiabile,
finitura laccata in acrilico nero. Completo di braccio JMW 10.5i premontato.
The
1.75"-thick platter is comprised of non-resonant acrylic and incorporates an
inverted bearing similar to that used in the HR-X. The bearing shaft is 60
Rockwell hardness, ground and polished, and the platter rotates on a Teflon/Delrin
composit thrust plate for ultra low noise.The solid black aluminum motor
assembly is almost 10 pounds and contains a low noise 300-RPM synchronous motor
with Delrin motor pulley. This is a very low noise system as the fundamental
resonance of the motor is at 5 Hertz. Well below the ability of a cartridge to
pick it up.For improved stability and damping, the Aries' 3 chassis is made from
a sandwich of 2 layers of 5/8” polished black acrylic top and bottom with a 5/8”
thick aluminum center section, exactly like the HR-X chassis design. This makes
for a very inert, very quiet, and extremely stable platform for the platter and
tonearm to sit on. The plinth is supported by four aluminum cones, the bottoms
of which are composed of hardened steel balls. The cone suspension when applied
to the laminated HR-X type chassis provides outstanding rigidity and a wealth of
information from the record grooves. They are adjustable for leveling.The Aries
3 circular armboard is 4” in diameter, 1" thick black acrylic and mates well
sonically with the new laminated chassis.
Due to the world wide reviewer
acclaim of the JMW-9 and 9 Signature something needed to be done to keep the 10"
arms sonically in the lead. The new JMW 10.5i Memorial Tonearm begins where the
JMW 10 and 10.5 leave off. By going to a dual mounting design we have made a
tonearm that is clean, fast, and powerful, but also very easy to adjust for the
best results from any cartridge. Although they share much of their predecessors'
design, including the precision unipivot, damped stainless steel/aluminum arm
tube, the 10.5i incorporates several significant improvements: The larger
dropped counterweight puts more mass below the arm's pivot point for improved
stability. Nordost Valhalla wire standard. A secondary mounting with under-base
has been placed between the arm rest and the arm lift to greatly improve the
arm's rigidity literally making these the only arms that can do VTA adjustments
while listening and then be locked as rigid as a solid mounted arm. Do not
discount this function, it counts for the speed and low bass detail in the
10.5i. A large knurled VTA tower with a smooth precise feel makes it easy to set
VTA during play. This is of major importance with the new set of high definition
cartridges now available The azimuth ring on the 10.5i has the larger side
weights of the 12.7 for improved stability. Fluid damping is available for
cartridges that require it (such as Grado, Clearaudio) All possible parameters
are adjustable on these tonearms. Optional balanced XLR output connections. The
10.5i tonearm wand does not fit the 10.5 or 10 tonearm base. The 10.5i is 12 mm
longer and will not work on older JMW 10" arm bases. The upgrade from the JMW-10
is $1200.00 plus your old arm, the upgrade from the 10.5 is $800.00. Both
upgrades are factory direct only and may include a tonearm board in certain
instances. What this leads up to is a tonearm with the speed and impact of the
JMW-9 Signature but also having the finesse and adjustability of the state of
the art JMW-12.7New Supercoutmaster/Reference =UPGRADES-FACTORY DIRECT ONLY(A)
Scoutmaster/JMW 9 upgraded to 10.5i is $1500 plus your tonearm.(B) Scoutmaster/JMW
9-Signature upgraded to a 10.5i id $1000 plus arm.(C) SSM/JMW9-Signature
upgraded to a 10.5i is $1000 plus tonearm.(D) SSM/JMW 9 upgraded to JMW 10.5i is
$1500 plus tonearm.Credit for tonearms less than one year old will be at full
retail value. The 10.5i modification kit is user friendly and is installed with
four wooden screws and a metal plate which is mounted onto the topplate of the
turntable. After receiving your modification kit, please return your tonearm in
VPI's packaging/box.
Giradischi senza braccio,
trazione a cinghia con blocco motore 'SAMA', sistema di sospensione in sorbotane.
Piatto in materiale acrilico, velocità 33/45 giri, arm mount intercambiabile.Finitura in acrilico nero.
Giradischi senza braccio,
trazione a cinghia, ultima evoluzione del TNT 5 con piatto, perno e gruppo
motore uguali a quelli del modello TNT HR-X. 33/45 giri, arm mount
intercambiabile.Finitura in acrilico nero.
Giradischi , trazione a cinghia,
ultima evoluzione del TNT 5 con piatto, perno e gruppo motore uguali a quelli
del modello TNT HR-X. 33/45 giri, arm mount intercambiabile.Finitura in acrilico nero con braccio JMW 12.7 premontato su arm board.
We
feel the JMW-9 is the best sounding tonearm under $1400.00 and very close to
being one of the best arms you can buy, period. When mated with a cartridge of 7
to 13 grams and compliance higher than 10 you will be rewarded with a
spectacularly vivid presentation with the music ebbing and flowing as it does in
real life.
Made from the finest material available, the JMW-9 uses precision CNC machining
on all its parts to exacting tolerances. All parameters of cartridge setup are
adjustable including:VTA/SRA – Set with a large knurled ring Azimuth – Set with
counterweight Overhang – Supplied gauge VTF – Set with counterweight Horizontal
tracking angle – Supplied gaugeFor those that love to play with cartridges or to
use a mono cartridge for perfect playback of those classic mono recordings the
JMW-9 lets you purchase additional armtubes. The cartridge is mounted to the
armtube and completely set up. The armtube can be exchanged in 30 seconds and
there is no work to be done, just listening.The JMW-9 is virtually friction free
due to its precision unipivot design. You no longer have to worry about bearing
friction, bearing accuracy, bearing wobble, etc, it simply doesn’t existYou can
also purchase the JMW-9 Anti-Skate Assembly as an accessory to the JMW-9
The quotes below show reviewers love it as much as we do and the Scout/JMW-9 is
one of the best reviewed tables in the world.“It’s a sound that runs through the
range of JMW tonearms: A sound that gives you the shape and flow of the
musicaldynamic. It’s a sound that I once described (in reviewing the original
TNT) as meaty, beaty, big and bouncy, and I find it remarkable that a ‘table
that uses such different technology and materials can still display such a heavy
print of the company DNA. What I also find fascinating is the sophistication of
the musical presentation. Using the JMW 12.5 on the Recovery tells me where that
internal intricacy comes from. The impressive thing is the extent to which that
capability is embodied in the cheaper arm and released by the simpler deck.”“If
you obey the instructions for the JMW-9, you can get arm set up that is accurate
to the practical limits that the geometry of the stylus assembly in your
cartridge makes relevant.”
“I do know that I haven’t enjoyed playing and listening to my records this much
in many, many years. I can’t put a price on that, and considering what else I
have to spend my money on (things that offer me no enjoyment — car insurance for
one) then the Scout/JMW-9 has to be viewed as a bargain. Think of it as a
long-term investment and a way to give your vinyl collection new life.” “The
JMW-9 unipivot tonearm features a machined cup on one end that rests upon a
super-sharp tungsten-carbide point — sort of like balancing on the head of a
pin. It works great and makes it a breeze to exchange arms if you like
experimenting. An RCA junction box, which accepts any interconnects with RCA
terminations, sits to the left of the tonearm. The tonearm also comes with a
wire and connector (Lemo) that line up a red dot on a receptacle on the junction
box. Align the Lemo connector, connect it and the cables to a pre-amp or
receiver and you’re in business.”
The JMW-9 Signature tonearm
builds on all the advantages of standard JMW-9 unipivot tonearm. The JMW-9
Signature tonearm is completely wired with Nordost Valhalla internal wiring! It
also uses an improved bearing assembly with viscous damping, has added mass for
better resonance control, and adds fine adjustment of tracking force on the rear
stem of the arm. It even has VPI's newest addition: mechanical anti-skate
control!The arm has an ultra low friction bearing mounted on a solid stainless
steel rod with tungsten carbide tip, user adjustable VTA (Vertical Tracking
Angle). As with the more expensive JMW-10.5i and JMW-12.7 arms, the tonearm wand
of the JMW-9 Signature can be removed and replaced in seconds, allowing instant
cartridge changes with multiple arm wands. The standard RCA junction box allows
any RCA-terminated interconnects to be used while XLR termination is also
available for balanced setups.
“Like other VPI unipivot arms, the JMW has a quick-connect plug in its signal
line for easy removal and thus easy cartridge swapping—although I know of no one
else using either so fine a plug and socket (Swiss-made Lemos) or so handy and
straightforward an output-jack box, the latter mounted close to the arm mount on
the Scout's back edge.”
Braccio dritto con shell
integrato, sistema unipivot. Nuovo contrappeso, nuovo sistema di regolazione
continua altezza e VTA, nuovo collarino antivibrazione. Canna intercambiabile
Due
to the world wide reviewer acclaim of the JMW-9 and 9 Signature something needed
to be done to keep the 10" arms sonically in the lead. The new JMW 10.5i
Memorial Tonearm begins where the JMW 10 and 10.5 leave off. By going to a dual
mounting design we have made a tonearm that is clean, fast, and powerful, but
also very easy to adjust for the best results from any cartridge. Although they
share much of their predecessors' design, including the precision unipivot,
damped stainless steel/aluminum arm tube, the 10.5i incorporates several
significant improvements: The larger dropped counterweight puts more mass below
the arm's pivot point for improved stability. Nordost Valhalla wire standard. A
secondary mounting with under-base has been placed between the arm rest and the
arm lift to greatly improve the arm's rigidity literally making these the only
arms that can do VTA adjustments while listening and then be locked as rigid as
a solid mounted arm. Do not discount this function, it counts for the speed and
low bass detail in the 10.5i. A large knurled VTA tower with a smooth precise
feel makes it easy to set VTA during play. This is of major importance with the
new set of high definition cartridges now available The azimuth ring on the
10.5i has the larger side weights of the 12.7 for improved stability. Fluid
damping is available for cartridges that require it (such as Grado, Clearaudio)
All possible parameters are adjustable on these tonearms. Optional balanced XLR
output connections. The 10.5i tonearm wand does not fit the 10.5 or 10 tonearm
base. The 10.5i is 12 mm longer and will not work on older JMW 10" arm bases.
The upgrade from the JMW-10 is $1200.00 plus your old arm, the upgrade from the
10.5 is $800.00. Both upgrades are factory direct only and may include a tonearm
board in certain instances. What this leads up to is a tonearm with the speed
and impact of the JMW-9 Signature but also having the finesse and adjustability
of the state of the art JMW-12.7New Supercoutmaster/Reference =UPGRADES-FACTORY
DIRECT ONLY(A) Scoutmaster/JMW 9 upgraded to 10.5i is $1500 plus your
tonearm.(B) Scoutmaster/JMW 9-Signature upgraded to a 10.5i id $1000 plus
arm.(C) SSM/JMW9-Signature upgraded to a 10.5i is $1000 plus tonearm.(D) SSM/JMW
9 upgraded to JMW 10.5i is $1500 plus tonearm.Credit for tonearms less than one
year old will be at full retail value. The 10.5i modification kit is user
friendly and is installed with four wooden screws and a metal plate which is
mounted onto the topplate of the turntable. After receiving your modification
kit, please return your tonearm in VPI's packaging/box.

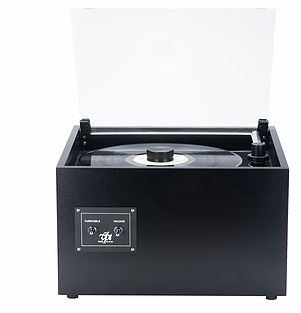

The HW-16.5 is the standard in affordable record cleaning machines but
neither its build quality nor its cleaning power has been c(Roll over image)
ompromised. Its high-torque, 18 RPM turntable motor is more than capable of
withstanding the pressure of heavy scrubbing during extended cleaning sessions,
and its 35-second cleaning cycle per side makes quick work of even the dirtiest
records. Now with self aligning vacuum suction tubes for even more accurate
cleaning, the HW-16.5's high-powered vacuum ensures quick, deep cleaning. The
newly designed vacuum pickup tube automatically adjusts to accommodate records
of any thickness. The internal fluid collection system is made of stainless
steel to prevent corrosion, and the fully enclosed design prevents splashing. In
the VPI tradition, all components are extra heavy-duty and professional grade.
Macchina lavadischi
totalmente automatica sia in fase di pulitura che di asciugatura, con ventola
per impiego continuativo. Doppio senso di rotazione, peso 19 kg.Finitura legno
nero.
Macchina lavadischi
totalmente automatica sia in fase di pulitura che di asciugatura, con ventola
per impiego continuativo. Potenza di aspirazione doppia rispetto alla HW-17.
Piatto in acrilico, silenziosissima, chassis completamente in metallo di colore
nero.
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco nostro magazzino.
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici.
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Attenzione
Rather,
this is a flat-out, unconditional, "Holy Mother of Crap, I can't believe how
good this thing is" recommendation. It's hard to imagine another way of spending
$****.** that will add this much to your system." - Art Dudley - Sterophile The

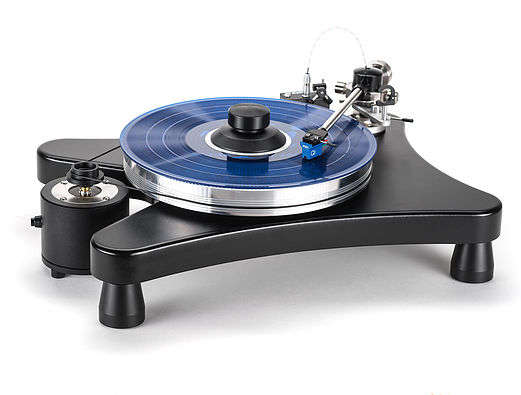

SCOUT, in its two-year existence, has become the worlds best-reviewed turntable!
The lowest priced turntable in STEREOPHILE'S Class "B" has attained high
performance records worldwide. For improved stability and damping, the Scout's
chassis is made from 1 1/8" thick MDF bonded to a 12 gauge steel plate. The
massive platter is composed of 1 3/8" acrylic and is mounted to an inverted
bearing of Teflon and brass on a 60 case hardened shaft. The AC synchronous
motor is contained in a separate steel housing and drives the platter for smooth,
quiet operation. The JMW-9 tonearm is the perfect complement to the Scout,
offering all the advantages of a unipivot tonearm at a bargain price. The arm
has a low friction bearing mounted onto a solid stainless steel rod with a
knurled ring to set VTA (Vertical Tracking Angle). As with the more expensive
JMW-10.5i” and JMW-12.7” arms, the tonearm wand assembly of the JMW-9 can be
removed and replaced in seconds. This allows instant cartridge changes with
multiple armwands. An RCA junction box allows any RCA-terminated interconnects
to be used. The JMW-9 uses the same geometry and mounting as the Rega RB300
tonearm and can be dropped right into the Rega armhole with no modifications.We
feel the JMW-9 is the best sounding tonearm under $1400.00 and very close to
being one of the best arms you can buy, period. When mated with a cartridge of 7
to 13 grams and compliance higher than 10 you will be rewarded with a
spectacularly vivid presentation with the music ebbing and flowing as it does in
real life. Made from the finest material available, the JMW-9 uses precision CNC
machining on all its parts to exacting tolerances. All parameters of cartridge
setup are adjustable including:VTA/SRA – Set with a large knurled ring Azimuth –
Set with counterweight Overhang – Supplied gauge VTF – Set with counterweight
Horizontal tracking angle – Supplied gaugeFor those that love to play with
cartridges or to use a mono cartridge for perfect playback of those classic mono
recordings the JMW-9 lets you purchase additional armtubes. The cartridge is
mounted to the armtube and completely set up. The armtube can be exchanged in 30
seconds and there is no work to be done, just listening.The JMW-9 is virtually
friction free due to its precision unipivot design. You no longer have to worry
about bearing friction, bearing accuracy, bearing wobble, etc, it simply doesn’t
existYou can also purchase the JMW-9 Anti-Skate Assembly as an accessory to the
JMW-9 The quotes below show reviewers love it as much as we do and the
Scout/JMW-9 is one of the best reviewed tables in the world.“It’s a sound that
runs through the range of JMW tonearms: A sound that gives you the shape and
flow of the musicaldynamic. It’s a sound that I once described (in reviewing the
original TNT) as meaty, beaty, big and bouncy, and I find it remarkable that a
‘table that uses such different technology and materials can still display such
a heavy print of the company DNA. What I also find fascinating is the
sophistication of the musical presentation. Using the JMW 12.5 on the Recovery
tells me where that internal intricacy comes from. The impressive thing is the
extent to which that capability is embodied in the cheaper arm and released by
the simpler deck.”“If you obey the instructions for the JMW-9, you can get arm
set up that is accurate to the practical limits that the geometry of the stylus
assembly in your cartridge makes relevant.”“I do know that I haven’t enjoyed
playing and listening to my records this much in many, many years. I can’t put a
price on that, and considering what else I have to spend my money on (things
that offer me no enjoyment — car insurance for one) then the Scout/JMW-9 has to
be viewed as a bargain. Think of it as a long-term investment and a way to give
your vinyl collection new life.” “The JMW-9 unipivot tonearm features a machined
cup on one end that rests upon a super-sharp tungsten-carbide point — sort of
like balancing on the head of a pin. It works great and makes it a breeze to
exchange arms if you like experimenting. An RCA junction box, which accepts any
interconnects with RCA terminations, sits to the left of the tonearm. The
tonearm also comes with a wire and connector (Lemo) that line up a red dot on a
receptacle on the junction box. Align the Lemo connector, connect it and the
cables to a pre-amp or receiver and you’re in business.”
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
