The "roots" of Wyred 4 Sound EJ Sarmento
started as an assembler for Cullen Circuits in the mid 90's shortly after the
manufacturing side had begun. His early years with car electronics gave him a
good taste for what he was getting into. Crimping transformer after transformer
for the first several weeks quickly taught him that repetition, quality, and
productivity was the key to success. Working under the guidance of Barry Nelson
(production manager at the time) offered variations in projects and allowed
hands on training in every aspect of production. Barry found that he promptly
became a "jack of all trades", and always "floated" him around to help in
different departments as needed. Barry looked at him as a true team player. The
one that works through the night into the morning and even through holidays to
get "hot" projects out the door. Sub-contract customers also found that they
could rely on him to get the job done even when there didn't seem to be enough
time in the day. Through building thousands of products, EJ quickly
learned the "nuts and bolts" of each product. Working next to long time comrade
Kevin Stewart, the two built the majority of production for the longest time.
Over the years, notes were taken, skills were learned, lessons were given, and
new faces appeared. Barry Nelson had to relocate for family reasons, which left
EJ in the production management position. With production numbers
continually going up, the testing department couldn't seem to keep up with
production. Along with James Ross (head technician at the time), EJ opted to
help as much as he possibly could in the testing department. As time went on,
James decided to move on to a technician position with another local company.
This left EJ to also cover in the testing department. He swiftly picked up the
routines, and accomplished goals day after day. Enjoying every aspect of
daily tasks, EJ couldn't learn enough as fast as he'd like. He then attended
night classes to study electronics in college. Because of the hands on
experience, everything seemed to go very well. He accelerated very quickly and
learned a great deal in record time. In his spare hours, EJ grasped the ins and
outs of Solid Works (3-D design software), and Protel (circuit board design
program). He then decided to design a very small, low powered amplifier built
around ICEpower modules. This is where Wyred 4 Sound was born. The 200S was the
first model to be branded with the W4S name. Over the weekend, he built and
tested his amplifiers for the week to follow. After the web-site was put up and
the first 20 or so amps were in customers hands, orders started pouring in. As
the OEM production side of things started to slow down, Rick and EJ had more of
an opportunity to work together on modifications. They both learned that they
shared the same goals in audio, and found great friendship along the way. After
several production-based modifications were released, customers quickly found
that the quality and value they were getting was extraordinary. Business began
to grow exponentially. As the product line grew to stereo and mono
amplifiers, the demand was overwhelming. The stress was huge on EJ and something
needed to give soon. There was barely enough time in the day for his role in
Cullen Circuits, and even less for W4S in the evenings. He then decided that it
would be best to move on with his company, but couldn't because of the amount of
time invested, and dedication involved in both. Together EJ and Rick decided
that they could both make sacrifices to ensure the growth of both businesses.
Several assemblers were promoted to technicians and provided the level of
perfomance W4S was known for. Now production management and product design was
his primary role which proved to be very effective. With the help of the past at
Cullen Circuits, and close friends in the industry, EJ continues to develop the
chassis, circuit, software, and web design for W4S. Together, this team will
provide advanced high-end audio products for years to come at an affordable
price and extreme value! Does this all sound too good to be true? Well, life is
what we make it, so do your best and be all that you can! Live today as if there
wasn't a tomorrow. We thank all who support us, and those who share the
same love (addiction) for music.

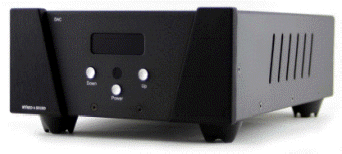

Convertitore
stereo Digitale / Analogico DAC 32 bit ESS Reference audio ES9018, ESS Time
Domain Jitter Eliminator®, sovracampionamento automatico, progetto completamente
bilanciato con uscite bilanciate e sbilanciate, trasformatore toroidale
sovradimensionato, display LCD, 4 ingressi (2 Coax, 2 Toslink), ingresso USB
asincrono 24 bit 96 kHz. Senza telecomando. Dimensioni (LxAxP): 216x105x343mm.
Peso: 6,8kg. Finitura Nero o Silver
"I
received my dac-1 yesterday and have to say, WOW! Even right out of the box it
blew away my highly regarded DAC! My wife and I have already enjoyed detail in
our music we hadn't heard prior. The bass is tight and strong, the timbre is
smoother, accurate and non fatiging. The emotion of the music can be felt as if
we were there with the writer. We are truely rediscovering our music! We can't
wait to finish the break-in cause it's only going to get better!! I now own, two
SX-1000's, an STP-SE, and a DAC-1 and couldn't be happier. Many thanks to the
W4S team!" ......Dave R .W4S DAC-1 Features: • ESS Reference audio (ES9018) 32
bit DAC • W4S proprietary discrete output stages for optimum sonics •ESS Time
Domain Jitter Eliminator® •Automatic oversampling for precise output filtering
•Fully balanced design with balanced and unbalanced outputs •Upgradable Digital,
Output, and USB boards (designed for future improvements) • Oversized toroidal
transformer for solid and noise-free power • LCD display for input and sample
rate viewing • 2x Coax inputs • 2x Toslink inputs • 24-bit 96kHz Asynchronous
USB input • Factory selectable mains 115/230VAC • Compact size (8.5"W x 4.125"H
x 13.5"D) • 15 lbs. • Covered by a 3 YEAR WARRANTY • Does not include remote or
have the capability to use one

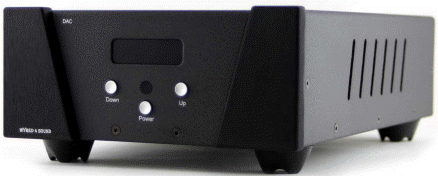

Convertitore stereo Digitale / Analogico
DAC 32 bit ESS Reference audio ES9018, ESS Time Domain Jitter Eliminator®,
sovracampionamento automatico, progetto completamente bilanciato con uscite
bilanciate e sbilanciate, trasformatore toroidale sovradimensionato, display
LCD, 6 ingressi (2 Coax, 2 Toslink, 1 AES/EBU, 1 bilanciato I2S), ingresso USB
asincrono 24 bit 192 kHz. Con telecomando. Schede digitali, di uscita e USB
aggiornabili. Dimensioni (LxAxP): 216x105x343mm. Peso: 7,3kg. Finitura nero o Silver
W4S
DAC-2 Features: • ESS Reference audio (ES9018) 32 bit DAC • W4S proprietary
discrete output stages for optimum sonics • ESS Time Domain Jitter Eliminator® •
Automatic oversampling for precise output filtering • Fully balanced design with
balanced and unbalanced outputs • Upgradable Digital, Output, and USB boards (designed
for future improvements) • Oversized toroidal transformer for solid and
noise-free powe • 88,000uF of filtering with W4S low ESR "super-cap" (same as
used in the STP-SE) • VFD display for input, sample rate, volume control, and
configuration viewing • Remote control with features such as balance control and
phase inversion • Defeatable - 32 bit volume control • HT Bypass inputs (selectable
via DC trigger) • 2x Coax inputs • 2x Toslink inputs • 1x AES/EBU input • 1x
Balanced I2S input via HDMI cable (not standard HDMI cable format) • 24-bit
192kHz Asynchronous USB input • Proprietary drivers for 32/64 bit Windows XP,
Vista, 7 and Mac OS 10.4, 10.5 ,10.6 • Factory selectable mains 115/230VAC •
Compact size (8.5"W x 4.125"H x 13.5"D) • 16 lbs. • Covered by a 3 YEAR WARRANTY
WIRED 4 SOUND
MICRODAC €.
465,00Per ordine
e sconto
TELEFONA/ E-MAIL

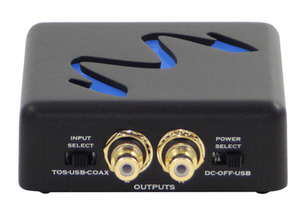

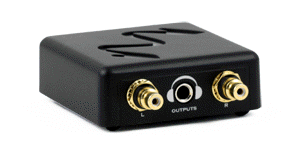

Convertitore stereo Digitale / Analogico
Tre ingressi digitali: USB 24 bit @ 96 kHz, Coassiale 24 bit @ 192 kHz, Toslink
24 bit @ 192 kHz. Uscita RCA. Alimentato tramite alimentatore oppure via USB.
Ingresso e alimentazione selezionabili tramite selettore. Dimensioni (LxAxP):
89x25x89mm. Finitura nero
The
Wyred 4 Sound µDAC is the perfect solution for digital streaming made simple. In
many cases, the price and overall size of most dedicated DACs deters music
enthusiasts from going digital. Whether it be for a second system or to begin
digital streaming for the first time, the µDAC can surely impress. There are
currently a handful of DACs available with a similar foot print to the µDAC but
we have ensured that this piece has more to bring to the table. In fact, after
learning about the high resolution support and stellar sonic performance, you
may consider making this the go to DAC in your home and or office.There are two
S/PDIF inputs which support 24 bit 192 kHz signals as well as an asynchronous
USB input for computer streaming. Any of the inputs will provide the kind of
performance expected from a price tag many times higher. From Internet radio to
high res streaming the µDAC will not miss a beat. We adopted the very same USB
technology used in our DAC-1! We were even able to include an ESS DAC to take
full advantage of the limited real-estate in this 3.5”x3.5” chassis. Not
only will the µDAC perform sonically, its soft lines and smooth finish make for
a sleek looking product. Made from machined aircraft-grade aluminum with the W4S
logo as a lock light (lights up blue when the DAC is locked onto a signal!), the
µDAC is very functional yet so simple. Power is fed directly through USB when
streaming from a computer. When using the S/PDIF inputs the USB cable is plugged
into an outlet using the supplied adapter. Simplify and improve your digital
streaming today!
MUSIC
SERVER
WIRED 4 SOUND
MUSIC
SERVER €.2.290,00Per ordine
e sconto
TELEFONA/ E-MAIL

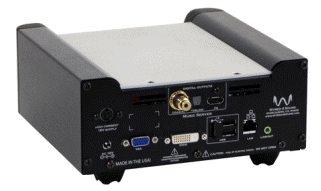

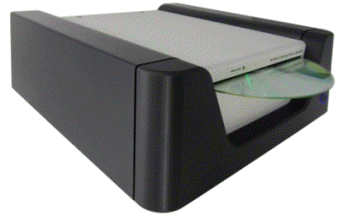

Music Server Sistema operativo basato su
Linux, semplice da configurare, uscite Coassiali, Toslink e I˛S, caricamento dei
file tramite USB o rete, ripping automatico dei CD tramite meccanica interna,
compatibile con software Logitech e Sonos, connessione Ethernet che permette
controllo wireless, radio su internet e modifica dei tag. Radio via internet e
applicazioni di terza parti come Pandora, Rhapsody, Spotify, ecc. Controllabile
tramite dispositivi Apple® quali iTouch®, iPhone®, iPad® e dispositivi Android®,
streaming dei file sino a 24 bit @ 192 kHz senza compressione wireless. Finitura
nero o silver
The Wyred 4 Sound server is an all in one music solution. From streaming
high resolution tracks to playing Internet radio this versatile, compact unit
does not skip a beat. The operating system and music playback software are
tailored for playing music and it does so very effectively. The small size at
less than a half rack depth and width takes up minimal space! Standard on board
storage starting at 1TB will accommodate over 1000 CD’s. The built-in auto
rip CD drive goes to work automatically as soon as a disk is inserted, and
copies files into FLAC(Free Lossless Audio Codec) format. When the CD ripping
process is complete it will auto-eject. Adding music already stored on a
computer is as simple as drag and drop over a local network. Files that are on
the server can be edited using any computer on the local network. Selecting
tracks, browsing the music library, and starting up your favorite Pandora® radio
station is all wireless! This ideal configuration allows you to have your whole
media library at your fingertips while maintaining a direct digital connection
to your DAC from the server. Internet radio and 3rd party apps, such as Pandora®,
and MOG are available when using the Logitech Sqeezebox Controller application
on your Apple or Android device! Browsing your music library by album, artist,
or genre is a breeze. In fact when using the Mpad application on an iPad,
playlists can be made on the fly and it even allows gapless playback!
Traditional playback using a Mac or PC for high resolution files requires a
media player that supports such playback, and sounds good in the process. The
cost and concern of sonic performance associated with the media player are no
longer an issue! The included onboard software has been designed from the ground
up to play music. In depth setup guides and videos will be available to assist
in properly configuring and customizing the server for your needs and
preferences.Features:Supported file types: AAC, APE, AIFF, Apple Lossless,
Monkey's Audio, FLAC, QuickTime, MP3, MPEG-4, Musepack Ogg Vorbis, MPEG-4 SLS /
HD-AAC, WAV, Windows Media, WMA Lossless, WMA Pro, Wavpack •Easy one-time setup•Wireless
control •Supports 24 bit 192 kHz files•Coaxial, Toslink, I˛S outputs•Automatically
copies CDs using built-in drive•Network file uploading•1TB of on-board storage•Internet
Radio•3rd party apps such as Pandora®, MOG, Last.fm and more•Back-up the hard
drive contents with one click•Fan less•Low power consumption
AMPLIFICATORI
WIRED 4 SOUND
MINIINT €.1.720,00Per ordine
e sconto
TELEFONA/ E-MAIL
Amplificatore Integrato con DAC incorporato
100 W x 2 @ 8 ohm, due ingressi analogici, tre ingressi digitali: USB a 24 bit @
96 kHz, Coassiale 24 bit @ 192 kHz e Toslink a 24 bit @ 192 kHz, tecnologia ESS,
bypass per HT, trigger in e out, uscita variabile o fissa selezionabile, uscita
cuffie, telecomando. Finitura nero
This
compact integrated amplifier is a very versatile unit that will fit well in many
systems for years to come. Extensive amounts of time and engineering have been
applied to produce remarkable performance and a noteworthy feature set in a
chassis smaller than the average DAC.
The transparent nature of a Wyred 4 Sound product is able to reproduce your
favorite recording with an abundance of detail and clarity. The internal
circuits and components are carefully selected and designed to reproduce this
W4S sonic signature. Nothing is better than having colorless power behind your
music! We understand that there are many other products on the market which have
similar features and internal parts. It is important to understand that it is
what you do with those parts and the circuits around them to define the products
performance, sonics and uniqueness. We design and manufacture our products in
the USA yet still offer value comparable to those produced in regions where
manufacturing is much less costly. Aside from great sonic performance, our build
quality and customer service are on the top of our priority list. Design and

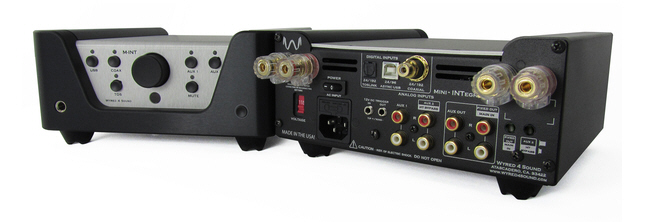

Feature Overview The mINT chassis was designed around the internal components.
Its physical size could not have been any smaller! In the brainstorming stage of
this project EJ Sarmento set out to create a unit that pushed the envelope in
terms of size, performance, features, and value. At times when the feature set
was discussed we couldn’t help but laugh about the versatility that this sleek
box would provide with a footprint slightly larger than a DVD case. After all,
our economy is not as strong as it was ten years ago and an affordable, small
integrated amp with a built in DAC and head phone amp just makes sense. There
are many reasons why this mini integrated amplifier is unique. To start with,
the volume control in the mINT is a true-resistive ladder which results in
linear control, excellent channel matching, and impressive sonic quality. It was
no simple task to attain these qualities using the one-turn analog pot on the
mINT, so it was necessary to step outside of the box. Rather than passing the
signal through the pot, it is only used as a position reference. A soft ramp
feature means that when powering the unit on/off or using the mute/un-mute it
increases/decreases the volume at a pleasant rate. The mINT has a 12V DC trigger
in and out as well as an external mains voltage switch. Two analog inputs (Auxiliary
1 and 2) are side by side on the rear panel. An alternate function of Aux 2 is
HT bypass (Home Theater bypass) and is activated via a push switch on the back.
When HT is selected, the trigger in becomes one activation point for the HT
mode. Aux Out (preamp output) will work very well to incorporate a powered
subwoofer. In addition to the pre-out the mINT has a Fixed out that will
typically be used to send a signal to a recording device or feed a signal to a
second system. An alternate function of the Fixed out is a Main In feature that
can be used with the preamp output to allow the insertion of a digital crossover
into the signal path. This feature can be selected by the “Fixed out/Main in”
button located on the rear of the unit next to the HT Bypass selector.Located
top and center of the rear panel, you will find three digital inputs powered by
an ESS DAC chip for an incredible experience when streaming your digital
recordings. The S/PDIF inputs will support 24 bit 192kHz resolution files and
the asynchronous USB interface will support 24 bit 96kHz resolution files. Each
digital input can be connected to a different source and selected independently
via the remote or input select buttons on the front.A Ľ” headphone jack is
machined into the left had side of the front panel. When a headphone plug is
inserted into the jack it will mute the other outputs (other than the Fixed
outputs) regardless of the input selected or volume level. The performance of
the built-in headphone amp is nothing short of impressive. Independent power
supplies for exceptionally low channel crosstalk, low noise and an abundance of
dynamic range make for true hi fidelity headphone experience. Did you think we
were done, Ha!, now the most important part! The final area of focus is the
source of on-board amplification, after all it is an integrated amplifier!
Utilizing two independent ICEpower™ modules, the mINT is capable of outputting
100wpc into 8 ohms and will drive the majority of speakers on the market with
ease.
Amplificatore Integrato Stereofonico 250 W
x 2 @ 8 ohm, 550 W x 2@ 4 ohm, consumo a riposo 25 W, ingresso/uscita DC
trigger, controllo del bilanciamento, controllo della fase assoluta (0° / 180°),
4 ingressi sbilanciati placcati oro RCA, 1 ingresso bilanciato Neutrik XLR, 1
uscita sbilanciata RCA placcata oro. Include telecomando. Dimensioni (LxAxP):
432x102x330mm. Finitura Nero W4S

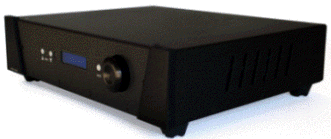

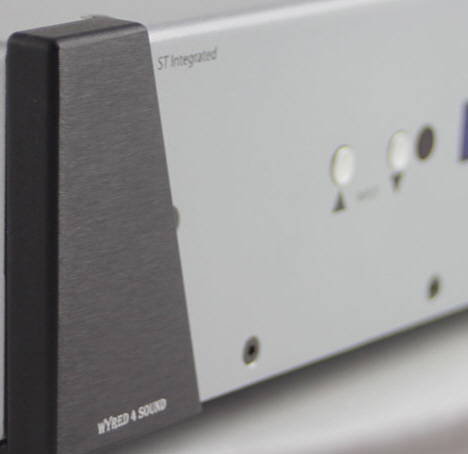

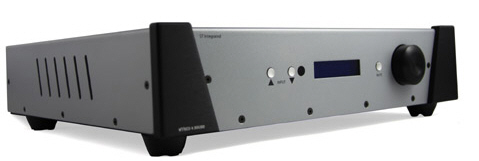

STI-500 Integrated (STI-500) - Integrated Amplifiers The new STI series
integrated amplifiers offer unbelievable value, and sonics that rival units
costing many times more.If you're looking for the best deal on an integrated
amplifier which also provides the resolution and clarity as those costing many
times over, look no further. An extremely wide sound stage and imaging that
takes you to the music are just a few attributes of our latest creation. Many of
the features derived from the STP preamp have given this unit an edge that many
others are looking for.It all starts with our proprietary fully balanced dual
FET unity gain buffers on the front end to welcome incoming signals. Our true
resistive-ladder volume control is fed from the FET input stage and offers
exceptional tracking. Our line stage that couples the amplifier to the front-end
offers a balanced output regardless of the selected input. This offers much
better common-mode rejection, and a quieter background.Some features the STI
series have that others don't is the same HT bypass feature as the STP, and a
loop through feature. Like the STP, you can connect a DC trigger cable to your
Pre/Pro (and set-up the proper input in the setup menu) to automatically
configure the unit for HT use. When an input is selected to be used as the HT
input, the DC trigger can be activated by your Pre/Pro to “power up” the unit,
and automatically set the volume to unity gain. This allows for all volume
controls to be made through the surround processor. When the processor is shut
down, so is the STI and connected gear through the DC trigger output. When 2ch
listening is desired, then manual operation can be executed from the front of

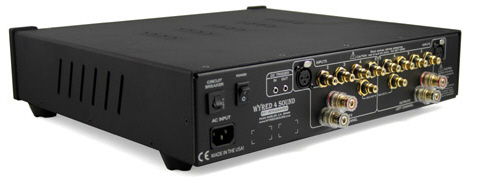

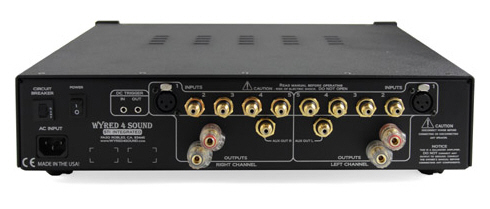

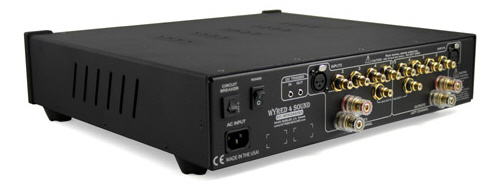

the unit, or through the remote.With a set of balanced inputs, 4 sets of
unbalanced inputs and a set of unbalanced outputs, connection possibilities are
vast. Absolute phase and balance control are easily selected through the
supplied remote for those out of phase recordings, and room adjustments to be
made on the fly. User interface is made easy with the VFD display and
optical rotary encoder. Allowing input naming and HT Bypass input selection, the
setup menu is easily accessed for customization. Several display dimming steps
including “off” are available through the remote for stealth operation. Powering
up the unit can be done several ways, by pushing in on the volume knob (power
button), by pressing power on the remote, or by the remote DC trigger input when
HT Bypass is selected in the setup menu. What are you waiting for? Rediscover
your music, Wyred 4 Sound, Just listen....STI-500 Specifications: Typical
Distortio THD+N (10W out) 0.005% Channel Tracking (All Steps) < +/- 0.05 db
Crosstalk (20-20kHz) >77 db 8Ω power per channel (0.2%) 250w 4Ω power per
channel (0.2%) 550w Frequency Response (20-20kHz / 2V) +/- 0.3 db
Lower Bandwidth 3.3Hz all load IMD 0.0005 % Gain 0-39 db Output Impedance
0.005 Ω Idle power consumptio 25 w Efficiency 80 % (4Ω)
Input Impedance 60.4kΩ SensitivitY 0.55 V RMS Unit Features: •
Vacuum Fluorescent Display (VFD) Optical rotary encoder (volume knob /
power button • Fully functional remote control • 12V DC Trigger input (to
automatically activate HT Bypass mode)• 12V DC Trigger output • Home Theater
bypass (customizable for any input, also DC Trigger input selected) • Balance
control • Absolute phase control (0°/180°) • Efficient (little heat) •
Extremely low noise floorTrue Resistive-Ladder volume control • Unbalanced to
Balanced conversion (when RCA inputs are selected) • Extremely low Idle power
consumption• Rugged construction • ˝” Machined and Anodized front panels • 60kΩ
input impedance 4 sets of gold plated unbalanced (RCA) inputs 1 set of
gold plated unbalanced (RCA) outputs• 1 set of Neutrik Balanced (XLR) inputs •
Factory Selectable mains 115/230VAC • Compact size (17”W x 4”H x 14.5”D) • TBD
lbs. • Covered by a 3 YEAR WARRANTY
WIRED 4 SOUND
STI1000
€.2.865,00Per ordine
e sconto
TELEFONA/ E-MAIL
Come STI-500, ma 570 W @ 8 ohm e 1.140 W @
4 ohm, 35 W a riposo. Finitura Nero STI-1000 Specifications: Typical
Distortion THD+N (10W out) 0.008% Channel Tracking (All Steps) < +/- 0.05 db
Crosstalk (20-20kHz) >85 db 8Ω power per channel (0.2%) 570w 4Ω power per
channel (0.2%) 1,140w Frequency Response (20-20kHz / 2V) +/- 0.4 db Lower
Bandwidth 3.3Hz all loads IM 0.0005 % Gain 0-39 db Output
Impedance 0.005 Ω Idle power consumption 35 w Efficiency 78 % (4Ω) Input
Impedance 60.4kΩ Sensitivity 0.75 V RM Unit Features: • Vacuum Fluorescent
Display (VFD) • Optical rotary encoder (volume knob / power button) •Fully
functional remote control • 12V DC Trigger input (to automatically activate HT
Bypass mode • 12V DC Trigger output • Home Theater bypass (customizable for any
input, also DC Trigger input selected) • Balance control • Absolute phase
control (0°/180°) • Efficient (little heat) • Extremely low noise floor • True
Resistive-Ladder volume control • Unbalanced to Balanced conversion (when RCA
inputs are selected) • Extremely low Idle power consumption • Rugged
construction • ˝” Machined and Anodized front panels • 60kΩ input impedance • 4
sets of gold plated unbalanced (RCA) inputs • 1 set of gold plated unbalanced
(RCA) outputs • 1 set of Neutrik Balanced (XLR) inputs • Factory Selectable
mains 115/230VAC • Compact size (17”W x 4”H x 14.5”D) • TBD lbs. • Covered by a
3 YEAR WARRANTY
If
you're looking for the best deal on an integrated amplifier which also provides
the resolution and clarity as those costing many times over, look no further. An
extremely wide sound stage and imaging that takes you to the music are just a
few attributes of our latest creation. Many of the features derived from the STP
preamp have given this unit an edge that many others are looking for. It all
starts with our proprietary fully balanced dual FET unity gain buffers on the
front end to welcome incoming signals. Our true resistive-ladder volume control
is fed from the FET input stage and offers exceptional tracking. Our line stage
that couples the amplifier to the front-end offers a balanced output regardless
of the selected input. This offers much better common-mode rejection, and a
quieter background. Some features the STI series have that others don't is
the same HT bypass feature as the STP, and a loop through feature. Like the STP,
you can connect a DC trigger cable to your Pre/Pro (and set-up the proper input
in the setup menu) to automatically configure the unit for HT use. When an input
is selected to be used as the HT input, the DC trigger can be activated by your
Pre/Pro to “power up” the unit, and automatically set the volume to unity gain.
This allows for all volume controls to be made through the surround processor.
When the processor is shut down, so is the STI and connected gear through the DC
trigger output. When 2ch listening is desired, then manual operation can be
executed from the front of the unit, or through the remote. With a set of
balanced inputs, 4 sets of unbalanced inputs and a set of unbalanced outputs,
connection possibilities are vast. Absolute phase and balance control are easily
selected through the supplied remote for those out of phase recordings, and room
adjustments to be made on the fly. User interface is made easy with the
VFD display and optical rotary encoder. Allowing input naming and HT Bypass
input selection, the setup menu is easily accessed for customization. Several
display dimming steps including “off” are available through the remote for
stealth operation. Powering up the unit can be done several ways, by pushing in
on the volume knob (power button), by pressing power on the remote, or by the
remote DC trigger input when HT Bypass is selected in the setup menu. What are
you waiting for? Rediscover your music, Wyred 4 Sound, Just listen... STI-1000
Specifications: Typical Distortion THD+N (10W out) 0.008% Channel Tracking
(All Steps) < +/- 0.05 db Crosstalk (20-20kHz) >85 db 8Ω power per channel
(0.2%) 570w 4Ω power per channel (0.2%) 1,140w Frequency Response (20-20kHz /
2V) +/- 0.4 db Lower Bandwidth 3.3Hz all loads IM 0.0005
% Gain 0-39 db Output Impedance 0.005 Ω Idle power consumption 35 w Efficiency
78 % (4Ω) Input Impedance 60.4kΩ Sensitivity 0.75 V RM Unit Features: •
Vacuum Fluorescent Display (VFD) • Optical rotary encoder (volume knob / power
button) •Fully functional remote control • 12V DC Trigger input (to
automatically activate HT Bypass mode • 12V DC Trigger output • Home Theater
bypass (customizable for any input, also DC Trigger input selected) • Balance
control • Absolute phase control (0°/180°) • Efficient (little heat) • Extremely
low noise floor • True Resistive-Ladder volume control • Unbalanced to Balanced
conversion (when RCA inputs are selected) • Extremely low Idle power consumption
• Rugged construction • ˝” Machined and Anodized front panels • 60kΩ input
impedance • 4 sets of gold plated unbalanced (RCA) inputs • 1 set of gold plated
unbalanced (RCA) outputs • 1 set of Neutrik Balanced (XLR) inputs • Factory
Selectable mains 115/230VAC • Compact size (17”W x 4”H x 14.5”D) • TBD lbs. •
Covered by a 3 YEAR WARRANTY
Preamplificatore Stereo Bassissimo rumore,
controllo di fase assoluta (0° / 180°), controllo di bilanciamento, telecomando,
manopola di volume con rotore ottico, cablaggio di ingresso/uscita tramite
Kimber TCSS, componentistica speciale, 5 ingressi (3 sbilanciati RCA placcati
oro, 2 bilanciati Neutrik XLR), 4 uscite (2 sbilanciate RCA placcate oro, 2
bilanciate Neutrik XLR). Dimensioni (LxAxP): 432x102x330mm. Peso: 10kg. Finitura
nero

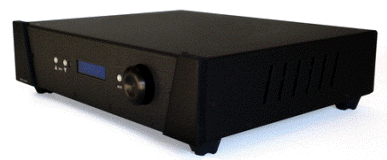

If
you're looking for the ultimate in transparency, and an unbelievably accurate
pre-amp, then we have the product for you. Spot on imaging and an extremely wide
sound stage are just a few attributes of our STP preamp. We had so much fun with
the proto-type it's actually intrigued us to continue making changes to the
design than intended. More improvements were also made beyond the standard STP,
the STP-SE was born. In the Special Edition unit we are upgrading the internal
input/output wiring to Kimber Tcss (multi-gauge, multi-strand, continuous strand
pure copper). We are also upgrading 4 crucial power-supply capacitors to our W4S
Low ESR "Super Cap". These improvements offer improved 3-D imaging and
instrument placement. There are so many particulars that make the STP
superior to other preamps. The best possible preamp would be one that didn’t
exist! We have created the closest anyone has ever come to that while still
offering a fully functional preamp. For the cleanest sound, what goes in should
come out, nothing less, nothing more. For this we’ve made our preamp passive and
active at the same time. To keep the signal path clean as possible, the line
stage is automatically switched in when needed, and left out when not. This
offers the quietest operation for any level up to unity gain. Noise in the
passive mode is <6uV, and <18uV in the active mode which is incredibly good. And
yes, this product is fully balanced input to output When we say passive, we mean
as in no gain. We all know that all passive preamps have many issues regarding
input and output impedances. These issues are massive because of the lack of
drive current the preamp is able to produce. The result is a loose, floppy
bottom end, and a constricted, dry top end. To solve this, we inserted our
Ultra-transparent discrete buffer stages to address this issue, which proved to
give us remarkable results. Like any audio electronic product, everything
starts with a power supply. This is the first stage that gives the STP
unbelievably clean power. With a 25A Schottky bridge rectifier connected through
164,560+uF of capacitance in our proprietary TRR (Triple-Ripple-Reduction) power
supply circuit, the STP preamp has more capacitance than some amplifiers! By the
time power reserves supply the audio chain with power, there is no hint of noise
left to buzz through your speakers. Of course we left 2 stages of filtering up
to nothing but the best; the Nichicon Bi-polar MUSE audio grade capacitors do a
fantastic job! Our proprietary fully balanced dual FET unity gain buffers
supply the meat behind the curtains. While being sonically transparent, our
buffers keep the input and output impedance right where we want them and don’t
allow for deviations like so many other passive preamps. Hand selected, matched
and adjusted, each pair ensures minimal DC offset, and maximum linearity.

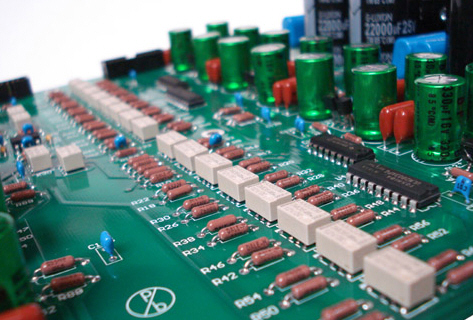

Every preamp has to have a volume control. This is also a HUGE part in why our
unit differs. The easy route (practically everyone else takes) consists of
putting audio in and out of a volume control chip. While being cost effective
and easy to design, the audio is left at the mercy the chip. The best possible
electrical connection that can be made and released on command is made by a
switch. The best sounding switch is one that has the least resistance and can
maintain at all frequencies, for this we chose to use relays. While much more
expensive, slower and noisier when switching, they are far more sonically
superior to any switcher chip on the market today. The second part of our
volume control is the resistors. That’s right, relays and resistors are the only
components interacting with the audio signal. Like all our other products, we
use Dale rn55d copper leaded precision resistors. Supplying exceedingly accurate
channel to channel level matching (+/- 0.05db) and isolation (>106db), our
discrete volume control is the most transparent and spaciously sounding
attenuator we’ve heard. A maximum attenuation of 128db will quiet the loudest of

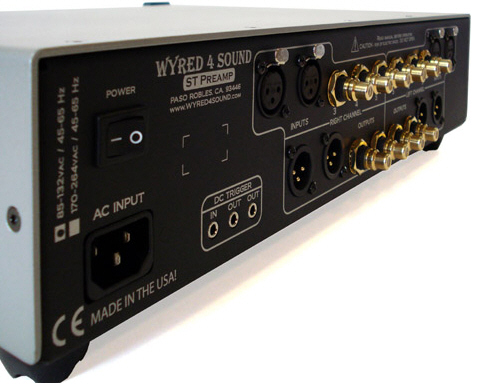

sources, and as little as 0.5db steps allow for the finest control. With 2
sets of balanced inputs/outputs, 3 sets of unbalanced inputs and 2 sets
unbalanced outputs, connection possibilities are vast. Being fully balanced
input to output; the phase going in comes out. When an unbalanced input is
selected, an inversion circuit is connected to maintain balanced outputs and
optimum versatility. Absolute phase and balance control are easily selected
through the supplied remote for those out of phase recordings, and room
adjustments to be made on the fly. User interface is made easy with the
VFD display and optical rotary encoder. Allowing input naming and HT Bypass
input selection, the setup menu is easily accessed for customization. Several
display dimming steps including “off” are available through the remote for
stealth operation. Powering up the STP can be done several ways, by pushing in
on the volume knob (power button), by pressing power on the remote, or by the
remote DC trigger input when HT Bypass is selected in the setup menu. When an
input is selected to be used as the HT input, the DC trigger can be activated by
a surround processor to “power up” the unit, and automatically set the volume to
unity gain. This allows for all volume controls to be made through the surround
processor. When the processor is shut down, so is the STP and connected gear
through the DC trigger output. When 2ch listening is desired, then manual
operation can be executed from the front of the unit, or through the remote.
Amplificatore Stereofonico 125 W x 2 @ 8
ohm, 220 W x 2@ 4 ohm, consumo a riposo 20 W, protezione termica, protezione da
sovracorrente, protezione DC, ingresso bilanciato Neutrik XLR, ingresso
sbilanciato RCA placcato oro. Cablaggio interno Kimber (14AWG) in argento.
Dimensioni (LxAxP): 432x102x330mm. Peso: 11,8kg. Finitura nero

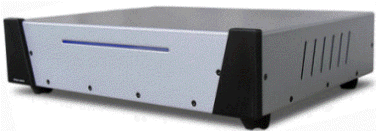

The
ST series amplifiers offer a huge range of flexibility. With balanced outputs
ranging from 125-570 watts in 8 ohms, and 195-1140 watts in 4 ohms per channel!
Each channel of the amplifier has independent inputs for a balanced or
unbalanced connection which are easily selected by the selector switch on the
rear of the unit. The stereo is basically 2 mono amplifiers in one chassis, a
true dual mono. The only common connection between the channels besides the
chassis is the AC power. Our proprietary input stage was designed for optimal
performance, and transparency. The dual, balanced FET input stage offers
excellent integration with any source, with maximum openness. Connection of
these amps to a tube type source provides outstanding results. When paired with
our STP-SE it is a match made in heaven! •
Powered by ICE POWER® • 125w in 8Ω per channel • 220w in 4Ω per channel •
Factory Selectable mains 115/230VAC • Idle power consumption 20w • Thermal
protection •Over current protection • DC protection • Sound optimized soft clip
• Rugged construction • ˝” Machined and Anodized front panels • Gold Plated
insulated 5 way binding posts • Gold Plated unbalanced (RCA) input • Neutrik
Balanced (XLR) input • Exceptional input stage raises input impedance to 60.4kΩ
• Compact size (17”W x 4”H x 13”D) • 26 lbs. • Covered by a 3 YEAR WARRANTY
Come ST-250, ma 250 W @ 8 ohm e 550 W @ 4
ohm, 30 W a riposo.protezione termica, protezione da sovracorrente, protezione
DC, ingresso bilanciato Neutrik XLR, ingresso sbilanciato RCA placcato oro.
Cablaggio interno Kimber (14AWG) in argento. Dimensioni (LxAxP): 432x102x330mm.
Peso: 11,8kg. Finitura nero
The
ST series amplifiers offer a huge range of flexibility. With balanced outputs
ranging from 125-570 watts in 8 ohms, and 195-1140 watts in 4 ohms per channel!
Each channel of the amplifier has independent inputs for a balanced or
unbalanced connection which are easily selected by the selector switch on the
rear of the unit. The stereo is basically 2 mono amplifiers in one chassis, a
true dual mono. The only common connection between the channels besides the
chassis is the AC power. Our proprietary input stage was designed for optimal
performance, and transparency. The dual, balanced FET input stage offers
excellent integration with any source, with maximum openness. Connection of
these amps to a tube type source provides outstanding results. When paired with
our STP-SE it is a match made in heaven! Unit Features:
•
Powered by ICE POWER® • 250w in 8Ω per channel • 550w in 4Ω per channel •
Factory Selectable mains 115/230VAC • Idle power consumption 30w • Thermal
protection • Over current protection • DC protection • Sound optimized soft clip
• Rugged construction • Standard 12V DC Trigger • ˝” Machined
and Anodized front panels • Gold Plated insulated 5 way binding posts • Gold
Plated unbalanced (RCA) input Neutrik Balanced (XLR) input • Exceptional input
stage raises input impedance to 60.4kΩ • Compact size (17”W x 4”H x 13”D) • 26
lbs. Covered by a 3 YEAR WARRANTY
Come ST-250, ma 570 W @ 8 ohm, 1.140 W @ 4
ohm, 30 W a riposo, peso 12,7kg. protezione termica, protezione da
sovracorrente, protezione DC, ingresso bilanciato Neutrik XLR, ingresso
sbilanciato RCA placcato oro. Cablaggio interno Kimber (14AWG) in argento.
Dimensioni (LxAxP): 432x102x330mm. Finitura nero
The
ST series amplifiers offer a huge range of flexibility. With balanced outputs
ranging from 125-570 watts in 8 ohms, and 195-1140 watts in 4 ohms per channel!
Each channel of the amplifier has independent inputs for a balanced or
unbalanced connection which are easily selected by the selector switch on the
rear of the unit. The stereo is basically 2 mono amplifiers in one chassis, a
true dual mono. The only common connection between the channels besides the
chassis is the AC power. Our proprietary input stage was designed for optimal
performance, and transparency. The dual, balanced FET input stage offers
excellent integration with any source, with maximum openness. Connection of
these amps to a tube type source provides outstanding results. When paired with
our STP-SE it is a match made in heaven! Unit Features: •Powered by ICE
POWER® •570w in 8Ω per channel •1,140w in 4Ω per channel • Factory Selectable
mains 115/230VAC •Idle power consumption 30w •Thermal protection • Over current
protection •DC protection • Sound optimized soft clip •Rugged construction•Standard
12V DC Trigger •˝” Machined and Anodized front panels • Gold Plated insulated 5
way binding posts •Gold Plated unbalanced (RCA) input •Neutrik Balanced (XLR)
input • Exceptional input stage raises input impedance to 60.4kΩ •Compact size
(17”W x 4”H x 13”D) •28 lbs. •Covered by a 3 YEAR WARRANTY
Amplificatore Monofonico 125 W @ 8 ohm, 220
W @ 4 ohm, consumo a riposo 5 W, protezione termica, protezione da
sovracorrente, protezione DC, ingresso bilanciato Neutrik XLR, ingresso
sbilanciato RCA placcato oro. Cablaggio interno Kimber (14AWG) in argento.
Dimensioni (LxAxP): 216x105x343mm. Peso: 5,9kg. Finitura Nero o silver
The
SX series amplifiers offer a huge range of flexibility. With balanced outputs
ranging from 125-570 watts in 8 ohms, and 220-1225 watts in 4 ohms! Each
amplifier has independent inputs for a balanced or unbalanced connection which
are easily selected by the selector switch on the rear of the unit. Our
proprietary input stage was designed for optimal performance, and transparency.
The mono amplifier offers the ideal in channel to channel isolation, and the
ultimate in sonics. The dual, balanced FET input stage offers excellent
integration with any source, with maximum openness. Connection of these amps to
a tube type source provides outstanding results. When paired with our STP-SE it
is a match made in heaven! A more refined version of the original mono
amplifiers, the 2nd edition SX series amplifiers are born. The
greatest advantage of our monos comes from the solid foundation. A moment alone
with these amplifiers will quickly show you the quality built in. The 14GA
chassis and extra thick aluminum top cover offer a very strong foundation for
the robust internals. Several more advantages of the mono amplifiers come from
the independent shielding, power supplies, and remarkably less distortion and
noise. Our mono amplifiers offer the best signal to noise ratio possible. Idle
noise is non-existent. The standard ICE power engine you will find in our
amplifiers offer state-of-the-art technology and are very hard to beat. The ICE
power technology alone, as other companies use for their entire amplifier only
accounts for 80% of the way our amps sound. Our input stage produces the
additional 20% needed to produce the unique signature our amplifiers present.
Stating that the SX series amplifiers have little to no heat, incredible imaging,
unbelievably low noise, dynamic bass, super wide sound stage and exceptionally
low distortion doesn't even come close to giving them justice.The SX series
amplifiers offer hi-fidelity sound at a fraction of the competitors price (at
the least, half). We challenge our customers to find competing units at a better
price. If one is found, whatever the price, we will meet it or beat it given
that it is indeed a comparable product. To find an amplifier with this much
potential and at an affordable price, hesitation shouldn't even come to
mind.Unit Features: •Powered by ICE POWER® •125w in 8Ω •220w in 4Ω
•Factory Selectable mains 115/230VAC •Idle power consumption 5w •Thermal
protection • Over current protection •DC protection •Sound optimized soft clip
•Rugged construction •˝” Machined and Anodized front panels • Gold Plated
insulated 5 way WBT binding posts • Kimber (14AWG total) TCX multi-gauge,
multi-strand wire •+ 14AWG pure silver wire. •Neutrik Balanced (XLR) input
•Exceptional input stage raises input impedance to 60.4kΩ •Compact size (8.5”W x
4.125”H x 13.5”D) •13 lbs. •Covered by a 3 YEAR WARRANTY•Note--NO DC Trigger
Gold Plated unbalanced (RCA) input

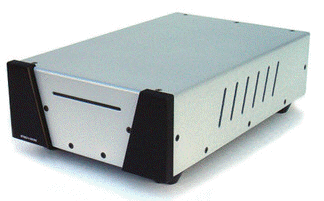

Come SX-250, ma 250 W @ 8 ohm e 550 W @ 4
ohm, 10 W a riposoprotezione termica, protezione da sovracorrente, protezione DC,
ingresso bilanciato Neutrik XLR, ingresso sbilanciato RCA placcato oro.
Cablaggio interno Kimber (14AWG) in argento. Dimensioni (LxAxP): 216x105x343mm.
Peso: 5,9kg. Finitura Nero o silver
The
SX series amplifiers offer a huge range of flexibility. With
balanced outputs ranging from 125-570 watts in 8 ohms, and
220-1225 watts in 4 ohms! Each amplifier has independent inputs
for a balanced or unbalanced connection which are easily
selected by the selector switch on the rear of the unit. Our
proprietary input stage was designed for optimal performance,
and transparency. The mono amplifier offers the ideal in channel
to channel isolation, and the ultimate in sonics. The dual,
balanced FET input stage offers excellent integration with any
source, with maximum openness. Connection of these amps to a
tube type source provides outstanding results. When paired with
our STP-SE it is a match made in heaven! A more refined version
of the original mono amplifiers, the 2nd edition SX
series amplifiers are born. The greatest advantage of our monos
comes from the solid foundation. A moment alone with these
amplifiers will quickly show you the quality built in. The 14GA
chassis and extra thick aluminum top cover offer a very strong
foundation for the robust internals. Several more advantages of
the mono amplifiers come from the independent shielding, power
supplies, and remarkably less distortion and noise. Our mono
amplifiers offer the best signal to noise ratio possible. Idle
noise is non-existent. The standard ICE power engine you will
find in our amplifiers offer state-of-the-art technology and are
very hard to beat. The ICE power technology alone, as other
companies use for their entire amplifier only accounts for 80%
of the way our amps sound. Our input stage produces the
additional 20% needed to produce the unique signature our
amplifiers present. Stating that the SX series amplifiers have
little to no heat, incredible imaging, unbelievably low noise,
dynamic bass, super wide sound stage and exceptionally low
distortion doesn't even come close to giving them justice.The SX
series amplifiers offer hi-fidelity sound at a fraction of the
competitors price (at the least, half). We challenge our
customers to find competing units at a better price. If one is
found, whatever the price, we will meet it or beat it given that
it is indeed a comparable product. To find an amplifier with
this much potential and at an affordable price, hesitation
shouldn't even come to mind.
• Powered by ICE POWER® • 250w in 8Ω • 550w in 4Ω • Factory
Selectable mains 115/230VAC • Idle power consumption 10w •
Thermal protection • Over current protection • DC protection •
Sound optimized soft clip • Rugged construction • Standard 12V
DC Trigger • ˝” Machined and Anodized front panels Gold Plated
insulated 5 way WBT binding posts • Kimber (14AWG total) TCX
multi-gauge, multi-strand wire • + 14AWG pure silver wire. •Gold
Plated unbalanced (RCA) input• Neutrik Balanced (XLR) input •
Exceptional input stage raises input impedance to 60.4kΩ •
Compact size (8.5”W x 4.125”H x 13.5”D) •13 lbs. Covered by a 3
YEAR WARRANTY
Come SX-250, ma 570 W @ 8 ohm, 1.140 W @ 4
ohm, 15 W a riposo, peso 6,4kg. protezione termica, protezione da sovracorrente,
protezione DC, ingresso bilanciato Neutrik XLR, ingresso sbilanciato RCA
placcato oro. Cablaggio interno Kimber (14AWG) in argento. Dimensioni (LxAxP):
216x105x343mm.. Finitura Nero o silver
The
SX series amplifiers offer a huge range of flexibility. With balanced outputs
ranging from 125-570 watts in 8 ohms, and 220-1225 watts in 4 ohms! Each
amplifier has independent inputs for a balanced or unbalanced connection which
are easily selected by the selector switch on the rear of the unit. Our
proprietary input stage was designed for optimal performance, and transparency.
The mono amplifier offers the ideal in channel to channel isolation, and the
ultimate in sonics. The dual, balanced FET input stage offers excellent
integration with any source, with maximum openness. Connection of these amps to
a tube type source provides outstanding results. When paired with our STP-SE it
is a match made in heaven! A more refined version of the original mono
amplifiers, the 2nd edition SX series amplifiers are born. The
greatest advantage of our monos comes from the solid foundation. A moment alone
with these amplifiers will quickly show you the quality built in. The 14GA
chassis and extra thick aluminum top cover offer a very strong foundation for
the robust internals. Several more advantages of the mono amplifiers come from
the independent shielding, power supplies, and remarkably less distortion and
noise. Our mono amplifiers offer the best signal to noise ratio possible. Idle
noise is non-existent. The standard ICE power engine you will find in our
amplifiers offer state-of-the-art technology and are very hard to beat. The ICE
power technology alone, as other companies use for their entire amplifier only
accounts for 80% of the way our amps sound. Our input stage produces the
additional 20% needed to produce the unique signature our amplifiers present.
Stating that the SX series amplifiers have little to no heat, incredible imaging,
unbelievably low noise, dynamic bass, super wide sound stage and exceptionally
low distortion doesn't even come close to giving them justice.The SX series
amplifiers offer hi-fidelity sound at a fraction of the competitors price (at
the least, half). We challenge our customers to find competing units at a better
price. If one is found, whatever the price, we will meet it or beat it given
that it is indeed a comparable product. To find an amplifier with this much
potential and at an affordable price, hesitation shouldn't even come to
mind.Unit Features: • Powered by ICE POWER® • 570w in 8Ω • 1,140w in 4Ω •
Factory Selectable mains 115/230VAC • Idle power consumption 15w • Thermal
protection • Over current protection • DC protection • Sound optimized soft clip
• Rugged construction • Standard 12V DC Trigger • ˝” Machined and Anodized front
panels • Gold Plated insulated 5 way WBT binding posts • Kimber (14AWG total)
TCX multi-gauge, multi-strand wire • + 14AWG pure silver wire. Gold Plated
unbalanced (RCA) input • Neutrik Balanced (XLR) input • Exceptional input stage
raises input impedance to 60.4kΩ • Compact size (8.5”W x 4.125”H x 13.5”D) • 14
lbs. Covered by a 3 YEAR WARRANTY
AMPLIFICATORI
MULTICANALI
WIRED 4 SOUND

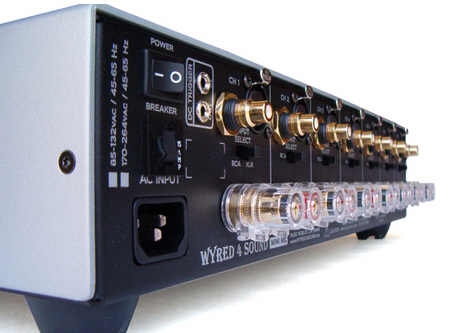

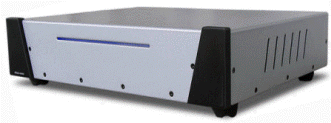

MINI
MC 3H €.2.065,00Per ordine
e sconto
TELEFONA/ E-MAIL
Amplificatore Multicanale 220 W x 3 @ 8
ohm, 360 W x 3 @ 4 ohm, progetto multi mono completamente bilanciato, ingressi
indipendenti, design ultracompatto. Dimensioni (LxAxP): 432x102x330mm. Finitura
Nero o nero
WIRED 4 SOUND
MINI
MC 5H €.2.295,00Per ordine
e sconto
TELEFONA/ E-MAIL
Amplificatore Multicanale 220 W x 5 @ 8
ohm, 360 W x 3 @ 4 ohm, progetto multi mono completamente bilanciato, ingressi
indipendenti, design ultracompatto. Dimensioni (LxAxP): 432x102x330mm. Finitura
Nero o nero
WIRED 4 SOUND
MINI
MC 7H €.2.745,00Per ordine
e sconto
TELEFONA/ E-MAIL
Amplificatore Multicanale 220 W x 7 @ 8
ohm, 360 W x 3 @ 4 ohm, progetto multi mono completamente bilanciato, ingressi
indipendenti, design ultracompatto. Dimensioni (LxAxP): 432x102x330mm. Finitura
Nero
The
Multi-channel series amplifiers offer an endless range of flexibility. With as
few as 1 and as many as 7 balanced outputs ranging from 250-570 watts in 8 ohms,
and 550-1225 watts in 4 ohms, the choice is yours! Due to the multi-mono design,
each channel is completely independent from input to output. Each channel has
separate inputs for a balanced or unbalanced connection which are easily
selected by the selector switch on the rear of the unit. Our proprietary input
stage was designed for optimal performance, and transparency. The MC amplifier
is the solution for the ideal HT system with the ultimate in sonics. The dual,
balanced FET input stage offers excellent integration with any source, with
maximum openness. Connection of these amps to a tube type source provides
outstanding results. When paired with our STP-SE it is a match made in heaven!
Whether you would like to use one of these amps for the front 3 channels of your
HT system, or even 4 channels for bi-amping, the possibilities are huge. This
amplifier is a perfect match for those looking for a 7 channel amp for their 5ch
HT system with bi-amped fronts. The defeatable High Pass filter on the front
channels offers even better sonics for those bi-amping. This eliminates the low
frequencies on the top-end before the amplifier, making the speaker much easier
to drive. So take a minute and think of how one of these customizable amps can
suit your needs!
570 W x 7 @ 8 ohm, 1.140 W x 7 @ 4 ohm,
consumo a riposo 105 W. Peso: 25,9kg. Finitura Nero
The
Multi-channel series amplifiers offer an endless range of flexibility. With as
few as 1 and as many as 7 balanced outputs ranging from 250-570 watts in 8 ohms,
and 550-1225 watts in 4 ohms, the choice is yours! Due to the multi-mono design,
each channel is completely independent from input to output. Each channel has
separate inputs for a balanced or unbalanced connection which are easily
selected by the selector switch on the rear of the unit. Our proprietary input
stage was designed for optimal performance, and transparency. The MC amplifier
is the solution for the ideal HT system with the ultimate in sonics. The dual,
balanced FET input stage offers excellent integration with any source, with
maximum openness. Connection of these amps to a tube type source provides
outstanding results. When paired with our STP-SE it is a match made in heaven!
Whether you would like to use one of these amps for the front 3 channels of your
HT system, or even 4 channels for bi-amping, the possibilities are huge. This
amplifier is a perfect match for those looking for a 7 channel amp for their 5ch
HT system with bi-amped fronts. The defeatable High Pass filter on the front
channels offers even better sonics for those bi-amping. This eliminates the low
frequencies on the top-end before the amplifier, making the speaker much easier
to drive. So take a minute and think of how one of these customizable amps can
suit your needs!
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO,
SPECIFICHE PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene Tutti i marchi citati nel presente listino sono di proprietŕ e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.gif)
.jpg){kind=small}
.jpg){kind=small}
"I
received my dac-1 yesterday and have to say, WOW! Even right out of the box it
blew away my highly regarded DAC! My wife and I have already enjoyed detail in
our music we hadn't heard prior. The bass is tight and strong, the timbre is
smoother, accurate and non fatiging. The emotion of the music can be felt as if
we were there with the writer. We are truely rediscovering our music! We can't
wait to finish the break-in cause it's only going to get better!! I now own, two
SX-1000's, an STP-SE, and a DAC-1 and couldn't be happier. Many thanks to the
W4S team!" ......Dave R .W4S DAC-1 Features: • ESS Reference audio (ES9018) 32
bit DAC • W4S proprietary discrete output stages for optimum sonics •ESS Time
Domain Jitter Eliminator® •Automatic oversampling for precise output filtering
•Fully balanced design with balanced and unbalanced outputs •Upgradable Digital,
Output, and USB boards (designed for future improvements) • Oversized toroidal
transformer for solid and noise-free power • LCD display for input and sample
rate viewing • 2x Coax inputs • 2x Toslink inputs • 24-bit 96kHz Asynchronous
USB input • Factory selectable mains 115/230VAC • Compact size (8.5"W x 4.125"H
x 13.5"D) • 15 lbs. • Covered by a 3 YEAR WARRANTY • Does not include remote or
have the capability to use one.gif)
.gif)
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.gif)
.gif)
.gif)
.jpg){kind=small}
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
