ASUS
XONAR
ESSENCE ONE
MKII €. 599,00
Per
offerta e promozioni TELEFONARE/EMAIL
Convertitore D/A
HiEnd con 11 amplificatori operazionali sostituibili, Rapporto Segnale/Rumore
120dB, risposta in frequenza <10Hz - 48kHz, ingresso USB/SPDF/TOS,
velocità di campionamento/trasferimento
44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz, frequenza di campionamento e
risoluzione DSD 64/2.8 MHz,
44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz@16bit/24bit/32bit, Upsampling fino a
352.8kHz (ingresso 44.1kHz/88.2kHz/176.4kHz) oppure 384kHz (ingresso
48kHz/96kHz/192kHz)32bit, 3 uscite analogiche (XLR bilanciato, RCA sbilanciato,
cuffia), DAC principale TIPCM1795, kit sostituzione Op- Amp n. 4 TI Burr-Brown
OPA2132PA + n. 2 NS LM4562NA, amplificatore cuffie NS LME49600TS ottimizzato
sino ad impedenza 600Ohm, Dimensioni
(LxAxP): 261 x 230 x 60 mm.
USB digital-to-analog converter with exclusive
8x symmetrical upsampling and Op-Amp swap kit • Exclusive Op-Amp swap kit
includes 6 Op-Amps and tools for easy tone tuning • World’s first 8X symmetrical
upsampling technology restores lossless audio • Eleven swappable Op-Amps for
user-tunable tone characteristics • Built-in 600ohm headphone amplifier drives
all headphones on the market • Ultra-high 120dB SNR for the purest sound •
Dedicated internal linear power supply ensures the cleanest audio , Tune your
essence of sound Tune your essence of sound Xonar Essence series is
dedicated to pursuing the purest listening experiences and the highest fidelity.
Thousands of years ago, our ancestors crystallized their precious knowledge of
materials and music into the Chime of the Tiger, one of the first audio
masterpieces in human history. The Chime of the Tiger totem has inspired the
Xonar team’s passion for audio, in honor of the accomplishments of those who
came before. The team has made its own mark on history, contributing new audio
innovation, thus maintaining humanity’s endless pursuit of the essence of sound.
Redefine high fidelity and clarit The ASUS Xonar Essence One digital-analog
converter (DAC) and headphone amplifier has earned considerable critical acclaim,
winning a 2012 CES Innovations Award in the audio component category with the
industry’s only 8x symmetrical upsampling, The ASUS Xonar Essence One Plus
Edition further adds a bundled Op-Amp tweaking kit with six extensively-tested
Op-Amps to make sound characteristic tuning easier out of the box, with no
soldering required. It also saves customers the need to purchase Op-Amps
separately. Note: CES 2012 Innovations Award for Xonar Essence One (original
edition). Redefine high fidelity and clarity Multi-tone tuning With
a bundled Op-Amp swap kit Multi-tone tuning with a bundled Op-Amp swap
Op-Amps serve a critical role in audio hardware, amplifying analog signals and
determining tone and timbre characteristics. As user taste in tone character
varies, dedicated audiophiles often choose to change Op-Amps to fine-tune
performance, something the original Xonar Essence One supported with its eleven
swappable Op-Amps. This feature proved highly popular, leading the Xonar team to
extensively test over a hundred different Op-Amps with the original Xonar
Essence One in order to explore the finest combinations . The six Op-Amps deemed
most unique in their impact on sound character were selected to be part of the
Xonar Essence One Plus Edition, the first USB DAC with a bundled Op-Amp swap
kit. Op-Amp Six extra Op-Amps included By combining the
original Texas Instruments TI-NE5532 Op-Amps with four Texas Instruments
TI-OPA2132PA and two NS-LM4562NA Op-Amps, the special edition allows for five
unique tonal impression customization options. User-friendly tools and
Op-Amp swap guide The kit even includes IC clamps, a screw driver, and an Op-Amp
swap guide which shares various Op-Amp tips based on the Xonar team’s findings.
These make swapping any of the existing eleven Op-Amps easy for quick audio
modification based on personal preference. The kit further offers compatibility
with other Xonar products, including the Xonar Essence ST/STX, Xonar Xense, and
Xonar DS/DSX Audio Performance Output
Signal-to-Noise Ratio (A-Weighted) (Front-out) : 120 dB Output THD+N at 1kHz (Front-out)
: 0.000316 %(-110 dB) Frequency Response (-3dB, 24bit/192KHz input) : 10 Hz to
48 KHz Output/Input Full-Scale Voltage : Balanced Output : 4 Vrms ( Vp-p)
Unbalanced Output : 2 Vrms ( Vp-p) Headphone : 7 Vrms ( Vp-p) Bus Compatibility
USB Chipset Audio Processor :C-Media CM6631 High-Definition Sound Processor
Sample Rate and Resolution Analog Playback Sample Rate and Resolution
:44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit S/PDIF Digital Input :
44.1K/48K/96K/192KHz @ 16bit/24bit ASIO 2.2 Driver Support : Hz @ with very low
latency Upsampling capability : Up to 352.8 kHz (44.1K 88.2K 176.4KkHz input) or
384 kHz (48K/96K/192KkHz input), 32bit Connectivity Analog Output 1
x 6.3 mm jack (1/4") Headphone out 2 x RCA (Un-Balanced) 2 x XLR (Balanced)
Digital 2 x S/PDIF in (1 x Optical (Toslink)/1 x Coaxial) Accessories Driver CD
x 1 6.3mm to 3.5mm stereo adapter x 1 Audio Precision (AP) test report x 1 USB
cable x 1 Power cord x 1 Op-Amp Swap Kit x 1 Dimensions 261.33 x 230 x 60.65 mm
( L x W x H ) Note Components: ● S/PDFI Receiver: AKM 4113 ● DSP: ADI ADSP-21261
● D-A Converter for Analog Inputs: TI PCM1795 ● Power Input Jack: IEC AC Inlet ●
Volume controller: Balanced Output: Quad Units Taper B Potentiometer; Headphone
Output: Quad Units Taper B Potentiometer ● Voltage Selector: AC 115V/223V Slide
Switch Operational amplifier: ● Balanced/Un-balanced I/V:4 x NE5532 ●
Balanced/ Un-balanced LFP: 2 x NE5532 ● Balanced /Un-balanced Buffer: 3 x
LM4562NA ● Headphone: 2 x LME49600 Clock: ● Crystal clock: 12MHz For USB;
24.576MHz For S/PDIF ● Oscillator: 45.1584MHz (for 44.1KHz sample rate);
49.152MHz (For 48KHz sample rate) LED Indicator: ● One color LED: Ø3mm
Lamp LED Blue color ● 2 color LED: Ø3mm Lamp LED Multi color(Blue and Red)
Op-Amp Swap Kit Content:● TI-OPA2132PA x 4 (Op-Amp) ● NS-LM4562NA x 2 (Op-Amp) ●
Screw driver x 1 ● IC clamp MAC OS X support: The Essence One supports Mac
OS X 10.8 or later version without any driver needed
.jpg)
.gif)

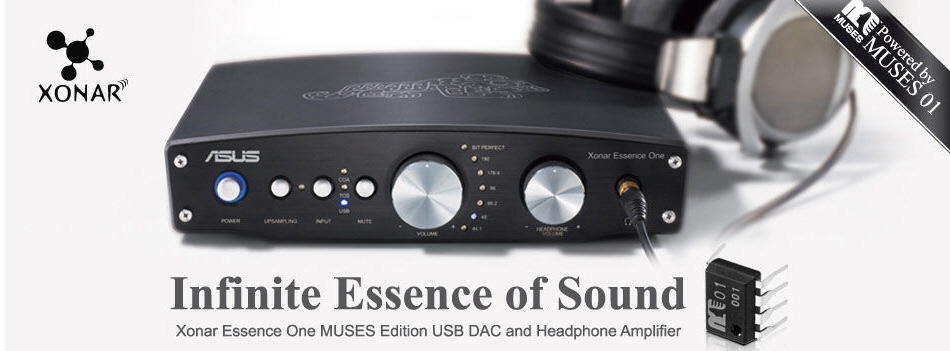

ASUS
XONAR ESSENCE
ONE MUSES €.
899,00
Per
offerta e promozioni
TELEFONARE/EMAIL
Flagship USB DAC and headphone amplifier uses
premium MUSES 01 Op-Amps for high-fidelity audio reproduction• Powered by six
top-notch MUSES 01 Op-Amp for crystal clear and spacious sound •MUSES 01 is the
first ever oxygen-free copper interconnect and custom layout Op-Amp for truthful
sound reproduction •8x symmetrical upsampling technology for ultra-low sound
distortion •Dedicated 600ohm headphone amplifier for clearest detail •Ultra-high
120dB SNR for purest sound Audio Performance MUSES 01 Op-Amps help deliver
premium audio Xonar Essence One MUSES Edition includes six MUSES 01 Op-Amps,
produced by the New Japan Radio Company. MUSES 01 are the top-of-the-line
Op-Amps from the brand, which is considered a leader in quality audio components.
Together with ASUS Xonar engineering, MUSES 01 Op-Amps take audio to new levels,
with lifelike reproduction capturing every nuance. Truthful audio MUSES 01
components are notable as the first to use oxygen-free copper interconnects,
allowing for better circuit conductivity and thus improved reproduction. They
use exclusive fabrication techniques, including advanced symmetry die-bonding, a
custom layout that lowers component crosstalk and generates better-balanced left/right
channel symmetry. Ultra spacious sound field To achieve better stereo
symmetry, the MUSES 01 employs exclusive technology, the Advanced Symmetry
Die-bonding (ASD) Technology.The specialized layout techniques offer super low
cross-talk and well-balanced symmetry between both left and right channels and
create the most ever spacious sound field. Proved performance with a test
report Excellent achievement granted by New Japan Radio. During the development,
the prototype of Xonar Essence One MUSES edition was tested by the MUSES
engineer team and received a testing report Output Signal-to-Noise Ratio (A-Weighted)
(Front-out) : 120 dB Output THD+N at 1kHz (Front-out) : >0.000316 %(-110 dB)
Frequency Response (-3dB, 24bit/192KHz input) : 10 Hz to 48 KHz Output/Input
Full-Scale Voltage : Balanced Output : 4 Vrms ( Vp-p) Unbalanced Output : 2 Vrms
( Vp-p) Headphone : 7 Vrms ( Vp-p) Bus Compatibility USB Chipset Audio
Processor :C-Media CM6631 High-Definition Sound Processor Sample Rate and
Resolution Analog Playback Sample Rate and Resolution :
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit S/PDIF Digital Input :
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit ASIO Driver Support :
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit with very low latency Upsampling
capability : Up to 352.8 kHz (44.1K 88.2K 176.4KkHz input) or 384 kHz
(48K/96K/192KkHz input), 32bit Connectivity Analog Output 1 x 6.3 mm
jack (1/4") Headphone out 2 x RCA (Un-Balanced) 2 x XLR (Balanced) Digital2 x S/PDIF
in (1 x Optical (Toslink)/1 x Coaxial) Accessories Driver CD x 1 6.3mm to 3.5mm
stereo adapter x 1 Audio Precision (AP) test report x 1 USB cable x 1 Power cord
x 1 Dimensions 261.33 x 230 x 60.65 mm ( L x W x H ) Note Components: ● S/PDFI
Receiver: AKM 4113 ● DSP: ADI ADSP-21261 ● D-A Converter for Analog Inputs: TI
PCM1795 ● Power Input Jack: IEC AC Inlet● Volume controller: Balanced Output:
Quad Units Taper B Potentiometer; Headphone Output: Quad Units Taper B
Potentiometer ● Voltage Selector: AC 115V/223V Slide Switch Operational
amplifier: ● Balanced/ Un-balanced I/V:4 x MUSES 01 ● Balanced/
Un-balanced LFP: 2 x MUSES 01 ● Balanced/ Un-balanced Buffer: 3 x LM4562NA ●
Headphone: 2 x LME49600 Clock: ● Crystal clock: 12MHz For USB; 24.576MHz
For S/PDIF ● Oscillator: 45.1584MHz (for 44.1KHz sample rate); 49.152MHz (For
48KHz sample rate) LED Indicator: ● One color LED: Ø3mm Lamp LED Blue
color ● 2 color LED: Ø3mm Lamp LED Multi color(Blue and Red) MAC OS X support:
The Essence One supports Mac OS X 10.8 or later version without any driver
needed
ASUS
XONAR ESSENCE
ONE MUSESMKII €. 799,00 Per
offerta e promozioni
TELEFONARE/EMAIL
XONAR Essence One MUSES MKII
CONVERTITORI D/A Convertitore D/A HiEnd con amplificatori operazionali
professionali MUSES02 e AD827SQ, condensatori WIMA, Rapporto Segnale/Rumore
120dB, risposta in frequenza <10Hz - 48kHz, ingresso USB/SPDF/TOS, Supporto DSD
nativo, frequenza di campionamento e risoluzione USB 2.0:
44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz@16bit/24bit e DSD64/DSD128, USB 1.0:
44.1kHz/48kHz/88.2kHz/96kHz@16bit/24bit, ASIO:
44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz@16bit/24bit, S/PDIF:
44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz@16bit/24bit, AES/EBU:
44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz@16bit/24bit, 4 uscite analogiche (XLR
bilanciato, RCA sbilanciato, cuffia bilanciato, cuffia sbilanciato), DACADI AD1955, processore TIPCM9211, processore audio ad alta definizione C-Media
CM6631A, amplificatore cuffie NS LME49600 ottimizzato sino ad impedenza 600 Ohm.
Telecomando in dotazione. Convertitore D/A HiEnd con amplificatori operazionali
professionali MUSES01 e condensatori WIMA, Rapporto Segnale/Rumore 120dB,
risposta in frequenza<10Hz - 48kHz, ingresso USB/SPDF/TOS, velocità di
campionamento/trasferimento 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz,
frequenza di campionamento e risoluzione DSD 64/2.8 MHz,
44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz@16bit/24bit/32bit, Upsampling fino a
352.8kHz (ingresso 44.1kHz/88.2kHz/176.4kHz) oppure 384kHz (ingresso
48kHz/96kHz/192kHz)32bit, 3 uscite analogiche (XLR bilanciato, RCA sbilanciato,
cuffia), DAC principale TIPCM1795, processore audio ad alta definizione C-Media
CM6631, amplificatore cuffie NS LME49600TS ottimizzato sino ad impedenza 600
Ohm,
Dimensioni (LxAxP): 261 x 230 x 60 mm. |
