DIFFUSORI
Gold Note
A-3XO
.
997,00
Per
ordine e sconto
TELEFONA / E-MAIL
Diffusore Mini Monitor - 85dB bass reflex
frontale - 8ohm - 2vie - 30cm alta, 19cm Larga, 21cm profonda - 45Hz-20kHz -
Tweeter cupola ellittica in seta - Rivestita Vera Pelle o laccata nero, bianca
DESCRIPTION

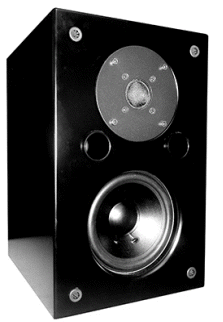

The A-3 XO mini monitor 2 way bass reflex is a bookshelf loudspeaker featuring a
5 treated paper mid-woofer driver complementing a 1 pure silk dome tweeter.
The 5 mid-woofer is made under strict specifications, it is a special treated
paper unit providing an exceptionally fast transient response, yet retaining
full music reproduction naturalness. The driver is recessed to have a horn
loading helps bass extension and power though getting perfectly detailed music
reproduction.
The tweeter is a 1 elliptical silk dome featuring an aluminium extra rigid
flange that reproduces clean high frequencies even at high volume levels, as a
result of the custom design specifically tuned for such a speaker design. Like
the mini tower A-6 XO though the small dimension the A-3 XO loudspeaker is able
to play powerful and detailed at low and high volume pressure both with same
naturalness. SPECIFICATIONS Main features: 2 way Double Front Bass Reflex
Bookshelf Loudspeaker Frequency response: 50-20000Hz ±3dB Sensitivity: 86dB SPL
2,83Vs/1m Tweeter: 1 soft dome driver Midwoofer: 5 paper cone driver slightly
horn loaded Suggested power amplifier: 30-100W Max power handling: 100W RMS
Impedance: 8ohm nominal Crossover: 2500Hz at 12dB/Octave Binding posts:
Bi-Wiring Gold Note BP-01 nickel free rhodium Upgrades Crossover: components on
demand Physical Dimensions: 190mm L x 300mm H x 210mm D Weight: 12kg packed
Finishes Regular supply: black or white glossy grand piano, black or white matt
On demand: full grain leather or exotic leather
.jpg)
Gold Note
A-6XO
. 1.900,00 Per
ordine e sconto
TELEFONA / E-MAIL
Diffusore da pavimento - 89dB bass reflex
frontale - 6ohm - 2½vie tower 100cm alta, 19cm larga, 19cm profonda - 35Hz-
20000Hz - Midrange fatto a mano crossover speciale - Tweeter cupola ellittica -
Rivestita in vera Pelle o laccata nero o bianca

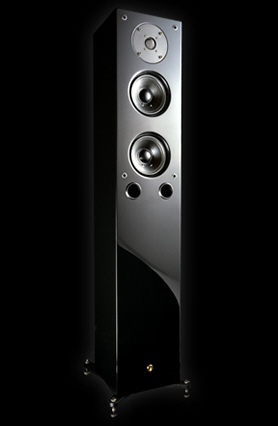

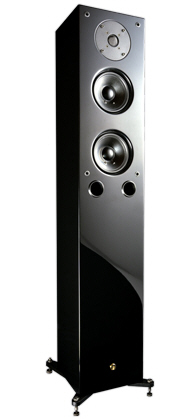

DESCRIPTION The A-6 XO mini tower 2½ way bass reflex loudspeaker designed by the
Gold Note technical lab team is a 88 dB speaker performing two 5 recessed paper
Mid and Bass drivers and one 1 elliptical silk dome tweeter in a new
proprietary hybrid semi-transmission line design enhanced to increase bass
extension though obtained in a very slim cabinet. Both identical 5 are custom
paper treated drivers featuring a large magnet capable to control high power and
a very extended bass response. The drivers are recessed to have a horn loading
able to raise the efficiency and the power. The drivers are driven by a
different crossover cut one working as subwoofer limited at 350 Hz while the
other unit works as mid-bass up to 3000 Hz in order to provide exceptionally
fast transient response, yet retaining full and natural music reproduction. The
tweeter is a 1 elliptical silk dome featuring an aluminium extra rigid flange
that reproduces clean high frequencies even at high volume levels, as a result
of the custom design specifically tuned for such a speaker design. Though its
relatively small dimension the A-6 XO loudspeaker can fill small and large rooms
both due to its flexibility but powerful detailed sound. The A-6 XO can play at
low and high volume pressure with smooth naturalness. The speaker is finished in
glossy or matt lacquer and can be custom finished with real leather to match
modern and stylish living room with its high class design.
SPECIFICATIONS Main features: 2 ½ way
Semi-Trasmission Line Floorstanding Loudspeaker Frequency response: 40-20000Hz
±3dB Sensitivity: 88dB SPL 2,83Vs/1m Tweeter: 1 soft dome driver Midwoofer: 5
paper cone driverSubwoofer: 5 paper cone driver Suggested power amplifier:
30-150W Max power handling: 150W RMS Impedance: 4ohm nominal Crossover: 350Hz at

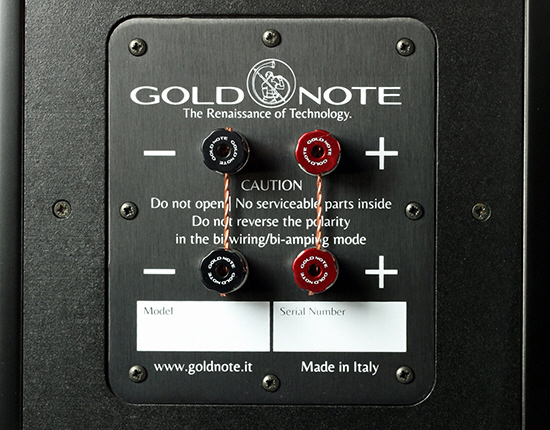

12dB/Octave 3000Hz at 12dB/Octave Binding posts: Bi-Wiring Gold NOTE BP-01
nickel free rhodium Upgrades Crossover: components on demand Physical Dimensions:
190mm L x 1050mm H x 190mm D Weight: 15kg each packed Finishes Regular supply:
black or white glossy grand piano, black or white matt On demand: full grain
leather or exotic leather
Gold Note
XS-97CONCEPT
. 11.150,00
Per
ordine e sconto
TELEFONA / E-MAIL
Diffusore da pavimento - 97dB Alta
Efficienza in sospensione pneumatica 190 litri - 4ohm - 3vie - 125x65x60cm
(A-L-P) - 25Hz-20000Hz - doppio 12 woofer carta - 6,5 Mid in carta - 1
Tweeter cupola morbida - Active Bass
DESCRIPTION
The XS-97 Concept, designed by Gold Note technical lab team, is a 97 dB high
sensitivity hybrid speaker performing a 3 way sealed active bass design to
achieve the best possible quality. Its beautiful diamond shape both outside/inside
allows the speaker having not parallel walls made of different thickness and
material too to optimize the resonance tuning and tuning resonances at its best.
The hybrid active subwoofer is powered by a proprietary DSP microprocessor
allowing the XS-97 Concept to be driven via standard speaker cable only and
achieving a great convenient solution for virtually any kind of amplifier even
very low in power. This unique and exclusive hybrid design enables effective
easy 8 ohm load impedance but no need of pre out inputs at all. The XS-97
Concept main frame is made with six triangular walls joining together on the top
and bottom panel while the front baffle is blocked from inside using brass
inserts and neodymium magnets. The trapezoidal rear panel works to control
resonance enabling a super rigid structure to let only the large woofers work in
the bass area obtaining an exceptional lifelike sound quality. The 200
litres volume cabinet houses two 12,5 paper custom cone woofer, the only
available today on the market of this size that can power a sealed design. These
special drivers have a soft foam suspension that ensures low bass response,
astonishing speed and a very high efficiency. The 6.5 midrange is custom made
in AAC, it is a handmade paper semi-flat cone capable of handling high power but
real fine details and fast transients response enabling incredible dynamic
response. The 1 soft dome double magnet tweeter has a double SPLit phaser that
enables great dispersion over the front baffle of the speaker, which provides
extremely fine details guaranteeing a wide and deep soundstage with a very
natural resolution. The hand manufactured crossover is made with custom
components such as large size film foil capacitors and precision MOX resistors ,
completely wired with Gold Note solid core cables in the passive stages while
the Class D Gold Note design powers the active stage to enhance top quality
performance. The XS-97 Concept features the Gold Note BP-01 rhodium binding
posts to preserve a perfect conductivity. The speaker is finished in glossy or
matt lacquer and can be custom finished with real leather to match modern and
stylish living room with its high class design.
SPECIFICATIONS Main features: XS-97 Concept
Hybrid Loudspeaker 3 way Sealed Speaker with Active Bass Frequency response:
28-20000Hz ±3dB Sensitivity: 97dB SPL 2,83Vs/1m Tweeter: 1 soft silk dome
double magnet driver with double phaser Midrange: 6,5 semi flat paper cone
driver Subwoofer: two 12 Gold Note paper cone driver Suggested power amplifier:
2-100W Max power handling: 160W RMS Impedance: 8ohm nominal Crossover: 350Hz at
12/6dB/Octave 4000Hz at 12/12dB/Octave Binding posts: Gold Note BP-01 nickel
free rhodium Upgrades Crossover: components on demand Physical Dimensions: 780mm
L x 1150mm H x 420mm D with stand Volume: 200L each Weight: 60kg each packed
Finishes Regular supply: black or white glossy grand piano, black or white matt
On demand: full grain leather or exotic leather
