Telefona o invia un e-mail per avere l'ultimo prezzo 0174 670100 Telefona o invia un e-mail per avere l'ultimo prezzo 0174 670100 info@sinergy.us

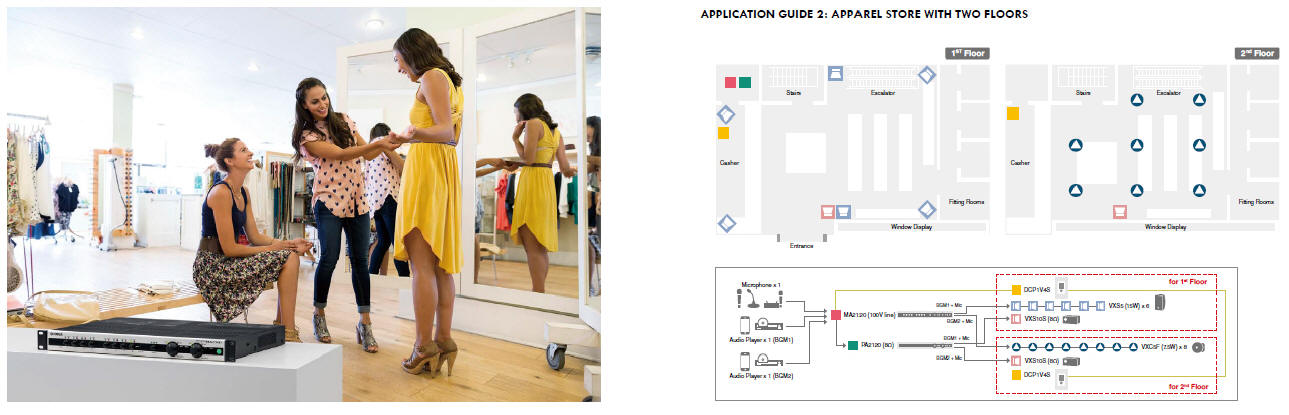

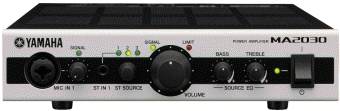

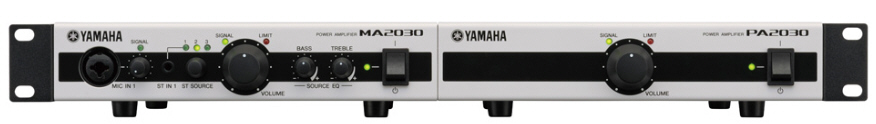

With a quick, easy setup and simple intuitive operation, it’s never been easier to bring your commercial space to life than with Yamaha’s latest additions to our Commercial Installation Solutions lineup, the MA/PA Series compact power amplifiers. All models combine a familiar, unassuming construction with efficient, flexible performance, while the MA2120 and MA2030 offer mixing capability with source EQ (Bass/Treble), as well as a number of the same acclaimed Yamaha state-of-the-art DSP technologies featured in our professional audio gear. Whether providing background music for a cafe or restaurant, or powering a conference room or any number of applications requiring a microphone, the MA/PA Series provides you with a simple, yet powerful tool to help shape your ideal commercial sound environment Output power 1kHz (THD+N=1%: 3Ω) 30W x 2 (20ms Burst) 1kHz (THD+N=1%: 4Ω) 30W x 2 (20ms Burst) High impedance: 100V line 60W x 1 High impedance: 70V line 60W x 1 Total harmonic distortion ≤ 0.1% (Stereo in to Speaker out @1kHz, Half power, 3Ω/4Ω), ≤ 0.2% (Stereo in to Speaker out @1kHz, Half power, 70V/100V) Frequency response 0dB, -2.5dB, +1.0dB (Stereo in to Line out, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Stereo in to Speaker out, 50Hz to 20kHz, 1W, 3Ω/4Ω), 0dB, -3.0dB, +1.0dB (Stereo in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V) Crosstalk ≤ -70dB (Stereo in to other Stereo in) I/O Connectors Mic Input MIC IN 1: XLR combo jack (balanced), MIC IN 2: 3.5mm Euroblock (3-pin, balanced)Stereo Input ST IN 1: Stereo mini phone (3.5mm, unbalanced), ST IN 2 / ST IN 3: Stereo RCA pin (unbalanced) Speaker Output Barrier strip x 2 pairs Line Out Stereo RCA pin (unbalanced) Control ports RJ-45 (for DCP1V4S) Input Level Mic input: -76 dBu (Sensitivity), -66 dBu (Nominal), -22 dBu (Max before clip) / Line input: -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) Output Level -10dBV (LINE OUT, Nominal) Processors Speaker EQ (VXS:Full Range, VXC) Protection circuit Load protection Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) Amplifier protection Thermal: Limit the output* → Mute* → Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically)Power supply protection Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown Amplifier class Class D Cooling Conventional cooling, bottom to up airflow Power requirements 100V, 120V, 230V-240V; 50Hz/60HzPower consumption 30W (1/8max. power, 3Ω, AC 100V, pink noise at all channels) Dimensions W 215mm (8.5”) *1 H 54mm (2.1”) *1 D 288mm (11.4”) *1 Net weight 1.8kg (4.0lbs) Accessories AC power cable, 3.5mm Euroblock plug (3-pin) x 1, Owner’s manual, Specification sheet Options RKH1 (Rack-mount Accessory), DCP1V4S (Digital Control Panel) Others Operating Temperature: 0°C to + 40°C, Storage Temperature: -20°C to + 60°C, Rack-mountable when ensuring sufficient ventilation above and below the unit

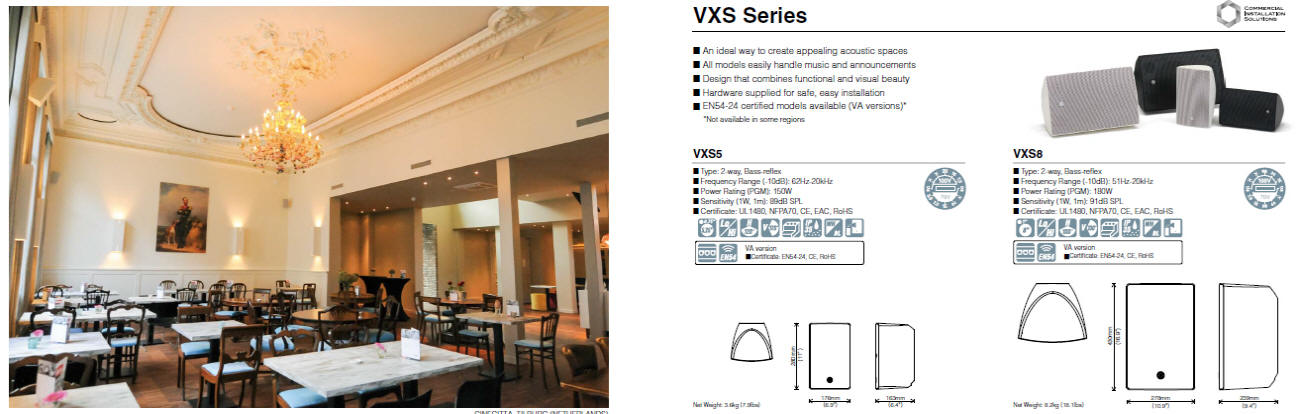

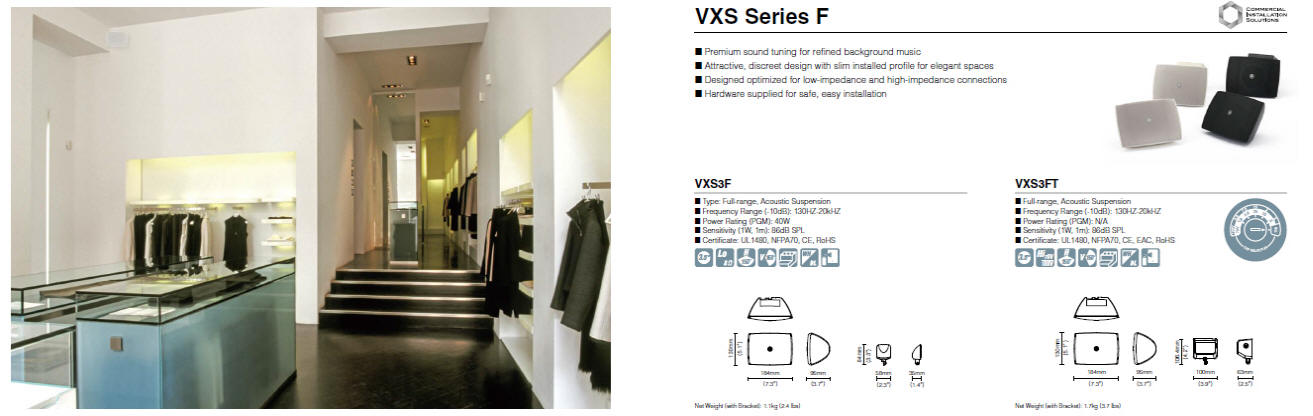

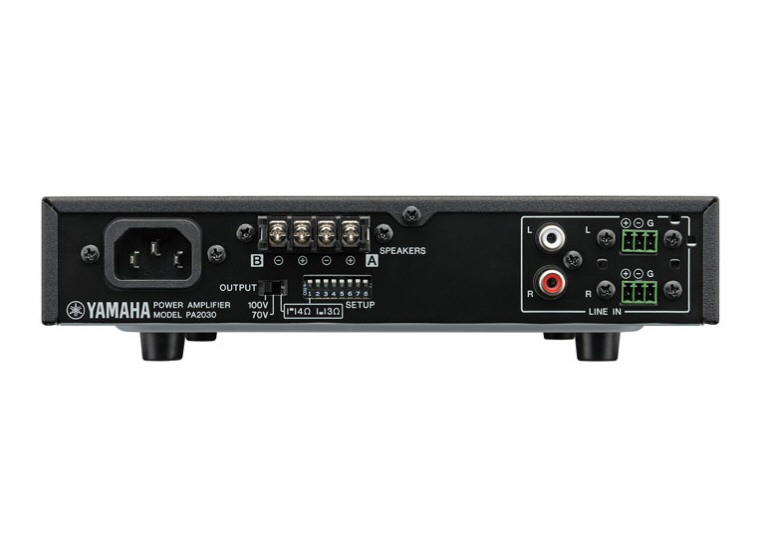

Easy setup, and a user-friendly interface for effortless operation Supporting Lo-Z (30W @3Ω/4Ω) and Hi-Z (60W x1ch, 70V/100V) speaker systems 1 stereo/2mono line inputs Built-in speaker EQ optimum for Yamaha VXC/VXS series speaker Intelligent protection function ensures safe, reliable operation Certified as Yamaha Eco Products Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)Output power 1kHz (THD+N=1%: 3Ω) 30W x 2 (20ms Burst) 1kHz (THD+N=1%: 4Ω) 30W x 2 (20ms Burst) High impedance: 100V line 60W x 1 High impedance: 70V line 60W x 1 Total harmonic distortion ≤ 0.1% (Line in to Speaker out @1kHz, Half power, 3Ω/4Ω), ≤ 0.2% (Line in to Speaker out @1kHz, Half power, 70V/100V) Frequency response 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3Ω/4Ω), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V) I/O Connectors Stereo Input LINE IN: Stereo RCA pin (unbalanced), 3.5mm Euroblock (3-pin, balanced) x 2Speaker Output Barrier strip x 2 pairs Input Level Line input (unbalanced): -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): +4dBu (Sensitivity), +4dBu (Nominal), +24dBu (Max before clip) Processors Speaker EQ (VXS:Full Range, VXC)Protection circuit Load protection Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) Amplifier protection Thermal: Limit the output* → Mute* → Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically)Power supply protection Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdownAmplifier class Class D Cooling Conventional cooling, bottom to up airflowPower requirements 100V, 120V, 230V-240V; 50Hz/60Hz Power consumption 30W (1/8max. power, 3Ω, AC 100V, pink noise at all channels) Dimensions W 215mm (8.5”) *1H 54mm (2.1”) *1 D 288mm (11.4”) *1 Net weight 1.8kg (4.0lbs) Accessories AC power cable, 3.5mm Euroblock plug (3-pin) x 2, Owner’s manual, Specification sheet Options RKH1 (Rack-mount Accessory) Others Operating Temperature: 0°C to + 40°C, Storage Temperature: -20°C to + 60°C, Rack-mountable when ensuring sufficient ventilation above and below the unit

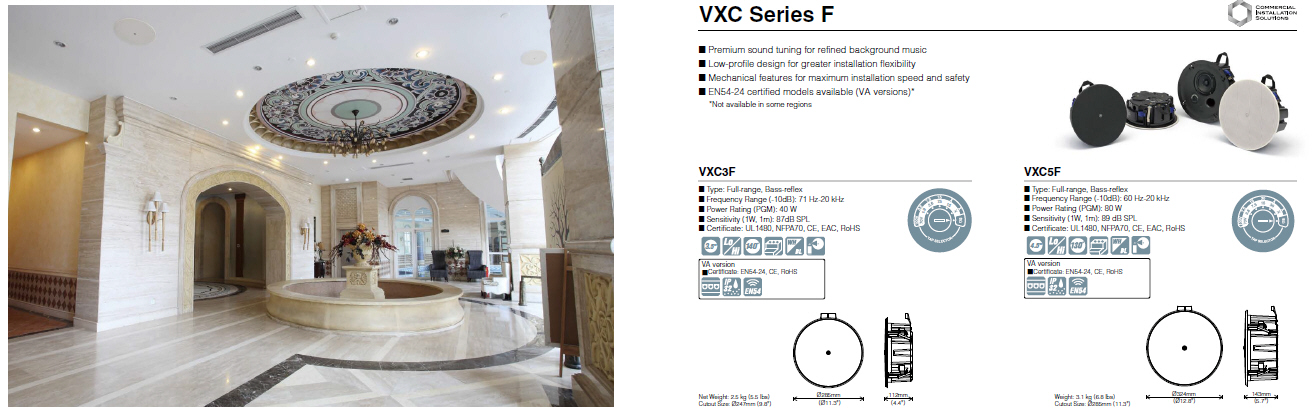

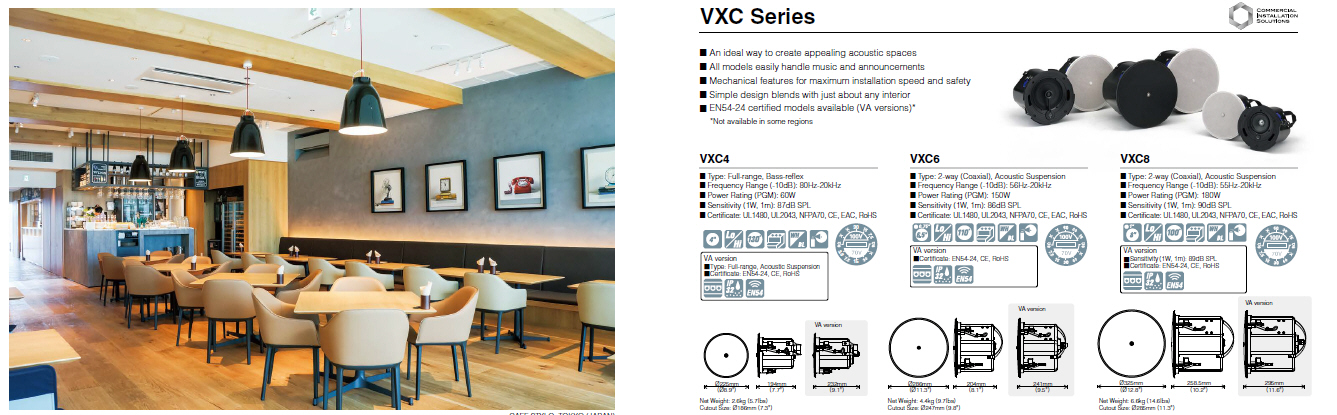

Easy setup, and a user-friendly interface for effortless operation Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems Flexible 6 mic/line inputs and 2 stereo inputs, with all 6 mic inputs featuring a 24V settings DSP functions for music playback and microphone use (Feedback Suppressor, Priority Ducker, Leveler, Compressor, Reverb & Echo) Bass and treble stereo source EQ with an enhancer function Output EQ for optimizing the sound of each Output channel Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings Capable of controlling sources and volumes seperately in two areas (Source/volume zoning) Service areas or zoning areas can be expanded by adding a PA2120 Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units) Intelligent protection function ensures safe, reliable operation Certified by ENERGY STAR Certified as Yamaha Eco Products Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.) Output power 1kHz (THD+N=1%: 3Ω) 100W x 2 (20ms Burst) 1kHz (THD+N=1%: 4Ω) 120W x 2 (20ms Burst) 1kHz (THD+N=1%: 8Ω) 100W x 2 (20ms Burst) High impedance: 100V line 120W x 2 or 200W x 1 High impedance: 70V line 120W x 2 or 200W x 1 Total harmonic distortion ≤0.2% (Line in to Speaker out, Half power @1kHz, 3Ω/4Ω/8Ω), ≤0.2% (Line in to Speaker out, Half Power @1kHz, 70V/100V, 120W/200W) Frequency response 0dB, -2.5dB, +1.0dB (Line in to Line out, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Line in toSpeaker out, 90Hz to 20kHz, 1W, 70V/100V, 120W/200W) Crosstalk ≤ -70dB (MIC/LINE input to other MIC/LINE input) I/O Connectors Mic/Line Input Input 1-6: 3.5mm Euroblock (6-pin, balanced) x 3 Line Input Input 7-8: Stereo RCA pin (unbalanced) x 2, Input 8: 3.5mm Stereo mini phone (unbalanced), Input 5-6: RCA pin (MONO SUM, unbalanced) x 4 Speaker Output Barrier strip x 2 pairs Line Out LINE OUT: MONO RCA pin x2 (unbalanced) Control ports RJ-45 (for DCP4V4S, DCP1V4S , DCP4S), Remote (3.5mm Euro block 3-pin) Input Level Mic input: -56dBu (Sensitivity), -36dBu (Nominal), -8dBu (Max before clip) / Line input (unbalanced): -30dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): -24dBu (Sensitivity), -4dBu (Nominal), +24dBu (Max before clip) Output Level -10dBV (LINE OUT, Nominal) Processors Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz) Protection circuit Load protection Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) Amplifier protection Thermal: Limit the output* → Mute* → Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically) Power supply protection Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Limit the output* →Power supply shutdown (*Restored automatically) Amplifier class Class D Cooling Conventional cooling, bottom to up airflow Power requirements 100V, 120V, 230V - 240V, 50Hz / 60Hz Power consumption 60W (1/8 max power, 4Ω, AC100V, pink noise at all channels) Dimensions W 480mm (18.9”) *1 H 45mm (1.8”) *1 D 379mm (14.9”) *1 Net weight 4.9kg (10.8lbs) Accessories AC power cable, 3.5mm Euroblock plug (6-pin) x 3, Euroblock pulg (3-pin) x 1, Owner's manual, Setup guide Options DCP4V4S, DCP1V4S, DCP4S (Digital Control Panel) Certificate ENERGY STAR Others Operating Temperature: 0°C to + 40°C, Storage Temperature: -20°C to + 60°C, Rack-mountable when ensuring sufficient ventilation above and below the unit

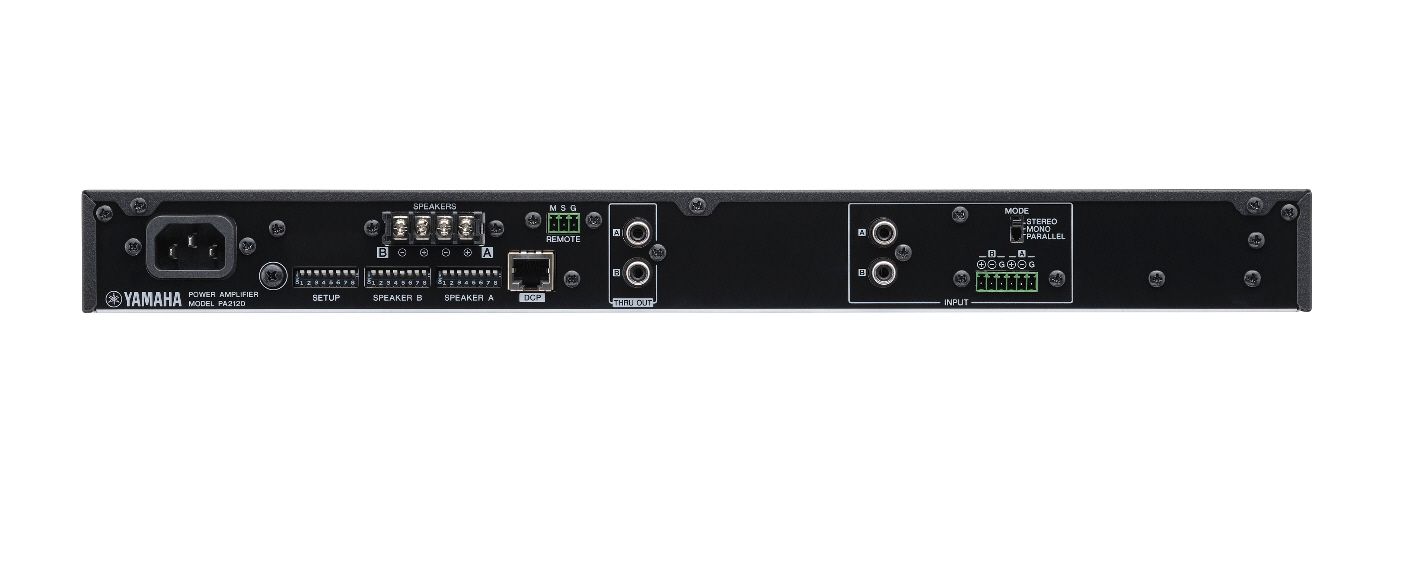

Easy setup, and a user-friendly interface for effortless operation Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems 1 stereo/2 mono line inputs Output EQ for optimizing the sound of each Output channel Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings Capable of controlling sources and volumes seperately in two areas (Source/volume zoning) Service areas or zoning areas can be expanded by adding a PA2120 Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units) Intelligent protection function ensures safe, reliable operation Certified by ENERGY STAR Certified as Yamaha Eco Products Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)Output power 1kHz (THD+N=1%: 3Ω) 100W x 2 (20ms Burst) 1kHz (THD+N=1%: 4Ω) 120W x 2 (20ms Burst) 1kHz (THD+N=1%: 8Ω) 100W x 2 (20ms Burst) High impedance: 100V line 120W x 2 or 200W x 1 High impedance: 70V line 120W x 2 or 200W x 1 Total harmonic distortion ≤0.2% (Line in to Speaker out, Half power @1kHz, 3Ω/4Ω/8Ω), ≤0.2% (Line in to Speaker out, Half Power @1kHz, 70V/100V, 120W/200W) Frequency response 0dB, -2.5dB, +1.0dB (Line in to THRU OUT, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V, 120W/200W) I/O Connectors Line Input Input A-B:MONO RCA pin x 2 (unbalanced) or 3.5mm Euro block (6-pin, balanced) Speaker Output Barrier strip x 2 pairs Line Out THRU OUT: MONO RCA pin (unbalanced) x2 Control ports RJ-45 (for DCP4V4S, DCP1V4S , DCP4S), Remote (3.5mm Euro block 3-pin) Input Level Line input (unbalanced): -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): +4dBu (Sensitivity), +4dBu (Nominal), +24dBu (Max before clip) Output Level -10dBV (THRU OUT, Nominal) Processors Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz) Protection circuit Load protection Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) Amplifier protection Thermal: Limit the output* → Mute* → Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically) Power supply protection Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Limit the output* →Power supply shutdown (*Restored automatically) Amplifier class Class D Cooling Conventional cooling, bottom to up airflow Power requirements 100V, 120V, 230V - 240V, 50Hz / 60Hz Power consumption 60W (1/8 max power, 4Ω, AC100V, pink noise at all channels)Dimensions W 480mm (18.9”) *1 H 45mm (1.8”) *1 D 379mm (14.9”) *1 Net weight 4.8kg (10.6lbs) Accessories AC power cable, 3.5mm Euroblock plug (6-pin) x 1, Euroblock pulg (3-pin) x 1, Owner's manual, Specification sheet Options DCP4V4S, DCP1V4S, DCP4S (Digital Control Panel) Certificate ENERGY STAR Others Operating Temperature: 0°C to + 40°C, Storage Temperature: -20°C to + 60°C, Rack-mountable when ensuring sufficient ventilation above and below the unit

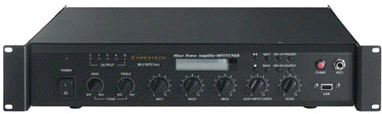

Mixer amplifi catori per Public Address con Sintonizzatore Radio FM e Lett ore MP3 su USB 4 modelli con potenze da 70/130/260/360W Ideali per amplifi cazioni di Negozi, Ristoranti , Bar, Uffi ci e tutt e quelle applicazioni che necessitano grandi potenze per una diff usione sonora di buona qualità, con una spesa limitata Mixer/Amplifi catore da 260W con Tuner FM e Lettore MP3 su USB - 2 ingressi Micro - 2 ingressi Line Aux/CD - 1 Livello di priorità su Mic1 - Controlli Tono a 2 bande: 100Hz-12 kHz - Uscite: 4/8/16 ohm - 70/100V - Dimensioni: 483x89x366 - Peso: 13,6kg

Telefona o invia un e-mail per avere l'ultimo prezzo 0174 670100 Telefona o invia un e-mail per avere l'ultimo prezzo 0174 670100 info@sinergy.us

L-VCM24A/EN Altoparlante da incasso per linea 100V - 24/12/6/3W • Risposta in frequenza: 120-20.000Hz -10dB • Dimensioni: Ø226x129 - Foro: Ø195mm - Peso: 2,25kg • Woofer da 6,5” coassiale • Eccellente qualità sonora • Calotta resistente al fuoco • Certifi cato EN54-24

L-VJM10A/EN Proiettore sonoro per linea 100V - 10/5/2,5/1,25W • Risposta in frequenza: 150-15.000Hz -10dB • Dimensioni: Ø140x195mm - Peso: 2,62kg • Woofer da 5,25” full range • Eccellente qualità sonora • Contenitore in alluminio resistente al fuoco • Certifi cato EN54-24

Se su un prodotto presente o non presente nel nostro catalogo ci puoi richiedere il prezzo scontato telefonando 0174 670100 - 0174 481045 o inviando un e-mail a info@newaudio.it ti faremo la migliore offerta . Essendo rivenditori ufficiali Italia le aziende ci chiedono di non creare turbative di mercato pubblicando prezzi scontati non di listino ufficiale .

Se hai trovato un prezzo più basso * in rete , segnalacelo e noi faremo di tutto per applicare quel prezzo. Altrimenti fai tu un'offerta e noi la valutateremo. La segnalazione può essere effettuata via email oppure telefonando . (*Per prezzo più basso si riferisce ad offerte praticate sul Web da aziende che sono distributori ufficiali con sede in Italia , con regolare fatturazione e garanzia italiana fornita dal distributore ufficiale. Qualora il prezzo da confrontare fosse riferito a venditori esteri o che non offrono le caratteristiche suddette, queste non verranno prese in considerazione.)

Telefona o invia un e-mail per avere l'ultima offerta 0174 670100 Telefona o invia un e-mail per avere l'ultima offerta 0174 670100 info@newaudio.it
