STAFFE MOTORIZZATE
.jpg)
DRAPER
ORBITER
€.
2.177,00 Per
prezzo
scontato
TELEFONA / E-MAIL

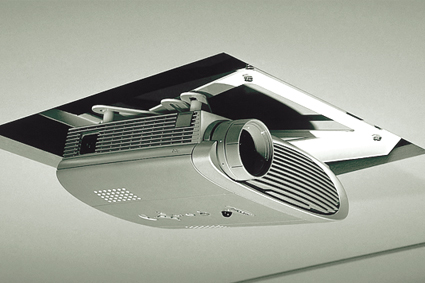

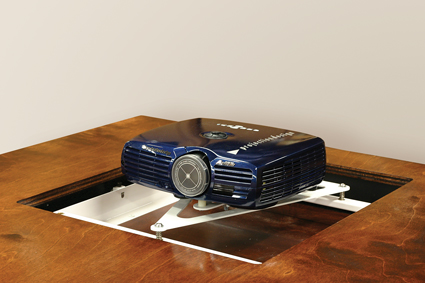

Ingenious design allows the Orbiter to fit in small ceiling spaces. It is the
only lift that can be installed in an angled ceiling or wall, making it uniquely
versatile. The lift conceals the projector and quickly rotates it into the
“show” position at the touch of a switch or wireless transmitter. The Orbiter is
supplied with a universal-style bracket that allows for easy attachment of a
variety of projector models. The Orbiter can also be used for video conferencing
cameras, speakers, etc. The Orbiter can be operated by optional IR or RF remote
control, standard wall switch, or integrated into your controlsystem. The
Orbiter motor is a DC–low voltage motor, 12V,which allows for easier control and
wiring of the lift. Wall switch included. Options • Environmental Airspace
Housing—Aluminium housing isolates projector from environmental airspace above
ceiling. • Angled Ceiling Adapter—for mounting on angled ceilings or walls. • DC
Motor Control—included as standard. Required for IR / RF / Serial / Network /
Commannder Control System™. • Control Options— Commander Control System™/ RF/ IR
remote/ Wall Switch.
DRAPER
AEREO LIFT
€.2.011,00 Per
prezzo
scontato
TELEFONA / E-MAIL

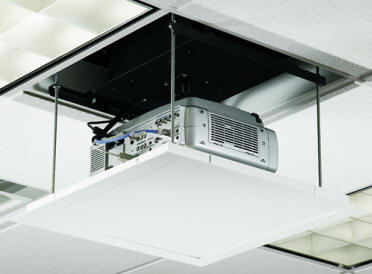

Three models to lift up to 11, 23 or 68 kg.
AeroLifts install in even the tightest spots, and offer a different look
thantraditional scissor lifts. Use AeroLift to conceal projectors, speakers, or
cameras. All three models are powered by strong tubular motors for a simplified
design, and feature a stabilizing arm which can be used for cable management.
Built-in adjustability allows you to deal with job site conditions quickly and
easily, like slightly out of square or irregularly spaced joists. Projector can
bemounted flush to bottom pan or use optional UniversalProjector Mount. Options
• Environmental Airspace Housing—Aluminium housingisolates projector and lift
from environmental airspace above the ceiling. • Ceiling Closure Panel—Universal
ceiling closure in a white finish or recessed to accept ceiling tile. Shown in
photo at left. • Ceiling Finish Kit—Ceiling closure panel and ceiling trim ring
to finish ceiling opening. • Universal Projector Mount—Provides secure and
simplemounting for most projectors up to 12kg. See page 6. • Control Options—
Commander Control System™/ RF/ IR remote/ Wall Switch.
.jpg)
DRAPER
LCD LIFT
Per
prezzo
scontato
TELEFONA / E-MAIL

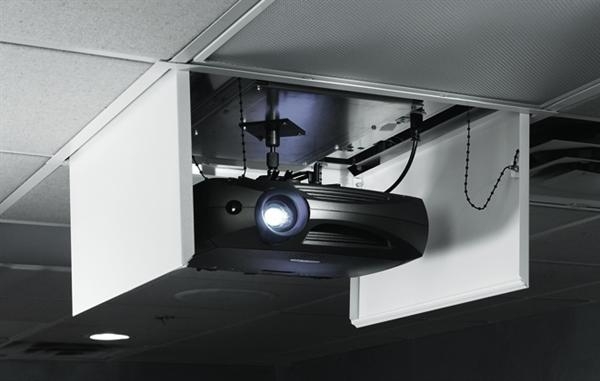

Bomb bay doors and a slim cross-section
distinguish the LCD Lift. Most popular LCD and DLP projectors fit
comfortablyinside this unit, which is available in two sizes—Model A and Model
B. Bomb bay style closure doors are standard. Environmental Air Space Housing of
aluminium, with closure doors finished in white, is standard. Contains
internalswitched duplex receptacle, 220V AC, which is powered when the unit is
fully down. The LCD Lift contains an innovative current sensor that delays
closing of the unit until the projector lamp has shut off. Lifting capacity 30
kg. Options • Ceiling Closure Panel—Flat ceiling closure in a white bakedenamel
finish or recessed to accept ceiling tile. • Ceiling Access Door—A 60 cm x 60 cm
hinged door to access lift above a finished ceiling for cleaning, maintenance or
repairs without having to damage the ceiling. Available with a white painted
finish or recessed to accept ceiling tile. • Factory-Installed Cables—for RGBHV,
Video and Control.• Universal Projector Mount—Provides secure and simple
mounting for most projectors up to 12kg. See page 6. • Control Options—
Commander Control System™/ RF/ IR remote/ Wall Switch.
.jpg)
DRAPER
COSMO MPL
€.1.966,00
Per
prezzo
scontato
TELEFONA / E-MAIL
•
The Micro Projector Lift (MPL) is small and convenient, just like the projectors
it is designed to accommodate. U.S. Patent Nos. D395,909 and 6,637,711. Other
patents pending. • Lifting capacity of 15.9 kg MPL can be installed in an
existing 60 cm x 60 cm ceiling opening without disturbing the ceiling framework.
• All components can be serviced from below the unit. The projector’s “show”
position can be set at any point with infinite adjustability, up to 122 cm
extension. • The Micro Projector Lift utilizes the same exclusive 3-scissor
design as Draper® Scissor Lift, but features a compact sidefolding scissor. •
The load is lifted by two 2.5 cm wide Kevlar® straps. Safety belt provides extra
protection. Closed height of lifting unit is only 13 cm tall (not including
projector, mounting mechanism or closure), so a minimal amount of overhead
ceiling space is required. Kevlar® is a registered trademark of DuPont. Options
• Ceiling Closure Panel—White closure panel is optional and can be adapted to
attach ceiling tile. • Environmental Airspace Housing—Aluminium housing isolates
projector from environmental airspace above ceiling. Does not include ceiling
closure panel. • Ceiling Finish Kit—Ceiling closure panel and ceiling trim ring
to finish ceiling opening. • Factory-Installed Cables—for RGBHV, Video and
Control. • Ceiling Access Door—A 60 cm x 60 cm hinged door provides access to
the MPL above a finished ceiling. Available with a white painted finish or
recessed to accept ceiling tile. • Universal Projector Mount—Provides secure and
simple mounting for most projectors up to 12kg. See page 6. • Control Options—
Commander Control System™/
RF/ IR remote/ Wall Switch
.jpg)
DRAPER
PHANTOM
€.1.927,00 Per
prezzo
scontato
TELEFONA / E-MAIL

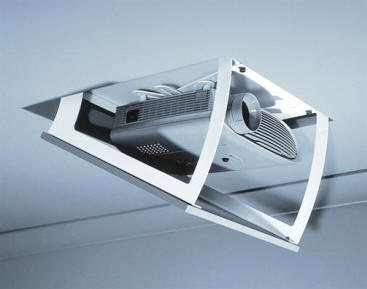

The totally unique Phantom quickly and quietly
dips the projector out of the ceiling and into the “show” position at thetouch
of a switch or wireless transmitter. The Phantom can also be used for
videoconferencing cameras, speakers, etc.The projector is mounted above the

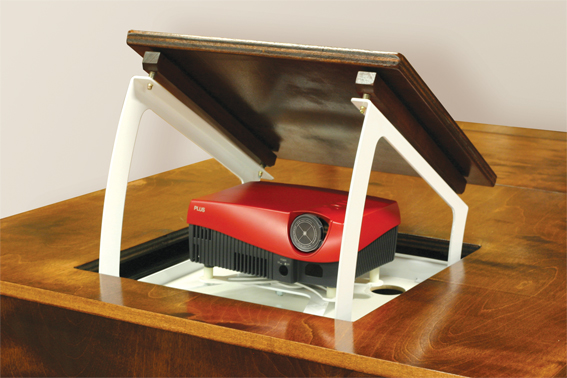

ceiling or in a tabletop. When activated, a trapdoor brings the projector into
your room using a precision actuator with preset limits. The projector is easily
aligned during installation to provide a direct light path onto your Draper®
projection screen. The Phantom is supplied with a universal-style bracket that
allows for easy attachment of a variety of projector models. Two Phantom models
fit most projectors up to 12 kg. The Phantom motor is a 24V DC low voltage
motor, which allows for easier control and wiring of the lift. Wall switch
included. Options • Environmental Airspace Housing—Aluminium housing isolates
projector from environmental airspace above ceiling. • Ceiling Access Door—for
easier access after installation. • DC Motor Control—included as standard.
Required for IR / RF / Serial / Network / Commannder Control System™. • Control
Options— Commander Control System™/ RF/ IR remote/ Wall Switch.
.jpg)
DRAPER
REVELATION
€.2.365,00
Per
prezzo
scontato
TELEFONA / E-MAIL

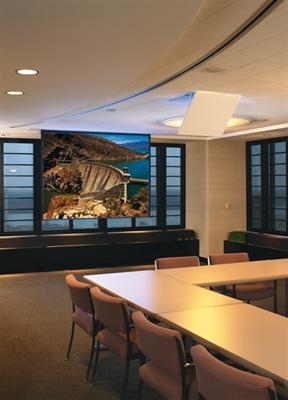

The Revelation is totally different from
traditional projector lifts and mounts. The Draper® Revelation permanently
conceals the projector—and its noise—above the ceiling at all times. Other lifts
typically lower the whole projector and liftmechanism into the room from a
ceiling recess, or lift it intothe seating area from a table hideaway. You won’t
see or hear the projector—not before, during or after the show. You’ll only see

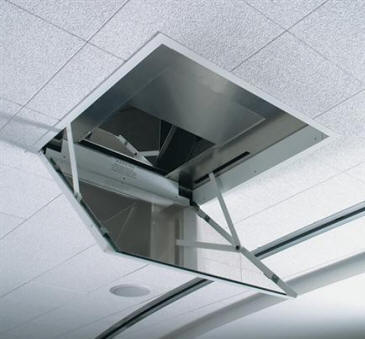

a hinged door in the ceiling, that quietly opens and closes. Approximate travel
time is only 9 seconds. Available in two models, Revelation A and Revelation B
both require only 33 cm of space above the ceiling, and both can be installed to
match a 60 x 60 cm ceiling grid, or used with reveal-style grid ceilings (like
Armstrong’s Silhouette-style grid system). Together, these two models
accommodate a wide variety of LCD/DLP projectors, including those with offset
lenses. At the heart of the Revelation’s dual first surface mirror system is two
optical-grade glass mirrors that are 94% reflective. This mirror system provides
for optimum flatness and reflectivity. Combine the Revelation with a
ceiling-recessed Draper® projection screen and take your projection showmanship
to a new level. Options • Environmental Airspace Housing—Aluminium housing
isolates projector. Includes intake and exhaust fan system with 10 cm couplers
for connection to ventilation ducts. • Glass Shield—Made of anti-reflective
glass and installed between the Revelation and the first surface mirror/ceiling
closure. Reduces projector noise by an additional 80%, and prevents cigarette
smoke, grease or other harmful substances from reaching the projector. Allows
97% transmittance of projected light. • Ceiling Access Door—A 60 x 60 cm hinged
door providesabove-the-ceiling access for maintenance or repairs. Available with
a white painted finish or recessed to accept ceiling tile. • Control Options—
Commander Control System
ACCESSORI
.jpg)
DRAPER DC MOTOR CONTROL
€.2.365,00 Per
prezzo
scontato
TELEFONA / E-MAIL
.jpg)
DRAPER INTERRUTTORE DA
MURO
€. 42,00
Per
ORDINE
TELEFONA / E-MAIL
.jpg)
DRAPER CENTRALINA 24V
€.268,00
Per
prezzo
scontato
TELEFONA / E-MAIL
.jpg)
DRAPER IR TELECOMANDO
€.
164,00 Per
prezzo
scontato
TELEFONA / E-MAIL
.jpg)
DRAPER RF TELECOMANDO
€.169,00
Per
prezzo
scontato
TELEFONA / E-MAIL
