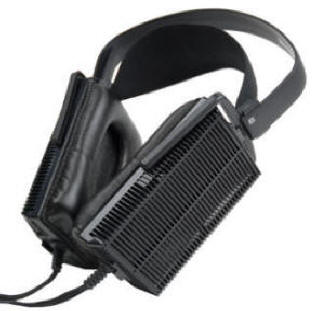

CUFFIE ELETTROSTATICHE
STAX
SR-207
€.550,00 Per prezzo
scontato TELEFONA / E-MAIL

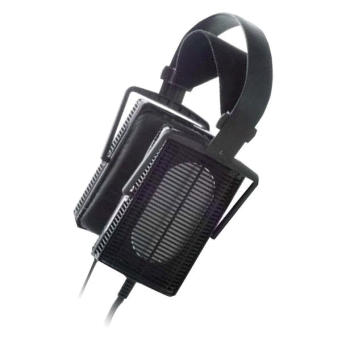

Cuffia elettrostatica –
push-pull Risposta in frequenza: 7Hz-41kHz – Capacità elettrostatica 120pF (cavo
incluso) Impedenza 132 khom (cavo incluso a 10kHz) – Sensibilità
101dB/100Vr.m.s. Tensione di polarizzazione 580V DC- Padiglioni in pelle
sintetica di Alta Qualità Cavo :mt 2,5 – Peso 340gr. -490 gr. con cavo – Colore
Nero
STAX

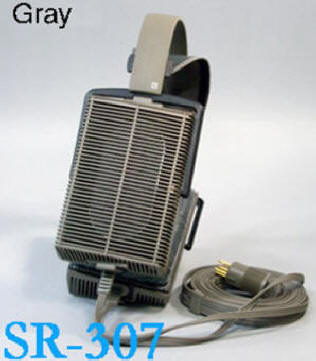

SR-307
€.650,00 Per prezzo
scontato TELEFONA / E-MAIL
Cuffia elettrostatica
push-pull con elemento sonoro ovale – tipo aperto - Risposta in frequenza:
7Hz-41kHz – Capacità elettrostatica 120pF (cavo incluso) Impedenza 132 kohm
(cavo incluso a 10 kHz) – Sensibilità : 101dB/100Vr.m.s. Tensione di
polarizzazione 580V DC -Padiglioni in pelle sintetica di Alta Qualità Cavo:
2,5mt. – Peso 340 gr. – 490 gr. con cavo – Colore Grigio
 (NEW)The
first SR-Λ (lambda) series was introduced 30 years ago, and now the SR-307 and
SR-407 have adopted the same sounding body (sound element) as that of the top
model SR-507. The conventional sound element has employed simplest structure so
that as wide film diaphragm area as possible can be effectively used in
comparison with its external size. Taking advantage of the conventional feature,
the new sound element has been packaged in a tough resin case. Thus the new
sound element has realized cleaner sound and better reliability. Also a new
thin-film material (super engineering plastics) almost free from stretch through
temperature or humidity has been adopted, enabling both the rich, deep low
frequency and the delicate high-frequency sound.

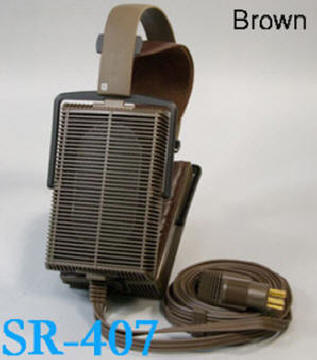

STAX
SR-407
€.650,00 Per prezzo
scontato TELEFONA / E-MAIL

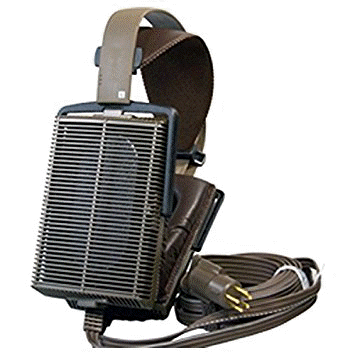

Cuffia elettrostatica push
–pull con elemento sonoro ovale –tipo aperto – Risposta in frequenza: 7Hz-41kHz
– Capacità elettrostatica 110pF (cavo incluso) Impedenza 144 kohm (cavo incluso
a 10 kHz)-Sensibilità: 101 Db/100Vr.m.s.Tensione di polarizzazione 580V DC –
Padiglioni in pelle sintetica di Alta Qualità Permeabilizzata – Cavo: mt.2,5
– Peso 340 gr. – 515gr. con cavo Colore Brown
(NEW)The
first SR-Λ (lambda) series was introduced 30 years ago, and now the SR-307 and
SR-407 have adopted the same sounding body (sound element) as that of the top
model SR-507. The conventional sound element has employed simplest structure so
that as wide film diaphragm area as possible can be effectively used in
comparison with its external size. Taking advantage of the conventional feature,
the new sound element has been packaged in a tough resin case. Thus the new
sound element has realized cleaner sound and better reliability. Also a new
thin-film material (super engineering plastics) almost free from stretch through
temperature or humidity has been adopted, enabling both the rich, deep low
frequency and the delicate high-frequency sound.

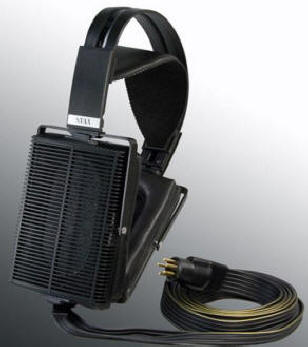

STAX
SR-507
€.1.100,00 Per prezzo
scontato TELEFONA / E-MAIL
Technical
Specifications : Type: Push-Pull Electrostatic Open-Back Earspeaker
Frequency response: 7 - 41,000Hz Impedance: 145k Ohms (at 10kHz)
Sensitivity: 100dB / 100V r.m.s. 1 kHz Maximum sound pressure level: 118dB
/ 400Hz Bias Voltage: 580V DC Left & Right Channel Identification: 'L' and
'R' indicated on the arc assembly Ear Pads: genuiune leather (skin-touching
portion). high-class artificial leather (circumference portion:) Cable:
parallel 6-strand, 2.5m full length, low-capacity special wide cable, 6N
(99.9999%) OFC with silver plating Ambient Temperature & Humidity: 0 to
35ºC / 90% max. without condensation Weight: 10.4 oz without cable / 16.6
oz with cables Features : The SR-507 employs a new sound element
which is encased in a tougher resin to minimize vibration New style ARC assembly.
A new 10-click slider mechanism for pad adjustments achieves optimum comfort.
Once adjusted, the slider will maintain its position so readjustment is
unnecessary Low-Capacitance wide hybrid cable. Silver plated copper wire.
Genuine leather ear pad. Lambskin earpad for utmost comfort.
Recommend driver unit

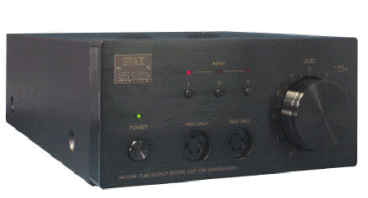

SRM-007t series SRM-727 series SRM-006t series SRM-600 LIMITED

STAX

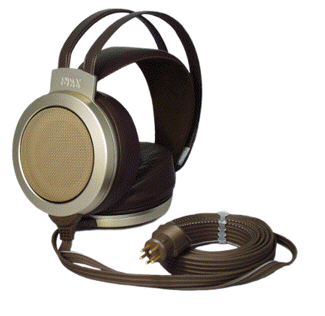

SR-007MK2
€.3.600,00 Per prezzo
scontato TELEFONA / E-MAIL
Cuffia di tipo aperta,
elettrostatica, Push-pull. Risposta in frequenza: 6 Hz-41 kHz, Impedenza: 170
Kohm, Capacità: 94pF (incluso cavo), Sensibilità: 100 dB / 100 V rms, Voltaggio
Bias: 580 V / DC, Padiglioni: completamente rivestiti in vera pelle, Cavo: 2.5
mt. in PC-OCC a bassa capacità. Peso: 365 gr, 512 gr. con cavo. Amplificatori
raccomandati: SRM-007tII - SRM-727II
Why
are we so insistent on electrostatic speakers? Well, first of all, there’s the
question of sound quality. But a particular sound isn’t yet a wave motion of the
air; it doesn’t yet get the eardrums vibrating. But a created sound about to
come into being does the rounds of the neurons and the synapses. It dances
around loftily or stealthily in the cranial universe of the composer or the
performer. STAX earspeakers trace this sound. The method employed in this
connection has to be electrostatic, because delicate sounds must not get lost.
Delicate sounds are important elements of textural recreation. The main issue
faced by pure audio is its re-creativity capacity. The question is how to
convert the delicate opening wave patterns that determine tonal quality
faithfully into air vibrations. This is the principal merit of electrostatic
speakers. This is the only system that has the potential to recreate the most
minute nuances with complete accuracy. SR-007 MK2 is the flagship model that
aims to achieve the peak among STAX electrostatic speakers. They possess strong
drive power in respect to the diaphragm due to the provision of an area in which
there are no holes whatsoever on the outer ring of the electrodes (fixed poles)
that were completed after an extended process of design and productions of
prototypes. They succeed to the new generation units that realize a high degree
of linearity in the aperture area. After attachment to a thick insulated resin
case, they are fixed to a strong aluminum machined enclosure and shut out
unwanted vibration. The cable is designed with the most appropriate structure
for transmitting signals to the electrostatic transducer, and use is made of
STAX original cables employing high-purity PC-OCC conductors that achieve
outstanding sound quality due to their extreme thickness and low capacity. The
new product SR-007 MK2 features improvements to the connecting area between the
unit and the cable and achieves further improvements in transmission capacity
and reliability. The mechanism unique to the SR-007 series whereby the enclosure
and the ear pads rotate independently of one another makes it possible to
achieve a positioning that exactly fits the ear shape of each individual
listener. Where do the music of the spheres and the vibration of the cosmos
begin and end?Setting a section without any holes whatsoever on the perimeter of
the electrodes makes it possible to achieve a deeper and more dynamic expressive
capacity. There is strong drive power in respect to the diaphragm, and a high
degree of linearity is achieve in the opening section too.As is the case with
ordinary speaker systems, the sturdiness of the enclosure is important for
earspeakers. After enclosing the sound-producing unit in a thick insulated resin
case, it is fixed to a solid metal enclosure. All unnecessary vibration is
excluded.A structure is adopted whereby the enclosure and the earpads are able
to rotate independently. This enables positioning that exactly fits the shape of
the ears.An original cable developed with the aim of achieving an even higher
level of reproduction is provided. The conductors make use of high-purity PC-OCC.
Outstandingly high sound quality is achieved through the extreme thickness and
wide and low capacity.Specifications of SR-007MK2 Electrostatic Earspeakers ●Type:
Push-pull electrostatic open-air type headphone●Frequency response : 6 to 41,000
Hz●Impedance : 170 KΩ (at f = 10 KHz)●Capacitance : 94pF (including cable)●Sensitivity
: 100 dB / 100 V r.m.s. at f = 1 KHz●Bias voltage : 580 V / DC●Left & Right
Channel identifications : Left (L) and Right (R) indicators are provided at the
cable en trance points on the Earspeakers.The left channel cable is marked with
a solid Line.The right channel is marked with a dotted Line.●Ear pads : Real
leather (Lamb) used on a part coming into contact with the skin.High-quality
leather used for the surrounding part.●Cable : 2.5m, PC-OCC, wide, low
capacitance cable●Weight : 365 g (Body) , 512g (Including cable)●Operating
temperature range: 0 to 35 ●Humidity range for use: Less than 90% (without
condensation) The specification and appearance of the product may be changed
without prior notice in order to make improvements.Repairs of the product should
be entrusted to the official dealer from whom it was purchased or to an official
distributor.*The specification and appearance of the product may be changed
without prior notice in order to make improvements.*Repairs of the product
should be entrusted to the official dealer from whom it was purchased or to an
official distributor.Specifications are subject to change without notice.
Recommend driver unit
:SRM-007tII SRM-727II
SISTEMI COMPLETI CUFFIA
+DRIVER

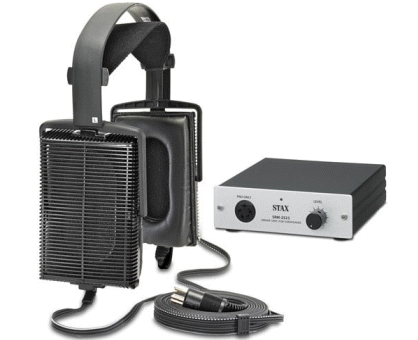

STAX

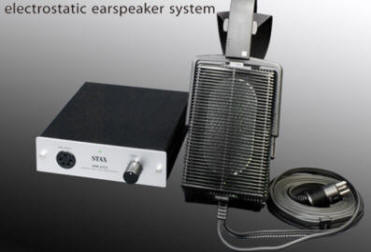

SRS-2170
€.1.150,00 Per ordine
e sconti TELEFONA / E-MAIL
Sistema composto dalla cuffia
push-pull –SR-207 e dall’amplif. SRM-252S CUFFIA: Risposta in frequenza: 7Hz-41
kHz- Capacità elettrostatica 120pF(cavo incluso) –Impedenza132 kohm (cavo
incluso a 10 kHz) - Sensibilità 101dB/100Vr.m.s. – Tensione di polarizzazione
580V DC – Padiglioni in pelle sintetica di Alta Qualità – Cavo : mt.2,5 – Peso
340 gr – 490 gr con cavo AMLIPLIFICATORE :Risposta in frequenza DC-35 khz+0,-3
dB Gain 58 dB, THD 0,01%- Livello nominale :125Mv (100Vr.m.s. output) Max
voltaggio d’uscita : 280Vr.m.s. (1kHz) –Impedenza d’ingresso : 50kohm Voltaggio
standard bias : DC 580 V – Dimensioni :132x38x132 mm (LxHxP) Peso 540 gr.

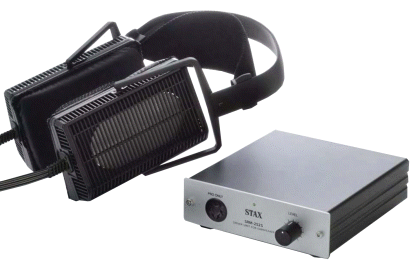

The
basic system is a high cost-performance combination of SR-207 and SRM-252S
compact-size driver unit still keeping the high-quality sound and high
performance of the electrostatic earspeaker. Body color:SR-207 : Black

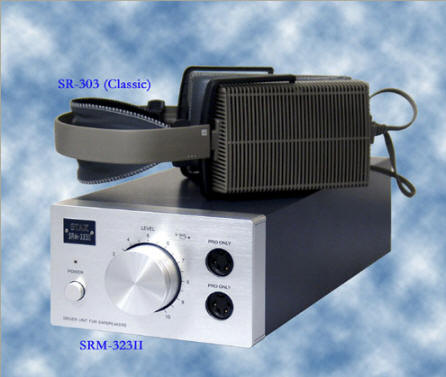

STAX
SRS-3170
€.1.990,00 Per ordine
e sconti TELEFONA / E-MAIL
Sistema composto dalla
cuffia –SR 307 e dall’amplif.SRM-323S CUFFIA: Elettrostatica elemento sonoro
ovale -Risposta in frequenza: 7Hz - 41kHz – Capacità elettrostatica :
120pF (cavo incluso) Impedenza 132 kohm (cavo incluso a 10 kHz) – Sensibilità :
101dB/100Vr.m.s. Tensione di polarizzazione 580V DC – Padiglioni in pelle
sintetica di Alta Qualità – Cavo: mt. 2,5 – Peso 340 gr – 490 gr con cavo
AMPLIFICATORE: Risposta in frequenza DC-60 kHz + 0, -3dB Gain 60 dB, THD 0,01% -
Livello nominale : 100Mv (100Vr.m.s. output) Max voltaggio d’uscita :400 Vr.m.s.
( 1kHz) Impedenza d’ingresso 50 kohm Voltaggio standard bias : DC 580V x 2
Dimensioni : 150x100x360mm (LxHxP) Peso 2,9Kg.
The
SRS-3170 is a standard combination system of the SR-307 with the sound element
featuring the same new material "super engineering plastics" diaphragm as upper
models and the SRM-323S solid-state DC amplifier with all-stage direct-coupled
balance output circuit configuration.Body color:
SR-307 : Gray
STAX
SRS-4170
€.2.890,00 Per prezzo
scontato TELEFONA / E-MAIL
Sistema composta dalla cuffia

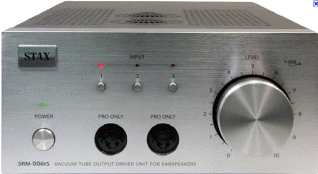

–SR 407 e dall’amplificatore SRM-006Ts CUFFIA :Elettrostatica elemento sonoro
ovale – Risposta in frequenza: 7Hz – 41kHz – Capacità elettrostatica : 110pF
(cavo incluso) Impedenza 144 kohm ( cavo incluso a 10 kHz) – Sensibilità : 101
dB/100Vr.m.s. Tensione di polarizzazione 580V DC – Padiglioni in pelle sintetica
di Alta Qualità permeabilizzata – Cavo : mt. 2,5 – Peso 340 gr – 515 gr. con
cavo AMPLIFICATORE : Risposta in frequenza DC – 80 kHz + 0, -3 dB Gain 60 dB ,THD
0,01% - Livello nominale : 100Mv (100Vr.m.s. output) Riscontro di massimo
livello : 30V( a livello minimo di volume)Max voltaggio d’uscita : 300 Vr.m.s.
(1kHz) – Impedenza d’ingresso 50 kohm Voltaggio standard bias : DC 580v x 2 –
Valvole 6FQ7/6CG7 Dimensioni : 195x103x380 mm ( LxHxP) – Peso Kg. 3,4
The
SRS-4170 is a high-quality combination system of the earspeaker SR-407 (Signature)
employing the same sound element as the new Λ series SR-507 and the SRM-006tS
driver unit with the vacuum tube output stage. Body color:SR-407 : Brown
STAX
SRS-3050II
€.1.700,00 Per prezzo
scontato TELEFONA / E-MAIL
Sistema composto dalla cuffia
mod. SR-303 Classic e dall’amplificatore mod. SRM-323II - Cuffia: Risposta in
frequenza: 7 Hz-41 KHz, Sensibilità: 100dB/100V rms, Cavo: 2.5 mt., Peso: 450
gr. con cavo. Driver: Risposta in frequenza: DC-60 kHz, Gain: 54dB, THD: max.
0.01%, Impedenza d’ingresso: 50 k ohm (RCA), Max. Voltaggio d’uscita: 400 V rms
/ 1 kHz, Voltaggio standard bias: DC580 V (PRO bias). Dimensioni: 15x10x36 cm (LxHxP).
Peso: 2.9 kg
Part
of a history of ultra-precision sound checkingIt’s not surprising that there are
many music fans and audiophiles who have never heard of the audio maker STAX nor
are they even aware of its existence. But even such people will have heard “the
work of STAX”. This is because STAX products are used widely throughout the
World by a large number of recording companies for sound-checking purposes in
almost every stage of their production process. They are used to check that the
sound has been recorded just as intended, for example by making sure that a
Stradivarius really sounds like a Stradivarius, or to make sure that no
unintended noise has found its way onto the mother disc or the stamper. This is
because there are sounds that can only be detected by the human ear and that
cannot be differentiated by a measuring device in terms of whether they are
musical sound or just plain noise. STAX devices make use of high-polymer film
which is several tens of times thinner than food wrapping. This is the diaphragm
present in STAX electrostatic earspeakers. STAX is a Japanese brand that was the
first in the world to pioneer electrostatic headphones of the condenser type,
and STAX remains to this day, virtually the only company in the world active in
this particular area. This is an earspeaker series whose high-range reproduction
capacity has been proved especially by the appearance of SACD, DVD audio and
other new-generation media. The combination that might be described as the
global standard is the series leading up to the new product SRS-3050II. The new
SRM-323II driver unit is compatible with media employing an increasingly wide
band range. Because of the way in which the power section has been strengthened,
it has outstanding playback capacity, recreating low-pitched sounds with real
presence that really underpin the music rather than constituting a mere
amorphous mass, while the flawless sounds that float above could even, if one so
wished, be analyzed in terms of their very structure. Then there’s SR-303, a
product in the earspeaker lineup that focuses especially on high sound quality.
And we are now releasing SRS-3050II, a product that presents the ideal
combination. SRS-3050II: The global standard The electrostatic type is
structured to ensure balanced operation. This means that a balance circuit is
present until the moment of conversion into air vibrations. This is the only
system that makes it possible to enjoy the sound innate to the balance system.
SRS-3050II is a system based on combination with the new SRM-323II driver unit,
which has a significantly strengthened power transformer, and it has permitted a
major expansion in dynamic range. The simple two-stage amplifying circuit
configuration with FET characterized by high sound quality and low noise at the
input stage offers sound quality fully worthy of being referred to as the global
standard.SR-303: The product of limitless experience This is the latest model in
the SR-Lambda series, which houses an elliptical unit that fits the shape of the
human ear and makes use of the same new high-polymer film diaphragm as the
SR-404 Signature. Follow-up features in respect to input signals have been
improved by brushing up the diaphragm and the cables. This is a model occupying
a position at the center of the line-up that succeeds to the smooth and
high-resolution tradition of STAX earspeakers. The rectangular unit that might
be described as the precursor of universal design sends out sounds to the outer
ear as a whole by means of parallel plane waves, and it has been designed in
such a way as to emulate as far as possible the process whereby the ear
perceives natural sounds and sounds in a concert hall. What’s more, the ear pads
do not weigh down on the outer ear: an appropriate amount of space is ensured in
the periphery so as to create a pleasant listening environment with no sense of
pressure or unnaturalness. Specifications: SR-303 (Classic) Headphone ●Type
Push-pull electrostatic earspeaker ●Frequency Range 7-41,000Hz ●Capacitance,
including cable 120pF ●Sound Pressure Level 100dB/100V r.m.s. ●Cable / color 2.5
m, PC-OCC, low-capacitance cable / gray ●Earpad Highly permeable high-quality
synthetic leather ●Weight including cable 450g without cable 300g ●Channel
Identification: Displayed on the headband arc section; Left: Solid line on cable;
Right: Dotted line on cable. ●Operating temperature and humidity Between 0º and
35ºC, max. 90% (no condensation) Specifications are subject to change without
notice. Specifications: SRM-323II Driver unit ●Frequency response: DC- 60 kHz
(SR-303, when using one unit) ●Rated input level: 200 mV with 100V output
●Maximum input level 30 V r.m.s. with volume at minimum setting ●Amplification:
54 dB (x500) ●Total harmonic distortion max. 0.01% (1 kHz / during 100 V r.m.s.
output) ●Input impedance 50 kΩ (RCA) ●Maximum output voltage: 400 V r.m.s. / 1
kHz ●Standard bias voltage DC580 V (PRO bias) ●Power voltage AC120V-240V ± 10%,
50 to 60 Hz. (Adjusted for your area) ●Power consumption 29 W ●Temperature range
for use Between 0º and 35ºC, max. 90% (no condensation) ●External dimensions 150
(W) × 100 (H) × 360 (D) mm (including knobs and terminals) ●Weight 2.9 Kg
Specifications and external appearance may be changed without notice in order to
improve performance. ensions 132 (W) × 38 (H) ×
132 (D) mm (without Knob, Pin jack) ●Weight 540g Specifications and
external appearance may be changed without notice in order to improve
performance
STAX
SR-727SII
€.5.990,00 Per prezzo
scontato TELEFONA / E-MAIL
Sistema composto dalla cuffia
SR-007MK2 e dall’amplificatore a stato solido modello SRM-727II. Cuffia di tipo
aperta, elettrostatica, Push-pull, Risposta in frequenza: 6 Hz-41 kHz,
Impedenza: 170 kohm, Sensibilità: 100 dB/100 V rms, Voltaggio Bias: 580V/DC,
Cavo: 2.5 mt. in PC-OCC a bassa capacità

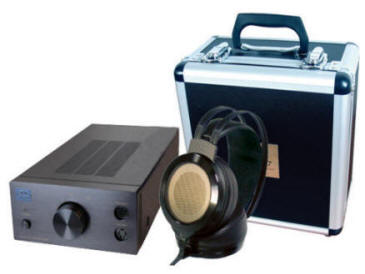

The

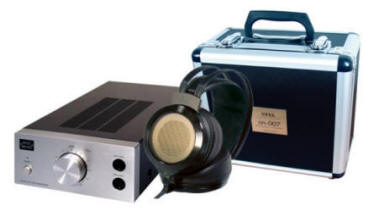

Stax SR-727 II Omega System consists of a set of Stax SR-007 Omega Reference
Earspeakers and an SRM-727 II Energiser. Includes carrying case for
Earspeakers.The SRM-727 II Energiser is a solid-state design with three inputs,
and is available with silver or black faceplate. Please select finish when
ordering below. The reference valve combination for the phenomenal sound of
Stax.
STAX
SR-007SII
€.5.990,00 Per prezzo
scontato TELEFONA / E-MAIL
Sistema Composto dalla cuffia
SR-007MK2 e dall’amplificatore con tecnologia a valvole modello SRM-007tll -
Cuffia di tipo aperta, elettrostatica, Pushpull, Risposta in frequenza: 6 Hz-41
kHz, Impedenza: 170 kohm, Sensibilità: 100 dB/100 V rms, Cavo: 2.5 mt. in PC-OCC
a bassa capacità.
SR-007
II Specifications: Type: Push-Pull Electrostatic Earspeaker Frequency Response:
6 - 41,000Hz Impedance: 170k Ohms (10kHz) Sensitivity: 100dB / 100V r.m.s. 1 kHz
Bias Voltage: 580V DC Left & Right Channel Identification: Left (L) and Right
(R) indicators are provided at the cable entrance points on the Earspeakers.
Left channel cable is marked with a solid Line. Right channel is marked with a
dotted Line. Ear Pads: Crafted from high quality artificial leather for
durability and comfort. Cable: Low capacity wide format, PC-OCC (Pure Crystal
Ohno Continuous Casting) 2.5m/8.2ft Ambient Temperature & Humidity: 0 to 35ºC /
90% max. without condensation Weight: 12.9oz without cable / 1.1lbs with cables
Recommended Driver: STAX SRM-727 2 years Parts and Labor Warranty. Headphone Amp:
Class A, Non-Feedback (Non-NFB) The SRM-727II features non-feedback (NON-NFB)
output stage for the first time ever in STAX drivers. Large current emitter
follower Class A amplification circuit. This makes it possible to achieve a much
more vivid and dynamic sound quality with frequency response raised to 115kHz. (from
100kHz) New Design A newly designed front panel with rounded corners in brushed
finish. Available in Silver or Black Pure Balanced System The electrostatic
method is a playback method which involves the installation of drive electrodes
on either side of a high-polymer film diaphragm with a thickness of only a few
microns into each of which a plus signal and a minus signal are fed. This means
that XLR connection with a pure balance output CD player makes it possible to
listen to the original sound permitted by the balance system without a
conversion circuit. High Quality Parts, High Quality Sound Careful selection of
parts with high consideration on sound quality, performance, and the environment.
Low noise FET is used at the input stage with a simple two-stage amplifying
circuit. A natural and pure sound quality with high information quantity. Bypass
Connection SRM-727II provides a bypass mode that enables "direct" connection to
preamplifiers, passive volume controls or integrated amplifiers and receivers
with Pre-out. A direct switch that avoids duplication of volume control.
SRM-727II Specifications: Type: All-stage semiconductors Low noise dual FET
input NON-NFB Class A operation, Pure balance DC amplifier configuration
Earspeaker driver unit Frequency Response: DC to 115,000Hz w/ either SR-007 or
SR-404 High Frequency Distortion: Max. 0.01% (with 100 to 10kHz, 100V r.m.s.
output) Gain: 54dB (x500) Input Terminal: RCA or XLR with 1 RCA parallel out
Rated Input Level: 200mV (with 100V output) Input Impedance: 50Kohm (RCA),
50kohm x2(XLR)Max. Output Voltage: 450V r.m.s. (1kHz) Consumption: 46W Ambient
Temperature & Humidity: 0 to 35ºC / 90% max. without condensation External
Dimensions: 7.7 (W) x 4.1 (H) x 16.5 (D) in Weight: 11.5lbs Black Earpads and
cord to match SRM-007T II with Black Faceplate Color: Black XLR terminal
polarity: No. 1: Sealed; No. 2: Hot; No. 3: Cold 2 years Parts and Labor
Warranty.
DRIVER
STAX
SRM-252 s
€.690,00 Per prezzo
scontato TELEFONA / E-MAIL
SRM-252 S Amplificatore a
stato solido, Risposta in frequenza DC- 35 kHz+0, -3 dB Gain 58 dB, THS 0,01% -
Livello nominale : 125 Mv (100VR.m.s. output) Max voltaggio d’uscita :
280Vr.M.S. (1 kHz) – Impedenza d’ingresso 50 kohm Voltaggio standard bias : 580
V Dimensioni : 132x38x132mm (lxhxp) – Peso 540 gr. – Colore Nero
STAX
SRM-323 II
€.1.400,00 Per prezzo
scontato TELEFONA / E-MAIL
SRM-323 S Amplificatore a
stato solido, Risposta in frequenza DC-60 kHz + 0, -3 dB Gain 60 dB, THD 0,01% -
Livello nominale : 100 Mv (100Vr.m.s. output) Max voltaggio d’uscita : 400
Vr.m.s. (1kHz) – Impedenza d’ingresso 50 kohm Voltaggio standard bias : DC 580 V
x 2 – Dimensioni : 150x100x360mm. (lxhxp) – Peso 3,9 Kg. – Colore Silver
The
Stax SRM-323 II Energiser is Stax's mid-range amplifier for use with its range
of electrostatic Earspeakers. It is a direct-coupled solid-state class A design.
It can be used to power one or two sets of Earspeakers.Available with silver or
black faceplate. Please select finish when ordering below The SRM-323 II is also
available as part of the SRS-3050 Classic System II.Please note: like all Stax
Energisers, the SRM-323 II must be used with a Stax Earspeaker. It cannot be
used with standard headphones. Specifications Frequency response DC - 60
kHz (40 V rms output) Rated input level 200 mV with 100 V output Max input level
30 V rms with volume at minimum setting Gain 54 dB THD max 0.01% (1
kHz/100 V rms output) Input impedance 50 kOhms Max output voltage
400 V rms/1 kHz Dimensions (mm) 150W x 100H x 360D, including knobs and
terminals) Weight 2.9 kg
STAX
SRM-006 ts
€.2.200,00 Per prezzo
scontato TELEFONA / E-MAIL
SRM -006t S Amplificatore a valvole,
configurazione in DC, pure bilance. Risposta in frequenza DC – 80 kHz + 0,
-3 dB – Gain 60dB, THD 0,01% Livello nominale : 100Mv (100Vr.m.s. output) –
Riscontro di massimo livello: 30V (a livello minimo di volume) – Max voltaggio
d’uscita 300Vr.m.s. (1kHz) Impedenza d’ingresso : 50 kohm – Voltaggio standard
bias DC 580 V x2 Valvole 6FQ7/6CG7 – Dimensioni 195x103x380mm (lxhxp) –Peso
Kg.3,4 Colore Silver
The
Stax SRM-006T Energiser is a valve amplifier for use with the Stax range of
electrostatic Earspeakers. It features two 6FQ7/6CG7 dual-triode valves, three
inputs (one XLR and two RCAs), and can be used to power one or two sets of
Earspeakers.Available with silver or black faceplate. Please select finish when
ordering below.The SRM-006T II is also available as part of the SRS-4040 II
Signature System II.Please note: like all Stax Energisers, the SRM-006T II must
be used with a Stax Earspeaker. It cannot be used with standard
headphones.Specifications Frequency response DC - 80 kHz / +0, -3 dB Rated
input level 200 mV with 100 V output Max input level 30 V rms with volume at
minimum setting Gain 54 dB THD max 0.02% (1 kHz/100 V rms output) Input
impedance 50 kOhms Max output voltage 300 V rms/1 kHz Dimensions
(mm) 195W x 103H x 375D, including knobs and terminals) Weight 3.4 kg
STAX
SRM-600 L
€.2.400,00 Per prezzo
scontato TELEFONA / E-MAIL
High-power
dual triode "ECC99"All-new driver unit with "ECC99" high-power dual triode on
board - designed for best dynamism and vividness of sound. An all-new driver
unit has been launched to enjoy STAX ear speakers with the best sound. The
excellent performance of the unit opens up a new dimension of music reproduction
full of emotion. The output stage of the unit has adopted a high-power dual
triode "ECC99" from Slovakia JJ Electronic that draws a lot of attention through
its high-grade vacuum tube technology and manufacturing. The overwhelming
dynamism and freshness of its dazzlingly vivid sound enhance further the
attraction of ear speaker listening pleasure.The newest hybrid type driver unit
with FET input and dual triode output, adopting pure class-A balanced
amplification circuit. Output stage employing "ECC99" high-power dual triode.
The vacuum tube from JJ Electronic, one of the best and most-advanced devices
available today, is manufactured with the assembly accuracy of ±0.02mm or less
and up to 5,000 hours of lifetime test. Especially, the "ECC99" is a high-power
dual triode developed for the driver stage of a power amplifier as well as for
the output stage of a preamplifier, and in this new driver unit the tube is used
for the output stage featuring a pure class-A, balanced amplification circuit.
Taking advantage of a dual triode enclosing two triodes inside, the HOT and COLD
signals can be amplified and output through each triode. With its high linearity
and ample power bandwidth, the unit faithfully reproduces music signals that
change dynamically.Input stage with pair-matched low noise FET Low-noise,
high-impedance discrete FETs have been employed for the input stage. While the
devices are strictly selected by STAX original way so that the HOT and COLD
parts of balanced signals are amplified in a mirror image, they are used in a
pair-matched hybrid configuration also taking the heat balance into
consideration. This enables the XLR balanced input to perform a purely balanced
transmission and amplification straight from input to output. Moreover, also the
RCA input keeps its sound purity in such ways that the GND side is simply
connected to the COLD side without using an inverting amplifier, and a
high-quality audio-grade relay serves as the three-line input selector.Power
supply with large-sized power transformer and low ripple circuit.The power
supply section supporting the pure balanced transmission/amplification circuit
has adopted a large-sized power transformer with the biggest capacity among STAX
driver units to secure an adequately wide dynamic range as well as the stable
operation even when mains voltage fluctuates.Simultaneously, low-noise, low-loss
shot key barrier diodes as well as capacitors with large capacitance are
incorporated in the rectification circuit to drastically eliminate ripples
distorting sound. Moreover, the heater power supply circuit for the "ECC99"
high-power dual triode features a right-and-left channel independent
construction to greatly improves both the S/N ratio and the channel
separation.Strictly selected components such as high sound-quality 4-gang volume
controller.The high sound quality 4-gang volume controller with double-axis
structure ideally adjusts the input level of HOT and COLD signal on both right
and left channels. Furthermore, non-magnetic audio-grade carbon film resistors
are used for the load resistance. In addition, while looking over the circuit
constant again, the unit is further brushed up in details employing, for example,
a sophisticated black aluminum front panel with hairline finish.3 pairs of input
terminals - one for XLR and two for RCA One stereo XLR input is equipped to
connect directly to the XLR balanced output of a high-class CD/SACD player. Also,
two pairs of RCA inputs enable the unit to switch between connected source
equipments. Besides, one of the two RCA inputs has a bypassing output that, for
example, can be connected to your integrated amplifier for flexible
system-up.Specifications•Vacuum tube: ECC 99 × 2•Frequency response: DC - 84kHz
+0, -3dB•Rated input level: 200mV (at 100V output)•Gain: 54dB (× 500)•Harmonic
distortion: 0.01% or less (at 100Vrms/1kHz output)•Input impedance: 50kΩ (RCA
input), 100kΩ (XLR input)•Input terminal: two RCA (one with bypassing output),
one XLR connector•Maximum output voltage: 340Vrms (1kHz)•Bias voltage: DC580V ×
2 (PRO bias)•Mains voltage: AC117V, 220V, 230V, 240V, 50/60Hz (Adjusted for your
area depending on your countries included)•Power consumption: 52W•Operating
temperature: 0 to 35 degrees C•Operating humidity: 90% or less (on condition of
no dew condensation)Dimension: 195 (W) ×103 (H) ×380 (D)mm (maximum protruding
portion included)•Weight: 4.6kg•XLR terminal polarity: 1 - GND, 2 - HOT, 3 -
COLD (European system)* Specifications and appearance are subject to change
without notice for improvement.
STAX
SRM-727SII
€.3.100,00 Per prezzo
scontato TELEFONA / E-MAIL
Amplificatore a stato solido
in Classe A, Pure balance, configurazione in DC, Risp. in frequenza: DC-115 kHz,
livello d’ingresso: 200 mV, Gain: 54 dB, THD: 0.01%, Imp. d’ingresso: 50 kohm/XLR
balance 50 kohm x2, Ingressi: 1x RCA, 1x XLR (bilanciato), Max. voltaggio
d’uscita: 450 V rms, Voltaggio Standard Bias: DC 580V, Dim.: 19.5x10.3x42 cm (LxHxP),
Peso: 5.2 kg.
The
Stax SRM-727 II Energiser is Stax's flagship solid-state amplifier for use with
its range of electrostatic Earspeakers. It is a direct-coupled FET class A
design. It can be used to power one or two sets of Earspeakers.Available with
silver or black faceplate. Please select finish when ordering belowThe SRM-727
II is also available as part of the SR-727 II Omega Reference System. Please
note: like all Stax Energisers, the SRM-727 II must be used with a Stax
Earspeaker. It cannot be used with standard headphones. Specifications
Frequency response DC - 115 kHz Rated input level 200 mV with 100 V output
Max input level 30 V rms with volume at minimum setting Gain 54 dB THD max
0.01% (1 kHz/100 V rms output) Input impedance 50 kOhms Max output
voltage 450 V rms/1 kHz Dimensions (mm) 195W x 103H x 420D, including
knobs and terminals) Weight 5.2 kg
STAX
SRM-007TII
€.3.600,00 Per prezzo
scontato TELEFONA / E-MAIL
Amplificatore a valvole, Pure
balance, configurazione in DC, Risposta in frequenza: DC-100 kHz, livello
d’ingresso: 200 mV, Gain: 54 dB, THD: 0.01%, Ingressi: 2x RCA, 1x XLR
(bilanciato), Valvole: 4x 6FQ7/6CG7, Inpedenza d’ingresso: 50 kohm/XLR bal. 50
kohm x2, Dimensioni: 19.5x10.3x42 cm (LxHxP), Peso: 4.7 kg
The
Stax SRM-007T II SE Energiser is a special edition (also known as the "Kimik"
version) of the SRM-007T II valve amplifier for use with the Stax range of
electrostatic Earspeakers.The SE version is equipped with selected old or new
stock 6FQ7 valves, all cryogenically treated, with pins plated with 24 carat
gold. Valves are fitted with EAT tube dampers. Bias and balance are adjusted
over a five-day period for optimum performance.Available with silver or black
faceplate. Please select finish when ordering belowThe SRM-007T II SE is also
available as part of the SR-007 II SE Omega Reference System II.Please note:
like all Stax Energisers, the SRM-007T II SE must be used with a Stax Earspeaker.
It cannot be used with standard headphones.Specifications Frequency response DC
- 100 kHz / +0, -1.5 dB Rated input level 200 mV with 100 V output Max input
level 30 V rms with volume at minimum setting Gain 54 dB THD max 0.01% (1
kHz/100 V rms output) Input impedance 50 kOhms Max output voltage 340 V rms/1
kHz Dimensions (mm) 195W x 103H x 420D, including knobs and terminals)
Weight 4.7 kg
ACCESSORI
STAX
SRE-725
€. 140,00 Per prezzo
scontato TELEFONA / E-MAIL

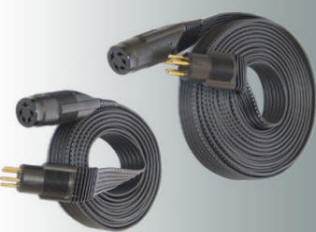

CAVO PROLUNGA 2.5 m
STAX
SRE-750
€.240,00 Per prezzo
scontato TELEFONA / E-MAIL
CAVO PROLUNGA 5 m
Legenda istruzioni
 Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
 Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
info@newaudio.it
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici |
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
