Technical Audio Devices Laboratories,Inc.(TADL)
grew from the sprit to discover technologies to perfectly recreate the pure
sound of life performances with uncompromising craftsmanship. We have inherited
our philosophy from Bart Locanthi ‐recognized across the globe as the ultimate
sound technologist‐who believed that genuine technology is true to the basic and
that genuine technology places greater importance on sound quality than on
technology for its own sake. At TADL,we are honing our technology to create
equipment that reproduces musical sounds that evoke both the energy and impact
of life music.
DIFFUSORI
.gif)

TAD
CE1
€. 10.600,00
Per ordine e promozioni
Telefona/ E-mail
3 vie, bass reflex
da piedistallo Woofer 18cm, 1 midrange/tweeter coassiale 14cm/3,5cm
Risposta in frequenza 34Hz a 100kHz Sensibilità 85dB, impedenza nominale 4 Ohm
Peso 30 kg cadauna Dimensioni: 29(L)x44,6(P)x52,4(H) cm Diffusore TAD-CE1
argento su nero, Colori :Diffusore TAD-CE1 antracite su nero,Diffusore
TAD-CE1 antracite su bianco,Diffusore TAD-CE1 argento su bianco
Optional TAD-ST2-K Piedistalli per
diffusori TAD-CE1 -TAD-ST2-K Piedistalli per diffusori TAD-CE1 - Finitura nero
Finitura bianco 1.060,00 euro Peso: 16 kg cadauno
Dimensioni: 40(L)x51(P)x58,1(H) cm
The cornerstones of its outstanding physical
properties are its combination of birch plywood braces, MDF panels and
Bi-Directional ADS Port featuring 10mm-thick hard anodized aluminum side panels
that provide superior strength and vibration dampening. Additionally,
optimization of the enclosure size and port layout have eliminated standing
waves up to 250Hz.The midrange and tweeter are configured concentrically to
match their directional characteristics and eliminate disruption of the sound,
and the tweeter diaphragm is elaborately designed and built from lightweight,
high rigidity beryllium. With excellent stability, it delivers outstanding sound
localization and a natural sound field over a truly wide bandwidth from 250Hz to
100kHz. The shell-shaped diaphragm integrates the center cap and cone into a
single piece. Coupled to the voice coil via a molded cradle that fully conveys
the powerful driving force of the large neodymium magnet, and combined with the
turbulence suppressing aerodynamic design of the rear side, this woofer delivers
rich and clear bass and vibrant lower midrange. It takes full
advantage of the characteristics of the CST Driver and Bi-Directional ADS Port
in the absolute smallest layout area. The result is smooth, broad sound
diffusion that keeps diffraction to a minimum. With a high quality mirror finish
on tropical olive grain wood, paired with hard anodized aluminum side panels, it
exudes a uniquely individual presence; luxurious while still unprecedentedly
* MACS :Multi-Layered Aramid Composite Shell * CST: Coherent Source
Transducer Model No.
TAD-CE1-KS, TAD-CE1-KJ, TAD-CE1-WS, TAD-CE1-WJ Model 3-way bass
reflex bookshelf Digital audio output Woofer: 18cm cone Midrange/tweeter:
coaxial 14cm cone/3.5cm dome Performance data Frequency response:
34Hz to 100kHz Crossover frequencies: 250Hz, 2kHz Maximum input: 200W
Sensitivity: 85dB (2.83V, 1m) Nominal impedance: 4Ω Others Weight:
30kg (1 unit) Dimensions: 290mm (W) × 524mm (H) × 446mm (D)
Accessories short cable × 2, cleaning cloth, owner’s manual
.jpg)
.gif)
TAD
E1
€. 16.050,00
Per ordine e promozioni
Telefona/ E-mail

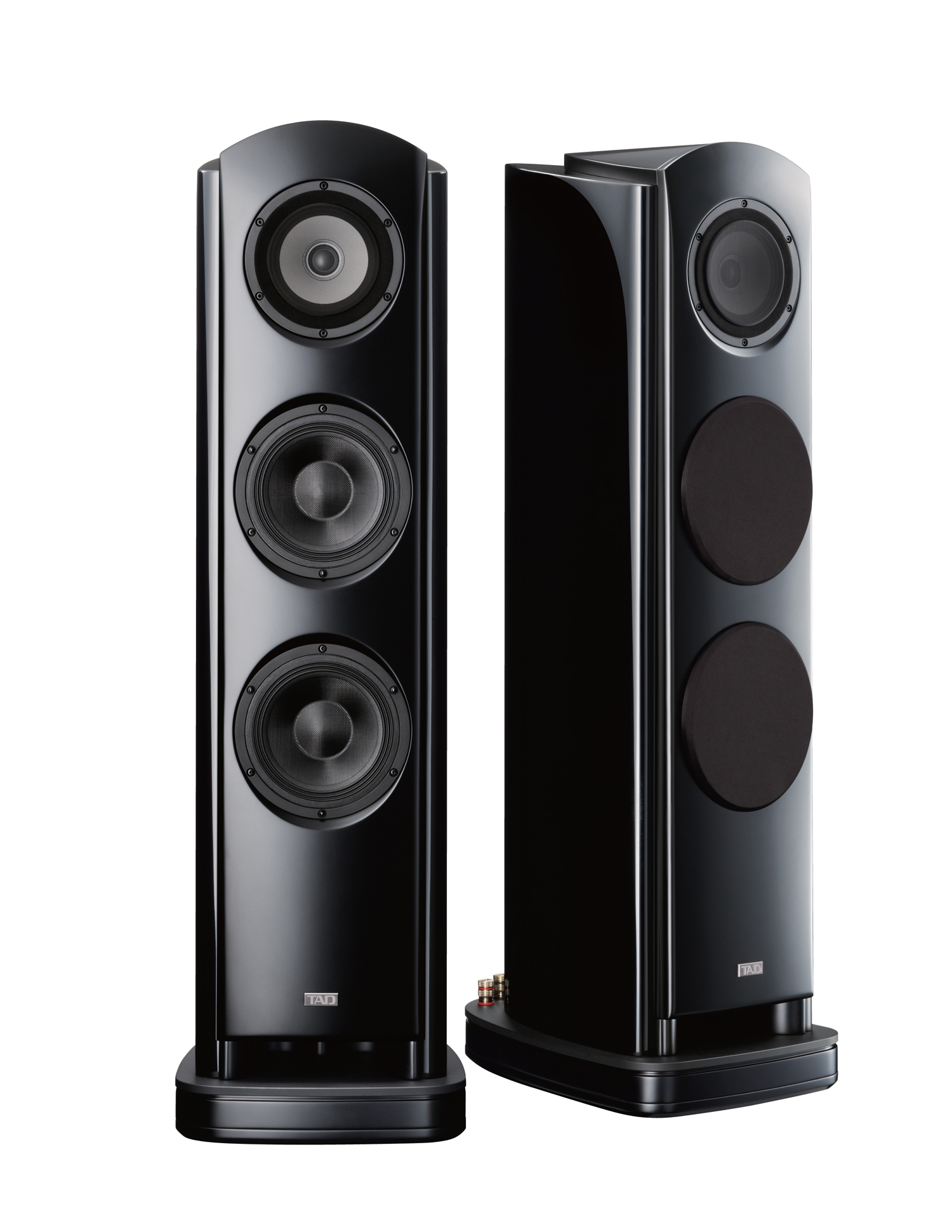

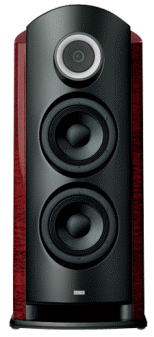

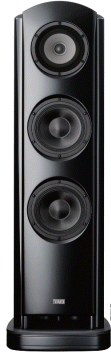

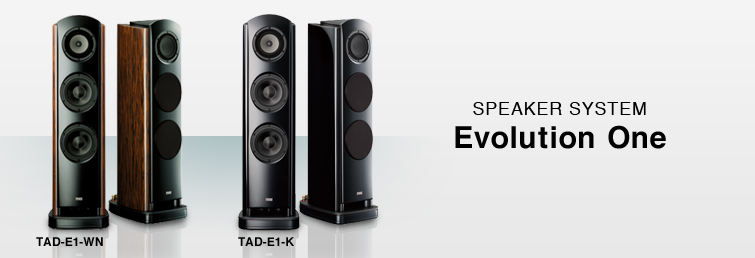

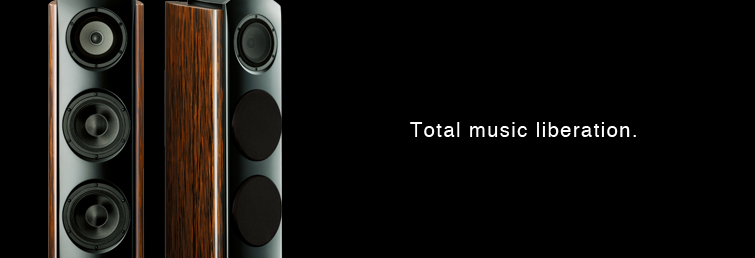

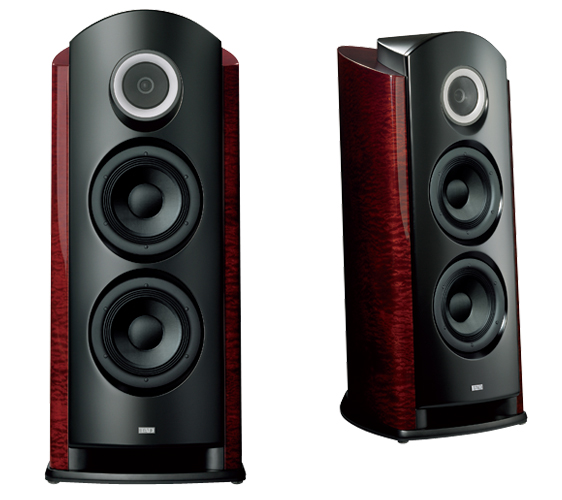

TAD-E1 Diffusore 3
vie, bass reflex Woofer 18cm x2, 1 midrange/tweeter coassiale Risposta in
frequenza 28Hz a 100kHz 14cm/3,5cm Sensibilità 88dB, impedenza
nominale 4 Ohm Peso: 54 kg cadauna Dimensioni: 33,4(L)x51,2(P)x116,6(H) cm
Evolution series - Finitura nero laccato,TAD-E1 Evolution series - Finitura
radica di noce
The
heart of the TAD Evolution One is the CST* Driver developed from that used in
the TAD Reference One — a driver that embodies the single point source concept.
The midrange and tweeter are configured coaxially so their directional
characteristics conform. The resultant directional response remains uniform
across a wide frequency, ensuring extremely stable sound localization and a
natural soundfield. * CCST: Coherent Source Transducer The tweeter
diaphragm is made of beryllium, the lightest and stiffest metal available for
speaker diaphragms. Formed by TAD’s unique deposition technique, it exhibits
high internal loss and smooth frequency response. Achieving an ideal diaphragm
shape based on computer analysis, it is capable of reproducing frequencies up to
100kHz. The midrange features an extremely lightweight magnesium diaphragm with
high internal loss. Both of these units reproduce sound with virtually no
distortion and none of the coloration characteristics of other materialsAs a
woofer requires a high degree of both stability and strength, TAD developed the
MACS* diaphragm, made by laminating many layers of Aramid fabric and non-woven
fabric for light weight and high stiffness. This shell-shaped diaphragm with
integrated center cap and cone is driven by a large diameter voice coil and
neodymium magnet, reproducing rich, clear bass with low coloration. The
aero-design chassis is designed to minimise any airflow noise and improve the
resolution of bass sounds The SILENT* enclosure features a framework of high
rigidity birch plywood combined with MDF for high internal loss, achieving an
enclosure that combines high strength with low resonance. The enclosures
teardrop shaped rear section further ereduces unwanted cabinet resonance as a
result of the improved stiffness of the curved panels. Two finishes: high gloss
black, or wood veneer with a closed-pore satin finish, enhance the beauty of the
curved cabinet design.TAD put a great deal of effort into the design of the
networks, to seamlessly intergrate the drive units into a cohesive whole. To
eliminate any effects from magnetism and vibration due to the CST and bass
drivers, the network filters are located outside of the cabinet. Installed
within the high rigidity aluminum base, these networks are isolated both
mechanically and acoustically from the influence of the main enclosure, ensuring

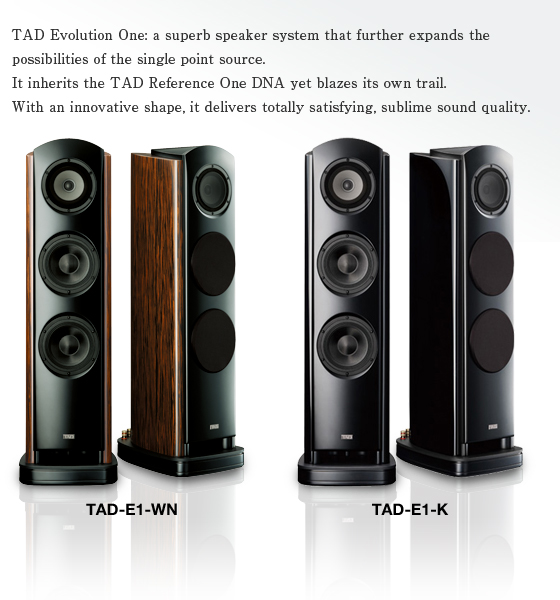

maximum resolution. TAD-E1-WN(Wood
Finish) TAD-E1-K(Piano Black Finish) Model 3-way bass reflex floor
loudspeaker Drive Units Woofer : 18cm cone x 2 Midrange/tweeter :
coaxial 14cm cone/3.5cm dome Performance data Frequency
response : 28Hz to 100kHz Crossover frequencies : 250Hz, 2Hz Required amplifier
output : 50W to 250W Sensitivity : 88dB (2.83V, 1m) Rated impedance : 4Ω
Others Weight : 54kg (1 unit) Dimensions : 334mm (W) x 1,166mm (H) x 512mm
(D) Accessories Accessory kit : Spike cone x 3, spike shoe x 3,
auxiliary legs (long) x 2, short cable (single wire short type) x 1,
short cable (single wire long type) x 1, cleaning cloth, owner’s manual,
warranty
.jpg)
.gif)
TAD
CR1
MKII
€. 24.300,00
Per ordine e promozioni
Telefona/ E-mail

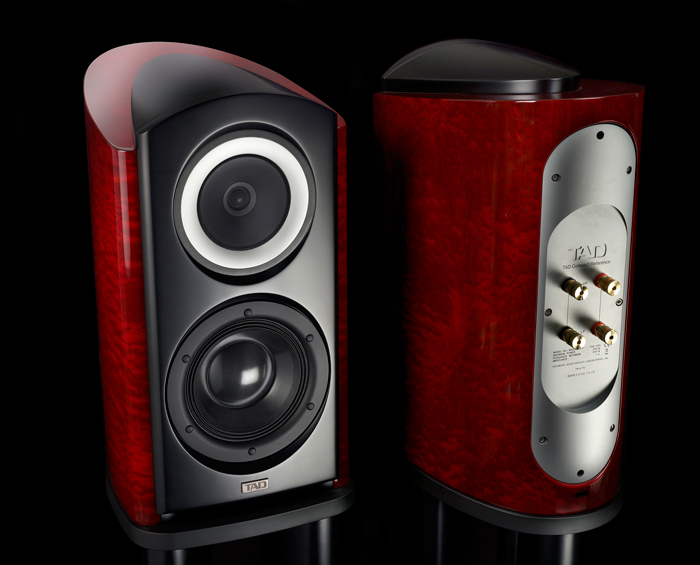

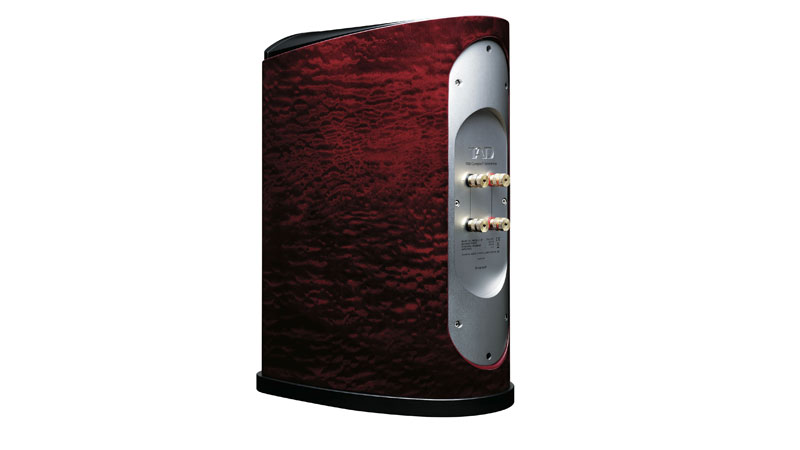

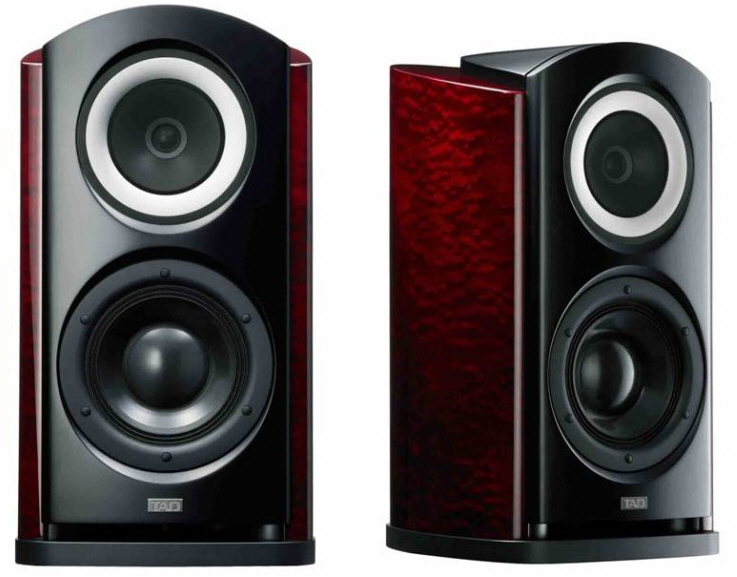

Diffusore (compact
speakers) 3 vie, bass reflex Woofer 20cm, 1 midrange/tweeter coassiale
16cm/3,5cm Risposta in frequenza 32Hz a 100kHz Sensibilità 86dB, impedenza
nominale 4 Ohm Peso: 46 kg cadauna Dimensioni: 34,1(L)x44,4(P)x62,8(H) cm
TAD-CR1 Mk2 Reference - Finitura radica di noce
Versione TAD-CR1 Mk2-K Reference - Finitura
nero 26.750,00 OPTIONAL

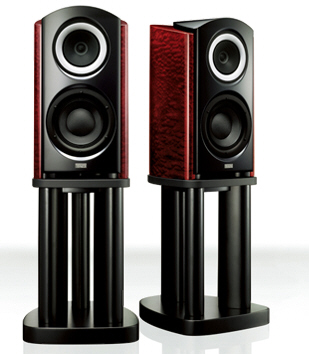

TAD-ST1 Piedistalli per diffusori Reference CR1 - Peso: 16 kg cadauno
Dimensioni: 40,7(L)x52,5(P)x53,2(H) cm Finitura nero 2.225,00 euro
The CST (Coherent Source Transducer)has enabled
us to achieve our goal forthe TAD Compact Reference: reproductionwith controlled
directivity over a widerange from a single point with uniformphaseﾓ. The design
of the midrange cone is based on detailed calculations, so not only does it have
superior acoustic characteristics, it also controls the directivity performance
of the tweeter due to the concentric configuration. This unifies the acoustic
center of the tweeter and midrange and reconciles the phase and directional
characteristics through the crossover range. The CST Driver is thus a large step
forward for coaxial speakers, enabling ultra wide range reproduction of 250Hz to
100kHz, accompanied by a directivity pattern which neatly dampens without
disruption across all bands. The result is extremely clear and stable imaging, a
wide frequency response and incredibly rich and natural sounding reproduction.
The tweeter dome and midrange cone are made of beryllium, the lightest and most
rigid of metals, which makes it a superior diaphragm material and one which
boasts a history of more than 30 years of TAD achievements. The diaphragm is
produced using a vapor deposition technique developed by TAD and refined over
many years. It provides strength and uniformity, combined with high internal
loss, for smooth superior performance. The tweeter diaphragm shape derived by
using an advanced optimization method based on HSDOM (Harmonized Synthetic
Diaphragm Optimum Method) computer analysis. It accurately controls differential
vibration produced by the diaphragm and moves it out of the audible band,
providing response to as high as 100kHz. The large midrange cone features a
direct radiation, vapor deposition beryllium diaphragm. The resulting sound is
astonishingly transparent, direct and precise across a wide frequency range
The SILENT (Structurally Inert Laminated Enclosure Technology) cabinet,
inherited from the TAD Reference One, is a compact 63cm (25 in.) in height. It
has a strong internal framework formed by 21mm (0.9 in.) thick CNC machined
birch plywood clad with high frequency hot press formed laminated MDF panels,
resulting in extremely high strength. The 27.5mm (1.1 in.) thick aluminum base
lowers the center of gravity and stabilizes the cabinet against the forces
generated by the powerful bass driver motor system. Combining differing
materials in this way both distributes and minimizes the enclosure resonances
and achieves high vibration control. Its flowing teardrop shape minimizes sound
diffraction and unwanted resonance from internal standing waves. With a
beautiful piano-like finish of natural Pommele Sapele wood, the cabinet imparts
an air of elegant craftsmanship. Isolated bass, midrange and treble
crossover networks eliminate electrical and magnetic interactions. Rear terminal
panel is made of 27mm (1 in.) thick aluminum to act as a heat sink for the
network. Custom-made parts include air-core coils, non-inductive resistors and
PP film capacitors. Large custom-machined speaker terminals have thick
gold plating to ensure reliable connections. All wiring is carefully routed away
from magnetic parts to prevent degradation of sound quality due to magnetic
distortion. Not only the speaker system itself, but also the drive units are
subject to strict quality control based on serial numbers. Three-way
bass reflex compact speaker Driver units Bass: 20cm (8.0 in.) driver
Midrange/Tweeter: concentric 16cm (6.5 in.) cone/3.5cm (1.4 in.) dome
Performance Data Frequency response: 32Hz to 100kHzCrossover frequencies:
250Hz and 2kHz Appropriate amplifier power: 50W to 200WSensitivity: 86dB (2.83V
@ 1m free space) Nominal impedance: 4Ω Physical Data Weight:
46kg (101 lbs.) Dimensions: 341mm (13.4 in.) (W) × 628mm (24.8 in.) (H) × 444mm
(17.5 in.) (D) Accessories Accessory kit: cleaning cloth, shorting
links × 2, cone spikes × 3, round spikes × 3, spike holders × 3, cork
sheets × 3, owners manual • Warranty • Woofer grille Unpacking
instructions (attached to outside of box
.jpg)
.gif)
TAD
R1MKII
€. 44.900,00
Per ordine e promozioni
Telefona/ E-mail
Diffusore 3 vie,
bass vented box Risposta in frequenza 21Hz a 100kHzDimensioni:
34,1(L)x44,4(P)x62,8(H) cmPeso: 46 kg cadaunaDimensioni: 40,7(L)x52,5(P)x53,2(H)
cmWoofer 20cm, 1 midrange/tweeter coassiale16cm/3,5cmPeso: 16 kg
cadaunoSensibilità 90dB, impedenza nominale 4 Ohm Peso: 150 kg cadaunaDimensioni:

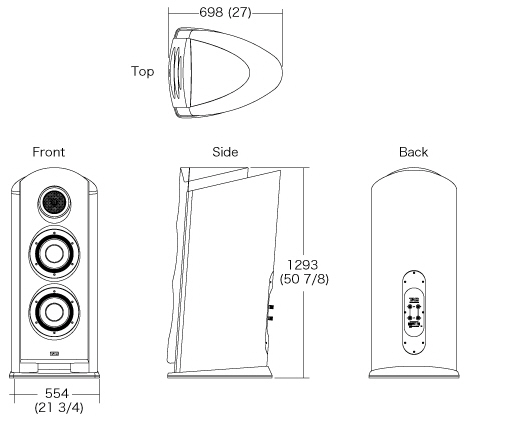

55,4(L)x69,8(P)x129,3(H) cm Risposta in frequenza 28Hz a 100kHz Woofer 25cm x2,
1 midrange/tweeter coassiale 16cm/3,5cm-TAD-R1 Mk2 Reference - Finitura radica
di noce Versione TAD-R1 Mk2-K Reference -
Finitura nero laccato 48.250,00
The tweeter dome and midrange cone are made
of beryllium, the lightest and most rigid of metals, which makes it a superior
diaphragm material and one which boasts a history of more than 30 years of TAD
achievements. The diaphragm is produced using a vapor deposition technique
developed by TAD and refined over many years. It provides strength and
uniformity, combined with high internal loss, for smooth superior performance.
The tweeter diaphragm shape derived by using an advanced optimization method
based on HSDOM (Harmonized Synthetic Diaphragm Optimum Method) computer analysis.
It accurately controls differential vibration produced by the diaphragm and
moves it out of the audible band, providing response to as high as 100kHz. The
large midrange cone features a direct radiation, vapor deposition beryllium
diaphragm. The resulting sound is astonishingly transparent, direct and precise
across a wide frequency range. The CST Driver is mounted into a high-stiffness
enclosure that is precisely shaped to minimize the diffraction of the radiated
sound. In order to maximise the capability of the CST driver, we developed new
ISO (isolation) technology. This involves including a mechanism to block
vibration from the driver unit entering the enclosure, thus structurally
separating the CST Driver from the enclosure. The CST Driver with its powerful
drive capability is prevented from exciting the enclosure, thus reducing the
radiation of secondary sound. It also limits the influence of the energy from
the powerful bass drivers. Delivering only sound radiated from the CST Driver
diaphragm improves resolution to convey accurate detail, allowing, for example,
the differences in tone color that vary subtly according to how the performers
play or sing to be heard with unmatched clarity.
Three-way bass reflex floorstanding speaker Drive Units LF : 25cm (10 in.) x 2
Midrange/Tweeter: concentric 16 cm (6 1/2 in.) MF / 3.5 cm (1 3/8 in.) HF
Performance Data Frequency response : 21 Hz to 100 kHz (-10 dB) Crossover
frequencies: 250 Hz and 2 kHz Unit polarity: LF (+), MF (+), HF (+) Amplifier
requirements: 50 W to 300 W Sensitivity: 90 dB (2.83 V/2.83 V @ 1 m free
space) Maximum sound pressure level : 115 dB Nominal impedance: 4 Ω (minimum 4.1
Ω) Physical Data Weight: 150 kg (330 lb) Dimensions: 554 mm (21 3/4”) (W) ×
1,293 mm (50 7/8”) (H) × 698 mm (27”) (D)
PREAMPLIFICATORI
.jpg)
.jpg)
TAD
C2000
€. 29.800,00
Per ordine e promozioni
Telefona/ E-mail

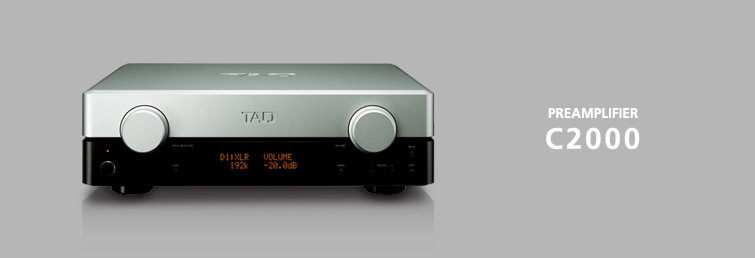

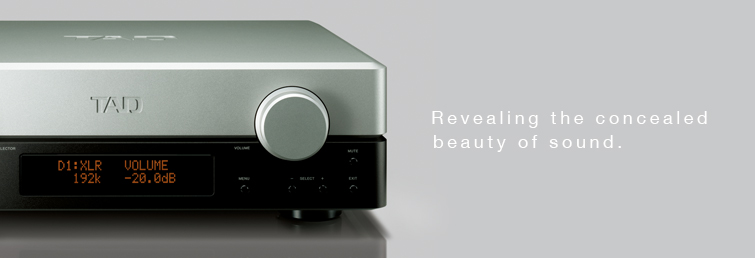

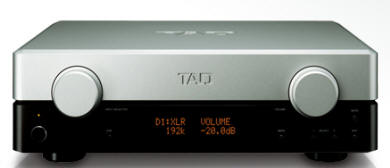

TAD-C2000 E series,
Preamplificatore Ingressi analogici: 2 bilanciati, 2 RCA Ingressi digitali: 1
bilanciato, 1 RCA, 1 USB Input sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz,
96 kHz, 176.4 kHz, 192 kHz Uscite analogiche: 2 bilanciate e 2 RCA Risposta in
frequenza 10Hz a 100kHz, -1dB Con telecomando Peso: 23,5 kg Dimensioni:
44(L)x39,3(P)x14(H) cm
The #1 goal of the TAD-C2000 is to
reproduce music faithfully, and superior components make this possible. Using
technology developed from the D600 disc player, a custom developed UPCG** quartz
oscillator provides a precise, stable and ultra-high C/N* clock signal,
thoroughly reducing phase noise and enabling sound reproduction with
unprecedented purity. * Carrier to Noise ratio ** Ultra High
Precision Crystal Generator In order to achieve the best sound quality from
music files transferred from a PC, TAD developed the Asynchronous USB Transfer
Engine. In contrast to the normal synchronous transfer method, the asynchronous
method adopted by the TAD-C2000 controls the data transfer on the receiving end
using a high quality clock, resulting in a high-precision PCM signal free from
clock jitter created in the PC or transfer stages. The ultra-high C/N master
clock UPCG equipped D/A converter converts it to precise, high-quality music
signals In order to achieve accurate signal transmission, the TAD-C2000
maintains a fully symmetrical design, right down to the circuit topology, the pc
board and the wiring. The analog circuitry is fully balanced from input to
output. These circuits utilize separate boards for left and right channels with
identical wiring lengths for each, achieving identical L/R circuit symmetry with
Dual Mono Construction In order to achieve accurate signal transmission,
the TAD-C2000 maintains a fully symmetrical design, right down to the circuit
topology, the pc board and the wiring. The analog circuitry is fully balanced
from input to output. These circuits utilize separate boards for left and right
channels with identical wiring lengths for each, achieving identical L/R circuit
symmetry with Dual Mono Construction In order to prevent vibration from
affecting sound quality, the chassis is machined from a solid piece of aluminum
to eliminate joints and to provide a stable, heavy and mechanically grounded
platform. The components are directly attached to further limit any chance of
noise-generating vibration. Even the feet, made of cast iron, are supported at
three points to the chassis for improved stability The TAD-C2000 is
truly a work of art in every aspect, from the textured silver and black aluminum
chassis right down to the high-precision ball bearings that give the aluminum
control knobs a responsive, yet delicate touch. The LCD screen features TAD’s
usual warm color and offers high visibility. With the TAD-C2000, both form and
function work in tandem to provide an experience that is just as pleasing to the
eyes as it is to the ears. Elegance ● The D/A converter uses Burr-Brown
PCM1794A chips in a twin differential configuration. ● The circuitry and
power supplies are completely isolated between digital and analog sections,
ensuring low noise. ● A 70µ copper foil PCB lowers losses from board
wiring, permitting accurate signal amplification. ● The power supply
utilizes a high capacity toroidal transformer for powerful yet responsive sound.
[Amplifier] Rated Output Voltage
1.5V (balanced), 0.75V (unbalanced) Maximum Output Voltage 16Vms (balanced)
8Vms (unbalanced) Rated THD 0.003% IHF S/N Ratio 120dB
Frequency Response 10Hz—100kHz, –1 dB Gain 12dB Analog Input
Jacks 2 Balanced, 2 Unbalanced Digital Input Jacks 1 Balanced, 1
Unbalanced USB (–B) Input Jack 1 Analog Output Jacks 2 Balanced, 2
Unbalanced Analog Maximum Allowable Input Voltage (–40dB) 20V (balanced),
10V (unbalanced) Compatible Sampling Frequencies 44.1kHz, 48kHz, 88.2kHz, 96kHz,
176.4kHz, 192kHz USB Operating Environment USB Jacks: USB 2.0 High-speed;
OS: Windows XP and later; Mac OS 10.5 and Later (44.1kHz, 48kHz, 88.2kHz, 96 kHz),
Windows 7/Windows Vista (compatible with a specialized driver), Mac OS
10.6 and later (44.1kHz, 48kHz, 88.2kHz, 96 kHz, 176.4 kHz, 192kHz) Power
Requirements AC 120 V, 60 Hz (USA), AC 220 V to 240 V, 50 Hz /60 Hz (Europe,
Asia) Power Consumption 37W Power Consumption During Standby
0.5W or less Dimensions 40mm (W) x 140mm (H) x 393mm (D)[17-5/16 in.
(W) x 5-1/2 in. (H) x 15-1/2 in. (D)] Weight 3.5kg (51.8 lb
.jpg)
.gif)
TAD
C600
€. 38.480,00
Per ordine e promozioni
Telefona/ E-mail

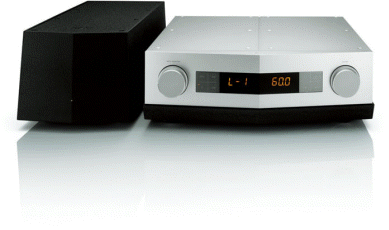

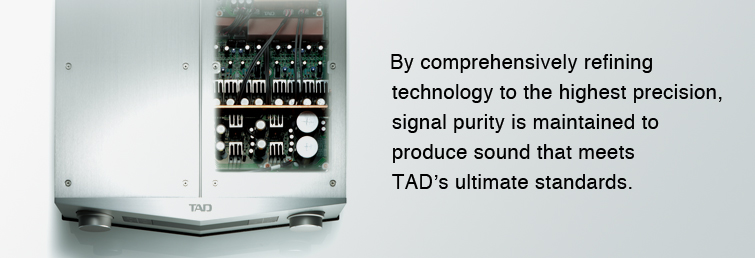

TAD-C600 Reference,
Preamplificatore Ingressi analogici: 3 bilanciati, 3 RCA Uscite analogiche: 2
bilanciate, 2 RCA Recording: 1 bilanciato, 1 RCA Risposta in frequenza 10Hz a
100kHz, -1dB Con telecomando Peso: 29 kg unità principale, 15 kg unità di
alimentazione Dimensioni: 45(L)x44(P)x15(H) cm unità principale
22(L)x43(P)x18,5(H) cm unità di alimentazione

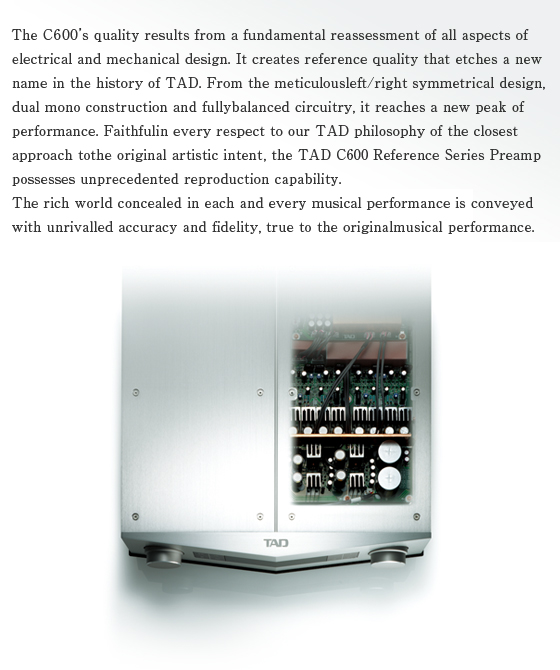

33mm
thick and weighing 15kg, the sub-chassis is fabricated by precision processing
of pure aluminum ingots, achieving a high level of vibration control that
drastically minimizes the impact of vibration from speakers or other sources, as
well providing a stable mechanical ground. All the additional chassis parts are
machined to the same high accuracy as the sub-chassis, serving to reduce the
impact of vibration and external noise and contributing to the reproduction of
music with ultra high purity and faithfulness to the input signal. The
spike-shaped three-point support feet ensure mechanical stability on any support
surface. These comprehensive measures combine to free the C600 from undue
external influences and allow it to achieve its full potential. In order
to eliminate any influence from the power supply to the amplification circuit
and signal routing, the C600 uses a dual enclosure configuration that separates
the amplifier from the power supply. This minimizes the effects of noise caused
by vibration or magnetic flux leakage from the power supply transformer. A power
amplifier- grade 400VA rated toroidal transformer provides a degree of precision
that allows accurate signal transmission even during large signal levels and
fast signal fluctuations. Together with a fully balanced circuit design that
eliminates unnecessary noise currents, the result is the ultimate in low noise
performance. A dual enclosure design that separates the pre-amp and power supply
units is just one of many features that reduces noise to ensure utmost signal
clarity. The controls, LED display and illumination operate via a circuit
method based on direct current, minimizing their impact on sound quality. The
control circuit wiring and power supply are housed inside a shield that
centrally divides the enclosure. This prevents interference with the circuit
boards and further improves left/right signal separation TAD’s new
ladder-resistance switching electronic volume control circuit achieves an
absolute channel level difference of 0.1dB or less even at attenuations of more
than 100dB. The distortion produced by the circuit is only 0.0005% (@1Vrms
input). The impedance seen at the input and output terminals is independent of
volume setting, minimizing interaction with the signal circuitry and maximizing
fidelity of the sound. The use of fully independent left and right electronic
volume control circuits ensures accurate auditory lateralization and sound field
reconstruction. The input selector switch and volume control shaft bearing
incorporates a precision ball bearing with a diameter of 41mm. These features
provide the highly precise operating feel that you expect from TAD Based on the
TAD concept that “a signal route exemplified by the absolute minimum of
functions results in the most accurate and high quality sound,” the C600 has an
extremely simple circuit configuration. Following input signal volume adjustment
by the electronic volume control, the circuit configuration utilizes only one
voltage amplification stage. Equipping each of the two line outputs with their
own dedicated amplifier circuits eliminates the output circuit signal branching
as well as interference from connected equipment that can cause sound quality
deterioration. In order to transmit music signals as simply and accurately as
possible, the monitor switch has been eliminated due to its potential effect on
sound quality. Furthermore, the audio pass-through function sets the gain to
unity, without introducing additional switching circuitry, to maintain maximum
signal purity Major Functions
Mute Display Off Mode setting : fine volume adjustment, volume display
mode switching, L/R balance adjustment, input level setting, auto power
down setting Input terminals balanced input × 3, unbalanced input ×
3 Output terminals line : balanced output × 2, unbalanced output × 2
recording : balanced output × 1, unbalanced output × 1 Rated output
voltage balanced output 1.5 V, unbalanced output 0.75 V Maximum
output voltage balanced output 20 Vrms, unbalanced output 10 Vrms
Rated distortion 0.0015% (balanced output, 1.6V, 1kHz) SN ratio 120
dB (IHF-A, short circuit) Frequency response 10 Hz～100 kHz（‒1 dB） Gain 12
dB Max.allowable input voltage (Vol. -40 dB): 20 V (balanced), 10 V (unbalanced)
Power supply voltage AC 120 V, 60 Hz (USA) AC 220 V to 240 V, 50 Hz /60 Hz
(Europe, Asia) Power consumption 52 W Standby time power
consumption 0.5 W or less Exterior dimensions: main amplifier
: 450 mm (W) × 150 mm (H) × 440 mm (D) Power supply : 220mm (W) × 185 mm (H) ×
430 mm (D) Weight main amplifier : 29 kg power supply unit : 15 kg
FINALI
.jpg)
.gif)
TAD
M2500
€. 26.780,00
Per ordine e promozioni
Telefona/ E-mail
TAD-M2500 E series,
Amplificatore di potenza 2 canali Potenza: 500W / 4 Ohm, 250W / 8 Ohm
Sensibilità ingressi/impedenza nominale: 1.5V / 220 Ohm (bilanciato), 0.75V / 47
Ohm (RCA) Risposta in frequenza 5Hz a 50kHz, -3dB Peso: 43 kg Dimensioni:
44(L)x46,7(P)x17(H) cm
In order to provide precise speaker drive to the
utmost limits, TAD strives for symmetry in both circuitry and structure, with
the goal of achieving perfect balance. By completely separating left and right
channels from input to output, along with power supplies and transformers that
are separated between both left and right channels and positive and negative
rails, complete symmetry is maintained. Utilizing a bridged transformer-less
design with two amps in a balanced configuration, the TAD-M4300 and TAD-M2500
deliver high output power of 300W/4ch and 500W/2ch respectively. Balance
To provide an overwhelming feeling of speed and energy, the analog power supply
is equipped with a high capacity toroidal power transformer and electrolytic
capacitors. Combined with a Class D output stage, the result is high purity
amplification with superior high speed response. For optimum sound, TAD adopted
very low on-resistance power MOSFETs with no lead wires. Maintaining low heat
generation thanks to the high efficiency of Class D, the amps achieve high power
without heat sinks In order to control vibration that affects the sound,
the chassis is machined from a 90kg block of aluminum, effectively eliminating
all joints other than connections. This helps stabilize the ground potential,
further improving sound purity. It also provides both high stiffness and high
internal loss, achieving improved sound quality. A three-point cast-iron
insulator dampens any vibration transmitted through from the feet The
sound quality of a Class D output stage is greatly influenced by the power
source. The M4300 and M2500 are equipped with large toroidal power transformers
that utilize high quality grain-oriented steel for superior magnetic saturation
characteristics even during high power output. Low energy conversion loss due to
the strong coupling between the primary and secondary winding of the toroidal
power transformer, low load fluctuation properties based on parallel winding,
along with our proprietary 33,000μF electrolytic capacitors results in an analog
power supply with high drive capacity even under abrupt load fluctuations and
high speed responsiveness even under abrupt load fluctuations The precisely
machined chassis is formed from a solid block of aluminum. The twin tones of
silver and black for the divided upper and lower halves produces a striking
appearance.The elegant clean design, extending to every detail, such as the
elimination of visible front panel screws, ensures that either amplifier will
harmonize beautifully with any room.
[Amplifier] Power Output 500 W / 4Ω, 250 W/ 8Ω(2 channels simultaneously
driven, 20 Hz to 20 kHz, T.H.D., 1.0 %) Rated Distortion Less than
0.05 % (20 Hz to 20 kHz, 250 W, 4Ω) Signal-to-Noise Ratio (IHF, short
circuited, A network) 112 dB or higher Frequency Response 5 Hz
to 50 kHz, -3 dB Gain (Balance) 29.5 dB Input Terminal (Sensitivity/
Impedance) 1.5 V/220 kΩ(Balance) 0.75 V/47 kΩ(Unbalance) [Power]
Power Requirements AC 120 V, 60 Hz (USA), AC 220 V to 230 V, 50 Hz /60 Hz
(Europe), vAC 220 V to 230 V, 50 Hz (Asia) Power Consumption
250 W Standby Power Consumption Less than 0.5 W Dimensions
440 mm (W) x 170 mm
TAD
M4300
€. 29.800,00
Per ordine e promozioni
Telefona/ E-mail

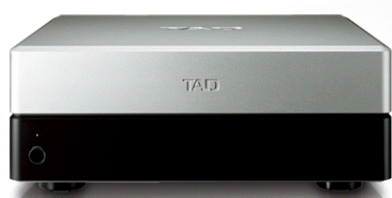

TAD-M4300 E series,
Amplificatore di potenza 4 canali Potenza: 300W / 4 Ohm, 150W / 8 Ohm
Sensibilità ingressi/impedenza nominale: 1.16V / 220 Ohm (bilanciato), 0.58V /
47 Ohm (RCA) Risposta in frequenza 5Hz a 50kHz, -3dBPeso: 43 kg Dimensioni:
44(L)x46,7(P)x17(H) cm
In order to provide precise speaker drive to the
utmost limits, TAD strives for symmetry in both circuitry and structure, with
the goal of achieving perfect balance. By completely separating left and right
channels from input to output, along with power supplies and transformers that
are separated between both left and right channels and positive and negative
rails, complete symmetry is maintained. Utilizing a bridged transformer-less
design with two amps in a balanced configuration, the TAD-M4300 and TAD-M2500
deliver high output power of 300W/4ch and 500W/2ch respectively. Balance
To provide an overwhelming feeling of speed and energy, the analog power supply
is equipped with a high capacity toroidal power transformer and electrolytic
capacitors. Combined with a Class D output stage, the result is high purity
amplification with superior high speed response. For optimum sound, TAD adopted
very low on-resistance power MOSFETs with no lead wires. Maintaining low heat
generation thanks to the high efficiency of Class D, the amps achieve high power
without heat sinks In order to control vibration that affects the sound,
the chassis is machined from a 90kg block of aluminum, effectively eliminating
all joints other than connections. This helps stabilize the ground potential,
further improving sound purity. It also provides both high stiffness and high
internal loss, achieving improved sound quality. A three-point cast-iron
insulator dampens any vibration transmitted through from the feet The
sound quality of a Class D output stage is greatly influenced by the power
source. The M4300 and M2500 are equipped with large toroidal power transformers
that utilize high quality grain-oriented steel for superior magnetic saturation
characteristics even during high power output. Low energy conversion loss due to
the strong coupling between the primary and secondary winding of the toroidal
power transformer, low load fluctuation properties based on parallel winding,
along with our proprietary 33,000μF electrolytic capacitors results in an analog
power supply with high drive capacity even under abrupt load fluctuations and
high speed responsiveness even under abrupt load fluctuations The precisely
machined chassis is formed from a solid block of aluminum. The twin tones of
silver and black for the divided upper and lower halves produces a striking
appearance.The elegant clean design, extending to every detail, such as the
elimination of visible front panel screws, ensures that either amplifier will
harmonize beautifully with any room.
[Amplifier] Power Output 300 W / 4Ω, 150 W/ 8Ω(4 channels
simultaneously driven, 20 Hz to 20 kHz, T.H.D., 1.0 %) Rated Distortion
Less than 0.05 % (20 Hz to 20 kHz, 150 W, 4Ω) Signal-to-Noise Ratio (IHF,
short circuited, A network) 112 dB or higher Frequency Response 5 Hz
to 50 kHz, -3 dB Gain (Balance) 29.5 dB Input Terminal (Sensitivity/
Impedance) 1.16 V/220 kΩ(Balance), 0.58 V/47 kΩ(Unbalance) [Power]
Power Requirements AC 120 V, 60 Hz (USA), AC 220 V to 230 V, 50 Hz /60 Hz
(Europe), AC 220 V to 230 V, 50 Hz (Asia) Power Consumption
300 W Standby Power Consumption Less than 0.5 W Dimensions
440 mm (W) x 170 mm (H) x 467 mm (D) (17-5/16 in. (W) x 6-5/8 in. (H) x 18-3/8
in. (D)) Weight 43 kg (94.8 lb)
.jpg)
.gif)
TAD
M600
€. 74.900,00
Per ordine e promozioni
Telefona/ E-mail

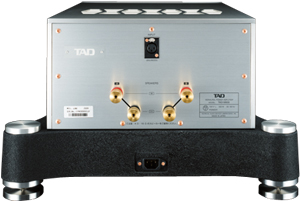

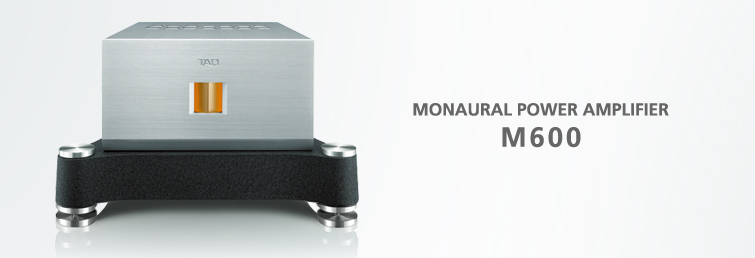

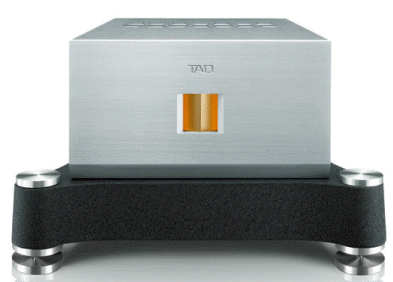

TAD-M600 Reference
Monaural, 300W su 8 Ohm finale mono Ingressi: 1 bilanciato Sensibilità
ingressi/impedenza nominale: 1.5V / 220 Ohm Connessioni di uscita: 2 coppie (bi-wire)
Risposta in frequenza 1Hz a 100kHz, +0/-1dB Peso: 90 kg Dimensioni:
51,6(L)x62,2(P)x30,7(H) cm COPPIA

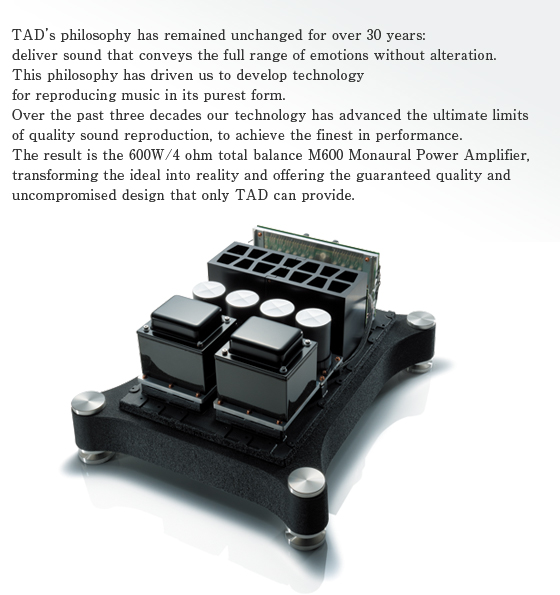

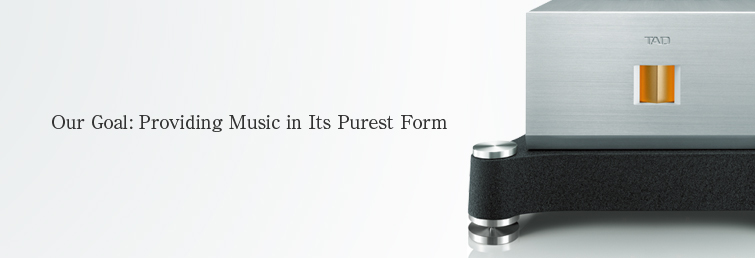

The basic concept of the TAD M600 is the
realization of total symmetry and the fusion of technologies into one perfect
form to achieve the ultimate in sound reproduction. The BTL (Bridged
transformer-less) design is created with total symmetry. Every aspect has been
examined and optimized: The twin power transformers, the parallel positioned
electrolytic capacitors, and the layout of the components on the circuit board.
All are designed to be symmetric with regard to influences such as temperature
change, magnetic fields and vibration.The M600 employs a 35kg graphite cast-iron
monocoque construction to reduce the effects of vibration to the absolute
minimum. Compared to regular cast-iron, inner loss is increased making it
extremely effective at vibration damping and resonance control. The 18mm (0.7
in.) thick aluminum front panel, the low center of gravity brought about by the
adjustable spikes extending downwards from the wide-stance chassis and the
aluminum plating in the spaces between the chassis and the components (such as
the power transformers and capacitors) all act together to minimize the
influence of any vibration. The independent chimney-style heat sink completes
this total defense against vibration. In order to bring the ideal into
reality in design and construction the M600 relies on parts of only the highest
quality. PPE (Polyphenyl Ether), commonly used in communication satellites, is
combined with 135um thick oxygen-free copper foil to create our unique circuit
boards. Permittivity is reduced, the capacitance of the pattern is as small as
possible and signal transmission losses up to the very high frequencies are
minimized. The core of the 10kg (22 lb) transformer is wound with insulating
sheets and 2.6mm diameter heavy copper wire to form our exclusive independent
winding power transformer. With a power supply using four custom built 33,000uF
capacitors, every circuit detail has been studied and optimized to ensure the
highest quality. In order to ensure the absolute maximum product
quality the M600 is the beneficiary of total precision at every point in its
construction process. The utmost care is exercised in maintaining the quality of
every part. One example is the extremely high level of technology that is
utilized for the cutting of the ventilation ducts in the aluminum top panel. To
achieve the absolute quality demanded by TAD products all components are
developed in a custom workshop and hand assembled by veteran engineers worthy of
being called audio craftsmen. This meticulous assembly process uses
torque-regulated screws to prevent any distortion in the casing, resulting in a
product that truly can be considered a masterpiece. Precision-cut aluminum panel
heat ducts Power output 600W (20Hz to 20kHz, THD 0.2%, 4Ω)
300W (20Hz to 20kHz, THD 0.2 %, 8Ω) Frequency response 1Hz to 100kHz,
+0/-1dB Rated distortion Less than 0.03% (20Hz to 20kHz, 300W, 4Ω)
Gain 29.5dB (Input sensitivity 1.5V) Input terminal XLR/220kΩ
x 1 Output terminals Custom large screw terminal x 2 pair (bi-wire
connection available) Dimensions 516mm (W) × 307mm (H) × 622mm (D) (with
spike bases) (20-5/16 in. (W) x 12-1/16 in. (H) x 24-1/2 in. (D)) Weight
90kg (198.4 lb)
DAC PRE
.jpg)
.jpg)
TAD
DA1000
€. 15.980,00
Per ordine e promozioni
Telefona/ E-mail

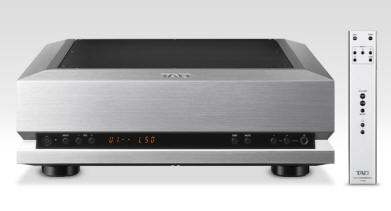

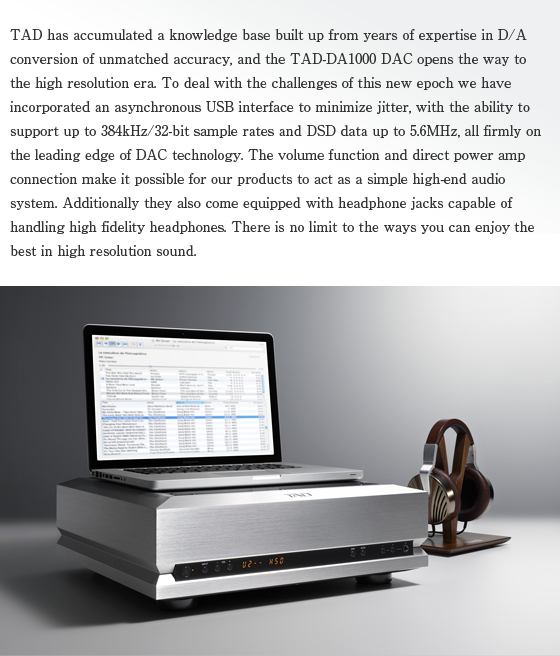

TAD-DA1000 DAC
preamplificatore Ingressi digitali: 1 bilanciato, 2 coassiali, 1 ottica, 1 USB
Input sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz 176.4 kHz, 192 kHz
Uscite analogiche: 1 bilanciata, 1 RCA Uscite digitali: 1 bilanciata, 1
coassiale Con telecomando Peso: 16,5 kg Dimensioni: 44(L)x40,6(P)x15(H) cm
This models embody the philosophy and
technical standards behind TAD’s dedication to conveying all the passion
contained within music. Testifying to this is the latest development derived
from our top-end, highly praised TAD-D600 disc player: the Ultra-High C/N*1
Master Clock UPCG*2. To ensure precise reproduction with no tonal changes, TAD
focused on minimizing low frequency distortion caused by noise from the clock
itself occupying the same spectral region. Designed to achieve a pure low-noise
signal approaching the upper limits of audibility, our highly innovative master
clock is featured in this model.To convey all the emotion and passion of the
original source, reproduction must be precise and pure. A natural consequence of
TAD’s relentless pursuit of this audio philosophy, the Ultra-High C/N Master
Clock UPCG is combined with high-quality, parallel connected, dual differential
independent D/A converter ICs for both the left and right channels. To reduce
residual noise even at high sample-rates, a discrete I/V conversion circuit is
utilized. D/A conversion with virtually flawless accuracy is now a reality.All
internal parts and circuits are designed and constructed with care and precision.
From the careful alignment between the theory and practice behind our selection
and use of component parts,to our subjecting them to an uncompromising
reiterative testing and auditioning process: This is the very essence and DNA of
all TAD audio equipment. For example, utilizing high output toroidal power
transformers in dedicated independent power supplies for analog and digital
circuits eliminates potential mutual interference and easily handles the power
and speed demands of high resolution sound reproductionWe've also included one
of our latest developments, the Asynchronous USB Communication Engine. Playback
via USB input is capable of handling PCM audio data up to 384kHz /32 bits, and
DSD audio data up to 5.6MHz*3. TAD is now equipped to handle all the very best
high resolution audio formats to bring you closer than ever to the original
musical performance. Analog audio output Balanced
output: XLR stereo x 1 Unbalanced output: RCA stereo x 1 Headphone terminals x 1
S/N ratio 115dB Digital audio input Input jacks/ XLRx1 coaxialx2
opticalx1 USBx1 Compatible sampling frequencies/XLR, coaxial inputs:
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Optical input: 44.1kHz, 48kHz,
88.2kHz, 96kHz USB input: 44.1kHz*1, 48kHz*1, 88.2kHz*1, 96 kHz*1, 176.4kHz*1,
192kHz*1, 352.8kHz*2, 384kHz*2 Digital audio output XLRx1 coaxialx1
USB operating environment USB 2.0 high-speed Power supply voltage
AC 120V, 60Hz (USA/Canada) AC 220V to 240V, 50Hz/60Hz (Europe/Asia) Power
consumption 49W Standby power consumption less than 0.5W
External dimensions 440mm (W) x 150mm (H) x 406mm (D) (17 11/32 in. (W) x
5 29/32 in. (H) x 16 in. (D)) Weight 16.5kg (36.4 lb) *1
Windows 8, Windows 7, Windows Vista, Mac OS 10.6 and later *2 Mac OS 10.6 and
later
LETTORI CD
.jpg)
.jpg)

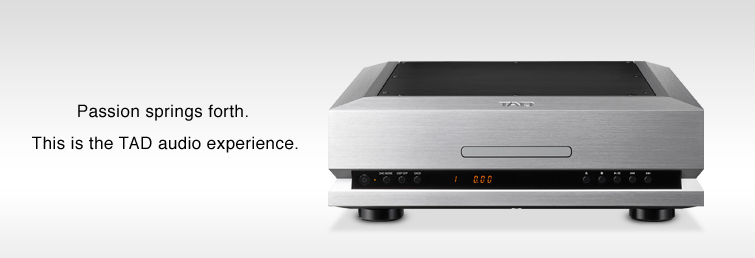

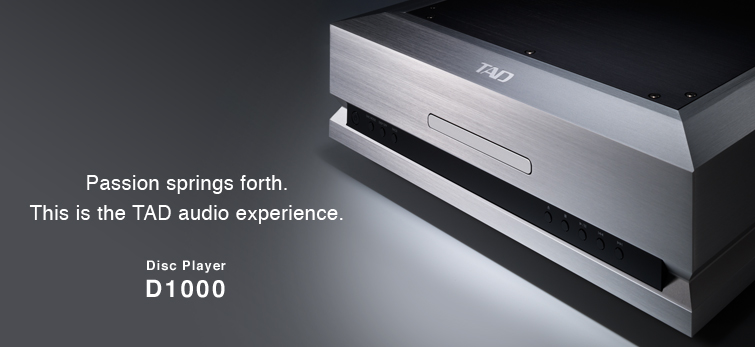

TAD
D1000
€. 19.200,00
Per ordine e promozioni
Telefona/ E-mail

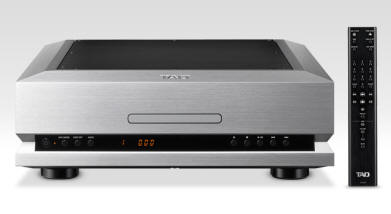

TAD-D1000 SACD
Player Ingressi digitali: 1 bilanciato, 2 coassiali, 1 ottica, 1 USB
Input sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,
192 kHz Uscite analogiche: 1 bilanciata, 1 RCA Uscite digitali: 1
bilanciata, 1 coassiale Con telecomando Peso: 18,5 kg
Dimensioni: 44(L)x40,6(P)x15(H) cm
This models embody the philosophy and technical
standards behind TAD’s dedication to conveying all the passion contained within
music. Testifying to this is the latest development derived from our top-end,
highly praised TAD-D600 disc player: the Ultra-High C/N*1 Master Clock UPCG*2.
To ensure precise reproduction with no tonal changes, TAD focused on minimizing
low frequency distortion caused by noise from the clock itself occupying the
same spectral region. Designed to achieve a pure low-noise signal approaching
the upper limits of audibility, our highly innovative master clock is featured
in this model. To convey all the emotion and passion of the original
source, reproduction must be precise and pure. A natural consequence of TAD’s
relentless pursuit of this audio philosophy, the Ultra-High C/N Master Clock
UPCG is combined with high-quality, parallel connected, dual differential
independent D/A converter ICs for both the left and right channels. To reduce
residual noise even at high sample-rates, a discrete I/V conversion circuit is
utilized. D/A conversion with virtually flawless accuracy is now a reality.
All internal parts and circuits are designed and constructed with care and
precision. From the careful alignment between the theory and practice behind our
selection and use of component parts,to our subjecting them to an uncompromising
reiterative testing and auditioning process: This is the very essence and DNA of
all TAD audio equipment. For example, utilizing high output toroidal power
transformers in dedicated independent power supplies for analog and digital
circuits eliminates potential mutual interference and easily handles the power
and speed demands of high resolution sound reproduction. image We've also
included one of our latest developments, the Asynchronous USB Communication
Engine. Playback via USB input is capable of handling PCM audio data up to
384kHz /32 bits, and DSD audio data up to 5.6MHz*3. TAD is now equipped to
handle all the very best high resolution audio formats to bring you closer than
ever to the original musical performance Analog audio output Balanced
output: XLR stereo x 1Unbalanced output: RCA stereo x 1 S/N ratio 115dB
Digital audio input Input jacks/ XLRx1 coaxialx2 opticalx1 USBx1
Compatible sampling frequencies/ XLR, coaxial inputs: 44.1kHz, 48kHz, 88.2kHz,
96kHz, 176.4kHz, 192kHzOptical input: 44.1kHz, 48kHz, 88.2kHz, 96kHz USB input:
44.1kHz*1, 48kHz*1, 88.2kHz*1, 96 kHz*1, 176.4kHz*1, 192kHz*1, 352.8kHz*2,
384kHz*2 Digital audio output XLRx1 coaxialx1 USB operating environment
USB 2.0 high-speed Power supply voltage AC 120V, 60Hz (USA/Canada)AC
220V to 240V, 50Hz/60Hz (Europe/Asia) Power consumption 43W
Standby power consumption less than 0.5W External dimensions
440mm (W) x 150mm (H) x 406mm (D) (17 11/32 in. (W) x 5 29/32 in. (H) x 16 in.
(D)) Weight 18.5kg (40.8 lb) *1 Windows 8, Windows 7, Windows
Vista, Mac OS 10.6 and late *2 Mac OS 10.6 and later

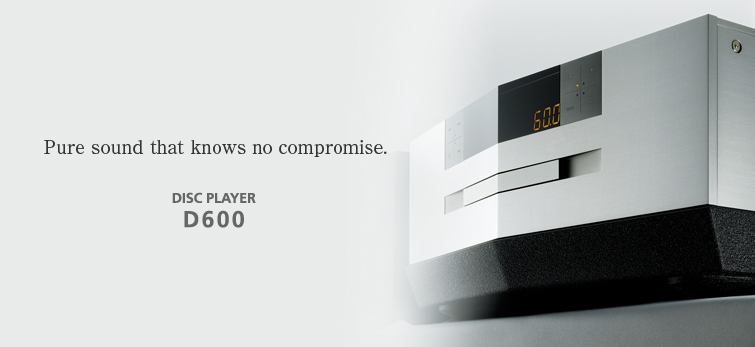

TAD
D600
€. 38.500,00
Per ordine e promozioni
Telefona/ E-mail
TAD-D600 Reference
SACD Player Ingressi digitali: 1 bilanciato, 1 coassiale Input sampling
frequency: 32kHz a 192kHz Uscite analogiche: 1 bilanciata, 1 RCA Uscite
digitali: 1 bilanciata Risposta in frequenza 4Hz a 20kHz (CD), 4Hz a 40kHz (SACD)
Con telecomando Peso: 26,5 kg unità principale, 13 kg unità di alimentazione
Dimensioni: 45(L)x44(P)x18,5(H) cm unità principale 22(L)x43(P)x18,5(H) cm unità
di alimentazione
The design philosophy to which TAD
engineers prescribe can be stated as, “Communicate the exåent of music exactly
as it was originally performed”. To adhere to this philosophy and because the
clock performance greatly impacts the precision of D/A conversion TAD engineers
prioritized the development of a new master clock for the D600. This process led
to the creation of the Ultra-high C/N Master Clock UPCG, which significantly
reduces jitter in the frequency bands around the clock center frequency. Our
original approach to engineering results in the ability to directly convey the
purity of the musical performance. The D600 employs a new proprietary crystal
oscillator that improves noise level more than 50dB compared with conventional
players, attaining ultra-high C/N characteristics. TAD focused specifically on
C/N in order to provide the most accurate sound reproduction capability, aiming
to thoroughly reduce jitter in the low frequency sideband ranges relative to the
center frequencies. TAD developed the crystal oscillator in co-operation with a
crystal manufacturer. Based on technologies developed for high-speed digital
base station relay facilities this produces an oscillator perfect for the D600.
The performance of the I/V conversion circuit, which transforms the current
output from the D/A converter to voltage, significantly impacts sound quality.
The discrete I/V conversion circuit used in the D600 was developed to
significantly lower noise and achieve a high slew rate. Together this results in
a superior sound-stage presentation, improved rhythmic integrity and enhanced
transient attack of the musical signal Two Burr-Brown PCM1794s, a
well respected high performance DAC, are connected in parallel in a balanced
configuration. This improves audio performance in all metrics including S/N
ratio, linearity, dynamic range, and distortion. The result is that even
delicate audio sound nuances are reproduced faithfully, creating a greater

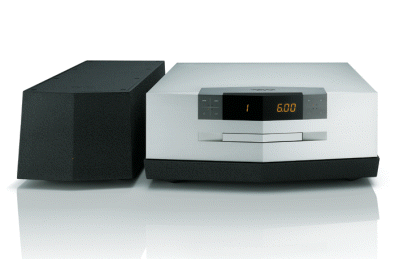

degree of realism in the music The player unit and power supply unit
are completely separated. This eliminates the harmful affects of extraneous
vibration on the mechanisms and audio circuits, as well as magnetic flux leakage
from the power supply, significantly improving sound quality. In addition, the
double-housing permits the transformers and rectification circuit to be designed
without compromise, something not possible in a single housing In
order to stably support the heavy chassis and block transmission of vibration
from below, the D600 is equipped with die-cast aluminum three-point support
spikes. This extremely stiff suspension thoroughly dampens any vibration that
would otherwise be transmitted upward from the support surface. The D600
provides high-quality sound reproduction from the feet up! Realizing the
ultimate in reproduction accuracy also required an innovative design for the CD/SACD
mechanism. It features high stiffness, smooth operation and superior vibration
control properties thanks to a precise loading mechanism equipped with metal
shaft bearings. The pickup employs an infinite conjugate optics system, ensuring
both stable operation and high reading precision. The highly-rigid disc tray is
formed from precision-machined aluminum to further minimize vibration. A black
sheet on the tray both restricts the scattered reflection of laser light to
increase reading precision and contributes to vibration control
The D600 can also be used as a high performance D/A converter. Its combination
of Ultra-high C/N Master Clock UPCG and sampling rate converter achieves
extremely accurate D/A conversion of digital signals input from external sources.
The conversion of digital data streams output from a computer is also possible.
You can enjoy high quality music sources with sampling frequencies up to
192kHz/24-bit A High purity transmission path using gold plated coaxial
connectors and high-quality semi-rigid coaxial cables is used for the
wiring of the master clock oscillator. Equipped with a precision brushless DC
servo motor, this simultaneously reduces noise and achieves a long service life
free from brush-induced friction. The CD/SACD mechanism is also equipped with a
high C/N clock, lowering jitter and improving sound quality. Using
pressure-sensitive rather than capacitive touch keys and static light-mode LED
displays virtually eliminates the impact of high frequency noise on sound
quality. Digital output (upconverted to 88.2kHz sampling frequency) exceeds the
CD format performance capability for high-quality sound reproduction.
Analog audio output Output connectors /
Balanced output: XLR stereo x 1, Unbalanced output: RCA stereo x 1 Audio
output level / Balanced output: 450mVrms (1kHz, -20dB), Unbalanced output:
220mVrms (1kHz, -20dB) Frequency response CD: 4Hz to 20kHz SACD:
4Hz to 40kHz S/N ratio 115 dB Digital audio input/output
Balanced input: XLR connector x 1 Coaxial input: RCA connector x 1
Balanced output: XLR connector x 1 Input sampling frequency: 32kHz to 192kHz
Output sampling frequency: 44.1kHz, 88.2kHz(CD) Power source AC120V,
60Hz (USA), AC230V, 50Hz/60Hz (Europe) Power consumption 32 W
Standby power consumption 0.5 W External dimensions Main unit:
450mm (17 23/32 in.) (W) x 185mm (7 9/32 in.) (H) x 440mm (17 11/32 in.) (D)
Power unit: 220mm (8 11/16 in.) (W) x 185mm (7 9/32 in.) (H) x 430mm (16 15/16
in.) (D) Weight Main unit: 26.5kg (58 lb 7oz) Power unit: 13kg (28
lb 11oz)
Legenda istruzioni
Clicca
per qui per vedere :
MISURE
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Se su un prodotto presente o non presente nel nostro catalogo ci
puoi richiedere il prezzo scontato ti faremo
la migliore offerta . Essendo
rivenditori ufficiali Italia le aziende ci chiedono
di non creare turbative di mercato pubblicando
prezzi scontati non ufficiali .Se hai trovato un prezzo più basso* in rete ,
segnalacelo e noi faremo di tutto per applicare quel prezzo. Altrimenti fai tu
un'offerta e noi la valutateremo. La segnalazione può essere effettuata via
email, all’indirizzo
info@newaudio.it
, oppure telefonando ai numeri 0174 670100 o 0174 481045 .
*Per prezzo più basso si
riferisce ad offerte praticate sul Web da aziende che sono distributori
ufficiali con sede in Italia , con regolare fatturazione e garanzia
italiana fornita dal distributore ufficiale. Qualora il prezzo da confrontare
fosse riferito a venditori esteri o che non offrono le caratteristiche suddette,
queste non verranno prese in considerazione.
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a :
info@newaudio.it
Il presente listino
sostituisce ed annulla ogni precedente. I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
|
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
