DIFFUSORE A 2 VIE - 150 W RMS
- 96 DB - 8 &! - 70- 20.000 HZ - TWEETER DA 1 - WOOFER DA 8 - CABINET IN ABS
NERO

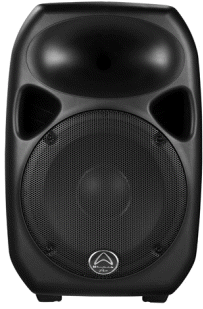

The
brand new stunning Titan™ 8 is the latest passive, two-way loudspeaker
introduced by Wharfedale Pro. The Titan™ 8 combines the newest technologies,
materials and design topology, including a titanium compression driver and
heavy-duty cast-frame woofer, to ensure absolute accuracy, high output and the
smooth, wide dispersion of the critical mid and high frequency ranges.Titan™ 8
enclosure is created using state of the art, gas assist injection moulding
technology, enabling us to mould thicker, hollow core enclosure walls, which are
stronger, sonically superior and much lighter in weight than standard injection
moulded enclosures. Also, internal laminar flow ribs further increase the
rigidity of the enclosure. This intelligent enclosure design, along with a
custom Wharfedale Pro transducer is essential in the reproduction of punchy low
end down to 55Hz.Because of its functional cabinet design, the Titan™ 8 is
versatile and easily mounted in a variety of configurations. A top stacking
feature is provided for multi-loudspeaker applications and the Titan™ 8 also can
be used on its side as a stage monitor. The speaker stand receptacle features a
locking screw to ensure stability and rubber-padded carry handles make the job
of transporting the enclosure easier than ever. Cord wrap and cable anchor
features are also molded into the enclosure. Eight M6 threaded rigging points
are provided for a variety of safe flying configurations with four of these
inserts available, bottom-mounted, in an OmniMount® 60.0 bracket
footprintPowerful, compact, lightweight and affordable, the Titan™ 8 is the
ideal choice for installation and outdoor applications. It delivers the high
level, even dispersion and sonic integrity usually associated with much more
expensive speakers.
DIFFUSORE A 2 VIE - 250 W RMS
- 98 DB - 8 &! - 55- 20.000 HZ - TWEETER DA 2 - WOOFER DA 12 - CABINET IN ABS
BIANCO
Wharfedale
Pro Titan™ 12 series with 12"/2" voice coil LF components and 44mm Titanium
Diaphragm true Compression Driver and the integrated 90°x60° Waveguide horn to
achieve a clean volume dispersion with wide, even reflection of the high
frequency. The cabinets of the Titan™ series are made of extremely resonance
proof High Density Polyethylene structural foam finished. This material gives a
lightweight and very robust enclosure.The system can be arrayed for additional
coverage and SPL requirements. The elliptical waveguide HF section provides
consistent coverage over its specified range for low feedback in open mic
applications and improved array smoothness, whether applied to a reverberant or
"dry" club type acoustic environment The Titan™ 12 integrates successfully with
the room for superior sound quality with a minimum of equalization and tuning.
For permanent sound installations, architectural compatibility of primary
importance, mounting points become critical. Titan™ 12 series threaded points
(Three on top, four on bottom, and three on each side for horizontal rigging)
set a standard with Omnimount footprint on bottom.SPECIFICATIONS MODEL
TITAN 12 PASSIVE GENERAL INFO System type 12" 2-way passive Frequency response
+/- 3db 55-20kHz Sensitivity (db 1w@1m) 98dB System impedance 8 ohms Maximum SPL
Peak dB 128dB POWER HANDLING (Watts) Continuous RMS 250 Program 500 Peak 1000 LF
DRIVER Lf driver size mm / inches 1x12" Lf voice coil size 64.26mm/2.5" HF
SECTION Hf voice coil size 44mm/1.75" Hf type Compression DriverHf diaphragm
material Titanium Horn dispersion (H x V) 90 x 60 Hf exit size mm / inches
25mm/1" Hf horn shape EWG™ - Elliptical Waveguide Hf peak indicator Peak LED
ring in horn throat CROSSOVER SECTION Type: 2-way Crossover Frequency / Filter
2.4 kHz / Linkwitz-Riley Hf driver protection DTF™ - 175 Dynamic Thermal
Filament Hf EQ (Boost / Flat) 3dB boost (long-throw) / Flat (near-field)
PHYSICAL FEATURES Finish Black or White Handle quantity 2 carry handles (one on
each side) Suspension points (10) M8 points for safe flown applications,
(4) M8 inserts on bottom in OmniMount® 60.0-type footprint Stand adapter -
BOTTOM Speaker pole-mount receptacle with lock screw, Optional wall-mount
bracket Stand adapter - TOP Optional dual-unit array speaker stand hardware
Enclosure type Molded Polypropylene Enclosure shape Trapezoidal for vertical
array and horizontal stage monitor applications IN / OUT PANEL (speaker Level)
Input connector 2 x 1/4" jacks and2 x Speakon™ DIMENSIONS & WEIGHT Height ( mm /
ins ) 556mm/21.88" Width Front / Rear / mm / ins 384mm/15.1" / 180mm/7.1" Depth
( mm / ins ) 312mm/12.3" Net weight ( kg / lbs ) 12kg/26.4lbs Gross weight ( kg
/ lbs ) 14kg/30.8lbs
DIFFUSORE A 2 VIE - 400 W RMS
- 97 DB - 8 &! - 50- 18.000 HZ - TWEETER DA 2.5 - WOOFER DA 15 - CABINET IN ABS

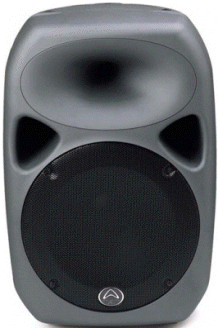

GRIGIO Titan™
15 Built with the same rugged, injection molded chassis as our Titan™ 12, the
Titan™ 15 is using custom designed, heavy duty 15" low frequency driver with 2"
titanium high frequency compression driver. The Titan™ 15 is at home indoors or
outdoors, on stage, in studios, at rehearsals, theaters, houses of worship and
just about anywhere that needs a higher standard of audio reproduction. Use the

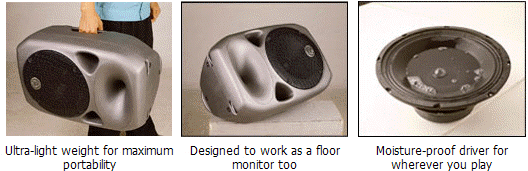

Titan™ 15 with the optional tripod floor stands, the unique dual-head array
adapter, optional wall mount or even on its side as a floor monitor. The Titan
15 moisture proof woofer makes it the ideal choice for outdoor gigs and festival
applications. No matter what the application, Titan™ 15 is up for the
challenge.SPECIFICATIONS MODEL TITAN 15 PASSIVE GENERAL INFO System type
15" 2-way passive Frequency response +/- 3db 50-18kHz Sensitivity
(db 1w@1m) 97dB System impedance 8 ohms Maximum SPL Peak dB 129dB POWER HANDLING
(Watts) Continuous RMS 400 Program 800 Peak 1600 LF DRIVER Lf driver size mm /
inches 1x15" Lf voice coil size 75mm/3" HF SECTION Hf voice coil size 51mm/2" Hf
type Compression Driver Hf diaphragm material Titanium Horn dispersion (H x V)
90 x 60 Hf exit size mm / inches 25mm/1" Hf horn shape EWG™ - Elliptical
Waveguide Hf peak indicator Peak LED ring in horn throat CROSSOVER SECTION 2-way
Crossover Frequency / Filter 1.8kHz / 12dB per oct. Hf driver protection DTF™ -
Dynamic Thermal Filament (2 x SK3 Bulb) PHYSICAL FEATURES Finish Black or White
Handle quantity 2 carry handles (one on each side) Suspension points (10)
M8 points for safe flown applications, (4) M8 inserts on bottom in OmniMount®
60.0-type footprint Stand adapter - BOTTOM Pole-mount receptacle with lock screw,
Optional wall-mount bracket Enclosure type Molded Polypropylene Enclosure shape
Trapezoidal for vertical array and horizontal stage monitor applications IN /
OUT PANEL (speaker Level) Input connector 2 x Speakon™ DIMENSIONS & WEIGHT
Height ( mm / ins ) 708mm/27.9" Width Front / Rear / mm / ins 477.8mm/18.8"
Depth ( mm / ins ) 401.77mm/15.8" Net weight ( kg / lbs ) 22kg/48.4 lbs
Gross weight ( kg / lbs ) 25kg/55 lbs
New
features and improved amplifier technology make the Titan 8A MKII an even better
solution for portable sound and fixed installation applications.The 2 band EQ
from the Titan 12A and 15A now features in the more compact 8A MKII model
allowing fine tuning of the overall sound. In addition a rear mounted horn LED
defeat switch has been added to switch off the throat mounted power LED, for use
in situations where visual transparency is paramount.Class D technology is now
used for both the LF and HF sections, resulting in a more efficient and powerful
system that is now even lighter than the previous generation. The Titan 8A MKII
is bi-amplified with independent LF and HF signal limiting.The Titan 8A MKII
provides enough output and low frequency extension to be a standalone vocal PA
for A/V and presentation work, when combined with a subwoofer it is ideal for
use in a portable band or DJ setup.The compact and stylish form factor, range of
compatible Wharfedale Pro WPB brackets and versatile rigging points make the
Titan 8A MKII an equally suitable choice for an installed background music or

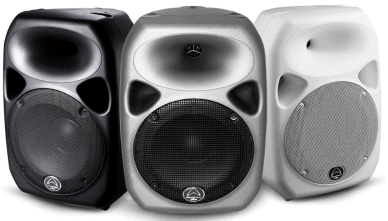

paging solution. As with the previous generation the Titan 8A MKII is available
in black, grey or white. The angled cabinet also makes the Titan 8A MKII a
fantastic compact vocal foldback monitor.SPECIFICATIONS MODEL TITAN 8
ACTIVE MKII GENERAL INFO System type Active 8” 2-way Bi-Amplified system
Frequency response +/- 3db 70-20kHz Line Output Line Output Connector Switchable
LOOP / MIX Balanced Male XLR Connector Sensitivity 0dBu (-2.2dBv or 0.775Vrms)
Impedance Balanced: Balanced: 1k ohm – Unbalanced: 500 ohm Input A - type
Switchable balanced mic or line level input Input Sensitivity Mic: -47dBu
(-49.2dBv or 3.4mVrms) Line: 0dBu (-2.2dBv or 0.775Vrms) Maximum Input Level
+22dBu Input Connector XLR / 1/4” Combo jack Input Impedance Balanced: 20kΩ -
Unbalanced: 10kΩ Bass Response Optimizer Subsonic Filter 30Hz,
Second-order filter Amplifiers Low-Frequency (Class D) Rated 150W RMS, 300W Peak
High- Frequency (Class D) Rated 30W RMS, 60W Peak Electronic Crossover: 24dB per
octave Linkwitz-Riley Crossover Frequency 2.4kHz Controls High (±10dB)
10kHz Shelving Equalization: Low (±10dB) 100Hz Shelving Low Frequency Transducer
Size (mm / inches) 205mm / 8” Coil Size (mm / inches) 38.86mm / 1.53”
Impedance 4 Ω High Frequency Transducer Type Compression Driver Coil Size
(mm / inches) 25mm / 1” Exit Size (mm / inches) 30mm / 1.2” Diaphragm
Material Cloth Impedance 8 Ω High Frequency Coverage (H x V) 90° x 60°
Amplifier Protection Power On Protection Power switch on / off mute
Thermal Protection Amplifier shutdown, auto reset Low Line Voltage Shut
Down < 80VAC
Our
unique EWG™ design is the result of intensive computer modeling of natural
acoustic wave propagation. To provide more acoustically transparent
high-frequency pattern control, hard edges, corners, and parallel surfaces were
eliminated from the design while still enabling 90 x 60 degree high frequency
coverage. The smoother, more "organic" shape of the EWG™ design reduces high
frequency distortion and diffraction eliminating acoustic artifacts found in
other horn design technologies. The result is smoother frequency response,
greater driver efficiency, and improved vocal and instrument reproduction.Titan™

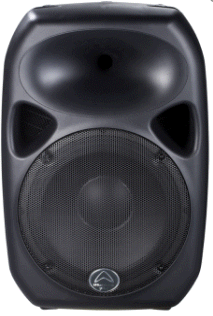

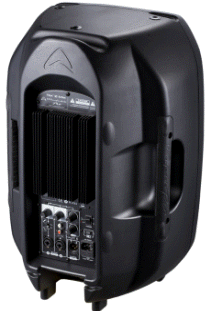

12 ACTIVE DESCRIPTIONS Amplifier The Titan™ 12 ACTIVE features a
state-of-the-art Class D low frequency amplifier design. Class D amplifiers are
known for their extended efficiency, low heat dissipation and light weight
compared to other amplifier classifications. Class D technology allows for
unparalleled audio quality in a lightweight, powered speaker system. High
frequency power is provided by a high quality, low distortion and highly
efficient Class A/B amplifier. Optional TITAN™ TOUR BAG - Ballistic nylon
zippered carry bagprotects your Titan™ 12 ACTIVE . SPECIFICATIONS MODEL TITAN 12
ACTIVE GENERAL INFO System type Active 12" 2-way Bi-Amplified system Frequency
response +/- 3db 55-20kHz LF DRIVER Lf driver size mm / inches 305mm / 12"
4 ohm Lf voice coil size 64.26mm / 2.5" HF SECTION Hf voice coil
size 51mm / 2" 8 ohm Hf type Compression Driver Hf diaphragm material
Titanium Horn dispersion (H x V) 90 x 60 Hf exit size mm / inches 25mm / 1" Hf
horn shape EWG™ - Elliptical Waveguide CROSSOVER SECTION Crossover Frequency /
Filter 2.3kHz, 24dB per octave Linkwitz-Riley Hf driver protection
Independent LF and HF limiters PHYSICAL FEATURES Finish Grey or
white Handle quantity 2 carry handles (one on each side) Suspension points
(10) M8 points for safe flown applications, (4) M8 inserts on bottom in
OmniMount® 60.0-type footprint Stand adapter - BOTTOM Speaker pole-mount
receptacle with lock screw, Optional wall-mount bracket Enclosure type
Molded Polypropylene AMPLIFIER POWER Continous RMS LF 250W, HF 50W Peak (Wats)
LF 500W, HF 100W ProtectionType Power switch on / off mute, Thermal
Amplifier shutdown/auto reset, Low line voltage shut down at 60% nominal line
voltage, DC Protection, Short protection, Clip limiter turns on approx at 250W
with red LED indicator Power on indicator LED INPUT SENSITIVITY Mic -36dBu
(-38.2dBv or 12.28mVrms) Rca 0dBu (-2.2dBv or 0.775Vrms) Line +4dBu (1.78dBv or
1.228Vrms)Maximum Input Level +22dBu CONNECTORS Input connectors A Switchable
balanced mic or line level input XLR / ¼" Combo jack Input connectors B Line
level combo jack: 1/4" -XLR / Summed dual RCA jacks Line output type
Switchable LOOP / MIX Balanced Male XLR connector, Balanced: 1k ohm - Unbalanced:
500 ohm, +4dBu (1.78dBv or 1.228Vrms) INPUT IMPEDANCE Line input A 20kΩ -
Unbalanced: 10kΩ Maximum Input Level +22dBu Line input B 20kΩ - Unbalanced: 10kΩ
Maximum Input Level +22dBu+BV22 Main eq High (±10dB) 10kHz Shelving Low
(±10dB) 100Hz Shelving, Bass Response Optimizer ("BRO"™) circuit '+5dB at 60Hz,
Subsonic Filter 30Hz, Second-order filter DIMENSIONS & WEIGHT Height ( mm
/ ins ) 556mm / 21.88" Width Front / Rear / mm / ins 384mm / 15.11"-180mm
/ 7.1" Depth ( mm / ins ) 312mm / 12.28" Net weight ( kg / lbs ) 13.3kg /
28.16lbs Gross weight ( kg / lbs ) 14.8kg / 32.56lbs
DIFFUSORE BI AMPLIFICATO A 2
VIE - 70 W RMS SUGLI ALTI - 350 W RMS SUI BASSI - 50- 20.000 HZ - TWEETER DA
2.5" - WOOFER DA 15" - MIXER INTERNO A 2 CANALI CON INGRESSO MICROFONICO E
REGOLAZIONE SEPARATA DI VOLUME, ALTI E BASSI - INGRESSO BILANCIATO - IN/OUT PER
COLLEGAMENTI IN CASCATA - CABINET IN ABS COLORE BIANCO
Our
unique EWG™ design is the result of intensive computer modeling of natural
acoustic wave propagation. To provide more acoustically transparent
high-frequency pattern control, hard edges, corners, and parallel surfaces were
eliminated from the design while still enabling 90 x 60 degree high frequency
coverage. The smoother, more "organic" shape of the EWG™ design reduces high
frequency distortion and diffraction eliminating acoustic artifacts found in
other horn design technologies. The result is smoother frequency response,
greater driver efficiency, and improved vocal and instrument reproduction
Proprietary 90° x 60° Elliptical Wave Guide™ horn design Power on indicator in
horn throat and on rear panel Titan™ 15 ACTIVE DESCRIPTIONS Amplifier: The
Titan™ 15 Active is a self-powered, two-way professional loudspeaker system
incorporating a high grade Bi-Amp Class D and Class A/B Amplifiers. The model
also has intelligent electronics, such as full protection system: DC, overload,
short circuit, thermal, On / Off mute and LF / HF Limiters, which protects the
system from overload and allows reliable operation right up to the power limit.
The bottom of the Titan™ 15 ACTIVE provides a convenient built in pole mount
socket for easy mounting on a standard 35mm diameter speaker stand pole. The
speaker stand receptacle features a locking screw to ensure stability. Ten M8
threaded rigging points are provided for a variety of safe flying
configurations with four of these inserts available, bottom-mounted, in an
OmniMount® 60.0 bracket footprint. Mixer and Controls The Titan™ 15 ACTIVE
provides basic mixing functions with a variety of input options. Two inputs with
separate level controls and a common equalization section allow for overall
balance and tonal characteristic control. Easy interfacing to external mixers
and processors provide for easy expansion to larger, more sophisticated systems.
SPECIFICATIONS MODEL TITAN 15 ACTIVE GENERAL INFO System type Active
15" 2-way Bi-Amplified Frequency response +/- 3db 50-20kHz HF SECTION Hf
type Titanium Compression Driver Horn dispersion (H x V) 90° x 60° Hf exit size
mm / inches 25mm / 1" PHYSICAL FEATURES Enclosure Material Injection Moulded
Polypropylene Enclosure Colour Grey or White or Black Size (mm/inches) 381mm /
15" IN / OUT PANEL (speaker Level) Input connector XLR - 1/ 4" Combo jack
AMPLIFIER POWER Power On Protection Power switch on / off mute Thermal
Protection Amplifier shutdown, auto reset Low Line Voltage Shut Down 60%
Nominal line voltage Driver Protection Independent LF and HF limiters DC
Protection Yes Short Protection Yes Controls High (±10dB) 10kHz Shelving
Dimensions (HxWxD) mm 708.3mm x 477.8mm x 401.77mm inches 27.9" x 18.8" x
15.8" Microphone / Transmitter Maximum Input Level +22dBu Impedance 4 Ω
MIXER MODEL INPUT IMPEDANCE Balanced: 20k ohms Unbalanced: 10k ohms Clip
Limiter Turns on approx 350W output Limiter Indicator Red LED Power
Indicator Red LED AC Power details Power Supply High Efficiency Switching
Mode Power Supply AC Power Options AC100~120V / 220~240V, 50 / 60Hz Power On
Indicator LED Rigging / Bracket / 10 M8 threaded inserts including 4 Mounting
Options M8 threaded inserts on bottom in OmniMount 60.0-type footprint
Pole-mount receptacle with lock screw 2 carry handles (one on each side)
Optional wall-mount bracket Impedance Balanced Balanced: 1k ohm - Unbalanced:
500 ohm Line Output Line Output Connector Switchable LOOP / MIX Balanced Male
XLR Input A - type Switchable balanced mic or line level input Input Sensitivity
Mic: -36dBu (-38.2dBv or 12.28mVrms)Line: +4dBu (1.78dBv or 1.228Vrms)
Maximum Input Level +22dBu Input Connector XLR - 1/ 4" Combo jack Input
Impedance Balanced: 20k ohms Unbalanced: 10k ohms Input B - type Line level
input Input Sensitivity XLR - 1/4" Combo jack: 1.78dBv or 1.228VrmsRCA: 0dBu
(-2.2dBv or 0.775Vrms) Maximum Input Level +22dBu Input Connectors Combo
jack: 1/4" - XLR / Summed dual RCA jacks Bass Response Optimizer ("BRO"™)
circuit +5dB at 60Hz Subsonic Filter 30Hz, Second-order filter Amplifiers
Low-Frequency (Class D) Rated 350W RMS, 700W Peak High- Frequency (Class D)
Rated 70W RMS, 140W Peak Electronic Crossover 24dB/octave Linkwitz-Riley
Crossover Frequency 1.8kHz Controls High (±10dB) 10kHz Shelving Equalization Low
(±10dB) 100Hz Shelving DIMENSIONS & WEIGHT Net weight ( kg / lbs ) 23.7kg
/ 52.67lbs Gross weight ( kg / lbs ) 26.94kg / 59.27lbs
MIXER
WHARFEDALE PRO EZ MINI 10X2
MIXER IDEALE PER PICCOLI STUDI DI REGISTRAZIONE E APPLICAZIONI LIVE - 1 INGRESSO
MONO BILANCIATO E SBILANCIATO MIC/LINE A 2 BANDE DI EQUALIZZAZIONE + 2 INGRESSI
STEREOFONICI CON CLIP LEDS - GAIN SUI CANALI MONO - USCITA MASTER ED USCITA
CUFFIA SEPARATE - "2 TRACK" ASSEGNABILE AL MASTER O ALLA CUFFIA - LED METER -
USCITE STERO JACK
WHARFEDALE PRO EZ MINI 16X2
MIXER IDEALE PER PICCOLI STUDI DI REGISTRAZIONE E APPLICAZIONI LIVE - 2 INGRESSI
MONO BILANCIATI E SBILANCIATI MIC/LINE A 2 BANDE DI EQUALIZZAZIONE + 4 INGRESSI
STEREOFONICI CON CLIP LEDS - GAIN SUI CANALI MONO - USCITA MASTER ED USCITA
CUFFIA SEPARATE - "2 TRACK" ASSEGNABILE AL MASTER O ALLA CUFFIA - LED METER -
USCITE STERO JACK
WHARFEDALE PRO EZ MINI 20X2 FX MIXER DA STUDIO CON 4 INGRESSI MONO MIC/LINEA
- BASSI, MEDI, ALTI, BILANCIAMENTO, GAIN E CLIP LED SU OGNI CANALE - MANDATA FX
CON CONTROLLO DEL VOLUME SEPARATA - ALIMENTAZIONE PHANTOM +48V SWITCHABLE - 8
INGRESSI STEREO CON INGRESSI BILANCIATI, CONTROLLO DEL GAIN, DEL BILANCIAMENTO E
DEL LIVELLO DELL' EFFETTO - IN/OUT REC RCA E STEREO JACK 1/4" ED 1/8" - USCITA
CUFFIA - DSP INTERNO CON 16 EFFETTI
WHARFEDALE PRO R 200 4
INGRESSI MONO + 4 INGRESSI MIC + 2 INGRESSI STEREO CON TRIPLA BANDA DI
EQUALIZZAZIONE - 2 USCITE MASTER + 1 USCITA MONITOR + 1 USCITA CUFFIA + 1 USCITA
REC - 1 MANDATA AUSILIARIA + 1 MANDATA EFFETTI - ALIMENTAZIONE PHANTOM A 48V -
KIT PER IL MONTAGGIO A RACK 19" IN DOTAZIONE
WHARFEDALE PRO R 1604 4
INGRESSI MONO + 4 INGRESSI MIC + 4 INGRESSI STEREO CON TRIPLA BANDA DI
EQUALIZZAZIONE - 2 USCITE MASTER + 2 USCITE ALT + 1 USCITA MONITOR + 1 USCITA
CUFFIA + 1 USCITA REC - 2 MANDATE AUSILIARIE - ALIMENTAZIONE PHANTOM A 48V - KIT
PER IL MONTAGGIO A RACK 19" IN DOTAZIONE
WHARFEDALE PRO R 2004 8
INGRESSI MONO + 8 INGRESSI MIC + 4 INGRESSI STEREO CON TRIPLA BANDA DI
EQUALIZZAZIONE - 2 USCITE MASTER + 2 USCITE ALT + 1 USCITA MONITOR + 1 USCITA
CUFFIA + 1 USCITA REC - 2 MANDATE AUSILIARIE - ALIMENTAZIONE PHANTOM A 48V - KIT
PER IL MONTAGGIO A RACK 19" IN DOTAZIONE
GEMINI ST 03
TREPPIEDE IN METALLO PER DIFFUSORI - ESTENSIONE MASSIMA 2 METRI
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.gif)
.jpg){kind=small}
The
brand new stunning Titan™ 8 is the latest passive, two-way loudspeaker
introduced by Wharfedale Pro. The Titan™ 8 combines the newest technologies,
materials and design topology, including a titanium compression driver and
heavy-duty cast-frame woofer, to ensure absolute accuracy, high output and the
smooth, wide dispersion of the critical mid and high frequency ranges.Titan™ 8
enclosure is created using state of the art, gas assist injection moulding
technology, enabling us to mould thicker, hollow core enclosure walls, which are
stronger, sonically superior and much lighter in weight than standard injection
moulded enclosures. Also, internal laminar flow ribs further increase the
rigidity of the enclosure. This intelligent enclosure design, along with a
custom Wharfedale Pro transducer is essential in the reproduction of punchy low
end down to 55Hz.Because of its functional cabinet design, the Titan™ 8 is
versatile and easily mounted in a variety of configurations. A top stacking
feature is provided for multi-loudspeaker applications and the Titan™ 8 also can
be used on its side as a stage monitor. The speaker stand receptacle features a
locking screw to ensure stability and rubber-padded carry handles make the job
of transporting the enclosure easier than ever. Cord wrap and cable anchor
features are also molded into the enclosure. Eight M6 threaded rigging points
are provided for a variety of safe flying configurations with four of these
inserts available, bottom-mounted, in an OmniMount® 60.0 bracket
footprintPowerful, compact, lightweight and affordable, the Titan™ 8 is the
ideal choice for installation and outdoor applications. It delivers the high
level, even dispersion and sonic integrity usually associated with much more
expensive speakers..gif)
.jpg){kind=small}
.gif)
.jpg){kind=small}
.gif)
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
