La Magnum Dynalab si è
specializzata nella ricerca e sviluppo di sintonizzatori di FM ANALOGICI e in
antenne. Molte persone si chiedono perché noi siamo una delle poche aziende che
costruiscono sintonizzatori di FM ANALOGICI con telecomando ANALOGICO. La
risposta è molto semplice. Il suono migliore si può produrre solamente quando il
segnale ricevuto dal sintonizzatore è sintonizzato e mantenuto nel campo
ANALOGICO. Mantenendo il segnale all’interno del campo ANALOGICO si rendono
disponibili infinite sintonie d’accesso attraverso la banda FM, questo si può
ottenere utilizzando una manopola di regolazione, in sostituzione ai tasti
d’avanzamento che si trovano sui normali sintonizzatori digitali. Grazie alla
progettazione effettuata in Magnum durante il ciclo costruttivo, il circuito di
ricezione e gli amplificatori dell’IF (frequenza intermedia) sono allineati con
una precisione tale da far sì che tutte le specifiche siano costantemente
allineate.In un sintonizzatore sintonizzato digitalmente non è possibile
ritrovare tutto questo, poiché gli amplificatori dell’IF dipendono dalla
tolleranza dei componenti.La Magnum ha potuto ottimizzare suono, sensibilità e
selettività grazie alla calibrazione e all’allineamento delle IF (frequenze
intermedie) amplificate.Vi consigliamo l'ascoltare e comparare alcuni dei nostri
sintonizzatori con quelli simili dei nostri concorrenti.Il telecomando ANALOGICO
è sicuramente più costoso ma noi pensiamo che lei non possa sacrificare l’ottimo
suono ottenuto con il suo sintonizzatore per avere un telecomando più
conveniente ma con caratteristiche minori. Caratteristiche e vantaggi del
sintonizzatore ANALOGICOCapacità di sintonizzare tre stadi di ingresso ANALOGICI
- (i migliori stadi), provvede alla separazione delle stazioni senza influire
sulla separazione stereofonica, progettato dalla Magnum Dynalab.Strumento
segnale analogico – la sintonia centrale è facilmente leggibile, e strumento
misurazione della distorsione dei canali multipli.BW 1 - regolazione della
larghezza della banda IF molto estesa, il miglior suono ottenibile con questo
tipo di regolazione si ottiene quando non è presente il fattore
dell’interferenza del canale adiacente.regolazione si ottiene quando è presente
l’interferenza del canale adiacente. Condensatori ultra lineari all’interno del
circuito d’alimentazione – migliorano la risposta di frequenzaStabilizzatori di
tensione di precisione all’interno del circuito d’alimentazione – assicurano una
precisa sintonia.Capacità di sintonizzazione accoppiata alla IF (frequenza
intermedia) amplificata – le caratteristiche riguardanti la separazione del
canale adiacente, la separazione del canale alternato e la bassa distorsione
sono sempre garantite.Mute annullabile - elimina qualsiasi rumore tra le
stazioni durante la sintonizzazione.
With
the introduction of a simple, yet revolutionary product over 20 years ago,

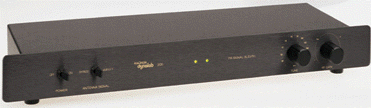

Magnum Dynalab's legacy began. Our incredible Signal Sleuth, designed to boost
and stabilize FM signals, was launched in 1984 and eventually led to the
introduction of what would become our core product line for many years;
world-leading analog FM tuners for the home market. After considerable success
with our Signal Sleuth, our first FM tuner, the FT 101, was launched in
September 1985. The design of the FT 101 was not only received by audio
enthusiasts with glowing reviews, it also formed the backbone of the design for
our entire product line. From these pure analog design fundamentals, we have
introduced 15 unique analog FM tuners over the past 20 years, including our new
Triode series, incorporating tube technology into the audio output stage of many

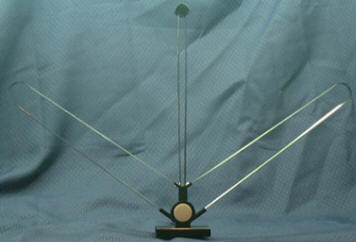

of our new products. To compliment our lineup of analog tuners, Magnum Dynalab
also began producing an assortment of both directional and omni-directional FM
antennas, intended to ensure our listeners enjoyed the best our products have to
offer. Our antennas continue to be appraised as the best in the business, used
by listeners around the world. Our R&D in pure analog circuitry has led us to

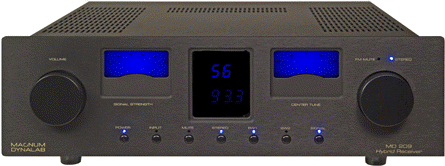

pursue opportunities with other related products. Our integrated FM receiver (MD

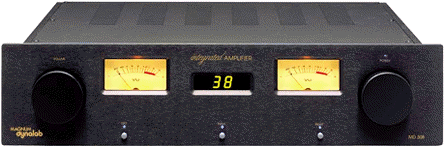

208) introduced in 2000 and our integrated amplifier (MD 308) introduced in 2001
helped showcase our expertise in other categories, and also kept our designers
thinking about the future. As the world of source audio evolved in recent years,
analog FM tuners have become more and more a staple of only the purest of
audiophiles. While all music lovers have been using digital source products for
many years (CD players), the product mix is now evolving to include satellite
radios, hard-disk based audio servers, and streaming internet audio. As a result
of this changing environment, we have dedicated significant investment dollars
towards researching the opportunity to incorporate our expertise in pure analog
design with the future of digital source audio. The result has been the
development of new business relationships with organizations experienced in the
conversion of digital sources to continuous signals. With new expertise
incorporating D/A conversion technology and an entrenched knowledge in the art
of analog circuitry, we went to work on the launch of our most forward-looking

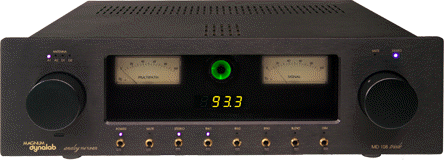

product to date, the MD 109 and the World Source Platform. Following in the
footsteps of its predecessor, the MD 108, the MD 109 is at its core the most
sonically accomplished analog FM tuner we have ever developed. However, this
exciting new product was also the beneficiary of our proprietary World Source
Platform. This platform is designed as a serious solution to the evolution of
the multi-format audio source environment that we live in today. In addition to
receiving and delivering with sonic accuracy all terrestrial FM signals, the MD
109 is upgradeable to accommodate digital and satellite radio, file exchange, CD,
DVD and Internet Sources. In fact, the MD 109 was designed to serve as your
source component for all future listening options and variables in the digital
domain. After the development of the MD 109, we continued to look at other
product options in the field of high-performance source components. With the
surplus of digital source options available today, the possibilities are many.
However, given the variability in the signal quality from selected sources, we
assert that we will only bring products to market that best represent our legacy
of pure audio reproduction. As we look back over more than 20 years of business
development, we remain excited about the future. Magnum Dynalab continues to be
a family-owned and operated company, committed to using only the highest quality
components from world-leading suppliers, while manufacturing all of our products
with great care to ensure our customers enjoy pure, unaltered sound for many
years.
MD-90T B17/19 Con circuito RF
separato a 3 stadi, circuitazione interamente analogica, a componenti discreti
dell’ultima generazione. Utilizzo di valvole 6922 militari sullo stadio di
amplificazione, circuito di grande spessore 2,4 mm per minimizzare le
vibrazioni, condensatori in polipropilene e trasformatore toroidale. Strumenti
per la centratura della frequenza, intensità del segnale ricevuto e fase
segnale. Due tipi di settaggio per la larghezza di banda, mute, e stereo/mono,
possibilità telecomando. Panello frontale nero da 43 o 48 cm.
The
Hi-Fi Choice Awards - 2006In the category of Best Radio Tuner over £500, Magnum
Dynalab took home the Gold Award forthe MD-90T. Digital radio has a lot going
for it: variety, ease of use ... but on pure sound quality grounds, you still
can't beat a good FM tuner and a suitable rooftop 'twig'. If you're serious
about your radio, the all-analogue tuners from Canadian FM radio specialist
Magnum Dynalab are in a different league. The MD-90T is the entry-level model
and it sounds breathtaking -- only MD's more upmarket tuners deliver more. [HiFi
Choice] Developed to co-exist with the MD 90, the MD 90T is also a successor to
the FT101A, one of the most sensitive, selective and sonically accurate FM
tuners of our time. The MD 90T continues the tradition by re-defining
state-of-the-art in analog FM tuner design. As did the FT-101A, the MD-90T
combines the very latest in discrete, analog technology. In addition to its
highly renowned MOSFET front end, which provides 3 stages of very careful and
precise RF amplification, we have added the Triode audio section, which includes
a Philips military grade 6922 tube in the amplification stage. This addition
provides audio realism and the bigger sound stage characteristics heard only
through the tube experience. In addition to the features offered by the FT 101A,
the MD-90T now offers even greater selectivity in order to deal with urban
signal congestion. The in-house manufactured 3-stage RF front end is sure to
extract the most intricate signals from amongst the milieu of FM congestion that
abounds in today's urban markets. Additional support is given through our custom
Auto Blend RF Circuit, which constantly monitors and varies your stereo
separation insuring optimal "stereo quieting" during your listening sessions.
The MD-90T now incorporates all functions in a totally redesigned motherboard.
This integration has provided the necessary design efficiencies to allow
consistently higher levels of selectivity to be maintained. Along with added
selectivity, the MD-90 has a redesigned power supply circuit that maintains the
tuner circuitry at standby at all times when the tuner is connected to a live AC
source. The MD-90T can also house the Precision Analog Remote System inside the
chassis, allowing for precise analog tuning from well beyond a pragmatic range.

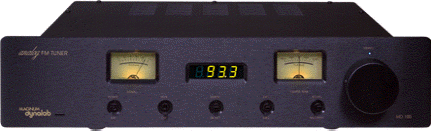

MD-100T B17/19 Circuito RF
separato a 4 stadi, circuitazione senza compro messi interamente analogica.
Utilizzo di valvole 6922 militari selezionate e accoppiate sullo stadio di
amplificazione, circuito di grande spessore 2,4 mm per minimizzare le
vibrazioni, condensatori in polipropilene Solen sul by-pass e trasformatore
toroidale. Cablaggio con cavo speciale Kimber in rame puro. Strumenti per la
centratura della frequenza, intensità o fase segnale. Due tipi di settaggio per
la larghezza di banda, circuitazione di ricezione a mosfet selezionati a basso
rumore, uscite bilanciate e sbilanciate, possibilità telecomando. Panello
frontale nero da 43 o 48 cm.

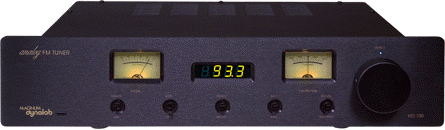

The
third addition to our line of Triode Tube FM ANALOG tuners, the MD 100T is built
with the same precision aligned R.F. section found in the highly capable MD 100.
In addition, we have added the specially designed MD Reference 6922 tubes in the
audio amplification stage, providing audio realism for those customers with a
special partiality for the tube experience. The MD 100T offers not only a new
reference in terms of sonic realism, but also yields the utmost in flexibility
through our optional Precision Analog Remote System, and standard balanced audio
outputs. As in all Magnum Dynalab analog tuners, we design and build the MD
100T's highly adept 4-stage RF front end in-house. This unit is sure to extract
the most intricate signals from amongst the milieu of FM congestion that abounds
in today's urban markets. Additional support is given through our custom Auto
Blend RF circuit, which constantly monitors and varies your stereo separation
insuring optimal "stereo quieting" during your listening sessions. Tunable
4-stage ANALOG front end: Four stages of RF filtration, providing station
separation without affecting stereo separation. As always, the front end is a
custom designed and manufactured in-house design. Multiple Bandwidth Settings:
The MD 100T offers 2 bandwidth settings to produce the best sound where adjacent
channel interference is, or is not a factor. Dual AGC (automatic gain control)
stage: This automatic circuit design eliminates the need for a local and distant
switch, altering the amount of relative gain that's added to the incoming signal.
Auto Blend RF Circuit: Automatically monitors and adjusts stereo separation to
maximize "stereo quieting", insuring the quietest stereo signal as possible.
This greatly eliminates background noise. Defeatable Mute: Eliminates any
interstation noise while tuning Analog Meters: Functional and easy-to-read
multipath/signal strength measurements, showcased through an analog meter.
MD Reference 6922 Vacuum Tubes: Included in the audio amplification stage, our
6922 MD Reference Tubes are designed to our exacting standards and tested
individually for specifications. .093 Thick Printed Circuit Board: A solid
footing to minimizes any residual vibration in the chassis to allow all
components to operate at peak performance. Further, all contact points are
generously gold plated to ensure complete signal transfer over the long haul.
Balanced Output with Gold Plated Neutrik Connectors: Fully complimentary circuit
insures a perfectly balanced signal, and exact dimensions ensure maximum
conductivity. RS-232 Port: For seamless integration with any whole house
audio system. WBT Unbalanced (RCA) Output Connectors: Low tolerance
connector made of highly ductile "OFC" copper, and 24 carat gold plated ensures
a solid contact for interconnects Kimber Hyper-Pure Copper Wiring in the
Audio Path: High grade wiring throughout the audio path provides a clean,
uncolored path for the signal through the audio stage of the unit. Through the
hand matching of internal IF components, the MD-100T excels in RF Selectivity
and tuning Sensitivity. The MD-100T will assure you the consistency of
performance our customers have come to expect from Magnum Dynalab.

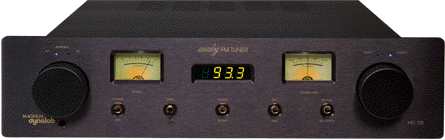

MD-102T B17/19 Con circuito
RF separato a 4 stadi, circuitazione senza compromessi interamente analogica e
bilanciata. Utilizzo di valvole Amperex Bugle Boy 6922 militari certificate,
selezionate e accoppiate sullo stadio di amplificazione, con anelli per
migliorare il raffreddamento eliminare la microfonicità e allungare la vita
delle valvole. Circuito di grande spessore 2,4 mm per minimizzare le vibrazioni,
Cablaggio con cavo Kimber in speciale in rame puro, condensatori in
polipropilene MIT Caps su segnale e bypass e trasformatore toroidale. Strumenti
per la centratura della frequenza, intensità del segnale e fase segnale. Due
tipi di settaggio per la larghezza di banda, circuitazione di ricezione a mosfet
selezionati a basso rumore, trasformatore toroidale. Filtri fatti a mano per
avere il minimo della distorsione. Due ingressi antenne, uscite bilanciate e
sbilancitate, possibilità telecomando. Panello frontale nero da 43 o 48 cm.
ne
of our most popular tuners, the MD 102T is a staple in our line up Triode Tube
FM ANALOG tuners. Built with the same precision aligned R.F. section found in
the highly capable MD 102, we have added MD Reference 6922 tubes in the
amplification stage of the audio section, providing audio realism and coloration
for those customers with a special partiality for tube technology. With
improving RF transmission equipment around the world, this Triode tuner, with
its distinctive audio stage, allows you to experience FM as it was intended,
with the full emotion and zeal with which the music was originally recorded. It
is pure, unaltered, source audio. Our design team has taken careful
consideration of the specific characteristics of the 6922 tubes, and selected
all corresponding components accordingly. The result is a product with
impressive specifications, and a collection of world-class components that work
exceedingly well together. The MD 102T uses our proven RF design and includes a
collection of improvements to our audio staging. This includes our unrelenting
focus on a complete grounding circuit to eliminate any unwanted stray signals,
and most importantly, a zero feedback design in the audio stage, ensuring the
waveform is unaltered through the output circuit. It is a truly high-performance
product, worthy of inclusion in any audiophile's audio system. The following is
a list of the MD 102T's impressive design features: Tunable five stage ANALOG
front end: Five stages of RF filtration, providing station separation without
affecting stereo separation. As always, the front end is a custom designed and
manufactured in-house design. Multiple Bandwidth Settings: The MD 102T offers
both Ultra Wide and Narrow IF Bandwidth settings to produce the best SOUND where
adjacent channel interference is, or is not a factor. Dual AGC (automatic gain
control) stage: This automatic circuit design eliminates the need for a local
and distant switch, altering the amount of relative gain that's added to the
incoming signal. Auto Blend RF Circuit: Automatically monitors and adjusts
stereo separation to maximize "stereo quieting", insuring the quietest stereo
signal as possible. This greatly eliminates background noise. Precision tunable
matched IF (intermediate frequency) amplifiers: ensures consistent
specifications for adjacent channel separation, alternate channel separation and
low distortion Precision Voltage Stabilizers in the Power Supply: Ensures
precise tuning of the incoming RF signal Dual Antenna Inputs: Provides the
flexibility to position different antennas in multiple locations to accommodate
differing incoming signals. Defeatable Mute: Eliminates any interstation noise
while tuning Analog Meters: Functional and easy-to-read multipath/signal
strength measurements, showcased through an analog meter. Fully shielded
RF section-eliminates any interference from stray signals MD Reference 6922
Vacuum Tubes: Included in the audio amplification stage, our 6922 MD Reference
Tubes are designed to our exacting standards and tested individually for
specifications. .093 Thick Printed Circuit Board: A solid footing to minimizes
any residual vibration in the chassis to allow all components to operate at peak
performance. Further, all contact points are generously gold plated to ensure
complete signal transfer over the long haul. Balanced Output with Gold Plated
Neutrik Connectors: Fully complimentary circuit insures a perfectly balanced
signal, and exact dimensions ensure maximum conductivity. Shielded Torroidal
Transformer: Coupled with a high grade aluminum chassis, device is completely
shielded from stray signals and transient noises. The high grade custom designed
transformer reduces the overall noise floor of the tuner. AudioCap Capacitors:
With Oxygen-free copper leads that are generously gold-plated, these
polypropylene dialectric capacitors help preserve the integrity of the original
signal. WBT Unbalanced (RCA) Output Connectors: Low tolerance connector made of
highly ductile "OFC" copper, and 24 carat gold plated ensures a solid contact
for interconnects Ultra Linear Capacitors in the Power Supply: Provides a pure
source of DC power, and improves the frequency response of the tuner Kimber
Hyper-Pure Copper Wiring: High grade internal wiring provides a clean, uncolored
path for the signal through the audio stage of the unit. Burr Brown Op
Amps with Black Gate Capacitors: Proven performance from industry leading
suppliers with zero degradation over the long haul

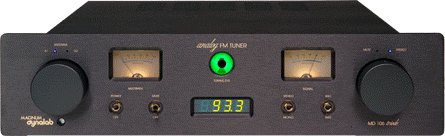

MD-106T B17/19 Circuitazione
ibrida senza compromessi interamente analogica con stadio di preamplificazione a
Valvole in pura classe “A”, e stadio RF 5 stadi separato. Valvola tipo “occhio
magico” per la centratura della frequenza, strumenti per l’intensità del
segnale, e per la fase segnale. Utilizzo di valvole Amperex Bugle Boy 6922
militari certificate, selezionate e accoppiate sullo stadio di amplificazione,
circuito di grande spessore 2,4 mm per minimizzare le vibrazioni, Cablaggio con
cavo Kimber AKCG speciale in rame puro. Tre tipi di settaggio per la larghezza
di banda, circuitazione di ricezione a mosfet selezionati a bassissimo rumore
con 2 trasformatori toroidali, ingresso a 5 stadi con componenti Burr Brown e
condensatori Black Gate. Ingressi per 2 antenne analogiche, uscite bilanciate,sbilancitate
e composita, possibilità telecomando. Panello frontale nero o Gold/da 48 cm.
Introduced
in 2003, the MD 106T FM Tuner is one of our flagship products here at Magnum
Dynalab. As the original offering in our successful series of Hybrid FM tuners,
the MD 106 Triode is the first of Magnum Dynalab's FM tuners to use tube
technology in the audio amplification stage. Consistent with our design
philosophy to separate the analog R.F. section and the audio section, the MD
106T FM Tuner provides a Magnum tuner for those customers with a special
partiality for the tube experience. Like all Magnum Dynalab tuners, the MD 106T
FM Tuner employs an in-house designed and manufactured analog front end that
utilizes a specially aligned five stage front end with precise hand-matched
components in the critical areas. In any FM tuner, the front end is of most
importance to maximizing sensitivity and selectivity while minimizing distortion,
so that the signal sent to the audio section is as pure as possible. It is for
this reason that our front ends are designed and built by us, for only us. There
is no company in the world that does so, nor is there a company that we can
count on to deliver a front end worthy of inclusion in our devices. Further, the
106T FM Tuner is also the beneficiary of the unique Magic Eye Tuning meter,
providing an accurate and elegant tuning mechanism to ensure the perfect
frequency is fed through the tuner's front end. Overall, the stately symmetry of
the 106T FM Tuner bestows a little mood lighting while in service, and is a
testament to the outstanding sonic clarity, definitive sound staging and raw
finesse of a truly fine audio product.
MD-108T B17/19 Circuitazione
ibrida senza compromessi interamente analogica con stadio di amplificazione
d’uscita a valvole in pura classe “A”, e stadio RF separato. Valvola tipo
“occhio magico” per la centratura della frequenza, strumenti per l’intensità del
segnale, e per la fase segnale. Tre tipi di settaggio per la larghezza di banda,
circuitazione di ricezione a mosfet selezionati a bassissimo rumore con 2
trasformatori toroidali, ingresso a 5 stadi. Ingressi per 2 antenne analogiche,
uscite bilanciate, sbilanciate e composita, possibilità telecomando. Panello
frontale nero o Gold/da 48 cm.
The
predecessor and backbone of the new MD 108T Triode Tube FM Tuner, the MD 108, is
one of the most successful standalone FM tuners we have ever introduced. It has
been a staple of the Magnum Dynalab collection for over 10 years and the first
of our tuners to employ the distinctive and incredibly precise MAGIC EYE tube
for tuning, and also the first of our products to utilize a separate audio stage
within the unit. In 2005, the Magnum Dynalab design team took this discrete
audio stage to the next level. Our proprietary TRACCTM technology (Triode
Reference Audio Control Center) was introduced first with the launch of the MD
109 FM Tuner, and this innovative design has resulted in our most impressive
audio output ever. With our most inspiring audio section now available to the
market, we felt it appropriate to apply this new technology to some of our
classic Analogue FM tuners. Introducing the MD 108T. In addition to the
inclusion of the TRACCTM audio section (also found in the MD 109), we have also
utilized an ultra-stable power supply, a new RF design with greater sensitivity,
closer tolerances for the critical components, and a thicker printed circuit
board with gold plated solder pads. Finally, a true differentially balanced
circuit utilizes the full influence of the Triode tube design and insures that
the balanced signals are perfectly matched - thus realizing the full benefit
when used in a balanced system. Building on the MD 108 FM Tuner, the six stage
front end is yet another improvement on a proven design. With three
ultra-sensitive bandwidth settings and enhanced selectivity, you are ensured the
best possible signal from either of the two analog antenna inputs. Plus, the MD
108T is equipped with two digital antenna inputs for future upgradeability. A
muting circuit eliminates unwanted inter-station noise, and to provide a visual
cue of the devices operation, the MD 108T employs two accurately calibrated taut
band analog meters to indicate multipath and signal strength. In unison with
these meters, a unique dual MATRIX EYE tube for centre tuning means there is
little guess work in optimizing FM reception. This degree of customization in an
FM tuner is only made possible by the fact that we at Magnum Dynalab continue to
design and manufacture all of our RF front-ends in-house. Coupled with the
impressive collection of critical components used throughout the device, it
leads to an impressive list of primary highlights.
Un sintonizzatore destinato
ad essere sempre al passo con i tempi, funziona da preamplificatore con ingressi
, permette di ricevere le radio da satellite,internet o FM terrestre, con una
circuitazione ibrida senza compromessi interamente analogica con stadio di
amplificazione d’uscita a valvole in pura classe “A”, e stadio RF separato.
Strumenti per l’intensità del segnale, e la centratura della frequenza. Tre tipi
di settaggio per la larghezza di banda, circuitazione di ricezione a mosfet
selezionati a bassissimo rumore con 2 trasformatori toroidali, ingresso a 5
stadi. Ingressi per 2 antenne analogiche, uscite bilanciate, sbilanciate e
composita, possibilità telecomando. Panello frontale nero o Gold/da 48 cm.
acquisition
ever. Introducing the MD 109. Undeniably, the World's best FM Tuner. larger view
Primary highlights include an ultra stable power supply, a direct output Triode
audio section and most importantly, the introduction of the World Source
PlatformTM. The World Source PlatformTM represents the culmination of 2 years of
internal development, and the commitment with which we have embraced the
evolution of the multi-format audio source environment that we live in today.
Designed to remain perpetually current, the MD 109 starts with receiving and
delivering with sonic accuracy all terrestrial FM signals better than any FM
tuner that we have ever developed. Beyond this, it is also upgradeable to
accommodate digital audio from various sources, including satellite radio, CD,
DVD and Internet Sources. Quite simply, the MD 109 serves as your source
component for all future listening options and variables. From its pedigree as
the most competent FM tuner we have ever built, with seamless integration you
can choose current options a la carte, or later expand the 109's capabilities to
accommodate future digital sources. Whether the 109 performs solely as an FM
tuner in your listening room, or the World Source PlatformTM is employed via a
secondary digital source signal, we believe the operation of a sophisticated
piece should not stand in the way of listening.The Touch-screen is a marvel of
rather ingenious simplicity. The interface architecture is robust, accommodating
and intuitive, and when not in active service, the overall luminance dips and
bestows a little mood lighting until awakened. If one prefers a more tactile
traditional approach however, precise station tuning is easy and deliberate by
means of two prominent large dials. This same tactile sensation is also achieved
at a distance by means of the IR remote. Designed well beyond function and
convenience, the fit and feel of the MD 109 IR remote is one of positive
precision, substance and style. Immediate, accurate and in complete control of
all functions is accomplished from well beyond a pragmatic range. During a demo,
it's challenging to articulate the performance of the MD 109 without relying on
the word 'perfect'. Ironically, you tend to concentrate on the artist's
performance rather than the MD 109. This phenomenon is quite intentional. We
respect that when an artist shares their craft it ultimately needs to be
received with immaculate integrity. Our binding commitment to you is equal to
our recognition to the efforts and fine works of performers. For music lovers,
the pure sound entertainment experience has never been more diverse and
bountiful. The MD 109 is a serious solution to a multi-format way of life and
worthy of your consideration. With delicate and fastidious detail, our Director
of Design, Zdenko Zivkovic's purist philosophy has established a truly unique
design that realizes zero influence on the original signal. Our major design
differentiator is not insignificant… to our knowledge, we are the world's only
audio manufacturer to eliminate capacitors after the gain stage of the tubes.
The inclusion of capacitors in any audio stage results in a variable impedance
across the frequency range. That is, output impedances can vary anywhere between
10 and 20 times from high to low frequencies, putting additional stress on
interconnects, and altering the tonal subtleties of the sound stage across the
spectrum. In the MD 109, direct current from the MD Reference Cryovalve 6922
tubes is delivered without the altering impact of output capacitors, resulting
in incredibly low impedance (200 ohms) that is flat across the frequency range
(0.2Hz to 200KHz). This flat impedance also eliminates the influence of the
interconnects, resulting in a signal that is virtually identical to that which
was originally recorded in the studio. This unique design forms the backbone of
our Triode Reference Audio Control Center (TRACC)TM technology, which is quite
simply the most accomplished analog audio stage we have ever developed. In
addition to its low impedance, it boasts a host of other impressive
specifications:Signal to noise ratio > than 110 dB, the micro information from
the original signal is maintained. Zero phase shift from 0.2 Hz to 200KHz Zero
distortion variance from 0.2 Hz to 200KHz This demanding level of pristine
signal movement requires a solid foundation. Double sided 0.093 thick printed
circuit boards provide the base and minimize potentially damaging vibration.
With isolation insured, individual components can perform as planned without
unbridled influence from neighboring elements and activity. To maximize
conductivity and insure that all micro-information is maintained, ceramic tube
sockets and all circuit board contacts are generously gold plated. Special feet
have been designed using Vibrapod Isolators to insure that the performance is
not comprised from external vibration. Without compromise, the MD 109 includes a
collection of components supplied by world leaders Mundorf, WBT, Wima,
Dale-Vishayand and Burr Brown. In the critical areas of the audio board before
the tube stage we use the Mundorf Supreme/Silver/oil polypropylene dielectric
capacitors and as the name indicates, high purity silver is used for the
capacitor coating. The winding is impregnated with a special oil, and these
features contribute to an even fuller and smoother tonal richness and diversity.
Along with their collective ability to move sound while maintaining the purity
of the original signal, these components are highly regarded for extensive
unwavering performance over the long haul. To minimize the stress on the tube
and insure long tube life a special turn on circuit is incorporated that has a
very slow rise time slope. This brings the tube up to the optimum operating
current at a very controlled and safe rate. In addition to this notable design
feature, our audio tubes themselves are different. Designed and manufactured
specifically for Magnum Dynalab, our 6922 Reference CryoValve tubes have been
through an exclusive process before landing in the 109. Each tube passes through
a series of operations, including a 100 hour cryogenic treatment process at
-320oF. This reduces microphonic effects, lowers the dynamic noise floor and
increases the 'apparent gain' to greatly relax and improve the dynamic and low
level resolving power. Further, the pins have been individually cleaned back to
base metal and polished for much improved contact quality and sonics. The audio
stage of the MD 109 is, quite simply, the best we have ever created. A testament
to our long-standing experience in the treatment of the analog signal path, the
end result is a sound stage that puts the MD 109 in a class of audio electronics
inhabited by very few.

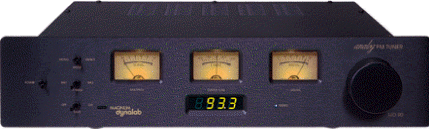

MD 90 B17/19 Di derivazione
dalla nuova seria MD con circuito RF separato a 3 stadi, che oggi ha una
maggiore sensibilità, circuitazione interamente analogica, a componenti discreti
dell’ultima generazione. Strumenti per la centratura della frequenza, intensità
del segnale ricevuto e fase segnale. Due tipi di settaggio per la larghezza di
banda, mute, e possibilità di armonizzare la ricezione stereo e eliminare
eventuali rumori di fondo, possibilità telecomando. Panello frontale nero da 43
o 48 cm.
As
successor to the FT101A, one of the most sensitive, selective and sonically
accurate FM tuners of our time, the MD-90 continues the tradition by re-defining
state-of-the-art in analog FM tuner design. As did the FT-101A, the MD-90
combines the very latest in discrete, analog technology. Its highly renowned
MOSFET front end provides 3 stages of very careful and precise amplification.
Here even the most fragile of signals is strengthened and further defined by
using highly effective "group delay" filtering. The result is a sonically
correct audio signal, one that contains all the inherent richness and brilliance
of the source being broadcast. In addition to the features offered by its
predecessor, the MD-90 now offers even greater selectivity in order to deal with
urban signal congestion. The MD-90's in house manufactured 3-stage RF front end
is sure to extract the most intricate signals from amongst the milieu of FM
congestion that abounds in today's urban markets. Additional support is given
through our custom Auto Blend RF Circuit, which constantly monitors and varies
your stereo separation insuring optimal "stereo quieting" during your listening
sessions. The MD-90 now incorporates all functions in a totally redesigned
motherboard. This integration has provided the necessary design efficiencies to
allow consistently higher levels of selectivity to be maintained. Along with
added selectivity, the MD-90 has a redesigned power supply circuit that
maintains the tuner circuitry at standby at all times when the tuner is
connected to a live AC source. The MD-90 can now also house the analog remote
system (FTR) inside the chasis allowing for precise analog tuning through the
optional infra red remote control. (sold optionally) Dual, keyed automatic gain
control (AGC) - Monitors and maintains program signal level and clarity, along
with providing a dramatic reduction in interference from strong, local stations.
BW 1/ BW 2 bandwidth control - Switchable to effectively control annoying
sideband interference. Mute circuit - noise-activated with manual defeat switch.
Auto Blend RF circuit - automatically monitors and varies stereo separation
insuring optimal "stereo quieting" during your listening sessions. Stereo/Mono
Mode - User switchable. Digital frequency display - Independent frequency
counter derives input from tuner's local oscillator section and displays in
soft, amber 0.5" LED numerals. Large, easy-to-read panel meters provide
continuous monitoring of rf input level, multipath interference level and
center-tune condition. Frequency tuning is via a precision potentiometer which
provides a precise, filtered voltage for the tuning varactors. Visual output is
via the digital frequency display. The actual tuning mechanism consists of an
ultra smooth, large, front panel control knob. Function switching is provided
through tactile, toggle switches.
MD100 B17/19 Di derivazione
dalla nuova seria MD con circuito RF separato a 4 stadi, circuitazione senza
compromessi interamente analogica. Strumenti per la centratura della frequenza,
intensità o fase segnale. Due tipi di settaggio per la larghezza di banda,
circuitazione di ricezione a mosfet selezionati a basso rumore, uscite
bilanciate e sbilanciate, possibilità telecomando. Panello frontale nero da 43 o
48 cm.
The
MD-100, surmising over 20 years of experience in the design of FM tuning
technology, offers not only a new reference in terms of sonic realism, but also
yields the utmost in flexibility through our optional FTR (internal remote
interface system) and standard balanced audio outputs. The MD-100 is the third
addition to our renowned MD series of products. Our custom made 4-stage RF front
end is sure to extract the most intricate signals from amongst the milieu of FM
congestion that abounds in today's urban markets. Additional support is given
through our custom Auto Blend RF circuit, which constantly monitors and varies
your stereo separation insuring optimal "stereo quieting" during your listening
sessions. Dual, keyed automatic gain control (AGC) - Monitors and maintains
program signal level and clarity, along with providing a dramatic reduction in
interference from strong, local stations. BW 1/ BW 2 bandwidth control -
Switchable to effectively control annoying sideband interference. Mute circuit -
noise-activated with manual defeat switch. Auto Blend RF circuit - automatically
monitors and varies stereo separation insuring optimal "stereo quieting" during
your listening sessions. Stereo/Mono Mode - User switchable. Digital frequency
display - Independent frequency counter derives input from tuner's local
oscillator section and displays in soft, amber 0.5" LED numerals. Balanced
Outputs - allows Felxibility in system design Precision Flywheel Tuning -
gives accuracy and ease of tuning. Specialty Capacitors in Analog Section
- insures total frequency response. WBT unbalanced RCA output connectors -
low tolerance connector made of highly ductile "OFC" copper, 24 carat
gold-plated; insures a solid contact for interconnects. hrough the hand
matching of internal IF components, the MD-100 excels in RF Selectivity and
tuning Sensitivity. The MD-100 will assure you the consistency of performance
you, our customer, have come to expect of Magnum Dynalab
MD 102 FM Dall’esperienza dell’ MD108,
con circuito RF a 4 stadi separato, circuitazione senza compromessi interamente
analogica. Strumenti per la centratura della frequenza, intensità del segnale e
fase segnale. Due tipi di settaggio per la larghezza di banda, circuitazione di
ricezione a mosfet selezionati a basso rumore, trasformatore toroidale. Due
ingressi antenne, uscite bilanciate e sbilanciate, possibilità telecomando.
Panello frontale nero da 43 o 48 cm.
A
core member of our line-up of solid state, analog FM tuners, the MD 102 follows
in the footsteps of our original flagship model, the MD 108. With its precision
aligned R.F. section and the tolerance matching components in the audio section,
the MD 102 is able to produce realism from a live performance that even the best
CD players cannot match. Many radio stations are improving their transmission
equipment, allowing you to experience FM as it was intended, with the full
emotion and zeal with which the music was originally recorded. Although we
produce a variety of Triode Tube FM tuners, the MD 102 is rooted in solid state
fundamentals. With precision matched components throughout the device, and
transistors specially selected according to our exacting specifications, you can
be sure that the MD 102 is everything a high-performance audio product should be.
Our design team has taken careful consideration to ensure the device has a
complete grounding circuit, eliminating any unwanted signals that will interfere
with the primary output. Also, we have included a zero feedback loop in the
audio output stage, ensuring that the incoming waveform perfectly matches the
outgoing waveform. The result is a pure, unaltered signal, and ultimately,
better sound. The following is a list of primary design features: Tunable five
stage ANALOG front end: Five stages of RF filtration, providing station
separation without affecting stereo separation. As always, the front end is a
custom designed and manufactured in-house design. Multiple Bandwidth Settings:
The MD 102 offers both Ultra Wide and Narrow IF Bandwidth settings to produce
the best SOUND where adjacent channel interference is, or is not a factor. Dual
AGC (automatic gain control) stage: This automatic circuit design eliminates the
need for a local and distant switch, altering the amount of relative gain that's
added to the incoming signal. Auto Blend RF Circuit: Automatically monitors and
adjusts stereo separation to maximize "stereo quieting", insuring the quietest
stereo signal as possible. This greatly eliminates background noise. Precision
tunable matched IF (intermediate frequency) amplifiers: ensures consistent
specifications for adjacent channel separation, alternate channel separation and
low distortion Precision Voltage Stabilizers in the Power Supply: Ensures
precise tuning of the incoming RF signal Dual Antenna Inputs: Provides the
flexibility to position different antennas in multiple locations to accommodate
differing incoming signals. Defeatable Mute: Eliminates any interstation noise
while tuning Analog Meters: Functional and easy-to-read multipath/signal
strength measurements, showcased through an analog meter. Fully shielded
RF section-eliminates any interference from stray signals MD Reference 6922
Vacuum Tubes: Included in the audio amplification stage, our 6922 MD Reference
Tubes are designed to our exacting standards and tested individually for
specifications. .093 Thick Printed Circuit Board: A solid footing to minimizes
any residual vibration in the chassis to allow all components to operate at peak
performance. Further, all contact points are generously gold plated to ensure
complete signal transfer over the long haul. Balanced Output with Gold Plated
Neutrik Connectors: Fully complimentary circuit insures a perfectly balanced
signal, and exact dimensions ensure maximum conductivity. Shielded
Torroidal Transformer: Coupled with a high grade aluminum chassis, device is
completely shielded from stray signals and transient noises. The high grade
custom designed transformer reduces the overall noise floor of the tuner. WBT
Unbalanced (RCA) Output Connectors: Low tolerance connector made of highly
ductile "OFC" copper, and 24 carat gold plated ensures a solid contact for
interconnects Ultra Linear Capacitors in the Power Supply: Provides a pure
source of DC power, and improves the frequency response of the tuner
Oxygen-free Wiring in the Audio Path: High grade internal wiring provides a
clean, uncolored path for the signal through the audio stage of the unit.
DIGITAL AM / FM
TUNER
MAGNUM DYNALAB
DT-5 AM/FM
€.1.167,00
Per offerta
TELEFONA/ E-MAIL
DT-5 AM/FM Il primo sintonizzatore digitale costruito dalla
Magnum per FM e AM, che permette di essere più flessibile all'uso con un buon
livello di musicalità rispetto agli altri sintonizzatori digitali. Con 30
memorie in FM e 30 in AM, uscite normali e bilanciate, telecomando e interfaccia
con tutti i principali sistemi multiroom. Panello frontale nero da 43 o 48 cm.
The
DT-5, an AM/FM digitally tuned tuner designed to offer the utmost in features
and flexibility as well as levels of musicality that most listeners demand. With
great pride Magnum Dynalab offers the DT-5 our first AM/ FM tuner. The DT-5 will
offer the latest in terms of features and remote functionality, yet yielding
sound quality unsurpassed by any PLL type tuner found on the market today.
Special attention has been taken on the AM section to help eliminate many of the
reception problems inherent with AM radio. The DT-5 offers the cutting edge
features required for today's demanding installations, while still offering the
sonic realism you have come to expect from MAGNUM DYNALAB. High performance PLL
Tuning Front End Permits accurate tuning of AM/FM signals with precision
30 FM/30 AM presets with automatic memory lock The DT-5 scans the FM dial
automatically locking any tuned station into memory for the utmost in convenient
channel surfing. Single ended and balanced XLR outputs Allowing the
perfect connection to any system. Discrete remote control commands Offers
the easiest interaction with today's multi-room control systems. RS232
interface Allows complete interactivity with the most complex multi-room
installation, outputs tuner information to external zone pads. Direct
Frequency Access Station frequencies can be accessed by numeric input, from our
own remote control provided, or from a multi-room control system.
RDS-Radio Data System Allows access to informations where transmitted.

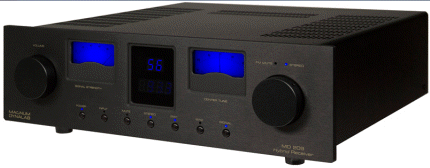

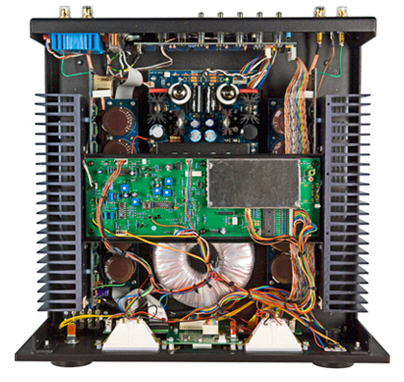

MD-209
Sintoamplificatore potenza 100 watts su 8 ohm, preamplificatore a valvole con
tubi criogenici. 3 ingressi digitali di cui uno USB convertitore interno Bur-
Brown, compreso processore multicanali. Touchscreen con schermo 5". Con
telecomando
Audio
Receiver. Loaded with features, and stocked with Magnum Dynalab's unrelenting
build quality and audio engineering, the new MD-209 is a future-ready anchor for
your high-performance home audio system The MD 209 larger view of the MD 209
Hybrid Receiver The MD 209 ... An Integrated Audio Receiver for the Evolution of
the Home Audio System From our pedigree in pure analog circuitry, we're proud to
introduce our most uncompromising 2-channel Audio Receiver. Loaded with features,
and stocked with Magnum Dynalab's unrelenting build quality and audio
engineering, the new MD-209 is a future-ready anchor for your high-performance
home audio system. Reviews of the MD 209 The MD 209 receiver’s amp/preamp
section belongs to audio’s high-end category and will compete with many
distinguished separates I have run across over the years. There isn’t a doubt in
my mind that this “stereo only” component is a breakthrough, even the paradigm
of modern audio receivers. Ernie Fisher, The Inner Ear, September 2009 Read the
entire review ... Overall, the Magnum Dynalab 209 Hybrid Receiver is a new
benchmark in its class. Those seeking exceptional versatility, natural
expressive sound, and 125 watts of power should put the 209 on top of their list.
Victor Chavira, Positive Feedback Online, Issue 44Read the entire review ...
INTRODUCING OUR HYBRID-ACOUSTIC CIRCUITRYTM. This unique and proprietary
circuitry combines the musicality, soundstaging and audio realism of our 6922
CryoTubes with the crisp detail, harmonics and long-life of a solid state device.
FUNCTIONAL AND STATELY FACEPLATE. With a bright LED display, symmetrical knobs
and meters, and a 3/8" thick faceplate, the MD-209 is as attractive as it is
easy-to-operate. INTEGRATE ANY DIGITAL SOURCE COMPONENT. The MD-209 is equipped
with our most advanced Digital-to-Analog converter, featuring our full-time
upconverting and oversampling Burr-Brown design, 3 digital inputs (including
USB), and seamless operation through the remote or faceplate. WORLD-LEADING FM
SECTION. With 8 stages of RF filtration and our in-house designed and
manufactured RF front-end, our FM tuner section will astonish you with the audio
clarity and realism that is characteristic of every Magnum Dynalab tuner.

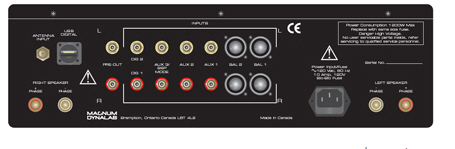

FLEXIBLE INPUTS/OUTPUTS. With 1 line-level pre-amp output, 2 Balanced (XLR)
inputs and 3 single-ended analog inputs (including a Surround Sound Processor
input for integration with multi-channel applications), PLUS 3 digital inputs (including
USB), the MD-209 acts as the backbone for any home audio/video system. AUDIO
PROTECTION BOARD. The MD-209 comes equipped with a proprietary circuit to run
regular diagnostics on the device, ensuring safe and efficient operation of the
unit at all times and safeguarding against any unwanted current that may harm
your speaker. MAGNUM DYNALAB BUILD QUALITY. Solid footings, 24K gold
plated .093" thick circuit boards, hefty internal heat-syncs and a burly chassis
are all characteristics of our unrelenting commitment to quality.
MD-308 Amplificatore
integrato potenza 100 W su 8 ohm corrente di picco 30 Ah.con telecomando Magnum
Dynalab launches a reference standard for integrated amplifiers.
The
new MD-308 Integrated Amplifier is a high powered / high current design
featuring cutting edge technology in both preamplifier and power amplifier
design. Based on the critically acclaimed amplifier section found in our MD-208
Integrated Amplifier / Receiver , the MD-308 Integrated Amplifier will be a
welcome addition to the most discerning listener's music system. Features &
Benefits of the MD-308 Integrated Amplifier torroidal transformer -- very
stable and sound stage with deep bass extension oxygen free wiring -- low
distortion, high resolution ultra linear matched components -- very
tonally accurate sound damping factor > 100 -- ultimate control of the
speaker, quick musical dynamics large heat sink surface area -- maintains
a low operating temperature class A/B -- efficient design and helps ensure
a long component life, low power consumption j-fets (input stage) -- they
produce a very natural harmonic sound This section of the MD 308 has also
been designed as a high performance stand alone component. The purpose of this
section is to provide the customer with control functions that have the purist
and shortest signal path, to ensure the continuation of "live concert" sound
quality received from your source.

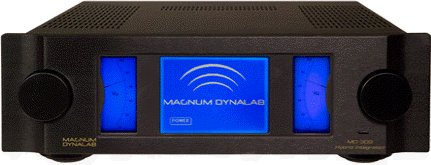

MAGNUM DYNALAB
MD309
€.8.570,00
Per offerta
TELEFONA/ E-MAIL
MD-309 Amplificatore integrato preamplificatore a valvole 225 W
su 8 ohms (450 watts into 4 ohms) preamplificatore a valvole con tubi
criogenici. 3 ingressi digitali di cui uno USB convertitore interno Bur-Brown,
compreso processore multicanali. Touchscreen con schermo 5". Con telecomando
The
MD 309 ... a Hybrid Integrated Amplifier for the Evolution of the Home Audio
SystemFrom our pedigree in pure analog circuitry, we're proud to introduce our
most uncompromising 2-channel Integrated Amplifier. Using the same
Hybrid-Acoustic CircuitryTM found in our MD-209 Audio Receiver, our proprietary
6922 Cryovalve tubes, and stocked with Magnum Dynalab's unrelenting build
quality and audio engineering, the new MD 309 Hybrid Integrated Amplifier is a
future-ready anchor for your high-performance home audio system. INTRODUCING OUR
HYBRID-ACOUSTIC CIRCUITRYTM. This unique and proprietary circuitry combines the
musicality, soundstaging and audio realism of our MD-Reference 6922 CryoTubes
with the crisp detail, harmonics and long-life of a solid state device. POWERFUL
and FLEXIBLE. Equipped with 40 Sanken output transistors to boost current after
the tube gain stage, the MD-309 Hybrid Integrated Amplifier is rated at 225
watts into 8 ohms (450 watts into 4 ohms), adequate output to drive the most
demanding of speakers. FUNCTIONAL AND STATELY. With a 5" LCD touchscreen,
symmetrical knobs and meters, soft blue LED lighting, a 1" thick faceplate and
intuitive remote, the MD-309 Hybrid Integrated Amplifier is as attractive as it
is easy-to-operate. INTEGRATE ANY DIGITAL SOURCE COMPONENT. The MD-309 Hybrid
Integrated Amplifier is equipped with our most advanced Digital-to-Analog
converter, featuring our full-time upconverting and oversampling Burr-Brown
design, 3 digital inputs (including USB), and seamless operation through the
remote or faceplate. FLEXIBLE INPUTS. With 1 line-level pre-amp output, 2
Balanced (XLR) inputs and 3 single-ended analog inputs (including a Surround
Sound Processor input for integration with multi-channel applications), PLUS 3
digital inputs (including USB), the MD-309 acts as the backbone for any home
audio/video system. AUDIO PROTECTION BOARD. The MD 309 Hybrid Integrated
Amplifier comes equipped with a proprietary circuit to run regular diagnostics
on the device, ensuring safe and efficient operation of the unit at all times.
MAGNUM DYNALAB BUILD QUALITY. Solid aluminum feet with Vibrapods Isolators, 24K
gold plated .093" thick circuit boards, hefty internal heat-sinks and a burly
chassis are all characteristics of our unrelenting commitment to quality.
AMPLIFICATORI DI SEGNALE
FM
MAGNUM DYNALAB
MD205
€.455,00
Per offerta
TELEFONA/ E-MAIL
MD 205 B17/19 Amplificatore per antenna e correttore di segnale di FM, migliora
la qualità del segnale
The
SIGNAL SLEUTH brings with it a whole new world of FM-stereo enjoyment. Whether
it be Bach, rock, or current affairs, the SLEUTH will e x p a n d your world of
FM-stereo entertainment, bringing you more FM stations, more clearly Put simply,
the SIGNAL SLEUTH ... amplifies weak FM signals cleanly attenuates
strong, harsh signals without coloration stabilizes FM antenna (and FM cable)
signals separates interfering adjacent-station signals reduces
multipath problems Along with establishing a clearer, crisper sound, a
most important attribute of the SLEUTH is its ability to establish and maintain
a useable FM program signal level. In most cases, this will eliminate the
annoying "flip-flop" stereo-to-mono-to-stereo switching usually experienced with
many FM tuners having non-variable, automatic "blend" circuits. The SLEUTH FM
signal amplifier has already awakened many FM enthusiasts to the brightness and
depth available with a stronger FM signal. As a matter of fact, it prompted one
customer to refer to his SLEUTH as ... "One FM accessory no true audiophile
should be without!" Easy to install and even easier to use, the SLEUTH
model 205 fits neatly into just about any component or integrated receiver
system. As such, it brings all its fine attributes to your fingertips while
maintaining a sleek but unobtrusive demeanor within the system. Along with
adding phenomenal new power to home FM antennas, from single dipoles to
multi-element, stacked arrays, the SIGNAL SLEUTH 205 features ... signal
amplification variable from -10dB thru +30dB (30 times to gain) to bring weak
stations to full quieting* and tame strong, harsh, local signals full
tunability with a "hi Q," 400 KHz bandwidth. This adds some 70dB+ in Spurious
Response selectivity an electronic antenna switching system to bypass the
SLEUTH's amplifier when not needed. Also with the SLEUTH's direct "in/out"
Antenna Signal switching system, instant A/B comparison is always available
a low profile, cabinet in satin black. 17 3/4", 19" or 19" rackmount available.
* "Full quieting" is dependent on the tuner's requirement to establish a "50dB
quieting level."
A
high-efficiency indoor antenna that is ... Continuously tunable across the
FM dial to maximize reception Rotatable for best station orientation
Designed to complement just about any FM system arrangement Receives local
HDTV signal with ease due to its UHF design Directionality helps in
solving problems due to multi path interference Works really well for HD
TV The Silver Ribbon FM antennas are both unique and attractive. The functional,
bright-metal elements of this fm antenna may be adjusted by simply pulling
upward on the center adjustment knob. This provides a precisely-tuned element at
the proper impedance for each receivable FM or UHF HDTV signal on the band,
thereby maximizing reception. The Silver Ribbon FM antennas are easily
rotated in position to provide the best orientation for maximum signal pickup
from the tuned FM or HDTV station.
ST-2 Antenna per interno od esterno
omnidirezionale
This
FM Antenna receives distant FM stations from all directions! A more powerful FM
Antenna than any single element dipole antenna, the ST-2 vertical antenna is
probably one of the best things ever to happen to FM listeners in urban and
fringe reception areas alike. Concentrating its reception "focus" only on the
horizontal plane, the ST-2 FM Antenna is capable of getting more signal to your
FM tuner with less "flutter" and "fading." The ST-2 FM Antenna is also less
susceptible to "multipath interference," due to its unique vertical polarization.
Right from its PH17-7 stainless steel whip through the gold-plated coil coupling
to the stainless-steel encased, precision-wound loading coil, the ST-2 FM
Antenna is built tough. Yet it passes the most fragile of FM signals to your FM
tuner's circuitry with the kind of strength sometimes found only with much
larger, multi-element fm antennas. Being a 1/2 wave design and not requiring a "ground
plane" or counterpoise," it is equally at home mounted on a mast, a balcony,
hanging in the window or from a tree. The ST-2 FM Antenna offers greatly
enhanced FM tuning performance,and signal strength. The ST-2 FM Antenna comes to
you ready to install. It is 54 inches in length, and furnished with a stainless
steel "L" mounting bracket for ease of installation both in and outdoors.
MAGNUM DYNALAB
MD-6
€.250,00
Per offerta
TELEFONA/ E-MAIL
MD-6 Antenna da esterno 6 elementi Yagi collegamento a 75 Ohm lunghezza mt.2,39
Frequency Range 88.1 - 107.9 MHz Impedance 75 Ohms Average
Gain 8.0 dB Average F/B Ratio 13.0 dB Boom Length 94" Turning Radius 66.2"
Elements 6 Number of Driven Elements 4 Construction Commercial
Grade Extruded Aluminum
MD-10 Antenna da esterno 13 elementi
Yagi collegamento a 300 ohms possibilità adattatore 75 Ohm lunghezza mt. 3,60
Frequency
Range 88.1 - 107.9 MHz Reception Range Up to 200 mi.
Impedance 75 Ohms Average Gain 12 dB Average F/B Ratio 15 dB
Boom Length 142" Turning Radius 86.0" Elements 10 Number
of Driven Elements 8 Construction Connercial Grade Extruded
Aluminum
OPZIONI
Finitura Gold/Silver per MD109
€. 205,00
Finitura Gold / Silver per MD 108T/106/102/208/209/308/309
€.205,00
Finitura Gold / Silver per MD 100/90
€.103,00
Uscita bilanciata per MD 90
€.103,00
Telecomando per MD108T/208
€.359,00
Telecomando per MD106/102
€.308,00
Telecomando per MD 90/100
€.256,00
KCAG KIMBER cablaggio in argento su sezione audio 102,100,90
€.180,00
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
