The brand that delivers excellence in driver,
cabinet, electronic and acoustic design is Monitor Audio. Since 1972, Monitor
Audio’s near fanatical commitment to quality in every aspect of loudspeaker
design coupled with its willingness to innovate has inspired global recognition
and acclaim. Daring to challenge design orthodoxy has been its signature
approach. When Monitor Audio launched its R852MD loudspeaker – the first model
to incorporate a metal dome tweeter - it caused quite a stir. Until that time,
most metal domes were single-metal types made from copper or titanium and
virtually all sounded unconvincing. The R852 used an aluminium-magnesium alloy
dome and sounded significantly better and smoother than all of its single-metal
rivals. It also incorporated ferro-fluid damping/cooling of the metal voice-coil
former and a vented voice coil mechanism for better heat dissipation. These
radical design elements formed the basis for successive generations of C-CAM®
metal domes. By consistently refining and applying the technology, Monitor Audio
has become the world’s foremost proponent of metal dome drivers. Monitor Audio
designs and builds its own cabinets and crossovers as well, so that it can
optimise the incomparable blend of virtues that makes Monitor Audio loudspeakers
unique: clean, dynamic sound, superior build quality and innovative design. And
because they share a philosophy of excellence and a consistency of quality and
voicing, loudspeakers of different types: on-wall, in-wall, floor and
stand-mounting, may be used together to create the perfect blend of colour and
shape for any room.
In the strength and depth of Monitor Audio’s evolving product portfolio, the
ideal of a universal whole-house loudspeaker brand finds true expression.
Decades of accumulated expertise and knowledge have refined the rare mix of
innovation, reliability and sheer performance that has propelled the brand to
global status and on which aficionados of music and movie sound have come to
rely.
MONITOR-AUDIO SPL 100 R
PLATINUM 100 ROSEWOOD DIFFUSORE DA STAND A DUE VIE - REFLEX POSTERIORE A DOPPIA
CAMER(DIFFERENTIAL TUNING - HIVE) -1 MID/WOOFER DA 17 CM IN RST ® - 1 TWEETER
A NASTRO C-CAM ® - 42-100.000 HZ - 88 DB/W/M - 4 OHMS - 50-120 W RMS - FINITURA
ROSEWOOD LACCATO E PELLE ALTEZZA (IN MM) 370 LARGHEZZA (IN MM) 225 PROFONDITA'
(IN MM) 285 PESO (IN KG) 11.75
The
PL100 is a truly compact, wideband speaker capable of expressing the entire
micro-dynamic texture of every performance. A rigid cabinet construction,
proprietary bracing techniques and advanced damping technologies combine to
provide the optimum environment for its wonderfully accurate and detailed C-CAM
ribbon tweeter and its lightening-fast, precision-engineered RDT bass driver.
The PL100 will draw a rich, natural radiance from the most demanding of music
and film scores and reproduce the power and scale of dramatic passages with a
breathtaking fidelity The HiVe®II reflex port has undergone
further development for the Platinum Series and utilises a smoother more shallow
rifled design which, helps to accelerate air flow and reduce turbulence. HiVe®II
technology has the ability to move air in and out much quicker than a
conventional port, the result is fast powerful bass coupled with superior
transient responseThe front baffles, plinths and mid-range driver housings for
the Platinum series of loudspeakers are cast from ARC material, a thermo-set
polymer loaded with minerals to provide very inert, optimally-damped components.
Refined for Platinum by Monitor Audio’s engineers, this type of material is used
for leading-edge automotive design and is ideal for acoustic applications where
a high degree of structural rigidity and vibration damping is required. Bass and
mid-range driver cones use RDT, a unique technology developed specifically by
Monitor Audio’s engineers for the Platinum series of loudspeakers*. Designed to
reduce mass and increase cone stiffness, RDT applies ultra-thin skins of C-CAM
to a core of honeycomb Nomex®** material, creating a structure which is
extremely light but incredibly rigid. At only 40µm thick, the C-CAM skins are
half the thickness of a human hair, yet when bonded to the hexagonal honeycomb
core they form an RDT cone, which is 150 times more rigid than a single layer of
200µm C-CAM alloy, but has a fraction of the overall mass. These properties
allow the cone to operate as a lightning-fast piston for a clearer more natural
sound. The cone’s new concave geometry has been refined by FEA analysis to
provide a smooth frequency response and eradicate break-upA pure ribbon tweeter
is highly regarded in the world of high-end audio as being the best way to
reproduce ultra-high frequencies and provide the most lifelike transient
response. While this belief is well supported by fundamental physics, one listen
will tell you that this driver is very special indeed. Platinum’s ribbon tweeter
design uses an ultra-thin sandwich of C-CAM alloy suspended in a powerful
transverse magnetic field of high energy NeFeB rare earth magnets. The ribbon
serves as both voice coil and radiating diaphragm, with every part of the ribbon
driven directly and simultaneously without energy storage. Having a mass of just
18mg, its diaphragm is able to start and stop in an instant, producing a
transient response capable of defining the leading edge and natural harmonic
resonance of complex musical sounds. Specified to reach ultra-high frequencies
up to an elusive 100 kHz, Platinum’s magical ribbon tweeter will reproduce with
ease every last nuance and detail from vinyl, CD, DVD-A and SACD, together with
the wider bandwidth of HD-DVD and Blu-ray.To provide a secure contact with the
floor, adjustable spiked feet are used. Machined to the finest tolerances from
high-grade alloy and anodised to the most exacting standards, the feet accept
'bullet' spikes of high-tensile steel, chrome-plated to a mirror finish. For
hard or solid wood flooring, a non-slip rubber pad is integrated within the foot
design.The bespoke Platinum PL100 and PLC350 floor stands also feature the same
adjustable Platinum spikesHoused in the PL300's ARC plinth for convenient floor
level access are the WBT* Platinum signature Binding Posts which are considered
to be of the highest quality available. Precision-machined and plated with pure
platinum, they offer a very low contact resistance and the best possible
reliability. Featuring accurate fine-pitch adjustment, the terminals are
suitable for heavy duty cables with spade, 4mm plug or bare wire connections.WBT*
Trademark of WBT GMbh, GermanyFrequency Response: 42 Hz - 100 KHz Sensitivity (1W@1M):
88 dB Nominal Impedance:4 Ohms Maximum S.P.L (Per pair in room): 112.6 dBA Power
Handling (RMS): 120 W Recommended Amplifier Requirements (RMS): 50 - 120 W Bass
Alignment: Ported HiVe II Technology Mid / H.F Crossover Frequency: 2800 Hz Bass
Low Pass Crossover Frequency: N/A Drive Unit Compliment: 1 x 6.5" RDT Bass/mid-range
driver1 x C-CAM high frequency ribbon transducer External Dimensions - Excluding
Stand (H x W x D): 370 x 225 x 285 mm(14 9/16 x 8 7/8 x 11 1/4 inch) Stand
External Dimensions - (H x W x D): 615 x 340 x 365 mm(24 3/16 x 13 3/8 x 14 3/8
inch) Weight (each) Excluding stands: 13 Kg (28.6lbs)

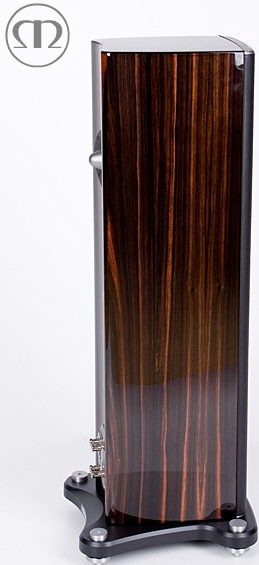

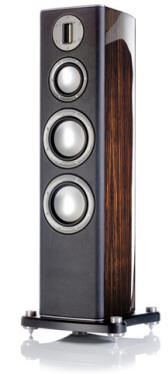

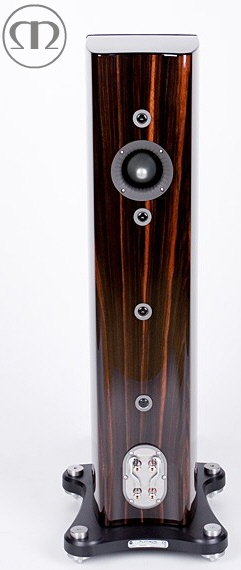

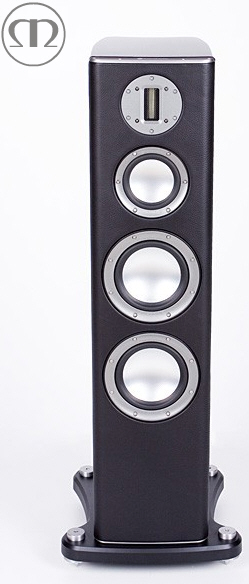

The
latest addition to Monitor Audio’s flagship Platinum range is a compact version
of the universally acclaimed PL300 loudspeaker, designed for an even broader
range of environments. In a skilful re-sizing of the PL300 (the PL200 occupies
approximately 1/3 the volume of the PL300), Monitor Audio’s engineers have taken
great care to preserve all the sonic virtues and design excellence of the larger
speaker. By utilising a re-scaled 6.5” version of the Platinum 8” bass driver
and by re-configuring the Platinum mid-range Tapered Line Enclosure (TLE) to
align co-axially with the PL200’s HiVe®II bass reflex port, they have endowed
the smaller PL200 with the spiritual essence of its universally admired
range-mate. Just how successful Dean Hartley and his team have been in this
endeavour can be measured by the near parity of PL200 and PL300 performance
specifications, despite the new design’s significant re-scaling. For all the
practical advantages conferred by the smaller enclosure, the PL200 surrenders
only a little bass extension to the PL300 and cannot quite match SPL and power
handling. In other performance parameters the PL200 and PL300 are comparable,
proving that within the new PL200 design there is little compromise. Standing at
just under a metre in height (99.8cm x 25.5cm W x 28.5cm D), the compact
three-way PL200 speaker features dual 6.5” RDT bass drivers, a single 4” RDT
mid-range driver and Monitor Audio’s proprietary and superlative Platinum C-CAM®
ribbon transducer. As with other Platinum speakers, the PL200’s innovatively
shaped and braced cabinet is finished in a choice of exotic lacquered Santos
Rosewood and Ebony natural wood veneers, and in a rich piano black lacquer. The
front baffle is upholstered in high quality leather.
DIFFUSORE DA PAVIMENTO A TRE
VIE - REFLEX A DOPPIA CAMERA (DIFFERENTIAL TUNING - HIVE) - 1 WOOFER DA 20 CM IN
RST ® - 1 MIDRANGE DA 11 CM IN RST ® - 1 TWEETER A NASTRO C-CAM ® - 28-100.000
HZ - 90 DB/W/M - 4 OHMS - 100-300 W RMS - FINITURA EBANO LACCATO E PELLEALTEZZA
(IN MM) 1080 LARGHEZZA (IN MM) 288 PROFONDITA' (IN MM) 368 PESO (IN KG) 43.2

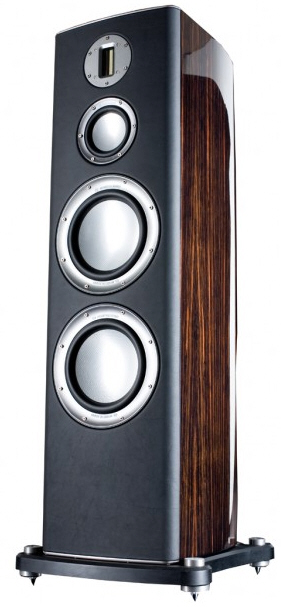

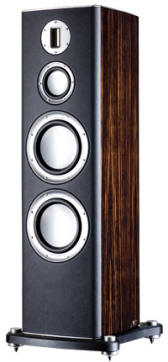

Standing
at nearly 1.2m tall, the PL300 is a majestic three-way floor-standing
loudspeaker possessing the ability to generate the power and scale required to
fill a larger room with awe-inspiring sound. Jaw-dropping dynamics, combined
with supreme agility give the PL300 the power to paint the widest and most
luminous of sonic pictures. It is a true wide-bandwidth speaker system,
reproducing clean, natural frequencies ranging from 28Hz to 100kHz. Extremely
accurate drivers, very low distortion networks and a sublimely inert cabinet
structure combine to create a loudspeaker of immense sonic integrity: neutral,
lifelike and totally refined The HiVe®II reflex port has
undergone further development for the Platinum Series and utilises a smoother
more shallow rifled design which, helps to accelerate air flow and reduce
turbulence. HiVe®II technology has the ability to move air in and out much
quicker than a conventional port, the result is fast powerful bass coupled with
superior transient responseThe front baffles, plinths and mid-range driver
housings for the Platinum series of loudspeakers are cast from ARC material, a
thermo-set polymer loaded with minerals to provide very inert, optimally-damped
components. Refined for Platinum by Monitor Audio’s engineers, this type of
material is used for leading-edge automotive design and is ideal for acoustic
applications where a high degree of structural rigidity and vibration damping is
required. Bass and mid-range driver cones use RDT, a unique technology developed
specifically by Monitor Audio’s engineers for the Platinum series of
loudspeakers*. Designed to reduce mass and increase cone stiffness, RDT applies
ultra-thin skins of C-CAM to a core of honeycomb Nomex®** material, creating a
structure which is extremely light but incredibly rigid. At only 40µm thick, the
C-CAM skins are half the thickness of a human hair, yet when bonded to the
hexagonal honeycomb core they form an RDT cone, which is 150 times more rigid
than a single layer of 200µm C-CAM alloy, but has a fraction of the overall
mass. These properties allow the cone to operate as a lightning-fast piston for
a clearer more natural sound. The cone’s new concave geometry has been refined
by FEA analysis to provide a smooth frequency response and eradicate break-upA
pure ribbon tweeter is highly regarded in the world of high-end audio as being
the best way to reproduce ultra-high frequencies and provide the most lifelike
transient response. While this belief is well supported by fundamental physics,
one listen will tell you that this driver is very special indeed. Platinum’s
ribbon tweeter design uses an ultra-thin sandwich of C-CAM alloy suspended in a
powerful transverse magnetic field of high energy NeFeB rare earth magnets. The
ribbon serves as both voice coil and radiating diaphragm, with every part of the
ribbon driven directly and simultaneously without energy storage. Having a mass
of just 18mg, its diaphragm is able to start and stop in an instant, producing a
transient response capable of defining the leading edge and natural harmonic
resonance of complex musical sounds. Specified to reach ultra-high frequencies
up to an elusive 100 kHz, Platinum’s magical ribbon tweeter will reproduce with
ease every last nuance and detail from vinyl, CD, DVD-A and SACD, together with
the wider bandwidth of HD-DVD and Blu-ray.To provide a secure contact with the
floor, adjustable spiked feet are used. Machined to the finest tolerances from
high-grade alloy and anodised to the most exacting standards, the feet accept
'bullet' spikes of high-tensile steel, chrome-plated to a mirror finish. For
hard or solid wood flooring, a non-slip rubber pad is integrated within the foot
design.The bespoke Platinum PL100 and PLC350 floor stands also feature the same
adjustable Platinum spikesHoused in the PL300's ARC plinth for convenient floor
level access are the WBT* Platinum signature Binding Posts which are considered
to be of the highest quality available. Precision-machined and plated with pure
platinum, they offer a very low contact resistance and the best possible
reliability. Featuring accurate fine-pitch adjustment, the terminals are
suitable for heavy duty cables with spade, 4mm plug or bare wire connections.WBT*
Trademark of WBT GMbh, GermanyFrequency Response:
28 Hz - 100 KHz
Sensitivity (1W@1M): 90 dB Nominal Impedance:4 Ohms Maximum S.P.L (Per pair in
room): 118.6 dBA Power Handling (RMS): 300 W Recommended Amplifier Requirements
(RMS): 100 - 300 W Bass Alignment: Twin Ported HiVe II Technology Sealed
Mid-range TLE Mid / H.F Crossover Frequency: 4000 Hz Bass Low Pass Crossover
Frequency: 550 Hz Driver Unit Complement: 2 x 8" long throw RDT bass drivers1 x
4" RDT mid-range driver1 x C-CAM high frequency ribbon transducer External
Dimensions - Including Fixed Plinth & Feet(H x W x D): 1113 x 410 x 470 mm(43
13/16 x 16 1/8 x 18 1/2) Weight (each) including Plinth: 43.8Kg (96.4lbs)
MONITOR-AUDIO SPL 350 C
PLATINUM 350 C EBONY DIFFUSORE PER CANALE CENTRALE A TRE VIE - REFLEX POSTERIORE
A DOPPIA CAMERA (DIFFERENTIAL TUNING - HIVE) -2 WOOFER DA 20 CM IN RST ® - 1
MIDRANGE DA 11 CM IN RST ® - 1 TWEETER A NASTRO C-CAM ® - 32-100.000 HZ - 90
DB/W/M - 4 OHMS - 250 W RMS - FINITURA EBANO LACCATO E PELLEALTEZZA (IN MM) 288
LARGHEZZA (IN MM) 800 PROFONDITA' (IN MM) 368 PESO (IN KG) 33.5
Given
that at least sixty per cent of the information generated by a home theatre
system is reproduced by the centre channel speaker, the necessity of having as
accomplished a design as the PLC350 in the role cannot be exaggerated. It’s a
substantial three–way, four driver system with the same driver complement as the
PL300. Having a purely neutral tonal balance, vanishingly low distortion and
cabinet colouration, and the most advanced drivers in its class, the PLC350 is
able to illuminate frequencies from 32Hz to 100 kHz - arguably the widest
bandwidth of any centre speaker available. Aesthetically and acoustically
matched with the PL300, the PLC350 will deliver a seamless transition of audio
within the front soundstage of a Platinum multi-channel system for a truly
immersive, dynamic and enriching music or film sound experience.The
HiVe®II reflex port has undergone further development for the Platinum Series
and utilises a smoother more shallow rifled design which, helps to accelerate
air flow and reduce turbulence. HiVe®II technology has the ability to move air
in and out much quicker than a conventional port, the result is fast powerful
bass coupled with superior transient responseThe front baffles, plinths and
mid-range driver housings for the Platinum series of loudspeakers are cast from
ARC material, a thermo-set polymer loaded with minerals to provide very inert,
optimally-damped components. Refined for Platinum by Monitor Audio’s engineers,
this type of material is used for leading-edge automotive design and is ideal
for acoustic applications where a high degree of structural rigidity and
vibration damping is required. Bass and mid-range driver cones use RDT, a unique
technology developed specifically by Monitor Audio’s engineers for the Platinum
series of loudspeakers*. Designed to reduce mass and increase cone stiffness,
RDT applies ultra-thin skins of C-CAM to a core of honeycomb Nomex®** material,
creating a structure which is extremely light but incredibly rigid. At only 40µm
thick, the C-CAM skins are half the thickness of a human hair, yet when bonded
to the hexagonal honeycomb core they form an RDT cone, which is 150 times more
rigid than a single layer of 200µm C-CAM alloy, but has a fraction of the
overall mass. These properties allow the cone to operate as a lightning-fast
piston for a clearer more natural sound. The cone’s new concave geometry has
been refined by FEA analysis to provide a smooth frequency response and
eradicate break-upA pure ribbon tweeter is highly regarded in the world of
high-end audio as being the best way to reproduce ultra-high frequencies and
provide the most lifelike transient response. While this belief is well
supported by fundamental physics, one listen will tell you that this driver is
very special indeed. Platinum’s ribbon tweeter design uses an ultra-thin
sandwich of C-CAM alloy suspended in a powerful transverse magnetic field of
high energy NeFeB rare earth magnets. The ribbon serves as both voice coil and
radiating diaphragm, with every part of the ribbon driven directly and
simultaneously without energy storage. Having a mass of just 18mg, its diaphragm
is able to start and stop in an instant, producing a transient response capable
of defining the leading edge and natural harmonic resonance of complex musical
sounds. Specified to reach ultra-high frequencies up to an elusive 100 kHz,
Platinum’s magical ribbon tweeter will reproduce with ease every last nuance and
detail from vinyl, CD, DVD-A and SACD, together with the wider bandwidth of
HD-DVD and Blu-ray.To provide a secure contact with the floor, adjustable spiked
feet are used. Machined to the finest tolerances from high-grade alloy and
anodised to the most exacting standards, the feet accept 'bullet' spikes of
high-tensile steel, chrome-plated to a mirror finish. For hard or solid wood
flooring, a non-slip rubber pad is integrated within the foot design.The bespoke
Platinum PL100 and PLC350 floor stands also feature the same adjustable Platinum
spikesHoused in the PL300's ARC plinth for convenient floor level access are the
WBT* Platinum signature Binding Posts which are considered to be of the highest
quality available. Precision-machined and plated with pure platinum, they offer
a very low contact resistance and the best possible reliability. Featuring
accurate fine-pitch adjustment, the terminals are suitable for heavy duty cables
with spade, 4mm plug or bare wire connections.WBT* Trademark of WBT GMbh,
GermanyFrequency
Response: 32 Hz - 100
KHz Sensitivity (1W@1M): 90 dB Nominal Impedance:4 Ohms Maximum S.P.L (Per pair
in room): 117.8 dBA Power Handling (RMS): 250 W Recommended Amplifier
Requirements (RMS): 100 - 250 W Bass Alignment: Twin Ported HiVe II Technology
Sealed Mid-range TLE Mid / H.F Crossover Frequency: 4000 Hz Bass Low Pass
Crossover Frequency: 550 Drive Unit Compliment: 2 x 8 long-throw RDT bass
drivers1 x 4" RDT Mid-range driver1 x C-CAM high frequency ribbon transducer
External Dimensions - Excluding Stand (H x W x D): 288 x 800 x 368 mm(11 5/16 x
31 1/2 x 14 1/2 inch) Stand External Dimensions - Including Plinth Feet(H x W x
D): 335 x 610 x 463 mm(13 13/16 x 24 x 18 1/4 inch) Weight: 33.5 Kg (73.8lbs)
Whilst the
PLC150 provides a totally ‘no compromise’ solution for use as a
high-end centre speaker. However, we understand there are
applications where the physical size of the PLC150 cabinet is
beyond the space constraints imposed by some smaller home
theatre installations. The challenge for Monitor Audio’s design
team was to achieve the performance criteria of a high-end
centre channel speaker whilst reducing the overall physical
dimensions to a more realistic level. PLC150 is smaller centre
speaker designed to complement a high-end theatre system, based
around the PL100. The 2 ½ way, three driver configuration
utilises similar drivers to the PL100 and is voiced to
compliment the whole range. The PLC150 has the ability to
reproduce frequencies from below 45Hz to 100 KHz, making it more
than capable of coping with the extreme requirements of dialogue
from HD move formats. The PLC150 is voiced to have a natural,
‘un boxy’ character which not only complements the PL100, but
will also match the PL300 where space constraints force a
compromise Frequency Response: 45Hz-
100kHz Sensitivity (1W@1M): 89 dB Nominal Impedance:4 Ohms Maximum S.P.L (Per
pair in room): 112.8 dBA Power Handling (RMS): 200 W Recommended Amplifier
Requirements (RMS): 60 - 200 W Bass Alignment: Twin Ported HiVe II Technology
Mid / H.F Crossover Frequency: 1800 Hz Bass Low Pass Crossover Frequency: 250 Hz
Drive Unit Compliment: 2 x 6 1/2" RDT bass/mid-range driver1 x C-CAM high
frequency ribbon transducer External Dimensions - Excluding Stand (H x W x D):
288 x 800 x 368 mm(11 5/16 x 31 1/2 x 14 1/2 inch) Stand External Dimensions -
Excluding stand(H x W x D): 225 x 583 x 291 mm(8 7/8 x 22 5/16 x 11 7/16 inch)
Weight: 19 Kg (41.8lbs)
Underpinning
the drama and scintillating musical vitality of a Platinum multichannel speaker
system is the PLW-15, a range matching sub-bass engine endowed with all the
quality, virtuosity and excellence that defines the marque. Capable of releasing
the deepest frequencies recorded on disc, the PLW-15 will drive performances of
music and film with an utterly breathtaking authority. Its 15” (381mm)
long-throw C-CAM driver is triple suspended in a rigid die-cast alloy chassis. A
massive double-stack magnet motor system with a 4” (101.6mm) voice coil provides
the ultimate linearity and control required to reproduce the clean seismic 16Hz
tones that you feel more than you hear.
Powered by the staggering continuous force of 1000 watts from the onboard Class
D amplifier, the driver has the speed and integrity to complement the
performance of its range counterparts, creating the foundation for a seamless
wideband sound field, rich in natural dynamism, texture and tonality. With the
convenience of remote control, the PLW-15’s subterranean potency can be
fine-tuned to the loudspeaker system using sophisticated digital filters, and to
room acoustics with a range of advanced DSP adjustments, including a ten band
parametric EQ and no fewer than four preset EQ positions. Its response can be
optimised to meet the specific demands of music and film sound through
individual input settings. The PLW-15’s talent for room-matching is also
expressed by the lustre of its beautifully compact curvaceous cabinet,
resplendent in a choice of Platinum veneers and radially braced and damped to
enhance structural integrity. Blending power and finesse with superb aesthetics,
the PLW-15 introduces a sensational new dimension to the experience of sound in
the home, which celebrates the raw energy and compelling quality of genuinely
deep bass.
Diffusore compatto -
reflex posteriore - woofer da 13 cm in Metal Matrix Polymer (MMP™Mk²) - 1
tweeter da 25 mm Gold Dome C-CAM ® - 55-30.000 Hz - 88 dB/w/m - 6 Ohms - 15-70 W
RMS - finitura nero, ciliegio, noce
The diminutive BR1 allows you to enjoy high
quality sound in the smallest spaces. You’ll fall in love with its agile,
rhythmic performance and its liberating versatility. While retaining the compact
dimensions of its B1 predecessor, this reference compact monitor delivers
superior bandwidth and better linearity, so you hear more music with greater
definition than ever before. The two-way BR1ultiises a single 5.5” MMP® II bass
driver and 1” C-CAM® tweeter within a system optimised for genuine fidelity
wherever you place it in the home.Frequency Response +/- 3dB: 55 Hz - 30 KHz
Sensitivity (1W@1M): 88 dB Nominal Impedance:6 Ohms Power Handling (RMS):70 W
Recommended Amplifier Requirements (RMS):15 - 70 W Cabinet Design: Rear Ported
Bass Reflex Drive Unit Complement: 1 x 5.5" MMP® II Bass mid-range1 x 1" (25 mm)
gold dome C-CAM® tweeter External Dimensions:(H x W x D) 260 x 165 x 180 mm 10
1/4 x 6 1/2 x 7 1/16 inch Weight (Individual): 3.8 Kg (8.4 lb)
An evolution of the multi-award winning B2, the BR2 tunes the

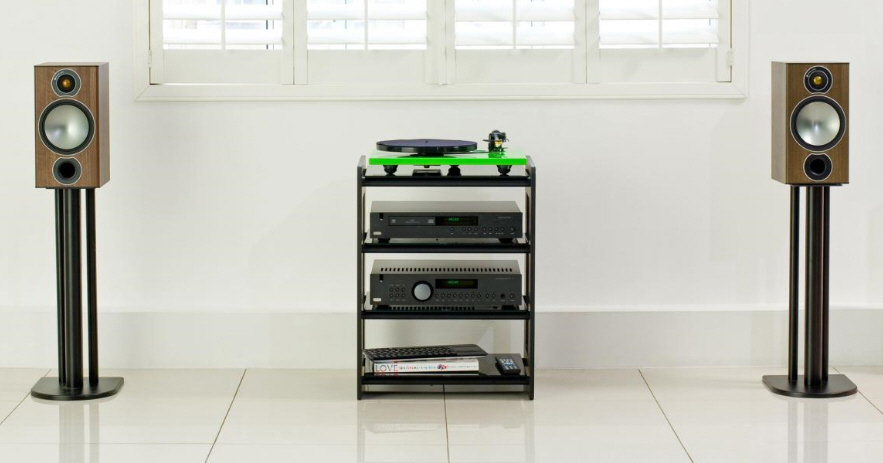

considerable talents of its forerunner to a new intensity. Improved crossover
and driver designs combine to re-calibrate the capabilities of an acknowledged
class champion, bringing greater dynamic expression, mid range clarity and lower
distortion to lovers of music and film sound. Loaded with a 6.5” MMP® II bass
driver and 1” C-CAM® tweeter, the BR2’s high quality cabinet mirrors the
unobtrusive dimensions of the celebrated B2, and so is easy to position, even in
smaller rooms. Compact in size, but equipped to reproduce sound of immense
stature and detail, the BR2 represents a stunning advance from every angle.
Frequency Response +/- 3dB: 42 Hz - 30 KHz Sensitivity (1W@1M): 90 dB
Nominal Impedance: 6 Ohms Power Handling (RMS): 100 W Recommended Amplifier
Requirements (RMS): 30 - 100 W Cabinet Design: Front Ported Bass Reflex Drive
Unit Complement: 1 x 6.5" MMP®II Bass mid-range, 1 x 1" (25 mm) gold dome C-CAM®
tweeter External Dimensions:(H x W x D) 350 x 185 x 250 mm 13 3/4 x 7 5/16 x 9
13/16 inch Weight (Individual): 5.8 Kg (12.8 lb)
Diffusore
da pavimento a tre vie - doppia camera con reflex frontale e posteriore - woofer
da 13 cm in Metal Matrix Polymer (MMP™Mk²) - midrange da cm in Metal Matrix
Polymer (MMP™Mk²) - tweeter da 25 mm Gold Dome C-CAM ® - 36-30.000 Hz - 90 dB/w/m
- 6 Ohms - 30-120 W RMS - finitura nero, ciliegio, noce

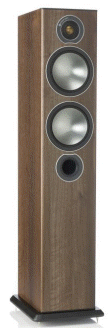

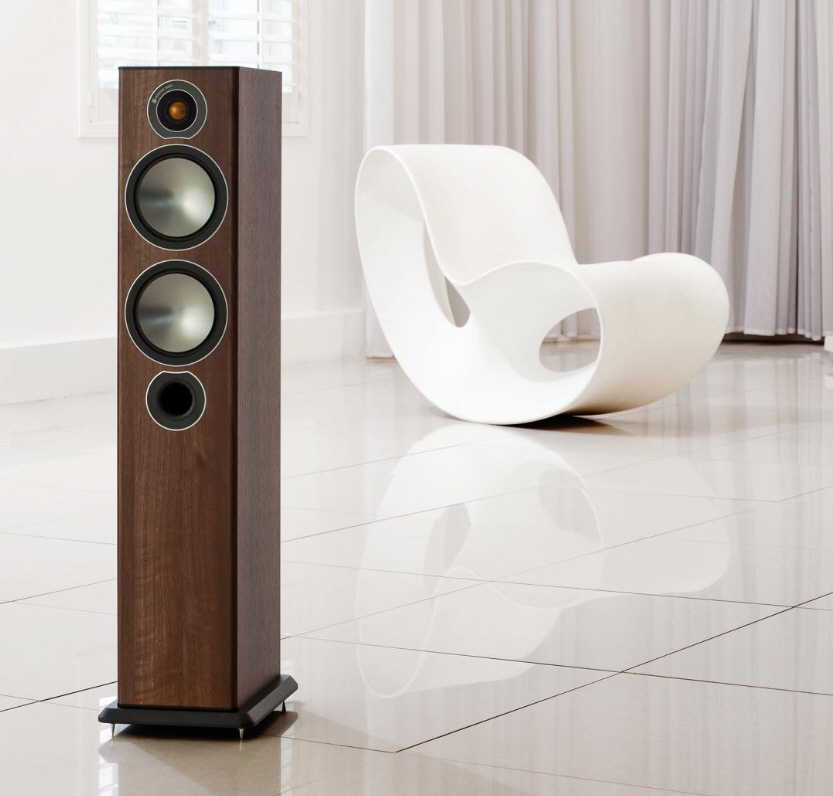

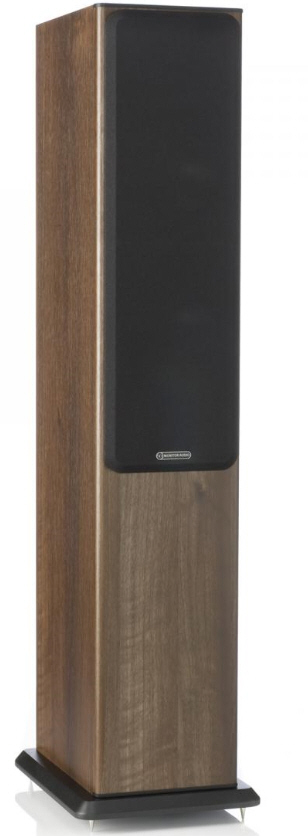

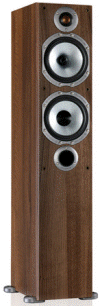

Reflecting the spirit and ambition of the
Bronze Reference range, the BR5 is a wholesale re-working of the established B4
floor-standing model. We’ve slimmed down the cabinet for a more desirable
profile, replacing the larger drivers of the
B4 with potent 5.5” bass and bass/mid-range
designs, which provide a remarkable blend of punch, deep bass extension and
control. The BR5’s 21/2-way system is optimised by utilising an integral
structure of dedicated driver chambers, hitherto employed exclusively by our
more expensive loudspeakers.
Benefiting
Specification
Frequency Response +/- 3dB: 36 Hz - 30 KHz Sensitivity (1W@1M):
90 dB Nominal Impedance: 6 Ohms Power Handling (RMS): 120 W Recommended
Amplifier Requirements (RMS): 30 - 120 W Cabinet Design: Dual chamber bass
reflex – Ported front and rear Drive Unit Complement: 1 x 5.5" MMP®II Bass 1 x
5.5" MMP®II Bass mid-range, 1 x 1" (25 mm) gold dome C-CAM® tweeter External
Dimensions:(H x W x D) 850 x 165 x 247 mm 33 7/16 x 6 1/2 x 9 3/4 inch Weight (Individual):
11.5 Kg (25.3 lb)
Diffusore da pavimento a tre vie
- doppia camera con reflex frontale e posteriore - 2 woofer da 16,5 cm in Metal
Matrix Polymer (MMP™Mk²) - midrange da cm in Metal Matrix Polymer (MMP™Mk²) -
tweeter da 25 mm Gold Dome C-CAM ® - 33-30.000 Hz - 90 dB/w/m - 6 Ohms - 40-150
W RMS - finitura nero, ciliegio, noce

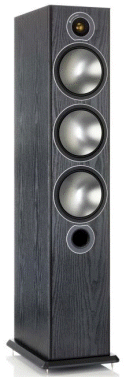

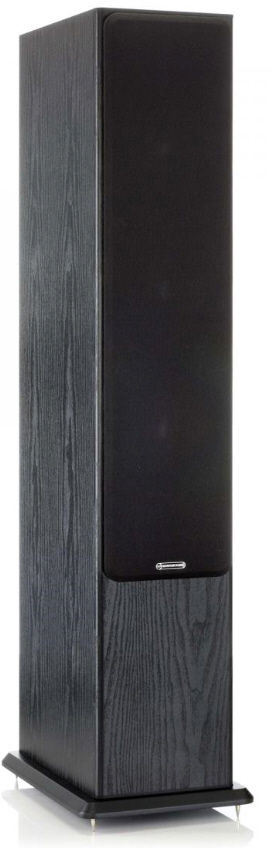

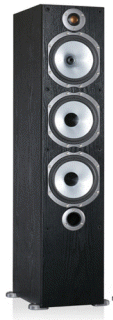

The most distinguished and compelling of
them all, the BR6 adds effortless authority to the long list of Bronze Reference
virtues. Embraced by a beautifully slim floor standing cabinet, the BR6’s 2
1/2-way system comprises a 1” C-CAM® tweeter, supported by two 6 1/2” MMP® II
bass drivers and a single 6 1/2” MMP® II bass/mid-range driver mounted within
dedicated chambers. Its powerful driver complement and sophisticated cabinet
structure work together to lend performances an immense sense of scale and
muscularity while revealing the finest high frequency detail. The BR6’s elegant
proportions and excellent aesthetic qualities will blend unobtrusively with
décor, but its sonic abilities are sure to make an enduring impact.Specification
Frequency Response +/- 3dB: 33 Hz - 30 KHz Sensitivity (1W@1M): 90 dB Nominal
Impedance: 4 Ohms Power Handling (RMS): 150 W Recommended Amplifier Requirements
(RMS): 40 - 150 W Cabinet Design: Dual chamber bass reflex – Ported front and
rear Drive Unit Complement: 2 x 6.5" MMP® II Bass 1 x 6.5" MMP®II Bass mid-range,
1 x 1” (25 mm) gold dome C-CAM® tweeter External Dimensions:(H x W x D) 970 x
200 x 300 mm 38 3/16 x 7 7/8 x 11 13/16 inch Weight (Individual): 17.4 Kg (38.3
lb
Diffusore per canale centrale
o per canali frontali in sistemi Home Theatre - sospensione pneumatica - 2
woofer da 13 cm in Metal Matrix Polymer (MMP™Mk²) - tweeter da 25 mm Gold Dome
C-CAM ® - 60-30.000 Hz - 90 dB/w/m - 6 Ohms - 20-120 W RMS - finitura nero,
ciliegio, noce

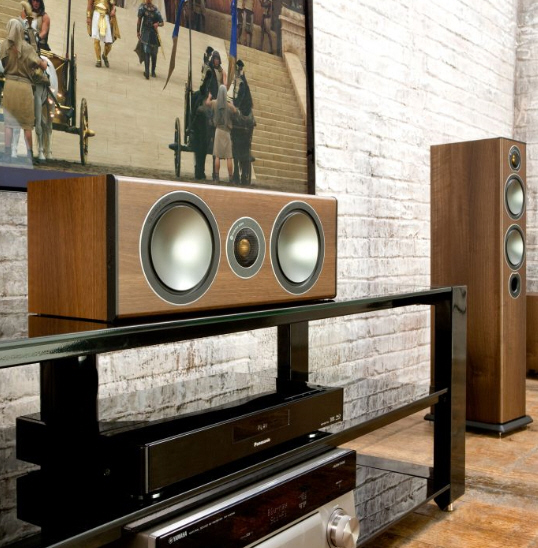

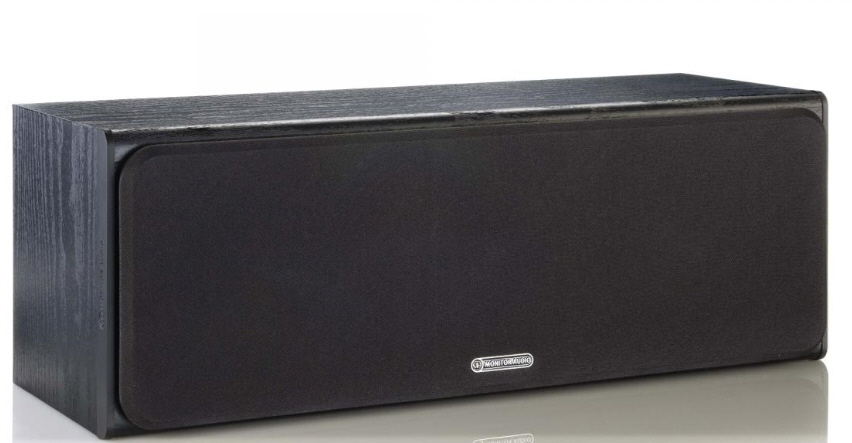

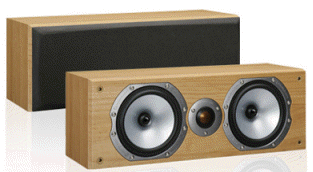

For the BRLCR, we’ve demolished the
limitations of entry-level design by creating a speaker that not only reproduces
voice with unfailing accuracy, but extends this performance to accommodate bass
frequencies as well. This means the BRLCR will perform brilliantly as a centre
and surround speaker, underpinned by the BRW10 subwoofer. Its system of twin
5.5” MMP® II drivers, 1” C-CAM® tweeter and upgraded crossover matches perfectly
with the system architecture of other BR series speakers for pin-point imaging
at any location. Specification Frequency Response +/- 3dB: 60 Hz - 30 KHz
Sensitivity (1W@1M): 90 dB Nominal Impedance: 6 Ohms Power Handling (RMS):120
W Recommended Amplifier Requirements (RMS):20 - 120 W Cabinet Design: Sealed
Cabinet Drive Unit Complement: 2 x 5.5" MMP®II Bass mid-range, 1 x
1" (25 mm) gold dome C-CAM® tweeter External Dimensions: (H x W x D) 165 x 460 x
165 mm 6 1/2 x 18 1/8 x 6 1/2 inch Weight (Individual): 6 Kg (13.2 lb)

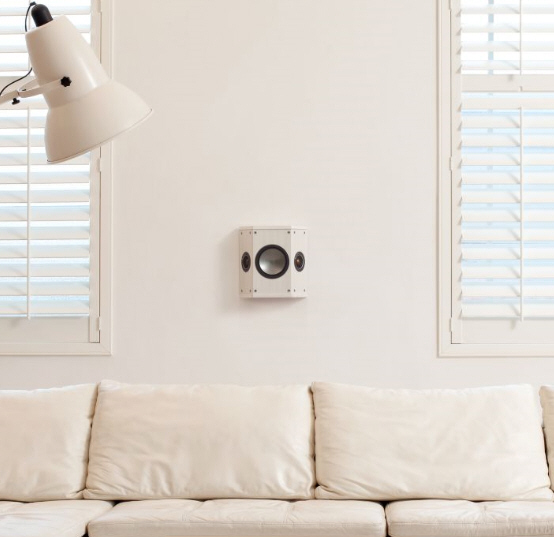

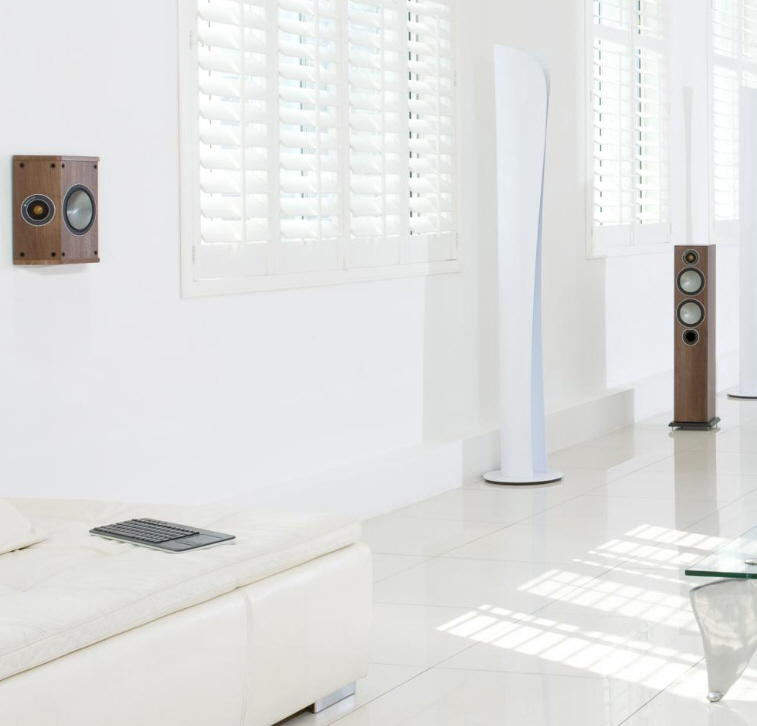

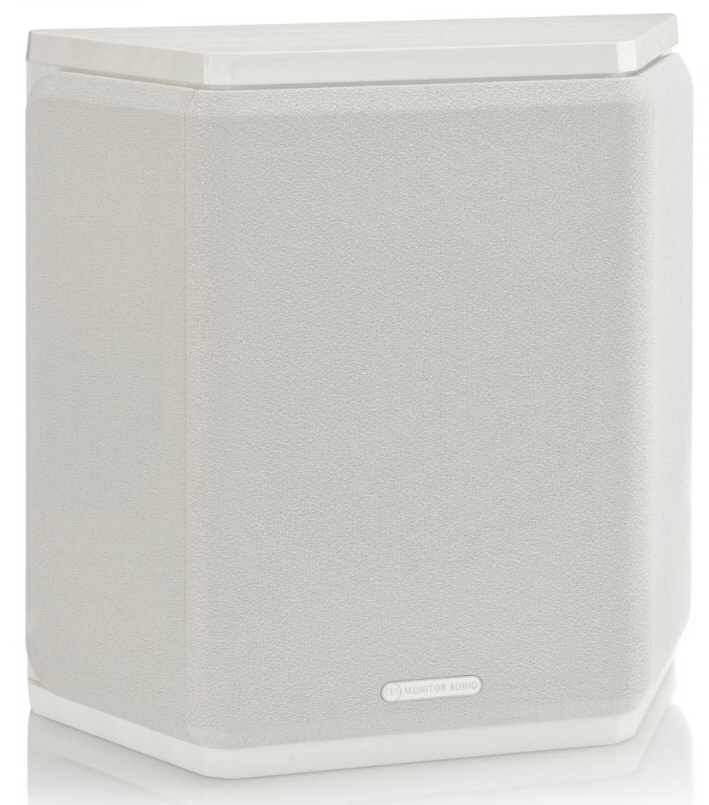

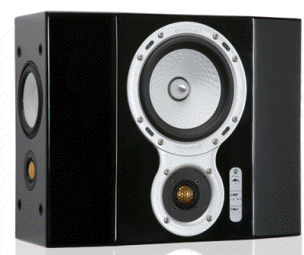

The highly specialised BRFX dual-mode surround
speaker symbolises all the quality and conviction of Bronze Reference design.
Rare at this level is the facility to switch dispersion for side or rear channel
use, giving the BRFX the versatility to optimise five or seven channel systems.
Utilising a single 5.5” MMP® II bass/mid-range driver flanked either side by two
1” C-CAM® tweeters on angled baffles, the super-compact BRFX is easy to position
for amazing surround effects and is available in the BR range of finishes for
the ideal décor blend.Specification
Frequency Response +/- 3dB: 65 Hz - 30 KHz Sensitivity (1W@1M): 88 dB
Nominal Impedance: 6 Ohms Power Handling (RMS): 80 W Recommended Amplifier
Requirements (RMS):25 - 80 W Cabinet Design: Sealed Cabinet Drive Unit
Complement: 1 x 5.5" MMP® II Bass mid-range, 2 x 1" (25 mm) gold dome C-CAM®
tweeter External Dimensions: (H x W x D) 295 x 290 x 130 mm 11 5/8 x 11 7/16 x 5
1/8 inch Weight (Individual): 3.5 Kg (7.7 lb)
Subwoofer amplificato con
doppio reflex posteriore - amplificatore da 150 W - woofer a longa escursione da
25 cm - minima frequenza riproducibile 27 Hz - passabasso variabile tra 40 e 120
Hz - filtro passabasso a 24 dB/oct - finitura nero, ciliegio, noce

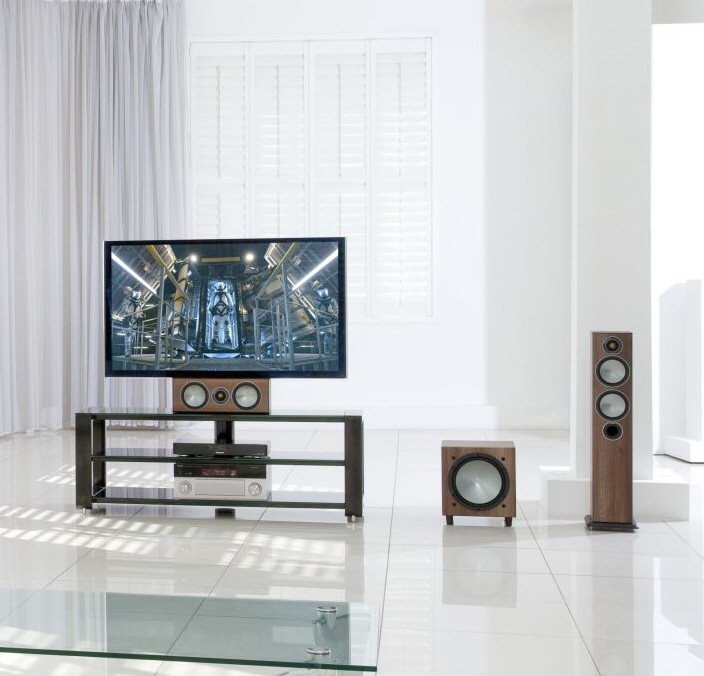

The BRW10 subwoofer represents a
significant step up from its predecessor – the highly regarded ASW100. It’s as
compact as its forerunner, but more potent in every respect. A new 10” MMP® II
driver and 150 Watt Class-D power amplifier have been devised in tandem to
provide class-leading standards of control, speed and punch. Featuring a new,
fully integrated switch mode power supply complete with an auto-ranging voltage
input, the new amplifier develops fifty percent more power than its predecessor,
adding grip and clean bass delivery below Specification
Low Frequency Limit: 27 Hz Upper Frequency Limit: 40 – 120 Hz Variable
Low Pass Filter Alignment: 4th order 24db / octave Amplifier Output: 150 W
(RMS) Amplifier Classification: Class - D Digital amplifier Driver
Compliment: 1 x 10” MMP®II long throw driver Dimensions: (H x W x D) 320 x
320 x 340 mm 12 5/8 x 12 5/8 x 13 3/8 inch (Excluding grille) Input Impedance:
20 K Ohms Mains Input Voltage: 115 Vac / 230 Vac Factory Preset. Do not
adjust Weight (Individual): 12.5 Kg (27.5 lb)
DIFFUSORE COMPATTO - REFLEX POSTERIORE CON TECNOLOGIA HIVE® - WOOFER DA 16 CM IN
RTS® - 1 TWEETER DA 25 MM GOLD DOME C-CAM® - RISPOSTA IN FREQUENZA 45-35.000 HZ
- 89 DB/W/M - IMPEDENZA NOMINALE 6 OHMS - 25-80 W RMS -DIMENSIONI 312 X 185 X
240 - PESO KG. 6 COLORI NERO-NOCE-ACERO-PALISSANDRO-+
60,00 EURO PER NERO LACCATO
-BIANCO LACCATO
The
diminutive RX1 is configured to offer an impressively natural, rhythmic sound in
a beautifully compact and practical form. Standing at just 312mm tall, the RX1
will deliver faithful crystal-clear definition and power from just about
anywhere. Perfect for music and film sound where space is at a premium, the RX1
provides elite Monitor Audio quality to refresh and enliven your system. New
C-CAM® tweeter design with damped rear chamber, providing improved clarity and
wider operating rangefor HD audio formats New 6” bass driver with C-CAM® cone
profile incorporating RST® technology for better damping and improved mid-range
clarity. New cast polymer bass chassis design for better rigidity and lower
reflection properties HiVe®II port technology for better transient response and
tighter bass. Single bolt through driver system, for increased overall bracing
and rigidity. Selected premium quality wood veneers or high gloss piano finishes.
Rigid 19mm MDF construction throughout, employing radial and cross-bracing
techniques for high rigidity resulting in low cabinet colouration Invisible
magnetic grille fixing provides clean visual styling when used with the grille
off. System Format: 2 Way Frequency Response: 45Hz - 35Hz Sensitivity
(1W@1M): 89dB Nominal Impedance: 6 Ohms Maximum SPL (dBA): 111.8
Power Handling (RMS): 80W Recommended Amplifier Requirements (RMS): 25-80W Bass
Alignment: Bass reflex - rear ported.HiVe®II port System Tweeter Crossover
Frequency: 3.0kHz Drive Unit Complement: 1 x 6" RST® Bass/Mid driver.1 x 1"
(25mm) C-CAM® gold dome tweeter Product External Dimensions: (H x W x D)
312 x 185 x 240 mm(12 5/16 x 7 5/16 x 9 7/16 inch) Individual Weight: 6.8 Kg (15
lb)
DIFFUSORE COMPATTO - REFLEX POSTERIORE CON TECNOLOGIA HIVE® - WOOFER DA 16 CM IN
RTS® - 1 TWEETER DA 25 MM GOLD DOME C-CAM® - RISPOSTA IN FREQUENZA 45-35.000 HZ
- 89 DB/W/M - IMPEDENZA NOMINALE 6 OHMS - 25-80 W RMS DIMENSIONI 312 X 185
X 240 - PESO KG. 6 COLORI NERO-NOCE-ACERO-PALISSANDRO-+
70,00 EURO PER NERO LACCATO
-BIANCO LACCATO
The
larger RX2 is designed as an audiophile compact 2-way speaker, having the
efficiency and bandwidth of a much larger speaker, while being easier to
position around the home. It offers extended high frequencies to resolve hidden
detail, coupled with immense dynamic headroom and bass depth, so that all the
delicacy and drama of your favourite music and film sound is revealed. New
C-CAM® tweeter design with damped rear chamber, providing improved clarity and
wider operating range for HD audio formats New 8” bass driver with C-CAM®
cone profile incorporating RST® technology for better damping and improved
mid-range clarity. New cast polymer bass chassis design for better
rigidity and lower reflection properties HiVe®II port technology for
better transient response and tighter bass. Single bolt through driver
system, for increased overall bracing and rigidity. Rigid 19mm MDF
construction throughout, employing radial and cross-bracing techniques for high
rigidity resulting in low cabinet colouration Invisible magnetic grille
fixing provides clean visual styling when used with the grille off.
Selected premium quality wood veneers or high gloss piano finishes. System
Format: 2 Way Frequency Response: 40Hz - 35kHz Sensitivity (1W@1M):
90dB Nominal Impedance: 6 Ohms Maximum SPL (dBA): 113.8 Power
Handling (RMS): 100W Recommended Amplifier Requirements (RMS): 25-100W
Bass Alignment: Bass reflex - rear ported. HiVe®II port System Tweeter
Crossover Frequency: 2.0kHz MDrive Unit Complement: 1 x 8" RST® Bass/Mid
driver. 1 x 1" (25mm) C-CAM® gold dome tweeter Product External Dimensions:
(H x W x D) 375 x 230 x 300 mm (14 3/4 x 9 1/16 x 11 13/16 inch)
Individual Weight: 9.5 Kg (20.88 lb)
DIFFUSORE DA PAVIMENTO A DUE VIE E MEZZA - DOPPIO REFLEX ANTERIORE E POSTERIORE
CON TECNOLOGIA TWIN HIVE® - 1 WOOFER DA 20 CM IN RTS® - 1 MID/WOOFER DA 20 CM IN
RTS® - 1 TWEETER DA 25 MM GOLD DOME C-CAM® - RISPOSTA IN FREQUENZA 38-35.000 HZ
- 90 DB/W/M - IMPEDENZA NOMINALE 6 OHMS - POTENZA CONSIGLIATA 40-125 W RMS
- DIMENSIONI 850 X 185 X 250 - PESO KG. 18COLORI NERO-NOCE-ACERO-PALISSANDRO-+
110,00 EURO PER NERO LACCATO
-BIANCO LACCATO
The
elegant floor-standing RX6 design places the new wider bandwidth RX tweeter in
concert with freshly designed 6” C-CAM® bass and 6” C-CAM® bass/mid drivers to
form a balanced two-and-a-half way system. Separate chambers are used within the
enclosure to provide differential tuning for the 6” drivers, producing higher
efficiency and exceptional low frequency extension. For such a slim,
easy-to-position speaker, the innovative RX6 produces an extraordinarily wide
bandwidth, enhanced with a natural tonality that breathes life into every format
– even HD audio. An adjustable base plinth is supplied for added stability. New
C-CAM® tweeter design with damped rear chamber, providing improved clarity and
wider operating range for HD audio formats New 6” C-CAM® bass and bass/
mid-range drivers incorporate RST® technology, for better damping and improved
mid-range clarity. New cast polymer bass chassis design for better rigidity and
lower reflection properties. Dual Chamber Bass Reflex with Differential Tuning.
HiVe®II port technology for better transient response and tighter bass. Single
bolt through driver system, for increased overall bracing and rigidity. Rigid
19mm MDF construction throughout, employing radial and cross-bracing techniques
for high rigidity resulting in low cabinet colouration. Floor level terminal
location for easy access and neat cable routing Invisible magnetic grille fixing
provides clean visual styling when used with the grille off. Selected premium
quality wood veneers orhigh gloss piano finishes. System Format: 2 1/2 Way
Frequency Response: 38Hz - 35kHz Sensitivity (1W@1M): 90dB Nominal Impedance: 6
Ohms Maximum SPL (dBA): 114.8 Power Handling (RMS): 125W Recommended Amplifier
Requirements (RMS): 40-125W Bass Alignment: Dual Chamber, Bass reflex with
differential tuning.Twin HiVe®II port System Tweeter Crossover Frequency: LF:
700HzMF/HF: 2.7kHz Drive Unit Complement: 1 x 6" RST® Bass driver.1 x 6" RST®
Bass/Mid driver.1 x 1" (25mm) C-CAM® gold dome tweeter External Dimensions: (H x
W x D)inc. plinth & feet 905 x 275 x 310 mm (37 5/8 x 10 13/16 x 12 3/16 inch)
Individual Weight: 16.4 Kg (36.13 lb)
DIFFUSORE DA PAVIMENTO A TRE VIE - DOPPIO REFLEX ANTERIORE E POSTERIORE CON
TECNOLOGIA TWIN HIVE® - 2 WOOFER DA 20 CM IN RTS®- 1 MIDRANGE DA 20 CM IN RTS® -
1 TWEETER DA 25 MM GOLD DOME C-CAM ® - RISPOSTA IN FREQUENZA 32-35.000 HZ -
EFFICIENZA 90 DB/W/M - IMPEDENZA NOMINALE 4 OHMS - POTENZA CONSIGLIATA 40-175 W
RMS DIMENSIONI 900 X 230 X 330 - PESO KG. 20 COLORI
NERO-NOCE-ACERO-PALISSANDRO-+
130,00 EURO PER NERO LACCATO
-BIANCO LACCATO
A
feat of ergonomic brilliance by our design team has engineered the greater poise
and power of a large three-way loudspeaker into the svelte RX8. Its ultra-slim
front profile conceals a deeper cabinet, which provides the volume needed for
seismic levels of bass from dual 6” bass drivers. A single 6” bass/mid driver
delivers naturally vibrant midrange sound, while a newly developed C-CAM® gold
dome tweeter smoothly extends high frequency performance to a point way beyond
the upper limit of the audible spectrum. Sheer control, open dynamics and wide
bandwidth illuminate the sound of the RX8: a very big speaker disguised as a
very slender one. New C-CAM® tweeter design with damped rear chamber,
providing improved clarity and wider operating range for HD audio formats
Dual 6” C-CAM® bass and bass/ mid-range drivers incorporate RST® technology, for
better damping and improved mid-range clarity. New cast polymer bass
chassis design for better rigidity and lower reflection properties. Dual
Chamber Bass Reflex with Differential Tuning. HiVe®II port technology for
better transient response and tighter bass. Single bolt through driver
system, for increased overall bracing and rigidity. Rigid 19mm MDF
construction throughout, employing radial and cross-bracing techniques for high
rigidity resulting in low cabinet colouration. Floor level terminal
location for easy access and neat cable routing Invisible magnetic grille
fixing provides clean visual styling when used with the grille off.
Selected premium quality wood veneers or high gloss piano finishes. System
Format: 3 Way Frequency Response: 32Hz - 35kHz Sensitivity (1W@1M):
90dB Nominal Impedance: 4 Ohms Maximum SPL (dBA): 116.2 Power
Handling (RMS): 175W Recommended Amplifier Requirements (RMS): 50 -
175W Bass Alignment: Bass reflex. Twin HiVe®II port System Tweeter
Crossover Frequency: LF/MF: 300Hz MF/HF: 2.2 kHz Drive Unit Complement: 2
x 6" RST® Bass drivers. 1 x 6" RST® Bass/Mid driver.1 x 1" (25mm) C-CAM® gold
dome tweeter Product External Dimensions: (H x W x D) inc. plinth &
feet 960 x 275 x 388 mm (37 13/16 x 10 13/16 x 15 1/4 inch) Individual
Weight: 21.76 Kg (47.88 lb) GalleryEnlarge Other ModelsPrevious Next

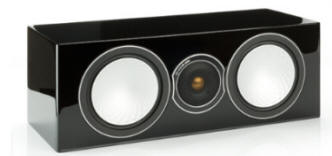

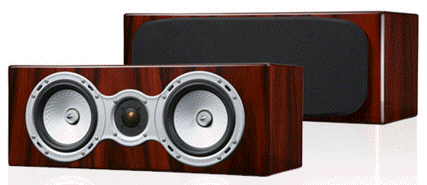

DIFFUSORE PER CANALE CENTRALE O PER CANALI FRONTALI IN SISTEMI HOME THEATRE - 2
WOOFER DA 16 CM IN RTS® IN SOSPENSIONE PNEUMATICA - 1 TWEETER DA 25 MM GOLD DOME
C-CAM ® - RISPOSTA IN FREQUENZA 45-30.000 HZ - EFFICIENZA 90 DB/W/M - IMPEDENZA
NOMINALE 6 OHMS - POTENZA CONSIGLIATA 20-120 W RMS - DIMENSIONI 185 X 500 X 200
- PESO KG. 8,5
COLORI NERO-NOCE-ACERO-PALISSANDRO-+
100,00 EURO PER NERO LACCATO
-BIANCO LACCATO
The
role of a centre-channel speaker is to reproduce up to 60% of a
movie soundtrack, including the critical dialogue content, yet
by the sound of some rival systems, surprisingly little time is
devoted to its design. The exceptional RX Centre proves the old
adage that you get out what you put in. It’s been very finely
calibrated to match the dynamics and timbre of other RX speakers
for a wonderfully open, detailed and seamless front sound stage
in any RX system configuration. We’ve tuned the RX Centre’s
multi-driver components to deliver the optimal combination of
sonic virtue and size, so that the velvet subtlety of whispers
and the explosive force of action scenes are conveyed with equal
priority by a compact design that’s perfect for the role. New
C-CAM® tweeter design with damped rear chamber, providing
improved clarity and wider operating range to make better use of
HD audio formats. New 6” C-CAM® bass and bass/ mid-range drivers
incorporate RST® technology, for better damping and improved
mid-range clarity. Sealed cabinet configuration for
accurate performance when installed in cabinet, restricted voids
or close to a wall. Selected premium quality wood veneers or
high gloss pianofinishes.Acoustically matched with all other
Rxspeakers for excellent imaging and consistency of timbre in
surround applications. Format: 2 1/2 Way Frequency Response:
45Hz - 35kHz Sensitivity (1W@1M): 90dB Nominal Impedance: 6 Ohms
Maximum SPL (dBA): 114.8 Power Handling (RMS): 125W Recommended
Amplifier Requirements (RMS): 40-125W Bass Alignment:
Sealed Cabinet Tweeter Crossover Frequency: LF: 500Hz MF/HF:
3.0kHz Drive Unit Complement: 1 x 6" RST® Bass driver. 1 x
6" RST® Bass/Mid driver. 1 x 1" (25mm) C-CAM® gold dome tweeter
Product External Dimensions: (H x W x D) 185 x 500 x 200
mm (7 5/16 x 19 11/16 x 7 7/8 inch) Individual Weight:
9.62 Kg (21.13 lb)
DIFFUSORE PER CANALE SURROUND
- CONFIGURABILE A DIPOLO O BIPOLO - 1 WOOFER DA 16 CM IN RTS® IN SOSPENSIONE
PNEUMATICA - 2 TWEETER DA 25 MM GOLD DOME C-CAM ® - RISPOSTA IN FREQUENZA
60-35.000 HZ - EFFICIENZA 89 DB/W/M - IMPEDENZA NOMINALE 6 OHMS - POTENZA
CONSIGLIATA 10-80 W RMS - FINITURA NERO A PORO APERTO - DIMENSIONI 250 X 300 X
120 - PESO KG. -COLORI
NERO-NOCE-ACERO-PALISSANDRO-+
50,00 EURO PER NERO LACCATO
-BIANCO LACCATO
Your
SpeakerIt’s widely understood that the sound of surround TVs cannot compete with
the excitement of a properly designed and equalised home theatre system. But
great sound comes at the expense of living spaceuntil now. The wall-hugging
RX-FX surround speaker reconciles the problem by providing a convincing,
enveloping timbre-consistent surround sound that places you on the edge of your
seat and at the heart of the action. Discreet enough to be flush-mounted on side
or rear walls, the RX-FX design will blend with the systemand your décor so
completely you’ll wonder why you ever thought of compromise. It’s also immensely
flexiblesonically, offering direct or diffuse sound effects at the flick of a
switch. Flush to wall placement, with recessed termination. Drivers match with
other Rx loudspeakers for consistent timbre and consistency. Dual di-pole/
bi-pole modes easily selected by switch operation. New C-CAM® tweeter design
with damped rear chamber, providing improved clarity and wider operating range
tomake better use of HD audio formats Single 6” C-CAM® bass/mid-range
driver incorporating RST® technology, for better damping and improved midrange
clarity. Selected premium quality wood veneers or high gloss piano finishes.
Acoustically matched with all other Rx speakers for excellent imaging and
consistency of timbre in surround applications. Format: 2 Way Frequency Response:
60Hz - 35kHz Sensitivity (1W@1M): 89dB Nominal Impedance: 6 Ohms Maximum SPL (dBA):
111.8 Power Handling (RMS): 80W Recommended Amplifier Requirements (RMS): 10-80W
Bass Alignment: Sealed Cabinet Tweeter Crossover Frequency: 2.1kHz Drive Unit
Complement: 1 x 6" RST® Bass/Mid driver.2 x 1" (25mm) C-CAM® gold dome tweeters
Product External Dimensions: (H x W x D) 300 x 120 x 250 mm (11 13/16 x 4 3/4 x
9 13/16 inch) Individual Weight: 4.69 Kg (10.38 lb)

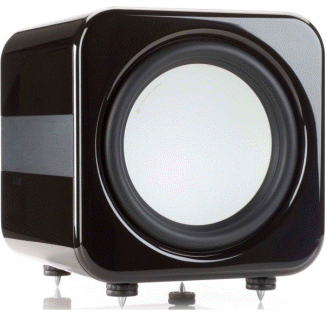

SUBWOOFER AMPLIFICATO IN
SOSPENSIONE PNEUMATICA - AMPLIFICATORE DA 500 W CONTINUI E 100 DI PICCO - WOOFER
A LUNGA ESCURSIONE DA 30 CM IN C-CAM ® CON TRIPLA SOSPENSIONE - MINIMA FREQUENZA
RIPRODUCIBILE 27 HZ (EQ1) O 20 HZ (EQ2) - FREQUENZA PASSABASSO VARIABILE TRA 40
E 120 HZ - CONTROLLI POSTI SUL PANNELLO SUPERIORE DIMENSIONI 340 X 3400 X
370 - PESO KG. 25,5 -COLORI
NERO-NOCE-ACERO-PALISSANDRO-+200,00
EURO PER NERO LACCATO
-BIANCO LACCATO For
its success a multi-channel film sound mix relies on the profound structural
underlay of a properly designed sub-bass engine. Not only can it dredge
frighteningly deep and dramatic frequencies from the mix, especially from HD
audio soundtracks, it also adds a holistic solidity to the sound, helping you to
suspend your disbelief: a vital component in the enjoyment of surround sound A/V
systems. The surprisingly compact RXW-12 active subwoofer is equipped by our
engineers to turn your RX system (and others) truly seismic. Using the latest
switch mode power conversion techniques, the RXW-12’s new 500 watt Class D
amplifier provides enough power to control with brutal efficiency a newly
designed, 12” C-CAM driver, which is equipped with a double stack (two magnet)
motor system and a massive 3” voice coil. The RXW-12’s rigid, sealed 25mm (1”)
MDF enclosure is front-loaded firstly because it promotes the fastest, deepest
bass down to 20Hz and secondly for ease of installation. Wherever you place it,
top mounted controls are provided for the fine adjustment of level, turnover and
other parameters at the sub. For added convenience, a 12V trigger provides power
syncing with your AV receiver. Ultra long throw 12” C-CAM driver featuring
triple suspension for ultimate linearity. Large 3” voice coil and double stack
motor system provides high power handling and low distortion. Powerful 500W RMS
Class-D amplifier with SMPSU able to deliver over 1000 watts peak. 12volt
trigger - provides switching control from AV amp or processor. 25mm (1”) thick
MDF construction Heavy radial cabinet bracing Top mounted control panel for easy
access. Selected real wood veneer or high gloss piano finishes Low Frequency
Limit: 27Hz (EQ1) 21Hz (EQ2) Upper Frequency Limit: 40 - 120Hz Variable Power
Output: 500W RMS (1000W Peak) Low Pass Filter Alignment: Active 4th order 24dB/Octave
(2nd stage filter) Cabinet Specification: 25mm construction and internal bracing
Cabinet Alignment: sealed cabinet Driver Complement: 1 x 12" C-CAM® sub woofer
driver featured triple suspension and ling throw 3" voice coil External
Dimensions: (H x W x D)inc. amp & driver 340 x 340 x 410 mm(13 3/8 x 13 3/8 x 16
1/8 inch) External Dimensions: (H x W x D)inc. feet & grille 375mm (15") high
with feet430mm (16 15/16") deepinc amp & grille Mains Input Voltage
Specification: 110 - 120 Vac / 220 - 240 Vac 50/60Hz Individual Weight:
22.56 Kg (49.63 lb)
Diffusore
da pavimento - reflex posteriore - woofer da 16 cm in C-CAM ® - 1 tweeter da 25
mm Gold Dome C-CAM ® - 40-30.000 Hz - 90 dB/w/m - 6 Ohms - 20-100 W RMS -
finitura nero, palissandro, ciliegio, noce
The new RS5 is the smallest floor stander in
the new Silver RS series. It's classically simple two-way layout ensures a
beautifully clean appearance. It's slim cabinet design and small footprint
ensure versatility in any room environment.Advanced software simulation has
allowed us to optimise our C-CAM® tweeter design, bringing higher sensitivity
and a wider band width to reveal the finest high frequency detail. The C-CAM®
tweeter can extend up to 45kHz (dependant on the range) and having also
developed a sophisticated new chamber for the driver, it provides a more
graduated damping for a smoother more accurate responseThe RS5 fuses elegant, space
efficient design with a powerful sonic performanceFrequency Responce: 40 Hz - 30
KHz
Sensitivity (1W@1M): 90 dB Nominal Impedance:6 Ohms Power Handling (RMS):100 W
Recommended Amplifier Requirements (RMS):40 - 100 W Tweeter Crossover
Frequency:3.3 KHz Drive Unit Compliment: 1 x 6” C-CAM® bass/mid-range driver 1 x
1” (25 mm) gold dome C-CAM® tweeter Cabinet Design: Rear Ported, Bass Reflex
Product External Dimensions:(H x W x D) 800 x 185 x 220 mm (31 1/2 x 7 1/4 x 8
11/16 inch) Plinth Dimensions:(H x W x D) 25 x 255 x 270 mm (31 1/2 x 10 1/16 x
10 5/8 inch)Individual Weight: 11.7 Kg (25.7 lb)
Diffusore
da pavimento a tre vie - doppio reflex anteriore e posteriore - woofer da 16 cm
in C-CAM ® - midrange da cm in C-CAM ® - tweeter da 25 mm Gold Dome C-CAM ® -
38-30.000 Hz - 90 dB/w/m - 6 Ohms - 20-120 W RMS - finitura nero, palissandro,
ciliegio, noce
Incorporating
a 6” C-CAM® bass driver, a 6” C-CAM® bass/mid driver, and a 1” Gold Dome C-CAM®
tweeter, the RS6 is a svelte floor-stander, equally at home in stereo and
multi-channel applications. Its dynamic expression, natural voicing, and taut
bass power will deliver outstanding levels of refinement and resolution.Advanced
tweeter design providing smoother character with increased clarity.New C-CAM®
cone profile for better damping and improved mid-range clarity.New bass chassis
design for better rigidity and damping properties.Improved bass performance with
high efficiency. High quality crossovers. Matching drivers in all models for
better integration and system building.Real wood veneer top bottom.Frequency
Response: 38 Hz - 30 KHz Sensitivity (1W@1M): 91 dB Nominal Impedance:6 Ohms
Power Handling (RMS):120 W Recommended Amplifier Requirements (RMS):40 - 120 W
Tweeter Crossover Frequency: 3 KHz Drive Unit Compliment: 1 x 6” C-CAM® Bass, 1
x 6” C-CAM® Bass Mid-range. 1 x 1” (25 mm) gold dome C-CAM® tweeter. Cabinet
Design: Balanced velocity twin reflex ported Product External Dimensions:(H x W
x D) 850 x 185 x 250 mm 33 1/2 x 7 1/4 x 9 7/8 inch Plinth Dimensions: (H x W x
D) 25 x 255 x 305 mm (34 7/16 x 10 1/16 x 12 inch) Individual Weight: 18 Kg
(39.6 lb)
Diffusore da stand - reflex
posteriore - woofer da 17 cm RST ® - tweeter da 25 mm Gold Dome C-CAM ® -
40-43.000 Hz - 88 dB/w/m - 8 Ohms - 40-100 W RMS - finitura nero, palissandro,
ciliegio, noce The
GS10 re-writes the book on compact monitor performance, easily eclipsing the
dazzling standard set by its predecessor, the GR10. It may be small, but the
GS10 showcases the multiple talents that make Gold Signature series so
remarkable. With its advanced, low-resonance drivers, rigid build and contoured
cabinet edges, the GS10 redefines accurate, low-colouration sound in a compact,
stylish stand-mount speaker. Using the new, low distortion 6 1/2 inch RST® II
bass-mid driver and gold C-CAM® tweeter developed especially for the GS series,
the GS10 is capable of true 3-D imaging and tonal accuracy Anti-resonance build:
driver held by innovative zinc alloy clamp system; traditional tongue and groove
construction;extensive vertical and radial internal bracing. 6 1/2" die-cast
aluminium chassis bass and bass-mid drivers featuring a new Rigid Surface
Technology RST®II, C-CAM®alloy cone profile. A new 1” C-CAM gold dome tweeter
extends high frequency performance extends to between 30Hz - 45kHz. HiVe®II port
design: the new port technology uses a straight rifled construction to aid air
flow and reduce turbulence.Bespoke stands: for the GS10 and GSLCR with a
die-cast alloy base (as GS20) and cable management for a
neaterfinish.Specification Frequency Response: 40 Hz - 43 KHz Sensitivity
(1W@1M): 88 dB Nominal Impedance: 8 Ohms Maximum S.P.L (Per pair in room): 108
dBA Power Handling (RMS): 100 W Recommended Amplifier Requirements (RMS): 40 -
100 W Bass Alignment: Ported Bass Reflex (HiVe® II Technology) Tweeter Crossover
Frequency : 2.7 KHz Drive Unit Complement: 1 x 6” RST®II bass/mid-range driver
1x 1" (25 mm) gold dome C-CAM® tweeter External Dimensions: (H x W x D) 360 x
206 x 270mm (14 3/16 x 8 1/8 x 10 5/8 inch) Weight: 8.5 Kg (18.7 lb)
Diffusore da pavimento a tre
vie - reflex a doppia camera (Differential Tuning - HiVe) - woofer da 17 cm in
RST ® - midrange da cm in RST ® - tweeter da 25 mm Gold Dome C-CAM ® - 32-43.000
Hz - 89 dB/w/m - 6 Ohms - 40-150 W RMS - finitura nero, palissandro, ciliegio,
noce
The massively accomplished GR20 was a hard act to
follow, but its successor, the GS20, pulls decisively ahead in all respects,
combining gorgeous aesthetics, sublime sonics and superlative build quality. Its
two-and-a-half way, three-driver configuration is built around a unique
dual-cavity cabinet design, in which the 61/2-inch RST® II bass and bass-mid
drivers work into separate enclosures, tuned to different frequencies and
impedances. This provides improved power handling and delivers faster, deeper,
more dynamic bass and greater transparency through the crucial mid-range.
Above that, the gold C-CAM® tweeter ensures a smooth, detailed sound all the way
up to 43 kHz, exploiting the full potential of the latest wide-bandwidth digital
formats.Specification Frequency Response: 32 Hz - 43 KHz
Sensitivity (1W@1M): 89 dB Nominal Impedance: 6 Ohms Maximum S.P.L (Per
pair in room):111 dB Power Handling (RMS): 150 W Recommended Amplifier
Requirements (RMS): 40 - 150 W Bass Alignment: Dual Chamber Bass Reflex with
Differential Tuning (HiVe®II Technology) Tweeter Crossover Frequency: 2.7 KHz
Bass Crossover Frequency: 250 Hz Drive Unit Complement: 1 x 6” RST®II bass
driver 1 x 6” RST®II bass / mid driver 1 x 1” (25 mm) gold dome C-CAM® tweeter
External Dimensions: Excluding Plinth (H x W x D) 924 x 206 x 280mm (36 3/8 x 8
1/8 x 11 inch) External dimensions: Including Plinth (H x W x D) 934 x 322 x
363mm (36 3/4 x 12 11/16 x 14 5/16 inch) Weight Including Plinth: 20.6 Kg (45.3
lb
Diffusore da pavimento a tre
vie - reflex a doppia camera (Differential Tuning - HiVe) - 2 woofer da 17 cm in
RST ® - 1 midrange da cm in RST ® - tweeter da 25 mm Gold Dome C-CAM ® -
28-43.000 Hz - 90 dB/w/m - 6 Ohms - 60-200 W RMS - finitura nero, palissandro,
ciliegio, noce
The elegantly proportioned GS60 embodies all
the conviction and integrity of Monitor Audio design. Its thirty year heritage
is eloquently expressed by a compelling unity of cutting-edge innovation and
aesthetic creativity bringing life-like power, dynamics and realism to music and
film. Like all models in the Gold Signature range, the flagship GS60 is a
monument to the cabinet-maker’s art. Immaculate real wood or piano gloss
finishes are blended with a slender, contemporary design and superb attention to
detail, investing the GS60 with an air of resolute quality.Developing the
discrete cavity technology of the GS20, the four-driver GS60 recreates the deep
bass and authentic scale of a performance, bringing lifelike power, dynamics and
realism to music and film. Yet its tall, slender appearance is anything but
overpowering. Like all models in the Gold Signature range, the flagship is a
monument to the cabinet-maker's art: immaculate real wood or piano gloss
finishes are blended with modern industrial design and superb attention to
detail. Even if you think you've heard it all before, the GS60 will take your
breath away.Anti-resonance build: driver held by innovative zinc alloy clamp
system; traditional tongue and groove construction; extensive vertical and
radial internal bracing. 6 1/2 inch die-cast aluminium chassis bass and bass-mid
drivers featuring a new Rigid Surface Technology RST®II, C-CAM® alloy cone
profile. A new 1" C-CAM gold dome tweeter extends high frequency performance to
beyond 40KHz. HiVe®II port design: the new port technology uses a straight
rifled construction to aid air flow and reduce turbulence.Specification
Frequency Response: 28 Hz - 43 KHz Sensitivity (1W@1M): 90 dB Nominal Impedance:
6 Ohms Maximum S.P.L (Per pair in room): 112.5 dBA Power Handling (RMS): 200 W
Recommended Amplifier Requirements (RMS): 60 - 200 W Bass Alignment: Sealed
Mid-Range Enclosure. Dual Chamber Bass Reflex with Differential Tuning (HiVe®IITechnology)
Tweeter Crossover Frequency: 2.7 KHz Bass Crossover Frequency: 150 Hz Drive Unit
Complement: 2 x 6” RST®II bass driver 1 x 6” RST®II mid driver 1 x 1” (25 mm)
gold dome C-CAM® tweeter External Dimensions: Excluding Plinth H x W x D) 1060 x
206 x 330mm (41 3/4 x 8 1/8 x 13 inch) External Dimensions: Including Plinth
(H x W x D) 1070 x 322 x 403mm (42 1/8 x 12 11/16 x 15 7/8 inch) Weight (Including
Plinth): 27.1 Kg (59.7 lb)
Diffusore per canale centrale
o per canali frontali in sistemi Home Theatre - sospensione pneumatica - 2
woofer da 17 cm in RST - tweeter da 25 mm Gold Dome C-CAM ® - 40-30.000 Hz - 89
dB/w/m - 8 Ohms - 40-150 W RMS - finitura nero, palissandro, ciliegio, noce
Amazing as it
may seem, a centre speaker may be required to reproduce over 60% of the entire
output of a film soundtrack. This means that it must deliver the dramatic impact
of explosions and sound effects as precisely as it recreates the many tonal
subtleties of dialogue. The outstanding dynamic reach and generous power
handling of the Gold Signature LCR speaker allow it to master the most dynamic
drive conditions with ease and still have something in reserve. Monitor Audio
has optimised the design to provide accuracy and control over a wide listening
area while preserving the exact tonal signature and balance of the GS Series.
This means that the GS LCR will integrate perfectly with any of the speakers in
the Gold Signature range.Specification
Frequency Response: 40 Hz - 43 KHz Sensitivity (1W@1M): 89 dB Nominal Impedance:
8 Ohms Maximum S.P.L (Per pair in room): 110 dBA Power Handling (RMS): 150
W Recommended Amplifier Requirements (RMS): 40 - 150 W Bass Alignment: Sealed
Enclosure Tweeter Crossover Frequency: 2.7 KHz Drive Unit Complement
2 x 6” RST®II bass/mid-range driver. 1 x 1” (25 mm) gold dome C-CAM®
tweeter External Dimensions:(H x W x D) 206 x 560 x 230mm (8 1/8 x 22 1/16 x 9
1/16 inch) Weight: 12.5 Kg (27.5 lb)
Diffusore per canale surround - configurabile per sistemi a 5.1 o 7.1 -
sospensione pneumatica - woofer da 17 cm in RST ® - 2 Midrange da 10 cm in C-CAM
® - 3 tweeter da 25 mm Gold Dome C-CAM ® - 60-43.000 Hz - 86 dB/w/m - 6 Ohms -
40-100 W RMS - finitura nero, palissandro, ciliegio, noce
The GS FX is a completely new design from
Monitor Audio. Its advanced dual mode configuration can be switched
automatically by a processor to accommodate a range of surround sound
applications. The speaker’s slim-profiled angled baffle design incorporates no
fewer than three driver pairs. When used in monopole mode to reproduce discrete
side or rear channels, its front-firing 6 1/2 -inch RST® II bass/mid
driver and gold C-CAM® tweeter come into play, delivering an accurate
wide bandwidth sound-field to complement perfectly a front-channel GS speaker
Specification
Frequency Response: 60 Hz - 43 KHz Sensitivity (1W@1M)
86 dB Nominal Impedance: 6 Ohms Maximum S.P.L (Per pair in room): 106 dBA
Power Handling (RMS): 100 W Recommended Amplifier Requirements (RMS): 40 -
100 W Bass Alignment: Sealed Enclosure Tweeter Crossover Frequency: 2.7
KHz Drive Unit Complement: 1 x 6” RST® II bass/ mid monopole driver,
1 x 1” (25 mm) gold dome C-CAM® monopole tweeter, 2 x 4" C-CAM® mid
di-pole drivers, 2 x 1" (25 mm gold) dome C-CAM® di-pole tweeters
External Dimensions: (H x W x D) 310 x 390 x 160 mm (12 3/16 x 15 3/8 x 6
5/16 inch) Weight: 11.5 Kg (25.3 lb)
MONITOR AUDIO
GSW12 Per offerta TELEFONA / E-MAIL The
GSW12 powered subwoofer combines state-of-the-art components and a compact
enclosure for placement flexibility, with unique system tuning versatility and
remote control operation. The GSW12 subwoofer features a 600-watt amplifier with
an advanced switch mode power supply, an ultra-long throw 12-inch C-CAM driver
with a 3-inch diameter voice coil and a triple suspension system in an
acoustic suspension cabinet. The GSW12 delivers deep, loud, and articulate bass
down to 18Hz.Its compact size thunderous performance, and availability in our
beautifulGold Signature veneers and lacquer finishes make this sub perfect for
in-cabinet or in-room applications.DSP Control: All functions of the GSW12 are
controlled in the digital domain, providing more advanced control of complex
filter characteristics than conventional analog circuitry. Remote Control
Operation: All main features and setting adjustments can be assessed by remote
control including: Mute, Power/Standby, LFE/Stereo Input, Night Mode (so loud
passages will not exceed a pre-set threshold), and Preset and User Adjustable EQ
Modes. The GSW12 has a front-mounted IR remote control receiver with LED to
indicate remote actuation. Top-mounted Control Panel with Backlit LED Display:
This LED display provides full visual feedback of the amplifier settings. The
default display will show the EQ settings, output volume, and graphic output
display (constantly changing). When the enter button is pressed on the remote
control or the control panel encoder knob is pushed down, the Omenu¹ system is
displayed. All settings can be accessed via the top-mounted control panel by
pushing and/or rotating the encoder knob. Preset EQ Modes plus a User Adjustable
EQ Setting: The GSW-12 subwoofer features four preset EQ modes and one user
adjustable EQ setting accessed by the top-mounted panel or remote control. Here
are the preset EQ modes:Movie: Boosts output of frequencies from 20Hz-50Hz
providing maximum impact for movie presentation Music: A Oflat¹ response
designed to complement accurate music presentation. Dynamic: A low boost
response for low distortion and a tight, accurate presentation. This setting may
be helpful in systems installed in smaller rooms. Impact: This setting provides
maximum boost from 40Hz optimizing all available power output to provide maximum
SPL. This may be of particular use where Oslam¹ is required. The user adjustable
10-band graphic equalizer has a +/-6dB adjustment in steps of 0.5dB providing
the ability to Onotch out¹ or Oboost¹ anomalies in the frequency response caused
by room modes or positioning constraints. Adjustable Low-pass Crossover Control:
Adjustable from 40-120Hz with variable slope adjustment from 6-54dB/octave to
provide better system integration with a wide range of speaker applications.
Adjustable sub-sonic filter from 16-31Hz: Variable slope adjustment from 6-54dB
per octave to provide further limiting of low frequencies to ensure valuable
power is not wasted and directed to frequency areas where it can be of most use
in a particular application
Specification
Amplifier Output: 600 Watts (RMS)
1200 Watts (Peak) Crossover: (Low Pass) 40Hz - 160Hz Variable slope
characteristic from 6 - 54dB/Octave Sub-Sonic Filter: (High Pass) 16, 25 &
31Hz Variable slope characteristic from 6 54dB/Octave EQ: 4 x Preset 1 x
User Set Equalisation: Graphic 10 Band Equaliser. 6dB in 0.5dB steps
Digital Volume Level: -80 0dB in 1dB Increments Auto Sensing Input
Requirements: Line Level >5mV (RMS)5 25 minutes, user adjustable.
Cabinet Specification: Sealed Cabinet with 25mm M.D.F construction bracing.
Sealed amplifier Amplifier Classification: Class- D amplifier, with SMPSU
(switch mode power supply) and DSP control Driver Compliment: 1 x 12”
C-CAM® sub-woofer driver featuring triple suspension and 4² long throw voice
coil. Dimensions: Excluding grille & feet (H x W x D) 390 x 390 x
420 mm (15 3/8 x 15 3/8 x 16 9/16 inch) Weight: (unpacked) 28 Kg
(61.5lbs) Mains Input Voltage: 100 -120Vac, 220 - 240 Vac (Automatically
selected) Fuse Type: For countries with 220 240Vac supply use: 4A/250V
20MM UL/VDE. For countries with 100 120Vac supply use: 8A/250V 20MM UL/VDE
Tigger Input: 3.5mm Jack input, +12Vdc = On State Code System for
All-In-One remote controlls: NEC SH6122
Micro diffusore da scaffale o
parete - 1 woofer da 9 cm in MMP.2 frontale - Gold Dome tweeter da 19 mm in
C-CAM posteriore - 120-20.000 Hz - 87 dB - 8 Ohms - 5-50 W RMS - staffa da parte
in dotazione - finitura nero, palissandro, ciliegio, bianco
The
diminutive R45HD is the perfect satellite speaker for front left, centre, right
and rear surround sound applications. Its secret is a combination of a 75mm (3”)
MMP®II cone mid-bass driver and rear-firing 20mm (¾”) C-CAM® gold dome tweeter,
which spreads and magnifies the sound around the room to create a huge,
encompassing surround sound effect. Designed to dovetail with the R360HD
subwoofer and available in the RadiusHD range of real wood veneers and lacquers,
the R45HD will blend perfectly with your décor in an ultra-discreet,
multi-channel audio or video system. Installing the R45HD on the ceiling or wall
is easy by using the high quality angled bracket supplied. Use the optional
bespoke RadiusHD stand for floor positions. Features:3” MMP®II. The Metal Matrix
Polymer drivers have been completely re-worked and re-modelled with the aid of
new design and simulation tools to achieve higher sensitivity and increased
magnetic linearity. The new shaped T-section pole and focussed magnetic gap
produces better linearity and lower distortion, resulting in fast punchy bass.
All drivers are dedicated and model specific, with each model in the Radius HD
series being designed and voiced individually. 3/4" gold C-CAM® tweeter,
rear-firing to enhance sound dispersion characteristics and providing extension
to in excess of 35 KHz. Ensuring the wide frequency bandwidth of HD music and
cinema formats can be replayed faithfully. Single though-bolt driver fixing.
Provides mechanical de-coupling properties resulting in enhanced mid-band
clarity and resolution. Through-bolts also act as rigid cross bracing to give a
very solid non-resonant cabinet. Internal PTC auto-reset protection circuit to
prevent over-driving. Magnetically shielded drivers for safe use near sensitive
microprocessor equipment or plasma/LCD displays. Rigid MDF construction
throughout. Smooth radius edges – reduces diffraction effects and gives better
imaging properties. Flush fitting grille with rotate-able ‘m’ logo for
positioning in Landscape or portrait orientation. A specially designed die-cast
metal wall bracket is supplied, providing easy install and adjustment for wall
positioning.
Mini diffusore da scaffale o
parete - reflex posteriore - midwoofer da 11 cm in MMP.2 frontale - Gold Dome
tweeter da 2,5 mm in C-CAM - 85-25.000 Hz - 87 dB - 8 Ohms - 10-100 W RMS -
staffa da parte in dotazione - finitura nero, palissandro, ciliegio, bianco
The
R90HD is a high-class mini monitor. Unprecedented enclosure rigidity and leading
edge drive unit technology in the shape of a 100mm (4”) MMP®II mid/bass driver
and 25mm (1”) C-CAM® gold dome tweeter combine to produce clarity, dynamics and
imaging abilities that are unparalleled in a speaker of this size. It can fill a
room with high fidelity sound and yet visually melt into the background. The
R90HD can be installed easily on ceiling or wall using the same high quality
angled bracket supplied. Use the optional bespoke RadiusHD stand for floor
positions.
Features:4" MMP®II. The Metal Matrix Polymer drivers have been completely
re-worked and re-modelled with the aid of new design and simulation tools to
achieve higher sensitivity and increased magnetic linearity. The new shaped
T-section pole and focussed magnetic gap produces better linearity and lower
distortion, resulting in fast punchy bass. All drivers are dedicated and model
specific, with each model in the Radius HD series being designed and voiced
individually. 1" Gold C-CAM® tweeter providing extension to in excess of 35 KHz
ensuring the wide frequency bandwidth of HD music and cinema formats can be
replayed faithfully. Magnetically shielded drivers allow Radius HD to be safely
used near sensitive microprocessor equipment or plasma/LCD displays. High
quality crossover uses high-grade metalised Polypropylene capacitors for
increased clarity.High-grade air core and laminated iron core inductors give
lowest possible distortion and low insertion losses. Single through-bolt
driver fixing provides mechanical de-coupling and enhanced mid-band clarity and
resolution. The through-bolts also act as rigidcross bracing to give a very
solid non-resonant cabinet. Internal PTC auto-reset protection circuit to
prevent over-driving. Specially developed high grade PCOFC internal cable is
used throughout to ensure maximum signal transfer at all frequencies and low
signal resistance. Flush fitting grille with rotate-able ‘m’ logo for
positioning in Landscape or portrait orientation. A specially designed die-cast
metal wall bracket is supplied, providing easy install and adjustment for wall
positioning.
Diffusore da scaffale o
parete - posizionabile sia in orrizzontale che in verticale - reflex anteriore -
midwoofer da cm in MMP.2 frontale - Gold Dome tweeter da 2,5 mm in C-CAM -
60-25.000 Hz - 87 dB - 8 Ohms - 10-100 W RMS - staffa da parte in dotazione -
finitura nero, palissandro, ciliegio
The
slightly larger and more versatile R180HD offers the same irresistible blend of
virtues as the R90HD, but can be installed vertically as a main, side or rear
speaker, or horizontally as a centre channel speaker using the bespoke
low-profile wall bracket supplied. Its enhanced bass performance makes it ideal
for discreet music applications around the home. Combined with a R360HD or
R370HD subwoofer however, the R180HD will form part of a formidably powerful
stereo or multi-channel home cinema system. Features:4" MMP®II. The Metal Matrix
Polymer drivers have been completely re-worked and re-modelled with the aid of
new design and simulation tools to achieve higher sensitivity and increased
magnetic linearity. The new shaped T-section pole and focussed magnetic gap
produces better linearity and lower distortion, resulting in fast punchy bass.
All drivers are dedicated and model specific, with each model in the Radius HD
series being designed and voiced individually. 1" Gold C-CAM® tweeter providing
extension to in excess of 35 KHz ensuring the wide frequency bandwidth of HD
music and cinema formats can be replayed faithfully. Magnetically shielded
drivers allow Radius HD to be safely used near sensitive microprocessor
equipment or plasma/LCD displays. High quality crossover uses high-grade
metalised Polypropylene capacitors for increased clarity. High-grade air core
and laminated iron core inductors give lowest possible distortion and low
insertion losses. Specially developed high grade PCOFC internal cable is used
throughout to ensure maximum signal transfer at all frequencies and low signal
resistance. ARC® front baffle (Anti-Resonance Composite). Originally developed
for our high-end Platinum series, ARC is a cast thermo-set polymer loaded with
minerals to provide very inert, optimally damped components. It is ideal for
high-end acoustic applications where a high degree of structural rigidity and
vibration damping is required. Single through-bolt driver fixing provides
mechanical de-coupling and enhanced mid-band clarity and resolution. The
through-bolts also act as rigid cross bracing to give a very solid non-resonant
cabinet. Front firing port. Internal PTC auto-reset protection circuit to
prevent over-driving. Flush fitting grille with rotate-able ‘m’ logo for
positioning in Landscape or portrait orientation. A specially designed die-cast
metal wall bracket is supplied, providing easy install and adjustment for wall
positioning.
Diffusore da parete -
posizionabile sia in orrizzontale che in verticale - configurazione D’Appolito -
reflex anteriore - 2 midwoofer da cm in MMP.2 - Gold Dome tweeter da 2,5 mm in
C-CAM - 55-25.000 Hz - 90 dB - 8 Ohms - 40-140 W RMS - staffa da parte in
dotazione - finitura nero, palissandro, ciliegio
The
slender R225HD’s contoured profile is designed to match the aesthetic of flat
plasma and LCD displays. When used as a centre channel or main speaker, its
acoustic design of twin 100mm (4”) MMP®II mid/bass drivers and 25mm (1”) C-CAM®
gold dome tweeter provides the signature accuracy of Monitor Audio’s reference
speakers. Its impressive size-defying bass performance can be further extended
with the addition of a RadiusHD active subwoofer. Use it with the R360HD or
R370HD subwoofer to create a compact, perfectly matched yet sonically
exhilarating audio/video speaker system. Supplied with a low-profile bracket for
horizontal or vertical flush-mounting on the wall, the R225HD can be customised
to complement its environment for the perfect balance of styleand performance.
Features:Wall mounted system for use with LCD/Plasma displays. 2 x 4" MMP®II.
The Metal Matrix Polymer drivers have been completely re-worked and re-modelled
with the aid of new design and simulation tools to achieve higher sensitivity
and increased magnetic linearity. The new shaped T-section pole and focussed
magnetic gap produces better linearity and lower distortion, resulting in fast
punchy bass. All drivers are dedicated and model specific, with each model in
the Radius HD series being designed and voiced individually. 1" Gold C-CAM®
tweeter providing extension to in excess of 35 KHz ensuring the wide frequency
bandwidth of HD music and cinema formats can be replayed faithfully. D’Appolitto
driver array provides good dispersion and fantastic mid-band clarity and
presence. Magnetically shielded drivers allow Radius HD to be safely used near
sensitive microprocessor equipment or plasma/LCD displays. High quality
crossover uses high-grade metalised Polypropylene capacitors for increased
clarity. High-grade air core and laminated iron core inductors give lowest
possible distortion and low insertion losses. Specially developed high grade
PCOFC internal cable is used throughout to ensure maximum signal transfer at all
frequencies and low signal resistance. Single through-bolt driver fixing
provides mechanical de-coupling and enhanced mid-band clarity and resolution.
The through-bolts also act as rigid cross bracing to give a very solid
non-resonant cabinet. Front-ported reflex design. Internal PTC auto-reset
protection circuit to prevent over-driving. ARC® front baffle (Anti-Resonance
Composite). Originally developed for our high-end Platinum series, ARC is a cast
thermo-set polymer loaded with minerals to provide very inert, optimally damped
components. It is ideal for high-end acoustic applications where a high degree
of structural rigidity and vibration damping is required. Flush fitting
grille with rotate-able ‘m’ logo for positioning in Landscape or portrait
orientation. A specially designed die-cast metal wall bracket is supplied,
providing easy install and adjustment for wall positioning. Full length oval
perforated grilles supplied in black and silver can be customised to suit
individual décor and taste.
Diffusore da parete -
posizionabile sia in orrizzontale che in verticale - configurazione D’Appolito -
doppio reflex anteriore - 2 midwoofer da cm in MMP.2 - Gold Dome tweeter da 2,5
mm in C-CAM - 50-25.000 Hz - 90 dB - 8 Ohms - 40-140 W RMS - staffa da parte in
dotazione - finitura nero, palissandro, ciliegio, bianco
The
elegant R250HD has been designed to be sited vertically or horizontally with
larger 50 and 60-inch LCD and plasma displays. Providing bass right down to 50
Hz, it can be used as a centre, main, side or rear speaker in a multi-channel
music or movie system. At just 105mm (4 1/4”) deep and in a choice of luxury
black, white or silver lacquers, its suitability for flat screen applications or
where space is at a premium is beyond dispute. The R250HD employs the R225HD’s
driver configuration in a longer cabinet and extra port providing the enhanced
bass performance that makes it a desirable space efficient hi-fi satellite for
any room. Features:Wall mounted system for use with LCD/Plasma displays. 2 x 4"
MMP®II. The Metal Matrix Polymer drivers have been completely re-worked and
re-modelled with the aid of new design and simulation tools to achieve higher
sensitivity and increased magnetic linearity. The new shaped T-section pole and
focussed magnetic gap produces better linearity and lower distortion, resulting
in fast punchy bass. All drivers are dedicated and model specific, with each
model in the Radius HD series being designed and voiced individually. 1" Gold
C-CAM® tweeter providing extension to in excess of 35 KHz ensuring the wide
frequency bandwidth of HD music and cinema formats can be replayed faithfully.
D’Appolitto driver arrayprovides good dispersion and fantastic mid-band clarity
and presence. Magnetically shielded drivers allow Radius HD to be safely used
near sensitive microprocessor equipment or plasma/LCD displays. High quality
crossover uses high-grade metalised Polypropylene capacitors for increased
clarity. High-grade air core and laminated iron core inductors give lowest
possible distortion and low insertion losses. Specially developed high grade
PCOFC internal cable is used throughout to ensure maximum signal transfer at all
frequencies and low signal resistance. Single through-bolt driver fixing
provides mechanical de-coupling and enhanced mid-band clarity and resolution.
The through-bolts also act as rigid cross bracing to give a very solid
non-resonant cabinet. Front-ported reflex design. Internal PTC auto-reset
protection circuit to prevent over-driving. ARC® front baffle (Anti-Resonance
Composite). Originally developed for our high-end Platinum series, ARC is a cast
thermo-set polymer loaded with minerals to provide very inert, optimally damped
components. It is ideal for high-end acoustic applications where a high degree
of structural rigidity and vibration damping is required. Flush fitting
grille with rotate-able ‘m’ logo for positioning in Landscape or portrait
orientation. A specially designed die-cast metal wall bracket is supplied,
providing easy install and adjustment for wall positioning. Full length oval
perforated grilles supplied in black and silver can be customised to suit
individual décor and taste.
Diffusore da pavimento -
configurazione D’Appolito - reflex anteriore - 2 midwoofer da 11 cm in MMP.2 - 1
Gold Dome tweeter da 2,5 mm in C-CAM - 50-25.000 Hz - 89 dB - 8 Ohms - 40-140 W
RMS - finitura nero, palissandro, ciliegio
The
R270HD is a super-slim floor-standing loudspeaker designed for genuine
full-range performance in a serious music system or multichannel audio/video
system. Excellent fidelity from twin 100mm (4”) MMP®II mid/bass drivers and a
25mm (1”) C-CAM® gold dome tweeter, coupled with a svelte profile provides the
opportunity to enjoy great sound and discreet design all in one package. A
choice of luxury real-wood or lacquer finishes supplies a lustrous appeal,
giving the R270HD a tactile sense of quality that feels at home anywhere.
Features:2 x 4" MMP®II. The Metal Matrix Polymer drivers have been completely
re-worked and re-modelled with the aid of new design and simulation tools to
achieve higher sensitivity and increased magnetic linearity. The new shaped
T-section pole and focussed magnetic gap produces better linearity and lower
distortion, resulting in fast punchy bass. All drivers are dedicated and model
specific, with each model in the Radius HD series being designed and voiced
individually. 1" Gold C-CAM® tweeter providing extension to in excess of 35 KHz
ensuring the wide frequency bandwidth of HD music and cinema formats can be
replayed faithfully. Magnetically shielded drivers allow Radius HD to be safely
used near sensitive microprocessor equipment or plasma/LCD displays. High
quality crossover uses high-grade metalised Polypropylene capacitors for
increased clarity. High-grade air core and laminated iron core inductors give
lowest possible distortion and low insertion losses. Terminals are located on
the plinth for ease of cable management and routing. Specially developed high
grade PCOFC internal cable is used throughout to ensure maximum signal transfer
at all frequencies and low signal resistance. Single through-bolt driver fixing
provides mechanical de-coupling and enhanced mid-band clarity and resolution.
The through-bolts also act as rigid cross bracing to give a very solid
non-resonant cabinet. Front and rear ported reflex design. Internal PTC
auto-reset protection circuit to prevent over-driving. Mass loaded cabinet
lower section (factory filled) provides better stability and bass damping.
Taller cabinets – for better imaging and cosmetic appearance. Flush
fitting grille with rotate-able ‘m’ logo for positioning in Landscape or
portrait orientation.
Diffusori a tre canali per
Home Theatre - incorpora un altoparlante per canale centrale e due diffusori per
i canali frontali - ingressi separati per le tre sezioni - montaggio in
orizzontale sopra o sotto lo schermo - finitura laccata nero, bianco e silver -
caratteristiche preliminari
The
Radius one HD is a design completely new to Radius. Inspired by the popularity
of single box surround sound solutions, Radius one HD gives the format the
Monitor Audio treatment. Enhanced by the luxury curves and finishes, proportions
and performance of RadiusHD, Radius one HD integrates left, centre and right
channels in one cabinet. Each channel has a dedicated braced compartment and
individually specified crossovers. The centre channel section houses twin 100mm
(4”) MMP®II mid/bass drivers and a 25mm (1”) C-CAM® gold dome tweeter. The left
and right channel sections house single 100mm (4”) MMP®II drivers and 25mm (1”)
C-CAM® gold dome tweeters. Features:Wall mounted system for use with LCD/Plasma
displays. 4 x 4" MMP®II. The Metal Matrix Polymer drivers have been completely
re-worked and re-modelled with the aid of new design and simulation tools to
achieve higher sensitivity and increased magnetic linearity. The new shaped
T-section pole and focussed magnetic gap produces better linearity and lower
distortion, resulting in fast punchy bass. All drivers are dedicated and model
specific, with each model in the Radius HD series being designed and voiced
individually. 3" Gold C-CAM® tweeters provide extension to in excess of 35 KHz
ensuring the wide frequency bandwidth of HD music and cinema formats can be
replayed faithfully. D’Appolitto driver array provides good dispersion and
fantastic mid-band clarity and presence. Magnetically shielded drivers allow
Radius HD to be safely used near sensitive microprocessor equipment or
plasma/LCD displays. High quality crossover uses high-grade metalised
Polypropylene capacitors for increased clarity. High-grade air core and
laminated iron core inductors give lowest possible distortion and low insertion
losses. Specially developed high grade PCOFC internal cable is used throughout
to ensure maximum signal transfer at all frequencies and low signal resistance.
Single through-bolt driver fixing provides mechanical de-coupling and enhanced
mid-band clarity and resolution. The through-bolts also act as rigid cross
bracing to give a very solid non-resonant cabinet. Rear-ported reflex design.
Internal PTC auto-reset protection circuit to prevent over-driving. ARC®
front baffle (Anti-Resonance Composite). Originally developed for our high-end
Platinum series, ARC is a cast thermo-set polymer loaded with minerals to
provide very inert, optimally damped components. It is ideal for high-end
acoustic applications where a high degree of structural rigidity and vibration
damping is required. Flush fitting grille with rotate-able ‘m’ logo for
positioning in Landscape or portrait orientation. A specially designed
die-cast metal wall bracket is supplied, providing easy install and adjustment
for wall positioning.
Subwoofer amplificato -
woofer da 25 cm a lunga escursione amplificatore da 100 Watt in class A-B
amplifier a Mos Fet - Auto on-off - controllo di fase - ingressi sia a livello
linea che speaker - schermato - finitura nero, palissandro, ciliegio, noce,
bianco
This
super-compact active subwoofer has the speed, subtlety and pitch accuracy to
enhance the highest quality music reproduction but it can also deliver the power
and slam demanded by movie soundtracks by virtue of its ported, downward-firing
205mm (8’’) driver, controlled by a powerful built-in 100 watt Class A-B
amplifier. It has a variable crossover frequency control from 40Hz-180Hz, 0-180
phase switch, stereo, LFE RCA inputs, silicone rubber anti-resonance feet and
two EQ settings for music or video programme optimisation. Features:18mm MDF
cabinet construction with internal bracing 100W RMS Class A-B amplifier
with switching power supply Downward firing 8” Ultra long throw,
bass driver. Crossover/ frequency control. Variable from 40z-180Hz
0-180 Phase switch Stereo/ LFE RCA inputs Silicone rubber
anti-resonance feet 2 x Pre-set EQ settings – for Music or video programme
optimisation.
Subwoofer amplificato - un
woofer da 30 cm a lunga escursione amplificatore da 250 Watt in class D - Auto
on-off - controllo di fase preset per musica e HT - ingressi sia a livello linea
che speaker - schermato - finitura nero, bianco, silver, rosemah, noce
The
R370HD active subwoofer provides a new dimension to a system’s sound. Its 255mm
(10”) C-CAM® downward firing driver, powered by a potent 250W (RMS) Class D
amplifier, will extend the reach of the RadiusHD satellites to add the deepest
drama to movies and music. The R370HD’s lowest frequencies are controlled so
expertly that even subtle effects are better defined, enhancing the listening
experience with bass you can feel as well as hear. The R370HD is equipped with a
top-mounted control panel for easy access to volume and 2 EQ settings, 12V
trigger input for power on/standby control from an AV amplifier, variable
crossover control from 40Hz-120Hz, stereo, LFE RCA inputs and link outputs.
Features:Top mounted control panel - for easy access to volume and EQ settings.
18mm MDF cabinet construction with internal bracing 250W RMS Class D amplifier
with switching power supply Downward firing 10” Ultra long throw, C-CAM bass
driver. 12 Volt trigger input – For power on/ standby control from AV amplifier.
Crossover/ frequency control. Variable from 40z-120Hz Low pass filter switch –
for LFE or Stereo input selection 0-180 Phase switch Power switch
with ON – Auto- Off/ trigger settings Stereo/ LFE RCA inputs Stereo/
LFE link outputs Silicone rubber anti-resonance feet 2 x Pre-set EQ
settings – for Music or video programme optimisation.
Stand da pavimento - sistema
di alloggiamento per i cavi - dedicato a modelli Radius 90 e 180 - finitura nero
o silver
Specially
designed metal and ARC® stands provide easy placement and positioning for the
R45HD and R90HD speakers. The stand comes fully assembled and internally wired
with speaker terminals located at the back of the stand’s integral ARC® plinth.
Simply remove the stand fixing screws from the back of the R45HD or R90HD, dock
the top of the stand with the speaker terminals and re-attach the screws for a
secure fixing.
Height of Radius HD Stand: 980mm (38.5”).
Our
Gold Signature CP in-wall speakers are designed for ultra-discreet custom
installations which remove the need for floor or stand mount speakers altogether.
If you place a high value on space, style and décor but would rather not
compromise sound quality, the GS CP speakers offer the same driver technologies
as the Gold Signature range in a back-box design, which flush mounts in the wall
for a seamless blend with decor. Unlike many in-wall speakers, they provide a
dedicated enclosure for the drivers, allowing a superior full-range performance,
which is closer to that of their conventional Gold Signature counterparts. The
GS CP speakers will liberate living space and lend a sophisticated wire-free
look to any room. By sharing driver technologies with our Gold Signature
speakers, they offer the additional flexibility to mix and match systems of
floor, stand, in-ceiling and in-wall speakers for the perfect combination of
sound quality and style anywhere in the home. Gold C-CAM® dome tweeter. 6 1/2”
C-CAM® mid-bass driver with Rigid Surface Technology (RST®II). Additional high
frequency and mid-range frequency controls allow the user to set-up the system
precisely to obtain optimum performance within the listening environmentSpecification
Frequency Response: 55 Hz - 30 KHz Sensitivity (1W@1M): 89 dB Impedance (nominal):
8 Ohms Maximum SPL: 106.5 dBA Power Handling: 120 W Amp Requirements: 30 - 120 W
Bass Alignment: Sealed Enclosure Drive Unit Complement: 1 x 6 ½" C-CAM® bass
driver featuring RST® technology. 1” (25 mm) C-CAM® gold dome with high power
ceramic magnet system & rear low resonance chamberOverall Dimensions: (H x W)
423 x 270 mm (16 11/16 x 10 11/16 inch) Overall Depth: 100 mm (3 15/16 inch)
Cut-Out Hole Dimensions: (H x W) 387 x 234 mm (15 1/4 x 9 1/4 inch) Mounting
Depth: 95 mm (3 3/4 inch) Controls: +3dB / 0dB / -dB high freq switch +3dB
/ 0dB / -3dB mid-range freq switch Fixing Type: 8 position 'dog' type
fixings Connection: Gold Plated 'push' type teminals Back box / Mounting
Flange Material: Mineral filled ABS plastic (UL94/V0 rated, RoHS compliant)
Weight:4.3 Kg (9.46 lb)
Our
Gold Signature CP in-wall speakers are designed for ultra-discreet custom
installations which remove the need for floor or stand mount speakers altogether.
If you place a high value on space, style and décor but would rather not
compromise sound quality, the GS CP speakers offer the same driver technologies
as the Gold Signature range in a back-box design, which flush mounts in the wall
for a seamless blend with decor. Unlike many in-wall speakers, they provide a
dedicated enclosure for the drivers, allowing a superior full-range performance,
which is closer to that of their conventional Gold Signature counterparts. The
GS CP speakers will liberate living space and lend a sophisticated wire-free
look to any room. By sharing driver technologies with our Gold Signature
speakers, they offer the additional flexibility to mix and match systems of
floor, stand, in-ceiling and in-wall speakers for the perfect combination of
sound quality and style anywhere in the home.
Gold C-CAM® dome tweeter. 6
1/2” C-CAM® mid-bass driver with Rigid Surface Technology (RST®II). Additional
high frequency and mid-range frequency controls allow the user to set-up the
system precisely to obtain optimum performance within the listening environment
Specification
Frequency Response: 55 Hz - 30 KHz Sensitivity (1W@1M): 89 dB Impedance (nominal):
8 Ohms Maximum SPL: 106.5 dBA Power Handling: 120 W Amp Requirements: 30 - 120 W
Bass Alignment: Sealed Enclosure Drive Unit Complement: 1 x 6 ½" C-CAM®
bass driver featuring RST® technology. 1” (25 mm) C-CAM® gold dome with high
power ceramic magnet system & rear low resonance chamberOverall Dimensions:(H x
W)423 x 270 mm(16 11/16 x 10 11/16 inch)Overall Depth: 100 mm(3 15/16
inch)Cut-Out Hole Dimensions: (H x W)387 x 234 mm(15 1/4 x 9 1/4 inch)Mounting
Depth:95 mm(3 3/4 inch) Controls: +3dB / 0dB / -dB high freq switch+3dB / 0dB /
-3dB mid-range freq switch Fixing Type: 8 position 'dog' type fixings
Connection: Gold Plated 'push' type teminals Back box / Mounting Flange
Material: Mineral filled ABS plastic (UL94/V0 rated, RoHS compliant) Weight:4.3
Kg (9.46 lb)
Diffusore circolare da incasso
dedicato a effetti surround - due vie - woofer da 8” con cono C-CAM® - 2 tweeter
da 1” C-CAM® con cupola dorata - potenza consignata da 15 a 120 W - efficienza
90 dB/W/m - impedenza 6 ohms - Diametro totale 286 mm - profondità 156 mm
A
3-driver, 2-way surround speaker featuring dual 1-inch C-CAM® tweeters, and a 8
inch C-CAM® bass driver featuring RST®. The C380-FX can be configured to deliver
direct or diffuse surround-sound effects via front-mounted switch or
alternatively using the 12 volt trigger found on high-end AV amplifiers.Dual
tweeter configuration for use in di-pole or bi-pole mode. RST® bass driver and
C-CAM® tweeters, providing coherent tonal balance and sonic signature across the
entire audio frequency spectrum. High overall efficiency. High frequency level
adjustment (+/- 3dB). Timbre-match with GS, RS-CP, in-ceiling/wall and Gold
Signature, Silver RS hi-fi speakers. Our innovative Tri-Grip fixing system is
easier to install than conventional clamping schemes but provides three times
the surface area and a better surface seal, maximising bass response and
mid-range clarity. Aluminium alloy grilles offer rust-free performance and
longevity. They are non magnetic and lighter in weight. All models are
paint-able to blend with the living environment. A paint mask and additional
scrim material are provided for trouble free painting. All models use fire
retardant materials specified to UL-94 VO rating. All models are splash and
humidity proof for installation in shower rooms or pool areas. All models
feature dust protection covers that are designed to prevent the ingress of dirt
or dust into the driver and crossover
Specification
Frequency Response: 45 Hz - 30 KHz Sensitivity (1W@1M): 90 dB
Impedance (Nominal): 6 ohms Maximum SPL (Single unit in free space): 111.6
dBA Power Handling (RMS): 150 W Recommended Amp Requirements: 20 -
150 W Drivers: 1x 8” C-CAM® cone base driver RST® 2 x 1” C-CAM® gold
dome tweeter Overall Diameter: 286 mm (11 1/4 inch) Overall Depth:
161 mm (6 5/16 inch) Cut-Out Diameter: 247 mm (9 3/4 inch) Mounting
Depth: 157 mm (6 3/16 inch) Controls: +3db / 0dB / -3dB
High frequency level switch. Di-pole/Bi-pole switch with additional 12 volt
trigger switch Fixing Type: 3 position Tri-Grip dog fixings Cable
Connection: Gold plated ‘push’ type terminals Construction Material:
Frame: Mineral filled ABS plastic (UL94-V0 rated, RoHS compliant)Baffle:
Die-cast Aluminium Weight: 3.2 Kg (7 lb)
Diffusore circolare da incasso -
tre vie - woofer da 8” con cono C-CAM® - tweeter da C-CAM® con cupola dorata e
unità midrange da 4” C-CAM® invertito coassiale orientabile - potenza consignata
da 15 a 150 W - efficienza 90 dB/W/m - impedenza 6 ohms - diametro totale 286 mm
- profondità 161 mm
At
the heart of the C380-LCR model is a unique Inverted Dual Concentric pivoting
mid-range/tweeter module providing up to 18 degrees of play. The C380-LCR can be
discreetly positioned, and then the sound can be directed into the desired
listening zone by pivoting the IDC® driver module to maximize performance. The
C380-LCR is a true 3-way main speaker featuring a pivoting IDC® 4 inch mid-range/1-inch
tweeter module, and an 8-inch C-CAM® bass driver with RST®, providing higher
power handling and output, and deeper bass response than the C380-LCRUnique IDC
dual concentric mid-range/ HF module offering up to 18 degrees of pivot in all
directions. Easily directed during post install set-up. C-CAM® drivers
throughout, providing coherent tonal balance and sonic signature across the
entire audio frequency spectrum. Special Inverted C-CAM® RST® profile mid-range
cone provides improved dispersion pattern. True 3-way designs. High
overall efficiency. High frequency level adjustment (+/- 3dB).
Boundary compensation control. Timbre-match with GS, RS-CP, in-ceiling/wall
and Gold Signature, Silver RS hi-fi speakers. Our innovative Tri-Grip fixing
system is easier to install than conventional clamping schemes but provides
three times the surface area and a better surface
seal, maximising bass response and mid-range clarity. Aluminium alloy
grilles offer rust-free performance and longevity. They are non magnetic and
lighter in weight. All models are paint-able to blend with the living
environment. A paint mask and additional scrim material are provided for trouble
free painting. All models use fire retardant materials specified to UL-94
VO rating. All models are splash and humidity proof for installation in
shower rooms or pool areas. All models feature dust protection covers that
are designed to prevent the ingress of dirt or dust into the driver and
crossover.Specification Frequency Response: 45 Hz - 30 KHz Sensitivity
(1W@1M): 90 dB Impedance (Nominal): 6 ohms Maximum SPL (Single unit
in free space): 112 dBA Power Handling (RMS): 150 W Recommended Amp
Requirements: 20 - 150 W Drivers: 1x 8” C-CAM® cone base driver RST®
Pivoting, inverted dual concentric module (IDC) housing: 1 x 4" C-CAM®
RST® Inverted midrange driver 1 x 1” C-CAM® gold dome tweeter Overall
Diameter: 286 mm (11 1/4 inch) Overall Depth: 161 mm (6
5/16 inch) Cut-Out Diameter: 247 mm (9 3/4 inch)
Mounting Depth: 157 mm (6 3/16 inch) Controls: +3db / 0dB / -3dB High
frequency level switch. Boundary compensation. Fixing Type: 3 position
Tri-Grip dog fixings Cable Connection: Gold plated ‘push’ type terminals
Construction Material: Frame: Mineral filled ABS plastic (UL94-V0 rated, RoHS
compliant) Baffle: Die-cast Aluminium
Weight: 3.64 Kg (8 lb)
Diffusore da incasso - tre vie -
woofer da 8” con cono C-CAM® - tweeter da 1” C-CAM® con cupola dorata e unità
midrange da 4” C-CAM® invertito coassiale orientabile - potenza consignata da 15
a 150 W - efficienza 90 dB/W/m - impedenza 6 ohms - dimensioni 423 mm x 270 mm -
profondità 105 mm
At
the heart of the W380-LCR model is a unique Inverted Dual Concentric pivoting
mid-range/tweeter module providing up to 18 degrees of play. The W380LCR can be
discreetly positioned, and then the sound can be directed into the desired
listening zone by pivoting the IDC® driver module to maximize performance. The
W380-LCR is a true 3-way main speaker featuring a pivoting IDC® 4-inch mid-range/1-inch
tweeter module, and an 8 inch C-CAM® bass driver with RST®, providing higher
power handling and output, and deeper bass response than the C280-LCR.Unique IDC
dual concentric mid-range/ HF module offering up to 18 degrees of pivot in all
directions. Easily directed during post install set-up. C-CAM® drivers
throughout, providing coherent tonal balance and sonic signature across the
entire audio frequency spectrum. Special Inverted C-CAM® RST® profile mid-range
cone provides improved dispersion pattern. True 3-way designs. High overall
efficiency. High frequency level adjustment (+/- 3dB). Mid frequency level
adjustment (+/- 3dB). Boundary compensation control. Timbre-match with GS, RS-CP,
in-ceiling/wall and Gold Signature, Silver RS hi-fi speakers. Our innovative
Tri-Grip fixing system is easier to install than conventional clamping schemes
but provides three times the surface area and a better surface seal, maximising
bass response and mid-range clarity. Aluminium alloy grilles offer rust-free
performance and longevity. They are non magnetic and lighter in weight. All
models are paint-able to blend with the living environment. A paint mask and
additional scrim material are provided for trouble free painting. All models use
fire retardant materials specified to UL-94 VO rating. All models are splash and
humidity proof for installation in shower rooms or pool areas. All models
feature dust protection covers that are designed to prevent the ingress of dirt
or dust into the driver and crossover.Specification
Frequency Response: 42 Hz - 30K Hz Sensitivity (1W@1M): 90 dB
Impedance (Nominal): 6 ohms Maximum SPL (Single unit in free space): 112
dBA Power Handling (RMS): 150 W Recommended Amp Requirements: 20 -
150 W Drivers: 1x 8” C-CAM® cone base driver, featuring RST® Pivoting,
inverted dual concentric module (IDC) housing: 1 x 4" C-CAM® RST® Inverted
midrange driver 1 x 1” C-CAM® gold dome tweeter Overall Dimensions:
(H x W) 423 mm x 270 mm (16 5/8 inch x 10 5/8 inch) Overall Depth: 103 mm
(4 1/16 inch) Cut-Out Dimensions: (H x W) 387 mm x 234 mm (15 1/4
inch x 9 3/16 inch) Mounting Depth: 99 mm (3 7/8 inch) Controls:
+3db / 0dB / -3dB High frequency level switch Boundary compensation Fixing
Type: 6 position Tri-Grip dog fixings Cable Connection: Gold plated ‘push’
type terminals Construction Material: Frame:Mineral filled ABS plastic
(UL94/V0 rated, RoHS compliant) Baffle: Die-cast aluminium Weight: 4.1 Kg (9 lb
Diffusore da incasso - due vie -
woofer da 8” C-CAM® - tweeter da 1” C-CAM® con cupola dorata orientabile -
potenza consignata da 15 a 120 W - efficienza 90 dB/W/m - impedenza 6 ohms -
dimensioni 430 mm x 270 mm - profondità 98,5 mm
Diffusore circolare da incasso -
tre vie - woofer da 6.5” con cono C-CAM® - tweeter da 1” C-CAM® con cupola
dorata e unità midrange da 4” C-CAM® invertito coassiale orientabile - potenza
consignata da 10 a 85 W - efficienza 88,5 dB/W/m - impedenza 6 ohms - Diametro
totale 250 mm - profondità 152 mm
Diffusore circolare da incasso -
due vie - 1 woofer da 6.5” con cono C-CAM® - tweeter da 1” C-CAM® con cupola
dorata orientabile - potenza consignata da 10 a 75 W - efficienza 88,5 dB/W/m -
impedenza 6 ohms - Diametro totale 250 mm - profondità 117 mm
Diffusore circolare da incasso
stereofonico - due vie - woofer da 8” con cono MMP®II - 2 tweeter da C-CAM® con
cupola dorata orientabile - potenza consignata da 15 a 120 W - efficienza 88,5
dB/W/m - impedenza 6 ohms - Diametro totale 286 mm - profondità 124
Diffusore da incasso - due vie -
woofer da 6.5” con cono MMP®II - tweeter da C-CAM® con cupola dorata orientabile
- potenza consignata da a 65 W - efficienza 88,5 dB/W/m - impedenza 6 ohms -
dimensioni 368 mm x 248.5 mm - profondità 94,5 mm
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffussore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco nostro magazzino.
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
Attenzione
.jpg)
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.gif)
.gif)
.gif)
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
The
role of a centre-channel speaker is to reproduce up to 60% of a
movie soundtrack, including the critical dialogue content, yet
by the sound of some rival systems, surprisingly little time is
devoted to its design. The exceptional RX Centre proves the old
adage that you get out what you put in. It’s been very finely
calibrated to match the dynamics and timbre of other RX speakers
for a wonderfully open, detailed and seamless front sound stage
in any RX system configuration. We’ve tuned the RX Centre’s
multi-driver components to deliver the optimal combination of
sonic virtue and size, so that the velvet subtlety of whispers
and the explosive force of action scenes are conveyed with equal
priority by a compact design that’s perfect for the role. New
C-CAM® tweeter design with damped rear chamber, providing
improved clarity and wider operating range to make better use of
HD audio formats. New 6” C-CAM® bass and bass/ mid-range drivers
incorporate RST® technology, for better damping and improved
mid-range clarity. Sealed cabinet configuration for
accurate performance when installed in cabinet, restricted voids
or close to a wall. Selected premium quality wood veneers or
high gloss pianofinishes.Acoustically matched with all other
Rxspeakers for excellent imaging and consistency of timbre in
surround applications. Format: 2 1/2 Way Frequency Response:
45Hz - 35kHz Sensitivity (1W@1M): 90dB Nominal Impedance: 6 Ohms
Maximum SPL (dBA): 114.8 Power Handling (RMS): 125W Recommended
Amplifier Requirements (RMS): 40-125W Bass Alignment:
Sealed Cabinet Tweeter Crossover Frequency: LF: 500Hz MF/HF:
3.0kHz Drive Unit Complement: 1 x 6" RST® Bass driver. 1 x
6" RST® Bass/Mid driver. 1 x 1" (25mm) C-CAM® gold dome tweeter
Product External Dimensions: (H x W x D) 185 x 500 x 200
mm (7 5/16 x 19 11/16 x 7 7/8 inch) Individual Weight:
9.62 Kg (21.13 lb)
.jpg){kind=small}
.gif)
.jpg){kind=small}
.gif)
.gif)
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.gif)
.jpg){kind=small}
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
