In 2005 we at Chario Loudspeakers celebrated our first 30 years, and we are
proud to have spent so much time doing the thing we dreamed of: Music as to be
our primary job.Today Chario Loudspeakers is far more the biggest High-Definition-Home-Listening
speaker systems manufacturer in Italy and among the first brand names all over
the world. Rigorous research and development engagement together with an
end-user oriented corporate policy are meant to be our professional
ethics.Furthermore, at the very beginning we soon recognized Psychoacoustics
science to be the preferred acoustical engineering background for
High-Definition speaker designing, leading to a better comprehension of human
auditory system. In fact we can recognize and measure exceedingly complex
mechanical oscillations but it's our mind that works the miracle giving the
acoustical vibrations their own right feelings to turn them into sounds. Many
people repeatedly tried to define this astonishing process but its essence
escapes every linguistic code. We at Chario Loudspeakers really don't care about
it We simply call it Music.But let's say about the milestones that made our firm
to be successful through the years...1975 Chario Loudspeakers made his début
with a patented non-conventional speaker layout called Selective Expansion
System made of Left, Centre and Right speaker allowing us to start
psychoacoustic investigation of some still current concepts such as perceived
distance, enhanced stereo seat, diotic image stability...1980 Chario
Loudspeakers introduced a lower-than-ever crossover frequency between woofer and
tweeter, going down to 2,500 Hz, while our competitors were still assessing the
necessity to push the transition over 5,000 Hz following a well-established
common sense. But sometimes, common sense is misleading... and the invoked
psychoacoustic principles were largely misunderstood. Nowadays, low crossover
frequencies are a well established common sense. But sometimes common sense is
misleading... and we are waiting for another Chario Loudspeakers to revise this
theory.1981 Chario Loudspeakers introduced two new electro-acoustic designing
principles: The Equal Loudness Envelope & The Acoustic Pivot.1983 Chario
Loudspeakers introduced a new concept for his bookshelf-speakers low frequency
response, trading off sensitivity for timbre-matching. Nowadays, long-throw/large
outer suspension small woofers are common items...1986 Chario Loudspeakers
introduced the WMT AlignmentTM, at the same time it was firstly stated the fuzzy
Overlapping Frequencies concept instead of well-defined Crossover Frequencies.
This new way of thinking forced us to design a new tweeter generation, shifting
the crossover frequency still lower to 1,300 Hz. Nowadays, the vertical energy
pattern control is a must for any well designed loudspeaker system... 1987
Chario Loudspeakers applied first to consumer speakers the NRS Loading concept.
Nowadays, in the multi-media/multi-channel era, down-firing-next-to-floor
subwoofers is a rule of thumb...1992 Chario Loudspeakers introduced first the
RLX AlignmentTM. The theory of crossed pressure phasors was firstly proposed by
B.Bauer in 1960 but Chario Loudspeakers revised the overall theory also taking
into account the counter-lateral early reflections. Nowadays, the inward tilting
of the main speaker axes at a variable angle is a standard set up...1998 Chario
Loudspeakers introduced the T38 WaveGuide the largest soft-dome tweeter ever
designed for home listening, able to break the 1,000 Hz crossover frequency
barrier.2000 Chario Loudspeakers introduced the first 7-way loudspeaker system
whose design embodied several features: all these features were implemented in
the Academy Millennium Grand which is still rated among the world's best
reference speakers for home listening.2005 Chario Loudspeakers renewed his top
line series and gave it the name Academy "S". The new flagship is a 5-way
reference performance: Serendipity, featuring the T32 Silversoft tweeter and the

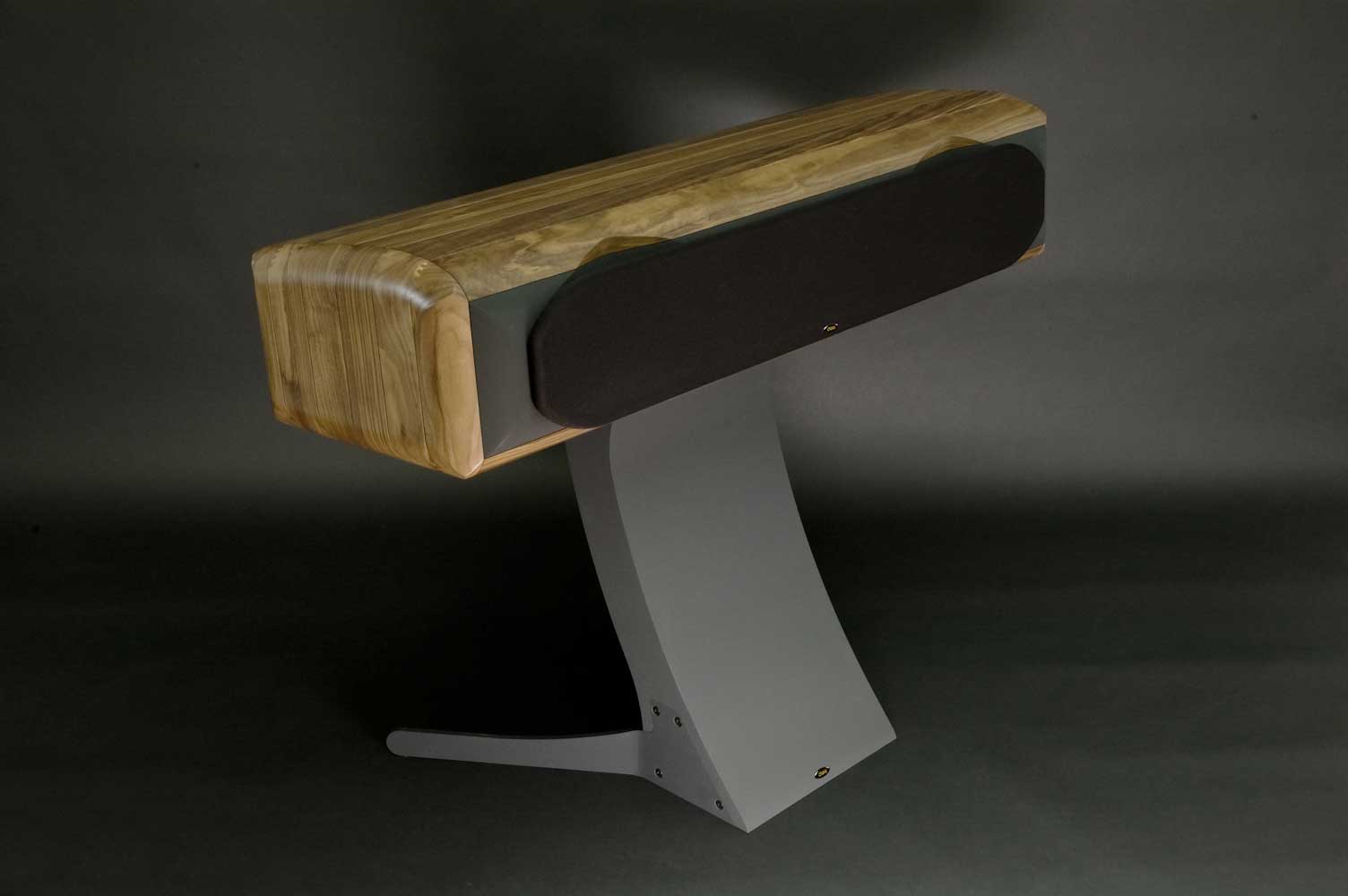

Full Apex geometry for woofer diaphragm.2006 Chario Loudspeakers invents once again a new speakers array to build the
acoustic field at listener's eardrums, radically changing the behaviour of the
center unit of a multi-channel domestic stereophony set up. It's Solitaire age
...because
SERIE ACADEMY
Musica e Scienza sono spesso
concepite come le due facce di una stessa medaglia, e come tali, non possono
essere "viste" contemporaneamente. Questa apparente dicotomia spinge i
progettisti audio ad affrontare i problemi da due punti diametralmente opposti.
Chi si affida alle proprie emozioni e chi si affida al proprio computer. Sic et
simpliciter. Ma guardando in profondità "attraverso" il lato scientifico della
medaglia, questo falso ostacolo scompare e la mente corregge l'inganno degli
occhi. In quel punto Musica e Scienza si fondono.
 Music
and Science are often thought to be the two sides of the same medal. You won't
be able to see both of them simultaneously. Because of that some are in search
of good audio reproduction trusting their emotions only, and some others
trusting their CPU's as well. Sic et simpliciter. But looking very deeply "through"
the scientific side of the coin your mind breaks the apparent dichotomy of sight
cues. Over there Music and Science belong to any coin no more.

CHARIO

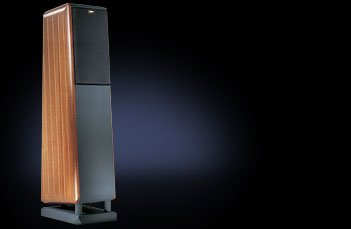

SERENDIPITY €.10.995,00 Per
ordine e sconto
TELEFONARE/EMAIL
Pochi concetti sono necessari
per comprendere il funzionamento del progetto Serendipity. L'idea è quella di
offrire all'ascoltatore l'illusione di "essere lì" mediante la seguente
strategia:
1. Estrarre le informazioni di ambienza normalmente contenute nelle incisioni
standard;2. Presentare le variazioni di pressione alle orecchie dell'ascoltatore
in un modo nuovo;3. Ridurre al massimo grado l'influenza negativa delle prime
riflessioni. L'immersione in un campo acustico "surround" credibile è ovviamente
il target da raggiungere... ma le leggi fisiche non possono essere ignorate.
Alcuni limiti sono connaturati con la catena audio di
ripresa/riproduzione/percezione, e persistono nostro malgrado. Un'incisione
accurata contiene una grande quantità di informazioni ambientali associate al
campo riverberato. Riflessioni di contenuto energetico intenso convogliano
informazioni circa le dimensioni della sala da ripresa e sono strettamente
legate alle sensazioni di localizzazione delle sorgenti, mentre le informazioni
di ambienza e di profondità di campo responsabili dell'effetto olografico, sono
contenute e trasportate dal campo energetico di decadimento a lungo termine.
Only
a few concepts are necessary to understand the rationale behind the Serendipity
design. We tried to give the listener a better illusion of being there in three
steps: 1. Pulling out existing ambience information from standard recordings;2.
Presenting them to the ears in a different manner never tried before;3. Reducing
to the minimum the influence of listening room boundaries. It seems compulsory
to disperse the information over a wider area to let our brain localize the
resulting multi-direction distribution of the ambience signals. This in-turn
leads to the smearing of the direct sound compromising the front sound stage.
Academy Serendipity is based on the assumption that a vertical array of sources
with different frequency bandwidth, different gain and different group delay can
act as a Distributed Source, generating at the listener’s ears some Cross-Talk
signals useful to enlarge the side perspective while keeping the correct
Localization Cues. To achieve this the Academy Serendipity design manages the
frequency distribution of acoustic energy from Floor & Ceiling, the first
reflections, by means of the proprietary WMT TM Alignment configuration and the
geometry of the Vertical Reversed Driver Array. Low Frequency Load NRS 2Π sr
Vented Isobaric Compound Vent Geometry Bi-dimentional Hyper-Exponential
Hourglass Type Configuration 5 way Reversed Vertical Alignment Floor-Standing
Drivers 1 Tweeter 32 mm SILVERSOFT TM dome NeFeB motor1 Midrange 130 mm
ROHACELL® Poly-Ring NeFeB motor1 Woofer 130 mm ROHACELL® Full-Apex TM NeFeB
motor1 Woofer 170 mm ROHACELL® Full-Apex TM NeFeB motor2 Sub 320mm Natural
Fibres – 2 Waves Surround HF motor Sensitivity 93 dB SPL normalized to 1m with
2.83Vrms de-correlated L/R pink noise within IEC 268-13 compliant listening room
Low Frequency Cut Off 23Hz @ -3dB referred to C4 WETS Overlapping Points
240/500/1250/1850 Hz (see PDF) Rated Impedance Modulus 4Ω (min 3.0) Argument
±36° Size 1610x400x580 mm (HxWxD) Weight 100kg Cabinet Solid walnut or cherry
and HDF. The structure is made up of cabinets: the lower, containing two woofers
and the upper, containing two woofers, one midrange and one tweeter. The two
wooden structures are separated by means of fourcylindrical
proprietary-engineered elastomer puffers which act as vibration de-couplers
dissipating mechanical energy by orthogonal elongation. Speakers Orientation The
speakers should be tilted inward facing the listener. Listening Distance Optimum
speaker-listener distance is within 3.5 – 4.0m Listening Layout A carpeted floor
in front of the speakers is recommended. Side and Back walls Should stay 1m away
from the speaker front baffle at least. Suggested Amplifier Normal amping Rated
for 400 W/4 max Average Power. Bi-amping Rated for 200 W/4 max Average Power.
CHARIO SOVRAN
€.5.845,00 Per
ordine e sconto
TELEFONARE/EMAIL
Binaural
Hearing in Small Rooms This is the research frame supporting Academy Sovran
project, following the advanced psychoacoustic studies which made Chario to be a
leading High Performance speaker manufacturer. Once again our marketing-free
scientific approach allowed us to widen our prestigious Academy Series
introducing in the audio market a newly conceived 3way floor-standing design.
Academy Sovran breaks the rule of mono-bass perception in domestic spaces.
Spatialization perception achieved by Academy Sovran speaker-plus-xover-array
sensibly decreases the harmful masking effect of low frequency standing waves.
Tonal components of the sterephonic signal are more easily detected with a
really 3D effect enhancement Low Frequency Load Subwoofer NRS 2p sr Vented
Isobaric Compound Woofer Back Firing Slot with Aperiodic Tuning Vent
Geometry Bi-dimensional Hyper-Exponential Hourglass Type Configuration 3
way Reversed Vertical Alignment Floor-Standing Drivers 1 Tweeter 32 mm
SILVERSOFT TM dome NeFeB motor 1 Woofer 170 mm ROHACELL TM Full-Apex TM
Poly-Ring TM NeFeB motor 2 Sub 200 mm Natural Fibres NeFeB motor Sensitivity 90
dB SPL normalized to 1m with 2.83 Vrms / de-correlated L/R pink noise within IEC
268-13 compliant listening room Low Frequency Cut Off 35 Hz @ -3dB referred to
C4 WETS Xover Frequencies 100/1,180 Hz Mid-High Alignment LKR4 Derived (45°
Relative Phase) Rated Impedance Modulus 4 ohm min (3.0) Argument +/- 36°;
Suggested Amplifiers Normal Amping Rated for 180 W/4 ohm Maximum Average Power
Run the cable from your power amplifier to the lower terminals of the subwoofer
binding-post, then connect the upper terminals to the binding-post of the
mid-high unit by means of the short cable delivered with the speakers. Suggested
Amplifiers Bi-Amping Rated for 120 W/4 ohm Maximum Average Power Run the cable
from your power amplifier to the lower terminals of the subwoofer binding-post
leaving the upper ones idle. Do the same to connect the power amplifier to the
binding-post of the mid-high unit Size 1220 x 240 x 440 mm (HxWxD) Weight 47kg
Cabinet Finishing Solid walnut or solid cherry and HDF. The structure is made up
of two cabinets: the lower containing two subwoofers and the upper containing
one midrange and one tweeter. The two wooden structures are separated by means
of four cylindrical proprietary engineered elastomer puffers which act as
vibration de-couplers dissipating mechanical energy by orthogonal elongation

CHARIO
SONNET
€.1.756,00 Per
ordine e sconto
TELEFONARE/EMAIL
In un classico progetto 2
vie/2 altoparlanti non è possibile controllare la radiazione energetica per
ottimizzare le prestazioni globali in ambienti domestici.Il motivo risiede nel
fatto che il numero di sorgenti a disposizione è troppo esiguo per implementare
una qualsiasi teoria di radiazione basata su un allineamento
bi-dimensionale.Sfruttando invece le ridotte dimensioni del cabinet, che può
essere facilmente assimilato ad una sorgente di tipo 4Π sr, è possibile

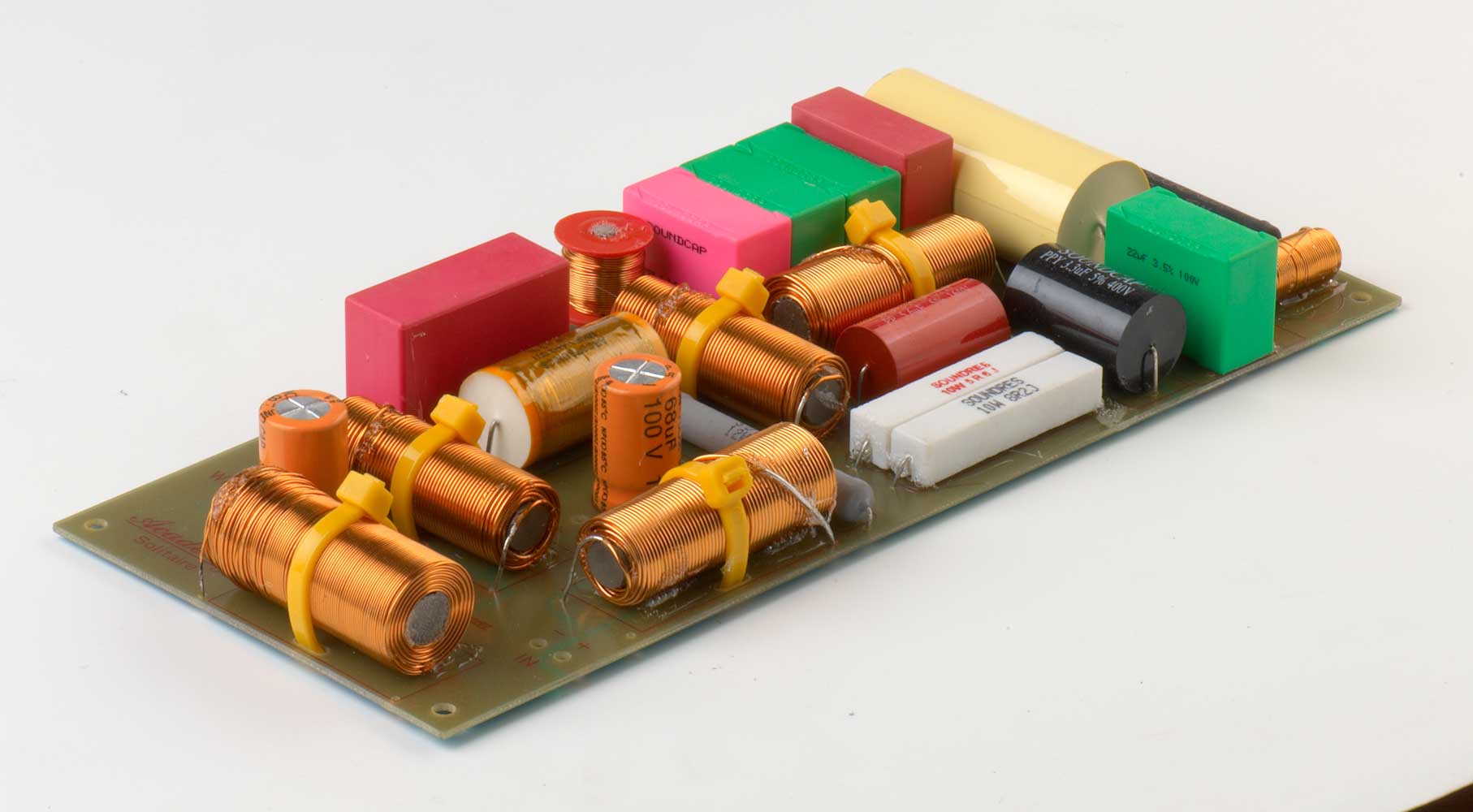

realizzare un filtro crossover "intelligente", in grado di controllare la
dimensione orizzontale dello stage sonoro...
Bearing
upon a classical 2way/2speakers design is not possible to arrange things in
order to control the whole "energy baloon". The reason is very simple: there are
too few sources to take advantage from multiple-array theories.
But we can exploit the very small size of the cabinet as a true 4Π sr source to
design a "smart" crossover capable of re-sizing the sound stage following your
preferences...Low Frequency Load Back firing Vented 4Π sr
Vent Geometry Half-Exponential Hourglass Type Configuration 2 way Reversed Array
Drivers 1 Tweeter 32 mm SILVERSOFT TM dome NeFeB motor 1 Woofers 170 mm
ROHACELL® Full-Apex TM Poly-Ring NeFeB motor Sensitivity 90 dB SPL normalized to
1m with 2.83Vrms de-correlated L/R pink noise within IEC 268-13 compliant
listening room Low Frequency Cut Off 55Hz @ -3dB referred to C4 WETS Xover
Frequency 1,180 Hz Rated Impedance Modulus 4Ω (min 3.0) Argument ±36° Size
445x235x340 mm (HxWxD) Weight 14kg Suggested Amplifier Rated for 120 W/4 max
Average Power Cabinet Finishing Solid walnut or cherry and HDF Speakers
Orientation The speakers can be tilted inward/outward to control sound stage
width. Optional Stand Weight 13kgSize 750x540x460 mm (HxWxD)Iron black anodized
(Top Plate & Legs)Painted HDF (central body)

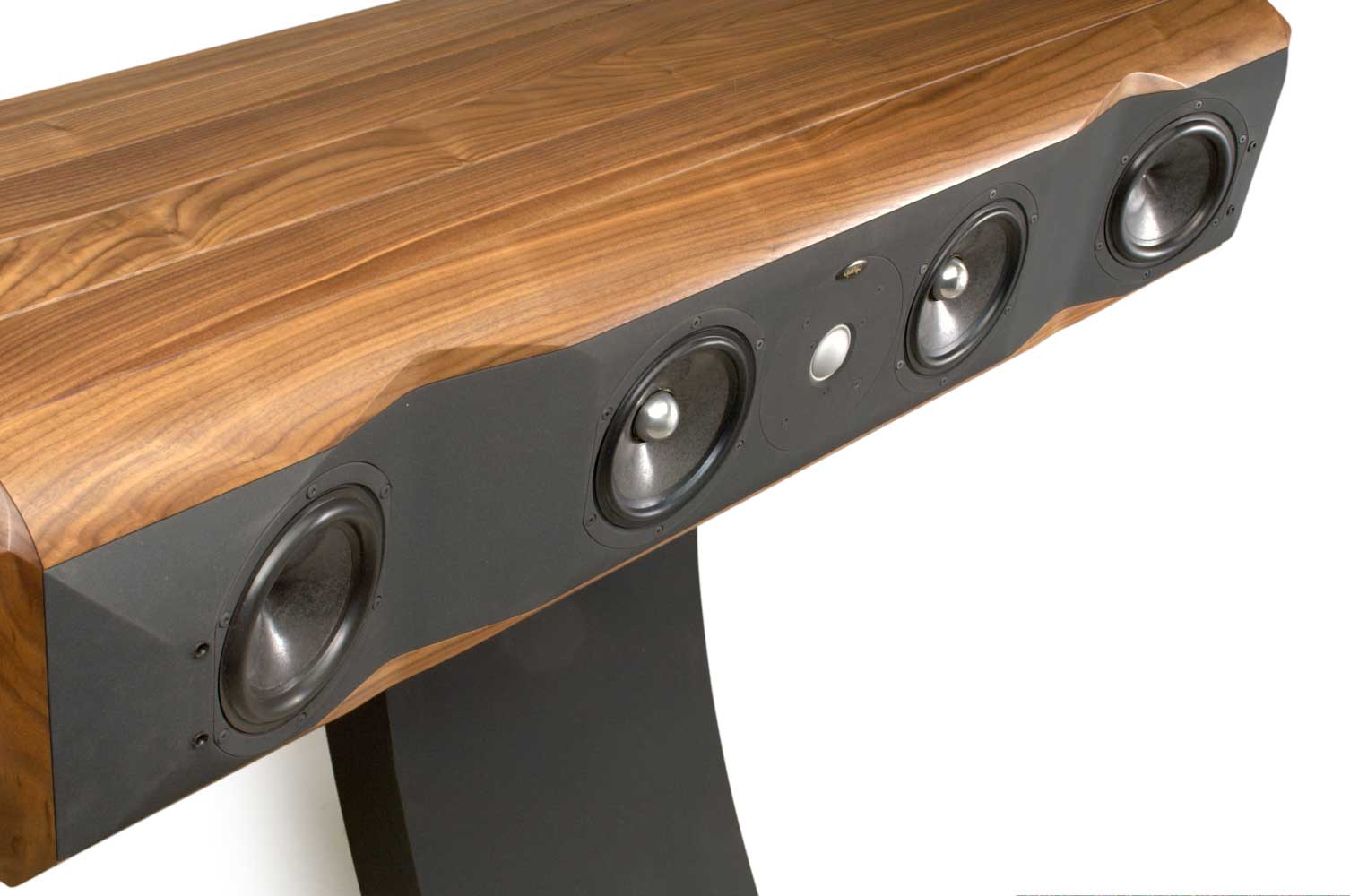

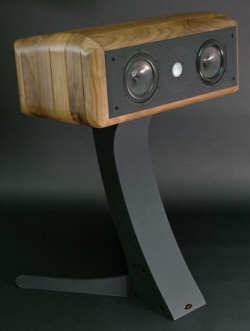

CHARIO
SOLITAIRE
€.4.990,00
Per
ordine e sconto
TELEFONARE/EMAIL

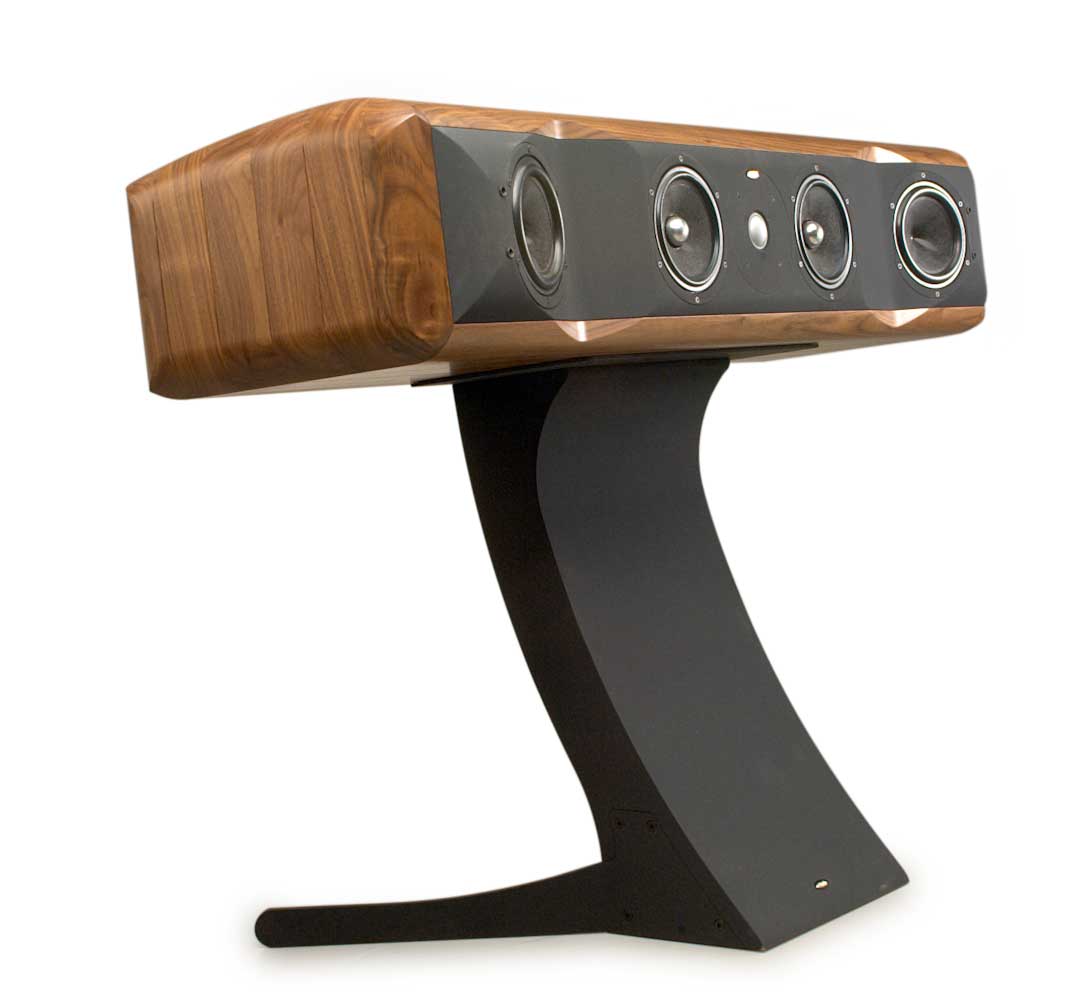

In un sistema stereofonico
multicanale la sorgente centrale è per natura monofonica, invia cioè lo stesso
segnale ad entrambe le orecchie. Questo semplice processo è utile per una
precisa Localizzazione, ma l'ascolto di programmi con audio ad Alta Definizione
necessita dell'ausilio di informazioni aggiuntive che rendano l'immagine
virtuale credibile. Nella riproduzione domestica infatti la sola localizzazione
dello stage virtuale non è sufficiente per definire un set di parametri
qualitativi in assenza di un giusto grado di Spazializzazione delle sorgenti
stesse. Il problema consiste nel quantificare il rapporto ottimale tra le due
grandezze, oppure detto diversamente, come sia possibile dal Caos controllato
generare Ordine.Chario ha raccolto la sfida. Solitaire è la risposta.
A
multi-channel stereophony center speaker is fed via a monophonic signal that
reaches both the listener's ears. This simple process is useful for source
Localization but during the performance of a High Definition Audio System it's
necessary for the ear-brain mechanism to rely upon added information to make the
virtual stage credible. In order to define a complete set of psychoacoustic
quantities for quality assessment the listener has to be aware of another
subjective quantity addressed to as Spatialization.Chario has taken up the
challenge. Solitaire is the answerLow Frequency Load 4 Ports Back Vented
Configuration 5 way Proprietary 3D Center Channel TMDrivers 1 Tweeter 32 mm
SILVERSOFT TM dome NeFeB magnet2 Midranges 130 mm ROHACELL® Poly-Ring NeFeB
magnet Differentiated Asymmetrical Chambers with Aperiodic Tunings2 Woofers 130
mm ROHACELL® Full-Apex TM Poly-RingNeFeB magnet Differentiated Asymmetrical
ChambersLeft Woofer tuned @ 75HzRight Woofer tuned @ 85Hz Sensitivity 90 dB SPL
normalized to 1m with 2.83Vrms de-correlated L/R pink noise within IEC 268-13
compliant listening room Low Frequency Cut Off 75Hz @ -3dB referred to C4 WETS
OverlappingPoints 530/650/800/900/1,500 Hz (see PDF) Rated Impedance Modulus 4Ω
(min 3.0) Argument ±36° Size 220x1120x420 mm (HxWxD) Weight 36kg Speakers
Positioning Fittted to dedicated stand. Listening Distance Not less than 2.5 m
Listening Layout A carpeted floor in front of the speakers is recommended. Side
walls Symmetrically apart where possible. Suggested Amplifier Rated for 250W/4Ω
max Average Power Optional Stand Weight 20kgSize 590x750x500mm (HxWxD)Iron black
anodized (Top Plate & Legs) Painted HDF (central body)
.jpg)

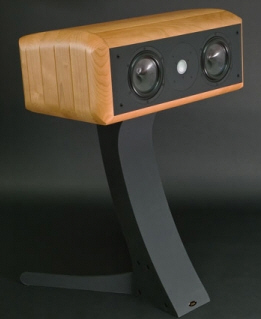

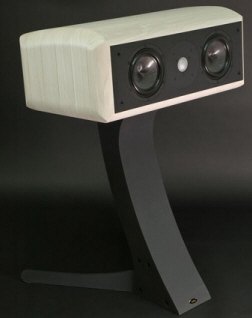

CHARIO
SAPPHIRE
€.2.499,00 Per
ordine e sconto
TELEFONARE/EMAIL
Sapphire Finiture Disponibii
1.Ciliegio (Legno Massello) 2.Noce (Legno Massello) 3.Rovere Sbiancato (Legno
Massello) Carico Acustico LFDoppio Reflex posterioreConfigurazione3
VieAltoparlanti1 Tweeter a cupola da 32 mm SILVERSOFT magnete NeFeB 2
Woofer-Mid a cono da 130 mm ROHACELL® in termo-formatura Full-Apex™ con magnete
in tecnologia Poly-Ring NeFeB. Volumi di carico asimmetrici Woofer di destra
accordato @ 85 Hz Woofer di sinistra accordato @ 75 HzSensibilità93 dB SPL
normalizzata ad 1 m / 2.83 Vrms / rumore rosa in ambiente confinato IEC
268-13Taglio Inferiore LF75 Hz @ -3 dB riferimento DO4 SOETPunti di
Sovrapposizione800/900/1500 HzImpedenzaModulo 4W (min 3.0) - Argomento
±36°Dimensioni240 x 560 x 370 mm (A x L x P)FinituraMassello di noce / ciliegio
/ rovere e HDFPeso16 kgPosizionamentoA pavimento su supporto dedicatoDistanza di
AscoltoNon inferiore a 2.5 mLayout di AscoltoUn tappeto pesante di fronte è
consigliatoPareti LateraliSimmetriche dove possibileAmplificatori Suggeriti150W
/ 4W Potenza Media MaxStand Opzionale Peso: 20 kg Dimensioni (AxLxP): 590 x 550
x 500 mmFinitura: HDF verniciato nero velluto
Sapphire
It’s no mean feat to complete a series of loudspeaker systems applying the
top-down approach. Gradually the special traits of the original design are lost
because the hardware structure has to be simplified.Sapphire is the tangible
demonstration of how it’s possible to “downscale and adapt” the Solitaire theory
to a less complex system, showing the real scientific significance of the
results obtained in the Chario Loudspeakers Psychoacoustics Laboratory.

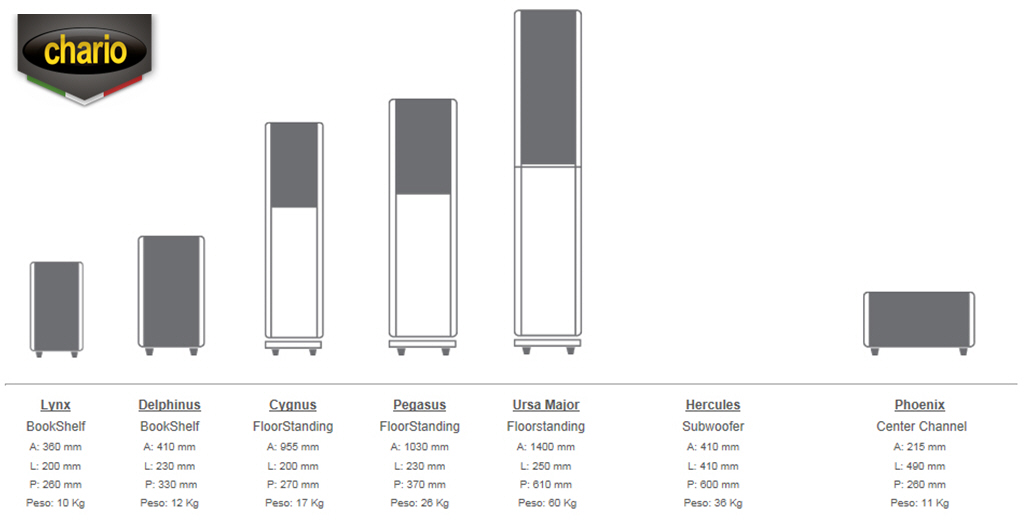

SERIE CONSTELLATION
Mai come oggi nella
riproduzione ad Alta definizione l'ambiente d'ascolto ha assunto un ruolo di
primaria importanza. La stereofonia multicanale è influenzata dalla presenza
delle pareti domestiche in modo spesso incontrollabile. Chario Constellation è
un'attendibile risposta a questo problema. Il tweeter T38 Wave Guide è il più
grande trasduttore a cupola mai realizzato per unire l'esigenza di incrementare
la dinamica e controllare l'angolo solido di emissione. Il risultato è la
percezione di un incremento di dettaglio ed un fronte sonoro più omogeneo, anche
e soprattutto con incisioni ben conosciute.
Never
before in the history of reproduced sound has the listening environment played
such a crucial role. With multi-channel sound room interaction can effect the
sound in many unpredictable ways - the Chairo Constellation series makes every
attempt to control the interaction between the speaker and the listener’s ears.

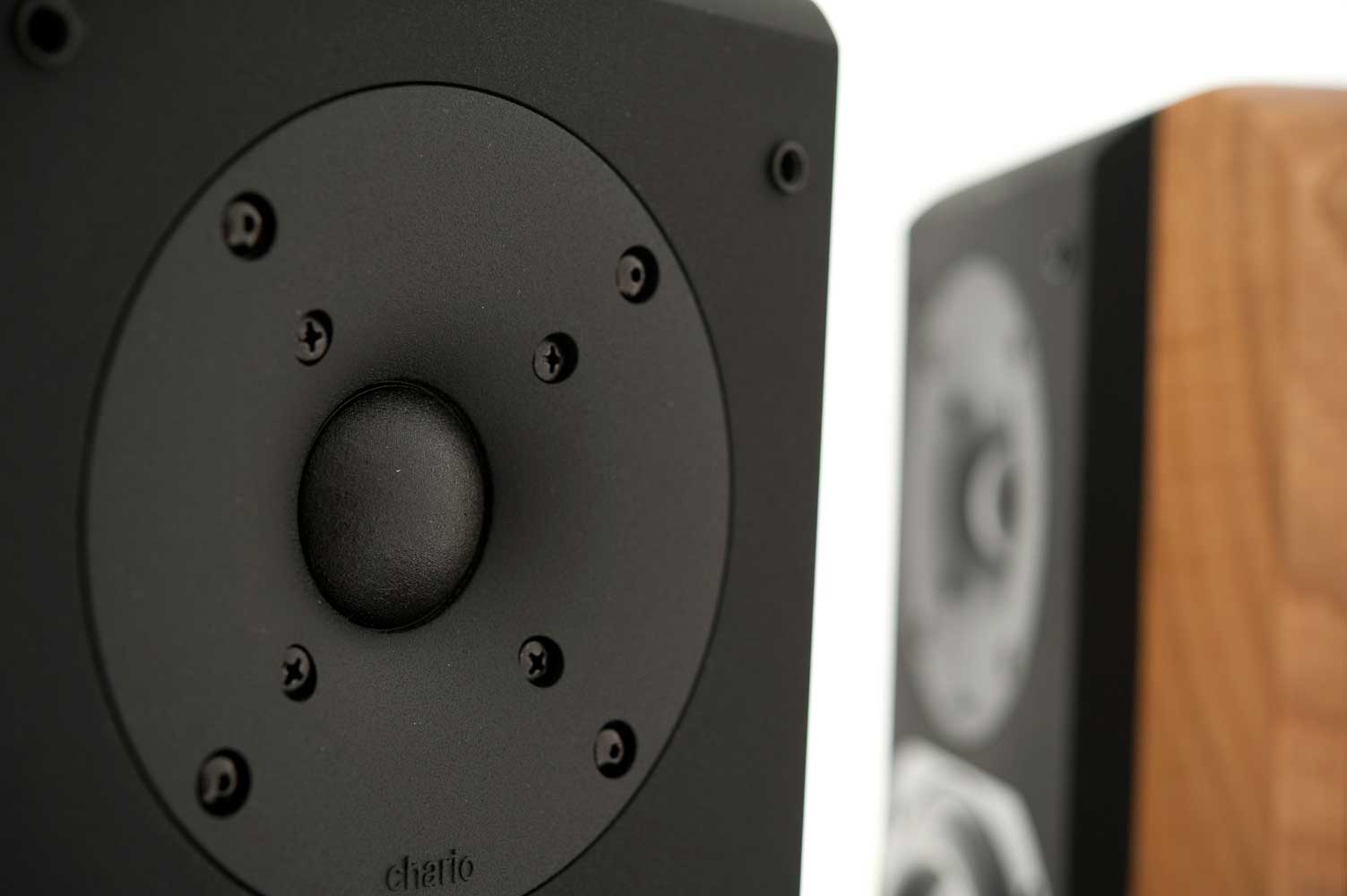

Introducing the T38 Wave Guide TweeterBigger than any other currently available
moving coil tweeter the T38 Wave Guide features:- extended dynamic range at mid
to high frequencies- accurate energy radiation control off-axis minimizing room
interaction The critical listener will discover ambient information, dynamics
and imaging greatly increased on recording that he or she is passionately
familiar with. The sense of being there will be moving to say the least.

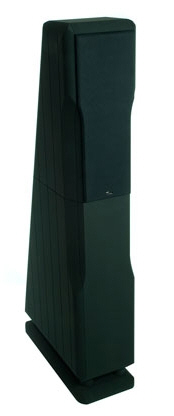

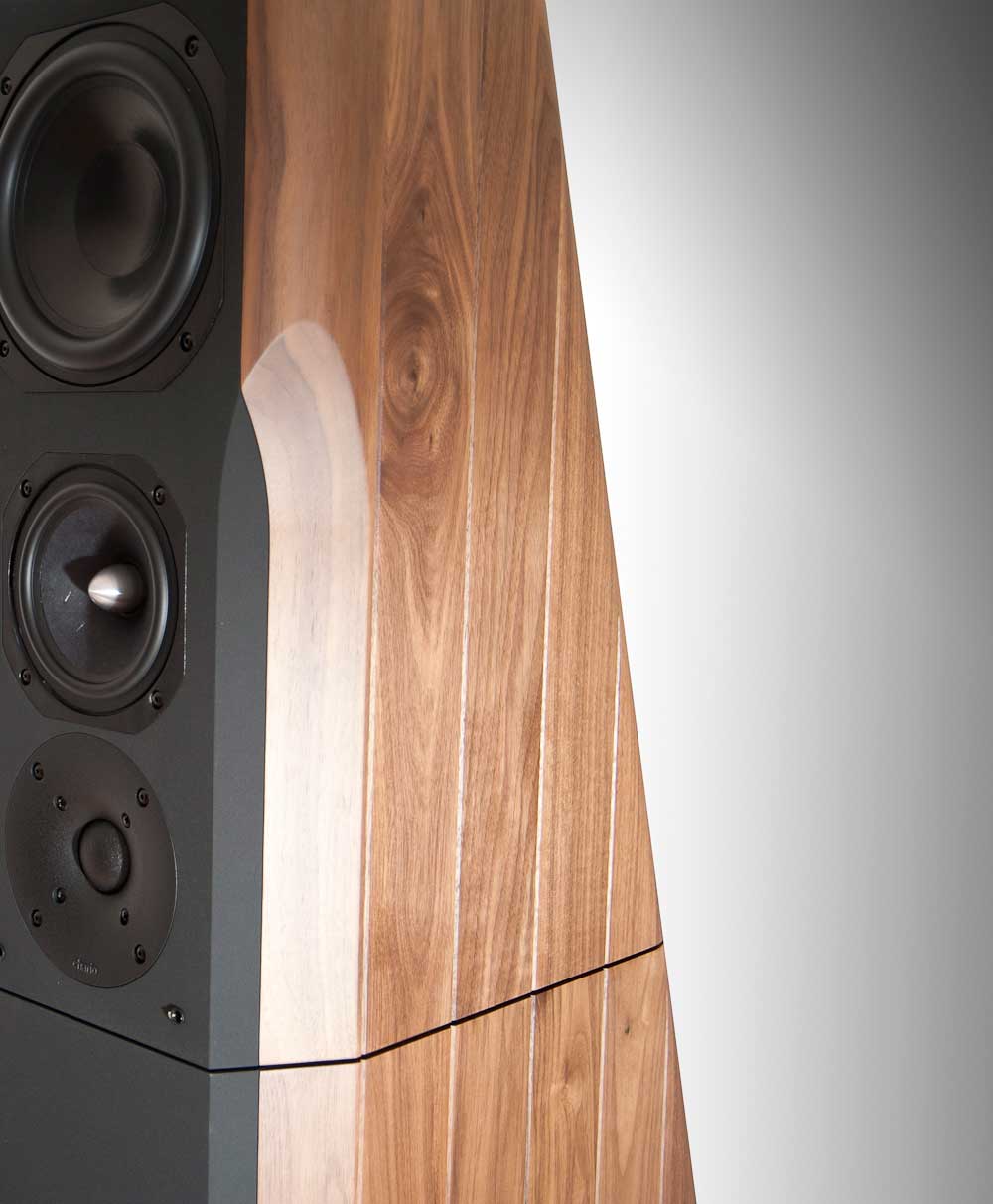

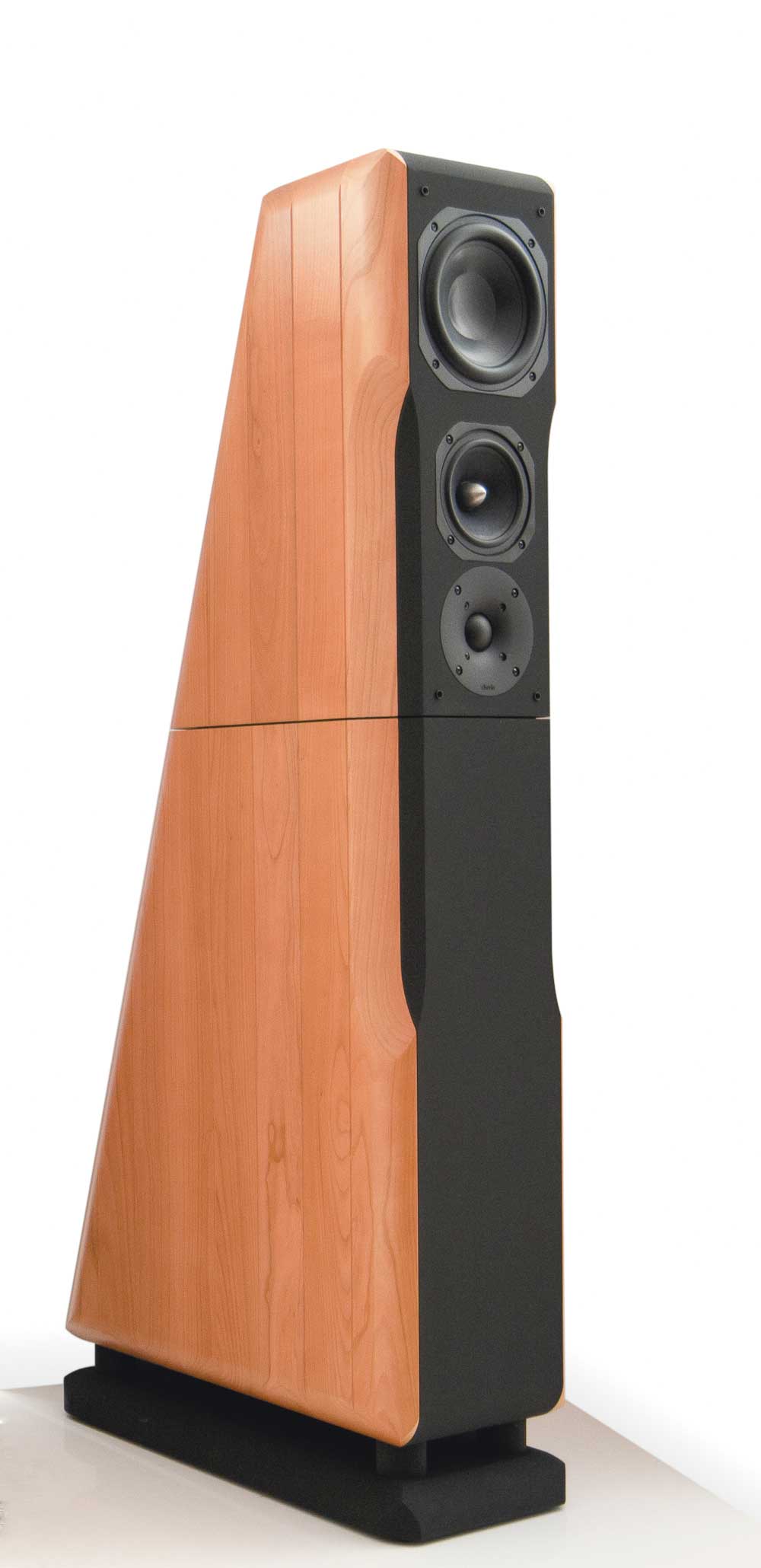

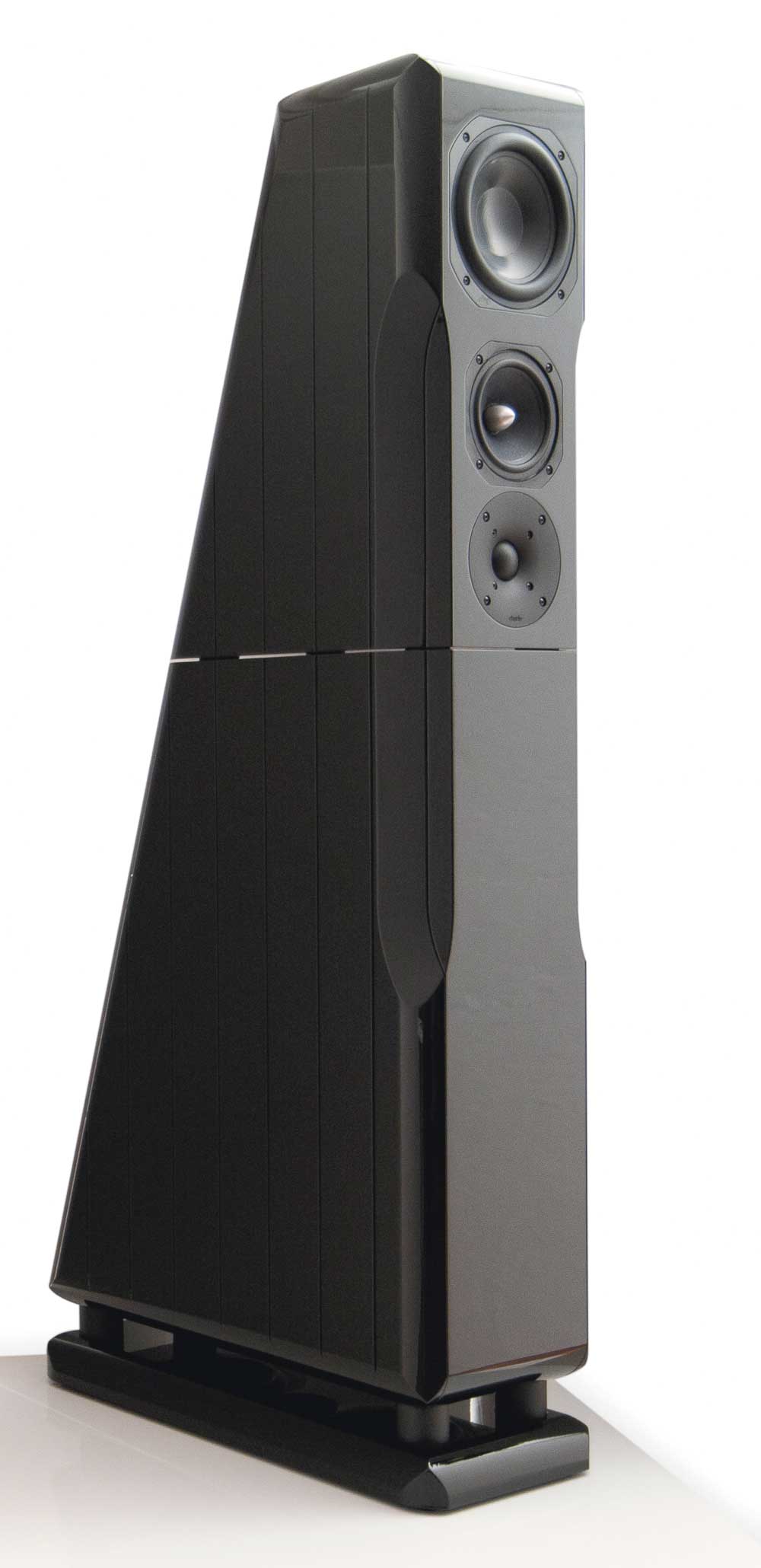

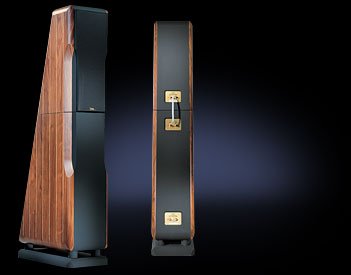

CHARIO

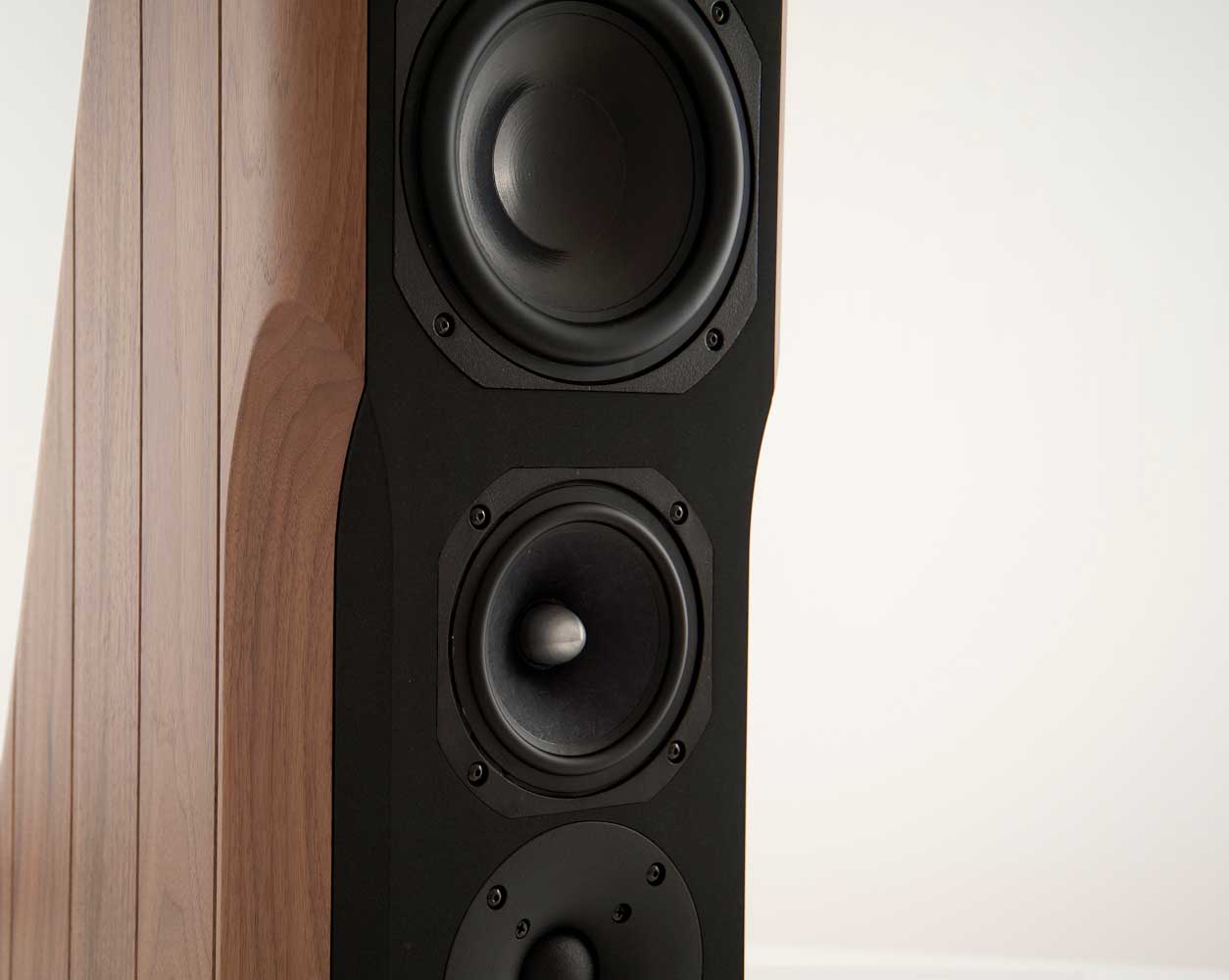

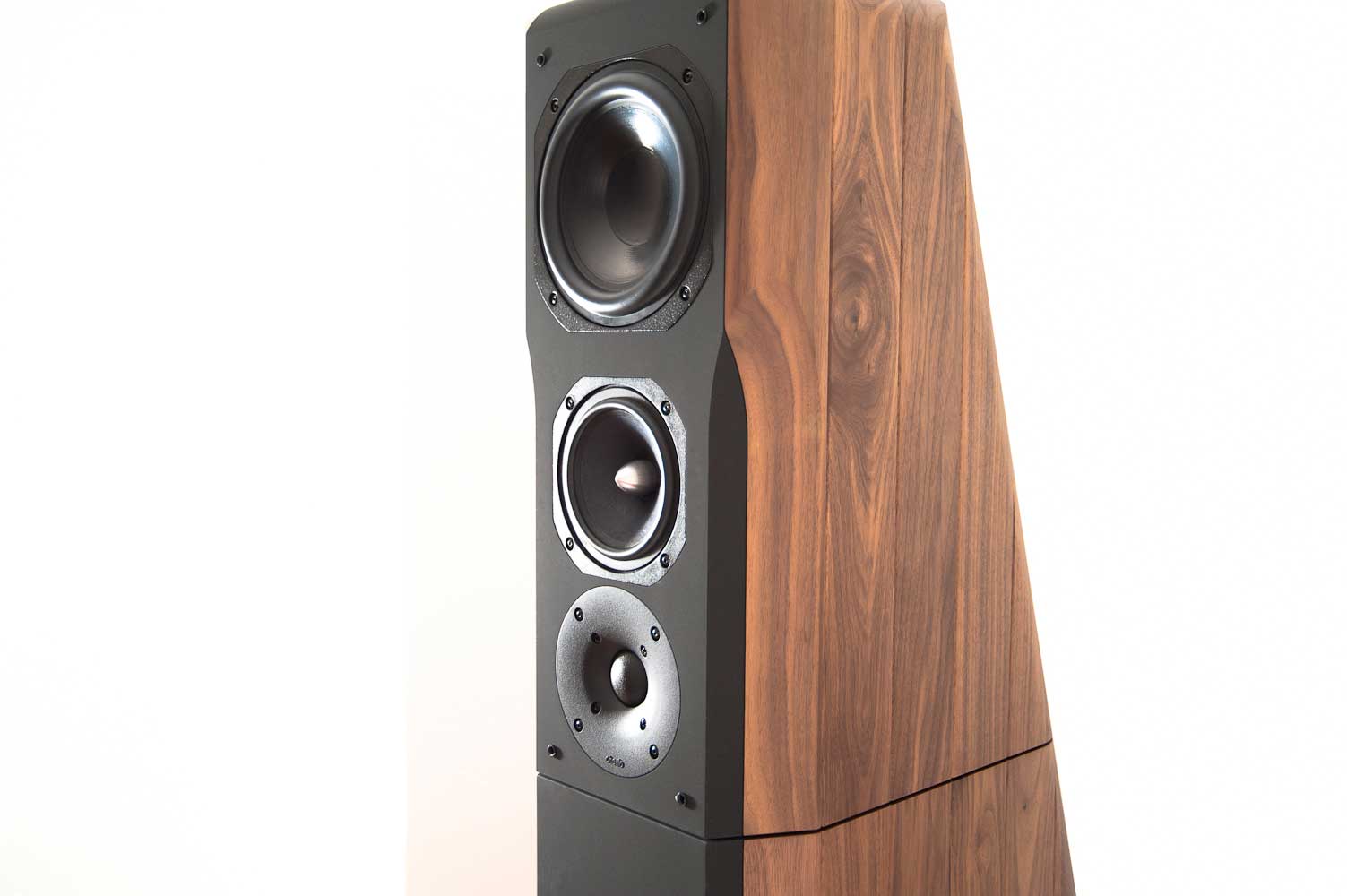

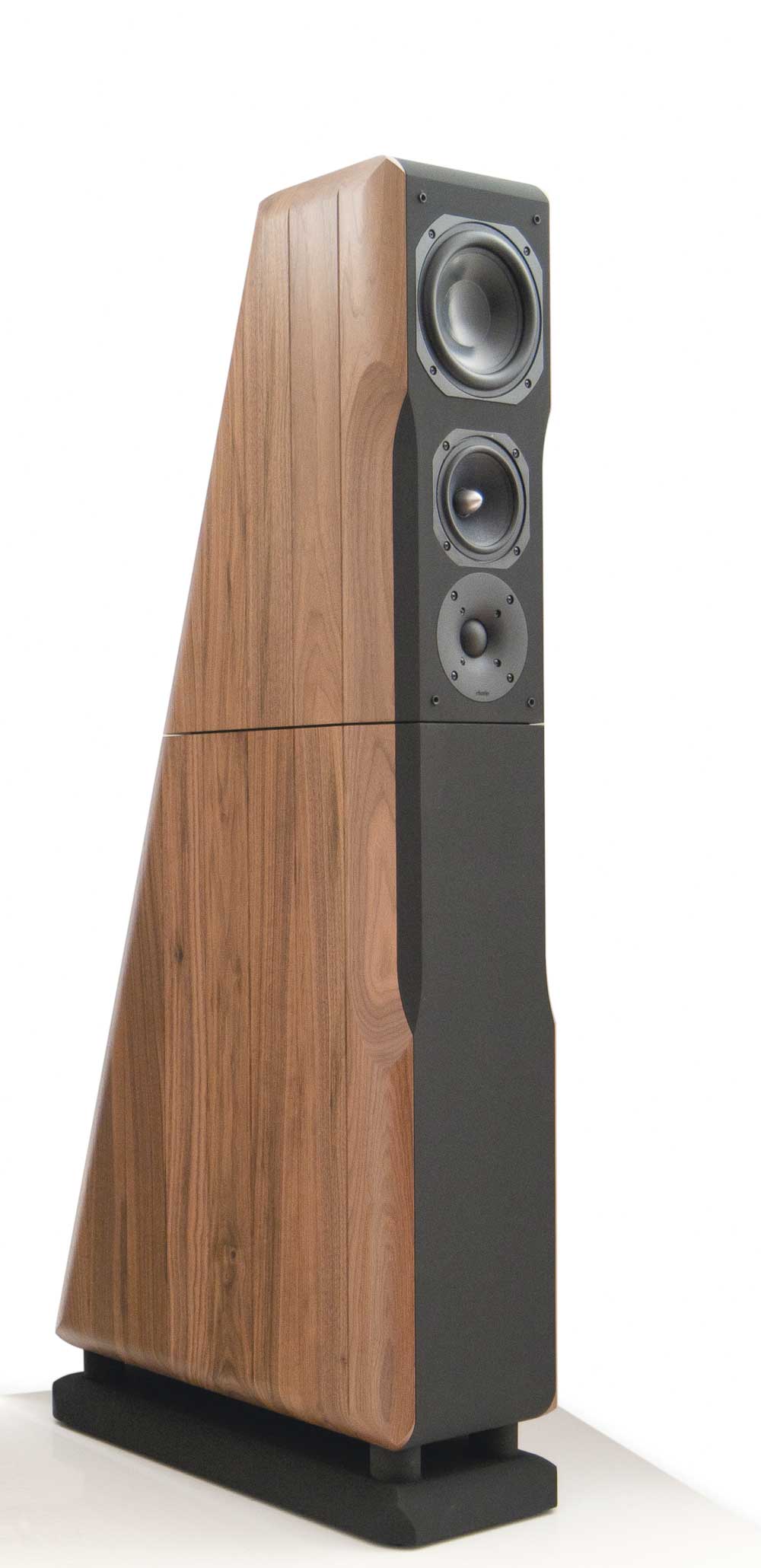

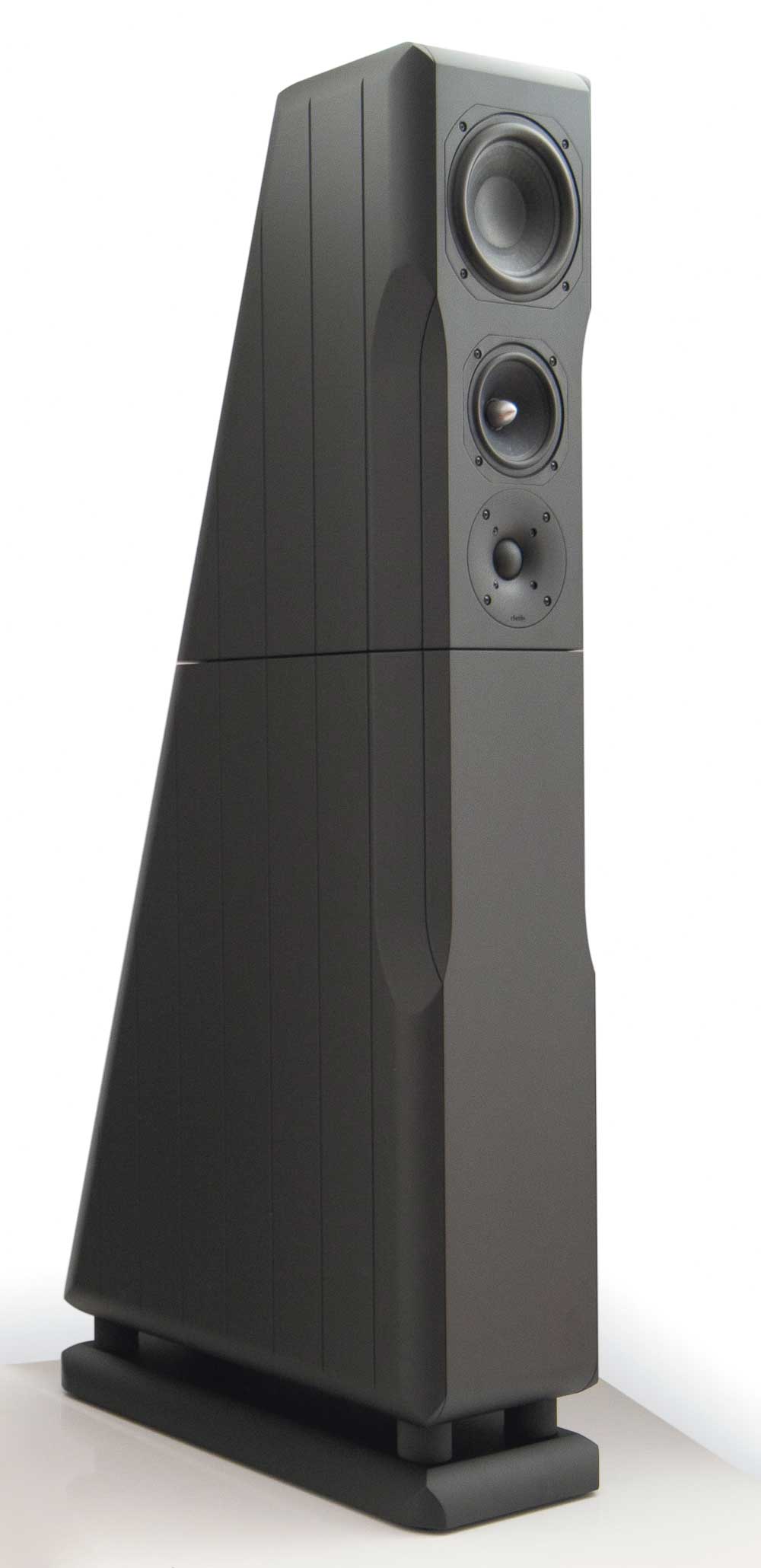

Ursa major
€.3.559,00 Per
ordine e sconto
TELEFONARE/EMAIL

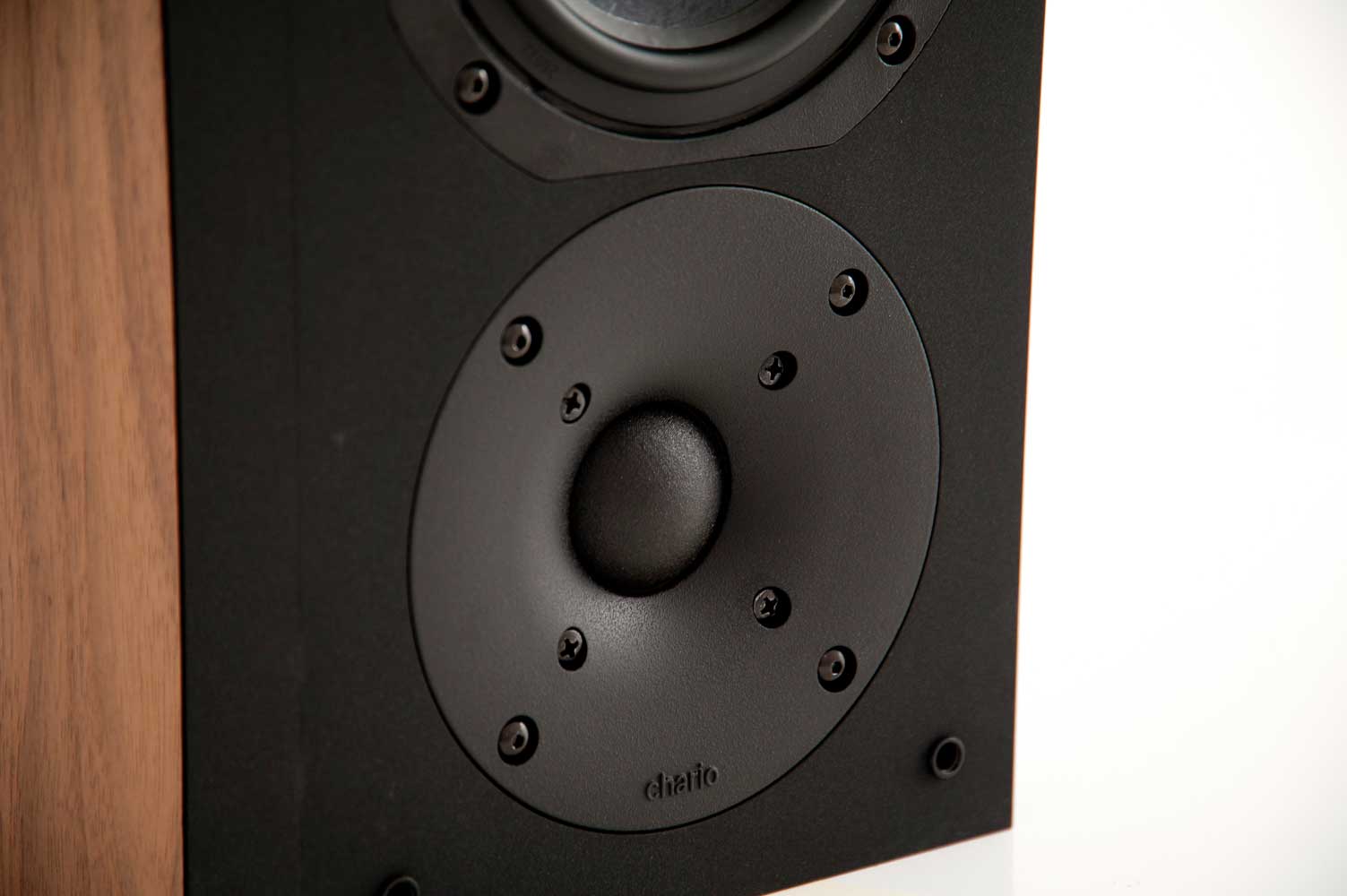

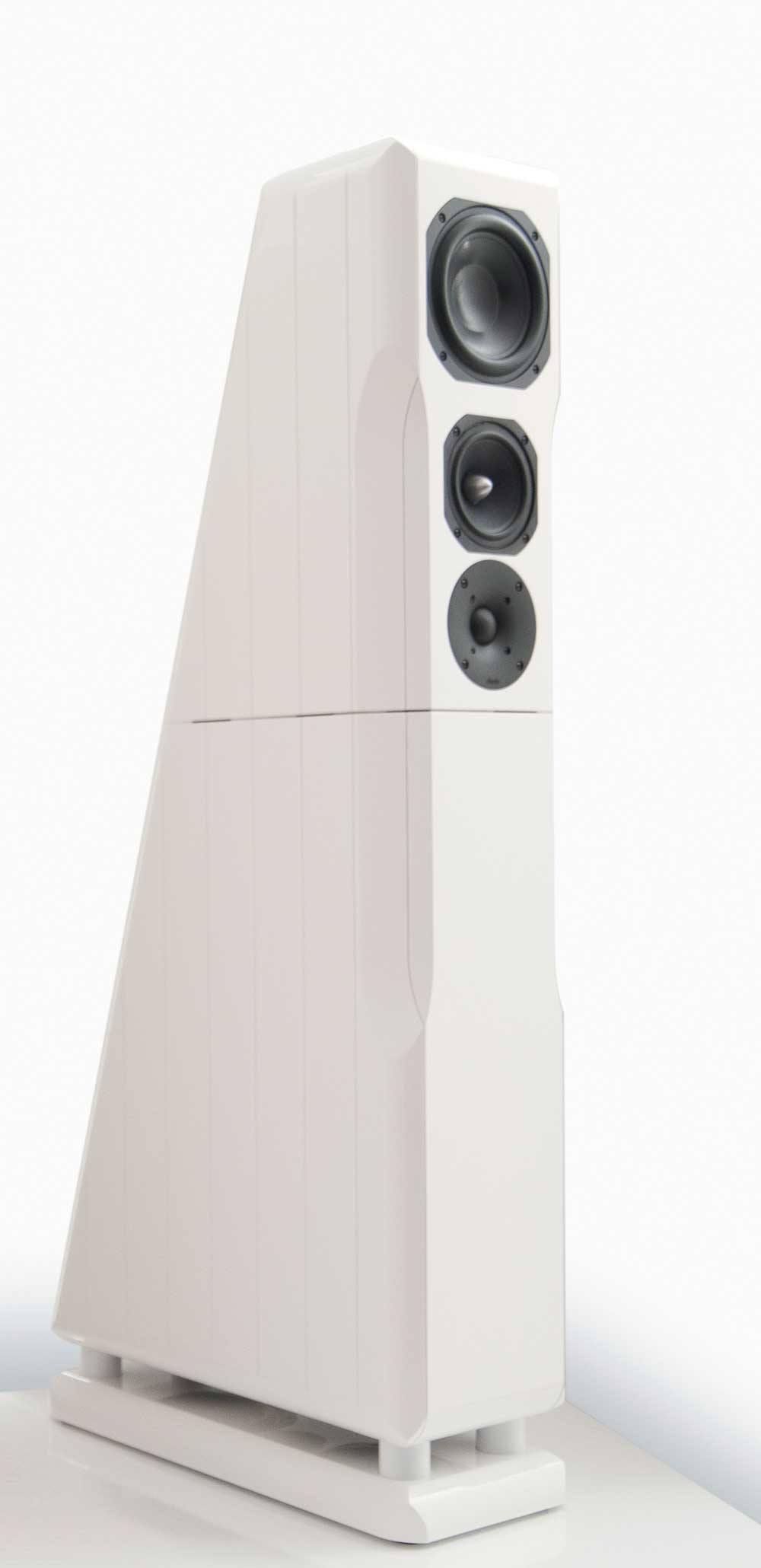

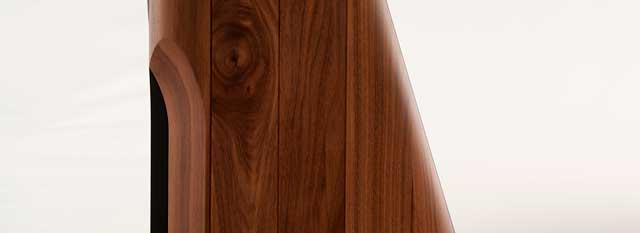

Ammiraglie della Serie Constellation.Il progetto Dual Cabinet disaccoppia la sezione subwoofer dalla
parte medio-alti, quest'ultimi posizionati lontano dal pavimento per uno stretto
controllo dell'energia inviata al pavimento ed al soffitto. La configurazione
proprietaria WMT ArrayTM offre una soluzione unica nel suo genere per
l'interazione dei drivers nelle regioni di sovrapposizione. Le sorgenti
acustiche si comportano e si fondono come un unico trasduttore per il quale
risulta determinato il comportamento in ambiente confinato. Tenendo in
considerazione il comportamento del sistema percettivo in funzione delle curve
di Loudness, le Ursa Major modificano la risposta in frequenza classica anche in
funzione del profilo di decadimento dell'energia residua in ambienti domestici.
Questo accorgimento è molto simile alla "equalizzazione spaziale" introdotta da
altri ricercatori. URSA
MAJOR VERSIONE K 2.849,00 euro -Versione K high
gloss 3.249,00 euro
The
flagship model of the Constellation Series.The Dual cabinet design decouples
bass energy from the upper cabinet where most of the musical spectrum is
reproduced. The upper cabinet places the drivers higher from the ground -
controlling floor and ceiling bounce in a predictable manner. The proprietary
cross over configuration offers a unique solution to driver interaction and to
control total energy radiated. The drivers behave and merge as one through
overlapping crossover points also while controlling the desired radiation
pattern, hence early reflections are controlled in order resulting in a much
wider sound stage. Preserving the ambient information on recordings is also key
to recreating the recorded event. The Usra Major was designed to take in to
account the dynamic range of both recording and the the closed space the speaker
will be reproducing the recorded event in. Taking into account the ear-brain
loudness contours of a typical listener in room Chario tilts the speakers
frequency response to account for this and reverberation decay of any closed
space. This procedure is similar to “spatial equalization” practiced by
researchers at the recording stage.

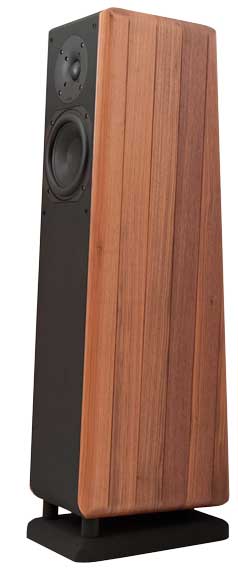

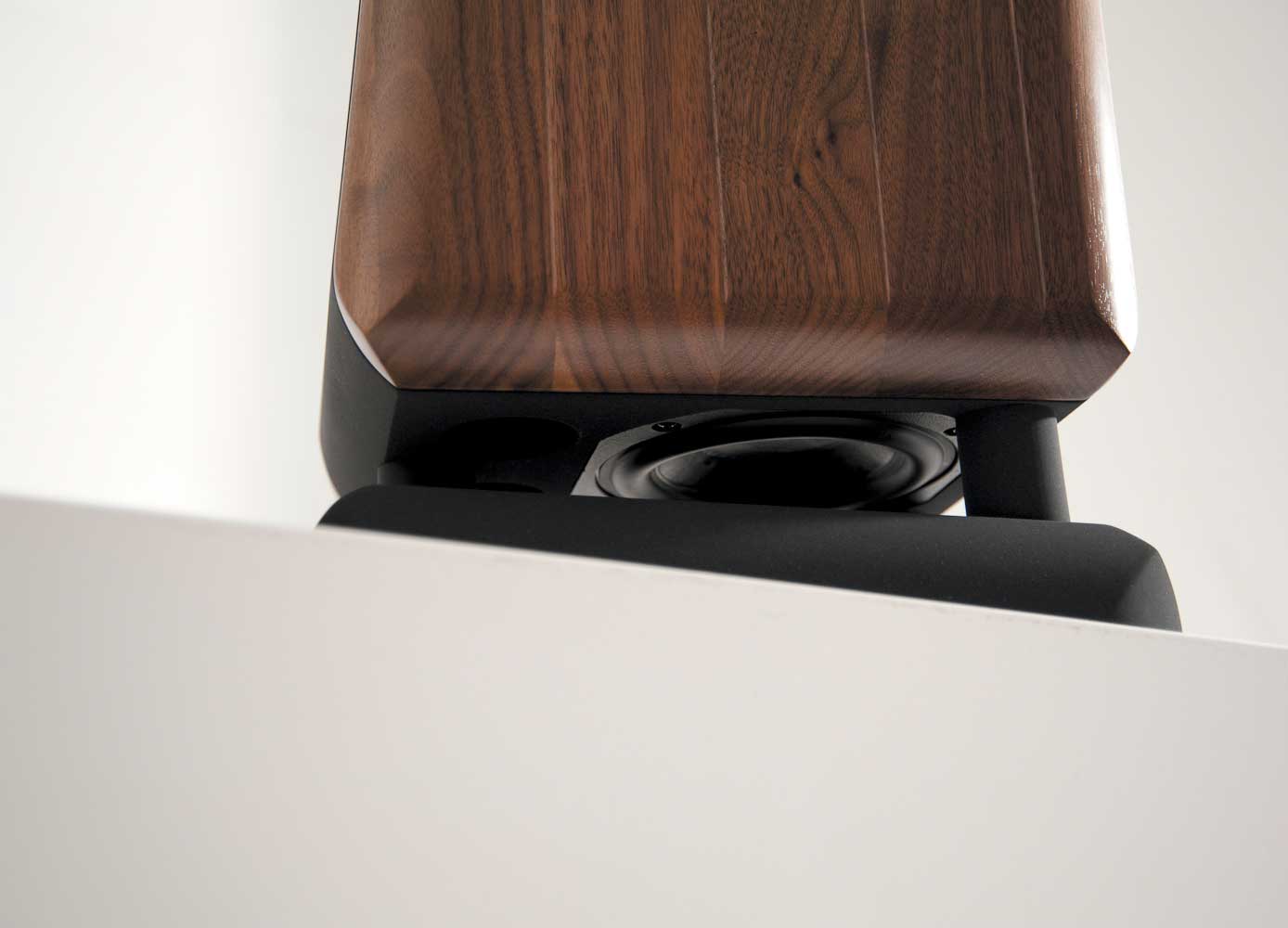

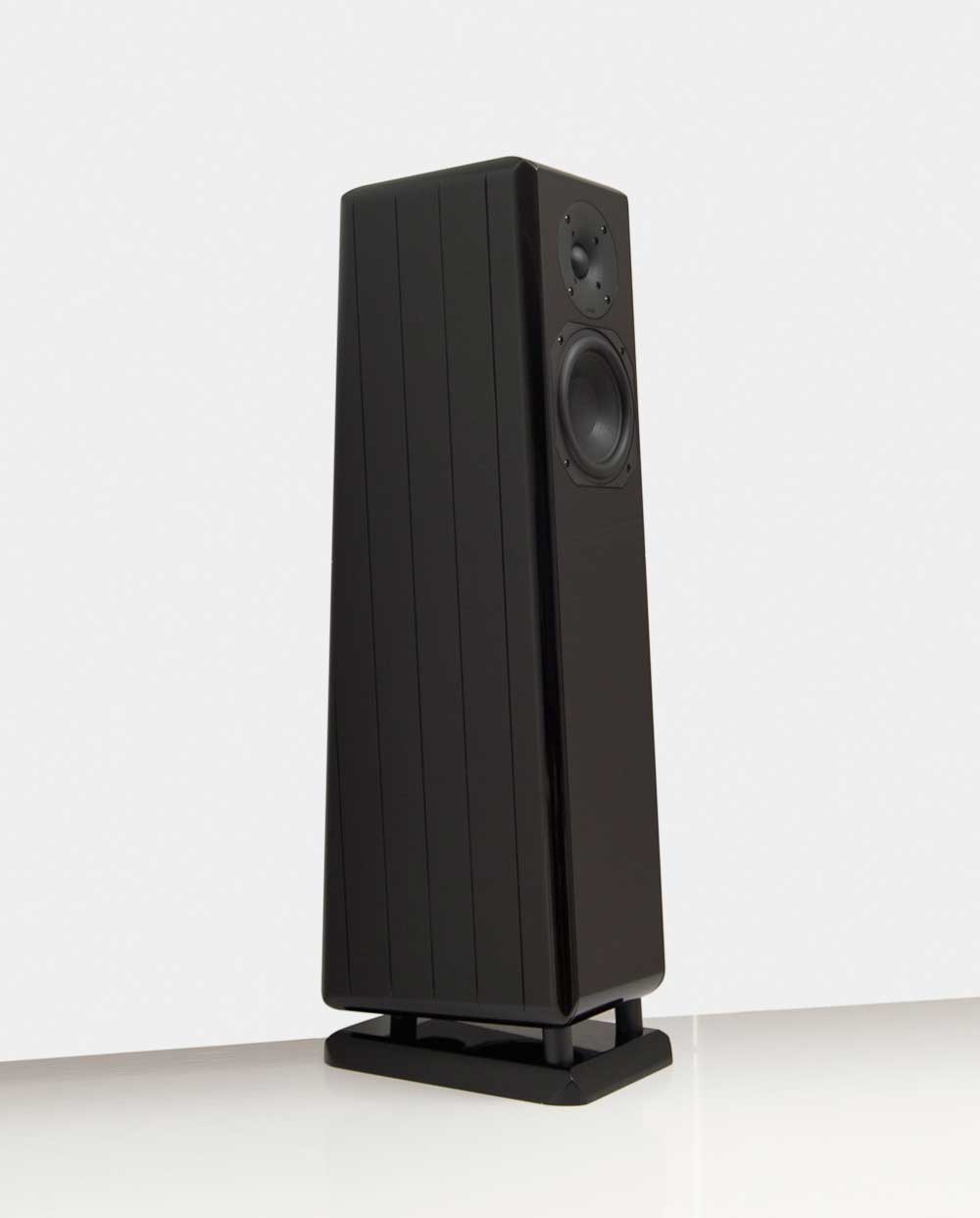

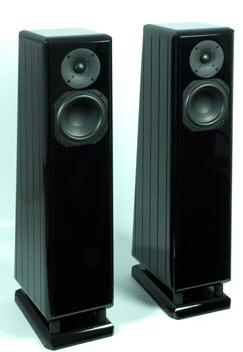

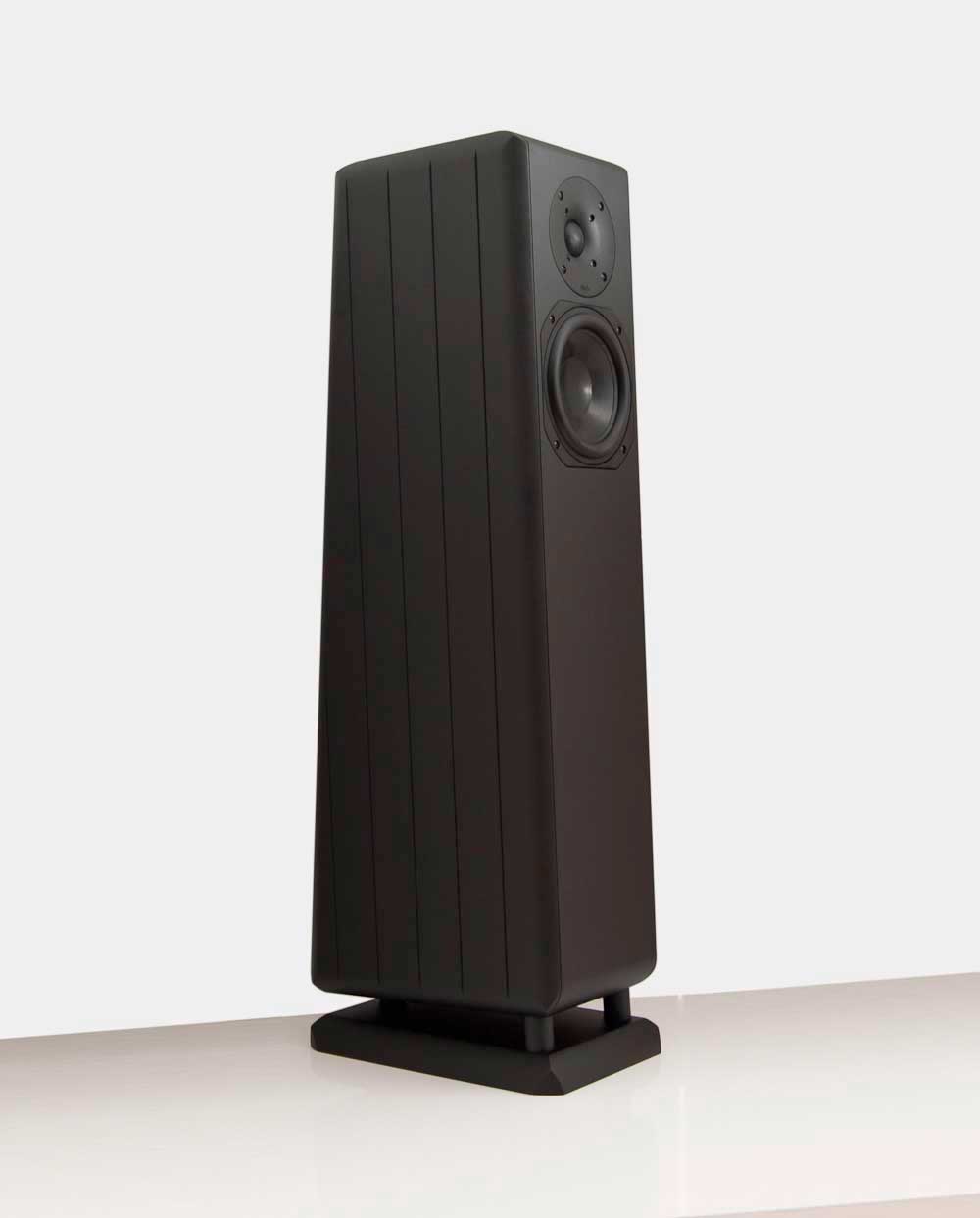

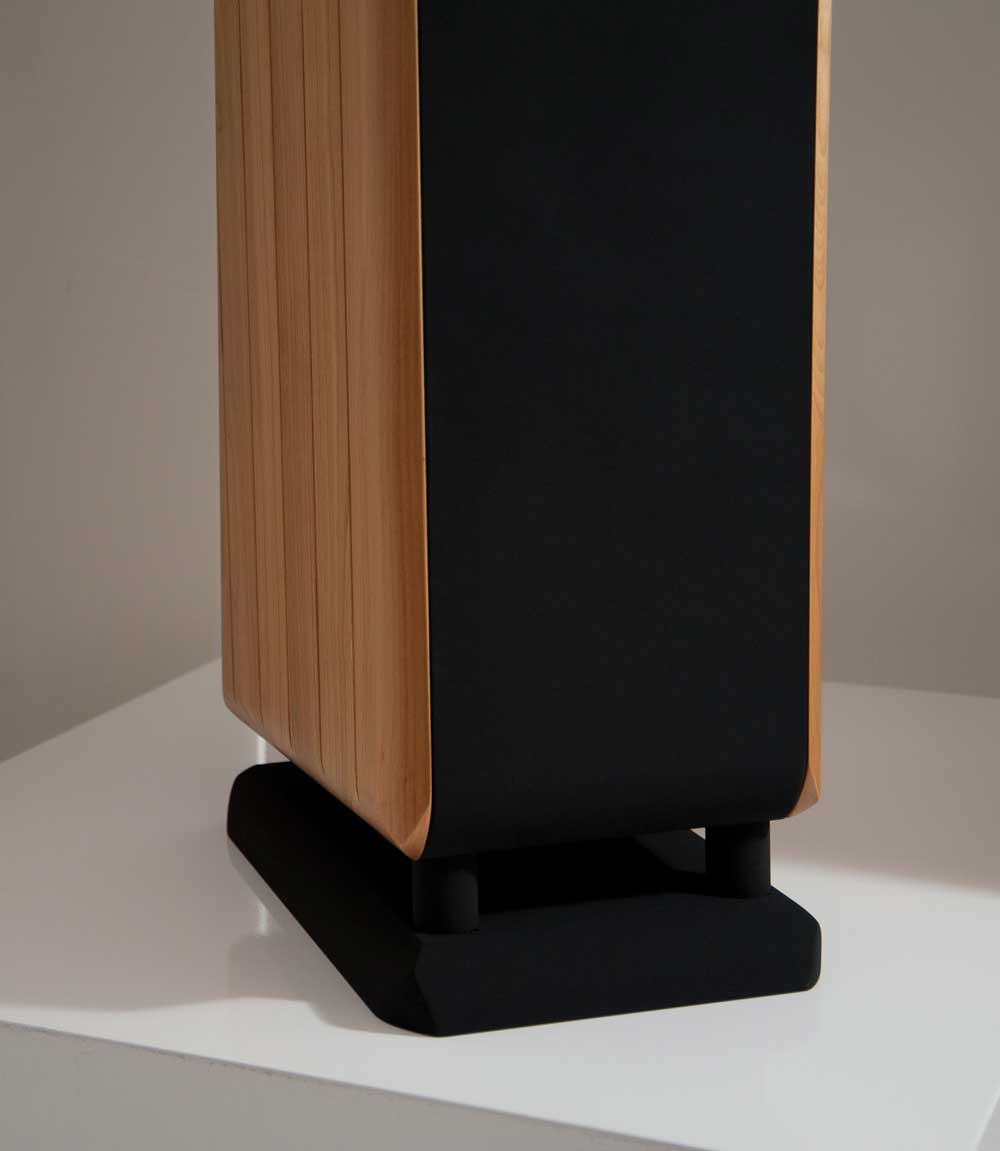

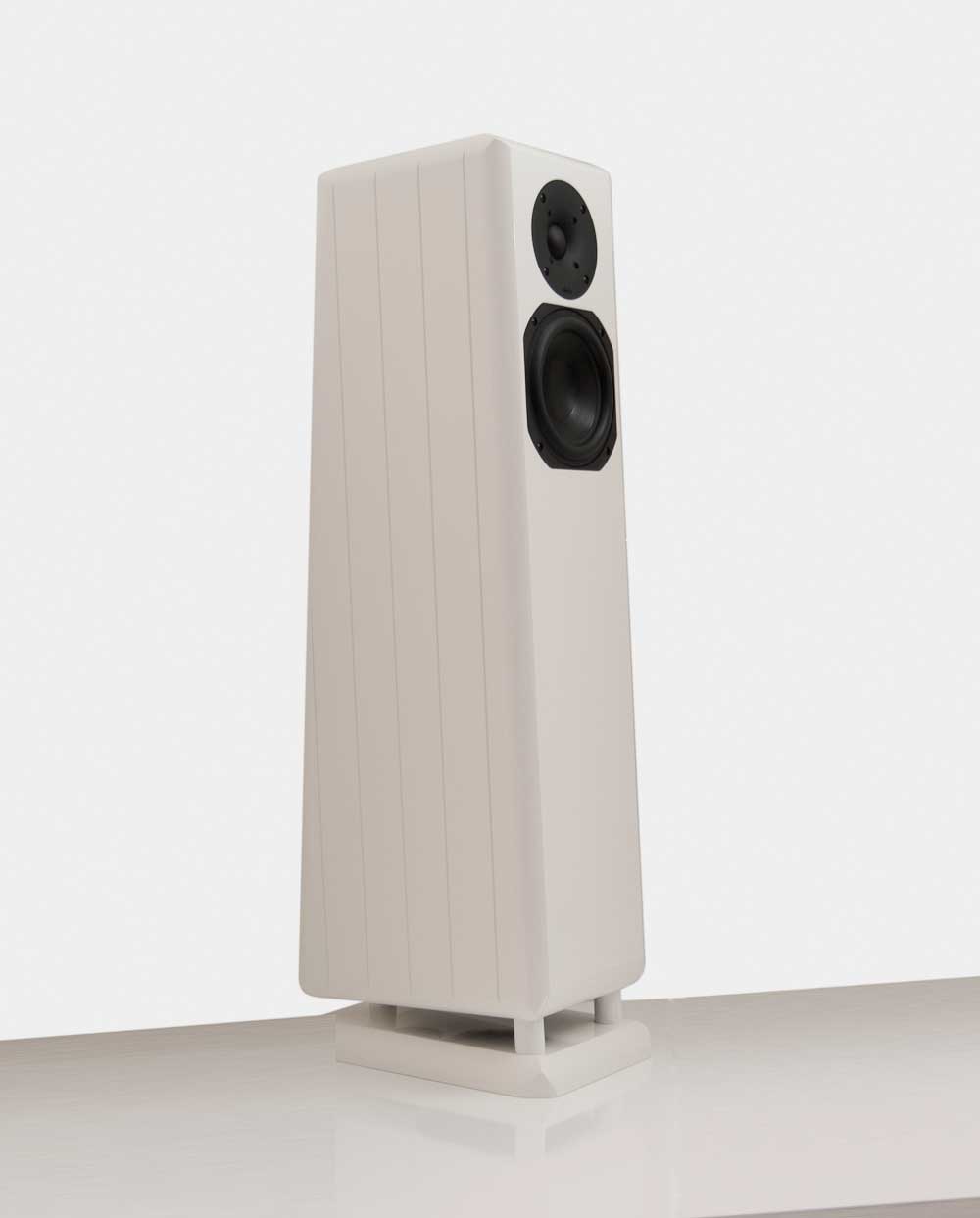

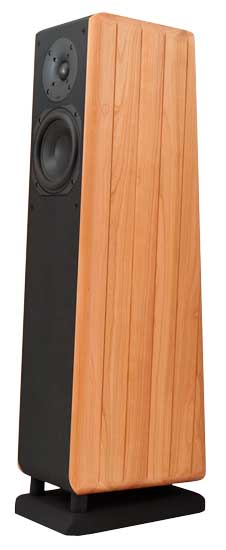

CHARIO Pegasus €.1.539,00 Per
ordine e sconto
TELEFONARE/EMAIL
Sintesi perfetta tra "piccolo
e bello" e "grande e potente" che soltanto il principio di scalabilità consente
di realizzare. Le Pegasus ricreano in ambiente domestico campi acustici di
eventi reali estremamenteattendibili senza la necessità di elevata potenza
elettrica. La profondità dello stage sonoro ereditata dalle Delphinus si coniuga
senza incertezze con la spazialità intrinseca delle Lynx, con un risultato
esaltante. Un sistema definitivo nella sua categoria, che vi offrirà emozioni
insospettate, grazie alla tecnologia T38 WG.
PEGASUS VERSIONE K
1.230,00 euro -Versione K high gloss 1.399,00 euro
The
Pegasus system is a perfect synthesis between the mighty bass of Delphinus and
the detailed finesse of Lynx. Once again this alliance is made possible thanks
to the scaling property of T38 Wave Guide technology. Each pair of Pegasus can
create into your listening room very high listening levels with very few
electrical power. Superb stage depth presentation comes with unbelievable
spaciousness effect. Try to believe. Low Frequency Load Vented 2π sr NRS
Configuration 3way floor standing Drivers 1 Tweeter 38mm soft dome T38
WaveGuide1 Midrange 170mm Paper Compound1 Woofer 170mm Paper Compound
Sensitivity 90dB SPL normalized to 1m with 2.83Vrms pink noise within IEC 268-13
compliant listening room Low Frequency Cut Off 45Hz @ -3dB referred to C4 WETS
Xover Frequencies 170/1,500Hz Alignment 4th order all pass Rated Impedance 4Ω
Suggested Ampilfier Rated for 140W/4Ω max Average Power Size 1030x230x370mm (HxWxD)
Weight 26kg Cabinet Finishing Solid walnut or solid cherry and HDF
Speakers Orientation Tilted inward facing the listener Optional Spikes Black
anodized iron – Thread M-6 with locking disk & floor saver

CHARIO

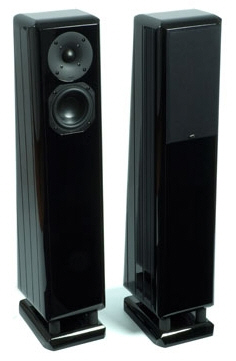

Cignus €.1.149,00 Per
ordine e sconto
TELEFONARE/EMAIL
Naturale evoluzione delle
Lynx, sfruttano lo sviluppo verticale per aggiungere alla radiazione il
contributo di un subwoofer dedicato, posto alla base del cabinet. Snella ed
elegante si inserisce perfettamente in ogni ambiente, offrendo sempre una
riproduzione sonora ricca di dettaglio ed al tempo stesso sorprendente per
estensione e dinamica alle basse frequenze. Le pregiate doghe laterali in legno
massello e la struttura in HDF costituiscono un composto inerte alle vibrazioni,
che garantisce la stabilità dell'immagine acustica anche a livelli sonori molto
elevati. Rimarrete stupiti da tanta raffinata potenza-
CIGNUS VERSIONE K 919,00 euro -Versione K high gloss
1.049,00 euro
Coming
directly from Lynx project, the Constellation Cygnus exploits a floor standing
design to increase low frequency radiation by adding a dedicated subwoofer at
the bottom of the cabinet. Slim and gently back slanted it perfectly stands in
any living room, offering to the listener both a detailed reproduction and a
powerful low frequency range. The valuable solid wood of the cabinet sides
together with the HDF supporting frame make the whole structure to be virtually
motionless, allowing a recognizable sturdy front stage during any demanding low
frequency / high level musical passages. A jewel of stunning power. Low
Frequency Load Vented 2π sr NRS Configuration 3way floor standing Drivers 1
Tweeter 38mm soft dome T38 WaveGuide1 Midrange 130 mm Paper Compound1 Woofer 130
mm Paper Compound Sensitivity 87 dB SPL normalized to 1m with 2.83Vrms pink
noise within IEC 268-13 compliant listening room Low Frequency Cut Off 50 Hz @
-3dB referred to C4 WETS Xover Frequencies 170/1,500 Hz Alignment LKR 4th order
Rated Impedance 4Ω Suggested Ampilfier Rated for 120W/4Ω max Average Power
Size 955x200x270mm (HxWxD) Weight 17kg Cabinet Finishing Solid walnut or
solid cherry and HDF Speakers Orientation Tilted inward facing the listener

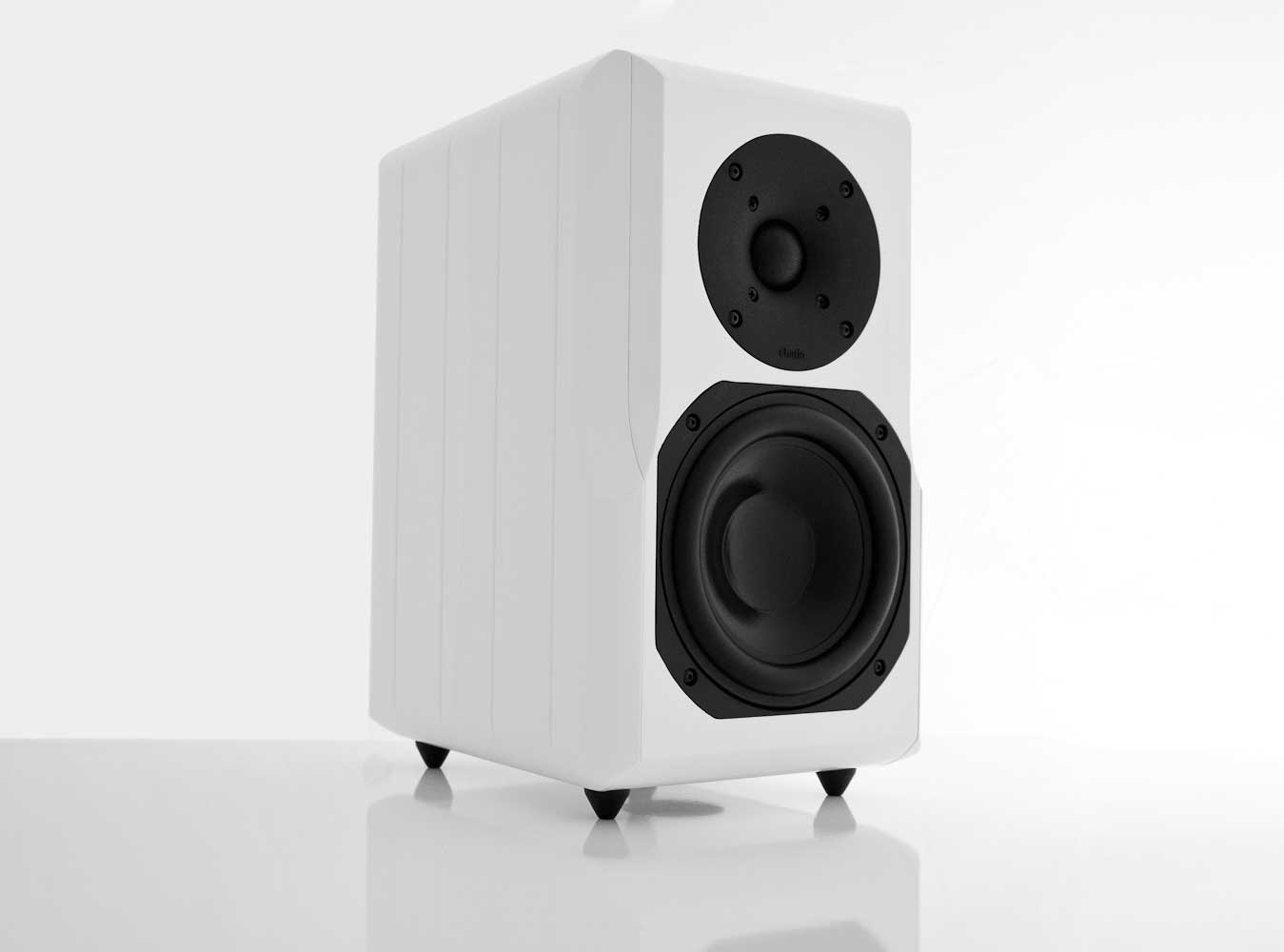

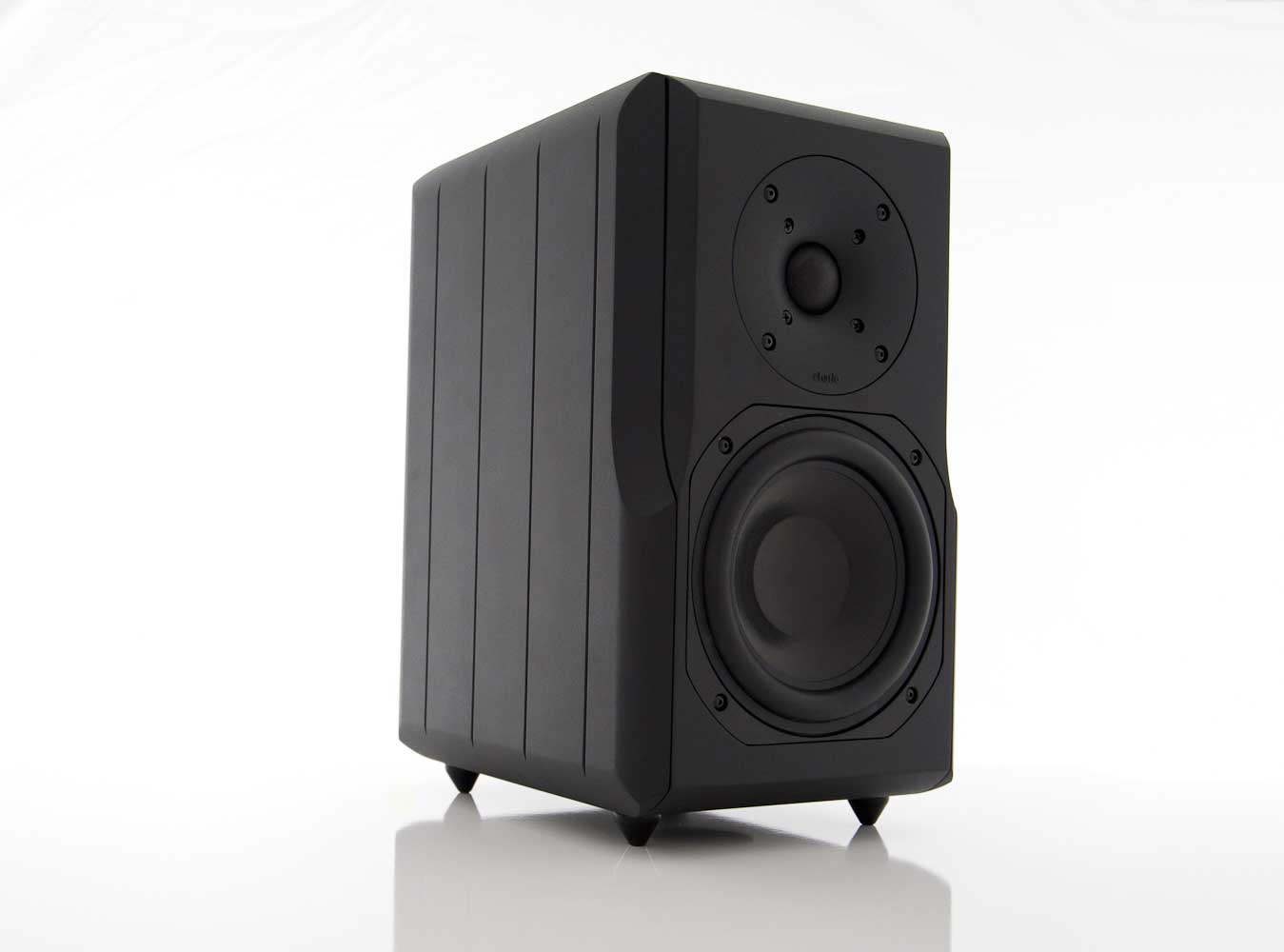

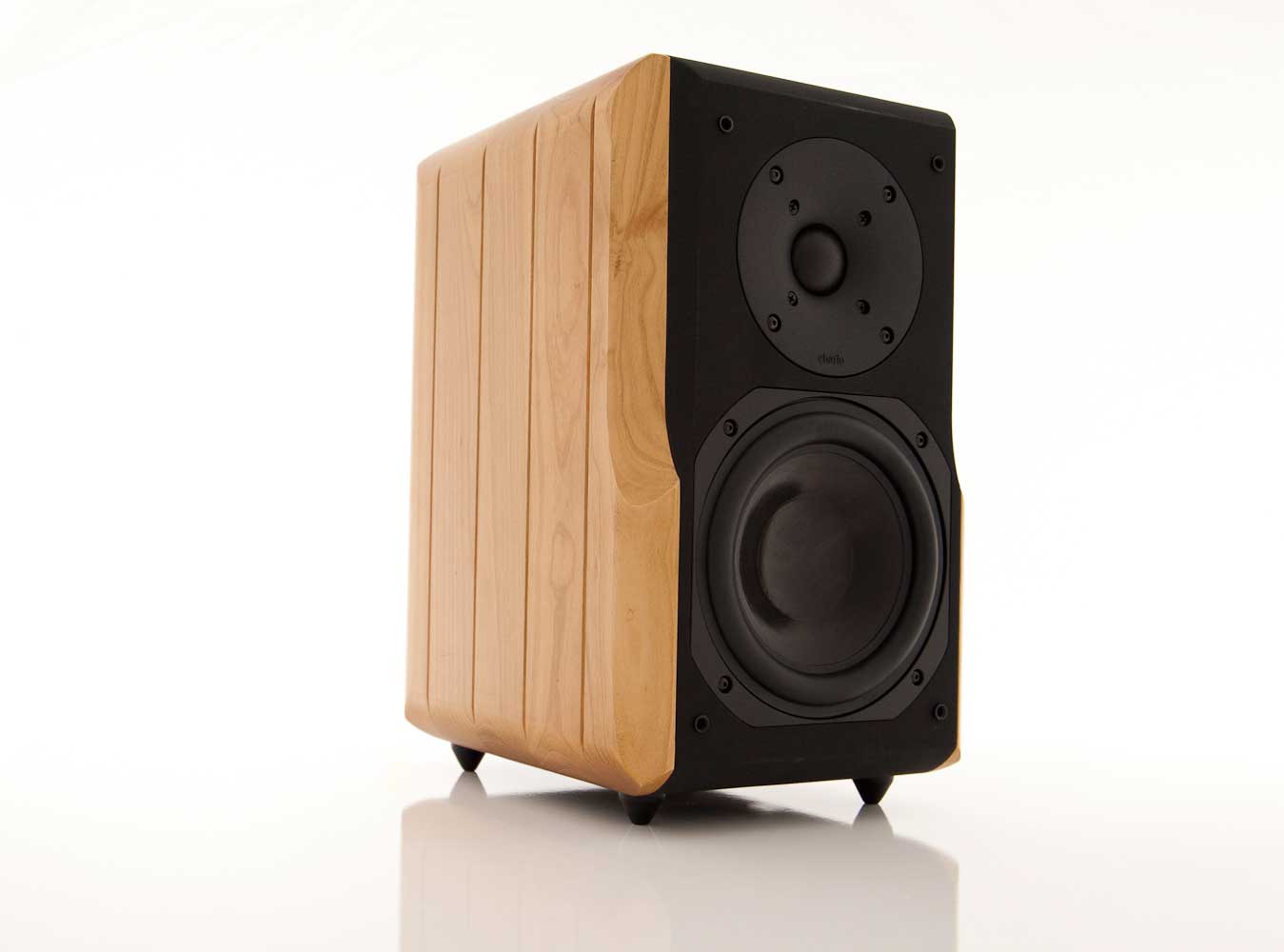

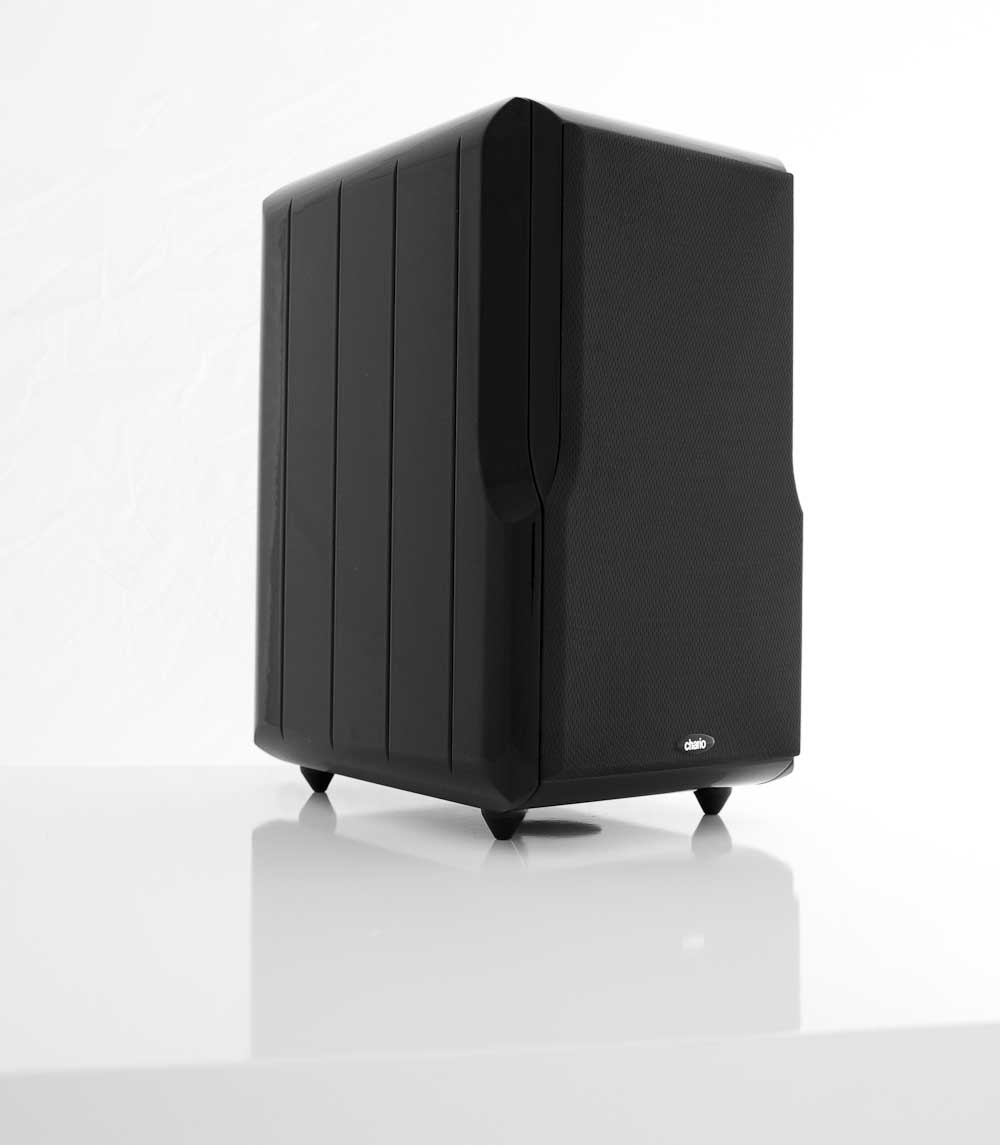

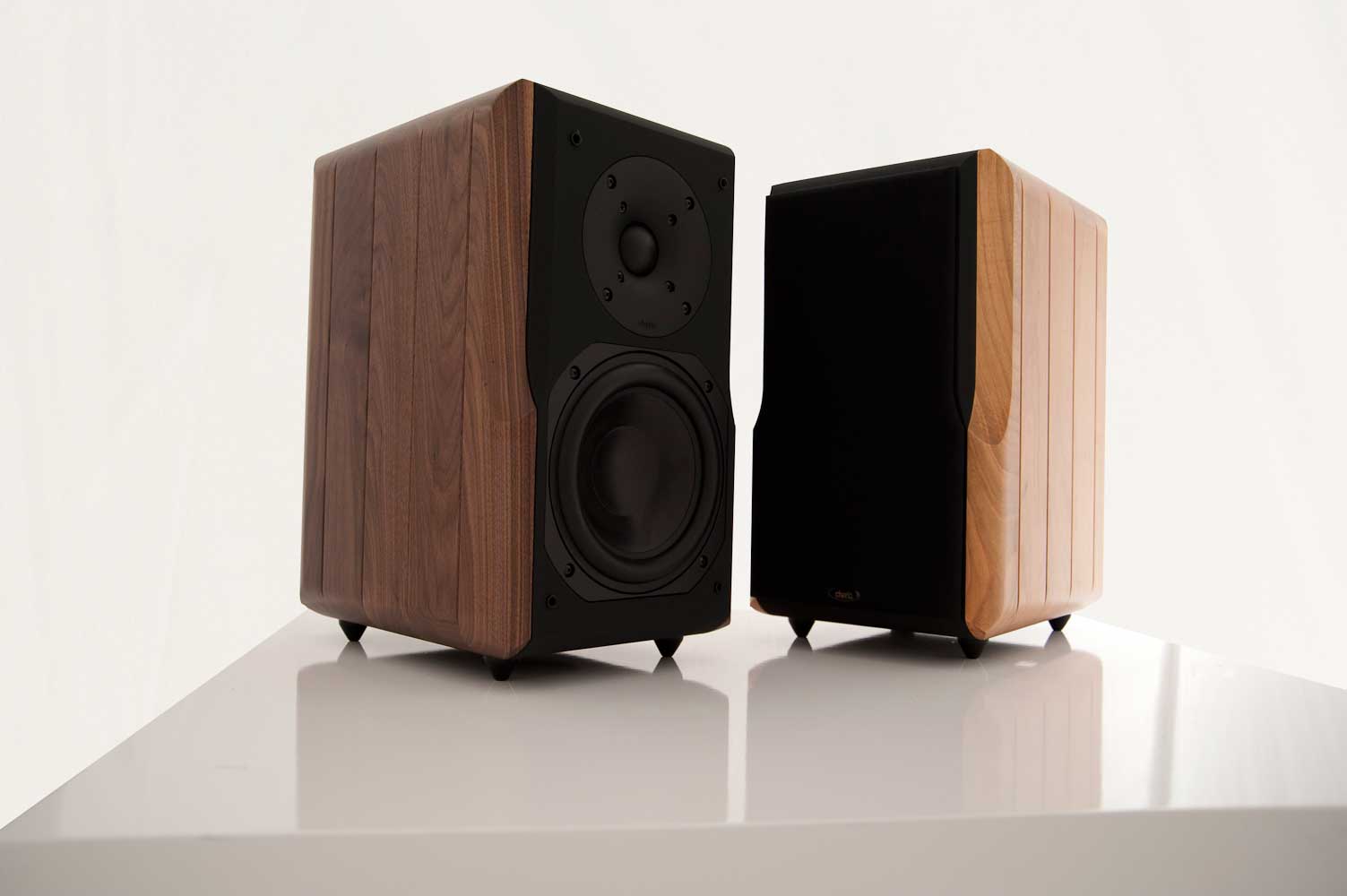

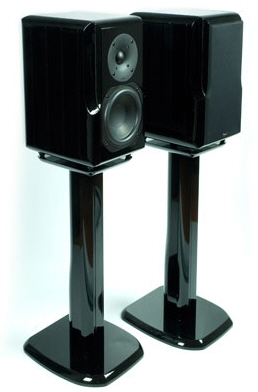

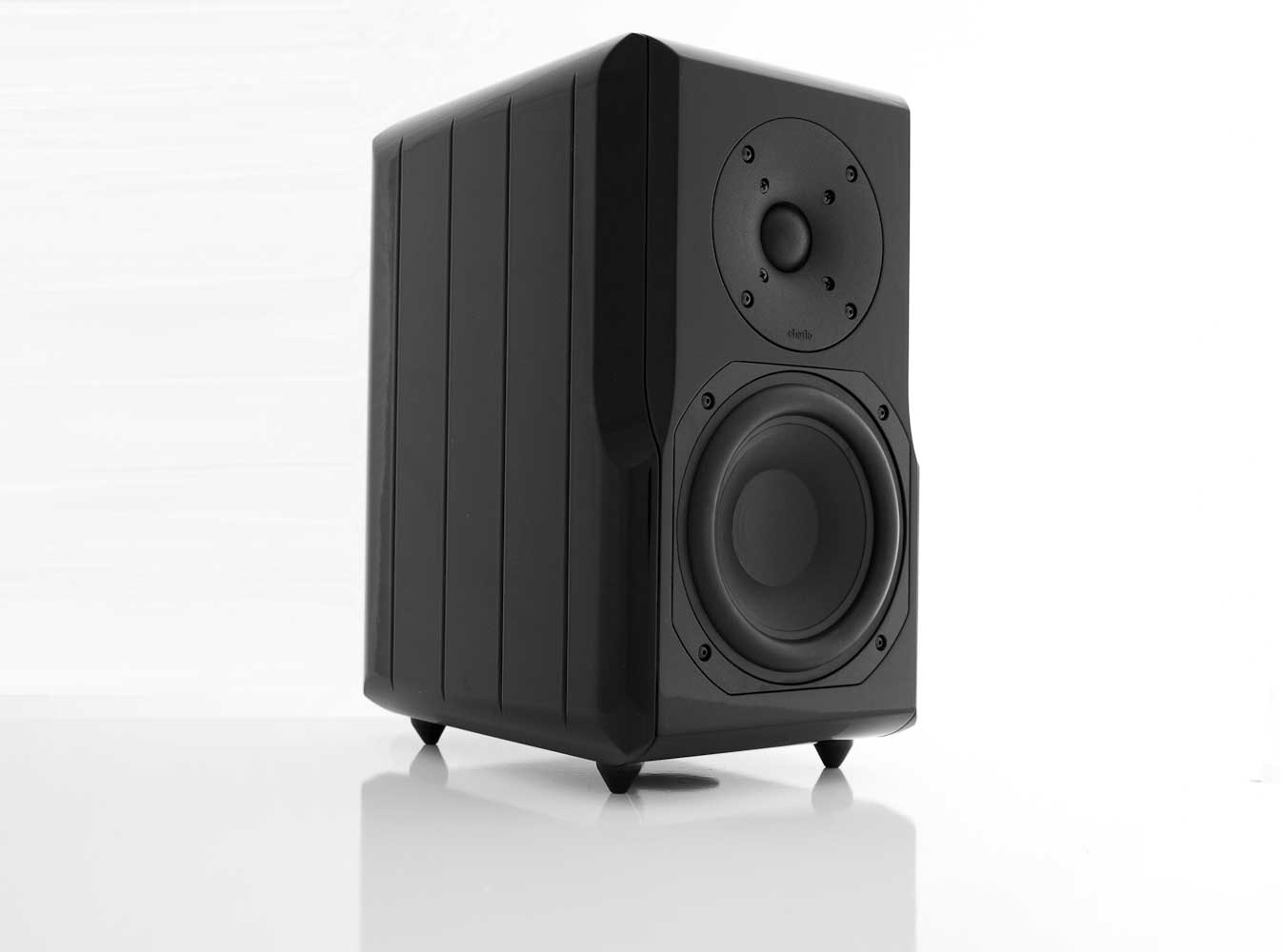

CHARIO Delphinus
€.
639,00 Per
ordine e sconto
TELEFONARE/EMAIL
Dotate di un woofer di
diametro maggiore le Delphinus accrescono sensibilmente le prestazioni
dinamiche, conferendo al fronte sonoro maggior precisione e profondità. Di
dimensioni compatte ben si adatta all'inserimento in libreria, anche se,
posizionate sul proprio stand dedicato, garantiscono prestazioni difficilmente
superabili nella categoria di appartenenza. Anche in questo caso la tecnologia
T38 WG consente di percepire dettagli difficilmente rilevati in presenza di
woofer di diametro crescente.
DELPHINUS VERSIONE K 514,00
euro -Versione K high gloss 590,00 euro
Featuring
a larger diameter woofer the Delphinus is capable of increased dynamics, which
in turn makes the front stage wider and deeper. Being of reasonable small size
it performs pretty well on a bookshelf, even though better performance can be
achieved on dedicated stands, exceeding all expectations in its category. Also
in this case the incomparable T38 Wave Guide technology allows the ears to
perceive fine details rarely pointed out by loudspeaker systems with
increasingly large diameter woofers. Low Frequency Load Vented NRS Configuration
2way Drivers 1 Tweeter 38mm soft dome T38 WaveGuide1 Woofer 170 mm Paper
Compound Sensitivity 90dB SPL normalized to 1m with 2.83Vrms pink noise within
IEC 268-13 compliant listening room Low Frequency Cut Off 55Hz @ -3dB referred
to C4 WETS Xover Frequencies 1,500Hz Alignment LKR 4th order Rated Impedance 4Ω
Suggested Amplifiers Rated for 120W/4Ω max Average Power Size 410x230x330mm (HxWxD)
Weight 12kg Cabinet Finishing Solid walnut or solid cherry and HDF Speakers
Orientation Tilted inward facing the listener Optional Stand Weight 6kg Size
630x300x350

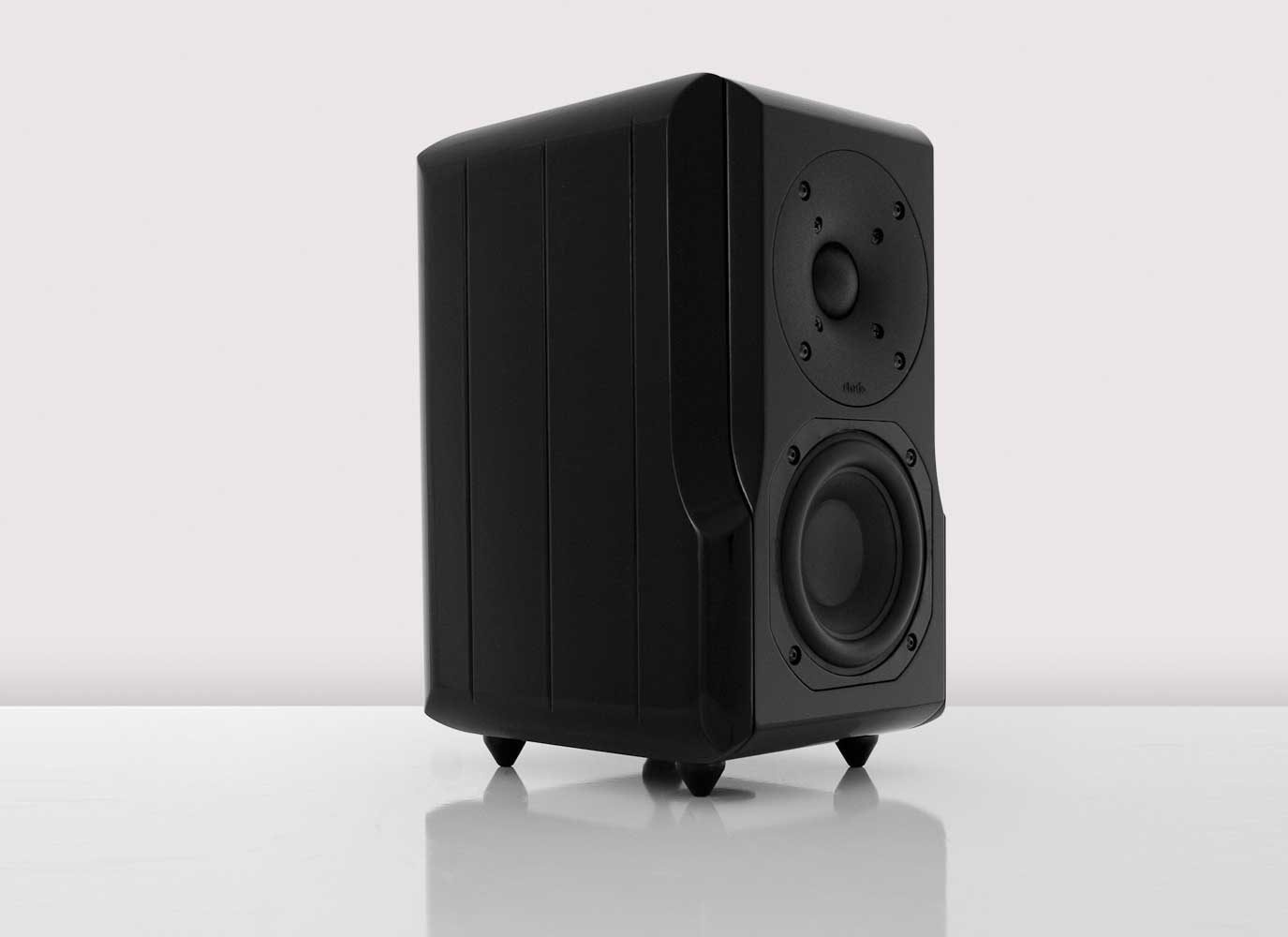

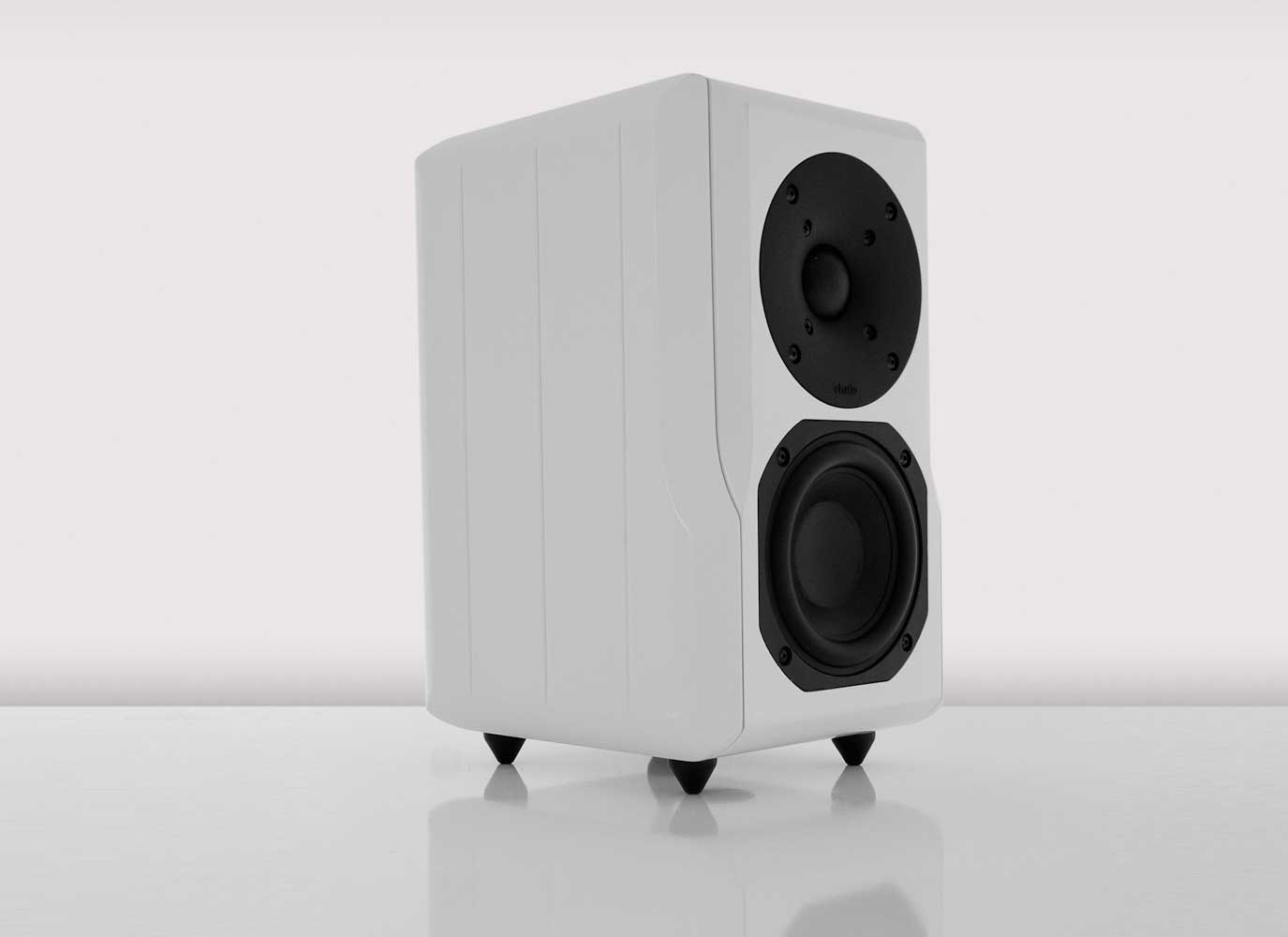

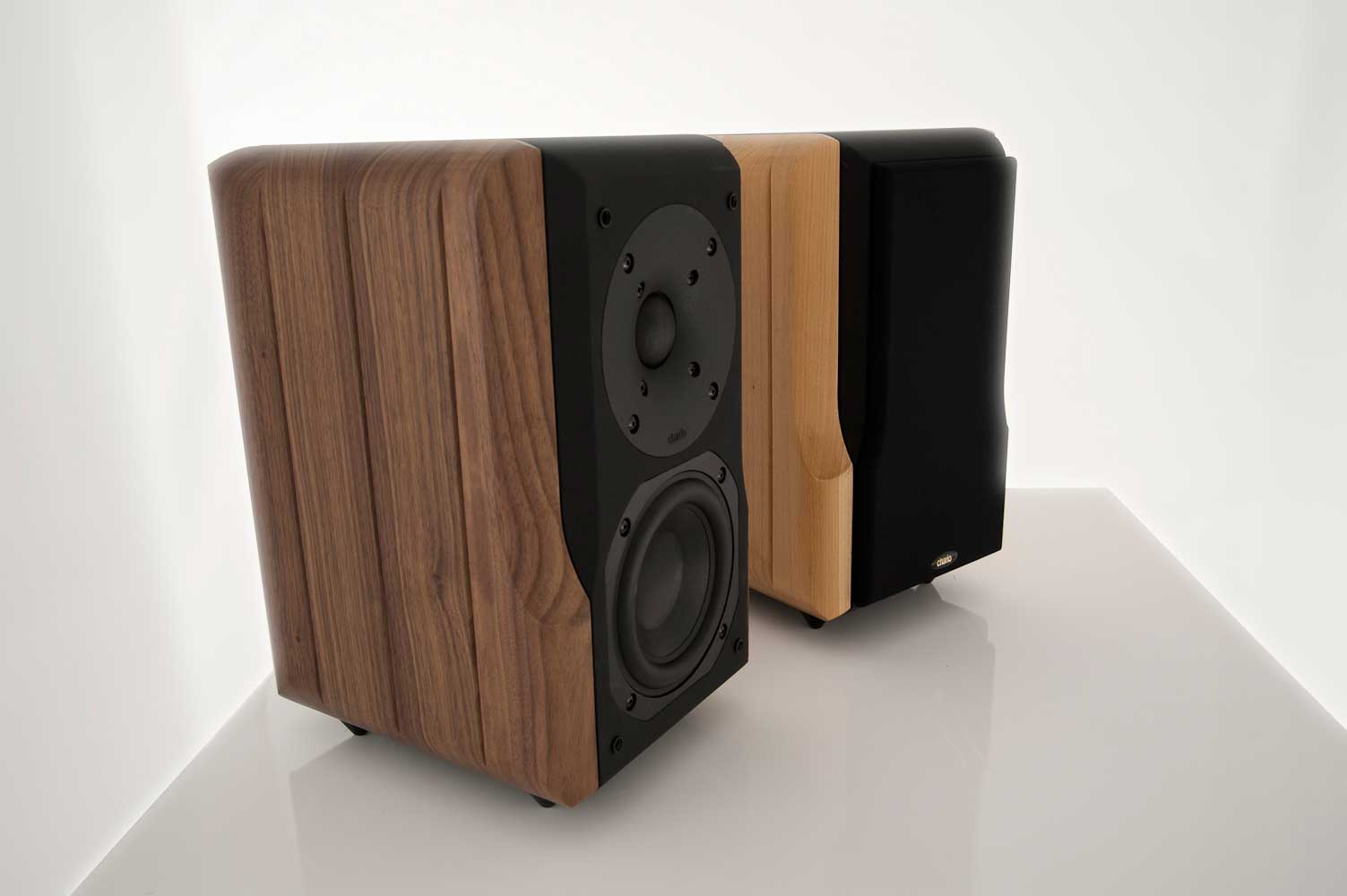

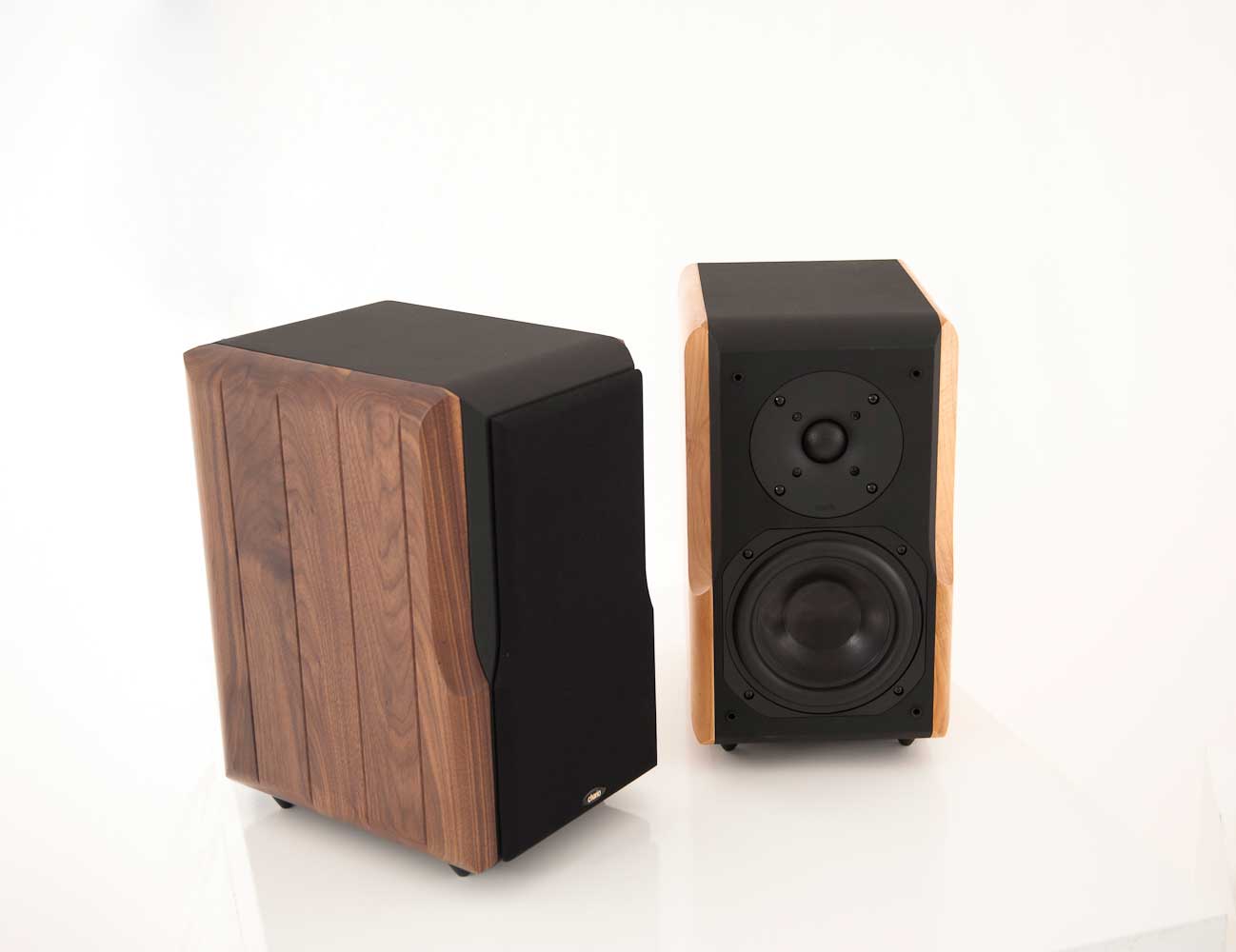

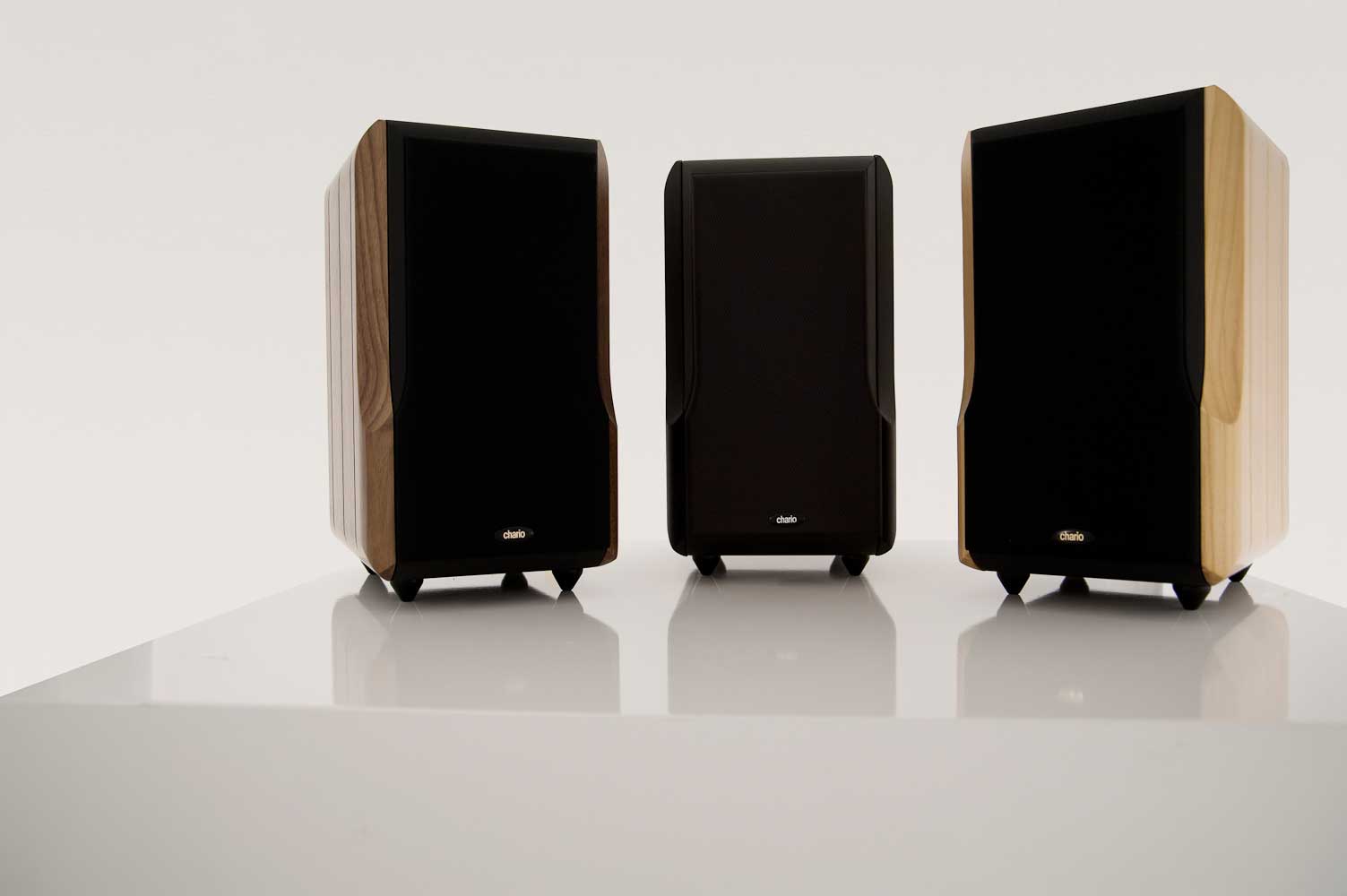

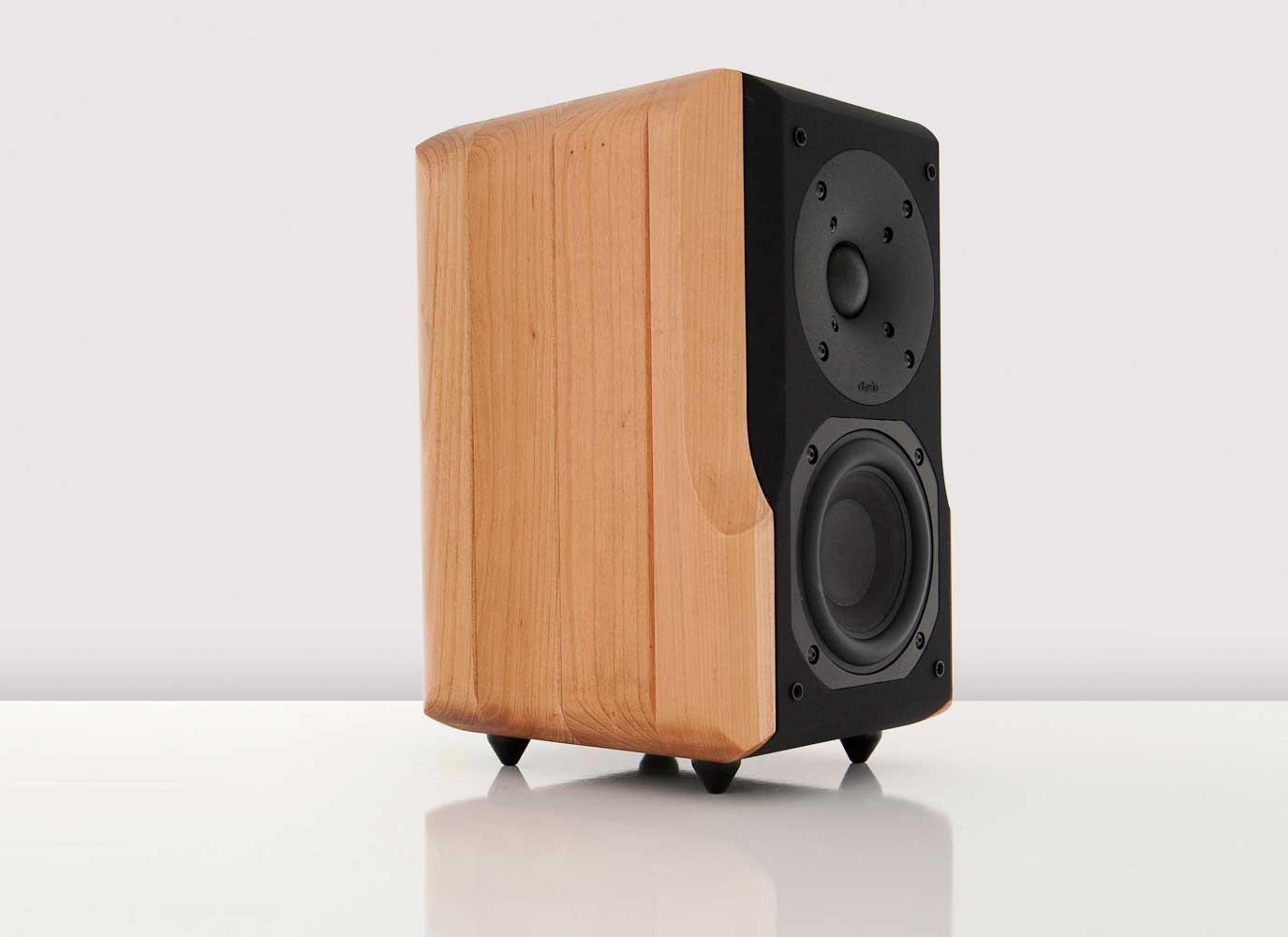

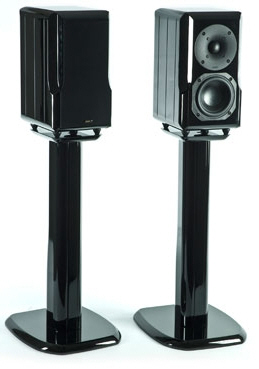

CHARIO LYNX
€.534,00 Per
ordine e sconto
TELEFONARE/EMAIL
Entry level della famiglia
Constellation, le Lynx si sono imposte imediatamente per le doti di alta
risoluzione e per la capacità di emettere un fronte sonoro grande. Le nuove
conoscenze percettive acquisite nel nostro laboratorio, una volta applicate al
T38 WG rivelano la correttezza della filosofia progettuale della Chario
Loudspeakers, che risulta essere scalabile, quindi adatta a grandi e piccoli
sistemi. LYNX VERSIONE
K 429,00 euro -Versione K high gloss 489,00 euro
Acoustical
Load Vented NRS Configuration Two way Drivers 1 Tweeter 38 mm (1.5 in) soft dome
T38 Wave Guide 1 Woofer 130 mm (5 in) paper compound Sensitivity 87 dB SPL
/ normalized to 1 m (3 ft) / 2.83 Vrms de-correlated d Left & Right pink noise
within IEC 268-13 Listening Room Low Frequency Cut Off 67 Hz @ -3dB
referred to C4 diatonic tone Crossover Frequencies 1500 Hz Alignment 4th
order all pass Rated Impedance 4Ω Suggested Amplifiers Rated for 50-100 W/4Ω
average power Size (H x W x D) 360 x 200 x 260 mm (14.2 x 7.9 x 10.2 in) Weight
10 kg (4.5 lb) Cabinet Finishing Solid walnut or solid cherry and HDF Speakers
Set Up The speakers should be tilted inward facing the listener

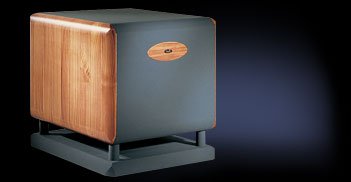

CHARIO
HERCULES €.2.319,00 Per
ordine e sconto
TELEFONARE/EMAIL
La necessità di riprodurre le
basse frequenze a livelli sonori elevati e senza apprezzabile distorsione, hanno
spinto la ricerca audio verso altoparlanti dalle caratteristiche esclusive,
provvisti di amplificatori di potenza dedicati. Sono nati così i subwoofer
attivi ai quali affidare la riproduzione degli effetti speciali delle colonne
sonore dei filmati , oppure le componenti a frequenza bassissima dei brani
musicali. Noi abbiamo affidato questo delicato compito al sistema Constellation
Hercules, un subwoofer attivo di esuberante potenza la cui sezione acustica
adotta l'esclusiva tecnologia Bi-Exponential Vent. I risultati non hanno bisogno
di commenti... HERCULES
VERSIONE K 1.949,00 euro -Versione K high gloss 2.199,00
euro
Hercules
The need for increased dynamics at very low frequencies has forced the audio
research toward exclusive loudspeakers driven by dedicated power amplifiers.
Active subwoofers is the name given to these systems, whose job is the
reproduction of special effects accompanying any home-standard movie picture
soundtrack or the extremely low components of musical tones. Chario
Loudspeakers entrusted Constellation Hercules with this difficult task, a
powerful top class active subwoofer featuring the proprietary Bi-Exponential
Vent acoustic technology. The achieved results don’t need further comments.
Amplifier Analogic Type Discrete BJT's Average Electrical Power 200W
Protection Yes Volume Control Yes Cut-Off Freq. Control Yes,
continuous Polarity Switch Yes Line Level Input Mono-Stereo
unbalanced RCA pin jack Acoustical Load Bass Reflex NRS with
bi-exponential vent Driver 320 mm Coated Paper Low Pass Xover
40-180Hz Active 2nd order Weight 30kg Cabinet Finishing Solid walnut
or solid cherry and HDF Size 410x410x600mm (HxWxD
CHARIO

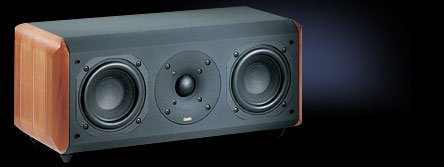

PHOENIX
€.559,00 Per
ordine e sconto
TELEFONARE/EMAIL

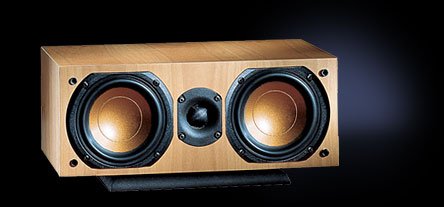

Phoenix Il sistema Phoenix
nato come canale centrale per un sistema multicanale, deve possedere particolari
doti di trasparenza nella delicata gamma di frequenze del parlato. Niente di
meglio di una Lynx a sviluppo orizzontale, con l'aggiunta di un secondo woofer
per rendere omogenea l'emissione in presenza di più persone che fruiscono del
programma A/V. Phoenix può essere posizionato sia sopra sia sotto il monitor TV.
Il sistema Phoenix nato come canale centrale per un sistema multicanale, deve
possedere particolari doti di trasparenza nella delicata gamma di frequenze del
parlato. Niente di meglio di una Lynx a sviluppo orizzontale, con l'aggiunta di
un secondo woofer per rendere omogenea l'emissione in presenza di più persone
che fruiscono del programma A/V. Low Frequency Load Vented back firing –
TV screen 2π sr Configuration 2way Symmetrical Cosine Shaped radiation
Drivers 1 Tweeter 38mm soft dome T38 WaveGuide 2 Woofer 130mm Paper Compound
Sensitivity 90 dB SPL normalized to 1m with 2.83Vrms pink noise within IEC
268-13 compliant listening room Low Frequency Cut Off 80Hz @ -3dB
referred to C4 WETS Xover Frequency 1,500Hz Alignment 4th Order All Pass
Rated Impedance 8Ω Suggested amplifiers Rated for 120W/8Ω max Average
Power Size 215x490x260mm (HxWxD) Weight 11kg Cabinet Finishing
Solid walnut or solid cherry and HDF
PHOENIX VERSIONE K
459,00 euro -Versione K high gloss 519,00 euro
Phoenix
The Phoenix system is a multi-channel stereophony dedicated central speaker.
Because its primary job is to deliver a full intelligible message, both
transparency and detail were assumed as absolute design target. Nothing is
better than a small speaker for reproducing sound nuances. So we decided for a
symmetrical horizontal array of Lynx drivers. This solution let the viewers at
both sides of the “sweet spot” to wholly perceive dialogue information or
centre-line musical sources without altered timbre or fuzzy localization cues.
Either of top or under TV screen positioning is allowed, preferably at the same
height of front speakers. Low Frequency Load Vented back firing – TV
screen 2π sr Configuration 2way Symmetrical Cosine Shaped radiation
Drivers 1 Tweeter 38mm soft dome T38 WaveGuide 2 Woofer 130mm Paper Compound
Sensitivity 90 dB SPL normalized to 1m with 2.83Vrms pink noise within IEC
268-13 compliant listening room Low Frequency Cut Off 80Hz @ -3dB referred
to C4 WETS Xover Frequency 1,500Hz Alignment 4th Order All Pass
Rated Impedance 8Ω Suggested amplifiers Rated for 120W/8Ω max Average
Power Size 215x490x260mm (HxWxD) Weight 11kg Cabinet Finishing
Solid walnut or solid cherry and HDF
SERIE PREMIUM
CHARIO
1000
€.359,00 Per
ordine e sconto
TELEFONARE/EMAIL
I sistemi Chario siglati
"1000" identificano un due vie da scaffale, il cui successo è dovuto alla
riuscita sintesi tra dimensioni ridotte e grande dinamica. Le Premium 1000 non
smentiscono la tradizione, spingendo ancora oltre il limite delle prestazioni
sonore, grazie all'apporto decisivo del tweeter T27 Audiophile. La
tradizione Chario sfida il tempo. Low Frequency Load Vented NRS
Configuration 2way Drivers 1 Tweeter 27mm soft dome 1 Woofer 130mm
Stochastic cellulose fibers Sensitivity 86dB SPL normalized to 1m with
2.83Vrms pink noise within IEC 268-13 compliant listening room Low
Frequency Cut Off 60Hz @ -3dB referred to C4 WETS Xover Frequency 1,450Hz
Alignment LKR 4th order Rated Impedance 8Ω Suggested Ampilfier Rated
for 100W/8Ω max Average Power Size 380x170x280mm (HxWxD) Weight 9kg
Cabinet Finishing HDF natural wood veneered Speakers Orientation Tilted
inward facing the listener Optional Stand Weight 5kg Size 630x260x310mm (HxWxD)
Natural wood veneered HDF
1000
The entry-level bookshelf success of all past Premium series was closely linked
to the outstanding solution of putting together both a small size and a big
sound. Chario Loudspeakers solved first this apparent contradiction by
contemporarily exploiting the Frequency Shifting principle together with long
throw woofer. New Premium 1000 doesn’t contradict itself and goes far beyond
with a remarkable performance allowed by T27 high frequency driver.
Chario tradition goes on through time.
CHARIO
2000
€.499,00 Per
ordine e sconto
TELEFONARE/EMAIL
2000 Un woofer di
dimensioni maggiori per incrementare la sensibilità e la dinamica alle basse
frequenze. Nient'altro. Il suono di un due vie Chario resta un punto fermo nel
panorama Hi-Fi, merito del versatile T27 Audiophile, il cui progetto consente di
legare la via superiore a quella inferiore, contrastando efficacemente il
problema della variazione dell'impedenza acustica. Questa tecnologia progettuale
è solo Chario Loudspeakers. Low Frequency Load Vented NRS
Configuration 2way Drivers 1 Tweeter 27mm soft dome 1 Woofer 170mm
Stochastic cellulose fibers Sensitivity 89dB SPL normalized to 1m with
2.83Vrms pink noise within IEC 268-13 compliant listening room Low
Frequency Cut Off 55Hz @ -3dB referred to C4 WETS Xover Frequency 1,500Hz
Alignment LKR 4th order Rated Impedance 8Ω Suggested Ampilfier Rated
for 120W/8Ω max Average Power Size 420x210x320mm (HxWxD) Weight 11kg
Cabinet Finishing HDF natural wood veneered Speakers Orientation Tilted
inward facing the listener Optional Stand Weight 6kg Size 630x260x310mm (HxWxD)
Natural wood veneered HDF
2000
A larger woofer in order to enhance both sensitivity and low frequency dynamic
range. Nothing else. The sound of a Chario Premium 2-way system is a milestone
in HIFI history, thanks now to the performance of the outstanding T27 transducer,
properly designed to “link” the larger low-radiator to the smaller high-radiator,
thus reducing the acoustical mismatching between two different size vibrating
surfaces. This is a Chario Loudspeakers proprietary technology
CHARIO
1000
TOWER
€.774,00 Per
ordine e sconto
TELEFONARE/EMAIL
La soluzione ottimale per
conservare intatto il dettaglio delle Premium 1000 una volta posizionate sul
piedestallo dedicato, incrementando la dinamica alle basse frequenze... ma
occupando lo stesso spazio. Inoltre, la scelta progettuale "Full 3 way" conferma
la straordinaria prestazione del subwoofer,collocato in stretta vicinanza del
pavimento (2π sr) alla base del volume di carico. Il suono Chario è sempre
perfettamente riconoscibile. Low Frequency Load Vented 2π sr NRS
Configuration 3way floor standing Drivers 1 Tweeter 27mm soft dome 1
Midrange 130mm Stochastic cellulose fibers 1 Woofer 130mm Stochastic cellulose
fibers Sensitivity 86dB SPL normalized to 1m with 2.83Vrms pink noise
within IEC 268-13 compliant listening room Low Frequency Cut Off 50Hz @
-3dB referred to C4 WETS Xover Frequencies 170/1,500Hz Alignment LKR 4th
order Rated Impedance 4Ω Suggested Ampilfier Rated for 130W/4Ω max Average
Power Size 860x170x290mm (HxWxD) Weight 16kg Cabinet Finishing HDF
natural wood veneered Speakers Orientation Tilted inward facing the
listener
1000T
The ideal solution to keep unchanged the amazing sound of stand-mounted Premium
1000, without a complex cabinet, but increasing dynamics at very low frequencies
by means of a dedicated down-firing subwoofer. Further, the full 3-way system
choice enables the upper woofermidrange pair to be free from large-signal
intermodulation allowing a more detailed listening. You'll always recognize
Chario sound.
CHARIO
2000
TOWER
€.924,00 Per
ordine e sconto
TELEFONARE/EMAIL
Modello di punta della Serie
Premium riunisce in sé le doti di precisione ereditate dal sistema 2000,
arricchite all'estremo basso dalla proverbiale prestazione dinamica del
subwoofer in configurazione proprietaria NRS ( near reflective surface), vero
marchio di fabbrica dei sistemi da pavimento Chario. La tecnologia Chario è
sempre all'avanguardia. Low Frequency Load Vented 2π sr NRS Configuration 3way
floor standing Drivers 1 Tweeter 27mm soft dome1 Midrange 170mm Stochastic
cellulose fibers1 Woofer 170mm Stochastic cellulose fibers Sensitivity 89dB SPL
normalized to 1m with 2.83Vrms pink noise within IEC268-13 compliant listening
room Low Frequency Cut Off 45Hz @ -3dB referred to C4 WETS Xover Frequencies
170/1,350Hz Alignment LKR 4th order Rated Impedance 4Ω Suggested Ampilfier Rated
for 150W/4Ω max Average Power Size 960x210x325mm (HxWxD) Weight 22kg Cabinet
Finishing HDF natural wood veneered Speakers Orientation Tilted inward facing
the listener
2000T
This is the flagship of Premium Series. It is equipped with Premium 2000
original transducers plus a proprietary NRS configured subwoofer. This last one
is a wellrecognized feature implemented with all Chario floor-standing
loudspeaker systems. The outstanding performance of the Premium 2000 Tower is
due to the full 3-way design that allows the front drivers to radiate a clean
acoustical wave. Because of a dedicated floor-matched subwoofer, high-excursion
induced signals at very low frequencies don’t interfere with the fine structure
of the middle range, providing the listener with a detailed listening. At Chario
Loudspeakers our own mission is thinking forward.
CHARIO

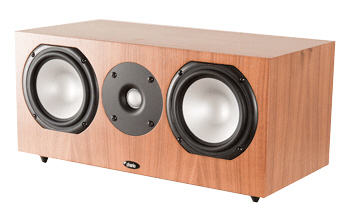

DIALOGUE
€.589,00 Per
ordine e sconto
TELEFONARE/EMAIL
Dialogue Il sistema
Premium Dialogue nato come canale centrale per un sistema multicanale, deve
possedere particolari doti di trasparenza nella delicata gamma di frequenze del
parlato. Niente di meglio di una Premium 1000 a sviluppo orizzontale, con
l'aggiunta di un secondo woofer per rendere omogenea l'emissione in presenza di
più persone che fruiscono del programma A/V. Phoenix può essere posizionato sia
sopra sia sotto il monitor TV. Alla Chario non tralasciamo alcun dettaglio.
Low Frequency Load Vented back firing – TV screen 2π sr Configuration 2way
Symmetrical Cosine Shaped radiation Drivers 1 Tweeter 27mm soft dome 2
Woofer 130mm Stochastic cellulose fibers Sensitivity 89dB SPL normalized
to 1m with 2.83Vrms pink noise within IEC 268-13 compliant listening room Low
Frequency Cut Off 75Hz @ -3dB referred to C4 WETS Xover Frequency 1,400Hz
Alignment 4th Order All Pass Rated Impedance 8Ω Suggested Ampilfier
Rated for 120W/8Ω max Average Power Size 170x380x280mm (HxWxD)
Weight 9kg Cabinet Finishing HDF natural wood veneered
Dialogue
The Premium Dialogue is a multichannel dedicated central speaker, whose primary
job is to deliver the listener a full detailed and intelligible speech. Nothing
is better than a small speaker for reproducing human voice nuances. So we
decided for a symmetrical horizontal array of Premium 1000 drivers. This is the
right way to convey a stable yet large image to side listeners at right and left
hand of the “sweet spot”, avoiding altered timbre or fuzzy localization cues.
Chario Loudspeakers takes care of details.
CHARIO

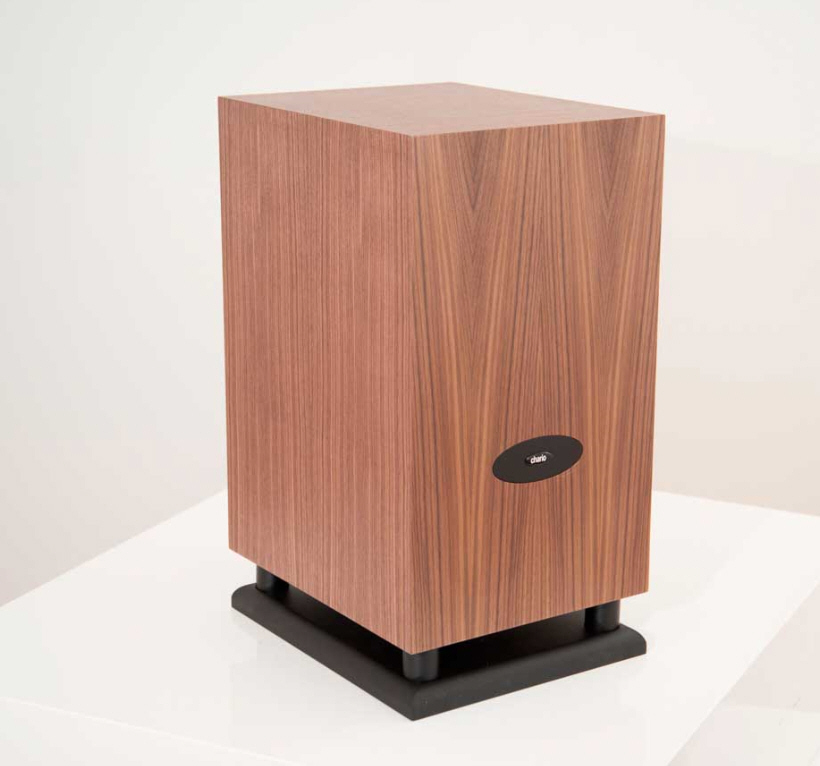

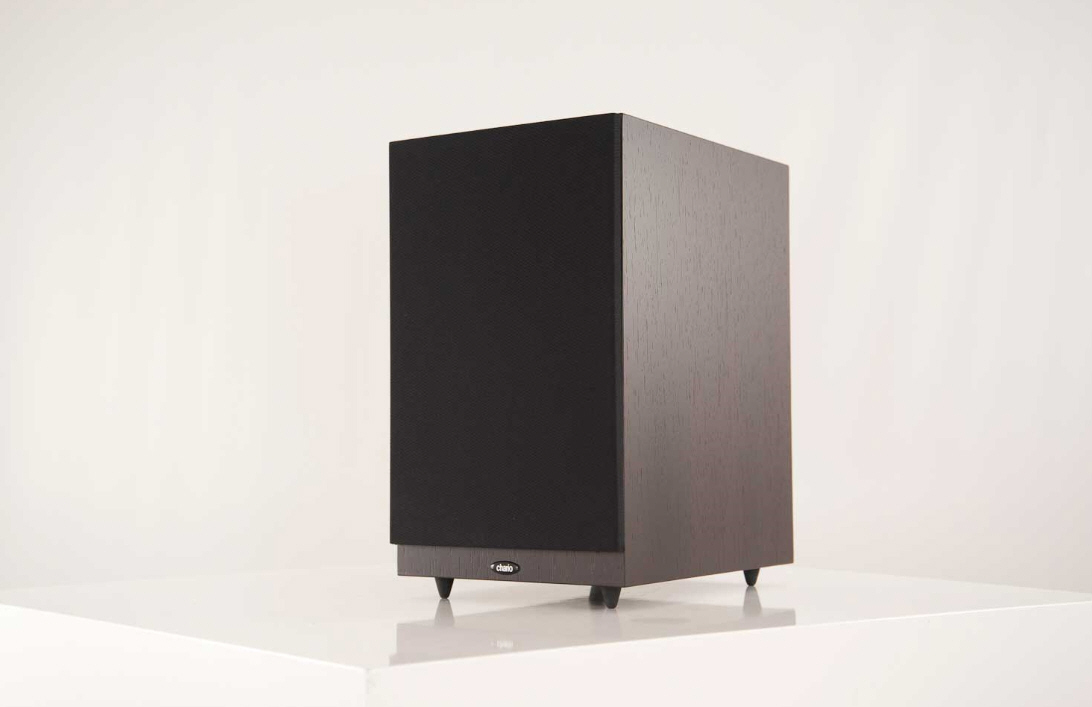

SW2
€.1.239,00 Per
ordine e sconto
TELEFONARE/EMAIL
SW2 La necessità di
riprodurre le basse frequenze a livelli sonori elevati e senza apprezzabile
distorsione, hanno spinto la ricerca audio verso altoparlanti dalle
caratteristiche esclusive, provvisti di amplificatori di potenza dedicati. Sono
nati così i subwoofer attivi ai quali affidare la riproduzione degli effetti
speciali delle colonne sonore dei filmati , oppure le componenti a frequenza
bassissima dei brani musicali. Noi abbiamo affidato questo delicato compito al
sistema SW2, un subwoofer attivo di esuberante potenza la cui sezione acustica
adotta l'esclusiva tecnologia Bi-Exponential Vent. I risultati non hanno bisogno
di commenti. Amplifier Analogic Type Discrete BJT's Average Electrical
Power 200W Protection Yes Volume Control Yes Cut-Off Freq. Control Yes,
continuous Polarity Switch Yes Line Level Input Mono-Stereo unbalanced RCA
pin jack Acoustical Load Bass Reflex NRS with bi-exponential vent
Driver 320 mm Coated Paper Low Pass Xover 40-180Hz Active 2nd order
Weight 27kg Cabinet Finishing HDF natural wood veneered Size 490x380x490mm
(HxWxD)
The
need for increased dynamics at very low frequencies has forced the audio
research toward exclusive loudspeakers driven by dedicated power amplifiers.
Active subwoofers is the name given to these systems, whose job is the
reproduction of special effects of movie soundtracks (Home Theater) or the
extremely low components of musical tones. Chario Loudspeakers entrusted Premium
SW2 with this difficult task, a powerful high performance active subwoofer
featuring the proprietary Bi-Exponential Vent bass reflex technology. The
remarkable achievement doesn’t call for further comment.
SERIE HIPER
For
a long time Chario R&D Lab activities focused around the Frequency Shifting
operating principle, which translates the woofer-tweeter crossover point more
than an octave toward the left side on the frequency axis. We implemented this
original solution since 1986, developing the first HIFI 3-Way bookshelf speaker
system (WMT proprietary design) featuring an acoustical fourthorder tweeter roll
on at 1,300 Hz with a double-slope amplitude envelope for better controlling the
energy balloon. During the following years new technologies and further studies
allowed us to gradually enhance the performance of our transducers until we came
to the ultimate T38 Wave Guide, optimized for Frequency Shifting design. From
the experience of Constellation Series research programme (whose T38WG is the
major feature) we are now able to use all that knowledge to offer our customers
the Hiper mk2 Series equipped with T27 soft-dome tweeter, entirely derived from
original 38mm design. The advantages of this acoustical design technique is the
very reason of the successful Frequency Shifting synthesis concept, recognized
to be a valuable tool for extracting the most acoustical information off the
electrical audio signal. Once again Chario Loudspeakers sets new standards in
HI-FI…
CHARIO
1000
mk2
€.344,00 Per
ordine e sconto
TELEFONARE/EMAIL
sistemi
Chario siglati "1000" identificano un due vie da scaffale, il cui successo è
dovuto alla riuscita sintesi tra dimensioni ridotte e grande dinamica. La
tradizione Chario sfida il tempo. Low Frequency Load Vented NRS
Configuration 2way Drivers 1 Tweeter 27mm soft dome 1 Woofer 130mm Paper
Compound Sensitivity 87dB SPL normalized to 1m with 2.83Vrms pink noise
within IEC 268-13 compliant listening room Low Frequency Cut Off 65Hz @
-3dB referred to C4 WETS Xover Frequency 1,500Hz Alignment LKR 4th order
Rated Impedance 4Ω Suggested Ampilfier Rated for 100W/4Ω max Average Power
Size 380x170x280mm (HxWxD) Weight 8kg Cabinet Finishing HDF natural
wood veneered Speakers Orientation Tilted inward facing the listener
Optional Stand Weight 5kg Size 630x260x310mm (HxWxD) Natural wood veneered HDF
The
entry-level bookshelf success of all past Hiper series was closely linked to the
outstanding solution of putting together both a small size and a big sound.
Chario Loudspeakers solved first this apparent contradiction by contemporarily
exploiting the Frequency Shifting principle together with long throw woofer. New
Hiper 1000 mk2 doesn’t contradict itself and goes far beyond with a remarkable
performance allowed by T27 high frequency driver. Chario tradition goes on
through time. Low Frequency Load Vented NRS Configuration 2way
Drivers 1 Tweeter 27mm soft dome 1 Woofer 130mm Paper Compound Sensitivity
87dB SPL normalized to 1m with 2.83Vrms pink noise within IEC 268-13 compliant
listening room Low Frequency Cut Off 65Hz @ -3dB referred to C4 WETS
Xover Frequency 1,500Hz Alignment LKR 4th order Rated Impedance 4Ω
Suggested Ampilfier Rated for 100W/4Ω max Average Power Size 380x170x280mm
(HxWxD) Weight 8kg Cabinet Finishing HDF natural wood veneered
Speakers Orientation Tilted inward facing the listener Optional Stand
Weight 5kg Size 630x260x310mm (HxWxD) Natural wood veneered HDF
CHARIO
2000
mk2 €.474,00 Per
ordine e sconto
TELEFONARE/EMAIL
Un woofer di dimensioni
maggiori per incrementare la sensibilità e la dinamica alle basse frequenze. Il
suono di un due vie Chario resta un punto fermo nel panorama Hi-Fi, a
testimonianza di una tecnologia progettuale che è solo Chario. Low Frequency
Load Vented NRS Configuration 2way Drivers 1 Tweeter 27mm soft dome
1 Woofer 170mm Stochastic cellulose fibers Sensitivity 90dB SPL normalized
to 1m with 2.83Vrms pink noise within IEC 268-13 compliant listening room
Low Frequency Cut Off 60Hz @ -3dB referred to C4 WETS Xover Frequency
1,500Hz Alignment LKR 4th order Rated Impedance 4Ω Suggested
Ampilfier Rated for 120W/4Ω max Average Power Size 420x210x320mm (HxWxD)
Weight 10kg Cabinet Finishing HDF natural wood veneered Speakers
Orientation Tilted inward facing the listener Optional Stand Weight 5kg
Size 630x260x310mm (HxWxD) Natural wood veneered HDF
2000
mk2 A larger woofer in order to enhance both sensitivity and low frequency
dynamic range. Nothing else. The sound of a Chario Hiper 2-way system is a
milestone in HIFI history, thanks now to the performance of the outstanding T27
transducer, properly designed to “link” the larger low-radiator to the smaller
high-radiator, thus reducing the acoustical mismatching between two different
size vibrating surfaces. This is a Chario Loudspeakers proprietary technology
CHARIO
1000T
mk2€.740,00 Per
ordine e sconto
TELEFONARE/EMAIL
1000T mk2 Il dettaglio
delle Hiper 1000 ma con maggior dinamica alle basse frequenze, grazie alla
configurazione "Full 3 way" che conferma la straordinaria prestazione del
subwoofer,collocato in stretta vicinanza del pavimento (2π sr) alla base del
volume di carico. Il suono Chario è sempre perfettamente riconoscibile.
Low Frequency Load Vented 2π sr NRS Configuration 3way floor standing
Drivers 1 Tweeter 27mm soft dome 1 Midrange 130mm Paper Compound 1 Woofer 130mm
Paper Compound Sensitivity 87dB SPL normalized to 1m with 2.83Vrms pink
noise within IEC 268-13 compliant listening room Low Frequency Cut Off
55Hz @ -3dB referred to C4 WETS Xover Frequencies 170/1,500Hz
Alignment LKR 4th order Rated Impedance 4Ω Suggested Ampilfier Rated
for 120W/4Ω max Average Power Size 860x170x290mm (HxWxD) Weight 15kg
Cabinet Finishing HDF natural wood veneered Speakers Orientation Tilted
inward facing the listener
1000T
mk2 The ideal solution to keep unchanged the amazing sound of
stand-mounted Hiper 1000 mk2, without a complex cabinet, but increasing dynamics
at very low frequencies by means of a dedicated down-firing subwoofer. Further,
the full 3-way system choice enables the upper woofermidrange pair to be free
from large-signal intermodulation allowing a more detailed listening. You’ll
always recognize Chario sound. Low Frequency Load Vented 2π sr NRS Configuration
3way floor standing Drivers 1 Tweeter 27mm soft dome1 Midrange 130mm Paper
Compound1 Woofer 130mm Paper Compound Sensitivity 87dB SPL normalized to 1m with
2.83Vrms pink noise within IEC268-13 compliant listening room Low Frequency Cut
Off 55Hz @ -3dB referred to C4 WETS Xover Frequencies 170/1,500Hz Alignment LKR
4th order Rated Impedance 4Ω Suggested Ampilfier Rated for 120W/4Ω max Average
Power Size 860x170x290mm (HxWxD) Weight 15kg Cabinet Finishing HDF natural wood
veneered Speakers Orientation Tilted inward facing the listener
CHARIO
2000Tmk2
€.854,00 Per
ordine e sconto
TELEFONARE/EMAIL
2000T mk2 Modello di punta
della Serie Hiper riunisce in sé le doti di precisione ereditate dal sistema
2000, arricchite all'estremo basso dalla proverbiale prestazione dinamica del
subwoofer in configurazione proprietaria NRS ( near reflective surface), vero
marchio di fabbrica dei sistemi da pavimento Chario. La tecnologia Chario è
sempre all'avanguardia. Low Frequency Load Vented 2π sr NRS Configuration
3way floor standing Drivers 1 Tweeter 27mm soft dome1 Midrange 170mm Paper
Compound1 Woofer 170mm Paper Compound Sensitivity 90dB SPL normalized to 1m with
2.83Vrms pink noise within IEC268-13 compliant listening room Low Frequency Cut
Off 50Hz @ -3dB referred to C4 WETS Xover Frequencies 180/1,350Hz Alignment LKR
4th order Rated Impedance 4Ω Suggested Ampilfier Rated for 140W/4Ω
max Average Power Size 960x210x325mm (HxWxD) Weight 21kg
Cabinet Finishing HDF natural wood veneered Speakers Orientation Tilted
inward facing the listener
This
is the flagship of Hiper mk2 Series. It is equipped with Hiper 2000 mk2 original
transducers plus a proprietary NRS configured subwoofer. This last one is a
wellrecognized feature implemented with all Chario floor-standing loudspeaker
systems. The outstanding performance of the Hiper 2000 Tower mk2 is due to the
full 3-way design that allows the front drivers to radiate a clean acoustical
wave. Because of a dedicated floor-matched subwoofer, high-excursion induced
signals at very low frequencies don’t interfere with the fine structure of the
middle range, providing the listener with a detailed listening. At Chario
Loudspeakers our own mission is thinking forward. Low Frequency Load Vented 2π
sr NRS Configuration 3way floor standing Drivers 1 Tweeter 27mm soft
dome 1 Midrange 170mm Paper Compound 1 Woofer 170mm Paper Compound
Sensitivity 90dB SPL normalized to 1m with 2.83Vrms pink noise within IEC 268-13
compliant listening room Low Frequency Cut Off 50Hz @ -3dB referred to C4
WETS Xover Frequencies 180/1,350Hz Alignment LKR 4th order
Rated Impedance 4Ω Suggested Ampilfier Rated for 140W/4Ω max Average Power
Size 960x210x325mm (HxWxD) Weight 21kg Cabinet Finishing HDF natural
wood veneered Speakers Orientation Tilted inward facing the listener
CHARIO
DIALOGUE
€.559,00 Per
ordine e sconto
TELEFONARE/EMAIL
Dialogue mk2 Canale centrale
per un sistema multicanale dotato della necessaria trasparenza nella delicata
gamma di frequenze del parlato. Derivato dal sistema Hiper 1000 sviluppato in
orizzontale, con l'aggiunta di un secondo woofer per rendere omogenea
l'emissione. Low Frequency Load Vented back firing – TV screen 2π sr
Configuration 2way Symmetrical Cosine Shaped radiation Drivers 1 Tweeter
27mm soft dome 2 Woofer 130mm Paper Compound Sensitivity 90dB SPL normalized to
1m with 2.83Vrms pink noise within IEC 268-13 compliant listening room Low
Frequency Cut Off 80Hz @ -3dB referred to C4 WETS Xover Frequency 1,500Hz
Alignment LKR 4th Order Rated Impedance 8Ω Suggested Ampilfier Rated
for 120W/8Ω max Average Power Size 170x380x280mm (HxWxD) Weight 8kg
Cabinet Finishing HDF natural wood veneered
The
Hiper Dialogue mk2 is a multichannel dedicated central speaker, whose primary
job is to deliver the listener a full detailed and intelligible speech. Nothing
is better than a small speaker for reproducing human voice nuances. So we
decided for a symmetrical horizontal array of Hiper 1000 mk2 drivers. This is
the right way to convey a stable yet large image to side listeners at right and
left hand of the “sweet spot”, avoiding altered timbre or fuzzy localization
cues. Chario Loudspeakers takes care of details. Low Frequency Load Vented back
firing – TV screen 2π sr Configuration 2way Symmetrical Cosine Shaped
radiation Drivers 1 Tweeter 27mm soft dome 2 Woofer 130mm Paper Compound
Sensitivity 90dB SPL normalized to 1m with 2.83Vrms pink noise within IEC 268-13
compliant listening room Low Frequency Cut Off 80Hz @ -3dB referred to C4
WETS Xover Frequency 1,500Hz Alignment LKR 4th Order Rated Impedance
8Ω Suggested Ampilfier Rated for 120W/8Ω max Average Power Size
170x380x280mm (HxWxD) Weight 8kg Cabinet Finishing HDF natural wood
veneered
CHARIO
SW2
€.1.239,00 Per
ordine e sconto
TELEFONARE/EMAIL
SW2 Subwoofer attivo di
esuberante potenza la cui sezione acustica adotta l'esclusiva tecnologia
Bi-Exponential Vent. Ancora una volta i risultati non hanno bisogno di commenti.
Amplifier Analogic Type Discrete BJT's Average Electrical Power 200W
Protection Yes Volume Control Yes Cut-Off Freq. Control Yes,
continuous Polarity Switch Yes Line Level Input Mono-Stereo
unbalanced RCA pin jack Acoustical Load Bass Reflex NRS with
bi-exponential vent Driver 320 mm Coated Paper Low Pass Xover
40-180Hz Active 2nd order Weight 27kg Cabinet Finishing HDF natural wood
veneered Size 490x380x490mm (HxWxD)
SW2
The need for increased dynamics at very low frequencies has forced the audio
research toward exclusive loudspeakers driven by dedicated power amplifiers.
Active subwoofers is the name given to these systems, whose job is the
reproduction of special effects of movie soundtracks (Home Theater) or the
extremely low components of musical tones. Chario Loudspeakers entrusted Hiper
SW2 with this difficult task, a powerful high performance active subwoofer
featuring the proprietary Bi-Exponential Vent bass reflex technology. The
remarkable achievement doesn’t call for further comment. Amplifier
Analogic Type Discrete BJT's Average Electrical Power 200W
Protection Yes Volume Control Yes Cut-Off Freq. Control Yes,
continuous Polarity Switch Yes Line Level Input Mono-Stereo unbalanced RCA
pin jack Acoustical Load Bass Reflex NRS with bi-exponential vent
Driver 320 mm Coated Paper Low Pass Xover 40-180Hz Active 2nd order
Weight 27kg Cabinet Finishing HDF natural wood veneered Size
490x380x490mm (HxWxD
SERIE SILVERETTE
Rappresenta la naturale
evoluzione della Serie Reference, dalla quale eredita la piena capacità di
fornire una prestazione naturale in ambienti di ascolto dalle valide
caratteristiche acustiche di assorbimento e diffusione. Compito non semplice
considerando il posizionamento "entry level" di questi sistemi nel panorama
della produzione Chario. Caratterizzata da un tweeter a cupola morbida in
silk-alloy e da un woofer in polimero caricato, sfoggia prestazioni che
trascendono ampiamente il segmento di mercato di appartenenza.
CHARIO
100
€.244,00 Per
ordine e sconto
TELEFONARE/EMAIL
Low
Frequency Load Vented NRS Configuration 2way Drivers 1 Tweeter 26mm
SILK-ALLOY soft dome 1 Woofer 130mm Polymeric Compound & Carbon Fiber
Sensitivity 87dB SPL normalized to 1m with 2.83Vrms pink noise within IEC 268-13
compliant listening room Low Frequency Cut Off 70Hz @ -3dB referred to C4
WETS Xover Frequency 1,750Hz Rated Impedance 8Ω Suggested Ampilfier Rated
for 80W/8Ω max Average Power Size 340x165x290mm (HxWxD) Weight 7kg
Cabinet Finishing HDF natural wood veneered Optional Stand Weight 6kg Size
630x260x310mm (HxWxD) Natural wood veneered HDF
.jpg)
CHARIO
200
€.299,00 Per
ordine e sconto
TELEFONARE/EMAIL
Low
Frequency Load Vented NRS Configuration 2way Drivers 1 Tweeter 26mm
SILK-ALLOY soft dome 1 Woofer 160mm Polymeric Compound & Carbon Fiber
Sensitivity 88dB SPL normalized to 1m with 2.83Vrms pink noise within IEC 268-13
compliant listening room Low Frequency Cut Off 60Hz @ -3dB referred to C4
WETS Xover Frequency 1,850Hz Rated Impedance 8Ω Suggested
Ampilfier Rated for 100W/8Ω max Average Power Size 370x180x300mm (HxWxD)
Weight 8kg Cabinet Finishing HDF natural wood veneered Optional
Stand Weight 5kg Size 630x260x310mm (HxWxD) Natural wood veneered HDF
.jpg)
CHARIO
300 €.399,00 Per
ordine e sconto
TELEFONARE/EMAIL
300
Low Frequency Load Vented NRS Configuration 3way Drivers 1 Tweeter
26mm SILK-ALLOY soft dome 1 Midrange 130mm Polymeric Compound & Carbon Fiber 1
Woofer 160mm Polymeric Compound & Carbon Fiber Sensitivity 88dB SPL
normalized to 1m with 2.83Vrms pink noise within IEC 268-13 compliant listening
room Low Frequency Cut Off 60Hz @ -3dB referred to C4 WETS
Overlapping Points 650/1,100/1,650Hz Alignment WMTTM Array Rated
Impedance 4Ω Suggested Ampilfier Rated for 100W/4Ω max Average Power Size
500x205x300mm (HxWxD) Weight 9.5kg Cabinet Finishing HDF natural
wood veneered Optional Stand Weight 5kg Size 630x260x310mm (HxWxD) Natural
wood veneered HDF
CHARIO
100T €.519,00 Per
ordine e sconto
TELEFONARE/EMAIL
Low
Frequency Load Vented 2π sr NRS Configuration 3way floor standing Drivers
1 Tweeter 26mm SILK-ALLOY soft dome 1 Midrange 130mm Polymeric Compound & Carbon
Fiber1 Woofer 130mm Polymeric Compound & Carbon Fiber Sensitivity 88dB SPL
normalized to 1m with 2.83Vrms pink noise within IEC268-13 compliant listening
room Low Frequency Cut Off 60Hz @ -3dB referred to C4 WETS Xover
Frequencies 260/1,650Hz Rated Impedance 4Ω Suggested Ampilfier Rated
for 100W/4Ω max Average Power Size 880x165x310mm (HxWxD) Weight 15kg
Cabinet Finishing HDF natural wood veneered
CHARIO
200T €.649,00 Per
ordine e sconto
TELEFONARE/EMAIL
160mm
Polymeric Compound & Carbon Fiber1 Woofer 160mm Polymeric Compound & Carbon
Fiber Sensitivity 88dB SPL normalized to 1m with 2.83Vrms pink noise within IEC
268-13 compliant listening room Low Frequency Cut Off 50Hz @ -3dB referred to C4
WETS Xover Frequencies 260/1,650Hz Rated Impedance 4Ω Suggested Ampilfier Rated
for 120W/4Ω max Average Power Size 960x180x310mm (HxWxD) Weight 19kg
Cabinet Finishing HDF natural wood
CHARIO
DIALOGUE
€.379,00 Per
ordine e sconto
TELEFONARE/EMAIL
Low
Frequency Load Vented back firing – TV screen 2π sr Configuration 2way
Symmetrical Cosine Shaped radiation Drivers 1 Tweeter 26mm SILK-ALLOY soft
dome 2 Woofers 130mm Polymeric Compound & Carbon Fiber Sensitivity 88dB
SPL normalized to 1m with 2.83Vrms pink noise within IEC 268-13 compliant
listening room Low Frequency Cut Off 80Hz @ -3dB referred to C4 WETS
Xover Frequency 1,950Hz Rated Impedance 8Ω Suggested Ampilfier Rated
for 80W/8Ω max Average Power Size 185x490x210mm (HxWxD) Weight 7kg
Cabinet Finishing HDF natural wood veneered
.jpg)
CHARIO
SOURROUND
€.218,00 Per
ordine e sconto
TELEFONARE/EMAIL
Low
Frequency Load Sealed 2π sr Configuration 2way Drivers 1 Tweeter 26mm SILK-ALLOY
soft dome 1 Woofer 130mm Polymeric Compound & Carbon Fiber
Sensitivity 87dB SPL normalized to 1m with 2.83Vrms pink noise within IEC 268-13
compliant listening room Low Frequency Cut Off 100Hz @ -3dB referred to C4
WETS Xover Frequency 1,750Hz Rated Impedance 8Ω Suggested
Ampilfier Rated for 80W/8Ω max Average Power Size 340x165x115mm (HxWxD)
Weight 3kg Cabinet Finishing HDF natural wood veneered Optional
Brass Wall Bracket
CHARIO
SW1
€.729,00 Per
ordine e sconto
TELEFONARE/EMAIL
Amplifier
Analogic Type Discrete BJT's Average Electrical Power 100W Protection Yes Volume
Control Yes Cut-Off Freq. Control Yes, continuous Polarity Switch Yes Line Level
Input Mono-Stereo unbalanced RCA pin jack Acoustical Load Bass Reflex NRS
with bi-exponential vent Driver 200 mm Polymeric Compound Low Pass
Xover 40-180Hz Active 2nd order Weight 18kg Cabinet Finishing HDF natural
wood veneered Size 380x290x390mm (HxWxD)
SERIE SILUETTE
Ha raccolto il testimone della
storica serie Syntar che per sedici anni ha mietuto successi in tutto il mondo.
Rinnovati gli altoparlanti, rinnovato il cabinet, rinnovata l'estetica ma
lasciati inalterati i principi costruttivi e di progetto che hanno fatto di
quella serie il "Best Buy" di riferimento. Peculiarità indiscussa della Serie
Silhouette è la grande duttilità, che consente il raggiungimento di una
equilibrata riproduzione in qualsiasi tipo di ambiente, anche i meno adatti
sotto il profilo acustico
CHARIO
100
€.237,00 Per
ordine e sconto
TELEFONARE/EMAIL
Low
Frequency Load Vented NRS Configuration 2way Drivers 1 Tweeter 26mm
soft dome 1 Woofer 130mm Polymeric Compound Sensitivity 87dB SPL
normalized to 1m with 2.83Vrms pink noise within IEC268-13 compliant listening
room Low Frequency Cut Off 70Hz @ -3dB referred to C4 WETS Xover
Frequency 1,650Hz Rated Impedance 8Ω Suggested Ampilfier Rated for
80W/8Ω max Average Power Size 340x165x290mm (HxWxD) Weight 7kg
Cabinet Finishing HDF natural wood veneered Optional Stand Weight 5k Size
630x260x310mm (HxWxD) Natural wood veneered HDF
CHARIO
200
€.284,00 Per
ordine e sconto
TELEFONARE/EMAIL
Low
Frequency Load Vented NRS Configuration 2way Drivers 1 Tweeter 26mm
soft dome 1 Woofer 160mm Polymeric Compound Sensitivity 88dB SPL
normalized to 1m with 2.83Vrms pink noise within IEC 268-13 compliant listening
room Low Frequency Cut Off 60Hz @ -3dB referred to C4 WETS Xover
Frequency 1,750Hz Rated Impedance 8Ω Suggested Ampilfier Rated for
100W/8Ω max Average Power Size 370x180x300mm (HxWxD) Weight 8kg
Cabinet Finishing HDF natural wood veneered Optional Stand Weight 5kg
Size 630x260x310mm (HxWxD) Natural wood veneered HDF
CHARIO
300
€.387,00 Per
ordine e sconto
TELEFONARE/EMAIL
Low
Frequency Load Vented NRS Configuration 3way Drivers 1 Tweeter 26mm
soft dome 1 Midrange 130mm Polymeric Compound 1 Woofer 160mm Polymeric
Compound Sensitivity 88dB SPL normalized to 1m with 2.83Vrms pink noise
within IEC 268-13 compliant listening room Low Frequency Cut Off 60Hz @
-3dB referred to C4 WETS Overlapping Points 650/1,100/1,650Hz
Alignment WMTTM Array Rated Impedance 4Ω Suggested Ampilfier Rated
for 100W/4Ω max Average Power Size 500x205x300mm (HxWxD) Weight
9.5kg Cabinet Finishing HDF natural wood veneered Optional Stand
Weight 5kg Size 630x260x310mm (HxWxD) Natural wood veneered HDF
.jpg)
CHARIO
100T
€.499,00 Per
ordine e sconto
TELEFONARE/EMAIL
Low
Frequency Load Vented 2π sr NRS Configuration 3way floor standing
Drivers 1 Tweeter 26mm soft dome 1 Midrange 130mm Polymeric Compound 1 Woofer
130mm Polymeric Compound Sensitivity 88dB SPL normalized to 1m with
2.83Vrms pink noise within IEC 268-13 compliant listening room Low
Frequency Cut Off 60Hz @ -3dB referred to C4 WETS Xover Frequencies
260/1,600Hz Rated Impedance 4Ω Suggested Ampilfier Rated for 100W/4Ω
max Average Power Size 880x165x290mm (HxWxD) Weight 15kg
Cabinet Finishing HDF natural wood veneered
CHARIO
200T
€.619,00 Per
ordine e sconto
TELEFONARE/EMAIL
Low
Frequency Load Vented 2π sr NRS Configuration 3way floor standing
Drivers 1 Tweeter 26mm soft dome 1 Midrange 160mm Polymeric Compound 1 Woofer
160mm Polymeric Compound Sensitivity 88dB SPL normalized to 1m with
2.83Vrms pink noise within IEC 268-13 compliant listening room Low
Frequency Cut Off 50Hz @ -3dB referred to C4 WETS Xover Frequencies
200/1,600Hz Rated Impedance 4Ω Suggested Ampilfier Rated for 120W/4Ω
max Average Power Size 960x180x310mm (HxWxD) Weight 19kg
Cabinet Finishing HDF natural wood veneered
CHARIO
DIALOGUE
€.359,00 Per
ordine e sconto
TELEFONARE/EMAIL
Low
Frequency Load Vented back firing – TV screen 2π sr Configuration 2way
Symmetrical Cosine Shaped radiation Drivers 1 Tweeter 26mm soft dome 2
Woofers 130mm Polymeric Compound Sensitivity 88dB SPL normalized to 1m
with 2.83Vrms pink noise within IEC 268-13 compliant listening room Low
Frequency Cut Off 80Hz @ -3dB referred to C4 WETS Xover Frequency 1,950Hz
Rated Impedance 8Ω Suggested Ampilfier Rated for 80W/8Ω max Average Power
Size 185x490x210mm (HxWxD) Weight 7kg Cabinet Finishing HDF natural wood
veneered
.jpg)
CHARIO
SOURROUND
€.209,00 Per
ordine e sconto
TELEFONARE/EMAIL
2.83Vrms
pink noise within IEC 268-13 compliant listening room Low Frequency Cut
Off 100Hz @ -3dB referred to C4 WETS Xover Frequency 1,750Hz Rated
Impedance 8Ω Suggested Ampilfier Rated for 80W/8Ω max Average Power
Size 340x165x115mm (HxWxD) Weight 3kg Cabinet Finishing HDF natural
wood veneered Optional Brass Wall Bracket
CHARIO
SW1
€.729,00 Per
ordine e sconto
TELEFONARE/EMAIL
Amplifier
Analogic Type Discrete BJT's Average Electrical Power 100W
Protection Yes Volume Control Yes Cut-Off Freq. Control Yes,
continuous Polarity Switch Yes Line Level Input Mono-Stereo
unbalanced RCA pin jack Acoustical Load Bass Reflex NRS with
bi-exponential vent Driver 200 mm Polymeric Compound Low Pass Xover
40-180Hz Active 2nd order Weight 18kg Cabinet Finishing HDF natural
wood veneered Size 380x290x390mm (HxWxD
SERIE PICCOLO STAR
Da quando il sistema Piccolo
Classic è stato introdotto, ha ricevuto riconoscimenti e plausi da tutto il
mondo per il suo originale contenuto tecnico, più volte affermato dalle prove
effettuate sulle maggiori testate di settore. Ma oggi il suo "valore percepito"
è stato ulteriormente aumentato grazie ad alcune innovazioni:Tweeter da 26mm in
Poly-silk con volume di decompressione senza ferrofluido; Woofer in
composto polimerico & fibra di carbonio; Crossover con componenti Hi-Grade;
Cabinet con struttura "Doppio Corpo" in legno massello & HDF (Serie
Constellation).
CHARIO
STAR
SAT
€.309,00 Per
ordine e sconto
TELEFONARE/EMAIL
STAR SAT VERSIONE K
249,00 euro -Versione K high gloss 289,00 euro
Satellite
EISA AWARD 2002-2003 WINNER IMPROVED VERSION Low Frequency Load Vented NRS
Configuration 2way Drivers 1 Tweeter 26mm Silk-Alloy soft dome1 Woofer 100mm
Polymeric Compound & Aluminium Sensitivity 88dB SPL normalized to 1m with
2.83Vrms pink noise within IEC 268-13 compliant listening room (*) Low Frequency
Cut Off 90Hz @ -3dB referred to C4 WETS Xover Frequency 1,450Hz Rated Impedance
8Ω Suggested Ampilfier Rated for 80W/8Ω max Average Power Size 250x135x200mm (HxWxD)
Weight 3kg Cabinet Finishing Solid maple and silver painted HDF
.jpg)
CHARIO
STAR
DIALOGUE
€.499,00 Per
ordine e sconto
TELEFONARE/EMAIL
STAR DIALOGUE VERSIONE
K 399,00 euro -Versione K high gloss 459,00 euro
Dialogue
MEISA AWARD 2002-2003 WINNER IMPROVED VERSION Low Frequency Load Vented NRS – TV
screen 2π sr Drivers 1 Tweeter 26mm Silk-Alloy soft dome 2 Woofers 100mm
Polymeric Compound & Aluminium Sensitivity 88dB SPL normalized to 1m with
2.83Vrms pink noise within IEC 268-13 compliant listening room (*) Low Frequency
Cut Off 90Hz @ -3dB referred to C4 WETS Xover Frequency 1,450Hz Rated Impedance
8Ω Suggested Ampilfier Rated for 80W/8Ω max Average Power Size 170x360x195mm (HxWxD)
Weight 6.5kg Cabinet Finishing Solid maple and silver painted HDF
.jpg)
CHARIO
STAR
SW1
€.889,00 Per
ordine e sconto
TELEFONARE/EMAIL
STAR Sw1 VERSIONE
K 719,00 euro -Versione K nero high gloss 849,00 euro
SW1
EISA AWARD 2002-2003 WINNER IMPROVED VERSION Amplifier Analogic Type Discrete
BJT's Average Electrical Power 100W Protection Yes Volume
Control Yes Cut-Off Freq. Control Yes, continuous Polarity Switch
Yes Line Level Input Mono-Stereo unbalanced RCA pin jack Acoustical
Load Bass Reflex NRS with bi-exponential vent Driver 200 mm Polymeric
Compound Low Pass Xover 40-180Hz Active 2nd order Weight 22kg
Cabinet Finishing Solid maple and silver painted HDF Size 480x265x455mm (HxWxD)
CHARIO
STAR
SAT KIT €.2.579,00 Per
ordine e sconto
TELEFONARE/EMAIL
STAR SAT KIT
VERSIONE K 2.059,00 euro -Versione K nero high gloss
2.349,00 euro
SERIE PICCOLO CLASSIC
Vincitore del premio
Internazionale EISA 2002-2003 quale miglior Home Theater 5.1 Set nella sua
classe di appartenenza, Piccolo Classic è un mini sistema nato per portare la
stereofonia multicanale in luoghi di ascolto di dimensioni contenute, ma con la
versatilità della riproduzione audio ad Alta Definizione. Un Piccolo miracolo?
CHARIO
CLASSIC
SAT
€.214,00 Per
ordine e sconto
TELEFONARE/EMAIL
Low
Frequency Load Vented NRS Configuration 2way Drivers 1 Tweeter 26mm
soft dome1 Woofer 100mm Polymeric Compound Sensitivity 88dB SPL normalized to 1m
with 2.83Vrms pink noise within IEC 268-13 compliant listening room (*) Low
Frequency Cut Off 90Hz @ -3dB referred to C4 WETS Xover Frequency 1,350Hz
Rated Impedance 8Ω Suggested Ampilfier Rated for 80W/8Ω max Average Power
Size 230x130x195mm (HxWxD) Weight 3kg Cabinet Finishing HDF natural
wood veneered Optional Stand Front Weight 5kg Size 750x350x280mm (HxWxD)
Natural wood veneered HDF Optional Stand Rear Weight 6kg Size
1000x350x280mm (HxWxD) Natural wood veneered HDF
CHARIO
CLASSIC
DIALOGUE
€.499,00 Per
Prezzo
scontato
TELEFONA / E-MAIL
Dialogue
EISA AWARD 2002-2003 WINNER Low Frequency Load Vented NRS – TV screen 2π sr
Drivers 1 Tweeter 26mm soft dome2 Woofers 100mm Polymeric Compound Sensitivity
88dB SPL normalized to 1m with 2.83Vrms pink noise within IEC 268-13 compliant
listening room (*) Low Frequency Cut Off 90Hz @ -3dB referred to C4 WETS Xover
Frequency 1,350Hz Rated Impedance 8Ω Suggested Ampilfier Rated for 80W/8Ω max
Average Power Size 150x340x195mm (HxWxD) Weight 4kg Cabinet Finishing HDF
natural wood veneered
CHARIO
CLASSIC
SW1
€.899,00 Per
Prezzo
scontato
TELEFONA / E-MAIL
SW1
EISA AWARD 2002-2003 WINNER Amplifier Analogic Type Discrete BJT's Average
Electrical Power 100W Protection Yes Volume Control Yes Cut-Off Freq. Control
Yes, continuous Polarity Switch Yes Line Level Input Mono-Stereo
unbalanced RCA pin jack Acoustical Load Bass Reflex NRS with
bi-exponential vent Driver 200 mm Polymeric Compound Low Pass Xover 40-180Hz
Active 2nd order Weight 18kg Cabinet Finishing HDF natural wood veneered
Size 380x290x390mm (HxWxD)
CHARIO
STAR
SAT KIT €.1.869,00 Per
ordine e sconto
TELEFONARE/EMAIL
.jpg)
Da quando il sistema Piccolo
Classic è stato introdotto, ha ricevuto riconoscimenti e plausi da tutto il
mondo per il suo originale contenuto tecnico, più volte affermato dalle prove
effettuate sulle maggiori testate di settore. Ma oggi il suo "valore percepito"
è stato ulteriormente aumentato grazie ad alcune innovazioni:Tweeter da 26mm in
Silk- Alloy con volume di decompressione senza ferrofluido;
Woofer in composto polimerico & alluminio; Crossover con componenti Hi-Grade;
Cabinet con struttura "Doppio Corpo" in legno massello & HDF (Serie
Constellation).
CHARIO
HI-TECH
SAT
€.314,00 Per
ordine e sconto
TELEFONARE/EMAIL
Satellite
EISA AWARD 2002-2003 WINNER IMPROVED VERSION Low Frequency Load Vented NRS
Configuration 2way Drivers 1 Tweeter 26mm Silk-Alloy soft dome1 Woofer 100mm
Polymeric Compound & Aluminium Sensitivity 88dB SPL normalized to 1m with
2.83Vrms pink noise within IEC 268-13 compliant listening room (*) Low Frequency
Cut Off 90Hz @ -3dB referred to C4 WETS Xover Frequency 1,450Hz Rated Impedance
8Ω Suggested Ampilfier Rated for 80W/8Ω max Average Power Size 250x135x200mm (HxWxD)
Weight 3kg Cabinet Finishing Solid maple and silver painted HDF
CHARIO
HI-TECH
DIALOGUE
€.509,00 Per
ordine e sconto
TELEFONARE/EMAIL
Dialogue
MEISA AWARD 2002-2003 WINNER IMPROVED VERSION Low Frequency Load Vented NRS – TV
screen 2π sr Drivers 1 Tweeter 26mm Silk-Alloy soft dome 2 Woofers 100mm
Polymeric Compound & Aluminium Sensitivity 88dB SPL normalized to 1m with
2.83Vrms pink noise within IEC 268-13 compliant listening room (*) Low Frequency
Cut Off 90Hz @ -3dB referred to C4 WETS Xover Frequency 1,450Hz Rated Impedance
8Ω Suggested Ampilfier Rated for 80W/8Ω max Average Power Size 170x360x195mm (HxWxD)
Weight 6.5kg Cabinet Finishing Solid maple and silver painted HDF
CHARIO
HI-TECH
SW1
€.899,00 Per
ordine e sconto
TELEFONARE/EMAIL
SW1
EISA AWARD 2002-2003 WINNER IMPROVED VERSION Amplifier Analogic Type Discrete
BJT's Average Electrical Power 100W Protection Yes Volume
Control Yes Cut-Off Freq. Control Yes, continuous Polarity Switch
Yes Line Level Input Mono-Stereo unbalanced RCA pin jack Acoustical
Load Bass Reflex NRS with bi-exponential vent Driver 200 mm Polymeric
Compound Low Pass Xover 40-180Hz Active 2nd order Weight 22kg
Cabinet Finishing Solid maple and silver painted HDF Size 480x265x455mm (HxWxD)
CHARIO
HI-TECH
KIT €.2.649,00 Per
ordine e sconto
TELEFONARE/EMAIL
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
 Clicca
per qui per vedere : DATI TECNICI SPECIFICHE
PRODOTTO
Attenzione
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a info@sinergy.us
info@newaudio.it
Il presente listino
sostituisce ed annulla ogni precedente.I prezzi indicati si
riferiscono a singolo diffusore.
Le caratteristiche e i prezzi indicati possono variare senza
preavviso telefonare o inviare un e-mail per ulteriori domande e
conferme sui prezzi sopra riportati.
Prezzi
franco
nostro magazzino
Nota bene
Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
|
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.png){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
